Dye Sensitization for Ultraviolet Upconversion Enhancement

Abstract

Upconversion nanocrystals that converted near-infrared radiation into emission in the ultraviolet spectral region offer many exciting opportunities for drug release, photocatalysis, photodynamic therapy, and solid-state lasing. However, a key challenge is the development of lanthanide-doped nanocrystals with efficient ultraviolet emission, due to low conversion efficiency. Here, we develop a dye-sensitized, heterogeneous core–multishelled lanthanide nanoparticle for ultraviolet upconversion enhancement. We systematically study the main influencing factors on ultraviolet upconversion emission, including dye concentration, excitation wavelength, and dye-sensitizer distance. Interestingly, our experimental results demonstrate a largely promoted multiphoton upconversion. The underlying mechanism and detailed energy transfer pathway are illustrated. These findings offer insights into future developments of highly ultraviolet-emissive nanohybrids and provide more opportunities for applications in photo-catalysis, biomedicine, and environmental science.

1. Introduction

Lanthanide-doped upconversion nanoparticles can absorb near-infrared (NIR) laser light and emit visible and ultraviolet light, with potential applications in bioimaging [1,2,3,4,5], biotherapy [6,7,8,9,10,11,12], and so on. In particular, the applications of these nanoparticles in optogenetic [13,14], photothermal [15,16], and photodynamic [17,18,19] therapy could be achieved via ultraviolet (UV) light emission under NIR excitation. Although UV light can be obtained by Nd³⁺- and Yb³⁺-sensitized upconversion [17,18,20,21], it is challenging to realize the high luminescence intensity needed to satisfy the minimum requirement of biological applications. This obstacle can be addressed in several ways: by controlling dopant composition [22], nanoparticle phase and size [23], excitation beam pulse width [24], and nanoparticle core–shell design [21,25,26,27,28,29]. Very recently, our group has made significant progress in overcoming the difficulty using an upconverted excitation lock-in (UCEL) strategy [30].

Hybrid systems are composed of inorganic nanoparticles and an organic dye, which can significantly strengthen the absorbance and expand the absorbance spectra of inorganic nanoparticles [31], leading to enhancement of their emission intensities. It has been demonstrated that NIR dye can effectively enhance the upconversion emission of lanthanide-doped nanoparticles [14,32,33,34]. However, previous studies have mainly focused on the analysis of visible upconversion emission. Little effort has been made to develop a hybrid nanoparticle with enhanced UV luminescence.

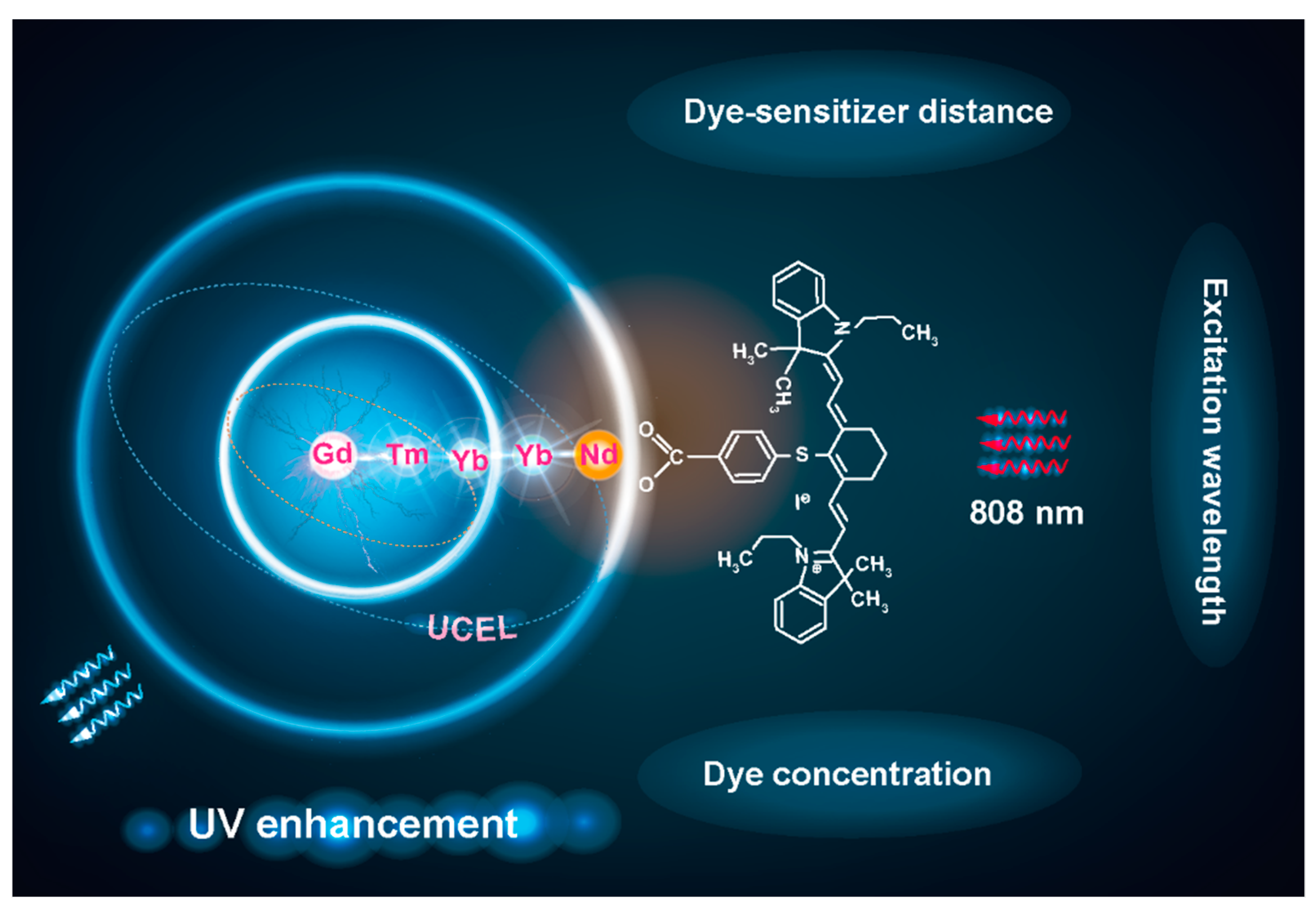

In this study, we developed IR-806-loaded upconversion nanoparticles (Gd-CS_YS₂S₃@IR-806) with enhanced upconversion emission in the UV spectral region. The key factors that influence upconversion emission were studied, including dye concentration, excitation wavelength, and distance between the dye and the sensitizer Nd³⁺ (Scheme 1). We also demonstrated the dominant effect of ligand loading on multiphoton upconversion. In addition, the upconversion mechanism and the energy transfer pathway in Gd-CS_YS₂S₃@IR-806 hybrid nanoparticles were carefully studied. This study provides new insights into the mechanistic understanding of UV upconversion luminescence in hybrid nanoparticles and enables new opportunities for these nanomaterials in a broad range of applications.

2. Materials and Methods

2.1. Materials

Gd(CH₃CO₂)₃·xH₂O (99.9%), Nd(CH₃CO₂)₃·xH₂O (99.9%), Y(CH₃CO₂)₃·xH₂O (99.9%), Yb(CH₃CO₂)₃·xH₂O (99.9%), Tm(CH₃CO₂)₃·xH₂O (99.9%), NaOH (>98%), NH₄F (>98%), chloroform(99.9%), oleic acid (OA, 90%), and 1-octadecene (ODE, 90%) were all purchased from Sigma-Aldrich (Shanghai, China). IR-806 is supported by Dr. Sanyang Han from the University of Cambridge. IR-780 iodide, 4-mercaptobenzoic acid, and N,N-dimethylformamide (DMF, anhydrous, 99.8%), as raw materials of IR-806, were obtained from Sigma-Aldrich (London, UK). Dichloromethane (DCM, AR) and diethyl ether (AR), as solvents for the synthesis of IR-806, were obtained from Lab-Scan (London, United Kingdom). Chloroform (AR), cyclohexane (AR), and ethanol (AR) were purchased from Sinopharm Chemical Reagent Co., Ltd. (Shanghai, China). All chemicals and reagents were used as received without further purification unless otherwise noted.

2.2. Characterization

Luminescence emission measurements were obtained with an FS5 (Edinburgh, UK) conjugated with 808 nm (CNI, MDL-III-808-2.5W, China), 793 nm (CNI, MDL-III-793-2.0W, China), and 980 nm (CNI, MDLIII-980-2.0W, China) diode lasers at room temperature. The decay curves were recorded by a lifetime spectrometer (FS5, Edinburgh, UK), in conjunction with pulsed 808 nm, 793 nm, and 980 nm diode lasers and a picosecond pulsed light emitting diode (EPLED-270). Low-resolution transmission electron microscopy (TEM) measurements were carried out on an HT7700 field emission transmission electron microscope operated at an acceleration voltage of 120 kV. The energy-dispersive X-ray (EDX) spectrum was obtained with an HT7700 field emission transmission electron microscope equipped with an Oxford Instruments system. High-resolution TEM images were obtained using an FEI Talos F200S transmission electron microscope operated at an acceleration voltage of 200 kV. HAADF-STEM and elemental mapping images were obtained using an FEI Talos F200X transmission electron microscope. Powder X-ray diffraction (XRD) analysis was performed on a Rigaku D/Max-2200 system equipped with a rotating anode and a Cu Kα radiation source (λ = 0.15418 nm). The excitation power density was measured using a TS5 laser power densitometer (Changchun New Industries Optoelectronics Technology, China). UV–vis absorption spectra were obtained using a PerkinElmer LAMBDA 750 ultraviolet–visible–near-infrared spectrometer and a Hitachi U-3010 spectrophotometer. All spectra were recorded under identical experimental conditions unless otherwise noted. Key experiments were repeated three times, and all other experiments were repeated twice.

2.3. Method

2.3.1. Synthesis of NaGdF₄:49%Yb,1%Tm Core Nanocrystals

NaGdF₄ doped with 49 mol % of Yb and 1 mol % of Tm (NaGdF₄:49%Yb,1%Tm) was synthesized via a modified literature procedure [28,35,36]. A water solution of Gd(CH₃CO₂)₃ (0.067 g; 0.2 mmol), Yb(CH₃CO₂)₃ (0.069 g; 0.196 mmol), and Tm(CH₃CO₂)₃ (0.001 g; 0.004 mmol) was combined with OA (5 mL) and ODE (5 mL) in a 50 mL two-neck round-bottom flask. The mixture was heated to 150 °C and maintained at this temperature for 1.5 h to form the lanthanide–oleate precursor. After cooling to 50 °C, a methanol solution consisting of NH₄F (0.05 g; 1.36 mmol) and NaOH (0.04 g; 1 mmol) was added to the mixture and stirred for 30 min. The solution was heated to 100 °C for 20 min in vacuo to remove methanol. The resulting solution was quickly heated to 300 °C and maintained at this temperature for 1.5 h with nitrogen before cooling to room temperature. The obtained nanocrystals were precipitated by centrifugation at 8000 rpm for 5 min and then washed with cyclohexane and ethanol three times. The core nanoparticles were dispersed in cyclohexane (4 mL) for further shell coating.

2.3.2. Synthesis of NaGdF₄:49%Yb,1%Tm@NaYF₄:20%Yb Core–Shell Nanocrystals

The synthesis procedure for core–shell nanoparticles was similar to that in our previous paper [36]. We use the obtained NaGdF₄:49%Yb,1%Tm nanocrystals as seeds for subsequent shell coating. NaYF₄ with 20 mol % of Yb (NaYF₄:20%Yb) precursor was prepared via the same procedure as mentioned above, except that different amounts of OA (3 mL) and ODE (7 mL) were used. After cooling to 80 °C, the cyclohexane solution of NaGdF₄:Yb/Tm nanoparticles (4 mL) was added and kept at 80 °C for 30 min to remove cyclohexane. Then, a methanol solution of NH₄F (0.05 g; 1.36 mmol) and NaOH (0.04 g; 1 mmol) was added to the mixture and stirred at 50 °C for 30 min. Subsequently, the mixture was heated to 100 °C for 20 min in vacuo to remove methanol. The solution was then heated to 300 °C for 1.5 h under a nitrogen atmosphere. After cooling to room temperature, the core–shell nanoparticles were collected and washed using the same post-treatment approach as for core nanocrystals. NaGdF₄@NaGdF₄:49%Yb,1%Tm and NaYF₄@NaGdF₄:49%Yb,1%Tm were synthesized using a similar method to core–shell nanocrystals except for the use of NaGdF₄ and NaYF₄ as seeds.

2.3.3. Synthesis of NaGdF₄:49%Yb,1%Tm@NaYF₄:20%Yb@NaGdF₄:50%Nd,10%Yb and NaGdF₄:49%Yb,1%Tm@NaYF₄:20%Yb@NaGdF₄:50%Nd,10%Yb@NaGdF₄ Core–Multishell Nanocrystals

The following multishelled core–shell nanoparticles were prepared using a procedure similar to the NaGdF₄:49%Yb,1%Tm@NaYF₄:20%Yb core–shell nanoparticles: NaGdF₄@NaGdF₄:49%Yb,1%Tm@ NaYF₄:20%Yb; NaYF₄@NaGdF₄:49%Yb,1%Tm@NaYF₄: 20%Yb; NaGdF₄@NaGdF₄:49%Yb, 1%Tm@NaYF₄:20%Yb@NaGdF₄:50%Nd,10%Yb; NaYF₄ @NaGdF₄:49%Yb,1%Tm@NaYF₄:20%Yb@NaGdF₄:50%Nd,10%Yb;NaGdF₄@NaGdF₄:49%Yb,1%Tm@NaYF₄:20%Yb@NaGdF₄:50%Nd,10%Yb@NaGdF₄; NaYF₄@NaGdF₄:49%Yb,1% Tm@NaYF₄:20%Yb@ NaGdF₄:50%Nd,10%Yb@NaGdF₄.

2.3.4. Preparation of Dye-Sensitized Upconversion Nanoparticles

The synthesis of IR-806 followed a well-established method [32]. Then, the IR-806 was dissolved in CHCl₃ (0.01 mg/mL). The as-prepared core–multishell nanocrystals were centrifuged and dissolved in CHCl₃ to a final concentration of 0.375 mg/mL. The samples were prepared by adding different amounts of IR-806 to Gd-CS_YS₂S₃ CHCl₃ solution (4 mL) and stirring for 2 h at a speed of 700 rpm at room temperature before UV–vis–NIR absorption and standard fluorescence measurements. All samples were prepared and measured in a dark environment.

3. Results

3.1. Synthesis of Core–Multishell Upconversion Nanoparticles

We previously designed a heterogeneous core–multishell nanoparticle with enhanced UV upconversion emission, involving six- and five-photon upconversion processes [30]. The optimum doping concentration and nanoparticle design were determined according to our previous reports [36]. From our previous photoluminescence results, the optimized nanostructure was determined to be NaGdF₄:49%Yb/1%Tm@NaGdF₄:20%Yb@ NaGdF₄:10%Yb/50%Nd@NaGdF₄. Recently, we found that when the NaGdF₄:20%Yb was replaced with NaYF₄:20%Yb, UV emission was significantly enhanced due to the effective suppression of energy consumption induced by interior energy traps. Herein, we chose this heterogeneous nanostructure as an experimental model to further enhance upconversion emission in the UV range. We first synthesized the core–multishell NaGdF₄:49%Yb,1%Tm@NaYF₄:20%Yb@NaGdF₄:10%Yb,50%Nd@NaGdF₄ (Gd-CS_YS₂S₃) nanoparticles using a layer epitaxial growth method. Transmission electron microscopy (TEM) images showed that the nanoparticles had a uniform size of about 28 nm and the thickness of each layer was ~2 nm (Figure S1). The as-prepared nanoparticles were identified as the hexagonal phase by X-ray powder diffraction (XRD, JCPDS file number 27-0699, Figure S2). In addition, the constitution of the heterogeneous core–multishell nanostructures was confirmed by high-angle annular dark-field scanning transmission electron microscopy (HAADF-STEM), elemental mapping images and energy dispersive X-ray (EDX) spectra (Figure 1b,c, Figures S3 and S4), where brighter regions correspond to heavier elements (Gd, Yb, and Nd) and lighter regions correspond to lighter elements (Y).

3.2. Remarkable UV Enhancement

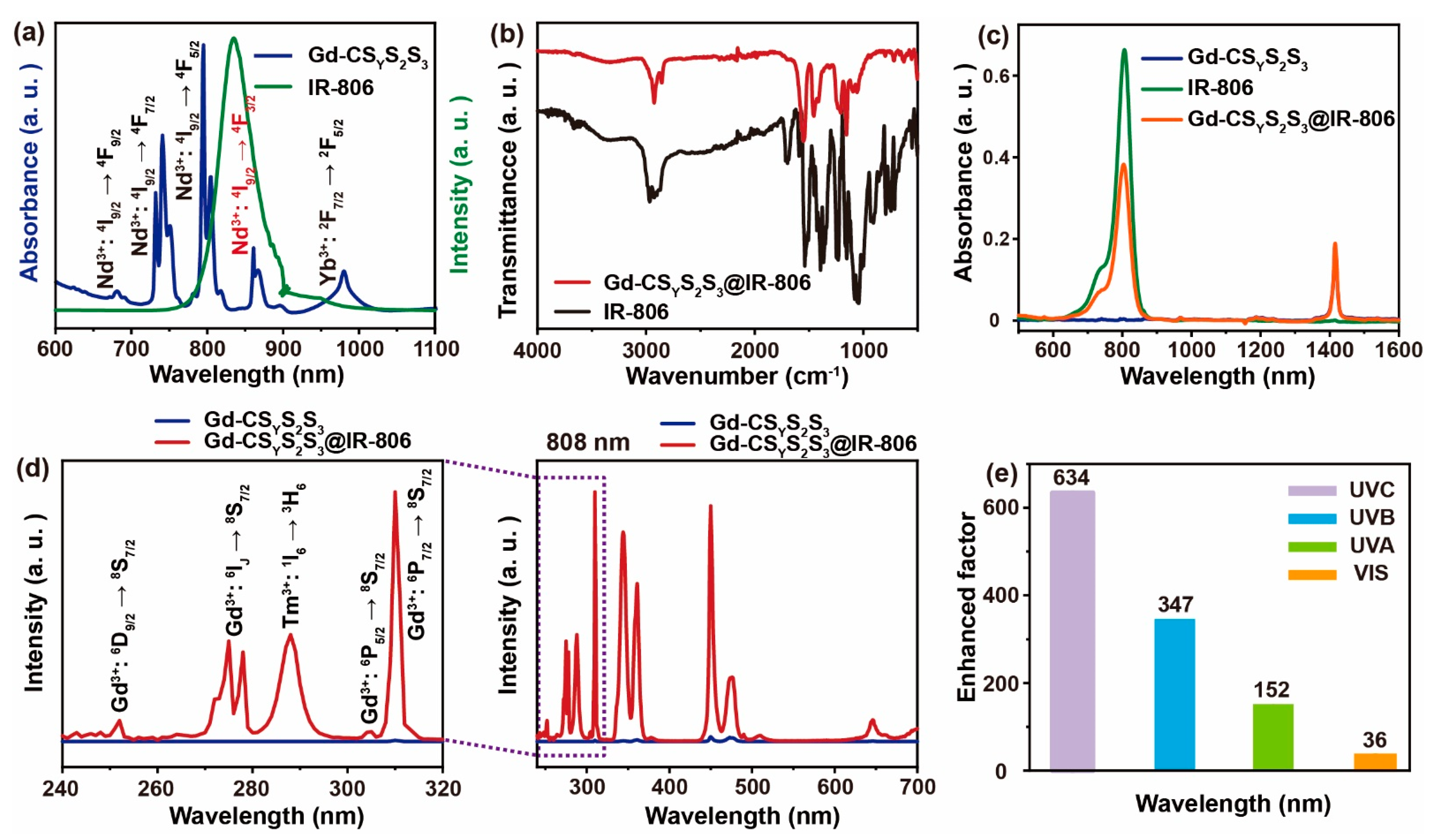

To enhance upconversion emission in the UV range, we chose a near-infrared (NIR) fluorescent dye (IR-806) to sensitize upconversion nanoparticles, due to its intense absorption in the NIR range [33]. As shown in Figure 2a, the fluorescence spectrum of IR-806 has considerable overlap with the absorbance of Gd-CS_YS₂S₃ nanoparticles with Nd³⁺ (⁴F_3/2→⁴I_9/2) sensitizer, ensuring an effective energy transfer from IR-806 to the nanoparticles. We then utilized a modified Hummelen’s method to load the IR-806 onto the surface of Gd-CS_YS₂S₃ nanoparticles [32]. In addition, free IR-806 has an absorption band at 1708 cm⁻¹ in the FTIR spectrum, corresponding to the stretching mode of –COOH. The absorption band at 1708 cm⁻¹ disappeared when IR-806 was bound on to the surface of the nanoparticles. Nevertheless, absorption bands at 1560 and 1450 cm⁻¹ were observed on Gd-CS_YS₂S₃@IR-806, corresponding to the antisymmetric and symmetric vibration modes of the –COO⁻ group. This indicates that the IR-806 carboxylic acid group was bound onto the surface of Gd-CS_YS₂S₃, since the carboxylic region changed [33]. The successful preparation of IR-806-loaded Gd-CS_YS₂S₃ nanoparticles was demonstrated by Fourier-transform infrared spectroscopy (FTIR) analysis (Figure 2b), which is consistent with the previous report [32]. In addition, we also compared the absorption spectra of Gd-CS_YS₂S₃, IR-806, and Gd-CS_YS₂S₃@IR-806. As shown in Figure 2c, Gd-CS_YS₂S₃@IR-806 nanoparticles showed an intense absorbance band peaking at ~800 nm, further proving the successful loading of IR-806. Consequently, we observed more than 70-fold enhancements in Tm³⁺ emission over the whole wavelength range from 240–700 nm by Gd-CS_YS₂S₃@IR-806 compared with Gd-CS_YS₂S₃ nanoparticles, owing to the fact that the absorption cross section of Gd-CS_YS₂S₃ was significantly enhanced after IR-806 loading. Furthermore, we also observed more than 600-fold, 300-fold, 150-fold, and 30-fold enhancements in UVC (240–280 nm), UVB (280–320 nm), UVA (320–400 nm), and visible (400–700 nm) regions, respectively (Figure 2e). Similarly, we synthesized the NaGdF₄:18%Yb,2%Er@NaYF₄:20%Yb@NaGdF₄:10%Yb, 50%Nd@NaGdF₄ nanoparticles with IR-806 loading. The emission intensity in the UV spectral region increased by more than 60 times, while the intensity in the visible region increased by only 30 times (Figure S5). Taken together, these results demonstrated that the overall enhancements were dominated by increased emission in the UV spectral regions, which is consistent with the dominant effect of ligand coordination on multiphoton upconversion [37]. Notably, the enhancement factors in the UV spectral region are remarkably larger than those in the visible region, offering enticing prospects for NIR light-mediated UV upconversion nanoparticles.

3.3. Optimum Weight Ratio between IR-806 and Nanoparticles

We determined the optimum weight ratio of Gd-CS_YS₂S₃:IR-806 by setting a series of weight gradients from 120:1 to 180:1 (m_NPs:m_IR-806). As shown in Figure 3a, the optimum weight ratio was determined to be 160:1. The optimized number of dye molecules on the surface of Gd-CS_YS₂S₃ nanoparticles was calculated to be 395 [32]. Note that the absorbance of Gd-CS_YS₂S₃@IR-806 increased as IR-806 increased. However, when the weight ratio of Gd-CS_YS₂S₃: IR-806 was smaller than 160:1, the emission intensity decreased due to fluorescence quenching caused by dye self-quenching. Due to the critical role of the Nd³⁺ sensitizers in mediating energy transfer from the dye to the upconversion nanoparticles, we verified that the optimum doping concentration of Nd³⁺ was 50 mol% (Figure S6). We then quantified the energy transfer efficiency of IR-806 to Gd-CS_YS₂S₃ by measuring the lifetime of the IR-806 in a pair of Gd-CS_YS₂S₃ samples with and without Nd³⁺ nanoparticles. Due to energy trapping by Nd³⁺, the lifetime is shortened from 1.20 ns to 1.13 ns for Gd-CS_YS₂S₃@IR-806. However, the lifetime of IR-806 was essentially unchanged after loading on Gd-CS_YS_90%Y,10%YbS₃@IR-806, due to the absence of Nd³⁺ dopants. The energy transfer efficiency was calculated to be 5.8% according to the following equation [38]:

$$\mathrm{E}=1- \frac{{\mathsf{\tau }}_{\mathrm{D}\mathrm{A}}}{{\mathsf{\tau }}_{\mathrm{D}}}$$

(1)

3.4. The Effect of Excitation Wavelength on UV Upconversion Emission

To investigate the enhancement effect on upconversion emission under 793, 808, and 980 nm excitation, we measured two series of Gd-CS_YS₂S₃ nanoparticles with different amounts of IR-806 loading. As shown in Figure 3d, the emission intensities of Gd-CS_YS₂S₃ were slightly improved after IR-806 loading under 793 nm excitation. In contrast, their emission intensities decreased under 980 nm excitation (Figure 3e). These results can be ascribed to poor matching between the excitation wavelengths (793 nm and 980 nm) and the absorption of IR-806. We then normalized the luminescence spectra of Gd-CS_YS₂S₃ nanoparticles under three different excitation wavelengths. We found that the ratio was unchanged for UVC, UVB, UVA, and visible spectral regions under 793 nm and 980 nm excitation. In contrast, the normalized intensity of the UVC spectral region clearly increased (Figure S7), indicating effective energy transfer from IR-806 to the nanoparticles under 808 nm excitation.

3.5. The Effect of IR-806 Sensitizer Distance on UV Upconversion

To study the effect of the distance between Nd³⁺ and IR-806 on UV upconversion emission, we synthesized a pair of nanoparticles: Gd-CS_YS₂S₃ and Gd-CS_YS₂ (without the third shell protection) shown in Figure 4a. Comparing the emission intensities of Gd-CS_YS₂S₃ and Gd-CS_YS₂ with and without IR-806, the emission intensities of the Gd-CS_YS₂ nanoparticles without shell protection increased by more than 230 times overall, while only 70-fold enhancement was observed in Gd-CS_YS₂S₃, which has 2 nm thickness shell protection. Furthermore, UV and visible emission intensities increased more than 500-fold and 130-fold, respectively, for the nanoparticles without shell protection (Figure 4b). Notably, the transfer efficiency decreased as 1/R⁶ [39]. Therefore, the enhancement factor decreased as the distance between the dye and the sensitizer increased.

Similarly, we synthesized two pairs of nanoparticles: NaGdF₄@ NaGdF₄:49%Yb,1%Tm@NaYF₄:20%Yb@NaGdF₄:10%Yb,50%Nd@NaGdF₄ (Gd-CS₁S_YS₃S₄) vs. NaGdF₄@NaGdF₄:49%Yb,1%Tm@NaYF₄:20%Yb@NaGdF₄:10%Yb,50%Nd (Gd-CS₁S_YS₃) and NaYF₄@NaGdF₄:49%Yb,1%Tm@NaYF₄:20%Yb@NaGdF₄:10%Yb,50%Nd@ NaGdF₄ (Y-CS₁S_YS₃S₄) vs. NaYF₄@NaGdF₄:49%Yb,1%Tm@NaYF₄:20%Yb@NaGdF₄:10%Yb, 50%Nd (Y-CS₁S_YS₃) (Figure S8). The core–multishell structures are illustrated in Figure S9. To study the effect of different structures on emission enhancement, NaGdF₄ and NaYF₄ without any dopants were used as a core to shorten the distance between the NaGdF₄:49%Yb,1%Tm emissive layer and IR-806. The emission intensities of IR-806 grafted on Gd-CS₁S_YS₃ and Gd-CS₁S_YS₃S₄ increased 99 and 20 times, respectively, while the luminescence intensity in the UV region increased by 118 and 25 times and that in the visible region increased by 82 and 16 times, respectively. Moreover, the emission intensities of Y-CS₁S_YS₃ and Y-CS₁S_YS₃S₄ improved by 72 and 18 times after IR-806 loading. We also observed 81-fold and 22-fold enhancements in the UV spectral region and 63-fold and 14-fold enhancements in the visible region (Figure S10). These results are also consistent with our luminescence analysis, in that a significant enhancement in the UV luminescence of Gd-CS_YS₂S₃ nanoparticles was observed compared to the visible range (Figure S11).

3.6. Energy Transfer Mechanism

As shown in Scheme 2, IR-806 effectively absorbs the laser energy due to the absorption cross section under 808 nm excitation. To generate an efficient dye sensitization process, Nd³⁺ plays a critical role in bridging the energy transfer from the dye to the upconversion nanoparticles. Nd³⁺ ions trap the energy from the 808 nm laser and IR-806 mainly via the fluorescence–resonance energy transfer process and then gather photons at the ⁴F_5/2 energy state. Subsequently, relaxing to the ⁴F_3/2 energy state, Nd³⁺ transfers the energy to Yb³⁺ by an efficient energy transfer process. As an energy migrator, the excited Yb³⁺ populates the energy states of Tm³⁺ and gives rise to emission at 475 nm (¹G₄→³H₆), 450 nm (¹D₂→³F₄), 360 nm(¹D₂→³H₆), 345 nm(¹I₆→³H₅), and 290 nm(¹I₆→³H₆). Apart from emitting, Tm³⁺ serves as an energy donor donating energy to the Gd³⁺ ions via a five-photon process. Meanwhile, the six-photon upconversion process of 253 nm (⁶D_9/2→⁸S_7/2) and the five-photon upconversion processes of 273 nm (⁶I_J→⁸S_7/2), 276 nm (⁶I_J→⁸S_7/2), 279 nm (⁶I_J→⁸S_7/2), 306 nm (⁶P_5/2→⁸S_7/2), and 310 nm (⁶P_7/2→⁸S_7/2) are observed with the assistance of the appropriate energy matching of the following transition of ²F_5/2→²F_7/2 (9750 cm⁻¹, Yb³⁺): ⁶P_J→⁶D_J (∼8750 cm⁻¹, Gd³⁺). Notably, the utilization of an optically inert NaYF₄ host lattice with Yb³⁺ dopants as the interlayer plays a decisive role in protecting the energy by cooperative dye and Nd³⁺ sensitization from interior lattice defects, making it possible to effectively further increase UV via dye sensitizing.

3.7. Back Energy Transfer from Nanoparticles to IR-806

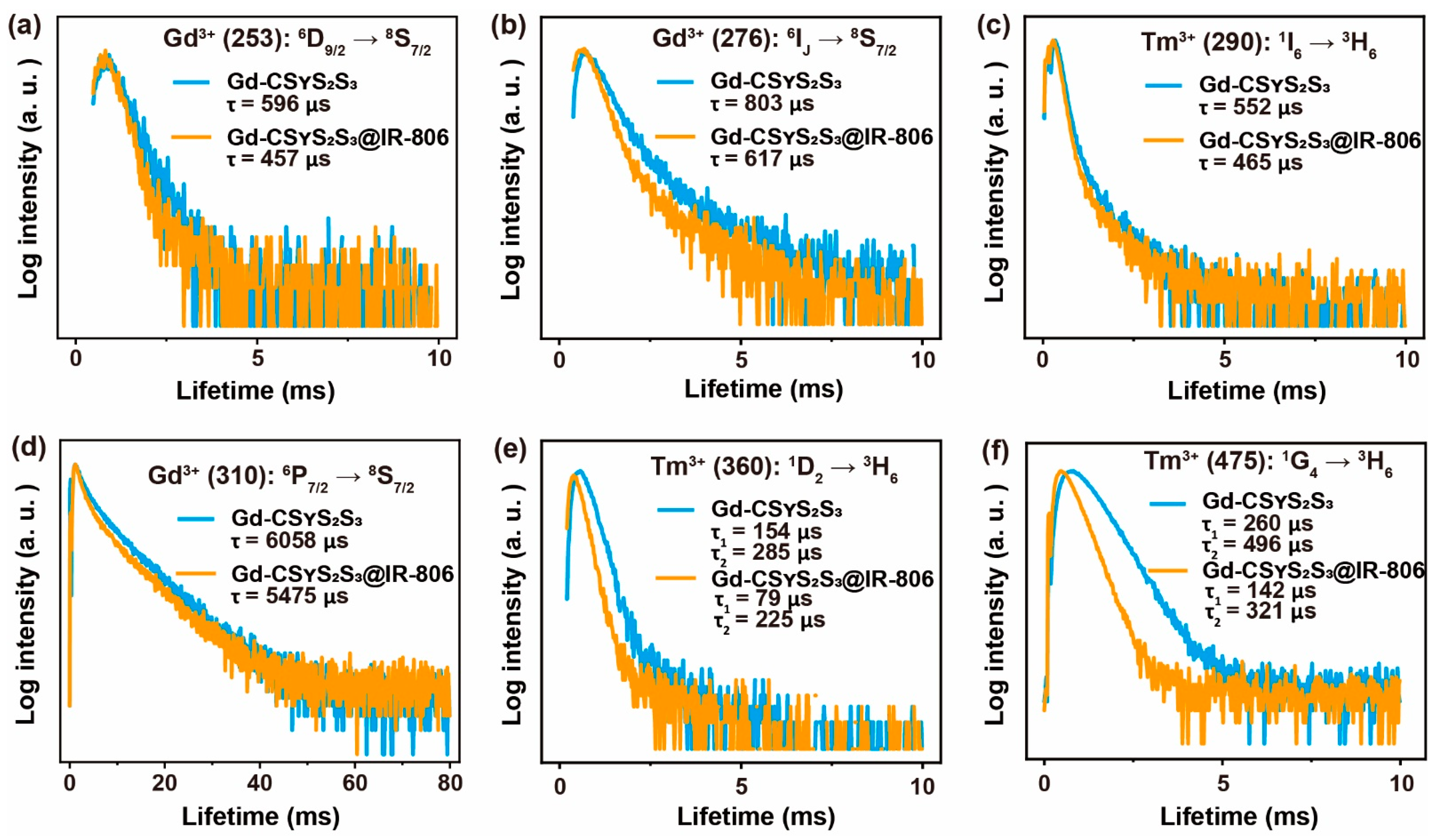

As well as increasing the luminescence intensity, a back energy transfer process from IR-806 to Gd-CS_YS₂S₃ occurred. As depicted in Figure 5 and Figure S12, the lifetime of Gd³⁺ at 253, 276, and 310 nm, and Tm³⁺ at 290, 345, 475, and 650 nm slightly decreased after IR-806 loading, which can be ascribed to the nonradiative energy transfer from Gd³⁺ and Tm³⁺ to IR-806 [40,41,42].

4. Discussion

In this study, we developed a dye-sensitized heterogeneous lanthanide nanoparticle to regulate the energy transfer pathway for UV enhancement by 808 nm excitation. We systematically studied the influence of dye concentration, excitation wavelength, and distance between the dye and the sensitizer Nd³⁺ on upconversion emission, especially in the UV spectral region. Dye loading can improve the absorption of excitation light and thus improve the efficiency of energy-transfer-mediated upconversion. Moreover, our experimental results demonstrated a strengthened multiphoton upconversion process, which can be ascribed to the dominant effect of ligand loading on upconversion emission from high-lying energy states. The fundamentals gained from our investigations may provide insights into promoting the multiphoton upconversion process and the future design of organic–inorganic hybrid luminescent nanoparticles for applications in photocatalysis, biomedicine, environmental science, and more.
