1. Introduction
Magnesium oxide (MgO) belongs to the transparent oxide family and crystallizes into a face-centered cubic structure, having a = b = c = 4.217
[
1,
2]. It is characterized by high transmission values in the visible range near to 90% [
3] and a wide direct band gap of 7.8 eV for pure MgO [
4]. Heo et al. [
5] measured a gap energy lower than 7.8 eV and attributed the low band-gap energies to the existence of defects in type F
S and F
B.
A MgO material has the following main advantages: non-toxicity [
6], an abundance of its constituents as well as chemical and physical stability [
7]. These properties recommend MgO for a wide range of applications in which its antibacterial [
8], antimicrobial [
9] and photo-catalytic properties [
3,
10] could be used. Moreover, MgO can be used for photovoltaic devices [
11,
12] and gas sensor applications [
13].
Many experimental techniques have been developed to obtain MgO materials, such as: thermolysis of an ultrathin Mg(OH)
2 precursor under a dynamic vacuum to obtain ultrathin single-crystalline MgO nanosheets with a preferential orientation stacked by (111) planes [
6], sol-gel [
14,
15,
16], chemical vapor deposition (CVD) [
17], pulsed laser deposition [
18], reactive sputtering [
19], laser ablation [
20], metal organic molecular beam epitaxy [
21] and a chemical spray pyrolysis technique [
3,
22]. Currently, heavy environmental pollution has motivated researchers to seek new treatments, such as the extractive–pyrolytic method [
23], to remove pollutants and protect the environment. For these reasons, semiconductor materials are involved in the photocatalysis process for the degradation of organic pollutants, which are hazardous to human health and harmful for the environment. In this work, many experimental techniques and tools are used to investigate the magnesium oxide thin film, such as X-ray diffraction (XRD), FTIR spectroscopy, Maud software, confocal microscopy, spectrophotometry and photoluminescence spectrometry. The main goal of this study is to investigate the physical behaviors of sprayed magnesium oxide thin films with different magnesium concentrations in the sprayed solution ([Mg
2+] = 0.05, 0.1, 0.15 and 0.2 mol·L
−1) and look for possible optoelectronic applications.
2. Materials and Methods
MgO thin layers were synthesized on glass substrates using the liquid-phase spray pyrolysis technique. Before the deposition process, all glass substrates were cleaned in an ultrasonic bath containing double-distilled water. Magnesium II chloride hexahydrate (MgCl2, 6H2O, 99%) was purchased from AppliChem (Council Bluffs, IA, USA). MgCl2 was dissolved in 100 mL of bi-distilled water. This solution, which contained the precursor, was sprayed onto preheated substrates as fine droplets by means of compressed air as a carrier gas. During the deposition process, the substrate temperature was maintained at 450 °C and the solution flow rate was kept at 10 mL/min. In this work, we varied magnesium concentrations ([Mg2+] = 0.05, 0.1, 0.15, 0.2 mol·L−1) to study the physical properties of the MgO material.
The crystalline structure of the thin films was studied by XRD using an X-ray diffractometer with a 1.5418 Å Cu-Kα ray (automated Bruker D8 apparatus, Karlsruhe, Germany). The experimental XRD spectra were compared with the Maud software. FTIR spectroscopy (type VERTEX80 spectrometer for 400–4000 cm−1, Billerica, MA, USA) was performed to identify the existence of different molecules and ions on the sample surface, and the existence of MgO in particular. Morphological analysis was performed using a confocal microscope called “SENSOFAR”. Optical measurements were performed using a Perkin Elmer Lambda 950 spectrometer (Bridgeport, CT, USA). The type and value of the band gap were calculated using the Tauc relation. The photocatalysis process of the MgO thin layer was tested by degrading aqueous methylene blue (MB, 95%, from Sigma Aldrich, Bengaluru, Karnataka, India) under sunlight irradiation at room temperature and ambient air. Thus, to prepare the aqueous MB solution, 5 mg of MB powder was dissolved in double-distilled water (from Bi-distiller water GFL, Burgwedel, Germany) to reach 10−5 M of dye solution. Next, each sample was immersed in 20 mL of aqueous MB solutions. Then, all solutions were placed in the dark for 30 min before exposing them to light in order to achieve the adsorption–desorption equilibrium state. The degradation of MB dye was measured at different periods of time (from 30 min to 3 h, in steps of 30 min), using a Perkin Elmer Lambda 950 spectrophotometer.
3. Results and Discussion
3.1. XRD Analysis
In order to study the effect of magnesium concentrations on the structural property of MgO thin films, different amounts of Mg were used ([Mg
2+] = 0.05, 0.1, 0.15 and 0.2 mol·L
−1). The diffractograms obtained by scanning the 2θ range between 20° and 80° are presented in
Figure 1. The XRD patterns of the synthesized MgO obtained for [Mg
2+] = 0.05–0.1 mol·L
−1 show low-intensity peaks. The XRD scans of the MgO thin films present characteristic peaks that correspond to (111), (200) and (222) plans, which are attributed to the face-centered cubic structure (JCBD card No# 650476) with space group fm
m. The onset of MgO polycrystalline material was observed at [Mg
2+] = 0.15–0.2 mol·L
−1. It is observed that the crystallinity increases with the increase in the intensity of the (200) preferred orientation for an Mg concentration of 0.15 mol·L
−1. However, an increase in Mg concentration to 0.2 mol·L
−1 results in a slight deterioration of crystallinity. The crystallite size D (nm) was calculated using the Debye–Scherrer equation [
3,
24]:
where the constant
k equals 0.9, the wavelength of the incident X-ray is
is the full width at half-maximum of the diffraction peak and
is the position of the preferred orientation (200).
Table 1 summarizes the calculated crystallite size (D), dislocation density (δ
dis =
) per unit area and the strain (
) of MgO thin films synthesized with different Mg concentrations. The results of these calculations show that D increases with increasing magnesium concentrations, reaching the highest value of about 9 nm at [Mg
2+] = 0.15 mol·L
−1. The maximum size of MgO crystallite (D = 9 nm) obtained by the spray technique is less than D = 50 nm, obtained by Demirci et al. [
10], who grew MgO by flame spray pyrolysis, but larger than D = 7.8 nm, obtained by Poonguzhali et al. [
2] for MgO nanorods. It is worth mentioning that this trend is correlated with the improvement in crystalline quality, as seen in
Figure 1. Moreover,
Table 1 shows that the dislocation density
was reduced from 35.45 × 10
15 cm
−2 for [Mg
2+] = 0.1 mol·L
−1 to 12.1 × 10
15 cm
−2 for [Mg
2+] = 0.15 mol·L
−1. A similar trend was observed for the strain, which varied in the range of 0.065 × 10
−3–0.043 × 10
−3%.
3.2. Rietveld Analysis
In order to refine the experimental XRD spectra and confirm the face-centered cubic structure of the MgO material, we used the Maud software (Materials Analysis Using Diffraction) based on the Rietveld analysis [
3]. Additionally, we could estimate the lattice parameter and crystallite size and we could extract the secondary phases, which may exist along with the MgO phase.
Figure 2 illustrates the Rietveld refinement of the XRD spectrum for the MgO thin layer prepared using a spray solution containing [Mg
2+] = 0.15 mol·L
−1. The results show that no secondary phase exists along with the MgO phase, which proves the purity of the MgO material. We obtained a high goodness-of-fit (GOF) equal to 1.05. The crystallite size value was about 11.02 nm, which is very close to the experimental value obtained in
Table 1. After applying the fitting analysis, we obtained a lattice parameter equal to a = 4.52
, which is in good agreement with the JCPDF card No. #650476.
3.3. FTIR Spectra
The FTIR spectra of the MgO thin films deposited with [Mg
2+] = 0.05; 0.10; 0.15 and 0.20 mol·L
−1 show two peaks located at 553 cm
−1 and 1272 cm
−1 (
Figure 3). The peak at 553 cm
−1 indicates the stretching vibration of MgO which was reported by Ashok et al. [
24], who obtained MgO nanoparticles using a microwave irradiation technique and found a vibrational of MgO at 588 cm
−1; they also mentioned that MgO has a stretching vibration in the range of 550–670 cm
−1. Tlili et al. [
3] prepared MgO thin films by a spray pyrolysis technique and they found a vibrational of MgO at 459 cm
−1. Kandiban et al. [
25] synthesized MgO nanoparticles using co-precipitation and a hydrothermal method and found a vibrational of MgO at 548 cm
−1.
The peak located at 1272 cm
−1 was assigned to the hydroxyl group OH, which was reported by Moses et al. [
22], who found the peak at 1228 cm
−1, and by Devaraja et al. [
26], who mentioned that the hydroxyl group of water has an absorption in the range of 1300–1800 cm
−1. The spectrum presented in
Figure 3 shows no other elements or impurities on the surface, such as carbon monoxide CO [
24,
25] or H
−, CO
32− (located at 1076, 1435 cm
−1) [
27].
As the size of the particle decreases, the resolution of the vibrational bands is better resolved [
28]. The peak intensity of MgO with [Mg
2+] = 0.15 mol·L
−1 is the largest of all peaks in the FTIR spectrum, which agrees well with the largest crystallite size obtained by XRD, and is presented in
Table 1.
3.4. Surface Morphology

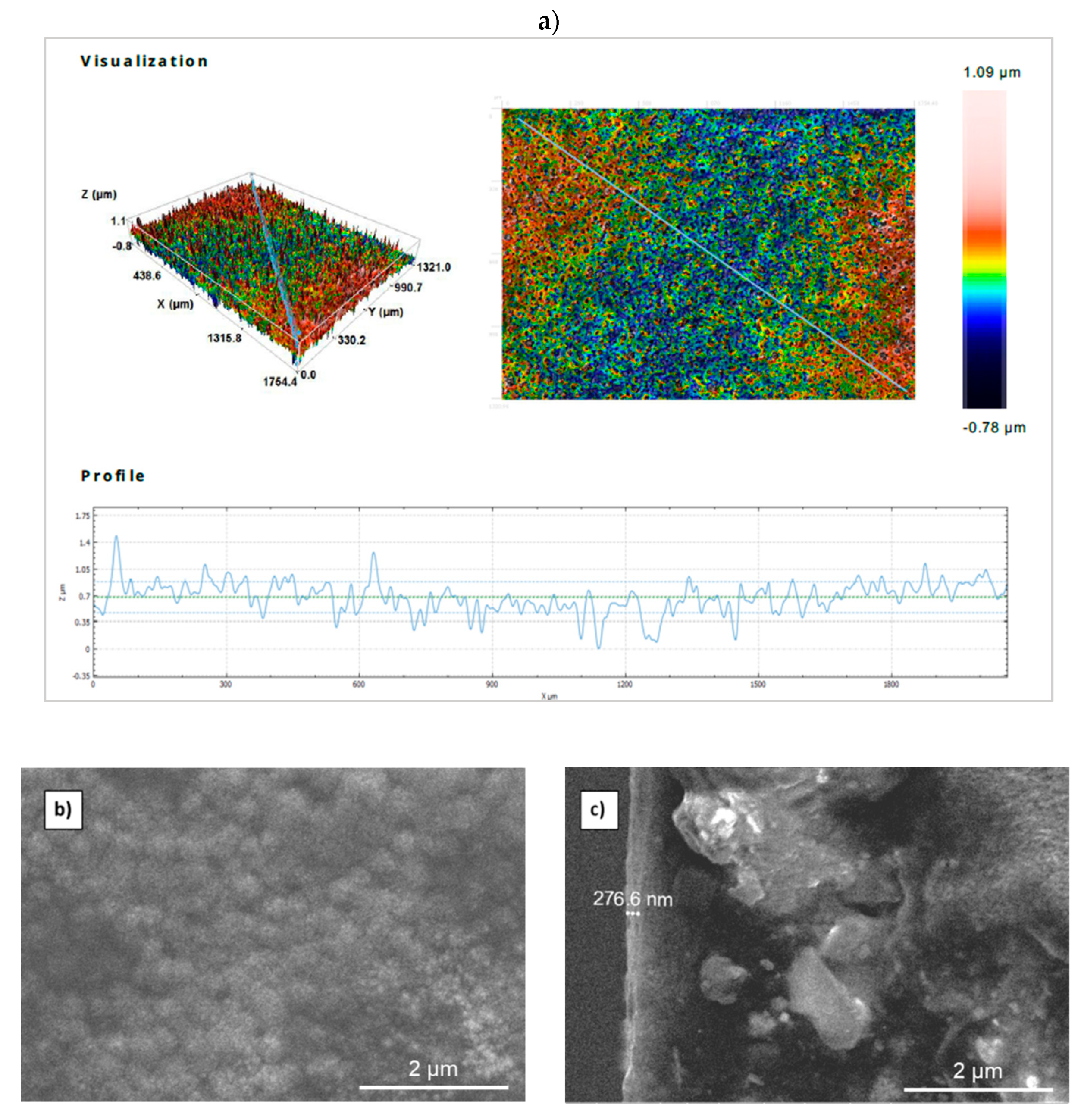

To study the morphological aspects of the MgO thin layer, a 3D confocal microscope (1764 × 1321
) was used, as shown in
Figure 4a. The micrograph clearly shows the uniform and dense aggregation of particles that have practically the same size. Moreover, the diagonal profile line of the scanned surface area gives an average thickness of about 0.4
m, which is close to the value calculated from the double weight that equals 0.36
m for optimum growth. It is worth mentioning that the MgO thin film obtained using [Mg
2+] = 0.15 mol·L
−1 exhibits a rough surface morphology. This observation is very important, because a rough surface means a large contact surface, which is a beneficial feature in photocatalysis, humidity and sensor applications. The surface parameters of the MgO material obtained from the confocal microscope data show that the arithmetical mean height (Sa) value equals 0.15 µm and the root mean square (Sq) equals 0.19
m. It is clear that the MgO thin film is grown using [Mg
2+] = 0.15 mol·L
−1 with high roughness, which makes it a promising candidate for gas sensor applications as well as for photocatalysis water treatment [
3].
Figure 4b,c show the SEM images (top and cross-section views of the MgO thin film obtained using [Mg
2+] = 0.15 mol·L
−1. These images show a surface morphology characterized by spherical, droplet-like particles and a smooth, continuous film without any cracks. The SEM image of the cross-section view (
Figure 4c) shows that the film has a thickness of 276.6 nm. We also performed a double weighting method to assess the thickness of the layers. Using a precision balance of 0.0001 g, the film thickness was estimated to be 290 ± 25 nm, which agrees well with the film thickness measured by SEM.
3.5. Optical Analysis
Using various magnesium concentrations in the spray solution, both morphological and structural behaviors will induce significant changes in the optical properties of MgO.

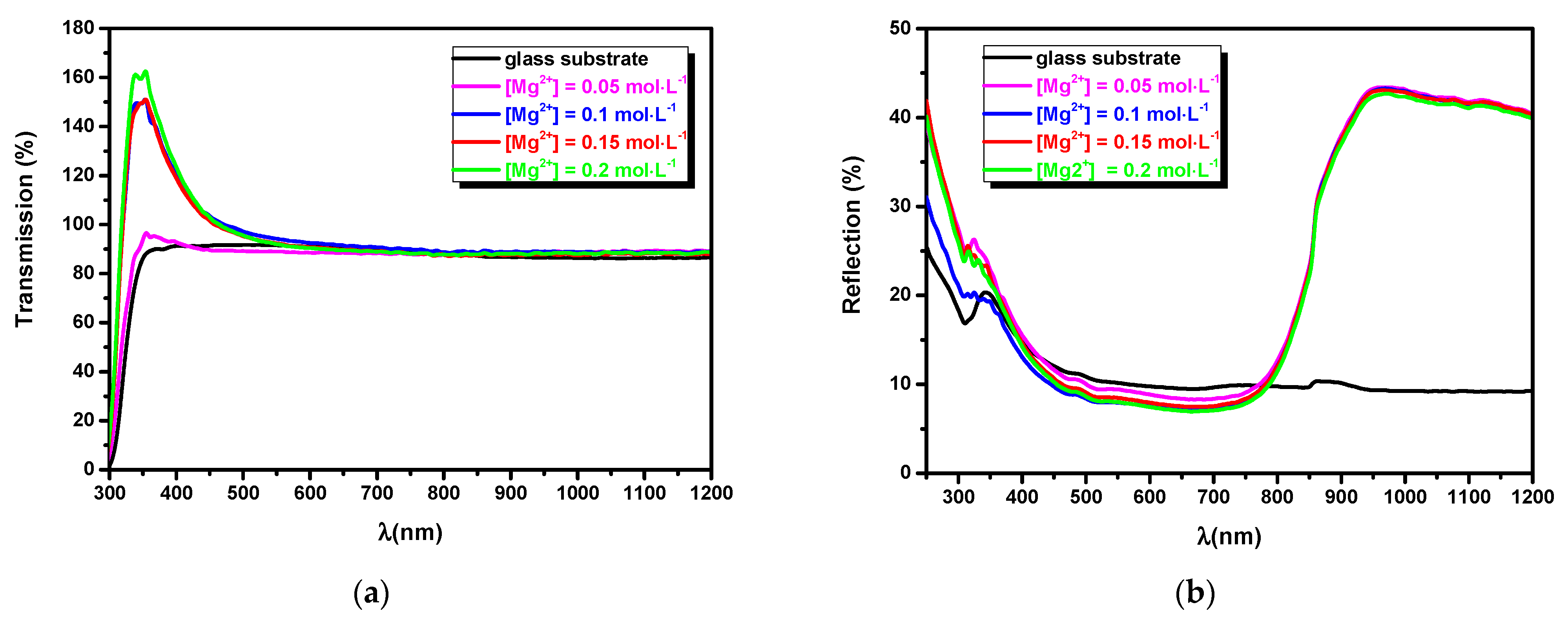

Figure 5 displays the transmission T (%) and the reflectance R (%) spectra of the MgO thin films in UV-Vis-IR regions. High transmission values in the visible range for all samples recommend the MgO thin film as an optical window or buffer layer in solar cell devices.
Figure 5a shows that T (%) values increase as the Mg concentration increases. Generally, the enhancement of T (%) could originate from reduced scattering effects, the enhancement of crystallinity and structural homogeneity, as reported by [
29,
30]. On the other hand, a particular behavior was observed, i.e., T (%) exceeded 100% in the UV range around λ = 350 nm. These results could be explained by the fact that the MgO thin film adsorbed H
2O from the atmosphere. Thus, the water droplets which exist in the ambient air were well retained on the rough surface of the film, which in turn increased the transmission values, as mentioned earlier [
3]. This observation indicates that the MgO thin film could be used as a humidity sensor.
The reflectance spectra presented in
Figure 5b show low intensity values close to 8% in the visible range for the MgO film obtained from a spraying solution containing [Mg
2+] = 0.15 mol·L
−1. In addition, high reflection values of 45% were obtained in the near-infrared region. These results indicate that a highly reflective surface will prevent an increase in surface temperature under solar irradiation, which could prove beneficial in solar cell applications. On the other hand, point defects may affect the optical absorption, as was observed in the MgO single crystal [
2].
From the transmission T (λ) and reflectance R (λ) values, the absorption coefficient (α) can be analyzed using the following formula [
30]:
where e is the film thickness determined by the double weighting method.
The value and the type of the band gap energy were obtained from the Tauc relation,
where ν = c/λ, h = 6.62 × 10
−34 J.s and B is a constant that depends on the transition probability. Experimental energy band gaps of MgO thin films were estimated by plotting (αhν)
2 versus hν (eV), as shown in
Figure 6. The intersection of the quasi-linear part of curve with the x-axis shows that the MgO thin film obtained using [Mg
2+] = 0.15 mol·L
−1 has a large energy band gap of 4 eV.
Table 2 summarizes the energy band gap values. These values are lower than the band gap energy of pure and bulk MgO (7.8 eV). The large difference in band gap energy is attributed to the presence of default sites.
The refractive index (
n) was calculated using the following relation [
31]:
where:
and
R are the absorption coefficient and the reflection, respectively.
Figure 7 illustrates the refractive index versus the wavelength (
λ) for MgO thin layers obtained from spray solutions with different magnesium concentrations.
Figure 7 shows that n varies in the range from 1.5 to 2.2. According to
Table 1 and
Table 3, the variation in the refractive index follows the variation in the film thickness and the reduction in band gap energy, especially for [Mg
2+] = 0.15 mol·L
−1.
3.6. Photoluminescence (PL)
We performed photoluminescence measurements at 200 and 220 nm on the MgO thin layer obtained using a concentration of 0.15 mol·L
−1 Mg in the spray solution. When the film was excited with a wavelength of 220 nm (
Supplementary Material, Figure S1), we observed the presence of emission peaks at 3.35, 3.16 and 2.32 eV, which were attributed to defect center F2, F + and F, respectively, according to Kotomin et al. [
32].
Figure 8 displays the photoluminescence spectra of MgO thin films synthesized with [Mg
2+] = 0.15 mol·L
−1 excited with a wavelength of 200 nm, where only two emission peaks were observed at 310 nm and 341 nm, which correspond to 4 and 3.63 eV, respectively. These results agree with the value of the band gap energy of MgO for the [Mg
2+] = 0.15 mol·L
−1 concentration obtained from the graph of the derivative of T with respect to λ as a function of λ in
Figure 6.
3.7. Photocatalysis Process
Figure 9 shows the photocatalytic activity of MgO ([Mg
2+] = 0.15 mol·L
−1) thin film at different times (i.e., 30, 60, 90, 120, 150 and 180 min) under sunlight illumination. The MgO thin layer effectively decomposed the aqueous methylene blue (MB) after 180 min. In order to study the photocatalytic degradation, we calculated the photodegradation rate of MgO using the following expression [
3]:
where
C and
C0 are the absorbance values of the MB dye solution with and without the MgO sample, respectively.
The photodegradation rate of MB dye under sunlight irradiation at different times is illustrated in
Figure 10. The value calculated for the photodegradation rate was about 83% after 180 min. This result could be related to the higher surface roughness of the MgO thin layer obtained with [Mg
2+] = 0.15 mol·L
−1.
The kinetic constant was investigated from the following expression [
33]:
Figure 11 displays the kinetic constant of the MgO thin film, which confirms the assumption of the first order of the kinetic constant. Plotting the Ln (
) curve as a function of time, the k
1 value of the MB solution without sample (Ln(
) = k
1.t) and k
2 with the MgO sample (Ln(
) = k
2.t) were equal to 0.17 10
−3 s
−1 and 0.13 10
−3 s
−1, respectively. The kinetic constant (k = 0.17 10
−3 s
−1 = 0.01 min
−1) is much smaller than k = 0.30 min
−1, obtained by Demirci et al. [
10], who used UV light. In our experiments, we used the natural solar light to break down the MB, which has an intensity lower than that of a UV lamp. We can improve the kinetic constant by doping the MgO. In fact, doping or co-doping MgO with transition metals or with rare earth elements also increases the surface roughness, which increases the specific contact surface between the MB solution and the MgO material, increasing the photocatalytic efficiency, as confirmed by Kamoun et al. [
34] for the MoO
3 films co-doped with Fe or Co.
We note that k2 is greater than k1, confirming the efficiency of the MgO material to decompose the MB dye. This study suggests that the MgO thin film is a good photocatalyst for removing organic pollutants in water.
4. Conclusions
In summary, MgO thin layers were synthesized by a spray pyrolysis technique at different concentrations, i.e., 0.05 [Mg2+] 0.20 mol·L−1. It was found that the best results were obtained for [Mg2+] = 0.15 mol·L−1. The XRD and Maud software revealed that the good MgO phase crystallized into a face-centered cubic structure along (200) with preferential orientation. The energy band gap value of MgO was estimated by the Tauc relationship, giving an energy gap value near to 4 eV for MgO obtained using [Mg2+] = 0.15 mol·L−1. Noticeable optical transmission behavior of the MgO thin films includes that the T(%) values exceeded 85% in the visible region and were higher than 100% in the UV region. Owing to its intrinsic properties, we observed that MgO obtained by an inexpensive method such as spray pyrolysis has a high absorption of water molecules, which was also confirmed by FTIR analysis. Because of these characteristics, the MgO thin film can be used as a humidity sensor. Additionally, the MgO thin film presents good efficiency for the degradation of MB dye under solar irradiation, which recommends this material for photocatalysis water treatment.
Author Contributions
Conceptualization, M.T. and N.J.; growth of MgO films for different magnesium concentrations, C.N.; physical analysis and discussions, C.B.; DRX measurements, B.A.; SEM investigation, L.A.; investigation and supervision, R.V.; methodology, validation and supervision, N.T.K. All authors have read and agreed to the published version of the manuscript.
Funding
This research received no external funding.
Data Availability Statement
The data presented in this study are available on request from the corresponding author. The data are not publicly available due to funder retention policies.
Acknowledgments
Our thanks for helping with characterization go to the Laboratory of Mineral Materials and their Applications, Laboratoire de Physico-chimie des Matériaux Minéraux et leurs Applications, Centre National des Recherches en Sciences des Matériaux, BP No.73, 8027 Soliman, Tunisia.
Conflicts of Interest
The authors declare no conflict of interest.
References
- Causà, M.; Dovesi, R.; Pisani, C.; Roetti, C. Electronic structure and stability of different crystal phases of magnesium oxide. Phys. Rev. B 1986, 33, 1308–1316. [Google Scholar] [CrossRef] [PubMed]
- Popov, A.; Kotomin, E.; Maier, J. Basic properties of the F-type centers in halides, oxides and perovskites. Nucl. Instruments Methods Phys. Res. Sect. B Beam Interactions Mater. Atoms 2010, 268, 3084–3089. [Google Scholar] [CrossRef]
- Tlili, M.; Jebbari, N.; Naffouti, W.; Kamoun, N.T. Effect of precursor nature on physical properties of chemically sprayed MgO thin films for optoelectronic application. Eur. Phys. J. Plus 2020, 135, 1–12. [Google Scholar] [CrossRef]
- Roessler, D.M.; Walker, W.C. Electronic Spectrum and Ultraviolet Optical Properties of Crystalline MgO. Phys. Rev. 1967, 159, 733–738. [Google Scholar] [CrossRef]
- Heo, S.; Cho, E.; Lee, H.-I.; Park, G.S.; Kang, H.J.; Nagatomi, T.; Choi, P.; Choi, B.-D. Band gap and defect states of MgO thin films investigated using reflection electron energy loss spectroscopy. AIP Adv. 2015, 5, 077167. [Google Scholar] [CrossRef]
- Cai, L.; Chen, J.; Liu, Z.; Wang, H.; Yang, H.; Ding, W. Magnesium Oxide Nanoparticles: Effective Agricultural Antibacterial Agent Against Ralstonia solanacearum. Front. Microbiol. 2018, 9, 790. [Google Scholar] [CrossRef] [PubMed]
- Téllez, D.A.L.; Yadava, Y.P.; Ferreira, J.M.; Aguiar, J.A. Chemical and physical stability of MgO with superconductors. Supercond. Sci. Technol. 1999, 12, 18–23. [Google Scholar] [CrossRef]
- Tang, Z.-X.; Lv, B.-F. MgO nanoparticles as antibacterial agent: Preparation and activity. Braz. J. Chem. Eng. 2014, 31, 591–601. [Google Scholar] [CrossRef]
- Nguyen, N.-Y.T.; Grelling, N.; Wetteland, C.L.; Rosario, R.; Liu, H.N. Antimicrobial Activities and Mechanisms of Magnesium Oxide Nanoparticles (nMgO) against Pathogenic Bacteria, Yeasts, and Biofilms. Sci. Rep. 2018, 8, 16260. [Google Scholar] [CrossRef] [Green Version]
- Demirci, S.; Öztürk, B.; Yildirim, S.; Bakal, F.; Erol, M.; Sancakoğlu, O.; Yigit, R.; Celik, E.; Batar, T. Synthesis and comparison of the photocatalytic activities of flame spray pyrolysis and sol–gel derived magnesium oxide nano-scale particles. Mater. Sci. Semicond. Process. 2015, 34, 154–161. [Google Scholar] [CrossRef]
- Dagar, J.; Castro-Hermosa, S.; Lucarelli, G.; Cacialli, F.; Brown, T.M. Highly efficient perovskite solar cells for light harvesting under indoor illumination via solution processed SnO2/MgO composite electron transport layers. Nano Energy 2018, 49, 290–299. [Google Scholar] [CrossRef] [Green Version]
- Ma, J.; Yang, G.; Qin, M.; Zheng, X.; Lei, H.; Chen, C.; Chen, Z.; Guo, Y.; Han, H.; Zhao, X.; et al. MgO Nanoparticle Modified Anode for Highly Efficient SnO2 -Based Planar Perovskite Solar Cells. Adv. Sci. 2017, 4, 1700031. [Google Scholar] [CrossRef]
- Poonguzhali, R.V.; Kumar, E.R.; Pushpagiri, T.; Steephen, A.; Arunadevi, N.; Baskoutas, S. Lemon juice (natural fuel) assisted synthesis of MgO nanorods for LPG gas sensor applications. Solid State Commun. 2021, 325, 114161. [Google Scholar] [CrossRef]
- Ho, I.-C.; Xu, Y.; Mackenzie, J.D. Electrical and optical properties of mgo thin film prepared by sol-gel technique. J. Sol-Gel Sci. Technol. 1997, 9, 295–301. [Google Scholar] [CrossRef]
- Wahab, R.; Ansari, S.; Dar, M.; Kim, Y.S.; Shin, H.S. Synthesis of Magnesium Oxide Nanoparticles by Sol-Gel Process. Mater. Sci. Forum 2007, 2007, 983–986. [Google Scholar] [CrossRef]
- Zulkefle, H.; Ismail, L.N.; Bakar, R.A.; Mahmood, M.R. Molar concentration effect on mgo thin films properties. In Proceedings of the 2011 IEEE Symposium on Industrial Electronics and Applications, Langkawi, Malaysia, 25–28 September 2011; Volume 2011, pp. 468–471. [Google Scholar]
- Carta, G.; El Habra, N.; Crociani, L.; Rossetto, G.; Zanella, P.; Paolucci, G.; Barreca, D.; Tondello, E. CVD of MgO Thin Films from Bis(methylcyclopentadienyl) Magnesium. Chem. Vap. Depos. 2007, 13, 185–189. [Google Scholar] [CrossRef]
- Kaneko, S.; Ito, T.; Soga, M.; Motoizumi, Y.; Yasui, M.; Hirabayashi, Y.; Ozawa, T.; Yoshimoto, M. Growth of Nanocubic MgO on Silicon Substrate by Pulsed Laser Deposition. Jpn. J. Appl. Phys. 2013, 52, 01AN02. [Google Scholar] [CrossRef]
- Choi, Y.W.; Kim, J. Reactive sputtering of magnesium oxide thin film for plasma display panel applications. Thin Solid Films 2004, 460, 295–299. [Google Scholar] [CrossRef]
- Płóciennik, P.; Guichaoua, D.; Zawadzka, A.; Korcala, A.; Strzelecki, J.; Trzaska, P.; Sahraoui, B. Optical properties of MgO thin films grown by laser ablation technique. Opt. Quantum Electron. 2016, 48, 277. [Google Scholar] [CrossRef] [Green Version]
- Niu, F.; Hoerman, B.H.; Wessels, B.W. Metalorganic molecular beam epitaxy of magnesium oxide on silicon. MRS Online Proc. Libr. 2000, 619, 149–154. [Google Scholar] [CrossRef]
- Raj, A.M.E.; Nehru, L.C.; Jayachandran, M.; Sanjeeviraja, C. Spray pyrolysis deposition and characterization of highly (100) oriented magnesium oxide thin films. Cryst. Res. Technol. 2007, 42, 867–875. [Google Scholar] [CrossRef]
- Serga, V.; Kulikova, L.; Cvetkov, A.; Chikvaidze, G.; Kodols, M. Extractive-Pyrolytic Method for Au/MeOx Nanocomposites Production. Key Eng. Mater. 2014, 604, 118–121. [Google Scholar] [CrossRef]
- Ashok, C.; Rao, K.V.; Chakra, C.S.; Rao, K.G. Mgo nanoparticles prepared by microwave-irradiation technique and its seed germination application. Nano Trends A J. Nanotechnol. Appl. 2016, 18, 10–17. [Google Scholar]
- Kandiban, M.; Vigneshwaran, P.; Potheher, I.V. Synthesis and characterization of mgo nanoparticles for photocatalytic applications. In Proceedings of the National Conference on Advances in Crystal Growwth and Nanotechnology, Kottayam, India, 15–16 January 2015. [Google Scholar]
- Devaraja, P.; Avadhani, D.; Prashantha, S.; Nagabhushana, H.; Sharma, S.; Nagabhushana, B.; Nagaswarupa, H. Synthesis, structural and luminescence studies of magnesium oxide nanopowder. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2014, 118, 847–851. [Google Scholar] [CrossRef]
- Mageshwari, K.; Mali, S.S.; Sathyamoorthy, R.; Patil, P.S. Template-free synthesis of MgO nanoparticles for effective photocatalytic applications. Powder Technol. 2013, 249, 456–462. [Google Scholar] [CrossRef]
- Savchyn, P.; Karbovnyk, I.; Vistovskyy, V.; Voloshinovskii, A.; Pankratov, V.; Cestelli Guidi, M.; Mirri, C.; Myahkota, O.; Riabtseva, A.; Mitina, N.; et al. Vibrational properties of lapo4 nanoparticles in mid- and far-infrared domain. J. Appl. Phys. 2012, 112, 124309. [Google Scholar] [CrossRef]
- Barhoumi, A.; Leroy, G.; Duponchel, B.; Gest, J.; Yang, L.; Waldhoff, N.; Guermazi, S. Aluminum doped ZnO thin films deposited by direct current sputtering: Structural and optical properties. Superlattices Microstruct. 2015, 82, 483–498. [Google Scholar] [CrossRef]
- Nefzi, C.; Souli, M.; Beji, N.; Mejri, A.; Kamoun-Turki, N. Improvement of structural, optical and electrical properties of iron doped indium oxide thin films by high gamma radiations for photocatalysis applications. Mater. Sci. Semicond. Process. 2019, 90, 32–40. [Google Scholar] [CrossRef]
- Ayed, R.B.; Ajili, M.; Thamri, A.; Kamoun, N.T.; Abdelghani, A. Substrate temperature effect on the crystal growth and optoelectronic properties of sprayed α-Fe2O3 thin films: Application to gas sensor and novel photovoltaic solar cell structure. Mater. Technol. 2018, 33, 769–783. [Google Scholar] [CrossRef]
- Kotomin, E.; Popov, A.I. Radiation-induced point defects in simple oxides. Nucl. Instrum. Methods Phys. Res. Sect. B Beam Interact. Mater. Atoms 1998, 141, 1–15. [Google Scholar] [CrossRef]
- Ammari, Y.; Elatmani, K.; Qourzal, S.; Bakas, I.; Ejakouk, E.; Ait-Ichou, Y. Etude cinétique de la dégradation photocatalytique du colorant bleu de méthylène en présence de dioxyde de titane (TiO2), en suspension aqueuse (kinetic study of the photocatalytic degradation of methylene blue dye in the presence of titanium dioxide (TiO2), in aqueous suspension). J. Mater. Environ. Sci. 2016, 7, 8. [Google Scholar]
- Kamoun, O.; Mami, A.; Amara, M.A.; Vidu, R.; Amlouk, M. Nanostructured Fe,Co-Codoped MoO3 Thin Films. Micromachines 2019, 10, 138. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Figure 1.
X-ray spectra of MgO thin films deposited on glass substrates for different concentrations ([Mg2+] = 0.05; 0.10; 0.15 and 0.20 mol·L−1).
Figure 1.
X-ray spectra of MgO thin films deposited on glass substrates for different concentrations ([Mg2+] = 0.05; 0.10; 0.15 and 0.20 mol·L−1).
Figure 2.
Rietveld refinement of optimum MgO film grows by spray pyrolysis with [Mg2+] = 0.15 mol·L−1.
Figure 2.
Rietveld refinement of optimum MgO film grows by spray pyrolysis with [Mg2+] = 0.15 mol·L−1.
Figure 3.
FTIR spectra of sprayed MgO thin films deposited with [Mg2+] = 0.05; 0.10; 0.15 and 0.20 mol·L−1.
Figure 3.
FTIR spectra of sprayed MgO thin films deposited with [Mg2+] = 0.05; 0.10; 0.15 and 0.20 mol·L−1.
Figure 4.
Confocal microscopy (a) and SEM images (top (b) and cross-section (c) views) of the MgO thin layer synthesized using [Mg2+] = 0.15 mol·L−1.
Figure 4.
Confocal microscopy (a) and SEM images (top (b) and cross-section (c) views) of the MgO thin layer synthesized using [Mg2+] = 0.15 mol·L−1.
Figure 5.
(a) Transmission and (b) reflectance spectra of sprayed MgO thin films grown for different concentrations [Mg2+] = 0.05; 0.10; 0.15; and 0.20 mol·L−1.
Figure 5.
(a) Transmission and (b) reflectance spectra of sprayed MgO thin films grown for different concentrations [Mg2+] = 0.05; 0.10; 0.15; and 0.20 mol·L−1.
Figure 6.
Band gap energy of MgO thin layers deposited by spray for [Mg2+] = 0.05; 0.10; 0.15; and 0.20 mol·L−1 (a) and the value of the band gap energy of MgO for the [Mg2+] = 0.15 mol·L−1 concentration obtained from the graph of the derivative of T with respect to λ as a function of λ (b).
Figure 6.
Band gap energy of MgO thin layers deposited by spray for [Mg2+] = 0.05; 0.10; 0.15; and 0.20 mol·L−1 (a) and the value of the band gap energy of MgO for the [Mg2+] = 0.15 mol·L−1 concentration obtained from the graph of the derivative of T with respect to λ as a function of λ (b).
Figure 7.
Variation in the refractive index (n) for MgO layers synthesized by spray for [Mg2+] = 0.05; 0.10; 0.15; and 0.20 mol·L−1.
Figure 7.
Variation in the refractive index (n) for MgO layers synthesized by spray for [Mg2+] = 0.05; 0.10; 0.15; and 0.20 mol·L−1.
Figure 8.
PL emission spectrum for 200 nm excitation of MgO thin films prepared with [Mg2+] = 0.15 mol·L−1.
Figure 8.
PL emission spectrum for 200 nm excitation of MgO thin films prepared with [Mg2+] = 0.15 mol·L−1.
Figure 9.
The temporal change in the original MB solution (0 min) and with MgO thin films under sunlight irradiation for different times (30, 60, 90, 120, 150 and 180 min).
Figure 9.
The temporal change in the original MB solution (0 min) and with MgO thin films under sunlight irradiation for different times (30, 60, 90, 120, 150 and 180 min).
Figure 10.
Photodegradation rate variation in MB for two MB solutions: the one contained the optimum MgO (blue) and the other of original solution (pink) for different times.
Figure 10.
Photodegradation rate variation in MB for two MB solutions: the one contained the optimum MgO (blue) and the other of original solution (pink) for different times.
Figure 11.
Variation in Ln (C0/C) of original MB solution (pink) and with MgO (blue) thin films under sunlight irradiation for different times (30, 60, 90, 120, 150 and 180 min). Error bar is 0.02.
Figure 11.
Variation in Ln (C0/C) of original MB solution (pink) and with MgO (blue) thin films under sunlight irradiation for different times (30, 60, 90, 120, 150 and 180 min). Error bar is 0.02.
Table 1.
Structural parameters of MgO thin layers grown by spray for different magnesium concentrations: [Mg2+] = 0.05; 0.10; 0.15; 0.20 mol·L−1.
Table 1.
Structural parameters of MgO thin layers grown by spray for different magnesium concentrations: [Mg2+] = 0.05; 0.10; 0.15; 0.20 mol·L−1.
[Mg2+] (mol·L−1) | 2θ (°) | Crystallite Size D (nm) | Dislocation Density δdis (1015 cm−2) | Micro Strain ε 10−3 (%) |
---|
0.05 | - | - | - | - |
0.10 | 42.38 | 5.31 | 35.5 | 0.065 |
0.15 | 42.67 | 9.10 | 12.1 | 0.038 |
0.20 | 42.50 | 8.00 | 15.6 | 0.043 |
Table 2.
Band gap energies of MgO elaborated for different concentrations [Mg2+] = 0.05; 0.10; 0.15; and 0.20 mol·L−1.
Table 2.
Band gap energies of MgO elaborated for different concentrations [Mg2+] = 0.05; 0.10; 0.15; and 0.20 mol·L−1.
[Mg2+] (mol·L−1) | 0.05 | 0.10 | 0.15 | 0.20 |
---|
band gap energy (eV) | 4.08 | 4.07 | 4.00 | 4.01 |
Table 3.
Film thickness of MgO synthesized with [Mg2+] = 0.05; 0.10; 0.15; and 0.20 mol·L−1.
Table 3.
Film thickness of MgO synthesized with [Mg2+] = 0.05; 0.10; 0.15; and 0.20 mol·L−1.
[Mg2+] (mol·L−1) | 0.05 | 0.1 | 0.15 | 0.2 |
---|
Thickness (µm) | 0.11 | 0.22 | 0.29 | 0.40 |
| Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |
© 2021 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
