A Water-Soluble Polyacid Polymer Based on Hydrophilic Metal–Organic Frameworks Using Amphoteric Carboxylic Acid Ligands as Linkers for Hydroxycamptothecin Loading and Release In Vitro

by
Yuqiong Shi
†,
Wei Liu
†,
Xiangrong Wu
,
Jinhua Zhu
*,
Danyang Zhou
and
Xiuhua Liu
*
Henan International Joint Laboratory of Medicinal Plants Utilization, College of Chemistry and Chemical Engineering, Henan University, Kaifeng 475004, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Nanomaterials 2021, 11(11), 2854; https://doi.org/10.3390/nano11112854
Submission received: 17 September 2021 / Revised: 19 October 2021 / Accepted: 22 October 2021 / Published: 26 October 2021
Browse Figures
Versions Notes

Abstract

:
The poor water solubility and severe side effects of hydroxycamptothecin (HCPT) limit its clinical application; therefore, it is necessary to synthesize applicable nanodrug carriers with good solubility to expand the applications of HCPT. In this study, a hydrophilic metal–organic framework (MOF) with amphoteric carboxylic acid ligands as linkers was first synthesized and characterized. Then, water-soluble acrylamide and methacrylic acid were applied as monomers to prepare a water-soluble polyacid polymer MOF@P, which had a solubility of 370 μg/mL. The effects of the MOF@P material on the HCPT loading and solubility were investigated. The results showed that the polymer material could improve the HCPT solubility in water. Moreover, the in vitro release study indicated that the MOF@P polymeric composite exhibited a sustained-release effect on HCPT, with a cumulative release rate of 30.18% in 72 h at pH 7.4. Furthermore, the cytotoxicity test demonstrated that the hydrophilic MOF and the MOF@P had low cell toxicities. The results indicate that the prepared MOF@P polymeric complex can be applied for the sustained release of HCPT in clinics.

1. Introduction

Hydroxycamptothecin (HCPT) is an effective antitumor drug extracted from Camptotheca acuminata in Sichuan Province, China [1]. It represents a new generation of anticancer drugs for treating numerous cancers, such as lung, gastric, prostate, and breast cancer. Eighteen camptothecin (CPT) alkaloids have been isolated from C. acuminata. Among them, 10-hydroxycamptothecin (10-HCPT) has the strongest antitumor activity, 30 times that of the other CPT alkaloids. The DNA topoisomerase activity can be inhibited by 10-HCPT, resulting in DNA single-stranded breaks. As a cell cycle-specific drug, HPCT has no cross-resistance with common antitumor drugs. It can delay the G2/M transition phase and mainly acts on S-phase cells [2,3,4,5]. The integrity of the six-membered hydroxylactone ring is the pharmacological activity core of HPCT, and hydroxyl modification enhances the HCPT stability and improves the therapeutic effect [6,7]. However, owing to the poor water solubility and adverse side effects of HCPT, its clinical application is limited [8,9]. Therefore, improving the water solubility and reducing the side effects of HCPT have become a research focus. Yang et al. [10] prepared 10-HCPT polymorphic nanoparticle dispersions via a supercritical antisolvent technology combined with high-pressure homogenization. The controllable size and large surface-to-volume ratio of the needle-shaped nanoparticles improve their dissolution characteristics, which enhanced their pharmacokinetic and pharmacokinetic properties. Ma et al. [11] used a modified emulsification–solvent evaporated method to successfully add hydroxycamptothecin, a water-insoluble antitumor agent, into lipid polymer hybrid nanoparticles (LPNs) formed from polylactic-co-glycolic acid (PLGA), 1,2-distearoyl-sn-glycero-3-phosphoethanolamine-N-(methoxy(polyethylene glycol)-2000) (DSPE-PEG2000), and lecithin. The optimized HCPT-loaded lipid polymer hybrid nanoparticles (HCPT-LPNs) were nano-sized, and the HCPT-LPNs were highly stable in plasma with sustained release characteristics related to pH and drug loading.
Metal–organic frameworks (MOFs) have been widely researched as porous materials in the past two decades [12]. MOFs can be used as nanocarriers because of their large specific surface areas and simple synthesis processes [13]. Currently, MOF materials with nanometer sizes have been widely used in medical imaging, disease diagnosis, and drug delivery [14], especially in the treatment of cancer [15]. In addition, Zwitterionic ligands have been used as organic linkers to synthesize multifunctional MOFs owing to their special charges and strong polarities, which can increase the hydrophilicity of MOFs [16,17,18,19]. Among these multifunctional MOFs, Chen’s team used amphoteric carboxylic acid ligands to coordinate with metal ions to synthesize a series of MOFs with water stability and water solubility [20,21,22,23,24]. Xie et al. [25] prepared three-dimensional (3D) and two-dimensional (2D) Ag-based zwitterionic MOFs and investigated their antimicrobial activities using a minimal inhibition concentration (MIC) test and killing kinetic assay. The two prepared Ag-based zwitterionic MOFs showed good water stability and solubility attributed to their aromatic ring natures and positively charged pyridinium of the ligands. Chen et al. [26] synthesized a luminescent water-stable terbium-based MOF ({[Tb(Cmdcp)(H2O)3]2(NO3)2·5H2O}n (1, H3CmdcpBr = N-carboxymethyl-(3,5-dicarboxyl)pyridinium bromide) used for the recyclable sensing of PO43− and Al3+ in tandem.
In some conditions, a single MOF cannot satisfy specific requirements well, and MOF nanocomposites are thus applied in biomedical fields, especially in drug delivery systems [27]. Lian et al. [28] prepared a tyrosinase-MOF nanoreactor and applied to activate the prodrug paracetamol in cancer cells in a long-lasting manner. The cytotoxicity of drug-resistant cancer cells arises from 4-acetamido-o-benzoquinone (AOBQ), the enzymatic conversion product of APAP, and from the subsequent generation of reactive oxygen species (ROS) and glutathione (GSH) depletion. Neisi et al. [29] prepared a nanocomposite with a higher porosity and conductivity using Cu-MOF and polypyrrole. The nanocomposites show a promising potential for different biomedical applications, such as biosensors and drug delivery. The liquid-solid solution (LSS) method was used to prepare nano-Fe-soc-MOF by Cai et al. [30], and they integrated the as-synthesized nanoscale Fe-soc-MOF with polypyrrole (PPy) to construct a multifunctional theranostic platform. The Fe-soc-MOF@PPy core–shell nanohybrids can be triggered by 808-nm laser irradiation to produce a photothermal effect for cancer therapy.
In order to improve the biocompatibility and water solubility of MOFs, water-soluble or hydrophilic chemicals are often used to compound or polymerize with MOFs. Methacrylic acid (MAA) [31] and acrylamide (AAm) [32] are usually polymerized with MOFs as monomers to augment their solubilities owing to the presence of carboxyl and amino groups, which easily form hydrogen bonds with certain atoms [33]. Ma et al. [34] described a novel water-compatible method appropriate for molecular imprinting, based on the use of a metal–organic gel (MOG) as the pore-forming agent. The MOG was synthesized from the combination of Fe (NO3)3 and benzene-1,3,5-tricarboxylic acid, which was used to prepare a molecularly imprinted polymer (MIP) containing imprints of levofloxacin using methacrylic acid as the functional monomer and ethylene glycol dimethacrylate (EGDMA) as the crosslinker. Cheng [35] developed a modified molecularly imprinted electrochemical sensor. The sensor was modified with BC/Cr2O3/Ag (BC/Cr2O3/Ag/MIP) and proposed for the sensitive and rapid detection of nitrofurazone (NFZ). MIP was prepared by precipitation polymerization using acrylamide and α-methacrylic acid as a bifunctional monomer and NFZ as a template.
Although some nanomaterials that can improve the solubility of HCPT in water and have a slow release effect have been reported in the above-mentioned references, these materials are essentially insoluble in water and have no obvious solubilization effect on HCPT. Therefore, in this study, a hydrophilic MOF was prepared using zwitterionic ligands as organic linkers. Then, MAA and AAm were employed as monomers to polymerize with the synthesized hydrophilic MOFs to obtain water-soluble polyacid polymer composites (MOF@P). The polymer MOF@P was tested to have a solubility of 370 μg/mL in pure water and was applied to increase the solubility of hydrophobic compounds and for HCPT delivery (Scheme 1). The results showed that the solubility of HCPT was comparatively improved using the polymeric material. Furthermore, MOF@P had a sustainable delivery of HCPT, and the cumulative release rate of HCPT in vitro was about 30% within 72 h at a pH 7.4 buffer solution. The cytotoxicity studies also indicated that the hydrophilic MOF and the composite material had good biocompatibility, which suggests their potential use as drug carriers in cancer treatment.

2. Materials and Methods

2.1. Reagents and Apparatus

Reagents, including 4-bromomethyl benzoic acid, 3,5-pyridinedicarboxylic acid, cupric acetate monohydrate (CuAc2·H2O), phosphate, 4,4-bipyridine, methacrylic acid (MAA), acrylamide (AAm), ethylene glycol dimethacrylate (EGDMA), 2,2′-Azobis(2-methylpropionitrile) (AIBN), HCPT, CPT, and paclitaxel (PTX), were purchased from Aladdin Biochemical Technology Co., Ltd. (Shanghai, China). N, N-Dimethylformamide (DMF), methanol, ethanol, ethyl ether, and acetate were purchased from Tianjin Deen Chemical Reagent Co., Ltd. (Tianjin, China). The reagents used in the cell experiments were purchased from Zhengzhou Purcell Life Technology Co., Ltd. (Zhengzhou, China). The HL-7702 and HepG2 cell lines were purchased from the cell bank of the Chinese Academy of Sciences (Shanghai, China). The other chemicals used in this work were of analytical grade.
Elemental analyses of C, H, and N were conducted on a PerkinElmer 24000-II elemental analyzer. The contact angles of the materials were measured by a liquid–solid interface analyzer (DM300, Kyowa Interface Science Co. Ltd., Niiza, Japan). X-ray diffraction (XRD) patterns were recorded on a Bruker D8 Advance diffractometer (Bruker, Karlsruhe, Germany) by using Cu Kα radiation from 5° to 60° (2θ). A JSM-7610F scanning electron microscope (SEM) (JOEL, Peabody, MA, USA) was used to characterize the shapes of the nanomaterials. A nanometer particle size potential analyzer was applied to test the particle size and Zata potential (Malvern Zetasizer Nano ZS90, Malvern Ltd., Malvern, UK). A Bruker Vertex 70 Fourier-transform infrared (FTIR) spectrometer (Bruker Corporation, Karlsruhe, Germany) was employed to obtain the FTIR spectra. A TU-1900 spectrophotometer (Beijing, China) was to measure the UV–Vis absorption spectrum. A (3-[4,5-dimethylthiazol-2-yl]-2,5 diphenyl tetrazolium bromide) (MTT) assay was conducted on a microplate reader (CLARIO star, BMG LABTECH, Ortenberg, Germany).

2.2. Preparation of Hydrophilic MOF

The synthesis of H3CbdcpBr (N-(4-carboxybenzyl))-(3,5-dicarboxyl) pyridinium bromide) procedure was followed as reported with some modifications [36]. First, 4.30 g of 4-bromomethyl benzoic acid and 3.34 g of pyridine 3,5-dicarboxylate were dissolved in 10 mL and 20 mL of DMF solution, respectively, and they were uniformly mixed. The white precipitate was formed in the reaction at 60 °C for 24 h. The precipitate formed was washed with a mixture of methanol and ether (V:V = 1:1) and then dried in a vacuum drying oven. The structure of the product was confirmed by the FTIR and 1Hydrogen-1 nuclear magnetic resonance (1H-NMR) analyses. The FTIR data were as follows: FTIR (cm−1) ν: 3426(m), 3036(s), 1728(s), 1642(s), 1425(s), 1306(s), 1220(s), 1166(s), 1103(s), 821(m), 749(s), 681(s), 626(s), 586(s), 509(s), and 432(s). The 1H-NMR data were as follows: δ(300 MHz, D2O): 9.29(s, 2H), 9.16(s, 1H), 7.94(d, J = 8.2Hz, 2H), 7.55(d, J = 8.3Hz, 2H), and 5.97(s, 2H). The FTIR and 1H-NMR data proved that H3CbdcpBr was successfully synthesized.
Then, 38.2 mg of H3CbdcpBr was dissolved in 20 mL of double-distilled water, and the pH was adjusted from 6.0 to 6.5 with 0.2 M of NaOH. The aqueous solution of 1.5 mL of CuAc2·H2O (20 mg) was added and stirred at room temperature for 30 min, and 1 mL of 4,4′-bipyridine (15.6 mg) dissolved in DMF was slowly added and stirred at a reduced rotational speed for 5 min. The blue filtrate was obtained after filtration. After one week, the crystals in the filtrate were washed with ether and dried in a vacuum. The hydrophilic MOF materials were obtained after this process.

2.3. X-ray Crystallographic Study

The MOF crystal with a size of 0.17 × 0.14 × 0.06 mm3 was selected for the structure determination. The samples were placed in a Bruker D8 venture photo II CCD diffractometer (Bruker, Germany), and the scanning ranges were −8 ≤ h ≤ 8, −14 ≤ k ≤ 14, and −16 ≤ l ≤ 16. The structure of the compound was analyzed by the shell XT program, which was refined by the least square method F2 with the shell XL package, and the diffraction intensity was corrected by the Lp factor and empirical absorption. A summary of the key crystallographic information is shown in Table 1.

2.4. Synthesis of Water-Soluble Composites (MOF@P)

First, 20 mg of hydrophilic MOF with some proportion of AAm and MAA were mixed together with 6 mL of ethanol. The mixture was stirred at room temperature for 60 min with the addition of some quantities of ethylene glycol dimethacrylate (EGDMA) and azobisisobutyronitrile (10 mg) dissolved in 4 mL of ethanol. The reaction of this mixture was carried out at 65 °C for 20 h after ultrasonic treatment for 30 min. The product resulted from this reaction was washed with methanol–acetic acid (v:v = 9:1) and ethanol successively and then dried in a vacuum oven to obtain water-soluble composites. The solubility of the composite in pure water at 20 °C was determined to be 370 μg/mL by UV spectrophotometry.

2.5. Drug Loading on Water-Soluble Composites (MOF@P)

The calculation of the drug loading content was carried out according to the method developed by our research group [37]. Separate amounts of the composite material (1 mg) and hydroxycamptothecin (1 mg) were added to 3 mL of methanol and ultrasonicated for 2 h. Then, 10 mL of distilled water was slowly added to the mixture and ultrasonicated for 40 min to remove the volatile organic reagent. After the complete removal of the volatile organic reagent, the solution was centrifuged at 8000 rpm for 10 min; the supernatant was filtered through a 0.45-μm membrane and was sealed away from light and stored at 4 °C. The drug-loading content (DLC) and efficiency (DLE) of the material were determined by detecting the drug concentration in the supernatant using the ultraviolet spectrophotometry method. The following equations were used to calculate the DLC (Equation (1)) and DLE (Equation (2)) of the nanocarrier:
DLC (μg/mg) = amount of drug in materials/amount of materials
DLE (%) = amount of drug in materials/amount of drug added × 100%

2.6. Drug Release In Vitro under pH-Controlled Conditions

After the above-obtained supernatant was freeze-dried, 1 mg of powder was accurately weighed, dissolved in 5 mL of phosphate-buffered saline (PBS) buffer solution, and then transferred into a dialysis bag. The bag was placed into a 100-mL PBS buffer solution with a pH = 6.5 or pH = 7.4, and the solution was shaken in the dark at 37 °C. At a certain time, a 3 mL sample was removed, and its absorbance value was measured, and the same volume of corresponding fresh PBS solution was added at the same time. The following equation was used to calculate the cumulative release efficiency:
Cumulative   release   ( % ) = C n × V 0 + V i ∑ i = 1 n − 1 C i m × 100 ,
where Cn (µg/mL) is the HCPT concentration sampled at a specific time. Vi and V0 (mL) refer to the sampling volume and the total volume of the release medium, respectively, and m (mg) represents the mass of materials.

2.7. Cytotoxicity Assay

The human hepatocellular carcinoma cell line (HepG2) and human normal liver cell line (HL-7702) was cultured in Dulbecco’s modified Eagle’s medium (DMEM) supplemented with 10% (v/v) fetal bovine serum (FBS) and RPMI1640 with 20% FBS, respectively, in a humidified atmosphere containing 5% CO2 at 37 °C.
The cytotoxicity of all the materials was evaluated via an MTT assay using HepG2 and HL-7702 cells, which were cultured in a 5% CO2 cell incubator at 37 °C. The cells in the logarithmic growth phase were seeded into 96-well plates, with 3 × 103 cells per well. Then, they were incubated at different concentrations of hydrophilic MOF, MOF@P, and MOF@P@HCPT for 24, 48, and 72 h, respectively. The control group was treated with a normal medium. Finally, the absorbance of each well was measured at 492 nm in triplicate.

3. Results

3.1. Characterization of the Synthesized Materials

The single-crystal X-ray diffraction analysis demonstrated that the hydrophilic MOF belonged to the P-1 space group of the triclinic system, and its asymmetric unit contained one [Cu(Cbdcp)(bipy)1/2] molecule and two dissociative water molecules. The two carboxyl groups of the ligand Cbdcp were connected with Cu2+, and the Cu2+ was connected with bipy (Figure 1a,b). The bond length and bond angle of the MOF are shown in Table 2.
The contact angle is one of the main parameters for quantifying the wettability of a liquid to a material surface. Figure 2 illustrates the changes due to the droplet imbibition into the materials in the three tests. Contact angles less than 90° and 50° indicated a hydrophilic solid [38]. The contacts angle of the MOF synthesized in this work was 46°, which means that the MOF was hydrophilic.
The morphologies of the hydrophilic MOF and MOF@P were observed by scanning electron microscopy (SEM). The MOF structure was observed to be stacked layer by layer (Figure 3a,b). The structure of the material changed from lamellar to a flower-like structure after compounding (Figure 3c). This change can be attributed to the polymerization of an MOF with a monomer and crosslinker, which is formed from connecting multiple blocks of MOFs.
The phase purity and crystal structure of the materials were verified using PXRD patterns (Figure 4). The PXRD pattern of the MOF was consistent with the diffraction data of a single crystal, which indicates that the material was highly crystalline. It can be clearly seen that the peak intensities of MOF@P decreased dramatically because of the influence of the amorphous shell, which was mainly due to the successful coating procedure [39].
The FTIR spectra of the synthetic materials were evaluated to confirm that the expected synthetic reaction of the MOF and the MOF@P occurred. The results of the FTIR spectra showed that the wavelength of 3430 cm−1 was the stretching vibration peak of -OH (Figure 5). The wavelengths of 1659 and 1360 cm−1 were the asymmetric stretching vibration peaks of C=O, which belonged to the symmetric stretching and antisymmetric stretching of -COOH. In addition, the 1540 cm−1 wavelength was the C=C absorption peak of a benzene ring on the MOF. The strong characteristic peak at 725 cm−1 was the stretching vibration peak of Cu-O [40], which confirmed the polymerization of the participating MOF.
Pyrolysis experiments were conducted using the thermogravimetric method to investigate the thermal stabilities of the MOF and MOF@P under nitrogen atmospheres. Two consecutive weight loss stages were observed on the TGA curve of the MOF (Figure 6). In the first stage, a 14.23% (calculated 14.09%) weight loss occurred at the temperature range of 25–175 °C, and this loss was assigned to the disappearance of two crystal water molecules and two coordinated polymer water molecules. However, in the second stage, a 27.39% (calculated 27.47%) weight loss occurred at the temperature range of 175–1000 °C, and this weight loss was assigned to the loss of organic ligands [41]. Thus, the structural formula of the hydrophilic MOF can be defined as [Cu(Cbdcp)(bipy)1/2(H2O)2]·2H2O. Moreover, after 200 °C, MOF@P starts to lose weight. These results proved that the temperature could affect the thermal stability in the field of drug loading.

3.2. Optimization of the MOF@P synthesis Parameters

Although we have synthesized the hydrophilic MOF, its water solubility was not ideal due to its spatial structure. Therefore, it is necessary to modify its surface to obtain certain water-soluble materials for drug loading. MAA and AAm were adopted as functional monomers to polymerize with the hydrophilic MOF to form a water-soluble complex. The function of the crosslinking agent is to fix the functional groups of functional monomers to form a stable rigid polymer. The preparation of MOF@P with a varied ratio of EGDMA was conducted at a fixed ratio of MAA:AAm (molar ratio 1:1), and 20 mg of MOF was used to investigate the crosslinker effect on drug loading. It was observed that the increase in the content of EGDMA led to a floating up and down of the HCPT loading efficiency (Table 3). When the amount of EGDMA approached 1 mmol, the drug loading of HCPT reached a maximum concentration of 237.8 μg/mg. It was observed that the drug loading rate decreased as the crosslinker content increased. Therefore, 1 mmol of EGDMA was used as the optimal amount to participate in the polymerization.
The drug loading capacity of the polymers of MOF@P was influenced by different molar ratios of functional monomers. The influenced drug loading effect for the MOF@P was investigated by varying the MAA/AAm ratio and keeping the EGDMA at 1 mmol. The drug loading rate first increased and then decreased with the change of the MAA/AAm ratio (Table 4). It was observed that the drug loading reached its peak when the molar ratio was 1:1. In summary, the optimization of MOF@P synthesis was achieved when the EGDMA and monomer ratios were 1 mmol and 1:1, respectively.

3.3. Drug Solubilization Research

The solubility of the above obtained polymeric composite in water was examined at room temperature (20 °C) by a UV spectrophotometer. It was examined to be 370 μg/mL. This result was applied to investigate the solubilization effect for three different water-insoluble drugs. Camptothecin (CPT) and paclitaxel (PTX), which have similar water-insolubilities as HPCT, were employed to investigate the water solubility effect of MOF@P. Figure 7 shows that the solubility of HCPT in the MOF@P aqueous solution was 29 times higher than that of the solubility of HCPT in water (2.187 μg/mL), which indicates that the polymer has a noticeable solubilization effect on the HCPT [42]. In addition, the solubilities of CPT and PTX in the MOF@P aqueous solution were six times [43] and 41 times [44] those in water. Therefore, the polymers can be used as carriers to increase the water solubility of insoluble drugs.

3.4. Stability of Drug-Loaded MOF@P

The aqueous solution of the drug-loaded polymer prepared by the optimal formula was clear and light-transparent yellow, while the aqueous solution of the blank polymer was colorless and transparent (Figure 8). When the drug-loaded polymer was stored in the refrigerator at 4 °C for some time, there was no change observed. After 43 days of observation, the solution was still clear. These observed results indicated that the drug-loaded polymer was comparably stable.
Using water as the solvent, the zeta potentials and average particle sizes of MOF, MOF@P, and MOF@P@HCPT (0.10 mg/mL) were tested. The results are shown in Table 5. Due to a slightly positively charged MOF (0.31 mV), therefore, the negative charge of MOF@P mainly comes from the polymer. While the polymer monomers contain carbonyl and carboxyl groups, during the formation of polymer composites, the hydrophilic chains of MAA and AAm surrounded the MOF core, neutralizing and shielding some charges of MOF; thus, the Zeta potential of the prepared MOF changed to −0.70 mV when polymerized with MAA and AAm. It was reported that the surface charges of nanopolymers can affect their distribution in vivo. The less negatively charged and swallowed the nanopolymer is, the longer its circulation time in the blood will be [45,46]. The zeta potential is an important index for measuring the polymer stability. A higher zeta potential absolute value indicates more stable polymers [37]. The zeta potentials of MOF@P were more negative after HCPT was loaded onto the MOF@P, and it was changed to −4.58 mV. This change was attributed to the increase in the size of the nanocomposite particles, which can be verified by the average particle sizes of MOF@P and MOF@P@HCPT (~68.14 nm for MOF@P, with a polymer dispersion index of 0.163, and 278.29 nm for MOF@P@HCPT with a polymer dispersion index of 0.144). According to References [47,48,49], drug-loaded polymers prepared by the physical embedding method solubilize drugs in polymers mainly through hydrophobic force and a hydrogen bond. The experimental results showed that the average particle size of MOF@P@HCPT was larger than that of MOF@P, which may be due to the fact that the HCPT molecules entered the polymer core and occupied part of the space, which led to the outward expansion of the polymer core. In addition, there was a hydration layer in the polymer, so MAA and AAm could be closely combined before the HCPT was loaded. When the drug entered the polymer core, the core size became larger, and the combination of the polymer chains became loose, which made the hydration layer thicker and led to an increase of the polymer size. Owing to the increase in particle size, the density of the MAA/AAm on the MOF surface decreased. This change in density resulted in less MAA and AAm needed to shield the MOF molecules, so that the composites exhibited a lower zeta potential, and thus, the drug-loaded polymers had higher stability.
Furthermore, we measured the zeta potentials of MOF@P and MOF@P@HCPT after 45 days of storage at 4 °C. Owing to the increase in the number of negative charges, the zeta potential of MOF@P changed from −0.70 mV to −2.33 mV, while the zeta potential of MOF@P@HCPT decreased from −4.58 mV to −4.97 mV. These results demonstrate that the nanocomposite polymers and their drug-loaded systems can be stable for a long time.

3.5. In Vitro Release

A sustained drug release is an important index of nanodrug delivery systems. The in vitro drug release behavior of HCPT in the MOF@P in PBS (pH 7.4 and 6.5) was assessed (Figure 9). The HCPT release rate in the pH 7.4 PBS buffer was higher than that in the pH 6.5 PBS buffer, and the cumulative release time exceeded 72 h. Under a pH 7.4 buffer, the cumulative release rate of the composite was approximately 30% within 72 h, whereas the cumulative release rate was approximately 20% at 72 h in the pH 6.5 buffer. Moreover, the HCPT release was much faster at a pH of 7.4 than that at a pH of 6.5 within 72 h. This was because the higher the solution pH, the higher the HCPT solubility, as the HCPT was converted into a relatively higher water-soluble carboxylate form, which was conducive to faster releases [50].
Generally, the Korsmeyer–Peppas [51] and Sigmoidal models [52] are applied to describe the drug release kinetics of the composite materials, and the equations are shown as follows:
Q = K t n
Q = R s 1 + e − k s ( t − t 50 )
where Q represents the cumulative release percentage at time t (h), K is the kinetic constant, and n is the diffusion exponent. The theoretical maximum release rate is Rs (%), and ks and t50 are the release kinetic constants.
The results of the kinetic parameters for the two model are summed up in Table 6. It can be seen that, at pH 7.4, the experimental data conformed well to the Korsmeyer–Peppas model, and according to the fitting results of Korsmeyer–Peppas in the MOF@P release system in Table 6, n was 0.13 at pH 7.4 which was less than 0.45, revealing that the release kinetics process of the system conformed to the Fick diffusion mechanism [51]. In other words, the interaction between MOF@P and the drug was relatively weak, and the concentration gradient of HCPT inside and outside the dialysis bag was larger at the initial stage, leading to a relatively faster release at the first few hours. After a certain number of hours, the concentration gradient became lower, and HCPT had poor solubility in the PBS buffer, leading to a slower release in the following hours. In addition, the K value at pH = 7.4 was higher than that at pH = 6.5, and the higher K value indicated that the drug release rate was faster, which proved that the drug could be released faster in the buffer solution at pH = 7.4 than in the buffer solution at pH = 6.5, which was consistent with the results in Figure 9 [52]. However, for the pH 6.5 release system, the experimental data was neither consistent with the Korsmeyer–Peppas model nor well-fitted to the Sigmogenic model. The abnormal non-Fick spread was described by the Sigmoidal release function. The changes in drug diffusion and internal stresses resulted in abnormalities. The relaxation and diffusion macromolecular time scales were similar in anomalous non-Fick diffusion [53,54,55,56,57].

3.6. Cytotoxicity Assay

The effects of the hydrophilic MOF, MOF@P, and MOF@P@HCPT on the cell survival rate of HepG2 and HL-7702 were detected through the MTT method to evaluate the biocompatibility of the synthetic materials. The inhibition of these three materials on the two kinds of cells were all time concentration-dependent (Figure 10). The inhibitory effect of MOF@P@HCPT on HepG2 cells was higher than that of MOF and MOF@P after 48 h of treatment, and a possible reason for the toxicity perhaps resulted from the released anticancer drug HCPT. However, when the concentrations of MOF and MOF@P were up to 25 μg/mL, they showed low cytotoxicity with less than a 20% cell death rate, which means that these materials have good biocompatibility. In addition, at the same concentration of these three materials, the inhibition of HepG2 cell viability was higher after being treated for 72 h than for 48 h. The IC50 of these materials toward cells were calculated to evaluate the cytotoxicity. For HL-7702 cells, the IC50 of MOF@P and MOF@P@HCPT at 48 h were 64.66 μg/mL and 56.49 μg/mL, respectively. After 72 h, the IC50 were 48.28 μg/mL and 38.09 μg/mL, respectively. It can be seen that the inhibitory effects of MOF@P and MOF@P@HCPT on HL-7702 cells increased with time, and the cytotoxicity of MOF@P@HCPT was significantly higher than that of MOF@P without the drug materials. This may be due to the release of HCPT in MOF@P. Additionally, for HepG2 cells, the repress effect was also time-dependent. The IC50 of MOF@P and MOF@P@HCPT at 48 h were 124.28 μg/mL and 70.72 μg/mL, respectively. After 72 h, the IC50 were 88.68 μg/mL and 40.81 μg/mL, respectively. It can be seen that the inhibitory effect of the materials on HepG2 cells was relatively lower than that on HL-7702 cells. However, the repress effect was comparable to MOF@P@HCPT after 72 h. Therefore, it can be concluded from the results that MOF@P@HCPT had a sustained-release effect on HCPT. Furthermore, the MOF and MOF@P had low cytotoxicity, indicating their potential use as drug carriers. Our following work will be to improve the material properties to make them targeted to sustainably kill cancer cells.

4. Conclusions

A hydrophilic MOF was synthesized and polymerized with methacrylic acid and acrylamide using EGDMA to form a water-soluble polyacid polymer (MOF@P) with a solubility of 370 μg/mL. The results showed that the MOF@P had a specific solubilization effect on HCPT, and the drug loading of HCPT reached a maximum concentration of 237.8 μg/mg. Moreover, the composite exhibited a sustained-release effect on HCPT, and the cumulative release rates of HCPT in 72 h were 30.18% and 22.40% at pH 7.4 and 6.5, respectively. The cytotoxicity test showed that the hydrophilic MOF and the MOF@P had low cell toxicity. Therefore, the water-soluble polyacid polymer featured good solubilization, sustained-release properties, and good biocompatibility; thus, it has application potential as a carrier in drug solubilization and sustained-release drug delivery.

Author Contributions

Y.S.: conceptualization, methodology, investigation and writing—original draft. W.L.: investigation and writing—original draft. X.W.: writing—review and editing. J.Z.: project administration, supervision and writing—review and editing. D.Z.: investigation. X.L.: supervision. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by National Science Foundation of China, grant number U2004133, the Medical Interdisciplinary Training Program of Henan University, grant number CJ1205A0240016, and the Institute of Science and Technology of Henan University, grant number 2019YLZDYJ13.

Institutional Review Board Statement

This study was conducted according to the guidelines of the Declaration of Helsinki and approved by the Ethics Committee of Biomedical Scientific Research of Henan University (HUSOM2021-096, 23 February 2021).

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of the data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. Guo, S.; Zheng, J.; Dong, J.; Guo, N.; Jing, L.; Yue, X.; Yan, X.; Wang, Y.; Dai, Z. Iron/dextran sulfate multilayered microcapsules for controlled release of 10-hydroxycamptothecin. Int. J. Biol. Macromol. 2011, 49, 409–415. [Google Scholar] [CrossRef]
  2. Sun, Y.; Wang, L.; Sun, S.; Liu, B.; Wu, N.; Cao, X. The effect of 10-hydroxycamptothecine in preventing fibroblast proliferation and epidural scar adhesion after laminectomy in rats. Eur. J. Pharmacol. 2008, 593, 44–48. [Google Scholar] [CrossRef] [PubMed]
  3. Wang, S.-L.; Lin, S.-Y.; Hsieh, T.-F.; Chan, S.-A. Thermal behavior and thermal decarboxylation of 10-hydroxycamptothecin in the solid state. J. Pharm. Biomed. Anal. 2007, 43, 457–463. [Google Scholar] [CrossRef]
  4. Yuan, Z.F.; Tang, Y.M.; Xu, X.J.; Li, S.S.; Zhang, J.Y. 10-Hydroxycamptothecin induces apoptosis in human neuroblastoma SMS-KCNR cells through p53, cytochrome c and caspase 3 pathways. Neoplasma 2016, 63, 72–79. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Ni, Y.; Wang, Y.; Kokot, S. Study of the interaction between 10-hydroxycamptothecine and DNA with the use of ethidium bromide dye as a fluorescence probe. Sens. Actuators B Chem. 2011, 156, 290–297. [Google Scholar] [CrossRef]
  6. Zhang, Y.; Yin, Q.; Yin, L.; Ma, L.; Tang, L.; Cheng, J. Chain-shattering polymeric therapeutics with on-demand drug-release capability. Angew. Chem. Int. Ed. 2013, 52, 6435–6439. [Google Scholar] [CrossRef] [Green Version]
  7. Wei, H.; Schellinger, J.G.; Chu, D.S.H.; Pun, S.H. Neuron-Targeted Copolymers with Sheddable Shielding Blocks Synthesized Using a Reducible, RAFT-ATRP Double-Head Agent. J. Am. Chem. Soc. 2012, 134, 16554–16557. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  8. Çırpanlı, Y.; Allard, E.; Passirani, C.; Bilensoy, E.; Lemaire, L.; Çalış, S.; Benoit, J.-P. Antitumoral activity of camptothecin-loaded nanoparticles in 9L rat glioma model. Int. J. Pharm. 2010, 403, 201–206. [Google Scholar] [CrossRef] [PubMed]
  9. Li, H.-Q.; Ye, W.-L.; Huan, M.-L.; Cheng, Y.; Liu, D.-Z.; Cui, H.; Liu, M.; Zhang, B.-L.; Mei, Q.-B.; Zhou, S.-Y. Mitochondria and nucleus delivery of active form of 10-hydroxycamptothecin with dual shell to precisely treat colorectal cancer. Nanomedicine 2019, 14, 1011–1032. [Google Scholar] [CrossRef]
  10. Yang, L.; Hong, J.; Di, J.; Guo, Y.; Han, M.; Liu, M.; Wang, X. 10-Hydroxycamptothecin (HCPT) nanosuspensions stabilized by mPEG1000-HCPT conjugate: High stabilizing efficiency and improved antitumor efficacy. Int. J. Nanomed. 2017, ume 12, 3681–3695. [Google Scholar] [CrossRef] [Green Version]
  11. Ma, Z.; Liu, J.; Li, X.; Xu, Y.; Liu, D.; He, H.; Wang, Y.; Tang, X. Hydroxycamptothecin (HCPT)-loaded PEGlated lipid–polymer hybrid nanoparticles for effective delivery of HCPT: QbD-based development and evaluation. Drug Deliv. Transl. Res. 2021, 1–19. [Google Scholar] [CrossRef]
  12. Han, Y.; Liu, W.; Huang, J.; Qiu, S.; Zhong, H.; Liu, D.; Liu, J. Cyclodextrin-Based Metal-Organic Frameworks (CD-MOFs) in Pharmaceutics and Biomedicine. Pharmaceutics 2018, 10, 271. [Google Scholar] [CrossRef] [Green Version]
  13. Jalvandi, J.; White, M.; Gao, Y.; Truong, Y.B.; Padhye, R.; Kyratzis, I.L. Polyvinyl alcohol composite nanofibres containing conjugated levofloxacin-chitosan for controlled drug release. Mater. Sci. Eng. C 2017, 73, 440–446. [Google Scholar] [CrossRef]
  14. Kiadeh, S.Z.H.; Ghaee, A.; Farokhi, M.; Nourmohammadi, J.; Bahi, A.; Ko, F.K. Electrospun pectin/modified copper-based metal–organic framework (MOF) nanofibers as a drug delivery system. Int. J. Biol. Macromol. 2021, 173, 351–365. [Google Scholar] [CrossRef]
  15. Zhou, J.; Tian, G.; Zeng, L.; Song, X.; Bian, X.-W. Nanoscaled Metal-Organic Frameworks for Biosensing, Imaging, and Cancer Therapy. Adv. Health Mater. 2018, 7, e1800022. [Google Scholar] [CrossRef]
  16. Furukawa, H.; Cordova, K.E.; O’Keeffe, M.; Yaghi, O.M. The Chemistry and Applications of Metal-Organic Frameworks. Science 2013, 341, 1230444. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Wen, A.; Darpandeep, A.; Xuan, Z.; Wolfgang, V.; Kim, R.D.; Mario, W. Switching of Adsorption Properties in a Zwitterionic Metal–Organic Framework Triggered by Photogenerated Radical Triplets. Chem. Mater. 2016, 28, 7825–7832. [Google Scholar] [CrossRef]
  18. Leroux, M.; Mercier, N.; Allain, M.; Dul, M.C.; Dittmer, J.; Kassiba, A.H.; Bellat, J.P.; Weber, G.; Bezverkhyy, I. Porous Coordination Polymer Based on Bipyridinium Carboxylate Linkers with High and Reversible Ammonia Uptake. Inorg. Chem. 2016, 55, 8587–8594. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  19. Higuchi, M.; Nakamura, K.; Horike, S.; Hijikata, Y.; Yanai, N.; Fukushima, T.; Kim, J.; Kato, K.; Takata, M.; Watanabe, D.; et al. Design of Flexible Lewis Acidic Sites in Porous Coordination Polymers by using the Viologen Moiety. Angew. Chem. Int. Ed. 2012, 51, 8369–8372. [Google Scholar] [CrossRef] [PubMed]
  20. Zhao, H.-Q.; Yang, S.-P.; Ding, N.-N.; Qin, L.; Qiu, G.-H.; Chen, J.-X.; Zhang, W.-H.; Chen, W.-H.; Hor, T.S.A. A zwitterionic 1D/2D polymer co-crystal and its polymorphic sub-components: A highly selective sensing platform for HIV ds-DNA sequences. Dalton Trans. 2016, 45, 5092–5100. [Google Scholar] [CrossRef]
  21. Xie, B.-P.; Qiu, G.-H.; Sun, B.; Yang, Z.-F.; Zhang, W.-H.; Chen, J.-X.; Jiang, Z.-H. Synchronous sensing of three conserved sequences of Zika virus using a DNAs@MOF hybrid: Experimental and molecular simulation studies. Inorg. Chem. Front. 2018, 6, 148–152. [Google Scholar] [CrossRef]
  22. Zhai, L.-Y.; Li, M.-X.; Pan, W.-L.; Chen, Y.; Li, M.-M.; Pang, J.-X.; Zheng, L.; Chen, J.-X.; Duan, W.-J. In Situ Detection of Plasma Exosomal MicroRNA-1246 for Breast Cancer Diagnostics by a Au Nanoflare Probe. ACS Appl. Mater. Interfaces 2018, 10, 39478–39486. [Google Scholar] [CrossRef] [PubMed]
  23. Hu, X.-M.; Li, R.-T.; Zhang, M.-M.; Wu, K.-Y.; Li, H.-H.; Huang, N.-H.; Sun, B.; Chen, J.-X. Phenanthroline-linked berberine dimer and fluorophore-tagged DNA conjugate for the selective detection of microRNA-185: Experimental and molecular docking studies. Anal. Chim. Acta 2019, 1051, 153–159. [Google Scholar] [CrossRef]
  24. Hu, P.-P.; Liu, N.; Wu, K.-Y.; Zhai, L.-Y.; Xie, B.-P.; Sun, B.; Duan, W.-J.; Zhang, W.-H.; Chen, J.-X. Successive and Specific Detection of Hg(2+) and I(-) by a DNA@MOF Biosensor: Experimental and Simulation Studies. Inorg. Chem. 2018, 57, 8382–8389. [Google Scholar] [CrossRef]
  25. Xie, B.-P.; Chai, J.; Fan, C.; Ouyang, J.-H.; Duan, W.-J.; Sun, B.; Chen, J.; Yuan, L.-X.; Xu, X.-Q.; Chen, J.-X. Water-Stable Silver-Based Metal–Organic Frameworks of Quaternized Carboxylates and Their Antimicrobial Activity. ACS Appl. Bio Mater. 2020, 3, 8525–8531. [Google Scholar] [CrossRef]
  26. Chen, M.; Wu, K.-Y.; Pan, W.-L.; Huang, N.-H.; Li, R.-T.; Chen, J.-X. Selective and recyclable tandem sensing of PO43− and Al3+ by a water-stable terbium-based metal–organic framework. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2020, 247, 119084. [Google Scholar] [CrossRef] [PubMed]
  27. Giliopoulos, D.; Zamboulis, A.; Giannakoudakis, D.; Bikiaris, D.; Triantafyllidis, K. Polymer/Metal Organic Framework (MOF) Nanocomposites for Biomedical Applications. Molecules 2020, 25, 185. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  28. Lian, X.; Huang, Y.; Zhu, Y.; Fang, Y.; Zhao, R.; Joseph, E.; Li, J.; Pellois, J.-P.; Zhou, H.-C. Enzyme-MOF Nanoreactor Activates Nontoxic Paracetamol for Cancer Therapy. Angew. Chem. Int. Ed. 2018, 57, 5725–5730. [Google Scholar] [CrossRef]
  29. Neisi, Z.; Ansari-Asl, Z.; Jafarinejad-Farsangi, S.; Tarzi, M.E.; Sedaghat, T.; Nobakht, V. Synthesis, characterization and biocompatibility of polypyrrole/Cu(II) metal-organic framework nanocomposites. Colloids Surf. B Biointerfaces 2019, 178, 365–376. [Google Scholar] [CrossRef]
  30. Cai, X.; Deng, X.; Xie, Z.; Shi, Y.; Pang, M.; Lin, J. Controllable synthesis of highly monodispersed nanoscale Fe-soc-MOF and the construction of Fe-soc-MOF@polypyrrole core-shell nanohybrids for cancer therapy. Chem. Eng. J. 2018, 358, 369–378. [Google Scholar] [CrossRef]
  31. Li, S.; Ge, Y.; Tiwari, A.; Wang, S.; Turner, A.; Piletsky, S. ‘On/off’-switchable catalysis by a smart enzyme-like imprinted polymer. J. Catal. 2011, 278, 173–180. [Google Scholar] [CrossRef]
  32. Li, H.; Xu, W.; Wang, N.; Ma, X.; Niu, D.; Jiang, B.; Liu, L.; Huang, W.; Yang, W.; Zhou, Z. Synthesis of magnetic molecularly imprinted polymer particles for selective adsorption and separation of dibenzothiophene. Microchim. Acta 2012, 179, 123–130. [Google Scholar] [CrossRef]
  33. Qin, L.; He, X.-W.; Yuan, X.; Li, W.-Y.; Zhang, Y.-K. Molecularly imprinted beads with double thermosensitive gates for selective recognition of proteins. Anal. Bioanal. Chem. 2011, 399, 3375–3385. [Google Scholar] [CrossRef] [Green Version]
  34. Ma, L.; Tang, L.; Li, R.-S.; Huang, Y.-P.; Liu, Z.-S. Water-compatible molecularly imprinted polymers prepared using metal–organic gel as porogen. RSC Adv. 2015, 5, 84601–84609. [Google Scholar] [CrossRef]
  35. Cheng, J.; Li, Y.; Zhong, J.; Lu, Z.; Wang, G.; Sun, M.; Jiang, Y.; Zou, P.; Wang, X.; Zhao, Q.; et al. Molecularly imprinted electrochemical sensor based on biomass carbon decorated with MOF-derived Cr2O3 and silver nanoparticles for selective and sensitive detection of nitrofurazone. Chem. Eng. J. 2020, 398, 125664. [Google Scholar] [CrossRef]
  36. Chen, J.-X.; Chen, M.; Ding, N.-N.; Chen, W.-H.; Zhang, W.-H.; Hor, A.; Young, D.J. Transmetalation of a Dodecahedral Na9 Aggregate-Based Polymer: A Facile Route to Water Stable Cu(II) Coordination Networks. Inorg. Chem. 2014, 53, 7446–7454. [Google Scholar] [CrossRef] [PubMed]
  37. Qing, W.; Wang, Y.; Wang, Y.; Zhao, D.; Liu, X.; Zhu, J. The modified nanocrystalline cellulose for hydrophobic drug delivery. Appl. Surf. Sci. 2016, 366, 404–409. [Google Scholar] [CrossRef] [Green Version]
  38. Pan, B.; Clarkson, C.R.; Atwa, M.; Debuhr, C.; Ghanizadeh, A.; Birss, V.I. Wetting dynamics of nanoliter water droplets in nanoporous media. J. Colloid Interface Sci. 2020, 589, 411–423. [Google Scholar] [CrossRef]
  39. Qian, K.; Fang, G.; Wang, S. A novel core–shell molecularly imprinted polymer based on metal–organic frameworks as a matrix. Chem. Commun. 2011, 47, 10118–10120. [Google Scholar] [CrossRef]
  40. Zhang, L.-P.; Mo, C.-E.; Huang, Y.-P.; Liu, Z.-S. Preparation of Liquid Crystalline Molecularly Imprinted Polymer Coated Metal Organic Framework for Capecitabine Delivery. Part. Part. Syst. Charact. 2018, 36. [Google Scholar] [CrossRef] [Green Version]
  41. Wang, K.; He, Y.; Zhao, Y.; Ma, P.; Wang, J. A propionate-functionalized polyoxovanadate K2[V10O16(OH)6(CH3CH2CO2)6]·20H2O: As catalyst for degradation of methylene blue. J. Mol. Struct. 2019, 1195, 184–188. [Google Scholar] [CrossRef]
  42. Morgan, M.T.; Carnahan, M.A.; Immoos, C.E.; Ribeiro, A.A.; Finkelstein, S.; Lee, S.J.; Grinstaff, M.W. Dendritic Molecular Capsules for Hydrophobic Compounds. J. Am. Chem. Soc. 2003, 125, 15485–15489. [Google Scholar] [CrossRef] [PubMed]
  43. Jeong, D.; Pal, T.; Kim, H.; Kim, T.W.; Biswas, G.; Lee, D.; Singh, T.; Murthy, A.S.N.; Kim, W.; Kim, K.; et al. Preparation of a Camptothecin-conjugated Molecular Carrier and its Cytotoxic Effect Toward Human Colorectal Carcinoma In Vitro. Bull. Korean Chem. Soc. 2018, 39, 1385–1393. [Google Scholar] [CrossRef]
  44. Yang, Q.; Zu, C.; Li, W.; Wu, W.; Ge, Y.; Wang, L.; Wang, L.; Li, Y.; Zhao, X. Enhanced Water Solubility and Oral Bioavailability of Paclitaxel Crystal Powders through an Innovative Antisolvent Precipitation Process: Antisolvent Crystallization Using Ionic Liquids as Solvent. Pharmaceutics 2020, 12, 1008. [Google Scholar] [CrossRef]
  45. Sezgin, Z.; Yüksel, N.; Baykara, T. Preparation and characterization of polymeric micelles for solubilization of poorly soluble anticancer drugs. Eur. J. Pharm. Biopharm. 2006, 64, 261–268. [Google Scholar] [CrossRef] [PubMed]
  46. Hirsch, V.; Kinnear, C.; Moniatte, M.; Rothen-Rutishauser, B.; Clift, M.J.D.; Fink, A. Surface charge of polymer coated SPIONs influences the serum protein adsorption, colloidal stability and subsequent cell interaction in vitro. Nanoscale 2013, 5, 3723–3732. [Google Scholar] [CrossRef] [Green Version]
  47. Trimaille, T.; Mondon, K.; Gumy, R. Novel polymeric miclles for hydrophobie drug delivery based on biodegradable poly(hexyl-substituted lactides). Int. J. Pharm. 2006, 319, 147–154. [Google Scholar] [CrossRef] [PubMed]
  48. Wei, H.; Zhang, X.Z.; Cheng, C. Self-assembled, thermosensitive micelles of a star block copolymer based on PMMA and PNIPAAm for contolled drug delivery. Biomaterials 2006, 28, 99–107. [Google Scholar] [CrossRef]
  49. Kataoka, K.; Matsumoto, T.; Yokoyama, M. Doxorubicin loaded poly (ethyleneglycol)-poly(β-benzyl-L-aspartate) copolymer micells their pharmacetical haracteristics and biological significance. J. Control. Release 2000, 64, 143–1531. [Google Scholar] [CrossRef]
  50. Wang, X.; Pan, H.; Lin, Q.; Wu, H.; Jia, S.; Shi, Y. One-Step Synthesis of Nitrogen-Doped Hydrophilic Mesoporous Carbons from Chitosan-Based Triconstituent System for Drug Release. Nanoscale Res. Lett. 2019, 14, 1–12. [Google Scholar] [CrossRef] [Green Version]
  51. Korsmeyer, R.W.; Gurny, R.; Doelker, E.; Buri, P.; Peppas, N.A. Mechanisms of solute release from porous hydrophilic polymers. Int. J. Pharm. 1983, 15, 25–35. [Google Scholar] [CrossRef]
  52. Narisawa, S.; Nagata, M.; Hirakawa, Y.; Kobayashi, M.; Yoshino, H. An Organic Acid-Induced Sigmoidal Release System for Oral Controlled-Release Preparations. 2. Permeability Enhancement of Eudragit RS Coating Led by the Physicochemical Interactions with Organic Acid. J. Pharm. Sci. 1996, 85, 184–188. [Google Scholar] [CrossRef] [PubMed]
  53. Ávila, M.I.; Alonso-Morales, N.; Baeza, J.A.; Rodríguez, J.J.; Gilarranz, M.A. High load drug release systems based on carbon porous nanocapsule carriers. Ibuprofen case study. J. Mater. Chem. B 2020, 8, 5293–5304. [Google Scholar] [CrossRef]
  54. Kim, A.R.; Lee, S.L.; Park, S.N. Properties and in vitro drug release of pH-and temperature-sensitive double cross-linked interpenetrating polymer network hydrogels based on hyaluronic acid/poly (N-isopropylacrylamide) for transdermal delivery of luteolin. Int. J. Biol. Macromol. 2018, 118, 731–740. [Google Scholar] [CrossRef]
  55. Saxena, A.; Kaloti, M.; Bohidar, H. Rheological properties of binary and ternary protein–polysaccharide co-hydrogels and comparative release kinetics of salbutamol sulphate from their matrices. Int. J. Biol. Macromol. 2011, 48, 263–270. [Google Scholar] [CrossRef] [PubMed]
  56. Wang, Y.; Yang, M.; Shen, R.; Shao, S.; Chen, L.; Gong, W.; Shan, L.; Gao, C. Development of metoprolol tartrate-loaded sustained-release pellets: Effect of talc on the mechanism of drug release. Pharm. Dev. Technol. 2016, 23, 664–673. [Google Scholar] [CrossRef]
  57. Shi, Y.; Wang, Y.; Zhu, J.; Liu, W.; Khan, Z.H.; Liu, X. Molecularly Imprinting Polymers (MIP) Based on Nitrogen Doped Carbon Dots and MIL-101(Fe) for Doxorubicin Hydrochloride Delivery. Nanomaterials 2020, 10, 1655. [Google Scholar] [CrossRef] [PubMed]
Nanomaterials 11 02854 sch001 550

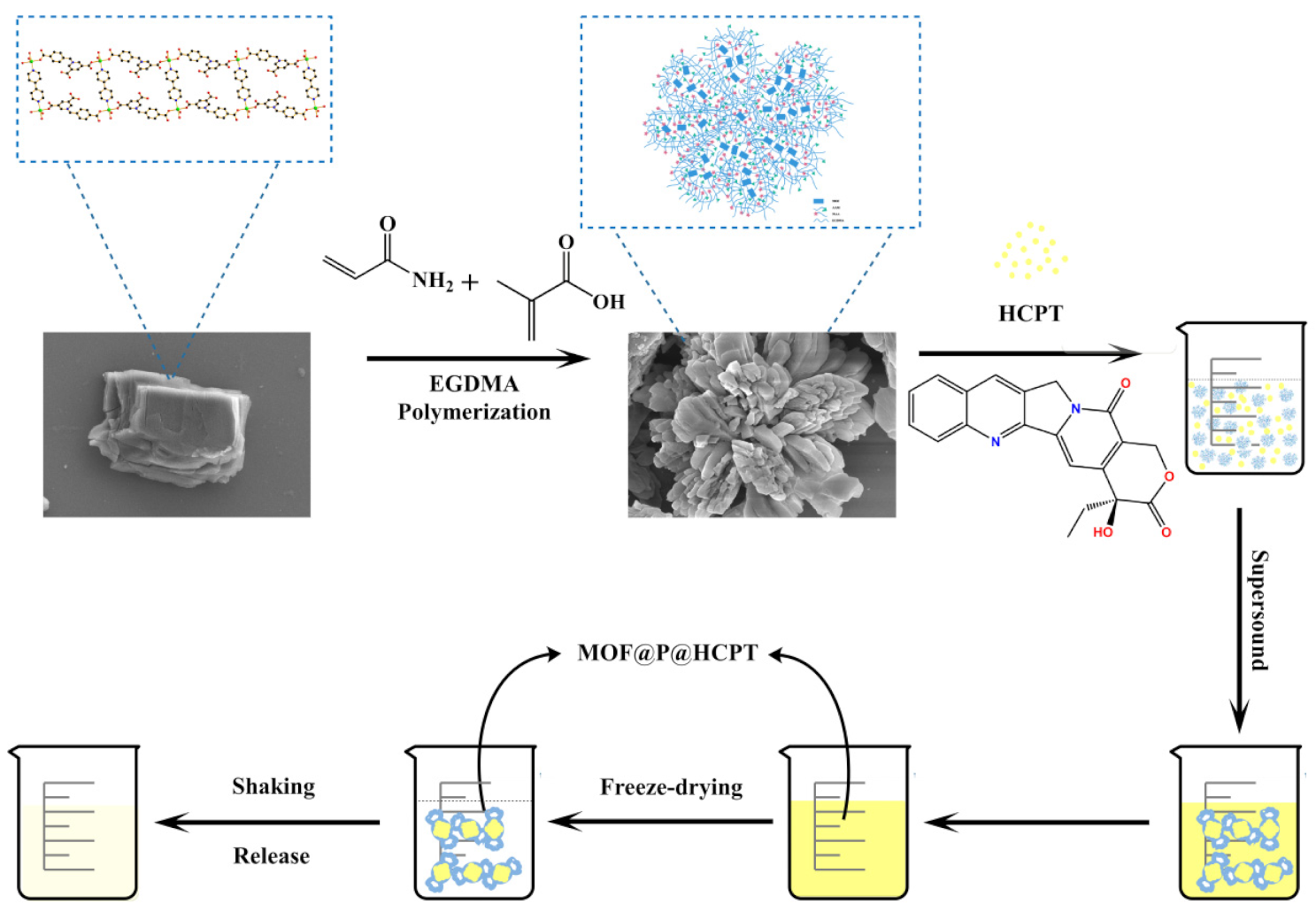

Scheme 1. Schematic diagram of the preparation and drug delivery of HCPT.
Scheme 1. Schematic diagram of the preparation and drug delivery of HCPT.
Nanomaterials 11 02854 sch001
Nanomaterials 11 02854 g001 550

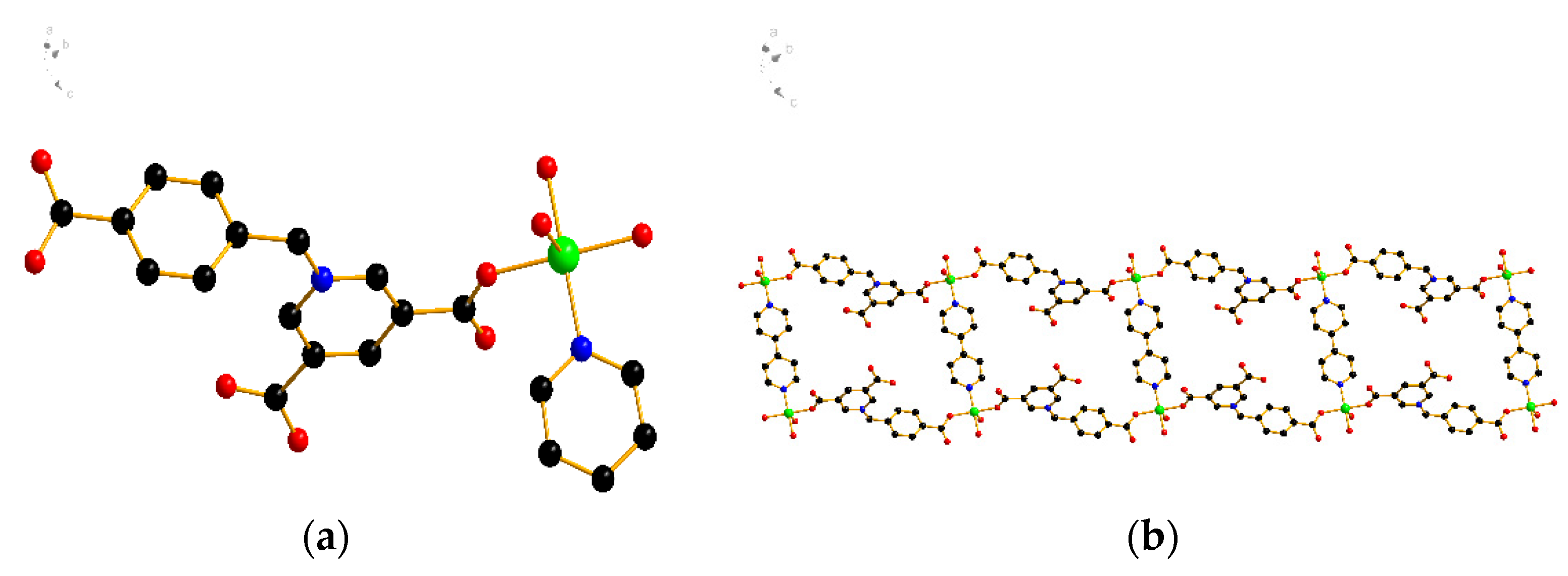

Figure 1. Crystal structure of the prepared MOF. (a) The asymmetric element of MOF. (b) The one-dimensional grid plane structure of MOF. Atomic colors: Cu (green), N (blue), O (red), and C (black).
Figure 1. Crystal structure of the prepared MOF. (a) The asymmetric element of MOF. (b) The one-dimensional grid plane structure of MOF. Atomic colors: Cu (green), N (blue), O (red), and C (black).
Nanomaterials 11 02854 g001
Nanomaterials 11 02854 g002 550

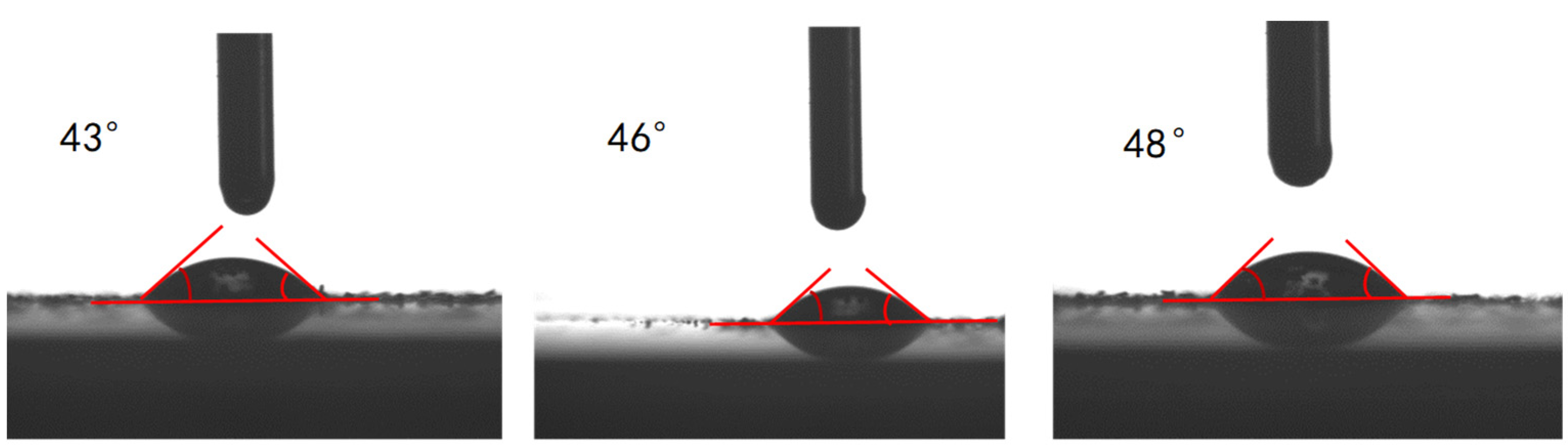

Figure 2. Static water contact angle results for the MOF.
Figure 2. Static water contact angle results for the MOF.
Nanomaterials 11 02854 g002
Nanomaterials 11 02854 g003 550

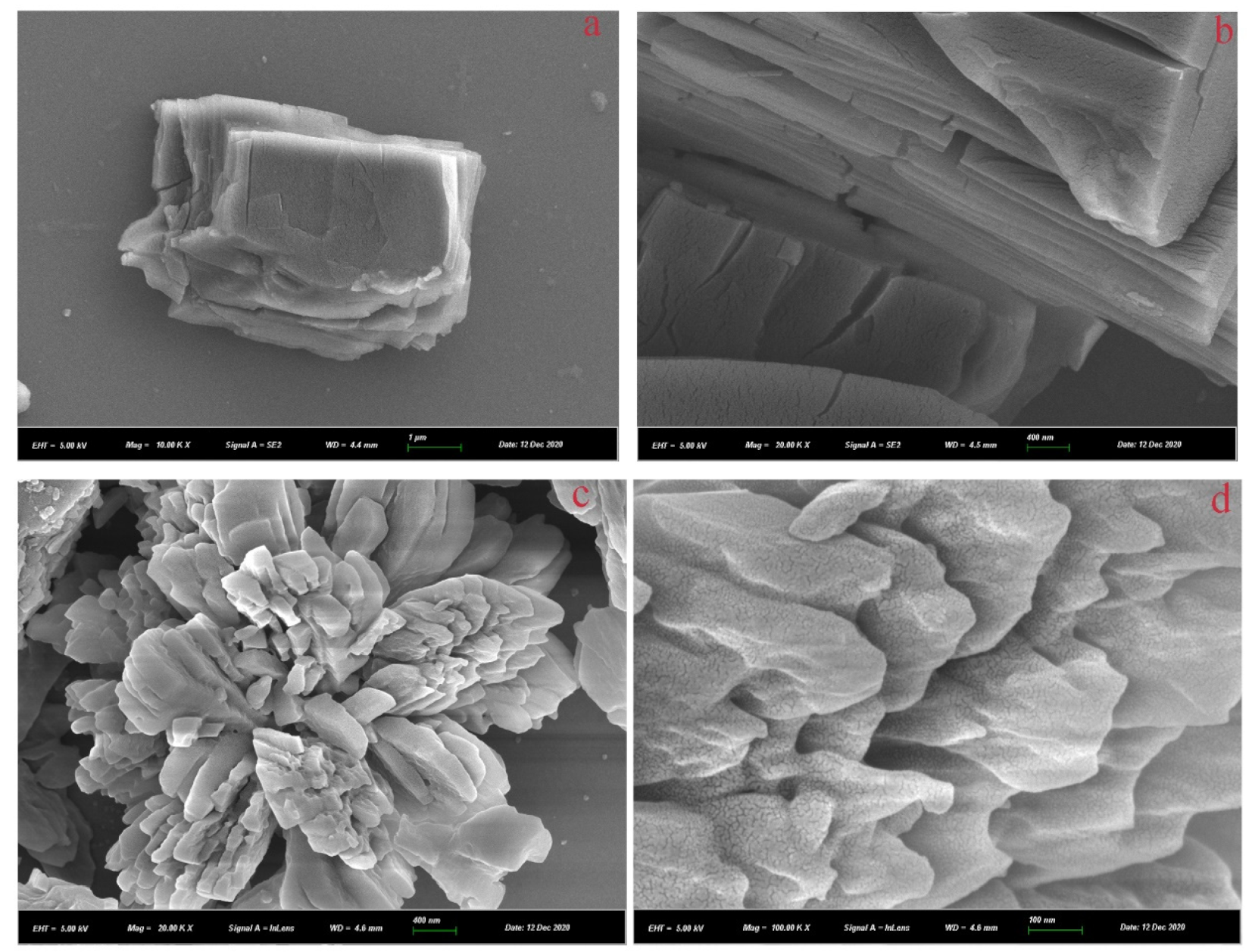

Figure 3. SEM images of the MOF (a,b) and MOF@P (c,d).
Figure 3. SEM images of the MOF (a,b) and MOF@P (c,d).
Nanomaterials 11 02854 g003
Nanomaterials 11 02854 g004 550

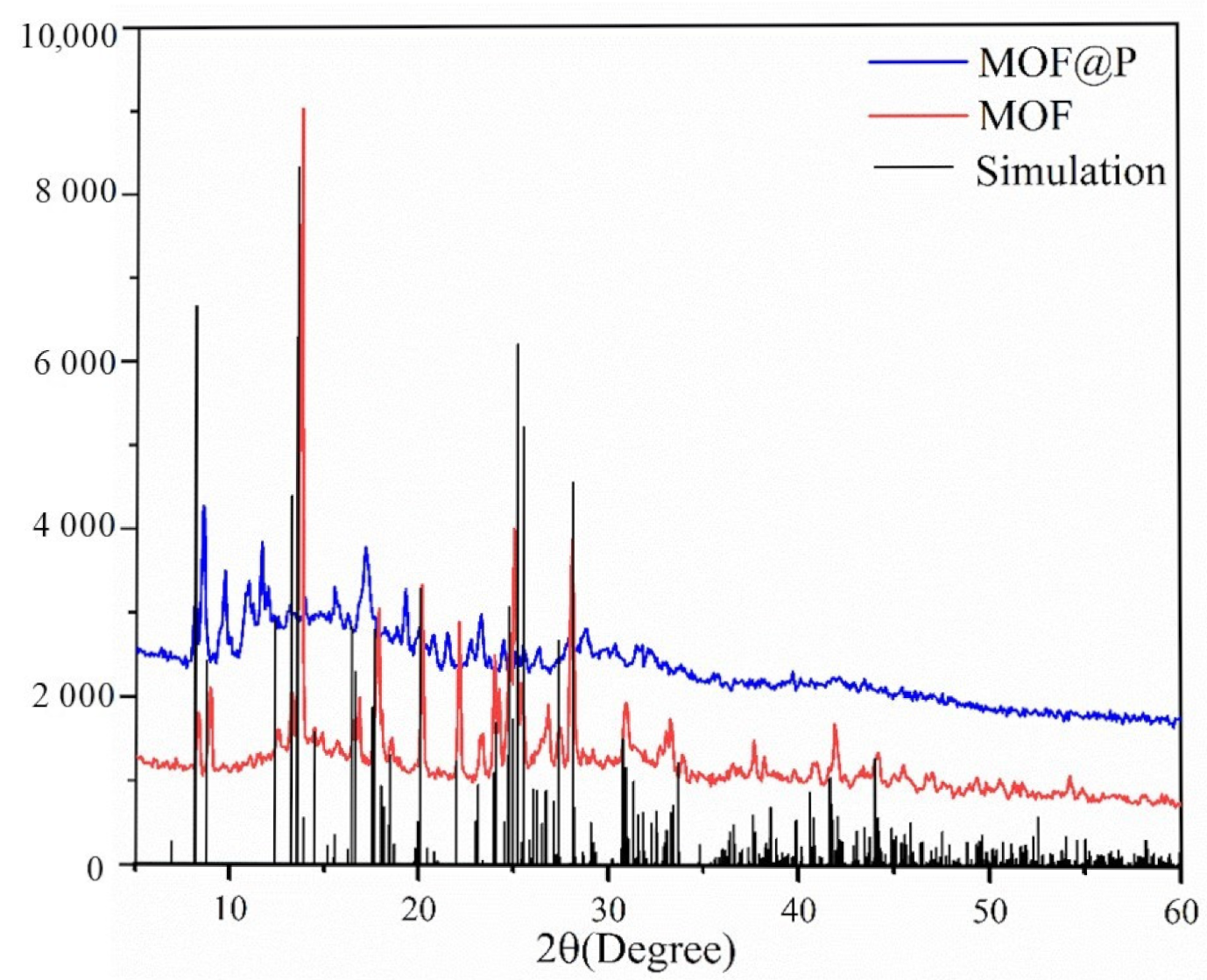

Figure 4. XRD patterns of the simulated MOF, prepared MOF, and MOF@P.
Figure 4. XRD patterns of the simulated MOF, prepared MOF, and MOF@P.
Nanomaterials 11 02854 g004
Nanomaterials 11 02854 g005 550

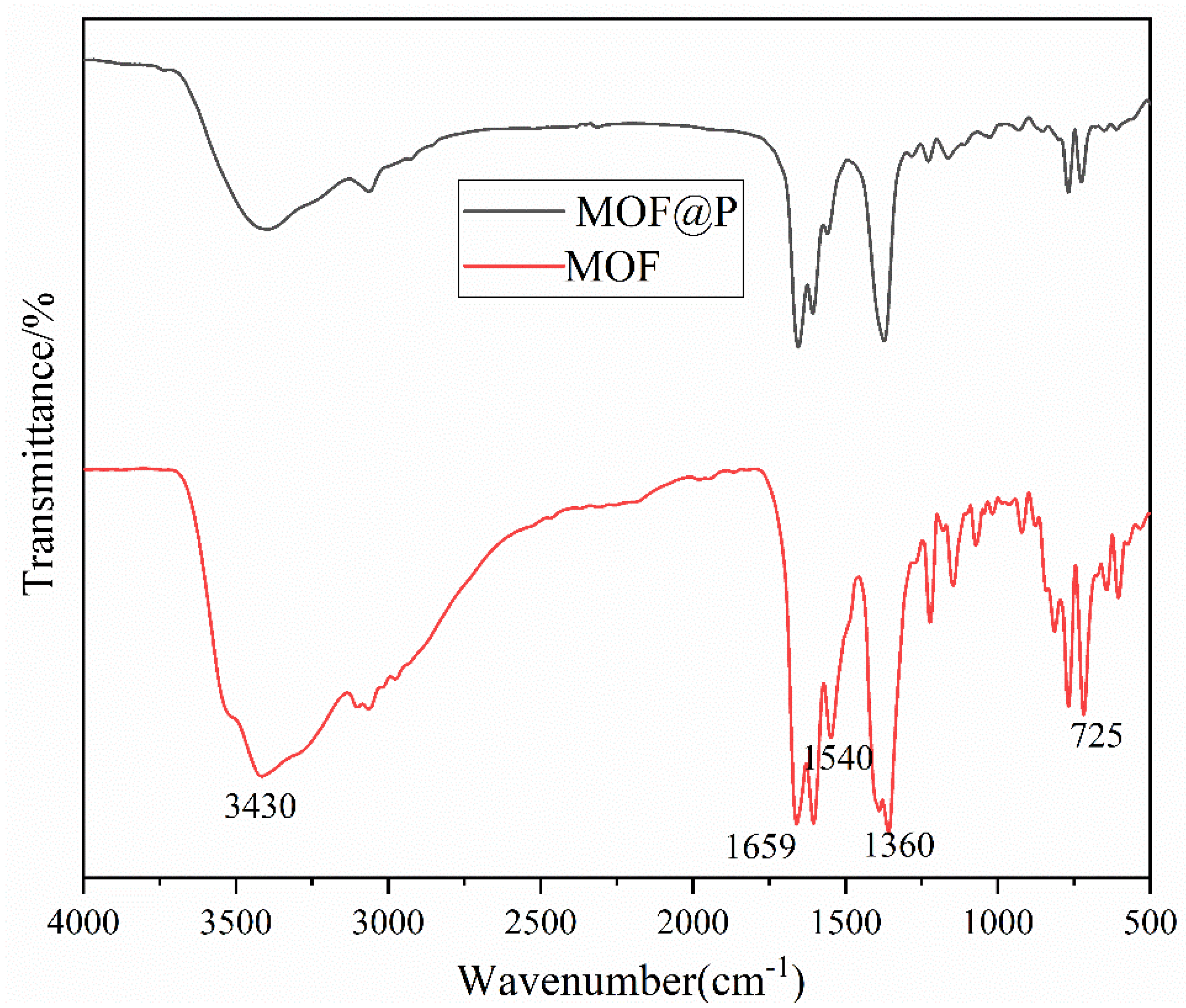

Figure 5. FTIR spectra of the MOF and MOF@P.
Figure 5. FTIR spectra of the MOF and MOF@P.
Nanomaterials 11 02854 g005
Nanomaterials 11 02854 g006 550

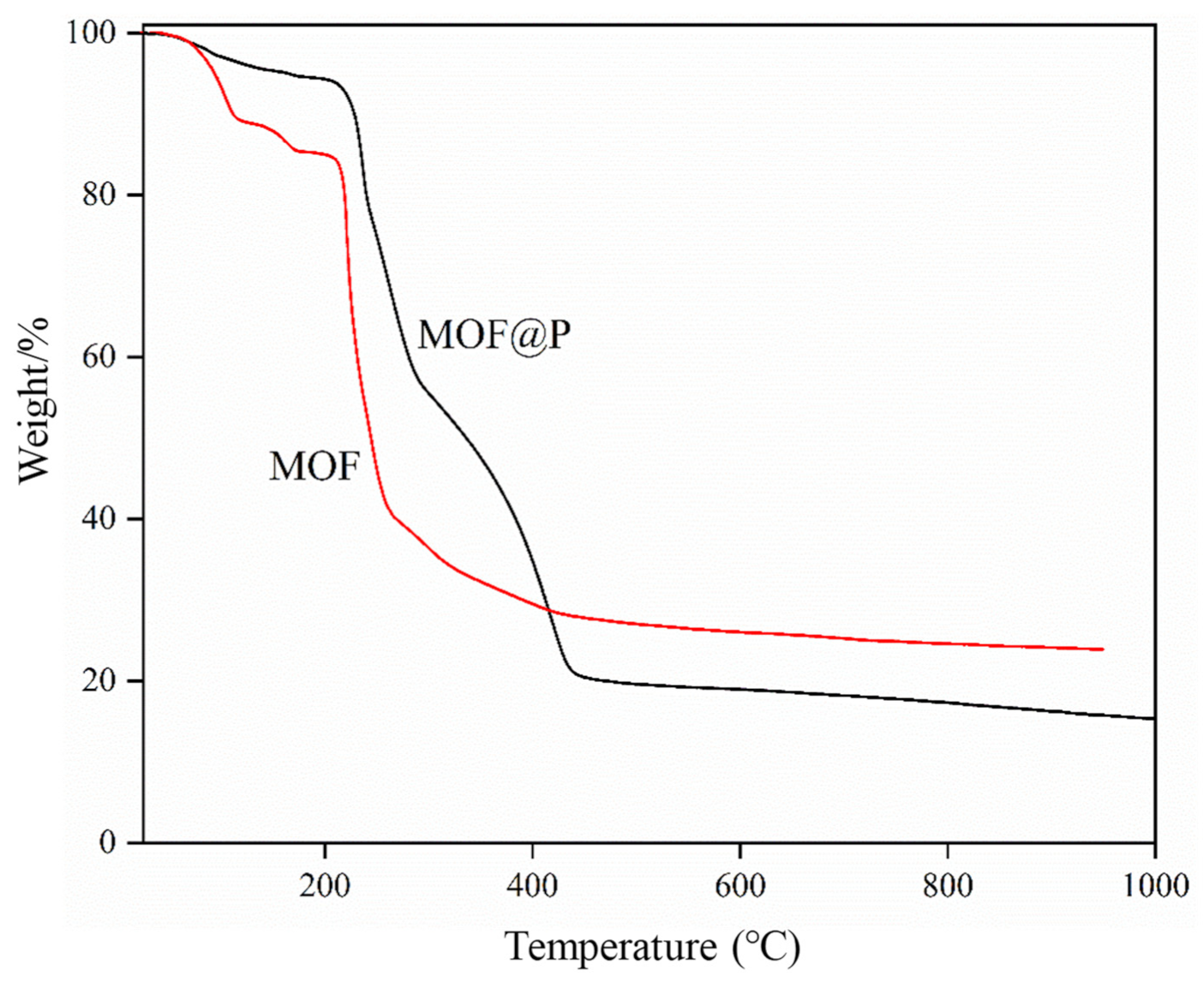

Figure 6. TGA curves of the MOF and MOF@P.
Figure 6. TGA curves of the MOF and MOF@P.
Nanomaterials 11 02854 g006
Nanomaterials 11 02854 g007 550

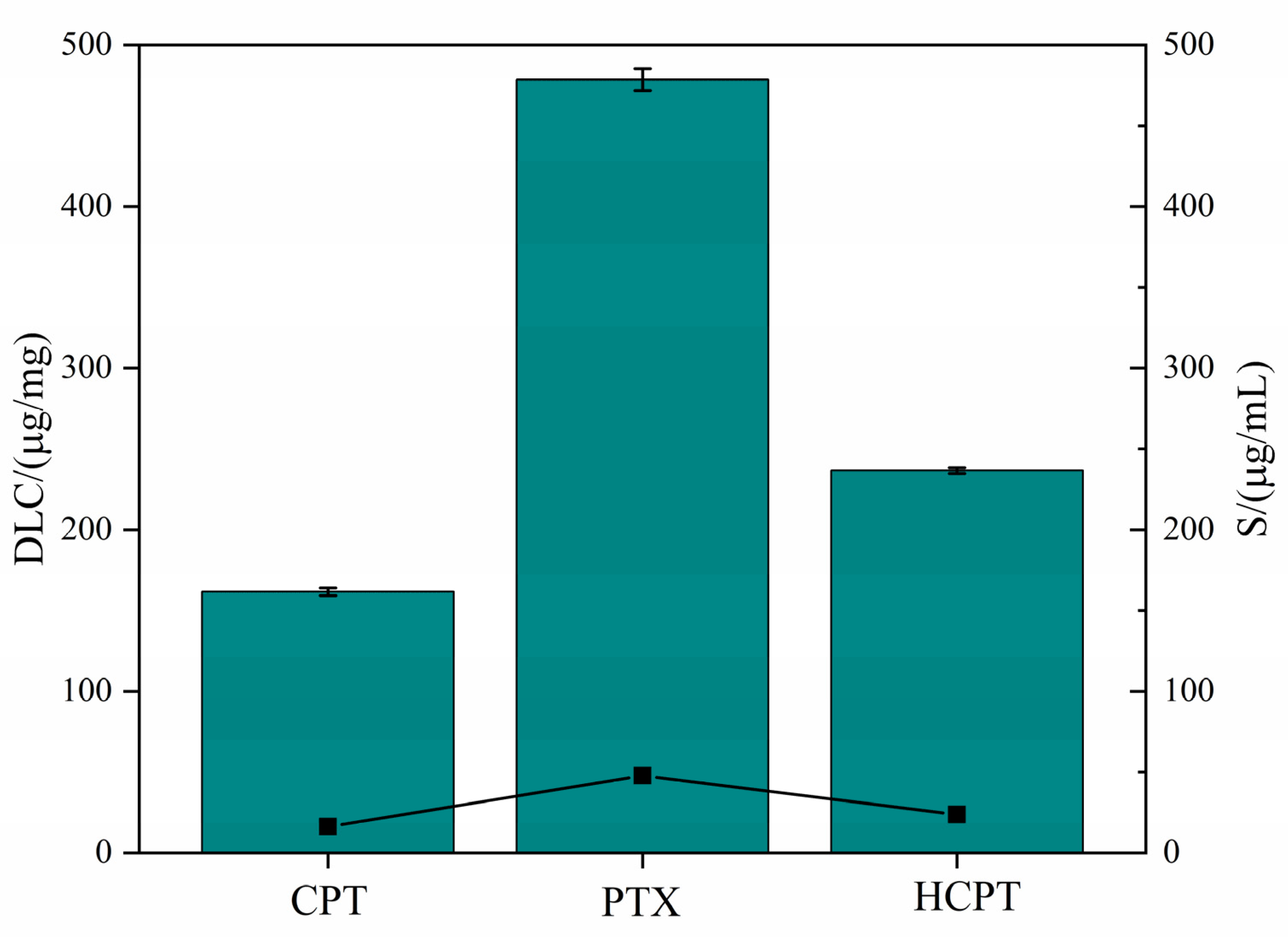

Figure 7. Drug loading and solubility of MOF@P for HCPT, CPT, and PTX.
Figure 7. Drug loading and solubility of MOF@P for HCPT, CPT, and PTX.
Nanomaterials 11 02854 g007
Nanomaterials 11 02854 g008 550

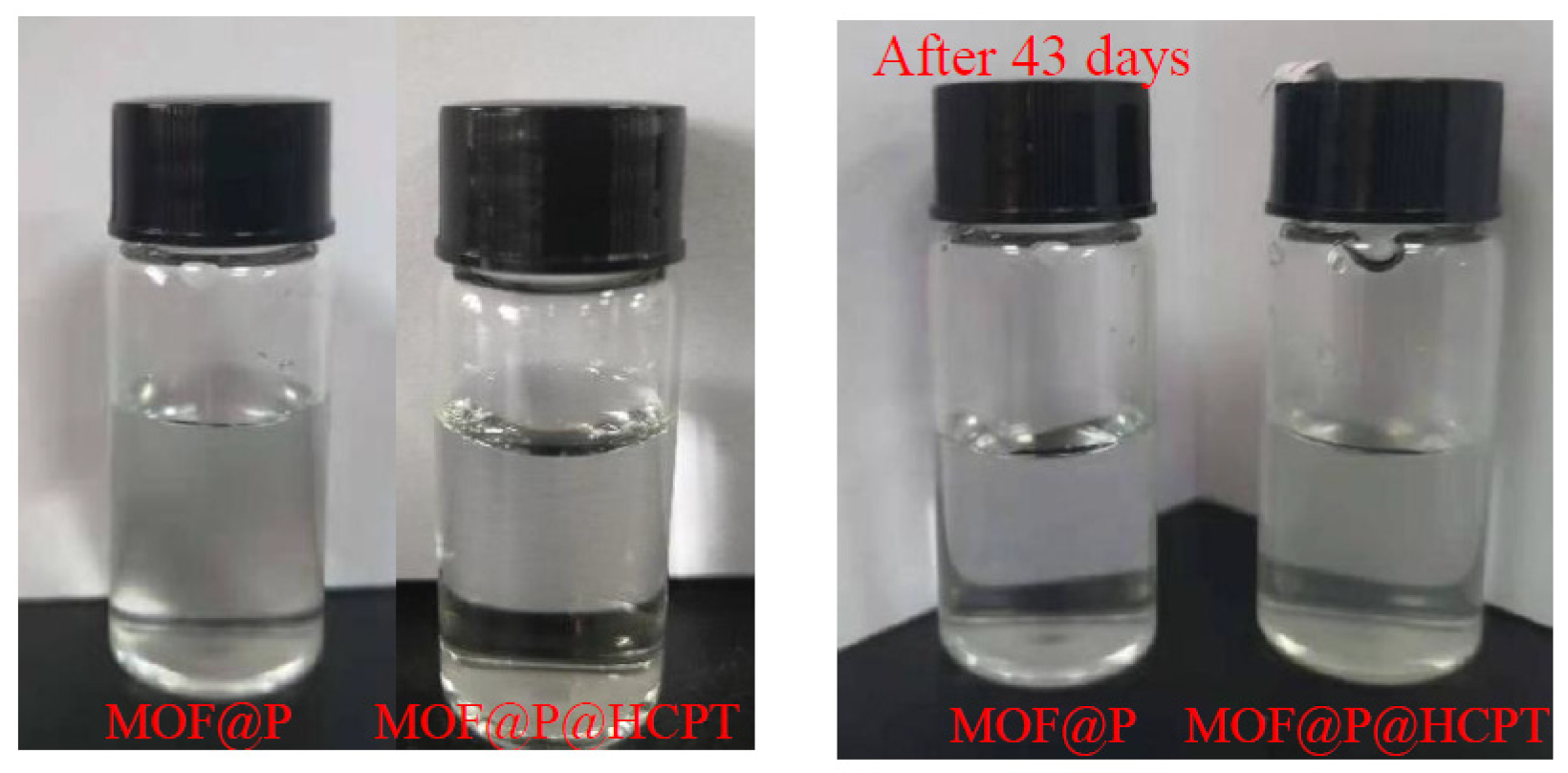

Figure 8. Photos of blank MOF@P and MOF@P@HCPT.
Figure 8. Photos of blank MOF@P and MOF@P@HCPT.
Nanomaterials 11 02854 g008
Nanomaterials 11 02854 g009 550

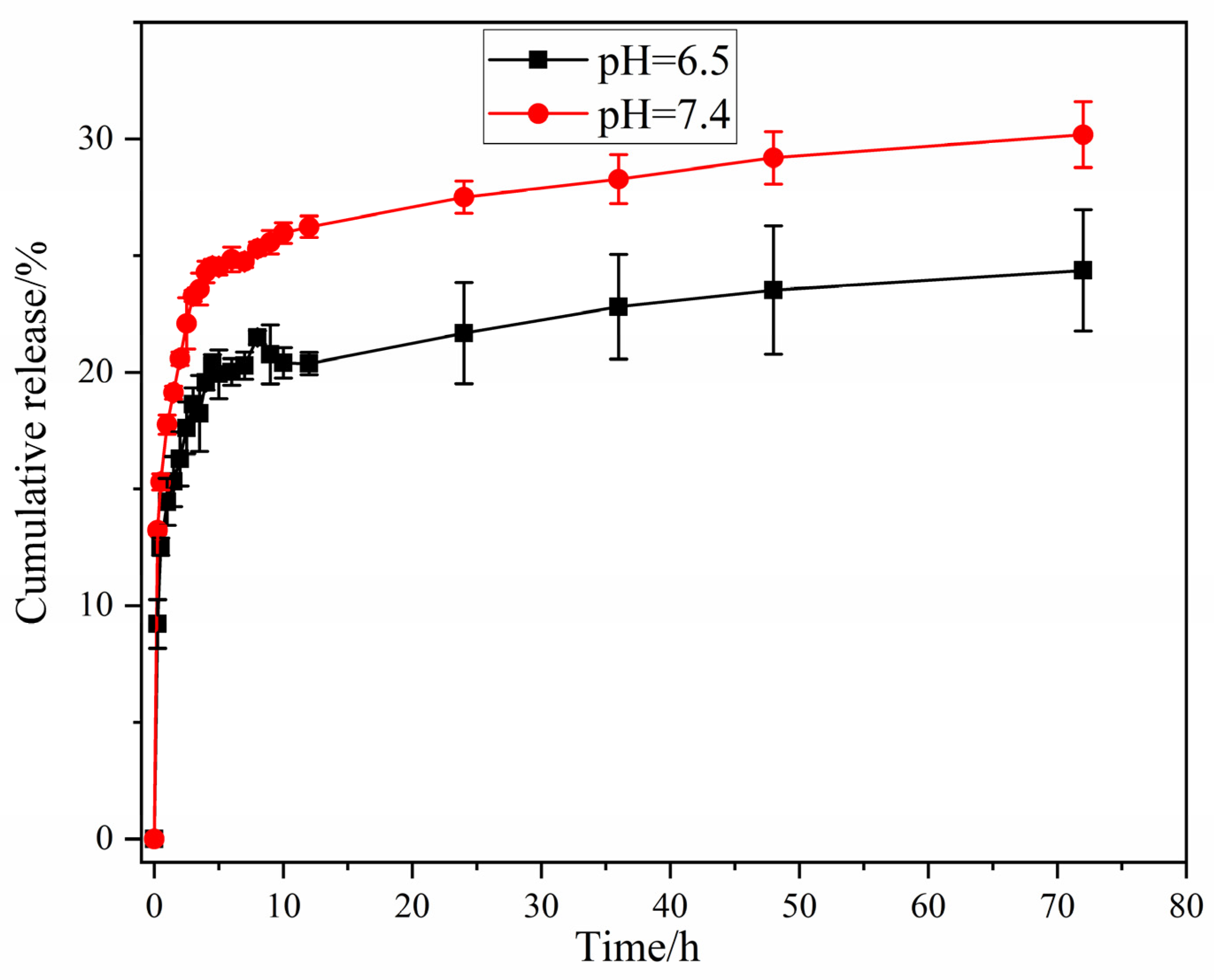

Figure 9. Cumulative release ratio of the MOF@P after drug loading in the buffer.
Figure 9. Cumulative release ratio of the MOF@P after drug loading in the buffer.
Nanomaterials 11 02854 g009
Nanomaterials 11 02854 g010 550

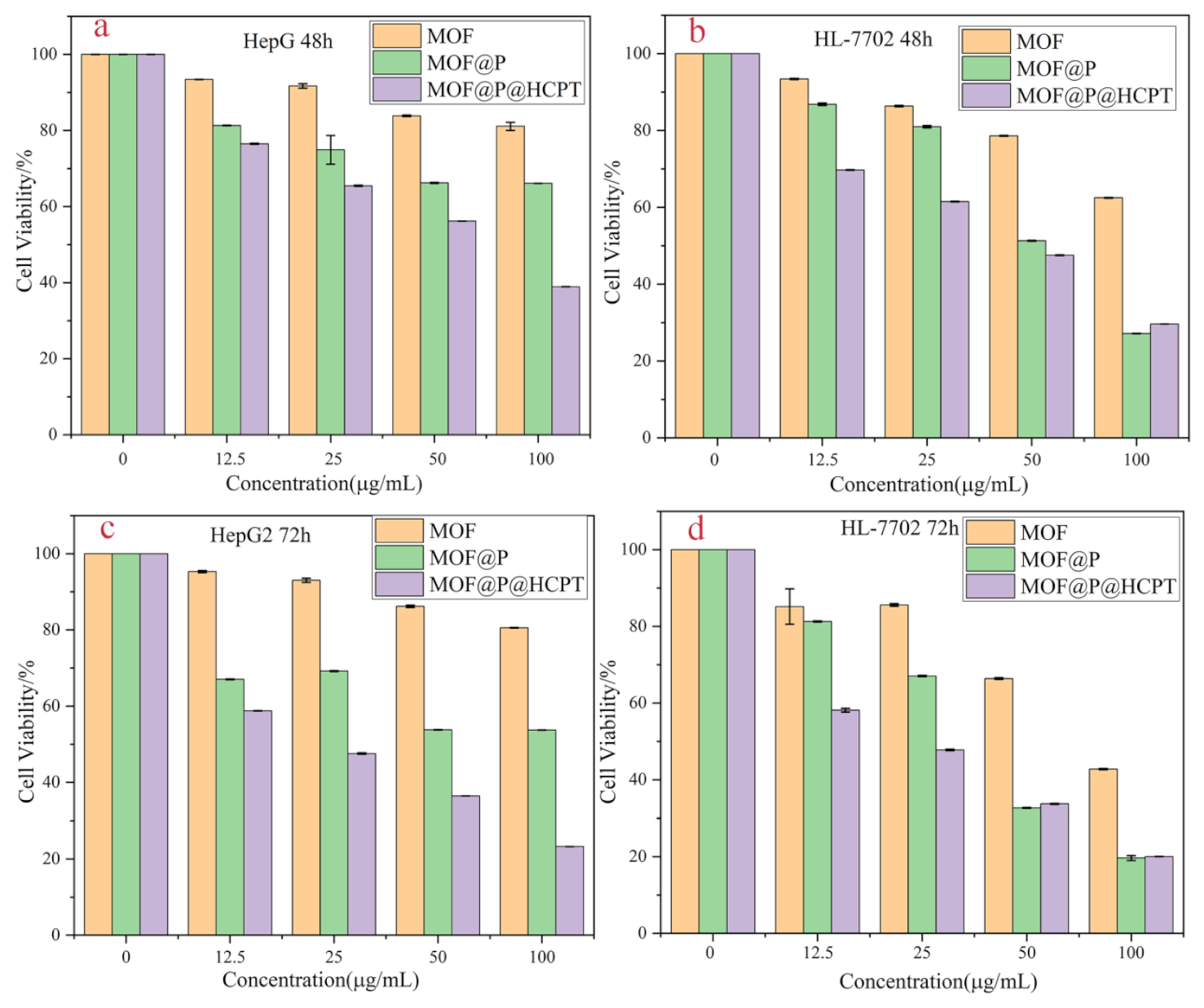

Figure 10. Cell viability of HepG2 cells and HL-7702 cells treated with MOF, MOF@P, and MOF@P@HCPT in different concentrations at 48 h (a,b) and 72 h (c,d).
Figure 10. Cell viability of HepG2 cells and HL-7702 cells treated with MOF, MOF@P, and MOF@P@HCPT in different concentrations at 48 h (a,b) and 72 h (c,d).
Nanomaterials 11 02854 g010
Table
Table 1. Crystallographic data for the prepared MOF.
Table 1. Crystallographic data for the prepared MOF.
The Key Crystallographic Information of MOF
Empirical formulaC20H19CuN2O10
Formula weight510.91
Temperature/K296
Crystal systemtriclinic
Space groupP-1
a/Å7.2164 (7)
b/Å11.6530 (11)
c/Å13.4323 (11)
α/°108.287 (3)
β/°93.184 (3)
γ/°102.297 (4)
Volume/Å31038.75 (17)
Z2
ρcalcg/cm31.633
μ/mm−11.114
F (000)524.0
Crystal size/mm30.17 × 0.14 × 0.06
Table
Table 2. Main bond lengths (Å) and angles (°) for MOF.
Table 2. Main bond lengths (Å) and angles (°) for MOF.
Bond Lengths (Å)
Cu1-O11.9365 (16)Cu1-O2W2.2092 (18)
Cu1-O1W1.9869 (16)Cu1-N22.028 (2)
Cu1-O511.9654 (17)
Bond Angles (°)
O1-Cu1-O1W85.77 (7)O1W-Cu1-N2172.49 (7)
O1-Cu1-O51172.24 (7)O51-Cu1-O1W91.04 (7)
O1-Cu1-O2W87.34 (7)O51-Cu1-O2W99.91 (8)
O1-Cu1-N293.34 (8)O51-Cu1-N288.91 (7)
O1W-Cu1-O2W93.12 (7)N2-Cu1-O2W94.28 (7)
Table
Table 3. Effects of the crosslinking agent contents on drug loading content and efficiency for MOF@P.
Table 3. Effects of the crosslinking agent contents on drug loading content and efficiency for MOF@P.
nEGDMA (mmol)DLE (%)DLC (μg/mg)
0.5014.2141.5 (2.13) a
0.7523.1231.4 (0.73)
1.0023.8237.8 (0.50)
1.2521.4214.0 (0.82)
1.5016.4164.3 (0.64)
a The data in the parentheses are the standard deviations.
Table
Table 4. Effects of the monomer molar ratios on the drug loading content and efficiency.
Table 4. Effects of the monomer molar ratios on the drug loading content and efficiency.
nMAA:nAAmDLE (%)DLC (μg/mg)
1:417.6176.0 (5.52) a
2:323.5235.3 (1.95)
1:123.8237.8 (1.05)
3:220.3202.5 (2.86)
4:118.5184.6 (4.56)
a The data in the parentheses are the standard deviations.
Table
Table 5. Zeta potential and average particle sizes of the materials.
Table 5. Zeta potential and average particle sizes of the materials.
SampleMOFMOF@PMOF@P@HCPT
Parameter
Zeta potential (mV)0.31 (0.21) a−0.70 (0.024)−4.58 (0.15)
Size (nm)/PDI1285.7/0.192 (62.57)68.14/0.163 (9.00)278.29/0.144 (17.76)
a The data in the parentheses are the standard deviations.
Table
Table 6. Correlation coefficient (R2) of the release mechanism model Sigmoidal and Korsmeyer–Peppas according to various pHs.
Table 6. Correlation coefficient (R2) of the release mechanism model Sigmoidal and Korsmeyer–Peppas according to various pHs.
ConditionKorsmeyer–PeppasSigmoidal Model
KnR2ksRst50R2
pH = 6.514.290.140.751.1621.030.7160.85
pH = 7.418.470.130.901.1726.100.6660.84
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Shi, Y.; Liu, W.; Wu, X.; Zhu, J.; Zhou, D.; Liu, X. A Water-Soluble Polyacid Polymer Based on Hydrophilic Metal–Organic Frameworks Using Amphoteric Carboxylic Acid Ligands as Linkers for Hydroxycamptothecin Loading and Release In Vitro. Nanomaterials 2021, 11, 2854. https://doi.org/10.3390/nano11112854

AMA Style

Shi Y, Liu W, Wu X, Zhu J, Zhou D, Liu X. A Water-Soluble Polyacid Polymer Based on Hydrophilic Metal–Organic Frameworks Using Amphoteric Carboxylic Acid Ligands as Linkers for Hydroxycamptothecin Loading and Release In Vitro. Nanomaterials. 2021; 11(11):2854. https://doi.org/10.3390/nano11112854

Chicago/Turabian Style

Shi, Yuqiong, Wei Liu, Xiangrong Wu, Jinhua Zhu, Danyang Zhou, and Xiuhua Liu. 2021. "A Water-Soluble Polyacid Polymer Based on Hydrophilic Metal–Organic Frameworks Using Amphoteric Carboxylic Acid Ligands as Linkers for Hydroxycamptothecin Loading and Release In Vitro" Nanomaterials 11, no. 11: 2854. https://doi.org/10.3390/nano11112854

APA Style

Shi, Y., Liu, W., Wu, X., Zhu, J., Zhou, D., & Liu, X. (2021). A Water-Soluble Polyacid Polymer Based on Hydrophilic Metal–Organic Frameworks Using Amphoteric Carboxylic Acid Ligands as Linkers for Hydroxycamptothecin Loading and Release In Vitro. Nanomaterials, 11(11), 2854. https://doi.org/10.3390/nano11112854

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
