Interfacial Design on Graphene–Hematite Heterostructures for Enhancing Adsorption and Diffusion towards Superior Lithium Storage

by
Qian Zhang
1,
Peide Han
1,* and
Jun Mei
2,3,*
1
College of Materials Science and Engineering, Taiyuan University of Technology, Taiyuan 030024, China
2
School of Chemistry and Physics, Queensland University of Technology, Brisbane, QLD 4000, Australia
3
Centre for Materials Science, Queensland University of Technology, Brisbane, QLD 4000, Australia
*
Authors to whom correspondence should be addressed.
Nanomaterials 2021, 11(1), 81; https://doi.org/10.3390/nano11010081
Submission received: 27 November 2020 / Revised: 21 December 2020 / Accepted: 29 December 2020 / Published: 2 January 2021
(This article belongs to the Section 2D and Carbon Nanomaterials)
Browse Figures
Versions Notes

Abstract

:
Hematite (α-Fe2O3) is a promising electrode material for cost-effective lithium-ion batteries (LIBs), and the coupling with graphene to form Gr/α-Fe2O3 heterostructures can make full use of the merits of each individual component, thus promoting the lithium storage properties. However, the influences of the termination of α-Fe2O3 on the interfacial structure and electrochemical performance have rarely studied. In this work, three typical Gr/α-Fe2O3 interfacial systems, namely, single Fe-terminated (Fe-O3-Fe-R), double Fe-terminated (Fe-Fe-O3-R), and O-terminated (O3-Fe-Fe-R) structures, were fully investigated through first-principle calculation. The results demonstrated that the Gr/Fe-O3-Fe-R system possessed good structural stability, high adsorption ability, low volume expansion, as well as a minor diffusion barrier along the interface. Meanwhile, investigations on active heteroatoms (e.g., B, N, O, S, and P) used to modify Gr were further conducted to critically analyze interfacial structure and Li storage behavior. It was demonstrated that structural stability and interfacial capability were promoted. Furthermore, N-doped Gr/Fe-O3-Fe-R changed the diffusion pathway and made it easy to achieve free diffusion for the Li atom and to shorten the diffusion pathway.

1. Introduction

Hematite (α-Fe2O3), as one of the promising electrode materials for cost-effective lithium-ion batteries (LIBs), has aroused extensive attention due to its high theoretical capacity (1415 mAh g−1), environmentally benign nature, and low cost without obvious safety concerns [1,2,3,4,5,6,7,8]. Similar to other metal oxide anodes, the sole utilization of pristine hematite is still challenging. α-Fe2O3 possesses a poor conductivity and will suffer obvious structural variation (>200%) during repeated lithiation/delithiation processes, resulting in undesired material pulverization, and thus a large irreversible capacity and a weak cycling stability [9,10,11,12]. To promote the lithium storage performance of the α-Fe2O3 electrode, research has demonstrated that nano-sized α-Fe2O3 possesses better electrochemical performance, which is primarily due to the shorten diffusion path for both Li ions and electrons as well as a large specific active surface in comparison with micro-sized structures [13,14,15]. However, two major drawbacks for nano-sized metal oxide particles are the nonuniform dispersion degree in the operation solutions and the easy aggregation tendency under sample drying and electrode preparation processes, which will lead to serious capacity loss and stability decay [16,17,18,19].
The coupling of nano-sized α-Fe2O3 with conductive substrates is a promising solution for enhancing ion storage performance in order to address these issues associated with low conductivity, the large structural fluctuation, and the unsatisfying dispersion level. For example, two-dimensional (2D) graphene (Gr) is known to possess a large surface area, high electrical conductivity, superior mechanical properties, excellent chemical and thermal stability, and attractive ion storage potentials [20,21,22,23]. To combine α-Fe2O3 with Gr to produce Gr/α-Fe2O3 heterostructures has been verified as an effective strategy to achieve the superior Li storage performance with high specific capacity, long cycle life, and good rate capability. Qu et al. found that the specific capacity of Gr/α-Fe2O3 heterostructured composite was as high as 930 mAh g-1 after 50 cycles, and this was maintained at 337 mAh g−1 at a high current density of 10 A g−1 [24]. Li et al. synthesized monolithic Gr/α-Fe2O3 heterostructure in the absence of reducing agent, and this hybrid showed good cyclability with a stable reversible capacity of 810 mAh g−1 at 100 mA g−1 after 100 cycles and a good rate performance, with the capacity of 280 mAh g−1 remaining at a rate of 2500 mA g−1 [25]. These experimental results on the Li storage properties suggest that the heterostructured interface between α-Fe2O3 and Gr may act as a crucial role for the superior performance. Unfortunately, the specific interfacial relationships for Gr/α-Fe2O3 heterostructures and the potential effects of the specific interfaces on lithium-ion storage properties have been unclear until now.
For Gr/α-Fe2O3 heterostructures, the interfacial structures are relatively complex. This is largely due to the different terminations types on the dominate (0001) surface for the corundum-type α-Fe2O3 structure [26,27,28]. There are three commonly used and chemically distinct termination types on the (0001) surface of α-Fe2O3, namely, single Fe-layer (Fe-O3-Fe-R), double Fe-layers (Fe-Fe-O3-R), and O-layer (O3-Fe-Fe-R) (R represents the bulk stoichiometric stacking unit) [29,30,31]. The specific relations between α-Fe2O3 structures with different termination types and the ion storage properties remain a major challenge owing to the fact that the α-Fe2O3 with a single termination type is difficult to be experimentally synthesized, and in most cases, both Fe- and O-terminated domains can be identified on the synthesized α-Fe2O3(0001) surface [28]. From this viewpoint, the in-depth theoretical understanding on the interfacial structure of Gr/α-Fe2O3 between different terminated α-Fe2O3 and Gr, and their potential effects on Li ion adsorption and diffusion behaviors are still in urgent need.
In this work, a systematical investigation was conducted on the interfacial structures and Li storage performance of different terminated Gr/α-Fe2O3 heterostructures. It is verified that the single Fe-terminated Gr/Fe-O3-Fe-R structure manifests a low energy diffusion barrier, small volume change, and high Li+ storage capacity, suggesting its practicability for high-performance Li-ion batteries in comparison with the double Fe-terminated Gr/Fe-Fe-O3-R and O-terminated Gr/O3-Fe-Fe-R systems. To further optimize the interface, we constructed some modifications on the Gr structure by introducing heterostructured active atoms (e.g., B, N, O, S, and P) into Gr skeletons. Finally, a critically analysis is given on the influences of different doped Gr structures on the interfacial stability, the active energy ion diffusion barriers, and the ion diffusion pathways. It is expected that this work can offer some new theoretical insights on the interfacial enhancement for Gr/metal oxide heterostructures, and the interfacial design principles for boosting ion storage properties for advanced rechargeable batteries.

2. Calculation Methodology

2.1. Computing Parameters

All calculations in this article were carried out by the first-principles method based on density functional theory (DFT) as implemented in the Cambridge Serial Total Energy Package (CASTEP) software. The generalized gradient approximation (GGA) with the Perdew–Burke–Ernzerhof (PBE) functional was used for the electron exchange correlation potential [32,33]. Grimme’s method was used to calculate the Van der Waals interaction between Gr and α-Fe2O3 layers [34,35]. The cut-off energy was set as 680 eV and k-point mesh was set as 4 × 4 × 1. For the geometry optimization, the lattice parameters and all atoms were allowed to be fully relaxed. The convergence tolerance in energy, the maximum displacement, and the maximum force were set at 1.0 × 10−5 eV/atom, 0.001 Å, and 0.03 eV/Å, respectively. Kinetic barriers were carried out using linear synchronous transit/quadratic synchronous transit (LST/QST) search with intermediate conjugate gradient refinements [36,37,38].

2.2. Heterostructures Construction

A 2 × 2 supercell of Gr (8 C atoms) and α-Fe2O3 (0001) (18 O atoms and 12 Fe atoms) were applied to construct Gr/α-Fe2O3 heterostructures with a 12 Å vacuum space along the z-direction to eliminate interactions between neighbor layers. The lattice constant mismatch between Gr and Fe2O3 (0001) surface was 1.2%. Monolayer pristine or heteroatoms doped Gr was placed on top of 3 different terminated α-Fe2O3(0001) surfaces. There were 3 typical theoretical models, including single Fe-terminated Gr/Fe-O3-Fe-R, O-terminated Gr/O3-Fe-Fe-R, and double Fe-terminated Gr/Fe-Fe-O3-R heterostructures.
The stability of Gr/α-Fe2O3 heterostructures was estimated by the binding energy (Eb) as defined by Equation (1) [39]. The interfacial binding capability of Gr/α-Fe2O3 heterostructures was evaluated on the basis of the interfacial formation energy (Ef) that was calculated by Equation (2) [40,41]. The adsorption energy (Ead) of Gr/α-Fe2O3 heterostructures was used to evaluated lithium adsorption behaviors as calculated by Equation (3) [42,43]. The volume expansion (Ve) of Gr/α-Fe2O3 heterostructures was calculated via Equation (4) [44,45].
E b = 1 Σ N i [ E G r / F e 2 O 3 − Σ ( N i E i s o i ) ]
E f = E G r / F e 2 O 3 − E G r − E F e 2 O 3
E a d = E L i n ( G r / F e 2 O 3 ) − ( E G r / F e 2 O 3 + n μ L i )
V e = ( V L i n ( G r / F e 2 O 3 ) − V G r / F e 2 O 3 ) / V G r + F e 2 O 3
where EGr/Fe2O3, EGr, and EFe2O3 represent the energies of the Gr/α-Fe2O3 heterostructures and the individual Gr and Fe2O3, respectively; Ni is the total number of i atoms (i represents Fe, O, C, Li, B, N, P, or S); E i s o i is the energy of the isolated i atom; VLin(Gr/Fe2O3) represents the volume of n Li atoms adsorbed on the interface of Gr/α-Fe2O3; VGr/Fe2O3 is volume of Gr/Fe2O3; and μLi is the chemical potential of a single isolated Li atom.
To further evaluate LIB performance in Gr/α-Fe2O3 structures, we further calculated open-circuit voltage (OCV) by Equation (5) [46,47,48].
O C V ≈ [ E n 1 − E n 2 + ( n 2 − n 1 ) μ Li ] / ( n 2 − n 1 ) e
where En1 and En2 are the total energy of Gr/α-Fe2O3 heterostructure adsorbed with n1 and n2 lithium atoms, respectively.

3. Results and Discussion

3.1. Geometric Structures

As illustrated in the optimized Gr/α-Fe2O3 heterostructures (Figure 1a–c), the vertical distances between the Gr layer and the terminated layer of α-Fe2O3 in Gr/Fe-O3-Fe-R, Gr/O3-Fe-Fe-R, and Gr/Fe-Fe-O3-R systems were 2.264 Å, 2.904 Å, and 1.850 Å, respectively. As illustrated in Figure 1d, Eb values of Gr/Fe-O3-Fe-R, Gr/O3-Fe-Fe-R, and Gr/Fe-Fe-O3-R systems were all less than zero, indicating the stable structures. Furthermore, by comparison on the absolute value of the Ef, we could identify that the Gr/Fe-Fe-O3-R structure (1.03 eV) was the most stable one, followed by the Gr/Fe-O3-Fe-R (0.51 eV), with the O-terminated Gr/O3-Fe-Fe-R system (0.34 eV) being the weakest one.
To better understand interfacial coupling effects, we studied electronic density differences for Gr/Fe-O3-Fe-R, Gr/O3-Fe-Fe-R, and Gr/Fe-Fe-O3-R, as shown in Figure 1e–g. Obviously, charge redistribution behaviors mainly occurred in the Gr/Fe-O3-Fe-R and Gr/Fe-Fe-O3-R systems, accompanied by the electron transfer from Fe to C atoms via the interfaces, which suggest that Fe atoms in the terminated layer donate electrons to the Gr surface. Furthermore, the charge accumulation density around C atoms in the Gr/Fe-O3-Fe-R system was obviously larger than that in the Gr/Fe-Fe-O3-R system. As for the Gr/O3-Fe-Fe-R system, there was almost no charge transfer through the interface, and the main force between Gr and O3-Fe-Fe-R was the Van der Waals interaction. In addition, Mulliken charge analysis on atoms near the interface confirmed that the Gr obtained 0.49 |e| for Gr/Fe-O3-Fe-R and 1.17 |e| for the Gr/Fe-Fe-O3-R system, and lost 0.03 |e| for the Gr/O3-Fe-Fe-R system in Figure 1h–j. Meanwhile, the top-level Fe atom near the interface lost 1.24 |e| in the Gr/Fe-O3-Fe-R system (labeled “1” in Figure 1h) and two Fe atoms in the Gr/Fe-Fe-O3-R system lost 1.11 |e| and 1.03 |e| (labeled “1” and “2” in Figure 1j). The interfacial atom-transferred electrons were consistent with that of the interfacial binding ability.

3.2. Lithium Adsorption and Diffusion Behaviours

First, to confirm the specific Li adsorption sites, we selected five Li adsorption sites (labeled as A, B, C, D, and E in Figure S1) for calculation to identify the most stable site, which were labelled as Li(Gr/Fe-O3-Fe-R), Li(Gr/O3-Fe-Fe-R), and Li(Gr/Fe-Fe-O3-R) systems, as demonstrated in Figure 2a–c. Compared with Gr/Fe-Fe-O3-R, interfacial structure was changed in Li(Gr/Fe-Fe-O3-R), resulting from the Fe atom labeled “1” moving down, implying initial interface structure unstable and susceptible to Li atoms. Eb values in Figure 2d show that all three structures were stable. The Li adsorption ability of the Li(Gr/Fe-O3-Fe-R) system was the strongest, with a minimum Ead value, while the ability was the weakest of the Li(Gr/Fe-Fe-O3-R) system accompanied by a maximum Ead value. Charge density behavior analysis on stable Li(Gr/Fe-O3-Fe-R), Li(Gr/O3-Fe-Fe-R), and Li(Gr/Fe-Fe-O3-R) systems (Figure 2e–g) could verify that the most stable site for Li was in the tetrahedron gap of α-Fe2O3 terminal surface, accompanied by losing 1.47 |e|, 1.32 |e|, and 1.42 |e| in the Gr/Fe-O3-Fe-R, Gr/O3-Fe-Fe-R, and Gr/Fe-Fe-O3-R systems. In Figure 2h–j, the embedded Li atoms lost 1.47, 1.32, and 1.42 |e| for Li(Gr/Fe-O3-Fe-R), Li(Gr/O3-Fe-Fe-R), and Li(Gr/Fe-Fe-O3-R), respectively, which was consistent with the changes of adsorption ability. Owing to adsorption of Li atom, the electrons Gr lost and O atoms around the interface gained were increased in comparison with Gr/Fe-O3-Fe-R, Gr/O3-Fe-Fe-R, and Gr/Fe-Fe-O3-R, demonstrating that interface stability was enhanced.
Eb and Ead of Lin(Gr/Fe-O3-Fe-R), Lin(Gr/O3-Fe-Fe-R), and Lin(Gr/Fe-Fe-O3-R) for different Li number (n) were calculated to evaluate structure stability and adsorption capacity, as shown in Figure 3. As the number of adsorbed Li atoms increased, the absolute values of Eb and Ead decreased, resulting from the growing repulsive forces among Li atoms. It should be noted that Li atoms were unable to be stably adsorbed on the Lin(Gr/Fe-Fe-O3-R) system when n was equal to 9, as confirmed by a positive Ead value. Both Eb and Ead absolute values for the Lin(Gr/Fe-Fe-O3-R) system possessed a large declining rate in comparison with the Lin(Gr/Fe-O3-Fe-R) and Lin(Gr/O3-Fe-Fe-R) systems, which showed the weakest Li adsorption capacity of the Lin(Gr/Fe-Fe-O3-R) system.
To investigate the structural variation of the Gr/α-Fe2O3 heterostructures, we calculated Ve during the lithiation process, as shown in Figure 4a. It was found that the volume expansion ratio of the Gr/O3-Fe-Fe-R system increased slowly, varying from 3.04% to 6.12% when n ≤ 8. However, the volume expansion of the Gr/Fe-O3-Fe-R system increased sharply when n ≥ 5, which was consistent with the Gr/Fe-Fe-O3-R system at n ≥ 4. It could be demonstrated that lithiation-induced volume expansion ratios of the Gr/Fe-O3-Fe-R and Gr/O3-Fe-Fe-R systems were less than that of the Gr/Fe-Fe-O3-R system, suggesting a better structural stability. Figure 4b illustrates the OCV curves along with the Li atom intercalation process. Owing to the adsorption ability, Li decreased with the increase of atomic number, and OCVs decreased as well. When n = 9, the OCVs of the Gr/Fe-O3-Fe-R and Gr/O3-Fe-Fe-R systems remained positive (0.31 and 0.84 V, respectively). However, for the Gr/Fe-Fe-O3-R system, the OCV became negative (−0.019 V) and the dendrite occurred [49]. On the whole, the OCV values for Gr/Fe-O3-Fe-R and Gr/O3-Fe-Fe-R systems were higher than that of the Gr/Fe-Fe-O3-R system. It can be inferred that Gr/Fe-O3-Fe-R and Gr/O3-Fe-Fe-R can provide high Li concentration in intercalation process while also inhibiting the undesired Li dendrite growth.
The lithium diffusion barrier is another indispensable factor for rechargeable battery. For the Gr/Fe-O3-Fe-R and Gr/O3-Fe-Fe-R systems, the optimized pathways of Li diffusion sites were site A→B→C→A, as displayed in Figure 5. The calculated results revealed that the three Li diffusion pathways of the Gr/Fe-O3-Fe-R system possessed much lower activation energy barriers (0.81 eV, 0.25 eV, and −0.07 eV) in comparison with these of the Gr/O3-Fe-Fe-R system (5.49 eV, 2.76 eV, and 0.91 eV), which implies that the Gr/Fe-O3-Fe-R interface could supply easy Li diffusion capability and shorten diffusion pathway. Notably, the diffusion energy barrier from C to A site was the lowest one in both Gr/Fe-O3-Fe-R and Gr/O3-Fe-Fe-R systems, demonstrating that the dominant diffusion pathway was along the interface. Furthermore, compared with the bulk Fe-O3-Fe-R system (Figure S2) in which the pathway from A to B site was easiest while the pathway from C to A site was the most difficult with an energy barrier of 3.07 eV, the lowest energy diffusion pathway shift from C to A in the Gr/Fe-O3-Fe-R system was mainly attributed to the presence of Gr. Moreover, the diffusion behaviors across the interface were evaluated, as presented in Figure 5c–e. The energy barriers of the pathway from D to E site were 11.07 and 3.88 eV for the Gr/Fe-O3-Fe-R and Gr/O3-Fe-Fe-R systems, respectively. This suggests that there were some possible vertical diffusion pathways for the Gr/O3-Fe-Fe-R system.

3.3. Interfacial Optimization by Using Heteroatoms Doped Gr

To further optimize the interfaces in the Gr/α-Fe2O3 heterostructures, we conducted some modifications on the Gr structure by introducing heterostructured active atoms (e.g., B, N, O, S, and P) into Gr skeleton. To simplify the calculation, we chose the Fe-O3-Fe-R as a typical model for α-Fe2O3. As shown in Figure 6a,b, the distance between the nearest Fe atom to the interface and B or N were 2.125 or 2.357Å, respectively, closely negative to their interface bonding performance [50]. The structures of Gr fluctuated greatly due to introducing O, P, and S, as shown in Figure 6c–e. Heteroatoms B, P, and S in the doped Gr framework lost 0.34 |e|, 0.89 |e|, and 0.82 |e|, respectively, while N and O obtained 0.29 |e| and 0.37 |e|, respectively (Figure 6f–k). Moreover, the top Fe lost 1.24 |e|, 1.29 |e|, 0.73 |e|, 0.71 |e|, 0.71 |e|, and 0.71 |e|, and meanwhile the heteroatom-doped Gr received 0.49 |e|, 0.66 |e|, 0.79 |e|, 0.73 |e|, 1.69 |e|, and 1.52 |e| in the Gr/Fe-O3-Fe-R, B-doped Gr/Fe-O3-Fe-R, N-doped Gr/Fe-O3-Fe-R, O-doped Gr/Fe-O3-Fe-R, P-doped Gr/Fe-O3-Fe-R, and S-doped Gr/Fe-O3-Fe-R systems, respectively, as shown in Figure 7a–e. Therefore, it can be inferred that the activity of Gr was promoted due to the addition of heteroatoms. Further analysis on Eb and Ef of the Gr/Fe-O3-Fe-R system with heteroatom doping was carried out (Figure 7f). The Eb values of B/N/O/P/S doping on the Gr/Fe-O3-Fe-R systems were increased to −6.05/−6.10/−5.98/−5.97/−5.91 eV/atom, and the absolute values of Ef were promoted to 1.49/1.20/2.12/1.82/1.38 eV, respectively, indicating the enhanced structural stability and the increased interface binding capability compared to the pristine Gr/Fe-O3-Fe-R system.
After Li was absorbed on the heteroatom-doped Gr/Fe-O3-Fe-R system, optimized geometries were depicted, as shown in Figure S3. Eb and Ead values of Gr/Fe-O3-Fe-R were −5.86 and −1.93 eV/atom, respectively. If B-, N-, O-, P-, and S-doped Gr were used, the absolute values of Eb increased, however, the Ead values were all reduced (Figure 7g). That means that the adsorption ability of doped Gr/Fe-O3-Fe-R systems for Li atom decreased in spite of the enhanced structure stability. Similar to the Gr/Fe-O3-Fe-R system, the electrons were transferred from Li to the O and Gr surfaces, in which Li atoms lost 1.46 |e|, 1.49 |e|, 1.38 |e|, 1.42 |e|, and 1.43 |e| in B, N, O, P, and S-doped Gr/Fe-O3-Fe-R systems, respectively, as shown in Figure 7h–l.
It is well known that B and N can be easily incorporated into Gr due to them having roughly the same atomic radius as C [51]. Moreover, N and B are typical n-type and p-type donors with different effects on electronic structures of Gr [52]. In addition, heteroatoms B and N modifying Gr contribute to better structural stability of Gr/Fe-O3-Fe-R in comparison with introducing O, P, and S, as shown in Figure 7f–g. Consequently, the energy barrier profiles for Li atom of the three pathways (A→B, B→C (C1), and C (C1) →A site) in the B- and N-doped Gr/Fe-O3-Fe-R systems were conducted to evaluate the intercalation/deintercalation process. As demonstrated in Figure 8a–b, B-doped Gr exhibited little effect on the diffusion barrier from A to B site, whereas energy barriers of B→C and C→A were increased. N doping Gr changed the location of site C to C1, as shown in the illustration in Figure 8b. Moreover, embedding of N was able to alter the easiest pathway from C→A to A→B. Meanwhile, Li atom was able to diffuse freely from site A to B. As for the vertical diffusion pathway (D→E), as calculated in Figure 8c–d, the presence of B could reduce the energy barriers to 10.10 eV. On the contrary, the implantation of N could further increase the diffusion barrier.
To summarize, the presence of heteroatom-doped Gr in the Gr/α-Fe2O3 heterostructures could enhance the structural stability and interfacial bonding capability. Eb absolute values were promoted from 5.89 eV to 6.05, 6.10, 5.98, 5.97, and 5.91 eV for B-, N-, O-, P-, and S-doped Gr/Fe-O3-Fe-R, respectively. Ef absolute values were also clearly increased from 0.51 eV to 1.49, 1.20, 2.12, 1.82, and 1.38 eV, respectively. N-doping shortened the diffusion pathway and made free diffusion become possible, compared with heteroatom B.

4. Conclusions

On the basis of first-principle calculations, we conducted a systematical investigation on the interfacial structures, interface bonding capability, intercalation process, and Li diffusion behavior of three terminated Gr/α-Fe2O3 heterostructures as well as Li storage performance. These results show that the Gr/Fe-O3-Fe-R system possesses good structural stability, high adsorption ability, small volume expansion, low energy barriers, and a short diffusion pathway. To further optimize the interface, we conducted some modifications on the Gr structure by introducing heterostructured active atoms (e.g., B, N, O, S, and P) into Gr skeletons. Through a critical analysis on the influences of different heteroatom-doped Gr, we can conclude that structural and interfacial stability were promoted. Moreover, it was easier for the Li atom to migrate along the interface, and the presence of N-doped Gr possessed a free diffusion pathway. It is hoped that the present work paves the way for understanding interface properties and achieving Li rapid diffusion with a low barrier of Gr/transition metal oxides through tuning the interface microstructure.

Supplementary Materials

The following are available online at https://www.mdpi.com/2079-4991/11/1/81/s1: Figure S1: Adsorption sites A, B, C, D, and E for Li atom in (a,d) Gr/Fe-O3-Fe-R, (b,e) Gr/O3-Fe-Fe-R, and (c,f) Gr/Fe-Fe-O3-R systems. Figure S2: Energy barrier profiles for Li atom in α-Fe2O3 (0001) surface. Figure S3: Optimized structures of Li adsorbed in (a–j) M-doped Gr/Fe-O3-Fe-R systems (M = B, N, O, P, and S).

Author Contributions

Conceptualization, Q.Z., P.H., and J.M.; software, Q.Z.; formal analysis, Q.Z. and J.M.; investigation, Q.Z.; resources, P.H.; writing—original draft preparation, Q.Z.; writing—review and editing, P.H. and J.M.; supervision, P.H.; funding acquisition, P.H. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

We gratefully thank the support from National Nature Science Foundation of China (no. 51871159 and U1820204) and the Natural Science Foundation of Shanxi province (no. 201801D221125).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Chen, J.; Xu, L.; Li, W.; Gou, X. α-Fe2O3 nanotubes in gas sensor and lithium-ion battery applications. Adv. Mater. 2005, 17, 582–586. [Google Scholar] [CrossRef]
  2. Wu, C.Z.; Yin, P.; Zhu, X.; Ouyang, C.Z.; Xie, Y. Synthesis of hematite (α-Fe2O3) nanorods: diameter-size and shape effects on their applications in magnetism, lithium ion battery, and gas sensors. J. Phys. Chem. B 2006, 110, 17806–17812. [Google Scholar] [CrossRef] [PubMed]
  3. Sun, B.; Horvat, J.; Kim, H.S.; Kim, W.S.; Wang, G.X. Synthesis of mesoporous α-Fe2O3 nanostructures for highly sensitive gas sensors and high capacity anode materials in lithium ion batteries. J. Phys. Chem. C 2010, 114, 18753–18761. [Google Scholar] [CrossRef]
  4. Xu, X.; Cao, R.; Jeong, S.; Cho, J. Spindle-like mesoporous α-Fe2O3 anode material prepared from MOF template for high-rate lithium batteries. Nano. Lett. 2012, 12, 4988–4991. [Google Scholar] [CrossRef] [PubMed]
  5. Wu, Y.Z.; Zhu, P.N.; Reddy, M.V.; Chowdari, B.V.R.; Ramakrishna, S. Maghemite nanoparticles on electrospun CNFs template as prospective lithium-ion battery anode. ACS Appl. Mater. Interfaces 2014, 6, 1951–1958. [Google Scholar] [CrossRef]
  6. Guo, W.X.; Sun, W.W.; Lv, L.P.; Kong, S.F.; Wang, Y. Microwave-assisted morphology evolution of Fe-based metal-organic frameworks and their derived Fe2O3 nanostructures for Li-ion storage. ACS Nano 2017, 11, 4198–4205. [Google Scholar] [CrossRef]
  7. Teng, X.; Qin, Y.; Wang, X.; Li, H.; Shang, X.; Fan, S.; Li, Q.; Xu, J.; Cao, D.; Li, S. A nanocrystalline Fe2O3 film anode prepared by pulsed laser deposition for lithium-ion batteries. Nanoscale Res. Lett. 2018, 13, 60–67. [Google Scholar] [CrossRef] [Green Version]
  8. Mei, J.; Liao, T.; Kou, L.; Sun, Z. Two-dimensional metal oxide nanomaterials for next-generation rechargeable batteries. Adv. Mater. 2017, 29, 1700176. [Google Scholar] [CrossRef]
  9. Zeng, S.Y.; Tang, K.B.; Li, T.W.; Liang, Z.H.; Wang, D.; Wang, Y.K.; Zhou, W.W. Hematite hollow spindles and microspheres: Selective synthesis, growth mechanisms, and application in lithium ion battery and water treatment. J. Phys. Chem. C 2007, 111, 10217–10225. [Google Scholar] [CrossRef]
  10. Zeng, S.Y.; Tang, K.B.; Li, T.W.; Liang, Z.H.; Wang, D.; Wang, Y.K.; Qi, Y.X.; Zhou, W.W. Facile route for the fabrication of porous hematite nanoflowers: Its synthesis, growth mechanism, application in the lithium ion battery, and magnetic and photocatalytic properties. J. Phys. Chem. C 2008, 112, 4836–4843. [Google Scholar] [CrossRef]
  11. Ma, F.-X.; Hu, H.; Wu, H.B.; Xu, C.-Y.; Xu, Z.C.; Zhen, L.; Lou, X.W. Formation of uniform Fe3O4 hollow spheres organized by ultrathin nanosheets and their excellent lithium storage properties. Adv. Mater. 2015, 27, 4097–4101. [Google Scholar] [CrossRef] [PubMed]
  12. Lei, C.; Han, F.; Li, D.; Li, W.-C.; Sun, Q.; Zhang, X.-Q.; Lu, A.-H. Dopamine as the coating agent and carbon precursor for the fabrication of N-doped carbon coated Fe3O4 composites as superior lithium ion anodes. Nanoscale 2013, 5, 1168–1175. [Google Scholar] [CrossRef] [PubMed]
  13. Zou, Y.Q.; Kan, J.; Wang, Y. Fe2O3-graphene rice-on-sheet nanocomposite for high and fast lithium ion storage. J. Phys. Chem. C 2011, 115, 20747–20753. [Google Scholar] [CrossRef]
  14. Poizot, P.; Laruelle, S.; Grugeon, S.; Dupont, L.; Tarascon, J.M. Nano-sized transition-metal oxides as negative-electrode materials for lithium-ion batteries. Nature 2000, 407, 496–499. [Google Scholar] [CrossRef] [PubMed]
  15. Qi, X.; Zhang, H.; Zhang, Z.; Bian, Y.; Shen, A.; Xu, P.; Zhao, Y. Subunits controlled synthesis of three-dimensional hierarchical flower-like α- Fe2O3 hollow spheres as high-performance anodes for lithium ion batteries. Appl. Surf. Sci. 2018, 452, 174–180. [Google Scholar] [CrossRef]
  16. Mei, J.; Liao, T.; Ayoko, G.A.; Bell, J.; Sun, Z.Q. Cobalt oxide-based nanoarchitectures for electrochemical energy applications. Prog. Mater. Sci. 2019, 103, 596–677. [Google Scholar] [CrossRef]
  17. Liu, T.; Xue, L.; Guo, X.; Zheng, C.G. DFT study of mercury adsorption on α-Fe2O3 surface: Role of oxygen. Fuel 2014, 115, 179–185. [Google Scholar] [CrossRef]
  18. Nguyen, M.T.; Camellone, M.F.; Gebauer, R. On the electronic, structural, and thermodynamic properties of Au supported on α-Fe2O3 surfaces and their interaction with CO. J. Chem. Phys. 2015, 143, 034704. [Google Scholar] [CrossRef]
  19. Zhang, M.L.; Luo, W.J.; Li, Z.S.; Yu, T.; Zou, Z.G. Improved photoelectrochemical responses of Si and Ti codoped α-Fe2O3 photoanode films. Appl. Phys. Lett. 2010, 97, 042105. [Google Scholar] [CrossRef]
  20. Arico, A.S.; Bruce, P.; Scrosati, B.; Tarascon, J.M.; van Schalkwijk, W. Nanostructured materials for advanced energy conversion and storage devices. Nat. Mater. 2005, 4, 366–377. [Google Scholar] [CrossRef]
  21. Mei, J.; He, T.; Zhang, Q.; Liao, T.; Du, A.; Ayoko, G.; Sun, Z. Carbon-phosphorus bonds-enriched 3D graphene by self-sacrificing black phosphorus nanosheets for elevating capacitive lithium storage. ACS Appl. Mater. Interfaces 2020, 12, 21720–21729. [Google Scholar] [CrossRef] [PubMed]
  22. Mei, J.; Zhang, Y.W.; Liao, T.; Sun, Z.Q.; Dou, S.X. Strategies for improving the lithium-storage performance of two-dimensional nanomaterials. Natl. Sci. Rev. 2018, 5, 389–416. [Google Scholar] [CrossRef]
  23. Pan, H.; Meng, X.; Qi, X.; Qin, G. Electronic and optical properties of MoS2/α-Fe2O3(0001) heterostructures: A first-principles investigation. CrystEngComm 2017, 19, 6333–6338. [Google Scholar] [CrossRef]
  24. Qu, J.; Yin, Y.-X.; Wang, Y.-Q.; Yan, Y.; Guo, Y.-G.; Song, W.G. Layer structured α-Fe2O3 nanodisk/reduced graphene oxide composites as high-performance anode materials for lithium-ion batteries. ACS Appl. Mater. Interfaces 2013, 5, 3932–3936. [Google Scholar] [CrossRef] [PubMed]
  25. Li, L.; Zhou, G.M.; Weng, Z.; Shan, X.-Y.; Li, F.; Cheng, H.-M. Monolithic Fe2O3/graphene hybrid for highly efficient lithium storage and arsenic removal. Carbon 2014, 67, 500–507. [Google Scholar] [CrossRef]
  26. Nguyen, M.T.; Gebauer, R. Graphene supported on hematite surface: A density functional study. J. Phys. Chem. C 2014, 118, 8455–8461. [Google Scholar] [CrossRef]
  27. Liu, L.; Quezada, B.R.; Stair, P.C. Adsorption, desorption, and reaction of methyl radicals on surface terminations of α-Fe2O3. J. Phys. Chem. C 2010, 114, 17105–17111. [Google Scholar] [CrossRef]
  28. Kiejna, A.; Pabisiak, T. Mixed termination of hematite (α-Fe2O3) (0001) surface. J. Phys. Chem. C 2013, 117, 24339–24344. [Google Scholar] [CrossRef]
  29. Huang, X.; Ramadugu, S.K.; Mason, S.E. Surface-specific DFT+U approach applied to α-Fe2O3 (0001). J. Phys. Chem. C 2016, 120, 4919–4930. [Google Scholar] [CrossRef]
  30. Wang, X.G.; Weiss, W.; Shaikhutdinov, S.K.; Ritter, M. The hematite (α-Fe2O3) (0001) surface: Evidence for domains of distinct chemistry. Phys. Rev. Lett. 1998, 81, 1038–1041. [Google Scholar] [CrossRef] [Green Version]
  31. Lemire, C.; Bertarione, S.; Zecchina, A.; Scarano, D.; Chaka, A.; Shaikhutdinov, S.; Freund, H.J. Ferryl (Fe=O) termination of the hematite alpha-Fe2O3(0001) surface. Phys. Rev. Lett. 2005, 94, 166101. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Perdew, J.P.; Burke, K.; Ernzerhof, M. Generalized gradient approximation made simple. Phys. Rev. Lett. 1996, 77, 3865–3868. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Perdew, J.P.; Chevary, J.A.; Vosko, S.H.; Jackson, K.A.; Pederson, M.R.; Singh, D.J.; Fiolhais, C. Atoms, molecules, solids, and surfaces: Applications of the generalized gradient approximation for exchange and correlation. Phys. Rev. B 1992, 46, 6671–6687. [Google Scholar] [CrossRef] [PubMed]
  34. Wigginton, N.S.; Rosso, K.M.; Stack, R.G.; Hochella, M.F., Jr. Long-range electron transfer across cytochrome-hematite (α-Fe2O3) interfaces. J. Phys. Chem. C 2009, 113, 2096–2103. [Google Scholar] [CrossRef]
  35. Grimme, S. Semiempirical GGA-type density functional constructed with a long-range dispersion correction. J. Comput. Chem. 2006, 27, 1787–1799. [Google Scholar] [CrossRef]
  36. Govind, N.; Petersen, M.; Fitzgerald, G.; King-Smith, D.; Andzelm, J. A generalized synchronous transit method for transition state location. Comput. Mater. Sci. 2003, 28, 250–258. [Google Scholar] [CrossRef]
  37. Ren, J.; Guo, H.H.; Yang, J.Z.; Qin, Z.F.; Lin, J.Y.; Li, Z. Insights into the mechanisms of CO2 methanation on Ni(111) surfaces by density functional theory. Appl. Surf. Sci. 2015, 351, 504–516. [Google Scholar] [CrossRef] [Green Version]
  38. Ahn, H.S.; Lee, S.C.; Han, S.; Lee, K.R.; Kim, D.Y. Ab initio study of the effect of nitrogen on carbon nanotube growth. Nanotechnology 2006, 17, 909–912. [Google Scholar] [CrossRef]
  39. You, Y.; Yan, M.F.; Chen, H.T. Interactions of carbon-nitrogen and carbon-nitrogen-vacancy in α-Fe from first-principles calculations. Comput. Mater. Sci. 2013, 67, 222–228. [Google Scholar] [CrossRef]
  40. Chen, X.; Yang, Q.; Meng, R.; Jiang, J.; Liang, Q.; Tan, C.; Sun, X. The electronic and optical properties of novel germanene and antimonene heterostructures. J. Mater. Chem. C 2016, 4, 5434–5441. [Google Scholar] [CrossRef]
  41. Cao, H.; Zhou, Z.; Zhou, X.; Cao, J. Tunable electronic properties and optical properties of novel stanene/ZnO heterostructure: First-principles calculation. Comp. Mater. Sci. 2017, 139, 179–184. [Google Scholar] [CrossRef]
  42. Chen, L.; Wu, R.; Kioussis, N.; Zhang, Q. First principles determinations of the bonding mechanism and adsorption energy for CO/MgO(001). Chem. Phys. Lett. 1998, 290, 255–260. [Google Scholar] [CrossRef]
  43. Shan, B.; Zhao, Y.J.; Hyun, J.; Kapur, N.; Cho, K. Coverage-dependent CO adsorption energy from first-principles calculations. J. Phys. Chem. C 2009, 113, 6088–6092. [Google Scholar] [CrossRef]
  44. Kirklin, S.; Meredig, B.; Wolverton, C. High-throughput computational screening of new Li-ion battery anode materials. Adv. Energy Mater. 2013, 3, 252–262. [Google Scholar] [CrossRef]
  45. Wang, Z.; Luan, D.; Madhavi, S.; Hu, Y.; Lou, X.W. Assembling carbon-coated α-Fe2O3 hollow nanohorns on the CNT backbone for superior lithium storage capability. Energy Environ. Sci. 2012, 5, 5252–5256. [Google Scholar] [CrossRef]
  46. Larcher, D.; Masquelier, C.; Bonnin, D.; Chabre, Y.; Masson, V.; Leriche, J.B.; Tarascon, J.M. Effect of particle size on lithium intercalation into alpha-Fe2O3. J. Electrochem. Soc. 2003, 150, A133–A139. [Google Scholar] [CrossRef]
  47. Ceder, G.; Aydinol, M.K.; Kohan, A.F. Application of first-principles calculations to the design of rechargeable Li-batteries. Comp. Mater. Sci. 1997, 8, 161–169. [Google Scholar] [CrossRef]
  48. Dong, Y.R.; Wei, W.; Lv, X.S.; Huang, B.B.; Dai, Y. Semimetallic Si3C as a high capacity anode material for advanced lithium ion batteries. Appl. Surf. Sci. 2019, 479, 519–524. [Google Scholar] [CrossRef]
  49. Wang, Y.; Li, Y. Ab initio prediction of two-dimensional Si3C enabling high specific capacity as an anode material for Li/Na/K-ion batteries. J. Mater. Chem. A 2020, 8, 4274–4282. [Google Scholar] [CrossRef]
  50. Zhang, Q.; Liu, Y.; Liao, T.; Zhang, C.L.; Wu, X.L.; Liu, Y.S.; Qurashi, M.S.; Zheng, F.; Song, Q.S.; Han, P.D. Graphene/Cu composites: Electronic and mechanical properties by first-principles calculation. Mater. Chem. Phys. 2019, 231, 188–195. [Google Scholar] [CrossRef]
  51. Shan, S.Y.; Wei, T.Z. Effect of N/B doping on the electronic and field emission properties for carbon nanotubes, carbon nanocones, and graphene nanoribbons. Nanoscale 2010, 2, 1069–1082. [Google Scholar] [CrossRef]
  52. Yan, Q.; Huang, B.; Yu, J.; Zheng, F.W.; Zang, J.; Wu, J.; Gu, B.-L.; Liu, F.; Duan, W. Intrinsic current-voltage characteristics of graphene nanoribbon transistors and effect of edge doping. Nano Lett. 2007, 7, 1469–1473. [Google Scholar] [CrossRef] [PubMed]
Nanomaterials 11 00081 g001 550

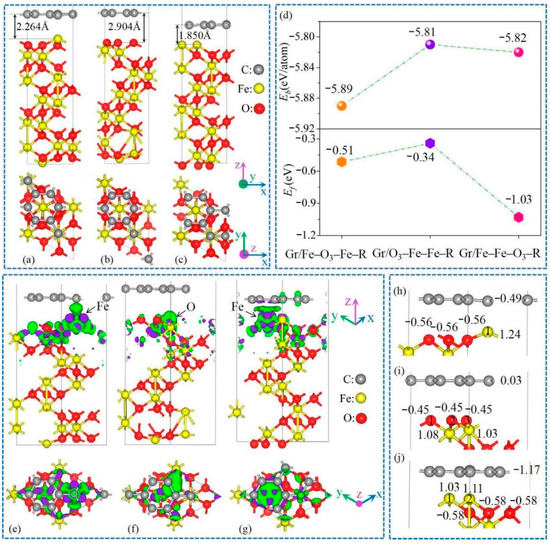

Figure 1. Optimized geometries of (a) Gr/Fe-O3-Fe-R, (b) Gr/O3-Fe-Fe-R, and (c) Gr/Fe-Fe-O3-R heterostructures; (d) binding energy (Eb), interfacial formation energy (Ef), and (e–g) charge difference plots of three models (isosurface level was set to 0.04 electrons/bohr3, green and purple areas represent charge accumulation and depletion); (h–j) transferred electrons of atoms near the interface in (h) Gr/Fe-O3-Fe-R, (i) Gr/O3-Fe-Fe-R, and (j) Gr/Fe-Fe-O3-R.
Figure 1. Optimized geometries of (a) Gr/Fe-O3-Fe-R, (b) Gr/O3-Fe-Fe-R, and (c) Gr/Fe-Fe-O3-R heterostructures; (d) binding energy (Eb), interfacial formation energy (Ef), and (e–g) charge difference plots of three models (isosurface level was set to 0.04 electrons/bohr3, green and purple areas represent charge accumulation and depletion); (h–j) transferred electrons of atoms near the interface in (h) Gr/Fe-O3-Fe-R, (i) Gr/O3-Fe-Fe-R, and (j) Gr/Fe-Fe-O3-R.
Nanomaterials 11 00081 g001
Nanomaterials 11 00081 g002 550

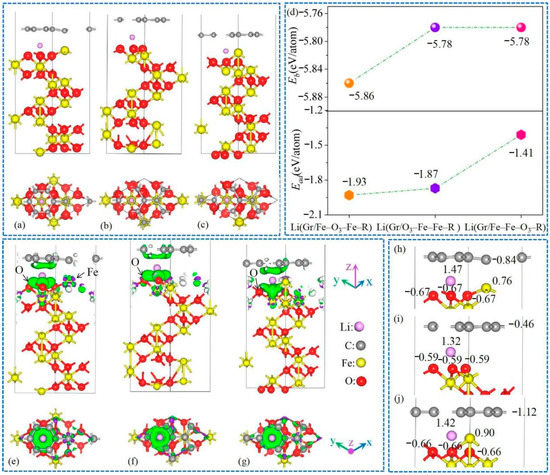

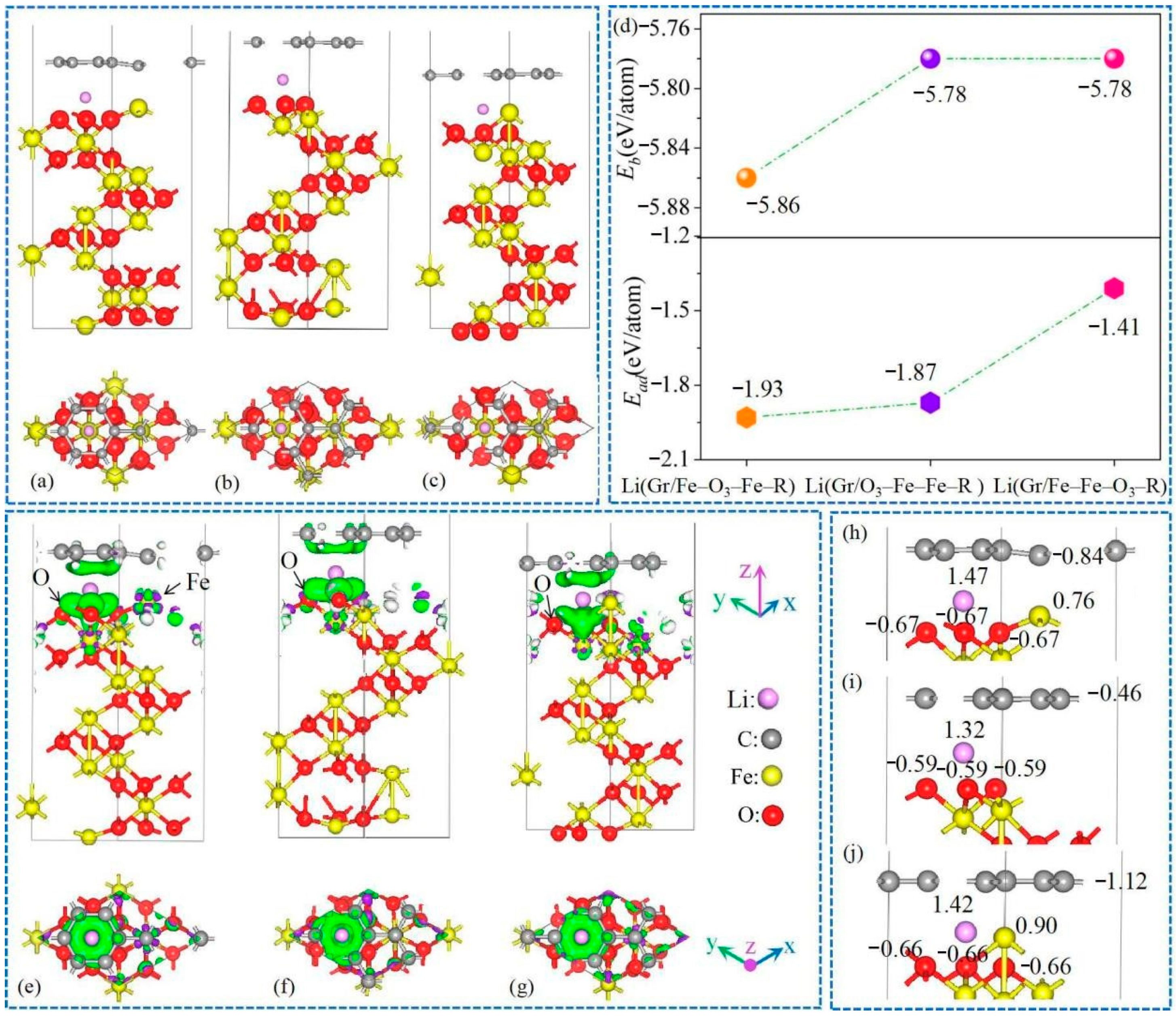

Figure 2. Optimized structures of (a) Li(Gr/Fe-O3-Fe-R), (b) Li(Gr/O3-Fe-Fe-R), and (c) Li(Gr/Fe-Fe-O3-R) heterostructures; (d) binding energy (Eb), adsorption energy (Ead), and (e–g) charge difference plots of them (green and purple area represent density accumulation and depletion, isosurface level was set to 0.02 electrons/bohr3); (h–j) transferred electrons of atoms near the interface in (h) Li(Gr/Fe-O3-Fe-R), (i) Li(Gr/O3-Fe-Fe-R), and (j) Li(Gr/Fe-Fe-O3-R) systems.
Figure 2. Optimized structures of (a) Li(Gr/Fe-O3-Fe-R), (b) Li(Gr/O3-Fe-Fe-R), and (c) Li(Gr/Fe-Fe-O3-R) heterostructures; (d) binding energy (Eb), adsorption energy (Ead), and (e–g) charge difference plots of them (green and purple area represent density accumulation and depletion, isosurface level was set to 0.02 electrons/bohr3); (h–j) transferred electrons of atoms near the interface in (h) Li(Gr/Fe-O3-Fe-R), (i) Li(Gr/O3-Fe-Fe-R), and (j) Li(Gr/Fe-Fe-O3-R) systems.
Nanomaterials 11 00081 g002
Nanomaterials 11 00081 g003 550

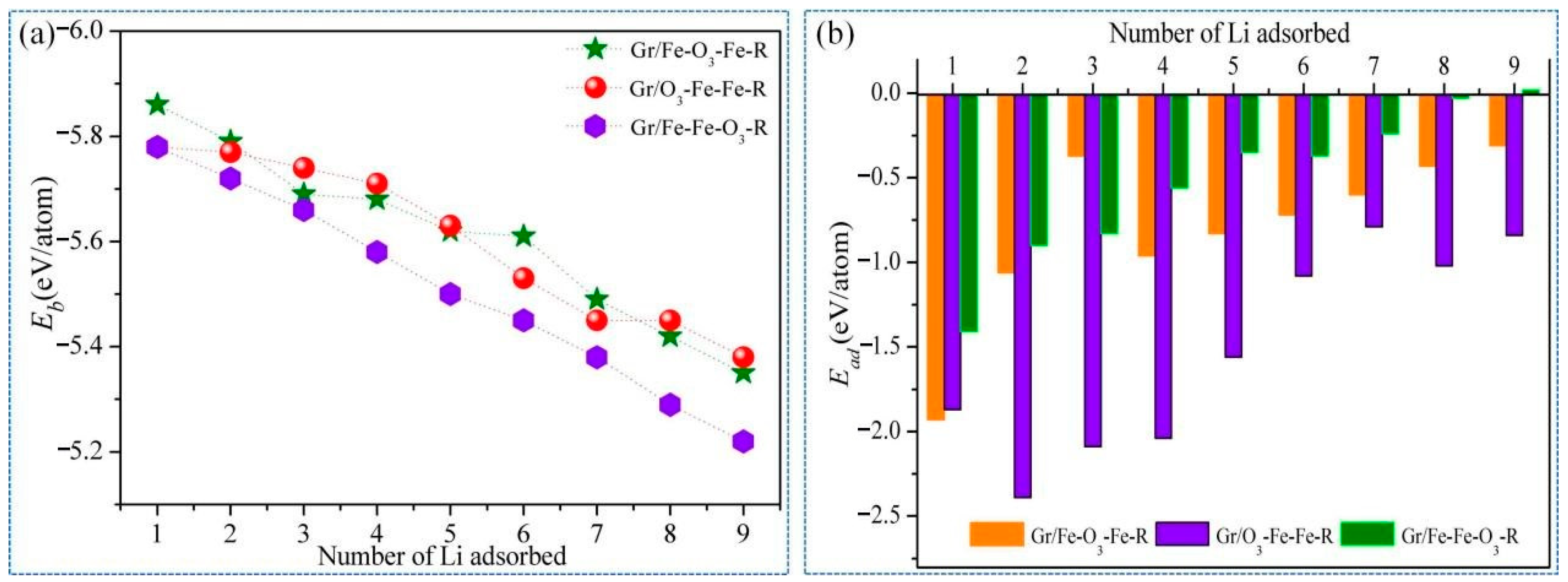

Figure 3. (a) Binding energy (Eb) and (b) adsorption energy (Ead) of the Lin(Gr/Fe-O3-Fe-R), Lin(Gr/O3-Fe-Fe-R), and Lin(Gr/Fe-Fe-O3-R) systems.
Figure 3. (a) Binding energy (Eb) and (b) adsorption energy (Ead) of the Lin(Gr/Fe-O3-Fe-R), Lin(Gr/O3-Fe-Fe-R), and Lin(Gr/Fe-Fe-O3-R) systems.
Nanomaterials 11 00081 g003
Nanomaterials 11 00081 g004 550

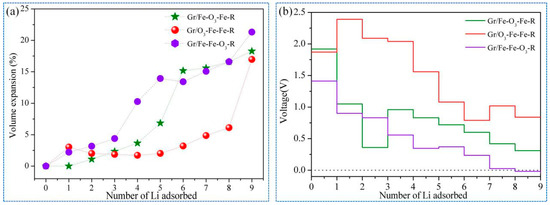

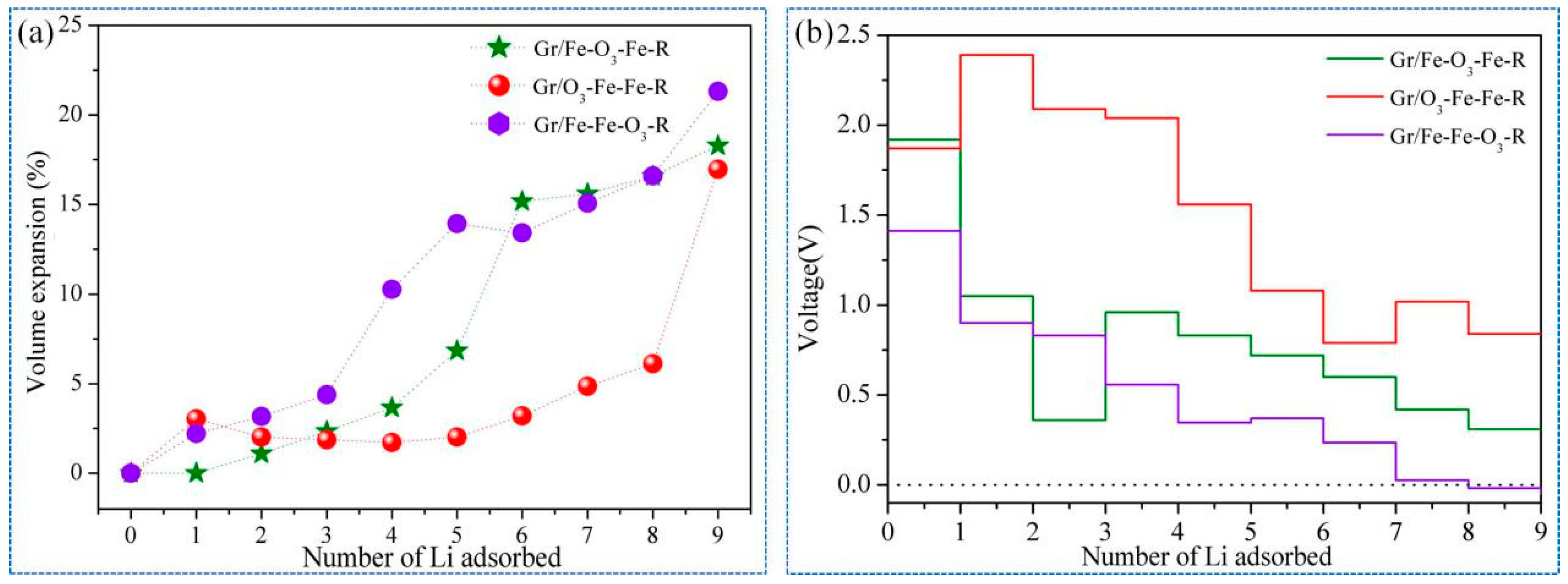

Figure 4. (a) Volume expansion (Ve) and (b) voltage figure versus number of Li for the Lin(Gr/Fe-O3-Fe-R), Lin(Gr/O3-Fe-Fe-R), and Lin(Gr/Fe-Fe-O3-R) configurations.
Figure 4. (a) Volume expansion (Ve) and (b) voltage figure versus number of Li for the Lin(Gr/Fe-O3-Fe-R), Lin(Gr/O3-Fe-Fe-R), and Lin(Gr/Fe-Fe-O3-R) configurations.
Nanomaterials 11 00081 g004
Nanomaterials 11 00081 g005 550

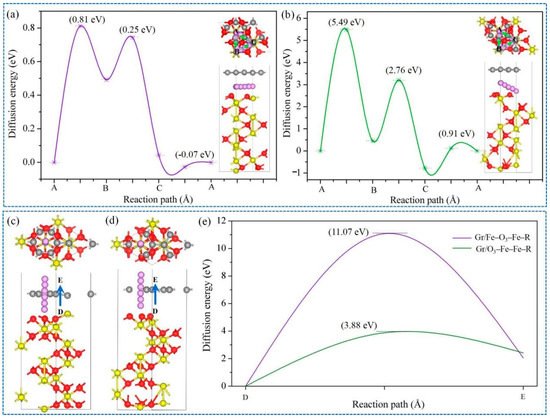

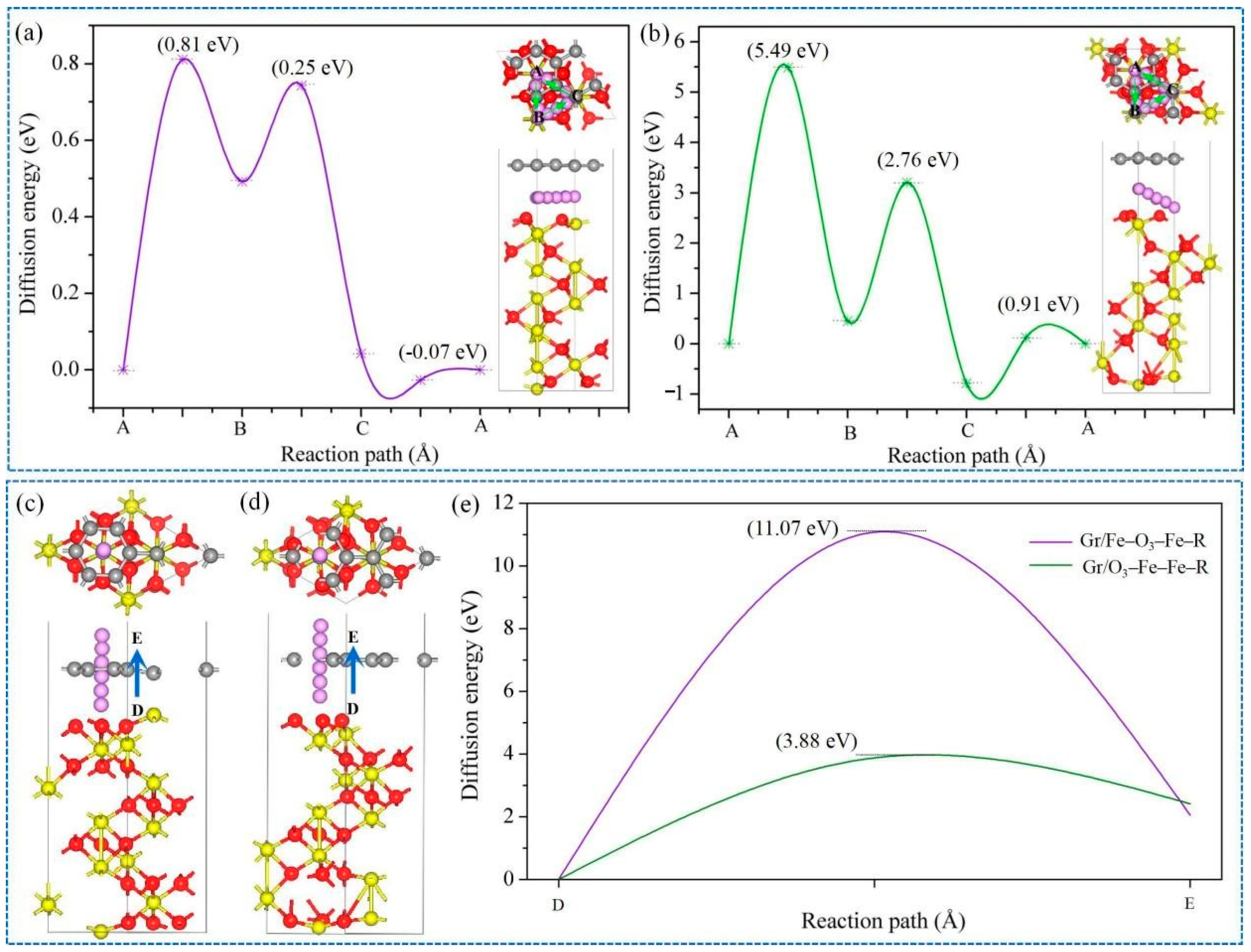

Figure 5. (a,b) Diffusion energy barrier profiles of A→ B, B→C, and C→A in Gr/Fe-O3-Fe-R and Gr/O3-Fe-Fe-R systems. Insets in a and b show the schematical illustration of the migration pathways; (c–e) diffusion paths and the energy barriers of D→E for Gr/Fe-O3-Fe-R and Gr/O3-Fe-Fe-R systems.
Figure 5. (a,b) Diffusion energy barrier profiles of A→ B, B→C, and C→A in Gr/Fe-O3-Fe-R and Gr/O3-Fe-Fe-R systems. Insets in a and b show the schematical illustration of the migration pathways; (c–e) diffusion paths and the energy barriers of D→E for Gr/Fe-O3-Fe-R and Gr/O3-Fe-Fe-R systems.
Nanomaterials 11 00081 g005
Nanomaterials 11 00081 g006 550

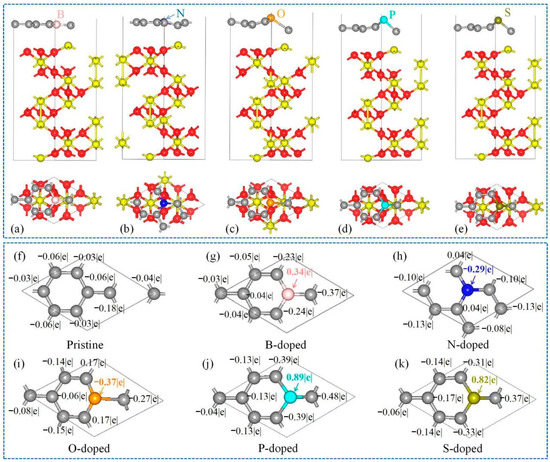

Figure 6. (a) Optimized structures for (a) B-, (b) N-, (c) O-, (d) P-, or (e) S-doped Gr/Fe-O3-Fe-R system; (f–k) transferred electrons of Gr in (f) Gr/Fe-O3-Fe-R and (g–k) M-doped Gr/Fe-O3-Fe-R (M = B, N, O, P, and S) systems.
Figure 6. (a) Optimized structures for (a) B-, (b) N-, (c) O-, (d) P-, or (e) S-doped Gr/Fe-O3-Fe-R system; (f–k) transferred electrons of Gr in (f) Gr/Fe-O3-Fe-R and (g–k) M-doped Gr/Fe-O3-Fe-R (M = B, N, O, P, and S) systems.
Nanomaterials 11 00081 g006
Nanomaterials 11 00081 g007 550

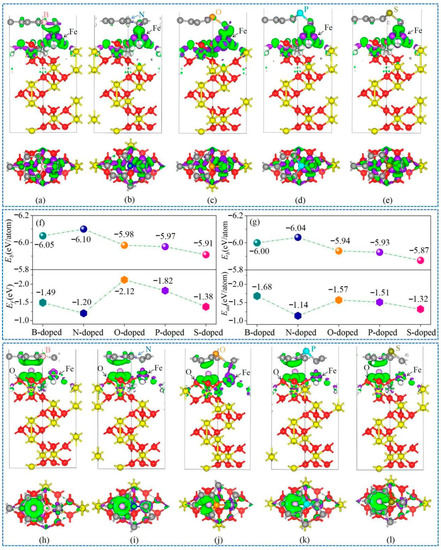

Figure 7. Charge difference plots for (a–e) M-doped Gr/Fe-O3-Fe-R systems (M = B, N, O, P, and S; isosurface level was set to 0.04 electrons/bohr3); (f) binding energy (Eb) and interfacial formation energy (Ef) for (f) M-doped Gr/Fe-O3-Fe-R; (g) binding energy (Eb) and adsorption energy (Ead) for Li adsorbed on M-doped Gr/Fe-O3-Fe-R systems; (h–l) charge difference plots for Li adsorbed on M-doped Gr/Fe-O3-Fe-R systems (isosurface was set to 0.02 electrons/bohr3).
Figure 7. Charge difference plots for (a–e) M-doped Gr/Fe-O3-Fe-R systems (M = B, N, O, P, and S; isosurface level was set to 0.04 electrons/bohr3); (f) binding energy (Eb) and interfacial formation energy (Ef) for (f) M-doped Gr/Fe-O3-Fe-R; (g) binding energy (Eb) and adsorption energy (Ead) for Li adsorbed on M-doped Gr/Fe-O3-Fe-R systems; (h–l) charge difference plots for Li adsorbed on M-doped Gr/Fe-O3-Fe-R systems (isosurface was set to 0.02 electrons/bohr3).
Nanomaterials 11 00081 g007
Nanomaterials 11 00081 g008 550

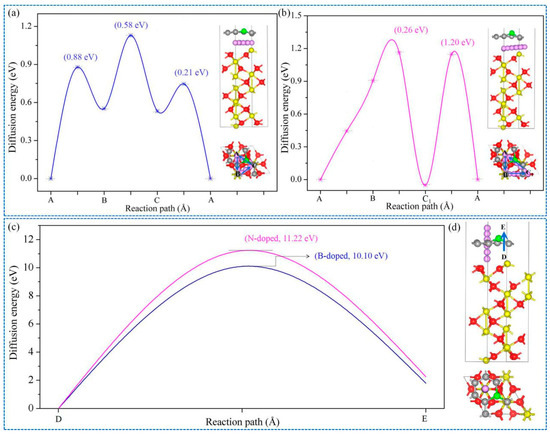

Figure 8. Energy barrier profiles for Li atom from A to B, B to C (C1), and C (C1) to A in (a) B- and (b) N-doped Gr/Fe-O3-Fe-R system; (c,d) energy barriers and diffusion paths for Li atom from D to E in B and N-doped Gr/Fe-O3-Fe-R.
