Review

A Review about the Recent Advances in Selected NonThermal Plasma Assisted Solid–Gas Phase Chemical Processes

Department of Industrial Engineering, University of Salerno, Via Giovanni Paolo II 132, 84084 Fisciano (SA), Italy
*
Author to whom correspondence should be addressed.
Nanomaterials 2020, 10(8), 1596; https://doi.org/10.3390/nano10081596
Received: 10 July 2020 / Revised: 11 August 2020 / Accepted: 12 August 2020 / Published: 14 August 2020

Abstract

:
Plasma science has attracted the interest of researchers in various disciplines since the 1990s. This continuously evolving field has spawned investigations into several applications, including industrial sterilization, pollution control, polymer science, food safety and biomedicine. nonthermal plasma (NTP) can promote the occurrence of chemical reactions in a lower operating temperature range, condition in which, in a conventional process, a catalyst is generally not active. The aim, when using NTP, is to selectively transfer electrical energy to the electrons, generating free radicals through collisions and promoting the desired chemical changes without spending energy in heating the system. Therefore, NTP can be used in various fields, such as NOx removal from exhaust gases, soot removal from diesel engine exhaust, volatile organic compound (VOC) decomposition, industrial applications, such as ammonia production or methanation reaction (Sabatier reaction). The combination of NTP technology with catalysts is a promising option to improve selectivity and efficiency in some chemical processes. In this review, recent advances in selected nonthermal plasma assisted solid–gas processes are introduced, and the attention was mainly focused on the use of the dielectric barrier discharge (DBD) reactors.

1. Introduction

The term plasma, first introduced by Langmuir and Tonks in 1929 to describe the inner region of a glowing ionized gas phase produced by means of an electric discharge in a tube, represents the “fourth state of matter”, consisting in an “ionized gas” into which sufficient energy is provided to free electrons from atoms or molecules and to allow the coexistence of species, ions and electrons [1]. The plasma ionization degree is the proportion of atoms that have lost (or gained) electrons. Plasma is divided into thermal or hot plasma and non-thermal or cold plasma, and the main features of the different plasmas are shown in Table 1 [2].
In thermal plasma, also named equilibrium plasma since the temperature of charged particles is very close to the one of the background gas, a particular environment different from the conventional chemical engineering processes can be provided, in which temperatures of 103–104 K are reached. In nonthermal plasma (NTP), the generated electric field transmits energy to the gas electrons and then energy will be transferred to the neutral species by collisions. In such a way the formation of highly reactive short-lived species occurs, such as O· (Oxygen radical), O3 (Ozone), N· (Nitrogen radical), N* (excited Nitrogen radical), N2+ (positive ions of nitrogen) and ·OH, so promoting the desired chemical reactions [3]. These reactions can be accomplished with just a fraction of the energy that is required in the thermal plasma system. In NTP, electrons have a kinetic energy higher than the energy corresponding to the random motion of the background gas molecules, generally in the range 104–105 °C (2–3 order of magnitude greater than the background gas). One example of nonthermal plasma is the gas filling a fluorescent tube, in which the gas temperature is only around 40 °C, while the temperature of free electrons in the system exceeds 104 °C.
NTP can be generated in several ways, including electrical corona discharges, radio frequency (RF) discharges, microwave discharges, dielectric barrier discharges and electron beams [2]. The choice of the proper reactor design for a specific application is a big challenge, since it requires the optimization of lot of parameters, such as the discharge modes, the operating pressure, the presence of a dielectric barrier or catalyst, the geometry, the polarity, the voltage level; sometimes, the tests will lead to negative results. However, in general, the relatively low temperature of nonthermal plasma allows its combination with catalytic processes, since it can improve catalyst selectivity and, in case of pollutant abatement, the removal efficiency. The chemical potential of NTP has been studied with regard to various applications, such as volatile organic compound (VOC) decomposition, NOx and SOx removal, ozone generation, surface treatments, H2 formation, fuel reforming and biomedical use [3], as well as in the preparation of catalytic materials [4] and catalyst regeneration [5]. The main used reactors are briefly described in the following subsections.

1.1. Electron Beam

In this kind of reactors, an electron beam, which is formed in a separate generator, such as a cathode tube, is injected into the exhaust gas. The energy of the electrons is absorbed by the components of the gaseous mixture proportionally to their mass fraction. The energy of electrons can be much higher in the e-beam reactor than in other reactors. Disadvantages of the e-beam reactor include the need for a special reactor for generating the electrons and poor efficiency in transferring the electrons into the exhaust gas, as well as the requirement for high/ultra-high vacuum compatibility of all parts of the process [1].

1.2. Corona Discharges

These reactors are characterized by the formation of a nonuniform electric field between two concentric electrodes where their radius of the curvature is the smallest. In this way the realized discharge mode is the streamer one and the ionization zone is spread over the entire gap, so allowing the possibility to set the discharge gap as large as 10 cm or more, which is highly appropriate for large scale application. Important features of these reactors are (i) the absence of a dielectric for the plasma generation and (ii) the use of pulsed electric field to prevent plasma from going into the thermal mode and forming an arc. In the case of some environmental applications, such as decomposition of CCl4, pulsed corona reactors resulted extremely less energy efficient than the electron beam processing, but, as mentioned before, the drawbacks of the latter in terms of requirement of a separate reactor and difficulty of electron generation made its application limited [1].

1.3. Dielectric Barrier Discharge

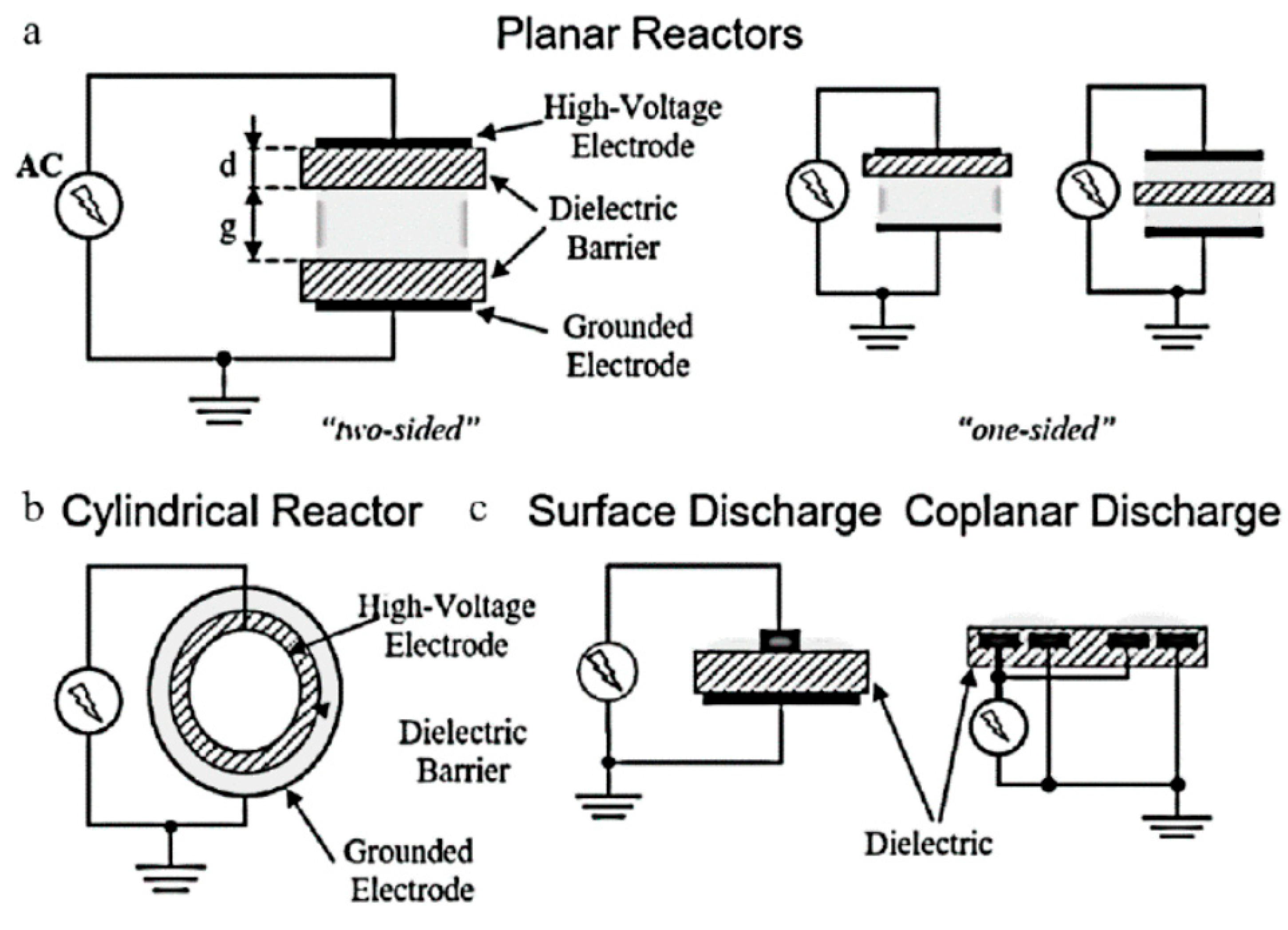

Dielectric barrier discharge (DBD) plasma is one of the most common methods for NTP generation. A DBD reactor is basically composed by a set of electrodes with at least one dielectric barrier between them; different typologies of DBD reactors are shown in Figure 1 [6].
Since a dielectric barrier is present, higher voltage are required because a high electric field between the electrodes is necessary for plasma formation and so causing breakdown in the gas. Usually the dielectric barriers are in quartz glass, silica glass or alumina; other used materials are ceramic materials or polymer layers in special cases. Differently from the corona discharge reactors, the DBD ones produce a homogenous discharge with low energy consumption, so resulting in no spark formation inside the streamer channels, overheating and local shock waves. Additional advantages of the DBD reactors are their scalability, effectiveness, and low operational cost. These advantages make these reactors feasible for pollutant abatement, such as CO, NOx and VOCs, as well as for ozone generation [1]. However, since the DBD reactors vary in geometric configuration and operating parameters (discharge characteristics depend on the gas composition, type of dielectric material and operating conditions of voltage and frequency), the comparison of their performance in terms of discharge power characteristics is really difficult [7,8].

1.4. Dielectric Packed Bed Reactor

The dielectric packed bed reactor is like the DBD, but in the former pellets of dielectric materials are in the gap between the barrier and the electrode (Figure 2) [9].
The presence of the pellets allows the use of low applied voltages can be used for the plasma generation over a relatively large separation of the electrodes; in fact, when an external electric field is applied, the pellets spontaneously polarize in its direction, resulting in a high electric field at their contact points. Furthermore, the pellets can be catalyzed, in order to obtain a synergistic effect between plasma and catalysis for the improvement of the process efficiency. However, the presence of pellets has some disadvantages, mainly consisting in the high pressure drops and attrition of the pellets [1].

1.5. Surface Plasma Discharge

In this reactor, one side of the dielectric barrier is covered entirely by one of the electrodes and only partially by the other one, so allowing the distinction from the DBD reactors. The plasma is generated next to this dielectric surface, which is in contact with the gas and the surface plasma covers the entire dielectric surface. A feature of this discharge is that after a few nanoseconds, charge begins to build up at the dielectric surface, which has the effect of reducing the electric fields outside the dielectric, eventually extinguishing the discharge [1].
In this review, the recent advances in selected nonthermal plasma assisted solid–gas processes are presented. The attention is focused on the pollutant abatement and on the intensification of some processes, so the studies regarding the use of NTP in the abatement of SO2 (Section 3), H2S (Section 4), NOx (Section 5), soot (Section 6), VOC (Section 8), as well as the ones on the ammonia production (Section 2) and the CO2 utilization (Section 7) are reviewed in the following pages.

2. Ammonia Production via NTP Technology

Ammonia is one of the most important chemicals, involved in several industrial processes, including production of fertilizers, explosives, polymers and nitric acid. The actually used production process, the Haber−Bosch process (Figure 3), is the result of a series of patents published in the early twentieth century [10]. The conventional Haber–Bosch process is based on the exothermic equilibrium reaction (1) between nitrogen and hydrogen [11], it is catalyzed, it is typically carried out at 500 °C at a pressure of 150–200 bar, so requiring huge energy supply [12].
N2 + 3H2 = 2NH3  ΔH = −92.2 kJ mol−1
Although it is an exothermic reaction, it is conducted at high temperatures because of the slow nitrogen triple bond cleavage and to avoid the poisoning of the catalysts by the adsorbed nitrogen; however, the high pressures are used to balance the detrimental effect of the temperature [13].
It is therefore clear that a process with these characteristics is not very sustainable and technically unusable for localized applications [14] in the ammonia distributed production. A promising alternative is the “plasma-assisted nitrogen fixation” process [15], which can be considered eco-friendly, due to the no greenhouse gas emissions and waste production and suitable for small-scale and distributed production. On the other hand, the energy efficiency of this process is far from being optimized, so that the combination with renewable energies seems to be, at the moment, the only viable route [16].
It has been shown that the ammonia synthesis can be realized without the use of catalysts, by using water vapor as a hydrogen source for nitrogen fixation into NH3, by non-equilibrium plasma. High NH3 selectivity (up to 96%) and an increase in production rate, compared to N2 dry in contact with liquid H2O (up to 0.064 mg h−1), with low quantities of vapor saturation of the N2 feed gas, were reported [17]. However, with higher H2O vapor contents, the selectivity was lower (~60%−85%), but the combined yield to all N2 fixation products (i.e., NH3, NO3, NO2) increased. The total N2 fixation product yields increased when nitrogen was replaced with air, but the selectivity to NH3 was drastically depressed. The energy consumption was around 100 MJ mol−1 for NH3 or 15 MJ mol−1 for total N2 fixation, which were in the reported range values for plasma assisted catalytic NH3 production.
On the other hand, most of the works published in recent years are based on the use of catalysts, in order to make the process that uses plasma more competitive than conventional methods. In this section, the results reported in selected recent published papers, on the plasma-assisted ammonia production in presence of catalysts, will be reviewed, moreover, at the end of the section a summary table is provided, on the efficiency of selected catalytic formulations (Table 2).

2.1. Mechanisms

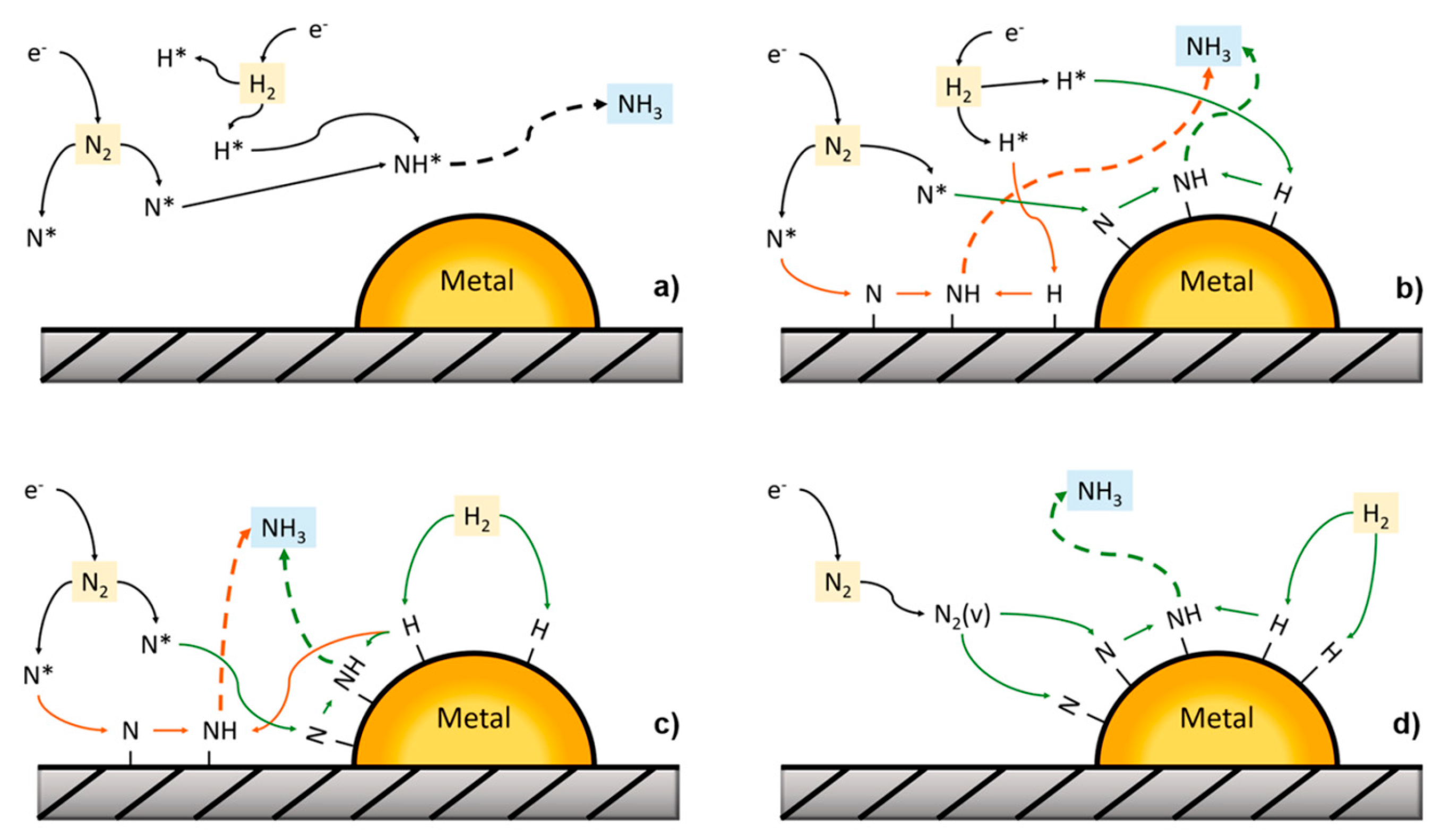

Four different types of pathways [18] for ammonia synthesis in the presence of plasma were suggested: (a) plasma-phase ammonia synthesis, (b) surface-enhanced plasma-driven ammonia synthesis, (c) plasma-enhanced semicatalytic ammonia synthesis and (d) plasma-enhanced catalytic ammonia synthesis (Figure 4). In the plasma-phase ammonia route the N* radicals and H* radicals recombine in the plasma environment to produce ammonia, while in the surface-enhanced plasma-driven ammonia synthesis the N* and H* radicals adsorb on the catalytic surface, followed by NHx species hydrogenation and ammonia formation, which may occur on the surface or in the plasma–environment [12]. These two mechanisms are essentially diffusion limited [18] and shown a low apparent activation energy smaller, typically lower than five kilojoules per mole. In the plasma-enhanced semicatalytic ammonia synthesis route, the N* radicals adsorb on the surface and the H2 is dissociated over the catalyst [19,20]. Finally, in the plasma-enhanced catalytic ammonia synthesis both H2 and N2 adsorb with a dissociative mechanism on the catalyst surface, subsequent NHx surface hydrogenation and ammonia desorption occur over a transition metal [21].
Van Helden et al. [22] studied the ·NH and ·NH2 radicals production mechanisms, both in expanding N2–H2 plasma and in expanding N2 plasma with the hydrogen added in the background, by measuring their density evolution along the expansion axis with cavity ring-down spectroscopy. For the experimental setup was used a cascaded arc source channel with a diameter of four millimeters and a length of 30 mm, realized with five stacked water-cooled insulated copper plates, and the applied power was around five kilowatts. The measurements shown an ·NH radical density of 5 × 1018 m−3 in both the plasma cases and up to 7 × 1018 m−3 for the ·NH2 radical in the case of expanding N2–H2 plasmas. Moreover, in the N2 plasma with hydrogen injected in the background, at z = 10 cm, the 30% of the radical flux is ·NH, while in the N2–H2 plasma, at z = 10 cm, the ·NH and ·NH2 radicals are about the 60% of the radical flux, thus concluding that ·NHx radicals play a crucial role as precursors for the N and H atoms, key steps in the surface production of N2, H2 and NH3.

2.2. Ru-Based Catalysts

Ruthenium-based are the most studied catalysts for the plasma assisted ammonia synthesis. Peng et al. [23] investigated a Ru-based multifunctional catalytic system deposited on mesoporous Si–MCM-41 for the non-thermal plasma synthesis of ammonia. The results shown that the synthesis efficiency increased with the frequency values >22,000 Hz, decreased with the applied voltage from 5 to 7 kV, while the optimal N2 feed concentration was 0.5. The highest ammonia synthesis efficiency achieved was 1.7 g kWh−1 at 5000 V and 26,000 Hz. A two-step process was also proposed to minimize the plasma shielding effects, in which the plasma ionization and catalytic synthesis are separated. The effects of operational parameters, in presence of 10 wt% Ru supported on MgO, carbon nanotube (multi-walled), MCM-41 and activated carbon (mesoporous) and Cs, K and Ba as promoters, were also investigated [24]. The results shown an increase of the ammonia synthesis efficiency with the gas flow rate below four liters per minute and substantial plateau for higher flow rates. The power frequency had no effect on the efficiency in the range 8000–16,000 Hz, while a gradual decrease of the efficiency was found from 5000 to 9000 V. Finally, the best performance was obtained with Ru catalyst on carbon nanotube support and as Cs promoter, while the optimal conditions resulted in a frequency and an applied voltage of 10,000 Hz and 6000 V, with N2:H2 feed ratio of 3:1, in this condition the efficiency was of 2.3 g NH3 kWh−1.
Kim et al. [25] investigated the use of Ru-based catalysts, in atmospheric-pressure nonthermal plasma to synthesize ammonia, moreover the effect a promoter such as Mg, K and Cs was also investigated. The results shown that the NH3 formation the plasma onset voltage to a lower value, due to the low ionization potential. The NH3 formation increased with temperature from 200 °C to 300 °C; below 250 °C the NH3 formation was found to be a linear function of the specific energy input (SEI), however, the slope of the correlation function was related to the type of catalyst and power supply. The optimal N2:H2 feed ratio was found to be 4:1, while the highest ammonia yield was obtained with Ru(2)–Mg(5)/γ-Al2O3 catalyst at 250 °C, where pulse energization was found to be four times more efficient than AC energization. The addition of small amount of oxygen demonstrated the possibility to regenerate in situ the deactivated catalyst. In further studies [18], the synergy between the catalyst and the plasma was experimentally observed. The apparent activation energy for thermal-catalytic ammonia synthesis is typically located in the range 60–115 kJ mol−1, while the calculated apparent activation energy for plasma-enhanced catalytic ammonia synthesis were in the range 20–40 kJ mol−1, consistent with the hypothesis that ammonia synthesis was enhanced via plasma-induced vibrational excitations of N2, without affecting the hydrogenation steps of NHx species as well as the ammonia desorption. The effects of promoters and supports on activity were similar for both thermal catalysis and plasma-enhanced catalysis, due to the enhanced dissociation of N2, suggesting that the N−N bond breaking was still relevant in plasma-enhanced catalytic ammonia synthesis.

2.3. Ni-Based Catalysts

Nickel-based catalysts have also been extensively studied. Shah et al. [26] compared the activity of pure Ni metal with that of Ni–MOF catalyst in plasma assisted ammonia synthesis. The Ni–MOF catalyst shown superior catalytic activity that was attributed to the catalyst porous structure, which improves the mass transfer during the reaction, to the presence of open Ni metal sites and to the lower surface hydrogen recombination. Moreover, the Ni–MOF catalyst was stable in the power range 100−200 W, while higher power caused an internal stress, which led to the amorphization of the porous framework, compromising the catalyst performance.
Akay and Zhang [27] investigated co-assembled microporous silica supported nickel catalysts in nonthermal plasma reactor, operating at 140 °C and ambient pressure, for the ammonia synthesis. The results shown that the nitrogen conversion reached as well as the ammonia concentration were similar to that achievable by the current industrial process, however, carried out at 100−250 bar and the temperatures 350−550 °C (Figure 5).
Moreover, a stability test, carried out in 72 h on steam, highlighted the excellent performance, as no significant deactivation was found. The XRD diffractograms shown no changes in the catalyst structure after the reaction; however, the crystallite size reduces from three nanometers to less than one nanometer after the reaction. A mechanism for the ammonia synthesis combined to catalytic DBD plasma was also proposed, in which highly energetic electrons dissociate and excite H2 and N2. Due to the dissociation energy (9.8 eV), the nitrogen activation is the key step, the ·NH radicals are produced by reaction of N* with H* or H2, then react with H* or H2 to form ·NH2 radicals, finally a further reaction with H* or H2 gives NH3.

2.4. Other Catalysts

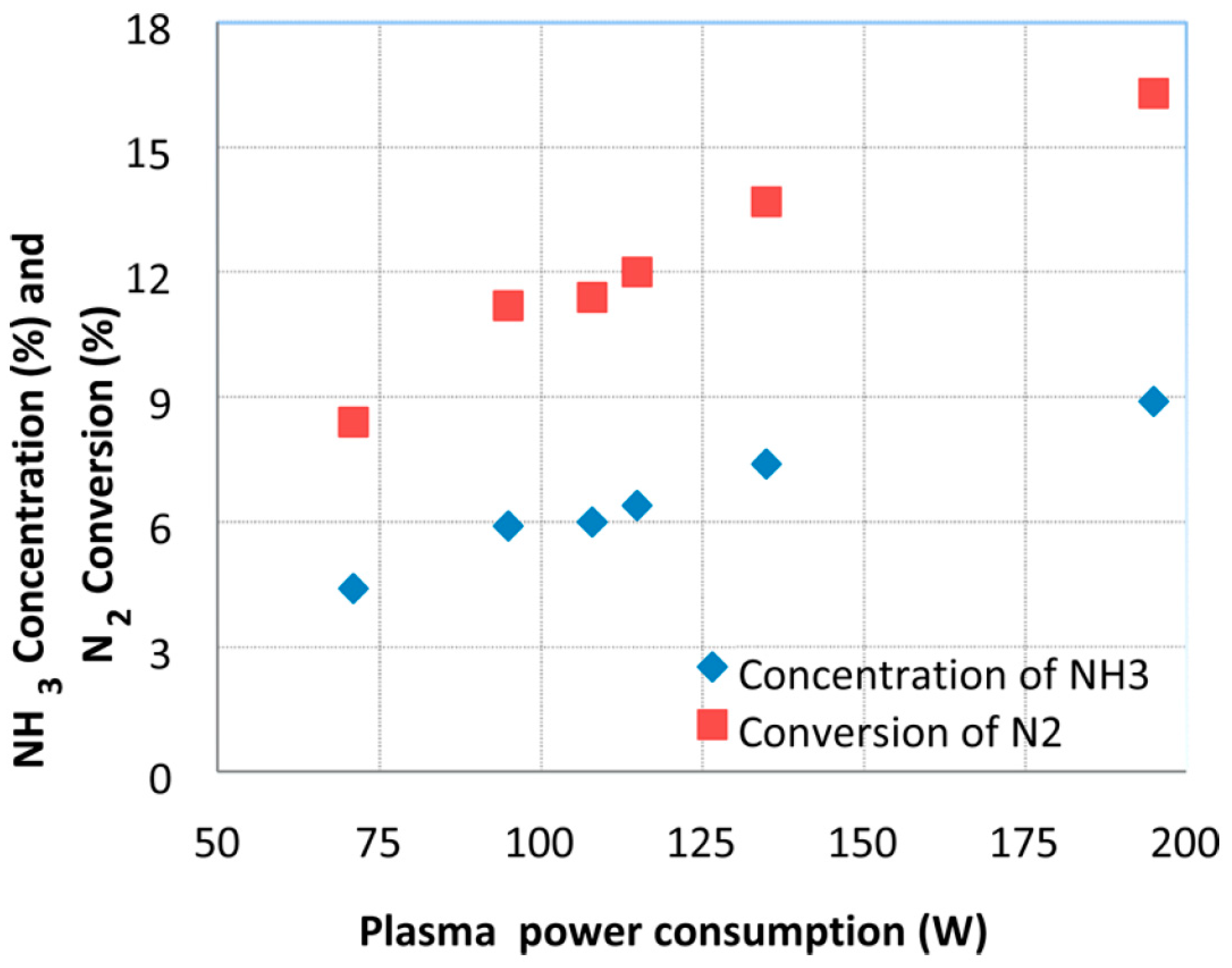

De Castro et al. [28] investigated the effect of some process parameters on the ammonia synthesis in N2/H2 direct current glow discharge plasma, such as the nitrogen concentration (in the range 1.5%–33%), the wall materials (tungsten, stainless steel and aluminum as a proxy for beryllium) and the surface temperature (in the range 100–350 °C). The results shown that the ammonia yield increased slowly with the temperature, moreover on the aluminum wall almost the 100% of cracked nitrogen was converted in ammonia at 350 °C. On tungsten and stainless-steel walls, a lower nitrogen concentration increased the cracking efficiency, while only on stainless steel and aluminum an intrinsic dependence on the plasma current was found. The amount of implanted N was related to the ammonia yield, suggesting a competition between N implantation and N/H–N/N recombination on the walls.
Gómez-Ramírez et al. [29] investigated the parameters affecting the ammonia synthesis in a PZT (lead zirconate titanate) ferroelectric packed bed dielectric barrier discharge reactor (DBD), including the operating frequency, the ferroelectric pellets size and the interelectrode distance. The experimental apparatus consisted of a stainless-steel chamber with a stainless-steel plate of 7.5 cm of diameter as active electrode, the operating frequency was in the range 500–5000 Hz with applied voltage 2.5 ± 0.3 kV and 5.5 ± 0.3 kV. The nitrogen conversion increased almost linearly with the frequency because of the changes in the intrinsic electrical properties of the reactor, which can be tuned by modifying the interelectrode spacing and the pellets size. The higher conversion was obtained by feeding a mixture N2/H2 with a ratio equal to 1/3, at a frequency of 5000 Hz, at a residence time of 60 s. This result was attributed to the increase in the electrical field at the necks between the pellets, where the occurrence of hot spots increased the local temperature.
Hong et al. [30] investigated the ammonia synthesis in a non-equilibrium atmospheric pressure plasma, by using functionalized-nanodiamond and diamond-like-carbon coatings on α-Al2O3 spheres (DLC-coated Al2O3). The oxygenated nanodiamond coating improved the ammonia yield of 30% with respect the bare alumina catalyst, while the hydrogenated nanodiamond coating reduced ammonia yield. This result was attributed to different surface reactions, hypothesizing that the presence of the carbonyl bond was related to the ammonia production.
Shah et al. [31] investigated the use of zeolite 5A in the ammonia plasma-assisted synthesis. The formation of microdischarges and a change of the voltage−current characteristics of the reactor was promoted by the presence of the zeolite. The zeolite surface electronic properties were modified by the atmospheric plasma, leading to an enhanced reactive state at the zeolite surface, which promoted the nitrogen. The results shown that the ammonia yield increased with the N2/H2 ratio, while the ammonia synthesis rate found a maximum for a N2/H2 equal to 1. Moreover, the ammonia yield decreased with the total flow rate, while the same activity was found after two cycles.

2.5. Comparative Studies

Wang et al. [32] investigated the ammonia synthesis in a coaxial dielectric barrier discharge plasma reactor, using water as a ground electrode and M/Al2O3 (M = Fe, Ni, Cu) as catalysts at ∼35 °C and atmospheric pressure. The average particle size was below 16 nm for all catalysts. Compared to the plasma synthesis without catalyst, the use of a catalyst enhanced the reaction rate and the energy efficiency, the efficiency order was Ni/Al2O3 > Cu/Al2O3 > Fe/Al2O3 > Al2O3, while the highest rate (471 μmol g−1 h−1) was obtained by using Ni/Al2O3. All the catalysts were stable at least for 6 h and the efficiency of the Ni/Al2O3 catalyst remained unchanged when recycled five times. The operando XPS analysis detected the NHx (x = 0, 1, 2 and 3) adsorbed species on the surface of the spent catalysts, suggesting they were reaction intermediates; the metal sites and the weak acid sites could actually enhance the ammonia production via NH2 formation.

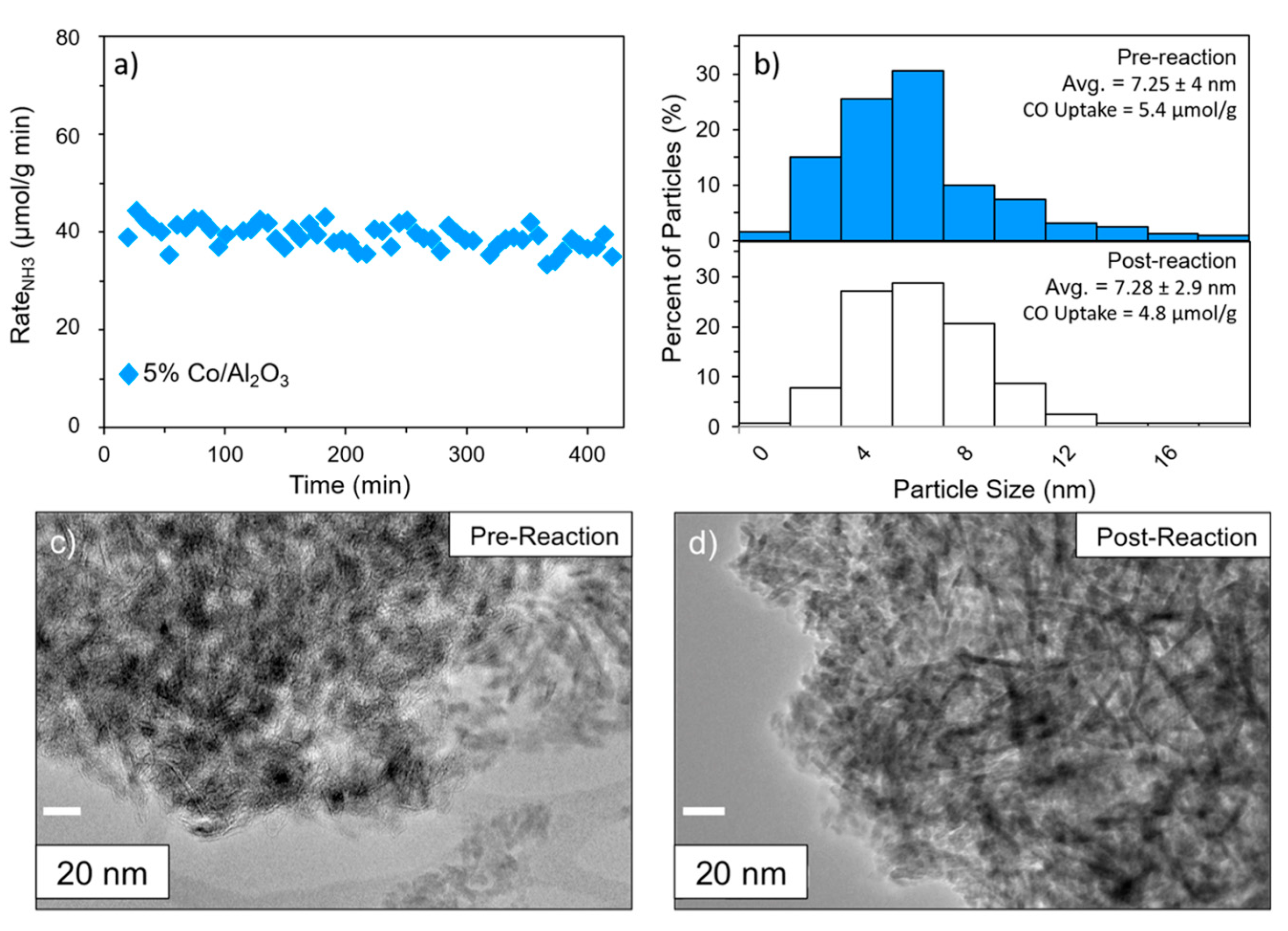

Barboun et al. [33] investigated the effect of gas composition, temperature and discharge power, on the plasma-assisted ammonia synthesis, by using three different γ-alumina-supported transition metal-based (Ru, Co and Ni) catalysts. The experiments were performed by decoupling the plasma-phase and plasma–catalytic ammonia production rates, thus by using differential reactor conditions and measuring appropriate background reactions, the contributions of plasma–catalytic reactions relative to the homogeneous plasma-phase reactions was evaluated. The results shown that the overall reaction and the plasma-phase reaction rates were first-order both for N2 and H2, while for the plasma–catalyst interactions were first-order for N2 and zero order for H2. Both the increase in bulk gas temperature and in power deposition improved the ammonia production, however the discharge power was more effective in in controlling the catalytic active than the gas temperature. A stability test was also performed on 5% Co/Al2O3 catalyst, showing no significant deactivation in 7 h of reaction time, moreover the comparison of TEM images and particle size distribution between the fresh and the exhausted catalyst shown no obvious change (Figure 6).
Iawamoto et al. [34] developed wool-like metal electrodes to produce nonthermal plasma and as efficient catalysts for ammonia synthesis under atmospheric pressure. Several metal wools were tested, the order of the activity at the initial experiment was Au > Pt > Pd > Ag > Cu > Fe > Mo > Ni > W > Ti > Al, however, do to the metal migration from the electrode to the inner wall of a silica reactor or increases in surface areas of metal catalysts, the catalytic activity of Pt, Pd, Ag, Cu and Ni wools increased as the experiments were repeated, while Au, Fe, Mo, Ti, W and Al shown almost a constant activity (Figure 7).
Herrera et al. [35] studied the effect of metal particles supported on Al2O3 on the macroscopic DBD plasma properties in an atmospheric pressure reactor. The study shows that, although the rates of ammonia synthesis over Fe/Al2O3, Ni/Al2O3 and Co/Al2O3 were different, the macroscopic properties of the DBD were statistically indistinguishable. These results suggested that the catalysts are not able to modify the macroscopic properties of the plasma, rather the plasma environment and the species generated by the plasma could modify the chemistry on the surface of the catalysts.

2.6. Reactor Configurations

Two interesting studies were also published on multireactor configuration, with the aim of improving the efficiency of the process. Akay [36] studied a catalytic multireaction–zone reactor (M–RZR) system, divided in two main zones (RZ-1 and RZ-2), for ammonia synthesis. The first zone (RZ-1) was used for the catalytic nonthermal plasma ammonia synthesis, which was immediately sequestrated by a highly porous polymeric solid acid absorbent in the neutralization reaction zone (RZ-2). The catalyst used were silica supported nickel or cobalt (with molar ratio M/Si = 1/4; where M = Ni or Co). The results shown that the ammonia conversion increased by a factor of 4 compared with no sequestration and the specific energy input (SEI) was reduced to 13.2 MJ mol−1 NH3, which was nearly 2−3 times smaller than those reported recently.

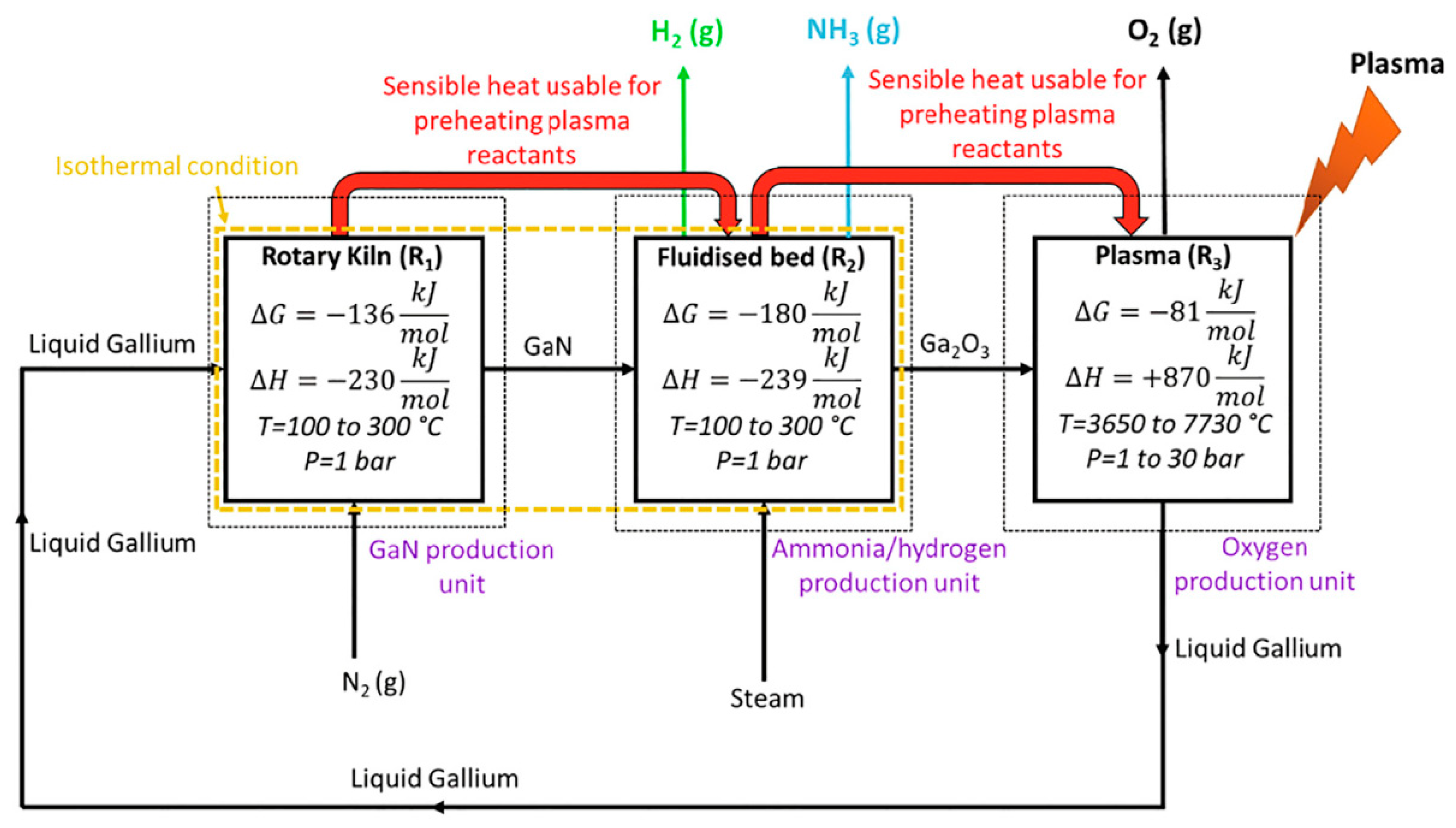

Sarafraz et al. [37] carried out a thermochemical equilibrium analysis to assess the feasibility and the thermodynamic potential of a process for the coproduction of hydrogen and ammonia, by using liquid metal and a plasma reactor. The process takes advantage of a chemical looping system, liquid metal gallium drives the nitrogen fixation reaction, by using three reactors: R1 to produce gallium nitride from gallium and nitrogen, R2 to produce ammonia and hydrogen from gallium nitride and plasma reactor R3 to convert gallium oxide to pure gallium (Figure 8). The results shown that the proposed reactions are spontaneous, because the Gibbs free energy of the reactions in all reactors was negative, moreover the first two reactions are exothermic with ΔH = −230 kJ mol−1 (R1) and ΔH = −239 kJ mol−1 (R2), with an equilibrium conversion of 100%. The gallium oxide dissociation is endothermic reaction of with ΔH = +870 kJ mol−1 (plasma reactor R3), thus it requires energy, which can be obtained from R1 and R2. Thermodynamic analysis demonstrated that the reactor R2 can be used for the coproduction of hydrogen and ammonia, when the temperature and feed ratio of the reactor (φ) were in range 100 °C < T < 400 °C and 0.1 < φ < 1.0, at atmospheric pressure.

2.7. Urea Decomposition

Fan et al. [38] studied the effect of carrier gas composition (N2/air) on the ammonia synthesis from plasma–catalytic decomposition of urea, using an Al2O3-packed DBD reactor. The results shown that the presence of oxygen in the carrier gas accelerated the urea decomposition but decreased the ammonia selectivity. However, the use of air carrier gas reduced the energy consumption and increased the energy efficiency, if compared with pure N2. The carrier gas composition had a little influence on the decomposition pathway, when the carrier gas was nitrogen, small amount of N2O were produced, when the carrier gas was air, N2O and NO2 were produced in the gas phase and NH4NO3 was deposited as solid. At different power, the plasma-phase reactions shown a good correlation with the SEI (specific energy input), while, when the catalyst was present, keeping the SEI constant, higher ammonia production rates were obtained for higher input power, demonstrating the synergy between the plasma and the catalyst.

Conclusions

As already stressed in this short review on the recent advances on plasma-assisted ammonia synthesis, in principle ammonia production via NTP technology does not need a catalyst; however, the major issue with this process is the energy consumption. To overcome this limitation and make the process more efficient, a series of catalytic systems were developed, and innovative reactor configurations were proposed. Among the catalytic systems, for sure the best performance has been reported with the Ru-based catalysts, moreover the use of promoters such as magnesium oxide is able to significantly enhance the efficiency. On the other hand, multireactors can improve the efficiency, by exploiting the autothermal configuration or subtracting the produced ammonia, as soon it has been synthesized. A simple comparison between conventional processes and the plasma assisted process is risky, since while in the first case the target is widespread production, in the second case the target is distributed production. In any case, the plasma assisted process is far from being optimized, and further studies are needed to optimize the process; few catalytic systems have been investigated; therefore, this technology does not seem to be mature.
Table 2. Efficiency of selected catalysts for ammonia production via NTP technology.
Table 2. Efficiency of selected catalysts for ammonia production via NTP technology.
Selected CatalystReaction ConditionsEfficiency (gNH3 kWh−1)Reference
Ru/Si–MCM-41N2:H2 = 1:1; 5000 V1.7[23]
Ru/MCM-41N2:H2 = 3:1; 6000 V2.2[24]
Ru(2)–Mg(5)/γ-Al2O3N2:H2 = 4:1; T = 250 °C25.5[25]
Ni–MOFN2:H2 = 1:4; T = 82.3 °C0.23[26]
PZTN2:H2 = 3:1; 5000 V0.65[29]
DLC-coated Al2O3N2:H2 = 3:1; 17,500 V0.9[30]
Zeolite 5AN2:H2 = 1:115.5[31]
Ni/Al2O3N2:H2 = 1:2; 24,000 V0.45[32]

3. Catalytic SO2 Removal via NTP Technology

Various technologies have been developed for SO2 capture, including carbon-based material adsorption techniques, thermal catalytic conversion, wet flue gas desulfurization, wet scrubbing methods and plasma-based systems [39,40]. Among them, non-thermal plasma (NTP) technology is attracting increasing attention in the field of pollutants removal, due to the high oxidation rate, the fast and efficient takedown, its operability at atmospheric temperature and pressure, small flow area, absence of chemical additives and low operational as well as investment costs [41,42]. In order to reduce the SO2 emissions in industrial flue gases, NTP technology has also been investigated in combination with catalysts/photocatalysts systems as well as precipitators [43]. SO2 oxidation is carried out at high temperatures in the presence of Pt catalysts; however, the interaction of the gas phase with radicals produced via NTP technology in the presence of cheaper catalysts allows reducing the process temperatures [44]. NTP can be either generated by electron beam irradiation or electric discharge techniques (dielectric barrier, pulse and microwave) [45,46,47]. In this section, the application of some electron discharge techniques combined with catalysts and photocatalysts for SO2 removal will be discussed.
Cui et al. [41] described the performances of a dielectric barrier discharge (DBD) reactor, which is a kind nonthermal plasma reactor, for SO2 removal. In such reactor, electrical discharge is generated when a high voltage alternating current is imposed to the two electrodes, which are separated by one or more insulation dielectrics. This configuration allows a reduced energy consumption, a stable discharge and a more uniform plasma distribution compared with other NTP reactors. The DBD reactor was made up of four coaxial cylinders: a central stainless-steel rod, a stainless mesh tube, a corundum tube and a quartz tube (these latter two tubes acted as media). A wet electrostatic precipitator (WESP) was also added downstream the DBD reactor: the DBD process generates ·O, ·OH and O3 radicals, promoting the conversion of SO2 to H2SO4 or SO3 while water vapor favors the reaction of the oxidation products to form the corresponding acid-mists, also adsorbing them. When the only DBD reactor operates without oxygen feeding, SO2 conversion is extremely low (5%–8%), independently form the peak–peak voltage. Conversely, when oxygen is introduced, a linear increase of SO2 conversion with O2 concentration as well as peak–peak voltage growth (in the interval 3%–10% and 20–40 kV, respectively) was observed. However, SO2 removal efficiency (i.e., SO2 conversion) was lower than 50% for all the investigated rates, due to the quite low reaction rates between SO2 and the radicals ·O as well as O3. In the combined process, the generation of ·OH radicals and the higher concentration of ·O and O2 radicals increased the SO2 removal efficiency, which exceeded 95% at 38 kV under a 10%-O2/7%-H2O stream. In fact, it was reported that the reaction rate coefficient of SO2 with ·O and O3 radicals (3.52 × 10−14, 1.89 × 10−22 cm3 molecule−1 s−1, respectively) is much lower compared to the values recorded in the case of ·OH radicals (1.3 × 10−12 cm3 molecule−1 s−1) [43].
The same authors investigated the possibility of oxidizing and separating SO2 via a catalytic oxidation process [48]. In this regard, manganese oxide has been widely adopted, due to its redox capacity and strong adaptability; moreover, copper addition to MnO allows reducing the operating temperatures for oxidation. The calcination of the MnCu/TiO2 catalysts, prepared at an atomic ratio Mn/Cu of 1:1, was directly performed in the DBD reactor: compared to conventional calcination, reduced time is required to remove the templating agent and the precursor at a lower temperature; moreover, the reaction conditions favor the formation of surface defects and active sites, thus improving the catalyst reactivity. The results of XRD measurements revealed that the sample prepared by DBD was characterized by smaller crystallites and enhanced active phases dispersion compared to the MnCu/TiO2 catalyst prepared via the conventional calcination. For catalysts preparation, the discharge treatment was carried out for 90 min under a 10% O2 in N2 stream with a discharge frequency, effective voltage and discharge power of 8 kHz, 10 kV and 200 W, respectively. SO2 removal measurements were performed in the presence of NO. For the system combining the DBD reactor and the MnCu/TiO2 catalyst, the efficiency of SO2 removal decreased from 100%, recorded feeding 1000 mg m−3 of SO2 and 400 mg m−3 of NO, to 77%, measured under a stream containing 2000 mg m−3 of SO2 and 400 mg m−3 of NO. Moreover, despite SO2 is known to have a negative effect on the performance of Cu and Mn-based catalysts, a quite stable behavior for 120 min was recorded under a stream of 6% O2, 300 mg·m−3 NO and 1000 or 2000 mg·m−3 of SO2 at a specific energy density (SED, defined as the ratio between the discharge power in W and the gas flow rate in L s−1) of 275 J L−1; however, the increase of the total gas-flow rate from 4 to 8 L min−1, reduced the removal efficiency from 100% to 60% with an SO2 concentration of 1000 mg m−3. The performance of the DBD reactor–catalyst–WESP system was also investigated at different SED values: in this configuration, the SO2 removal efficiency increased with the SED growth and was enhanced with respect to that observed without the WESP system. Moreover, the SED required to reach a complete SO2 removal efficiency was reduced compared to the values needed in the same configuration without water vapor. The reaction involved in SO2 removal in the presence of water are described in Equations (2)–(6).
SO 2 + O SO 3
SO 2 + O 3 SO 3 + O 2
SO 2 + OH HOSO 2
HOSO 2 + O 2 SO 3 + HO 2
SO 3 + H 2 O H 2 SO 4
They [49] also found that, in the presence of NO, SO2 and NO compete with each other in the removal mechanism; thus, SO2 removal efficiency in the presence of the MnCu/TiO2 catalyst can be enhanced by reducing the initial concentration of nitrogen monoxide. In fact, the radicals involved in the removal (·O and O3) are the same and the reaction rates of SO2 with such radicals (3.52 × 10−14, 1.89 × 10−22 cm3 molecule−1 s−1, respectively) are lessened compared to the values reported for NO (3.0 × 10−11 cm3 molecule−1 s−1 and 1.8 × 10−14 cm3 molecule−1 s−1, respectively) Thus, for a SED of 240 J L−1, SO2 removal efficiency grew from 70% to 90% by lowering NO concentration from 400 to 200 mg m−3.
Thus, coupling NTP technology with proper catalytic formulation is a suitable route to reduce, on one hand, the typical high temperature (400–900 °C) required for the thermal catalytic conversion of SO2, which promote surface sulfate formation and catalyst deactivation [50] and to increase, on the other hand, the selectivity of nonthermal plasma process. In this regard, various hybrid systems containing catalysts as well as photocatalysts have been investigated.
AlQahtani et al. [51] investigated the direct conversion of SO2 to elemental sulfur (easier to be handled and free of the corrosion issue typical of sulfuric acid) in a DBD reactor loaded with Fe and Zn sulfide catalysts (supported on alumina). The study was performed at 150 °C and atmospheric pressure; hydrogen and methane were used as reductant agents. Despite catalysts are inactive at such low temperatures, which normally render SO2 conversion not kinetically feasible, reaction however occurred due to the plasma effect. The reactor was made up of a pair of glass tubes, inner quartz tube and outer borosilicate tube. The catalysts were prepared by wet impregnation and the iron as well as zinc loading were fixed to 10 wt%; the sulfidation of the catalysts was carried out under plasma at 10 W and 150 °C for 1 h. Both the samples displayed a specific surface area of 140 m2·g−1 with a good active species dispersion. The performances of the DBD reactor in the presence of FeS/Al2O3 and ZnS/Al2O3 catalysts were compared with the results recorded with a glass packing as well as with bare alumina. Under a 100 mL min−1 of a nitrogen stream containing 1% SO2, 4% H2 or CH4 and 10 W DBD plasma, SO2 reduction in the presence of H2 over the FeS/Al2O3 catalyst was promoted by 200% compared to the glass packing; both the catalysts increased SO2 conversion by a factor of 2 during CH4 co-feeding with respect to the case of glass packing. Compared to the results obtained with the alumina support, H2 conversion was promoted by 81% over the FeS/Al2O3 catalyst and 69% over the ZnS/Al2O3, with an increase in SO2 conversion of 109% and 69%, respectively (Figure 9); the eventually formed H2S is converted to elemental S in the presence of the remaining SO2 via the Claus reaction.
The reduced performances of the Zn-based catalysts were ascribed to the value of bond dissociation energy (225 kJ mol−1, compared to 335 kJ mol−1 of the Ir-based catalyst), which lead to a harder regeneration of the sulfur vacancies of the catalyst. The reaction occurring in the hybrid system are reported in Equations (7)–(11).
SO 2 ( g ) + 2 H 2 ( g ) S ( l ) + 2   H 2 O ( g )
2   SO 2 ( g ) + CH 4 ( g ) 2   S ( l ) + CO 2 ( g ) + 2   H 2 O ( g )
SO 2 ( g ) + CH 4 ( g ) H 2 S ( g ) + CO ( g ) + H 2 O ( g )
SO 2 ( g ) + 3   H 2 ( g ) H 2 S ( g ) + 2   H 2 O ( g )
SO 2 ( g ) + 2   H 2 S ( g ) 3   S ( l ) + 2   H 2 O ( g )
In the combined NTP–TiO2 photocatalysts systems, the nonthermal plasma can be a source of the ultraviolet light for the activation of titania: photons irradiation allows generating electrons and holes, which act as reductants in SO2 removal. For the DBD-TiO2 photocatalyst technology, the dielectric glass beads are coated by TiO2 and the uniform deposition of such coating is crucial to reach high efficiency removal of sulfur dioxide. In this regard, different methodologies of titania deposition have been proposed.
A TiO2 photocatalyst was deposited on the glass beads via the dip-coating method and SO2 removal was investigated in a two-zones reactor: in the first zone (packed with the coated glass beads), SO2 conversion to SO3 and its further reaction with ·OH radicals for sulfuric acid generation occurred while in the second zone ammonium sulfate particles were formed by the neutralization reaction between H2SO4 and NH3 and grew inside the reactor [52]. Such particles can be easily separated by a particle collector. In such system, SO2 removal efficiency was investigated under an initial water concentration of 400 ppm, fed with an air stream and SO2; the ammonia concentration was 1 half of the SO2 fed. The initial SO2 concentration, pulse frequency, applied voltage, input power and total gas flow rate were varied in the ranges 200–600 ppm, 100–900 Hz, 3–13 kV, 3–50 W and 2.5–10 L min−1 (corresponding to residence times of 1–0.32 s), respectively. A growth in the applied voltage resulted in a faster oxidation rate and a quicker SO2 removal. When SO2 concentration is higher, the energy required for its removal increases and, at a fixed applied voltage, the efficiency of the removal is lessened. Under the selected experimental conditions, the specific energy consumption (defined as the ratio between the power and the converted flowrate) for sulfur dioxide removal was in the interval 190–530 eV molecule−1. An increase in the pulse frequency also resulted in an enhanced SO2 removal efficiency. For a residence time of 1 s, at 8.5 kV and 900 Hz, the SO2 removal efficiency increased from 30 (recorded at 0.32 and 0.5 s) to 80%. Concerning the second zone of the reactor, the dimension of (NH4)2SO4 particles (which was lower than 1 µm under the selected operative conditions), analyzed via TEM method, grew by increasing the reactor length as well as the initial SO2 concentration and reducing the total gas flow rate.
Nasonova et al. [53] coated TiO2 thin films on the glass beads (3-mm-diameter, acting as dielectric material) by the rotating cylindrical PCVD (plasma chemical vapor deposition) reactor and investigated SO2 removal in a NTP–DBD reactor packed with the TiO2-coated glass beads. A cylinder–wire type pellet packed-bed reactor was used, with a copper road wire located at the center of the glass tube (powered electrode); the outside wall of the reactor was wrapped with stainless steel mesh (ground electrode). Concerning the TiO2 deposition, TEM analysis revealed that the coating procedure allowed the absence of cracks in the layer, having a thickness of 150 nm. Furthermore, in this case, the experiments were performed in the presence of NO and the following operative conditions were fixed: 1 atm, 25 °C, 750 ppm of NO, 420 ppm of SO2, 21% O2 and N2 for balance, pulse frequency of 300–900 Hz, residence time of gas stream of 0.5–2 s; the applied peak voltage varied from 3 to 13 kV and the tests were performed at 1 atm and 25 °C. High frequencies and increased applied peak voltage enhanced the number of micro-discharges between the packed dielectric material as well as the electron energy for radical generation and, as a consequence, the concentration of reactive radicals, thus resulting in a growth in the removal efficiency of the sulfur dioxide. The plasma reactions for SO2 removal are also favored at higher gas residence times. The performance of the catalyst prepared by the PCVD method was compared with that of a sample obtained by dip-coating the glass beads with a commercial titania catalyst: the thin film deposited via the PCV technique was more uniform and characterized by a large surface area. Thus, at 9 kV and 900 Hz, the SO2 removal efficiency increased from 45% to 67%.
Similarly, Pham & Kim [54] deposited thin TiO2 films on the glass beads by a rotating cylindrical plasma chemical vapor deposition reactor and investigated the effect of the thickness of such films on SO2 removal efficiency. They found that it was possible to precisely control the film thickness as it is proportional to the deposition time (different films were prepared at fixed deposition times: 3, 10, 30, 45, 60, 70, 80 min): by changing the deposition time from 3 to 80 min, the thickness of the films grew from 35 to 820 nm, as attested by the SEM analysis of the cross-section of the films. The influence of film thickness on the SO2 removal efficiency was studied under an air stream at an initial concentration of SO2 of 260 ppm, a pulse frequency of 900 Hz, a residence time of 1 s and an applied peak voltage in the interval 5–15 kV. The reactor configuration was the same described above for the works of Nasonova et al. [53]. SO2 removal efficiency displayed an increasing trend with the applied peak voltage, whatever the selected film thickness; however, such efficiency grew with TiO2 thickness until the value of 600 nm and then, a decrease in SO2 conversion with a further thickness rise was recorded. In fact, for too thin films, part of the UV light penetrates the glass beads, without being utilized to generate the charge carriers transported towards the TiO2 surface for its activation. Similarly, for too thick films, the TiO2 light adsorption reaches a saturation level: the time for the migration of the charge-carriers is too high and their recombination becomes more competitive than their transportation towards the surface. Thus, an optimal value of 600 nm for the TiO2 thickness was identified, which allowed reaching an almost complete SO2 conversion at 11 kV. At the same applied voltage, the SO2 removal efficiency was lower than 20% for the films of 32 and 90 nm and equal to 95% for the film having a thickness of 820 nm.
TiO2 films were also deposited on zeolite particles via the PCVD technique described above; the performance of zeolite (acting as catalyst) and TiO2-coated zeolite (acting as photocatalyst) was investigated for SO2 removal in a dielectric barrier discharge hybrid process [55]; zeolite particles were used as dielectric material and catalysts for the DBD. For the TiO2 coating of the zeolite particles, the following conditions were fixed: deposition time, mass flow rate of titanium tetra-isopropoxide, applied power, reactor pressure, and rotation speed of the reactor were 30 min, 3.45 mg min−1, 30 W, 1 atm and 30 rpm, respectively. The deposition process was properly studied in order to cover only partially the zeolite surface, thus preserving its high surface area and avoiding the blockage of its pores. SO2 removal efficiency was investigated in the presence of the catalyst and the photocatalyst with an initial SO2 concentration in the range 200–400 ppm; the applied peak voltage, the pulse frequency and the residence time were in the interval 7–15 kV, 300–900 kHz, 0.5–2 s, respectively. The configuration of the reactor employed in this work has been previously described [53]. Whatever the selected operative conditions, the SO2 removal efficiency for the TiO2-coated zeolites is higher compared to the values recorded in the presence of titania-free catalyst, due to the enhanced generation of the reactive radicals over the photocatalyst, which is able to exploit the UV light generated inside the NTP reactor. Such differences became higher at intermediate applied voltage (10–13 kV). One hundred percent SO2 conversion was recorded at 14 kV, 900 Hz, 1 s and 200 ppm of SO2 for the hybrid system containing the photocatalyst while a value of only 77% was measured when the zeolite catalyst was used. At 400 ppm of SO2 and 900 Hz, the highest efficiency removal was recorded at 2 s over both the catalytic systems above 12 kV. However, at 13 kV, the TiO2 coating allowed increasing sulfur dioxide conversion from 38% to 58%. Finally, the effect of pulse frequency variation on SO2 conversion was little evident for every series and the profiles recorded over the coated sample were still higher than those measured over the uncoated zeolite particles.
Wang et al. [56] investigated SO2 removal in a hybrid system using a DBD reactor and γ-Al2O3 (specific surface area of 280 m2·g−1) as adsorbent. The reactor, packed with alumina pellets into the discharge area, consisted of two coaxial quartz tubes, with an aluminum foil paper and a stainless-steel rod acting as the ground electrode and high voltage electrode, respectively. The measurements were performed with the reactor operating at a discharge power of 5.5–7.5 W under a 10% O2 in nitrogen stream (600 mL min−1) containing 460 ppm of SO2. The tests were carried out both on alumina after treating it with NTP and by using NTP as the source of radiation. In the first case, the pretreatment had a negligible impact on the SO2 adsorption capacity of alumina. In fact, sulfur oxide itself can be strongly adsorbed on γ-Al2O3. Thus, when the adsorption is studied in the presence of 440 ppm of NO and 14 ppm of NO2, in the initial stages, both NOx and SO2 can adsorb on the free alumina sites; however, with the reduction of the number of free adsorption sites, a competition takes place ad SO2 (having higher affinity with the alumina) displaces the NOx molecules. For the hybrid system using the NTP as source of radiation, the oxidation efficiency for SO2 shown a maximum (corresponding to a 20% of conversion) with discharge power variation in the interval 5.5–7.5 W. Conversely, the oxidation efficiency of NO is enhanced (50%), due to the higher reaction rates of the nitrogen monoxide [49]. Anyway, the interactions between the radicals formed upon NTP irradiation and alumina assured the generation of adsorbed oxygen atoms on the surface, which enhanced SO2 adsorption and sulfate formation.
Besides the DBD reactor, another NTP technology used for pollutants removal involves the pulsed streamer corona plasma, which are characterized by high safety, low cost and high discharge efficiency [57].
Kim et al. [44] studied the oxidation of SO2 to SO3 in a nonthermal plasma hybrid reactor based on the pulsed-corona plasma (PCP) and operating with TiO2 pellets (3 mm) as catalyst in the presence of H2O or H2O2. The reactor was made up of a cylindrical quartz tube; the high-voltage power supply was equipped with the positive electrode, placed inside the quartz reactor and the negative electrode, placed on the outside of the quartz reactor. The gas-phase reaction induced by plasma occurred in a precise zone of the reactor, consisting of a metal tube electrode, located in the center of the quartz reactor and a copper thin-film ground electrode, wired around the quartz reactor; the first one electrode was also used to supply the additives (water and hydrogen peroxide).
A second zone of the reactor was packed with TiO2 and was devoted to the surface reactions. SO2 oxidation measurements were performed between 25 and 800 °C under a stream (1 L·min−1) having the following composition: SO2: 906 ppm (N2 basis); O2: 2.1%; H2O: 0.18%; H2O2: 0.055%; plasma was applied at 12.5 kV. H2O as well as H2O2 additives promote the formation of ·OH radicals, which play an important role in SO2 oxidation to SO3. However, due to its higher reactivity, hydrogen peroxide can be easily decomposed to produce OH in the gas phase as well as on the TiO2 surface. The variation of the SO2 oxidation fraction as a function of temperature in the hybrid system with and without additives is reported in Figure 10: water addition resulted in an enhancement of the oxidation of almost 10% while an improvement of 30%–35% was recorded in the presence of H2O2.
Table 3 summarizes the above results in terms of SO2 conversion recorded during NTP in the presence of various catalysts as well as photocatalysts.

4. Catalytic H2S Removal via NTP Technology

H2S, a common contaminant of natural gas also deriving from sewage treatments and solid waste disposal facilities [58], can be used as source of hydrogen and different processes are available for its conversion. The most widespread technology for H2S removal is the commercial Claus process which, however, leads to H2O formation (instead of H2) and is not capable to reach complete conversion. Thus, various alternative techniques, including wet scrubbing, adsorption, thermo catalytic, electrochemical and plasma-assisted methods have been investigated [59,60]. Among them, the nonthermal plasma technology offers a direct and clean approach and has been proposed as a suitable alternative for direct decomposition of H2S to H2 and S, especially due to the achievement of high electron energies within a short residence time and the rapidity of the reactions at ambient conditions [61,62]. Nonthermal methods including dielectric barrier, corona, rotating glow, microwave, gliding arc discharge and radio frequency discharge have been studied for H2S removal [63,64,65]. In the present section, the application of dielectric barrier discharge techniques combined with catalysts as well as photocatalysts for H2S removal will be discussed.
The performances of various DBD reactor–catalyst hybrid systems have been investigated for H2S decomposition and, in many cases, alumina was selected as catalytic support.
Zhao et al. [66] studied H2S conversion in a DBD reactor consisting of a quartz tube and two electrodes (high-voltage electrode was made of stainless steel while the grounding electrode was an aluminum foil wrapped around the quartz tube); the catalysts (alumina-supported semiconductors) can be placed into the gap between the quartz tube and the high-voltage electrode. Al2O3-supported CdS, ZnS and Zn0.4Cd0.6S were used; oxide precursor was loaded on the support and sulfiding process was performed at 400 °C for 180 min in a 10% H2S/Ar flow. The metals sulfide loading was varied between 1 wt% and 30 wt%. The reactor was maintained at 120 °C to allow the formation of sulfur liquid drops and prevent its deposition on catalyst surface. The discharge power was varied between 0 and 7 W, with a frequency of discharge of 10 kHz, while the H2S concentration in the feeding stream was 20% in argon. The results of catalysts characterization revealed that, by reducing the metals sulfide loading, it is possible to increase the surface area as well as the active phases dispersion. Thus, the 1% CdS/Al2O3 catalyst displayed a specific surface area of 263 m2 g−1 and an average size of crystallites of 4.3 nm, while values of 266 m2 g−1 and 3.3 nm were recorded for the Zn-based sample. According to the pathway reported in Equations (12)–(16), the H2S decomposition induced by NTP involves the formation of free radicals and ion radicals.
H 2 S HS + H
H + H 2 S HS + H 2
HS + HS   H 2 S + S
H + HS   H 2 + S
S + HS   S 2 + H
For an H2S concentration of 20% and a SED of 5.93 kJ L−1, H2S conversion was 97.9%, 90.9% and 82.9% when CdS/Al2O3, ZnS/Al2O3, Al2O3 were filled in the gap, respectively. Conversely, for the empty gap, the conversion was 54%. The presence of a packing, in fact, increases the residence time of the plasma-generated active species and enhances the local field as well as the electric discharge. For the Cd and Zn semiconductors, the H2S conversion increased monotonically with the SED and the maximum conversion was recorded at 5.93 and 8.14 kJ L−1, respectively: the presence of the catalysts accelerated the rate-determining steps in the secondary reactions (Equations (13)–(16)). The photons generated by NTP and the strong electrical field excite the semiconductors and generate hole–electron pairs: the holes oxidize H2S or SH to form H+ while the electron reacts with H+ to generate H2. By increasing the metals loading under an H2S concentration of 20%, a growth in H2S decomposition rate was observed, with a maximum activity at 10% for both Cd and Zn-based catalysts. The worsening in the performances observed for higher loadings is ascribed to the reduced surface area and the increased metal particles. An enhancement in H2S conversion with respect to the values recorded over the Zn- and Cd-based samples was measured in the case of the Zn0.4Cd0.6S/Al2O3 solid solution, ascribable to the fact the solid solution possesses a favorable band gap and a moderate position of conduction band. Under a GHSV of 120 h−1 and for a dissociation energy costs of 6 eV/H2, the solid solution reached complete H2S conversion, while values of 90% and 88% were recorded for the Cd- and Zn-based semiconductors, respectively. The durability of the CdS/Al2O3 and ZnS/Al2O3 was also investigated at 6 and 8 kJ L−1 [67], respectively, finding a stable behavior for 100 h in both cases. The lower activity of Zn-based catalysts compared to the Cd containing samples was ascribed to its larger band gap and a lower population of h+/e pairs. CdS and ZnS semiconductors can also be excited by UV and visible light, acting as photocatalysts. The contribution of photocatalysis was investigated in a modified reactor, with an upper part for the generation of nonthermal plasma by DBD (the discharge gap was empty) and a lower part consisting of a fixed bed of catalyst, irradiated with a UV lamp; the two parts were separated by a thin layer of quartz wool. When the UV lamp was off, the H2S conversion profiles over the two samples as a function of the applied voltage (9–12 kV) were remarkably close, proving that H2S decomposition did not occur on the catalysts. Conversely, in the presence of the UV lamp, a significant improvement in H2S conversion was observed, which reached 50% over CdS and 45% over ZnS at 12 kV, due to the synergy between the electrical field and the light irradiation.
The same authors [68] investigated the effect of Zn/Cd molar ratio on the performance of ZnCdS/Al2O3 semiconductors for H2S decomposition in the DBD reactor described above. For the ZnxCd1−xS/Al2O3, XRD analysis revealed that the average particle size of solid solution crystalline domain decreases from 9.4 to 8.1 nm with a growth in Zn content up to 0.6, which is ascribable to the presence of Zn in the CdS crystal. The dimension of the nanoparticles was confirmed by TEM analysis. The Zn/Cd molar ratio also affected the band gap of the solid solution, investigated by UV-visible spectroscopy analysis: Zn content monotonically increased the band gap size, which promotes the charge separation in h+/e pairs and avoid their recombination in the bulk semiconductor. Thus, a growth in Zn concentration from 0.2 to 0.6 increased the catalyst activity towards H2S decomposition; a subsequent increase up to 0.8 resulted in a worsening of the performances. These results demonstrate that, besides the band gap size, the physiochemical properties of the catalyst also affect its activity for H2S decomposition: small particle sizes assure a faster transportation of the electron from the bulk towards the surface and results in a higher number of effective reaction sites. Therefore, for an energy consumption of 6.12 eV/H2, H2S conversions were 100%, 97.9%, 92.8% and 84.9% for the Zn0.6Cd0.4S/Al2O3, Zn0.4Cd0.6S/Al2O3, Zn0.2Cd0.8S/Al2O3Zn0.8Cd0.2S/Al2O3 catalysts, respectively.
The ZnS/Al2O3 catalyst was also doped by different metal ions, finding that the H2S conversion increased in the order Fe < Co < Ag < Ni < W < Cu < Mo < Ce < Mn < Cr [69]. Thus, Cr exhibited the highest activity and the influence of chromium doping on the performance of the ZnS semiconductors for H2S removal via NTP was studied; the reactor configuration was the same described above (the discharge frequency was fixed to 10 kH while the applied voltage changed from 0 to 15 kV) [66]. The catalysts were prepared by wet impregnation, followed by sulfuration; the ZnS loading was fixed to 10 wt% while the Cr/Zn ratio ranged from 0 to 0.25. The results of XRD analysis, confirmed by TEM measurements, revealed that a growth in the Cr/Zn molar ratio was accompanied by a slight decrease in the average particle sizes (from 9.3 at a ratio of 0.2 to 7.8 at a ratio of 0.25): an increase in the Cr content enhanced the lattice defects of ZnS, thus decreasing ZnS crystallinity. Moreover, higher Cr contents resulted in a decrease of band gap size, thus affecting the relative redox ability of the Cr-doped catalysts. The catalytic performance of the Crx–ZnS/Al2O3 catalysts in the DBD reactor was investigated as a function of the dissociation energy cost and the results are shown in Figure 11. All the doped catalysts displayed improved activity compared to the Cr-free catalysts and the bare support; moreover, the H2S conversion increased with Cr loading up to 0.20. In fact, as discussed above for the Cd-doped catalysts, a decrease in the band gap assures a growth in the population of hole–electron pairs; moreover, small nanoparticles with poor crystallinity favor the fast electron transportation from bulk to surface, avoiding, at the same time, the hole–electron recombination. Thus, for an energy consumption of 5.57 eV/H2S, hydrogen sulfide conversion was 100%, 89.7%, 87.4% and 81.8% for x = 0.20, 0.25, 0.15 and 0.10, respectively.
The activity of the Cr0.20–ZnS/Al2O3 catalyst was also investigated as a function of the SED at a concentration of H2S ranging from 20% to 40%, finding that hydrogen sulfide conversion can be maximized at low concentrations. Under these conditions, in fact, a large part of the electrons collide with Ar balance gas, which plays a key role in decomposition reactions. Thus, for a SED of 4 kJ L−1 and a GHSV of 120 h−1, the H2S conversion passed from 55% at 40% of sulfur dioxide to 90% at a concentration of 20%. Moreover, the long term stability of the most active catalyst (Cr0.20–ZnS/Al2O3) was also investigated under a 20% H2S/Ar stream, a GHSV of 120 h−1 and a SED of 5.5 kJ L−1, observing no deactivation during 5 h of test.
Zhao et al. [70] studied the activity of MoS2/Al2O3 catalysts for H2S–CO2 conversion to syngas in the DBD reactor previously described [65]. The catalysts were prepared via wet impregnation with 1 wt%–15 wt% loading of the oxide precursor; thereafter, sulfuration occurred. Activity measurements were performed at 10 kHz, with an applied voltage between 0 and 20 kV under a feed flowrate of 35–70 mL min−1 and an H2S/CO2 molar ratio of 30/5, 25/10, 20/15, 15/20, 10/25, 5/30. In the presence of carbon dioxide, water and elemental sulfur were simultaneously generated (Equation (17)):
2 H 2 S + CO 2   CO +   H 2 + 2 S + H 2 O
XRD as well as BET measurements revealed crystallite sizes of 4.4, 6.2, 8.6 and 10.5 nm and specific surface areas of 293, 265, 245 and 224 m2 g−1 for MoS2 loadings were 1%, 5%, 10% and 15%, respectively. Thus, higher MoS2 contents increased the particle sizes and decreased the areas. H2S as well as CO2 conversion increased over the 5-wt% MoS2/Al2O3 catalyst with the SED: under a feed of 35 mL min−1 and an H2S/CO2 ratio of 20:15, complete hydrogen sulfide conversion was recorded for a SED of 110 and 130 kJ L−1, with corresponding CO2 conversions of 56% and 63%, respectively. At a SED of 95 kJ L−1, only a slight reduction in H2S conversion (from 100% to 98.1%) was observed upon the increase of feed flow rate from 35 to 70 mL min−1. Thus, the dependence of the activity on the energy input, associated with the population of reactive species, is much more evident compared to the feeding rate. Concerning the effect of feed gas composition, under a flow rate of 35 mL·min−1, H2 conversion higher than 95% were recorded for a SED of 30–120 kJ L−1 under a H2S/CO2 ratio of 5:30. The activity of the MoS2-based catalysts, under a flow rate of 35 mL min−1 and a H2S/CO2 ratio of 20:15, increased with the MoS2 loading up to 5 wt%; for higher loadings, H2S conversion decreased due to lower surface areas and larger particle sizes. During 50 h of stability tests at 85 kJ L−1, 35 mL min−1 and H2S/CO2 ratio of 20:15, the most active catalyst also displayed a high sulfur tolerance with a quite stable hydrogen sulfide conversion (98%–100%) and more than 60% CO2 conversion.
The activity of MoOx/Al2O3 catalysts (with a MoOx loading of 3 wt%, 5 wt% and 7 wt%) for H2S conversion in a DBD reactor was also investigated [71]. The reactor was made up of a cylindrical quartz tube with silver paste painted on its outside (acting as outer electrode) and a stainless-steel road (acting as inner electrode). The frequency was of 50 Hz and the applied voltage was in the interval 12–22 kV; the H2S inlet concentration ranged from 5% to 25% in Ar (total flow rate of 150 mL min−1). Whatever the initial H2S concentration, its conversion linearly increased with the input power; however, a growth in the inlet concentration caused a reduced activity: for example, at 1 W, the conversion decreased from 48% (at 5% of H2S) to 8% (at 25% of H2S). For an initial H2S concentration of 5%, the highest activity was recorded over the 5-wt% loaded catalyst. This result can be explained considering that the catalyst with a loading of 3% is fast poisoned by sulfur while for a 7% content of MoOx the high oxide loading may change the discharge behavior. Thus, at 1 W, the 5MoOx/Al2O3 catalyst reached a conversion of 52% while values of 48% and 45% were recorded over the 3-wt% and 7-wt% samples, respectively.
Ning et al. [72] studied H2S oxidation over a catalyst made of iron oxide supported on walnut-shell activated carbon (Fe/WSAC) in a DBD reactor. The coaxial cylinder-type reactor was composed by a dielectric barrier (made of quartz) located between a stainless-steel tube (high voltage electrode) and a grounded electrode wrapped on the outer wall. The diameter of the high voltage electrode can be changed, thus controlling the size of the discharge gap. Measurements were performed with a pulse frequency of 7.8 kHz and a discharge voltage of 5.6–8 kV; a thermostatic water bath allowed the system to maintain a temperature of 60 °C. A N2 gas mixture with 500 ppm of H2S was fed with a total flow-rate of 60 mL·min−1 and a GHSV = 60,000 h−1. The catalyst was prepared by loading 5 wt% of iron oxide on the activated carbon (by coprecipitation). KOH was also added at a ratio KOH/WSAC of 13%: the presence of alkaline metals on the activated carbon surface, in fact, promotes H2S removal. Thereafter, the catalyst was subjected to a NTP treatment for different times (5, 7.5, 10, 12.5 and 15 min) at different output voltages (5.6, 6.2, 6.8, 7.4 and 8.0 kV) under an NH3 stream of 60 mL min−1. The effect of output voltage was investigated at a fixed time of 10 min and the results revealed that all the treated samples were able to maintain complete H2S conversion for higher time compared to the unmodified catalyst; however, the best performances were recorded for a voltage of 6.8 kV. In fact, the NTP treatment modifies the population of oxygen functional groups on the catalyst surface and such effect increases the oxidation capability up to 6.8 kV. For higher voltages, the too high number of oxidizing species can destroy the surface of activated carbon, thus worsening the catalytic performances. At a fixed voltage of 6.8 kV, the effect of the time treatment was also studied, finding the optimal activity upon 10 min of treatment. For longer times, in fact, the collision among the enhanced ions can cause etching on the activated carbon and pore collapsing. The BET measurements, in fact, revealed that the catalyst treated for 10 min at 6.8 kV displayed the largest pore volume (0.2954 cm3 g−1) while high voltages as well as long treatment times caused the surface destruction and the clogging of the pores. The results of XPS analysis also revealed that the NTP treatment affects the functional groups on the catalyst surface, favoring the transformation of the chemisorbed oxygen into lattice oxygen, which reacts with H2S. Moreover, the amino groups, introduced by NH3 during the treatment, can react with H2S forming NH2-HS; then, the lattice oxygen can oxidize the sulfur bond, promoting the formation of SO32− and SO42−.
The same authors [73] investigated the influence of gas gap (3.5, 4.5, 5.5, 6.5, 7.5 mm) at a fixed dielectric thickness of 1.5 mm and dielectric thickness (1, 1.5 and 2 mm) at a fixed gas gap of 5.5 mm during the NH3 treatment on the performance of the Fe/WSAC for H2S removal in the DBD reactor described above. For these catalysts, the treatment was performed at 6.8 kV for 10 min. For a dielectric thickness of 5.5 mm, a complete conversion was maintained for 210 min while the untreated sample displayed 100% conversion only for 30 min. Increasing the gas gap, in fact, assures a more powerful discharge intensity, thus enhancing the strength of the interaction between the reactive species. However, a further increase of the gas gap above 5.5 mm may cause damages on the catalyst surface. The dielectric role in the DBD reactor is to avoid arc or spark generation in the discharge gap and dielectric thickness affects the strength of the discharge. Thus, H2S conversion grew with the thickness increase up to 1.5 mm while a decreasing trend was caused by a further increase in the thickness. In fact, the thickness of 1 mm is too low and thinner dielectrics generate remarkably high electrical fields, which may destroy the porous structure of the surface. Conversely, thick dielectrics (2 mm) may negatively affect the production of reactive species. Thus, at a gas gap of 5.5 mm and a dielectric thickness of 1.5 mm, the highest pore volume among the tested samples (0.2743 cm3 g−1) was measured by BET analysis and large pore volumes promote H2S catalytic oxidation. SEM analysis was also performed to evaluate the impact of the NH3 treatment on the surface morphology. A growth in the gas gap made the surface rougher while a negligible effect of the dielectric thickness on the structure was observed. In fact, increasing the gas gap increases the number of collisions between the reactive species and also favors the reaction between C, H and O atoms present on the catalyst surface, thus leading to CO2, H2 or H2O formation, which leave the surface in such high-energy environment.
Xuan et al. [74] studied the H2S removal over LaxMnO3 perovskite catalysts in a DBD reactor. A coaxial type reactor, maintained at 80 °C, was used having a stainless road as high voltage electrode operating at a discharge frequency of 10 kHz; an air flow-rate of 2 L min−1 with an initial H2S concentration of 100 ppm was fed. The LaxMnO3 (x = 0.9, 0.95, 1, 1.05 and 1.1) catalysts were prepared by the citric acid method and the effect of La content on the H2 removal efficiency was studied. The non-stoichiometric catalysts displayed lower surface area and smaller crystallite sizes compared to LaMnO3 catalyst and the best results were measured for the La0.9MnO3 sample, having an area of 15.2 m2 g−1 and a crystallite size of the LaMnO3 phase of 15.4 nm. The performance of the catalysts in the hybrid system as a function of the SED were compared with the H2S removal efficiency (i.e., conversion) recorded without the catalyst and the results are shown in Figure 12.
Whatever the selected La content, the presence of the catalyst enhanced the H2S removal and the sulfur balance compared to the performance of the NTP system without the catalyst. The stoichiometric catalyst displayed an increase in the H2S conversion as well as in the sulfur balance from 34.3% to 91.6% and 59.2% to 87%, respectively, with a growth of the SED in the interval 303.6–573.6 J L−1. The increase of sulfur balance with the SED was ascribed to the improved oxidation of the solid-state sulfur to SO2. In addition, among the non-stoichiometric samples, H2S conversion increased in the order La0.90MnO3 > La0.95MnO3 > La1.05MnO3 > La1.10MnO3 and the highest removal efficiency (96.4%) was recorded over the La0.90MnO3 at a SED of 593.7 J L−1. Thus, the best activity was measured for x = 0.9. Such result can be indeed related to the high surface area and the good dispersion of the LaMnO3 phase. In addition, the XPS study revealed that the latter sample assured the highest concentration of surface adsorbed oxygen, which displays higher mobility compared to the lattice oxygen. Therefore, the abundance of oxygen vacancies allowed enhanced oxidation rates of the H2S species.
Dang et al. [75] investigated the H2S removal in the presence of O3 over various metal oxide catalysts in a DBR reactor. The reactor, operating at 50 Hz, consisted of a tungsten discharge wire and a quartz cylindrical tube; a stainless-steel mesh, covering the reactor, acted as ground electrode. An air feed of 0.2 m3 h−1 with an initial concentration of H2S 200 mg·m−3 and 1200 mg·m−3 of O3 was sent to the reactor. The catalysts were coated on ceramic rings packed within the reactor. Then, 0.75 wt% of manganese, silver, copper and iron oxide were deposited on the rings via impregnation. The metal oxides were inactive for H2S removal in the absence of NTP and assured an improved hydrogen sulfide conversion compared to the case of the empty DBD reactor. The metal oxide activity increased in the order Mn > Ag > Cu > Fe: for an applied voltage of 22 kV, Mn2O3 reached complete H2S conversion while values of 98%, 82% and 75% were recorded over the Ag2O, CuO and Fe2O3 catalysts, respectively. The various oxides, in fact, displayed different ozone decomposition abilities, with the maximum quantity of decomposed ozone at 20 kV over the Mn2O3. In the H2S removal, ozone had a crucial role: its adsorption and/or decomposition on catalyst surface allows the formation of strongly oxidized species, which improves the H2S conversion. Thus, the Mn2O3 sample was selected for further studies. Three loadings (0.75 wt%, 3.85 wt% and 7.45 wt%) of the Mn2O3 catalyst on the ceramic rings were investigated, finding that the effect of the metal oxide content decreased with the applied voltage: at 12 kV, conversions of 42%, 81% and 89% were recorded for loadings 3.85 wt%, 0.75 wt% and 7.45 wt%, respectively. Conversely, at 22 kV, all the catalysts reached complete conversion. This result can be explained considering that the catalysts reach a fully activate stage only under high voltages, thus assuring enhanced H2S removal efficiency.
Table 4 summarizes the above results in terms of H2S conversion recorded during NTP in the presence of various catalysts.

Conclusions

SO2 and H2S removal has been investigated over various NTP–catalyst-hybrid systems. In many cases, the dielectric barrier discharge reactor was selected while different catalysts as well as photocatalysts were selected. For sulfur dioxide removal, the selection of TiO2 was privileged while high H2S conversion was recorded in the presence of Alumina-supported catalysts. In this review, the effect of different parameters (including H2S as well as SO2 initial concentration, applied voltage, total flow-rate and discharge frequency) on the pollutant conversion was discussed, also highlighting the key role of catalyst properties (mainly active species dispersion) on hydrogen sulfide as well as sulfur dioxide removal efficiency.

5. NOx Removal via NTP Technology

Nitrogen oxides (NOx), present in the environment in different forms such as NO, NO2, NO3, N2O, N2O3 and N2O4, are the main originator of photochemical smog and acid rains and represent a serious threat to the ecological environment and human health. The principal source of NOx emissions is the combustion of fossil fuels, adopted in vehicles, incinerators, thermal power plants, etc., thus leading to a serious pollutant problem, present especially in developing countries [76].
The mainly adopted technologies in NOx reduction are categorized by three different methods, namely, pre-combustion, combustion and post-combustion. While with pre-combustion and combustion methods, NOx can be lowered by <50%, post-combustion techniques allow a >80% NOx removal. Post combustion methods include selective catalytic reduction (SCR), selective non-catalytic reduction (SNCR), wet scrubbing, adsorption, electron beam, electrochemical reduction and nonthermal plasma (NTP), whose advantages and disadvantages are summarized in Figure 13 [77,78].
Among all the NOx-removal technologies, nonthermal plasma represents an interesting opportunity, as this method is used to selectively transfer energy to the electrons, thus avoiding the energy consumption necessary for the heating of the entire gas flow. Moreover, applying nonthermal plasma technology, many highly active oxidizing species (O·, ·OH, O3, etc.) can be generated, thus favoring the oxidation of NO to NO2 and the conversion of NOx to nitric/nitrous acid, more easily eliminable compounds [79]. The most common NTP reactors applied for the NOx removal are electron beam irradiation (EBI), dielectric barrier discharge (DBD) and corona discharge reactors (CDR) [77].

5.1. NOx Catalytic Removal via NTP Technology

In the last years, several studies have been devoted to the coupling between the adoption of nonthermal plasma technology and the use of catalyst to lower the NOx emissions originated by different sources; indeed, the pairing of the two technologies could also result in the enhancement of the catalytic activity and in a lowering of the catalyst activation temperature, as observed in a study concerning Ag/Al2O3 catalysts, adopted in the nonthermal plasma assisted hydrocarbon catalytic reduction (HC–SCR) deNOx reaction. Hence, the authors found that, in comparison with conventional thermal activation, a strong enhancement of the catalytic activity was observed, characterized by high conversions of both NOx and hydrocarbons at temperatures lower than 250 °C, at which the silver catalyst is normally not active. Moreover, a significant activity has also been registered in the absence of an external heat source, at temperature close to the ambient temperature, thus highlighting the possibility of developing vehicle exhaust treatment devices that could operate during cold start, that represent a serious problem in the field of pollutants emissions [80].
The activity of a similar catalyst (Ag/α-Al2O3) has been tested by Nguyen et al. [81] towards the HC–SCR of NOx in a temperature range of 150–350 °C using a packed-bed dielectric barrier discharge plasma reactor. The study revealed that while with the HC–SCR system alone the NOx reduction efficiency was in a range of 37.6% to 63.4% depending on the temperature, plasma coupling resulted in an enhancement of the reduction efficiency, achieving values of 74% in the whole temperature range; this result pointed out that the strong temperature dependence of the catalytic activity can be overcome by the addition of the plasma technology.
Wang et al. [82] tested a combined NOx adsorption–CH4 plasma discharge process, suggesting that the plasma-assisted catalysis technology is one of the most efficient routes for deNOx. In their study a commercial synthetic H–MOR zeolite and a modified Co–ZSM-5 (Co–MOR) were tested at ambient temperature, giving a conversion of the adsorbed NOx of 99.7% and 98.3%, respectively. Moreover, the authors also investigated the behavior as catalyst and adsorbent of one of the most common natural zeolites, characterized by abundant resources, the natural mordenite (NMOR), that is very economic and environmental-friendly. The co-modified NMOR shown higher NOx adsorption capacity than the respective MOR, resulting in a NOx conversion and N2 selectivity of 95% and 100%, respectively in the CH4 plasma discharge process. A further investigation concerning the capacity of NMOR for NOx removal also highlighted the stability of the zeolite under cyclic operations.
Zhang and coworkers [83,84,85] performed a deep investigation on non-thermal plasma-assisted NOx storage and reduction (NSR) over Ba/Al lean NOx trap (LNT) catalysts. These catalysts work cyclically, alternating their operation between two conditions, fuel-lean and fuel-rich; indeed, under lean exhaust conditions, characterized by high amount of oxygen, NOx are adsorbed on the catalyst surface while, under rich conditions, NOx reduction takes place as a consequence of the presence of an excess of reductant. Their first inspection concerned the comparison between two cobalt-containing catalysts (Co/Ba/Al and Pd/Co/Ba/Al) and the traditional Pt/Ba/Al catalyst in a H2–plasma assisted NSR process; when the H2–plasma was used in the rich phase to assist the reduction of the stored NOx, the Co/Ba/Al shown similar catalytic properties than those of Pt/Ba/Al. However, when there was the presence of H2O and CO2 in the feed, the NOx removal efficiency was considerably lowered with these two latter catalysts, while in the case of Pd/Co/Ba/Al an excellent NOx storage performance has been encountered by the authors, thus inhibiting the effect of the presence of H2O and CO2 in the feed [83]. Subsequently, their intent has been testing under the same process, non-thermal plasma-assisted NOx storage and reduction, Pt-free catalysts and, under this purpose, a series of M/Ba/Al (M = Mn, Fe, Co, Ni and Cu) catalysts have been prepared and tested by the authors. All the investigated catalysts shown higher activity in the oxidation of NO to NO2 and better NOx storage capacity in comparison with the reference catalyst, Pt/Ba/Al; however, there were some difficulties in regenerating the NOx sites during the rich phase, thus indicating that the rate limiting step for the transition metals catalyst is the regeneration of the stored NOx. Withal, addition of H2–plasma in the rich phase greatly improved the regeneration of the NOx-saturated sites, leading to an enhancement of the NOx conversion, especially in the low temperature region [84]. Lately, their attention has been focused on the Pd/Co/Ba/Al sample and the comparison with Pd/Ba/Al and Pt/Ba/Al catalysts. The Pd–Co catalyst exhibited higher performances in both NO oxidation and NOx storage capacity and, moreover, shown higher NOx reduction activity with CO in comparison with the other two catalysts. Once again, the rate limiting step, has been identified in the regeneration of the stored NOx in the low temperature region, thus leading to relatively low NOx removal efficiency, especially below 250 °C and in the presence of CO. Furthermore, in this case, the employment of a plasma-assisted regeneration, adopting H2 or CO, led to an excellent NOx removal efficiency in both lean and rich conditions, characterized by NOx conversions of almost 99% in a temperature range of 150–350 °C, even when CO was used as the reducing agent [85].
LNT catalysts have also been investigated by Bai et al. [86], that analyzed the influence of transition metals doping on Pt/BaO/Al2O3 catalysts. In particular, the analysis performed on Pt/Ba/Al, Pt/Co/Ba/Al, Pt/Mn/Ba/Al, evidenced that, while the addition of Co and Mn led to improved NOx storage capacity performances and consequently to superior cycle-averaged NOx conversion, Cu doping has been found to worsen both NOx storage efficiency and NOx reduction activity, probably due to the formation of a Pt–Cu alloy. Better outcomes have been gained with the employment of Pt/Co/Ba/Al2O3, that exhibited NOx conversions >80% in a temperature range of 150–350 °C and also shown the best SO2 resistance abilities.
Yu et al. [87] inspected the influence of the plasma carrier gas in a combined adsorption–discharge plasma catalytic process for the NOx removal adopting zeolites as catalyst and in the absence of an external heating. The study pointed out that the conversion of the adsorbed NOx was much lower in N2 plasma in comparison with an Ar plasma; the reason of such phenomenon has been attributed to the occurring of the NOx formation reaction, indeed, the increase of oxygen species deriving by the decomposition of the adsorbed NOx could represent the main cause of their collisions with nitrogen species, thus leading to the formation of NOx. Hence, in order to improve the NOx removal efficiency, the authors doped the catalysts with solid carbon that could remove the active oxygen species, thus enhancing the conversion of the adsorbed NOx. The better outcomes have been reached for the H–ZSM-5 zeolite with the 8.5 wt% of solid carbon that allowed to obtain NOx removal rate of 97.8%.
Another investigation concerning the combined adsorption–discharge plasma catalytic processes for the NOx removal has been performed by Li et al. [88] through the preparation and testing of Cu modified carbon molecular sieves (CMS)-based catalysts. The authors inspected the NOx adsorption on three different supports CMS, 13X zeolite and γ-Al2O3 finding that on CMS a higher NOx adsorption and a lower desorption temperature have been achieved. Cu addition resulted in an enhancement of both NOx adsorption and NTP removal capacity of CMS, indeed the NOx removal capacity achieved was around the 96.2% over the 15% Cu–CMS catalyst in 30 min.
Pan et al. [89] evaluated the effects of NTP on the selective catalytic reduction of NOx by CH4 (CH4–SCR) over a In/H–BEA zeolite in a wide range of reaction temperature (250–550 °C) noticing a beneficial effect derived by the NTP adoption especially at low temperatures, below 425 °C. Indeed, this improvement has been attributed to the promotion of the NO oxidation, while, at higher temperatures the synergetic effect gradually decreased. Moreover, from the catalysts characterization, it was also evidenced that the nonthermal plasma addition resulted in a promotion of the catalyst SO2 and H2O tolerance as a consequence of the inhibition of the SO2 oxidation, the InO+ sulfating and the indium oxide agglomeration.
Cui et al. [48] investigated an integrated system comprising a DBD reactor, a MnCu/Ti catalyst and a wet electrostatic precipitator for the simultaneous removal of NO and SO2. In the study, the effect of different initial concentrations of NO and SO2 was evaluated, showing that higher simultaneous removal of the two pollutants were obtained when the initial concentrations were the lowest. Moreover, a comparison between the DBD reactor alone and the coupling with the wet electrostatic precipitator pointed out that the coupling resulted in higher removal efficiencies and in particular, with low initial concentrations (SO2: 1000 mg m−3 and NO: 200 mg m−3) removal efficiencies of 93.4% for NO and 100% for SO2 have been obtained in the DBD-catalyst-wet electrostatic precipitator.
Wang et al. [56] evaluated the adsorption capacity of γ-Al2O3 under NTP technology for the simultaneous removal of NOx and SO2, experiencing that a significant improvement in the NOx adsorption on γ-Al2O3 was obtained in the presence of NTP. Indeed, in the presence of NTP, the ·O and O3 radicals would improve the oxidation of NO to NO2 and, to a lesser extent the oxidation of SO2 to SO3. Moreover, the interaction between the formed radicals and the γ-Al2O3 may produce O atoms adsorbed on adsorbents that could also be beneficial for the adsorption of NOx and SO2 and could promote the formation of nitrate and sulfate.

5.2. NOx Non-Catalytic Removal via NTP Technology

Numerous studies have been devoted in the last years to the investigation of NTP technology without the adoption of catalysts in the removal of air pollutants, indeed, the development of new types of nonthermal plasma technologies and eventual modifications to the previous systems have also attracted considerable attention in this field.
Kim et al. [90] through the evaluation on the repercussions of the nonthermal plasma application on the NOx emissions in a model gas turbine combustor found that the presence of the flame improved the NTP generation and, at the same time, the NTP application contributed to the flame stabilization. As concern the NOx emissions, a slight increase in their concentration has been encountered, due to a temperature rise, caused by the collision between neutron and populous electrons in the flame zone; however, their maximum concentration was around 10 ppm.
Paulauskas et al. [91] investigated the NOx removal via direct plasma treatment from a real flue gas originated by methane combustion, finding that the residual oxygen plays a crucial role in the oxidation of NO to NO2 when oxygen concentrations are ≥6%. Moreover, when oxygen concentrations are below the 6%, the NO removal efficiency is increased because of other processes. From an energetic point of view, the plasma treatment for the NO removal shown a consumption that was only the 1% of the total generated power in the case that all the exhaust gas was fed through the plasma reactor.
Hashim et al. [92] tested a modular typed dielectric barrier discharge device for air remediation, experiencing an efficacy removal of NOx from a gas stream containing high nitrogen oxides concentrations; in particular, with a six-tube DBD module, more than the 80% of nitric oxide has been removed from the gas stream.
Guo et al. [93] developed a new method in the field of exhaust gas purification by the combination of nonthermal plasma and wood fiber. From the comparison between the NTP alone and the combination with different wood fibers it has been seen that the addition of wood fibers increased the NO conversion efficiency, and the best outcomes have been obtained with the employment of scotch pine. Moreover, in their work, the influence of many operative parameters has been analyzed, giving as a result that (i) the increase of voltage could increase the NOx removal, (ii) the increase of frequency could increase the NOx removal, (iii) the increase of humidity promoted the NOx removal, with a maximum at 25% humidity, indeed, after this value the conversion of NO decreased slightly.
Wang et al. [94] applied a DBD plasma with acetylene to a simulated thermal power plant and diesel exhaust noticing that a temperature increase led to an improved NOx removal efficiency. The increase in the temperature favored the dissociation of C2H2, N2 and O2, thus improving the reaction rates of the reactions involved in the NO removal. Moreover, the authors observed that the addition of water at room temperature prevented the discharge in the DBD reactor and the ·OH radicals originated by the dissociation of H2O contributed to the reaction that produce HNO3 from NO2, thus favoring the NOx removal efficiency.
Adnan et al. [95] realized important modification in the NTP technology to improve the depletion of pollutants in the exhaust gases coming from the fuel combustion. The authors developed a system comprising a filter that would allow to keep an adequate distance between two corona plates and a suitable gap between the electrodes and the barrier; moreover, the system would also make possible the changing in the gas flow rate through the NTP, operated by the modification of the revolution per minute (RPM) of the exhaust fans, as schematized in Figure 14:
It has been seen by the authors that the increase in RPM resulted in an enhancement of the NTP adsorption, thus leading to a NOx reduction of more than 95%.
Yoon et al. [96] analyzed the simultaneous oxidation and absorption of NOx and SO2 in an integrated O3 oxidation/wet atomizing system with the employment of a DBD reactor. The absorption of NOx and SO2 was realized with a H2O2 solution supplied by an ultrasonic humidifier; H2O2 has been chosen by the authors as the most suitable oxidant due to the advantages gained from an economic and environmental point of view. NOx and SO2 were absorbed as aqueous ions in the wet atomizing reactor that could allow to lower the gas–liquid contact time between liquid droplets and gaseous pollutants. The total removal efficiencies achieved in this study were 88.8% and 100% for NOx and SO2, respectively.
The simultaneous removal of NOx and SO2 has also been investigated by Kang et al. [97] that performed a gas-phase oxidation with ozone and a wet scrubbing with sodium hydroxide; in their study the NO was oxidized to NO2 in a lab-scale reactor and subsequently the wet scrubbing with NaOH was conducted in a packed-bed scrubber. The NOx removal tests have been performed with different SO2 inlet concentrations: (i) absence of SO2, (ii) SO2: 1000 ppm and (iii) SO2 > 1000 ppm.
(i)
In the case of no SO2 at the reactor inlet, the ozone injection was the 60% with respect to the NO concentration and a total NOx removal efficiency has been obtained, mainly attributed by the authors to the formation of trivalent N species (N2O3 and HNO2) and their fast absorption in NaOH;
(ii)
With a SO2 concentration of 1000 ppm, the ozone concentration has been increased to the 90% of the NO concentration to improve the NOx removal efficiency;
(iii)
With higher SO2 concentration, even higher NOx removal efficiencies were gained, because the SO2 scrubbing product, Na2SO3, improved the NO2 scrubbing.
The operating conditions and efficiency for NOx-removal via NTP technology are summarized in Table 5.

Conclusions

NOx removal via NTP technology from the exhaust gas originated by different sources has attracted considerable attention in the last years due to the advantages gained with the employment of this technique. Both the nonthermal plasma technology alone and the coupling with the adoption of catalysts have led to obtain high NOx removal efficiencies, with values that in most cases exceed the 80%. Moreover, it has been observed that, the coupling between the NTP technology and the catalyst adoption allows to obtain an enhancement of the catalytic activity and, in some cases, to lower the catalyst activation temperature, thus improving the processes efficiencies.

6. Soot Abatement via NTP Technology

Since the most increasingly problems connected to the diesel-soot emissions, several technologies have been proposed in the last years to allow the respect of the European Union regulations in this matter and, among them, the diesel particulate filters (DPFs), are nowadays, the most common after-treatment systems employed in the particulate matter (PM) trapping from the exhaust gases [98]. These systems usually operate in two steps, accumulation and regeneration, as described elsewhere [99], and the main challenges encountered in their on-board adoption regard the regeneration step. Indeed, during the DPF working the carbon deposition gradually blocks the filter, thus generating an increase of the exhaust backpressure and a decrease of the engine power. Hence, the performance of the DPF depends on the regeneration efficiency, and while the exhaust gas temperature is around 200–400 °C, the temperature necessary for the soot combustion should be around 550–600 °C [100]; on this purpose, several strategies have been proposed and adopted to afford the amount of energy necessary, including the fuel post-injection, the microwave adoption or the employment of catalysts to lower the soot initial combustion temperature [101].
NTP technology has been recently considered as an innovative approach in this field as, with its employment, the energy delivered to the system helps the electrons to accelerate and collide with the background molecules (N2, O2 and H2O), thus resulting in the production of secondary electrons, photons, ions and radicals that accelerate the soot oxidation reaction; moreover, the reaction between carbon and O atoms it has been estimated to be 40 times higher than that occurring in the presence of O2 [102,103].
The coupling between the NTP technology and the adoption of catalysts is an interesting issue in the PM removal; indeed, Ranji-Burachaloo et al. [102] suggested that the short-living reactive species formed in the discharge could play an important role in promoting the re-oxidation of metal oxide vacancies generated during the oxidation reactions in the discharge and, moreover, the catalytic decomposition of the ozone could also result in an increase of the energy efficiency and allow the removal of this harmful component from the outlet gas stream. In their study, under diesel exhaust gas conditions of 10% oxygen in a temperature range of 180–350 °C, an investigation concerning the soot-removal efficiency with the NTP technology alone and the coupling with different metal oxide catalysts has been performed. The soot-removal efficiency (SRE) has been defined by the authors as SRE = m · 1000 EI · t   [ g kWh ] , in which m is the amount of removed soot [g], EI the energy injection [W] and t the time for the complete oxidation [h]. In absence of catalyst, varying the gas temperature and the EI (defined as EI = V·I, where V is the discharge voltage [V] and I the current [A]), the highest soot-removal efficiency has been obtained at 350 °C and 7.5 W, corresponding to a SRE of 5.04 g kWh−1. Subsequently, the authors investigated the adoption of Fe2O3, MnOx and Co3O4 as catalysts in the corona plasma reactor, finding maximum values od SRE of 6.0, 7.0 and 5.6 g kWh−1, respectively, at 350 °C and 7.4 W. The study pointed out that higher SRE were obtained with the catalysts adoption under the NTP system; indeed, the oxygen supply to the soot seemed to occur by reactive species generated in the plasma (i.e., O atoms, ·OH radicals and O3 molecules) and the catalyst through its contact points with soot. Moreover, the authors suggested that, in the presence of reactive species, with respect of molecular oxygen, the metal oxides oxygen vacancies generated by the soot oxidation are more easily refilled; thus, resulting in a synergistic effect of metal oxides on the soot oxidation promotion under plasma conditions.

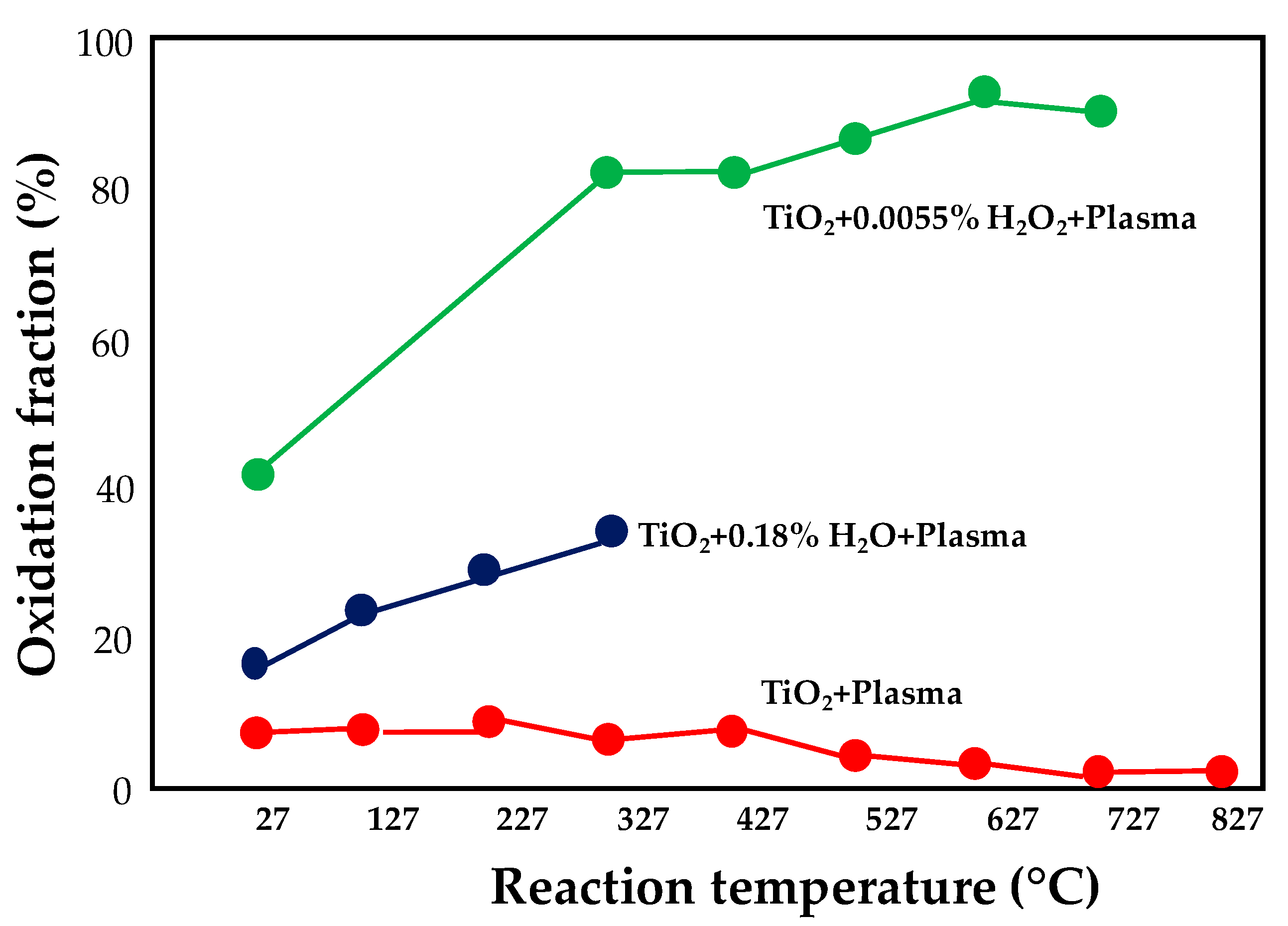

Yao et al. [104] investigated a plasma–catalytic method for the removal of diesel PM in a low temperature range (100–250 °C), testing Au, Pt, Pd and Ag as catalyst for the soot abatement. A comparison with the plasma system alone has also been performed in the study and the result shown that, without the employment of a catalyst, after 1.1 h plasma processing, the PM removal was decreased due to the accumulation of soot within the plasma reactor. Among all the investigated catalysts, Au shown the best performances, characterized by a PM removal efficiency that did not decrease since the plasma switching off (8 h processing). Indeed, at the lowest temperature value, 100 °C, the PM removal efficiency obtained in absence of catalyst was 2.4 g kWh−1 and, with the adoption of Au as catalyst it increased to 4.0 g·(kWh)−1, while with the other catalysts (Pt, Pd and Ag) there were not significative improvement in the PM removal efficiency. At higher temperatures, 200 and 250 °C, the activity of the catalysts was in the order Au ≈Pt > Ag > Pd. A further investigation has been performed by the authors at 200 °C, with 20% O2 and P = 4.5 W for t = 1 h, to see the effect of the Au loading and, it has been seen that, the PM removal efficiency increased up to 6.1 g kWh−1 until the amount of Au reached 1 μg cm−2 and subsequently decreased as the deposited Au increased, maybe due to an Au particles agglomeration effect.
Zhang et al. [105] performed a O3 activation over two types of Ag/CeO2 catalysts, characterized by nanocube and nanorod-like morphologies, AgCe–C and AgCe–R, respectively. Both catalysts have been tested to see the effects of O3 activation on their soot oxidation performances; and the results shown that after the O3 activation at relatively low temperature, these catalyzed filters may combust soot effectively in exhaust environment. Indeed, during O3 activation, extra Ox-species were brought by O3 onto the catalysts surface, and these reactive species could result in a promotion of the soot catalytic combustion. Moreover, O3 activation led to structural changes that improved the soot oxidation activity of both catalysts. In particular, these phenomena were more pronounced in the case of AgCe–C that exhibited also high redox stability and good performances under different conditions.

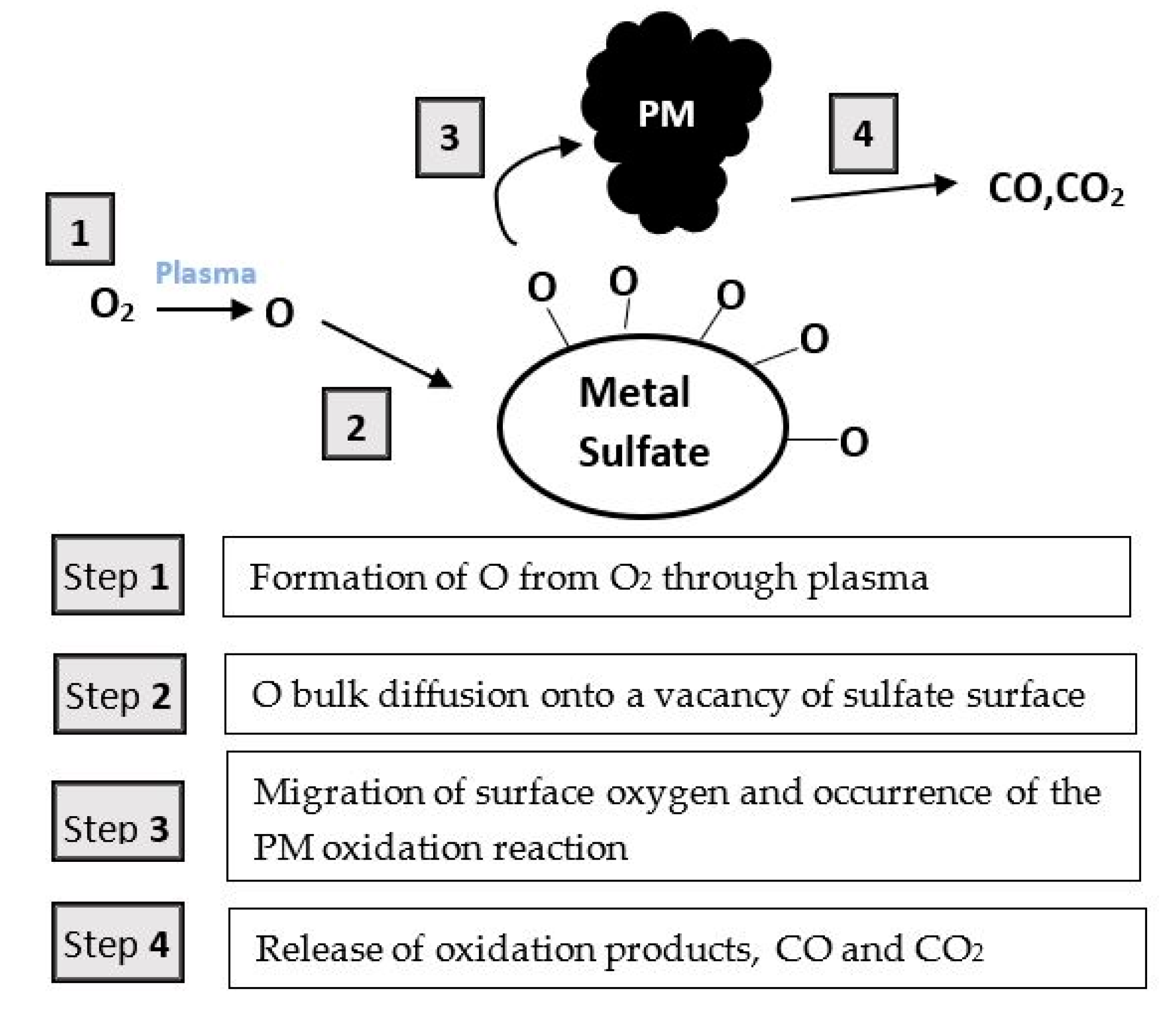

Yao et al. [106] inspected the effect of the addition of metal sulfates in the nonthermal plasma induced oxidation of diesel particulate matter. Several metal sulfates have been tested by the authors: MgSO4, K2SO4, CaSO4·2H2O, Na2SO4, Fe2(SO4)3 and Al2(SO4)·8H2O and, among them, while with the first three an enhancement of the PM oxidation performances has been encountered, no significative effects were obtained with the latter three. The authors suggested that the advantages gained with the adoption of metal sulfates could be correlated to the adsorption of O atoms onto the sulfates and on this purpose, they also proposed a mechanism for the plasma PM oxidation enhanced by the metal sulfate, presented in Figure 15.
K2SO4 has shown in the research the better outcomes, with a soot-removal efficiency of 3.8 g kWh−1, obtained with the 5 wt% of the metal sulfate. The possible reasons connected to the K2SO4 catalytic effect were summarized by the authors as (i) The K atoms could increase the amount of chemisorbed oxygen on the catalyst surface, thus improving the energy yield, (ii) K atoms could enhance the catalysts activity by forming eutectic compounds, (iii) K atoms could improve the PM oxidation by enhancing the carbon consumption into the formation of carbon intermediates, (iv) free K atoms are the active species in potassium-enriched catalysts for the PM combustion, and the strict contact between the PM and K cations allows to lower the soot combustion temperatures.
Nguyen et al. [107] investigated a HC–SCR system for the simultaneous removal of NOx and soot on Ag/α-Al2O3 catalyst. In particular, the investigation concerning the soot abatement has been performed by the authors by adopting a soot simulant, naphthalene. In the study, the simultaneous removal of NOx and soot has been examined in a temperature range of 150–350 °C and by varying the SEI in the range up to 210 J L−1.

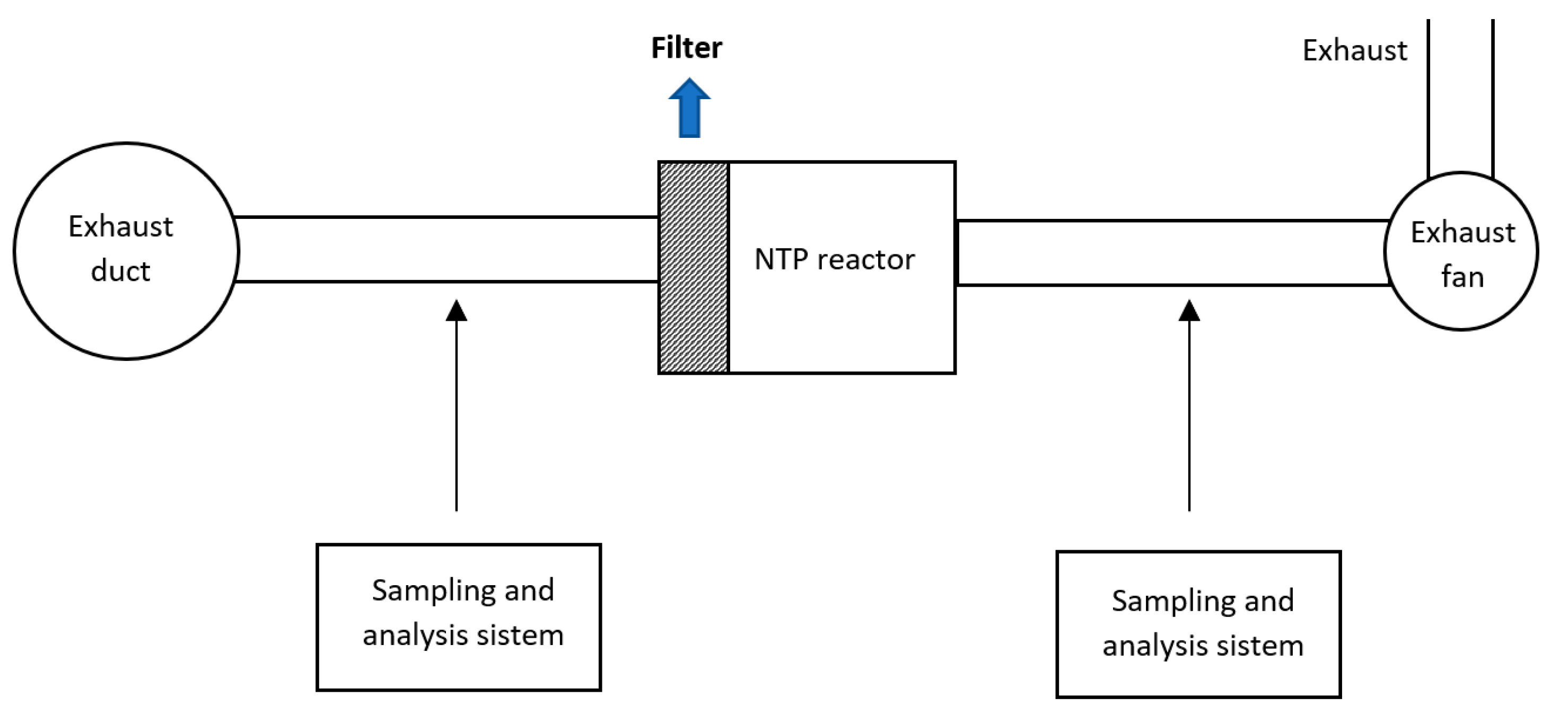

The study outcomes are presented in Figure 16, in which the ratio of the concentration at the outlet and at the inlet (C/C0) for both naphthalene and n-heptane is depicted as a function of the temperature (from 150 to 350 °C with a heating ramp of 3 °C min−1) and as a function of the elapsed time for various SEI values. The first concentration increase exhibited in the case of naphthalene has been attributed to the desorption occurring at high operating temperatures and moreover, it has been seen that, the maximum value reached in terms of naphthalene concentration decreased as the SEI increased, thus indicating the result of the naphthalene decomposition by the plasma action. The advantages of the plasma action were also identified as concern the C/C0 of naphthalene; indeed, the outlet concentration largely decreased with the adoption of plasma. As regard n-heptane, no maximum in the concentration profiles were detected, in fact, the C/C0 of n-heptane decreased as the SEI and operating temperature increased. The difference in the behavior of naphthalene and n-heptane has been attributed by the authors to their adsorption capabilities and vapor pressures, as the n-heptane vapor pressure is greater than that of naphthalene.
The operating conditions and soot-removal efficiency via NTP technology are summarized in Table 6.

Conclusions

The coupling between the NTP technology and the adoption of catalysts is a deeper investigated approach for the soot abatement in the diesel exhaust gas, as it has been demonstrated that it could bring several benefits in terms of soot-removal efficiency. In this manuscript, an overview on the latest NTP applications in this field has been presented, giving a comparison between metals, metal oxides and metal sulfates as catalysts for the PM removal.

7. CO2 Utilization

A big scientific and industrial interest has been devoted in the last year to environmental pollution. As it is well known, the emission of greenhouse gasses, in particular CO2, must be mitigated and among the possible solutions which have been proposed the carbon capture, storage and utilization (CCSU) technologies have widely spread. non-thermal plasma (NTP) is a promising technology for CO2 conversion; in fact, it is well-known that the breakage of C=O bond requires a huge energy amount: plasma allows the occurrence of thermodynamically unfavorable chemical reaction at ambient condition—and this is the case of CO2 dissociation [108]. NTP usually works within the electron energy range of 1–10 eV: the electron energy value of 5.5 eV is sufficient to provide C=O bond breakage via stepwise vibrational excitation. Different routes for CO2 conversion have been investigated, and, in particular, CO2 conversion associated with NTP application deals principally with CO2 reforming of methane, also called dry reforming of methane (DRM) and CO2 hydrogenation to value-added fuels and chemicals.
Conventional hydrocarbon conversion processes still represent the most widely employed technologies in the chemical industry: the most representative may be considered methane reforming (MR), as it is the most promising technology used to date for hydrogen supply. Nevertheless, as it is well-known, MR is a high energy-consuming process and, furthermore, a remarkable amount of energy is actually lost during the process. To better define this consideration, authors have proposed the concept of exergy, as the maximum work available via a change of state. In methane steam reforming (MSR), 30% of initial exergy is destructed through the combustion of a fraction of methane to supply the energy required from the furnace; another exergy huge destruction occur in the water-to-steam heat exchange [109].
In the forthcoming energy scenario, energy supply to reacting system may not occur as heat addition (thermal energy) anymore, but conversely it may be provided as electrical energy. To date, hydrocarbon conversion in electrical energy-assisted processes is widely discussed and investigated. A promising technology is represented by nonthermal plasma, which has the double effect of providing energy to the system and generating radical and excited species, which in turn allow the initiation and the proceeding of the chemical reactions. Several discharge methods allow the generation of nonthermal plasma, i.e., gliding arc, microwave, corona discharge, dielectric barrier discharge (DBD) and others [110]. Reforming of methane, diesel, gasoline and propane by DBD have been widely reported in literature; among the innovative proposals to perform hydrocarbons reforming in a more efficient way, plasma systems could provide interesting solutions in terms of compactness, reactivity and efficiency of the overall process [111].

7.1. CO2 Reforming of Methane

As aforementioned, methane dry reforming has attracted a wide interest in the last years, because it actually represents a challenging method for the utilization of the two main greenhouse gasses, namely methane and carbon dioxide and their conversion into valuable fuels. The process suffers of several drawbacks, and the most important is the huge energy amount required for the reaction to occur. For the development of an efficient DRM process several technologies have been evaluated and, among them, plasma processes have acquired increasingly importance. In particular, the scientific word focused on dielectric barrier discharge (DBD) cold plasma technology (Figure 17), as it presents easy upscaling opportunities and mild operating conditions [112]. DBD, also called silent discharge, is the electrical discharge that occurs between two electrodes in a planar or, more often, cylindrical configuration (Figure 1); the two electrodes are separated by an insulator that is called dielectric barrier [113].
Generally, methane dry reforming is performed as catalyzed process with conventional heating. In presence of plasma, the ionization of the gaseous stream allows the spontaneous CH4 and CO2 dissociation: this leads to their conversion, but the selectivity of the process is relatively low, as several byproducts are produced, including coke, ethane, acetylene and other hydrocarbons. This drawback of course limits the nonthermal plasma application to the reaction. The combination of NTP technology with catalysts offers, instead, the possibility to have an easier breakage of the reactant molecules—together with a higher selectivity towards hydrogen and carbon monoxide formation. There are three ways to combine plasma and catalysis: (i) to perform a pretreatment of the catalyst with NTP, as it may change physicochemical characteristic of the catalyst, (ii) to use a two-stage system, in which the gas flows through the plasma region and then, once the reactive species are formed, it can encounter the catalyst and (iii) to combine the effects in a single-stage hybrid system, which is also called in-plasma catalysis (IPC), where the plasma region and the catalytic bed are overlapped [114].

7.1.1. Catalytic NTP-Assisted CO2 Reforming of Methane

Among the possible combination between catalysis and plasma, the more employed configuration in the experimental study is the single-stage hybrid system.
Lu et al. [115] investigated the CO2 reforming of methane in a coaxial DBD plasma reactor evaluating the effect of nonthermal plasma and the effect of plasma-assisted catalytic activation on the reaction. The catalyst selected for the study was an innovative g–C3N4 (graphitic carbon nitride)-based formulation, to which TiO2 was added in different amount in order to also evaluate the influence of loading. The authors observed that, in the pure plasma process, the reaction performances were strongly affected by the input power, the total flowrate and the CH4/CO2 molar ratio. As expected, low gas flowrate and high input power allowed the achievement of the highest conversion values, even if the increase in power led to a decrease in the selectivity of the process. The presence of the TiO2/g–C3N4 catalyst allowed the enhancement of the catalytic performances only for low TiO2 loadings, in particular the 1% TiO2/g–C3N4 formulation gave the highest conversion and yield values. The authors explained these results by associating the higher TiO2 loading to a higher energy electrons adsorption, which resulted in reducing the reaction probability between high energy electrons and catalyst.

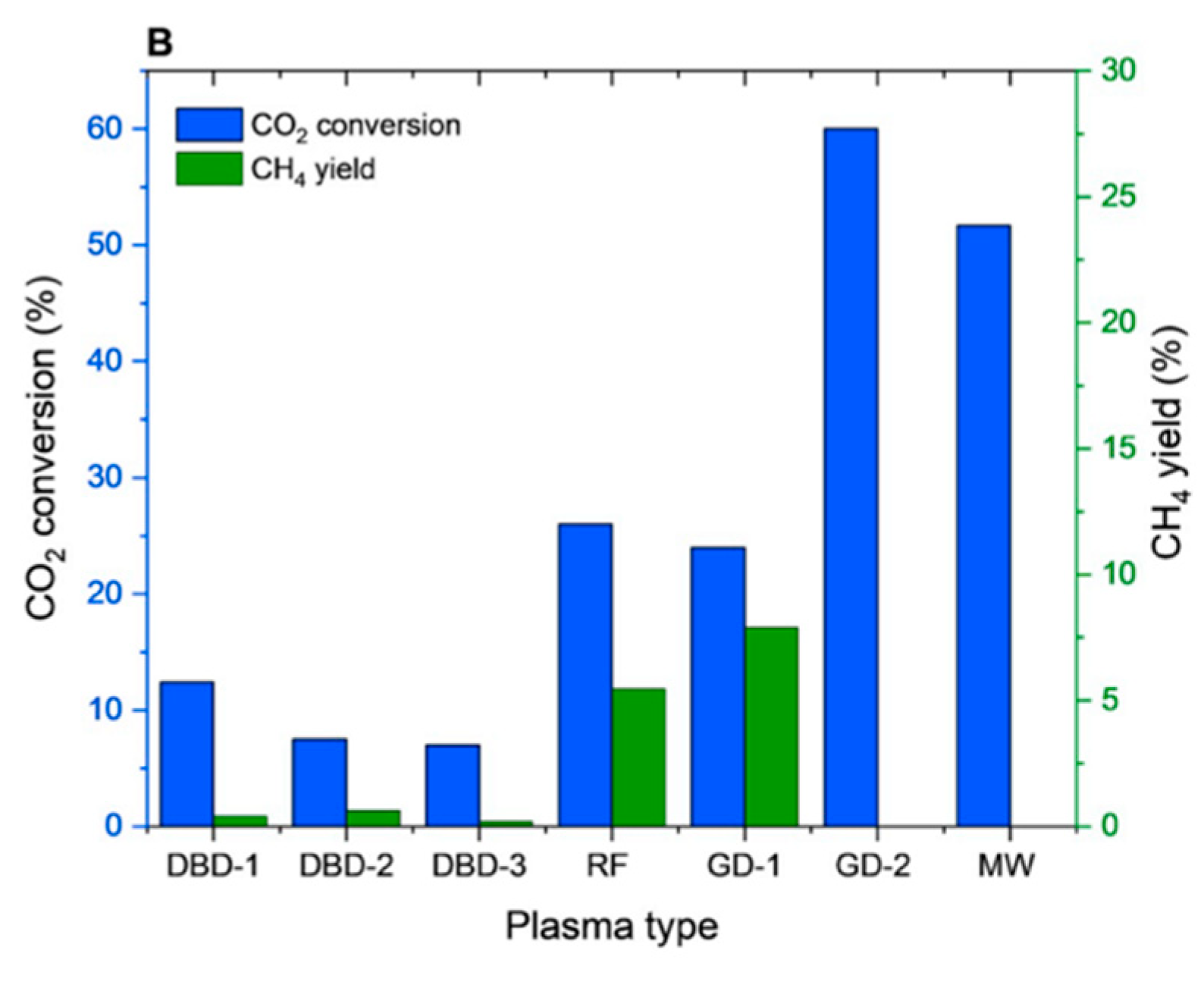

Khoja et al. [116] studied the CO2 reforming of methane in a DBD plasma reactor in presence of a 10% Ni/γAl2O3–MgO catalyst, prepared by wetness impregnation method assisted by cold plasma treatment. Plasma assisted catalytic DRM gave better results than pure plasma DRM, attesting the synergy between plasma and catalyst, who also shown a high resistance to coke formation. Ni loading was studied as a process parameter, and the authors found an optimum loading in the range 10%–20%: both the formulations allowed the achievement of very high conversion values, respectively around 75% for methane and 74% for CO2. In a subsequent work, the authors evaluated the performance of a 10% Ni/La2O3–MgAl2O4 for methane dry reforming in a non-thermal plasma DBD reactor [117]. The incorporation of La2O3 as co-support into MgAl2O4 was to change the irregular structure of MgAl2O4 into flakes, and it also enhanced the interactions among Ni and the support and the basicity of the catalyst. A comparison between the pure plasma reaction and the catalyzed plasma-assisted reaction shown that the catalyst presence remarkably improved the reaction performances, in terms of conversion of both reactants and of H2/CO ratio. The formation of La2O2CO3 as reaction intermediate, due to CO2 chemisorption, was found to help La2O3 regeneration and, consequently, to improve the catalyst stability. Later, the same catalyst (La2O3 co-supported Ni/MgAl2O4) was deeply studied in order to evaluate the role of several process parameters, such as of SEI, discharge volume and GHSV [118]. The systematic study of the variation of these parameters led to the development of a modified power-law model, where the rate expressions were defined as follows:
k CH 4 ( J 1 atm 1 ) = [ X CH 4 1 X CH 4 · 1 ( SIE ) · V D · p ]
k CO 2 ( J 1 atm 1 ) = [ X CO 2 1 X CO 2 · 1 ( SIE ) · V D · p ]
As result, the authors observed a linear function of SEI and GHSV against the instantaneous conversion of the reactants; the model was well representative of the experimental data and gave as activation energy values 32.6 kJ mol−1 for CH4 and 35.2 kJ mol−1 for CO2.
Mahammadunnisa et al. [119] investigated the plasma-assisted DRM in presence of a Ni/Al2O3 catalyst with different Ni loadings. The selected technology was the DBD plasma reactor, realized with a stainless-steel inner electrode and a copper wire wrapped at the external wall of the quartz reactor as outer electrode. The pure plasma condition was tested, but with the addition of a catalyst to this system it was observed an enhancement in the reaction performances: in particular, 20% Ni/Al2O3 gave the best results and allowed to achieve a 2.25 H2/CO ratio, which was remarkably higher than the 1.2 ratio obtained in the pure plasma condition. The authors ascribed the better catalytic behavior of the cited sample to the formation of nanocrystalline NiAl2O4, highly dispersed Ni nanoparticles and higher reducibility of the sample. In fact, spinel formation enhanced the particle dispersion resulting in lower particle size for the 20% Ni/Al2O3 sample (<6 nm) if compared to 10% Ni and 30% Ni samples, where Ni particles sizes were 13 and 18 nm, respectively.
Chung et al. [120] investigated the dry reforming of methane in a DBD plasma reactor in which three different packing materials were loaded: two ferroelectrics materials, BaZr0.75T0.25O3 (BZT; εr = 149) and BaFe0.5Nb0.5O3 (BFN; εr = 2025) and glass beads (r = 3–5). The study pointed out that, with plasma alone, the higher the ratio CH4/CO2 the higher was the reactants conversion and that it is possible to operate the system with high flowrates, which allow to generate syngas in a more economical way because of the better energy efficiency. The main result of the study was the adoption of packing relaxor ferroelectrics to enhance microdischarges with the aim of improving the DRM performances. This phenomenon was actually observed and the increased density in microdischarges produced much more collisions between high-energy electrons and gas molecules. Among the ferroelectrics materials, BFN packed bed ensured the better performances at any applied voltage, both in terms of conversion and selectivity, while the glass bead packed bed produced even worse results than plasma alone.
Mei et al. [121] studied the biogas reforming in presence of a Ni/γ–Al2O3 catalyst with various Ni loadings in a DBD nonthermal plasma reactor. As result, they observed that the parameter which had the highest influence on the hybrid plasma–catalytic reaction system was the biogas flowrate, while the CO2/CH4 molar ratio was the most significant factor affecting the energy efficiency of the process. The best results were achieved in the following conditions: biogas flowrate of 56.1 mL min−1, input power of 60 W, CO2/CH4 molar ratio of 1.03 and Ni loading of 9.5%. In particular, the optimal Ni loading was slightly influenced by other process parameters, so that in different conditions were found different optimal Ni loadings.
Yap et al. [122] investigated the methane and CO2 conversion into syngas through a plasma discharge coupled with a catalyst. The selected catalyst was 10% La2O3/alumina balls: considering that at ambient temperature the catalyst was inactive, the experimental tests were conducted both at ambient temperature and at 300 °C; other tests were performed using glass spheres as inert packing. As result, the authors reported that at room temperature only a slight difference was observed between the pure plasma and the catalyzed system, whereas at 300 °C the synergy between plasma and catalyst was clearly demonstrated. Furthermore, at 300 °C the catalyzed system achieved a CH4 conversion 3 times higher than CH4 conversion reached in the glass spheres system. Another important observation was that CH4 conversion was remarkably enhanced by the catalyst presence, while it was not the same for CO2 conversion. The authors proposed that CO2 dissociates, forming oxygen species in gas phase: these replenish the surface oxygen species which react with methane, according to Mars and Van Krevelen mechanism.
Wang et al. [123] investigated the DRM under pure plasma, catalyst only and plasma assisted with catalyst conditions, in order to determine the synergistic effect of plasma and catalyst. As catalyst, they selected Ni/AC (activated carbon) and several samples were tested varying the reduction temperature from 400 to 900 °C. The sample calcined at 700 °C (Ni/AC700) shown the highest specific surface area and highest pore volume, and it was selected as the most promising catalyst, as it reached CO2 and CH4 conversions, respectively of 64.6% and 65.7%.
Nguyen et al. [124] studied the DRM reaction in a DBD plasma reactor coupled with a Ni/α-Al2O3 catalyst in a peculiar configuration in which the ground electrode was covered with an insulating oil jacket. This was to prevent external power dissipation, which could lead to both loss of energy for the endothermic reaction and air discharge which give rise to the formation of harmful substances, for example NOx. The study pointed out that with the normal reactor configuration there was generation of plasma at the surroundings of ground electrode, forming NOx and low conversion of methane and carbon dioxide because of the partial loss of energy: these issues were increasing evident at high input power. The immersion of the ground electrode in an insulation oil concentrated the discharge energy into the reaction zone, thus enhancing the overall conversion and selectivity values; furthermore, no NOx formation was detected as side effect.
Wang et al. [125] studied the dry reforming of CH4 and CO2 on a Ni/C catalyst promoted by Ce, varying the Ce content obtaining a formulation NiCexC where x = 0, 0.5%, 1%, 3%, 5%. The catalytic activity was evaluated in an NTP–DBD reactor. Characterization results shown that there was a strong metal–support interaction between Ni and ceria and that the samples presented a decreasing Ni particle size when Ce loading was increased, reaching values ranging from 31.1 (x = 0) to 23.7 (x = 5). Despite in general Ce promotion of Ni/C catalyst gave a satisfactory result, the most promising formulation was NiCe1C, reaching CO2 and CH4 conversion of 53.7% and 55.6% and H2 and CO selectivity of 50% and 53.2%.
Vakili et al. [126] reported that the shape of the packing material can influence the DRM because of the different geometries induce different microdischarges: in particular, it was observed that ZrO2 suppressed the plasma generation, while UiO-67 (a class of zirconium-based MOFs [127]) enhanced the reaction performances, as it provokes the generation of filamentary microdischarges and surface discharges thanks to its porous nature. UiO-67 slightly increased the reactants conversion and the selectivity to H2 and CO, while it dramatically modified the byproducts distribution, in particular it decreased the selectivity to C2H6 and C3Hy and increased the selectivity to C2H2/C2H4. In addition, also a 2% [email protected] catalyst was prepared (where PtNP denotes platinum nanoparticles) and it was found to improve the plasma-assisted DRM, as Pt presence enhanced the surface reactions: in particular, this sample allowed the achievement of the highest H2 selectivity and also the highest H2/CO ratio. Under conventional thermal activation, 2% [email protected] catalyst shown extremely low conversion value (<10%) demonstrating that plasma had a remarkable effect on the catalytic activity. A stability test pointed out that 2% [email protected] strongly decreased the selectivity to lighter hydrocarbons, thanks to the dehydrogenation of C2H6 and C2H4 over PtNP. Furthermore, the catalyst also demonstrated a high stability overtime in several on–off plasma cycles, showing no modification in the morphology and crystallinity and a non-appreciable sintering of PtNP, which were found to be around 1–4 nm, as a consequence of the tests.
Zheng et al. [128] reported a study on the synergistic effect of a LaNiO3@SiO2 NP catalyst and nonthermal plasma in a DBD reactor on the reforming of CH4 and CO2. The catalyst was prepared via the modified Stöber method [129] in order to realize a shell-core structure: this was supposed to provide a dedicated space for excited species and metallic actives accommodation. Furthermore, the particular support structure ensured a uniform dispersion of the fine nickel particles. Compared to pure-plasma and other catalytic systems (Ni/SiO2, Ni/La2O3 and Ni–La2O3/SiO2), plasma combined with the LaNiO3@SiO2 NP sample shown enhanced catalytic performances in all the evaluated test conditions. Furthermore, the competition of internal mass transport with the chemical reaction was evaluated through the Koros–Nowak criterion, and it was observed that the former was negligible. For this reason, a semi-empirical power-law kinetic model was developed, and the obtained apparent activation energy values were 24.73 kJ mol−1 for CH4 and 29.50 kJ mol−1 for CO2, which were relatively low if compared to the literature values: this was ascribed to the high dispersion of Ni on the shell-core support and to the strong core/shell interactions.
Bouchoul et al. [130] tested three different calcium-based materials for CO2/CH4 reforming in a DBD plasma reactor with and without the addition of water; the chosen input power (8 W) excluded the thermal activation of reactants. It was observed that reactants conversion was not significantly influenced by the nature of the Ca-based material, and the only detected difference was a lower formation of formaldehyde in presence of CaO. For this reason, this sample was further studied, and in particular it was shown that the increase in temperature from 100 to 300 °C slightly enhanced the methane conversion. When water was added to the feed stream, the catalyst underwent a deep modification, which involved hydroxylation for CaO and carbonation in the case of Ca(OH)2.
Mustafa et al. [131] studied the methane conversion in inert atmosphere in a double dielectric barrier discharge (DDBD) plasma reactor. CH4 concentration of 1000, 5000, 10,000 ppm where employed and two different configurations with a plasma discharge gap of six millimeters and three millimeters were selected. A comparison between the plasma–catalyst DDBD system and the pure plasma DDBD system shown that the former configuration gave the best results in terms of methane conversion, with a maximum value achieved of 84.93%; moreover, the hybrid solution also provided a higher energy efficiency than pure plasma system. Among the catalyst studied, Pt–Sn/Al2O3 gave the highest conversion efficiency in the whole range of input power investigated. The three millimeters discharge gap was found to be preferential in order to enhance methane conversion and, in general, the system was found to be suitable for low methane concentration, thus the authors recommended the technology to landfill at the “after care” stage.

7.1.2. Non Catalytic NTP-Assisted CO2 Reforming of Methane

Tan et al. [132] evaluated the CO2 reforming of methane by the study of a simulated biogas conversion in a plasma-assisted reformer. The technology the authors chose was a gliding arc plasma and the reaction was performed in a pure plasma condition, i.e., in absence of a catalyst. The study pointed out that with the increase in input voltage, the reactants conversion increased; furthermore, also a longer exposure time to plasma led to higher conversion values, as it determined the production of more high-energy electrons, ions and radicals which enhanced the reactivity of biogas. Of course, both the increase in reaction time and in input power obviously means a consequential increase in the total consumption of electrical energy, thus both these parameters must be opportunely optimized in order to save energy.
Martin-del-Campo et al. [133] investigated the CO2 reforming of methane in a rotating gliding arc (RGA) nonthermal plasma reactor in a pure-plasma condition. The most efficient operating condition was developed by studying the effect of different parameters, in particular peak arc current, total gas flowrate, feed ratio and gas inlet preheating. As result, it was observed that doubling the peak current allow to increase the reactants conversion, but it had no significant effect on the H2/CO ratio. The increase of the feed flowrate also seemed to be beneficial, as it produced an increase in the arc length which enhanced the conversion. As expected, the higher the CO2 concentration in the feed gas (high CO2:CH4 ratios) the lower was the H2:CO ratio in the products stream.

Conclusions

CO2 reforming of methane was deeply studied both in pure plasma and in plasma-catalyzed system. As a common result, the hybrid configuration gives better reaction performances, in terms of activity, selectivity and stability of the catalyst. Among the possible catalytic formulations, Ni is the most encountered active metal, while Mg–Al oxides are extensively employed as support; lanthana-doped catalysts are also widely studied for this application. Furthermore, several studies pointed out the remarkable influence that a particular catalyst shape could have on the process, as a change in the microdischarge type can enhance the influence of plasma on the reacting mixture. A summary of the research article reviewed in sub-Section 7.1 is provided in Table 7.

7.2. CO2 Reforming of Methane

CO2 hydrogenation to methane, also called CO2 methanation or Sabatier reaction, is a promising technology to convert carbon dioxide coming from industrial processes or carbon capture and storage (CCS) systems in methane, which is a valuable fuel. Furthermore, CO2 methanation is the core step of the power-to-gas processes, in which surplus electrical energy coming from renewable sources is converted in hydrogen via water electrolysis and then in methane via the Sabatier reaction (Equation (20)).
CO 2 + 4 H 2 CH 4 + 2 H 2 O
It is clear why the CO2 methanation has acquired so much interest in the last years, but the scientific world is still facing the main constraint of the process: the high exothermicity of the reaction provokes a remarkable temperature increase in the catalytic bed, thus limiting the conversion and damaging the catalyst. In order to offer a solution to this problem, several possibilities have been experienced from the catalysis point of view: from low-temperature innovative catalytic formulations [134] to high conductive structured catalysts [135]. non-thermal plasma actually represent a very interesting technology to perform this reaction, as it offers the possibility to activate carbon dioxide at very low temperature and to modify the catalysts surface, giving rise to the creation of defects, surface vacancies and modification of surface functional groups, which may enhance the reaction extent and open new reaction pathways. Among the type of non-thermal plasma employed for CO2 methanation, the most encountered are for sure DBD, gliding arc (GA) and microwaves (MW). In the extensive review of the plasma-assisted CO2 methanation by Debek et al. [136] an interesting comparison of the efficiency of these technologies has been proposed: DBD offers the lowest conversion values, while the highest values are reached by MW and glow discharge (GD). What clearly emerges from this study, however, is that these processes are not selective, as the methane conversion is basically null, when they are conducted without presence of a catalyst (Figure 18).
For what concerns, instead, the hybrid plasma–catalytic CO2 methanation, several catalytic formulations have been investigated, pointing out two important aspects. At first, active metals in thermal CO2 methanation are active as well in the plasma-assisted process and the influence of the active specie is almost the same than in thermal process. Furthermore, Ni represent a consolidated active phase for CO2 methanation catalysts, as it has good activity and selectivity widely proved in the thermal process: for the plasma-assisted reaction, this result is still confirmed. An overview of the Ni-based catalysts tested under plasma condition for CO2 methanation up to 2019 has been reported yet [28]: this paragraph aims to update the previous results with the newest research achievements, in view of the high interest of this topic.
Sivachandiran et al. [137] studied a Ni/γ-Al2O3 nanocatalyst in the DBD plasma-assisted CO2 methanation. The authors evaluated the effect of temperature and input power on the reaction performances, in terms of CO2 conversion and CH4 selectivity. The study compared the role of the catalyst in the hybrid configuration with its role in thermal process; moreover, the effect of support (in thermal and plasma process) and the effect of plasma alone were evaluated and compared. From the experimental results, it was possible to observe that CO2 methanation did not proceeded in thermal mode without either catalyst or support, while it was possible to appreciate a slight CO2 conversion in plasma mode; moreover, in presence of the support a low value of CO2 conversion was obtained both in thermal and plasma mode, with the latter giving a better result (methane selectivity was not reported in any case). Nevertheless, the highest conversion value achieved was 2% (Al2O3 + plasma), so again it was confirmed that CO2 methanation reaction dramatically needs a catalyst to occur. The comparison of the catalyst activity in thermal mode and the reaction performances in the hybrid plasma–catalyst configuration pointed out that plasma allowed an earlier catalyst activation (the systems reached the same conversion value with a temperature shift of 50 degrees) and at 250 °C, where the catalyst is only active under plasma, a selectivity to methane of 70% and to CO of 3% were reached. The authors ascribed this result to the plasma-assisted in situ reduction of Ni2+/Ni. Nevertheless, above 300 °C in the plasma-assisted catalyzed system the methane reforming was promoted, as CO selectivity was observed to increase up to 7%; moreover, at high temperature, an increase in plasma input power further increased CO selectivity. For these reasons, the system was particularly promising for low-temperature applications; furthermore, Ni nanocatalyst was not structurally affected by plasma application, as the Ni particle size was not found to increase significantly (from 14 to 15 nm).
Ahmad et al. [138] investigated the performance of three Ni/γ-Al2O3 catalysts with different Ni loadings (5%, 10% and 15% wt) in plasma-assisted CO2 methanation in a DBD packed bed reactor. Thermal and plasma-assisted catalytic tests were performed evaluating CO2 conversion and CH4 selectivity. From the thermal activity tests, it was possible to observe the positive effect in increasing the Ni loading from 5% to 10%, while 10%- and 15%-Ni samples shown the same conversion and selectivity trend; this result was obtained also under plasma application. In the plasma-assisted process, also the effect of the bare support, inert beads and plasma alone were evaluated, pointing out that in the absence of catalyst the main reaction product was CO, with only a 20%–30% selectivity to methane, while CO selectivity in presence of any catalyst was almost zero, as reported in Figure 19. The authors attributed the high performances of the plasma–catalytic system to plasma activation of the reactants, to the presence of Ni (which was not detrimentally affected by plasma discharges) and to the synergy between catalyst and plasma-activated reactants.
Wang et al. [139] focused on the evaluation of the performances of CO2 methanation in plasma-assisted catalyzed reaction in presence of a Ni/Ce0.58Zr0.42O2 catalyst. The study compared the reaction in a thermal system and in a DBD reactor and the steady-state temperature of the reaction was evaluated through experimental and simulation analysis with the software COMSOL Multiphysics®. The main objective of the study was the estimation of the threshold temperature in the plasma-assisted configuration: for this reason, in order to minimize the effect of the heat generation from the reaction, a very low inlet flowrate was employed. Coupling the experimental results with the simulation analysis the authors obtained that the plasma threshold temperature for CO2 methanation was 116 °C.
Chen et al. [140] studied the Sabatier reaction in a DBD plasma reactor in presence of Ni supported on metal–organic frameworks (MOFs). The results highlighted the advantage in using MOFs as support rather than conventional ZrO2 and that the activation barrier for the plasma-activated reaction was remarkably lower than for the thermal catalysts, in particular about 32 kJ mol−1 for the plasma-assisted process and about 70 kJ mol−1 for the thermal process.
Biset-Peiró et al. [141] investigated CO2 methanation under DBD plasma activation without external heating with two different reactor configurations, pseudo-adiabatic and adiabatic approaches, in order to discern between the role of plasma activation and that of the reaction exothermicity. A Ni–Ce catalyst supported on Al2O3 was loaded into the reactors. In the pseudo-adiabatic condition, plasma application and the reaction heat increased the reaction up to 150 °C, while in the adiabatic system the temperature rose up to 350 °C. In order to obtain the same conversion values, the adiabatic configuration needed an input power 10 W less than the pseudo-adiabatic configuration. Thus, the authors obtained that a good management of released heat coupled with the adoption of an insulating system helps to maximize the energy efficiency of the overall process.
A summary of the research article on CO2 methanation reported in sub-Section 7.2 is provided in Table 8.

Conclusions

Based on the experimental and numeric evaluation reported in the above-cited works on plasma-assisted CO2 methanation, it is possible to observe that nonthermal plasma is a promising technology to perform the reaction. Nevertheless, as the main reaction product in absence of a proper catalyst is CO, in order to have a selective and efficient process a hybrid plasma–catalytic system is specifically needed to perform the Sabatier reaction. Nickel has been widely recognized as a highly performing catalyst towards CO2 methanation both in thermal and plasma-assisted process and of course this represents a very positive aspect, as it leads to relatively cheap and available catalysts. Furthermore, the reported studies highlighted that in the plasma-assisted process, both plasma and the reaction exothermicity act as activator, resulting in an overall better efficiency of the process.

8. VOCs Abatement via NTP Technology

With the continuous decrease of the emissions of particulate matter, SOx and NOx, the abatement of volatile organic compounds (VOCs) emitted from various industries is becoming increasingly important, due to their environmental issues. In fact, VOCs have high photochemical reactivity and react easily with NOx to form ozone [142]. Moreover, they are key precursor of secondary organic aerosols, which are significant components of fine particulate matter [3,4,5], as well as they are dangerous for human health, due to their carcinogenicity, affecting the central nervous system, causing different diseases, including respiratory ones [142]. The reduction of the VOCs emissions one approach is the use of the so-called “add-on” equipment, which recover or destroy off–gas VOC pollutants; a second approach could be the change in processes and/or raw materials to reduce or destroy VOCs generation. Regarding the former, different techniques have been developed, including absorption, adsorption, thermal oxidation, catalytic oxidation, photocatalysis, NTP-assisted oxidation, membrane technology [143].
One of the drawbacks of NTPs for VOCs abatement is the potential formation of unwanted byproducts, due to the partial conversion of the initial compounds [144,145]. The increase of the discharge power can help in preventing this formation, but it results in an increased energy consumption. Hence, the use of a catalyst, allowing the reduction of the activation energy and the induction of alternative and more energy-efficient reaction routes, can be a useful way for overcome this disadvantage [146,147]. In an NTP-assisted VOC oxidation the placement of the catalyst is one of the parameters to consider; the two main configurations are named “in plasma catalysis” (IPC) and “post-plasma catalysis” (PPC). In the former, the catalyst is directly located into the NTP reactor, which can be filled with the catalyst either totally (as in a packed-bed or monolithic reactor) [148,149,150,151] or partially (as in the hybrid reactor) [152,153,154]. In the last decade, different reviews have been published regarding the combined use of NTP and catalysts in the abatement of the several VOCs categories; all the reviews have considered all the main features, including reactor configuration, catalysts typology, catalyst placement, discharge power, number of electrodes [9,142,143,144,155,156,157,158,159,160]. The analysis of these reviews evidenced the enormous interest of the scientific community towards the issue of the VOCs abatement by means of the catalytic NTP-assisted oxidation processes, especially by using packed bed or DBD reactors. The first consideration about the reactor is that it should result in (i) high VOCs removal efficiency, (ii) high mineralization rate and (iii) low formation of byproducts. Moreover, also the feeding gas properties must be considered since its properties in terms of initial concentration, flow rate and humidity may greatly influence the VOCs abatement. As mentioned, a lot or studies have been made, also devoted to the industrial application of the NTP technology, but at the present the presence of commercial applications is quite scarce. Therefore, further studies are still needed in order to deeply understand the mechanisms behind the interactions between plasma and VOCs, in particular regarding the discharge process and the degradation pathways of VOCs with or without a catalyst. Recently, the direct observation of the discharge behavior as well as the propagation of streamers on catalyst surface, has been possible by using fast imaging technique. This technique, combined with fluid modeling, allows to have more information on variation and distribution of the temperature and density of electrons during discharge, so giving deeper insights into the discharge features, including electric field enhancement in packed bed DBD reactors, plasma streamer propagation in packed bed DBD reactors and plasma streamer penetration in catalyst pores.
Regarding the VOCs decomposition mechanisms, a major part of the researchers argued from the information obtained by ex situ detection techniques. Anyway, the application of these techniques does not allow to fully investigate the physical and chemical processes underlying behind the VOCs decomposition, including the effect of a catalyst, due to the short survival time of reactive species such as radicals and electrons in plasma and the intermediates generated from VOCs. Therefore, recently direct in situ detection techniques combined to DFT (density functional theory) have been applied, so resulting in more data for better understanding the mechanism for VOCs decomposition. However, for the optimization of the whole system the theoretical studies must work in cooperation with practical applications, which through dedicated scale-up experiments could lead to real and effective industrial applications. One example of possible research area could be the investigation of the performance of catalytic NTP-assisted processes on mixed VOCs removal, since real exhaust gas contains many types of VOCs. In this case, a critical aspect is surely the optimal combination of the right catalyst position (IPC or PPC) and of its composition. In fact, several studies have demonstrated that high mineralization rates can be obtained in IPC systems, while PPC system is effective for the suppression of residual ozone. Therefore, the addition of a downstream catalyst to an IPC system may provide an effective solution for simultaneously reducing the VOCs emissions and ensuring a low residual ozone level. However, a single catalyst could not be able to effectively remove various types of VOCs simultaneously; so, a multistage arrangement with different catalysts may be a valid option to address this issue. Therefore, the investigation of multistage catalytic systems is crucial in terms of both residual ozone elimination and complex VOCs mixtures treatment.

9. Conclusions

Plasma science has attracted the interest of researchers in various disciplines since the 1990s. This continuously evolving field has spawned investigations into several applications, including industrial sterilization, pollution control, polymer science, food safety and biomedicine. nonthermal plasma (NTP) can promote the occurrence of chemical reactions in a lower operating temperature range, condition in which, in a conventional process, a catalyst is generally not active. The aim, when using NTP, is to selectively transfer electrical energy to the electrons, generating free radicals through collisions and promoting the desired chemical changes without spending energy in heating the system. Therefore, NTP can be used in various fields. As examples, NTP can be used in the CO2 utilization processes in which in combination with a properly chosen catalyst, the CO2 reforming or methanation reaction can occur, so obtaining in the latter case clean fuel CH4 by using CO2 as a raw material; the application of an external electric field may result in the conversion of complex macromolecular pollutants into small molecules safe and free of pollutants, such as in the case of volatile organic compound (VOC) decomposition; NTP can also purify exhaust gases, such as in the case of NOx removal from exhaust gases and soot removal from diesel engine exhaust; NTP may also be used for ammonia production. The application of NTP to the reviewed fields did not give the same successful results, since it resulted very effective in pollutants abatement especially by using DBD reactors coupled to properly selected catalysts, while some doubts raised when it was applied to ammonia production. In fact, in this last case the different studies evidenced that a further optimization of the system is needed for having an NTP-assisted ammonia production competitive with the conventional one. Regarding the CO2 utilization processes, the reviewed studies indicated that NTP is a promising technology, but only if coupled to a proper catalyst in both CO2 reforming and methanation, in order to assure the best selectivity and efficiency of the processes.

Funding

This research received no external funding.

Conflicts of Interest

The authors declare no conflict of interest.

Acronyms

ACactivated carbon
BETBrunauer–Emmett–Teller
CCSUcarbon capture, storage and utilization
CMScarbon molecular sieves
DBDdielectric barrier discharge
DBDRdielectric barrier discharge reactor
DDBDdouble dielectric barrier discharge
DFTdensity functional theory
DPFdiesel particulate filter
DRMdry reforming of methane
EIenergy injection
GAgliding arc
GDglow discharge
GHSVgas hourly space velocity
HC–SCRhydrocarbon catalytic reduction
IPCin-plasma catalysis
LNTlean NOx trap
MOFmetal organic frameworks
MRmethane reforming
MWmicrowave
NMORnatural mordenite
NPnanoparticles
NSRNOx storage and reduction
NTPnon-thermal plasma
PCPpulsed-corona plasma
PCVDplasma chemical vapor deposition
PMparticulate matter
PPCpost-plasma catalysis
RFradio frequency
RGArotating gliding arc
RPMrevolution per minute
SCRselective catalytic reduction
SEDspecific energy density
SEIspecific energy input
SEMscanning electron microscopy
SNCRselective noncatalytic reduction
SREsoot-removal efficiency
TEMtransmission electron microscopy
TPDtemperature programmed desorption
VBDvolume barrier discharge
VOCsvolatile organic compounds
WSACwalnut-shell activated carbon
XPSX-ray photoelectron spectroscopy

References

  1. Talebizadeh, P.; Babaie, M.; Brown, R.; Rahimzadeh, H.; Ristovski, Z.; Arai, M. The role of non-thermal plasma technique in NOx treatment: A review. Renew. Sustain. Energy Rev. 2014, 40, 886–901. [Google Scholar] [CrossRef][Green Version]
  2. Chen, X.; Cheng, Y.; Li, T.; Cheng, Y. Characteristics and applications of plasma assisted chemical processes and reactors. Curr. Opin. Chem. Eng. 2017, 17, 68–77. [Google Scholar] [CrossRef]
  3. Kim, H.-H.; Teramoto, Y.; Ogata, A.; Takagi, H.; Nanba, T. Plasma Catalysis for Environmental Treatment and Energy Applications. Plasma Chem Plasma Process 2016, 36, 45–72. [Google Scholar] [CrossRef]
  4. Tyczkowski, J. Cold Plasma Produced Catalytic Materials. In Plasma Science and Technology-Progress in Physical States and Chemical Reactions; Tetsu, M., Ed.; InTechOpen: London, UK, 2016; Chapter 3. [Google Scholar]
  5. Lee, D.H.; Song, Y.-H.; Kim, K.-T.; Jo, S.; Kang, H. Current state and perspectives of plasma applications for catalyst regeneration. Catal. Today 2019, 337, 15–27. [Google Scholar] [CrossRef]
  6. Li, J.; Ma, C.; Zhu, S.; Yu, F.; Dai, B.; Yang, D. A Review of Recent Advances of Dielectric Barrier Discharge Plasma in Catalysis. Nanomaterials 2019, 9, 1428. [Google Scholar] [CrossRef][Green Version]
  7. Lim, M.T.; Shah Zulkifli, A.Z.; Jayapalan, K.K.; Chin, O. Development of a dimensionless parameter for characterization of dielectric barrier discharge devices with respect to geometrical features. Plasma Sci. Technol. 2017, 19, 095402. [Google Scholar] [CrossRef]
  8. Wang, X.; Yang, Q.; Yao, C.; Zhang, X.; Sun, C. Dielectric Barrier Discharge Characteristics of Multineedle-to-Cylinder Configuration. Energies 2011, 4, 2133–2150. [Google Scholar] [CrossRef][Green Version]
  9. Veerapandian, S.K.P.; Leys, C.; de Geyter, N.; Morent, R. Abatement of VOCs Using Packed Bed Non-Thermal Plasma Reactors: A Review. Catalysts 2017, 7, 113. [Google Scholar] [CrossRef]
  10. Bosch, C. Process of Producing Ammonia. U.S. Patent 990191A, 18 April 1911. [Google Scholar]
  11. Vu, M.-H.; Sakar, M.; Do, T.-O. Insights into the Recent Progress and Advanced Materials for Photocatalytic Nitrogen Fixation for Ammonia (NH3) Production. Catalysts 2018, 8, 621. [Google Scholar] [CrossRef][Green Version]
  12. Hong, J.; Prawer, S.; Murphy, A.B. Plasma Catalysis as an Alternative Route for Ammonia Production: Status, Mechanisms, and Prospects for Progress. ACS Sustain. Chem. Eng. 2018, 6, 15–31. [Google Scholar] [CrossRef]
  13. Wang, K.; Smith, D.; Zheng, Y. Electron-driven heterogeneous catalytic synthesis of ammonia: Current states and perspective. Carbon Resour. Convers. 2018, 1, 2–31. [Google Scholar] [CrossRef]
  14. Peng, P.; Chen, P.; Schiappacasse, C.; Zhou, N.; Anderson, E.; Chen, D.; Liu, J.; Cheng, Y.; Hatzenbeller, R.; Addy, M.; et al. A review on the non-thermal plasma-assisted ammonia synthesis technologies. J. Clean. Prod. 2018, 177, 597–609. [Google Scholar] [CrossRef]
  15. Li, S.; Medrano, J.A.; Hessel, V.; Gallucci, F. Recent Progress of Plasma-Assisted Nitrogen Fixation Research: A Review. Processes 2018, 6, 248. [Google Scholar] [CrossRef][Green Version]
  16. Bogaerts, A.; Neyts, E.C. Plasma Technology: An Emerging Technology for Energy Storage. ACS Energy Lett. 2018, 3, 1013–1027. [Google Scholar] [CrossRef][Green Version]
  17. Gorbanev, Y.; Vervloessem, E.; Nikiforov, A.; Bogaerts, A. Nitrogen Fixation with Water Vapor by Nonequilibrium Plasma: Toward Sustainable Ammonia Production. ACS Sustain. Chem. Eng. 2020, 8, 2996–3004. [Google Scholar] [CrossRef]
  18. Rouwenhorst, K.H.R.; Kim, H.-H.; Lefferts, L. Vibrationally Excited Activation of N2 in Plasma-Enhanced Catalytic Ammonia Synthesis: A Kinetic Analysis. ACS Sustain. Chem. Eng. 2019, 7, 17515–17522. [Google Scholar] [CrossRef][Green Version]
  19. Hagen, S.; Barfod, R.; Fehrmann, R.; Jacobsen, C.J.H.; Teunissen, H.T.; Chorkendorff, I. Ammonia synthesis with barium-promoted iron-cobalt alloys supported on carbon. J. Catal. 2003, 214, 327–335. [Google Scholar] [CrossRef]
  20. Mizushima, T.; Matsumoto, K.; Ohkita, H.; Kakuta, N. Catalytic Effects of Metal-Loaded Membrane-like Alumina Tubes on Ammonia Synthesis in Atmospheric Pressure Plasma by Dielectric Barrier Discharge. Plasma Chem. Plasma Process 2007, 27, 1–11. [Google Scholar] [CrossRef]
  21. Mehta, P.; Barboun, P.; Herrera, F.A.; Kim, J.; Rumbach, P.; Go, D.B.; Hicks, J.C.; Schneider, W.F. Overcoming Ammonia Synthesis Scaling Relations with Plasma-Enabled Catalysis. Nat. Catal. 2018, 1, 269–275. [Google Scholar] [CrossRef]
  22. Van Helden, J.H.; van den Oever, P.J.; Kessels, W.M.M.; van de Sanden, M.C.M.; Schram, D.C.; Engeln, R. Production Mechanisms of NH and NH2 Radicals in N2-H2 Plasmas. J. Phys. Chem. A 2007, 111, 11460–11472. [Google Scholar] [CrossRef]
  23. Peng, P.; Cheng, Y.; Hatzenbeller, R.; Addy, M.; Zhou, N.; Schiappacasse, C.; Chen, D.; Zhang, Y.; Anderson, E.; Liu, Y.; et al. Ru-based multifunctional mesoporous catalyst for low-pressure and non-thermal plasma synthesis of ammonia. Int. J. Hydrogen Energy 2017, 42, 19056–19066. [Google Scholar] [CrossRef]
  24. Peng, P.; Li, Y.; Cheng, Y.; Deng, S.; Chen, P.; Ruan, R. Atmospheric Pressure Ammonia Synthesis Using Non-thermal Plasma Assisted Catalysis. Plasma Chem. Plasma Process. 2016, 36, 1201–1210. [Google Scholar] [CrossRef]
  25. Kim, H.-H.; Teramoto, Y.; Ogata, A.; Takagi, H.; Nanba, T. Atmospheric-pressure nonthermal plasma synthesis of ammonia over ruthenium catalysts. Plasma Process. Polym. 2017, 14, 1600157. [Google Scholar] [CrossRef]
  26. Shah, J.; Wu, T.; Lucero, J.; Carreon, M.A.; Carreon, M.L. Nonthermal Plasma Synthesis of Ammonia over Ni-MOF-74. ACS Sustain. Chem. Eng. 2019, 7, 377–383. [Google Scholar] [CrossRef]
  27. Akay, G.; Zhang, K. Process Intensification in Ammonia Synthesis Using Novel Coassembled Supported Microporous Catalysts Promoted by Nonthermal Plasma. Ind. Eng. Chem. Res. 2017, 56, 457–468. [Google Scholar] [CrossRef][Green Version]
  28. De Castro, A.; Alegre, D.; Tabarés, F.L. Ammonia formation in N2/H2 plasmas on ITER-relevant plasma facing materials: Surface temperature and N2 plasma content effects. J. Nucl. Mater. 2015, 463, 676–679. [Google Scholar] [CrossRef]
  29. Gómez-Ramírez, A.; Montoro-Damas, A.M.; Cotrino, J.; Lambert, R.M.; González-Elipe, A.R. About the enhancement of chemical yield during the atmospheric plasma synthesis of ammonia in a ferroelectric packed bed reactor. Plasma Process. Polym. 2016, 14, 1600081. [Google Scholar] [CrossRef]
  30. Hong, J.; Aramesh, M.; Shimoni, O.; Seo, D.H.; Yick, S.; Greig, A.; Charles, C.; Prawer, S.; Murphy, A.B. Plasma Catalytic Synthesis of Ammonia Using Functionalized-Carbon Coatings in an Atmospheric-Pressure Non-equilibrium Discharge. Plasma Chem. Plasma Process. 2016, 36, 917–940. [Google Scholar] [CrossRef]
  31. Shah, J.R.; Gorky, F.; Lucero, J.; Carreon, M.A.; Carreon, M.L. Ammonia Synthesis via Atmospheric Plasma Catalysis: Zeolite 5A, a Case of Study. Ind. Eng. Chem. Res. 2020, 59, 5167–5176. [Google Scholar] [CrossRef]
  32. Wang, Y.; Craven, M.; Yu, X.; Ding, J.; Bryant, P.; Huang, J.; Tu, X. Plasma-Enhanced Catalytic Synthesis of Ammonia over a Ni/Al2O3 Catalyst at Near-Room Temperature: Insights into the Importance of the Catalyst Surface on the Reaction Mechanism. ACS Catal. 2019, 9, 10780–10793. [Google Scholar] [CrossRef][Green Version]
  33. Barboun, P.; Mehta, P.; Herrera, F.A.; Go, D.B.; Schneider, W.F.; Hicks, J.C. Distinguishing Plasma Contributions to Catalyst Performance in Plasma-Assisted Ammonia Synthesis. ACS Sustain. Chem. Eng. 2019, 7, 8621–8630. [Google Scholar] [CrossRef]
  34. Iwamoto, M.; Akiyama, M.; Aihara, K.; Deguchi, T. Ammonia Synthesis on Wool-Like Au, Pt, Pd, Ag, or Cu Electrode Catalysts in Nonthermal Atmospheric-Pressure Plasma of N2 and H2. ACS Catal. 2017, 7, 6924–6929. [Google Scholar] [CrossRef]
  35. Herrera, F.A.; Brown, G.H.; Barboun, P.; Turan, N.; Mehta, P.; Schneider, W.F.; Hicks, J.C.; Go, D.B. The impact of transition metal catalysts on macroscopic dielectric barrier discharge (DBD) characteristics in an ammonia synthesis plasma catalysis reactor. J. Phys. D Appl. Phys. 2019, 52, 224002. [Google Scholar] [CrossRef]
  36. Akay, G. Sustainable Ammonia and Advanced Symbiotic Fertilizer Production Using Catalytic Multi-Reaction-Zone Reactors with Nonthermal Plasma and Simultaneous Reactive Separation. ACS Sustain. Chem. Eng. 2017, 5, 11588–11606. [Google Scholar] [CrossRef]
  37. Sarafraz, M.M.; Tran, N.N.; Pourali, N.; Rebrov, E.V.; Hessel, V. Thermodynamic potential of a novel plasma-assisted sustainable process for co-production of ammonia and hydrogen with liquid metals. Energy Convers. Manage. 2020, 210, 112709. [Google Scholar] [CrossRef]
  38. Fan, X.; Li, J.; Qiu, D.; Zhu, T. Production of ammonia from plasma-catalytic decomposition of urea: Effects of carrier gas composition. J. Environ. Sci. 2018, 66, 94–103. [Google Scholar] [CrossRef]
  39. Chen, Z.; Mathur, V.K. Nonthermal Plasma for Gaseous Pollution Control. Ind. Eng. Chem. Res. 2002, 41, 2082–2089. [Google Scholar] [CrossRef]
  40. Xu, F.; Luo, Z.; Cao, W.; Wang, P.; Wei, B.; Gao, X.; Fang, M.; Cen, K. Simultaneous oxidation of NO, SO2 and Hg0 from flue gas by pulsed corona discharge. J. Environ. Sci. 2009, 21, 328–332. [Google Scholar] [CrossRef]
  41. Cui, S.; Hao, R.; Fu, D. An integrated system of dielectric barrier discharge combined with wet electrostatic precipitator for simultaneous removal of NO and SO2: Key factors assessments, products analysis and mechanism. Fuel 2018, 221, 12–20. [Google Scholar] [CrossRef]
  42. Yu, Q.; Yang, H.-M.; Zeng, K.-S.; Zhang, Z.-W.; Yu, G. Simultaneous removal of NO and SO2 from dry gas stream using non-thermal plasma. J. Environ. Sci. 2007, 19, 1393–1397. [Google Scholar] [CrossRef]
  43. Ma, S.; Zhao, Y.; Yang, J.; Zhang, S.; Zhang, J.; Zheng, C. Research progress of pollutants removal from coal-fired flue gas using non-thermal plasma. Renew. Sustain. Energy Rev. 2017, 67, 791–810. [Google Scholar] [CrossRef]
  44. Kim, H.; Mizuno, A.; Sakaguchi, Y.; Lu, G.; Sadakata, M. Development of a New Dry-Desulfurization Process by a Non-Thermal Plasma Hybrid Reactor. Energy Fuels 2002, 16, 803–808. [Google Scholar] [CrossRef]
  45. Kwon, Y.K.; Han, D.H. Microwave Effect in the Simultaneous Removal of NOx and SO2 under Electron Beam Irradiation and Kinetic Investigation of NOx Removal Rate. Ind. Eng. Chem. Res. 2010, 49, 8147–8156. [Google Scholar] [CrossRef]
  46. Panomsuwan, G.; Rujiravanit, R.; Ueno, T.; Saito, N. Non-thermal plasma technology for abatement of pollutant emission from marine diesel engine. J. Korean Soc. Mar. Eng. 2016, 40, 929–934. [Google Scholar] [CrossRef]
  47. Ighigeanu, D.; Martin, D.; Zissulescu, E.; Macarie, R.; Oproiu, C.; Cirstea, E.; Iovu, H.; Calinescu, I.; Iacob, N. SO2 and NOx removal by electron beam and electrical discharge induced non-thermal plasmas. Vacuum 2005, 77, 493–500. [Google Scholar] [CrossRef]
  48. Cui, S.; Zhong, Z.; Liao, Y.; Qi, L.; Fu, D. Simultaneous Removal of NO and SO2 via an Integrated System of Nonthermal Plasma Combined with Catalytic Oxidation and Wet Electrostatic Precipitator. Energy Fuels 2019, 33, 10078–10089. [Google Scholar] [CrossRef]
  49. Cui, S.; Hao, R.; Fu, D. Integrated method of non-thermal plasma combined with catalytical oxidation for simultaneous removal of SO2 and NO. Fuel 2019, 246, 365–374. [Google Scholar] [CrossRef]
  50. Hamzehlouyan, T.; Sampara, C.S.; Li, J.; Kumar, A.; Epling, W.S. Kinetic study of adsorption and desorption of SO2 over γ-Al2O3 and Pt/γ-Al2O3. Appl. Catal. B Environ. 2016, 181, 587–598. [Google Scholar] [CrossRef]
  51. AlQahtani, M.S.; Knecht, S.D.; Wang, X.; Bilén, S.G.; Song, C. One-Step Low-Temperature Reduction of Sulfur Dioxide to Elemental Sulfur by Plasma-Enhanced Catalysis. ACS Catalysis 2020, 10, 5272–5277. [Google Scholar] [CrossRef]
  52. Nasonova, A.; Kim, D.-J.; Kim, K.-S. Analysis of SO2 Removal and Ammonium Sulfate Particle Growth in Dielectric Barrier Discharge−Photocatalyst Hybrid Process. Ind. Eng. Chem. Res. 2010, 49, 8821–8825. [Google Scholar] [CrossRef]
  53. Nasonova, A.; Pham, H.C.; Kim, D.-J.; Kim, K.-S. NO and SO2 removal in non-thermal plasma reactor packed with glass beads-TiO2 thin film coated by PCVD process. Chem. Eng. J. 2010, 156, 557–561. [Google Scholar] [CrossRef]
  54. Pham, H.-C.; Kim, K.-S. Effect of TiO2 Thin Film Thickness on NO and SO2 Removals by Dielectric Barrier Discharge-Photocatalyst Hybrid Process. Ind. Eng. Chem. Res. 2013, 52, 5296–5301. [Google Scholar] [CrossRef]
  55. Nasonova, A.; Kim, K.-S. Effects of TiO2 coating on zeolite particles for NO and SO2 removal by dielectric barrier discharge process. Catal. Today 2013, 211, 90–95. [Google Scholar] [CrossRef]
  56. Wang, J.; Yi, H.; Tang, X.; Zhao, S.; Gao, F. Simultaneous removal of SO2 and NOx by catalytic adsorption using γ-Al2O3 under the irradiation of non-thermal plasma: Competitiveness, kinetic, and equilibrium. Chem. Eng. J. 2020, 384, 123334. [Google Scholar] [CrossRef]
  57. Hong, L.; Chen, D.; Yang, M.; Yin, L.; Wang, D.; Wang, L. Interaction between NO and SO2 removal processes in a pulsed corona discharge plasma (PCDP) reactor and the mechanism. Chem. Eng. J. 2019, 359, 1130–1138. [Google Scholar] [CrossRef]
  58. Sassi, M.; Amira, N. Chemical reactor network modeling of a microwave plasma thermal decomposition of H2S into hydrogen and sulfur. Int. J. Hydrogen Energy 2012, 37, 10010–10019. [Google Scholar] [CrossRef]
  59. Liang, W.-J.; Fang, H.-P.; Li, J.; Zheng, F.; Li, J.-X.; Jin, Y.-Q. Performance of non-thermal DBD plasma reactor during the removal of hydrogen sulfide. J. Electrost. 2011, 69, 206–213. [Google Scholar] [CrossRef]
  60. Lu, S.; Chen, L.; Huang, Q.; Yang, L.; Du, C.; Li, X.; Yan, J. Decomposition of ammonia and hydrogen sulfide in simulated sludge drying waste gas by a novel non-thermal plasma. Chemosphere 2014, 117, 781–785. [Google Scholar] [CrossRef]
  61. Reddy, E.L.; Biju, V.M.; Subrahmanyam, C. Production of hydrogen from hydrogen sulfide assisted by dielectric barrier discharge. Int. J. Hydrogen Energy 2012, 37, 2204–2209. [Google Scholar] [CrossRef]
  62. Huang, L.; Xia, L.; Dong, W.; Hou, H. Energy efficiency in hydrogen sulfide removal by non-thermal plasma photolysis technique at atmospheric pressure. Chem. Eng. J. 2013, 228, 1066–1073. [Google Scholar] [CrossRef]
  63. De Crisci, A.G.; Moniri, A.; Xu, Y. Hydrogen from hydrogen sulfide: Towards a more sustainable hydrogen economy. Int. J. Hydrogen Energy 2019, 44, 1299–1327. [Google Scholar] [CrossRef]
  64. Nunnally, T.; Gutsol, K.; Rabinovich, A.; Fridman, A.; Starikovsky, A.; Gutsol, A.; Potter, R.W. Dissociation of H2S in non-equilibrium gliding arc “tornado” discharge. Int. J. Hydrogen Energy 2009, 34, 7618–7625. [Google Scholar] [CrossRef]
  65. Mousavi, S.M.A.; Piavis, W.; Turn, S. Reforming of biogas using a non-thermal, gliding-arc, plasma in reverse vortex flow and fate of hydrogen sulfide contaminants. Fuel Process. Technol. 2019, 193, 378–391. [Google Scholar] [CrossRef]
  66. Zhao, L.; Wang, Y.; Li, X.; Wang, A.; Song, C.; Hu, Y. Hydrogen production via decomposition of hydrogen sulfide by synergy of non-thermal plasma and semiconductor catalysis. Int. J. Hydrogen Energy 2013, 38, 14415–14423. [Google Scholar] [CrossRef]
  67. Zhao, L.; Wang, Y.; Jin, L.; Qin, M.; Li, X.; Wang, A.; Song, C.; Hu, Y. Decomposition of hydrogen sulfide in non-thermal plasma aided by supported CdS and ZnS semiconductors. Green Chem. 2013, 15, 1509–1513. [Google Scholar] [CrossRef]
  68. Wang, Y.; Zhao, L.; Sun, Z.; Li, X.; Wang, A.; Song, C.; Hu, Y. Decomposition of hydrogen sulfide in non-thermal plasma aided by supported ZnxCd1-xS solid solutions. Int. J. Plasma Environ. Sci. Technol. 2014, 8, 136–142. [Google Scholar] [CrossRef]
  69. Zhao, L.; Wang, Y.; Wang, A.; Li, X.; Song, C.; Hu, Y. Cr–doped ZnS semiconductor catalyst with high catalytic activity for hydrogen production from hydrogen sulfide in non-thermal plasma. Catalysis Today 2019, 337, 83–89. [Google Scholar] [CrossRef]
  70. Zhao, L.; Liu, X.; Mu, X.; Li, Y.; Fang, K. Highly selective conversion of H2S–CO2 to syngas by combination of non-thermal plasma and MoS2/Al2O3. J. CO2 Util. 2020, 37, 45–54. [Google Scholar] [CrossRef]
  71. Linga Reddy, E.; Karuppiah, J.; Renken, A.; Kiwi-Minsker, L.; Subrahmanyam, C. Kinetics of the Decomposition of Hydrogen Sulfide in a Dielectric Barrier Discharge Reactor. Chem. Eng. Technol. 2012, 35, 2030–2034. [Google Scholar] [CrossRef]
  72. Ning, P.; Liu, S.; Wang, C.; Li, K.; Sun, X.; Tang, L.; Liu, G. Adsorption-oxidation of hydrogen sulfide on Fe/walnut-shell activated carbon surface modified by NH3-plasma. J. Environ. Sci. 2018, 64, 216–226. [Google Scholar] [CrossRef]
  73. Li, K.; Liu, S.; Song, X.; Wang, C.; Ning, P.; Fan, M.; Sun, X. Catalytic Oxidation of Hydrogen Sulfide on Fe/WSAC Catalyst Surface Modification via NH3-NTP: Influence of Gas Gap and Dielectric Thickness. Ind. Eng. Chem. Res. 2018, 57, 2873–2881. [Google Scholar] [CrossRef]
  74. Xuan, K.; Zhu, X.; Cai, Y.; Tu, X. Plasma Oxidation of H2S over Non-stoichiometric LaxMnO3 Perovskite Catalysts in a Dielectric Barrier Discharge Reactor. Catalysts 2018, 8, 317. [Google Scholar] [CrossRef][Green Version]
  75. Dang, X.; Huang, J.; Kang, L.; Wu, T.; Zhang, Q. Research on Decomposition of Hydrogen Sulfide Using Nonthermal Plasma with Metal Oxide Catalysis. Energy Procedia 2012, 16, 856–862. [Google Scholar] [CrossRef][Green Version]
  76. Liang, C.; Cai, Y.; Li, K.; Luo, Y.; Qian, Z.; Chu, G.W.; Chen, J.F. Using dielectric barrier discharge and rotating packed bed reactor for NOx removal. Sep. Purif. Technol. 2020, 235, 116141. [Google Scholar] [CrossRef]
  77. Gholami, F.; Tomas, M.; Gholami, Z.; Vakili, M. Technologies for the nitrogen oxides reduction from flue gas: A review. Sci. Total Environ. 2020, 714, 136712. [Google Scholar] [CrossRef] [PubMed]
  78. Mladenovi, M.; Paprika, M.; Marinkovi, A. Denitrification techniques for biomass combustion. Renew. Sustain. Energy Rev. 2018, 82, 3350–3364. [Google Scholar] [CrossRef]
  79. Wang, Z.; Kuang, H.; Zhang, J.; Chu, L.; Ji, Y. Nitrogen oxide removal by non-thermal plasma for marine diesel engines. RSC Adv. 2019, 9, 5402–5416. [Google Scholar] [CrossRef][Green Version]
  80. Stere, C.E.; Adress, W.; Burch, R.; Chansai, S.; Goguet, A.; Graham, W.G.; de Rosa, F.; Palma, V.; Hardacre, C. Ambient temperature hydrocarbon selective catalytic reduction of NOx using atmospheric pressure nonthermal plasma activation of a Ag/Al2O3 catalyst. ACS Catal. 2014, 4, 666–673. [Google Scholar] [CrossRef][Green Version]
  81. Nguyen, D.B.; Nguyen, V.T.; Heo, I.J.; Mok, Y.S. Removal of NOx by selective catalytic reduction coupled with plasma under temperature fluctuation condition. J. Ind. Eng. Chem. 2019, 72, 400–407. [Google Scholar] [CrossRef]
  82. Wang, H.; Cao, Y.; Chen, Z.; Yu, Q.; Wu, S. High-efficiency removal of NOx over natural mordenite using an enhanced plasma-catalytic process at ambient temperature. Fuel 2018, 224, 323–330. [Google Scholar] [CrossRef]
  83. Zhang, Z.S.; Crocker, M.; Chen, B.B.; Wang, X.K.; Bai, Z.F.; Shi, C. Non-thermal plasma-assisted NOx storage and reduction over cobalt-containing LNT catalysts. Catal. Today 2015, 258, 386–395. [Google Scholar] [CrossRef][Green Version]
  84. Zhang, Z.S.; Crocker, M.; Chen, B.B.; Bai, Z.F.; Wang, X.K.; Shi, C. Pt-free, non-thermal plasma-assisted NOx storage and reduction over M/Ba/Al2O3 (M = Mn, Fe, Co, Ni, Cu) catalysts. Catal. Today 2015, 256, 115–123. [Google Scholar] [CrossRef][Green Version]
  85. Zhang, Z.S.; Crocker, M.; Yu, L.M.; Wang, X.K.; Bai, Z.F.; Shi, C. Non-thermal plasma assisted NOx storage and reduction over a cobalt-containing Pd catalyst using H2 and/or CO as reductants. Catal. Today 2015, 258, 175–182. [Google Scholar] [CrossRef][Green Version]
  86. Bai, Z.; Zhang, Z.; Chen, B.; Zhao, Q.; Crocker, M.; Shi, C. Non-thermal plasma enhanced NSR performance over Pt/M/Ba/Al2O3 (M = Mn, Co, Cu) catalysts. Chem. Eng. J. 2017, 314, 688–699. [Google Scholar] [CrossRef][Green Version]
  87. Yu, Q.; Wang, H.; Liu, T.; Xiao, L.; Jiang, X.; Zheng, X. High-efficiency removal of NOx using a combined adsorption-discharge plasma catalytic process. Environ. Sci. Technol. 2012, 46, 2337–2344. [Google Scholar] [CrossRef] [PubMed]
  88. Li, D.; Tang, X.; Yi, H.; Ma, D.; Gao, F. NOx Removal over Modified Carbon Molecular Sieve Catalysts Using a Combined Adsorption-Discharge Plasma Catalytic Process. Ind. Eng. Chem. Res. 2015, 54, 9097–9103. [Google Scholar] [CrossRef]
  89. Pan, H.; Guo, Y.; Jian, Y.; He, C. Synergistic Effect of Non-thermal Plasma on NOx Reduction by CH4 over an In/H-BEA Catalyst at Low Temperatures. Energy Fuel 2015, 29, 5282–5289. [Google Scholar] [CrossRef]
  90. Kim, G.T.; Seo, B.H.; Lee, W.J.; Park, J.; Kim, M.K.; Lee, S.M. Effects of applying non-thermal plasma on combustion stability and emissions of NOx and CO in a model gas turbine combustor. Fuel 2017, 194, 321–328. [Google Scholar] [CrossRef]
  91. Paulauskas, R.; Jogi, I.; Striugas, N.; Martuzevičius, D.; Erme, K.; Raud, J.; Tichonovas, M. Application of non-thermal plasma for NOx reduction in the flue gases. Energies 2019, 12, 3955. [Google Scholar] [CrossRef][Green Version]
  92. Hashim, S.A.; Samsudin, F.N.D.b.; Wong, C.S.; Bakar, A.K.; Yap, S.L.; Zin, M.M.F. Non-thermal plasma for air and water remediation. Arch. Biochem. Biophys. 2016, 605, 34–40. [Google Scholar] [CrossRef]
  93. Guo, X.; Xu, Y.; Chen, M.; Du, D. Study on the Performance of NTP with Wood Fiber in NO Removal. Plasma Chem. Plasma Process. 2020, 40, 921–936. [Google Scholar] [CrossRef]
  94. Wang, T.; Sun, B. Effect of temperature and relative humidity on NOX removal by dielectric barrier discharge with acetylene. Fuel Process. Technol. 2016, 144, 109–114. [Google Scholar] [CrossRef]
  95. Adnan, Z.; Mir, S.; Habib, M. Exhaust gases depletion using non-thermal plasma (NTP). Atmos. Pollut. Res. 2017, 8, 338–343. [Google Scholar] [CrossRef]
  96. Yoon, H.J.; Park, H.W.; Park, D.W. Simultaneous Oxidation and Absorption of NOx and SO2 in an Integrated O3 Oxidation/Wet Atomizing System. Energy Fuel 2016, 30, 3289–3297. [Google Scholar] [CrossRef]
  97. Kang, M.S.; Shin, J.; Yu, T.U.; Hwang, J. Simultaneous removal of gaseous NOx and SO2 by gas-phase oxidation with ozone and wet scrubbing with sodium hydroxide. Chem. Eng. J. 2020, 381, 122601. [Google Scholar] [CrossRef]
  98. Rossomando, B.; Arsie, I.; Meloni, E.; Palma, V.; Pianese, C. Experimental Test on the Feasibility of Passive Regeneration in a Catalytic DPF at the Exhaust of a Light-Duty Diesel Engine; SAE Technical Paper, No. 2019-24-0045; SAE International: Warrendale, PA, USA, 2019. [Google Scholar] [CrossRef]
  99. Palma, V.; Barba, D.; Cortese, M.; Martino, M.; Renda, S.; Meloni, E. Microwaves and heterogeneous catalysis: A review on selected catalytic processes. Catalysts 2020, 10, 246. [Google Scholar] [CrossRef][Green Version]
  100. Palma, V.; Meloni, E. Microwave assisted regeneration of a catalytic diesel soot trap. Fuel 2016, 181, 421–429. [Google Scholar] [CrossRef]
  101. Rossomando, B.; Arsie, I.; Meloni, E.; Palma, V.; Pianese, C. Experimental Testing of a Low Temperature Regenerating Catalytic DPF at the Exhaust of a Light-Duty Diesel Engine; SAE Technical Paper, No. 2018-01-0351; SAE International: Warrendale, PA, USA, 2018. [Google Scholar] [CrossRef]
  102. Ranji-Burachaloo, H.; Masoomi-Godarzi, S.; Khodadadi, A.A.; Mortazavi, Y. Synergetic effects of plasma and metal oxide catalysts on diesel soot oxidation. Appl. Catal. B Environ. 2016, 182, 74–84. [Google Scholar] [CrossRef]
  103. Thomas, S.E.; Martin, A.R.; Raybone, D.; Shawcross, J.T.; Ng, K.L.; Beech, P.; Whitehead, J.C. Non Thermal Plasma Aftertreatment of Particulates—Theoretical Limits and Impact on Reactor Design; SAE Technical Paper; SAE International: Warrendale, PA, USA, 2000; Volume 109, pp. 1594–1606. [Google Scholar] [CrossRef]
  104. Yao, S.; Shen, X.; Zhang, X.; Han, J.; Wu, Z.; Tang, X.; Lu, H.; Jiang, B. Sustainable removal of particulate matter from diesel engine exhaust at low temperature using a plasma-catalytic method. Chem. Eng. J. 2017, 327, 343–350. [Google Scholar] [CrossRef]
  105. Zhang, M.; Jin, B.; Liu, Y.; Liu, W.; Weng, D.; Wu, X.; Liu, S. Ozone activated Ag/CeO2 catalysts for soot combustion: The surface and structural influences. Chem. Eng. J. 2019, 375, 121961. [Google Scholar] [CrossRef]
  106. Yao, S.; Shen, X.; Lu, H.; Ni, D.; Tang, X.; Wu, Z.; Han, J.; Zhang, X. Metal sulfates enhanced plasma oxidization of diesel particulate matter. IEEE Trans. Plasma Sci. 2017, 45, 2084–2087. [Google Scholar] [CrossRef]
  107. Nguyen, V.T.; Nguyen, D.B.; Heo, I.; Mok, Y.S. Plasma-assisted selective catalytic reduction for low-temperature removal of NOx and soot simulant. Catalysts 2019, 9, 853. [Google Scholar] [CrossRef][Green Version]
  108. Ashford, B.; Tu, X. Non-thermal plasma technology for the conversion of CO2. Curr. Opin. Green Sustain. Chem. 2017, 3, 45–49. [Google Scholar] [CrossRef][Green Version]
  109. Nozaki, T.; Okazaki, K. Non-thermal plasma catalysis of methane: Principles, energy efficiency, and applications. Catal. Today 2013, 211, 29–38. [Google Scholar] [CrossRef]
  110. Aitani, A.M.; Ahmed, S.; Al-Muhaish, F. Thermochemical Hydrogen Production-Plasma-Based Production of Hydrogen from Hydrocarbons. In Hydrogen Science and Engineering; Stolten, D., Emonts, B., Eds.; Wiley-VCH: Weinheim, Germany, 2016; p. 131. [Google Scholar]
  111. Petitpas, G.; Rollier, J.D.; Darmon, A.; Gonzalez-Aguilar, J.; Metkemeijer, R.; Fulcheri, L. A comparative study of non-thermal plasma assisted reforming technologies. Int. J. Hydrogen Energy 2007, 32, 2848–2867. [Google Scholar] [CrossRef]
  112. Khoja, A.H.; Tahir, M.; Amin, N.A.S. Recent developments in non-thermal catalytic DBD plasma reactor for dry reforming of methane. Energy Convers. Manag. 2019, 183, 529–560. [Google Scholar] [CrossRef]
  113. Scapinello, M.; Delikonstantis, E.; Stefanidis, G.D. The panorama of plasma-assisted non-oxidative methane reforming. Chem. Eng. Process. Process. Intensif. 2017, 117, 120–140. [Google Scholar] [CrossRef]
  114. Chung, W.C.; Chang, M.B. Review of catalysis and plasma performance on dry reforming of CH4 and possible synergistic effects. Renew. Sustain. Energy Rev. 2016, 62, 13–31. [Google Scholar] [CrossRef]
  115. Lu, N.; Bao, X.; Jiang, N.; Shang, K.; Li, J.; Wu, Y. Non-Thermal Plasma-Assisted Catalytic Dry Reforming of Methane and Carbon Dioxide Over G-C3N4-Based Catalyst. Top. Catal. 2017, 60, 855–868. [Google Scholar] [CrossRef]
  116. Khoja, A.H.; Tahir, M.; Amin, N.A.S. Cold plasma dielectric barrier discharge reactor for dry reforming of methane over Ni/ɤ-Al2O3-MgO nanocomposite. Fuel Process. Technol. 2018, 178, 166–179. [Google Scholar] [CrossRef]
  117. Khoja, A.H.; Tahir, M.; Amin, N.A.S. Evaluating the Performance of a Ni Catalyst Supported on La2O3-MgAl2O4 for Dry Reforming of Methane in a Packed Bed Dielectric Barrier Discharge Plasma Reactor. Energy Fuels 2019, 33, 11630–11647. [Google Scholar] [CrossRef]
  118. Khoja, A.H.; Tahir, M.; Amin, N.A.S.; Javed, A.; Mehran, M.T. Kinetic study of dry reforming of methane using hybrid DBD plasma reactor over La2O3 co-supported Ni/MgAl2O4 catalyst. Int. J. Hydrogen Energy 2020, 45, 12256–12271. [Google Scholar] [CrossRef]
  119. Mahammadunnisa, S.K.; Manoj Kumar Reddy, P.; Ramaraju, B.; Subrahmanyam, C.H. Catalytic nonthermal plasma reactor for dry reforming of methane. Energy Fuels 2013, 27, 4441–4447. [Google Scholar] [CrossRef]
  120. Chung, W.C.; Pan, K.L.; Lee, H.M.; Chang, M.B. Dry reforming of methane with dielectric barrier discharge and ferroelectric packed-bed reactors. Energy Fuels 2014, 28, 7621–7631. [Google Scholar] [CrossRef]
  121. Mei, D.H.; Liu, S.Y.; Tu, X. CO2 reforming with methane for syngas production using a dielectric barrier discharge plasma coupled with Ni/γ-Al2O3 catalysts: Process optimization through response surface methodology. J. CO2 Util. 2017, 21, 314–326. [Google Scholar] [CrossRef]
  122. Yap, D.; Tatibouët, J.M.; Batiot-Dupeyrat, C. Catalyst assisted by non-thermal plasma in dry reforming of methane at low temperature. Catal. Today 2018, 299, 263–271. [Google Scholar] [CrossRef]
  123. Wang, H.; Han, J.; Bo, Z.; Qin, L.; Wang, Y.; Yu, F. Non-thermal plasma enhanced dry reforming of CH4 with CO2 over activated carbon supported Ni catalysts. Mol. Catal. 2019, 475. [Google Scholar] [CrossRef]
  124. Nguyen, D.B.; Trinh, Q.H.; Hossain, M.M.; Lee, W.G.; Mok, Y.S. Enhancement of plasma-assisted catalytic CO2 reforming of CH4 to syngas by avoiding outside air discharges from ground electrode. Int. J. Hydrogen Energy 2019, in press. [Google Scholar] [CrossRef]
  125. Wang, H.; Zhao, B.; Qin, L.; Wang, Y.; Yu, F.; Han, J. Non-thermal plasma-enhanced dry reforming of methane and CO2 over Ce-promoted Ni/C catalysts. Mol. Catal. 2020, 485, 110821. [Google Scholar] [CrossRef]
  126. Vakili, R.; Gholami, R.; Stere, C.E.; Chansai, S.; Chen, H.; Holmes, S.M.; Jiao, Y.; Hardacre, C.; Fan, X. Plasma-assisted catalytic dry reforming of methane (DRM) over metal-organic frameworks (MOFs)-based catalysts. Appl. Catal. B Environ. 2020, 260, 118195. [Google Scholar] [CrossRef]
  127. Vakili, R.; Xu, S.; Al-Janabi, N.; Gorgojo, P.; Holmes, S.M.; Fan, X. Microwave-assisted synthesis of zirconium-based metal organic frameworks (MOFs): Optimization and gas adsorption. Microporous Mesoporous Mater. 2018, 260, 45–53. [Google Scholar] [CrossRef]
  128. Zheng, X.; Tan, S.; Dong, L.; Li, S.; Chen, H. Silica-coated LaNiO3 nanoparticles for non-thermal plasma assisted dry reforming of methane: Experimental and kinetic studies. Chem. Eng. J. 2015, 265, 147–156. [Google Scholar] [CrossRef]
  129. Gholami, T.; Salavati-Niasari, M.; Bazarganipour, M.; Noor, E. Synthesis and characterization of spherical silica nanoparticles by modified Stöber process assisted by organic ligand. Superlattices Microstruct. 2013, 61, 33–41. [Google Scholar] [CrossRef]
  130. Bouchoul, N.; Fourré, E.; Tatibouët, J.M.; Duarte, A.; Tanchoux, N.; Batiot-Dupeyrat, C. Structural modifications of calcium based catalysts by non-thermal plasma in the CO2 reforming of CH4 and the influence of water. J. CO2 Util. 2020, 35, 79–89. [Google Scholar] [CrossRef]
  131. Mustafa, M.F.; Fu, X.; Lu, W.; Liu, Y.; Abbas, Y.; Wang, H.; Arslan, M.T. Application of non-thermal plasma technology on fugitive methane destruction: Configuration and optimization of double dielectric barrier discharge reactor. J. Clean. Prod. 2018, 174, 670–677. [Google Scholar] [CrossRef]
  132. Tan, Z.; Ai, P. CO2 reforming of biogas to obtain synthesis gas using non-thermal plasma. J. Energy Inst. 2017, 90, 864–874. [Google Scholar] [CrossRef]
  133. Martin-del-Campo, J.; Coulombe, S.; Kopyscinski, J. Influence of Operating Parameters on Plasma-Assisted Dry Reforming of Methane in a Rotating Gliding Arc Reactor. Plasma Chem. Plasma Process. 2020, 40, 857–881. [Google Scholar] [CrossRef]
  134. Renda, S.; Ricca, A.; Palma, V. Study of the effect of noble metal promotion in Ni-based catalyst for the Sabatier reaction. Int. J. Hydrogen Energy 2020, in press. [Google Scholar] [CrossRef]
  135. Ricca, A.; Truda, L.; Palma, V. Study of the role of chemical support and structured carrier on the CO2 methanation reaction. Chem. Eng. J. 2019, 377, 120461. [Google Scholar] [CrossRef]
  136. Dębek, R.; Azzolina-Jury, F.; Travert, A.; Maugé, F. A review on plasma-catalytic methanation of carbon dioxide—Looking for an efficient catalyst. Renew. Sustain. Energy Rev. 2019, 116. [Google Scholar] [CrossRef]
  137. Sivachandiran, L.; Da Costa, P.; Khacef, A. CO2 reforming in CH4 over Ni/γ-Al2O3 nano catalyst: Effect of cold plasma surface discharge. Appl. Surf. Sci. 2020, 501, 144175. [Google Scholar] [CrossRef]
  138. Ahmad, F.; Lovell, E.C.; Masood, H.; Cullen, P.J.; Ostrikov, K.K.; Scott, J.A.; Amal, R. Low-Temperature CO2 Methanation: Synergistic Effects in Plasma-Ni Hybrid Catalytic System. ACS Sustain. Chem. Eng. 2020, 8, 1888–1898. [Google Scholar] [CrossRef]
  139. Wang, B.; Mikhail, M.; Galvez, M.E.; Cavadias, S.; Tatoulian, M.; da Costa, P.; Ognier, S. Coupling experiment and simulation analysis to investigate physical parameters of CO2 methanation in a plasma-catalytic hybrid process. Plasma Process. Polym. 2020, e1900261. [Google Scholar] [CrossRef]
  140. Chen, H.; Mu, Y.; Shao, Y.; Chansai, S.; Xiang, H.; Jiao, Y.; Hardacre, C.; Fan, X. Nonthermal plasma (NTP) activated metal–organic frameworks (MOFs) catalyst for catalytic CO2 hydrogenation. AIChE J. 2019, 66, e16853. [Google Scholar] [CrossRef]
  141. Biset-Peiró, M.; Mey, R.; Guilera, J.; Andreu, T. Adiabatic plasma-catalytic reactor configuration: Energy efficiency enhancement by plasma and thermal synergies on CO2 methanation. Chem. Eng. J. 2020, 393, 124786. [Google Scholar] [CrossRef]
  142. Li, S.; Dang, X.; Yu, X.; Abbas, G.; Zhang, Q.; Cao, L. The application of dielectric barrier discharge non-thermal plasma in VOCs abatement: A review. Chem. Eng. J. 2020, 388, 124275. [Google Scholar] [CrossRef]
  143. Krishnamurthy, A.; Adebayo, B.; Gelles, T.; Rownaghi, A.; Rezaei, F. Abatement of gaseous volatile organic compounds: A process perspective. Catal. Today 2020, 350, 100–119. [Google Scholar] [CrossRef]
  144. Schiavon, M.; Torretta, V.; Casazza, A.; Ragazzi, M. Non-thermal Plasma as an Innovative Option for the Abatement of Volatile Organic Compounds: A Review. Water Air Soil Pollut. 2017, 228, 388. [Google Scholar] [CrossRef]
  145. Khadem, A.; Khani, M.R.; Hosseini rad, R.; Shokri, B.; Rashnoo, S.; Ghobadian, B. Experimental analysis of volatile organic compounds conversion by a dielectric barrier discharge reactor to study the main products: Hydrogen, CO, CO2, NOx and hydrocarbons. Chem. Eng. Process. Process. Intensif. 2019, 145, 107660. [Google Scholar] [CrossRef]
  146. Subrahmanyam, C.; Magureanu, M.; Renken, A.; Kiwi-Minsker, L. Catalytic abatement of volatile organic compounds assisted by non-thermal plasma. Part 1. A novel dielectric barrier discharge reactor containing catalytic electrode. Appl. Catal. B Environ. 2006, 65, 150–156. [Google Scholar] [CrossRef][Green Version]
  147. Subrahmanyam, C.; Renken, A.; Kiwi-Minsker, L. Novel catalytic non-thermal plasma reactor for the abatement of VOCs. Chem. Eng. J. 2007, 134, 78–83. [Google Scholar] [CrossRef]
  148. Abedi, K.; Ghorbani-Shahna, F.; Jaleh, B.; Bahrami, A.; Yarahmadi, R.; Haddadi, R.; Gandomi, M. Decomposition of chlorinated volatile organic compounds (CVOCs) using NTP coupled with TiO2/GAC, ZnO/GAC, and TiO2-ZnO/GAC in a plasma-assisted catalysis system. J. Electrost. 2015, 73, 80–88. [Google Scholar] [CrossRef]
  149. Karuppiah, J.; Linga Reddy, E.; Manoj Kumar Reddy, P.; Ramaraju, B.; Karvembu, R.; Subrahmanyam, C. Abatement of mixture of volatile organic compounds (VOCs) in a catalytic non-thermal plasma reactor. J. Hazard. Mater. 2012, 237, 283–289. [Google Scholar] [CrossRef] [PubMed]
  150. Dou, B.; Bin, F.; Wang, C.; Jia, Q.; Li, J. Discharge characteristics and abatement of volatile organic compounds using plasma reactor packed with ceramic Raschig rings. J. Electrost. 2013, 71, 939–944. [Google Scholar] [CrossRef][Green Version]
  151. Zheng, M.; Yu, D.; Duan, L.; Yu, W.; Huang, L. In-situ fabricated CuO nanowires/Cu foam as a monolithic catalyst for plasma-catalytic oxidation of toluene. Catal. Commun. 2017, 100, 187–190. [Google Scholar] [CrossRef]
  152. Li, S.; Yu, X.; Dang, X.; Guo, H.; Liu, P.; Qin, C. Using non-thermal plasma for decomposition of toluene adsorbed on γ-Al2O3 and ZSM-5: Configuration and optimization of a double dielectric barrier discharge reactor. Chem. Eng. J. 2019, 375, 122027. [Google Scholar] [CrossRef]
  153. Trinh, Q.H.; Mok, Y.S. Non-Thermal Plasma Combined with Cordierite-Supported Mn and Fe Based Catalysts for the Decomposition of Diethylether. Catalysts 2015, 5, 800–814. [Google Scholar] [CrossRef][Green Version]
  154. Vandenbroucke, A.M.; Nguyen Dinh, M.T.; Nuns, N.; Giraudon, J.-M.; De Geyter, N.; Leys, C.; Lamonier, J.-F.; Morent, R. Combination of non-thermal plasma and Pd/LaMnO3 for dilute trichloroethylene abatement. Chem. Eng. J. 2016, 283, 668–675. [Google Scholar] [CrossRef]
  155. Vandenbroucke, A.M.; Morent, R.; De Geyter, N.; Leys, C. Non-thermal plasmas for non-catalytic and catalytic VOC abatement. J. Hazard. Mater. 2011, 195, 30–54. [Google Scholar] [CrossRef]
  156. Preis, S.; Klauson, D.; Gregor, A. Potential of electric discharge plasma methods in abatement of volatile organic compounds originating from the food industry. J. Environ. Manage. 2013, 114, 125–138. [Google Scholar] [CrossRef]
  157. Zhang, Z.; Jiang, Z.; Shangguan, W. Low-temperature catalysis for VOCs removal in technology and application: A state-of-the-art review. Catal. Today 2016, 264, 270–278. [Google Scholar] [CrossRef]
  158. Lu, W.; Abbas, Y.; Mustafa, M.F.; Pan, C.; Wang, H. A review on application of dielectric barrier discharge plasma technology on the abatement of volatile organic compounds. Front. Environ. Sci. Eng. 2019, 13, 30. [Google Scholar] [CrossRef]
  159. Veerapandian, S.K.P.; De Geyter, N.; Giraudon, J.-M.; Lamonier, J.-F.; Morent, R. The Use of Zeolites for VOCs Abatement by Combining Non-Thermal Plasma, Adsorption, and/or Catalysis: A Review. Catalysts 2019, 9, 98. [Google Scholar] [CrossRef][Green Version]
  160. Lee, J.E.; Ok, Y.S.; Tsang, D.C.W.; Song, J.; Jung, S.-C.; Park, Y.-K. Recent advances in volatile organic compounds abatement by catalysis and catalytic hybrid processes: A critical review. Sci. Total Environ. 2020, 719, 137405. [Google Scholar] [CrossRef] [PubMed]
Figure 1. Some typical dielectric barrier discharge (DBD) reactor configurations. (a) Planar; (b) cylindrical; (c) two discharge types of surface discharge and coplanar [6].
Figure 1. Some typical dielectric barrier discharge (DBD) reactor configurations. (a) Planar; (b) cylindrical; (c) two discharge types of surface discharge and coplanar [6].
Nanomaterials 10 01596 g001
Figure 2. Schematic diagram of a packed-bed nonthermal plasma (NTP) reactor and its cross-sectional view (a) Power source; (b) packing material in discharge gap; (c) dielectric barrier; (d) high voltage (or powered electrode) and (e) ground electrode [9].
Figure 2. Schematic diagram of a packed-bed nonthermal plasma (NTP) reactor and its cross-sectional view (a) Power source; (b) packing material in discharge gap; (c) dielectric barrier; (d) high voltage (or powered electrode) and (e) ground electrode [9].
Nanomaterials 10 01596 g002
Figure 3. Flow scheme of the Haber–Bosch process [11].
Figure 3. Flow scheme of the Haber–Bosch process [11].
Nanomaterials 10 01596 g003
Figure 4. Suggested reaction mechanisms of plasma-phase ammonia synthesis. (a) plasma-phase ammonia synthesis; (b) Surface-enhanced plasma-driven ammonia synthesis; (c) plasma-enhanced semicatalytic ammonia synthesis; (d) plasma-enhanced catalytic ammonia synthesis [18]. Reproduced with permission from Kevin H. R. Rouwenhorst, Hyun-Ha Kim, and Leon Lefferts, ACS Sustainable Chem. Eng.; published by American Chemical Society, 2019.
Figure 4. Suggested reaction mechanisms of plasma-phase ammonia synthesis. (a) plasma-phase ammonia synthesis; (b) Surface-enhanced plasma-driven ammonia synthesis; (c) plasma-enhanced semicatalytic ammonia synthesis; (d) plasma-enhanced catalytic ammonia synthesis [18]. Reproduced with permission from Kevin H. R. Rouwenhorst, Hyun-Ha Kim, and Leon Lefferts, ACS Sustainable Chem. Eng.; published by American Chemical Society, 2019.
Nanomaterials 10 01596 g004
Figure 5. Nitrogen conversion and ammonia concentration as function of the plasma power consumption. Process conditions: H2/N2 = 3/1, flow rate = 25 mL min−1, wall power = 87 W, wall temperature = 130 °C [27]. Adapted with permission from Galip Akay, Kui Zhang, Industrial & Engineering Chemistry Research; published by American Chemical Society, 2017.
Figure 5. Nitrogen conversion and ammonia concentration as function of the plasma power consumption. Process conditions: H2/N2 = 3/1, flow rate = 25 mL min−1, wall power = 87 W, wall temperature = 130 °C [27]. Adapted with permission from Galip Akay, Kui Zhang, Industrial & Engineering Chemistry Research; published by American Chemical Society, 2017.
Nanomaterials 10 01596 g005
Figure 6. (a) Time on stream test over 5% Co/Al2O3, T = 200 °C, power = 10 W, flow rate 50 Sccm, N2/H2 = 3; (b) particle size distribution before and after the test; (c) TEM image before the test; (d) TEM image after the test [33]. Adapted with permission from Patrick Barboun, Prateek Mehta, Francisco A. Herrera, et al., ACS Sustainable Chemistry & Engineering; published by American Chemical Society, 2019.
Figure 6. (a) Time on stream test over 5% Co/Al2O3, T = 200 °C, power = 10 W, flow rate 50 Sccm, N2/H2 = 3; (b) particle size distribution before and after the test; (c) TEM image before the test; (d) TEM image after the test [33]. Adapted with permission from Patrick Barboun, Prateek Mehta, Francisco A. Herrera, et al., ACS Sustainable Chemistry & Engineering; published by American Chemical Society, 2019.
Nanomaterials 10 01596 g006
Figure 7. Catalytic activity of the metal-wool electrodes as function of the run number. Reaction conditions: applied voltage = 5 kV; frequency 50 kHz; electrode length = 150 mm; wool-like metal = 61.3 cm2; flow rate = 100 mL min−1; H2/N2 = 1 [34]. Adapted with permission from Masakazu Iwamoto, Mao Akiyama, Keigo Aihara, et al., ACS Catalysis; published by American Chemical Society, 2017.
Figure 7. Catalytic activity of the metal-wool electrodes as function of the run number. Reaction conditions: applied voltage = 5 kV; frequency 50 kHz; electrode length = 150 mm; wool-like metal = 61.3 cm2; flow rate = 100 mL min−1; H2/N2 = 1 [34]. Adapted with permission from Masakazu Iwamoto, Mao Akiyama, Keigo Aihara, et al., ACS Catalysis; published by American Chemical Society, 2017.
Nanomaterials 10 01596 g007
Figure 8. Schematic diagram of the process for the coproduction of ammonia and hydrogen using a plasma-assisted process [37]. Reproduced with permission from M.M. Sarafraz, N.N. Tran, N. Pourali, E.V. Rebrov, V. Hessel, Energy Conversion and Management; published by Elsevier, 2020.
Figure 8. Schematic diagram of the process for the coproduction of ammonia and hydrogen using a plasma-assisted process [37]. Reproduced with permission from M.M. Sarafraz, N.N. Tran, N. Pourali, E.V. Rebrov, V. Hessel, Energy Conversion and Management; published by Elsevier, 2020.
Nanomaterials 10 01596 g008
Figure 9. SO2 conversion with various packings [51]; 1% SO2, 4% H2 or CH4, N2 balance, flow rate = 100 mL min−1 at 150 °C, 1 atm and 10-W DBD plasma. Adapted with permission from Mohammad S. AlQahtani, Sean D. Knecht, Xiaoxing Wang, et al., ACS Catalysis; published by American Chemical Society, 2020.
Figure 9. SO2 conversion with various packings [51]; 1% SO2, 4% H2 or CH4, N2 balance, flow rate = 100 mL min−1 at 150 °C, 1 atm and 10-W DBD plasma. Adapted with permission from Mohammad S. AlQahtani, Sean D. Knecht, Xiaoxing Wang, et al., ACS Catalysis; published by American Chemical Society, 2020.
Nanomaterials 10 01596 g009
Figure 10. SO2 oxidation fraction for a pulsed streamer corona plasma in the presence of TiO2 and various additives [44]; flowrate of 1 L min−1, 906 ppm (N2 basis), O2: 2.1%; H2O: 0.18%; H2O2: 0.055%; plasma applied of 12.5 kV, 1 atm, 25 °C. Adapted with permission from Heejoon Kim, Akira Mizuno, Yuhei Sakaguchi, et al., Energy & Fuels; published by American Chemical Society, 2002.
Figure 10. SO2 oxidation fraction for a pulsed streamer corona plasma in the presence of TiO2 and various additives [44]; flowrate of 1 L min−1, 906 ppm (N2 basis), O2: 2.1%; H2O: 0.18%; H2O2: 0.055%; plasma applied of 12.5 kV, 1 atm, 25 °C. Adapted with permission from Heejoon Kim, Akira Mizuno, Yuhei Sakaguchi, et al., Energy & Fuels; published by American Chemical Society, 2002.
Nanomaterials 10 01596 g010
Figure 11. H2S conversion over Crx–ZnS/Al2O3 catalysts in a DBD reactor [69]; 10 kHz, 20 vol% H2S in Ar, GHSV = 120 h−1, 1 atm, 120 °C. Adapted with permission fromLu Zhao, Yao Wang, Anjie Wang, Xiang Li, Chunshan Song, Yongkang Hu, Catalysis Today; published by Elsevier, 2019.
Figure 11. H2S conversion over Crx–ZnS/Al2O3 catalysts in a DBD reactor [69]; 10 kHz, 20 vol% H2S in Ar, GHSV = 120 h−1, 1 atm, 120 °C. Adapted with permission fromLu Zhao, Yao Wang, Anjie Wang, Xiang Li, Chunshan Song, Yongkang Hu, Catalysis Today; published by Elsevier, 2019.
Nanomaterials 10 01596 g011
Figure 12. (a) H2S removal efficiency and (b) sulfur balance during hydrogen sulfide oxidation in a DBD reactor [74]; 10 kHz, 2 L min−1 of air containing 100 ppm of H2S, 1 atm, 80 °C.
Figure 12. (a) H2S removal efficiency and (b) sulfur balance during hydrogen sulfide oxidation in a DBD reactor [74]; 10 kHz, 2 L min−1 of air containing 100 ppm of H2S, 1 atm, 80 °C.
Nanomaterials 10 01596 g012
Figure 13. Advantages and disadvantages of the main NOx-removal technologies [77]. Adapted with permission from Fatemeh Gholami, Martin Tomas, Zahra Gholami, Mohammadtaghi Vakili, Science of The Total Environment; published by Elsevier, 2020.
Figure 13. Advantages and disadvantages of the main NOx-removal technologies [77]. Adapted with permission from Fatemeh Gholami, Martin Tomas, Zahra Gholami, Mohammadtaghi Vakili, Science of The Total Environment; published by Elsevier, 2020.
Nanomaterials 10 01596 g013
Figure 14. Scheme of the experimental non-thermal plasma (NTP) setup realized by Adnan et al. [95]. Reproduced with permission from Zulfam Adnan, Sadullah Mir, Mudassar Habib, Atmospheric Pollution Research; published by Elsevier, 2017.
Figure 14. Scheme of the experimental non-thermal plasma (NTP) setup realized by Adnan et al. [95]. Reproduced with permission from Zulfam Adnan, Sadullah Mir, Mudassar Habib, Atmospheric Pollution Research; published by Elsevier, 2017.
Nanomaterials 10 01596 g014
Figure 15. Mechanism of the plasma particulate matter (PM) oxidation enhanced by the metal sulfate proposed by Yao et al. [106].
Figure 15. Mechanism of the plasma particulate matter (PM) oxidation enhanced by the metal sulfate proposed by Yao et al. [106].
Nanomaterials 10 01596 g015
Figure 16. Evolution of the concentration ratio (C/C0) of naphthalene and n-heptane as a function of temperature and time [107].
Figure 16. Evolution of the concentration ratio (C/C0) of naphthalene and n-heptane as a function of temperature and time [107].
Nanomaterials 10 01596 g016

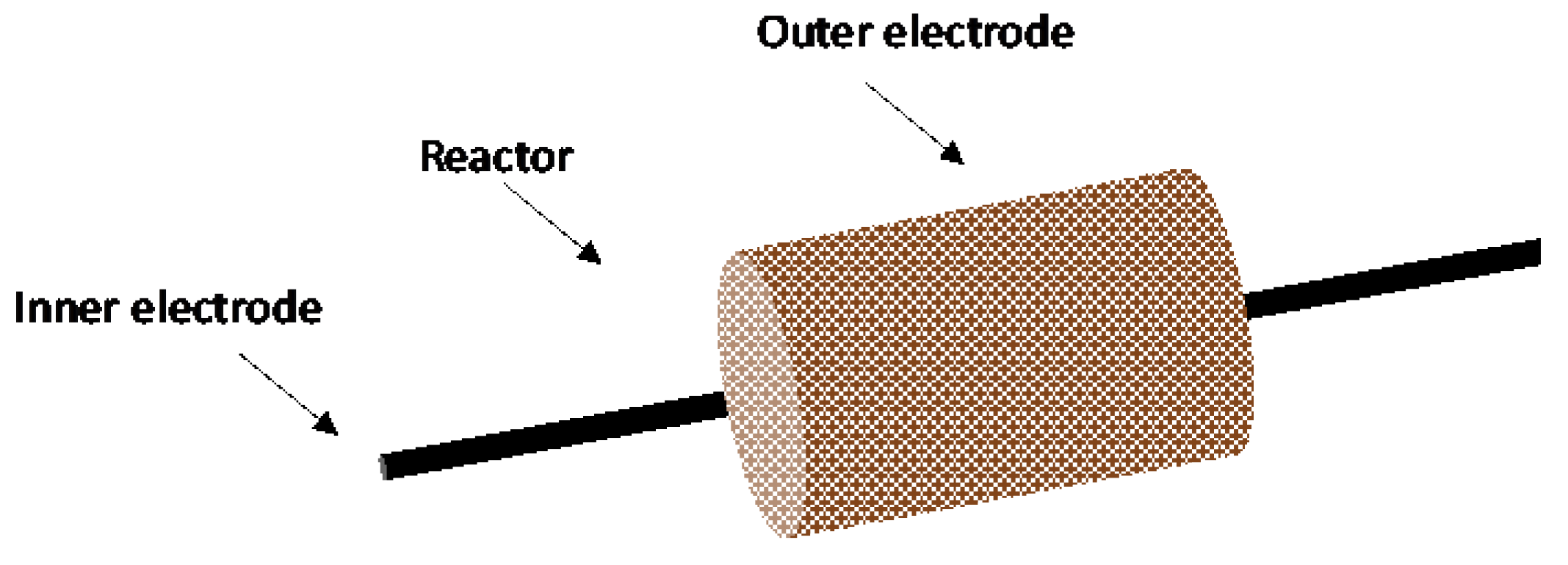

Figure 17. Schematic representation of a DBD plasma reactor.
Figure 17. Schematic representation of a DBD plasma reactor.
Nanomaterials 10 01596 g017
Figure 18. CO2 methanation in plasma-assisted processes without the presence of catalyst [136]. Adapted with permission from Radosław Dębek, Federico Azzolina-Jury, Arnaud Travert, Françoise Maugé, Renewable and Sustainable Energy Reviews; published by Elsevier, 2019.
Figure 18. CO2 methanation in plasma-assisted processes without the presence of catalyst [136]. Adapted with permission from Radosław Dębek, Federico Azzolina-Jury, Arnaud Travert, Françoise Maugé, Renewable and Sustainable Energy Reviews; published by Elsevier, 2019.
Nanomaterials 10 01596 g018
Figure 19. CO2 methanation performance in plasma-assisted process with different operating modes from [138]. Adapted with permission from Farhan Ahmad, Emma C. Lovell, Hassan Masood, et al., ACS Sustainable Chemistry & Engineering; published by American Chemical Society, 2020.
Figure 19. CO2 methanation performance in plasma-assisted process with different operating modes from [138]. Adapted with permission from Farhan Ahmad, Emma C. Lovell, Hassan Masood, et al., ACS Sustainable Chemistry & Engineering; published by American Chemical Society, 2020.
Nanomaterials 10 01596 g019
Table 1. Features of the different plasmas.
Table 1. Features of the different plasmas.
Low Temperature PlasmaHigh Temperature Plasma
Thermal Plasma
Te ≈Ti ≈Tg ~104 °C
ne ~1020 m−3
Non Thermal Plasma
Ti « Te ~104 °C
ne ≤ 1020 m−3
Warm Plasma
Tg ~103 °C
Cold Plasma
Tg ~102 °C
Te ≈Ti > 107 °C
ne ≥ 1020 m−3
example: arc plasma at normal pressureexample: gliding arc plasmaexample: low temperature glow dischargeexample: fusion plasma
Te—electron temperature; Ti—ion temperature; Tg—gas temperature; ne—electron density.
Table 3. Operative conditions and efficiency for SO2-removal over various catalysts and photocatalysts.
Table 3. Operative conditions and efficiency for SO2-removal over various catalysts and photocatalysts.
CatalystsNTP TechnologyOperative ConditionsSO2 Conversion (%)Ref.
MnCu/TiO2DBD–WESP8 kHz, 10 kV and 200 W
SED = 280 J L−1
SO2: 1000 or 20,000 mg·m−3
NO: 200 mg·m−3
10% O2 and N2 balancing
Reacting flow rate: 4 L min−1
Cleaning water flow rate: 3.6 L min−1
1 atm, 25 °C
100[48]
MnCu/TiO2DBD–WESP8 kHz, 10 kV and 200 W
SED = 280 J L−1
SO2: 20,000 mg m−3
NO: 400 mg m−3
10% O2 and N2 balancing
Reacting flow rate: 4 L min−1
Cleaning water flow rate: 3.6 L min−1
1 atm, 25 °C
77[48]
Al2O3DBD10 W DBD plasma
1% SO2, 4% H2, N2 balance, flow rate = 100 mL min−1 at 150 °C, 1 atm
17[51]
FeS/Al2O3DBD10 W DBD plasma
1% SO2, 4% H2, N2 balance, flow rate = 100 mL min−1 at 150 °C, 1 atm
31[51]
ZnS/ Al2O3DBD10 W DBD plasma
1% SO2, 4% H2, N2 balance, flow rate = 100 mL min−1 at 150 °C, 1 atm
28[51]
Al2O3DBD10 W DBD plasma
1% SO2, 4% CH4, N2 balance, flow rate = 100 mL min−1 at 150 °C, 1 atm
27[51]
FeS/Al2O3DBD10 W DBD plasma
1% SO2, 4% CH4, N2 balance, flow rate = 100 mL min−1 at 150 °C, 1 atm
34[51]
ZnS/Al2O3DBD10 W DBD plasma
1% SO2, 4% CH4, N2 balance, flow rate = 100 mL min−1 at 150 °C, 1 atm
35[51]
TiO2DBD900 Hz, 7 kV, residence time = 1 s
SO2 = 100 ppm, H2O = 4%, SO2/NH3 = 2
21% O2 and N2 balancing
1 atm, 25 °C
100[52]
TiO2DBD900 Hz, 7 kV, residence time = 1 s
SO2 = 600 ppm, H2O = 4%, SO2/NH3 = 2
21% O2 and N2 balancing
1 atm, 25 °C
16[52]
TiO2DBD900 Hz, 9 kV, residence time = 1 s
SO2 = 400 ppm, H2O = 4%, SO2/NH3 = 2
21% O2 and N2 balancing
1 atm, 25 °C
77[52]
TiO2DBD100 Hz, 9 kV, residence time = 1 s
SO2 = 400 ppm, H2O = 4%, SO2/NH3 = 2
21% O2 and N2 balancing
1 atm, 25 °C
9[52]
TiO2DBD900 Hz, 9 kV, residence time = 1 s
SO2 = 400 ppm, H2O = 4%, SO2/NH3 = 2
21% O2 and N2 balancing
1 atm, 25 °C
55[52]
TiO2DBD900 Hz, 9 kV, residence time = 0.32 s
SO2 = 400 ppm, H2O = 4%, SO2/NH3 = 2
21% O2 and N2 balancing
1 atm, 25 °C
18[52]
TiO2 deposited via dip-coatingDBD900 Hz, 9 kV, residence time = 1 s
SO2 = 420 ppm
21% O2 and N2 balancing
1 atm, 25 °C
45[53]
TiO2 deposited via PCVD (layer thickness 150 nm)DBD900 Hz, 9 kV, residence time = 1 s
SO2 = 420 ppm
21% O2 and N2 balancing
1 atm, 25 °C
68[53]
TiO2 deposited via PCVD (layer thickness 35 nm)DBD900 Hz, 11 kV, residence time = 1 s
SO2 = 260 ppm
21% O2 and N2 balancing
1 atm, 25 °C
15[54]
TiO2 deposited via PCVD (layer thickness 600 nm)DBD900 Hz, 11 kV, residence time = 1 s
SO2 = 260 ppm
21% O2 and N2 balancing
1 atm, 25 °C
100[54]
Zeolite without TiO2 coatingDBD900 Hz, 12 kV, residence time = 1 s
SO2 = 200 ppm
21% O2 and N2 balancing
1, 25 °C
31[55]
Zeolite with TiO2 coatingDBD900 Hz, 12 kV, residence time = 1 s
SO2 = 200 ppm
21% O2 and N2 balancing
1 atm, 25 °C
58[55]
γ-Al2O3DBD7 W DBD Plasma
NO = 440 ppm, NO2 = 14 ppm, SO2 = 460 ppm
21% O2 and N2 balancing
Reacting flow rate: 600 mL min−1
24[56]
TiO2PCP12.5 kV
SO2: 906 ppm (N2 basis); O2: 2.1%; H2O: 0.18%; H2O2: 0.055%
Reacting flow rate: 1 L min−1
1 atm, 25 °C
42[44]
Table 4. Operative conditions and efficiency for H2S-removal over various catalysts.
Table 4. Operative conditions and efficiency for H2S-removal over various catalysts.
CatalystsNTP TechnologyOperative ConditionsH2S Conversion (%)Ref.
CdS/Al2O3DBD10 kHz, 6.12 eV/H2
20% O2 in Ar
Reacting flow rate: 30 mL min−1
1 atm, 120 °C
90.9[66]
ZnS/Al2O3DBD10 kHz, 6.12 eV/H2
20% O2 in Ar
Reacting flow rate: 30 mL min−1
1 atm, 120 °C
82.9[66]
Zn0.4Cd0.6S/Al2O3DBD10 kHz, 6.12 eV/H2
20% O2 in Ar
Reacting flow rate: 30 mL min−1
1 atm, 120 °C
97.9[66]
Zn0.6Cd0.4S/Al2O3DBD10 kHz, 6.12 eV/H2
20% O2 in Ar
Reacting flow rate: 30 mL min−1
1 atm, 120 °C
100[68]
Zn0.2Cd0.8S/Al2O3DBD10 kHz, 6.12 eV/H2
20% O2 in Ar
Reacting flow rate: 30 mL min−1
1 atm, 120 °C
92.8[68]
Zn0.8Cd0.2S/Al2O3DBD10 kHz, 6.12 eV/H2
20% O2 in Ar
Reacting flow rate: 30 mL min−1
1 atm, 120 °C
84.9[68]
Cr0.20–ZnS/Al2O3DBD10 kHz, 5.57 eV/H2
20% O2 in Ar
Reacting flow rate: 30 mL min−1
1 atm, 120 °C
100[69]
Cr0.25–ZnS/Al2O3DBD10 kHz, 5.57 eV/H2
20% O2 in Ar
Reacting flow rate: 30 mL min−1
1 atm, 120 °C
89.7[69]
Cr0.15–ZnS/Al2O3DBD10 kHz, 5.57 eV/H2
20% O2 in Ar
Reacting flow rate: 30 mL min−1
1 atm, 120 °C
87.4[69]
Cr0.10–ZnS/Al2O3DBD10 kHz, 5.57 eV/H2
20% O2 in Ar
Reacting flow rate: 30 mL min−1
1 atm, 120 °C
81.8[69]
1-wt% MoS2/Al2O3DBD10 kHz, 95 kJ·L−1
H2S/CO2 ratio = 20:15
Reacting flow rate: 35 mL min−1
1 atm, 120 °C
94[70]
5-wt% MoS2/Al2O3DBD10 kHz, 95 kJ·L−1
H2S/CO2 ratio = 20:15
Reacting flow rate: 35 mL min−1
1 atm, 120 °C
99[70]
10-wt% MoS2/Al2O3DBD10 kHz, 95 kJ·L−1
H2S/CO2 ratio = 20:15
Reacting flow rate: 35 mL min−1
1 atm, 120 °C
97[70]
15-wt% MoS2/Al2O3DBD10 kHz, 95 kJ·L−1
H2S/CO2 ratio = 20:15
Reacting flow rate: 35 mL·min−1
1 atm, 120 °C
92[70]
3-wt% MoOx/Al2O3DBD10 kHz, 1 W
5% H2S/Ar
Reacting flow rate: 150 mL min−1
1 atm, 160 °C
48[71]
5-wt% MoOx/Al2O3DBD10 kHz, 1 W
5% H2S/Ar
Reacting flow rate: 150 mL min−1
1 atm, 160 °C
52[71]
7-wt% MoOx/Al2O3DBD10 kHz, 1 W
5% H2S/Ar
Reacting flow rate: 150 mL min−1
1 atm, 160 °C
45[71]
Fe/WSAC
Treated for 10 min at 6.8 kV
DBD7.8 kHz, 6.8 kV
500 ppm of H2S in N2
Reacting flow rate: 60 mL min−1
1 atm, 60 °C
100 for 270 min[72]
Fe/WSAC
Treated for 10 min at 6.8 kV with a gas gap of 5.5 mm and a dielectric thickness of 1.5 mm
DBD7.8 kHz, 6.8 kV
500 ppm of H2S in N2
Reacting flow rate: 60 mL min−1
1 atm, 60 °C
100 for 210 min[73]
La0.9MnO3DBD10 kHz, 593.7 J·L−1
100 ppm of H2S in air
Reacting flow rate: 2 L min−1
1 atm, 80 °C
96.4[74]
Mn2O3DBD50 Hz, 22 kV
200 mg m−3 H2S, 1200-mg·m−3 O3 in air
Reacting flow rate: 0.2 m3 h−1
100[75]
Ag2ODBD50 Hz, 22 kV
200 mg m−3 H2S, 1200-mg m−3 O3 in air
Reacting flow rate: 0.2 m3 h−1
98[75]
CuODBD50 Hz, 22 kV
200 mg m−3 H2S, 1200-mg·m−3 O3 in air
Reacting flow rate: 0.2 m3 h−1
82[75]
Fe2O3DBD50 Hz, 22 kV
200 mg m−3 H2S, 1200-mg m−3 O3 in air
Reacting flow rate: 0.2 m3 h−1
75[75]
Table 5. Operative conditions and efficiency for NOx-removal via NTP technology.
Table 5. Operative conditions and efficiency for NOx-removal via NTP technology.
Catalytic Removal via NTP Technology
Catalyst FormulationNTP TechnologyOperative ConditionsNOx Removal Efficiency %
(Maximum Value Reached)
Reference
Ag/Al2O3DBD16–23 kHz, 1–2 W
Reacting flow rate: 276 cm3 min−1
NO: 720 ppm
Either 540 ppm n-C8H18 or 620 ppm toluene
4.3% O2
7.2% H2O
7.2% CO2
He as carrier gas
1 atm, 25–250 °C
70[80]
Ag/α-Al2O3DBD2 W
Reacting flow rate: 2 L min−1
NO: 300 ppm
10% O2
3.2% H2O
265 ppm n-heptane
N2 as balance gas
74[81]
H–MOR
Co–MOR
NMOR
DBD5 W
Reacting flow rate: 60 mL min−1
NO: 2130 ppm
8% O2
He as balance gas
T = 35 °C
99.6[82]
Co/Ba/Al
Pd/Co/Ba/Al
Pd particle size = 3.1 nm
Pt/Ba/Al
Pt particle size = 2.7 nm
DBD40 kHz, 20 W (in the rich phase)
NO: 500 ppm
8% O2
2% H2O
2% CO2
N2 as balance gas
T = 150–350 °C
90[83]
M/Ba/Al (M = Mn, Fe, Co, Ni and Cu)DBD0–40 kV, 40 kHz, 1.8 W (in the rich phase)
phase)
NO: 500 ppm
8% O2
2% H2O
Ar as balance gas
T = 200–350 °C
100[84]
Pt/Ba/Al
Pt particle size = 2.7 nm
Pd/Co/Ba/Al
Pd particle size = 3.1 nm
Pd/Ba/Al
Pd particle size = 3.5 nm
DBD40 kHz, 1.8 W (in the rich phase)
NO: 500 ppm
8% O2
2% H2O
Ar as balance gas
T = 150–350 °C
99[85]
Pt/Ba/Al
Pt particle size = 2.1 nm
Pt/Co/Ba/Al
Pt particle size = 1.6 nm
Pt/Mn/Ba/Al
Pt particle size = 1.8 nm
Pt/Cu/Ba/Al
Pt particle size = 2.1 nm
DBD40 kHz, 1.8 W (in the rich phase)
NO: 500 ppm
8% O2
2% H2O
Ar as balance gas
T = 150–350 °C
80[86]
Zeolites (H–ZSM-5)DBD0.03–4 W
Reacting flow rate: 66 mL min−1
NO: 1800 ppm
10% O2
He as balance gas
1 atm, 25 °C
97.8[87]
Cu-modified CMSDBD7.6 kV, 8.9 kHz, 200 W
Reacting flow rate: 300 mL min−1
0.05% NO
3% O2
N2 as balance gas
96.2[88]
In/H–BEA zeolite
In particle size = 6–10 nm
DBD0–1.125 W
Reacting flow rate: 500 mL min−1
NO: 440 ppm
NO2: 14 ppm
CH4: 600 ppm
SO2: 0–100 ppm
6% O2
7% H2O
Ar as balance gas
T = 230–570 °C
99[89]
MnCu/TiO2DBD–WESP8 kHz, 10 kV and 200 W
SO2: 0–2000 mg·m−3
NO: 200–400 mg·m−3
10% O2 and N2 balancing
Reacting flow rate: 4 L min−1
Cleaning water flow rate: 3.6 L min−1
1 atm, 25 °C
93.4[48]
γ-Al2O3DBD7 W
NO: 440 ppm
NO2: 14 ppm
SO2: 460 ppm
21% O2
N2 balancing
Reacting flow rate: 600 mL min−1
1 atm, 25 °C
45[56]
Non-Catalytic Removal Via NTP Technology
NTP TechnologyOperative ConditionsNOx Removal Efficiency %
(Maximum Value Reached)
Reference
DBD0–7 kV, 1–2000 Hz[90]
Volume barrier discharge (VBD)80–500 Hz, 0.56 kW
air 30 L min−1
Methane 10 L min−1
90[91]
DBD40 kV, 50 Hz
NO: 100 ppm
SO2: 300 ppm
N2 as balance gas
80[92]
DBD16 kHz, 40 kV
Reacting flow rate: 1 L min−1
NO: 300 ppm
5% O2
N2 as balance gas
77[93]
DBD60 kV, 5–25 kHz
Reacting flow rate: 10 L min−1
NO: 500 ppm
C2H2: 1000 ppm
6% O2
N2 as balance gas
40[94]
DBD0–5 kV, 15 kHz, 45 W
Reacting flow rate: 1 L s−1
HC: 10 ppm
NOx: 116 ppm
3.32% CO2
0.5% CO
17.03% O2
95[95]
DBD23 kV, 20 kHz, 250 W
Reacting flow rate: 150 L min−1
NO: 350 ppmv
SO2: 800 ppmv
88.8[96]
DBD0–7 kV, 60 Hz
NO: 300 ppm
SO2: 0–1000 ppm
4.2% O2
N2 as balance gas
100[97]
Table 6. Operative conditions and soot-removal efficiency via NTP technology.
Table 6. Operative conditions and soot-removal efficiency via NTP technology.
Catalyst Formulation
(Particle Size [nm])
NTP TechnologyOperative ConditionsSoot-Removal Efficiency [g·kWh−1]
(Maximum Value Reached)
Reference
Fe2O3
(14.6)
MnOx
(168.1)
Co3O4
(53.3)
Corona plasma reactor0–20 kV, 4–7.5 W
300 sccm of feed gas containing 10% O2 in N2
Electrode surface coated with 3.5 mg of soot
Residence time: 0.94 s
1 atm, 180–350 °C
7.0
with MnOx
[102]
Au, Pt, Pd and Ag
(not specified)
DBD5–6 kV, 4.5 W
Reacting flow rate: 1 L min−1
20% O2
20 mg of PM dispersed in 2 mL of liquid ethanol, uniformly loaded on the alumina plate surface
t = 1 h
1 atm, 100–250 °C
6.1 with Au[104]
AgCe–C
(Ag crystallite size < 3 nm, CeO2 crystallite size = 25.1 nm)
AgCe–R
(Ag crystallite size < 3 nm, CeO2 crystallite size = 14.8 nm)
O3 activationO3/air flow = 1 L/min
O3 concentration of 400 ppm
T = 200 °C
Not specified[105]
MgSO4
K2SO4
CaSO4·2H2O
(not specified)
DBD7.4–8 kV, 4.5 W
800 mL·min−1 of N2
200 mL·min−1 of O2
10 mg of PM dispersed in 1-mL aqueous ethanol, mixed with a 500-μL aqueous solution of metal sulfate
T = 100–250 °C
3.8 with K2SO4[106]
Ag/α-Al2O3
(not specified)
DBDReacting flow rate: 2 L min−1
300 ppm of NO
265 ppm of n-heptane
48 ppm of naphthalene (soot simulant)
10% O2
3.7% H2O
N2 as balance gas
T = 150–350 °C
Not specified[107]
Table 7. NTP-assisted CO2 reforming of methane.
Table 7. NTP-assisted CO2 reforming of methane.
Catalyst Formulation
(Metal Particle Size *)
NTP TechnologyOperative ConditionsRef.
TiO2/g–C3N4DBD4–12 kHz, 20–60 W
Feed flowrate = 50 mL min−1
CO2:CH4 = 6:1 to 1:6
[115]
Ni/γAl2O3–MgO
(12 nm)
DBD1–30 kV, 7.5 kHz, 100 W
Feed flowrate = 20 mL min−1
CH4:CO2 = 1
[116]
Ni/La2O3–MgAl2O4
(10.77 nm)
DBD1–30 kV, 7.5 kHz, 100 W
Feed flowrate = 20 mL min−1
CH4:CO2 = 1
T = 350 °C
[117]
Ni/La2O3–MgAl2O4DBD1–30 kV, 7.5 kHz, 33–116 W
Feed flowrate = 20 mL min−1
CH4:CO2 = 1
[118]
Ni/Al2O3
(<6 nm)
DBD12–26 kV, 50 Hz, 1.4–4.8 W
CH4: 10% vol in Ar balance
CO2: 5% vol in Ar balance
Feed flowrate = 40 mL min−1
CH4:CO2 = 1: 2, 1:1, 2:1
[119]
BZT; BFN; glass beadsDBD12.1–13.6 kV, 20 kHz
Feed flowrate = 40 mL min−1
CH4:CO2 = 1
[120]
Ni/γ-Al2O3DBD30 kV, 10 kHz, 20–60 W
Feed flowrate = 25–125 mL min−1
CH4:CO2 = 1
[121]
La2O3/alumina ballsDBD24 kV, 800 Hz, 8 W
Feed flowrate = 40 mL min−1
CO2:CH4 = 0.4, 1, 2.3
He dilution: 33.3%, 50%, 75%
[122]
Ni/ACDBD30 kV, 5–12 kHz, 45 W
Feed flowrate = 50 mL min−1
CH4:CO2 = 1
T = 270 °C
[123]
Ni/α-Al2O3DBD15 kV, 5–30 kHz
Feed flowrate = 100 mL min−1
CH4:CO2 = 1
[124]
NiCexC
(23.7–31.1 nm)
DBD8.5 kHz, 40 W
CH4:CO2 = 3:1 to 1:3
Feed flowrate = 50 mL min−1
CH4:CO2 = 1
T = 260 °C
[125]
ZrO2; UiO-67; 2% [email protected]
(1–4 nm)
DBD6–10 kV, 30 kHz, 11 W
CH4 up to 5000 ppm in Ar balance
CO2 up to 5000 ppm in Ar balance
Feed flowrate = 100 mL min−1
CH4:CO2 = 0.5–1.5
[126]
LaNiO3@SiO2 NP
(40 nm)
DBD30 kV, 5–100 kHz, 50–200 W
Feed flowrate = 50 mL min−1
CH4:CO2 = 1
[128]
CaO; CaCO3; Ca(OH)2DBD13.5 kV, 800 Hz, 8 W
Feed flowrate = 40 mL min−1
CH4:CO2 = 2
T = room T; 100 °C
[130]
Pt–Sn/Al2O3; BaTiO3; HZSM-5DDBDGenerator: CTP-2000 K (9 kHz)
Power: 8.1–65.8 W
[131]
Gliding arc dischargeFrequency: 50 Hz[132]
RGA0.74–1.50 A
Feed flowrate = 3.7; 4.7; 6.7 SLPM
CO2:CH4 = 1; 1.5; 2
Tpre-heating = room T; 200 °C
[133]
Table 8. NTP-assisted catalytic CO2 methanation.
Table 8. NTP-assisted catalytic CO2 methanation.
Catalyst Formulation
(Metal Particle Size [nm])
NTP TechnologyOperative ConditionsRef.
Ni/γ-Al2O3
(14 nm)
DBD12–29 kV, 100 Hz, 3.6 W
Feed flowrate = 640 mL min−1
CO2:H2 = 1:4
T range = 100–400 °C
[137]
Ni/γ-Al2O3
(<4.3 nm)
DBD10 kV, 52–55 kHz, 15–18 W
Feed flowrate = 50 mL min−1
CO2:H2 = 1:4
T range = 150–400 °C
[138]
Ni/Ce0.58Zr0.42O2DBD15–19 kV, 41 kHz, 4–16 W
Feed flowrate = 20–350 mL min−1
CO2:H2 = 1:4
T range = 130–255 °C
[139]
Ni/MOFsDBD6.0–7.5 kV, 20.3 kHz
CO2:H2 = 1:4
[140]
Ni–CeO2/Al2O3DBD4–9 kV, 52 kHz, 5–25 W
Feed flowrate = 200–1000 mL min−1
CO2:H2 = 1:4
[141]

Share and Cite

MDPI and ACS Style

Palma, V.; Cortese, M.; Renda, S.; Ruocco, C.; Martino, M.; Meloni, E. A Review about the Recent Advances in Selected NonThermal Plasma Assisted Solid–Gas Phase Chemical Processes. Nanomaterials 2020, 10, 1596. https://doi.org/10.3390/nano10081596

AMA Style

Palma V, Cortese M, Renda S, Ruocco C, Martino M, Meloni E. A Review about the Recent Advances in Selected NonThermal Plasma Assisted Solid–Gas Phase Chemical Processes. Nanomaterials. 2020; 10(8):1596. https://doi.org/10.3390/nano10081596

Chicago/Turabian Style

Palma, Vincenzo, Marta Cortese, Simona Renda, Concetta Ruocco, Marco Martino, and Eugenio Meloni. 2020. "A Review about the Recent Advances in Selected NonThermal Plasma Assisted Solid–Gas Phase Chemical Processes" Nanomaterials 10, no. 8: 1596. https://doi.org/10.3390/nano10081596

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
