Bi-Magnetic Core-Shell CoFe2O4@MnFe2O4 Nanoparticles for In Vivo Theranostics

1
BIONAND—Centro Andaluz de Nanomedicina y Biotecnología (Junta de Andalucía, Universidad de Málaga), Parque Tecnológico de Andalucía, 29590 Málaga, Spain
2
Department of Physics, “Alexandru Ioan Cuza” University of Iasi, 700506 Iasi, Romania
3
Departamento de Química Orgánica y Farmacéutica, Facultad de Farmacia, Universidad de Sevilla, 41012 Seville, Spain
4
Networking Research Center on Bioengineering, Biomaterials and Nanomedicine, CIBER-BBN, 29590 Malaga, Spain
*
Authors to whom correspondence should be addressed.
Nanomaterials 2020, 10(5), 907; https://doi.org/10.3390/nano10050907
Received: 26 March 2020 / Revised: 15 April 2020 / Accepted: 19 April 2020 / Published: 8 May 2020
(This article belongs to the Special Issue Current Trends in Nanoscale Magnetism)

Abstract

:
In this work, we report the synthesis and characterization of three magnetic nanosystems, CoFe2O4, CoFe2O4@ZnFe2O4, and CoFe2O4@MnFe2O4, which were developed as potential theranostic agents for magnetic hyperthermia and magnetic resonance imaging (MRI). These nanosystems have been thoroughly characterized by X-ray Diffraction (XRD), Transmission Electron Miscroscopy (TEM), Dark Field-TEM (DF-TEM), Vibrating Sample Magnetometry (VSM), and inductive heating, in order to elucidate their structure, morphology, and magnetic properties. The bi-magnetic CoFe2O4@ZnFe2O4 and CoFe2O4@MnFe2O4 nanoparticles (NPs) exhibited a core-shell structure with a mean average particle size of 11.2 ± 1.4 nm and 14.4 ± 2.4 nm, respectively. The CoFe2O4@MnFe2O4 NPs showed the highest specific absorption rate (SAR) values (210–320 W/g) upon exposure to an external magnetic field, along with the highest saturation magnetization (Ms). Therefore, they were selected for functionalization with the PEGylated ligand to make them stable in aqueous media. After the functionalization process, the NPs showed high magnetic relaxivity values and very low cytotoxicity, demonstrating that CoFe2O4@MnFe2O4 is a good candidate for in vivo applications. Finally, in vivo MRI experiments showed that PEGylated CoFe2O4@MnFe2O4 NPs produce high T2 contrast and exhibit very good stealth properties, leading to the efficient evasion of the mononuclear phagocyte system. Thus, these bi-magnetic core-shell NPs show great potential as theranostic agents for in vivo applications, combining magnetic hyperthermia capabilities with high MRI contrast.

Graphical Abstract

1. Introduction

Nowadays, cancer continues to be one of the most frequent and severe diseases, with a global estimate in 2018 of 18.1 million new cases and 9.6 million deaths [1]. However, in recent years, there has been an improvement in the survival rate of cancer patients thanks to preventive activities, early diagnosis campaigns, and therapeutic advances [2]. In vivo imaging techniques, such as Magnetic Resonance Imaging (MRI), Computed Tomography (CT), or Positron Emission Tomography (PET), among others, have played a fundamental role in early diagnosis. MRI is unquestionably the most versatile of all of them, being able to provide both morphological and functional information with excellent image quality, especially from soft tissues. In addition, MRI has the advantage of using non-ionizing radiation and, in most cases, it does not need any exogenous substance to obtain good tissue contrast [3]. Nevertheless, MRI contrast agents (CA) are also frequently used as a source of extrinsic contrast to better visualize an area of interest or to obtain dynamic information, such as blood flow, blood volume, etc. [4,5]. The most commonly used CAs for MRI are the Gadolinium complexes. However, Gd-based CAs can produce toxic effects, not only in patients with renal impairment, as firstly described, but also in patients with normal renal function, as demonstrated by subsequent studies, in which the accumulation of Gd was observed in different tissues, including brain, kidneys, and bone [6,7]. In the last few years, there has been a growing interest in the development of new CAs based on nanotechnology in order to overcome this limitation [8,9,10,11]. In this sense, bi-magnetic core-shell nanoparticles (NPs) have emerged as a very promising option for the development of new MRI CAs with outstanding magnetic properties [12,13,14]. [email protected]2O4 (M=Fe, Mn, Co) core-shell NPs demonstrate higher transverse relaxivity (r2) than their single-core counterpart with similar size [15]. Additionally, bi-magnetic NPs can also be used for drug delivery [16] and magnetic hyperthermia [17], thus being excellent candidates for the development of novel nano-theranostic agents. The use of magnetic hyperthermia for tumor therapy is based on the fact that cancer cells are more sensitive to small increases in temperature than healthy cells. Therefore, an increase in local temperature that is mediated by magnetic NPs accumulated in the tumor can kill cancer cells with a minimal effect on healthy tissue [18,19]. Magnetic hyperthermia can be defined as the generation of heat upon the exposure of magnetic NPs to high-frequency alternating magnetic fields (HF-AMF) [20,21,22]. The heating capability of bi-magnetic NPs can be evaluated through their specific absorption rate (SAR), which is related to surface and shape anisotropy, thee degree of spin disordering, and exchange anisotropy at the interface between the magnetic phases (exchange-coupling phenomenon). Importantly, the bi-magnetic core-shell structure has been shown to increase their heating efficiency by an order of magnitude when compared to its single-core counterpart [23]. In addition, the heating capability of magnetic NPs is dependent on the chemical composition and microstructural features, which, to some extent, can be controlled by the synthesis route [24,25]. Thus, Khurshid et al. showed that both SAR and heating efficiency of the FeO/Fe3O4 core-shell architecture are improved by tuning the effective anisotropy of the nanosystem [26]. In addition, bi-magnetic NPs that consist of both soft and hard magnetic phases can greatly enhance their SAR due to the interfacial exchange coupling between the magnetic core-shell layers [23,27]. CoFe2O4 has been extensively explored as a hard magnetic material with high coercivity (Hc) and high saturation magnetization (MS) [28,29], whereas MnFe2O4 possesses soft magnetic properties, with low Hc and moderate MS [30,31]. Various studies have shown that the magnetic properties of CoFe2O4@MnFe2O4 and MnFe2O4@CoFe2O4 NPs can be controlled through the variation of their magnetic hard/soft volume ratio [32,33]. Thus, the versatility of their properties can be used to design efficient theranostic platforms [34]. However, bi-magnetic NPs also have some drawbacks, such as their low colloidal stability, which might lead to limitations for in vivo applications. The magnetic particle surface can be functionalized with various polymers, such as dextran, polyvinyil alcohol (PVA), polyvinylpyrrolidone (PVP), or polyethylene glycol (PEG), to overcome this problem [35]. PEG has been widely used because of its solubility in polar and non-polar solvents, biocompatibility, and anti-fouling properties. The functionalization of nanoparticle surfaces with PEG has been demonstrated to reduce cytotoxicity and prolong blood circulation time in vivo [36].
Herein, three magnetic nanosystems, comprising single core (CoFe2O4) and core-shell NPs (CoFe2O4@MnFe2O4 and CoFe2O4@ZnFe2O4), are investigated as potential multifunctional nanosystems for both MRI and magnetic hyperthermia. We were able to reduce the thickness of the shell and, therefore, to decrease the hard/soft volume ratio by tuning the synthesis conditions of bi-magnetic NPs. This led to a stronger interfacial exchange coupling between magnetic layers and, consequently, to an increase in SAR, while avoiding an excessive increase in the particle size. Subsequently, the nanosystem with the highest SAR and Ms values was functionalized with a PEGylated ligand to render water-soluble bi-magnetic NPs with high colloidal stability. The relaxivity, biodistribution, and pharmacokinetics studies demonstrated the high potential of these bi-magnetic NPs for theranostic applications.

2. Experimental Section

2.1. Materials

The chemicals and solvents were obtained from commercial suppliers (Sigma Aldrich, Acros Organics and Fisher Scientific, St. Louis, MO, USA) and were used as received. Iron (III) acetylacetonate (Fe(acac)3), Cobalt (II) acetylacteonate (Co(acac)2), Manganese (II) acetylacteonate (Mn(acac)2), Zinc (II) acetylacteonate Zn(acac)2, oleylamine, oleic acid, 1,2-hexadecanediol, Gallic acid, Poly ethylene glycol 3000 Da,1-octadecene, diphenylether, benzyl ether, Triethylamine, 4-Dimethylaminopyridine, dicyclohexyl carbodiimide (DCC), Hydrochloric acid (HCl), Sodium sulfate (Na2SO4), 3-[4,5-dimethylthiazol-2yl]-2,5-diphenyl tetrazolium bromide (MTT), Phosphate Buffered Saline (PBS), and Dulbecco’s Modified Eagle’s Medium (DMEM). As solvents, Milli-Q water (18.2 MΩ, filtered with filter pore size 0.22 µM) from Millipore, toluene, ethanol, acetone, dimethylsulphoxide (DMSO), hexane, chloroform, dichloromethane, and tetrahydrofuran were used anhydrous and HPLC grade.

2.2. Synthesis of the Nanoparticles

  • Synthesis of single-core nanoparticles.
The singleCoFe2O4 (CF) NPs were prepared by mixing 1 mmol of Co(acac)2, and 2 mmol of Fe(acac)3 with 10 mmol 1,2-hexadecandiol, 6 mmol of oleic acid, 6 mmol of oleylamine in 20 mL benzyl ether. The solution was heated at 100 °C for 30 min. under nitrogen atmosphere to remove the air and moisture. The reaction mixture was heated at 200°C for 2 h, then at 290 °C for 1 h, and subsequently cooled down to room temperature. The particles were washed with ethanol and hexane (1:1) three times before sedimentation. Finally, the NPs were re-suspended in hexane.
  • Synthesis of core-shell bi-magnetic nanoparticles.
The core-shell CoFe2O4@MnFe2O4 ([email protected]) NPs were synthesized by the seed-mediated growth method. 80 mg of CF particles suspended in hexane were added to a reaction system that was similar to that described above containing 1 mmol Mn(acac)2. The mixture was heated slowly for 30 min. to 100 °C, and then heated to 300 °C (a heating rate of 8 °C/min.) for 30 min. under nitrogen atmosphere. Subsequently, ethanol was added to the mixture after cooling, resulting in a black precipitate. The [email protected] NPs were dispersed in hexane after centrifugation. Similarly, CoFe2O4@ZnFe2O4 ([email protected]) NPs were synthesized by the seed-mediated growth method. 80 mg of CF particles suspended in hexane were added to a reaction system similar to that described above containing 1 mmol Zn(acac)2. The mixture was heated slowly for 30 min. to 100 °C and then heated to 300 °C (heating rate of 8 °C/min.) for 30 min. under nitrogen atmosphere. Subsequently, ethanol was added to the mixture after cooling, resulting in black precipitate. The [email protected] NPs were dispersed in hexane after centrifugation.

2.3. Synthesis of the PEGylated Ligand

The gallol-PEG66-67-OH (Figure 1) was synthesized following the synthetic route that was previously reported by us [9,10,11]. Briefly, to a solution of poly ethylene glycol (Mw: 3000 g/mol, 1 mmol, 3.0 g), gallic acid (Mw: 170 g/mol, 1 mmol, 170 mg), and 4-(dimethylamino) pyridine (Mw: 122 g/mol, 200 μmol, 24 mg) in 100 mL of tetrahydrofuran and 10 mL of dichloromethane, in a round-bottom flask under nitrogen atmosphere, was added dropwise to a solution of dicyclohexyl carbodiimide (Mw: 206 g/mol, 5 mmol, 1 g). The mixture was stirred overnight at room temperature. The reaction mixture was filtered through a filter paper and the solvents were rota-evaporated. 1H NMR spectroscopy confirmed the obtaining of the desired product gallol-PEG66-67-OH. 1H NMR (400 MHz, CDCl3) δ (ppm): 7.22 (s, 2H), 4.43-4.40 (m, 2H), and 3.85-3.45 (m, CH2-PEG, -OH). FTIR peaks (cm−1): 1466 (C-H bend vibration), 1359 (C-H bend vibration), 1341 (C-H bend vibration), 1307 (anti-symmetric stretch vibration), 1268 (C-O stretch vibration), 1238 (C-O stretch vibration), 1092 (C-O-C stretch vibration), and 942 (CH out-of-plane bending vibration).

2.4. Functionalization of Bi-Magnetic NPs

The functionalization of the [email protected] was performed following a previously published protocol [37]. Briefly, a solution of 1.0 mL of [email protected] NPs (10 g/L of Fe), 1.0 mL of the derived gallol-PEG66-67-OH at a concentration of 0.1 M in CHCl3 and 50 µL of triethylamine were added in a separating funnel. The mixture was gently shaken and diluted with 5 mL of toluene, 5 mL of milli-Q water, and 10 mL of acetone. Subsequently, it was shaken again and the NPs were transferred into the aqueous phase. The aqueous phase was collected in a round-bottom flask and the residual organic solvents were rota-evaporated. After that, the gallol derived NPs were purified while using centrifuge filters with a molecular cut-off weight of 100 kDa at 450 rcf. In each centrifugation, the functionalized NPs were re-suspended in milli-Q water. The purification step was repeated several times until the filtered solution was clear. Afterwards, the gallol derived NPs were re-suspended in PBS buffer. Finally, the solution of NPs was centrifuged at 150 rcf for 5 min. and also placed onto a permanent magnet (0.6 T) for 5 min. to ensure that highly stable mono-dispersed magnetic NPs are obtained.

2.5. Characterization Methods

  • Transmission Electron Microscopy.
The TEM images were obtained on a FEI Tecnai G2 Twin microscope (FEI, Hillsboro, OR, USA) operated at an accelerating voltage of 100 kV. TEM samples were prepared by dropping a solution of the corresponding NPs at ~1 g/L of Fe on a carbon-coated copper grid and letting the solvent evaporate. The mean diameter size was calculated from the bright-field TEM micrographs, on an average of hundred NPs measured.
  • X-ray diffraction patterns (XRD).
The powder X-ray diffraction patterns were measured using a PANanalyticalX’PertPro diffractometer (PANalytical B.V., Almelo, The Netherlands) using CuKα radiation (λ = 1.54059 Å). The samples were analyzed in the range of 2θ = 20° to 80°, with scanning angle rate of 0.02° and 2 s/step count time.
  • Vibrating Sample Magnetometer (VSM).
The magnetization curves were studied by means of a vibrating sample magnetometer (MicroMag 3900, Princeton Measurements Corp., Montgomery, NJ, USA) in external magnetic fields from −1 T to 1 T.
  • Specific Absorption Rate (SAR).
Hüttinger Elektronik (IG5) (Hütinger Elektronik GmbH & Co. KG, Freiburg, Germany), which supplies a high frequency applying magnetic field (1950 kHz) with a maximum power of 7.2 kW, was utilized to perform SAR measurements of the Core-Shell NPs in the medium. The Core-Shell NPs samples (1 mg/mL) were placed in a water-cooled magnetic induction coil. The temperature variations over time were registered using a fiber optic sensor (OPT OCON AG) (Optocon AG, Dresden, Germany).
The SAR values of the NPs in aqueous medium were calculated from the time dependence of the temperature on the radiofrequency electromagnetic field (1950 kHz), according to the equation:
S A R = c m × d T d t
where c is the specific heat capacity of the medium and m is the mass of the sample.
  • Dynamic Light Scattering (DLS).
The size distribution and Zeta potential measurements of the gallol-derived magnetic NPs were performed on a Zetasizer Nano ZS90 (Malvern Instruments, Malvern, Worcestershire, UK). The NPs were dispersed in milli-Q water or PBS at a concentration of 50 mg/L of Fe content. The measurements were completed on a cell type: ZEN0118-low volume disposable sizing cuvette, setting 2.420 as refractive index with 173° Backscatter (NIBS default) as angle of detection. The measurement time was set to automatic and three measurements were performed for each sample. As an analysis model, the general purpose (normal resolution) was chosen. The number mean was selected for the size distribution measurement.
  • Nuclear Magnetic Resonance Spectroscopy (NMR).
The 1HNMR spectra of the PEGylated ligandprepared in CDCl3 were recorded on a NMR Bruker Ascend 400MHz spectrometer (Bruker BioSpin, Rheinstetten, Germany).
  • Inductively Coupled Plasma High Resolution Mass Spectroscopy (ICP-HRMS).
The Fe, Co, Zn, and Mn concentrations were determined on an ICP-HRMS. Magnetic NPs were digested with aqua regia (a mixture of three parts of HNO3 and one part of HCl). Briefly, 2.5 mL of aqua regia were added to 25 μL of a solution of NPs in a volumetric flask. The mixture was left overnight. Subsequently, milli-Q water was added to complete a total volume of 25 mL.
  • In vitro longitudinal and transversal relaxivities (r1 and r2).
Magnetic relaxivities (r1 and r2) were calculated in PBS at low magnetic field, 1.44 T, and at high magnetic field, 9.4 T, using concentrations of gallol-derived NPs between 2 to and 0.2 mM of Fe, at 37 °C. Low magnetic field measurements were performed on a Bruker Minispec system (Bruker BioSpin, Rheinstetten, Germany. T1 was determined using an inversion-recovery sequence, and T2 using the Carl-Purcell-Meiboom-Gill (CPMG) spectroscopy sequence. High magnetic field (9.4 T) measurements were performed on a Bruker Biospec MRI system (Bruker BioSpin, Ettlingen, Germany) equipped with 400 mT m−1 field gradients and a 40 mm quadrature bird-cage resonator. T1 values were determined with a saturation recovery image sequence, and T2 values with a 64-echo Carl-Purcell-Meiboom-Gill (CPMG) sequence (TE values from 7.5 ms to 640 ms).
The relaxivities, r1 and r2, at both magnetic fields were calculated from the slope of the linear regression of the relaxation rate (1/T1 or 1/T2) versus the Fe concentration.
  • Cell Culture.
The C6 rat glioma cells were cultured in Dulbecco’s Modified Eagle Medium (DMEM) supplemented with 2 mM L-glutamine, 10% fetal bovine serum (FBS) and 1% penicillin/streptomycin, at 37 °C in an incubator with a humidified atmosphere containing 5% CO2.
  • Cytotoxicity assays.
Cytotoxicity was evaluated in C6 cells using the MTT assay, which is described in detail in the supporting information.
  • In vivo Magnetic Resonance Imaging.
The in vivo mice experiments were performed in accordance with the ethical guidelines of our local ethical committee and consistent with national regulations for the care and use of laboratory animals (R.D. 53/2013). Male Balb/c mice (n = 3) with ca. 22 g in weight, provided by Janvier Labs (Le Genest-Saint-Isle, France) were used. The animals were anesthetized with 1% isoflurane, the tail vein was cannulated and then the animals were placed in the magnet, where respiration and body temperature were monitored throughout the entire MRI experiment. The magnetic NPs were intravenously administered via tail vein at a concentration of 10 mg of Fe per kg of body weight.
All of the MRI experiments were carried out on the 9.4 T Bruker system (Bruker Biospec, Bruker BioSpin, Ettlingen, Germany) described above. High resolution T2-weighted images were acquired using a turbo-RARE sequence with respiratory gating (TE = 16 ms, TR = 1000 ms, 4 averages, 156 μm in-plane resolution, and 1 mm slice thickness). Quantitative T2 measurements were also performed using a multi-echo spin echo sequence (TEs ranging from 7 ms to 448 ms, TR = 3500 ms, FOV = 4 cm, matrix size = 128 × 128, slice thickness = 1 mm). The time-courses were followed by using a turbo-RARE sequence with the same parameters indicated above, but only one average was used to improve the temporal resolution (one image every 30 s). The acquisition scheme was as follows: T2-weighted, quantitative T2, intravenous injection of the gallol-derived magnetic NPs, time-course for 35 min., quantitative T2 and T2 weighted. The first 35 min. time courses were semi-quantitatively analyzed while using the following expression:
R E = | I t I 0 I 0 × 100 |
where RE is the modulus of relative signal enhancement, It is the signal intensity at any given time after the NPs injection, and I0 is the signal intensity before the injection.
Long-term pharmacokinetics were measured by quantitative T2 mapping at 0 h, 1 h, and 24 h. Pharmacokinetics were obtained by calculating the average values within different regions of interest (ROIs) placed on the following tissues: liver, kidneys, and muscle.
  • Histology.
After 24 h of NPs intravenous administration, the mice were sacrificed and the kidney and liver extracted. Haematoxylin and Eosin (H&E) staining was used to assess tissue architecture, and Prussian blue staining to visualize iron deposits. The detailed procedures are described in the supporting information.

2.6. Statistical Analysis

Statistical analysis was performed while using the SPSS package (v20, SPSS Inc., Chicago, IL, USA). Cell viability and in vivo T2 values are shown as mean ± standard deviation (SD). Student’s t-test or one-way analysis of variance (ANOVA) was used to determine the significant differences between different NPs or different experimental conditions. The level of significance was set at p < 0.05.

3. Results and Discussion

The seed-mediated growth method had been demonstrated to be an efficient way to synthesize uniform and monodisperse bi-magnetic NPs [38].Thus, two different bi-magnetic CoFe2O4@MnFe2O4 and CoFe2O4@ZnFe2O4NPs were synthesized by this method while using CoFe2O4 (CF) as seed, and tuning the precursors ratio and the temperature ramp to obtain the desired core-shell NPs. These new bi-magnetic NPs were thoroughly characterized by different physicochemical techniques, as described below.

3.1. X-ray Diffraction Analysis

Figure 2 and Figure S1 show the X-ray diffraction patterns, where the Bragg reflections of all samples match the reported values for the cubic structure with the space group Fd-3m (JCPDS, card no 22-1086). No impurity phases were observed.
The mean crystallite size <d>, lattice parameter (a) and microstrain (ε) (Table 1 and Table S1) were calculated for each sample from the diffraction pattern by Rietveld refinement implemented in TOPAS Academic v4.1 software (v4.1, Coelho Software, Brisbane, Australia).
The mean crystallite size of the single particle samples was calculated to be 9.8 nm, whereas, for the bi-magnetic NPs, the <d> values were slightly increased (10.4 nm for [email protected]). The lattice parameters of all the samples did not present significant deviations from the standard value (a = 8.388 Å). The low microstrain values demonstrated that the NPs were not affected by lattice defects [39].

3.2. Transmission Electron Microscopy

All of the NPs showed monodisperse spherical shapes with different diameters, depending on the composition, being 8.5 ± 1.2 nm for the CF (Figure 3a), 11.2 ± 1.4 nm for the [email protected] (Figure 3b), and 14.4 ± 2.4 nm for the [email protected] (Figure S2). Dark field transmission electron microscopy (DF-TEM) can be used to discern different compositions based on contrast variations, since this technique predominantly uses Rutherford scattered electrons, which present greater susceptibility to small differences in atomic number (Z) [40]. Therefore, the morphology of the core-shell NPs was studied by DF-TEM, as previously reported [17,41]. The results confirmed the hard/soft magnetic phases of the [email protected] NPs (Figure 3c). In addition, the manganese composition was confirmed by EDX, showing the typical peaks that were associated to it (Figure 3d).

3.3. Magnetic Characterization

Figure 4a and Figure S2a show the specific saturation magnetization (Ms) and the coercivity (Hc) of CF, [email protected], and [email protected] Figure 3a and Figure S2a show the hysteresis loops of the powders determined at room temperature. Ms values were 65.6 emu/g for [email protected] and 64.2 emu/g for [email protected], with Hc of 298.3 Oe for both [email protected] and [email protected] The CF NPs presented lower Ms value (60.7 emu/g) and higher Hc value (398.2 Oe) when compared to the bi-magnetic samples. The findings reported in this work, showing that Ms values are affected by the diameter of the NPs, being higher for larger diameters, are in good agreement with previous studies [42]. In addition, the Ms values reported therein (54.7 emu/g for 9.6 nm NPs) are very similar to ours, although, in our case, it cannot be ruled out that the different metal composition of NPs also had an effect on this parameter. Lastly, the hysteresis loops confirmed the superparamagnetic behavior of our NPs.
The SAR values for [email protected] were between 180 and 290 W/g (Figure S3b), whereas, in the case of [email protected], the SAR values ranged between 210–320 W/g, with these values being the highest among all the NPs tested (Figure 4b). The SAR values of the bi-magnetic NPs were higher than those of the CF (152–220 W/g) and similar to the SAR values of other types of core-shell NPs [43,44].
The increase of both Ms and SAR of the hard/soft core-shell NPs when compared to their hard core counterpart can be related to the exchange-coupling phenomenon at the hard-soft interface [23,34,44].
The hysteresis loops measurements could also confirm the magnetic coupling, where we observed an increase in Ms of both [email protected] and [email protected] core-shell NPs, as compared to the hard core component.
In summary, these results show that [email protected] NPs show the best combination of Ms and SAR values and, therefore, they were selected for further experiments.

3.4. Fourier-Transform Infrared Spectroscopy(FTIR)

The [email protected] NPs were functionalized with a gallol-derived PEG ligand to make them biocompatible, aiming at biomedical applications. The presence of the gallol-derived ligand that was attached to the surface of the nanoparticle was analyzed and confirmed by FTIR spectroscopy (Figure S4).

3.5. Dynamic Light Scattering (DLS)

The hydrodynamic diameter (HD) of PEGylated [email protected] NPs determined by DSL was around 90 nm, both in PBS and in cell growth medium (Figure 5a). A moderate increase of the HD (~20%) could be observed during the first 24 h and it then remained stable over one week (Figure 5b).Thus, it can be concluded that the functionalization of NPs by PEGylation endows high stability in physiological media, which is a key requirement for biological applications.

3.6. Magnetic Relaxivity

The transversal relaxivity (r2) of [email protected] was 30.2 mM−1·s−1at 1.5 T and 67.6 mM−1·s−1 at 9.4 T (Figure 6 and Figure S5). Regarding T1 relaxivity (r1), [email protected] showed very low values, 1.4 mM−1·s−1 at 1.5 T (Figure S6), indicating that these NPs behave as T2 contrast agents, with r2/r1 = 21.5. Similarly, at 9.4 T, PEGylated [email protected] NPs showed an r1 value close to 0 (data not shown).

3.7. Cytotoxicity Assays

Cytotoxicity was evaluated in C6 rat glioma cells. The cultured cells were exposed to increasing concentration of magnetic NPs, from 0.1 μg/mL to 100 μg/mL Fe. After 24 h, the assay showed more than 80% of normal mitochondrial activity, even at the high concentration of 50 μg/mL (p < 0.05). These results support the potential use of these NPs for biomedical applications.

3.8. In Vivo MRI Studies

We further proceed with the in vivo MRI studies based on the experimental results described above, showing the high stability in physiological media and the low cytotoxicity of the [email protected] NPs.
The short term pharmacokinetics, followed by dynamic MRI, showed a rapid increment (around 50%) of the relative enhancement (RE) in the liver, followed by a quick decrease to basal levels and a second phase of slow increment, reaching around 20% after 30 min. of intravenous injection (Figure 7). This behavior indicates that, after injection, the NPs pass through the liver, but they are not immediately retained within this organ; on the contrary, they continue circulating until they are slowly taken up by the liver in a second clearance phase. This slow clearance implies that PEGylated [email protected] NPs present very good stealth properties and, therefore, avoid rapid recognition by the mononuclear phagocyte system (MPS), which leads to longer circulation times and higher bioavailability. In the case of the kidneys, they also showed a rapid increase in the RE curve (around 40%) that, similarly to the liver, rapidly returned to the basal levels, where it remained during the rest of the dynamic study (30 min.). This means that PEGylated [email protected] NPs were not retained in the kidneys, in disagreement with previous reports showing retention in the renal cortex of NPs with HDs ranging from 76 to 96 nm. These results support the fact that nanoparticle size is not the only parameter determining renal retention or liver uptake.
Long term pharmacokinetics were evaluated by quantitative T2 mapping at 0, 1h, and 24 h, and high resolution T2-weighted images were also acquired at each time point (Figure 8). At 1 h post administration, the liver showed a decrease in T2, with ΔT2 of −5.2, in agreement with the short term pharmacokinetic, meaning that bi-magnetic NPs are slowly taken up of the by the liver. At 24 h post administration, the liver showed partial recovery in T2 values, ΔT2 of −3.1, which could be explained by hepatic excretion or by degradation the NPs and metabolization of the iron in the Kupffer cells. Additionally, in agreement with the short term pharmacokinetics, the kidneys did not show any significant variation at any time point of the study. The bladder did not show any significant T2 variation (data not shown), involving that NPs were not excreted by the kidneys, as expected for their size, which is above the glomerular filtration size limit.
Finally, the possible damage of the main organs after intravenous injection of PEGylated [email protected] NPs was evaluated by histological analysis. Liver sections of H&E staining did not show any of the typical signs of acute or subacute tissue injury, such as the vacuolated swelling of the cytoplasm of hepatocytes. Similarly, the kidneys presented normal tubular brush borders and intact glomeruli surrounding the Bowman’s capsule, evidencing the absence of kidney injury (Figure 9) [45].
Furthermore, the accumulation of colloidal iron from NPs was evaluated by Prussian blue staining in the liver and kidneys. As can be observed in Figure 10, a homogeneous accumulation of PEGylated [email protected] NPs was observed in the liver, although at very low concentration, which is in agreement with the small T2 decrease that was observed in the MRI quantitative analysis. As for the kidneys, only a reduced presence of NPs in the areas close to the large blood vessels could be observed, which was in agreement with the almost undetectable T2 changes that were observed in the MRI studies (Figure 10).

4. Conclusions

In this work, we carried out the synthesis of monodisperse bi-magnetic NPs with high SAR and high magnetic relaxivity, as multifunctional biomedical nanosystems for magnetic hyperthermia and magnetic resonance imaging. The SAR values were tuned by decreasing the hard/soft volume ratio between the magnetic layers. In this regard, it is worth emphasizing the significant SAR improvement of the CoFe2O4@MnFe2O4 NPs due to the strong interfacial exchange coupling of the core-shell structure. Furthermore, we were able to provide CoFe2O4@MnFe2O4 NPs with high stability in physiological media by coating them with a PEGylated ligand, while following our previously reported method. MRI in vivo experiments showed that PEGylation conferred very good stealth properties to NPs, leading to the evasion of the mononuclear phagocyte system and, consequently, to longer circulation times and bioavailability. To the best of our knowledge, this is the first study reporting bi-magnetic CoFe2O4@MnFe2O4 NPs with combined capabilities for both cancer treatment via magnetic hyperthermia and cancer diagnosis by MRI. In conclusion, the bi-magnetic NPs that are reported herein display great potential as cancer theranostic nanosystems.

Supplementary Materials

The following are available online at https://www.mdpi.com/2079-4991/10/5/907/s1, Figure S1: XRD patterns of the [email protected] sample, Figure S2: TEM images of [email protected] nanoparticles. The scale bar is equivalent to 20 nm in all the images. The size distribution histogram is shown on the right. Diameter is expressed as the mean ± SD, by measuring at least 100 particles, Figure S3: (a) Magnetization curves of [email protected] nanoparticles. (b) SAR for different power values of the [email protected] nanoparticles (at a frequency of 1950 kHz), Figure S4: FTIR spectra of the gallol-PEG-OH ligand and the functionalized magnetic nanoparticles, Table S1: Structural and magnetic parameters calculated for the [email protected] nanoparticles. <d>: mean crystallite size of particles; a: lattice parameter; ε: microstrain. Numbers in parentheses indicate the estimated standard deviations of the last significant digit. Methods, XRD, TEM, magnetic characterization, FTIR, in vitro relaxivities, and in vitro cytotoxicity.

Author Contributions

V.N., C.C., M.P.L. and M.L.G.-M. designed the study. V.N., C.C. and J.M.P.-M. performed the experiments, V.N. and C.C. analyzed the data, drafted the manuscript and designed the figures, M.P.L. and M.L.G.-M. supervised the project, M.L.G.-M. edited the manuscript. V.N. and C.C. contributed equally to this work. All authors discussed the results and contributed to the final manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Talent Hub 2015 program of the Ministry of Economy and Knowledge (CEC) of Spain and the Seventh Framework Programme of the European Community (COFUND Agreement n. 291780), by the Andalusian Ministry of Health (PI2013-0559), and by the Spanish Ministry of Economy and Competitiveness (CTQ2017-86655-R).

Acknowledgments

The authors thank Juan F. López for assistance with TEM experiments, John Pearson and Luisa Macías for helpful discussion, Alejandro Dominguez and Reyes Molina for assistance with animal manipulations and Maria Somoza for assistance with MRI experiments.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Bray, F.; Ferlay, J.; Soerjomataram, I.; Siegel, R.L.; Torre, L.A.; Jemal, A. Global cancer statistics 2018: GLOBOCAN estimates of incidence and mortality worldwide for 36 cancers in 185 countries. CA Cancer J. Clin. 2018, 68, 394–424. [Google Scholar] [CrossRef][Green Version]
  2. Smith, R.A.; Andrews, K.S.; Brooks, D.; Fedewa, S.A.; Manassaram-Baptiste, D.; Saslow, D.; Brawley, O.W.; Wender, R.C. Cancer screening in the United States, 2017: A review of current American Cancer Society guidelines and current issues in cancer screening. CA Cancer J. Clin. 2017, 67, 100–121. [Google Scholar] [CrossRef]
  3. Weissleder, R.; Mahmood, U. Molecular imaging. Radiology 2001, 219, 316–333. [Google Scholar] [CrossRef]
  4. Caro, C.; Garcia-Martin, M.L.; Pernia Leal, M. Manganese-Based Nanogels as pH Switches for Magnetic Resonance Imaging. Biomacromolecules 2017, 18, 1617–1623. [Google Scholar] [CrossRef] [PubMed]
  5. Yan, G.-P.; Robinson, L.; Hogg, P. Magnetic resonance imaging contrast agents: Overview and perspectives. Radiography 2007, 13, e5–e19. [Google Scholar] [CrossRef]
  6. McDonald, R.J.; McDonald, J.S.; Kallmes, D.F.; Jentoft, M.E.; Murray, D.L.; Thielen, K.R.; Williamson, E.E.; Eckel, L.J. Intracranial Gadolinium Deposition after Contrast-enhanced MR Imaging. Radiology 2015, 275, 772–782. [Google Scholar] [CrossRef] [PubMed][Green Version]
  7. Rogosnitzky, M.; Branch, S. Gadolinium-based contrast agent toxicity: A review of known and proposed mechanisms. Biometals 2016, 29, 365–376. [Google Scholar] [CrossRef][Green Version]
  8. Caro, C.; Pozo, D. Polysaccharide Colloids as Smart Vehicles in Cancer Therapy. Curr. Pharm. Des. 2015, 21, 4822–4836. [Google Scholar] [CrossRef]
  9. Pernia Leal, M.; Munoz-Hernandez, C.; Berry, C.C.; Garcia-Martin, M. In vivo pharmacokinetics of T2 contrast agents based on iron oxide nanoparticles: Optimization of blood circulation times. RSC Adv. 2015, 5, 76883–76891. [Google Scholar] [CrossRef][Green Version]
  10. Pernia Leal, M.; Rivera-Fernandez, S.; Franco, J.M.; Pozo, D.; de la Fuente, J.M.; Garcia-Martin, M.L. Long-circulating PEGylated manganese ferrite nanoparticles for MRI-based molecular imaging. Nanoscale 2015, 7, 2050–2059. [Google Scholar] [CrossRef]
  11. Pernia Leal, M.; Caro, C.; García-Martín, M.L. Shedding light on zwitterionic magnetic nanoparticles: Limitations for in vivo applications. Nanoscale 2017, 9, 8176–8184. [Google Scholar] [CrossRef] [PubMed]
  12. Zhou, Z.; Sun, Y.; Shen, J.; Wei, J.; Yu, C.; Kong, B.; Liu, W.; Yang, H.; Yang, S.; Wang, W. Iron/iron oxide core/shell nanoparticles for magnetic targeting MRI and near-infrared photothermal therapy. Biomaterials 2014, 35, 7470–7478. [Google Scholar] [CrossRef] [PubMed]
  13. Liu, Y.; Yang, K.; Cheng, L.; Zhu, J.; Ma, X.; Xu, H.; Li, Y.; Guo, L.; Gu, H.; Liu, Z. PEGylated [email protected] core-shell magnetic nanoparticles: Potential theranostic applications and in vivo toxicity studies. Nanomedicine 2013, 9, 1077–1088. [Google Scholar] [CrossRef] [PubMed]
  14. Cardona, F.A.; Urquiza, E.S.; Presa, P.D.L.; Tobón, S.H.; Pal, U.; Fraijo, P.H.; Yacaman, M.J.; Lozada Ramírez, J.D.; Ivkov, R.; Angulo-Molina, A.; et al. Enhanced magnetic properties and MRI performance of bi-magnetic core–shell nanoparticles. RSC Adv. 2016, 6, 77558–77568. [Google Scholar] [CrossRef]
  15. Yoon, T.-J.; Lee, H.; Shao, H.; Weissleder, R. Highly Magnetic Core–Shell Nanoparticles with a Unique Magnetization Mechanism. Angew. Chem. Int. Ed. 2011, 50, 4663–4666. [Google Scholar] [CrossRef][Green Version]
  16. Aadinath, W.; Ghosh, T.; Anandharamakrishnan, C. Multimodal magnetic nano-carriers for cancer treatment: Challenges and advancements. J. Magn. Magn. Mater. 2016, 401, 1159–1172. [Google Scholar] [CrossRef]
  17. Hammad, M.; Nica, V.; Hempelmann, R. Synthesis and Characterization of Bi-Magnetic Core/Shell Nanoparticles for Hyperthermia Applications. IEEE Trans. Magn. 2017, 53, 1–6. [Google Scholar] [CrossRef]
  18. Jordan, A.; Scholz, R.; Wust, P.; Schirra, H.; Thomas, S.; Schmidt, H.; Felix, R. Endocytosis of dextran and silan-coated magnetite nanoparticles and the effect of intracellular hyperthermia on human mammary carcinoma cells in vitro. J. Magn. Magn. Mater. 1999, 194, 185–196. [Google Scholar] [CrossRef][Green Version]
  19. Moroz, P.; Jones, S.K.; Gray, B.N. Magnetically mediated hyperthermia: Current status and future directions. Int. J. Hyperth. 2002, 18, 267–284. [Google Scholar] [CrossRef]
  20. Beola, L.; Asín, L.; Fratila, R.M.; Herrero, V.; de la Fuente, J.M.; Grazú, V.; Gutiérrez, L. Dual Role of Magnetic Nanoparticles as Intracellular Hotspots and Extracellular Matrix Disruptors Triggered by Magnetic Hyperthermia in 3D Cell Culture Models. ACS Appl. Mater. Interfaces 2018, 10, 44301–44313. [Google Scholar] [CrossRef]
  21. Moros, M.; Idiago-Lopez, J.; Asin, L.; Moreno-Antolin, E.; Beola, L.; Grazu, V.; Fratila, R.M.; Gutierrez, L.; de la Fuente, J.M. Triggering antitumoural drug release and gene expression by magnetic hyperthermia. Adv. Drug Deliv. Rev. 2018. [Google Scholar] [CrossRef] [PubMed]
  22. Fratila, R.M.; de la Fuente, J.M. Introduction to Hyperthermia. In Nanomaterials for Magnetic and Optical Hyperthermia Applications; Fratila, R.M., De La Fuente, J.M., Eds.; Elsevier: Amsterdam, The Netherlands, 2019; pp. 1–10. [Google Scholar] [CrossRef]
  23. Lee, J.H.; Jang, J.T.; Choi, J.S.; Moon, S.H.; Noh, S.H.; Kim, J.W.; Kim, J.G.; Kim, I.S.; Park, K.I.; Cheon, J. Exchange-coupled magnetic nanoparticles for efficient heat induction. Nat. Nanotechnol. 2011, 6, 418–422. [Google Scholar] [CrossRef] [PubMed]
  24. Kolhatkar, A.G.; Jamison, A.C.; Litvinov, D.; Willson, R.C.; Lee, T.R. Tuning the magnetic properties of nanoparticles. Int. J. Mol. Sci. 2013, 14, 15977–16009. [Google Scholar] [CrossRef] [PubMed][Green Version]
  25. Yu, Y.; Mendoza-Garcia, A.; Ning, B.; Sun, S. Cobalt-substituted magnetite nanoparticles and their assembly into ferrimagnetic nanoparticle arrays. Adv. Mater. 2013, 25, 3090–3094. [Google Scholar] [CrossRef]
  26. Khurshid, H.; Alonso, J.; Nemati, Z.; Phan, M.H.; Mukherjee, P.; Fdez-Gubieda, M.L.; Barandiarán, J.M.; Srikanth, H. Anisotropy effects in magnetic hyperthermia: A comparison between spherical and cubic exchange-coupled FeO/Fe3O4 nanoparticles. J. Appl. Phys. 2015, 117, 17A337. [Google Scholar] [CrossRef]
  27. Phadatare, M.R.; Meshram, J.V.; Gurav, K.V.; Kim, J.H.; Pawar, S.H. Enhancement of specific absorption rate by exchange coupling of the core–shell structure of magnetic nanoparticles for magnetic hyperthermia. J. Phys. D Appl. Phys. 2016, 49, 095004. [Google Scholar] [CrossRef]
  28. Dippong, T.; Toloman, D.; Levei, E.-A.; Cadar, O.; Mesaros, A. A possible formation mechanism and photocatalytic properties of CoFe2O4/PVA-SiO2 nanocomposites. Thermochim. Acta 2018, 666, 103–115. [Google Scholar] [CrossRef]
  29. Dippong, T.; Levei, E.A.; Cadar, O.; Deac, I.G.; Diamandescu, L.; Barbu-Tudoran, L. Effect of nickel content on structural, morphological and magnetic properties of NixCo1-xFe2O4/SiO2 nanocomposites. J. Alloys Compd. 2019, 786, 330–340. [Google Scholar] [CrossRef]
  30. Maaz, K.; Mumtaz, A.; Hasanain, S.K.; Ceylan, A. Synthesis and magnetic properties of cobalt ferrite (CoFe2O4) nanoparticles prepared by wet chemical route. J. Magn. Magn. Mater. 2007, 308, 289–295. [Google Scholar] [CrossRef][Green Version]
  31. Carta, D.; Casula, M.F.; Floris, P.; Falqui, A.; Mountjoy, G.; Boni, A.; Sangregorio, C.; Corrias, A. Synthesis and microstructure of manganese ferrite colloidal nanocrystals. Phys. Chem. Chem. Phys. 2010, 12, 5074–5083. [Google Scholar] [CrossRef]
  32. Song, Q.; Zhang, Z.J. Controlled Synthesis and Magnetic Properties of Bimagnetic Spinel Ferrite CoFe2O4 and MnFe2O4 Nanocrystals with Core–Shell Architecture. J.Am. Chem. Soc. 2012, 134, 10182–10190. [Google Scholar] [CrossRef]
  33. Moon, S.H.; Noh, S.-H.; Lee, J.-H.; Shin, T.-H.; Lim, Y.; Cheon, J. Ultrathin Interface Regime of Core–Shell Magnetic Nanoparticles for Effective Magnetism Tailoring. Nano Lett. 2017, 17, 800–804. [Google Scholar] [CrossRef] [PubMed]
  34. López-Ortega, A.; Estrader, M.; Salazar-Alvarez, G.; Roca, A.G.; Nogués, J. Applications of exchange coupled bi-magnetic hard/soft and soft/hard magnetic core/shell nanoparticles. Phys. Rep. 2015, 553, 1–32. [Google Scholar] [CrossRef][Green Version]
  35. Nikam, D.S.; Jadhav, S.V.; Khot, V.M.; Ningthoujam, R.S.; Hong, C.K.; Mali, S.S.; Pawar, S.H. Colloidal stability of polyethylene glycol functionalized Co0.5Zn0.5Fe2O4 nanoparticles: Effect of pH, sample and salt concentration for hyperthermia application. RSC Adv. 2014, 4, 12662–12671. [Google Scholar] [CrossRef]
  36. Caro, C.; Dalmases, M.; Figuerola, A.; Garcia-Martin, M.L.; Leal, M.P. Highly water-stable rare ternary Ag-Au-Se nanocomposites as long blood circulation time X-ray computed tomography contrast agents. Nanoscale 2017, 9, 7242–7251. [Google Scholar] [CrossRef] [PubMed][Green Version]
  37. Riedinger, A.; Pernia Leal, M.; Deka, S.R.; George, C.; Franchini, I.R.; Falqui, A.; Cingolani, R.; Pellegrino, T. “nanohybrids” based on pH-responsive hydrogels and inorganic nanoparticles for drug delivery and sensor applications. Nano Lett. 2011, 11, 3136–3141. [Google Scholar] [CrossRef] [PubMed]
  38. Pichon, B.P.; Gerber, O.; Lefevre, C.; Florea, I.; Fleutot, S.; Baaziz, W.; Pauly, M.; Ohlmann, M.; Ulhaq, C.; Ersen, O.; et al. Microstructural and Magnetic Investigations of Wüstite-Spinel Core-Shell Cubic-Shaped Nanoparticles. Chem. Mater. 2011, 23, 2886–2900. [Google Scholar] [CrossRef]
  39. Ungár, T. Characterization of nanocrystalline materials by X-ray line profile analysis. J. Mater. Sci. 2007, 42, 1584–1593. [Google Scholar] [CrossRef]
  40. Knappett, B.R.; Abdulkin, P.; Ringe, E.; Jefferson, D.A.; Lozano-Perez, S.; Rojas, T.C.; Fernández, A.; Wheatley, A.E.H. Characterisation of [email protected] [email protected] nanoparticles using advanced electron microscopy. Nanoscale 2013, 5, 5765–5772. [Google Scholar] [CrossRef][Green Version]
  41. Hammad, M.; Nica, V.; Hempelmann, R. On-command controlled drug release by diels-Alder reaction using Bi-magnetic core/shell nano-carriers. Colloids Surf. B Biointerfaces 2017, 150, 15–22. [Google Scholar] [CrossRef]
  42. Li, Q.; Kartikowati, C.W.; Horie, S.; Ogi, T.; Iwaki, T.; Okuyama, K. Correlation between particle size/domain structure and magnetic properties of highly crystalline Fe3O4 nanoparticles. Sci. Rep. 2017, 7, 9894. [Google Scholar] [CrossRef] [PubMed]
  43. Hammad, M.; Nica, V.; Hempelmann, R. On–off switch-controlled doxorubicin release from thermo- and pH-responsive coated bimagnetic nanocarriers. J. Nanopart. Res. 2016, 18, 234. [Google Scholar] [CrossRef]
  44. Hammad, M.; Hempelmann, R. Enhanced specific absorption rate of bi-magnetic nanoparticles for heating applications. Mater. Chem. Phys. 2017, 188, 30–38. [Google Scholar] [CrossRef]
  45. Peter, A.I.; Naidu, E.C.; Akang, E.; Ogedengbe, O.O.; Offor, U.; Rambharose, S.; Kalhapure, R.; Chuturgoon, A.; Govender, T.; Azu, O.O. Investigating Organ Toxicity Profile of Tenofovir and Tenofovir Nanoparticle on the Liver and Kidney: Experimental Animal Study. Toxicol. Res. 2018, 34, 221–229. [Google Scholar] [CrossRef] [PubMed][Green Version]

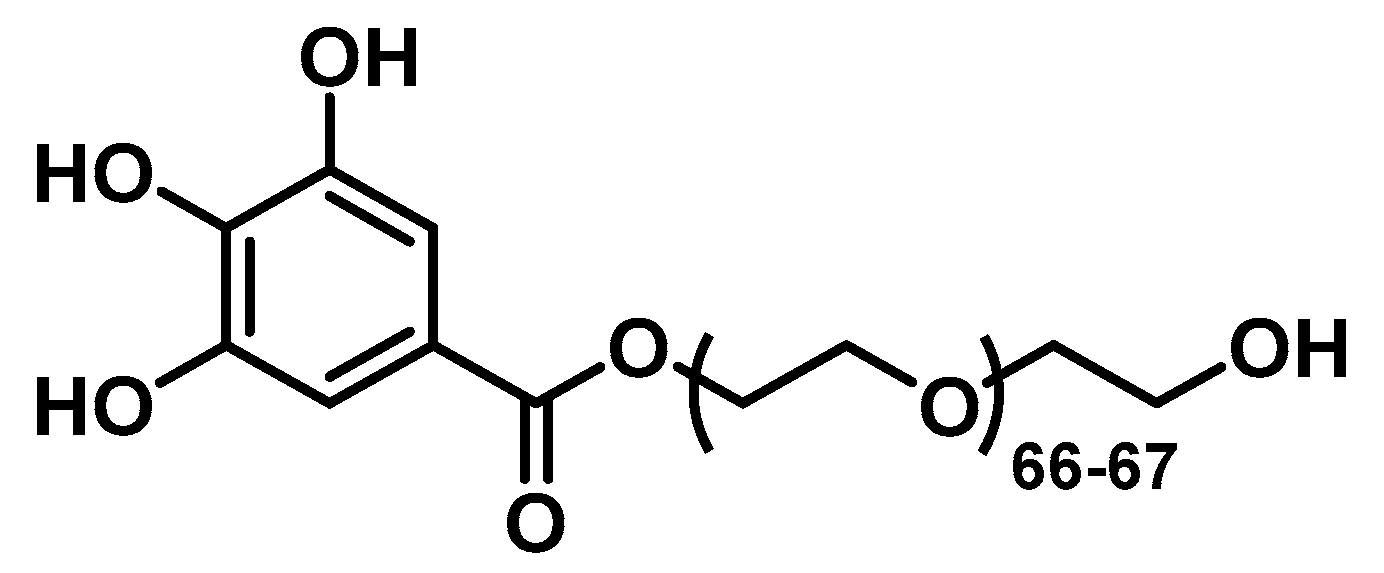

Figure 1. Chemical structure of the gallol-PEG66-67-OH ligand.
Figure 1. Chemical structure of the gallol-PEG66-67-OH ligand.
Nanomaterials 10 00907 g001

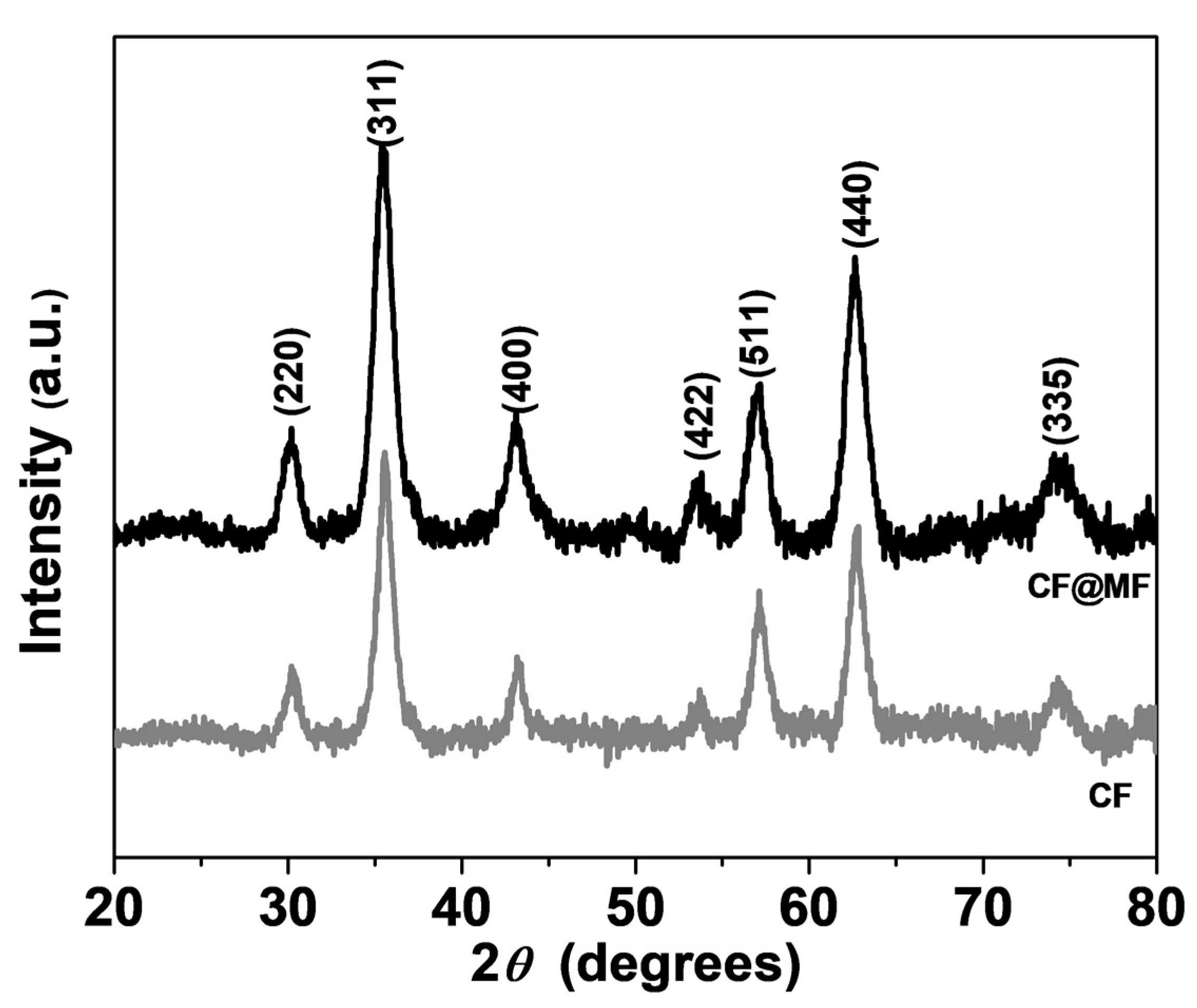

Figure 2. X-ray diffraction (XRD) patterns of CoFe2O4 (CF)(grey) and CoFe2O4@MnFe2O4 ([email protected]) (black) nanoparticles (NPs).
Figure 2. X-ray diffraction (XRD) patterns of CoFe2O4 (CF)(grey) and CoFe2O4@MnFe2O4 ([email protected]) (black) nanoparticles (NPs).
Nanomaterials 10 00907 g002
Figure 3. Representative Transmission Electron Miscroscopy (TEM) images (top) of CF (a) and [email protected] (b) NPs, and their corresponding size distribution histograms (bottom). TEM diameters are expressed as the mean ± SD by measuring at least 100 particles. Representative Dark field-TEM images of [email protected] NPs (c). Scale bar is equivalent to 20 nm in all images. EDX spectrum of [email protected] nanoparticles (d).
Figure 3. Representative Transmission Electron Miscroscopy (TEM) images (top) of CF (a) and [email protected] (b) NPs, and their corresponding size distribution histograms (bottom). TEM diameters are expressed as the mean ± SD by measuring at least 100 particles. Representative Dark field-TEM images of [email protected] NPs (c). Scale bar is equivalent to 20 nm in all images. EDX spectrum of [email protected] nanoparticles (d).
Nanomaterials 10 00907 g003
Figure 4. (a) Magnetization curves of CF (grey) and [email protected] (black) nanoparticles. (b) SAR for different power values of the CF (grey) and [email protected] (black) nanoparticles (at a frequency of 1950 kHz).
Figure 4. (a) Magnetization curves of CF (grey) and [email protected] (black) nanoparticles. (b) SAR for different power values of the CF (grey) and [email protected] (black) nanoparticles (at a frequency of 1950 kHz).
Nanomaterials 10 00907 g004

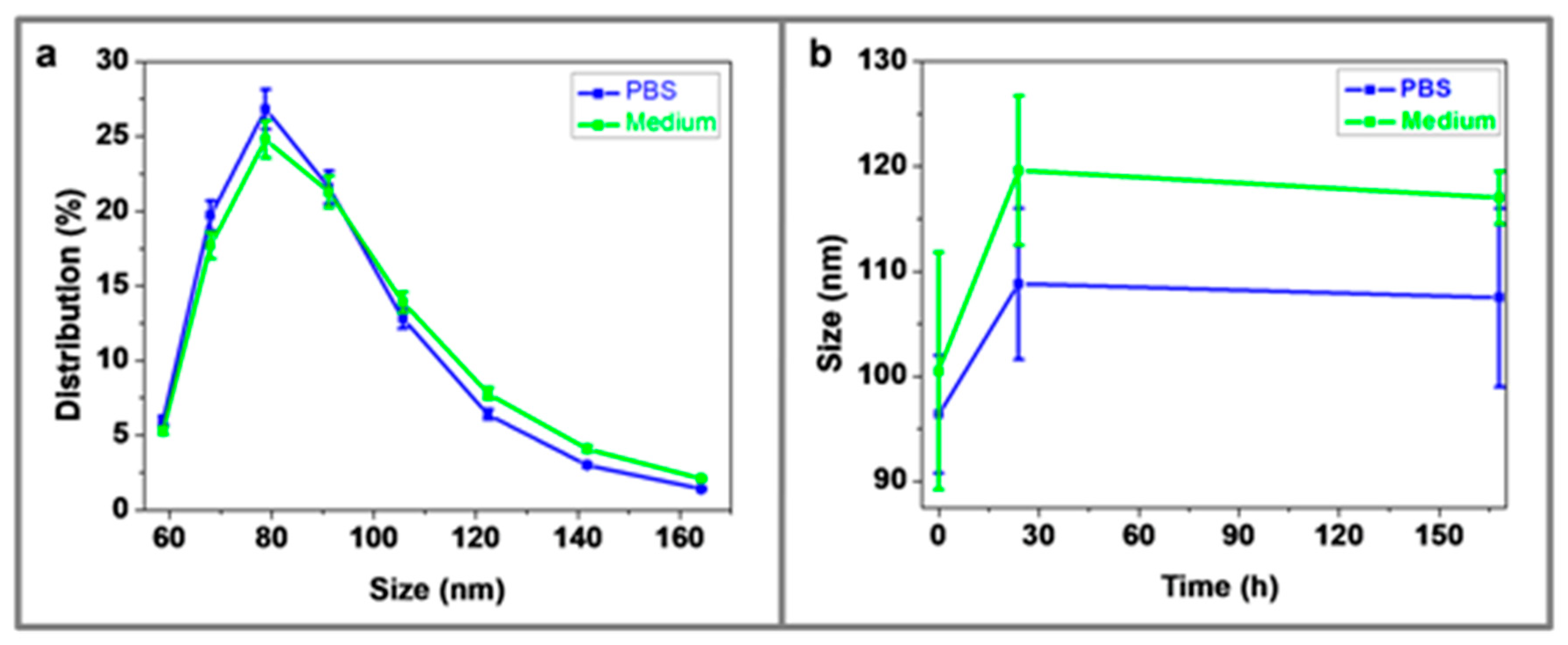

Figure 5. (a) Histogram of Dynamic Light Scattering (DLS) sizes in Phosphate Buffered Saline (PBS) (blue) and cell growth medium (green); (b) hydrodynamic diameters of magnetic NPs vs time at 37 °C in PBS buffer (blue) and cell growth medium (green).
Figure 5. (a) Histogram of Dynamic Light Scattering (DLS) sizes in Phosphate Buffered Saline (PBS) (blue) and cell growth medium (green); (b) hydrodynamic diameters of magnetic NPs vs time at 37 °C in PBS buffer (blue) and cell growth medium (green).
Nanomaterials 10 00907 g005

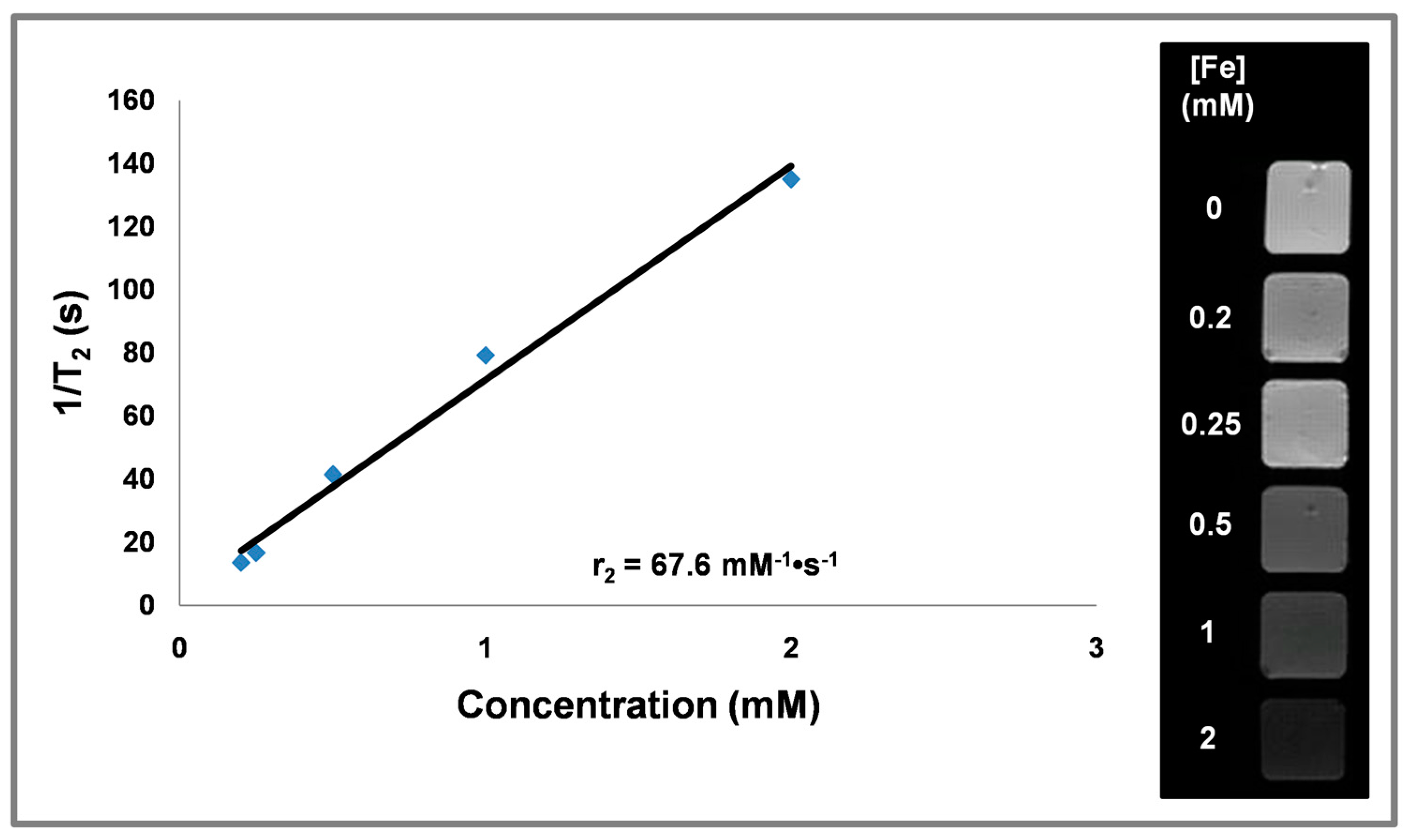

Figure 6. Plot of transverse relaxation rate (1/T2) over the Fe concentration of PEGylated [email protected] NPs, measured at 9.4 T (left). Transverse relaxivity (r2) corresponds to the slope of the regression (black line). Representative T2-weighted MRI image of a phantom containing solutions of PEGylated [email protected] NPs at different concentrations (right).
Figure 6. Plot of transverse relaxation rate (1/T2) over the Fe concentration of PEGylated [email protected] NPs, measured at 9.4 T (left). Transverse relaxivity (r2) corresponds to the slope of the regression (black line). Representative T2-weighted MRI image of a phantom containing solutions of PEGylated [email protected] NPs at different concentrations (right).
Nanomaterials 10 00907 g006

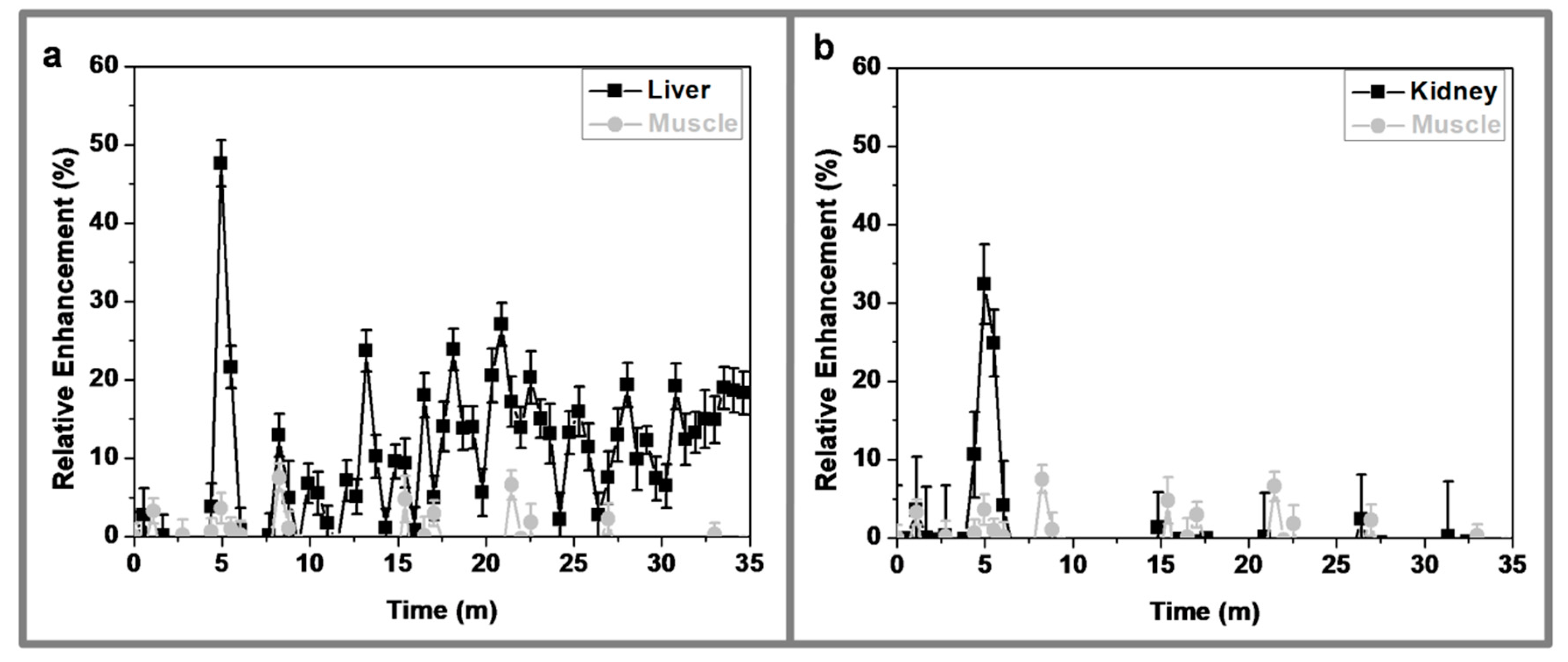

Figure 7. In vivo time courses of PEGylated [email protected] nanoparticles after intravenous injection in balb/c mice: (a) liver (black) and muscle (grey), (b) kidneys (black) and muscle (grey).
Figure 7. In vivo time courses of PEGylated [email protected] nanoparticles after intravenous injection in balb/c mice: (a) liver (black) and muscle (grey), (b) kidneys (black) and muscle (grey).
Nanomaterials 10 00907 g007

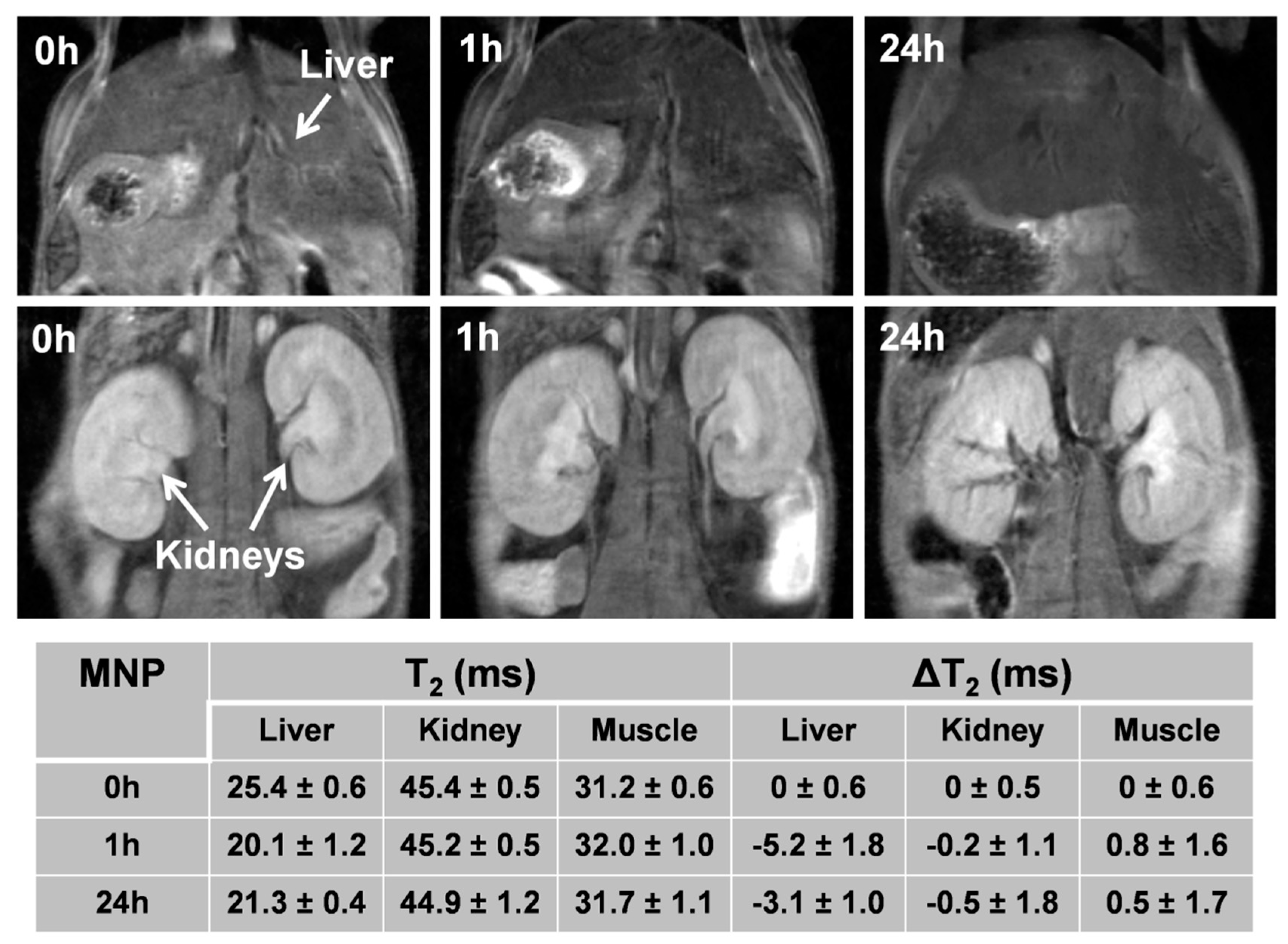

Figure 8. RepresentativeT2-weighted MR images at different experimental times after the intravenous injection of PEGylated [email protected] of liver (top) and kidneys (bottom). T2 and ΔT2 values of liver, kidneys and muscle at different times after the intravenous injection of PEGylated [email protected] NPs. Values correspond to the mean ± standard deviation (n = 3).
Figure 8. RepresentativeT2-weighted MR images at different experimental times after the intravenous injection of PEGylated [email protected] of liver (top) and kidneys (bottom). T2 and ΔT2 values of liver, kidneys and muscle at different times after the intravenous injection of PEGylated [email protected] NPs. Values correspond to the mean ± standard deviation (n = 3).
Nanomaterials 10 00907 g008
Figure 9. Haematoxylin and eosin representative histological sections of control liver (a), liver at 24 h post-injection of PEGylated [email protected] NPs (b), control kidney (c), and kidney at 24 h post-injection of PEGylated [email protected] NPs (d).
Figure 9. Haematoxylin and eosin representative histological sections of control liver (a), liver at 24 h post-injection of PEGylated [email protected] NPs (b), control kidney (c), and kidney at 24 h post-injection of PEGylated [email protected] NPs (d).
Nanomaterials 10 00907 g009
Figure 10. Prussian blue staining of representative histological sections at 24 h post-injection of PEGylated [email protected] NPs of liver (left) and kidney (right).
Figure 10. Prussian blue staining of representative histological sections at 24 h post-injection of PEGylated [email protected] NPs of liver (left) and kidney (right).
Nanomaterials 10 00907 g010
Table 1. Structural and magnetic parameters. <d>: mean crystallite size; a: lattice parameter; ε: microstrain. Numbers in parentheses indicate the estimated standard deviations of the last significant digit.
Table 1. Structural and magnetic parameters. <d>: mean crystallite size; a: lattice parameter; ε: microstrain. Numbers in parentheses indicate the estimated standard deviations of the last significant digit.
Sample<d>
(nm)
a
(Å)
ε
CF9.8(7)8.3832(4)6.55 × 10−5
[email protected]10.4(8)8.3961(2)7.16 × 10−4

Share and Cite

MDPI and ACS Style

Nica, V.; Caro, C.; Páez-Muñoz, J.M.; Leal, M.P.; Garcia-Martin, M.L. Bi-Magnetic Core-Shell CoFe2O4@MnFe2O4 Nanoparticles for In Vivo Theranostics. Nanomaterials 2020, 10, 907. https://doi.org/10.3390/nano10050907

AMA Style

Nica V, Caro C, Páez-Muñoz JM, Leal MP, Garcia-Martin ML. Bi-Magnetic Core-Shell CoFe2O4@MnFe2O4 Nanoparticles for In Vivo Theranostics. Nanomaterials. 2020; 10(5):907. https://doi.org/10.3390/nano10050907

Chicago/Turabian Style

Nica, Valentin, Carlos Caro, Jose Maria Páez-Muñoz, Manuel Pernia Leal, and Maria Luisa Garcia-Martin. 2020. "Bi-Magnetic Core-Shell CoFe2O4@MnFe2O4 Nanoparticles for In Vivo Theranostics" Nanomaterials 10, no. 5: 907. https://doi.org/10.3390/nano10050907

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
