Review

Pillararenes Trimer for Self-Assembly

by
Huacheng Zhang
1,*,
Zhaona Liu
2 and
Hui Fu
3
1
School of Chemical Engineering and Technology, Xi’an Jiaotong University, Xi’an 710049, China
2
Medical School, Xi’an Peihua University, Xi’an 710125, China
3
College of Science, China University of Petroleum, Qingdao 266580, China
*
Author to whom correspondence should be addressed.
Nanomaterials 2020, 10(4), 651; https://doi.org/10.3390/nano10040651
Submission received: 13 March 2020 / Revised: 27 March 2020 / Accepted: 29 March 2020 / Published: 31 March 2020
Browse Figures
Versions Notes

Abstract

:
Pillararenes trimer with particularly designed structural geometry and excellent capacity of recognizing guest molecules is a very efficient and attractive building block for the fabrication of advanced self-assembled materials. Pillararenes trimers could be prepared via both covalent and noncovalent bonds. The classic organic synthesis reactions such as click reaction, palladium-catalyzed coupling reaction, amidation, esterification, and aminolysis are employed to build covalent bonds and integrate three pieces of pillararenes subunits together into the “star-shaped” trimers and linear foldamers. Alternatively, pillararenes trimers could also be assembled in the form of host-guest inclusions and mechanically interlocked molecules via noncovalent interactions, and during those procedures, pillararenes units contribute the cavity for recognizing guest molecules and act as a “wheel” subunit, respectively. By fully utilizing the driving forces such as host-guest interactions, charge transfer, hydrophobic, hydrogen bonding, and C–H…π and π–π stacking interactions, pillararenes trimers-based supramolecular self-assemblies provide a possibility in the construction of multi-dimensional materials such as vesicular and tubular aggregates, layered networks, as well as frameworks. Interestingly, those assembled materials exhibit interesting external stimuli responsiveness to e.g., variable concentrations, changed pH values, different temperature, as well as the addition/removal of competition guests and ions. Thus, they could further be used for diverse applications such as detection, sorption, and separation of significant multi-analytes including metal cations, anions, and amino acids.

1. Introduction

Self-assembly has attracted much more attention in fundamental researches of material science and interesting applications to practical engineering areas [1,2], e.g., providing not only inspiring methodological strategy in processing, but also solid functional materials to balance morphologies and properties [3]. Building ideal self-assembly begins from the molecular level [2,4,5], i.e., designing the structural geometry of molecules, modifying them with proper functional moieties, introducing and choosing proper inter/intramolecular interactions, as well as controlling the behavior of assembled molecules. Thus, designing appropriate building blocks from the molecular level is very significant in the construction of multi-dimensional self-assembly [2].
Macrocycles is a kind of particular cyclic oligomers with the hollow cavity for recognizing guest molecules [6,7], providing a possibility to introduce more functional and sensitive moieties for the fabrication of building blocks, as well as controllable self-assembly through supramolecular interactions such as host-guest interactions [1,8,9,10]. Pillararenes is a rising star in macrocycles (Chart 1) [11], due to its high synthesis yield and convenient modifications [12]. Different from other macrocycles, pillararenes composed by repeated phenol subunits possesses the electron-rich cavity and more rigid chemical structures, leading to its unique physiochemical properties such as planar chirality, as well as recognition towards neutral and electron-deficient guests [13,14]. Interestingly, functionalized pillararenes monomers and dimers have been used as the building blocks to construct self-assemblies such as vesicular and polymeric architectures with small guest molecules as the template [15,16,17,18], but their morphologies are still limited.
To enlarge the family of assemblies with controllable multi-dimensional morphologies such as two-dimensional materials, pillararenes trimers have been designed and have attracted much more attentions recently. Different from pillararenes monomers and dimers, pillararenes trimers integrate three pieces of pillararenes units together via a “core” bridge, contribute a planar geometry as building blocks for advanced self-assemblies, and generate unique physiochemical properties such as aggregation-induced absorption [19].
In this review, we briefly summarized the recent progress about pillararenes trimers (PT1–PT10 according to the timeline, Table 1 and Scheme 1), their synthesis method, supramolecular interactions with e.g., guest molecules (G1–G9, Scheme 2), driving forces for self-assembly, the fabrication of advanced self-assembly, and current applications. We will try to find the issues and concerns in the development of pillararenes trimers and their advanced self-assembly. For example, pillararenes trimer could be prepared via both covalent and noncovalent bonds. The selection of the synthesis strategy and functional precursors (Scheme 3 and Table 1) will become significant because it will further affect the molecular geometry including “star-shaped” molecules and linear foldamers, as well as driving forces for next-step self-assembly, e.g., by utilizing unoccupied pillararenes cavities via host-guest interactions or functional groups from modifications via other supramolecular interactions. In addition, the precise control over the self-assembly is always the key point during practical applications. Thus, we will analyze the sensitive supramolecular interactions of pillararenes trimers-based self-assemblies in details, e.g., which kind of supramolecular interactions will be involved in the construction process? Will they be sensitive towards external-stimuli such as variable concentrations, changed pH values, different temperature, as well as the addition/removal of competition guests and ions? Finally, we will also try to foresee future research directions in the field of pillararenes trimers-based self-assemblies.

2. Fabrication Strategy for Pillararenes Trimer

Pillararenes trimer could be fabricated via both covalent and noncovalent bonds. To build the pillararenes trimer by covalent bonds, the classic organic synthesis reactions such as click reaction [29], palladium-catalyzed coupling reaction [4], and aminolysis reaction are employed. Additionally, the selection of “bridge” reagent is very important, for example, 1,3,5-benzenetricarbonyl trichloride is proved to be a very efficient “core” in the construction of star-shaped trimers by adopting various reactions such as amidation and esterification. Furthermore, the noncovalent method for preparing pillararenes trimers is mainly dependent on the supramolecular interactions such as host-guest interactions [9]. The roles of pillararenes in those noncovalent pillararenes trimers include performing as a linker in the self-assembled architecture and acting as a “wheel” subunit in mechanically interlocked molecules.

2.1. Synthesis by Organic Reactions

“Click” reaction is a very efficient synthesis strategy for obtaining the “star-shaped” pillararenes trimer. For example, the first pillararenes trimer PT1 (Scheme 1) was synthesized by using the general condition of click reactions, i.e., copper (I) catalyzed Huisgen-type azide-alkyne cycloaddition reaction between azido-pillar[5]arene (X1, Scheme 3) and tripropargylamine with a high yield of 91% [15]. By using the same synthesis strategy, PT5 (Scheme 1) [22] is also produced by coupling the pillar[5]arenes precursors X6 (Scheme 3) together.
Palladium-catalyzed coupling reactions such as Sonogashira reactions are also used for the fabrication of “rigid arms” of star-shaped trimers, for example, the general catalysis reagents i.e., CuI and dichlorobis(triphenylphosphine)palladium(II) were used in coupling alkynes together for the synthesis of PT2 (Scheme 1) [20].
Amidation is another direct and simple method to afford pillararenes trimers. For example, PT3 (Scheme 1) was synthesized by rationally connecting three units of pillararenes (X4, Scheme 3) together via the reaction between 1,3,5-benzenetricarbonyl trichloride and dihydrazide moieties in dichloromethane for 12 h [21]. By using very similar synthesis procedure but different pillar[5]arenes precursors such as X9 (Scheme 3), 1,3,5-benzenetricarbonyl trichloride can also act as the core structure in another trimer—PT7 (Scheme 1) [24]. In addition, the 1,3,5-benzenetricarbonyl trichloride could perform an esterification in chloroform with three equivalent of pillararenes precursor X5 (Scheme 3) to obtain another star-shaped trimer, PT4 (Scheme 1) [19]. Similarly, aminolysis of mono-ester derivative X10 (Scheme 3) with tris(2-aminoethyl)amine in the toluene/methanol mixture could produce PT8 (Scheme 1) [25].
Different from the above star-shaped pillararenes trimers, there is a particular linear pillararenes trimer, PT6 (Scheme 1), which is synthesized by a quinoline monofunctionalized pillar [5] arene X7 and bis-bromhexine functionalized X8 (Scheme 3) in n-butanol [23]. Due to the possession of quinoline and pillararenes subunits, this “N-type” tri-pillararenes-based foldamer could contribute π–π stacking interaction sites for further self-assembly.

2.2. Preparation by Noncovalent Method

2.2.1. Supramolecular Interactions

A particular pillararenes trimer X13⸧G6 (Figure 1) was designed by only employing noncovalent bonds between the cavity of naphthalimide monofunctionalized pillar [5] arene X13 (Scheme 1) and pyridine moieties on the star-shaped guest G6 (Scheme 2) [28]. In the noncovalent pillararenes trimer, the pillararenes subunit only acts as a linker to interact with the tripodal core, providing an occupied cavity for further control over the advanced self-assemblies.

2.2.2. Mechanically Interlocked Molecules

Mechanically interlocked molecules are fabricated by noncovalent bonds, but only can be destroyed by damaging the covalent bonds [3]. The design strategy of mechanically interlocked molecules is also employed to prepare the pillararenes trimers. For example, 1,4-dipropoxypillar[5]arenes X11 (Scheme 3) performs as the wheel including neutral alkyl chain guest G8 (Scheme 2) to form the pseudorotaxane, and then coupled with 1,3,5-triethynylbenzene into the first-generation rotaxane dendrimer PT9 (Scheme 1) via platinum–acetylide bonds in a yield of 79% [26,30,31]. The role of pillar[5]arenes is very significant in the fabrication of mechanical dendrimers, enhancing the rigidity of the resultant rotaxane and reducing the possibility of self-folding. In a similar example, 1,4-diethoxypillar[5]arenes X12 (Scheme 3) and another neutral guest G9 (Scheme 2) also formed the pseudorotaxane via C–H…π interactions, which could further couple with 1,3,5-triethynylbenzene into dendrimers PT10 (Scheme 1) in a yield of 92% (Figure 2) [27]. The chemical structure of PT10 was confirmed by multinuclear (1H, 31P and 13C) NMR measurements, ESI-MS and gel permeation chromatography (GPC) spectra.

3. Pillararenes Trimer as Building Block for Fabricating External-Stimuli Responsive Self-Assembled Materials

Both covalent and noncovalent pillararenes trimers could act as the building blocks to construct advanced self-assembled materials. The driving forces for further self-assembly include host-guest interactions, charge transfer, hydrophobic, hydrogen bonding, and C–H…π and π–π stacking interactions. Due to the particular “star-shaped” geometry of pillararenes trimers, thus formed complicated self-assemblies are main supramolecular networks and frameworks. Interestingly, because those supramolecular materials are constructed by functionalized building blocks via supramolecular interactions, they could be controlled over morphologies, as well as formation/deformation by employing various external-stimuli such as variable concentrations, changed pH values, different temperature, as well as the addition/removal of competition guests and ions.

3.1. Interactions and Driving Forces

If host and guest molecules were both employed, host-guest interactions driven by charge transfer, hydrophobic and hydrogen bonding interactions become very general driving forces to prepare building blocks for the construction of complicated self-assemblies. For example, host-guest interaction between electronic deficient viologen moieties and the electronic rich cavity of pillararenes are employed as one significant driving force for the construction of self-assembled materials. A clear color change from colorless to yellow brown could be observed in the solution containing PT1 upon the addition of G1 (Scheme 2), due to the charge transfer in the formation of inclusions PT1⸧G1 [15]. Similar phenomena could also be observed in the mixed solutions containing dimethoxypillar (X2, Scheme 3) and G1 [15].
In another example, benzene-1,3,5-trispillar[5]arene PT4 (Scheme 1) could effectively include other electron acceptors such as 1,4-butane diamine (G3, Scheme 2) and tris(2-aminoethyl)amine (G4, Scheme 2) via host-guest interactions [19]. Interestingly, driven by charge transfer interactions, PT4⸧G3 and PT4⸧G3 further exhibit clear aggregation-induced absorption in the visible to near IR regions (400–1000 nm), quite different from the behaviors shown by inclusions between pillararenes monomers/dimers and guests.
Additionally, the neutral guest moiety such as cyano and triazole group on G2 (Scheme 2) [20] can be included by the cavity of pillararenes on PT2, and provide proper host-guest interactions to serve as the candidate of building blocks for making complicated self-assembly.
Except for using the cavity of pillararenes, the bridging moiety among those pillararenes units could also interact with guest molecules, for example, hydrogen bonding interactions [22] were found between the tris(2-aminoethyl)amine subunit on PT8 and N-phenyl-3-(phenylimino)-3H-phenothiazin-7-amine (G7, Scheme 2) [25] as confirmed by 1H NMR.
The host-guest inclusion can further be confirmed by UV-vis spectra [19], 1H NMR titration [15,22], variable temperature 1H NMR [15,19], 1H-1H COSY [20], and 1H-1H NOSY [15,20], as well as high resolution time-of-flight mass spectrometry [15]. To better study host-guest interactions, several key parameters were involved, for example, the stoichiometry between host and guest molecules exhibit the composition ratio, and can be determined by Job’s variation method by fluorescence, UV-vis spectra, and cyclic voltammogram (CV) [15,19,22,25]. In addition, the association constant (Ka) indicates the binding strength of inclusions, and is able to be detected by e.g., the Benesi–Hildebrand equation [15] and variable spectrometric methods [15,22,25].
If guest molecules were not employed in the process of self-assembly, pillararenes trimers could adopt other significant interactions as driving forces for building assemblies. For example, due to the possession of amide and benzene moieties, neighboring PT3 (Scheme 1) molecules could interact with each other via diverse interactions in cyclohexanol solutions, such as intermolecular hydrogen bonding between –N–H and O=C– as confirmed by IR spectra, as well as C–H…π and π–π stacking interactions among pillararenes and phenyl units as indicated by X-ray powder diffusion (PXRD), 1H NMR, and IR spectra [21].

3.2. Multi-Dimensional Self-Assembly and Its External-Stimuli Responsiveness

Compared to pillararenes monomer, pillararenes trimer provides a larger possibility for the construction of multi-dimensional complicated self-assemblies with external stimuli responsiveness.
For example, the pillararenes monomer—1,4-dimethoxypillar[5]arene (X2, Scheme 3) could include the guest molecule—biviologen (G1, Scheme 2) into a self-assembled amphiphile with solvophilic/solvophobic moieties, and further aggregate into spherical architectures, which show very limited morphological changes upon increasing concentrations as observed by transmission electron microscopy (TEM) and scanning electronic microscopy (SEM, Figure 3) [15]. The critical assembly concentrations (CAC) generated by UV-vis and fluorescence emitted spectra were also employed to exhibit the formation and possible changes of aggregations [15]. However, the star-shaped pillararenes trimer PT1 (Scheme 1) could form stable supramolecular networks by complexing with G1, due to host-guest interactions. Upon the increasement of sample concentrations, those small pieces of supramolecular networks become larger and further wrap into spherical vesicles (zero dimensional, 0 D) as confirmed by TEM, SEM, and dynamic light scattering (DLS). Interestingly, those inclusions have the capacity of carrying out a morphological transformation from fused vesicular assembled structures, tubular objects (one dimensional, 1 D), layers (two dimensional, 2 D) to stacked layers (three dimensional, 3 D) upon continuously increasing the sample concentrations (Figure 4). Thus, the inclusions between PT1 and G1 exhibit an efficient concentration-dependent control over morphologies of assembled materials [15].
Except for tuning samples concentration of building blocks such as PT1⸧G1 [15], the addition and removal of cations were also proved to be an efficient method for controlling the formation/deformation of self-assemblies. For example, the pillararenes trimer PT2 (Scheme 1) can selectively bind the neutral moiety, cyano, and triazole groups on the guest molecule—G2 (Scheme 2), while the dialkylammonium groups on G2 are recognized by the cavities on crown ether trimers (X3, Scheme 3). The formation of supramolecular hyperbranched alternating polymers by PT2, G2, and X3 in a molar ration of 1/3/1 (Figure 5) was proved by diffusion-ordered NMR spectroscopy (DOSY), DLS, and TEM. The critical polymerization concentration (CPC) was calculated as 6 × 10−3 mol L−1 by a double logarithmic plot of specific viscosity versus the concentration of G2. Due to the competition of metal cations such as K+ [20], the inclusion and exclusion of dialkylammonium groups on G2 by the crown ether moieties on X3 can be used as a tool to control the assembly and disassembly of those supramolecular polymeric materials.
In another example, supramolecular polymers prepared by PT3 (Scheme 1) in cyclohexanol solution via hydrogen bonding, van der Waals forces, and C–H…π and π–π stacking interactions can also be responsive to metal cations [21]. It is found that PT3-based supramolecular materials possess the lowest critical gelation concentration (CGC) as 5% (w/v, 10 mg mL−1 = 1%) and the gel-sol transition temperature (Tgel) as 58–60 °C, as well as exhibit an aggregation-induced emission (AIE). Due to the coordination between dihydrazide moieties on PT3 and metal cations such as Hg2+, the intermolecular hydrogen bonds are affected, leading to quench of AIE and the disassociation of supramolecular polymers (Figure 6). Furthermore, the AIE supramolecular organic framework gel prepared by thioacetylhydrazine-bearing pillar[5]arenes trimer PT7 (Scheme 1) and 4-aminopyridine-functionalized trimeric amide G6 (Scheme 2) via hydrogen bonding, C–H…π and π–π stacking interactions could exhibit fluorescent response for multiple metal cations such as Fe3+, Cu2+, Cr3+, Ag+, Tb3+, and Eu3+ [24].
Except for response to metal cations, pillararenes trimer-based material can also be responsive to anion and solvent molecules. For example, due to C–H…π interactions between pillararenes and alkyl chain in PT10 (Scheme 1), the urea subunit localizes inside the cavity of pillararenes [27]. Upon the addition of hydrogen bonding acceptors such as dimethylsulfoxide and acetate anion, the controllable motion of the pillararenes wheel to methylene subunit is achieved, finally leading to the dimension modulation of dendrimers (Figure 2).
In addition, pillararenes trimers-based self-assembly could be responsive to other external stimuli such as pH and temperature changes. For example, the pillar[5]arenes trimer bearing adenine subunits (PT5, Scheme 1) could include the uracil derivative—6-(2,4-dioxo-3,4-dihydropyrimidin-1(2H)-yl)hexanenitrile (G5, Scheme 2) via host-guest interactions, and the neighboring G5 could further have hydrogen bonding and π–π stacking interactions with adenine subunits on PT5, leading to the formation of hyperbranched supramolecular polymers [22]. Due to the formation and deformation of hydrogen bonding interactions between uracil and adenine subunits, the assembly and disassembly of supramolecular polymers could be controlled by the addition of acids such as aspirin and bases such as triethylamine, respectively. Furthermore, because host-guest and hydrogen bonding interactions are sensitive to temperature changes, the supramolecular polymers PT5⸧G5 could be affected by heating and cooling.

4. Applications

Pillararenes trimers-based supramolecular self-assemblies provide a possibility in the construction of multi-dimensional materials [15], exhibit interesting external stimuli responsiveness, and could further be used for diverse applications such as detection, sorption, and separation of significant multi-analytes including metal cations, anions, and amino acids.
For example, the PT3-based supramolecular materials with AIE properties exhibit selective response towards Hg2+ with the detection limit (LOD) of 1.02 × 10−8 mol L−1 as calculated by fluorescence titration, which can be used as an ultrasensitive sensor. Furthermore, the separation rate for Hg2+ was proved to be 81.3% by inductively coupled plasma (ICP) [21], confirmed the ingestion capacity of those supramolecular materials for particular metal cations. Similar application for detecting metal cations can also be found by other supramolecular self-assembled materials such as PT6-based supramolecular networks [23], i.e., by the assistance of π–π stacking interactions, the linear pillararenes trimer-based foldamer PT6 (Scheme 1) could assemble into AIE supramolecular organic frameworks (SOFs) with ultrasensitive response for Fe3+/Hg2+/Cr3+ with the limits of detection in the range of 9.40 × 10−10–1.86 × 10−9 mol L−1 [23]. The AIE self-assemblies based on noncovalent pillararenes trimer—X13⸧G6 via hydrogen bonding, π–π stacking and host-guest interactions (Figure 1 and Figure 7) could also ultra-sensitively detect Fe3+ with the limits of detection as 9.0 × 10−10 mol L−1, and exhibit separation properties towards Fe3+ [28] with a separation rate up to 99.8%.
Except for detecting metal cations, the host-guest inclusions between pillararenes trimer PT8 and N-phenyl-3-(phenylimino)-3H-phenothiazin-7-amine (G7) could perform as a colorimetric probe for F−/AcO−/H2PO4−, due to the competition binding of anions with proton donating amide groups on PT8 in comparison with G7 [25]. Furthermore, the self-assembled materials could perform better ultrasensitive detection towards anions. For example, the PT6-based AIE supramolecular organic frameworks could further coordinate with metal cations such as Fe3+/Hg2+/Cr3+, leading to the formation of metal ions coordinated supramolecular organic frameworks such as PT6⸧Fe3+, PT6⸧Hg2+, and PT6⸧Cr3+. Due to the possession of stronger binding constants between metal cations and specialized anions, those metal ligated materials could further carry out selective fluorescence “turn-on” ultrasensitive detection towards anions such as CN− and H2PO4−, giving the limits of detection as 2.12 × 10−9 and 1.78 × 10−9 mol L−1, respectively [23].
Due to the capacity of multiple responsiveness to metal cations, anions, and amino acid, the PT7-based AIE supramolecular organic framework gels and metallogels could behave as a multi-unit sensor array for Fe3+, Cu2+, Cr3+, Ag+, Tb3+, Eu3+, F−, CN−, HSO4−, histidine (His), serine (Ser), and cysteine (Cys) [24] with the limits of detection ranging from 1.20 × 10−8 to 6.80 × 10−10 mol L−1. Particularly, the detection for Fe3+, Cr3+, Tb3+, Eu3+, F−, CN−, and serine could achieve an ultrasensitive level. Furthermore, the adsorption percentages of those supramolecular materials for Fe3+, Cu2+, Cr3+, Ag+, Tb3+, and Eu3+ could reach 98.30%, 99.34%, 98.80%, 99.57%, 98.30%, and 98.40%, respectively.
Those AIE supramolecular assemblies shown above such as polymeric gels not only provide an interesting strategy for building external stimuli responsible materials, but also are expected to make contributions to molecular sensors, biological imaging and sensing, as well as controlled drug delivery.

5. Overview and Outlook

Pillararenes trimer has been proved to an efficient building blocks in the construction of supramolecular self-assembled materials. Pillararenes trimers could be “star-shaped” molecules and linear foldamers, which are fabricated via covalent bonds by employing classic organic synthesis reactions such as “click”, palladium-catalyzed coupling, amidation, esterification, and aminolysis reaction. Interestingly, the “core” reagent—1,3,5-benzenetricarbonyl trichloride is very popular as the bridge to covalently connect three equivalents of pillararenes subunits together in the construction of “star-shaped” trimers. Alternatively, due to the capacity of recognizing guest molecules via host-guest interactions, pillararenes could perform as the linker and the “wheel” subunit in the construction of self-assembled pillararenes trimers and mechanically interlocked molecules, respectively. Thus, obtained pillararenes trimers could further act as building blocks for advanced self-assembled materials including supramolecular networks and frameworks via host-guest interactions, charge transfer, hydrophobic, hydrogen bonding, and C–H…π and π–π stacking interactions. Particularly, because those supramolecular materials are constructed by functionalized building blocks and sensitive supramolecular interactions, their morphologies and formation/deformation could be controlled by employing various external-stimuli such as variable concentrations, changed pH values, different temperature, as well as the addition/removal of competition guests and ions. Due to the external stimuli-responsiveness, pillararenes trimers-based supramolecular self-assemblies also become a significant candidate for diverse applications such as detection, sorption, and separation of significant multi-analytes including metal cations, anions, and amino acids.
A lot of perspective work in this area is still attractive for researchers in synthesis and material sciences, for example, (1) the design of new candidates for pillararenes trimers can be improved by choosing larger-sized pillararenes as the precursors, e.g., pillar[6]arenes [12], which also has good synthesis yields. Currently, only pillar[5]arenes is employed in the fabrication of pillararenes trimers. (2) the geometry of pillararenes trimers should be diverse, e.g., linear foldamer. Up to now, there was only one example about adopting linear pillararenes trimer for self-assembly [23]. (3) the study of mechanism about self-assemblies is unsatisfied. More researches should be employed, such as theoretical studies. The significant intermediates during self-assembly should be captured and better proved by using e.g., X-ray crystallography analysis. (4) alternative building blocks integrated with multi-subunits of pillararenes such as pillararenes tetramers [32,33,34,35,36,37] and other significant pillararenes oligomers [38,39] should be designed based on the researches of pillararenes trimers, as well as applied for recognizing multiple guests and fabricating assembled materials. (5) except for synthesizing novel pillararenes trimers, preparing trimeric guest molecules [40,41,42,43] is another alternative method to build planar assembled networks [19,24]. It is expected that future researches in the field of pillararenes trimers-based supramolecular assemblies will achieve to a new level in not only fundamental studies but also in practical applications in our lives.

Author Contributions

H.Z. initialed the idea about organizing this review. Both Z.L. and H.F. joined the discussion and provided valuable suggestions to this review. All authors have read and agreed to the published version of the manuscript.

Funding

Both the research and APC were funded by “Young Talent Support Plan” (No. 0001-7121191207) of Xi’an Jiaotong University.

Acknowledgments

H.Z. acknowledges the financial support from “Young Talent Support Plan” (No. 0001-7121191207) of Xi’an Jiaotong University and “Thousand Talents Program” of Shaanxi Province.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

0 DZero dimensional
1 DOne dimensional
2 DTwo dimensional
3 DThree dimensional
CACCritical assembly concentrations
CGCCritical gelation concentration
CPCCritical polymerization concentration
CVCyclic voltammogram
CysCysteine
DLSDynamic light scattering
DOSYDiffusion-ordered NMR spectroscopy
GPCGel permeation chromatography
HisHistidine
ICPInductively coupled plasma
KaAssociation constant
LODThe detection limit
PXRDX-ray powder diffusion
SEMScanning electronic microscopy
SerSerine
SOFsSupramolecular organic frameworks
TEMTransmission electron microscopy
TgelGel-sol transition temperature

References

  1. Yu, G.; Jie, K.; Huang, F. Supramolecular Amphiphiles Based on Host-Guest Molecular Recognition Motifs. Chem. Rev. 2015, 115, 7240–7303. [Google Scholar] [CrossRef]
  2. Sun, Y.; Chen, C.; Stang, P.J. Soft Materials with Diverse Suprastructures via the Self-Assembly of Metal-Organic Complexes. Acc. Chem. Res. 2019, 52, 802–817. [Google Scholar] [CrossRef] [PubMed]
  3. Nierengarten, I.; Deschenaux, R.; Nierengarten, J.F. From Pillar[n]arene Scaffolds for the Preparation of Nanomaterials to Pillar[5]arene-containing Rotaxanes. Chimia 2016, 70, 61–66. [Google Scholar] [CrossRef] [PubMed]
  4. Zhang, H.; Lee, J.; Lammer, A.D.; Chi, X.; Brewster, J.T.; Lynch, V.M.; Li, H.; Zhang, Z.; Sessler, J.L. Self-Assembled Pyridine-Dipyrrolate Cages. J. Am. Chem. Soc. 2016, 138, 4573–4579. [Google Scholar] [CrossRef] [PubMed]
  5. Zhang, H.; Lee, J.; Brewster, J.T.; Chi, X.; Lynch, V.M.; Sessler, J.L. Cation-based Structural Tuning of Pyridine Dipyrrolate Cages and Morphological Control over Their Self-assembly. J. Am. Chem. Soc. 2019, 141, 4749–4755. [Google Scholar] [CrossRef]
  6. Murray, J.; Kim, K.; Ogoshi, T.; Yao, W.; Gibb, B.C. The aqueous supramolecular chemistry of cucurbit[n]urils, pillar[n]arenes and deep-cavity cavitands. Chem. Soc. Rev. 2017, 46, 2479–2496. [Google Scholar] [CrossRef] [Green Version]
  7. Zhang, Y.-M.; Xu, Q.-Y.; Liu, Y. Molecular recognition and biological application of modified β-cyclodextrins. Sci. Chin. Chem. 2019, 62, 549–560. [Google Scholar] [CrossRef]
  8. Zhang, H.; Zou, R.; Zhao, Y. Macrocycle-based metal-organic frameworks. Coordin. Chem. Rev. 2015, 292, 74–90. [Google Scholar] [CrossRef]
  9. Wang, Y.; Ping, G.; Li, C. Efficient complexation between pillar[5]arenes and neutral guests: From host-guest chemistry to functional materials. Chem. Commun. 2016, 52, 9858–9872. [Google Scholar] [CrossRef]
  10. Guo, F.; Sun, Y.; Xi, B.; Diao, G. Recent progress in the research on the host-guest chemistry of pillar[n]arenes. Supramol. Chem. 2018, 30, 81–92. [Google Scholar] [CrossRef]
  11. Ogoshi, T.; Yamagishi, T.-a.; Nakamoto, Y. Pillar-Shaped Macrocyclic Hosts Pillar[n]arenes: New Key Players for Supramolecular Chemistry. Chem. Rev. 2016, 116, 7937–8002. [Google Scholar] [CrossRef] [PubMed]
  12. Cao, D.; Meier, H. Synthesis of Pillar[6]arenes and Their Host–Guest Complexes. Synthesis 2015, 47, 1041–1056. [Google Scholar] [CrossRef]
  13. Xiao, T.; Wang, L. Recent advances of functional gels controlled by pillar[n]arene-based host–guest interactions. Tetrahedron Lett. 2018, 59, 1172–1182. [Google Scholar] [CrossRef]
  14. Ogoshi, T.; Kakuta, T.; Yamagishi, T.-a. Applications of Pillar[n]arene-Based Supramolecular Assemblies. Angew. Chem. Int. Ed. 2019, 58, 2197–2206. [Google Scholar] [CrossRef] [PubMed]
  15. Zhang, H.; Nguyen, K.T.; Ma, X.; Yan, H.; Guo, J.; Zhu, L.; Zhao, Y. Host-guest complexation driven dynamic supramolecular self-assembly. Org. Biomol. Chem. 2013, 11, 2070–2074. [Google Scholar] [CrossRef]
  16. Kakuta, T.; Yamagishi, T.A.; Ogoshi, T. Stimuli-Responsive Supramolecular Assemblies Constructed from Pillar[n]arenes. Acc. Chem. Res. 2018, 51, 1656–1666. [Google Scholar] [CrossRef]
  17. Zhang, H.; Liu, Z.; Zhao, Y. Pillararene-based self-assembled amphiphiles. Chem. Soc. Rev. 2018, 47, 5491–5528. [Google Scholar] [CrossRef]
  18. Xiao, T.; Zhong, W.; Xu, L.; Sun, X.Q.; Hu, X.Y.; Wang, L. Supramolecular vesicles based on pillar[n]arenes: Design, construction, and applications. Org. Biomol. Chem. 2019, 17, 1336–1350. [Google Scholar] [CrossRef]
  19. Liu, L.-Z.; Qin, X.; Duan, W.-G.; Huang, H.-F.; Zhang, W.-X.; Zhou, Q.-Q.; Huang, Y. Aggregation-induced near-infrared absorption of a pillar[5]arene trimer by charge transfer interaction. Dyes Pigm. 2018, 158, 390–395. [Google Scholar] [CrossRef]
  20. Li, H.; Fan, X.; Shang, X.; Qi, M.; Zhang, H.; Tian, W. A triple-monomer methodology to construct controllable supramolecular hyperbranched alternating polymers. Polym. Chem. 2016, 7, 4322–4325. [Google Scholar] [CrossRef]
  21. Jiang, X.-M.; Huang, X.-J.; Song, S.-S.; Ma, X.-Q.; Zhang, Y.-M.; Yao, H.; Wei, T.-B.; Lin, Q. Tri-pillar[5]arene-based multi-stimuli-responsive supramolecular polymers for fluorescence detection and separation of Hg2+. Polym. Chem. 2018, 9, 4625–4630. [Google Scholar] [CrossRef]
  22. Jiang, Y.-Q.; Wu, K.; Zhang, Q.; Li, K.-Q.; Li, Y.-Y.; Xin, P.-Y.; Zhang, W.-W.; Guo, H.-M. A dual-responsive hyperbranched supramolecular polymer constructed by cooperative host–guest recognition and hydrogen-bond interactions. Chem. Commun. 2018, 54, 13821–13824. [Google Scholar] [CrossRef] [PubMed]
  23. Wei, T.-B.; Ma, X.-Q.; Fan, Y.-Q.; Jiang, X.-M.; Dong, H.-Q.; Yang, Q.-Y.; Zhang, Y.-F.; Yao, H.; Lin, Q.; Zhang, Y.-M. Aggregation-induced emission supramolecular organic framework (AIE SOF) gels constructed from tri-pillar[5]arene-based foldamer for ultrasensitive detection and separation of multi-analytes. Soft Matter 2019, 15, 6753–6758. [Google Scholar] [CrossRef]
  24. Liu, J.; Fan, Y.-Q.; Song, S.-S.; Gong, G.-F.; Wang, J.; Guan, X.-W.; Yao, H.; Zhang, Y.-M.; Wei, T.-B.; Lin, Q. Aggregation-Induced Emission Supramolecular Organic Framework (AIE SOF) Gels Constructed from Supramolecular Polymer Networks Based on Tripodal Pillar[5]arene for Fluorescence Detection and Efficient Removal of Various Analytes. ACS Sustain. Chem. Eng. 2019, 7, 11999–12007. [Google Scholar] [CrossRef]
  25. Khadieva, A.; Gorbachuk, V.; Shurpik, D.; Stoikov, I. Synthesis of Tris-pillar[5]arene and Its Association with Phenothiazine Dye: Colorimetric Recognition of Anions. Molecules 2019, 24, 1807. [Google Scholar] [CrossRef] [Green Version]
  26. Wang, W.; Chen, L.J.; Wang, X.Q.; Sun, B.; Li, X.; Zhang, Y.; Shi, J.; Yu, Y.; Zhang, L.; Liu, M.; et al. Organometallic rotaxane dendrimers with fourth-generation mechanically interlocked branches. Proc. Natl. Acad. Sci. USA 2015, 112, 5597–5601. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  27. Wang, X.Q.; Wang, W.; Li, W.J.; Chen, L.J.; Yao, R.; Yin, G.Q.; Wang, Y.X.; Zhang, Y.; Huang, J.; Tan, H.; et al. Dual stimuli-responsive rotaxane-branched dendrimers with reversible dimension modulation. Nat. Commun. 2018, 9, 3190. [Google Scholar] [CrossRef] [PubMed]
  28. Guan, X.-W.; Lin, Q.; Zhang, Y.-M.; Wei, T.-B.; Wang, J.; Fan, Y.-Q.; Yao, H. Pillar[5]arene-based spongy supramolecular polymer gel and its properties in multi-responsiveness, dye sorption, ultrasensitive detection and separation of Fe3+. Soft Matter 2019, 15, 3241–3247. [Google Scholar] [CrossRef] [PubMed]
  29. Kakuta, T.; Yamagishi, T.; Ogoshi, T. Supramolecular chemistry of pillar[n]arenes functionalised by a copper(I)-catalysed alkyne-azide cycloaddition “click” reaction. Chem. Commun. 2017, 53, 5250–5266. [Google Scholar] [CrossRef] [PubMed]
  30. Chen, C. High-generation organometallic rotaxane dendrimer. Sci. Chin. 2015, 58, 1089. [Google Scholar] [CrossRef] [Green Version]
  31. Wang, Y.-X.; Zhou, Q.-F.; Chen, L.-J.; Xu, L.; Wang, C.-H.; Li, X.; Yang, H.-B. Facile construction of organometallic rotaxane-terminated dendrimers using neutral platinum-acetylides as the main scaffold. Chem. Commun. 2018, 54, 2224–2227. [Google Scholar] [CrossRef] [PubMed]
  32. Song, N.; Chen, D.X.; Qiu, Y.C.; Yang, X.Y.; Xu, B.; Tian, W.; Yang, Y.W. Stimuli-responsive blue fluorescent supramolecular polymers based on a pillar[5]arene tetramer. Chem. Commun. 2014, 50, 8231–8234. [Google Scholar] [CrossRef] [PubMed]
  33. Wu, J.; Sun, S.; Feng, X.; Shi, J.; Hu, X.Y.; Wang, L. Controllable aggregation-induced emission based on a tetraphenylethylene-functionalized pillar[5]arene via host-guest recognition. Chem. Commun. 2014, 50, 9122–9125. [Google Scholar] [CrossRef]
  34. Jin, X.Y.; Song, N.; Wang, X.; Wang, C.Y.; Wang, Y.; Yang, Y.W. Monosulfonicpillar[5]arene: Synthesis, Characterization, and Complexation with Tetraphenylethene for Aggregation-Induced Emission. Sci. Rep. 2018, 8, 4035. [Google Scholar] [CrossRef] [PubMed]
  35. Liu, Y.; Shi, B.; Wang, H.; Shangguan, L.; Li, Z.; Zhang, M.; Huang, F. Construction of Metallacage-Cored Supramolecular Gel by Hierarchical Self-Assembly of Metal Coordination and Pillar[5]arene-Based Host-Guest Recognition. Macromol. Rapid Commun. 2018, 39, e1800655. [Google Scholar] [CrossRef] [PubMed]
  36. Song, N.; Lou, X.Y.; Hou, W.; Wang, C.Y.; Wang, Y.; Yang, Y.W. Pillararene-Based Fluorescent Supramolecular Systems: The Key Role of Chain Length in Gelation. Macromol. Rapid Commun. 2018, 39, e1800593. [Google Scholar] [CrossRef] [PubMed]
  37. Ali, W.; Ning, G.; Hassan, M.; Gong, W. Construction of Pillar[5]arene Tetramer-Based Cross-Linked Supramolecular Polymers through Hierarchical Charge-Transfer and Host-Guest Interactions. Asian J. Org. Chem. 2019, 8, 74–78. [Google Scholar] [CrossRef]
  38. Li, Z.Y.; Zhang, Y.; Zhang, C.W.; Chen, L.J.; Wang, C.; Tan, H.; Yu, Y.; Li, X.; Yang, H.B. Cross-linked supramolecular polymer gels constructed from discrete multi-pillar[5]arene metallacycles and their multiple stimuli-responsive behavior. J. Am. Chem. Soc. 2014, 136, 8577–8589. [Google Scholar] [CrossRef]
  39. Zhang, C.-W.; Ou, B.; Jiang, S.-T.; Yin, G.-Q.; Chen, L.-J.; Xu, L.; Li, X.; Yang, H.-B. Cross-linked AIE supramolecular polymer gels with multiple stimuli-responsive behaviours constructed by hierarchical self-assembly. Polym. Chem. 2018, 9, 2021–2030. [Google Scholar] [CrossRef]
  40. Li, C.; Han, K.; Li, J.; Zhang, Y.; Chen, W.; Yu, Y.; Jia, X. Supramolecular Polymers Based on Efficient Pillar[5]arene-Neutral Guest Motifs. Eur. J. Chem. 2013, 19, 11892–11897. [Google Scholar] [CrossRef]
  41. Li, Q.; Han, K.; Li, J.; Jia, X.; Li, C. Synthesis of dendrimer-functionalized pillar[5]arenes and their self-assembly to dimeric and trimeric complexes. Tetrahedron Lett. 2015, 56, 3826–3829. [Google Scholar] [CrossRef]
  42. Wu, G.Y.; Wang, X.Q.; Chen, L.J.; Hu, Y.X.; Yin, G.Q.; Xu, L.; Jiang, B.; Yang, H.B. Supramolecular Polymer Cross-Linked by Discrete Tris-[2]pseudorotaxane Metallacycles and Its Redox-Responsive Behavior. Inorg. Chem. 2018, 57, 15414–15420. [Google Scholar] [CrossRef] [PubMed]
  43. Zhang, C.-W.; Jiang, S.-T.; Yin, G.-Q.; Li, X.; Zhao, X.-L.; Yang, H.-B. Dual Stimuli-Responsive Cross-Linked AIE Supramolecular Polymer Constructed through Hierarchical Self-Assembly. Isr. J. Chem. 2018, 58, 1265–1272. [Google Scholar] [CrossRef]
Nanomaterials 10 00651 ch001 550

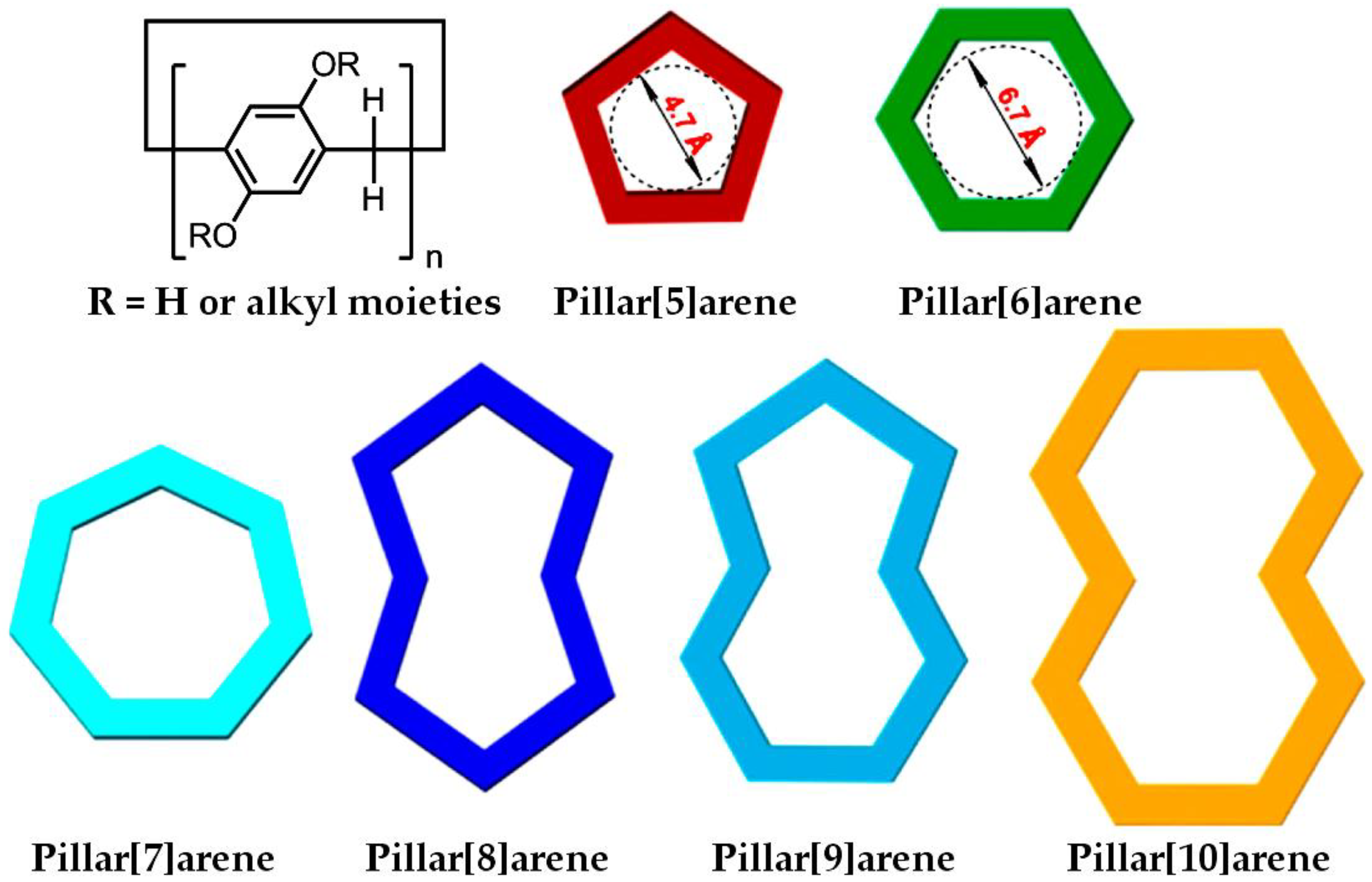

Chart 1. Structural and cartoon representations of typical pillar[n]arenes (n = 5—10). Reproduced with permission from [1]. Copyright American Chemical Society, 2015.
Chart 1. Structural and cartoon representations of typical pillar[n]arenes (n = 5—10). Reproduced with permission from [1]. Copyright American Chemical Society, 2015.
Nanomaterials 10 00651 ch001
Nanomaterials 10 00651 sch001a 550Nanomaterials 10 00651 sch001b 550Nanomaterials 10 00651 sch001c 550

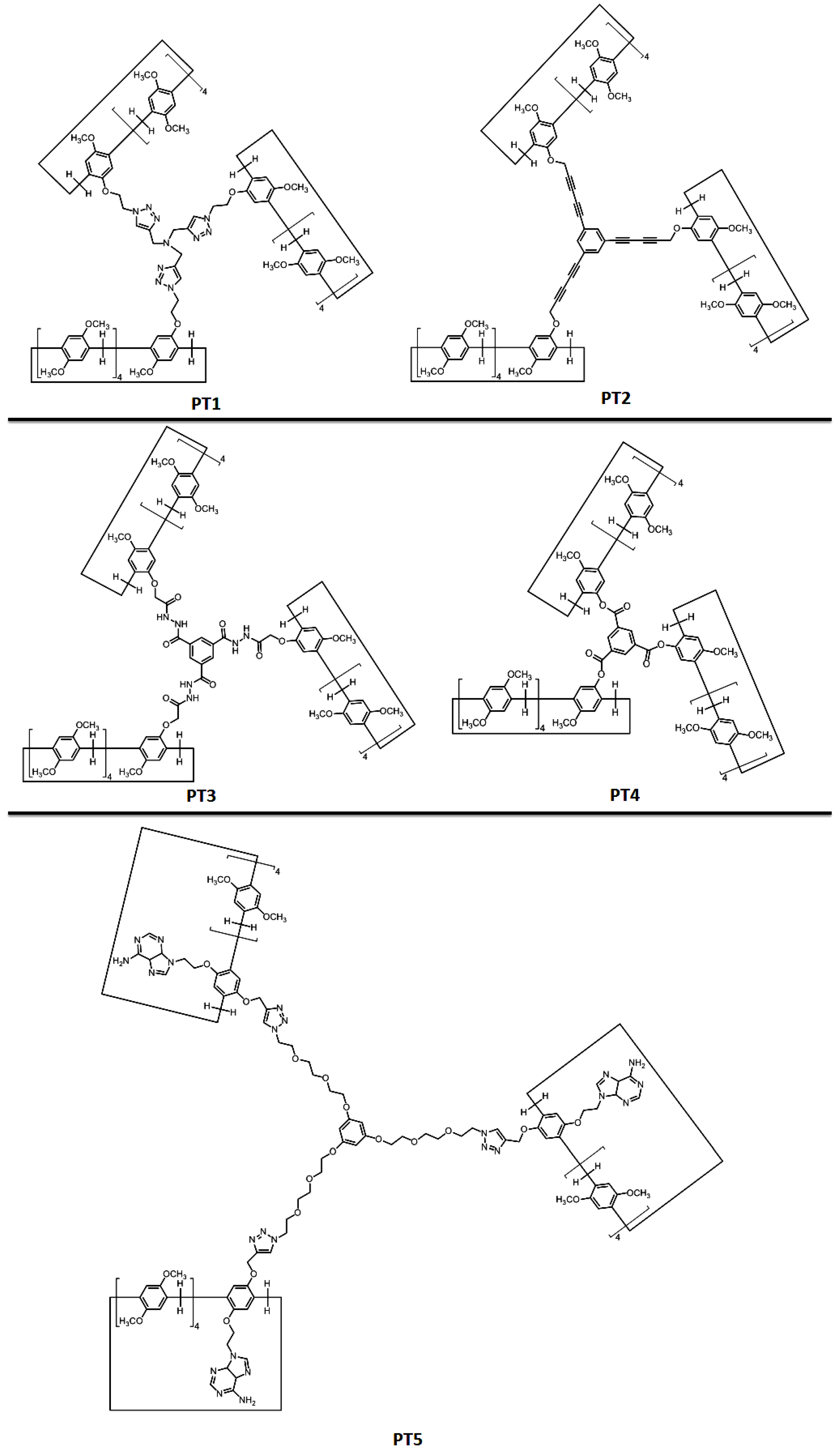

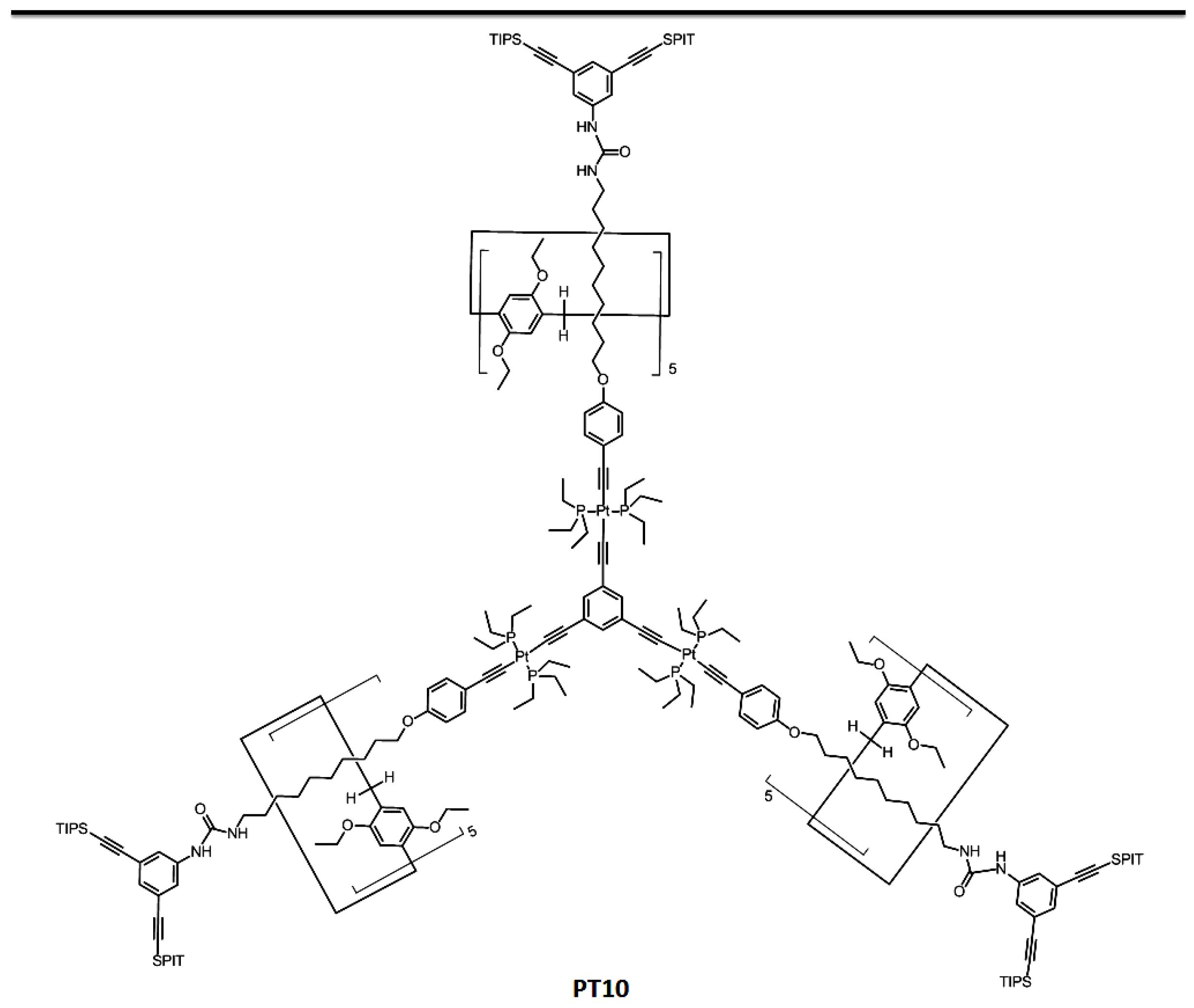

Scheme 1. Chemical structures of pillararenes trimers (PT1–PT10).
Scheme 1. Chemical structures of pillararenes trimers (PT1–PT10).
Nanomaterials 10 00651 sch001aNanomaterials 10 00651 sch001bNanomaterials 10 00651 sch001c
Nanomaterials 10 00651 sch002 550

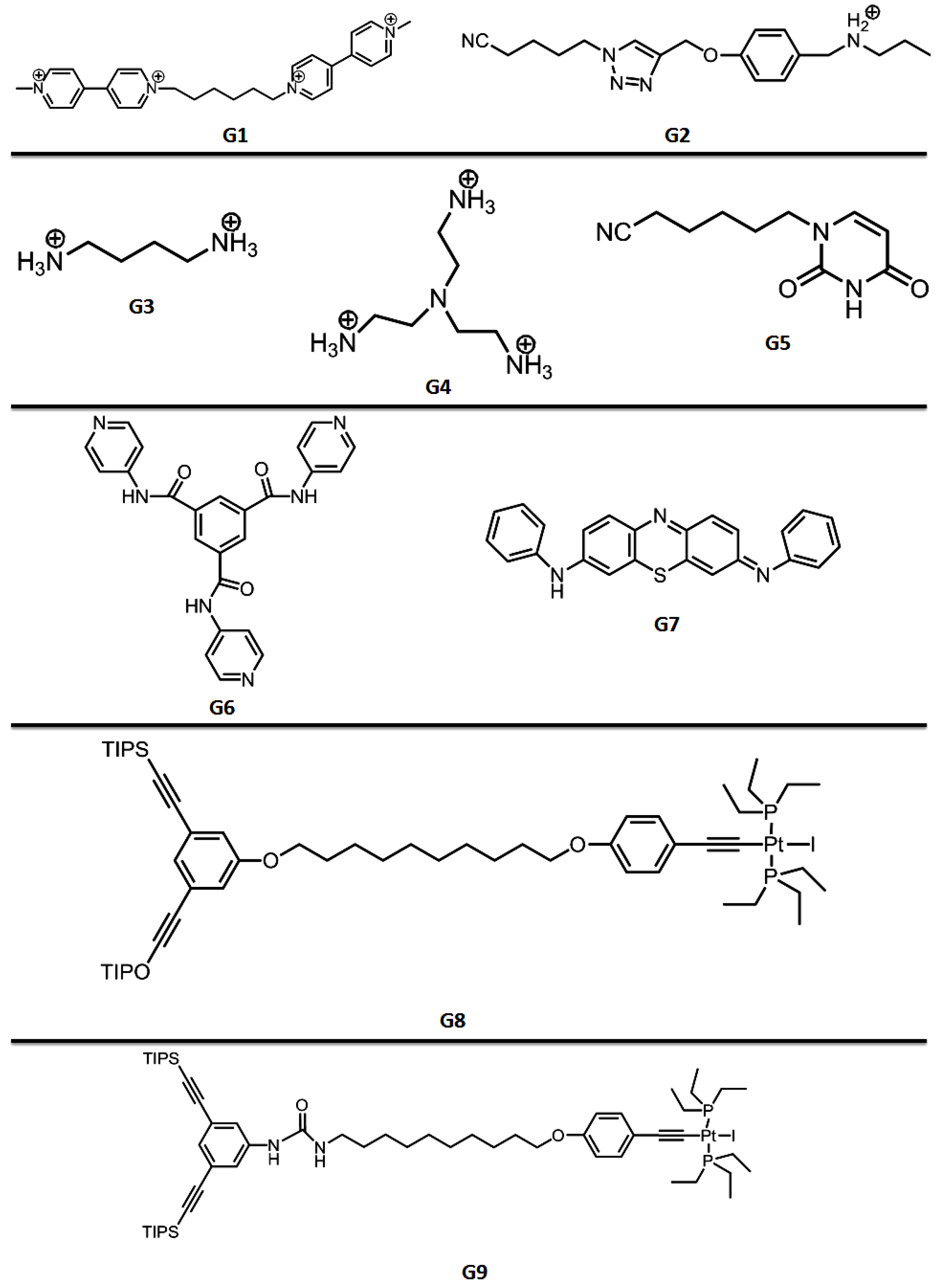

Scheme 2. Chemical structures of guest molecules (G1–G9).
Scheme 2. Chemical structures of guest molecules (G1–G9).
Nanomaterials 10 00651 sch002
Nanomaterials 10 00651 sch003a 550Nanomaterials 10 00651 sch003b 550

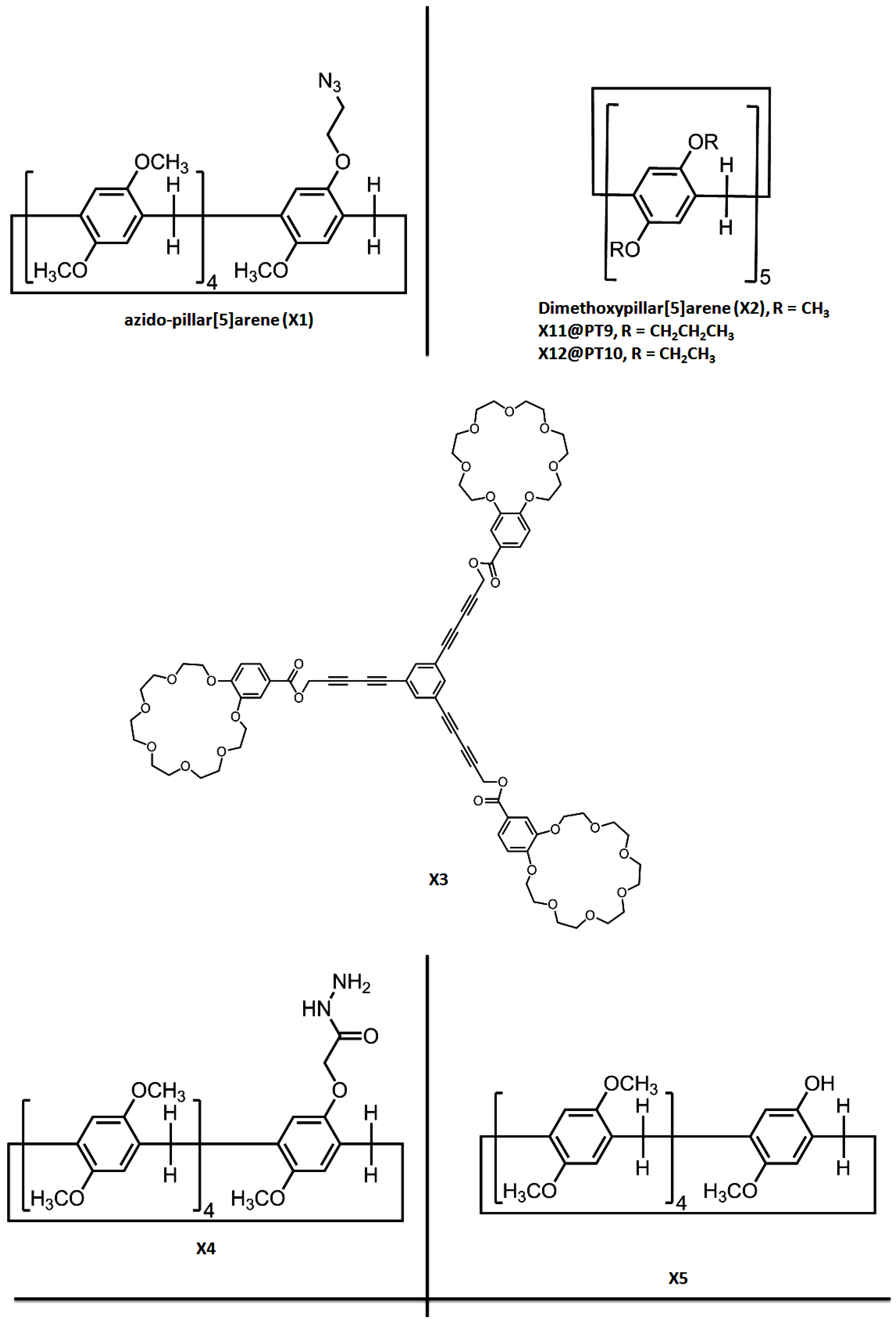

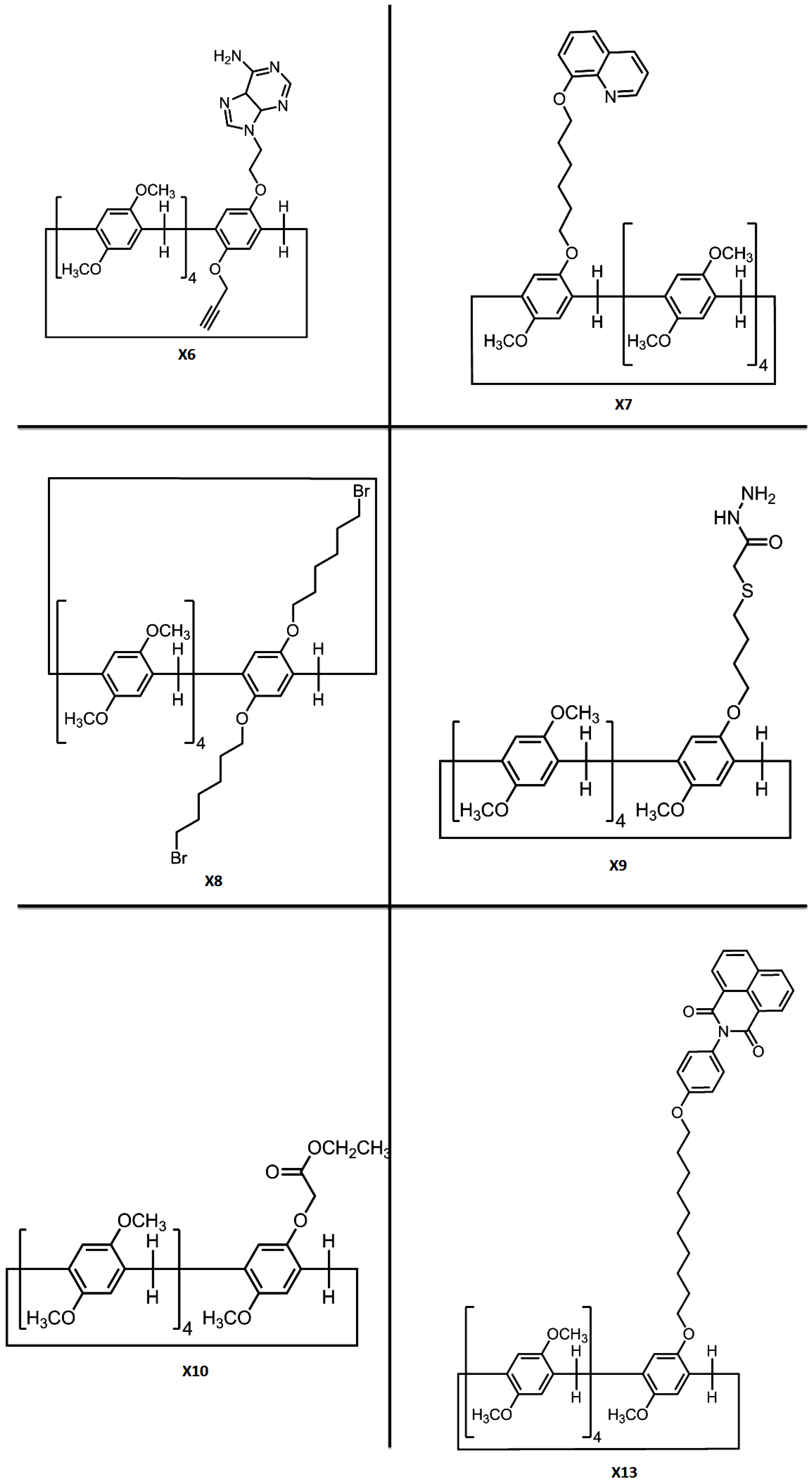

Scheme 3. Chemical structures of precursors for the synthesis of pillararenes trimer, as well as other significant building blocks for the construction of assemblies (X1–X13).
Scheme 3. Chemical structures of precursors for the synthesis of pillararenes trimer, as well as other significant building blocks for the construction of assemblies (X1–X13).
Nanomaterials 10 00651 sch003aNanomaterials 10 00651 sch003b
Nanomaterials 10 00651 g001 550

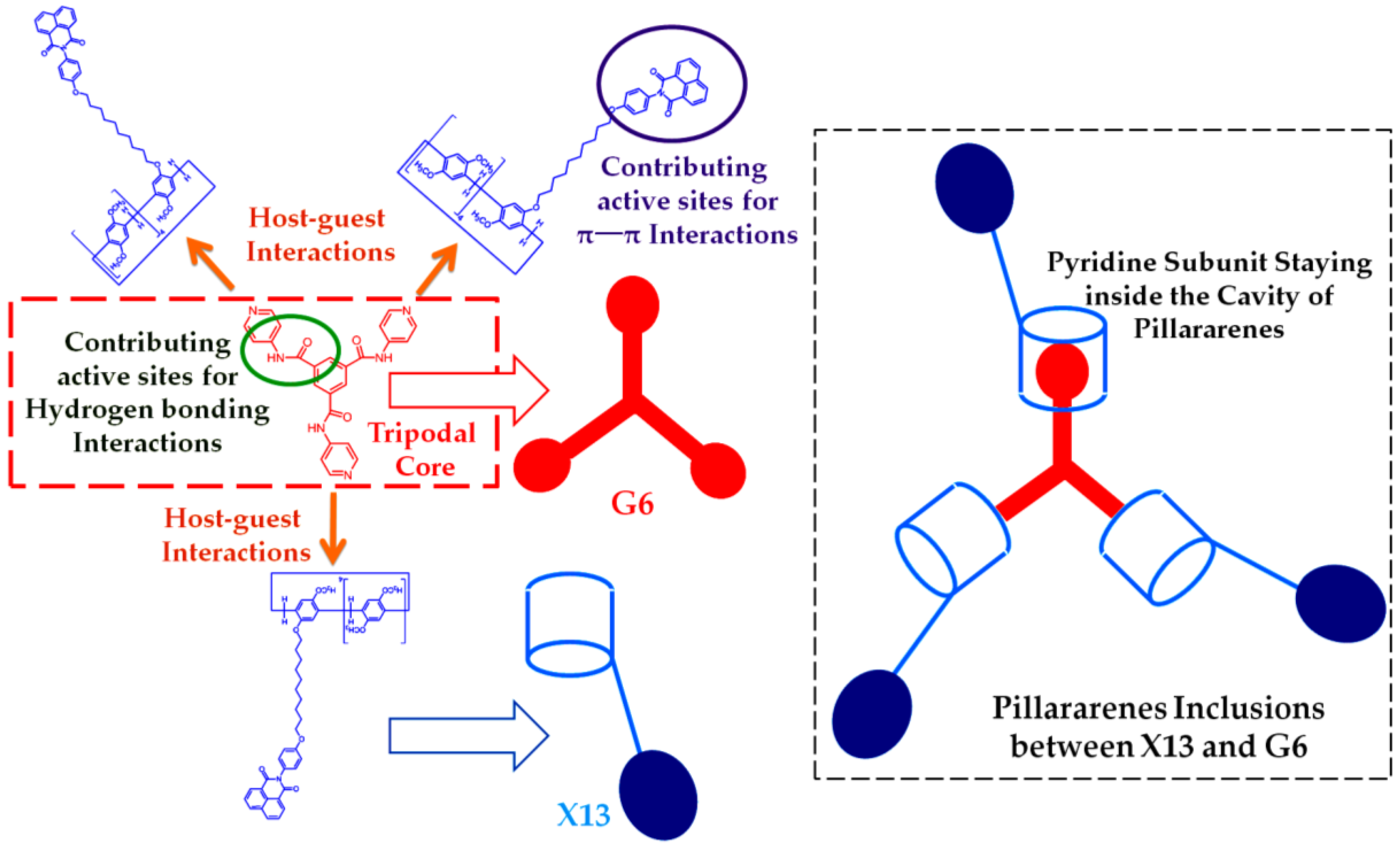

Figure 1. Proposed assembly mechanism of supramolecular inclusions X13⸧G6 by noncovalent bonds [28].
Figure 1. Proposed assembly mechanism of supramolecular inclusions X13⸧G6 by noncovalent bonds [28].
Nanomaterials 10 00651 g001
Nanomaterials 10 00651 g002 550

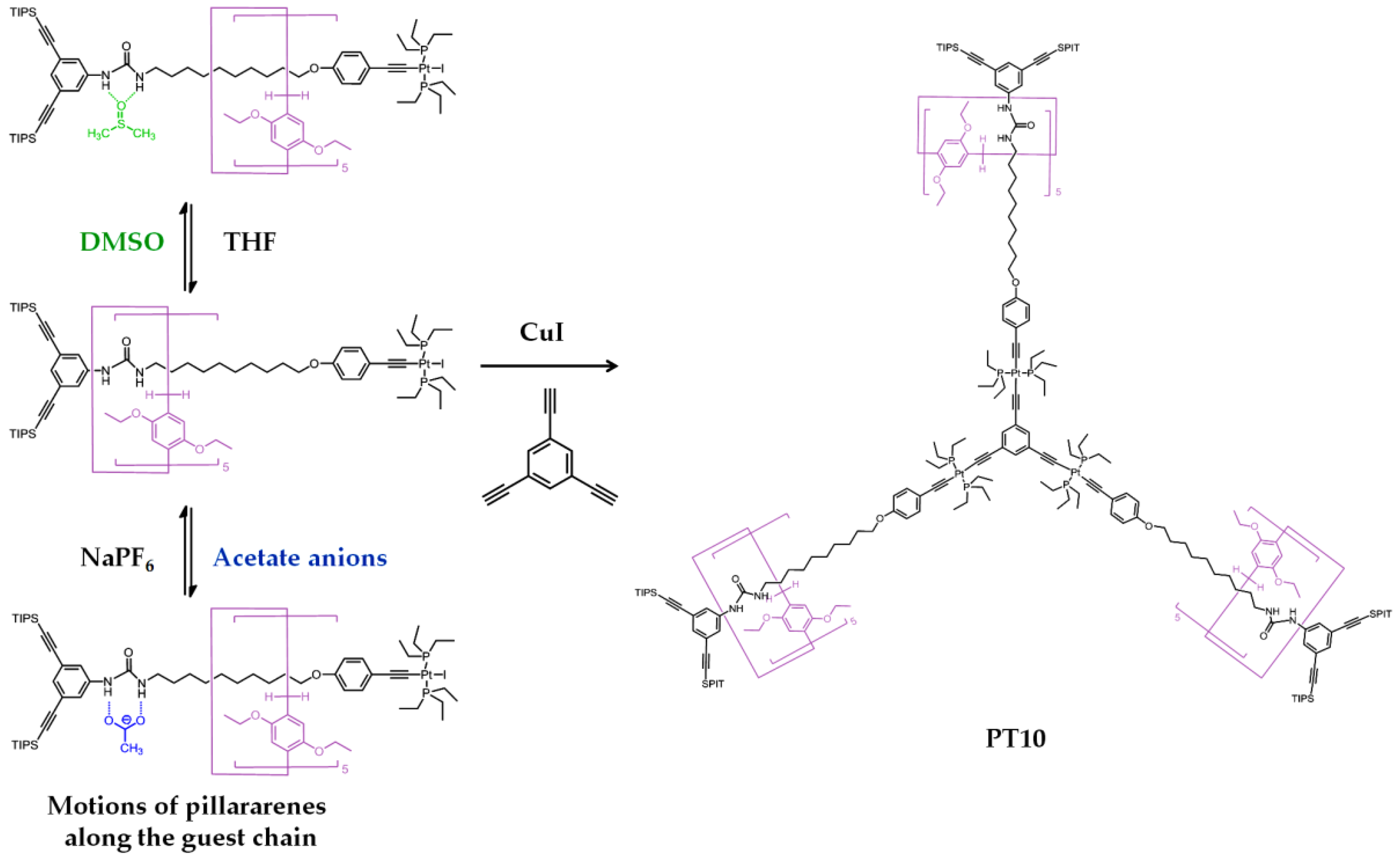

Figure 2. Synthesis of mechanically interlocked molecule PT10 by the CuI-catalyzed coupling reaction between star-shaped molecule—1,3,5-triethynylbenzene and pseudorotaxane X12⸧G9, as well as the solvent/anion-induced switchable motions of the wheel—X12 along neutral alkyl chain guest G9 [27]. External stimuli responsiveness could be indicated by the chemical structural changes.
Figure 2. Synthesis of mechanically interlocked molecule PT10 by the CuI-catalyzed coupling reaction between star-shaped molecule—1,3,5-triethynylbenzene and pseudorotaxane X12⸧G9, as well as the solvent/anion-induced switchable motions of the wheel—X12 along neutral alkyl chain guest G9 [27]. External stimuli responsiveness could be indicated by the chemical structural changes.
Nanomaterials 10 00651 g002
Nanomaterials 10 00651 g003 550
Figure 3. Negative-stained TEM images (a) scale bar = 1 μm and (b) scale bar = 0.2 μm and gold sputtering SEM images (c) scale bar = 10 μm and (d) scale bar = 100 nm about the vesicular assemblies by the inclusion X2⸧G1 (1 × 10−3 mol L−1). Reproduced with permission from [15]. Copyright Royal Society of Chemistry, 2013.
Figure 3. Negative-stained TEM images (a) scale bar = 1 μm and (b) scale bar = 0.2 μm and gold sputtering SEM images (c) scale bar = 10 μm and (d) scale bar = 100 nm about the vesicular assemblies by the inclusion X2⸧G1 (1 × 10−3 mol L−1). Reproduced with permission from [15]. Copyright Royal Society of Chemistry, 2013.
Nanomaterials 10 00651 g003
Nanomaterials 10 00651 g004 550

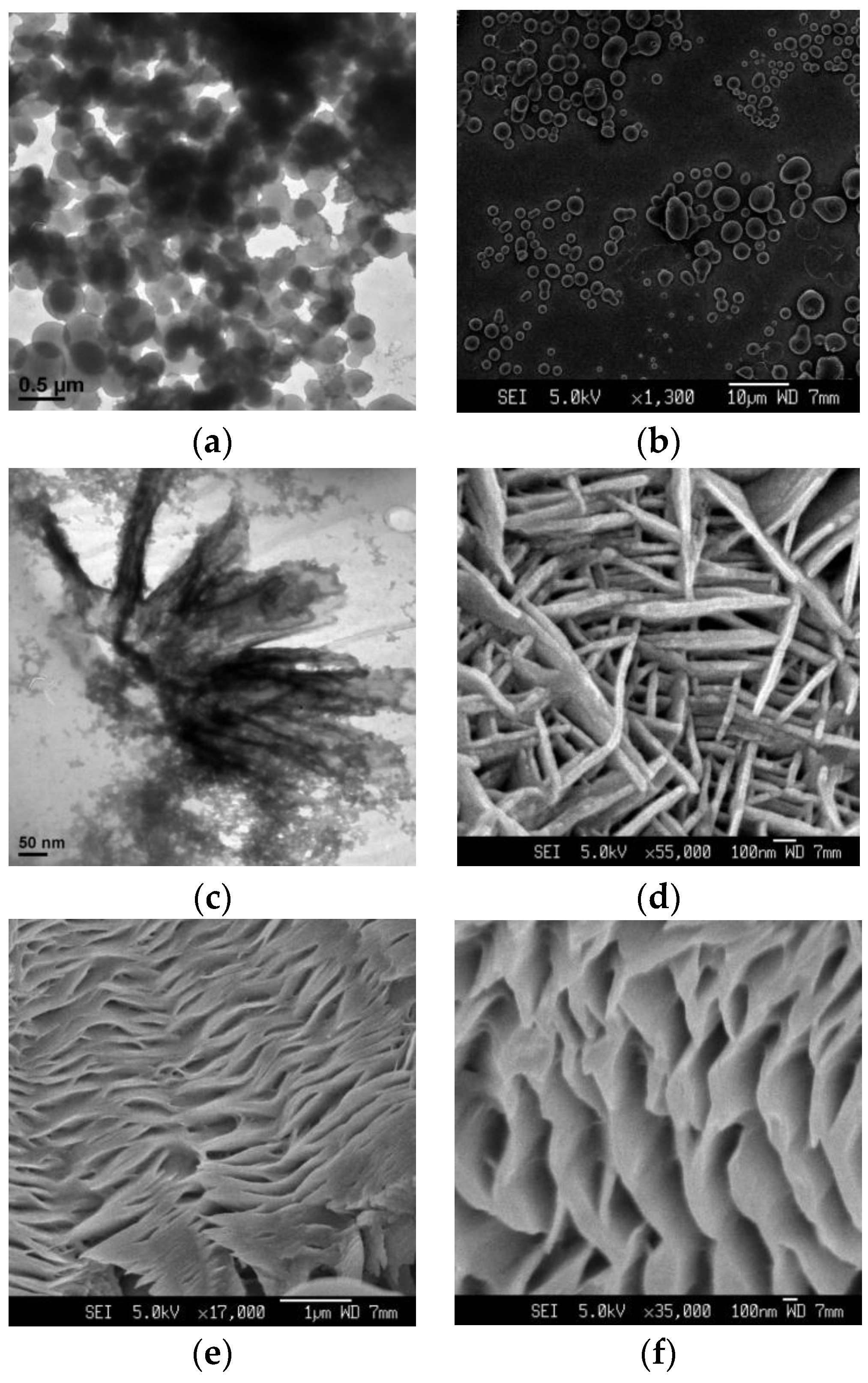

Figure 4. Concentration-dependent morphological control by the inclusion PT1⸧G1. (a) TEM (scale bar = 0.5 μm) and (b) SEM images (scale bar = 10 μm) under the sample concentration of 1 × 10−3 mol L−1. (c) TEM (scale bar = 50 nm) and (d) SEM images (scale bar = 100 nm) under the sample concentration of 2 × 10−3 mol L−1. (e,f) SEM images (scale bar = 1 μm and 100 nm) under the sample concentration of 5 × 10−3 mol L−1. Reproduced with permission from [15]. Copyright Royal Society of Chemistry, 2013.
Figure 4. Concentration-dependent morphological control by the inclusion PT1⸧G1. (a) TEM (scale bar = 0.5 μm) and (b) SEM images (scale bar = 10 μm) under the sample concentration of 1 × 10−3 mol L−1. (c) TEM (scale bar = 50 nm) and (d) SEM images (scale bar = 100 nm) under the sample concentration of 2 × 10−3 mol L−1. (e,f) SEM images (scale bar = 1 μm and 100 nm) under the sample concentration of 5 × 10−3 mol L−1. Reproduced with permission from [15]. Copyright Royal Society of Chemistry, 2013.
Nanomaterials 10 00651 g004
Nanomaterials 10 00651 g005 550

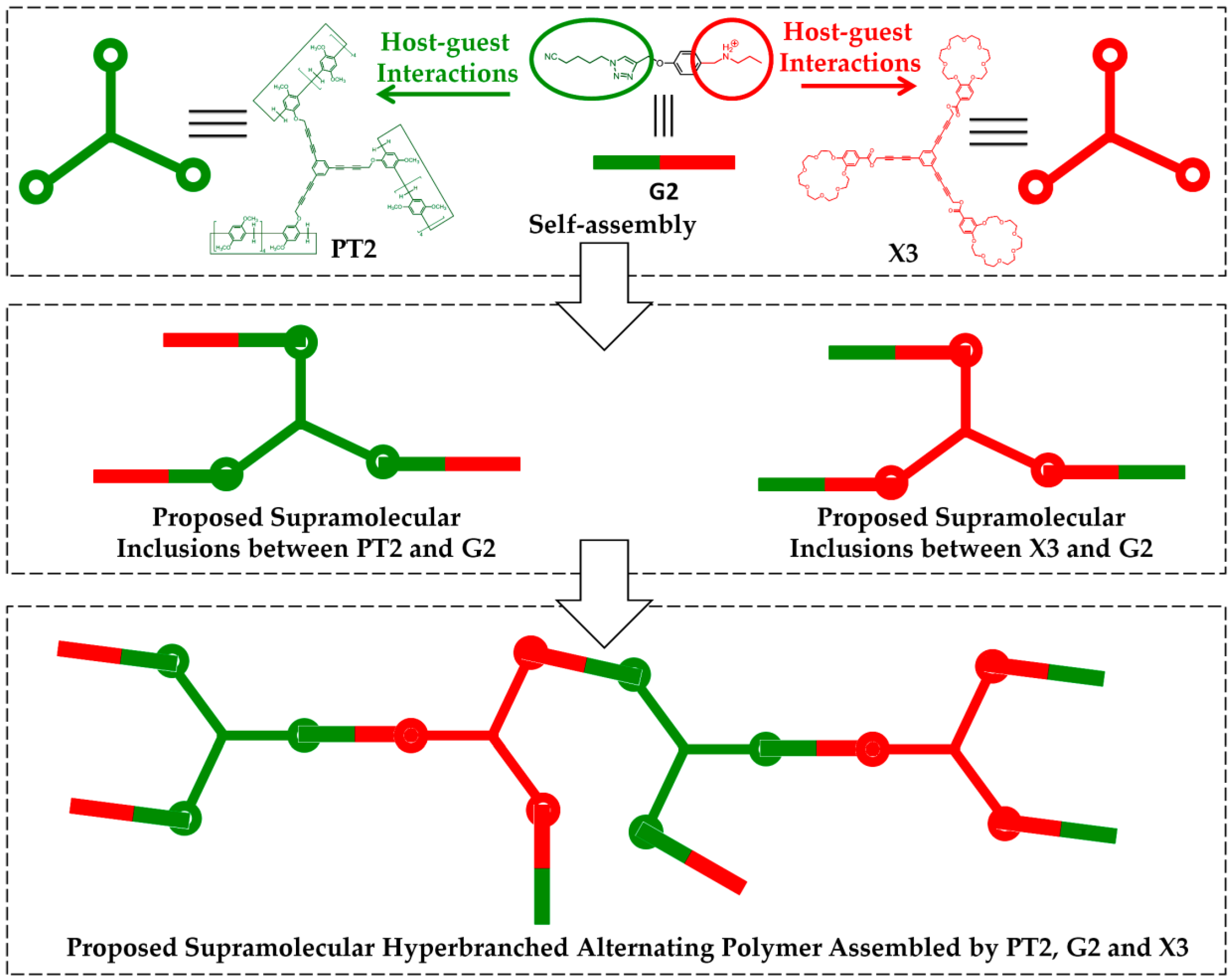

Figure 5. Graphical representation of the formation of supramolecular hyperbranched alternating polymer [20].
Figure 5. Graphical representation of the formation of supramolecular hyperbranched alternating polymer [20].
Nanomaterials 10 00651 g005
Nanomaterials 10 00651 g006 550

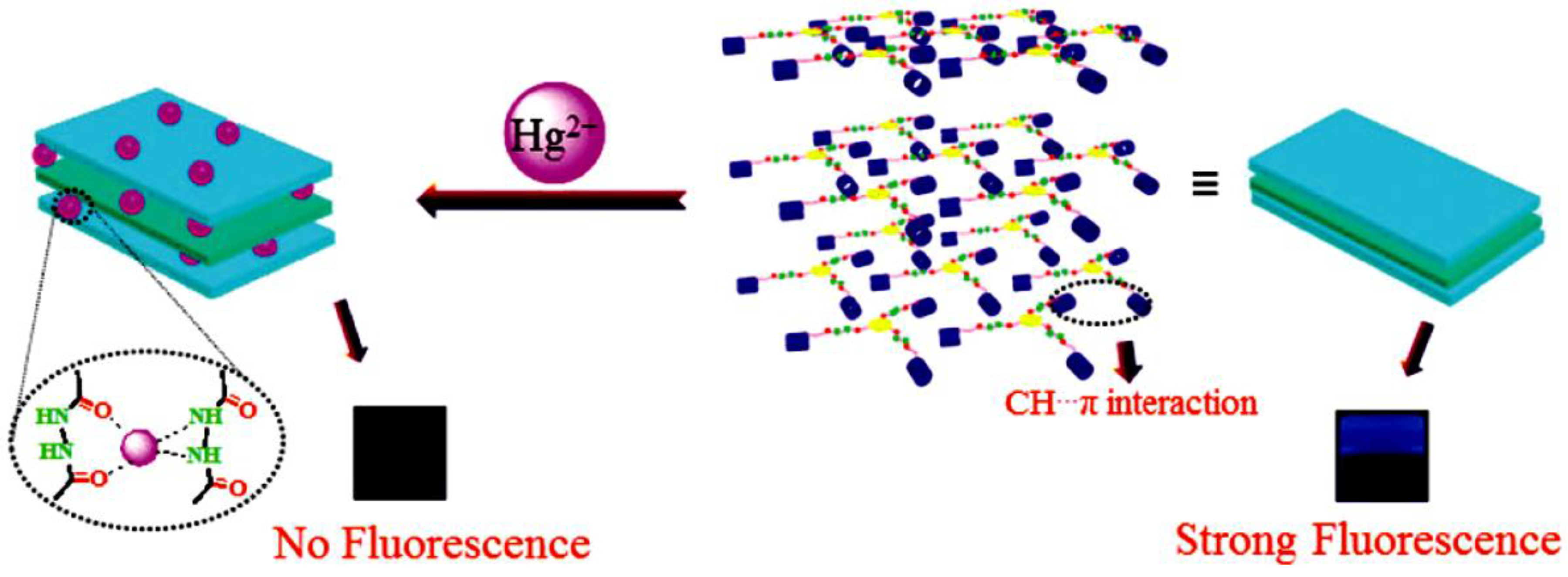

Figure 6. Graphic representation of PT3-based self-assemblies and their responsiveness towards Hg2+. Reproduced with permission from [21]. Copyright Royal Society of Chemistry, 2018.
Figure 6. Graphic representation of PT3-based self-assemblies and their responsiveness towards Hg2+. Reproduced with permission from [21]. Copyright Royal Society of Chemistry, 2018.
Nanomaterials 10 00651 g006
Nanomaterials 10 00651 g007 550

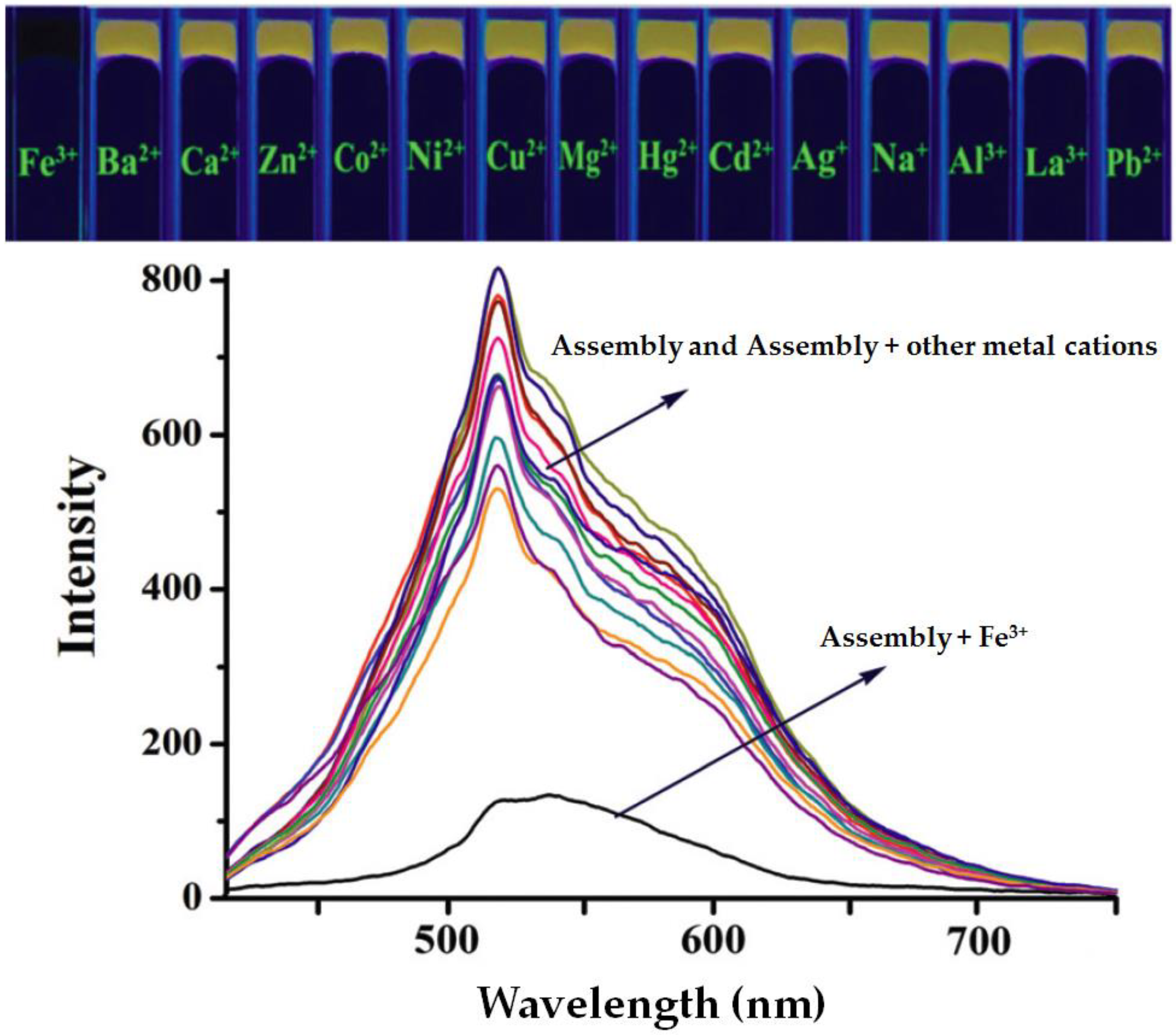

Figure 7. Fluorescence spectra of X13⸧G6 with the addition of various metal cations in aqueous solutions. Reproduced with permission from [28]. Copyright Royal Society of Chemistry, 2019.
Figure 7. Fluorescence spectra of X13⸧G6 with the addition of various metal cations in aqueous solutions. Reproduced with permission from [28]. Copyright Royal Society of Chemistry, 2019.
Nanomaterials 10 00651 g007
Table
Table 1. Comparison of various pillararenes trimer (PT1–PT10), guest molecules (G1–G9), precursors, and other significant building blocks (X1–X13) for self-assembly and external stimuli responsiveness.
Table 1. Comparison of various pillararenes trimer (PT1–PT10), guest molecules (G1–G9), precursors, and other significant building blocks (X1–X13) for self-assembly and external stimuli responsiveness.
Pillararenes TrimerGuestPrecursorInteractionsAssemblyExternal StimuliApplicationsRef
PT1G1X1Host-guest interactionsHollow spherical, tubular and layered assembliesConcentration-dependent Morphological control in comparison with X2[15]
PT2G2-Host-guest interactionsSupramolecular hyperbranched alternating polymers K+ (crown ether X3)-[20]
PT3-X4Hydrogen bonding, van der Waals forces, C–H…π and π–π stacking interactionsSupramolecular polymerCationsFluorescence detection and separation of Hg2+[21]
PT4G3/G4X5Host-guest interactionsSupramolecular polymer--[19]
PT5G5X6Hydrogen bonding, π–π stacking and host-guest interactionsHyperbranched supramolecular polymerHeat and acid/base-[22]
PT6-X7/X8π–π stacking interactions(Metal ions coordinated) supramolecular organic frameworksFe3+/Hg2+/Cr3+ and CN−/H2PO4−Fluorescence ultrasensitive detection[23]
PT7G6X9Hydrogen bonding, C–H…π and π–π stacking interactionsSupramolecular polymer network/supramolecular polymer frameworkMetal cations/anions/amino acidFluorescence detection/adsorption capacity for cations [24]
PT8G7X10--Competitive complexation with AnionsFluorescence detection of F−/AcO−/H2PO4−[25]
PT9G8X11Mechanical interlocked moleculeDendrimer--[26]
PT10G9X12Mechanical interlocked moleculeDendrimerDimethylsulfoxide and acetate anion-[27]
X13⸧G6G6X13Hydrogen bonding, π–π stacking and host-guest interactionsSupramolecular polymer networks/gelHeat/cooling, pH, competitive guests and mechanicalDye sorption, ultrasensitive detection and separation of Fe3+[28]

Share and Cite

MDPI and ACS Style

Zhang, H.; Liu, Z.; Fu, H. Pillararenes Trimer for Self-Assembly. Nanomaterials 2020, 10, 651. https://doi.org/10.3390/nano10040651

AMA Style

Zhang H, Liu Z, Fu H. Pillararenes Trimer for Self-Assembly. Nanomaterials. 2020; 10(4):651. https://doi.org/10.3390/nano10040651

Chicago/Turabian Style

Zhang, Huacheng, Zhaona Liu, and Hui Fu. 2020. "Pillararenes Trimer for Self-Assembly" Nanomaterials 10, no. 4: 651. https://doi.org/10.3390/nano10040651

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
