Porous Si/Fe2O3 Dual Network Anode for Lithium–Ion Battery Application

by
Yanxu Chen
1,2,†,
Yajing Yan
1,†,
Xiaoli Liu
3,
Yan Zhao
1,*,
Xiaoyu Wu
1,
Jun Zhou
1,* and
Zhifeng Wang
1,2,*
1
School of Materials Science and Engineering, Hebei University of Technology, Tianjin 300401, China
2
Key Laboratory for New Type of Functional Materials in Hebei Province, Hebei University of Technology, Tianjin 300401, China
3
School of Materials Science and Engineering, Hebei University of Science & Technology, Shijiazhuang 050018, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Nanomaterials 2020, 10(12), 2331; https://doi.org/10.3390/nano10122331
Submission received: 23 October 2020 / Revised: 18 November 2020 / Accepted: 24 November 2020 / Published: 25 November 2020
(This article belongs to the Special Issue Novel Nanomaterials for Applications in Energy and Catalysis)
Browse Figures
Versions Notes

Abstract

:
Benefiting from ultra-high theoretical capacity, silicon (Si) is popular for use in energy storage fields as a Li–ion battery anode material because of its high-performance. However, a serious volume variation happens towards Si anodes in the lithiation/delithiation process, triggering the pulverization of Si and a fast decay in its capacity, which greatly limits its commercial application. In our study, a porous Si/Fe2O3 dual network anode was fabricated using the melt-spinning, ball-milling and dealloying method. The anode material shows good electrochemical performance, delivering a reversible capacity of 697.2 mAh g−1 at 200 mA g−1 after 100 cycles. The high Li storage property is ascribed to the rich mesoporous distribution of the dual network structure, which may adapt the volume variation of the material during the lithiation/delithiation process, shorten the Li–ion diffusion distance and improve the electron transport speed. This study offers a new idea for developing natural ferrosilicon ores into the porous Si-based materials and may prompt the development of natural ores in energy storage fields.

1. Introduction

With the fast development of the market economy, the requirements for energy storage devices are constantly improving [1,2,3]. Lithium–ion batteries (LIBs) are identified as attractive energy maintaining devices because of their high specific energy, long service life and excellent environmental compatibility [4,5,6]. At present, the low theoretical capacity of the graphite anode restricts its commercial application in the high-end market [7,8]. To enhance the properties of LIBs further, it is necessary to develop new anodes with high performance. Silicon (Si) is considered to be one of the potential candidates to substitute conventional carbon anode for next-generation LIBs on account of the characteristics of extremely high theoretical mass-specific capacity (4200 mAh g−1), low working voltage and high natural abundance [9,10]. The main obstacle to its practical application is the tremendous volume variation (≈420%) during repeated lithiation/delithiation procedures [11], bring about pulverization, shedding of active materials and rapid decay of capacity [12,13,14]. To accommodate the volume variation of Si and boost the electrochemical properties of LIBs, some strategies have been proposed by scholars from various countries. Firstly, once the Si materials were produced into different nanomaterials, such as nanoparticles, nanotubes, nanowires, nano hollow structures and so on [15,16,17], they can provide shorter transmission paths and reduce the diffusion distance of Li+. Secondly, many Si nanostructures may provide sufficient space to suppress the volume variation and capacity attenuation [18,19,20]. At present, the traditional methods of preparing Si-based nanostructured materials mainly include chemical vapor deposition, high-temperature laser evaporation, self-assembly growth method and so on [21,22]. Furthermore, the formation of composites between Si and metal oxides (relatively low theoretical specific capacity) can also alleviate the volume change and structural damage of Si anodes to some extent, inducing an improvement in cycling stability [23]. David Zitoun et al. [24] synthesized Si/γ-Fe2O3 as an anode material for LIBs by successive organometallic decomposition of pentacarbonyl-iron on Si nanomaterials subsequently by redox reactions, demonstrating a high reversible capacity of 2600 mAh g−1; however, the above method seems difficult to satisfy the demands of industrial application because of its complex preparation process, strict preparation conditions and high cost both in materials and equipment.
In the current work, we propose a new process to fabricate porous Si/Fe2O3 dual-network composite derived from natural ferrosilicon ores using the melt-spinning, ball-milling and dealloying process, in which the dual network structure, with abundant mesopores, contains the low-capacity Fe2O3 network and the high-capacity Si network. In addition, natural ferrosilicon ores are abundant in reserves and are used as deoxidizers in the steelmaking industry. They are used to synthesize anode materials of LIBs in this study, which greatly reduces the cost of raw materials, meaning that ferrosilicon ores can also be used as a cheap and sufficient resource for large-scale preparation of Si-based anode materials. The strategy also provides an idea for the preparation of low-cost Si-based anode materials.

2. Materials and Methods

The typical synthesis route is shown in Figure 1. Firstly, the arc-melting method [25] was used to prepare the master alloy ingot. Ferrosilicon ore (Fe: 27.15 wt.%, Si: 72.36 wt.%, total of other associated elements Mn, C, S, P, etc.: 0.49 wt.%) and aluminum ingots (99.99 wt.%) were produced into a Fe1.9Si10.1Al88 alloy ingot by high-temperature electric arcs. Then, Fe1.9Si10.1Al88 ribbons were obtained using the melt-spinning process [26]. In this situation, the melts were sprayed onto a water-cooled Cu roller with a rotate speed of 1800 r/min to produce ribbons tens of centimeters long, 20 microns thick and 3 mm wide. A 2.0 g ribbon was placed in a ball mill tank with stainless steel balls, where the ratio of grinding media to material was 20:1. To prevent oxidation of the sample, n-heptane was added into the tank and the liquid level was ensured to exceed the sample. Three kinds of powder precursors were obtained by ball-milling the ribbons for 24–72 h at a rotation speed of 600 r/min at ambient temperature. The samples were rinsed with anhydrous ethanol to remove n-heptane and dehydrated in a vacuum drying box at 60 °C for 12 h to obtain the BM-24, BM-48 and BM-72 samples, respectively. Then, the above samples were dealloyed in 1.25 M NaOH solution for 4 h [27,28]. After washing in ethyl alcohol and drying in vacuum drying box at 60 °C for 12 h, the dealloyed products of BM-24-4, BM-48-4 and BM-72-4 were finally synthesized. In particular, the above process can be improved by a scale-up continuous melt-spinning process [27]. Tens of kilograms of alloy ribbons with a large output can be prepared for each furnace, inducing a relatively low cost per cell. As a result, all the processes are suitable for mass production or can be produced in batches. In addition, the dealloying process is free of costly reagents and free of solutions that could lead to serious environmental pollution, which provides many advantages, such as convenient operation and low environmental pollution.
The phase composition of the samples was analyzed by X-ray diffraction (XRD, Bruker D8-Discover, Karlsruhe, Germany). The valence state of products was studied by X-ray photoelectron spectroscopy (XPS, V-Sorb 2800P, Beijing, China). Raman spectra were tested via the Reflex machine. Scanning electron microscope (SEM, JSM-7100F, Tokyo, Japan) and transmission electron microscope (TEM, JEM-2100F, Tokyo, Japan) were used to observe the microstructure. The Brunauer–Emmett–Teller (BET) method was used to analyze the specific surface and the Barrett–Joyner–Halenda (BJH) method was employed to determine the pore size distribution.
Si/Fe2O3 material, carboxymethyl cellulose (CMC) and conductive agent (Super P) (8:1:1, mass ratio) were mixed in deionized water to create a slurry. The slurry was smeared onto the surface of the Cu current collector (Cu foil) and dehydrated in a vacuum furnace at 60 °C for 12 h and then cut into discs of 10 mm in diameter to make a working anode. The mass loading of the anode was in the range of 0.89–1.05 mg/cm2. In a glove box with an argon environment (H2O/O2, less than 0.01 PPM), the anode, the lithium tablet cathode, the Celgard 2320 diaphragm and the electrolyte (1 M LiPF6 dissolved in EC/DEC, 1:1 in volume ratio) were encapsulated in a CR2032 coin battery case. The electrochemical impedance spectroscopy (EIS) and cyclic voltammetry (CV) curves of the cell were detected through an electrochemical workstation (CHI760E) with a test scan speed of 0.1 mV s−1 in 0.01–3 V. Galvanostatic charge/discharge curves were monitored on a newway battery tester in the range of 0.01–3 V (vs. Li+/Li).

3. Results and Discussion

XRD results of the as-obtained ball-milled samples and the dealloyed samples are presented in Figure 2a,b, respectively. After ball-milling for a different time, the samples present strong diffraction peaks at 38.5°, 44.7°, 65.1° and 78.2°, corresponding to (111), (200), (220) and (311) lattice planes of crystal Al (JCPDS No.04-0787), respectively. While the peaks at 28.1°, 34.6°, 45.1° and 49.7° are consistent with (110), (111), (210) and (211) lattice planes of FeSi phase (JCPDS No.38–1397), respectively [29,30,31]. With the extension of the ball-milling time, a part of the Al elements may dissolve into the FeSi phase, inducing a broader peak. In addition, the relative intensity of the FeSi diffraction peak increases gradually while that of the Al peak declines, indicating that the elemental distribution has greatly changed, as shown in Figure 2a. No diffraction peak of Al can be found in the dealloyed materials (Figure 2b), indicating that the most of Al elements have been leached out. In this situation, Fe elements are oxidized concurrently in the dealloying process by oxygen dissolving in corrosion liquid, generating Fe2O3. Besides the diffraction peak of Fe2O3, diffraction peaks of (111), (200) and (311) crystal planes of Si phases are also observed [32,33,34]. The above results confirm that the as-synthesized dealloying product is mainly composed of Si and Fe2O3 phases.
Figure 2c displays the Raman spectra of the dealloyed products, the peaks observed at 520 cm−1 correspond to Si-Si bonds [35], while the peaks at about 293 cm−1 relate to the Fe-O bonds (Fe2O3) [36]. Furthermore, the peaks in the range of 900–1000 cm−1 are in accord with the multi-phonon peaks of Si [37]. The Raman data indicate that the products mainly contain two components of Fe oxides and Si, which is compatible with the XRD result. The inductively coupled plasma (ICP) result shows that the weight ratio of Si, Fe2O3 and residual Al in the BM-24-4, BM-48-4 and BM-72-4 samples are about 83.7:7.4:8.9, 75.1:19.4:5.5 and 63.2:32.7:4.1, respectively. This indicates that the ball-milling process affects the elemental distribution of the precursor and thus influences the composition ratio of dealloyed products.
The SEM images of the dealloyed products (BM-24-4, BM-48-4 and BM-72-4) are displayed in Figure 3a–c. BM-24-4 presents a typical network-like structure consisting of ligaments and pores. It can be observed that the surface of the ligaments is loaded with nanosheets. A large number of nanosheets with a length of ~140 nm are connected together, but they block the pores of the network, which is not conducive to the passage of lithium ions during charging and discharging process. Figure 3b presents the dual network structure of BM-48-4, which is composed of the nanoparticles (diameter: ≤50 nm) accumulation network and the nanosheets (length of ~500 nm) network. The nanoparticles fill the interspace among the nanosheets network, improving the utilization rate of space. The two sets of networks interpenetrate each other to form a double network structure, which is beneficial to buffer the volume variation in the repeated charging/discharging procedure. Figure 3c shows the microstructure of the BM-72-4 sample. It can be seen that the product is composed of a blocky structure (accumulated by coarsened nanoparticles) and the thick nanosheets network, showing a composite with poor porous structure.
The microstructure of the optimal BM-48-4 sample was further analyzed by TEM. The interlacing distribution of nanoparticles and finely fragmented nanosheets demonstrates that the nanoporous structure is formed across the composite as shown in Figure 3d. The measured crystal interplanar distance of 0.31 and 0.20 nm shown in Figure 3e corresponds to (111) and (220) crystal planes of Si, respectively. While the interplanar distance of 0.24 and 0.25 nm marked in Figure 3f corresponds to (112) and (020) crystal planes of Fe2O3. These results indicate the co-presence of Si and Fe2O3, which are consistent with XRD results. The elemental mapping of BM-48-4 shown in Figure 3g–l reveals that Si, Fe, O and a small amount of residual Al elements were distributed in the sample. The energy dispersive X-ray (EDX) spectrum (the insert in Figure 3l) reveals that the atomic ratio of Si, Fe, Al and O is about 76.6:7.1:5.9:10.4. Si and Fe are enriched in different local areas (Figure 3h), which further confirms the formation of the dual network structure composed of the corresponding product of Si and Fe2O3.
The formation process of iron oxide can be explained as follows. In the NaOH solution, OH− groups violently collide with the Al-Fe-based ribbons to form the intermediate Fe(OH)2 [38]. Then, this phase decomposes into Fe, Fe3O4 and H2. At the same time, the reduction of Fe3O4 by H2 happens, inducing the formation of Fe2O3 and even α-Fe in the dealloying products. The composition of the dealloyed product is affected by the concentration of the corrosive solution, the proportion of the initial element, the ratio between the reactant and the corrosive solution, etc. In a more concentrated NaOH solution (e.g., 10 M), the reaction between Al and NaOH is enhanced, producing H2 in a short period. Most of the Fe3O4 is reduced and thus α-Fe will dominate in the reaction products. While in NaOH solutions with appropriate concentrations (e.g., 1–2 M), iron oxides will dominate in the reaction products.
Nitrogen adsorption–desorption isotherm and pore diameter distribution curves are displayed in Figure 4a,b, respectively. The results show that the specific surface area of BM-48-4 (38.4 m2 g−1) is higher than that of BM-24-4 (23.9 m2 g−1) and BM-72-4 (11.2 m2 g−1). A large number of mesopores less than 10 nm exist in the product (Figure 4b), which can cushion the volume expansion of the material and shorten the Li–ion diffusion distance. Based on the above analysis, BM-48-4 is expected to possess relatively good electrochemical performance [39]. The surface elements and valence states of BM-48-4 were analyzed by XPS. The full XPS spectrum shown in Figure 4c shows that elements Si, Fe, Al, O and C exist in BM-48-4 without other impure substances. The appearance of Al 2p spectra stems from un-dealloyed residual Al elements. The Si 2p spectrum in Figure 4d reveals two typical peaks of Si located at 98.3 and 102.1 eV, relating to Si0 and Si4+, respectively. This indicates that slight oxidation occurs in the outermost layer of Si [40]. Fe 2p spectrum in Figure 4e shows clear peaks concentrated at 710.8, 724.8 and 719.8 eV, which are connected to Fe 2p3/2, Fe 2p1/2 and satellite peaks, respectively. In addition, an energy difference of 14.0 eV between Fe 2p3/2 and Fe 2p1/2 can be obtained, demonstrating the generation of Fe2O3 [41,42]. The O 1s spectrum shown in Figure 4f can be divided into two peaks, the peak at 531.8 eV is from hydroxyl (OH bond, possibly from residual sodium hydroxide), and the wide peak centered at 530.8 eV can be attributed to the peak of metal bond in oxide, namely Fe-O bond (OM bond) in Fe2O3 [43].
To study the charging/discharging reaction mechanism of Si/Fe2O3 anode in detail, a CV test was performed towards the BM-48-4 electrode with the scanning speed of 0.1 mV s−1 in the range of 0.01~3.0 V, as presented in Figure 5a. In the initial reduction process, an apparent peak at 0.2 V and a steep peak appeared at 0.01~0.15 V can be found, relating to the creation of amorphous LixSi from lithiation of crystal Si and the generation of solid electrolyte interphase (SEI) film. Two obvious peaks of 0.3 V and 0.5 V correspond to delithiation reaction from LixSi to Si [44,45] in the first anode scan. The peak appearing at about 1.1 V corresponds to the reaction between the surface oxygenic functional groups and Li+ [46]. A relatively wide peak at 1.85 V is in connection with the oxidation of metal Fe to Fe2+/Fe3+ and decomposition of Li2O. From the second cycle, two peaks can be found at 1.3 V and 0.68 V in the cathode reaction, which are believed to the multi-step electrochemical reaction from Fe2O3 to Fe (Fe2O3→LixFe2O3→Li2Fe2O3→Fe) [47]. While the broad peak in the anode reaction is decomposed into two peaks at 1.65 V and 1.85 V, relating to the transformation from Fe0 to Fe2+ and from Fe2+ to Fe3+, respectively. In addition, the CV curves in different cycles reflect relatively good reversibility [48]. As the number of cycles increases, the closure area of CV curves decreases slightly, showing that the BM-48-4 composite possesses acceptable cyclic stability. Although there have been a lot of studies on the application of Fe2O3 anode in LIBs, there is some controversy on its electrochemical reaction mechanism, and opinions have not been unified yet. A lot of detection and analysis is still needed in the future.
Figure 5b reveals the cycling properties of the three anodes during cycling at 200 mA g−1. The specific capacities of the first discharge/charge of the BM-24-4, BM-48-4 and BM-72-4 electrodes are 2787.2/1969.4, 3167.7/2234.8 and 1732.4/2784.3 mAh g−1, respectively. The capacity drops quickly in the initial eight cycles. After 100 cycles, the reversible capacity of the three electrodes tends to be stable, maintaining at 462.2, 697.2 and 308.9 mAh g−1, respectively. The BM-48-4 electrode shows the best cyclic stability among the three materials. The initial cycle coulomb efficiency of BM-48-4 is 70.5%. After five cycles, the coulomb efficiency approximates to 99.8% and around at 100% during the following cycles. Figure 5c–e displays the galvanostatic charge/discharge curves of BM-24-4, BM-48-4 and BM-72-4 during cycling under 200 mA g−1. Taking BM-48-4 as an example, the first discharge curve presents three platforms, which are 1.2~1.5, 0.6~1.0 and 0.01~0.2 V, respectively. While in the first charging stage, two long platforms of 0.2~0.7 and 1.1~2.0 V are found, according to the CV results. The capacity loss of the first cycle of BM-48-4 is about 29.5%, which is close to that of BM-24-4 (29.4%) and much lower than that of BM-72-4 (37.8%). With the increase in cycle number, the profile gradually moves to the left, demonstrating a slight capacity decline after several cycles. The charge/discharge profiles of BM-48-4 for the 50th and 100th cycles are close, revealing good cycling stability of the anode at the later stage of cycling. BM-24-4 and BM-72-4 electrodes show relatively low reversible capacity after cycling for 100 cycles. The huge capacity decay is induced by the serious volume variation during the cycling process, the crushing of active Si particles, the cracking of nanosheets structure, the creation of over-thick SEI film and the failure of electron and ion transport channels during the cycling process [49]. The difference in the electrochemical performance of a material in different tests in this work may be caused by the local non-uniformity of a material.
The rate performance of three electrode materials were tested at different current densities in the range of 200 to 5000 mA g−1, as presented in Figure 6a. The BM-48-4 electrode delivers the reversible capacity of 1356.5, 963.1, 779.9, 604.3 and 512.2 mAh g−1 under 200, 500, 1000, 2000 and 5000 mA g−1, respectively. At each current density, the BM-48-4 electrode shows the best specific capacity in the three anodes. When the current density recovers to 500 mA g−1, the BM-48-4 anode delivers a reversible capacity of 906 mAh g−1 after 30 cycles, which is extremely higher than the other two anodes, revealing a relatively good rate property of BM-48-4 in three electrodes. Figure 6b presents the charge and discharge curves of the BM-48-4 electrode at different current densities. It shows that with the enhancement in current density, the curve gradually shifts to the left, that is, the capacity of the electrode gradually reduces. Moreover, when the current density recovers from high current density to 500 mA g−1, the constant current charge/discharge profile almost coincides with the original curve tested at the same current density. All tests uncover that the BM-48-4 electrode possesses the best rate performance.
Figure 7a–c presents SEM images of three Si/Fe2O3 anodes after cycling at 200 mA g−1 for 100 cycles. After a long cycle, the pore size and porosity of BM-24-4 (Figure 7a) reduces, and the nanoparticles reunite to agglomeration, which is not conducive to ion transport. The BM-48-4 material (Figure 7b) can maintain the original structure of nanosheets and nanoparticles (with local agglomeration), presenting a relatively good structural stability. It is observed from Figure 7c that the surface of BM-72-4 is rough, and there are large cracks and some local aggregation. The above phenomenon reveals that BM-48-4 best preserves the original structure, which guarantees its good cyclic stability. Figure 7d,e shows the EIS data of Si/Fe2O3 anodes before and after 100 cycles. The EIS is composed of the high and medium frequency region (concave semicircle) caused by charge transfer resistance and the low-frequency region (slash) because of ion diffusion [50]. The minimum semicircle of BM-48-4 shows that the transfer resistance of the anode is significantly inferior to that of the BM-24-4 and BM-72-4 electrodes (Figure 7d). The inclination of the BM-48-4 electrode is higher than that of the BM-24-4 and BM-72-4 electrodes, indicating that the diffusion resistance of the BM-48-4 electrode is smaller. After 100 cycles, the diffusion resistance of three anodes is similar while the BM-48-4 electrode remains the smallest transfer resistance in three anodes (Figure 7e). Figure 7f shows a digital photo of a yellow light emitting diode (LED) bulb powered by an as-assembled half-cell. After 30 minutes, the LED bulb was less bright (Figure 7g) than it was when it started, but it still works, showing its good potential in practical applications.
Table 1 [14,17,19,20,34,44,51] compares the electrochemical properties of the electrode materials currently studied with those previously reported. The Li storage performance of the as-synthesized Si/Fe2O3 anode is better than that of most listed Si-based composites, and its excellent electrochemical performance is mainly attributed to the following points. Firstly, Si/Fe2O3 electrodes with a high specific surface area may provide a large area of contact and interaction between the active material and the electrolyte. Secondly, the three-dimensional porous network structure with interconnected ligaments can enhance ionic mobility and permeability. Moreover, ample pores can effectively alleviate the volume expansion of Si. In summary, Si/Fe2O3 material synthesized from natural ferrosilicon ores in this study possesses immense potential as an anode for LIBs application. Furthermore, the study also offers a new idea for the synthesis of low-cost Si-based electrodes and opens a new direction for the application of ferrosilicon ores in a brand-new field other than deoxidizing agents for steel manufacturing.

4. Conclusions

Porous Si/Fe2O3 dual network material was synthesized through the melt-spinning, ball-milling and dealloying process by utilizing natural ferrosilicon ores. The as-obtained Si/Fe2O3 anode displays a dual network structure. Due to this special porous structure, the BM-48-4 anode uncovers good Li storage property, delivering a good reversible capacity of 697.2 mAh g−1 after cycling at 200 mA g−1 for 100 cycles, which shows its great potential as LIBs anode. In addition, we also offer a new idea for the synthesis of porous Si-based electrodes and open a new direction for the application of ferrosilicon ores in a brand-new field.

Author Contributions

Data curation, Y.C. and Y.Y.; formal analysis, Y.C., Y.Y. and X.L.; funding acquisition, Z.W.; investigation, Y.C., Y.Y., X.W. and J.Z.; methodology, Y.Z. and Z.W.; project administration, Y.Z. and Z.W.; resources, X.L. and J.Z.; supervision, X.L. and J.Z.; writing—original draft, Y.Y. and J.Z.; writing—review and editing, Y.Z. and Z.W. All authors have read and agreed to the published version of the manuscript.

Funding

The authors would like to acknowledge the financial support from the Science and Technology Project of Hebei Education Department, China (ZD2018059) and the Natural Science Foundation of Hebei Province, China (E2020202071, B2019202277).

Acknowledgments

Y.C. acknowledges the support from the Innovative Top-Notch Student Training Program of Hebei University of Technology and the Innovation & Entrepreneurship Training Program of Hebei University of Technology (X202010080132). The authors thank Zifan Zhang, Sichen Wang and Chao Jin for their assistance in the experimental process.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Qin, C.L.; Zheng, D.H.; Hu, Q.F.; Zhang, X.M.; Wang, Z.F.; Li, Y.Y.; Zhu, J.S.; Ou, J.Z.; Yang, C.H.; Wang, Y.C. Flexible integrated metallic glass-based sandwich electrodes for high-performance wearable all-solid-state supercapacitors. Appl. Mater. Today 2020, 19, 100539. [Google Scholar] [CrossRef]
  2. Yang, Q.; Wang, Z.F.; Xi, W.; He, G. Tailoring nanoporous structures of Ge anodes for stable potassium-ion batteries. Electrochem. Commun. 2019, 101, 68–72. [Google Scholar] [CrossRef]
  3. Wang, Z.F.; Zhang, X.M.; Liu, X.L.; Zhang, Y.G.; Zhao, W.M.; Li, Y.Y.; Qin, C.L.; Bakenov, Z. High specific surface area bimodal porous carbon derived from biomass reed flowers for high performance lithium-sulfur batteries. J. Colloid Interface Sci. 2020, 569, 22–33. [Google Scholar] [CrossRef] [PubMed]
  4. Wang, Z.F.; Zhang, X.M.; Liu, X.L.; Wang, Y.C.; Zhang, Y.G.; Li, Y.Y.; Zhao, W.M.; Qin, C.L.; Mukanova, A.; Bakenov, Z. Bimodal nanoporous NiO@Ni–Si network prepared by dealloying method for stable Li-ion storage. J. Power Sources 2020, 449, 227550. [Google Scholar] [CrossRef]
  5. Culebras, M.; Geaney, H.; Beaucamp, A.; Upadhyaya, P.; Dalton, E.; Ryan, K.M.; Collins, M.N. Bio-derived carbon nanofibres from lignin as high-performance Li-ion anode materials. ChemSusChem 2019, 12, 4516–4521. [Google Scholar] [CrossRef]
  6. Li, M.; Lu, J.; Chen, Z.W.; Amine, K. 30 Years of lithium-ion batteries. Adv. Mater. 2018, 30, 1800561. [Google Scholar] [CrossRef] [Green Version]
  7. Ashuri, M.; He, Q.R.; Shaw, L.L. Silicon as a potential anode material for Li-ion batteries: Where size, geometry and structure matter. Nanoscale 2016, 8, 74–103. [Google Scholar] [CrossRef]
  8. Jiang, H.R.; Lu, Z.H.; Wu, M.C.; Ciucci, F.; Zhao, T.S. Borophene: A promising anode material offering high specific capacity and high rate capability for lithium-ion batteries. Nano Energy 2016, 23, 97–104. [Google Scholar] [CrossRef]
  9. Kang, W.; Kim, J.C.; Kim, D.W. Waste glass microfiber filter-derived fabrication of fibrous yolk-shell structured silicon/carbon composite freestanding electrodes for lithium-ion battery anodes. J. Power Sources 2020, 468, 228407. [Google Scholar] [CrossRef]
  10. Tao, J.M.; Lu, L.; Wu, B.Q.; Fan, X.Y.; Yang, Y.M.; Li, J.X.; Lin, Y.B.; Li, Y.Y.; Huang, Z.G.; Lu, J. Dramatic improvement enabled by incorporating thermal conductive TiN into Si-based anodes for lithium ion batteries. Energy Storage Mater. 2020, 29, 367–376. [Google Scholar] [CrossRef]
  11. Li, W.H.; Sun, X.L.; Yu, Y. Si-, Ge-, Sn-based anode materials for lithium-ion batteries: From structure design to electrochemical performance. Small Methods 2017, 1, 1600037. [Google Scholar] [CrossRef] [Green Version]
  12. Ge, M.Z.; Tang, Y.X.; Malyi, O.I.; Zhang, Y.Y.; Zhu, Z.Q.; Lv, Z.S.; Ge, X.; Xia, H.R.; Huang, J.Y.; Lai, Y.K.; et al. Mechanically reinforced localized structure design to stabilize solid-electrolyte interface of the composited electrode of Si nanoparticles and TiO2 nanotubes. Small 2020, 16, 2002094. [Google Scholar] [CrossRef] [PubMed]
  13. Li, L.; Fang, C.; Wei, W.F.; Zhang, L.; Ye, Z.; He, G.; Huang, Y.H. Nano-ordered structure regulation in delithiated Si anode triggered by homogeneous and stable Li-ion diffusion at the interface. Nano Energy 2020, 72, 104651. [Google Scholar] [CrossRef]
  14. Zeng, L.X.; Liu, R.P.; Han, L.; Luo, F.Q.; Chen, X.; Wang, J.B.; Qian, Q.R.; Chen, Q.H.; Wei, M.D. Preparation of a Si/SiO2-ordered-mesoporous-carbon nanocomposite as an anode for high-performance lithium-ion and sodium-ion batteries. Chem. Eur. J. 2018, 24, 4841–4848. [Google Scholar] [CrossRef] [PubMed]
  15. Zhang, J.M.; Zhou, X.Y.; Tang, J.J.; Ren, Y.P.; Jiang, M.; Tang, Y.G.; Wang, H.Y.; Yang, J. Phosphoric acid induced homogeneous crosslinked phosphorus doped porous Si nanoparticles with superior lithium storage performance. Appl. Surf. Sci. 2020, 509, 144873. [Google Scholar] [CrossRef]
  16. Chen, S.; Ling, H.Y.; Chen, H.; Zhang, S.Q.; Du, A.J.; Yan, C. Development of cross-linked dextrin as aqueous binders for silicon based anodes. J. Power Sources 2020, 450, 227671. [Google Scholar] [CrossRef]
  17. Li, Q.G.; Wang, Y.H.; Lu, B.; Yu, J.; Yuan, M.L.; Tan, Q.Q.; Zhong, Z.Y.; Su, F.B. Hollow core-shell structured Si@NiAl-LDH composite as high-performance anode material in lithium-ion batteries. Electrochim. Acta 2020, 331, 135331. [Google Scholar] [CrossRef]
  18. Yang, W.T.; Ying, H.J.; Zhang, S.L.; Guo, R.N.; Wang, J.L.; Han, W.Q. Electrochemical performance enhancement of porous Si lithium-ion battery anode by integrating with optimized carbonaceous materials. Electrochim. Acta 2020, 337, 135687. [Google Scholar] [CrossRef]
  19. Fang, R.; Xiao, W.; Miao, C.; Mei, P.; Zhang, Y.; Yan, X.M.; Jiang, Y. Fabrication of Si-SiO2@Fe/NC composite from industrial waste AlSiFe powders as high stability anodes for lithium ion batteries. Electrochim. Acta 2019, 324, 134860. [Google Scholar] [CrossRef]
  20. Geng, L.Y.; Yang, D.D.; Gao, S.L.; Zhang, Z.X.; Sun, F.Y.; Pan, Y.Y.; Li, S.Q.; Li, X.H.; Cao, P.F.; Yang, H.B. Facile fabrication of porous Si microspheres from low-cost precursors for high-capacity electrode. Adv. Mater. Interfaces 2020, 3, 1901726. [Google Scholar] [CrossRef]
  21. Cho, G.B.; Park, S.H.; Park, S.H.; Ju, J.H.; Cho, K.K.; Ahn, H.J.; Kim, K.W. Si film electrodes adopting a dual thermal effect of metal-induced crystallization (MIC) and kirkendall effect. J. Alloys Compd. 2019, 809, 151810. [Google Scholar] [CrossRef]
  22. Lee, S.J.; Kim, H.J.; Hwang, T.H.; Choi, S.; Park, S.H.; Deniz, E.; Jung, D.S.; Choi, J.W. Delicate structural control of Si-SiOx-C composite via high-speed spray pyrolysis for Li-ion battery anodes. Nano Lett. 2017, 17, 1870–1876. [Google Scholar] [CrossRef] [PubMed]
  23. Wu, H.; Zheng, L.H.; Zhan, J.; Du, N.; Liu, W.J.; Ma, J.; Su, L.W.; Wang, L.B. Recycling silicon-based industrial waste as sustainable sources of Si/SiO2 composites for high-performance Li-ion battery anodes. J. Power Sources 2020, 449, 227513. [Google Scholar] [CrossRef]
  24. Grinbom, G.; Duveau, D.; Gershinsky, G.; Monconduit, L.; Zitoun, D. Silicon/hollow γ-Fe2O3 nanoparticles as efficient anodes for Li-ion batteries. Chem. Mater. 2015, 27, 2703–2710. [Google Scholar] [CrossRef]
  25. Wang, Z.F.; Zhang, X.M.; Yan, Y.H.; Zhang, Y.G.; Wang, Y.C.; Qin, C.L.; Bakenov, Z. Nanoporous GeO2/Cu/Cu2O network synthesized by dealloying method for stable Li-ion storage. Electrochim. Acta 2019, 300, 363–372. [Google Scholar] [CrossRef]
  26. Wang, Z.F.; Zhang, X.M.; Zhang, Y.G.; Li, M.; Qin, C.L.; Bakenov, Z. Chemical dealloying synthesis of CuS nanowire-on-nanoplate network as anode materials for Li-ion batteries. Metals 2018, 8, 252. [Google Scholar] [CrossRef] [Green Version]
  27. Wang, Z.F.; Fei, P.Y.; Xiong, H.Q.; Qin, C.L.; Zhao, W.M.; Liu, X.Z. CoFe2O4 nanoplates synthesized by dealloying method as high performance Li-ion battery anodes. Electrochim. Acta 2017, 252, 295–305. [Google Scholar] [CrossRef]
  28. Qin, C.L.; Zhang, Y.S.; Wang, Z.F.; Xiong, H.Q.; Yu, H.; Zhao, W.M. One-step synthesis of CuO@brass foil by dealloying method for low-cost flexible supercapacitor electrodes. J. Mater. Sci.-Mater. Electron. 2016, 27, 9206–9215. [Google Scholar] [CrossRef]
  29. Jain, H.; Shadangi, Y.; Shivam, V.; Chakravarty, D.; Mukhopadhyay, N.K.; Kumar, D. Phase evolution and mechanical properties of non-equiatomic Fe-Mn-Ni-Cr-Al-Si-C high entropy steel. J. Alloys Compd. 2020, 834, 155013. [Google Scholar] [CrossRef]
  30. Novak, P.; Nova, K. Oxidation behavior of Fe-Al, Fe-Si and Fe-Al-Si intermetallics. Materials 2019, 12, 1748. [Google Scholar] [CrossRef] [Green Version]
  31. Garibaldi, M.; Ashcroft, I.; Lemke, J.N.; Simonelli, M.; Hague, R. Effect of annealing on the microstructure and magnetic properties of soft magnetic Fe-Si produced via laser additive manufacturing. Scr. Mater. 2018, 142, 121–125. [Google Scholar] [CrossRef]
  32. Li, P.; Hwang, J.Y.; Sun, Y.K. Nano/microstructured silicon-graphite composite anode for high-energy-density Li-ion battery. ACS Nano 2019, 13, 2624–2633. [Google Scholar] [CrossRef] [PubMed]
  33. An, Y.L.; Tian, Y.; Wei, H.; Xi, B.J.; Xiong, S.L.; Feng, J.K.; Qian, Y.T. Porosity- and graphitization-controlled fabrication of nanoporous silicon@carbon for lithium storage and its conjugation with MXene for lithium-metal anode. Adv. Funct. Mater. 2019, 30, 1908721. [Google Scholar] [CrossRef]
  34. Raj, H.; Singh, S.; Sil, A. TiO2 shielded Si nano-composite anode for high energy Li-ion batteries: The morphological and structural study of electrodes after charge-discharge process. Electrochim. Acta 2019, 326, 134981. [Google Scholar] [CrossRef]
  35. Wang, D.K.; Zhou, C.L.; Cao, B.; Xu, Y.C.; Zhang, D.H.; Li, A.; Zhou, J.S.; Ma, Z.K.; Chen, X.H.; Song, H.H. One-step synthesis of spherical Si/C composites with onion-like buffer structure as high-performance anodes for lithium-ion batteries. Energy Storage Mater. 2020, 24, 312–318. [Google Scholar] [CrossRef]
  36. Zhang, N.S.; Wang, X.; Feng, J.Y.; Huang, H.T.; Guo, Y.S.; Li, Z.S.; Zou, Z.G. Paving the road toward the use of β-Fe2O3 in solar water splitting: Raman identification, phase transformation and strategies for phase stabilization. Nat. Sci. Rev. 2020, 7, 1059–1067. [Google Scholar] [CrossRef] [Green Version]
  37. Temple, P.A.; Hathaway, C.E. Multiphonon Raman spectrum of silicon. Phys. Rev. B 1973, 7, 3685–3697. [Google Scholar] [CrossRef]
  38. Zhao, B.G.; Jia, S.; Yuan, Y.L.; Song, T.T.; Ma, H.L.; Zhai, Q.J.; Gao, Y.L. Paving the way to Fe3O4 nano- and microoctahedra by dealloying Al-Fe binary alloys. Mater. Charact. 2019, 156, 109869. [Google Scholar] [CrossRef]
  39. Luo, W.; Wang, Y.X.; Wang, L.J.; Jiang, W.; Chou, S.L.; Dou, S.X.; Liu, H.K.; Yang, J.P. Silicon/mesoporous carbon/crystalline TiO2 nanoparticles for highly stable lithium storage. ACS Nano 2016, 10, 10524–10532. [Google Scholar] [CrossRef]
  40. Wang, J.; Liu, D.H.; Wang, Y.Y.; Hou, B.H.; Zhang, J.P.; Wang, R.S.; Wu, X.L. Dual-carbon enhanced silicon-based composite as superior anode material for lithium-ion batteries. J. Power Sources 2016, 307, 738–745. [Google Scholar] [CrossRef]
  41. Wang, Z.F.; Zhang, X.M.; Liu, X.L.; Zhang, W.Q.; Zhang, Y.G.; Li, Y.Y.; Qin, C.L.; Zhao, W.M.; Bakenov, Z. Dual-network nanoporous NiFe2O4/NiO composites for high performance Li-ion battery anodes. Chem. Eng. J. 2020, 388, 124207. [Google Scholar] [CrossRef]
  42. Guo, W.X.; Sun, W.W.; Lv, L.P.; Kong, S.F.; Wang, Y. Microwave-assisted morphology evolution of Fe-based metal-organic frameworks and their derived Fe2O3 nanostructures for Li-ion storage. ACS Nano 2017, 11, 4198–4205. [Google Scholar] [CrossRef] [PubMed]
  43. Yan, Y.H.; Shi, Y.R.; Wang, Z.F.; Qin, C.L.; Zhang, Y.G. AlF3 microrods modified nanoporous Ge/Ag anodes fabricated by one-step dealloying strategy for stable lithium storage. Mater. Lett. 2020, 276, 128254. [Google Scholar] [CrossRef]
  44. Zhang, Z.H.; Du, Y.J.; Li, H.B. Engineering of a bowl-like Si@rGO architecture for an improved lithium ion battery via a synergistic effect. Nanotechnology 2019, 31, 095402. [Google Scholar] [CrossRef]
  45. Fukata, N.; Mitome, M.; Bando, Y.; Wu, W.; Wang, Z.L. Lithium-ion battery anodes using Si-Fe based nanocomposite structures. Nano Energy 2016, 26, 37–42. [Google Scholar] [CrossRef]
  46. Polat, D.B.; Keles, O.; Amine, K. Compositionally-graded silicon-copper helical arrays as anodes for lithium-ion batteries. J. Power Sources 2016, 304, 273–281. [Google Scholar] [CrossRef]
  47. Zhu, W.J.; Wang, Y.Y.; Yu, Y.Z.; Hu, Y.H.; Chen, Y.C. Core-shell structured alpha-Fe2O3@Li4Ti5O12 composite as anode materials for high-performance lithium-ion batteries. J. Alloys Compd. 2020, 813, 152175. [Google Scholar] [CrossRef]
  48. Li, Y.F.; Fu, Y.Y.; Chen, S.H.; Huang, Z.Z.; Wang, L.; Song, Y.H. Porous Fe2O3/Fe3O4@carbon octahedron arrayed on three-dimensional graphene foam for lithium-ion battery. Compos. Part. B Eng. 2019, 171, 130–137. [Google Scholar] [CrossRef]
  49. Kwon, H.J.; Hwang, J.Y.; Shin, H.J.; Jeong, M.G.; Chung, K.Y.; Sun, Y.K.; Jung, H.G. Nano/microstructured silicon-carbon hybrid composite particles fabricated with corn starch biowaste as anode materials for Li-ion batteries. Nano Lett. 2020, 20, 625–635. [Google Scholar] [CrossRef]
  50. Zhang, H.; Liu, S.W.; Yu, X.F.; Chen, S.L. Improving rate capacity and cycling stability of Si-anode lithium ion battery by using copper nanowire as conductive additive. J. Alloys Compd. 2020, 822, 153664. [Google Scholar] [CrossRef]
  51. Sekar, S.; Ahmed, A.A.; Inamdar, A.I.; Lee, Y.; Im, H.; Kim, D.Y.; Lee, S. Activated carbon-decorated spherical silicon nanocrystal composites synchronously-derived from rice husks for anodic source of lithium-ion battery. Nanomaterials 2019, 9, 1055. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Nanomaterials 10 02331 g001 550

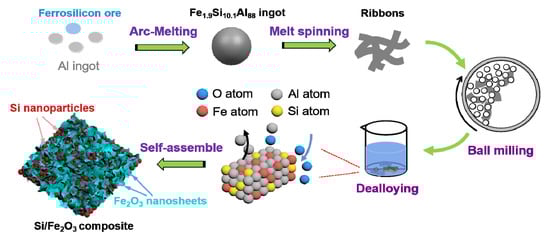

Figure 1. Schematic diagram presenting the fabrication route of Si/Fe2O3.
Figure 1. Schematic diagram presenting the fabrication route of Si/Fe2O3.
Nanomaterials 10 02331 g001
Nanomaterials 10 02331 g002 550

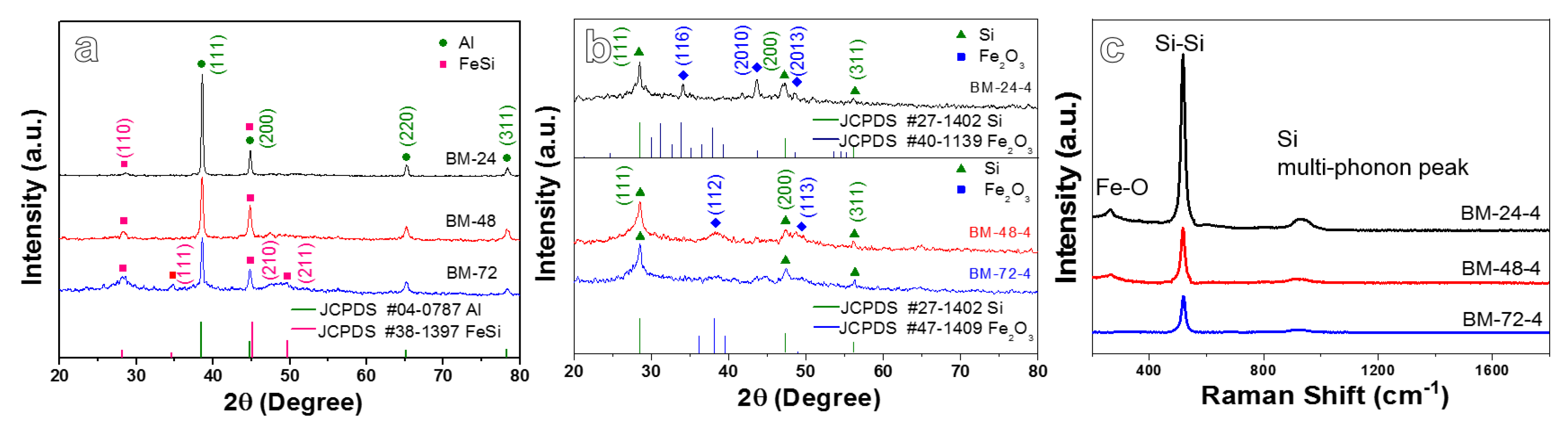

Figure 2. (a) XRD patterns of the ball-milled BM-24, BM-48, and BM-72 samples, (b) XRD patterns and (c) Raman spectrum of the dealloyed BM-24-4, BM-48-4 and BM-72-4 samples.
Figure 2. (a) XRD patterns of the ball-milled BM-24, BM-48, and BM-72 samples, (b) XRD patterns and (c) Raman spectrum of the dealloyed BM-24-4, BM-48-4 and BM-72-4 samples.
Nanomaterials 10 02331 g002
Nanomaterials 10 02331 g003 550

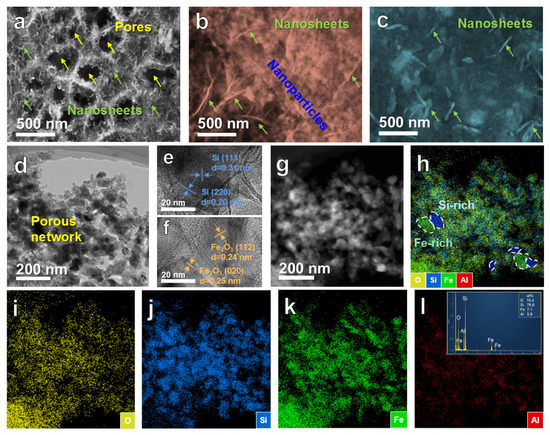

Figure 3. (a–c) SEM images of the dealloyed BM-24-4, BM-48-4 and BM-72-4 samples; (d–f) TEM and high-resolution TEM (HRTEM) images, and (g–l) elemental mapping of the BM-48-4 sample.
Figure 3. (a–c) SEM images of the dealloyed BM-24-4, BM-48-4 and BM-72-4 samples; (d–f) TEM and high-resolution TEM (HRTEM) images, and (g–l) elemental mapping of the BM-48-4 sample.
Nanomaterials 10 02331 g003
Nanomaterials 10 02331 g004 550

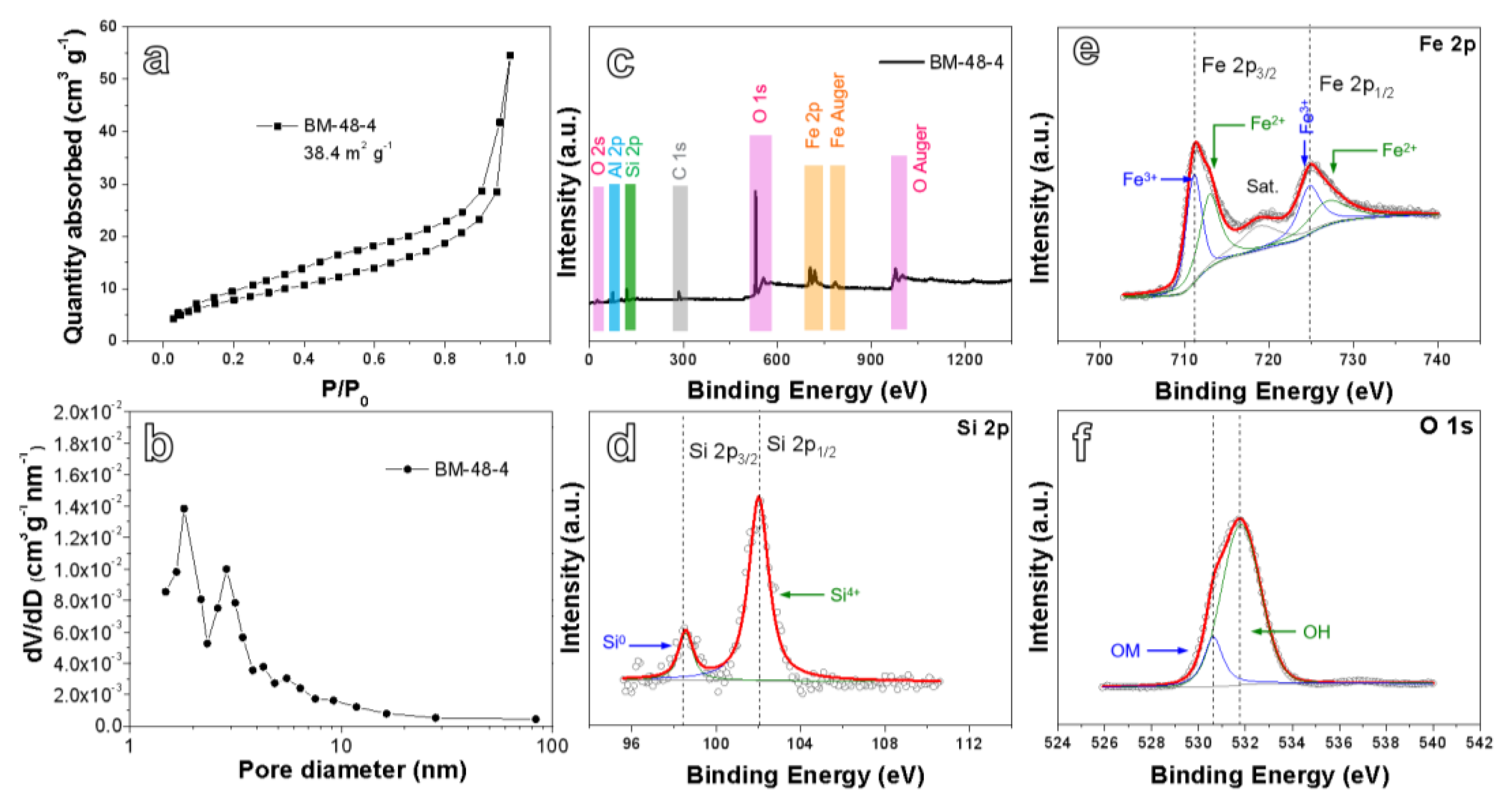

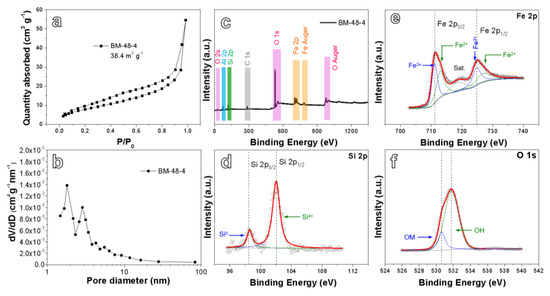

Figure 4. (a) N2 adsorption–desorption isotherm characteristics, (b) pore size distribution, (c) X-ray photoelectron spectroscopy (XPS) survey spectrum, and XPS spectra of (d) Si 2p, (e) Fe 2p and (f) O 1s for the BM-48-4.
Figure 4. (a) N2 adsorption–desorption isotherm characteristics, (b) pore size distribution, (c) X-ray photoelectron spectroscopy (XPS) survey spectrum, and XPS spectra of (d) Si 2p, (e) Fe 2p and (f) O 1s for the BM-48-4.
Nanomaterials 10 02331 g004
Nanomaterials 10 02331 g005 550

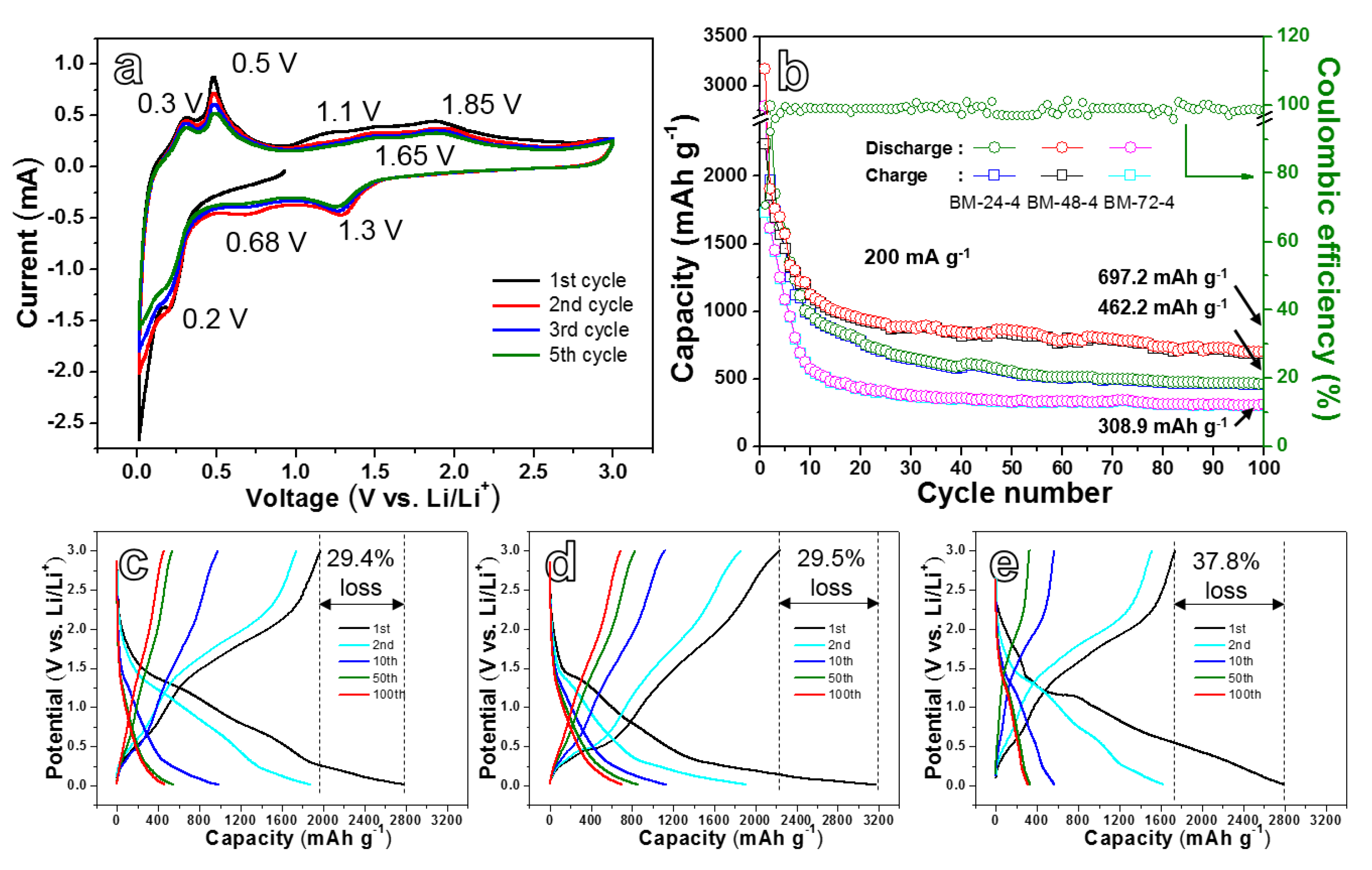

Figure 5. (a) Cyclic voltammetry (CV) curves of the BM-48-4 electrode detected at 0.1 mV s−1, (b) cyclic performances of BM-24-4, BM-48-4, BM-72-4 anodes at 200 mA g−1, galvanostatic charge–discharge (GCD) profiles of the Si/Fe2O3 electrodes recorded under 200 mA g−1: (c) BM-24-4, (d) BM-48-4 and (e) BM-72-4.
Figure 5. (a) Cyclic voltammetry (CV) curves of the BM-48-4 electrode detected at 0.1 mV s−1, (b) cyclic performances of BM-24-4, BM-48-4, BM-72-4 anodes at 200 mA g−1, galvanostatic charge–discharge (GCD) profiles of the Si/Fe2O3 electrodes recorded under 200 mA g−1: (c) BM-24-4, (d) BM-48-4 and (e) BM-72-4.
Nanomaterials 10 02331 g005
Nanomaterials 10 02331 g006 550

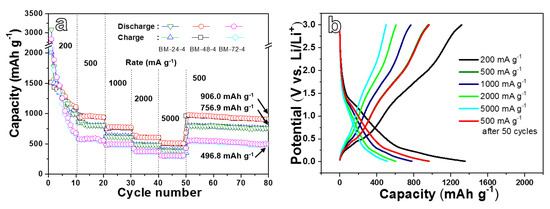

Figure 6. (a) Rate performance of BM-24-4, BM-48-4 and BM-72-4 anodes, (b) galvanostatic charge–discharge (GCD) curves of BM-48-4 anode at different current densities.
Figure 6. (a) Rate performance of BM-24-4, BM-48-4 and BM-72-4 anodes, (b) galvanostatic charge–discharge (GCD) curves of BM-48-4 anode at different current densities.
Nanomaterials 10 02331 g006
Nanomaterials 10 02331 g007 550

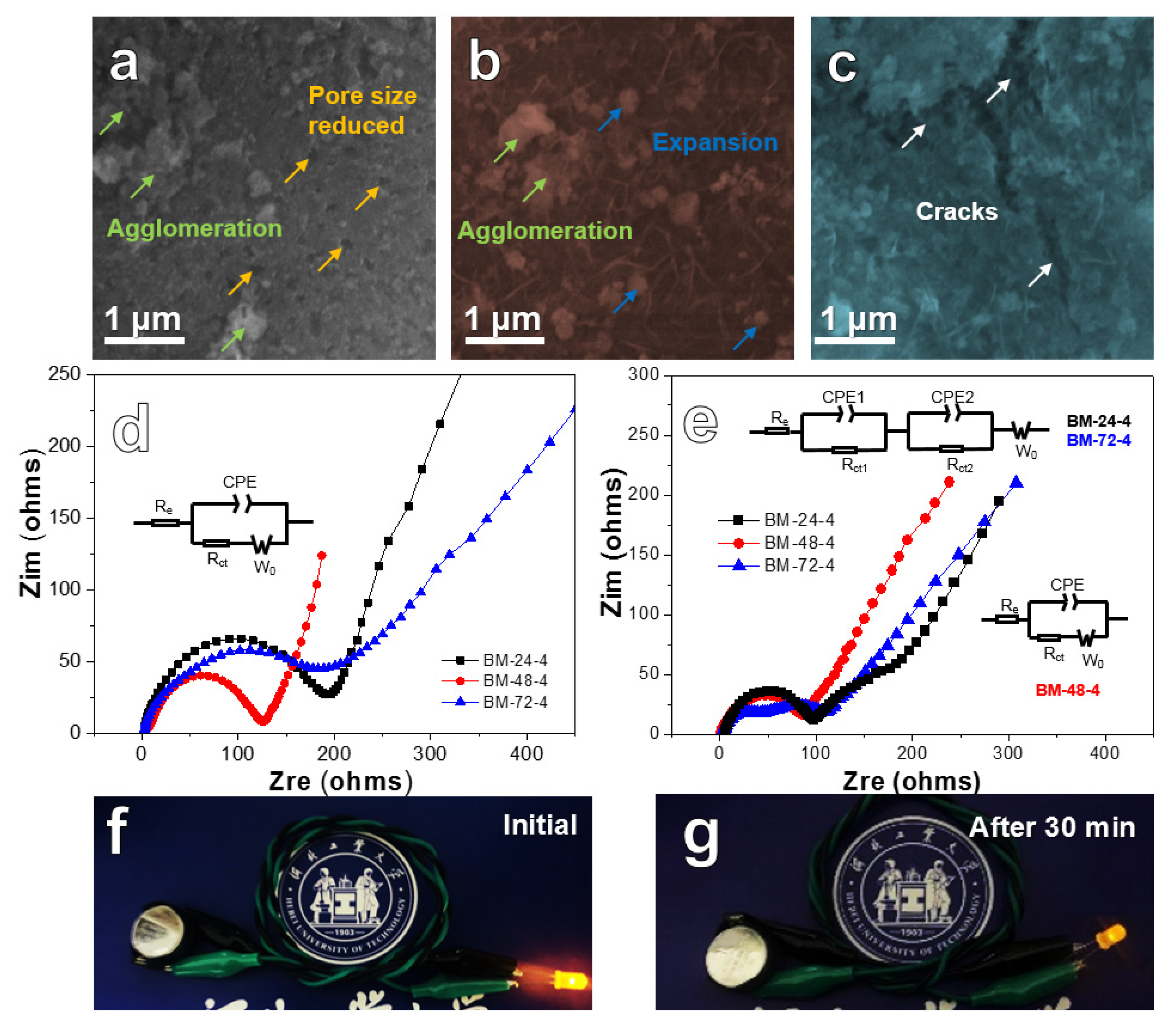

Figure 7. SEM images of the experimental anodes after cycling at 200 mA g−1 for 100 cycles: (a) BM-24-4; (b) BM-48-4 h; (c) BM-72-4; (d,e) Nyquist plots for BM-24-4, BM-48-4 and BM-72-4 composite anodes: (d) fresh and (e) after 100 cycles; (f,g) digital photographs of an LED bulb propelled by a Si/Fe2O3 battery: (f) initial and (g) after 30 min.
Figure 7. SEM images of the experimental anodes after cycling at 200 mA g−1 for 100 cycles: (a) BM-24-4; (b) BM-48-4 h; (c) BM-72-4; (d,e) Nyquist plots for BM-24-4, BM-48-4 and BM-72-4 composite anodes: (d) fresh and (e) after 100 cycles; (f,g) digital photographs of an LED bulb propelled by a Si/Fe2O3 battery: (f) initial and (g) after 30 min.
Nanomaterials 10 02331 g007
Table
Table 1. Comparison of electrochemical properties of different Si-based materials as Lithium–ion battery (LIBs) anodes.
Table 1. Comparison of electrochemical properties of different Si-based materials as Lithium–ion battery (LIBs) anodes.
Si-Based ElectrodesCurrent Density
(mA g−1)		Cycle NumberReversible Capacity (mAh g−1)Reference
Si@NiAl-LDH5060534[17]
Si@rGO100100450[44]
AC < nc-Si > AC100100492[51]
Si-TiO2100200510[34]
SiFS/G@C100100730[20]
Si/SiO2-OMC200100958[14]
Si/NC200100459.2[19]
Si/Fe2O3200100697.2This work
