Preparation of Nanocomposite Polymer Electrolyte via In Situ Synthesis of SiO2 Nanoparticles in PEO

College of Aerospace Engineering, Chongqing University, Chongqing 400044, China
State Key Laboratory of Space Power-sources Technology, Shanghai Institute of Space Power-Sources, Shanghai 200245, China
CAS Key Laboratory of Materials for Energy Conversion, Shanghai Institute of Ceramics, Chinese Academy of Sciences, Shanghai 200050, China
Department of Mechanical Engineering, National University of Singapore, Singapore 117575, Singapore
National University of Singapore Suzhou Research Institute, Suzhou 215000, China
Chemistry Department, M.V. Lomonosov Moscow State University, Moscow 119991, Russia
School of Mechanical Engineering, Hebei University of Technology, Tianjin 300401, China
State Key Laboratory of Coal Mine Disaster Dynamics and Control, Chongqing University, Chongqing 400044, China
Faculty of Energy and Fuels, AGH University of Science and Technology, Al Mickiewicza 30, PL-30059 Krakow, Poland
Authors to whom correspondence should be addressed.
Nanomaterials 2020, 10(1), 157;
Received: 7 December 2019 / Revised: 31 December 2019 / Accepted: 13 January 2020 / Published: 16 January 2020
(This article belongs to the Special Issue Design and Synthesis of Nanomaterials for Energy Storage)

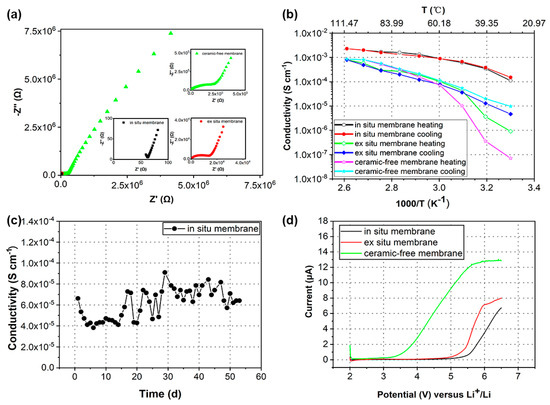

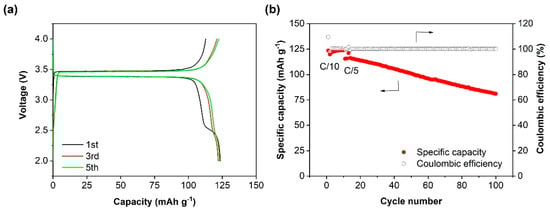

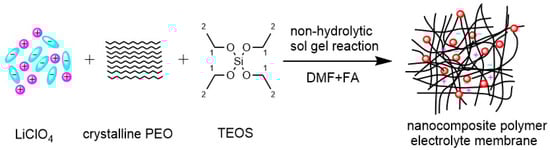

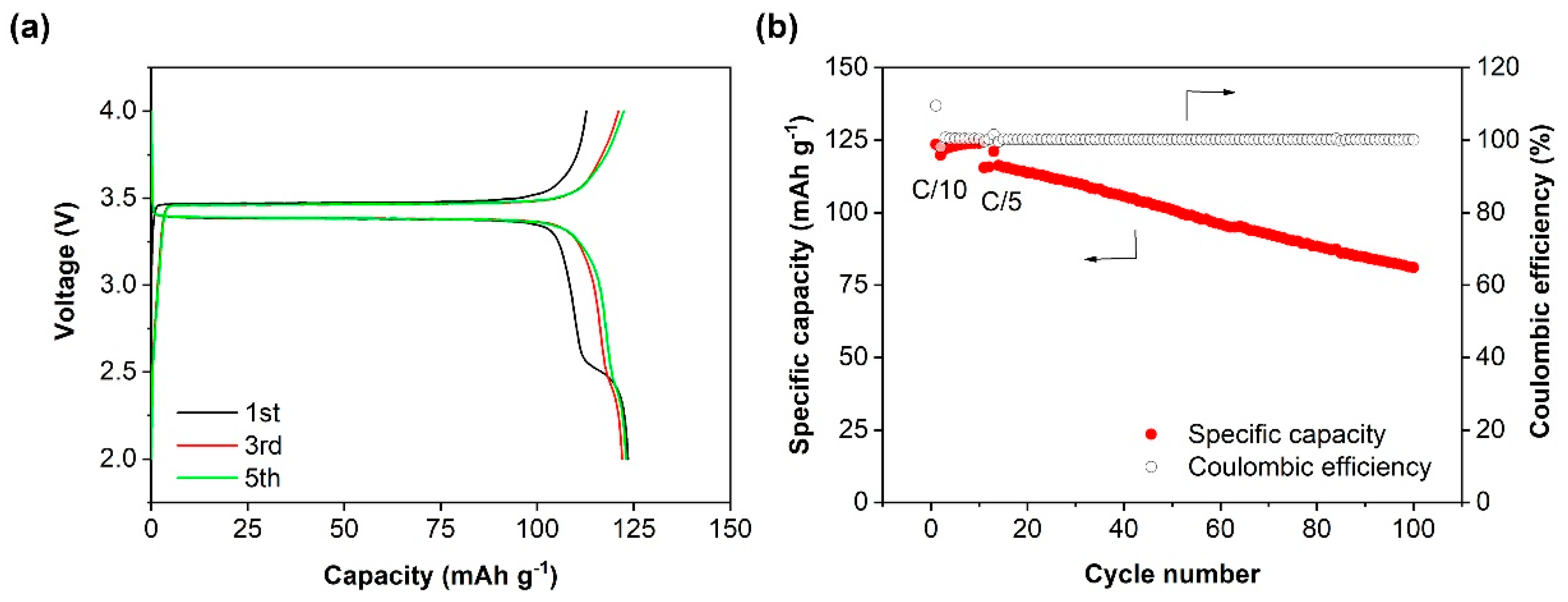

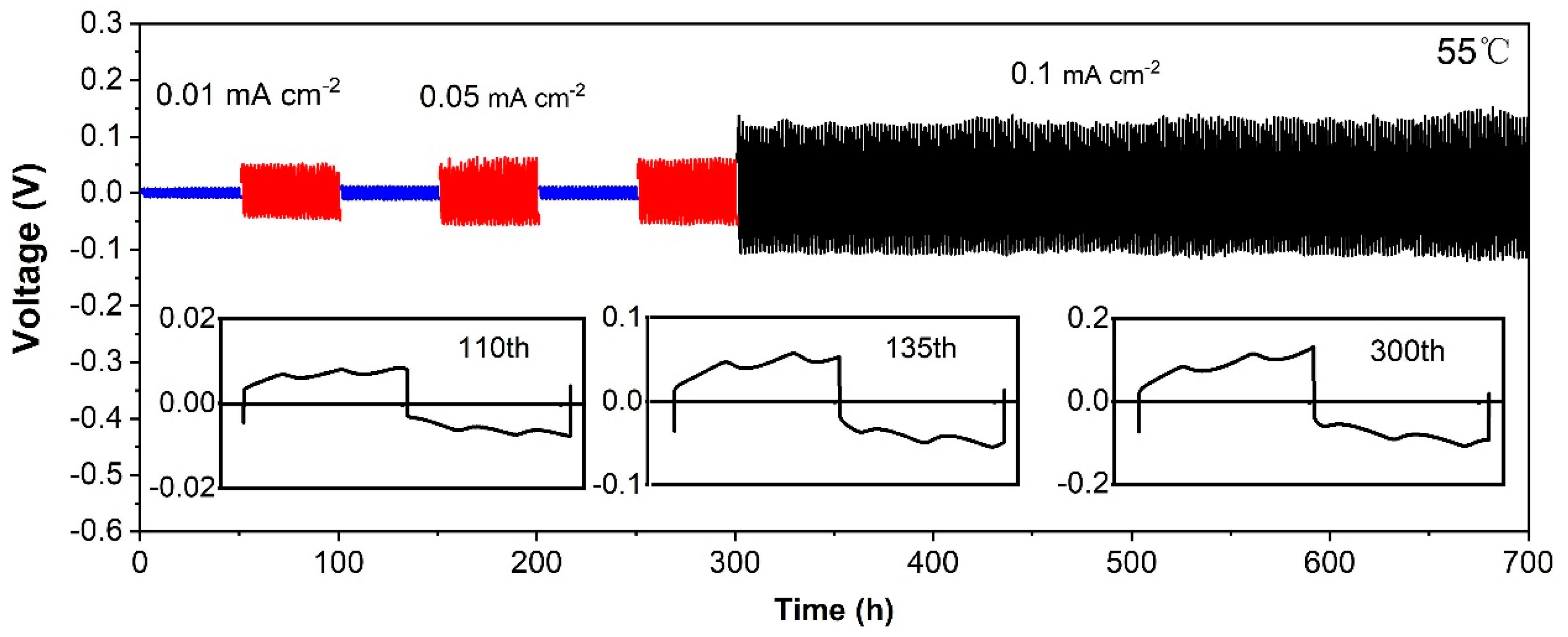

Composite polymer electrolytes provide an emerging solution for new battery development by replacing liquid electrolytes, which are commonly complexes of polyethylene oxide (PEO) with ceramic fillers. However, the agglomeration of fillers and weak interaction restrict their conductivities. By contrast with the prevailing methods of blending preformed ceramic fillers within the polymer matrix, here we proposed an in situ synthesis method of SiO2 nanoparticles in the PEO matrix. In this case, robust chemical interactions between SiO2 nanoparticles, lithium salt and PEO chains were induced by the in situ non-hydrolytic sol gel process. The in situ synthesized nanocomposite polymer electrolyte delivered an impressive ionic conductivity of ~1.1 × 10−4 S cm−1 at 30 °C, which is two orders of magnitude higher than that of the preformed synthesized composite polymer electrolyte. In addition, an extended electrochemical window of up to 5 V vs. Li/Li+ was achieved. The Li/nanocomposite polymer electrolyte/Li symmetric cell demonstrated a stable long-term cycling performance of over 700 h at 0.01–0.1 mA cm−2 without short circuiting. The all-solid-state battery consisting of the nanocomposite polymer electrolyte, Li metal and LiFePO4 provides a discharge capacity of 123.5 mAh g−1, a Coulombic efficiency above 99% and a good capacity retention of 70% after 100 cycles. View Full-Text
Keywords: composite polymer electrolyte; PEO; silica; in situ; lithium metal composite polymer electrolyte; PEO; silica; in situ; lithium metal
Show Figures

Figure 1

MDPI and ACS Style

Tan, X.; Wu, Y.; Tang, W.; Song, S.; Yao, J.; Wen, Z.; Lu, L.; Savilov, S.V.; Hu, N.; Molenda, J. Preparation of Nanocomposite Polymer Electrolyte via In Situ Synthesis of SiO2 Nanoparticles in PEO. Nanomaterials 2020, 10, 157.
