Direct-Contact Cytotoxicity Evaluation of CoCrFeNi-Based Multi-Principal Element Alloys

by
Ryan Newell
1,
Zi Wang
1,
Isabel Arias
1,
Abhishek Mehta
1,
Yongho Sohn
1 and
Stephen Florczyk
1,2,*
1
Department of Materials Science and Engineering, University of Central Florida, Orlando, FL 32816-2455, USA
2
Burnett School of Biomedical Sciences, University of Central Florida, Orlando, FL 32827, USA
*
Author to whom correspondence should be addressed.
J. Funct. Biomater. 2018, 9(4), 59; https://doi.org/10.3390/jfb9040059
Submission received: 26 September 2018 / Revised: 8 October 2018 / Accepted: 16 October 2018 / Published: 19 October 2018
Browse Figures
Versions Notes

Abstract

:
Transition metal multi-principal element alloys (MPEAs) are novel alloys that may offer enhanced surface and mechanical properties compared with commercial metallic alloys. However, their biocompatibility has not been investigated. In this study, three CoCrFeNi-based MPEAs were fabricated, and the in vitro cytotoxicity was evaluated in direct contact with fibroblasts for 168 h. The cell viability and cell number were assessed at 24, 96, and 168 h using LIVE/DEAD assay and alamarBlue assay, respectively. All MPEA sample wells had a high percentage of viable cells at each time point. The two quaternary MPEAs demonstrated a similar cell response to stainless steel control with the alamarBlue assay, while the quinary MPEA with Mn had a lower cell number after 168 h. Fibroblasts cultured with the MPEA samples demonstrated a consistent elongated morphology, while those cultured with the Ni control samples demonstrated changes in cell morphology after 24 h. No significant surface corrosion was observed on the MPEAs or stainless steel samples following the cell culture, while the Ni control samples had extensive corrosion. The cell growth and viability results demonstrate the cytocompatibility of the MPEAs. The biocompatibility of MPEAs should be investigated further to determine if MPEAs may be utilized in orthopedic implants and other biomedical applications.

1. Introduction

Metallic biomaterials are used in a variety of applications, including fixtures like screws and plates; electrical connections; and load-bearing applications, including total hip arthroplasty (THA), which is the standard treatment for degenerative hip pain. Over 60,000 THA surgeries were performed in the United States in 2015, with metallic implants paired with polymeric articulating surfaces as the most common implant configuration [1]. The metallic implants are typically produced with cobalt–chromium (CoCr) alloys; titanium (Ti)-based alloys, such as Ti-6Al-4V (ASTM F136/ISO 5832-2) or Ti-12Mo-6Zr-2Fe (ASTM F1813/ISO 5832-14); and stainless steels (ASTM F138/ISO 5832-1). These alloys are often employed in THA, particularly in femoral stems and heads, primarily due to their superior mechanical properties compared with polymeric and ceramic biomaterials. Mechanical properties of metallic biomaterials that are advantageous for orthopedic implants include high yield strength and high fracture toughness, which prevent deformation under load and increase the material resistance to fracture, respectively. The Ashby chart (Figure 1) illustrates the difference between the classes of materials (polymers, ceramics, metals, and metal multi-principal element alloys (MPEAs)) in terms of yield strength and fracture toughness [2].
Despite the prominent use of metallic implants in THAs, complications including wear [3,4,5], loosening [6,7], osteolysis [8,9,10], corrosion [11,12], trunnionosis [13], stress shielding [14,15], infection [16], and inflammatory reaction [17] may arise following device implantation. When complications occur, further treatment or revision surgery is necessary; over 6000 revision surgeries were conducted in 2015 [1]. The implant complications have many causes, but limitations with the implant material, including mismatch of stiffness with bone tissue and corrosion, are typical sources of complications. The material properties required for THA implants are compressive strength, fracture toughness, corrosion resistance, stiffness, fatigue limit, and wear resistance. Other considerations, such as material cost, machinability, and workability, may not affect the implant function but play a major role in alloy development and selection.
Novel materials could be used to reduce the risk of complications in THA patients and other orthopedic implant patients. However, any novel material should improve on the material properties of existing THA materials. A new class of materials called multi-principal element alloys (MPEAs) may provide such an opportunity. MPEAs contain several different elements in near-equiatomic concentrations, unlike conventional alloys, which are comprised of a principal solvent matrix alloyed with other constituents in minor and trace amounts. MPEAs can exhibit a single-phase microstructure with all elements in substitutional solid solution, and are also referred to as high entropy alloys, baseless alloys, or complex concentrated alloys [18]. MPEAs may be categorized based on their constituent elements, such as refractory or transition metals. Refractory MPEAs contain metals such as W, Ta, Mo, V, Zr, and Nb, while transition metal (TM) MPEAs primarily contain elements with valence electrons occupying the 3d orbital, including Cr, Mn, Fe, Co, Ni, and Cu.
The mechanical properties of TM MPEAs may be advantageous for use in orthopedic applications. The relevant properties of common implant materials and TM MPEAs are shown in Table 1 [19,20]. Using TM MPEAs in orthopedic implants may decrease the probability of mechanical deformation or failure through increased yield strength and fatigue life (endurance limit). The MPEA stiffness is lower than CoCr alloys and stainless steels, providing a better match with cortical bone, thereby potentially reducing the odds of stress-shielding in orthopedic applications. Additionally, several TM MPEAs have been shown to exceed the corrosion resistance of stainless steel 304 in NaCl and H2SO4 aqueous solutions [21,22,23]. TM MPEAs containing Co, Cr, Fe, Ni, Al, and Ti have also demonstrated better wear resistance than the conventional wear-resistant steels SUJ2 and SKH51 [24], although wear resistance is heavily composition-dependent [25]. TM MPEAs may be manufactured via most conventional methods as well as additive methods [26,27,28,29,30], allowing manufacturers to fabricate custom implants to match patient anatomy and incorporate complex configurations to promote osseointegration [31]. The intriguing properties of TM MPEAs have also prompted researchers to model their behavior as vascular stents [32,33]. Despite these promising properties, MPEAs cannot be utilized in biomedical applications if the alloys are not biocompatible.
This study investigated the cytotoxicity of CoCrFeNi-based MPEAs in direct contact with fibroblasts during in vitro culture, using an adaptation of the ASTM F813 standard. Evaluating the cytotoxicity of MPEAs is a critical first step in assessing MPEA biocompatibility. This is particularly important, as Co, Cr, Fe, and Ni are constituents in the majority of TM MPEAs [16] and may be cytotoxic. The cytotoxicity of MPEAs was assessed by culturing fibroblasts in wells containing MPEAs with three different compositions: Co20Cr20Fe30Ni30, Co30Cr30Fe20Ni20, and Co20Cr20FeeMn20Ni20 (the subscripts denote the elemental concentration in atomic percent). The MPEA cytotoxicity was assessed by analyzing fibroblast cell number and viability following 24, 96, and 168 h of cell culture in direct contact with the alloys, as well as positive and negative controls.

2. Results

Three TM MPEAs were fabricated for this study to evaluate the effects of alloy compositions; two off-equiatomic variations of the Co25Cr25Fe25Ni25 alloy, Co20Cr20Fe30Ni30 and Co30Cr30Fe20Ni20; and an equiatomic quinary alloy, Co20Cr20Fe20Mn20Ni20. The quinary alloy was cast to analyze the effect of adding a fifth transition metal, Mn, to the CoCrFeNi-base alloy.
Following casting and homogenization, the alloys were characterized using scanning electron microscopy (SEM) and X-ray diffraction (XRD). The backscatter electron micrograph in Figure 2 reveals a homogenous microstructure throughout the Co20Cr20Fe30Ni30 sample, indicated by the lack of features in the micrograph; the microstructures of the other MPEA samples were similar. The XRD patterns in Figure 3 were indexed and revealed peaks consistent with a face-centered cubic solid solution in each of the MPEA samples. The average MPEA elemental compositions were determined via X-ray energy dispersive spectroscopy (XEDS), and are reported in Table 2. After the characterization by SEM and XRD, the MPEA samples were used in direct-contact cell culture experiments.
The cell number in each well was quantified using the alamarBlue assay at three time points (Figure 4). After 24 h, there was no significant difference (p = 0.67) in cell number between groups, but after 96 and 168 h, significant differences between groups were observed (p < 0.05), as shown in Figure 4b. The Co20Cr20Fe30Ni30 and Co30Cr30Fe20Ni20 alloy samples had similar responses to the stainless steel and untreated control samples at each time point, indicating negligible cytotoxic effect on cell growth. The cell number for the Co20Cr20FeeMn20Ni20 samples was reduced after 168 h, indicating potential cytotoxicity. The Ni samples (positive control) elicited a cytotoxic response, resulting in significantly reduced cell numbers at 96 and 168 h.
The fibroblasts were evaluated with a LIVE/DEAD assay at 24, 96, and 168 h. The cultures were imaged using fluorescence microscopy to visualize the cell viability in response to the samples. The MPEAs, stainless steel, and untreated samples showed a high percentage of viable cells at each time point. The cell viability is clearly demonstrated after 168 h for the MPEAs, stainless steel, and untreated samples (Figure 5). Few dead cells were observed in all three MPEA groups, while greater numbers of dead cells were observed in the stainless steel control. This indicates that the decreased cell numbers observed for the MPEA samples between 96 and 168 h in the alamarBlue assay may have resulted from factors other than cell death, including contact inhibition or changes in cell metabolism. Qualitatively, the MPEAs, stainless steel, and untreated wells had similar cell density and elongated morphology. Thus, the bright-field images in Figure 6 only contain representative images of the cells in the Co20Cr20Fe20Mn20Ni20- and Ni-containing wells to contrast the responses. The Co20Cr20Fe20Mn20Ni20 samples shown in Figure 6a–c induced no changes to the confluent monolayer throughout the trial, while cell response in the Ni wells showed considerable differences in cell morphology, with the cells appearing rounded and detaching from the surface, as shown in Figure 6d–f. Changes in cell morphology for the Ni wells were observed at 24 h, and these effects increased with increasing culture time, indicating cytotoxicity. The lower cell number in the alamarBlue assay for the Co20Cr20Fe20Mn20Ni20 samples, with no discernable change in cell morphology and good cell viability, indicates that the cell metabolism may have been affected by leaching of Mn ions, resulting in lower alamarBlue readings.
The stability of the MPEA alloys was evaluated following 168 h of cell culture to assess the presence of corrosion. The metal disks were washed in ethanol and weighed to determine the weight loss during cell culture, which quantified the extent of corrosion as presented in Figure 7a. Only the Ni samples exhibited considerable corrosion, and these samples had a statistically significant difference in mass loss compared to every other alloy tested. Optical micrographs provide visual evidence of the surface corrosion of Co20Cr20Fe30Ni30, stainless steel, and Ni after 168 h of cell culture (Figure 7b–d). The surfaces of Co20Cr20Fe30Ni30 and stainless steel remained highly reflective, and only revealed minor defects by optical microscopy (OM). The surface of the Ni metal appeared dull following the cell culture, and OM revealed surface degradation suggestive of extensive corrosion (Figure 7d). The surfaces of all MPEAs in this study were similar in appearance to the Co20Cr20Fe30Ni30 and stainless steel presented in Figure 7b,c, respectively.

3. Discussion

The cytocompatibility of CoCrFeNi-based MPEAs was evaluated through direct contact culture with fibroblasts. After 24 h of culture, there was no significant difference in the number of cells in contact with each of the metals, but the cell response became more distinctive with additional culture time. After 96 h, the cell number in the MPEAs and stainless steel wells were comparable to that of the negative control, while the cell number in the Ni wells decreased significantly. After 168 h, all MPEA wells exhibited a marked decrease in cell number compared to the number after 96 h, which may be due to contact inhibition or changes in cell metabolism due to confluency. The final cell numbers in the Co20Cr20Fe30Ni30, Co30Cr30Fe20Ni20, and stainless steel wells were comparable to the number observed in the untreated control. This indicates that a decrease in cell numbers between 96 and 168 h was due to experimental constraints and not the cytotoxic effects of the alloys. However, the Co20Cr20Fe20Ni20Mn20 wells exhibited a greater reduction in cell number after 168 h, suggesting an effect from the sample. The decreased cell number in the Ni wells is due to Ni ions present in the culture medium, resulting in cytotoxicity. The observed corrosion of the Ni sample demonstrated that greater amounts of Ni ions were present in the cultures than constituents of the other alloys. The result for the Ni samples agree with the literature on the cytotoxicity of Ni ions [34]. The reduced cell number in the Co20Cr20FeeMn20Ni20 wells may be attributed to potentially cytotoxic metal ions, with Mn ions shown to reduce viability in mouse fibroblasts [35]. The corrosion resistance in the MPEAs investigated in this study may be insufficient to suppress Mn ion leaching in cytotoxic doses. Other factors may also be contributing to the lower cell number for the Co20Cr20FeeMn20Ni20 alloy, since the cultures displayed good viability and elongated cell morphology throughout the study.
The MPEAs and stainless steel exhibited little mass loss during cell culture. The surface of these alloys was characterized by a passive layer containing chromium- and iron-oxides [23,36], so the concentration of leached ions remained low. The robust nature of the passive layer also mitigates corrosion of CoCr and Ti-based implant materials in the body [37]. However, the accumulation of corrosion and wear byproducts can initiate pathological responses and other complications following implantation. Most metallic alloys currently used in biomedical applications may undergo surface treatment or coating prior to implantation, in order to enhance their corrosion and wear resistance. This study demonstrates that CoCrFeNi-based MPEAs did not experience excessive corrosion, likely due to the passive layer. The corrosion resistance of the MPEAs may eliminate the need for additional processing or coating. In conjunction with the excellent wear and corrosion properties described in the literature, MPEAs may represent a viable alloy system for future biomedical applications.
CoCrFeNi-based MPEAs have many benefits, including improved wear and corrosion resistance and lower stiffness compared to metals commonly used in biomedical applications, such as Ti-6Al-4V, CoCr, and stainless steel. This combination of properties may make MPEAs suitable materials for use in orthopedic implant applications. This study evaluated the in vitro cytotoxicity of three unique TM MPEAs, Co20Cr20Fe30Ni30, Co30Cr30Fe20Ni20, and Co20Cr20FeeMn20Ni20, in direct contact with fibroblasts during the 168 h cell culture, using an alamarBlue assay and microscopy. The quaternary alloys demonstrated no cytotoxicity, while the addition of Mn to the MPEAs led to reduced cell numbers in the alamarBlue assay. All MPEA formulations exhibited excellent corrosion resistance. To fully realize the potential of MPEAs as biomaterials, compositions should be carefully refined to optimize properties and performance. CoCrFeNi-based MPEAs possess sufficient mechanical properties, corrosion resistance, and biocompatibility to warrant further investigation as THA components, plates, screws, stents, and in other biomedical applications. Additional biocompatibility and functional testing are needed to validate TM MPEAs for orthopedic applications.

4. Materials and Methods

4.1. Sample Fabrication

Three TM MPEAs—Co20Cr20Fe30Ni30, Co30Cr30Fe20Ni20, and Co20Cr20Fe20Mn20Ni20—were fabricated for this study in an arc-melter (Centorr 5BJTM, Nashua, NH, USA). The target compositions were obtained by converting the nominal alloy concentrations to weight percents, and the corresponding amounts of the elemental constituents were combined. The alloys were melted in an Ar-filled chamber, flipped, and re-melted 5–6 times to promote homogeneous compositional distribution. Following melting, the alloys were sealed in Ar-backfilled quartz tubes and homogenized at 1100 °C for 48 h in a high temperature furnace (CM, Bloomfield, NJ, USA). The MPEAs were sectioned using a low-speed diamond saw, followed by grinding and polishing using sequentially finer SiC polishing pads from 400 to 1200 grit, and finally polished using 1 µm diamond paste. The final thickness of each sample ranged between 1 and 1.5 mm. The sample shapes were irregular due to the casting and cutting process, but the sample masses differed by ≤0.3 g. Stainless steel 304 (SS) and commercially pure Ni rods were used as negative and positive controls, respectively. The SS and Ni samples were cut and polished using the same methods as the MPEAs. The sample areas (basal plane) ranged between 0.201 to 0.630 cm2.

4.2. Metal Multi-Principal Element Alloy Characterization

The chemical composition, microstructure, and crystal structure of the MPEA samples was analyzed. The microstructure and composition were analyzed using a Zeiss Ultra-55 field-emission scanning electron microscope (FE-SEM) operating at 20 keV accelerating voltage. An X-ray energy dispersive spectroscope (XEDS) detector was used to examine the compositional homogeneity. The MPEA crystal structures were analyzed via X-ray diffraction (XRD) using a Cu K-α source (λ = 1.54 Å) with 45 keV accelerating voltage and 40 mA current over a range of 2θ angles from 30–100°. After the cell culture, bright-field and dark-field optical microscopy (OM) were used to examine the sample surfaces for evidence of corrosion.

4.3. Cell Expansion

BJ fibroblasts (ATCC, Manassas, VA, USA) were cultured and expanded to 80% confluency in T-150 flasks, according to the manufacturer’s instruction, in α-MEM with 10% fetal bovine serum and 1% penicillin/streptomycin at 37 °C and 5% CO2 in a fully humidified incubator. The cells were detached with trypsin-EDTA (FisherScientific, Pittsburgh, PA, USA), centrifuged at 225× g for 10 min, then re-suspended in media and seeded in 12-well culture plates at 100,000 cells per well. Cells were cultured in the plates with media changes every 48 h until the monolayers became nearly 100% confluent.

4.4. Direct Contact Cytotoxicity Evaluation

The cytotoxicity of the MPEA samples was evaluated using an adaptation of ASTM F813, where confluent fibroblast cell monolayers are in direct contact with the alloy sample. ASTM F813 indicated 24 h of direct contact in vitro culture; however, metallic implants typically remain in the patient for several years, so the samples were cultured for 168 h to observe the cell response as function of time. The three experimental MPEAs, stainless steel (negative control), and Ni (positive control) were placed on confluent monolayers of BJ fibroblast cells in 12-well plates with n = 3 samples per group. Untreated fibroblast seeded wells were also used as controls. The media was changed every 48 h during the evaluation.

4.5. Cell Number

The alamarBlue assay was performed at 24, 96, and 168 h time points to evaluate cell number. The media was aspirated and the cells were washed with Dulbecco’s phosphate buffered saline (D-PBS). A 10 vol % alamarBlue solution was made by adding the alamarBlue reagent into fully supplemented α-MEM media, and 1.5 mL of the 10% alamarBlue solution was added to each well. The samples (n = 3 per group) were incubated at 37 °C for 2 h. Following incubation, 300 µL samples in duplicate from each well were placed in a black 96-well plate. Fluorescence measurements were performed using a Cytation5 multimode imaging microplate reader (Biotek, Winoosky, VT, USA) with an excitation wavelength of 560 nm and emission wavelength of 590 nm. The emission intensities were converted to cell numbers using a standard curve generated from a series of known cell numbers.

4.6. Viability Assessment

A LIVE/DEAD® Viability/Cytotoxicity kit (FisherScientific, Pittsburgh, PA, USA) was used to assess the viability of BJ fibroblasts in contact with MPEA samples at 24, 96, and 168 h time points. The cell viability was evaluated using calcein AM and ethidium homodimer-1 (EthD-1). The calcein binds to live cells to produce green fluorescence, while EthD-1 binds to dead cells and produces red fluorescence. The staining solution was prepared in D-PBS at a concentration of 2 µM calcein and 4 µM EthD-1. The media in the sample wells was aspirated and replaced with 500 µL of the staining solution and incubated at room temperature for 20 min. The samples were washed with D-PBS, then imaged with the Cytation5 using GFP and RFP filters for live and dead cells, respectively. The entire well was inspected and representative images were obtained.

4.7. Mass Loss

The mass of the metal samples (n = 3 per group) was measured following 168 h of cell culture and compared with the mass prior to cell culture. After removal from the wells, the metal samples were washed with D-PBS, then placed in an ethanol bath and ultrasonically cleaned using a Fisher CPXH 1900 ultrasonic cleaner. The samples were dried with warm air then weighed using a Mettler AE166 balance.

4.8. Statistical Analysis

The data are presented as the mean ± standard deviation of the mean. Statistical significance was set at p < 0.05 and was tested with ANOVA and a t-test (Microsoft Excel, Version 16.16.2).

Author Contributions

Conceptualization: R.N. and S.J.F.; methodology: R.N. and S.J.F.; validation: R.N., Y.S. and S.J.F.; formal analysis: R.N.; investigation, R.N., Z.W., I.A., and A.M.; resources: Y.S and S.J.F.; writing (original draft preparation: R.N.; writing (review and editing): Y.S. and S.J.F.; supervision: S.J.F.; project administration: S.J.F.

Funding

This research received no external funding.

Acknowledgments

This study was supported by UCF start-up funding (SJF). The authors would like to acknowledge the use of Zeiss Ultra-55 FE-SEM and Panalytical Empyrean XRD at the Materials Characterization Facility (MCF), administered by the Advanced Materials Processing and Analysis Center (AMPAC) of University of Central Florida.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Gioe, T.J. American Joint Replacement Registry 2016 Annual Report; American Joint Replacement Registry: Rosemont, IL, USA, 2016. [Google Scholar]
  2. Gludovatz, B.; Hohenwarter, A.; Thurston, K.V.S.; Bei, H.; Wu, Z.; George, E.P.; Ritchie, R.O. Exceptional damage-tolerance of a medium-entropy alloy crconi at cryogenic temperatures. Nat. Commun. 2016, 7, 10602. [Google Scholar] [CrossRef] [PubMed]
  3. Langton, D.; Jameson, S.; Joyce, T.; Hallab, N.; Natu, S.; Nargol, A. Early failure of metal-on-metal bearings in hip resurfacing and large-diameter total hip replacement: A consequence of excess wear. J. Bone Jt. Surg. Br. 2010, 92, 38–46. [Google Scholar] [CrossRef] [PubMed]
  4. Oldenburg, M.; Wegner, R.; Baur, X. Severe cobalt intoxication due to prosthesis wear in repeated total hip arthroplasty. J. Arthroplast. 2009, 24, 825.e815–e825. [Google Scholar] [CrossRef] [PubMed]
  5. Witt, J.; Swann, M. Metal wear and tissue response in failed titanium alloy total hip replacements. J. Bone Jt. Surg. Br. 1991, 73, 559–563. [Google Scholar] [CrossRef]
  6. Lombardi, J.A.; Mallory, T.; Vaughn, B.; Drouillard, P. Aseptic loosening in total hip arthroplasty secondary to osteolysis induced by wear debris from titanium-alloy modular femoral heads. J. Bone Jt. Surg. Am. 1989, 71, 1337–1342. [Google Scholar] [CrossRef]
  7. Huber, M.; Reinisch, G.; Trettenhahn, G.; Zweymüller, K.; Lintner, F. Presence of corrosion products and hypersensitivity-associated reactions in periprosthetic tissue after aseptic loosening of total hip replacements with metal bearing surfaces. Acta Biomater. 2009, 5, 172–180. [Google Scholar] [CrossRef] [PubMed]
  8. Maloney, W.J.; Smith, R.L. Periprosthetic osteolysis in total hip arthroplasty: The role of particulate wear debris. J. Bone Jt. Surg. 1995, 77, 1448–1461. [Google Scholar] [CrossRef]
  9. Park, Y.-S.; Moon, Y.-W.; Lim, S.-J.; Yang, J.-M.; Ahn, G.; Choi, Y.-L. Early osteolysis following second-generation metal-on-metal hip replacement. J. Bone Jt. Surg. Am. 2005, 87, 1515–1521. [Google Scholar]
  10. Huo, M.H.; Salvati, E.A.; Lieberman, J.R.; Betts, F.; Bansal, M. Metallic debris in femoral endosteolysis in failed cemented total hip arthroplasties. Clin. Orthop. Relat. Res. 1992, 157–168. [Google Scholar] [CrossRef]
  11. Willert, H.; Brobäck, L.; Buchhorn, G.; Jensen, P.; Köster, G.; Lang, I.; Ochsner, P.; Schenk, R. Crevice corrosion of cemented titanium alloy stems in total hip replacements. Clin. Orthop. Relat. Res. 1996, 51–75. [Google Scholar] [CrossRef]
  12. Urban, R.M.; Jacobs, J.J.; Gilbert, J.L.; Galante, J.O. Migration of corrosion products from modular hip prostheses. Particle microanalysis and histopathological findings. J. Bone Jt. Surg. Am. 1994, 76, 1345–1359. [Google Scholar] [CrossRef]
  13. Mistry, J.B.; Chughtai, M.; Elmallah, R.K.; Diedrich, A.; Le, S.; Thomas, M.; Mont, M.A. Trunnionosis in total hip arthroplasty: A review. J. Orthop. Traumatol. 2016, 17, 1–6. [Google Scholar] [CrossRef] [PubMed]
  14. Sumner, D.R.; Galante, J.O. Determinants of stress shielding. Clin. Orthop. Relat. Res. 1991, 274, 202–212. [Google Scholar] [CrossRef]
  15. Bobyn, J.D.; Mortimer, E.S.; Glassman, A.H.; Engh, C.A.; Miller, J.E.; Brooks, C.E. Producing and avoiding stress shielding. Laboratory and clinical observations of noncemented total hip arthroplasty. Clin. Orthop. Relat. Res. 1992, 274, 79–96. [Google Scholar]
  16. Senthi, S.; Munro, J.T.; Pitto, R.P. Infection in total hip replacement: Meta-analysis. Int. Orthop. 2011, 35, 253–260. [Google Scholar] [CrossRef] [PubMed]
  17. Chen, X.; Bai, C.; Xie, L.; Zhang, Y.; Wang, K. Inflammatory response to orthopedic biomaterials after total hip replacement. J. Orthop. Sci. 2012, 17, 407–412. [Google Scholar] [CrossRef] [PubMed]
  18. Miracle, D.; Senkov, O. A critical review of high entropy alloys and related concepts. Acta Mater. 2017, 122, 448–511. [Google Scholar] [CrossRef]
  19. Ratner, B.D.; Hoffman, A.S.; Schoen, F.J.; Lemons, J.E. Biomaterials Science: An Introduction to Materials in Medicine; Academic Press: Boston, MA, USA, 2004. [Google Scholar]
  20. Gao, M.C.; Yeh, J.-W.; Liaw, P.K.; Zhang, Y. High-Entropy Alloys: Fundamentals and Applications; Springer: Basel, Switzerland, 2016. [Google Scholar]
  21. Lee, C.; Chang, C.; Chen, Y.; Yeh, J.; Shih, H. Effect of the aluminium content of alxcrfe1.5mnni0.5 high-entropy alloys on the corrosion behaviour in aqueous environments. Corros. Sci. 2008, 50, 2053–2060. [Google Scholar] [CrossRef]
  22. Lee, C.; Chen, Y.; Hsu, C.; Yeh, J.; Shih, H. Enhancing pitting corrosion resistance of alxcrfe1.5mnni0.5 high-entropy alloys by anodic treatment in sulfuric acid. Thin Solid Films 2008, 517, 1301–1305. [Google Scholar] [CrossRef]
  23. Chen, Y.; Duval, T.; Hung, U.; Yeh, J.; Shih, H. Microstructure and electrochemical properties of high entropy alloys—A comparison with type-304 stainless steel. Corros. Sci. 2005, 47, 2257–2279. [Google Scholar] [CrossRef]
  24. Chuang, M.-H.; Tsai, M.-H.; Wang, W.-R.; Lin, S.-J.; Yeh, J.-W. Microstructure and wear behavior of alxco1.5crfeni1.5tiy high-entropy alloys. Acta Mater. 2011, 59, 6308–6317. [Google Scholar] [CrossRef]
  25. Wu, J.-M.; Lin, S.-J.; Yeh, J.-W.; Chen, S.-K.; Huang, Y.-S.; Chen, H.-C. Adhesive wear behavior of alxcocrcufeni high-entropy alloys as a function of aluminum content. Wear 2006, 261, 513–519. [Google Scholar] [CrossRef]
  26. Brif, Y.; Thomas, M.; Todd, I. The use of high-entropy alloys in additive manufacturing. Scr. Mater. 2015, 99, 93–96. [Google Scholar] [CrossRef]
  27. Joseph, J.; Jarvis, T.; Wu, X.; Stanford, N.; Hodgson, P.; Fabijanic, D.M. Comparative study of the microstructures and mechanical properties of direct laser fabricated and arc-melted alxcocrfeni high entropy alloys. Mater. Sci. Eng. A 2015, 633, 184–193. [Google Scholar] [CrossRef]
  28. Kunce, I.; Polanski, M.; Bystrzycki, J. Structure and hydrogen storage properties of a high entropy zrtivcrfeni alloy synthesized using laser engineered net shaping (lens). Int. J. Hydrog. Energy 2013, 38, 12180–12189. [Google Scholar] [CrossRef]
  29. Fujieda, T.; Shiratori, H.; Kuwabara, K.; Kato, T.; Yamanaka, K.; Koizumi, Y.; Chiba, A. First demonstration of promising selective electron beam melting method for utilizing high-entropy alloys as engineering materials. Mater. Lett. 2015, 159, 12–15. [Google Scholar] [CrossRef]
  30. Ocelik, V.; Janssen, N.; Smith, S.; De Hosson, J.T.M. Additive manufacturing of high-entropy alloys by laser processing. JOM 2016, 68, 1810–1818. [Google Scholar] [CrossRef]
  31. Ryan, G.; Pandit, A.; Apatsidis, D.P. Fabrication methods of porous metals for use in orthopaedic applications. Biomaterials 2006, 27, 2651–2670. [Google Scholar] [CrossRef] [PubMed]
  32. Alagarsamy, K.; Fortier, A.; Mishra, R.; Kumar, N. In Investigation of thermo-mechanical processing and mechanical properties of cocrfenimn high entropy alloy for peripheral vascular stent application. In Proceedings of the ASME 2016 11th International Manufacturing Science and Engineering Conference, Blacksburg, VA, USA, 27 June–1 July 2016. [Google Scholar]
  33. Alagarsamy, K.; Fortier, A.; Komarasamy, M.; Kumar, N.; Mohammad, A.; Banerjee, S.; Han, H.-C.; Mishra, R.S. Mechanical properties of high entropy alloy al 0.1 cocrfeni for peripheral vascular stent application. Cardiovasc. Eng. Technol. 2016, 7, 448–454. [Google Scholar] [CrossRef] [PubMed]
  34. Lü, X.; Bao, X.; Huang, Y.; Qu, Y.; Lu, H.; Lu, Z. Mechanisms of cytotoxicity of nickel ions based on gene expression profiles. Biomaterials 2009, 30, 141–148. [Google Scholar] [CrossRef] [PubMed]
  35. Fischer, A.; Skreb, Y. Cytotoxicity of manganese for mammalian cells in vitro—Comparisons with lead, mercury and cadmium. Zentralbl Bakteriol. Mikrobiol. Hyg. B 1980, 171, 525–537. [Google Scholar] [PubMed]
  36. Castle, J.E.; Clayton, C.R. The use of in the x-ray photo-electron spectroscopy analyses of passive layers on stainless steel. Corrosi. Sci. 1977, 17, 7–26. [Google Scholar] [CrossRef]
  37. Geetha, M.; Singh, A.K.; Asokamani, R.; Gogia, A.K. Ti based biomaterials, the ultimate choice for orthopaedic implants—A review. Prog. Mater. Sci. 2009, 54, 397–425. [Google Scholar] [CrossRef]
Jfb 09 00059 g001 550

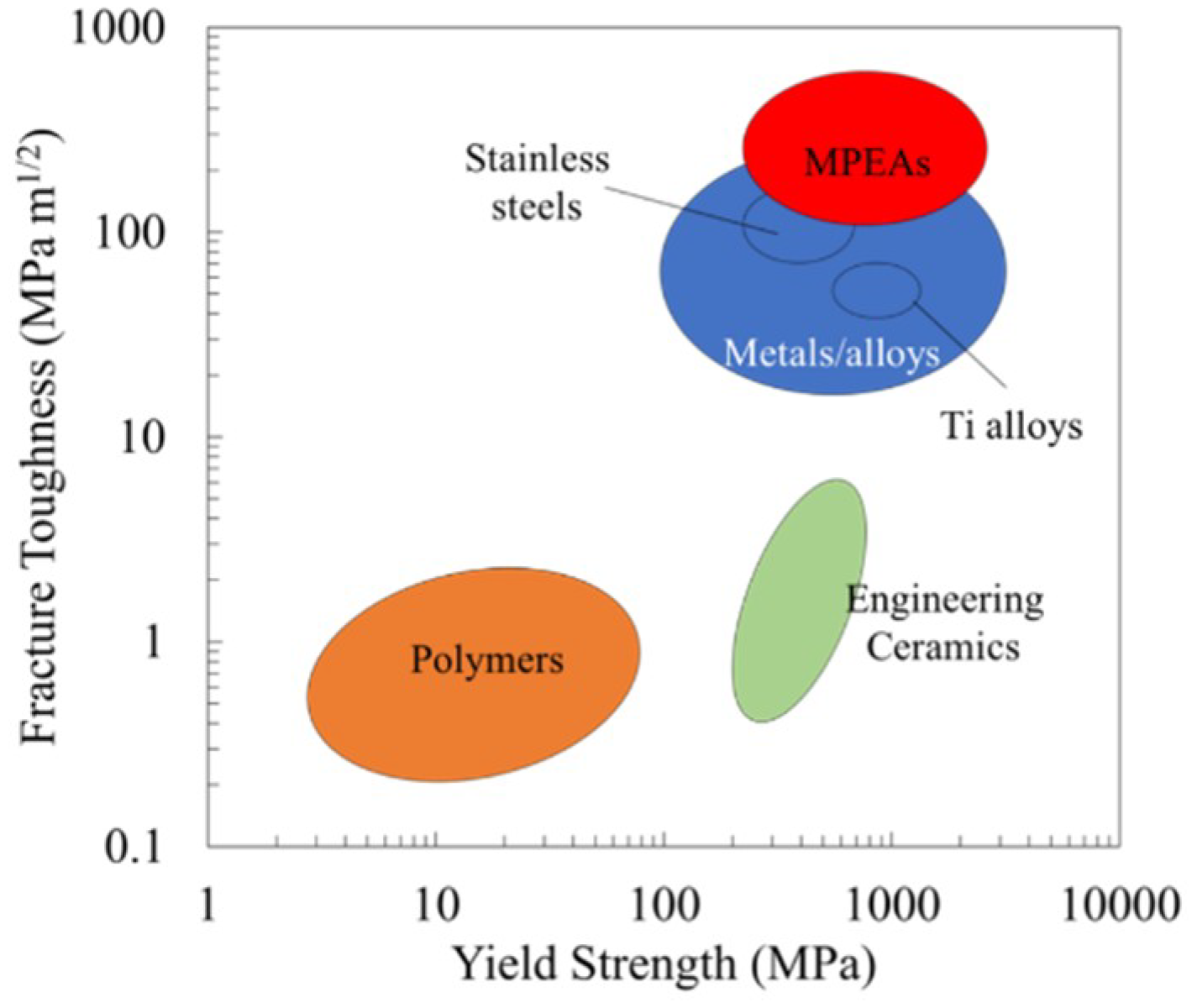

Figure 1. Ashby diagram comparing the yield strength and fracture toughness of common material classes [2]. Metal multi-principal element alloys (MPEAs) demonstrate increased yield strength and fracture toughness compared to the other material classes.
Figure 1. Ashby diagram comparing the yield strength and fracture toughness of common material classes [2]. Metal multi-principal element alloys (MPEAs) demonstrate increased yield strength and fracture toughness compared to the other material classes.
Jfb 09 00059 g001
Jfb 09 00059 g002 550
Figure 2. Backscatter electron micrograph demonstrating homogeneous composition and microstructure in Co20Cr20Fe30Ni30 sample.
Figure 2. Backscatter electron micrograph demonstrating homogeneous composition and microstructure in Co20Cr20Fe30Ni30 sample.
Jfb 09 00059 g002
Jfb 09 00059 g003 550

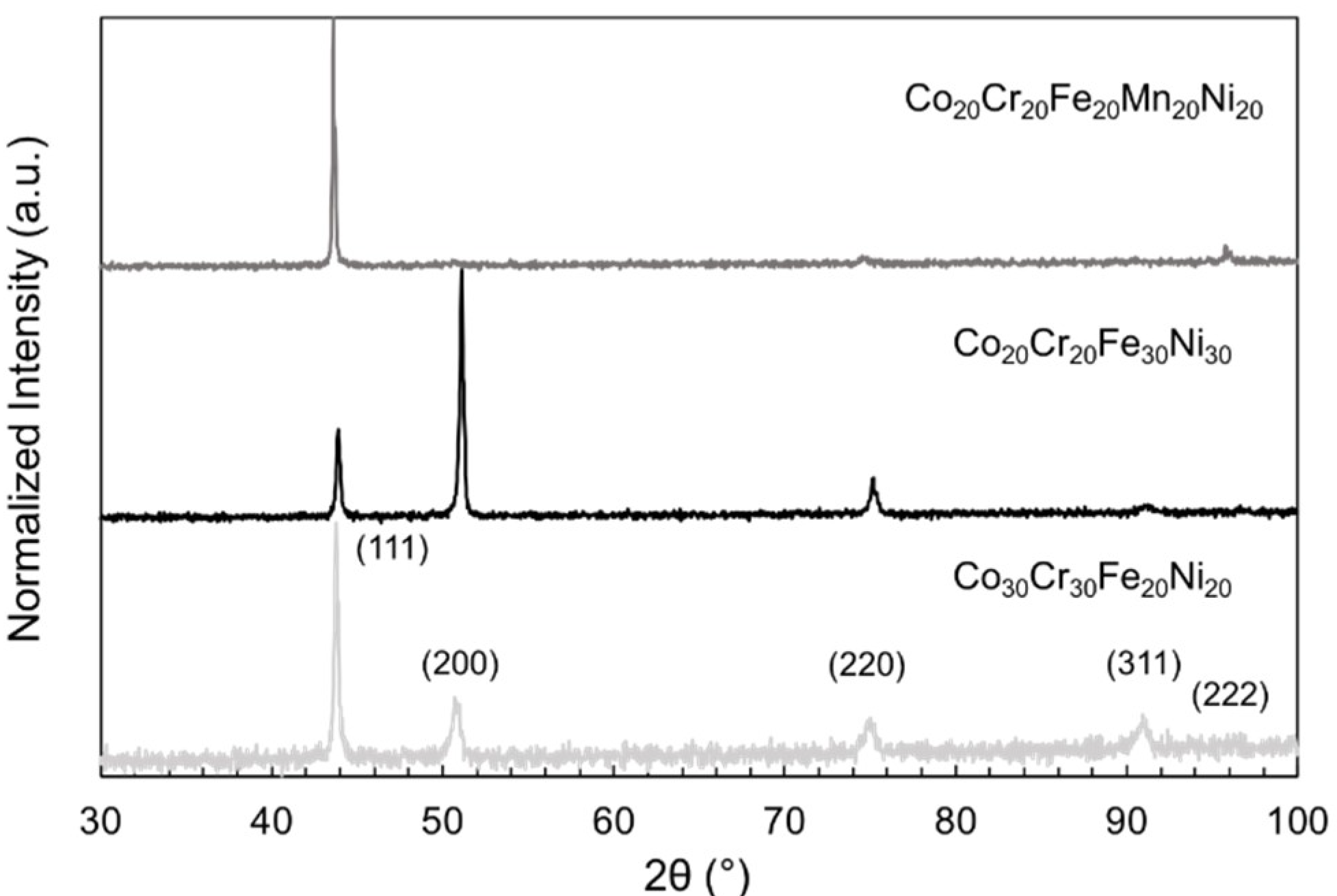

Figure 3. Indexed X-ray diffraction patterns collected from Co30Cr30Fe20Ni20, Co20Cr20Fe30Ni30, and Co20Cr20Fe20Mn20Ni20 MPEAs, demonstrating the single-phase, face-centered, cubic crystal structure.
Figure 3. Indexed X-ray diffraction patterns collected from Co30Cr30Fe20Ni20, Co20Cr20Fe30Ni30, and Co20Cr20Fe20Mn20Ni20 MPEAs, demonstrating the single-phase, face-centered, cubic crystal structure.
Jfb 09 00059 g003
Jfb 09 00059 g004 550

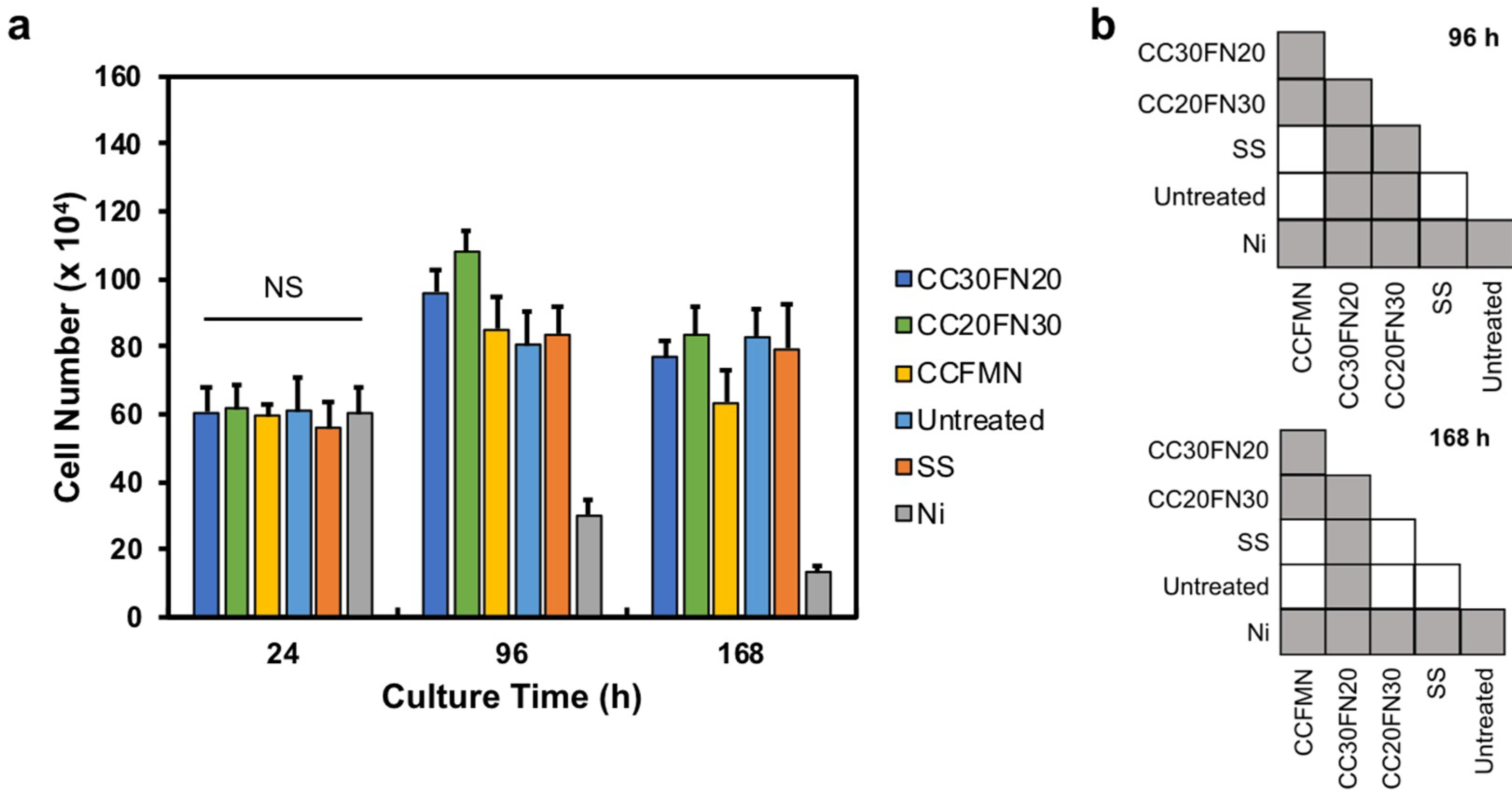

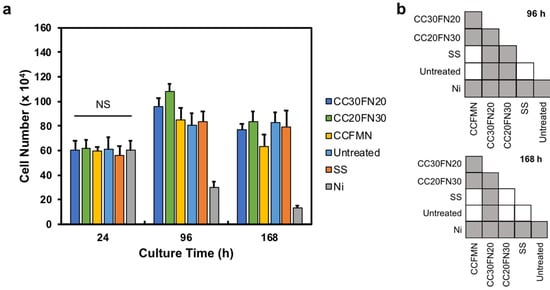

Figure 4. Cell number as a function of time for MPEA samples. (a) Cell number quantified with an alamarBlue assay (NS denotes no significant difference). The acronyms/abbreviations are SS (stainless steel), Ni (nickel), CC30FN20 (Co30Cr30Fe20Ni20), CC20FN30 (Co20Cr20Fe30Ni30), and CCFMN (Co20Cr20Fe20Mn20Ni20). (b) Pairwise comparison of statistically significant differences for panel (a) at 96 and 168 h; the grey squares indicate significant differences (p < 0.05), while the white squares indicate no significant difference.
Figure 4. Cell number as a function of time for MPEA samples. (a) Cell number quantified with an alamarBlue assay (NS denotes no significant difference). The acronyms/abbreviations are SS (stainless steel), Ni (nickel), CC30FN20 (Co30Cr30Fe20Ni20), CC20FN30 (Co20Cr20Fe30Ni30), and CCFMN (Co20Cr20Fe20Mn20Ni20). (b) Pairwise comparison of statistically significant differences for panel (a) at 96 and 168 h; the grey squares indicate significant differences (p < 0.05), while the white squares indicate no significant difference.
Jfb 09 00059 g004
Jfb 09 00059 g005 550
Figure 5. Fluorescence micrograph of cells stained with a LIVE/DEAD assay after 168 h of direct contact culture with (a) Co20Cr20Fe30Ni30, (b) Co30Cr30Fe20Ni20, (c) Co20Cr20Fe20Mn20Ni20, (d) stainless steel, (e) Ni, and (f) untreated wells, with live (green) and dead (red) cells.
Figure 5. Fluorescence micrograph of cells stained with a LIVE/DEAD assay after 168 h of direct contact culture with (a) Co20Cr20Fe30Ni30, (b) Co30Cr30Fe20Ni20, (c) Co20Cr20Fe20Mn20Ni20, (d) stainless steel, (e) Ni, and (f) untreated wells, with live (green) and dead (red) cells.
Jfb 09 00059 g005
Jfb 09 00059 g006 550
Figure 6. Bright-field optical micrographs of (a–c) Co20Cr20Fe20Mn20Ni20 and (d–f) Ni wells, demonstrating the differences in cell morphology and cell density as a function of time. The cell morphology remains consistent in the Co20Cr20Fe20Mn20Ni20 samples, while distinct changes in cell morphology are visible in the Ni samples.
Figure 6. Bright-field optical micrographs of (a–c) Co20Cr20Fe20Mn20Ni20 and (d–f) Ni wells, demonstrating the differences in cell morphology and cell density as a function of time. The cell morphology remains consistent in the Co20Cr20Fe20Mn20Ni20 samples, while distinct changes in cell morphology are visible in the Ni samples.
Jfb 09 00059 g006
Jfb 09 00059 g007 550

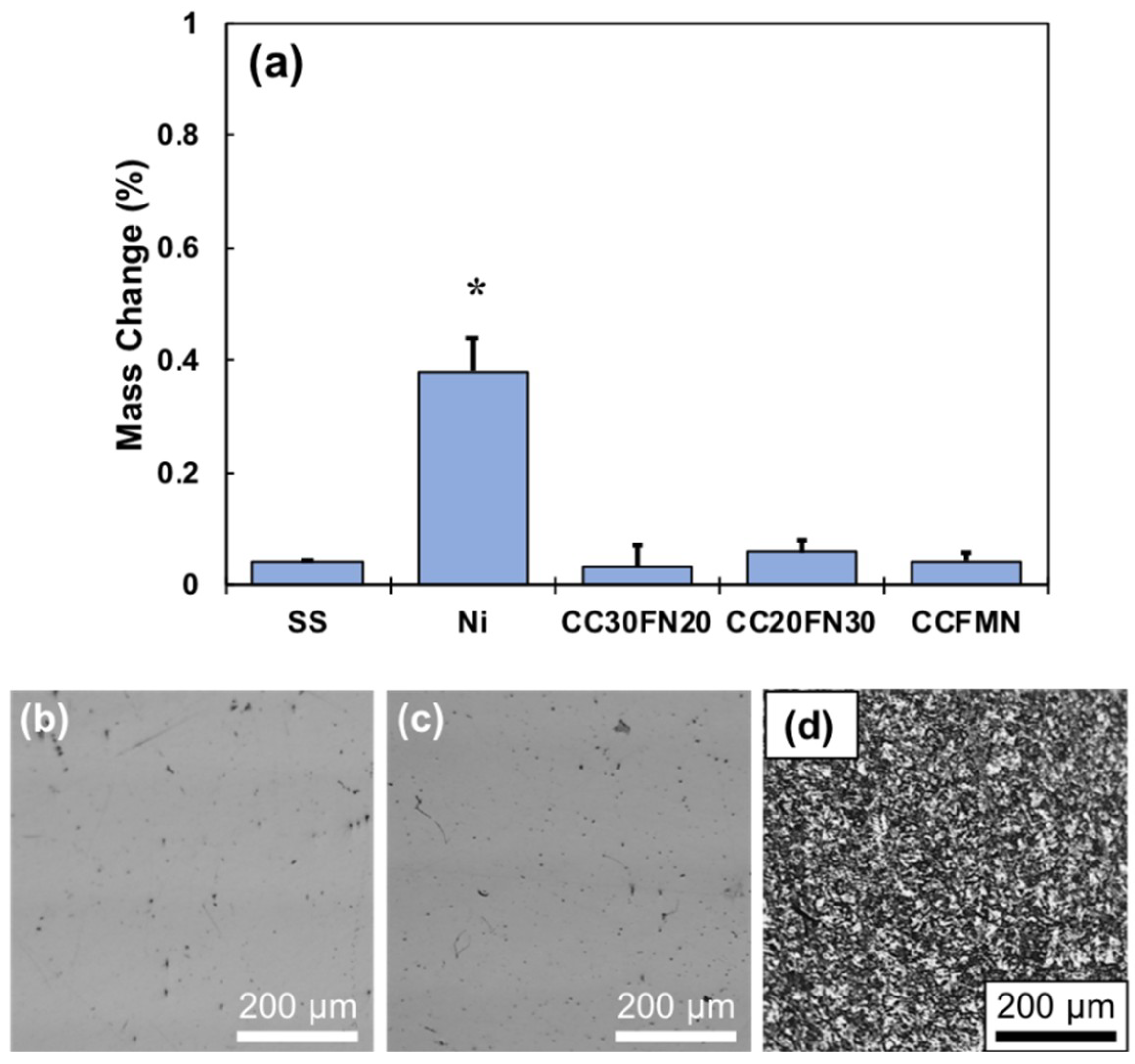

Figure 7. Evaluation of sample corrosion after an in-vitro culture. (a) Sample mass loss after 168 h cell culture, with * denoting a statistically significant difference (p < 0.05); acronyms/abbreviations are SS (stainless steel), Ni (nickel), CC30FN20 (Co30Cr30Fe20Ni20), CC20FN30 (Co20Cr20Fe30Ni30), and CCFMN (Co20Cr20Fe20Mn20Ni20). Also shown are right-field micrographs of (b) Co20Cr20Fe30Ni30, (c) stainless steel, and (d) Ni. The Ni sample had a statistically significant difference in mass loss compared to all other groups, while there was no significant difference observed between the other groups.
Figure 7. Evaluation of sample corrosion after an in-vitro culture. (a) Sample mass loss after 168 h cell culture, with * denoting a statistically significant difference (p < 0.05); acronyms/abbreviations are SS (stainless steel), Ni (nickel), CC30FN20 (Co30Cr30Fe20Ni20), CC20FN30 (Co20Cr20Fe30Ni30), and CCFMN (Co20Cr20Fe20Mn20Ni20). Also shown are right-field micrographs of (b) Co20Cr20Fe30Ni30, (c) stainless steel, and (d) Ni. The Ni sample had a statistically significant difference in mass loss compared to all other groups, while there was no significant difference observed between the other groups.
Jfb 09 00059 g007
Table
Table 1. Mechanical properties of common metallic implant materials [17] and transition metal (TM) MPEAs [18].
Table 1. Mechanical properties of common metallic implant materials [17] and transition metal (TM) MPEAs [18].
MaterialASTM DesignationYield Strength (MPa)Elastic Modulus (GPa)Endurance Limit (MPa)
Cortical Bone-70–11415–4030–45
CoCrF75448–841280207–950
Ti-6Al-4VF136897–1034116620–689
SS316LF138331–792210310–820
TM MPEAs-220–150055–230400–950
Table
Table 2. MPEA compositions determined using X-ray energy dispersive spectroscopy (XEDS).
Table 2. MPEA compositions determined using X-ray energy dispersive spectroscopy (XEDS).
MPEA SampleCo Content (at.%)Cr Content (at.%)Fe Content (at.%)Mn Content (at.%)Ni Content (at.%)
Co20Cr20Fe30Ni3020.9 ± 0.518.9 ± 0.229.8 ± 0.2-30.4 ± 0.6
Co30Cr30Fe20Ni2029.9 ± 0.230.0 ± 0.220.5 ± 0.2-19.6 ± 0.2
Co20Cr20Fe20Mn20Ni2019.2 ± 0.220.6 ± 0.220.1 ± 0.220.9 ± 0.219.2 ± 0.2
