Next Article in Journal
Evaluation of Clinical Performance of TiNi-Based Implants Used in Chest Wall Repair after Resection for Malignant Tumors
Previous Article in Journal
Polyamide/Poly(Amino Acid) Polymers for Drug Delivery
Font Type:
Arial Georgia Verdana
Font Size:
Aa Aa Aa
Line Spacing:
Column Width:

Functionalized Antimicrobial Nanofibers: Design Criteria and Recent Advances

Nazirah Hamdan
Alisa Yamin
Shafida Abd Hamid
Wan Khartini Wan Abdul Khodir
1,2,* and
Vincenzo Guarino
Department of Chemistry, Kulliyyah of Science, International Islamic University Malaysia Kuantan Campus, Bandar Indera Mahkota, Kuantan 25200, Malaysia
SYNTOF, Kulliyyah of Science, International Islamic University Malaysia Kuantan Campus, Bandar Indera Mahkota, Kuantan 25200, Malaysia
Institute of Polymers, Composites and Biomaterials, National Research Council of Italy, Mostra d’Oltremare Pad.20, V.le J.F.Kennedy 54, 80125 Naples, Italy
Authors to whom correspondence should be addressed.
J. Funct. Biomater. 2021, 12(4), 59;
Submission received: 27 September 2021 / Revised: 21 October 2021 / Accepted: 26 October 2021 / Published: 28 October 2021


The rise of antibiotic resistance has become a major threat to human health and it is spreading globally. It can cause common infectious diseases to be difficult to treat and leads to higher medical costs and increased mortality. Hence, multifunctional polymeric nanofibers with distinctive structures and unique physiochemical properties have emerged as a neo-tool to target biofilm and overcome deadly bacterial infections. This review emphasizes electrospun nanofibers’ design criteria and properties that can be utilized to enhance their therapeutic activity for antimicrobial therapy. Also, we present recent progress in designing the surface functionalization of antimicrobial nanofibers with non-antibiotic agents for effective antibacterial therapy. Lastly, we discuss the future trends and remaining challenges for polymeric nanofibers.

1. Introduction

In recent decades, the inception of multidrug-resistant (MDR) bacteria or “superbugs” has become a global threat due to the resistance of bacteria to antibiotics. The treatment of MDR bacteria with ineffective antibiotics has formed new resistances that have spread remarkably across continents through the environment, people, and animals. The 2019 Antibiotic Resistance Threats report from the Centers for Disease Control and Prevention (CDC) classified a few multidrug-resistant bacteria and fungi based on their threat levels to human health, and reported that in the US, more than 2.8 million antibiotic-resistant infections occur yearly, resulting in the death of more than 35,000 people. In addition, 223,900 cases of Clostridioides difficile arose in 2017 and caused mortality in 12,800 people [1]. US hospitals also repot around 40–60% of Staphylococcus aureus strains collected are resistant to methicillin and even vancomycin and carbapenems [2]. The increase of the morbidity and mortality statistics worldwide challenges healthcare institutions and the community to overcome the issue of the misuse of antibiotics, and inadequate infection prevention and treatment had increased the number of MDR bacteria to develop and spread alarmingly [3,4,5]. Notably, bacterial infection cases are primarily responsible for the excess health costs in the US.
Antibiotics act on bacteria by inhibiting their cell walls and interfering with DNA, RNA, or essential proteins. However, bacteria innately have the ability to alter their structural properties and characteristics to reduce the efficacy of antibiotics [6,7,8,9,10]. Bacterial cells can also adapt to external stimuli by altering their gene and protein expressions [11]. Antibiotic resistance in bacteria will increase as the number of multidrug-resistance strains continues to grow. This phenomenon leads to an urgent need to discover non-antibiotic routes as alternative antimicrobial therapies against these highly resistant bacteria. With the evolution of nanotechnology, nanostructured materials are gaining interest and attention in biomedical applications. Electrospun polymeric nanofibers exhibit unique physicochemical properties such as size, shape, and surface chemistry that influence their therapeutic activity and thus offer flexibility that makes them easily tailored for antimicrobial therapy [12,13,14,15,16,17,18].
There is increasing interest in utilizing polymeric nanofibers with a drug cargo of antibiotics in killing bacteria. Most studies have only focused on intrinsic structure and tunable structure, components, and properties of nanofibers which enable the generation of drug-loaded nanofibers with a sustained release pattern for drug delivery application [19,20,21]. Nanofibers can fight against bacteria with their beneficial topography features. However, there is still a lack of understanding on how these nanofibers can kill bacteria. In this review, we mainly discuss the influence of nanofiber properties and their bactericidal interactions, as well as the properties of nanofibers, including their morphologies, surface charge, wettability, and functionalization to be considered to ensure antimicrobial efficiency. We also highlight topographical features using different surface functionalization-based approaches with antimicrobial agents such as metals, metal oxides, metal nanoparticles, graphene oxide, peptides, and natural extracts [12,22,23,24,25,26] to optimize their therapeutic activity against the multidrug-resistance and biofilm of bacteria. We hope this review will provide a guideline to design effective, functionalized antimicrobial nanofibers for a wide range of biomedical applications. From the points mentioned above, nanofibers are a promising toolkit for the non-antibiotic treatment for bacterial infection.

2. Polymeric Nanofibers and Electrospun Scaffolds

In recent years, electrospun nanofiber scaffolds have been demonstrated to be effective nano-scale therapeutic devices, as their physicochemical properties can be tailored to several applications requiring necessary antimicrobial capabilities [27,28,29]. In particular, nanofibrous structures have several intrinsic properties which make them peculiarly functional to design for antimicrobial applications [19,30,31,32,33,34]. Ideally, fiber diameters at the nanometric scale make their structure suitable to bio-mimic the natural extracellular matrix (ECM) of tissue, thus providing a friendly environment for the regeneration of the target site and facilitating repair mechanisms [33,34,35]. In addition to topographical fibers resembling native ECM architecture, they can also influence cell migration, adhesion, differentiation, and regeneration [36,37,38,39,40,41].
Due to their small size, nanofibers possess a very large surface area-to-volume ratio along with interconnectivity and microscale interstitial space, rendering them more effective than their bulk form. The high surface area of nanofibers can promote the hemostasis of injured tissues and fluid absorption [42,43,44] and they are also effective at delivering a drug cargo to the target site [45,46,47,48,49]. For example, Giram et al., (2018) fabricated Eudragit L-100 nanofibers to encapsulate moxifloxacin hydrochloride for a fast drug delivery system. The cylindrically shaped nanofibers were reported able to encapsulate 95–98% of the drug at 1–5% w/w concentration. The antibiotic-loaded nanofibers also showed good antimicrobial activity against both Escherichia coli and S. aureus [50].
The performance of nanofibers is influenced highly by their porosity (60–90%) [51,52,53], which allows high surface and wetting permeability, which in turn affect cell proliferation, vascularization and mechanical stability [54,55,56,57]. In addition, the interconnected nanopores on nanofibers’ fractal structure, along with their excellent surface energy, surface reactivity, and high thermal and electric conductivities could prevent the infiltration of microbes and discourage cell ingrowth [58]. All of the above reasons make electrospun nanofibers potentially useful as antimicrobial materials [18,59]. The surface of nanofibers can be modified and functionally used as a conformal surface coating to provide a controlled interaction with microorganisms [60]. Coating the nanofiber surfaces with antibacterial substrates can further enhance the nanofibers’ topography to encourage specific interactions between bacteria and nanofibers [60,61]. Table 1 summarizes the basic fundamental properties of nanofiber scaffolds for antimicrobial applications.
Natural and synthetic polymers are widely used to fabricate nanofiber matrices due to their processability, biocompatibility, and biodegradability [77,78,79,80]. The promising polymer used for the development of electrospun nanofibers for antimicrobial application is summarized in Table 2. Natural polymers are derived from proteins and carbohydrates such as cellulose, chitosan, gelatin, elastin, and polypeptides [81,82,83,84] Chitosan, a versatile hydrophilic polysaccharide derived from chitin, is frequently used to develop nanofibers. It exhibits good antimicrobial activity against several strains of microbes such as S. aureus, E. coli, Listeria innocua and Salmonella typhymurium [85,86]. In contrast to natural polymers, the simpler chemical structure of synthetic polymers brings ease of processability and provides nanofibers with good mechanical properties [83,87]. The common synthetic polymers used are poly(ε-caprolactone) (PCL), poly-lactide (PLA), poly-glycolide (PGA), polyvinyl alcohol (PVA), and polydimethylsiloxane (PDMS) [88,89,90,91]. Natural and synthetic polymers have their advantages and disadvantages [92,93,94,95,96,97], and researchers often combine them using electrospinning techniques to achieve nanofibers with better physico-chemical properties [69,98,99]. The combination of natural and synthetic polymers can be achieved through multiple strategies. In our previous study, the blending of PVA and chitosan provided better thermal stability for nanofibers to encapsulate gentamicin for controlled release of up to 72 h [96]. Meanwhile, Guarino et al., (2017) fabricated PCL nanofibers and functionalized them with chitosan as a reservoir for amoxicillin trihydrate to improve the entrapment and release of antibiotics for targeted antimicrobial applications [66].
The electrospinning technique is a straightforward process to fabricate polymeric nanostructures and thus offers the versatility of structure, morphology, and spatial distribution of electrospun nanofibers to achieve specific mechanical properties [23,105,106,107]. The technique has been used to fit the purpose of various applications from small-scale basic research applications to large scales of nanofibers relevant for industrial purposes [71,108,109]. Comprehensive reviews on the theory of the electrospinning process are already available [71,110,111,112] and thus, here we provide a brief overview on how the electrospinning process works.
A typical electrospinning setup consists of a high-voltage power supply, a ground collector, a syringe pump, and a syringe with a capillary needle. The polymer solution is loaded into a syringe attached to the needle at a controlled flow rate. The repulsive electrical force is applied to overcome the surface tension of the polymer solution, resulting in the formation of a Taylor cone. The polymer solution will stretch and evaporate, and the fibers will be deposited on the metal-conductive rotating ground collector [75,113,114,115]. Generally, electrospun nanofibers can be oriented as aligned or non-aligned (random) structures. Aligned nanofibers can be prepared using a rotating collector [26,116,117,118] while non-aligned nanofibers use only a simple conductive metal plate [119,120,121]. Aligned nanofibers have been reported to closely mimic the native extracellular matrix structure, thus promoting cell migration or proliferation [74,122]. While aligned nanofibers provide better mechanical strength and allow better incorporation of therapeutic agents [118,123,124,125], non-aligned nanofibers are easier to fabricate and have a higher entrapment capacity to incorporate therapeutic agents or to enable sustained release in a specific site of action [50,67,103,126]. In terms of bacterial attachment, the antimicrobial effect of the nanofibers was found to be independent of their alignment, as there is no significant difference between antimicrobial activity for both orientations [117].
The unique characteristics of electrospun nanofibers, such as high-surface-to-volume ratio, controllable fibers orientation and diameters, high porosity, and modulated surface roughness, are greatly influenced by the electrospinning process. Thus, the morphological features of electrospun nanofibers can be altered by tuning parameters such as the polymer solution properties (concentration, viscosity, conductivity, dielectric constant, and surface tension) or processing parameters such as applied voltage, solution flow rate, tip-to-collector distance, and collector speed [114,127,128]. In order to produce uniform and bead-less nanofibers, the optimum polymer concentration and viscosity are required to allow adequate chain entanglement and surface tension [92,99]. A low voltage applied during electrospinning may result in beads and small-diameter nanofibers, while a high applied voltage may result in thick and non-homogeneous nanofibers [59,99,129]. Apart from that, the solution flow rate also affects the morphology of nanofibers [129]. A relatively low flow rate produces nanofibers with beads and broken strands. At the same time, too high a flow rate produces droplets due to the higher velocity of the polymer solution being charged and ejected from the tip [99,129,130]. The nanofibers’ diameter can decrease as the tip-to-collector distance increases, allowing complete solvent evaporation at an optimal distance [129,131]. All of these parameters are interrelated, and thus it is essential to optimize and tune each parameter to obtain nanofibers with specific morphological characteristics for the desired antimicrobial applications.
Nanofibers have been used as a drug cargo delivery vehicle for therapeutic agents such as antibiotics, metal nanoparticles, carbon materials, peptides, and natural extracts [100]. These therapeutic agents can be directly incorporated into the nanofibers’ matrices using several approaches such as blend electrospinning, emulsion electrospinning and co-axial electrospinning [17,101,132,133]. Different methods of electrospinning will produce nanofibers with different morphologies (Figure 1). In blend electrospinning, the therapeutic agent is dissolved in the polymer solution before electrospinning. Thus, it is well distributed throughout the nanofibers [130]. Meanwhile, emulsion electrospinning involves two immiscible phases of polymers and a therapeutic agent, whereby the agent can be encapsulated throughout the nanofibers matrix or encapsulated in the core-shell nanofibers [131,132,133]. Co-axial electrospinning uses two nozzles containing the polymer solution and the therapeutic agent separately, to produce a core-shell structure in the nanofibers [134,135,136,137]. Usually, the polymer matrix will provide the outer core, while the therapeutic agent is incorporated in the inner core of the nanofibers [27,138]. Recently, researchers have shown an effort to develop 3D electrospun polymeric nanofiber scaffolds using several combinations of techniques such as co-axial electrospinning with add-on techniques such as electrospraying, 3D printing, gas foaming, freeze-drying, and centrifugal electrospinning, to obtain multifunctional structures. A 3D scaffolds with a well-defined spatial organization of the therapeutic agent in the membranes could offer spatiotemporal release [139,140].

3. Nanofiber Action towards Bacteria

In the initial stage of the infectious process, gram-positive microbes such as S. aureus and Streptococcus pyogenes are the dominant organisms involved, while gram-negative organisms like E. coli and P. aeruginosa are only found in later stages of the process, i.e., when a chronic wound has developed [141,142,143]. In order to kill bacteria, it is imperative to understand the bacteria structures as the cell wall of the bacteria is the primary barrier for the penetration of antimicrobial agents. Gram-positive bacteria have a cell wall made of a thick and rigid peptidoglycan layer (>10 layers) with polymeric teichoic acids and a cytoplasmic membrane. The teichoic acid polymeric chains have a phosphate group that provides a negative charge to bacterial surfaces and serves as a binding site for the divalent cations in the solution [144,145,146,147]. On the other hand, gram-negative bacteria have a thin cytoplasmic membrane, thin peptidoglycan layer, and lipopolysaccharides, which can reduce the penetration ability of antimicrobial agents (Figure 2) [148,149,150]. This is one reason why gram-negative bacteria are harder to penetrate compared to gram-positive bacteria. The bacterial cell wall is vital for osmotic regulation, heat tolerance, phage-binding, and cell-shape determination [146,147,151]. Further adhesion of antimicrobial therapeutics onto the bacteria can improve their penetration ability for efficient delivery [145,152,153,154].
The inherent antimicrobial activity and mechanism of nanofibers alone have not been widely explored. Nanofibers’ most well-documented antimicrobial activity revolves only around electrospun chitosan nanofibers—chitosan being a natural polymer with antimicrobial properties [82,147,149]. The protonated amino groups of the chitosan nanofibers were implied to be responsible for the antimicrobial activity against S. aureus, E. coli, L. innocua, and S. typhymurium [82]. An antimicrobial test of chitosan nanofibers was conducted against Clostridium difficile isolates with tetracycline and chloramphenicol resistance genes. The successful bacterial inhibition activity suggested that protein synthesis disruption is not the mechanism of the antibacterial action of chitosan nanofibers [149]. This implies that nanofibers alone are not enough to inhibit bacteria. Therefore, functionalization with antimicrobial agents is required to improve their bactericidal effect.
Functionalized nanofibers can express various bactericidal pathways depending on the core material used, the morphology of the material, and the surface chemistry of the scaffold [150,155]. The enhanced cell membrane penetration ability of functionalized nanofibers and their potential to modulate cellular interaction make them a viable candidate for treating bacterial infections [151,156]. The exact mechanism of bactericidal pathways involving functionalized nanofibers is unknown, and the assumptions from previous research studies differ as a function of the additional components used [148,157].
The bactericidal effects of nanofibers depend on their size, diameter, shape, and surface chemistry. Three-dimensional nanofiber scaffolds with hierarchical structures as small as a few microns to a few hundred nanometers provide a high surface area and thus enhanced therapeutic efficacy against bacterial infection [74,106]. A recent study by Abrigo et al., (2015) showed that smaller size nanofibers ranging from 300–1000 nm, close to the bacteria’s size, can induce conformational changes of rod shape bacteria, which would lead to cell lysis. On the other hand, when the diameter is larger than the size of bacteria (>5000 nm), they tend to adhere onto the surface and proliferate along the nanofibers [62]. Therefore, nanofibers with small diameters are preferable, as they can alter the bacteria’s conformation and thus increase their susceptibility.
The bacterial adhesion and attachment surface interaction is essential for biofilm control, and is influenced by the surface chemistry such as the surface charge, roughness, topography, and wettability [158,159,160]. To further understand the influence of such material properties, we further discuss the interaction between bacteria and different types of nanofiber surfaces. Most bacteria cells surfaces are negatively charged, and due to the electrostatic force, they are highly attracted to a positively charged surface for bacterial adhesion and attachment [161,162,163,164]. In contrast, a negatively charged surface of material is needed as a resistance mechanism to bacterial adhesion. Surfaces with certain cationic groups such as quaternary ammonium and polyethyleneimine have antimicrobial activity and thus can kill the bacteria cells. For instance, MRSA is highly attracted to the positively charged poly-(lactic-co-glycolic acid) (PLGA) functionalized with polyethyleneimine (PLGA-PEI) surface, as compared to the negatively charged PLGA [161]. This implies that biocidal active molecules incorporated into nanofibers with positively charged moieties can effectively be released to bacterial cells upon contact with the bacterial cell wall. Another study found that flat biofilms developed on the positively charged surface of poly(2-(methacryloyloxy)-ethyl trimethyl ammonium chloride had higher binding affinity compared to the negatively charged poly (3-sulphopropylmethacrylate) [165]. It was suggested that the negatively charged polymer surface efficiently repelled bacterial adhesion and prevented biofilm formation. It was also revealed that E. coli attachment was higher on a polyethylene-glycidyl methacrylate sheet functionalized with diethylamine (positively charged) compared to sodium sulfite (negatively charged) due to electrostatic repulsion [166]. The viability of E. coli cells had also significantly decreased after attachment onto the diethylamine surface, but remained high on sodium sulfite surface [166]. Despite that, it has been reported that highly charged cationic polymers exhibit cytotoxicity to bacteria and human cells, where it can cause agglutination of red blood cells [9,167]. For example, 6-Deoxy-6-(2-aminoethyl) amino chitosan (CS-AEA), a chitosan derivative, demonstrated higher agglutination performance due to the higher amount of protonated amine groups and degree of ionization compared to chitosan [168]. Hence, it is essential to consider tuning the surface charge in balance for a potent antimicrobial application.
Meanwhile, rough surface nanofibers with large surface areas promote bacterial contact and attachment due to higher bacterial contact are [107,163]. However, surface roughness alone is not enough to attract the bacteria. Ludecke et al., (2016) showed that the number of bacteria attached was found to decrease even though the nanofibers have a rough surface. Their study indicates that the nanofibers also need to have a maximum contact area for the bacteria to adhere to its surface [169]. Increased surface roughness can promote bacterial adhesion and induce mechanical disintegration of the bacteria structure, leading to increase bacterial susceptibility [152,159]. Hence, for an efficient antimicrobial effect, the nanofibers should be designed to have a rough surface with a higher peak or contact area to encourage bacterial attachment and interaction with the nanofibers.
Surface wettability plays a crucial role in the attachment or detachment of the biofilm from the surface. The surface wettability can be influenced by the degree of hydrophobicity of the nanofibers [170]. Hydrophobic bacteria such as S. aureus has been shown to adhere firmly to hydrophobic surfaces due to their similar chemical characteristic [171,172]. In contrast, a hydrophilic surface can effectively inhibit the adhesion of the bacteria, as the surface bonding between the bacteria and nanofibers is weak [107]. The fabrication of cationic nanofibers using polystyrene and poly(ethylene terephthalate) increased the antimicrobial potency as they are positively charged and highly hydrophobic [173,174,175].
The porosity, which is three-dimensional (3D) holes formed on the nanofibers, can influence bacterial attachment by affecting surface wettability [106]. Porous nanofibers with a large pore diameter ranging from 50-100 nm are more favorable for bacterial attachment than non-porous or porous nanofibers with pore diameter less than 25 nm [73,163].
To sum up, functionalized nanofibers should be designed to have: (1) small diameters (300–1000 nm), (2) positively charged surfaces, (3) rough surfaces with high surface area, (4) hydrophobic surfaces, and also (5) large pore diameters to ensure better adhesion (Figure 3) to improve bactericidal effects. Despite the lack of a specified mechanism of actions for the nanofibers bactericidal pathway, the evidence of unquestionable bactericidal activity from functionalized nanofibers makes it essential to address the proper design criteria of scaffolds for the fabrication of antimicrobial nanofibers.

4. Entrapment of Antimicrobial Agents into Nanofibers: Classification

Various nanomaterials such as metal nanoparticles, nanodots (i.e., carbon nanotubes), nano blades (i.e., graphene sheet) and nano spikes (i.e., cicada wings) showed the effectiveness of the mechano-bactericidal mechanism in penetrating and rupturing bacterial cell walls, eventually causing cell death [152,153,154]. These types of nanomaterials can be incorporated on the surface of nanofibers (which acts as a stable base) to impart biocidal ability, thus developing antimicrobial nanofibers.

4.1. Metal, Metal Oxides and Metal Nanoparticles

Metal and metal oxide nanoparticles are known for their ability to penetrate bacterial cells and disrupt cellular activity by generating reactive oxygen species (ROS) such as hydrogen peroxide or superoxide anions. Excessive ROS production will cause severe oxidative stress that will damage the bacterial cellular components, disrupt protein synthesis, inhibit enzymatic action, and cause cell membrane disruption and site-specific DNA damage, ultimately leading to cell lysis [176,177,178]. In recent years, metal nanoparticles such as silver and gold, as well as metal oxide nanoparticles such as zinc oxide, iron oxide, titanium dioxide, and copper oxide have been extensively studied for antimicrobial applications [31,157,176,179,180,181]. Although the bactericidal ability of these metal and metal oxide nanoparticles is well documented, the precise mechanism of action is still unknown. Composite materials involving various metal nanoparticles in nanofibers have been executed extensively in the past, with ample evidence of successful antimicrobial activity [182,183,184,185,186,187].
Metals like silver (Ag), gold (Au), copper (Cu), zinc (Zn) and their corresponding oxides are commonly used to design potent antimicrobial nanomaterials [188]. Among the metals, silver (Ag)-based nanofibers have been studied extensively since Ag ions (Ag+) are known to be toxic to bacteria and microorganisms even at low concentrations [188]. Ag nanoparticles showed good antimicrobial activity against E. coli, S. aureus and P. aeruginosa [189]. Chitosan/polyvinyl alcohol (PVA) nanofibers loaded with silver ion-incorporated hydroxyapatite (HAP) nanoparticles were reported to inhibit the growth of E. coli even at low Ag concentrations (0.5% w/v). The bacteria inhibition zones observed were increased as the concentration of Ag increased due to the increase of metal toxicity [190]. Moon et al., (2021) fabricated 3D cellulose nanofibers decorated with Ag-nanoparticles using the gas foaming technique. The composite design enhanced the nanofibers’ structural and mechanical stability and showed excellent antimicrobial activity against S. aureus and E. coli [191]. In a study by Li et al., (2013), PVA/chitosan oligosaccharide (PVA/COS)-loaded Ag-nanoparticle nanofibers (PVA/COS/Ag-NP) were shown to inhibit the growth of S. aureus and E. coli [192]. It is worth noting that even though Ag is toxic to bacteria, it is non-toxic to humans in nanoparticle form [189]. The viability of human fibroblast cells decreased significantly when in contact with PVA/COS loaded AgNO3 nanofibers. At the same time, there was no significant cytotoxicity observed, indicating that Ag in nanoparticles form is non-toxic, biocompatible, and thus, safe for humans.
Unlike Ag, metal ions like zinc ions, Zn+ are essential for bacteria to regulate several metabolic pathways such as sugar, lipid, and protein degradation [193]. However, an excess amount of Zn can result in protein denaturation and malfunction, as well as enzymatic inactivation, thus increasing bacterial susceptibility [188]. This is illustrated by the incorporation of zinc oxide (ZnO) into chitosan/polyvinyl alcohol (chitosan/PVA/ZnO) nanofibers, which showed higher antibacterial activity against E. coli, P. aeruginosa, Bacillus subtilis and S. aureus compared to chitosan/PVA nanofibers. In vivo wound healing analysis also revealed that the chitosan/PVA/ZnO nanofibers accelerated the wound healing of subcutaneous wounds in induced diabetic rabbits [194].
Similar to Zn, copper ions, Cu2+ are also essential for biological processes such as the enzymatic reactions and protein interactions of bacteria. However, excess Cu2+ concentrations may lead to cell membrane and DNA disruptions [195]. The Cu2+ ions released from poly(lactic-co-glycolide)/copper oxide (PLGA/CuO) nanofibers were shown to inhibit the growth of both gram-negative E. coli and gram-positive S. aureus [126]. The ions are believed to adhere to the protein-containing sulfur in the bacteria cell wall, penetrating the cell membrane and then killing the bacteria through protein disruption and direct membrane damage [126,196].

4.2. Carbon Materials

Carbon materials such as carbon dots, fullerene, graphite, graphite oxide, graphene oxide and reduced graphene oxide can cause bactericidal effects towards bacteria via several mechanisms: (1) membrane stress induced by the sharp edges of carbon material nanosheets, which can lead to membrane damage and results in the leakage of RNA and other intracellular electrolytes [197,198,199], (2) cellular oxidative stress which can disrupt bacterial lipid, protein and DNA process, resulting in cell death [200], (3) mechanical destruction of the bacteria cell through cell entrapment, which restricts the nutrients entering the cell and later results in cell lysis [156], and (4) bacterial toxicity [201]. Graphene oxide shows the highest antimicrobial activities, followed by reduced graphene oxide, graphite and graphite oxide [156,201]. However, the antimicrobial activity of these carbon materials is highly dependent on the material concentration, density of functional groups, size, and conductivity [202,203]. Therefore, these criteria can be tailored to increase the antimicrobial effects of carbon-incorporated nanofibers for a practical therapeutic application.
The effect of graphene oxide (GO) size evaluated from GO in bacterial suspension showed that the antimicrobial effect of GO increases as its sheet area increases from 0.01 to 0.65 µm2 [202]. This is because a larger GO sheet area has a higher capacity to cover the bacteria cells completely, thus altering the cell morphology and integrity [155]. In contrast, the antimicrobial activity of GO-coated surface membranes increases when the GO sheet area decreases from 0.65 to 0.01 µm2. Smaller GO sheets have a higher capacity to induce oxidative stress in bacterial cells, leading to membrane damage and cell death [202]. These findings provide a guideline for researchers to modify the GO size accordingly to suit the intended application. In another study, the incorporation of GO in PCL/gelatin nanofibers reduced the diameter of the nanofibers and was found to inhibit 99% of the growth of E. coli and S. aureus [64]. The inhibition rate also increased significantly as the concentration of GO was increased [30]. Despite its remarkable antimicrobial activity, there is a rising concern regarding GO cytotoxicity for human cells. A cytotoxicity test of GO on human embryonic kidneys (HEK 293) revealed that GO reduces cell viability and proliferation, and increases oxidative stress, leading to DNA damage even at low concentrations (5 and 10 wt%) [201,204]. However, GO loaded in PCL/gelatin nanofibers showed no cytotoxicity effects towards PC 12 neural cells at 1.5 wt% GO concentrations [63]. In addition, it was also found that 0.3 wt% GO loaded in PVA/collagen nanofibers did not show any cytotoxicity towards keratinocyte cells (HaCaT) and further encouraged rapid healing on a group of wounded mice [63]. These results indicate that the toxicity of GO is dose-dependent. Therefore it is vital to control its concentration within the therapeutic range for human use.
Apart from graphene-based materials, carbon quantum dots or carbon dots (CQDs) have been extensively studied for their antimicrobial activity. Nie et al., (2020) found that synthesized CQDs had generated ROS, leading to cell membrane damage, thus inhibiting E. coli, S. aureus, Klebsiella pneumoniae, and multidrug-resistant Acinetobacter baumannii [205]. In another study, multifunctional CQD-embedded electrospun polyacrylonitrile (PAN) nanofibers were found to inhibit the growth of E. coli. The small size of the CQDs allowed it to penetrate bacteria cells and disrupt the cell wall [206].
Soccer ball-shaped fullerenes (C60) have shown antimicrobial activity against S. aureus, E. coli, and Shewanella oneidensis. Fullerene can inhibit the energy metabolism of the bacteria, impair respiratory action, and induce disruption of the cell membrane [207]. Virovska et al., (2016) fabricated electrospun poly(L-lactide) (PLA) nanofibers and simultaneously electrosprayed them with a zinc oxide/fullerene (ZnO/C60) hybrid. The fiber mats exhibited excellent antimicrobial activity against S. aureus at a low fullerene concentration (0.5 and 1.0% w/w) [208]. The outstanding antimicrobial activity manifested by carbon materials can be considered as a potent non-antibiotic approach for antimicrobial applications.

4.3. Antimicrobial Peptides (AMPs)

Other than metal and carbon materials, nanofiber-loaded antimicrobial peptides have also shown a bactericidal effect. Antimicrobial peptides (AMPs) are positively charged peptides with broad-spectrum antimicrobial activity found in various life forms including humans and microorganism [209]. Since most bacteria are attracted to positively charged particles, AMPs can penetrate the bacteria cell membrane [210], and impair the bacterial cell’s osmotic regulation, inhibiting respiration, causing cell membrane rupture, and inducing rapid cell lysis [209]. This mechanism of action reduces the risk of antimicrobial resistance. Hence, it can be a promising alternative to traditional antibiotics. In addition, AMPs also act as an immunological agent which can stimulate and suppress the immune system in response to bacterial threats [211].
As a part of the innate immune response, antimicrobial peptides have a broad-spectrum activity against bacterial infection and demonstrate a potent therapeutic agent [212,213]. The cationic charge of AMPs can cause electrostatic attraction towards bacteria cells and further exhibit bactericidal mechanisms [214]. Song et al., (2016) prepared surface functionalized silk fibroin (SF) nanofibers to immobilize AMP (CYs-KR12) from human cathelicidin peptide (LL37). They found that the Cys-KR12 immobilized onto SF nanofibers inhibited the growth of S. aureus, Staphylococcus epidermidis, E. coli and P. aeruginosa. Interestingly, the antimicrobial activity of CYs-KR12 was maintained after three weeks [215]. The nanofibers also promoted the cell proliferation of keratinocytes and fibroblast cells. Investigation of the immunomodulatory effect of the nanofibers towards TNF-α expression of monocytes (Raw 264.7 cells), which can cause chronic inflammation and prolong wound healing, revealed that the Cys-KR12-immobilized SF nanofibers suppressed TNF-α expression, and thus promotes rapid wound healing. In another study, functionalized poly-(acrylic acid)/polyvinyl alcohol (PAA/PVA) nanofibers with nisin (N) from Lactococcus lactis showed remarkable antimicrobial activity against S. aureus, and interestingly, the antimicrobial effect lasted for 14 days [216]. Taken together, these studies demonstrate that AMPs can be controlled to sustain release directly to the target site for effective therapeutic applications.

4.4. Natural Extracts

Natural plant or herbal extracts like aloe vera, chamomile, curcumin, propolis, Biden Pilosa, Hibiscus sabdariffa, Rosmarinus officinalis, and Thymus vulgaris extracts have been used widely as antimicrobial agents. Due to alkaline stress, these extracts exhibit bactericidal effects through cell membrane hyperpolarisation [217] and cytoplasmic pH change [218]. Bacteria behaviors such as pH homeostasis, membrane transport, motility, resistance, cell division, and electrical communication and signaling depend on the regulation of its membrane potential [219]. The disruption in ion-exchange concentration inside the bacteria membrane can induce its hyperpolarization and cause bacterial structure instability and membrane damage [217,220]. On the other hand, pH and alkaline stress increase metabolic acid production, ATP synthase and change the cell surface properties, leading to bacteria damage and cell death [218].
Recently, PLGA nanofibers fabricated with aloe vera extract having an average diameter of 356 nm with 87.92% porosity were shown to inhibit the growth of S. aureus and S. epidermidis. No inhibition was observed for pure PLGA nanofibers [221]. A similar finding was reported in which the PCL nanofibers functionalized with chitosan/aloe vera/PEO were found to exhibit antimicrobial activity against S. aureus and E. coli, as well as promoting rapid proliferation rate for fibroblast cells [222]. An in vivo animal study demonstrated that aloe vera-incorporated nanofibers had accelerated the wound healing and closure of diabetic mice. Overall, nanofibers incorporated with aloe vera extract showed positive effects on antimicrobial activity and rapid wound healing.
Moringa (MR) extract incorporated into polyacrylonitrile (PAN) nanofibers showed a concentration-dependent antimicrobial activity whereby increased inhibition of S. aureus and E. coli was observed, as the concentration of extract loaded was increased from 0.1 up to 0.5 g [223]. In another study, MR-chitosan nanoparticles incorporated in gelatin nanofibers were found to inhibit the growth of Listeria monocytogenes and S. aureus [69].
On the other hand, Kegere et al., (2019) analyzed the effect of PVA/chitosan nanofibers blended with Biden Pilosa (BP) crude extract. BP crude extract alone can inhibit 64% of E. coli and 51.7% of S. aureus growth. In comparison, the fabricated nanofibers showed higher antimicrobial activity with 75.4% E. coli and 91% S. aureus inhibition [224]. The antimicrobial activity of chitosan is already established [225] and the incorporation of the BP extract into PVA/chitosan nanofibers further enhanced its antimicrobial efficiency.

5. Surface Chemical Functionalization via Monomer Grafting

The surface of nanofibers can be functionalized using different molecular moieties, during or after the treatment electrospinning process [226,227,228]. The three most common methods used to functionalize the surface are the wet chemical method, plasma treatment and graft polymerization [229,230,231]. Post-treatment surface functionalization can also be optimized by adding specific functional groups, mainly electron-withdrawing groups such as carboxylic acids, amines, aldehydes, and acid chlorides (Figure 4) to improve the nanofibers’ surface chemistry such as its wettability, surface charge and surface roughness to further enhance antimicrobial property of the nanofibers [230,232,233,234,235].
Abrigo et al., (2015) studied the influence of the fiber wettability, surface charge and surface chemistry of polystyrene (PS) nanofibers functionalized with acrylic acid (ppAAc), allylamine (ppAAm), 1,7-octadiene (ppOct), and 1,8-octadiene (ppCo), using the plasma treatment method, on E. coli attachment. The highest amount of E. coli attached was observed on the PS surface with ppAAm. Although allylamine is a hydrophilic monomer, its positive charge surface attracts the bacteria and encourages their attachment and proliferation on the surface of nanofibers. Similar to allylamine, acrylic acid is also a hydrophilic monomer. However, only a small proportion of bacteria cells are attached to the ppAAc due to its negatively charged surface. The electrostatic repulsion between the ppAAc nanofibers and E. coli resulted in low attachment of bacteria cells.
In contrast, a significant amount of the bacteria was found on the ppOct, attributed to the hydrophobicity of the surface. Although the functionalized nanofibers attracted the bacteria to stick onto the surface, ppAAm and ppOct did not induce bacteria inhibition. Instead, the bacteria proliferated around the nanofibers [158]. The observation indicates that the monomers alone are not enough to kill the bacteria as they do not have antimicrobial properties.
In another study, upon exposure of PLGA/chitosan nanofibers functionalized with GO-Ag to the attached E. coli, P. aeruginosa and S. aureus, the cells became flattened and wrinkled, causing conformational changes and leading to cell death [198]. The bacterial attachments were also significantly lower when the surface was functionalized with monomers containing cyclic compounds, tertiary butyl, dimethyl hydrocarbon, and a high density of ester groups, due to their rigid structure [236]. In contrast, the attachment can be promoted by functionalizing the surface with monomers containing ethylene glycol and hydroxyl constituents [237].
The functionalization of electrospun nanofibers with antimicrobial agents is a promising strategy to combat bacterial infection and resistance. Different functionalization methods and materials used will provide different interactions and mechanism of actions in killing the bacteria. Therefore, the nanofiber criteria and designs discussed above can provide a basic guideline to further understand the relationship between functionalized nanofibers and bacteria cells.

6. Conclusions and Future Trends

At present, smart antimicrobial nanofibers have been developed in different fields, including wound dressing, tissue repair and regeneration, nanomedicine, air, and water filtering. Nanomaterial-based antimicrobials can be used as an alternative to antibiotics to achieve an effective therapeutic effect, especially in wound dressing applications.
The design of fabricated nanofibers plays an important role to ensure antimicrobial effectiveness. Therefore, we have discussed the properties that can influence nanofibers’ bactericidal effects, such as its (1) morphology including size, diameter and porosity, (2) the surface charge of the nanofibers, and (3) surface wettability. However, it has been proven that nanomaterials or nanofibers are not able to fight bacteria alone. The addition of antimicrobial agents is strongly required to enhance the antimicrobial activity of nanofibers.
Additional studies will be required to enable a deeper understanding on the interactions of these nanomaterials with the target bacteria as bacteria are complex microorganisms that can easily adapt to their surroundings for survival. Additionally, interdisciplinary research involving the chemical, biological, and pharmacological fields is necessary to translate these nanofiber designs clinically.
However, electrospinning is still not ready for the large-scale industrialization of antibacterial fiber production as required from the market. The optimization of nanofibers with highly complex morphologies (i.e., multicomponent, multiaxial fibers) still present some difficulties in terms of large-scale feasibility, and further studies to improve entrapment mechanisms and fabrication processes are needed.
For this purpose, different manufacturing methods—i.e., the simultaneous or sequential deposition of fibers and/or nanoparticles [238,239] have been optimized to introduce organic or inorganic carriers that provide more appropriate drug release profiles in vitro. In this context, over fiber morphology, drug loading strongly affects the release curve [239]. However, sustained release is strictly conditioned by the polarity of polymer and the drugs (i.e., they have to be similar), and the solubility of the drugs in the polymer solution. In the future, a multidisciplinary approach aimed to design processes and material chemistry could represent a unique route to design innovative carriers with a high degree of morphological and functional complexity, able to control molecular release in a reasonable time to fight bacteria efficiently.

Author Contributions

Conceptualization, W.K.W.A.K.; writing—original draft preparation, N.H., A.Y., S.A.H., W.K.W.A.K.; writing—review and editing, W.K.W.A.K., V.G.; supervision, V.G. All authors have read and agreed to the published version of the manuscript.


The work was supported by the Fundamental Research Grant Scheme (FRGS19-147-0756) from Ministry of Higher Education, Malaysia and International Islamic University Malaysia (IIUM) is gratefully acknowledged.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.


  1. Centers for Disease Control Prevention Centre (CDC). Antibiotic Resistance Threats in the United States. 2019. Available online: (accessed on 9 September 2021).
  2. Ventola, C.L. The antibiotic resistance crisis part 1: Causes and threats. Pharm. Ther. 2015, 40, 277–283. [Google Scholar]
  3. Sprenger, M.; Fukuda, K. New mechanisms, new worries. Science 2016, 351, 1263–1264. [Google Scholar] [CrossRef] [PubMed]
  4. Kraemer, S.A.; Ramachandran, A.; Perron, G.G. Antibiotic pollution in the environment: From microbial ecology to public policy. Microorganisms 2019, 7, 180. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Munita, J.; Arias, C. Mechanisms of Antibiotic Resistance. Microbial. Spectr. 2016, 4, 4.2.15. [Google Scholar] [CrossRef] [Green Version]
  6. Blair, J.M.A.; Webber, M.A.; Baylay, A.J.; Ogbolu, D.O.; Piddock, L.J.V. Molecular mechanisms of antibiotic resistance. Nat. Rev. Microbiol. 2015, 13, 42–51. [Google Scholar] [CrossRef]
  7. Kadhum, H.A.; Hasan, T.H. The study of bacillus subtils antimicrobial activity on some of the pathological isolates. Int. J. Drug Deliv. Technol. 2019, 9, 193–196. [Google Scholar] [CrossRef]
  8. Henrichfreise, B.; Wiegand, I.; Pfister, W.; Wiedemann, B. Resistance mechanisms of multiresistant Pseudomonas aeruginosa strains from Germany and correlation with hypermutation. Antimicrob. Agents Chemother. 2007, 51, 4062–4070. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  9. Makabenta, J.M.V.; Nabawy, A.; Li, C.H.; Schmidt-Malan, S.; Patel, R.; Rotello, V.M. Nanomaterial-based therapeutics for antibiotic-resistant bacterial infections. Nat. Rev. Microbiol. 2021, 19, 23–36. [Google Scholar] [CrossRef] [PubMed]
  10. Pang, Z.; Raudonis, R.; Glick, B.R.; Lin, T.J.; Cheng, Z. Antibiotic resistance in Pseudomonas aeruginosa: Mechanisms and alternative therapeutic strategies. Biotechnol. Adv. 2019, 37, 177–192. [Google Scholar] [CrossRef] [PubMed]
  11. Sandoval-Motta, S.; Aldana, M. Adaptive resistance to antibiotics in bacteria: A systems biology perspective. Wiley Interdiscip. Rev. Syst. Biol. Med. 2016, 8, 253–267. [Google Scholar] [CrossRef]
  12. Rasouli, R.; Barhoum, A.; Bechelany, M.; Dufresne, A. Nanofibers for Biomedical and Healthcare Applications. Macromol. Biosci. 2019, 19, 1800256. [Google Scholar] [CrossRef]
  13. Namdari, M.; Eatemadi, A. Nanofibrous bioengineered heart valve—Application in paediatric medicine. Biomed. Pharmacother. 2016, 84, 1179–1188. [Google Scholar] [CrossRef] [PubMed]
  14. Farnaz-Sadat, F.; Khoddami, A.; Avinc, O. Poly(lactic acid) (PLA) Nanofibers for Bone Tissue Engineering. J. Text Polym. 2019, 7, 47. [Google Scholar]
  15. Obregón, R.; Ramón-Azcón, J.; Ahadian, S. Nanofiber composites in blood vessel tissue engineering. In Nanofiber Composites for Biomedical Applications; Elsevier Ltd.: Amsterdam, The Netherlands, 2017; pp. 483–506. [Google Scholar]
  16. Liu, Y.; Zhou, S.; Gao, Y.; Zhai, Y. Electrospun nanofibers as a wound dressing for treating diabetic foot ulcer. Asian J. Pharm. Sci. 2019, 14, 130–143. [Google Scholar] [CrossRef] [PubMed]
  17. Homaeigohar, S.; Boccaccini, A.R. Antibacterial biohybrid nanofibers for wound dressings. Acta Biomater. 2020, 107, 25–49. [Google Scholar] [CrossRef] [PubMed]
  18. Jingcheng, L.; Reddy, V.S.; Jayathilaka, W.A.D.M.; Chinnappan, A.; Ramakrishna, S.; Ghosh, R. Intelligent polymers, fibers and applications. Polymers 2021, 13, 1427. [Google Scholar] [CrossRef] [PubMed]
  19. Ambekar, R.S.; Kandasubramanian, B. Advancements in nanofibers for wound dressing: A review. Eur. Polym. J. 2019, 117, 304–336. [Google Scholar] [CrossRef]
  20. Wang, X.; Hsiao, B.S. Electrospun nanofiber membranes. Curr. Opin. Chem. Eng. 2016, 12, 62–81. [Google Scholar] [CrossRef] [Green Version]
  21. Pires, L.R.; Guarino, V.; Oliveira, M.J.; Ribeiro, C.C.; Barbosa, M.A.; Ambrosio, L. Ibuprofen-loaded poly (trimethylene carbonate-co-ϵ-caprolactone) electrospun fibres for nerve regeneration. J. Tissue Eng. Regen. Med. 2013, 10, 154–166. [Google Scholar] [CrossRef] [Green Version]
  22. Akhmetova, A.; Heinz, A. Electrospinning proteins for wound healing purposes: Opportunities and challenges. Pharmaceutics. 2021, 13, 4. [Google Scholar] [CrossRef] [PubMed]
  23. Bombin, J.A.D.; Dunne, N.J.; McCarthy, H.O. Electrospinning of natural polymers for the production of nanofibres for wound healing applications. Mater. Sci. Eng. C 2020, 114, 110994. [Google Scholar] [CrossRef]
  24. Sabra, S.; Ragab, D.M.; Agwa, M.M.; Rohani, S. Recent advances in electrospun nanofibers for some biomedical applications. Eur. J. Pharm. Sci. 2020, 144, 105224. [Google Scholar] [CrossRef] [PubMed]
  25. Almasi, H.; Jafarzadeh, P.; Mehryar, L. Fabrication of novel nanohybrids by impregnation of CuO nanoparticles into bacterial cellulose and chitosan nanofibers: Characterization, antimicrobial and release properties. Carbohydr. Polym. 2018, 186, 273–281. [Google Scholar] [CrossRef] [PubMed]
  26. Sebe, I.; Szabó, B.; Nagy, Z.K.; Szabó, D.; Zsidai, L.; Kocsis, B. Polymer structure and antimicrobial activity of polyvinylpyrrolidone-based iodine nanofibers prepared with high-speed rotary spinning technique. Int. J. Pharm. 2013, 458, 99–103. [Google Scholar] [CrossRef]
  27. Shahriar, S.M.S.; Mondal, J.; Hasan, M.N.; Revuri, V.; Lee, D.Y.; Lee, Y.K. Electrospinning nanofibers for therapeutics delivery. Nanomaterials 2019, 9, 532. [Google Scholar] [CrossRef] [Green Version]
  28. Arampatzis, A.S.; Kontogiannopoulos, K.N.; Theodoridis, K.; Aggelidou, E.; Rat, A.; Willems, A. Electrospun wound dressings containing bioactive natural products: Physico-chemical characterization and biological assessment. Biomater. Res. 2021, 25, 23. [Google Scholar] [CrossRef] [PubMed]
  29. Wang, S.; Ma, Q.; Wang, K.; Chen, H. Improving Antibacterial Activity and Biocompatibility of Bioinspired Electrospinning Silk Fibroin Nanofibers Modified by Graphene Oxide. ACS Omega 2018, 3, 406–413. [Google Scholar] [CrossRef] [PubMed]
  30. Valentini, F.; Calcaterra, A.; Ruggiero, V.; Pichichero, E.; Martino, A.; Iosi, F. Functionalized Graphene Derivatives: Antibacterial Properties and Cytotoxicity. J. Nanomater. 2019, 1–14. [Google Scholar] [CrossRef] [Green Version]
  31. Yadav, R.; Balasubramanian, K. Bioabsorbable Engineered Nanobiomaterials for Antibacterial Therapy. In Engineering of Nanobiomaterials: Applications of Nanobiomaterials; Elsevier Inc.: Amsterdam, The Netherlands, 2016; pp. 77–117. [Google Scholar]
  32. Abrigo, M.; McArthur, S.L.; Kingshott, P. Electrospun nanofibers as dressings for chronic wound care: Advances, challenges, and future prospects. Macromol. Biosci. 2014, 14, 772–792. [Google Scholar] [CrossRef] [PubMed]
  33. Cheng, G.; Dai, J.; Dai, J.; Wang, H.; Chen, S.; Liu, Y. Extracellular matrix imitation utilizing nanofibers-embedded biomimetic scaffolds for facilitating cartilage regeneration. Chem. Eng. J. 2021, 410, 128379. [Google Scholar] [CrossRef]
  34. Hu, F.; Zhang, X.; Liu, H.; Xu, P.; Teng, G.; Xiao, Z. Neuronally differentiated adipose-derived stem cells and aligned PHBV nanofiber nerve scaffolds promote sciatic nerve regeneration. Biochem. Biophys. Res. Commun. 2017, 489, 171–178. [Google Scholar] [CrossRef] [PubMed]
  35. Levengood, S.L.; Erickson, A.E.; Chang, F.C.; Zhang, M. Chitosan-poly(caprolactone) nanofibers for skin repair. J. Mater. Chem. B 2017, 5, 1822–1833. [Google Scholar] [CrossRef] [Green Version]
  36. Alven, S.; Buyana, B.; Feketshane, Z.; Aderibigbe, B.A. Electrospun nanofibers/nanofibrous scaffolds loaded with silver nanoparticles as effective antibacterial wound dressing materials. Pharmaceutics 2021, 13, 964. [Google Scholar] [CrossRef]
  37. Wang, P.Y.; Ji, Q.T.; Xiang, H.M.; Zhang, T.H.; Zeng, D.; Zhou, X. Assembling Anthracene-Tailored Amphiphiles: Charge-Transfer Interactions Directed Hierarchical Nanofibers with Ameliorative Antibacterial Activity toward Plant Pathogens. J. Agric. Food Chem. 2020, 68, 5579–5585. [Google Scholar] [CrossRef] [PubMed]
  38. Guarino, V.; Cirillo, V.; Ambrosio, L. Bicomponent electrospun scaffolds to design extracellular matrix tissue analogs. Exp. Rev. Med. Dev. 2016, 13, 83–102. [Google Scholar] [CrossRef] [PubMed]
  39. Ferraris, S.; Spriano, S.; Scalia, A.C.; Cochis, A.; Rimondini, L.; Cruz-Maya, I.; Guarino, V.; Varesano, A.; Vineis, C. Topographical and Biomechanical Guidance of Electrospun Fibers for Biomedical Applications. Polymers 2020, 12, 2896. [Google Scholar] [CrossRef] [PubMed]
  40. Saracino, E.; Cirillo, V.; Marrese, M.; Guarino, V.; Benfenati, V.; Zamboni, R.; Ambrosio, L. Structural and functional properties of astrocytes on PCL based electrospun fibres. Mater. Sci. Eng. C 2021, 118, 111363. [Google Scholar] [CrossRef] [PubMed]
  41. Rao, S.S.; Nelson, M.T.; Xue, R.; DeJesus, J.; Viapiano, M.S.; Lannutti, J.J. Mimicking white matter tract topography using core-shell electrospun nanofibers to examine migration of malignant brain tumors. Biomaterials 2013, 34, 5181–5190. [Google Scholar] [CrossRef] [Green Version]
  42. Liu, X.F.; Zhang, J.; Liu, J.J.; Zhou, Q.H.; Liu, Z.; Hu, P.Y. Bifunctional CuS composite nanofibers via in situ electrospinning for outdoor rapid hemostasis and simultaneous ablating superbug. Chem. Eng. J. 2020, 401, 126096. [Google Scholar] [CrossRef]
  43. Xie, X.; Li, D.; Chen, Y.; Shen, Y.; Yu, F.; Wang, W. Conjugate Electrospun 3D Gelatin Nanofiber Sponge for Rapid Hemostasis. Adv. Healthc. Mater. 2021, 10, 2100918. [Google Scholar] [CrossRef]
  44. Chen, S.; Carlson, M.A.; Zhang, Y.S.; Hu, Y.; Xie, J. Fabrication of injectable and superelastic nanofiber rectangle matrices (“peanuts”) and their potential applications in hemostasis. Biomaterials 2018, 179, 46–59. [Google Scholar] [CrossRef] [PubMed]
  45. Schoeller, J.; Itel, F.; Wuertz-Kozak, K.; Gaiser, S.; Luisier, N.; Hegemann, D. pH-responsive chitosan/alginate polyelectrolyte complexes on electrospun PLGA nanofibers for controlled drug release. Nanomaterials 2021, 11, 1850. [Google Scholar] [CrossRef] [PubMed]
  46. Udomluck, N.; Lee, H.; Hong, S.; Lee, S.H.; Park, H. Surface functionalization of dual growth factor on hydroxyapatite-coated nanofibers for bone tissue engineering. Appl. Surf. Sci. 2020, 520, 146311. [Google Scholar] [CrossRef]
  47. Kowalczyk, T. Functional micro- and nanofibers obtained by nonwoven post-modification. Polymers 2020, 12, 1087. [Google Scholar] [CrossRef]
  48. Ko, Y.M.; Choi, D.Y.; Jung, S.C.; Kim, B.H. Characteristics of plasma treated electrospun polycaprolactone (PCL) nanofiber scaffold for bone tissue engineering. J. Nanosci. Nanotechnol. 2015, 15, 192–195. [Google Scholar] [CrossRef] [PubMed]
  49. Saini, S.; Belgacem, M.N.; Bras, J. Effect of variable aminoalkyl chains on chemical grafting of cellulose nanofiber and their antimicrobial activity. Mater. Sci. Eng. C 2017, 75, 760–768. [Google Scholar] [CrossRef] [PubMed]
  50. Giram, P.S.; Shitole, A.; Nande, S.S.; Sharma, N.; Garnaik, B. Fast dissolving moxifloxacin hydrochloride antibiotic drug from electrospun Eudragit L-100 nonwoven nanofibrous Mats. Mater. Sci. Eng. C 2018, 92, 526–539. [Google Scholar] [CrossRef] [PubMed]
  51. Keshvardoostchokami, M.; Majidi, S.S.; Huo, P.; Ramachandran, R.; Chen, M.; Liu, B. Electrospun nanofibers of natural and synthetic polymers as artificial extracellular matrix for tissue engineering. Nanomaterials 2021, 11, 21. [Google Scholar] [CrossRef] [PubMed]
  52. Sundaramurthi, D.; Krishnan, U.M.; Sethuraman, S. Electrospun nanofibers as scaffolds for skin tissue engineering. Polym. Rev. 2014, 54, 348–376. [Google Scholar] [CrossRef]
  53. Li, X.; Wang, L.; Fan, Y.; Feng, Q.; Cui, F.Z.; Watari, F. Nanostructured scaffolds for bone tissue engineering. J. Biomed. Mater. Res.—Part A 2013, 101, 2424–2435. [Google Scholar] [CrossRef] [PubMed]
  54. Zhong, X.; Li, R.; Wang, Z.; Wang, W.; Yu, D. Eco-fabrication of antibacterial nanofibrous membrane with high moisture permeability from wasted wool fabrics. Waste Manag. 2020, 102, 404–411. [Google Scholar] [CrossRef] [PubMed]
  55. Gao, Y.; Truong, Y.B.; Zhu, Y.; Louis Kyratzis, I. Electrospun antibacterial nanofibers: Production, activity, and in vivo applications. J. Appl. Polym. Sci. 2014, 131, 9041–9053. [Google Scholar] [CrossRef]
  56. Al-Enizi, A.M.; Zagho, M.M.; Elzatahry, A.A. Polymer-based electrospun nanofibers for biomedical applications. Nanomaterials 2018, 8, 259. [Google Scholar] [CrossRef] [Green Version]
  57. Ryšánek, P.; Malý, M.; Čapková, P.; Kormunda, M.; Kolská, Z.; Gryndler, M. Antibacterial modification of nylon-6 nanofibers: Structure, properties and antibacterial activity. J. Polym. Res. 2017, 24, 208. [Google Scholar] [CrossRef]
  58. Ferraris, S.; Guarino, V.; Cochis, A.; Varesano, A.; Cruz Maya, I.; Vineis, C.; Rimondini, L.; Spriano, S. Aligned keratin submicrometric-fibers for fibroblasts guidance onto nanogrooved titanium surfaces for transmucosal implants. Mater. Lett. 2018, 229, 1–4. [Google Scholar] [CrossRef]
  59. Coelho, C.S.; Estevinho, N.B.; Rocha, F. Encapsulation in food industry with emerging electrohydrodynamic techniques: Electrospinning and electrospraying—A review. Food Chem. 2021, 339, 127850. [Google Scholar] [CrossRef] [PubMed]
  60. Kurtz, I.S.; Schiffman, J.D. Current and emerging approaches to engineer antibacterial and antifouling electrospun nanofibers. Materials 2018, 11, 1059. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  61. Anselme, K.; Davidson, P.; Popa, A.M.; Giazzon, M.; Liley, M.; Ploux, L. The interaction of cells and bacteria with surfaces structured at the nanometre scale. Acta Biomater. 2010, 6, 3824–3846. [Google Scholar] [CrossRef] [PubMed]
  62. Abrigo, M.; Kingshott, P.; Mcarthur, S.L. Electrospun Polystyrene Fiber Diameter Influencing Bacterial Attachment, Proliferation, and Growth. ACS Appl. Mater. Interfaces 2015, 7, 7644–7652. [Google Scholar] [CrossRef] [PubMed]
  63. Heidari, M.; Bahrami, H.; Ranjbar-Mohammadi, M. Fabrication, optimization and characterization of electrospun poly(caprolactone)/gelatin/graphene nanofibrous mats. Mater. Sci. Eng. C 2017, 78, 218–229. [Google Scholar] [CrossRef] [PubMed]
  64. Heidari, M.; Bahrami, S.H.; Ranjbar-Mohammadi, M.; Milan, P.B. Smart electrospun nanofibers containing PCL/gelatin/graphene oxide for application in nerve tissue engineering. Mater. Sci. Eng. C 2019, 103, 109768. [Google Scholar] [CrossRef] [PubMed]
  65. Jalaja, K.; Sreehari, V.S.; Kumar, P.R.A.; Nirmala, R.J. Graphene oxide decorated electrospun gelatin nanofibers: Fabrication, properties and applications. Mater. Sci. Eng. C 2016, 64, 11–19. [Google Scholar] [CrossRef] [PubMed]
  66. Guarino, V.; Cruz-Maya, I.; Altobelli, R.; Abdul Khodir, W.K.; Ambrosio, L.; Pèrez, A.M.A.; Flores, A.A. Electrospun polycaprolactone nanofibres decorated by drug loaded chitosan nano-reservoirs for antibacterial treatments. Nanotechnology 2017, 28, 202103. [Google Scholar] [CrossRef] [PubMed]
  67. Ravikumar, R.; Ganesh, M.; Ubaidulla, U.; Young Choi, E.; Tae Jang, H. Preparation, characterization, and in vitro diffusion study of nonwoven electrospun nanofiber of curcumin-loaded cellulose acetate phthalate polymer. Saudi Pharm. J. 2017, 25, 921–926. [Google Scholar] [CrossRef] [PubMed]
  68. Bhattarai, R.S.; Bachu, R.D.; Boddu, S.H.S.; Bhaduri, S. Biomedical applications of electrospun nanofibers: Drug and nanoparticle delivery. Pharmaceutics 2018, 11, 5. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  69. Lin, L.; Gu, Y.; Cui, H. Moringa oil/chitosan nanoparticles embedded gelatin nanofibers for food packaging against Listeria monocytogenes and Staphylococcus aureus on cheese. Food Packag. Shelf Life 2019, 19, 86–93. [Google Scholar] [CrossRef]
  70. Bose, R.J.C.; Arai, Y.; Ahn, J.C.; Park, H.; Lee, S.H. Influence of cationic lipid concentration on properties of lipid–polymer hybrid nanospheres for gene delivery. Int. J. Nanomed. 2015, 10, 5367–5382. [Google Scholar]
  71. Persano, L.; Camposeo, A.; Tekmen, C.; Pisignano, D. Industrial upscaling of electrospinning and applications of polymer nanofibers: A review. Macromol. Mater. Eng. 2013, 298, 504–520. [Google Scholar] [CrossRef]
  72. Kim, D.H.; Jang, J.S.; Koo, W.T.; Choi, S.J.; Kim, S.J.; Kim, I.D. Hierarchically interconnected porosity control of catalyst-loaded WO3 nanofiber scaffold: Superior acetone sensing layers for exhaled breath analysis. Sensors Actuators B Chem. 2018, 259, 616–625. [Google Scholar] [CrossRef]
  73. Feng, G.; Cheng, Y.; Wang, S.Y.; Borca-Tasciuc, D.A.; Worobo, R.W.; Moraru, C.I. Bacterial attachment and biofilm formation on surfaces are reduced by small-diameter nanoscale pores: How small is small enough? Biofilms Microbiomes 2015, 1, 15022. [Google Scholar] [CrossRef] [PubMed]
  74. Chen, S.; McCarthy, A.; John, J.V.; Su, Y.; Xie, J. Converting 2D Nanofiber Membranes to 3D Hierarchical Assemblies with Structural and Compositional Gradients Regulates Cell Behavior. Adv. Mater. 2020, 32, 2003754. [Google Scholar] [CrossRef] [PubMed]
  75. Santos, D.D.M.; Correa, D.S.; Medeiros, E.S.; Oliveira, J.E.; Mattoso, L.H.C. Advances in Functional Polymer Nanofibers: From Spinning Fabrication Techniques to Recent Biomedical Applications. ACS Appl. Mater. Interfaces 2020, 12, 45673–45701. [Google Scholar] [CrossRef]
  76. Unnithan, A.R.; Barakat, N.A.M.; Tirupathi, P.P.B.; Gnanasekaran, G.; Nirmala, R.; Cha, Y.S. Wound-dressing materials with antibacterial activity from electrospun polyurethane-dextran nanofiber mats containing ciprofloxacin HCl. Carbohydr. Polym. 2012, 90, 1786–1793. [Google Scholar] [CrossRef]
  77. Cruz-Maya, I.; Guarino, V.; Alvarez-Perez, M.A. Protein based devices for oral tissue repair and regeneration. Mater. Sci. 2018, 5, 156–170. [Google Scholar] [CrossRef]
  78. Memic, A.; Abudula, T.; Mohammed, H.S.; Joshi Navare, K.; Colombani, T.; Bencherif, S.A. Latest Progress in Electrospun Nanofibers for Wound Healing Applications. ACS Appl. Bio Mater. 2019, 2, 952–969. [Google Scholar] [CrossRef]
  79. Krishnani, K.K.; Chen, W.; Mulchandani, A. Bactericidal activity of elastin-like polypeptide biopolymer with polyhistidine domain and silver. Colloids Surf. B Biointerfaces 2014, 119, 66–70. [Google Scholar] [CrossRef] [PubMed]
  80. Mele, E. Electrospinning of natural polymers for advanced wound care: Towards responsive and adaptive dressings. J. Mater. Chem. B 2016, 4, 4801–4812. [Google Scholar] [CrossRef] [Green Version]
  81. Guarino, V.; Branda, F.; Ausanio, G.; Iannotti, V.; Lanotte, L.; Ambrosio, L. Elastomagnetic NI-PDMS nanofibers via coaxial electrospinning. Mater. Res. Express 2018, 111, 085029. [Google Scholar] [CrossRef]
  82. Arkoun, M.; Daigle, F.; Heuzey, M.C.; Ajji, A. Mechanism of action of electrospun chitosan-based nanofibers against meat spoilage and pathogenic bacteria. Molecules 2017, 22, 585. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  83. Abd El-Hack, M.E.; El-Saadony, M.T.; Shafi, M.E.; Zabermawi, N.M.; Arif, M.; Batiha, G.E. Antimicrobial and antioxidant properties of chitosan and its derivatives and their applications: A review. Int. J. Biol. Macromol. 2020, 164, 2726–2744. [Google Scholar] [CrossRef] [PubMed]
  84. Bharadwaz, A.; Jayasuriya, A.C. Recent trends in the application of widely used natural and synthetic polymer nanocomposites in bone tissue regeneration. Mater. Sci. Eng. C 2020, 110, 110698. [Google Scholar] [CrossRef] [PubMed]
  85. Guo, B.; Ma, P.X. Synthetic biodegradable functional polymers for tissue engineering: A brief review. Sci. China Chem. 2014, 57, 490–500. [Google Scholar] [CrossRef] [PubMed]
  86. Abdolmohammadi, S.; Siyamak, S.; Ibrahim, N.A.; Wan Yunus, W.M.Z.; Ab Rahman, M.Z.; Azizi, S. Enhancement of Mechanical and Thermal Properties of Polycaprolactone/Chitosan Blend by Calcium Carbonate Nanoparticles. Int. J. Mol. Sci. 2012, 13, 4508–4522. [Google Scholar] [CrossRef] [PubMed]
  87. Andrady, A.L. Intoduction. In Science and Technology of Polymer Nanofibers; John Wiley Sons, Inc.: Hoboken, NJ, USA, 2008; Volume 30, pp. 1–26. [Google Scholar]
  88. Lasprilla-Botero, J.; Álvarez-Láinez, M.; Lagaron, J.M. The influence of electrospinning parameters and solvent selection on the morphology and diameter of polyimide nanofibers. Mater. Today Commun. 2018, 14, 1–9. [Google Scholar] [CrossRef]
  89. Rogina, A. Electrospinning process: Versatile preparation method for biodegradable and natural polymers and biocomposite systems applied in tissue engineering and drug delivery. Appl. Surf. Sci. 2014, 296, 221–230. [Google Scholar] [CrossRef]
  90. Mulholland, E.J.; Ali, A.; Robson, T.; Dunne, N.J.; McCarthy, H.O. Delivery of RALA/siFKBPL nanoparticles via electrospun bilayer nanofibres: An innovative angiogenic therapy for wound repair. J. Control. Release 2019, 316, 53–65. [Google Scholar] [CrossRef]
  91. Ren, K.; Wang, Y.; Sun, T.; Yue, W.; Zhang, H. Electrospun PCL/gelatin composite nanofiber structures for effective guided bone regeneration membranes. Mater. Sci. Eng. C 2017, 78, 324–332. [Google Scholar] [CrossRef]
  92. Pouranvari, S.; Ebrahimi, F.; Javadi, G.; Maddah, B. Chemical cross-linking of chitosan/polyvinyl alcohol electrospun nanofibers. Mater. Tehnol. 2016, 50, 663–666. [Google Scholar] [CrossRef]
  93. Gautam, S.; Chou, C.F.; Dinda, A.K.; Potdar, P.D.; Mishra, N.C. Fabrication and characterization of PCL/gelatin/chitosan ternary nanofibrous composite scaffold for tissue engineering applications. J. Mater. Sci. 2014, 49, 1076–1089. [Google Scholar] [CrossRef]
  94. Guarino, V.; Ambrosio, L. Temperature-driven processing techniques for manufacturing fully interconnected porous scaffolds in bone tissue engineering. Proc. Inst. Mech. Eng. Part H J. Eng. Med. 2010, 224, 1389–1400. [Google Scholar] [CrossRef]
  95. Topuz, F.; Abdulhamid, M.A.; Holtzl, T.; Szekely, G. Nanofiber engineering of microporous polyimides through electrospinning: Influence of electrospinning parameters and salt addition. Mater. Des. 2021, 198, 109280. [Google Scholar] [CrossRef]
  96. Hamdan, N.; Darnis, D.S.; Khodir, W.K.W.A. In vitro evaluation of crosslinked polyvinyl alcohol/chitosan-gentamicin sulfate electrospun nanofibers. Malays. J. Chem. 2021, 23, 1–10. [Google Scholar]
  97. Maftoonazad, N.; Shahamirian, M.; John, D.; Ramaswamy, H. Development and evaluation of antibacterial electrospun pea protein isolate-polyvinyl alcohol nanocomposite mats incorporated with cinnamaldehyde. Mater. Sci. Eng. C 2019, 94, 393–402. [Google Scholar] [CrossRef] [PubMed]
  98. Mouro, C.; Gomes, A.P.; Ahonen, M.; Fangueiro, R.; Gouveia, I.C. Chelidonium majus L. Incorporated emulsion electrospun pcl/pva_pec nanofibrous meshes for antibacterial wound dressing applications. Nanomaterials 2021, 11, 1785. [Google Scholar] [CrossRef]
  99. Yu, L.; Dou, S.; Ma, J.; Gong, Q.; Zhang, M.; Zhang, X. An Antimicrobial Peptide-Loaded Chitosan/Polyethylene Oxide Nanofibrous Membrane Fabricated by Electrospinning Technology. Front. Mater. 2021, 8, 70. [Google Scholar] [CrossRef]
  100. Alhusein, N.; Blagbrough, I.S.; Beeton, M.L.; Bolhuis, A.; De Bank, P.A. Electrospun Zein/PCL Fibrous Matrices Release Tetracycline in a Controlled Manner, Killing Staphylococcus Aureus Both in Biofilms and Ex Vivo on Pig Skin, and are Compatible with Human Skin Cells. Pharm. Res. 2016, 33, 237–246. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  101. Cruz-Maya, I.; Guarino, V.; Almaguer-Flores, A.; Alvarez-Perez, M.A.; Varesano, A.; Vineis, C. Highly polydisperse keratin rich nanofibers: Scaffold design and in vitro characterization. J. Biomed. Mater. Res.—Part A 2019, 107, 1803–1813. [Google Scholar] [CrossRef]
  102. Mirjalili, M.; Zohoori, S. Review for application of electrospinning and electrospun nanofibers technology in textile industry. J. Nanostruct. Chem. 2016, 6, 207–213. [Google Scholar] [CrossRef] [Green Version]
  103. Abdul Khodir, W.K.W.; Abdul Razak, A.; Ng, M.; Guarino, V.; Susanti, D. Encapsulation and Characterization of Gentamicin Sulfate in the Collagen Added Electrospun Nanofibers for Skin Regeneration. J. Funct. Biomater. 2018, 9, 36. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  104. Thenmozhi, S.; Dharmaraj, N.; Kadirvelu, K.; Kim, H.Y. Electrospun nanofibers: New generation materials for advanced applications. Mater. Sci. Eng. B Solid-State Mater. Adv. Technol. 2017, 217, 36–48. [Google Scholar] [CrossRef]
  105. Kolbasov, A.; Sinha-Ray, S.; Joijode, A.; Hassan, M.A.; Brown, D.; Maze, B. Industrial-Scale Solution Blowing of Soy Protein Nanofibers. Ind. Eng. Chem. Res. 2016, 55, 323–333. [Google Scholar] [CrossRef]
  106. Shojaei, R.T.; Hajalilou, A.; Tabatabaei, M.; Mobli, H.; Aghbashlo, M. Characterization and Evaluation of Nanofiber Materials. In Handbook of Nanofibers; Springer: Berlin/Heidelberg, Germany, 2019; pp. 491–522. [Google Scholar]
  107. Lu, A.; Gao, Y.; Jin, T.; Luo, X.; Zeng, Q.; Shang, Z. Effects of surface roughness and texture on the bacterial adhesion on the bearing surface of bio-ceramic joint implants: An in vitro study. Ceram. Int. 2020, 46, 6550–6559. [Google Scholar] [CrossRef]
  108. Khajavi, R.; Abbasipour, M. Controlling nanofiber morphology by the electrospinning process. In Electrospun Nanofibers; Elsevier Ltd.: Amsterdam, The Netherlands, 2017; pp. 109–123. [Google Scholar]
  109. Zafar, M.; Najeeb, S.; Khurshid, Z.; Vazirzadeh, M.; Zohaib, S.; Najeeb, B. Potential of electrospun nanofibers for biomedical and dental applications. Materials 2016, 9, 73. [Google Scholar] [CrossRef]
  110. Xue, J.; Wu, T.; Dai, Y.; Xia, Y. Electrospinning and electrospun nanofibers: Methods, materials, and applications. Chem. Rev. 2019, 119, 5298–5415. [Google Scholar] [CrossRef]
  111. Zahmatkeshan, M.; Adel, M.; Bahrami, S.; Esmaeili, F.; Rezayat, S.M.; Saeedi, Y. Polymer-Based Nanofibers: Preparation, Fabrication, and Applications. In Handbook of Nanofibers; Springer: Cham, Switzerland, 2019. [Google Scholar] [CrossRef]
  112. Orr, S.B.; Chainani, A.; Hippensteel, K.J.; Kishan, A.; Gilchrist, C.; Garrigues, N.W. Aligned multilayered electrospun scaffolds for rotator cuff tendon tissue engineering. Acta Biomater. 2015, 24, 117–126. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  113. Arik, N.; Inan, A.; Ibis, F.; Demirci, E.A.; Karaman, O.; Ercan, U.K. Modification of electrospun PVA/PAA scaffolds by cold atmospheric plasma: Alignment, antibacterial activity, and biocompatibility. Polym. Bull. 2019, 76, 797–812. [Google Scholar] [CrossRef]
  114. Yu, L.; Shao, Z.; Xu, L.; Wang, M. High throughput preparation of aligned nanofibers using an improved bubble-electrospinning. Polymers 2017, 9, 658. [Google Scholar] [CrossRef] [Green Version]
  115. Kharaghani, D.; Gitigard, P.; Ohtani, H.; Kim, K.O.; Ullah, S. Design and characterization of dual drug delivery based on in-situ assembled PVA/PAN core-shell nanofibers for wound dressing application. Sci. Rep. 2019, 9, 12640. [Google Scholar] [CrossRef] [Green Version]
  116. Coimbra, P.; Freitas, J.P.; Gonçalves, T.; Gil, M.H.; Figueiredo, M. Preparation of gentamicin sulfate eluting fiber mats by emulsion and by suspension electrospinning. Mater. Sci. Eng. C 2019, 94, 86–93. [Google Scholar] [CrossRef] [PubMed]
  117. Gao, X.; Han, S.; Zhang, R.; Liu, G.; Wu, J. Progress in electrospun composite nanofibers: Composition, performance and applications for tissue engineering. J. Mater. Chem. B 2019, 7, 7075–7089. [Google Scholar] [CrossRef] [PubMed]
  118. Calamak, S.; Shahbazi, R.; Eroglu, I.; Gultekinoglu, M.; Ulubayram, K. An overview of nanofiber-based antibacterial drug design. Expert Opin. Drug Discov. 2017, 12, 391–406. [Google Scholar] [CrossRef]
  119. Mochane, M.J.; Motsoeneng, T.S.; Sadiku, E.R.; Mokhena, T.C.; Sefadi, J.S. Morphology and properties of electrospun PCL and its composites for medical applications: A mini review. Appl. Sci. 2019, 9, 2205. [Google Scholar] [CrossRef] [Green Version]
  120. Jiang, G.; Zhang, J.; Ji, D.; Qin, X.; Ge, Y.; Xie, S. A novel approach for fabricating antibacterial nanofiber/cotton hybrid yarns. Fibers Polym. 2017, 18, 987–992. [Google Scholar] [CrossRef]
  121. Qi, R.; Guo, R.; Zheng, F.; Liu, H.; Yu, J.; Shi, X. Controlled release and antibacterial activity of antibiotic-loaded electrospun halloysite/poly(lactic-co-glycolic acid) composite nanofibers. Colloids Surfaces B Biointerfaces 2013, 110, 148–155. [Google Scholar] [CrossRef] [PubMed]
  122. Karagoz, S.; Kiremitler, N.B.; Sarp, G.; Pekdemir, S.; Salem, S.; Goksu, A.G. Antibacterial, antiviral, and self-cleaning mats with sensing capabilities based on electrospun nanofibers decorated with ZnO nanorods and Ag nanoparticles for protective clothing applications. ACS Appl. Mater. Interfaces 2021, 13, 5678–5690. [Google Scholar] [CrossRef] [PubMed]
  123. Kalantari, K.; Afifi, A.M.; Jahangirian, H.; Webster, T.J. Biomedical applications of chitosan electrospun nanofibers as a green polymer—Review. Carbohydr. Polym. 2019, 207, 588–600. [Google Scholar] [CrossRef]
  124. Soltani, S.; Khanian, N.; Choong, T.S.Y.; Rashid, U. Recent progress in the design and synthesis of nanofibers with diverse synthetic methodologies: Characterization and potential applications. New J. Chem. 2020, 44, 9581–9606. [Google Scholar] [CrossRef]
  125. Motamedi, A.S.; Mirzadeh, H.; Hajiesmaeilbaigi, F.; Bagheri-Khoulenjani, S.; Shokrgozar, M. Effect of electrospinning parameters on morphological properties of PVDF nanofibrous scaffolds. Prog. Biomater. 2017, 6, 113–123. [Google Scholar] [CrossRef] [PubMed]
  126. Haider, A.; Kwak, S.; Gupta, K.C.; Kang, I.K. Antibacterial activity and cytocompatibility of PLGA/CuO hybrid nanofiber scaffolds prepared by electrospinning. J. Nanomater. 2015, 2015, 832762. [Google Scholar] [CrossRef]
  127. Lu, Y.; Huang, J.; Yu, G.; Cardenas, R.; Wei, S.; Wujcik, E.K. Coaxial electrospun fibers: Applications in drug delivery and tissue engineering. Wiley Interdiscip. Rev. Nanomed. Nanobiotechnol. 2016, 8, 654–677. [Google Scholar] [CrossRef]
  128. Azimi, B.; Maleki, H.; Zavagna, L.; Ossa, J.G.; Linari, S.; Lazzeri, A. Bio-based electrospun fibers for wound healing. J. Funct. Biomater. 2020, 11, 67. [Google Scholar] [CrossRef]
  129. Goh, Y.F.; Shakir, I.; Hussain, R. Electrospun fibers for tissue engineering, drug delivery, and wound dressing. J. Mater. Sci. 2013, 48, 3027–3054. [Google Scholar] [CrossRef]
  130. Wang, J.; Windbergs, M. Functional electrospun fibers for the treatment of human skin wounds. Eur. J. Pharm. Biopharm. 2017, 119, 283–299. [Google Scholar] [CrossRef]
  131. Moreira, A.; Lawson, D.; Onyekuru, L.; Dziemidowicz, K.; Angkawinitwong, U.; Costa, P.F. Protein encapsulation by electrospinning and electrospraying. J. Control. Release 2021, 329, 1172–1197. [Google Scholar] [CrossRef] [PubMed]
  132. Buzgo, M.; Mickova, A.; Rampichova, M.; Doupnik, M. Blend electrospinning, coaxial electrospinning, and emulsion electrospinning techniques. In Core-Shell Nanostructures for Drug Delivery and Theranostics; Elsevier Ltd.: Amsterdam, The Netherlands, 2018; pp. 325–347. [Google Scholar]
  133. Hu, J.; Prabhakaran, M.P.; Ding, X.; Ramakrishna, S. Emulsion electrospinning of polycaprolactone: Influence of surfactant type towards the scaffold properties. J. Biomater. Sci. Polym. Ed. 2015, 26, 57–75. [Google Scholar] [CrossRef]
  134. Ji, X.; Li, R.; Jia, W.; Liu, G.; Luo, Y.; Cheng, Z. Co-Axial Fibers with Janus-Structured Sheaths by Electrospinning Release Corn Peptides for Wound Healing. ACS Appl. Bio Mater. 2020, 3, 6430–6438. [Google Scholar] [CrossRef]
  135. Han, D.; Sherman, S.; Filocamo, S.; Steckl, A.J. Long-term antimicrobial effect of nisin released from electrospun triaxial fiber membranes. Acta Biomater. 2017, 53, 242–249. [Google Scholar] [CrossRef] [PubMed]
  136. Tian, J.; Ma, Q.; Yu, W.; Dong, X.; Yang, Y.; Zhao, B. An electrospun flexible Janus nanoribbon array endowed with simultaneously tuned trifunctionality of electrically conductive anisotropy, photoluminescence and magnetism. New J. Chem. 2017, 41, 13983–13992. [Google Scholar] [CrossRef]
  137. Labbaf, S.; Ghanbar, H.; Stride, E.; Edirisinghe, M. Preparation of multilayered polymeric structures using a novel four-needle coaxial electrohydrodynamic device. Macromol. Rapid Commun. 2014, 35, 618–623. [Google Scholar] [CrossRef] [Green Version]
  138. Lv, H.; Yu, D.G.; Wang, M.; Ning, T. Nanofabrication of Janus Fibers through Side-by-Side Electrospinning—A Mini Review. Mater. Highlights 2021, 2, 18. [Google Scholar] [CrossRef]
  139. Guarino, V.; Altobelli, R.; Cirillo, V.; Cummaro, A.; Ambrosio, L. Additive electrospraying: A route to process electrospun scaffolds for controlled molecular release. Polym. Adv. Technol. 2015, 26, 1359–1369. [Google Scholar] [CrossRef]
  140. Zhang, K.; Bai, X.; Yuan, Z.; Cao, X.; Jiao, X.; Li, Y. Layered nanofiber sponge with an improved capacity for promoting blood coagulation and wound healing. Biomaterials 2019, 204, 70–79. [Google Scholar] [CrossRef] [PubMed]
  141. Brown, S.; Santa, J.P.; Walker, S. Wall Teichoic Acids of Gram-Positive Bacteria. Annu. Rev. Microbiol. 2013, 67, 313–336. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  142. Sewell, E.W.C.; Brown, E.D. Taking aim at wall teichoic acid synthesis: New biology and new leads for antibiotics. Nature 2014, 67, 43–51. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  143. Mistretta, N.; Brossaud, M.; Telles, F.; Sanchez, V.; Talaga, P. Glycosylation of Staphylococcus aureus cell wall teichoic acid is influenced by environmental conditions. Nature 2019, 9, 3212. [Google Scholar] [CrossRef] [Green Version]
  144. Filimon, A.; Olaru, N.; Doroftei, F.; Coroaba, A.; Dunca, S. Processing of quaternized polysulfones solutions as tool in design of electrospun nanofibers: Microstructural characteristics and antimicrobial activity. J. Mol. Liq. 2021, 330, 115664. [Google Scholar] [CrossRef]
  145. Ahamed, M.I.; Sharma, G.; Khan, A.; Asiri, A.M. Turmeric/polyvinyl alcohol Th(IV) phosphate electrospun fibers: Synthesis, characterization and antimicrobial studies. J. Taiwan Inst. Chem. Eng. 2016, 68, 407–414. [Google Scholar] [CrossRef]
  146. Wang, H.; Gill, C.J.; Lee, S.H.; Mann, P.; Zuck, P.; Meredith, T.C. Discovery of wall teichoic acid inhibitors as potential anti-MRSA β-lactam combination agents. Chem. Biol. 2013, 20, 272–284. [Google Scholar] [CrossRef] [Green Version]
  147. Martínez-Camacho, A.P.; Cortez-Rocha, M.O.; Castillo-Ortega, M.M.; Burgos-Hernández, A.; Ezquerra-Brauer, J.M.; Plascencia-Jatomea, M. Antimicrobial activity of chitosan nanofibers obtained by electrospinning. Polym. Int. 2011, 60, 1663–1669. [Google Scholar] [CrossRef]
  148. Gupta, A.; Mumtaz, S.; Li, C.; Hussain, I.; Rotello, V. Combatting antibiotic-resistant bacteria using nanomaterials. Chem. Soc. Rev. 2019, 48, 415–427. [Google Scholar] [CrossRef] [PubMed]
  149. Abadi, S.S.M.; Mirzaei, E.; Bazargani, A.; Gholipour, A.; Heidari, H.; Hadi, N. Antibacterial activity and mechanism of action of chitosan nanofibers against toxigenic Clostridioides (Clostridium) difficile Isolates. Ann. Med. Prev. Comunita 2020, 32, 72–80. [Google Scholar]
  150. Hajipour, M.J.; Fromm, K.M.; Akbar, A.A.; de Aberasturi, D.J.; de Larramendi, I.R.; Rojo, T. Antibacterial properties of nanoparticles. Trends Biotechnol. 2012, 30, 499–511. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  151. Gupta, A.; Landis, R.F.; Rotello, V.M. Nanoparticle-Based Antimicrobials: Surface Functionality is Critical. F1000Research 2016, 5, 1–10. [Google Scholar] [CrossRef] [PubMed]
  152. Ivanova, E.P.; Hasan, J.; Webb, H.K.; Truong, V.K.; Watson, G.S.; Watson, J.A. Natural bactericidal surfaces: Mechanical rupture of pseudomonas aeruginosa cells by cicada wings. Small 2012, 8, 2489–2494. [Google Scholar] [CrossRef]
  153. Lin, N.; Berton, P.; Moraes, C.; Rogers, R.D.; Tufenkji, N. Nanodarts, nanoblades, and nanospikes: Mechano-bactericidal nanostructures and where to find them. Adv. Colloid Interface Sci. 2018, 252, 55–68. [Google Scholar] [CrossRef] [Green Version]
  154. Pogodin, S.; Hasan, J.; Baulin, V.A.; Webb, H.K.; Truong, V.K.; Nguyen, T.H.P.; Boshkovikj, V.; Fluke, C.J.; Watson, G.S.; Watson, J.A.; et al. Biophysical model of bacterial cell interactions with nanopatterned cicada wing surfaces. Biophys. J. 2013, 104, 835–840. [Google Scholar] [CrossRef] [Green Version]
  155. Liu, S.; Hu, M.; Zeng, T.H.; Wu, R.; Jiang, R.; Wei, J. Lateral dimension-dependent antibacterial activity of graphene oxide sheets. Langmuir 2012, 28, 12364–12372. [Google Scholar] [CrossRef]
  156. Sengupta, I.; Bhattacharya, P.; Talukdar, M.; Neogi, S.; Pal, S.K.; Chakraborty, S. Bactericidal effect of graphene oxide and reduced graphene oxide: Influence of shape of bacteria. Colloids Interface Sci. Commun. 2019, 28, 60–68. [Google Scholar] [CrossRef]
  157. Zhao, Y.; Tian, Y.; Cui, Y.; Liu, W.; Ma, W.; Jiang, X. Small molecule-capped gold nanoparticles as potent antibacterial agents that target gram-negative bacteria. J. Am. Chem. Soc. 2010, 132, 12349–12356. [Google Scholar] [CrossRef] [PubMed]
  158. Abrigo, M.; Kingshott, P.; Mcarthur, S.L. Bacterial response to different surface chemistries fabricated by plasma polymerization on electrospun nanofibers. Biointerphases 2015, 10, 301. [Google Scholar] [CrossRef] [PubMed]
  159. Damiati, L.; Eales, M.G.; Nobbs, A.H.; Su, B.; Tsimbouri, P.M.; Salmeron-Sanchez, M.; Dalby, M.J. Impact of surface topography and coating on osteogenesis and bacterial attachment on titanium implants. J. Tissue Eng. 2018, 9, 2041731418790694. [Google Scholar] [CrossRef] [PubMed]
  160. James, G.A.; Boegli, L.; Hancock, J.; Bowersock, L.; Parker, A.; Kinney, B.M. Bacterial Adhesion and Biofilm Formation on Textured Breast Implant Shell Materials. Aesthetic Plast. Surg. 2019, 43, 490–497. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  161. Hasan, N.; Cao, J.; Lee, J.; Hlaing, S.P.; Oshi, M.A.; Naeem, M. Bacteria-targeted clindamycin loaded polymeric nanoparticles: Effect of surface charge on nanoparticle adhesion to MRSA, antibacterial activity, and wound healing. Pharmaceutics 2019, 11, 256. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  162. Song, F.; Koo, H.; Ren, D. Effects of material properties on bacterial adhesion and biofilm formation. J. Dent. Res. 2015, 94, 1027–1034. [Google Scholar] [CrossRef] [PubMed]
  163. Hsu, L.C.; Fang, J.; Borca-Tasciuc, D.A.; Worobo, R.W.; Moraru, C.I. Effect of micro- and nanoscale topography on the adhesion of bacterial cells to solid surfaces. Appl. Environ. Microbiol. 2013, 79, 2703–2712. [Google Scholar] [CrossRef] [Green Version]
  164. Hanna, S.K.; Bustos, A.M.; Peterson, A.W.; Reipa, V.; Scanlan, D.; Coskun, S.H.; Cho, T.J.; Johnson, M.E.; Hackley, V.A.; Nelson, B.C.; et al. Agglomeration of Escherichia coli with positively charged nanoparticles can lead to artifacts in a standard Caenorhabditis elegans toxicity assay. Environ. Sci. Technol. 2018, 52, 5968–5978. [Google Scholar] [CrossRef] [PubMed]
  165. Rzhepishevska, O.; Hakobyan, S.; Ruhal, R.; Gautrot, J.; Barbero, D.; Ramstedt, M. The surface charge of anti-bacterial coatings alters motility and biofilm architecture. Biomater. Sci. 2013, 1, 589–602. [Google Scholar] [CrossRef] [Green Version]
  166. Terada, A.; Okuyama, K.; Nishikawa, M.; Tsuneda, S.; Hosomi, M. The effect of surface charge property on Escherichia coli initial adhesion and subsequent biofilm formation. Biotechnol. Bioeng. 2012, 109, 1745–1754. [Google Scholar] [CrossRef]
  167. Palermo, E.F.; Kuroda, K. Structural determinants of antimicrobial activity in polymers which mimic host defense peptides. Appl. Microbiol. Biotechnol. 2010, 87, 1605–1615. [Google Scholar] [CrossRef]
  168. Zhou, X.; Zhang, X.; Zhou, J.; Li, L. An investigation of chitosan and its derivatives on red blood cell 982 agglutination. RSC Adv. 2017, 7, 12247. [Google Scholar] [CrossRef] [Green Version]
  169. Lüdecke, C.; Roth, M.; Yu, W.; Horn, U.; Bossert, J.; Jandt, K.D. Nanorough titanium surfaces reduce adhesion of Escherichia coli and Staphylococcus aureus via nano adhesion points. Colloids Surfaces B Biointerfaces 2016, 145, 617–625. [Google Scholar] [CrossRef] [PubMed]
  170. Mukherjee, I.; Ghosh, A.; Bhadury, P.; De, P. Side-Chain Amino Acid-Based Cationic Antibacterial Polymers: Investigating the Morphological Switching of a Polymer-Treated Bacterial Cell. ACS Omega 2017, 2, 1633–1644. [Google Scholar] [CrossRef] [PubMed]
  171. Sarker, A.; Tran, N.; Rifai, A.; Brandt, M.; Tran, P.A.; Leary, M. Rational design of additively manufactured Ti6Al4V implants to control Staphylococcus aureus biofilm formation. Materialia 2019, 5, 100250. [Google Scholar] [CrossRef]
  172. Yusuf, Y.; Ghazali, M.J.; Otsuka, Y.; Ohnuma, K.; Morakul, S.; Nakamura, S. Antibacterial properties of laser surface-textured TiO2/ZnO ceramic coatings. Ceram. Int. 2020, 46, 3949–3959. [Google Scholar] [CrossRef]
  173. Zhou, C.; Wang, Y. Structure-Activity Relationship of Cationic Surfactants as Antimicrobial Agents. Curr. Opin. Colloid Interface Sci. 2019, 45, 28–43. [Google Scholar] [CrossRef]
  174. Liu, S.; Fukushima, K.; Venkataraman, S. Supramolecular nanofibers self-assembled from cationic small molecules derived from repurposed poly (ethylene teraphthalate) for antibiotic delivery. Nanomed. Nanotechnol. Biol. Med. 2018, 14, 165–172. [Google Scholar] [CrossRef] [PubMed]
  175. Nitanan, T.; Akkaramongkolporn, P.; Ngawhirunpat, T.; Opanasopit, P. Fabrication of Cationic Exchange Polystyrene Nanofibers for Drug Delivery. Trop. J. Pharm. Res. 2014, 13, 191–197. [Google Scholar] [CrossRef] [Green Version]
  176. Naskar, A.; Kim, K.S. Nanomaterials as delivery vehicles and components of new strategies to combat bacterial infections: Advantages and limitations. Microorganisms 2019, 7, 356. [Google Scholar] [CrossRef] [Green Version]
  177. Slavin, Y.N.; Asnis, J.; Häfeli, U.O.; Bach, H. Metal nanoparticles: Understanding the mechanisms behind antibacterial activity. J. Nanobiotechnol. 2017, 15, 65. [Google Scholar] [CrossRef]
  178. Vallet-Regí, M.; González, B.; Izquierdo-Barba, I. Nanomaterials as promising alternative in the infection treatment. Int. J. Mol. Sci. 2019, 20, 3806. [Google Scholar] [CrossRef] [Green Version]
  179. Khezerlou, A.; Alizadeh-Sani, M.; Azizi-Lalabadi, M.; Ehsani, A. Nanoparticles and their antimicrobial properties against pathogens including bacteria, fungi, parasites and viruses. Microb. Pathog. 2018, 123, 505–526. [Google Scholar] [CrossRef] [PubMed]
  180. Miller, K.P.; Wang, L.; Benicewicz, B.C.; Decho, A.W. Inorganic nanoparticles engineered to attack bacteria. Chem. Soc. Rev. 2015, 44, 7787–7807. [Google Scholar] [CrossRef] [PubMed]
  181. Sirelkhatim, A.; Mahmud, S.; Seeni, A.; Kaus, N.H.M.; Ann, L.C.; Bakhori, S.K.M. Review on zinc oxide nanoparticles: Antibacterial activity and toxicity mechanism. Nano-Micro Lett. 2015, 7, 219–242. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  182. Celebioglu, A.; Topuz, F.; Yildiz, Z.I.; Uyar, T. One-step green synthesis of antibacterial silver nanoparticles embedded in electrospun cyclodextrin nanofibers. Carbohydr. Polym. 2019, 207, 471–479. [Google Scholar] [CrossRef] [Green Version]
  183. Jatoi, A.W.; Kim, I.S.; Ni, Q.Q. Cellulose acetate nanofibers embedded with AgNPs anchored TiO2 nanoparticles for long term excellent antibacterial applications. Carbohydr. Polym. 2019, 207, 640–649. [Google Scholar] [CrossRef] [PubMed]
  184. Phan, D.N.; Rebia, R.A.; Saito, Y.; Kharaghani, D.; Khatri, M.; Tanaka, T. Zinc oxide nanoparticles attached to polyacrylonitrile nanofibers with hinokitiol as gluing agent for synergistic antibacterial activities and effective dye removal. J. Ind. Eng. Chem. 2020, 85, 258–268. [Google Scholar] [CrossRef]
  185. Sekar, A.D.; Kumar, V.; Muthukumar, H.; Gopinath, P.; Matheswaran, M. Electrospinning of Fe-doped ZnO nanoparticles incorporated polyvinyl alcohol nanofibers for its antibacterial treatment and cytotoxic studies. Eur. Polym. J. 2019, 118, 27–35. [Google Scholar] [CrossRef]
  186. Tsai, Y.H.; Yang, Y.N.; Ho, Y.C.; Tsai, M.L.; Mi, F.L. Drug release and antioxidant/antibacterial activities of silymarin-zein nanoparticle/bacterial cellulose nanofiber composite films. Carbohydr. Polym. 2018, 180, 286–296. [Google Scholar] [CrossRef] [PubMed]
  187. Yang, J.; Wang, K.; Yu, D.G.; Yang, Y.; Bligh, S.W.A.; Williams, G.R. Electrospun Janus nanofibers loaded with a drug and inorganic nanoparticles as an effective antibacterial wound dressing. Mater. Sci. Eng. C 2020, 111, 110805. [Google Scholar] [CrossRef]
  188. Godoy-Gallardo, M.; Eckhard, U.; Delgado, L.M.; de Roo Puente, Y.J.; Hoyos-Nogués, M.; Gil, F.J. Antibacterial approaches in tissue engineering using metal ions and nanoparticles: From mechanisms to applications. Bioact. Mater. 2021, 6, 4470–4490. [Google Scholar] [CrossRef]
  189. Alipour, R.; Khorshidi, A.; Shojaei, A.F.; Mashayekhi, F.; Moghaddam, M.J.M. Skin wound healing acceleration by Ag nanoparticles embedded in PVA/PVP/Pectin/Mafenide acetate composite nanofibers. Polym. Test. 2019, 79, 106022. [Google Scholar] [CrossRef]
  190. Celebi, H.; Gurbuz, M.; Koparal, S.; Dogan, A. Development of antibacterial electrospun chitosan/poly (vinyl alcohol) nanofibers containing silver ion-incorporated HAP nanoparticles. Compos. Interfaces 2013, 20, 799–812. [Google Scholar] [CrossRef]
  191. Moon, J.Y.; Lee, J.; Hwang, T.I.; Park, C.H.; Kim, C.S. A multifunctional, one-step gas foaming strategy for antimicrobial silver nanoparticle-decorated 3D cellulose nanofiber scaffolds. Carbohydr. Polym. 2021, 273, 118603. [Google Scholar] [CrossRef] [PubMed]
  192. Li, C.W.; Fu, R.Q.; Yu, C.P.; Li, Z.H.; Guan, H.Y.; Hu, D.Q. Silver nanoparticle/chitosan oligosaccharide/poly(vinyl alcohol) nanofibers as wound dressings: A preclinical study. Int. J. Nanomed. 2013, 8, 4131–4145. [Google Scholar]
  193. Nairn, B.L.; Lonergan, Z.R.; Wang, J.; Braymer, J.J.; Zhang, Y.; Calcutt, M.W. The Response of Acinetobacter baumannii to Zinc Starvation. Cell Host Microbe 2016, 19, 826–836. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  194. Ahmed, R.; Tariq, M.; Ali, I.; Asghar, R.; Khanam, P.N.; Augustine, R. Novel electrospun chitosan/polyvinyl alcohol/zinc oxide nanofibrous mats with antibacterial and antioxidant properties for diabetic wound healing. Int. J. Biol. Macromol. 2018, 120, 385–393. [Google Scholar] [CrossRef]
  195. Vincent, M.; Duval, R.E.; Hartemann, P.; Engels-Deutsch, M. Contact killing and antimicrobial properties of copper. J. Appl. Microbiol. 2018, 124, 1032–1046. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  196. Azam, A.; Ahmed, A.S.; Oves, M.; Khan, M.S.; Habib, S.S.; Memic, A. Antimicrobial activity of metal oxide nanoparticles against Gram-positive and Gram-negative bacteria: A comparative study. Int. J. Nanomed. 2012, 7, 6003–6009. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  197. Chen, J.; Peng, H.; Wang, X.; Shao, F.; Yuan, Z.; Han, H. Graphene oxide exhibits broad-spectrum antimicrobial activity against bacterial phytopathogens and fungal conidia by intertwining and membrane perturbation. Nanoscale 2014, 6, 1879–1889. [Google Scholar] [CrossRef] [PubMed]
  198. De Faria, A.F.; Shaulsky, E.; Chavez, L.H.A.; Elimelech, M. Antimicrobial Electrospun Biopolymer Nanofiber Mats Functionalized with Graphene Oxide—Silver Nanocomposites. ACS Appl. Mater. Interfaces 2015, 7, 12751–12759. [Google Scholar] [CrossRef] [PubMed]
  199. Hui, L.; Piao, J.G.; Auletta, J.; Hu, K.; Zhu, Y.; Meyer, T.; Yang, L. Availability of the basal planes of graphene oxide determines whether it is antibacterial. ACS Appl. Mater. Interfaces 2014, 6, 13183–13190. [Google Scholar] [CrossRef] [PubMed]
  200. Liu, S.; Zeng, T.H.; Hofmann, M.; Burcombe, E.; Wei, J.; Jiang, R.; Chen, Y. Antibacterial activity of graphite, graphite oxide, graphene oxide, and reduced graphene oxide: Membrane and oxidative stress. ACS Nano 2011, 5, 6971–6980. [Google Scholar] [CrossRef]
  201. Lu, C.J.; Jiang, X.F.; Junaid, M.; Ma, Y.B.; Jia, P.P.; Wang, H.B.; Pei, D.S. Graphene oxide nanosheets induce DNA damage and activate the base excision repair (BER) signaling pathway both in vitro and in vivo. Chemosphere 2017, 184, 795–805. [Google Scholar] [CrossRef] [PubMed]
  202. Perreault, F.; De Faria, A.F.; Nejati, S.; Elimelech, M. Antimicrobial Properties of Graphene Oxide Nanosheets: Why Size Matters. ACS Nano 2015, 9, 7226–7236. [Google Scholar] [CrossRef] [PubMed]
  203. Pasquini, L.M.; Sekol, R.C.; Taylor, A.D.; Pfefferle, L.D.; Zimmerman, J.B. Realizing comparable oxidative and cytotoxic potential of single- and multiwalled carbon nanotubes through annealing. Environ. Sci. Technol. 2013, 47, 8775–8783. [Google Scholar] [CrossRef] [PubMed]
  204. Gurunathan, S.; Iqbal, M.A.; Qasim, M.; Park, C.H.; Yoo, H.; Hwang, J.H.; Uhm, S.J.; Song, H.; Park, C.; Do, J.T.; et al. Evaluation of graphene oxide induced cellular toxicity and transcriptome analysis in human embryonic kidney cells. Nanomaterials 2019, 9, 969. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  205. Nie, X.; Jiang, C.; Wu, S.; Chen, W.; Lv, P.; Wang, Q.; Liu, J.; Narh, C.; Cao, X.; Ghiladi, R.A.; et al. Carbon quantum dots: A bright future as photosensitizers for in vitro antibacterial photodynamic inactivation. J. Photochem. Photobiol. B Biol. 2020, 206, 111864. [Google Scholar] [CrossRef] [PubMed]
  206. Kanagasubbulakshmi, S.; Lakshmi, K.; Kadirvelu, K. Carbon quantum dots-embedded electrospun antimicrobial and fluorescent scaffold for reepithelialization in albino wistar rats. J. Biomed. Mater. Res.-Part A 2021, 109, 637–648. [Google Scholar] [CrossRef] [PubMed]
  207. Dizaj, S.M.; Mennati, A.; Jafari, S.; Khezri, K.; Adibkia, K. Antimicrobial activity of carbon-based nanoparticles. Adv. Pharm. Bull. 2015, 5, 19–23. [Google Scholar]
  208. Virovska, D.; Paneva, D.; Manolova, N.; Rashkov, I.; Karashanova, D. Photocatalytic self-cleaning poly(l-lactide) materials based on a hybrid between nanosized zinc oxide and expanded graphite or fullerene. Mater. Sci. Eng. C 2016, 60, 184–194. [Google Scholar] [CrossRef] [PubMed]
  209. Mahlapuu, M.; Hakansson, J.; Ringstad, L.; Bjorn, C. Antimicrobial peptides: An emerging category of therapeutic agents. Front. Cell Infect. Microbiol. 2016, 6, 194. [Google Scholar] [CrossRef] [Green Version]
  210. Andersson, D.I.; Hughes, D.; Kubicek-Sutherland, J.Z. Mechanisms and consequences of bacterial resistance to antimicrobial peptides. Drug Resist. Updat. 2016, 26, 43–57. [Google Scholar] [CrossRef]
  211. Eriksen, T.H.B.; Skovsen, E.; Fojan, P. Release of antimicrobial peptides from electrospun nanofibres as a drug delivery system. J. Biomed. Nanotechnol. 2013, 9, 492–498. [Google Scholar] [CrossRef]
  212. Seo, M.D.; Won, H.S.; Kim, J.H.; Mishig-Ochir, T.; Lee, B.J. Antimicrobial peptides for therapeutic applications: A review. Molecules 2012, 17, 12276–12286. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  213. Kang, S.J.; Park, S.J.; Mishig-Ochir, T.; Lee, B.J. Antimicrobial peptides: Therapeutic potentials. Expert Rev. Anti-Infect. Ther. 2014, 12, 1477–1486. [Google Scholar] [CrossRef] [PubMed]
  214. Yang, C.; Xue, R.; Zhang, Q.; Yang, S.; Liu, P.; Chen, L.; Wang, K.; Zhang, X.; Wei, Y. Nanoclay cross-linked semi-IPN silk sericin/poly(NIPAm/LMSH) nanocomposite hydrogel: An outstanding antibacterial wound dressing. Mater. Sci. Eng. C 2017, 81, 303–313. [Google Scholar] [CrossRef] [PubMed]
  215. Song, D.W.; Kim, S.H.; Kim, H.H.; Lee, K.H.; Ki, C.S.; Park, Y.H. Multi-biofunction of antimicrobial peptide-immobilized silk fibroin nanofiber membrane: Implications for wound healing. Acta Biomater. 2016, 39, 146–155. [Google Scholar] [CrossRef]
  216. Amariei, G.; Kokol, V.; Boltes, K.; Letón, P.; Rosal, R. Incorporation of antimicrobial peptides on electrospun nanofibres for biomedical applications. RSC Adv. 2018, 8, 28013–28023. [Google Scholar] [CrossRef] [Green Version]
  217. Gonelimali, F.D.; Lin, J.; Miao, W.; Xuan, J.; Charles, F.; Chen, M.; Wang, K.; Zhang, X.; Wei, Y. Antimicrobial properties and mechanism of action of some plant extracts against food pathogens and spoilage microorganisms. Front Microbiol. 2018, 9, 303–313. [Google Scholar] [CrossRef] [PubMed]
  218. Vanhauteghem, D.; Janssens, G.P.J.; Lauwaerts, A.; Sys, S.; Boyen, F.; Cox, E.; Meyer, E. Exposure to the Proton Scavenger Glycine under Alkaline Conditions Induces Escherichia coli Viability Loss. PLoS ONE 2013, 8, e60328. [Google Scholar] [CrossRef] [Green Version]
  219. Benarroch, J.M.; Asally, M. The Microbiologist’s Guide to Membrane Potential Dynamics. Trends Microbiol. 2020, 28, 304–314. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  220. Chen, S.; Ge, L.; Gombart, A.F.; Shuler, F.D.; Carlson, M.A.; Reilly, D.A.; Xie, J. Nanofiber-based sutures induce endogenous antimicrobial peptide. Nanomedicine 2017, 12, 2597–2609. [Google Scholar] [CrossRef]
  221. Garcia-Orue, I.; Gainza, G.; Gutierrez, F.B.; Aguirre, J.J.; Evora, C.; Pedraz, J.L.; Hernandez, R.M.; Delgado, A.; Igartua, M. Novel nanofibrous dressings containing rhEGF and Aloe vera for wound healing applications. Int. J. Pharm. 2017, 523, 556–566. [Google Scholar] [CrossRef]
  222. Miguel, S.P.; Ribeiro, M.P.; Coutinho, P.; Correia, I.J. Electrospun polycaprolactone/Aloe Vera_chitosan nanofibrous asymmetric membranes aimed for wound healing applications. Polymers 2017, 9, 183. [Google Scholar] [CrossRef] [PubMed]
  223. Fayemi, O.E.; Ekennia, A.C.; Katata-Seru, L.; Ebokaiwe, A.P.; Ijomone, O.M.; Onwudiwe, D.C.; Ebenso, E.E. Antimicrobial and Wound Healing Properties of Polyacrylonitrile-Moringa Extract Nanofibers. ACS Omega 2018, 3, 4791–4797. [Google Scholar] [CrossRef]
  224. Kegere, J.; Ouf, A.; Siam, R.; Mamdouh, W. Fabrication of Poly (vinyl alcohol)/Chitosan/Bidens pilosa Composite Electrospun Nanofibers with Enhanced Antibacterial Activities. ACS Omega 2019, 4, 8778–8785. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  225. Cui, C.; Sun, S.; Wu, S.; Chen, S.; Ma, J.; Zhou, F. Electrospun chitosan nanofibers for wound healing application. Eng. Regen. 2021, 2, 82–90. [Google Scholar]
  226. Venkateswaran, S.; Wu, M.; Gwynne, P.J.; Hardman, A.; Lilienkampf, A.; Pernagallo, S.; Blakely, G.; Swann, D.G.; Gallagher, M.P.; Bradley, M. Bacteria repelling poly(methylmethacrylate-codimethylacrylamide) coatings for biomedical devices. J. Mater. Chem. B Mater. Biol. Med. 2014, 2, 6723–6729. [Google Scholar] [CrossRef] [Green Version]
  227. Lukowiak, M.C.; Wettmarshausen, S.; Hidde, G.; Landsberger, P.; Boenke, V.; Rodenacker, K.; Braun, U.; Friedrich, J.F.; Gorbushina, A.A.; Haag, R. Polyglycerol coated polypropylene surfaces for protein and bacteria resistance. Polym. Chem. 2014, 6, 1350–1359. [Google Scholar] [CrossRef] [Green Version]
  228. Ghosh, S.; Chakraborty, P.; Saha, P.; Acharya, S.; Ray, M. Polymer based nanoformulation of methylglyoxal as an antimicrobial agent: Efficacy against resistant. RSC Adv. 2014, 4, 23251–23261. [Google Scholar] [CrossRef]
  229. Permyakova, E.S.; Kiryukhantsev-Korneev, P.V.; Gudz, K.Y.; Zhitnyak, I.Y.; Gloushankova, N.A. Comparison of Different Approaches to Surface Functionalization of Biodegradable Polycaprolactone Scaffolds. Nanomaterials 2019, 9, 1769. [Google Scholar] [CrossRef] [Green Version]
  230. Miguel, S.P.; Figueira, D.R.; Simoes, D.; Ribeiro, M.P.; Coutinho, P.; Ferreira, P.; Correia, I.J. Electrospun polymeric nanofibres as wound dressings: A review. Colloids Surfaces B Biointerfaces 2018, 169, 60–71. [Google Scholar] [CrossRef] [PubMed]
  231. Patel, S.; Konar, M.; Sahoo, H.; Hota, G. Surface functionalization of electrospun PAN nanofibers with ZnO-Ag heterostructure nanoparticles: Synthesis and antibacterial study. Nanotechnology 2021, 30, 205704. [Google Scholar] [CrossRef] [PubMed]
  232. Semnani, D.; Naghashzargar, E.; Hadjianfar, M.; Dehghan Manshadi, F.; Mohammadi, S.; Karbasi, S.; Effaty, F. Evaluation of PCL/chitosan electrospun nanofibers for liver tissue engineering. Int. J. Polym. Mater. Polym. Biomater. 2017, 66, 149–157. [Google Scholar] [CrossRef]
  233. Guida, P.; Piscitelli, E.; Marrese, M.; Martino, V.; Cirillo, V.; Guarino, V.; Angeli, E.; Cocola, C.; Pelucchiet, C.; Repetto, L.; et al. Integrating Microstructured Electrospun Scaffolds in an Open Microfluidic System for in Vitro Studies of Human Patient-Derived Primary Cells. ACS Biomater. Sci. Eng. 2020, 6, 3649–3663. [Google Scholar] [CrossRef] [PubMed]
  234. Sadeghi, A.R.; Nokhasteh, S.; Molavi, A.M.; Khorsand-Ghayeni, M.; Naderi-Meshkin, H.; Mahdizadeh, A. Surface modification of electrospun PLGA scaffold with collagen for bioengineered skin substitutes. Mater. Sci. Eng. C 2016, 66, 130–137. [Google Scholar] [CrossRef]
  235. Nandakumar, A.; Tahmasebi, B.Z.; Santos, D.; Mentink, A.; Auffermann, N.; van Der Werf, K.; Bennink, M.; Moroni, L.; van Blitterswijk, C.; Habibovic, P. Surface modification of electrospun fibre meshes by oxygen plasma for bone regeneration. Biofabrication 2013, 5, 015006. [Google Scholar] [CrossRef] [PubMed]
  236. Sanni, O.; Chang, C.; Anderson, D.G.; Langer, R.; Davies, M.C.; Williams, P.M.; Williams, P.; Alexander, M.R.; Hook, A.L. Bacterial Attachment to Polymeric Materials Correlates with Molecular Flexibility and Hydrophilicity. Adv. Healthcare Mater. 2014, 4, 695–701. [Google Scholar] [CrossRef]
  237. Hook, A.L.; Chang, C.; Yang, J.; Luckett, J.; Cockayne, A.; Atkinson, S.; Mei, Y.; Bayston, R.; Irvine, D.J.; Langer, L.; et al. Combinatorial discovery of polymers resistant to bacterial attachment. Nat. Biotechnol. 2012, 30, 867–874. [Google Scholar] [CrossRef]
  238. Guarino, V.; Wan Abdul Khodir, W.K.; Ambrosio, L. Biodegradable microparticles and nanoparticles by electrospraying techniques. J. Appl. Biomater. Funct. Mater. 2012, 10, 191–196. [Google Scholar] [CrossRef]
  239. Lendlein, A.; Pandit, A. Additive electrospraying: A route to process electrospun scaffolds for controlled molecular. Polym. Adv. Technol. 2015, 26, 1359–1369. [Google Scholar]

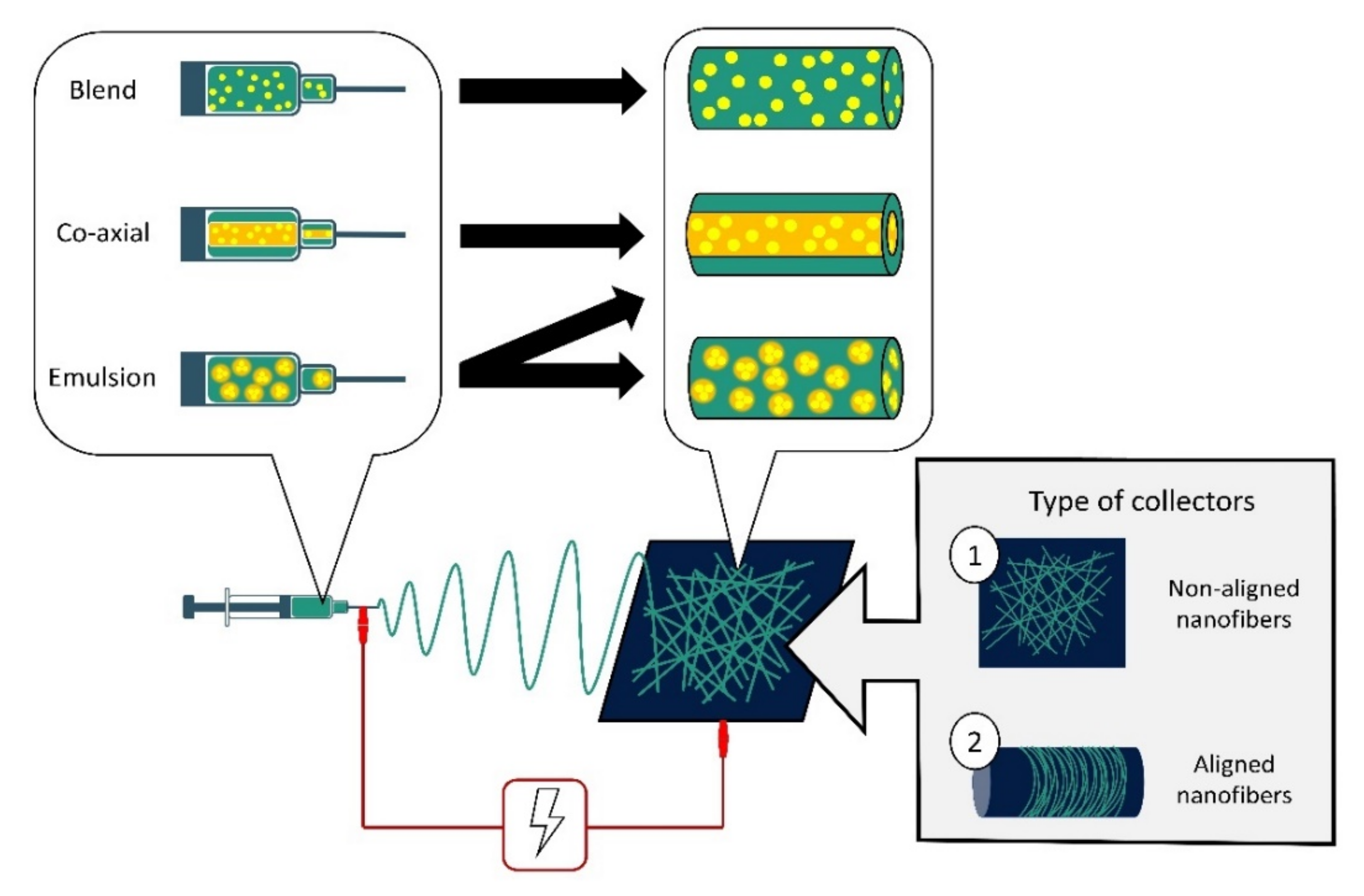

Figure 1. Schematic diagram of an electrospinning setup and variations of electrospinning techniques. Therapeutic agents can be incorporated in nanofibers via blend, co-axial and emulsion electrospinning. Blend solution electrospinning results in the therapeutic agents being well distributed in the nanofibers. Co-axial electrospinning allows the therapeutic agents to be timely delivered from core-shell nanofibers. Emulsion electrospinning may form two types of nanofibers—either the emulsion (consisting of the therapeutic agents) coalesces to form a core similar to the fibers expected of the co-axial electrospinning technique, or the emulsion will disperse varyingly in the nanofibers. Two types of collectors are mainly used in electrospinning: (1) flat plate collectors fabricating non-aligned nanofibers and (2) rotating drum collectors fabricating aligned nanofibers.
Figure 1. Schematic diagram of an electrospinning setup and variations of electrospinning techniques. Therapeutic agents can be incorporated in nanofibers via blend, co-axial and emulsion electrospinning. Blend solution electrospinning results in the therapeutic agents being well distributed in the nanofibers. Co-axial electrospinning allows the therapeutic agents to be timely delivered from core-shell nanofibers. Emulsion electrospinning may form two types of nanofibers—either the emulsion (consisting of the therapeutic agents) coalesces to form a core similar to the fibers expected of the co-axial electrospinning technique, or the emulsion will disperse varyingly in the nanofibers. Two types of collectors are mainly used in electrospinning: (1) flat plate collectors fabricating non-aligned nanofibers and (2) rotating drum collectors fabricating aligned nanofibers.
Jfb 12 00059 g001

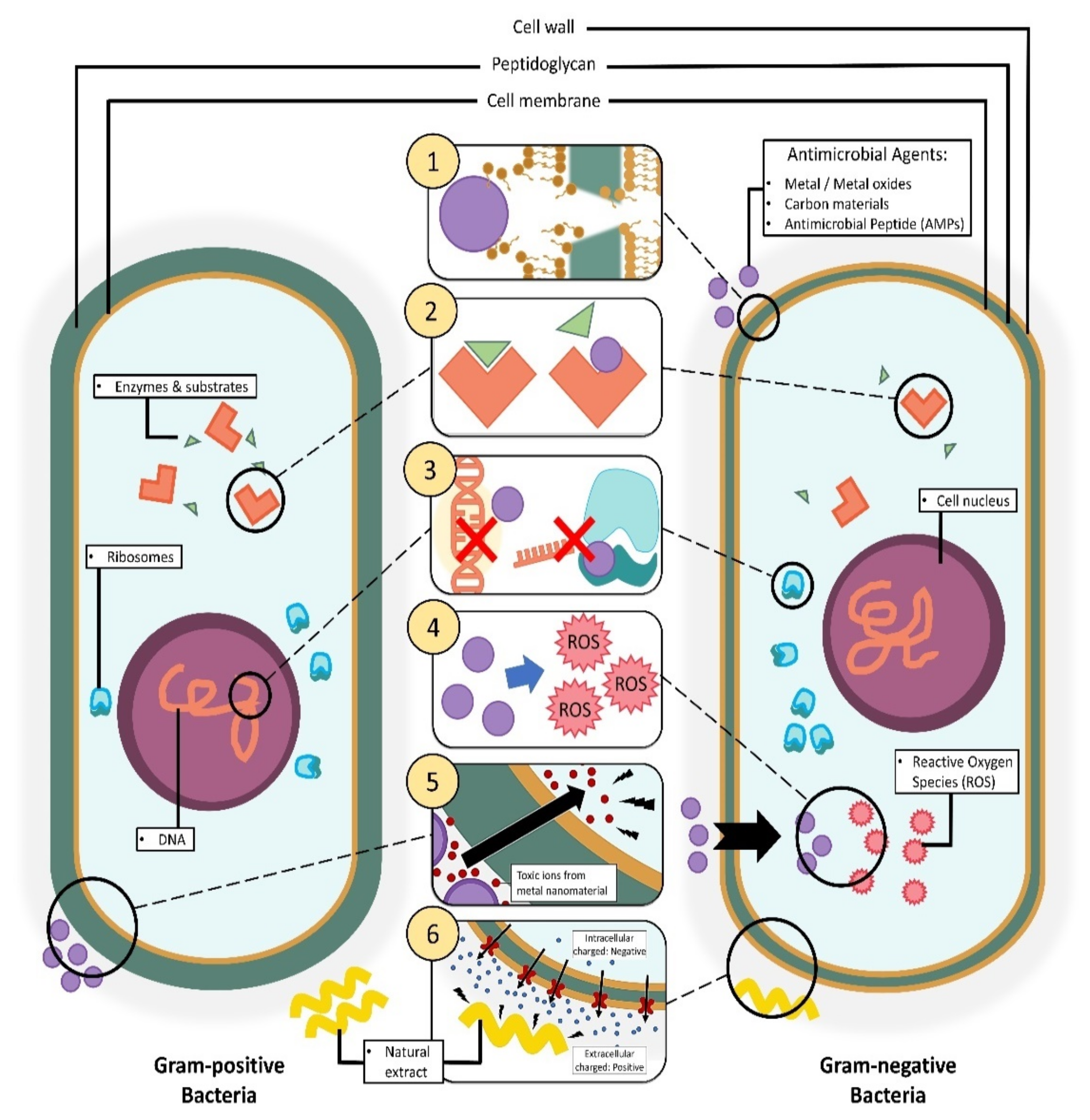

Figure 2. Illustration of different mechanisms of action by antimicrobial agents incorporated in nanofibers on bacteria cells via: (1) disruption of the cell membrane/cell wall. (2) Inhibition of cellular metabolic pathways. (3) Inhibition of DNA and gene expression. (4) Instigation of cellular oxidative stress. (5) Metal-based nanomaterial toxification. (6) Cellular hyperpolarization.
Figure 2. Illustration of different mechanisms of action by antimicrobial agents incorporated in nanofibers on bacteria cells via: (1) disruption of the cell membrane/cell wall. (2) Inhibition of cellular metabolic pathways. (3) Inhibition of DNA and gene expression. (4) Instigation of cellular oxidative stress. (5) Metal-based nanomaterial toxification. (6) Cellular hyperpolarization.
Jfb 12 00059 g002

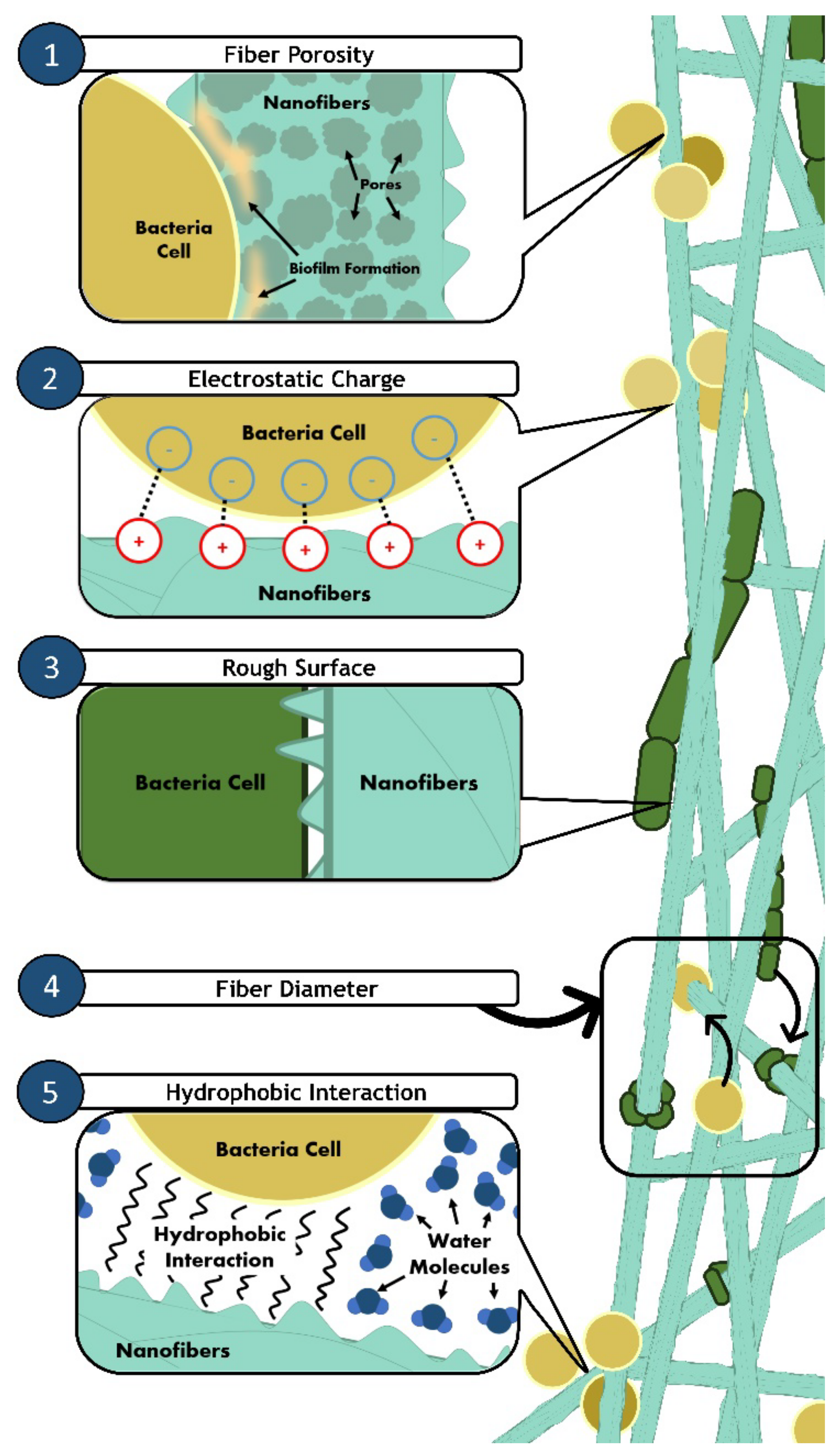

Figure 3. Illustration of bacterial adhesion on nanofibers. Various properties of nanofibers can induce and enhance bacterial attachment. (1) Fiber porosity (nano-sized) allows early biofilm formation, causing bacteria cells to attach easily onto highly porous nanofibers. (2) Nanofibers with a positive surface charge will also attract the negatively charged surface of bacterial cells. (3) Rough surfaces of nanofibers also provide more area of contact for bacteria cells to attach. (4) Thin fiber diameters (smaller than bacteria size) also allow changes in bacterial cells’ conformation. The surface wettability of nanofibers plays a significant role in bacterial adhesion. (5) Hydrophobic bacterial cells will adhere to the surface of hydrophobic nanofibers due to hydrophobic interactions.
Figure 3. Illustration of bacterial adhesion on nanofibers. Various properties of nanofibers can induce and enhance bacterial attachment. (1) Fiber porosity (nano-sized) allows early biofilm formation, causing bacteria cells to attach easily onto highly porous nanofibers. (2) Nanofibers with a positive surface charge will also attract the negatively charged surface of bacterial cells. (3) Rough surfaces of nanofibers also provide more area of contact for bacteria cells to attach. (4) Thin fiber diameters (smaller than bacteria size) also allow changes in bacterial cells’ conformation. The surface wettability of nanofibers plays a significant role in bacterial adhesion. (5) Hydrophobic bacterial cells will adhere to the surface of hydrophobic nanofibers due to hydrophobic interactions.
Jfb 12 00059 g003

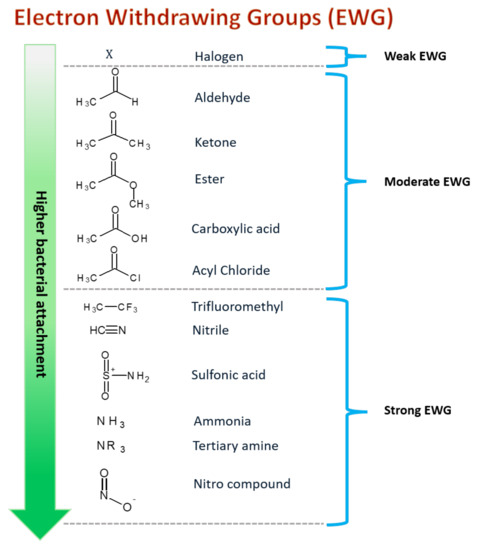

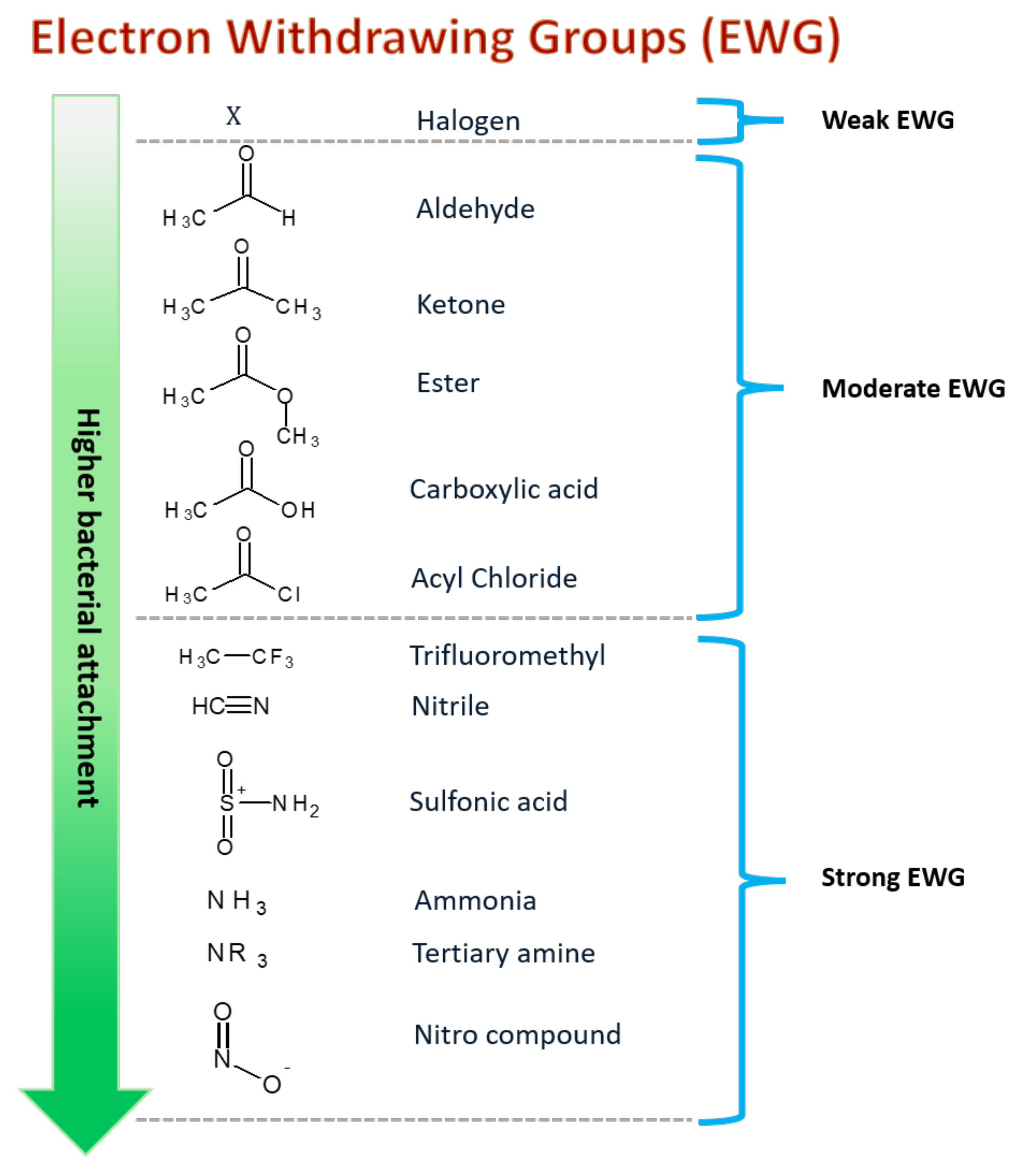

Figure 4. Electron withdrawing group and functional moieties can be functionalized on nanofiber surfaces to improve bacterial adhesion and attachment. The stronger EWGs exhibit higher bacterial attachments.
Figure 4. Electron withdrawing group and functional moieties can be functionalized on nanofiber surfaces to improve bacterial adhesion and attachment. The stronger EWGs exhibit higher bacterial attachments.
Jfb 12 00059 g004
Table 1. Key properties of nanofiber scaffolds for antimicrobial applications.
Table 1. Key properties of nanofiber scaffolds for antimicrobial applications.
Nano sizeNanofibers, ranging between 100–1000 nm, are similar to bacteria size, thus can enhance bacterial attachment and inhibition. [62,63,64,65,66]
Surface area to volumeNanofibers with smaller diameters provide a higher surface area-to-volume ratio for efficient encapsulation of antimicrobial therapeutic agents. [67,68,69,70]
High porosityHigh porosity allows higher loading of drug or antimicrobial agents into the nanofibers, enhances the surface area, and increases bacteria attachment on the surface of nanofibers.[71,72,73]
Interconnected poresPromote oxygen and nutrient exchange, provide structural stability, enhance cell proliferation and ensure sustained release of antimicrobial agents.[72,74,75,76]
Table 2. Electrospun polymer nanofibers loaded antimicrobial agents for effective antimicrobial therapy.
Table 2. Electrospun polymer nanofibers loaded antimicrobial agents for effective antimicrobial therapy.
PolymersTherapeutic AgentFindingsReferences
PVA/Pea proteinCinnamaldehyde Inhibition of E. coli and S. aureus increased as the concentration of cinnamaldehyde was increased from 0.5 to 1.5 wt%. [100]
Cellulose acetate
Alkanin and shikoninHigher drug loaded into the scaffolds (1–5 wt%) inhibited the growth of S. aureus and Staphylococcus epidermidis and accelerated wound closure.[28]
PCL/PVA/Pectin Chelidonium majus L.The extract was sustained released (65.7%) for up to 30 days and inhibited the growth of S. aureus and Pseudomonas aeruginosa.[101]
Chitosan/PEOAntimicrobial peptides (AMP)The addition of AMP into the nanofibers enhanced their antimicrobial activity against E. coli and S. aureus.[102]
PVA/CollagenGentamicinThe release of antibiotic gentamicin can be controlled for up to 72 h.[103]
PCL/GelatinGraphene oxide, tetracycline hydroxideNanofibers demonstrated high antimicrobial activity (99%) against S. aureus and E. coli[64]
Silk FibroinGraphene oxideIncorporation of graphene oxide reduced the survival rate of E. coli and S. aureus by 48%. [29]
PCL/Zein ProteinTetracycline hydrochlorideTetracycline was sustained release up to 20 days and the nanofibers inhibited the growth of S. aureus and methicillin-resistant Staphylococcus aureus (MRSA)[104]
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Hamdan, N.; Yamin, A.; Hamid, S.A.; Khodir, W.K.W.A.; Guarino, V. Functionalized Antimicrobial Nanofibers: Design Criteria and Recent Advances. J. Funct. Biomater. 2021, 12, 59.

AMA Style

Hamdan N, Yamin A, Hamid SA, Khodir WKWA, Guarino V. Functionalized Antimicrobial Nanofibers: Design Criteria and Recent Advances. Journal of Functional Biomaterials. 2021; 12(4):59.

Chicago/Turabian Style

Hamdan, Nazirah, Alisa Yamin, Shafida Abd Hamid, Wan Khartini Wan Abdul Khodir, and Vincenzo Guarino. 2021. "Functionalized Antimicrobial Nanofibers: Design Criteria and Recent Advances" Journal of Functional Biomaterials 12, no. 4: 59.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
