A Jigsaw Puzzle SolverBased Attack on Image Encryption Using Vision Transformer for PrivacyPreserving DNNs
Abstract
:1. Introduction
2. Preparation

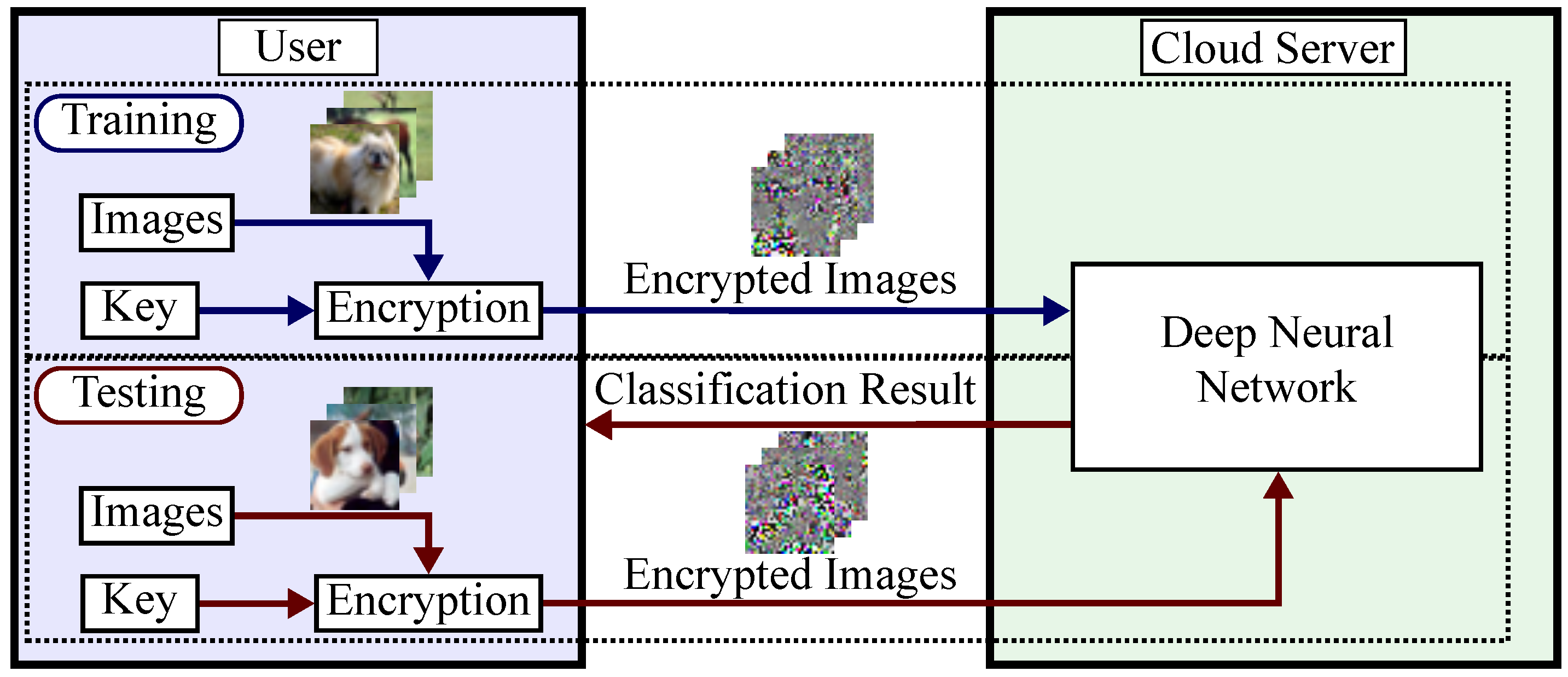

2.1. PrivacyPreserving DNNs
2.2. Image Encryption for PrivacyPreserving DNNs
 Divide the RGB color image I into blocks of $M\times M$ pixels.
 Separate each pixel into upper and lower 4 bit pixel values to form sixchannel blocks.
 Reverse the intensities of the pixel values in each block randomly by a secret key.
 Shuffle the pixel values in each block randomly by a secret key.
 Combine six channels in each block into three channel to generate an encrypted image.
 Divide RGB color image I into blocks of $M\times M$ pixels.
 Permute randomly the divided blocks by using a secret key.
 The same procedure of LE is applied to the permuted blocks to generate an encrypted image.
 Divide RGB color image I into $X\times Y$ pixels.
 Apply negative–positive transformations to each pixel of the three color channels randomly by using a secret key. In this scheme, the secret key is independently used for all color components. In this step, a pixel q is transformed to ${q}^{\prime}$ by$${q}^{\prime}=\left(\right)open="\{"\; close>\begin{array}{cc}q\hfill & \left(r\right(i)=0)\hfill \\ q\oplus ({2}^{8}1)\hfill & \left(r\right(i)=1)\hfill \end{array},$$
 Shuffle three color components of each pixel by using a secret key.
 Combine $X\times Y$ pixels to generate an encrypted image.

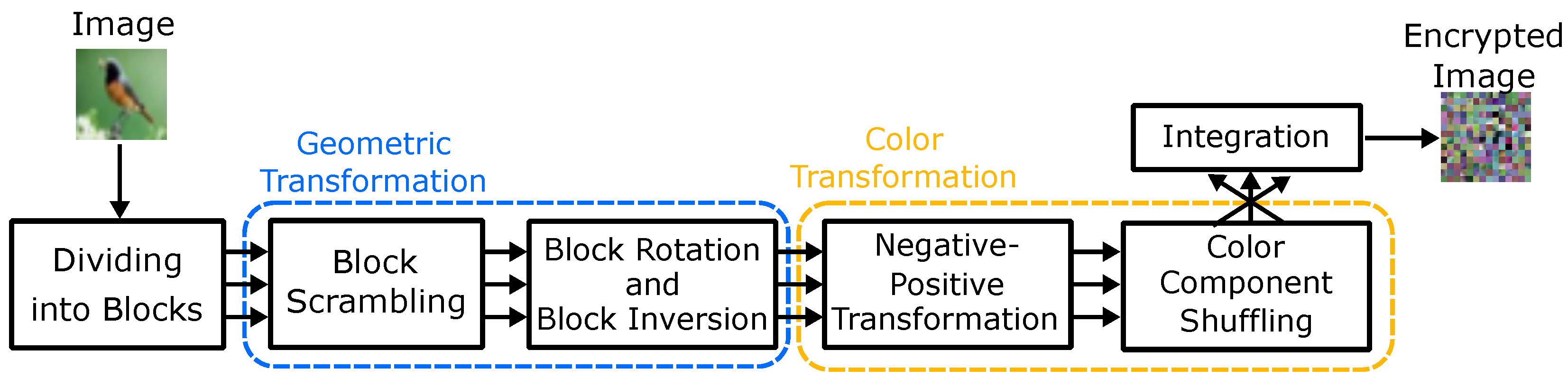

 Divide RGB color image I into blocks of $M\times M$ pixels.
 Permute randomly the divided blocks using a secret key.
 Rotate and invert randomly each block by using a secret key.
 Apply negative–positive transformations to each block by using a secret key according to Equation (1).
 Shuffle three color components of each block by using a secret key.
 Integrate the encrypted blocks to generate an encrypted image.

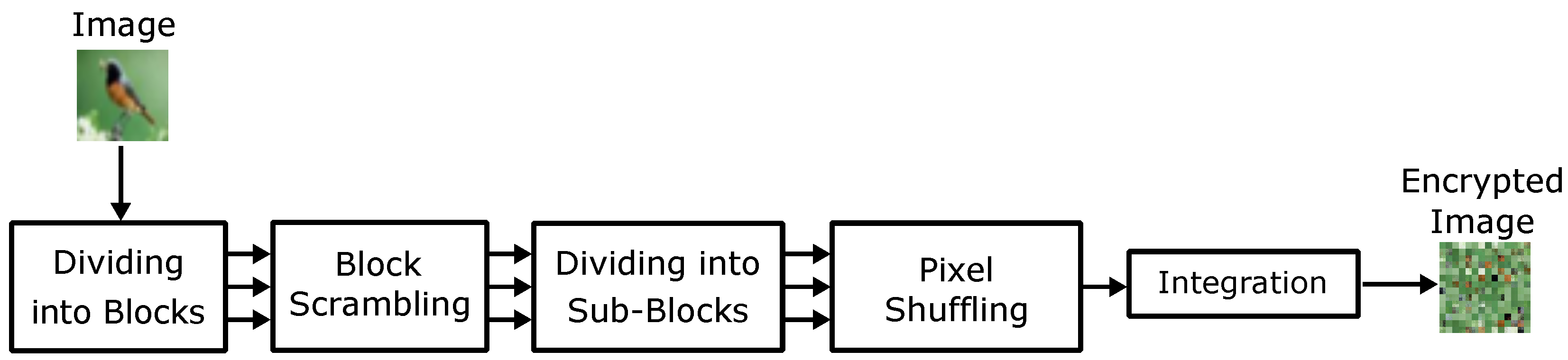

 Divide an RGB color image I into blocks $B=\{{B}_{1},\dots ,{B}_{i},\dots ,{B}_{n}\}$, $i\in \{1,\dots ,n\}$ with $M\times M$ pixels, where n is the number of divided blocks calculated by$$n=\lfloor \frac{X}{M}\rfloor \times \lfloor \frac{Y}{M}\rfloor .$$
 Permute the divided blocks by using a secret key ${K}_{VTE1}$, where ${K}_{VTE1}$ is commonly used for all color components. Accordingly, the scrambled blocks ${B}^{\prime}=\{{B}_{1}^{\prime},\dots ,{B}_{i}^{\prime},\dots ,{B}_{n}^{\prime}\}$ are generated.
 Divide each scrambled block ${B}_{i}^{\prime}$ into four nonoverlapping square subblocks ${S}_{ij},j\in \{UL,UR,LL,LR\}$ with $\frac{M}{2}\times \frac{M}{2}$ pixels, where ${S}_{iUL}$ is defined as the upper left position of the ith blocks, ${S}_{iUR}$ as the upper right, ${S}_{iLL}$ as the lower left, and ${S}_{iLR}$ as the lower right. Thereby, scrambled blocks divided into subblocks $S=\{{S}_{1j},\dots ,{S}_{ij},\dots ,{S}_{nj}\}$ are generated. The number of subblocks m is described as$$m=4n.$$
 Shuffle the pixel position within a subblock by using a secret key ${K}_{VTE2}$ to generate pixel shuffled subblocks ${S}^{\prime}=\{{S}_{1j}^{\prime},\dots ,{S}_{ij}^{\prime},\dots ,{S}_{nj}^{\prime}\}$, where ${K}_{VTE2}$ is commonly used for all subblocks and color components. As a result, each scrambled block is divided into four encrypted subblocks, denoted by ${S}_{i}^{\prime}=\{{S}_{iUL}^{\prime},{S}_{iUR}^{\prime},{S}_{iLL}^{\prime},{S}_{iLR}^{\prime}\}$.
 Merge all blocks to generate an encrypted image.
3. Proposed Attacks
3.1. Threat Models
Algorithm 1 FRattack [14]

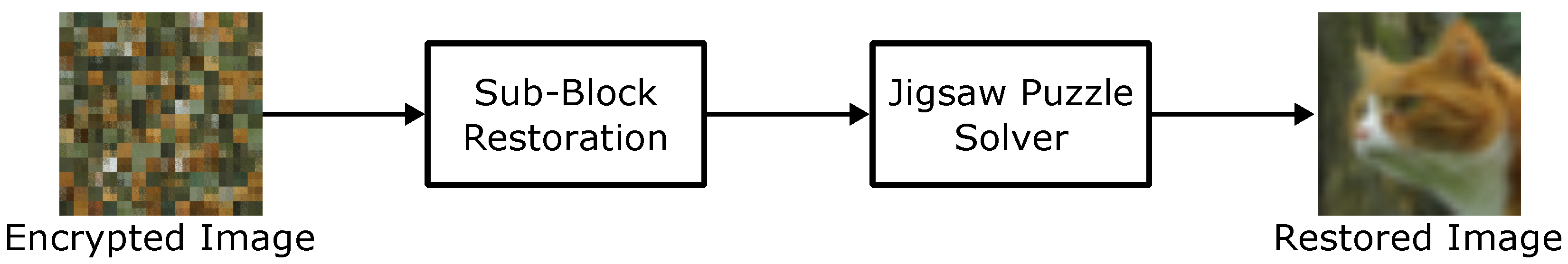

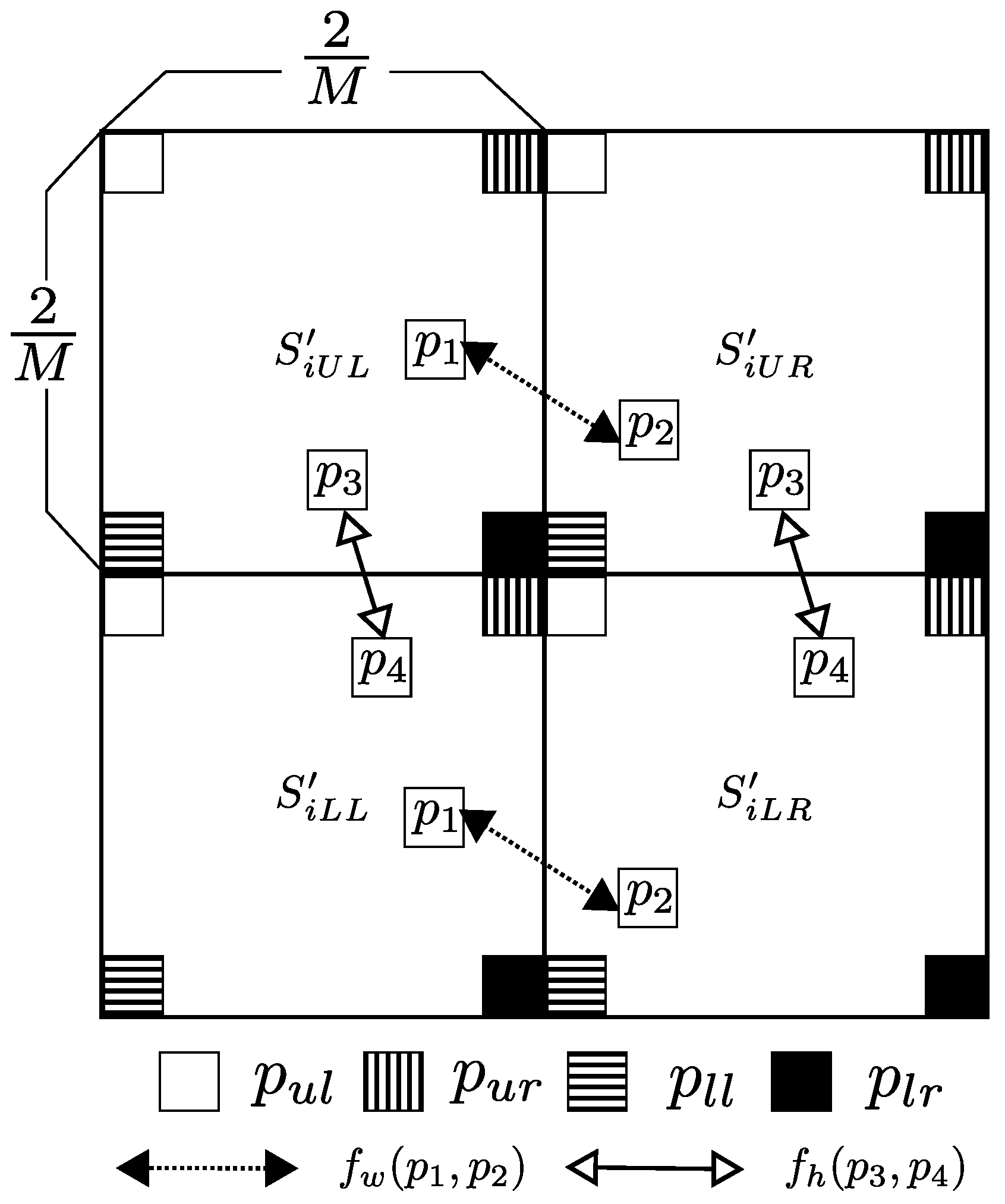

3.2. Jigsaw Puzzle SolverBased Attack
4. Experiments
4.1. Experimental Conditions

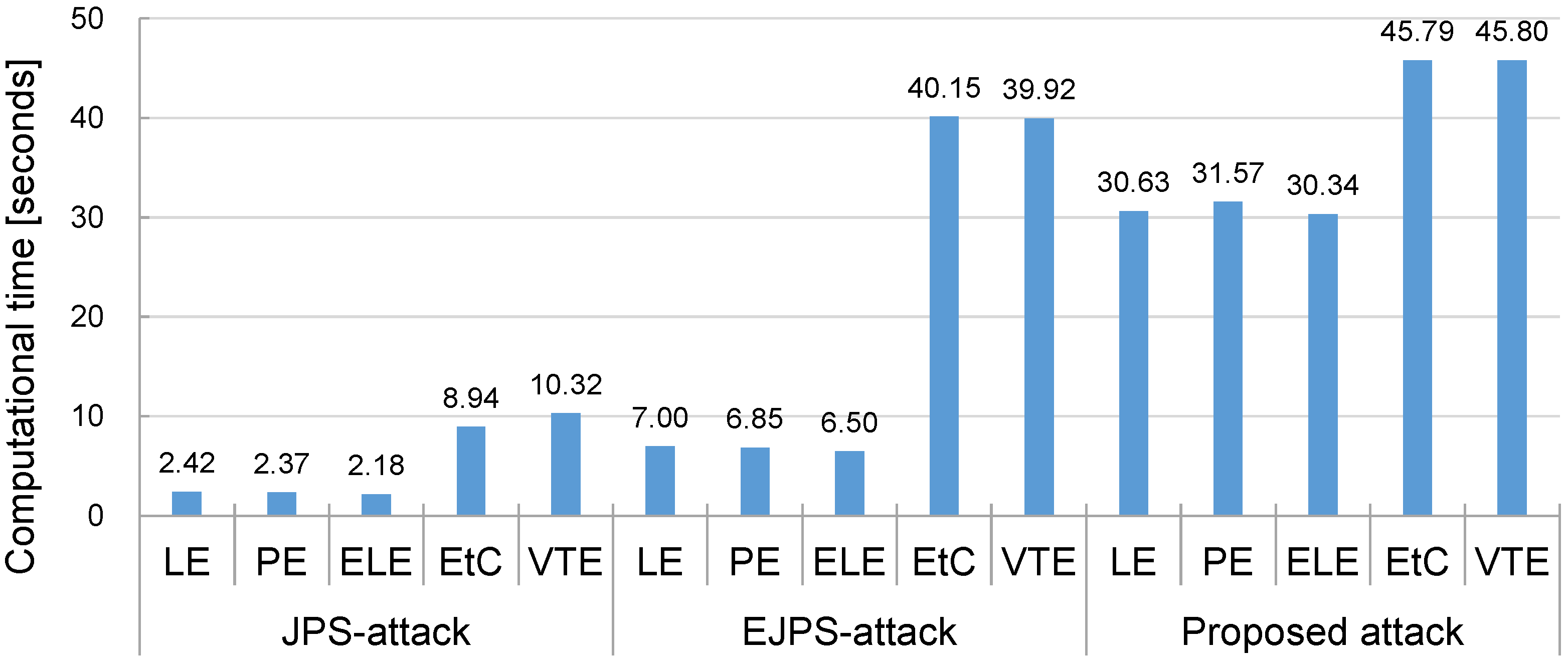

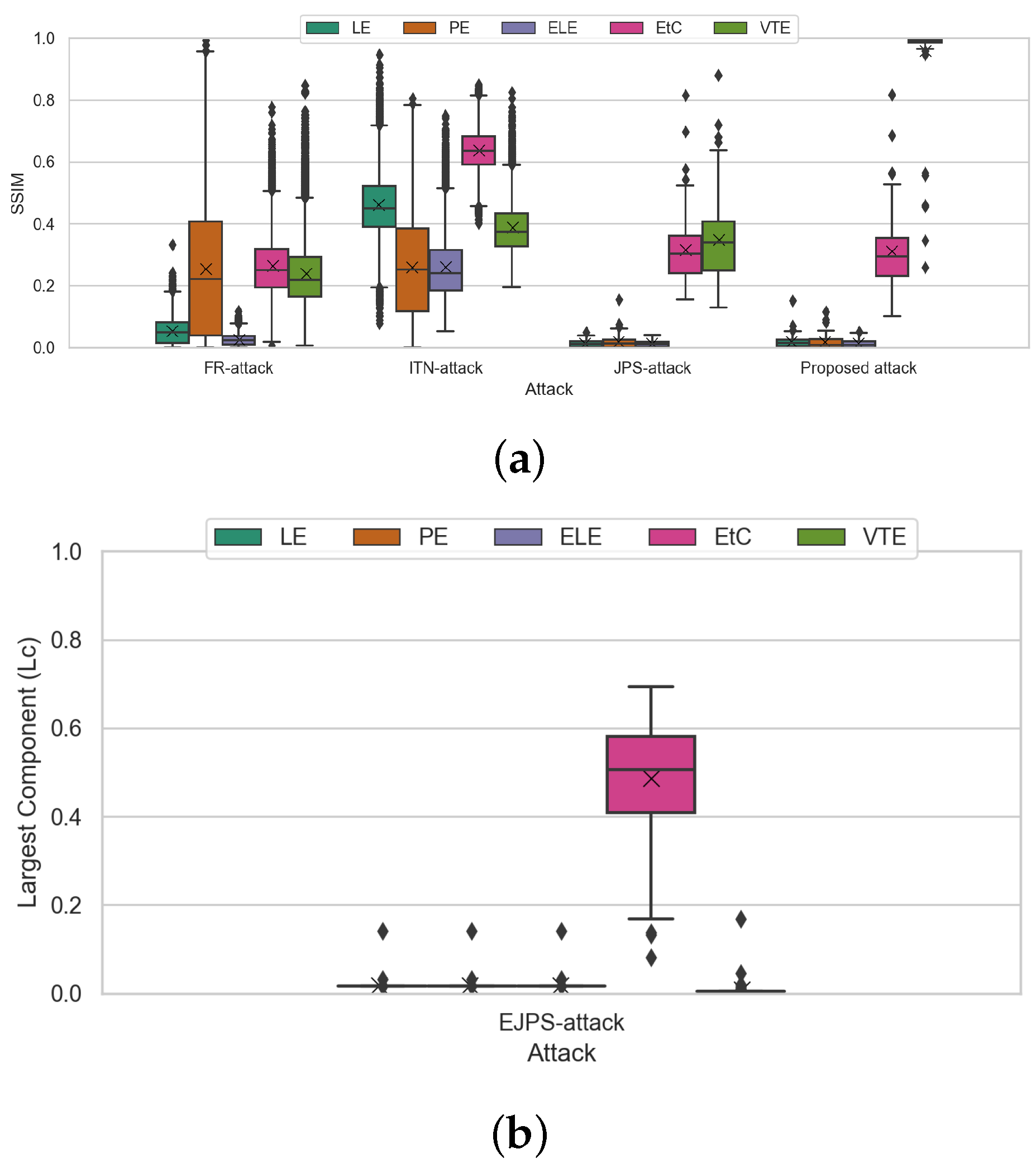

4.2. Experimental Results
5. Conclusions
