An Efficient Adaptive Traffic Light Control System for Urban Road Traffic Congestion Reduction in Smart Cities
- Developing an efficient yet cheap and easy to deploy Adaptive Traffic Light Control System (ATLCS) to quickly reduce traffic congestion in city centres during afternoon peak hours.
- Minimising the number of “stop and go” events occurring during a vehicle travel across arterial roads connected to city centres. This is a direct consequence of the developed synchronisation algorithm since the synchronisation is achieved by computing the required delay for switching to the green phase between consecutive traffic lights. Such a delay is computed based on the length of the queue of vehicles waiting at each intersection. Thereby, the stop and go time is minimised.

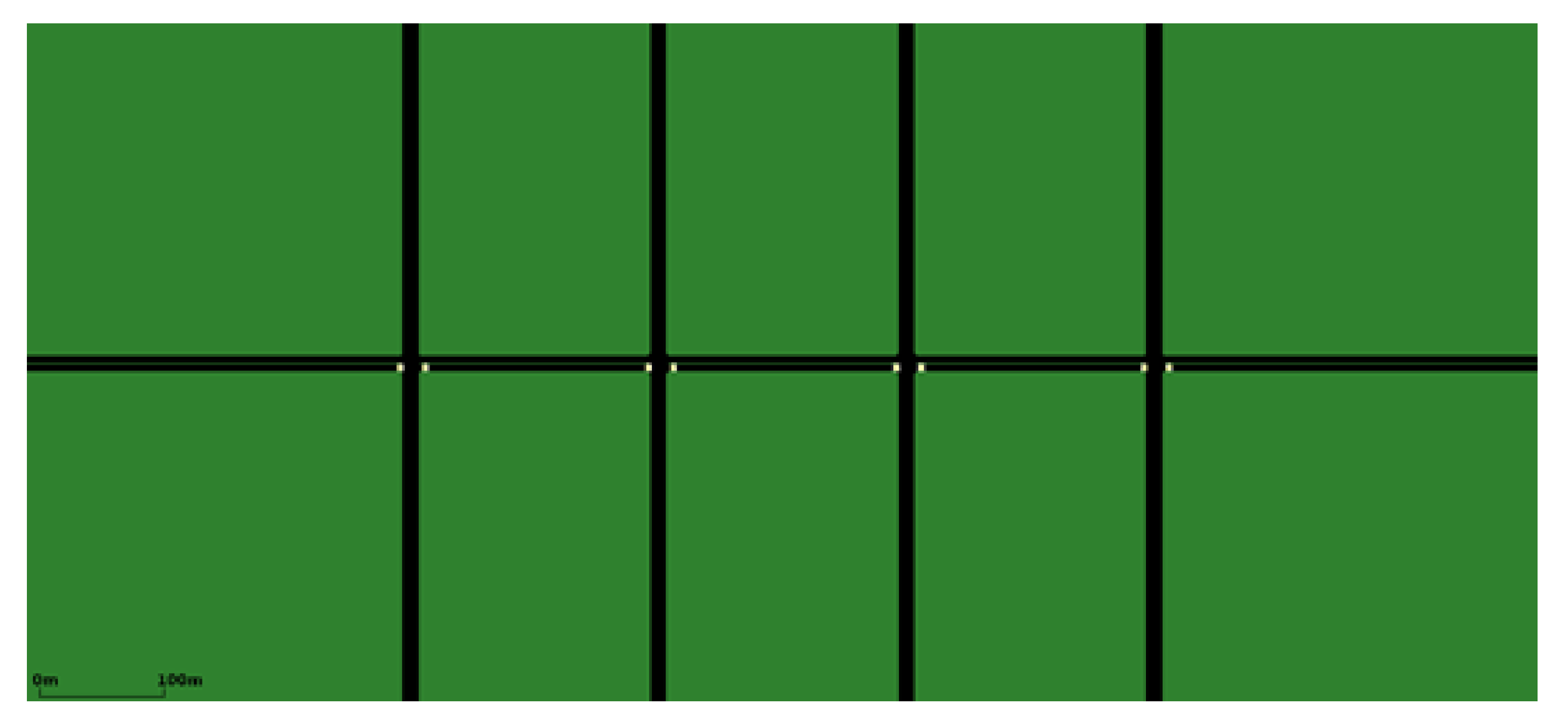

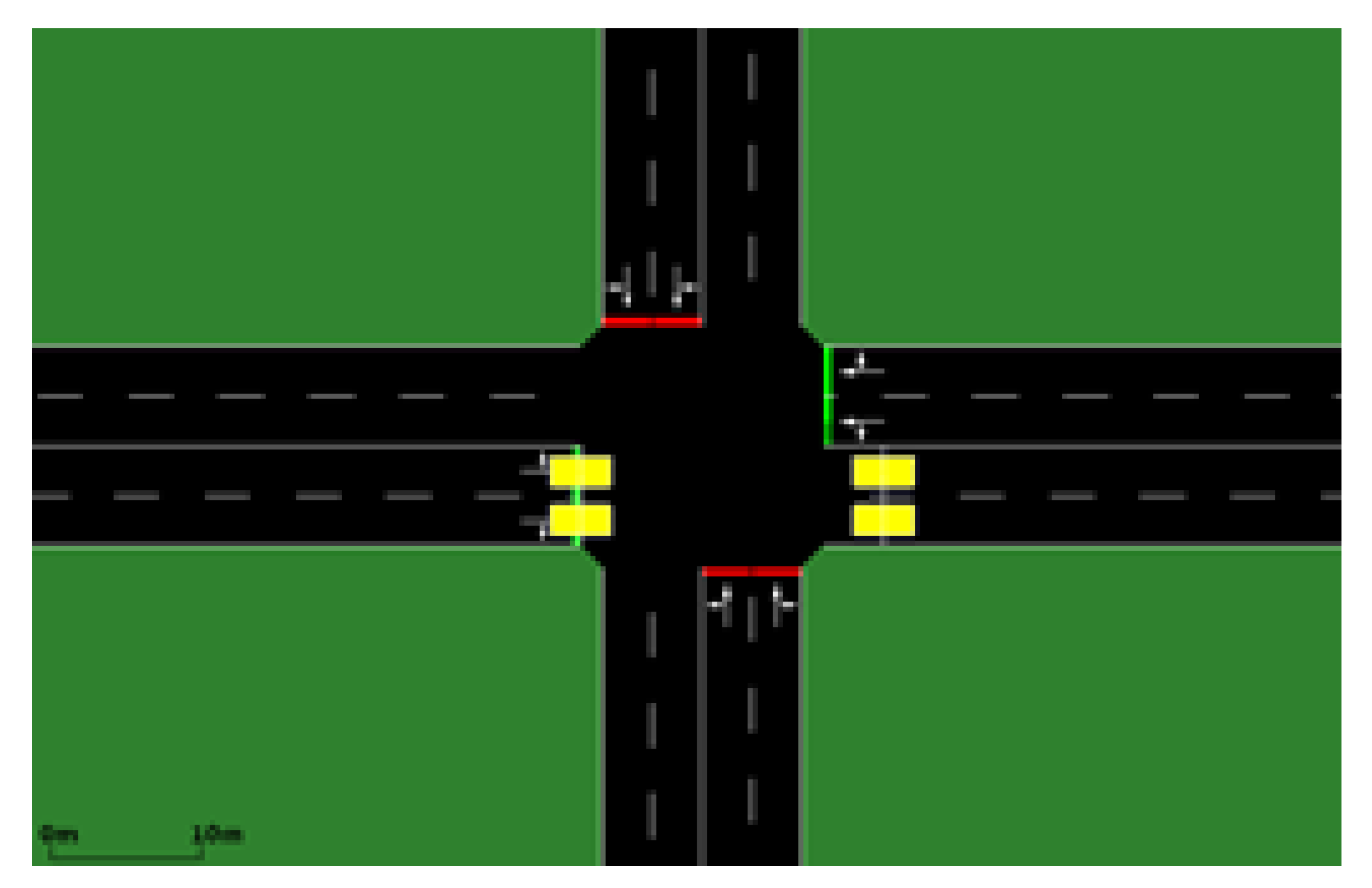

- Demonstrating the efficiency of our ATLCS through conducting extensive simulation using the most widely used microscopic traffic simulator, SUMO. This includes 50 simulation runs for every scenario to collect statistically representative results.
2. Related Work
3. Proposed ATLCS Design

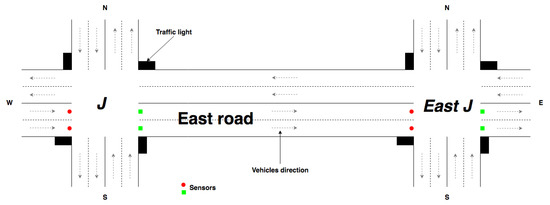

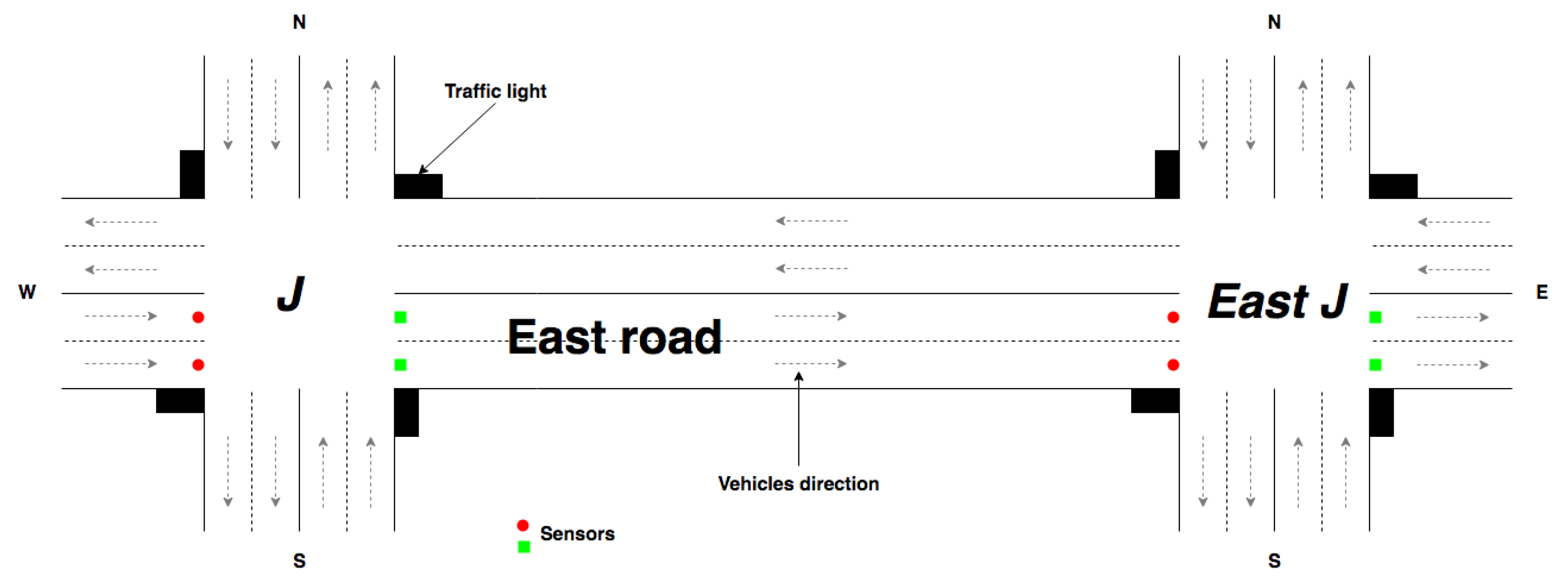

3.1. Sensors Deployment on Road Networks
3.2. Traffic Light Controller Synchronization Algorithm
3.2.1. Computing the Position and Velocity of a Vehicle

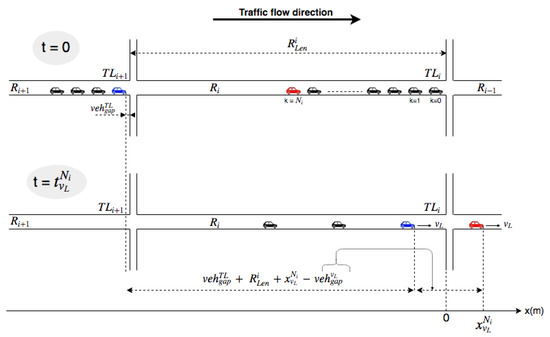

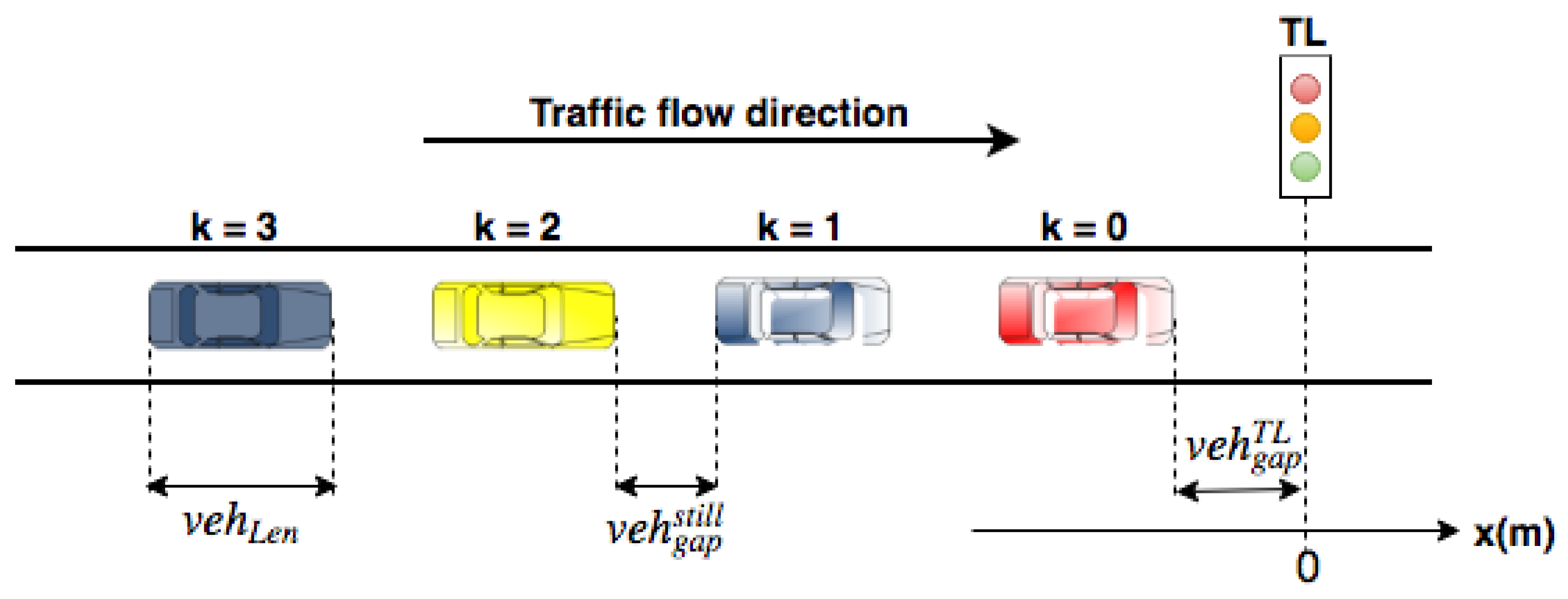

3.2.2. Representing a Queue of Vehicles
- represents the average length of vehicles.
- refers to the gap between two stationary vehicles (one behind the other) in the queue.
- denotes the gap between the vehicle at the head of the queue and the TL location.
- defines the interval between the time at which a vehicle in the queue starts moving and the vehicle right behind it.
- refers to the time when the vehicle at the position k starts moving.
- denotes the time when the vehicle at the position k reaches the speed .

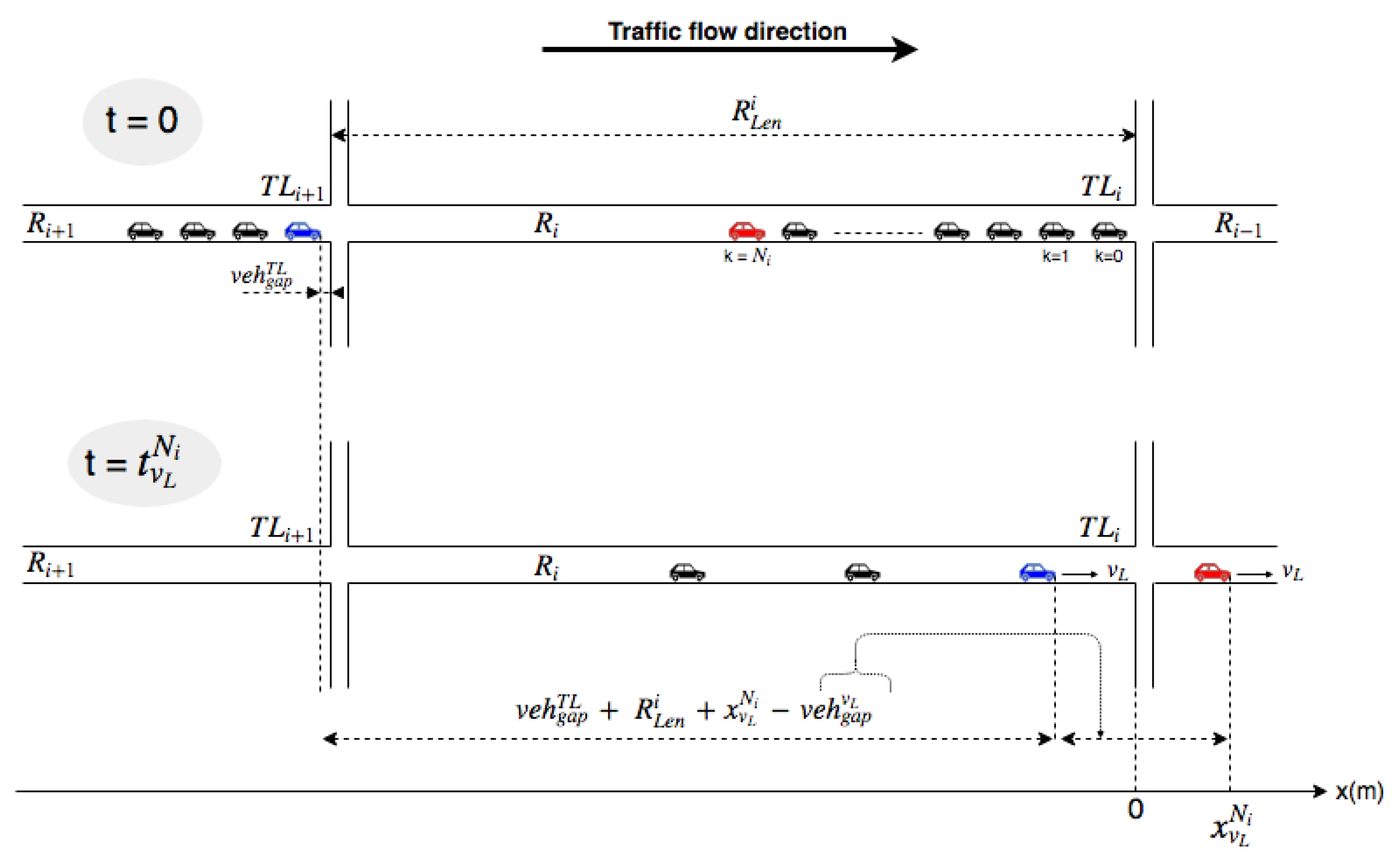

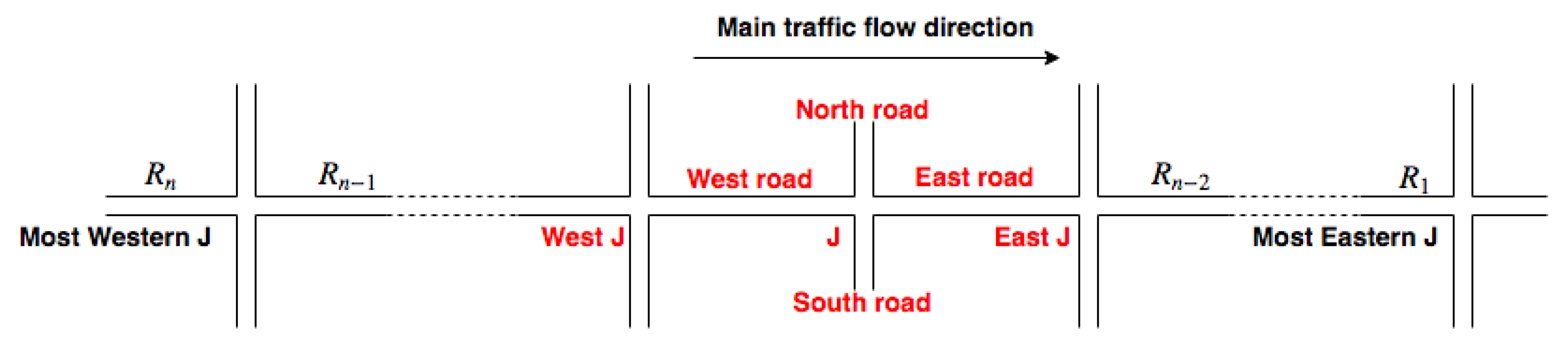

3.2.3. Adjacent Junctions Synchronization

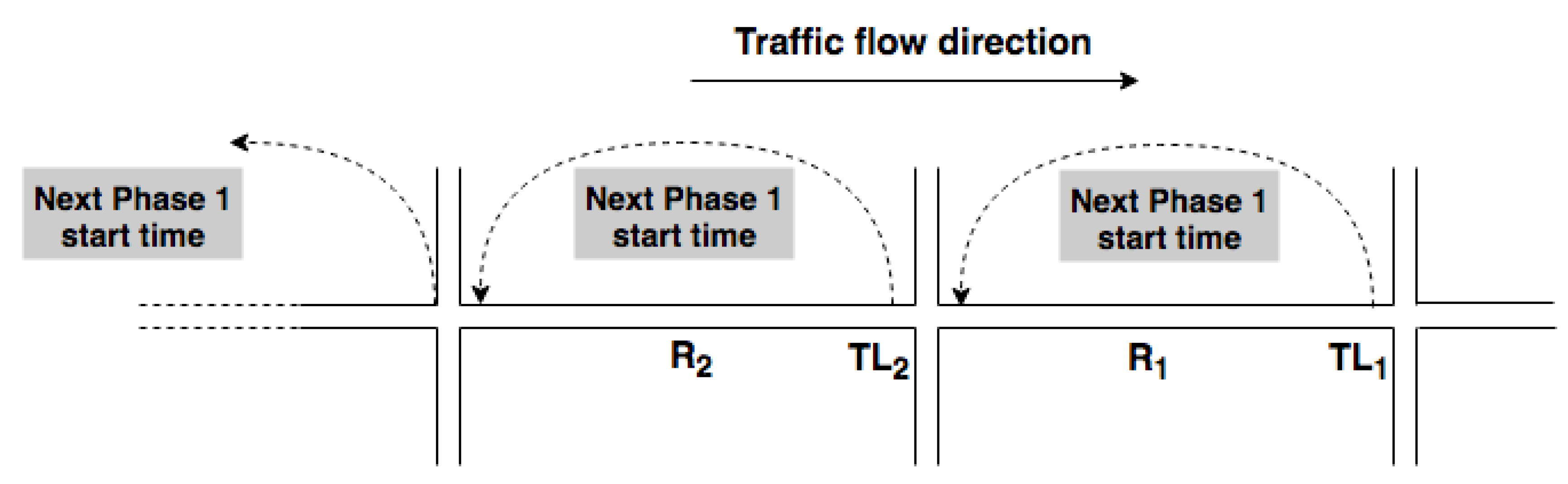

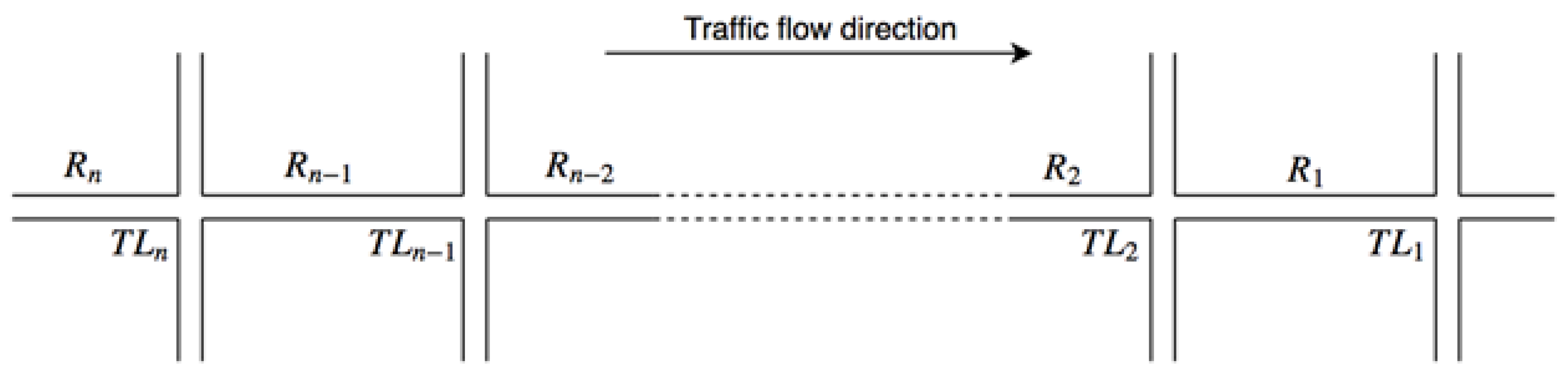

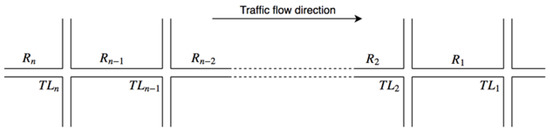

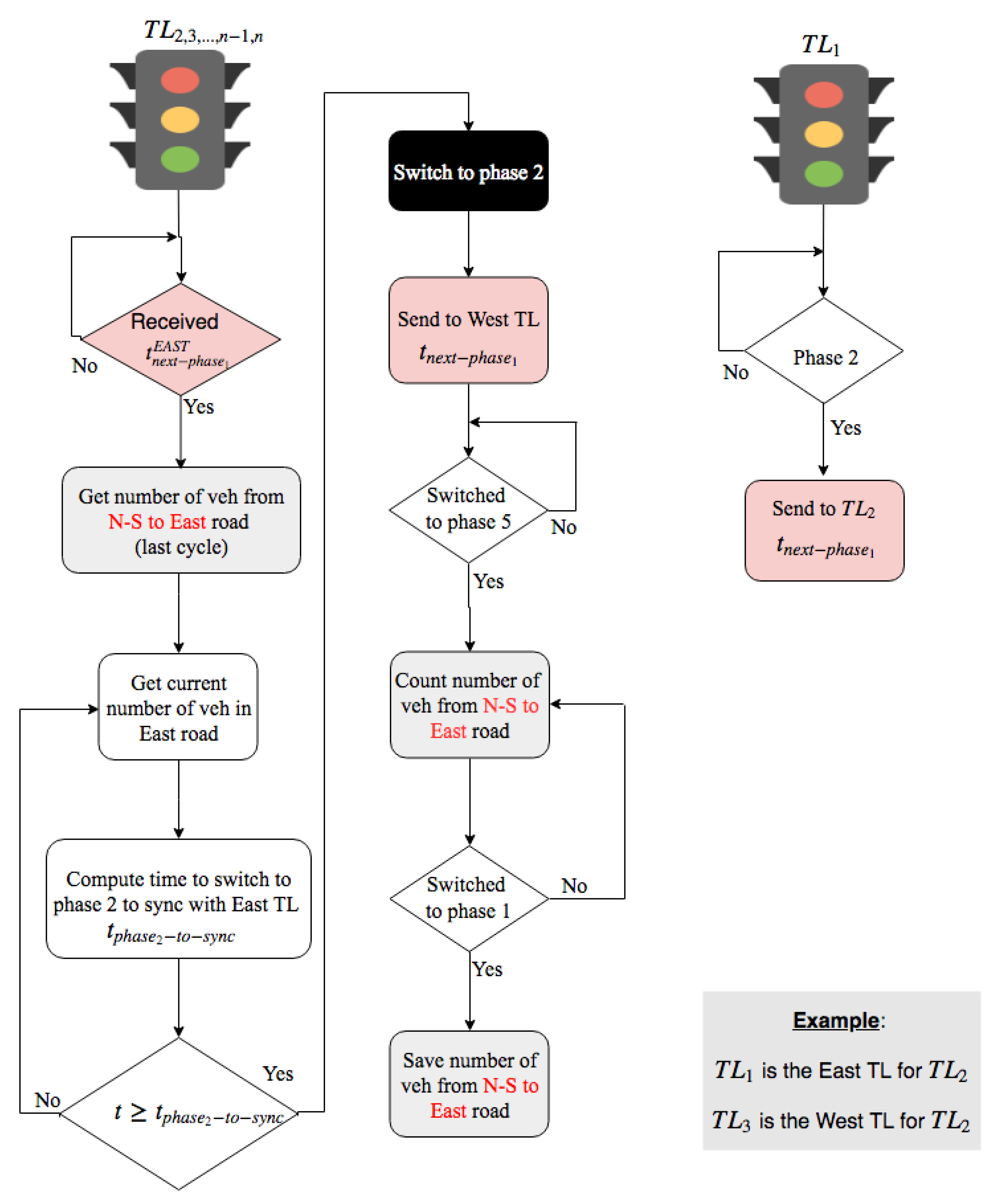

3.2.4. Multiple Junctions Synchronization

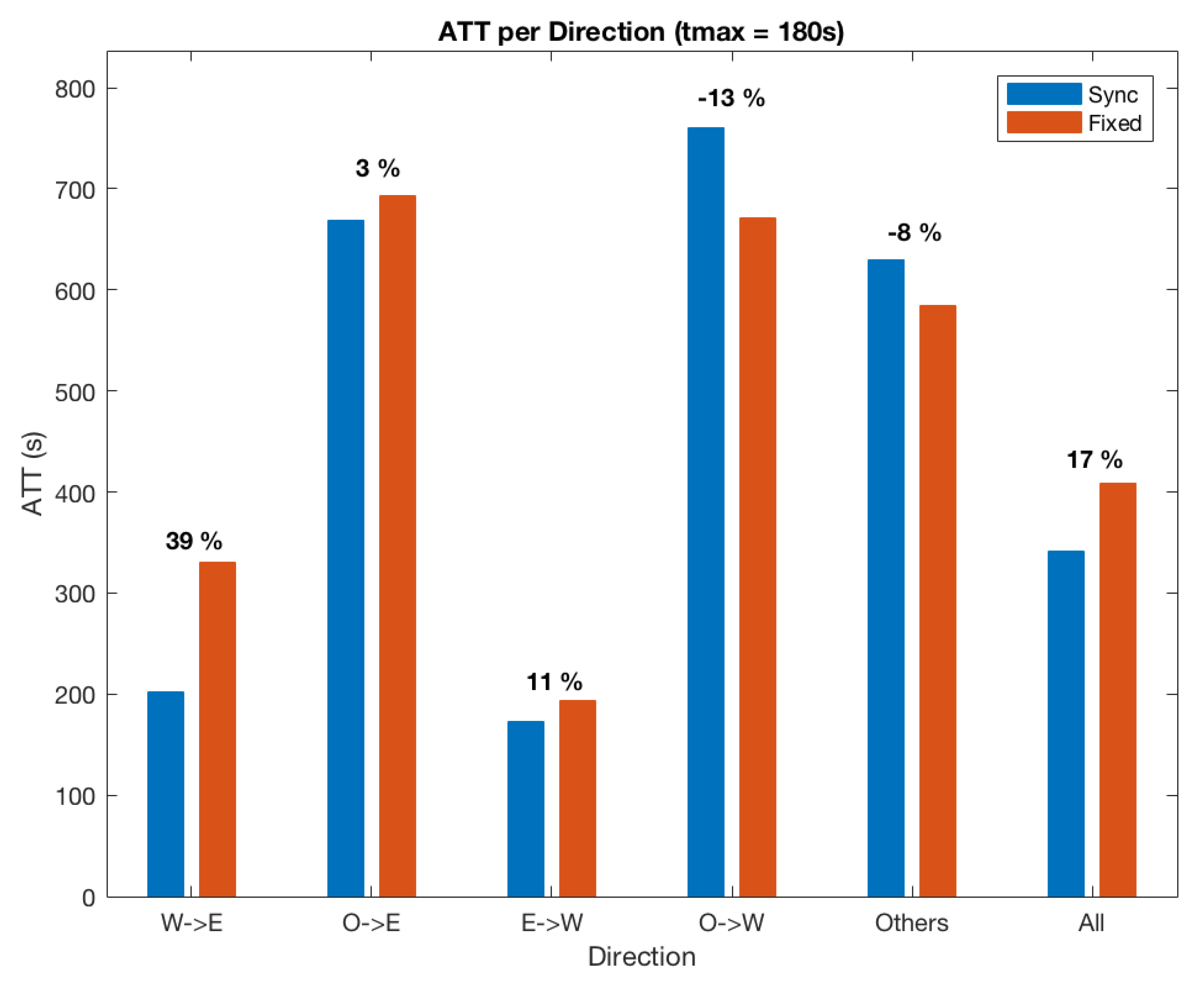

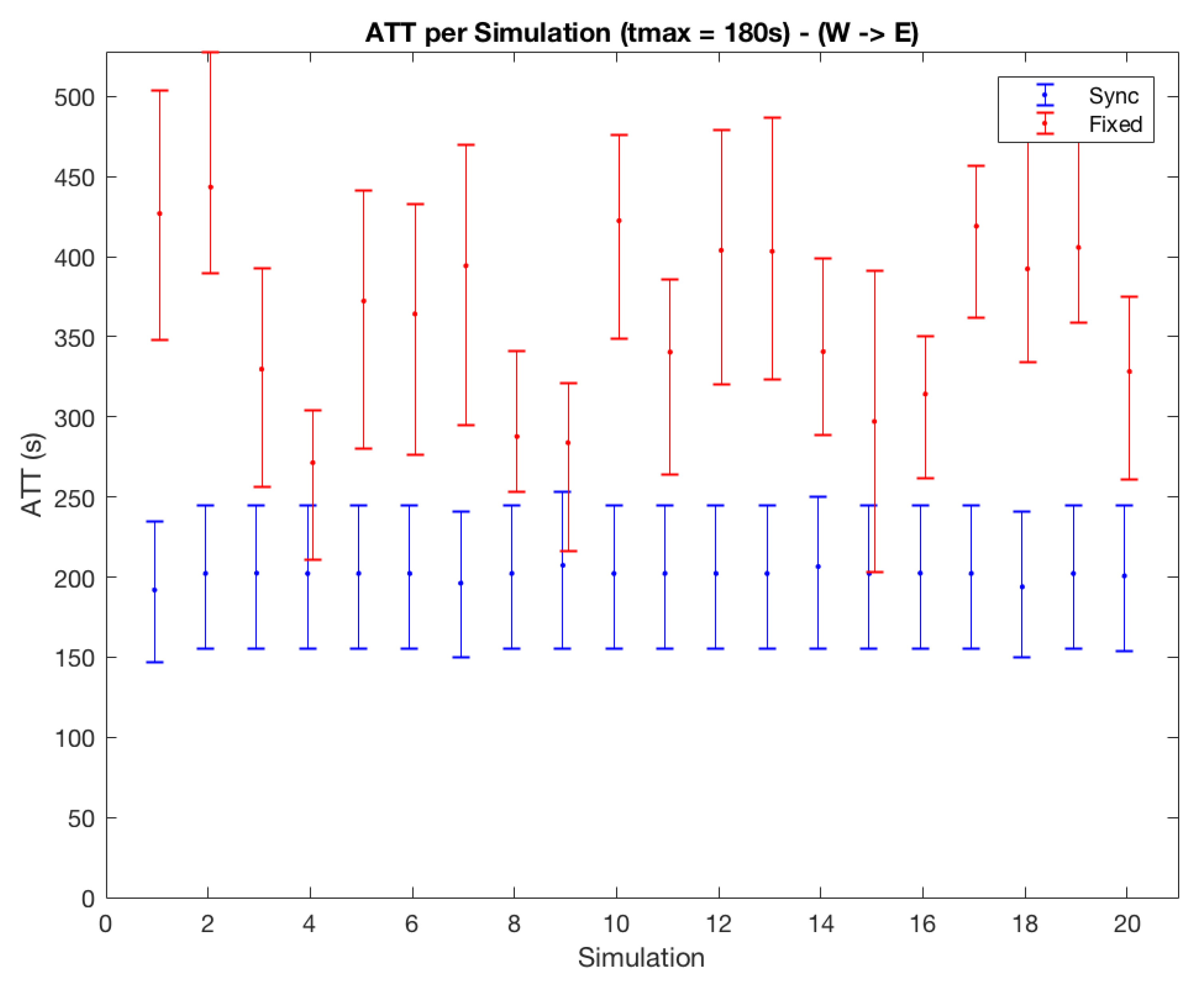

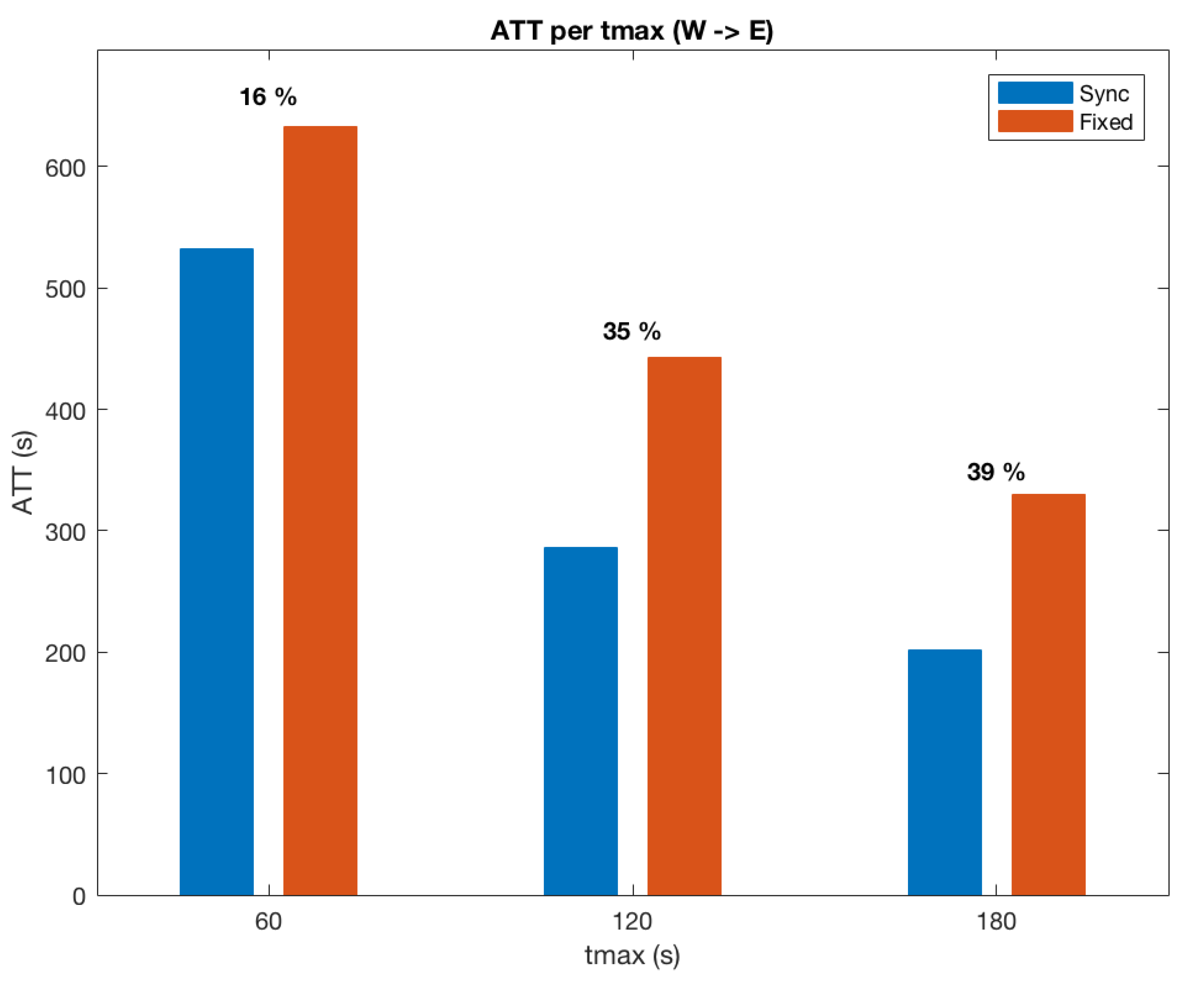

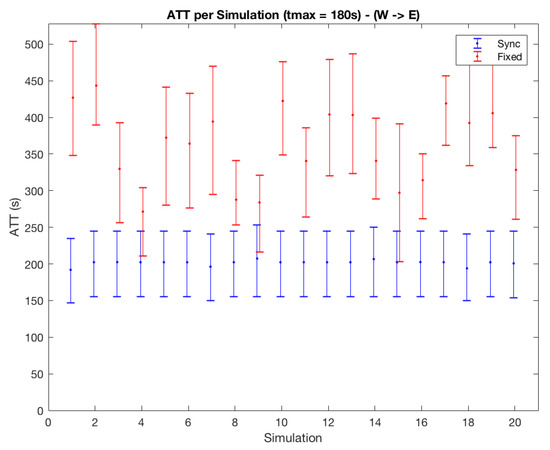

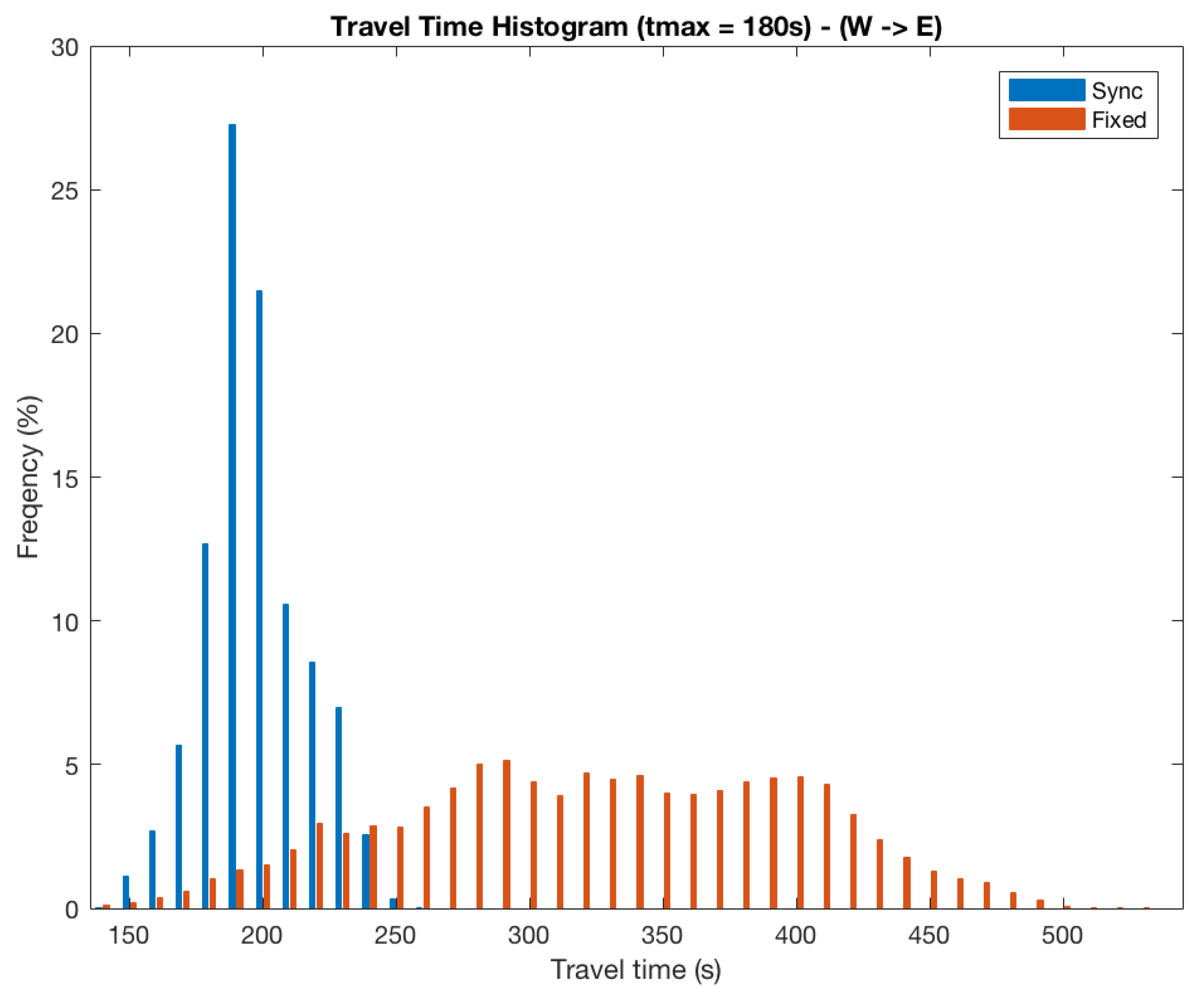

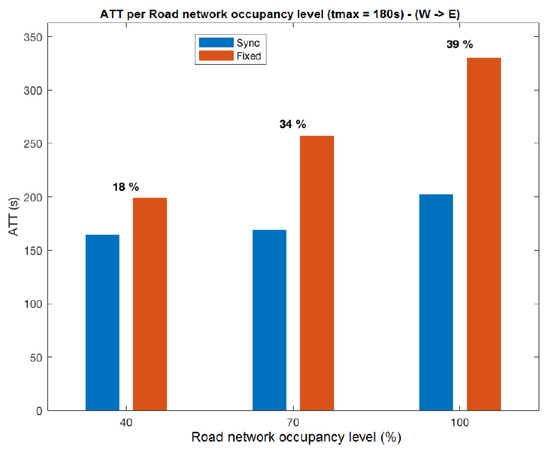

4. Performance Evaluation
Conflicts of Interest
- Djahel, S.; Doolan, R.; Muntean, G.; Murphy, J. A Communications-Oriented Perspective on Traffic Management Systems for Smart Cities: Challenges and Innovative Approaches. IEEE Commun. Surv. Tutor. 2014, 17, 125–151. [Google Scholar] [CrossRef]
- Barth, M.; Boriboonsomsin, K. Real-world carbon dioxide impacts of traffic congestion. Transp. Res. Rec. 2008, 2058, 163–171. [Google Scholar] [CrossRef][Green Version]
- INRIX. Traffic Congestion Cost UK Motorists More Than £30 Billion in 2016. Available online: https://inrix.com/press-releases/traffic-congestion-cost-uk-motorists-more-than-30-billion-in-2016/ (accessed on 21 February 2020).
- Aleko, D.R.; Djahel, S. An IoT Enabled Traffic Light Controllers Synchronization Method for Road Traffic Congestion Mitigation. In Proceedings of the 2019 IEEE International Smart Cities Conference (IEEE ISC2), Casablanca, Morocco, 14–17 October 2019. [Google Scholar]
- Li, J.; Zhang, Y.; Chen, Y. A Self-Adaptive Traffic Light Control System Based on Speed of Vehicles. In Proceedings of the 2016 IEEE International Conference on Software Quality, Reliability and Security Companion (QRS-C), Vienna, Austria, 1–3 August 2016; pp. 382–388. [Google Scholar]
- Djahel, S.; Smith, N.; Wang, S.; Murphy, J. Reducing emergency services response time in smart cities: An advanced adaptive and fuzzy approach. In Proceedings of the 2015 IEEE First International Smart Cities Conference (ISC2), Guadalajara, Mexico, 25–28 October 2015; pp. 1–8. [Google Scholar]
- Faye, S.; Chaudet, C.; Demeure, I. A distributed algorithm for adaptive traffic lights control. In Proceedings of the 2012 15th International IEEE Conference on Intelligent Transportation Systems, Anchorage, AK, USA, 16–19 September 2012; pp. 1572–1577. [Google Scholar]
- Faye, F.; Chaudet, C.; Demeure, I. A distributed algorithm for multiple intersections adaptive traffic lights control using a wireless sensor networks. In First Workshop on Urban Networking (UrbaNe ’12); ACM: New York, NY, USA, 2012; pp. 13–18. [Google Scholar]
- Coll, P.; Factorovich, P.; Loiseau, I.; Gómez, R. A linear programming approach for adaptive synchronization of traffic signals. Int. Trans. Oper. Res. 2013, 20, 667–679. [Google Scholar] [CrossRef]
- García-Nieto, J.; Alba, E.; Olivera, A.C. Swarm intelligence for traffic light scheduling: Application to real urban areas. Appl. Artif. Intell. 2012, 25, 274–283. [Google Scholar] [CrossRef]
- Astarita, V.; Festa, D.C.; Giofrè, V.P. Cooperative-Competitive Paradigm in Traffic Signal Synchronization Based on Floating Car Data. In Proceedings of the 2018 IEEE International Conference on Environment and Electrical Engineering and 2018 IEEE Industrial and Commercial Power Systems Europe (EEEIC/I&CPS Europe), Palermo, Italy, 12–15 June 2018; pp. 1–6. [Google Scholar]
- Liu, J.; Li, J.; Zhang, L.; Dai, F.; Zhang, Y.; Meng, X.; Shen, J. Secure intelligent traffic light control using fog computing. Future Gener. Comput. Syst. 2018, 78, 817–824. [Google Scholar] [CrossRef]
- Nellore, K.; Hancke, G.P. A Survey on Urban Traffic Management System Using Wireless Sensor Networks. Sensors 2016, 16, 157. [Google Scholar] [CrossRef][Green Version]
- Behrisch, M.; Bieker, L.; Erdmann, J.; Krajzewicz, D. SUMO—Simulation of Urban MObility: An Overview. In Proceedings of SIMUL 2011, The Third International Conference on Advances in System Simulation; ThinkMind: Barcelona, Spain, 2011. [Google Scholar]
- Schrank, D.; Eisele, B.; Lomax, T. TTI’s 2012 Urban Mobility Report; Texas A&M Transportation Institute, The Texas A&M University System: College Station, TX, USA, 2012. [Google Scholar]
|Road length||300 m|
|Congestion level||Maximum or 100%|
|Vehicle length||4.3 m|
|Gap between vehicles in queue||2.5 m|
|Road speed limit||13.89 m/s–31.07 mph-5-0 km/h|
|Gap between the 1st vehicle||1 m|
|and TL in queue|
|Delay between the start of 2||1 s|
|consecutive vehicles in a queue|
|Vehicle acceleration||2.9 m/s|
|1||240 s (only for TL1)|
