Article

Role-Engineering Optimization with Cardinality Constraints and User-Oriented Mutually Exclusive Constraints

Center of Network Information and Computing, Xinyang Normal University, Xinyang 464000, China

^{*}

Author to whom correspondence should be addressed.

Received: 18 October 2019 / Accepted: 2 November 2019 / Published: 4 November 2019

## Abstract

**:**

Role-based access control (RBAC) is one of the most popular access-control mechanisms because of its convenience for management and various security policies, such as cardinality constraints, mutually exclusive constraints, and user-capability constraints. Role-engineering technology is an effective method to construct RBAC systems. However, mining scales are very large, and there are redundancies in the mining results. Furthermore, conventional role-engineering methods not only do not consider more than one cardinality constraint, but also cannot ensure authorization security. To address these issues, this paper proposes a novel method called role-engineering optimization with cardinality constraints and user-oriented mutually exclusive constraints (REO_CCUMEC). First, we convert the basic role mining into a clustering problem, based on the similarities between users and use-partitioning and compression technologies, in order to eliminate redundancies, while maintaining its usability for mining roles. Second, we present three role-optimization problems and the corresponding algorithms for satisfying single or double cardinality constraints. Third, in order to evaluate the performance of authorizations in a role-engineering system, the maximal role assignments are implemented, while satisfying multiple security constraints. The theoretical analyses and experiments demonstrate the accuracy, effectiveness, and efficiency of the proposed method.

Keywords:

role engineering; role mining; role assignments; cardinality constraints; user-oriented mutually exclusive constraints## 1. Introduction

With the rapid development and comprehensive application of network-information technology, there are considerable amounts of storage and many exchanges in large-scale and complex information-management systems [1]. Determining how to ensure the security of system data and user information has attracted much interest. Numerous enterprises and organizations have adopted role-based access control (RBAC) as their main access-control mechanism, since the employment of RBAC is not only convenient and flexible, but also reduces the computational complexity of problems and alleviates the management burdens of systems [2,3,4,5,6,7]. With the successful implementation of RBAC systems, devising an accurate and effective set of roles and constructing a good RBAC system, that can satisfy actual application requirements, have become critical tasks. Role-engineering technology [8,9], which aims to migrate from non-RBAC systems to RBAC systems, has been proposed. There are two main approaches to this process: Top-down [10] and bottom-up [11,12,13,14,15]. The former devises roles by analyzing and decomposing business processes into smaller units that are associated with the needed permissions. However, this approach is time-consuming and labor-intensive when there are tens of thousands of users and millions of permissions. The latter starts from the original user-permission assignments and aggregates them into roles by applying data mining techniques, which is also known as role mining. This latter approach has gained considerable attention in recent years.

To discover interesting roles from existing permission assignments, two algorithms called the Complete Miner and Fast Miner are proposed [16]. Both algorithms use subset enumeration and allow overlapping roles. While the first algorithm can enumerate all potential roles, its computational complexity is exponential. The second algorithm improves the mining process, and its computational complexity is remarkably reduced. However, it identifies only a partial set of roles. The Fast Miner is sufficient for practical applications. Vaidya et al. [17] converted role mining into a matrix-decomposition problem and presented a definition for a basic role mining problem (basic RMP). Basic RMP has been proven to be NP-complete, for which several existing studies have already been done to find efficient solutions. According to different optimization objectives for role mining, many other approaches have been proposed, such as δ-approx RMP [17], min-noise RMP [17], edge RMP [18], usage RMP [19], and user-oriented exact RMP [20].

Essentially, role mining is the task of clustering users with identical or similar permissions and constructing different roles with these permissions. Indeed, many roles contain several identical permissions and are frequently assigned to users. Frequently usable roles can facilitate the management and maintenance of the system and decompose the set of users into clusters of users with different attribute characteristics [21]. However, the analysis of mining, resulting from large-scale clusters, is complex [22]. On the other hand, a fairly small number of roles may not be assigned or assigned to only a small number of users. These roles are not frequently used, so they are redundant roles. Thus, owing to the diversity of system resources and the variability of resource access, there are redundancies in the mining results that use conventional methods.

A key characteristic of RBAC is that it allows the specification and enforcement of various security policies [23,24,25], such as cardinality constraints, which can reflect the security policies of different organizations and ensure system security. For example, the general-manager role in a company must be assigned to only one person; ordinary users should not have too many roles, otherwise there is the possibility for users to abuse their privileges (e.g., the fewer roles assigned to the permission of opening a safe, the better). There are four different types of cardinality constraints [26]: (1) User-role cardinality constraint (UCC), (2) permission-role cardinality constraint (PCC), (3) role-user cardinality constraint (RUC), and (4) role-permission cardinality constraint (RPC). In the approaches for role optimization with cardinality constraints, most existing methods not only do not consider more than one constraint, but also cannot determine whether other security constraints are met in the constructed RBAC system.

Furthermore, mutually exclusive constraints and user-capability constraints are also essential components in the enforcement of security policies, especially in the process of role assignments. The most commonly used constraint, which is called the statically-mutually-exclusive-roles (SMER) constraint, aims at restricting the role memberships assigned to a single user [27]. For example, the account-manager and financial-auditor roles cannot be assigned to the same person. Another important constraint, which is usually used in actual application environments, is the user-capability constraint [28]. Specifically, users cannot be assigned to roles arbitrarily in an organization, since different users have different qualifications and competencies. For example, a user with a degree in business can perform roles, such as an account manager or financial auditor, but cannot perform the roles of a computer professional, such as the role of a software designer, software developer, or software tester. The premise of implementing role assignments is that an RBAC system already exists. However, in many cases, the systems and constraints are completely unknown.

To address the above issues, this paper proposes a novel method called role-engineering optimization with cardinality constraints and user-oriented mutually exclusive constraints (REO_CCUMEC). The main contributions of this paper are as follows:

- (1)
- Partitioning and compression are two important methods used to analyze clustering problems; they are widely used in scientific research and production practice because of their simple and accurate characteristics [29]. In order to reduce computational complexity and mining scale, we convert the basic role mining problem into a clustering problem, use partitioning and compressing technologies to eliminate redundancies, and evaluate the accuracy of the proposed method.
- (2)
- Role optimization that satisfies one cardinality constraint may violate another cardinality constraint. In order to limit the number of roles assigned to any user and/or a related permission, we present three role-optimization problems and their corresponding algorithms, and evaluate the effectiveness of the proposed method.
- (3)
- Mutually exclusive constraints, user-capability constraints, and cardinality constraints are critical to ensure authorization security. In order to satisfy these constraints, while maximizing the role assignments in the role-engineering system, we present a role-assignment algorithm and evaluate the efficiency of the proposed method.

The remainder of the paper is organized as follows. In Section 2, we discuss the related work and present preliminary information. Section 3 proposes a novel method that includes three aspects: Pre-processing, role optimization, and role assignments. We present theoretical analyses and examples in Section 4. We show the experimental evaluations in Section 5. Section 6 concludes the paper and discusses future work.

## 2. Related Work and Preliminary Information

#### 2.1. Methods of Role Optimization

Many methods have been proposed for role optimization. Depending on whether or not constraints are considered in role optimization, existing studies mainly fall into the following two categories: Role optimization with no constraints and role optimization with constraints.

Vaidya et al. converted role mining into a matrix-decomposition problem and presented a definition for a basic role mining problem, that attempts to find a minimal set of roles from bottom-user permission assignments and completely cover the original assignments. However, it is difficult to derive an optimal role set in practical applications. To reflect the organization-function requirements and enhance the interpretability of mining roles, Molloy et al. [30] represented roles with the formal concept of lattices and proposed an optimization algorithm. To optimize the RBAC system, Zhang et al. [31] presented an algorithm using graph-optimization theory. However, this algorithm did not eliminate the redundancies in the mining results. Ene et al. [32] adopted heuristics and graph theory to mine as few optimized roles as possible, thereby reducing the redundancies of the mining roles. Lu et al. [19] proposed a unified role-optimization framework and presented a number of greedy algorithms that could solve basic RMP, δ-approx RMP, min-noise RMP, and edge RMP, based on methods of integer linear programming and Boolean matrix decomposition. However, the scale of role optimization is very large. To reduce the complexity of solving problems, Colantonio et al. [33] divided the user-permission-assignment dataset into several subsets. To reduce the mining scale, Verde et al. [34] converted role mining into a clustering problem, which compresses the division into a single sample, extracts similar features from multiple divisions, and ensures the integrity of the mining results. Although, constraints are essential for the RBAC model, none of these methods take constraints into consideration.

In order to avoid an abuse of privileges, Kumar et al. [35] proposed a constrained role-miner algorithm, that limits the number of permissions assigned to a role. Blundo et al. [36] proposed a heuristic capable of returning a complete set of roles, thereby satisfying the same cardinality constraint as above. Hingankar et al. [37] proposed a biclique-cover method to derive roles that limit the maximum number of users related to a role. John et al. proposed two alternative approaches for restricting the number of roles assigned to a user: Role priority-based approach (RPA) and the coverage of permissions-based approach (CPA). The RPA prioritizes roles based on the number of permissions and assigns optimal roles to users, according to the priority order. The CPA chooses roles by iteratively picking the role with the largest number of permissions that are yet uncovered and then ensures that no user is assigned more than a given number of roles [38]. In order to limit the maximum number of users or permissions related to a role, Ma et al. [26] proposed a role mining algorithm to generate roles based on permission cardinality constraints and user cardinality constraints. In order to simultaneously limit the maximum number of roles assigned to a user and a related permission, Harika et al. proposed the two role-optimization methods: Post processing and concurrent processing. In the first method, roles are initially mined without taking the constraints into account. The user-role and role-permission assignments are then checked for constraint violation in the optimization process and appropriately re-assigned, if necessary [39]. The concurrent processing method implements optimization with double constraints during the process of role mining. In addition to these methods for satisfying cardinality constraints, Sarana et al. [40] proposed three role-optimization methods, including separation-of-duty constraints either, during, or after, the mining process. In order to satisfy separation-of-duty constraints and ensure authorization security, Sun et al. [41] proposed a method called role-mining optimization, with separation-of-duty constraints and security detection for authorizations.

#### 2.2. Methods of Role Assignments

In order to obtain permissions, while satisfying a collection of constraints for a given authorization request, Zhang et al. proposed a user authorization query (UAQ) problem, that adopts the greedy algorithm and mutually-exclusive-role constraint to search for objects. The UAQ is used to discover a set of roles to be activated in a single session for the particular set of permissions requested by the user [42]. Lu et al. [43] proposed a novel approach, based on role–permission reassignments, to support the UAQ, which assists administrators in modifying system configurations in an automatic manner. In order to implement role assignments, while satisfying the t-t SMER constraints in RBAC, Roy et al. proposed a method for finding the minimum number of users with multiple t-t SMER constraints, modelled the general problem using graphs, and presented a two-step method for solving the problem [44]. Afterwards, the problem of the cardinality constrained-mutually exclusive task for minimum users, was defined. This problem aims to find the minimum users that can carry out a set of tasks, while satisfying the given security constraints [45]. Furthermore, Roy et al. [28] defined the employee assignment problem, which aims to assign employees to roles, so that the maximal flexibility is reflected in assigning roles to employees, while ensuring that the user-capability constraints, role-cardinality constraints, and liveness constraints are met simultaneously.

Obviously, from the above analyses, we find that there are three limitations in the existing studies. The first limitation is that the role-mining scale is very large, and there are redundancies in the mining results. The second limitation is that most existing role-optimization methods only consider one cardinality constraint and do not evaluate authorization security in a constructed RBAC system, so role assignments cannot satisfy user-capability constraints and mutually exclusive constraints. The third limitation is that the existing role assignments assume that RBAC systems already exist. However, in many cases, the systems are completely unknown, and the constraints are uncertain. Hence, in this paper, we propose a novel role-engineering method (REO_CCUMEC), which mainly includes three elements: (1) Partitioning and compressing technologies are used to eliminate redundancies for the unconstrained role mining, (2) the role-optimization problems and their corresponding algorithms are presented for satisfying double cardinality constraints simultaneously, and (3) the maximal role assignments are implemented, while satisfying multiple security constraints in the constructed RBAC system. We also evaluate the performance of the proposed method using three groups of experiments and present its advantages and limitations.

#### 2.3. Preliminaries

#### 2.3.1. Basic Components of Role Engineering

- (1)
- U, P, and R are the basic elements of RBAC; these elements denote a set of users, a set of permissions, and a set of roles, respectively;
- (2)
- $UPA\subseteq U\times P$, a many-to-many mapping of user-permission assignments in the non-RBAC model;
- (3)
- $UA\subseteq U\times R$, a many-to-many mapping of user-role assignments in the RBAC model;
- (4)
- $PA\subseteq R\times P$, a many-to-many mapping of role-permission assignments in the RBAC model;
- (5)
- $user\_roles\left(u\right)=\left\{r\right|\exists r\in R:\left(u,r\right)\in UA)\}$, the mapping of user u onto a set of roles;
- (6)
- $role\_users\left(r\right)=\left\{u\right|\exists u\in U:\left(u,r\right)\in UA)\}$, the mapping of role r onto a set of users;
- (7)
- $role\_permissions\left(r\right)=\left\{p\right|\exists p\in P:\left(r,p\right)\in PA\}$, the mapping of role r onto a set of permissions;
- (8)
- $permission\_roles\left(p\right)=\left\{r\right|\exists r\in R:\left(r,p\right)\in PA\}$, the mapping of permission p onto a set of roles;
- (9)
- $user\_permissions\left(u\right)=\left\{p\right|\exists p\in P,\exists r\in R:\left(\left(u,r\right)\in UA\right)\wedge \left(\left(r,p\right)\in PA\right)\}$, the mapping of user u onto a set of permissions.

#### 2.3.2. RBAC Constraints

We consider different kinds of constraints in RBAC: UCC and PCC, mutually exclusive constraints, and user-capability constraints.

(1) The UCC and PCC

The UCC [26] states that, for a given set U of users, set R of roles, and threshold MRC

_{user}, the number of roles assigned to any user should not exceed MRC_{user}. This can be formalized as follows:
$$\forall u\in U:\left|user\_roles(u)\cap R\right|\le MR{C}_{user}.$$

The PCC [26] states that, for a given set of U of users, set R of roles, and threshold MRC

_{permission}, the number of roles to which any permission can be assigned should not exceed MRC_{permission}. This can be formalized as follows:
$$\forall p\in P:\left|permission\_roles(p)\cap R\right|\le MR{C}_{permission}.$$

In addition, as the mapping relationships of UA and PA are bidirectional, there are another two constraints that, respectively restrict the number of users and the number of permissions assigned to a role, which are not discussed in the paper.

(2) Mutually exclusive constraints

According to the different intensities of restrictions, the SMER constraint includes the following two types [27]:

The t-m SMER constraint states that, given m roles r

_{1},r_{2},…,r_{m}, no user is allowed to have t or more of these m roles. This constrained is expressed as smer<{r_{1},r_{2},…,r_{m}},t>, where m and t are integers that satisfy 2 ≤ t ≤ m. This can be formalized as follows:
$$\forall u\in U:\left|\left\{{r}_{1},{r}_{2},\dots ,{r}_{m}\right\}\cap user\_roles(u)\right|<t.$$

The t-t SMER constraint states that, given t roles r

_{1},r_{2},…,r_{t}, no user is allowed to have all of these t roles. This is expressed as smer<{r_{1},r_{2},…,r_{t}},t>, where t is an integer, and t ≥ 2, and can be formalized as follows:
$$\forall u\in U:\left\{{r}_{1},{r}_{2},\dots ,{r}_{t}\right\}\not\subset user\_roles(u).$$

It has been shown that any t-m SMER constraint can be equivalently represented as a set of t-t SMER constraints [27]. Thus, we only take into consideration the t-t SMER constraint in this paper.

(3) User-capability constraint

This constraint is represented as the Boolean matrix UC [28], where the rows correspond to users, and the columns correspond to roles. The value 1 in cell UC[i][j] denotes that user u

_{i}is capable of performing role r_{j}; otherwise, u_{i}cannot perform r_{j}. This can be formalized as follows:
$$UC[i][j]=\{\begin{array}{l}1,if{u}_{i}iscapableofperforming{r}_{j}\\ 0,otherwise\end{array}$$

#### 2.3.3. Similarity and Dissimilarity in Clustering

The Jaccard coefficient [46] in statistic, which is widely used to measure the similarity or dissimilarity (also called distance) among different sets of samples, aims to identify sample clusters. Given set S = {S

_{a},S_{b},…,S_{i},…}, where S_{a}= {a_{1},a_{2},…}, S_{b}= {b_{1},b_{2},…}, S_{i}= {i_{1},i_{2},…},- (1)
- ∀(S
_{i},S_{j})∈S; the similarity and dissimilarity between sample S_{i}and sample S_{j}are, respectively, calculated as follows:$$sim({S}_{i},{S}_{j})=\frac{|{S}_{i}\cap {S}_{j}|}{|{S}_{i}\cup {S}_{j}|}$$$$dis({S}_{i},{S}_{j})=1-sim({S}_{i},{S}_{j})$$ - (2)
- ∀(S
_{i},S_{j}_{1},S_{j}_{2}, …)∈S; the similarity and dissimilarity between sample S_{i}and sample set {S_{j}_{1},S_{j}_{2},…} are, respectively, calculated as follows:$$sim({S}_{i},\{{S}_{j1},{S}_{j2},\dots \})=\frac{1}{\left|\right\{{S}_{j1},{S}_{j2},\dots \left\}\right|}{\displaystyle \sum _{{S}_{j}\in \{{S}_{j1},{S}_{j2},\dots \}}sim({S}_{i},{S}_{j})}$$$$dis({S}_{i},\{{S}_{j1},{S}_{j2},\dots \})=1-sim({S}_{i},\{{S}_{j1},{S}_{j2},\dots \}).$$

#### 2.3.4. Basic RMP Problem and the Fast Miner Method

The basic RMP [17] can be formalized as follows:

$$\{\begin{array}{c}\mathrm{min}\left|R\right|\\ UA\otimes PA=UPA\end{array}$$

For the sake of simplicity, the UPA, UA, and PA are used to represent their respective assignment relationships, as well as the corresponding matrices. The Fast Miner method [16] mainly consists of the following two steps:

**Step 1.**Based on the hash mapping rule, a group of all users who have the exact same set of permissions for a given permission assignment, and construct an initial set of roles. This significantly reduces the size of the original data set.

**Step 2.**Identify all potentially interesting roles by implementing intersections between all pairs of the initial roles. Generate new roles and count the number of users associated with any new role.

For readability, we have summarized the main symbols used in the paper in Table 1.

## 3. Proposed Method

In this section, we propose a novel method, REO_CCUMEC, which includes three elements: (1) Preprocessing for basic RMP, (2) role optimization satisfying cardinality constraints, and (3) role assignments satisfying multiple constraints.

#### 3.1. Preprocessing for Basic RMP

To satisfy the basic RMP, the methods of the Fast Miner algorithm and Boolean matrix decomposition are used to mine the initial roles, as shown in Algorithm 1.

Algorithm 1. Initial role mining for basic RMP. |

Input: the original matrix UPAOutput: preprocessed matrices UA and PA and the initial set CR of the rolesThe Fast Miner and Boolean matrix decomposition are adopted to derive CR and configure RBAC, such that $\{\begin{array}{c}\mathrm{min}\left|CR\right|\\ UA\otimes PA=UPA\end{array}$. |

According to Equation (6) and the results from Algorithm 1, the similarity and dissimilarity between u

_{i}and u_{j}are calculated as follows:
$$sim({u}_{i},{u}_{j})=\frac{|use{r}_{-}permissions({u}_{i})\cap use{r}_{-}permissions({u}_{j})|}{|use{r}_{-}permissions({u}_{i})\cup use{r}_{-}permissions({u}_{j})|}$$

$$dis({u}_{i},{u}_{j})=1-sim({u}_{i},{u}_{j}).$$

Partitioning can be done in many ways. However, it has been shown that, using business information is typically preferable to using other types of information, since it generates more meaningful roles. Business information includes both user and permission attributes. For the sake of clarity, we only consider partitions induced by user attributes.

According to the above calculations, we can identify the cluster {CU

_{1},CU_{2},...} of users. Then, we use the partitioning and compressing technologies to handle each user cluster independently.#### 3.1.1. Partitioning User Clusters

To identify user clusters, we use the well-known clustering algorithm, partitioning around cluster medoids (PAM) [47]. This algorithm is similar to the k-means clustering algorithm, except that dissimilarities are used instead of distances, and center points are used instead of means. First, we define the center point as follows.

**Definition**

**1.**

(center point) Given a cluster of users CU = {u

_{1},u_{2},…,u_{i},…,u_{j},…}, the user u_{i}is called the center point if and only if:
$$\forall {u}_{j}\in CU\backslash \left\{{u}_{i}\right\}:dis({u}_{i},CU\backslash \{{u}_{i}\})<dis({u}_{j},CU\backslash \{{u}_{j}\}).$$

In other words, the center point of a cluster is the user whose dissimilarity to all the other users in the cluster is minimal. The partitioning process is presented in Algorithm 2.

Algorithm 2. Partitioning user clusters. |

Input: user cluster CU and the k number of center pointsOutput: center points and partitions1. Randomly choose k users u _{1},u_{2},…,u_{k} in CU as the initial center points;2. for each center point u_{i} in {u_{1},u_{2},…,u_{k}} do3. for each non-center point u_{j} in associate(u_{i}) do4. $\begin{array}{l}dis({u}_{i},associate({u}_{i}))=\\ 1-\frac{1}{|associate({u}_{i})|}{\displaystyle \sum _{{u}_{j}\in associate({u}_{i})}sim({u}_{i},{u}_{j})};\end{array}$ 5. $\begin{array}{l}dis({u}_{j},associate({u}_{i})\backslash \{{u}_{j}\}\cup \{{u}_{i}\})=\\ 1-\frac{1}{|associate({u}_{i})\backslash \{{u}_{j}\}\cup \{{u}_{i}\left\}\right|}{\displaystyle \sum _{{u}_{k}\in (associate({u}_{i})\backslash \{{u}_{j}\}\cup \{{u}_{i}\})}sim({u}_{j},{u}_{k})};\end{array}$ 6. if dis(u_{j},associate(u_{i})\{u_{j}}∪{u_{i}})<dis(u_{i},associate(u_{i})) then7. associate(u _{i}) = associate(u_{i})\{u_{j}}∪{u_{i}};8. swap(u _{j},u_{i}) and divide CU into k partitions;9. end if10. end for11. end for |

In Algorithm 2, we first randomly select k users u

_{1},u_{2},…,u_{k}, take them as the initial center points, and divide CU into k partitions (line 1). The function associate(u_{i}) represents all the non-center points closest to center point u_{i}in a partition, and we associate each user to the closest center point. Then, for each center point u_{i}and non-center point u_{j}in associate(u_{i}), we respectively calculate dis(u_{i},associate(u_{i})), dis(u_{j},associate(u_{i})\{u_{j}}∪{u_{i}}) in lines 2–5. Lines 6–9 indicate that if the dissimilarity of u_{j}to the set of associate(u_{i})\{u_{j}}∪{u_{i}} is less than that of u_{i}after swapping the two users, then u_{j}is referred to as the new center point instead of u_{i}.Computational complexity: Partitioning a user cluster depends on the double loops and the swap operations. The execution time of the algorithm is $\mathrm{O}(\mathrm{s}\times \mathrm{k}\times \left(\mathrm{n}-\mathrm{k}\right)$), where k is the number of center points, n is the number of users in the cluster, and s is the number of swaps between the center points and non-center points. Usually, $\mathrm{k}\ll \mathrm{n}$, so the impact of k on the performance can be ignored, and the total time is really $\mathrm{O}\left(\mathrm{s}\times \mathrm{n}\right)$.

#### 3.1.2. Compressing Cluster Partitions

After identifying user clusters and the respective center points, we further simplify each cluster using the support degree and compression point, which are defined as follows.

**Definition**

**2.**

(support degree of a permission) Let the user cluster be CU = {u
where$suppor{t}_{CU}\left(p\right)\in \left(0,1\right]$.

_{1},u_{2},…,u_{i},…}, where user_permissions(u_{i}) = {p_{i1},p_{i2},…,p_{ij},…}, and p_{ij}is the permission possessed by u_{i}. The percentage of different users possessing p in CU is called the support degree of p with respect to CU. This percentage is represented as,
$$suppor{t}_{CU}(p)=\frac{\left|\right\{{u}_{k}|\exists {u}_{k}\in CU:p\in user\_permissions({u}_{k})\}|}{\left|CU\right|}$$

**Definition**

**3.**

(compression point) Given user cluster CU = {u

_{1},u_{2},…,u_{i},…} and threshold t, user u_{i}is called the compression point if and only if
$$\exists {u}_{i}\in CU,\forall {p}_{ij}\in {u}_{i}:suppor{t}_{CU}({p}_{ij})\ge t.$$

We represent the cluster with u

_{i}, and the sets of all compression points are represented as VC. The compression process is presented in Algorithm 3.Algorithm 3. Compression cluster partitions. |

Input: the initial set CR of the roles, the set VC of the compression points, the partition with center point u_{i}, and threshold tOutput: compressed matrix UPA_{compressed}1. Initialize UPA _{compressed} = Φ, VC = Φ;2. for each p in CR do3. $\begin{array}{l}suppor{t}_{associate({u}_{i})\cup \left\{{u}_{i}\right\}}(p)=\\ \frac{\left|\right\{u|\exists u\in associate({u}_{i})\cup \{{u}_{i}\}:p\in user\_permissions(u)\}|}{|associate({u}_{i})\cup \{{u}_{i}\left\}\right|};\end{array}$ 4. if $suppor{t}_{associate({u}_{i})\cup \left\{{u}_{i}\right\}}(p)\ge t$ then5. insert u _{i} into VC;6. UPA _{compressed} = UPA_{compressed} ∪ {(u_{i}, p)};7. end if8. end for |

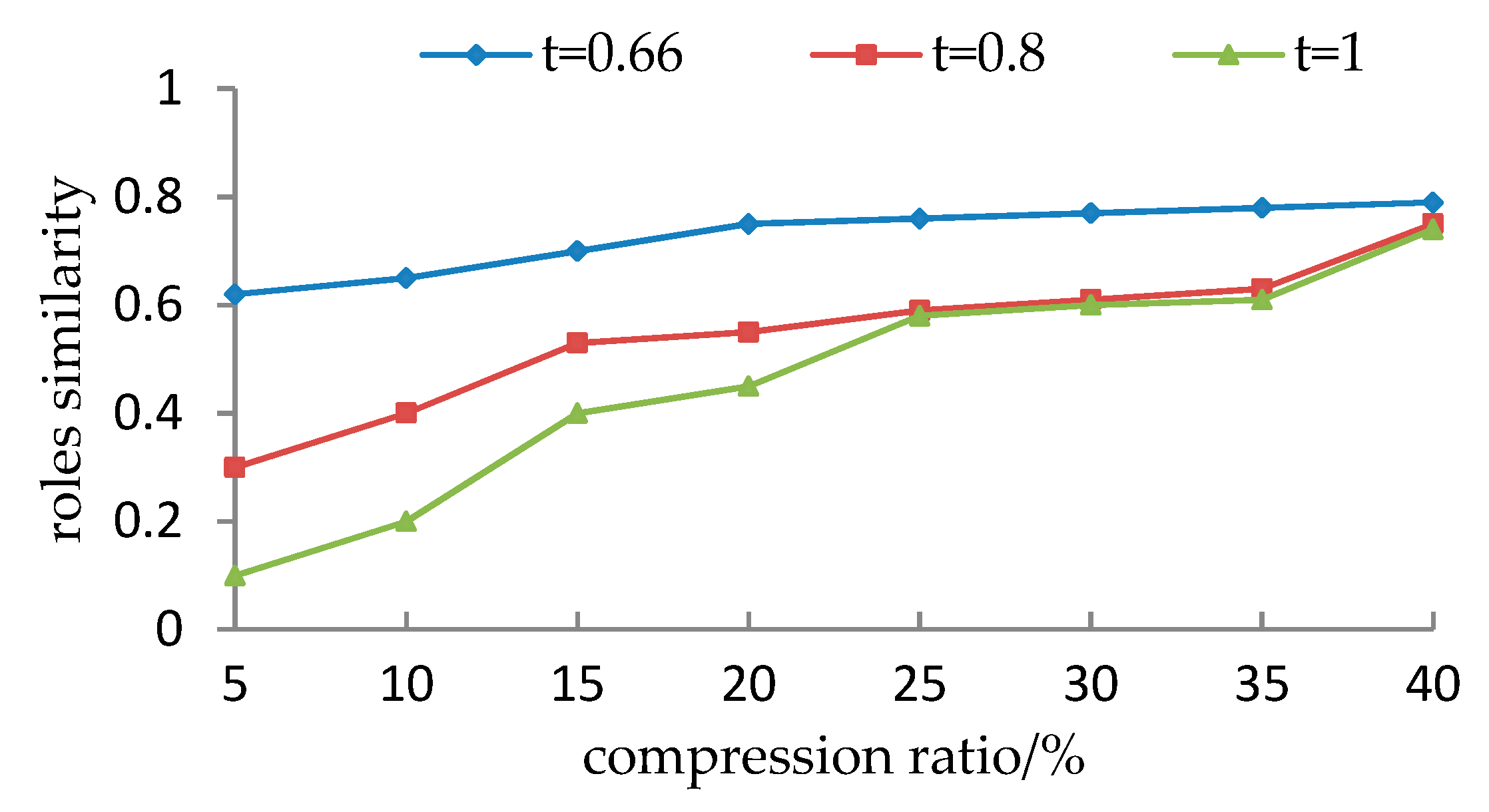

Indeed, threshold t plays an important role in identifying the compression point. For example, when t equals 1, it is difficult to identify the compression point, because of the differences among users; when t is less than 1, identification is possibly easier.

#### 3.2. Role Optimization Satisfying Cardinality Constraints

In order to optimize the pre-processed results, the UCC and PCC should be taken into consideration individually or simultaneously in role optimization. Specifically, the preprocessed matrices UA and/or PA are first checked to determine if they violate the given cardinality constraint(s). If there are no constraint violations, they are regarded as efficient solutions. Otherwise, to limit the number of roles assigned to the violating user and/or the related permission, we next present three role-optimization problems and the corresponding algorithms.

#### 3.2.1. Role Optimization Satisfying UCC

**Definition**

**4.**

(a role-optimization problem with UCC) Given a user-permission assignment matrix UPA

_{n×m}, the preprocessed UA and PA matrices, and a particular threshold MRC_{user}, find an optimal set R of roles, such that the UA and PA are consistent with the UPA, the number of roles assigned to any user is less than or equal to MRC_{user}, and the number of the optimal roles is minimized. This process can be formalized as follows:
$$\{\begin{array}{c}\mathrm{min}\left|R\right|\\ UA\otimes PA=UPA\\ {\displaystyle {\sum}_{j}UA[i][j]}\le MR{C}_{user}\le \left|R\right|,\forall i\in [1,n]\end{array}.$$

According to Definition 4, in order to satisfy role optimization in the presence of UCC, the optimizing process is presented in Algorithm 4.

Algorithm 4. Role optimization satisfying UCC. |

Input: preprocessed matrices UA and PA, the initial role set CR, and threshold MRC_{user}Output: the optimized matrices UA and PA1. Define and compute count_user_roles(u) as the number of roles possessed by user u; 2. Define and compute count_role_users(r) as the number of users assigned to role r; 3. while ∃u∈U: count_user_roles(u) > MRC_{user} do4. k = count_user_roles(u) − (MRC _{user} − 1);5. Choose the top k roles from u with the highest count_role_users(r) values to constitute set S; 6. Merge the permissions of all the k roles and denote the union as set P _{S};7. Create a new role r _{nr} such that role_permissions(r_{nr}) = P_{S};8. for each p_{t} in P do9. if p_{t}∈P_{S} then10. PA[nr][t] = 1; 11. else12. PA[nr][t] = 0; 13. end if14. end for15. for each u_{i} in U do16. if ∀r_{j}∈S: UA[i][j] = = 1 then17. ∀r _{j}∈S: UA[i][j] = 0;18. UA[i][nr] = 1; 19. else20. UA[i][nr] = 0; 21. end if22. end for23. Update count_user_roles(u) and count_role_users(r); 24. end while |

In Algorithm 4, we first define two functions, count_user_roles(u) and count_role_users(r) (lines 1–2). Line 3 determines whether the number of roles possessed by any user exceeds MRC

_{user}. For each violating user u, the k number of roles is represented by calculating count_user_roles(u) − (MRC_{user}− 1) in line 4, and the top k roles, which are currently assigned to the maximum number of users, are chosen to constitute set S in line 5. We merge the permissions of all the k roles into set P_{S}, and assign the P_{S}to the newly created role while retaining the other (MRC_{user}− 1) roles assigned to user u (lines 6–7). Then, the new role is inserted into the PA and UA. We update matrices PA and UA, based on the new role, in Lines 8–22. As a result, the UCC is satisfied, with a possible reduction in the number of roles assigned to the violating user, because the newly created role is used instead of the k merging roles.#### 3.2.2. Role Optimization Satisfying PCC

**Definition**

**5.**

(role-optimization problem with PCC) Given a user-permission assignments matrix UPA

_{n×m}, the preprocessed results UA and PA matrices, and a particular threshold MRC_{user}, find an optimal set R of roles, such that the UA and PA are consistent with the UPA, the number of roles to which any permission can be assigned is less than or equal to MRC_{permission}, and the number of the optimal roles is minimized. It can be formalized as follows:
$$\{\begin{array}{c}\mathrm{min}\left|R\right|\\ UA\otimes PA=UPA\\ {\displaystyle {\sum}_{j}PA[j][t]}\le MR{C}_{permission}\le \left|R\right|,\forall t\in [1,m]\end{array}$$

According to Definition 5, in order to satisfy role optimization in the presence of PCC, the optimizing process is presented in Algorithm 5.

Algorithm 5. Role optimization satisfying PCC. |

Input: the preprocessed matrices UA, PA, initial role set CR, and threshold MRC_{permission}Output: the optimized matrices UA and PA1. Define and compute count_permission_roles(p) as the number of roles related to permission p; 2. Define and compute count_role_permissions(r) as the number of permissions assigned to role r; 3. while ∃p∈P: count_perm_roles(p)>MRC_{permission} do4. k = count_perm_roles(p) − (MRC _{permission} − 1);5. Choose the top k roles from p with the highest count_role_permissions(r) values to constitute set S; 6. Intersect the permissions of all the k roles and denote the intersection as set P _{S};7. Create a new role r _{nr} such that role_permissions(r_{nr}) = P_{S};8. for each u_{i} in U do9. if count_user_roles(u_{i})⊇r_{nr} then10. UA[i][nr] = 1; 11. else12. UA[i][nr] = 0; 13. end if14. end for15. for each r_{j} in S do16. if ∀p_{t}∈P_{S}: PA[j][t] = = 1 then17. ∀p _{t}∈P_{S}: PA[j][t] = 0;18. PA[nr][t] = 1; 19. else20. PA[nr][t] = 0; 21. end if22. end for23. Update count_perm_roles(p) and count_role_perms (r); 24. end while |

In Algorithm 5, we first define two functions: Count_permission_roles(p) and count_role_permissions(r) (lines 1–2). Line 3 determines whether the number of roles to which any permission is assigned exceeds MRC

_{permission}. For each violating permission p, k number of roles is represented by calculating count_permission_roles(p) − (MRC_{permission}− 1) in line 4, and the top k roles, which possess the maximum number of permissions, are chosen to constitute set S in line 5. We intersect the permissions of all the k roles into set P_{S}, and assign P_{S}to the newly created role while retaining the other (MRC_{permission}− 1) roles related to permission p (lines 6–7). Then, the new role is inserted into the UA and PA. We update matrices UA and PA, based on the new role, in Lines 8–22. As a result, the PCC is satisfied with a possible reduction in the number of roles related to the violating permission, because the newly created role is used instead of the k intersecting roles.#### 3.2.3. Role Optimization Satisfying both UCC and PCC

Algorithm 4 and Algorithm 5 show that either, the UCC or PCC, are considered. However, with an increase in the number of roles related to permission p

_{t}(owing to the merging roles), lines 9–10 may cause a violation of the PCC in Algorithm 4. Similarly, with an increase in the number of roles assigned to user u_{i}(owing to the intersecting roles), lines 9–10 may cause a violation of the UCC in Algorithm 5. Thus, it is necessary to study whether the double constraints are satisfied simultaneously.**Definition**

**6.**

(a role-optimization problem with both UCC and PCC) Given a user-permission assignment matrix UPA

_{n×m}, the preprocessed result matrices UA and PA, and two thresholds MRC_{user}and MRC_{permission}, find an optimal set R of roles, such that the UA and PA are consistent with the UPA, where the number of roles assigned to any user is less than or equal to MRC_{user}, the number of roles to which any permission can be assigned is less than or equal to MRC_{permission}, and the number of the optimal roles is minimized. This can be formalized as follows:
$$\{\begin{array}{c}\mathrm{min}\left|R\right|\\ UA\otimes PA=UPA\\ {\displaystyle {\sum}_{j}UA[i][j]}\le MR{C}_{user}\le \left|R\right|,\forall i\in [1,n]\\ {\displaystyle {\sum}_{j}PA[j][t]}\le MR{C}_{permission}\le \left|R\right|,\forall t\in [1,m]\end{array}.$$

In addition, a role set RU, which would not cause any new violations in the role-permission assignments, needs to be identified; another role set RI, which would not cause any new violations in the user-role assignments, also needs to be identified. Specifically, for each role r in RU, any permission assigned to r does not violate the PCC when r is chosen and implemented in Algorithm 4. This can be represented as:

∀r ∈ RU, ∀p ∈ role_permissions(r): count_perm_roles(p) ≤ MRC

_{permission}− 1.Similarly, for each role r in RI, any user possessing r would not violate the UCC when r is chosen and implemented in Algorithm 5. This process can be represented as:

∀r ∈ RI, ∀u ∈ role_users(r): count_user_roles(u) ≤ MRC

_{user}− 1.According to Definition 6, the optimizing process is presented in Algorithm 6.

Algorithm 6. Role optimization satisfying both UCC and PCC. |

Input: preprocessed matrices UA, PA, initial role set CR, and thresholds MRC_{user} and MRC_{permission}Output: optimized matrices UA and PA1. Define and compute count_user_roles(u), count_role_users(r), count_permission_roles(p), and count_role_permissions(r); 2. Identify RU, RI; 3. while (∃u∈U: count_user_roles(u) > MRC_{user}) or (∃p∈P: count_perm_roles(p) > MRC _{permission}) do4. Choose violating users or violating permissions based on a heuristic strategy; 5. if user u is chosen then6. k = count_user_roles(u) − (MRC _{user} − 1);7. Choose the top k roles of u from RU with the highest count_role_users(r) values to constitute set S; 8. Merge the permissions of all the k roles and denote the union as set P _{S};9. Create a new role r _{nr} such that role_permissions(r_{nr}) = P_{S};10. Update the PA and UA with r _{nr} according to Algorithm 4;11. else12. k = count_perm_roles(p) − (MRC _{permission} − 1);13. Choose the top k roles of p from RI with the highest count_role_permissions(r) values to constitute set S; 14. Intersect the permissions of all the k roles and denote the intersection as set P _{S};15. Create a new role r _{nr} such that role_permissions(r_{nr}) = P_{S};16. Update the UA and PA with r _{nr} according to Algorithm 5;17. end if18. end while |

In Algorithm 6, we first identify RU, RI, and determine the violating users or permissions using a heuristic strategy in lines 2–4. Then, if user u is chosen, the top k roles are chosen from RU; if permission p is chosen, the top k roles are chosen from RI. Similar to updating the UA and PA in Algorithm 4 and Algorithm 5, detailed descriptions of the algorithm are omitted, due to the limited space.

#### 3.3. Role Assignments Satisfying Multiple Constraints

In this subsection, we study the issue of assigning the available users with different capabilities to the mining roles in the role-engineering system, such that the number of user-role assignments is maximized while satisfying the relevant security constraints. Specifically, we study how to assign each role with the maximum number of users based on the two conditions: (1) Retaining the UCC in role-mining optimization, and (2) considering the user-oriented mutually exclusive constraints and constraint degree of the roles in role assignments. First, we present the following definitions.

**Definition**

**7.**

(A user-oriented mutually exclusive constraint) Given a matrix UC for user-capability constraints, consider a constructed set C for the t-t SMER constraints in the role-engineering system. Then, the role assignments for any user in UC should satisfy both the UC and C constraints.

**Definition**

**8.**

(The constraint degree of a role) Let the t-t SMER constraint set be C = {c
where$sme{r}_{C}\left(r\right)\in \left(0,1\right]$.

_{1},c_{2},…c_{i},…}, where c_{i}= smer<{r_{1},r_{2},…r_{ti}},ti>. The percentage of different constraints, including role r, in C is called the constraint degree of r with respect to C, which is represented as,
$$sme{r}_{C}(r)=\frac{\left|\right\{{c}_{k}|\exists {c}_{k}\in C:risincludedin{c}_{k}\}|}{\left|C\right|}$$

**Definition**

**9.**

(A role-assignment problem with multiple constraints) Besides the set U of users, set R of roles, and threshold MRC

_{user}for the UCC constraint in the role-mining optimization, given the matrix UC for user-capability constraints, and a set C for the t-t SMER constraints, we find a role-assignment matrix UA’ such that the number of role assignments is maximized while satisfying all the constraints. This matrix can be formalized as follows:
$$\{\begin{array}{c}\mathrm{max}\left|U{A}^{\prime}\right|\\ U{A}^{\prime}[i][j]=0,\forall UC[i][j]=0\\ user\_roles(u)satisfyC,\forall u\in U{A}^{\prime}\\ count\_user\_roles(u)\le MR{C}_{user},\forall u\in U{A}^{\prime}\end{array}$$

According to Definitions 7–9, the assigning process is presented in Algorithm 7.

Algorithm 7. Role assignments satisfying multiple constraints. |

Input: Set U for users, set R for roles, threshold MRC_{user}, matrix UC for user-capability constraints, and set C for t-t SMER constraintsOutput: user-role assignment matrix UA’1. for each UC[i][j] in UC do2. if UC[i][j] = = 0 then3. UA’[i][j] = 0; 4. else5. UA’[i][j] = a _{ij};6. end if7. end for8. Create a new priority queue Q and insert all roles of R into Q; 9. Sort roles in Q according to the ascending order of their constraint degree. Role r, which has a lower smer _{C}(r) value, has a higher priority;10. while Q is not empty do11. Choose role r _{j} with the highest priority in Q;12. for each u_{i} in UC do13. if UA’[i][j]≠ 0 then14. for each smer<{r_{1},r_{2},…,r_{t}},t> in C do15. if (|{user_roles(u) ∪ {r_{i}_{j}}} ∩ {r_{1},r_{2},…,r_{t}}|<t) and(count_user_roles(u _{i})≤ MRC_{user} − 1) then16. UA’[i][j] = 1; 17. end if18. end for19. end if20. end for21. Remove r _{j} from Q;22. end while |

Obviously, it is observed that if user u

_{i}in UC cannot perform role r_{j}, then we say that $\left({u}_{i},{r}_{j}\right)\notin U{A}^{\prime}$; otherwise, it is uncertain whether r_{j}can be assigned to u_{i}. On the other hand, if $\left({u}_{i},{r}_{j}\right)\in U{A}^{\prime}$, then we say that $\left({u}_{i},{r}_{j}\right)\in UC$; otherwise, it is uncertain whether u_{i}can or cannot perform r_{j}. We formalize these observations as follows:- (1)
- $\forall i,\forall j:UC\left[i\right]\left[j\right]==0\Rightarrow U{A}^{\prime}\left[i\right]\left[j\right]==0$, $UC\left[i\right]\left[j\right]==1\nRightarrow U{A}^{\prime}\left[i\right]\left[j\right]==1$;
- (2)
- $\forall i,\forall j:U{A}^{\prime}\left[i\right]\left[j\right]==1\Rightarrow UC\left[i\right]\left[j\right]==1$, $U{A}^{\prime}\left[i\right]\left[j\right]==0\nRightarrow UC\left[i\right]\left[j\right]==0$.

In Algorithm 7, we first initialize UA’, based on the observations in lines 1–7, and represent the uncertainty with variable a

_{ij}(line 5). Then, we create a new priority queue Q and insert set R into Q, according to the constraint degree of roles, where the lower the smer_{C}(r) value, the higher the priority of role r (lines 8–9). Next, we implement the role assignments while satisfying all the security constraints until Q is empty (lines 10–22).## 4. Theoretical Analyses and Running Examples

#### 4.1. Relationship between the Center Point and Compression Point

According to Algorithm 2, since user cluster CU is divided into k partitions, k different compression points need to be created in most of the compression processes. The storage space for many compression points becomes much larger with an increasing number of user clusters. In order to reduce the cost of storage, it is necessary to find suitable substitutes from existing users to meet the characteristics of the compression points.

**Statement**

**1.**

The center point of any partition can be a substitute for the compression point in line 5 of Algorithm 3.

**Proof.**

We analyze the statement from two perspectives: Sufficiency and necessity.

Sufficiency: Definition 1 indicates that the average similarity of the center point to all the non-center points in any partition is maximal. Meanwhile, it is observed from equation (11) that the number of users who possess permission p assigned to center point u

_{i}is no less than that of permission p’ assigned to any non-center point. That is,
$$\begin{array}{l}\forall p\in user\_permissions({u}_{i}),\forall {p}^{\prime}\notin user\_permissions({u}_{i}):\\ \left|\right\{u|\exists u\in associate({u}_{i}):(u,p)\in UPA\}|\ge |\left\{{u}^{\prime}\right|\exists {u}^{\prime}\in associate({u}_{i}):({u}^{\prime},{p}^{\prime})\in UPA\left\}\right|\\ \Rightarrow suppor{t}_{associate({u}_{i})\cup \left\{{u}_{i}\right\}}(p)\ge suppor{t}_{associate({u}_{i})\cup \left\{{u}_{i}\right\}}({p}^{\prime})\ge t.\end{array}$$

This is clearly true.

Necessity: We use the method of contradiction and assume that the support degree of permission p, which is assigned to center point u

_{i}, does not satisfy the decision condition in Algorithm 3. In other words, there exists a satisfied permission p’ not assigned to u_{i}. That is,
$$\begin{array}{l}\exists p\in assigned\_permissions({u}_{i}),\exists {p}^{\prime}\notin assigned\_permissions({u}_{i}):\\ suppor{t}_{associate({u}_{i})\cup \left\{{u}_{i}\right\}}({p}^{\prime})\ge t>suppor{t}_{associate({u}_{i})\cup \left\{{u}_{i}\right\}}(p)\\ \Rightarrow \left|\right\{{u}^{\prime}|\exists {u}^{\prime}\in associate({u}_{i}):({u}^{\prime},{p}^{\prime})\in UPA\}|\ge |\left\{u\right|\exists u\in associate({u}_{i}):(u,p)\in UPA\left\}\right|.\end{array}$$

Then,

$$\begin{array}{l}\exists {u}_{j}\in \left\{{u}^{\prime}\right|\exists {u}^{\prime}\in associate({u}_{i}):({u}^{\prime},{p}^{\prime})\in UPA\}:\\ sim({u}_{j},associate({u}_{i})\backslash \{{u}_{j}\}\cup \{{u}_{i}\})>sim({u}_{i},associate({u}_{i}))\\ \Rightarrow dis({u}_{j},associate({u}_{i})\backslash \{{u}_{j}\}\cup \{{u}_{i}\})<dis({u}_{i},associate({u}_{i})).\end{array}$$

It is contradictory to the case that u

_{i}is the center point. Thus, the assumption is false. □#### 4.2. The Influencing Factors of Role Assignments

According to Definition 9, the task of the role assignment aims to find matrix UA’ such that the number of role assignments is maximized. In order to analyze the assigning efficiency of the method, we present the definition of the role-utilization ratio, as follows:

**Definition**

**10.**

(role-utilization ratio, RR) Given matrix UA’ of the role assignments and matrix UC of the user-capability constraints, the RR is calculated as follows,
where$RR\in \left(0,1\right]$.

$$RR=\frac{\left|U{A}^{\prime}\right|}{\left|UC\right|}\times 100\%$$

Indeed, RR is the percentage of the number of 1 in the UA’ compared to that in the UC. Note that if none of the constraints are considered, then RR is equal to 100% because UA’ = UC. However, RR is influenced by various parameters during the whole process of the role-engineering optimization. The value of RR varies with the varying truth assignments for the UA’. Thus, it is necessary to study how RR is influenced by existing factors, such as cardinality constraints and user-oriented mutually exclusive constraints.

**Statement**

**2.**

Given the threshold MRC

_{user}of the UCC constraint, set R’ of the roles in the UC constraint, and the density δ of the UC matrix (that is, a percentage of 1 in the UC), the upper bound of RR satisfies the following:
$$RR<\frac{MR{C}_{user}}{\left|{R}^{\prime}\right|\times \delta .}$$

**Proof.**

The number of cells in matrix UC is $\left|{U}^{\prime}\right|\times \left|{R}^{\prime}\right|$. As the percentage of 1 in the UC is δ, $\left|UC\right|=\left|{U}^{\prime}\right|\times \left|{R}^{\prime}\right|\times \delta $. Meanwhile, as any user in the UC is assigned MRC

_{user}roles, at most, $\left|U{A}^{\prime}\right|<\left|{U}^{\prime}\right|\times MR{C}_{user}$. Thus, $RR=\frac{\left|U{A}^{\prime}\right|}{\left|UC\right|}<\frac{\left|{U}^{\prime}\right|\times MR{C}_{user}}{\left|{U}^{\prime}\right|\times \left|{R}^{\prime}\right|\times \delta}=\frac{MR{C}_{user}}{\left|{R}^{\prime}\right|\times \delta}$. □It is observed from Statement 2 that the value of RR increases with an increasing value of MRC

_{user}, and decreases as the number of roles and the density of the UC increase. Furthermore, it is observed from line 14 of Algorithm 7 that RR is also influenced by the number of constraints in set C. As the truth assignments for the UA’ decrease with an increasing number of the constraints, the value of RR decreases with an increasing value of |C|.#### 4.3. Relationship between the UCC and PCC

Although, both optimized results can satisfy a single constraint requirement, according to Algorithm 4 and Algorithm 5, another security constraint may be violated. In other words, they do not address the issue of balancing the role-mining effectiveness and system security.

**Statement**

**3.**

The UCC and PCC are mutually exclusive.

**Proof.**

We can analyze the statement from lines 9–10 in Algorithm 4 and lines 9–10 in Algorithm 5. However, detailed descriptions are omitted due to limited space. That is, it is a contradictory relationship between the UCC and PCC. □

#### 4.4. Running Examples

In order to eliminate redundancies while maintaining the system’s usability for role mining, we handle the original permission assignments UPA

_{original}using the compression technology and convert the uncompressed matrix UPA_{original}into the compressed matrix UPA_{compressed}. Note that the UPA_{compressed}is much denser than the UPAoriginal, particularly in large-scale access control systems. Indeed, it is convenient and feasible to analyze and handle the compressed data object. As shown in Table 2, (UPA_{compressed})_{6×6}is a compressed matrix, where the shadow parts are dense and provide motivation for available mining roles. The following example is presented to demonstrate the effectiveness of our method.**Example**

**1.**

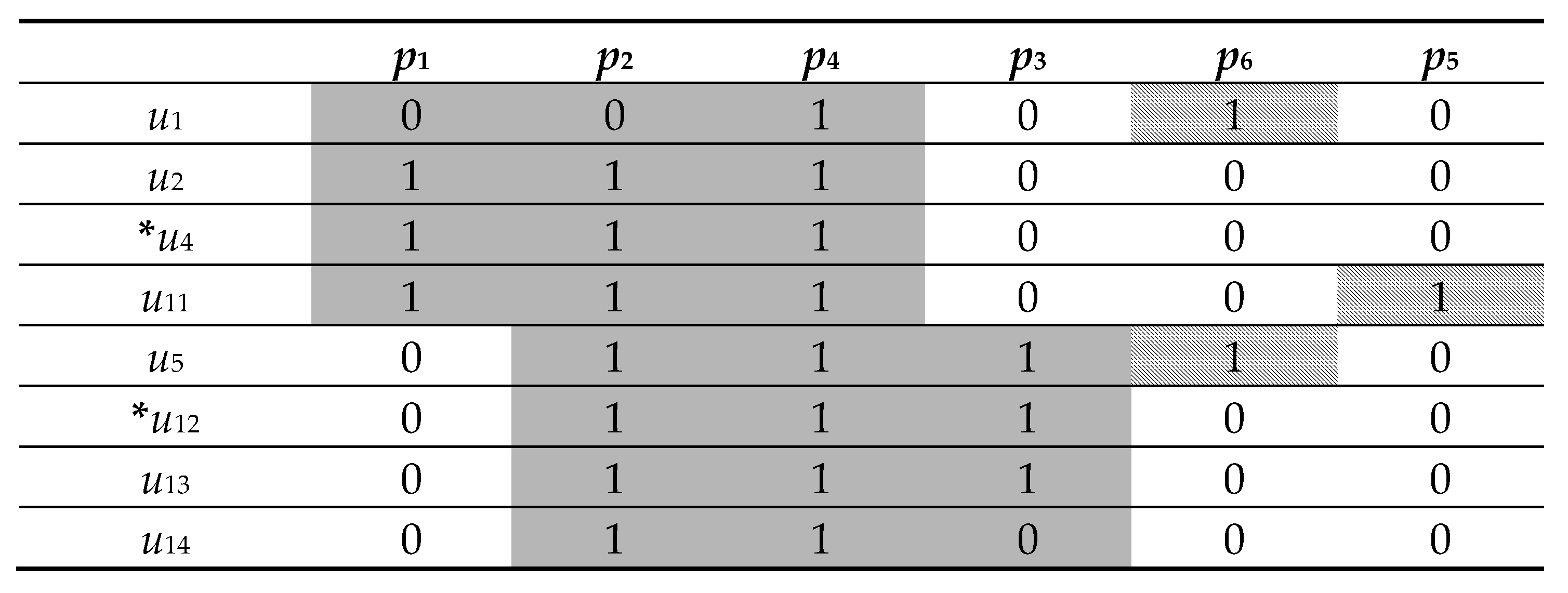

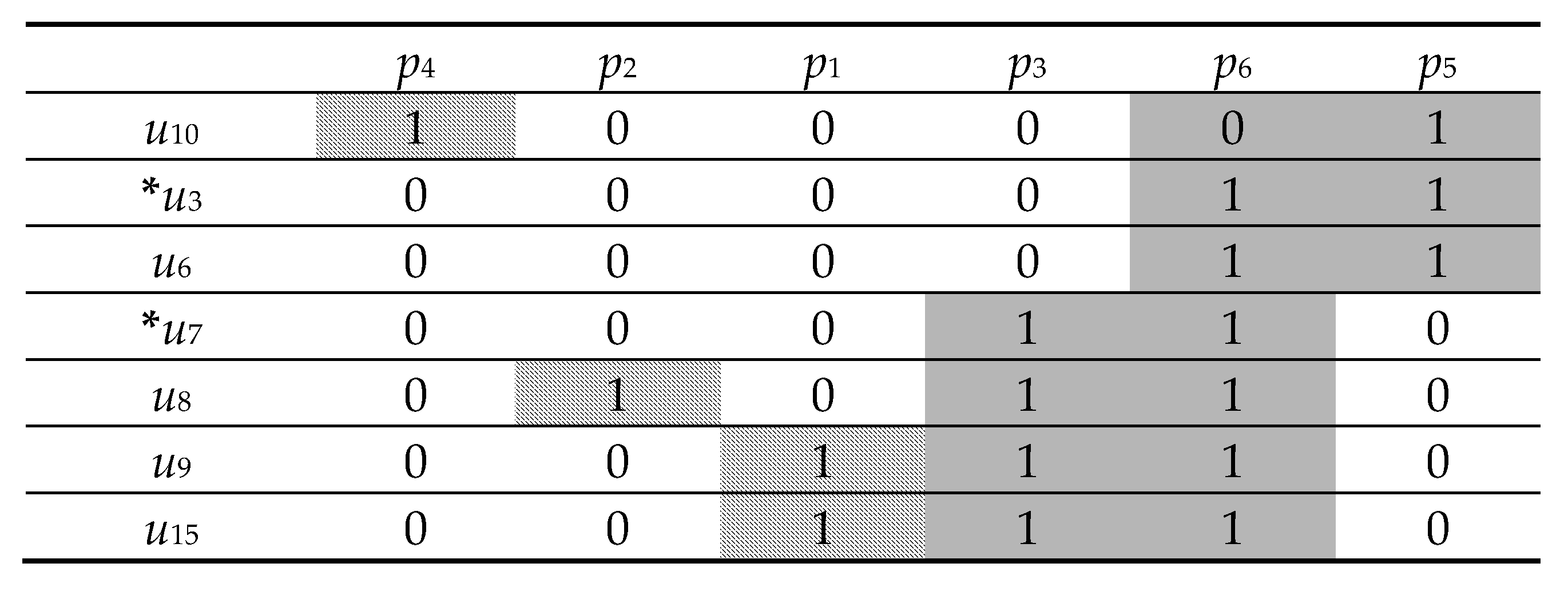

This example considers the matrix UPA

_{original}of the original permission assignments, a k number of center points, a threshold t of the support degree, a threshold MRC_{user}of the UCC, and a threshold MRC_{permission}of the PCC, where the UPA_{original}is comprised of 15 users and 6 permissions, as shown in Table 3, k = 2, t = 0.66, and MRC_{user}= MRC_{permission}= 2.In the preprocessing phase, we first calculate the similarities between different users based on equation (11) and the results of Algorithm 1 and identify user clusters CU = {CU

_{1},CU_{2}}, where CU_{1}= {u_{1},u_{2},u_{4},u_{5},u_{11},u_{12},u_{13},u_{14}} and CU_{2}= {u_{3},u_{6},u_{7},u_{8},u_{9},u_{10},u_{15}}. Then, we use the partitioning technology (Algorithm 2) to handle each user cluster with k = 2 independently. As shown in the results in Table 4, CU_{1}is divided into two partitions: {u_{1},u_{2},u_{4},u_{11}} (with center point u_{4}) and {u_{5},u_{12},u_{13},u_{14}} (with center point u_{12}). Similarly, CU_{2}is also divided into two partitions, as shown in Table 5. Next, we use the compression technology (Algorithm 3) to compress each partition with t = 0.66. As shown in Table 4 and Table 5, the full-line shadow parts, which satisfy the compressing condition, are regarded as usable for mining roles. The dotted-line shadow fractions, such as (u_{1},p_{6}), (u_{11},p_{5}), and (u_{5},p_{6}), which do not satisfy the compressing condition, are regarded as redundant. The compressed matrix is shown in Table 6, and the set of mining roles is R_{initial}= {{p_{1},p_{2},p_{4}},{p_{2},p_{3},p_{4}},{p_{2},p_{4}},{p_{4}},{p_{3},p_{6}},{p_{5},p_{6}},{p_{6}}}.In the role optimization phase, we use Algorithm 6 with MRC

_{use r}= MRC_{permission}= 2, and the set of the optimized roles is R_{optimized}= {{p_{1},p_{2}},{p_{2},p_{4}},{p_{4}},{p_{3}},{p_{6}},{p_{5}}}. The optimized results, which are shown in Table 7 and in Table 8, can satisfy the double constraints simultaneously.To further demonstrate the effectiveness of our method, we simulate an actual-application scenario and implement role assignments in the role-engineering system. Table 9 presents descriptions of several roles used in the following example.

**Example**

**2.**

Besides the threshold MRC

_{user}of the UCC and the R_{optimized}set of the optimized roles in Example 1, consider the following user-oriented mutually exclusive constraints:- (1)
- The matrix UC of user-capability constraints, which is shown in Table 10;
- (2)
- set C = {c
_{1},c_{2},c_{3},c_{4}} for the t-t SMER constraints, where c_{1}= smer<{r_{1},r_{3}},2>, c_{2}= smer<{r_{2},r_{3}},2>, c_{3}= smer<{r_{1},r_{2},r_{3}},3>, and c_{4}= smer<{r_{4},r_{5}},2>.

In the role assignment phase, we first initialize the UA’ according to Algorithm 7, as shown in Table 11. Then, we determine the constraint degree of the different roles, with respect to set C:smer

_{C}(r_{1}) = smer_{C}(r_{2}) = 0.5, smer_{C}(r_{3}) = 0.75, smer_{C}(r_{4}) = smer_{C}(r_{5}) = 0.25. Then we insert set {r_{1},r_{2},r_{3},r_{4},r_{5}} into queue Q according to the constraint degree of the roles. Next, we implement the role assignments, as follows.Here, r

_{4}is chosen as the candidate role according to its priority in step 1, and we set a_{14}= a_{24}= a_{44}= a_{64}= 1, a_{25}= a_{45}= a_{65}=0, which is shown in Table 12; r_{5}is chosen as the candidate role in step 2, and we can set a_{55}= 1, which is shown in Table 13; r_{1}is chosen as the candidate role in step 3, and we set a_{11}= a_{31}= a_{51}= a_{61}= 1, a_{33}= a_{63}= 0, which is shown in Table 14; r_{2}is chosen as the candidate role in step 4, we set a_{32}= 1, and a_{62}is 0 because of the cardinality constraint, which is shown in Table 15; lastly, r_{3}is chosen as the candidate role, and we set a_{23}= 1. As per the results shown in Table 16, the role assignments satisfy all the given constraints. Table 17 presents the assigning process that does not stop until queue Q becomes empty.## 5. Experimental Evaluations

In this section, three groups of experiments are carried out. The first group of experiments is used to evaluate the accuracy of REO_CCUMEC, the second is to evaluate its effectiveness, and the third is to evaluate its efficiency. We comprehensively consider 11 datasets from the work in [14]. These datasets are both real and synthetic, and the regular mining tool RMiner [48] was run on these datasets in the literature to evaluate the performance of unconstrained role mining. The original datasets, including the density of the dataset, the number of the initial role set CR, and the execution time, are shown in Table 18. All experiments are implemented on a standard desktop PC with an Intel i5–7400 CPU, 4 GB RAM, and 160 GB hard disks, running a 64-bit Windows 7 operating system. All simulations are compiled and executed in Eclipse IDE for a Java Developer environment.

#### 5.1. The Accuracy of the REO_CCUMEC

#### 5.1.1. Experimental Setup

We denote the percentage of the number of center points in the user cluster as the compression ratio. For the given user cluster CU with k center points, the $compression\hspace{1em}ratio=k/\left|CU\right|$. The experimental setup includes to following. The compression ratio increases from 0.05 to 0.4 with a step of 0.05, and we choose 0.66, 0.8, 1 as the threshold t of the support degree. In addition, the partitioning and compression algorithms are written in Java.

#### 5.1.2. Evaluation Measures

To evaluate the accuracy of the REO_CCUMEC in the preprocessing phase, on the one hand, we consider the similarity between the roles from the compressed results and initial roles with respect to the same set of users as one measure, which is denoted as sim

_{U}(UA_{compressed},UA_{initial}); on the other hand, we consider the similarity with respect to the same set of permissions as another measure, which is denoted as sim_{P}(PA_{compressed},PA_{initial}).#### 5.1.3. Experimental Results and Analyses

We implement the experiments on the America-large, America-small, University1, and University2 datasets, as shown in Table 18, and take the median value. The results of the experiments are shown in Figure 1 and Figure 2, where the lateral axis represents the varying values of the compression ratio, and the vertical axis represents the changes of similarity.

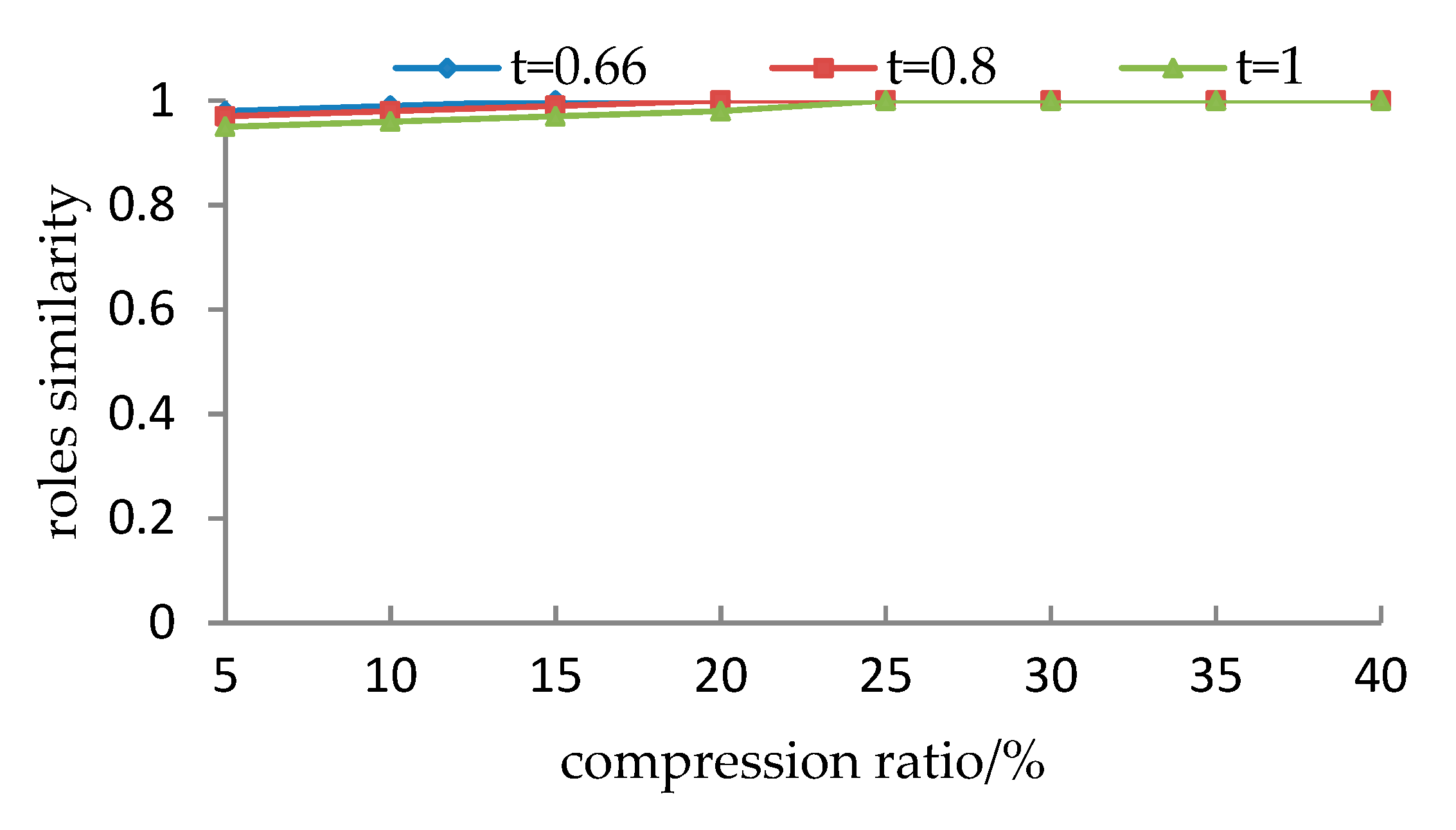

Figure 1 demonstrates that the value of sim

_{P}(PA_{compressed},PA_{initial}) does not obviously vary as the compression ratio increases under different t values. This value is very smooth and always remains above 0.95; no matter how one divides the user cluster into partitions, permissions are inserted into the compressed matrix once their support degree exceeds the threshold t, according to Algorithm 3. For the same permission set, the roles from the compressed results are the same as the initial ones. Although, there remains the possibility of temporary changes in access-resource permissions in large-scale application systems, a dissimilarity below 0.05 can be accepted. Therefore, it is accurate to use the method of preprocessing from the viewpoint of sim_{P}(PA_{compressed},PA_{initial}).Figure 2 demonstrates that the values of sim

_{U}(UA_{compressed},UA_{initial}) are different under different t values. The value of sim_{U}(UA_{compressed},UA_{initial}) increases slightly as the compression ratio increases when t = 0.66, but it tends to grow linearly as the compression ratio increases when t = 0.8 or 1. The higher the compression ratio, the greater the number of compression points (that is, the center point) and the roles assigned to the users. In addition, The value of sim_{U}(UA_{compressed},UA_{initial}) is no lower than 0.6 as the compression ratio increases when t = 0.66 but remains less than 0.6 when the compression ratio grows to 0.25 when t = 0.8 or 1. The higher the threshold t of the support degree, the fewer the users and the roles that satisfy the corresponding requirements. Therefore, the results are less accurate from the viewpoint of sim_{U}(UA_{compressed},UA_{initial}) when t exceeds 0.66.#### 5.2. The Effectiveness of the REO_CCUMEC

#### 5.2.1. Performance Evaluations under a Single Constraint

We first study how the number of optimized roles is influenced by a single cardinality constraint according to Algorithms 4–5. The preprocessing results UA and CR are considered to be inputs; both thresholds, MRC

_{user}and MRC_{permission}, are greater than 1, and we implement the experiments on the Domino and Healthcare datasets, as shown in Table 18.In order to evaluate the effectiveness of the REO_CCUMEC under the UCC, we compare the performance of our method with the results of the representative RPA and CPA [38]. The results are shown in Figure 3 and Figure 4, where the lateral axis represents varying values of the threshold MRCuser, and the vertical axis represents varying values for the number of roles.

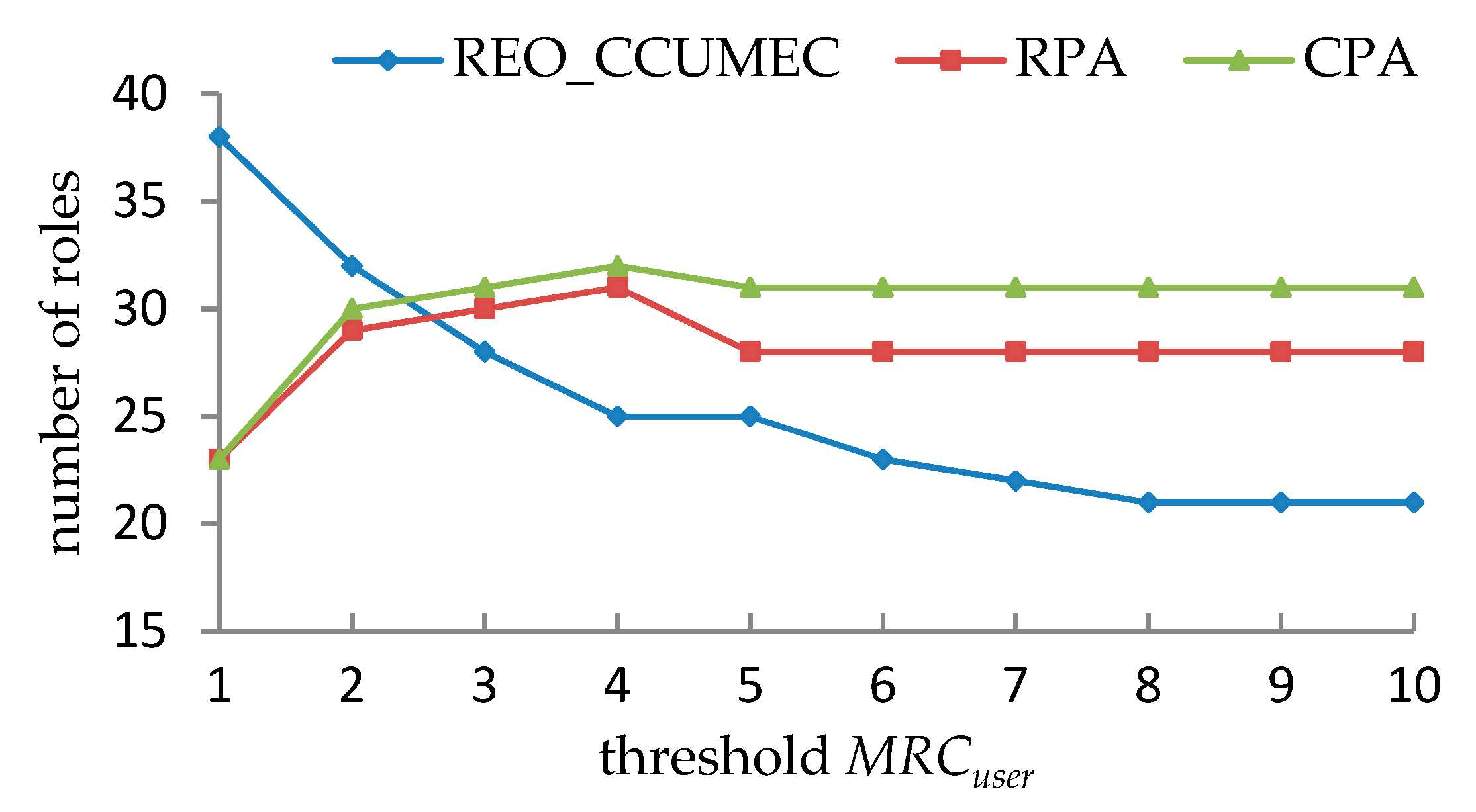

It is observed from Figure 3 that the number of roles decreases as MRC

_{user}increases in the REO_CCUMEC, which tends to be stable and no longer changes as MRC_{user}increases to a certain value. Specifically, the number of roles does not obviously vary and remains close to 20 when the value of MRC_{user}exceeds 8. Note that the number of the initial mining roles from the Domino dataset is 20 as shown in Table 18. Thus, the maximum number of roles assigned to any user can be regarded as 8 in the case of unconstrained mining. A further observation is that the number of roles first varies slightly and then increases significantly as MRC_{user}decreases. The reason for this result is that the greater the value of MRC_{user}, the more roles assigned to any user (that is, not too many permissions need to be assigned to a regular role) and the weaker the constraint. In other words, with a greater value of MRC_{user}, regular roles are more applicable and can be utilized more frequently. Thus, fewer irregular roles need to be created, and the number of roles does not vary considerably. On the contrary, the smaller the value of MRC_{user}, the stronger the constraint. More permissions are assigned to irregular roles that are rarely utilized, and the number of roles increases remarkably because of the creation of more new roles.However, the number of roles tends to increase as MRC

_{user}increases, from 1 to 4, in both the RPA and CPA, which seems to be contradictory. The reason for this result is that the Domino dataset contains exclusive permissions and produces exclusive roles in the presence of constraints. As shown in the figure, the maximum number of roles is close to 30 when MRC_{user}equals 4, while the minimum number of roles is 23 when MRC_{user}equals 1. Therefore, our method outperforms the RPA and CPA in the Domino dataset.Similar to the analyses in Figure 3, it is observed in Figure 4 that the number of roles also decreases as MRC

_{user}increases in the REO_CCUMEC, which tends to be stable and remains close to 15 when MRC_{user}increases to a certain value. However, the variations of the results in both the RPA and CPA are simple. The RPA generates 15 roles that remain unchanged when MRC_{user}exceeds 1, while the number of roles is 18 when MRC_{user}equals 1; the CPA generates 18 roles that remain unchanged as MRC_{user}varies. Therefore, our method outperforms the CPA in the Healthcare dataset.In order to evaluate the effectiveness of the REO_CCUMEC under the PCC, a representative post-processing method [39] is used for the performance comparison. The results are shown in Figure 5 and Figure 6, where the lateral axis represents the varying values of the threshold MRC

_{permission}, and the vertical axis represents the varying values of the number of roles. It is observed that the number of roles first varies slightly as MRC_{permission}decreases and then increases significantly in the two methods. Moreover, the number of optimized roles in our method is close to that in the post-processing method. Detailed analyses are not discussed in this paper as similar discussions have been presented for the changes of MRC_{user}values. Therefore, our method is as effective as the post-processing method in the Domino and Healthcare datasets.#### 5.2.2. Performance Evaluations under the Double Constraints

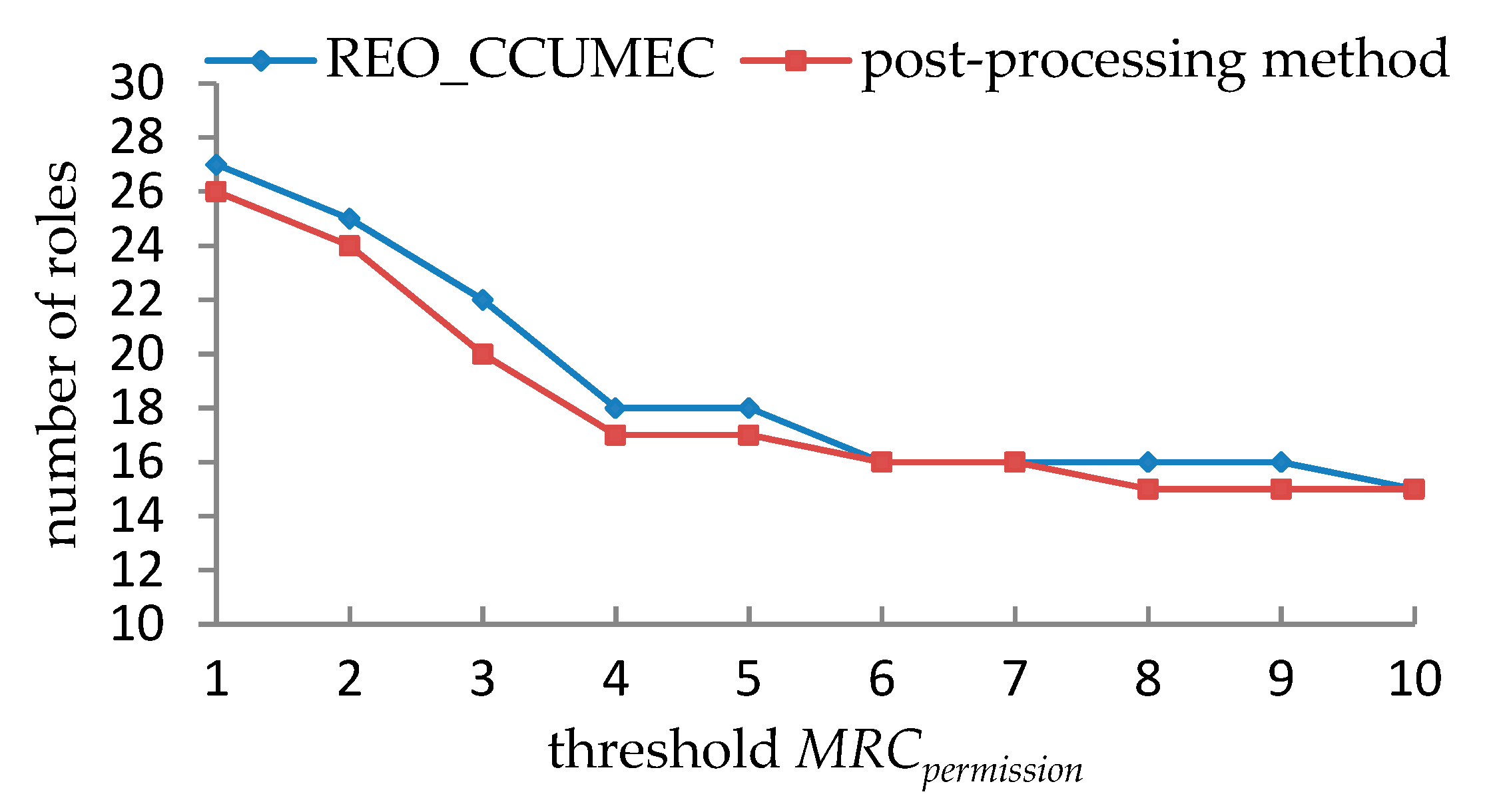

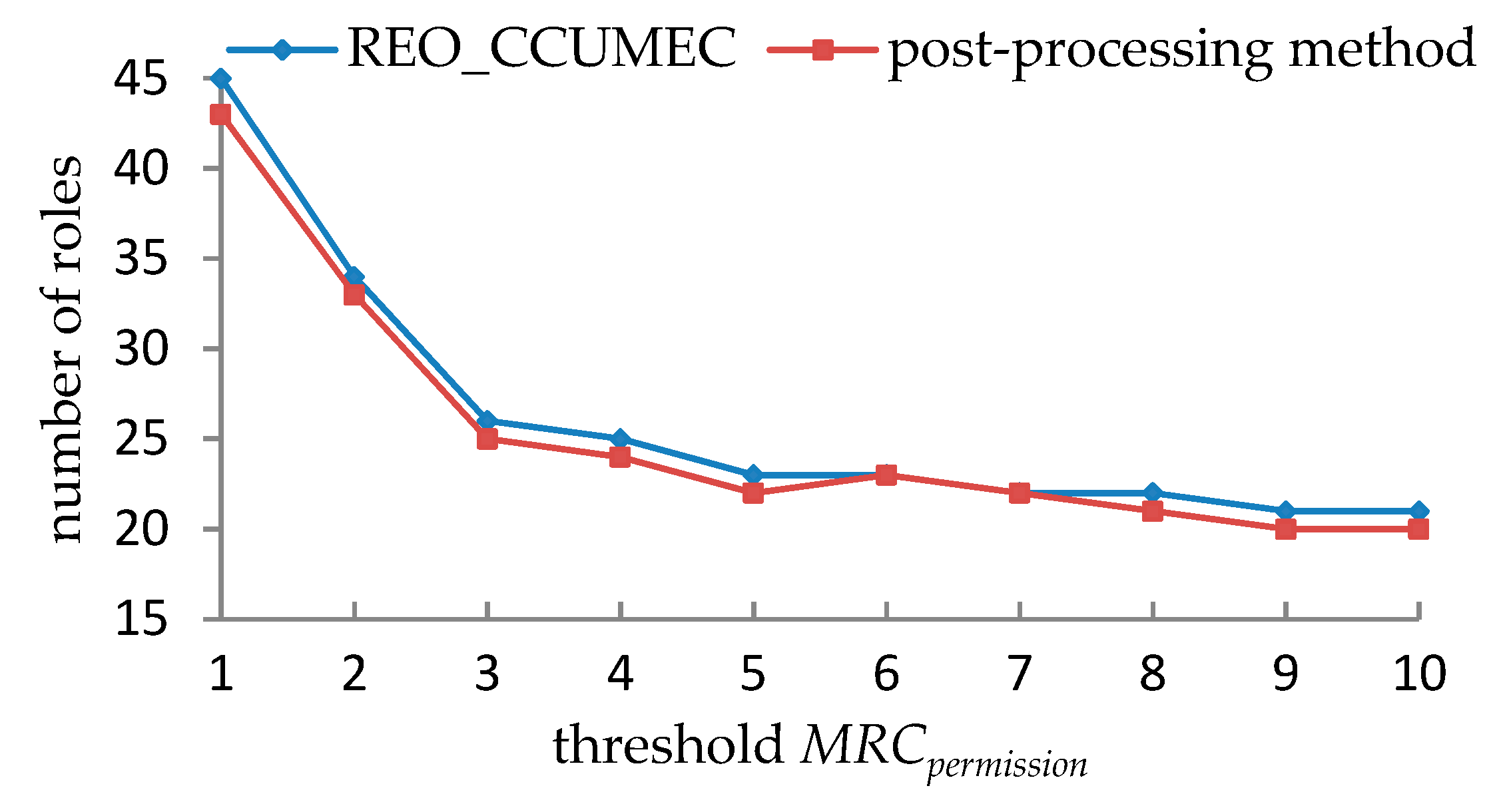

Next, we study the impacts of both the UCC and PCC on the number of the optimized roles. According to Algorithm 6, the sets of users or permissions violating the UCC or PCC are first determined. Either a violating user or a violating permission is chosen based on the heuristic strategy in line 4 of the algorithm. In this paper, we consider four heuristics: (1) choose the user or permission with the maximum number based on (count_user_roles(u)-MRC

_{user}) or (count_perm_roles(p)-MRC_{permission}), (2) choose the user or permission with the minimum number based on (count_user_roles(u)-MRC_{user}) or (count_perm_roles(p)-MRC_{permission}), (3) choose the violating permission first and then the user, and (4) choose the violating user first and then the permission.In order to evaluate the effectiveness of the REO_CCUMEC under these double constraints, we implement the experiments with different heuristics on the America-large, Apj, Firewall1, and Firewall2 datasets, as shown in Table 18. The results are shown in Table 19, Table 20, Table 21 and Table 22 as the values of MRC

_{user}and MRC_{permission}vary, where the intersections between MRC_{permission}on the row and MRC_{user}on the column represent the number of roles. As the two constraints are mutually exclusive, it is possible that both constraints cannot be satisfied simultaneously, and we use “x” to denote that no valid set of roles is generated.It is observed in Table 19, Table 20, Table 21 and Table 22 that, when the values of MRC

_{permission}are fixed at 145, 69, 27, and 3, respectively, the best experimental results of our method are as follows. As MRC_{user}decreases, 423, 424, and 425 roles are generated from the America-large dataset; 456, 457, 459, and 461 roles are generated from the Apj dataset; 69, 70, 71, and 73 roles are generated from the Firewall dataset; 10, 11, and 11 roles are generated from the Firewall2 dataset. Note that the number of roles increases slightly or remains unchanged as the value of MRC_{user}or MRC_{permission}decreases.Furthermore, Table 19 shows that the effective sets of roles are generated when MRC

_{user}exceeds 3 as MRC_{permission}varies. However, no valid roles are generated from the America-large dataset when MRC_{user}equals 3. Table 20, Table 21 and Table 22 show that the effective sets of roles are generated when the values of both MRC_{user}and MRC_{permission}are greater, but no valid roles exist with respect to any heuristic strategy when MRC_{user}or MRC_{permission}becomes smaller. In conclusion, for the given MRC_{user}and MRC_{permission}, if no valid roles can be generated, the role optimization remains ineffective by reducing one or more constraint values; otherwise, the role optimization remains effective by increasing one or more constraint values.#### 5.3. The Efficiency of the REO_CCUMEC

#### 5.3.1. Experimental Setup

To simulate the actual scenarios while satisfying the security requirements in the role-engineering system, we adopt the method of generating the t-t SMER constraints [41]. The value of the cardinality constraint is greater than or equal to 2, and the density of the user-capability matrix changes from 0.4 to 0.6 with a step of 0.05. In addition, the role assigning algorithm is written in Java.

#### 5.3.2. Evaluation Measure

To evaluate the efficiency of the REO_CCUMEC, we compare RR as the cardinality constraints; the t-t SMER constraints and the user-capability constraints vary in different datasets.

#### 5.3.3. Experimental Results and Analyses

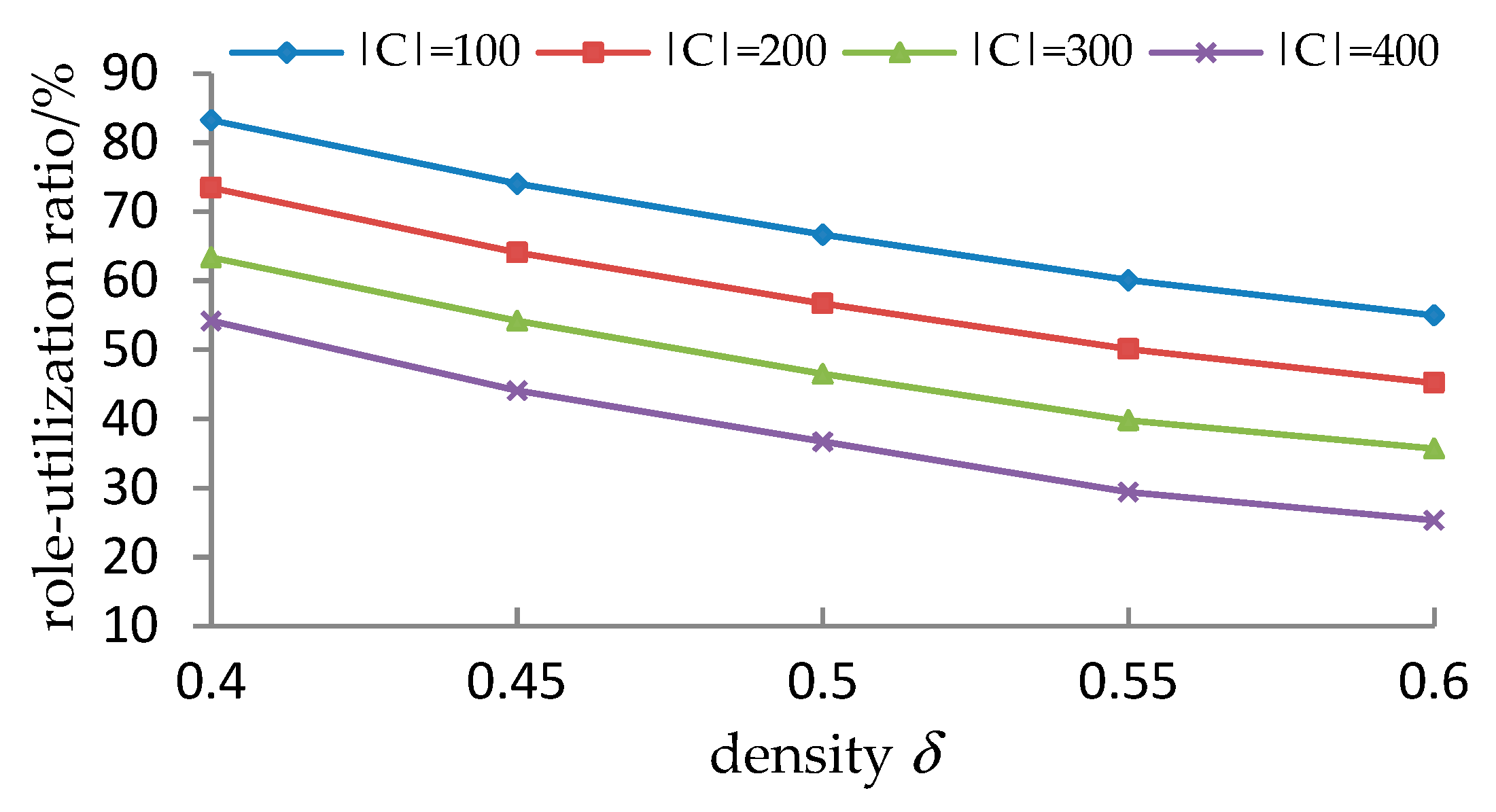

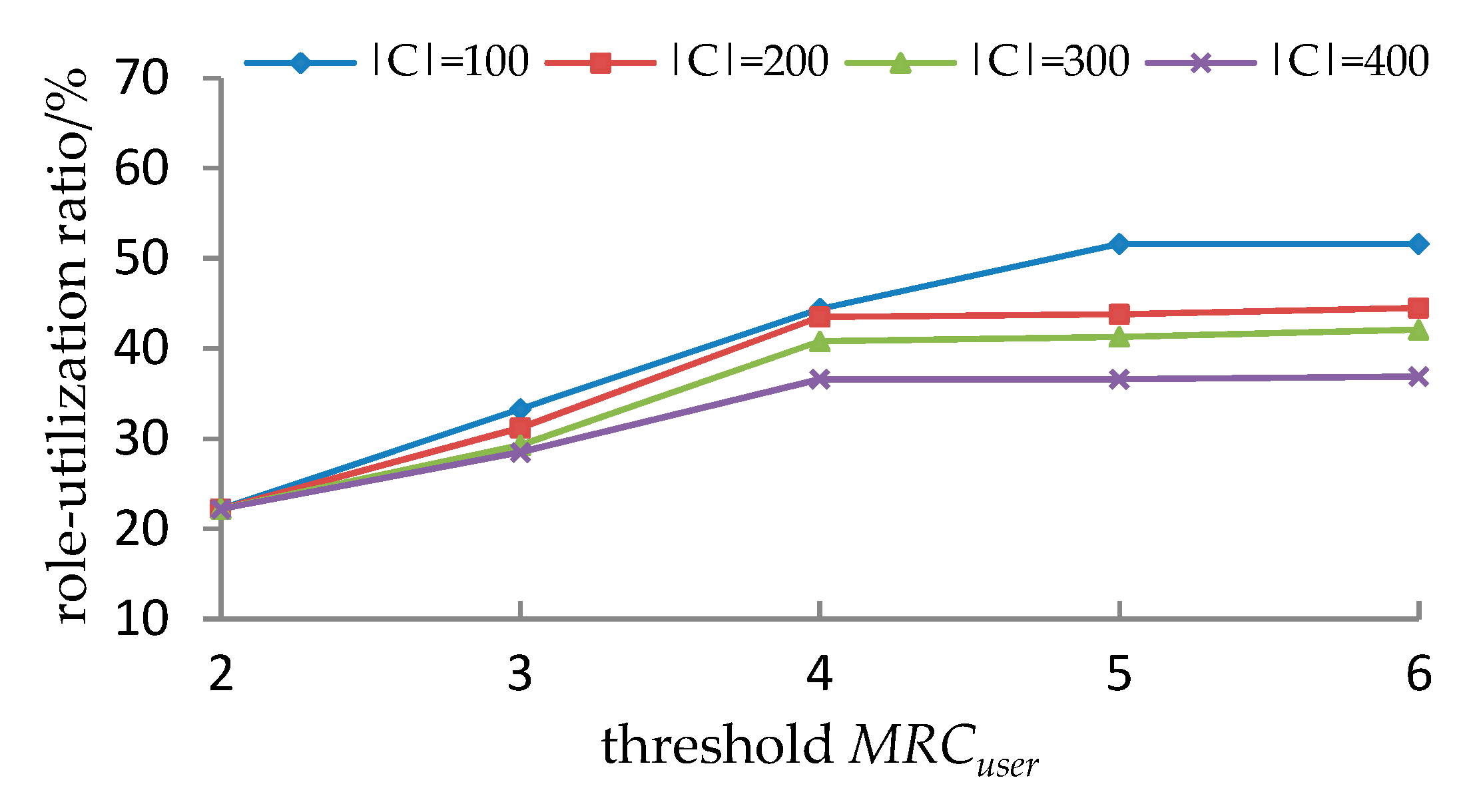

We use different parameters that include the threshold MRC

_{user}, the density δ of matrix UC, and set C of t-t SMER constraints as inputs, implement the experiments 10 times on the Apj and Customer datasets (as shown in Table 18), and take the median value. The results of the experiments are shown in Figure 7 and Figure 8, where the vertical axis represents the varying values of RR, and the lateral axis represents varying values of MRCuser, C, and δ, respectively.Figure 7 shows that the role-utilization ratio varies with varying values of the cardinality constraint; when the number of set C changes from 100 to 400, the number of roles in the UC constraint is 15, and the density of matrix UC is fixed at 0.6. Specifically, it is observed that the value of the role-utilization ratio first increases with an increase in the value of MRC

_{user}and then tends to be stable and no longer changes after a certain point. The reason for this result is that the upper bound of the role-utilization ratio is directly proportional to the value of the cardinality constraint, as shown in Statement 2 of this paper. However, after a particular value for the cardinality constraint, the increase in utilization will be saturated ahead of time, as the t-t SMER constraints play important roles in restricting the role assignments. A further observation is that the value of the role-utilization ratio decreases with an increase in the number of the t-t SMER constraints because the greater the constraints, the fewer the users assigned to a particular role.Figure 8 shows that the role-utilization ratio varies with varying values of the density of matrix UC; when the number of set C changes from 100 to 400, the number of roles in the UC constraint is 15, and MRC

_{user}is fixed at 5. It is observed that the value of the role-utilization ratio decreases with an increase in the value of δ because the upper bound of the role-utilization ratio is inversely proportional to the value of δ. We also note that this value decreases as the number of the t-t SMER constraints increases.#### 5.4. Advantages and Limitations of the REO_CCUMEC

From the above analyses of the REO_CCUMEC, we find that it has the following main advantages:

- (1)
- In the preprocessing phase, it can reduce the mining scale, while eliminating the redundancies of the mining roles by using partitioning and compressing technologies.
- (2)
- In the role optimization phase, REO_CCUMEC constructs a role-engineering system based on the mining results in the previous phase. Thus, it can satisfy two cardinality constraints simultaneously, and the problem of constraint conflicts between the UCC and PCC can be effectively solved.
- (3)
- In the role assignment phase, besides the cardinality constraints and the given user-capability constraints, we construct t-t SMER constraints using the existing mature methods. It is effective and efficient to implement the maximal role assignments, while satisfying all the constraints in the constructed RBAC system.

Meanwhile, it is observed in Section 1 and Section 2 that the methods proposed by Kumar et al. [35] and Blundo et al. [36] only satisfied the cardinality constraint RPC; the method proposed by Hingankar et al. [37] only satisfied the RUC; the CPA and RPA proposed by John et al. [38] only satisfied the UCC; the method proposed by Ma et al. [26] satisfied the RUC or RPC; the methods proposed by Sarana et al. [40] did not satisfy any cardinality constraint but satisfied the SMER constraints; the methods proposed by Harika et al. [39] could satisfy the UCC and PCC simultaneously. In addition, the system status was unknown using any of these methods. Although, the method proposed by Roy et al. [28] satisfied the UCC, SMER, and user-capability constraints simultaneously, the RBAC system existed in advance. Therefore, compared with existing studies, the security characteristics of the proposed method are shown in Table 23, where a tick √ denotes that the characteristic is available.

Nevertheless, the REO_CCUMEC still has limitations:

- (1)
- It is observed from Section 5.1.1 that for the given user cluster, how to set the parameters (including compression ratio and the threshold of the support degree) lacks a theoretical justification. Different parameters may cause different evaluation results. Although, the preprocessing roles are very similar to the initial roles from the viewpoint of sim
_{P}(PA_{compressed},PA_{initial}), they are less accurate from the viewpoint of sim_{U}(UA_{compressed},UA_{initial}) when the threshold t exceeds a particular value. - (2)
- It is observed in from Table 19, Table 20, Table 21 and Table 22 that the effective roles that can be generated as MRC
_{user}and MRC_{permission}vary. However, certain combinations of the values of MRC_{user}and MRC_{permission}cannot produce a valid solution since the UCC and PCC are mutually exclusive, especially when MRC_{user}or MRC_{permission}becomes smaller.

## 6. Conclusions and Future Work

A novel role-engineering method, REO_CCUMEC, has been proposed in this paper. We first converted the basic role mining problem into a clustering problem, and used the partitioning and compressing technologies to eliminate redundancies. We then presented three role-optimization problems with single or double cardinality constraints, and proposed the corresponding algorithms. Lastly, the maximal role-assignments problem was discussed in the constructed role-engineering system. As a result, the proposed method could address the stated problems: Reducing the mining scale and computational complexity in role mining, satisfying the double cardinality constraints simultaneously in the role optimization, and meeting multiple security constraints in the role assignments. The experiments demonstrated that the proposed method is accurate, effective, and efficient.

There are still, however, a few interesting issues to be resolved. In view of the above limitations of the REO_CCUMEC, to further enhance the accuracy of the preprocessing results, one issue is to consider how to provide theoretical justifications for choosing the compression ratio and threshold of the support degree. In order to further enhance the effectiveness of role optimization for satisfying the UCC and PCC simultaneously, another issue is to consider how to determine the upper and lower bounds of constraint values. Moreover, implementing the REO_CCUMEC in systems with the recent hot fields like the blockchain, wireless sensor networks, and internet of things, is also an interesting topic for future work.

## Author Contributions

Conceptualization, W.S.; methodology, W.S. and H.L.; validation, W.S. and H.L.; formal analysis, W.S.; data curation, H.S.; writing—original draft preparation, W.S.

## Funding

This work was partially supported by the Natural Science Foundation of China (61501393), the Natural Science Foundation of Henan Province of China (182300410145, 182102210132), and the Key Scientific Research Project of Henan Province University (20B520031).

## Conflicts of Interest

The authors declare no conflict of interest.

## References

- Xuan, H.; Wei, S.; Tong, W.; Liu, D.; Qi, C. Fault-tolerant scheduling algorithm with re-allocation for divisible task. IEEE Access
**2018**, 6, 73147–73157. [Google Scholar] [CrossRef] - Batra, G.; Atluri, V.; Vaidya, J.; Sural, S. Deploying ABAC policies using RBAC systems. J. Comput. Secur.
**2019**, 27, 483–506. [Google Scholar] [CrossRef] - Ghafoorian, M.; Abbasinezhad-Mood, D.; Shakeri, H. A Thorough Trust and Reputation Based RBAC Model for Secure Data Storage in the Cloud. IEEE Trans. Parallel Distrib. Syst.
**2019**, 30, 778–788. [Google Scholar] [CrossRef] - Cruz, J.P.; Kaji, Y.; Yanai, N. Rbac-sc: Role-based access control using smart contract. IEEE Access
**2018**, 6, 12240–12251. [Google Scholar] [CrossRef] - Pan, N.; Sun, L.; He, L.; Zhu, Z. An Approach for Hierarchical RBAC Reconfiguration with Minimal Perturbation. IEEE Access
**2018**, 6, 40389–40399. [Google Scholar] [CrossRef] - Pan, N.; Zhu, Z.; He, L.; Sun, L. An efficiency approach for RBAC reconfiguration with minimal roles and perturbation. Concurr. Comput. Pract. Exp.
**2018**, 30, e4399. [Google Scholar] [CrossRef] - Mitra, B.; Sural, S.; Vaidya, J.; Atluri, V. Migrating from RBAC to temporal RBAC. IET Inf. Secur.
**2017**, 11, 294–300. [Google Scholar] [CrossRef] - Schefer-Wenzl, S.; Strembeck, M. Modeling Support for Role-Based Delegation in Process-Aware Information Systems. Bus. Inf. Syst. Eng.
**2014**, 6, 215–237. [Google Scholar] [CrossRef] - Baumgrass, A.; Strembeck, M. Bridging the gap between role mining and role engineering via migration guides. Inf. Sec. Tech. Rep.
**2013**, 17, 148–172. [Google Scholar] [CrossRef] - Narouei, M.; Takabi, H. Towards an Automatic Top-down Role Engineering Approach Using Natural Language Processing Techniques. In Proceedings of the 20th ACM Symposium on Access Control Models and Technologies, Vienna, Austria, 1–3 June 2015; pp. 157–160. [Google Scholar]
- Gal-Oz, N.; Gonen, Y.; Gudes, E. Mining meaningful and rare roles from web application usage patterns. Comput. Secur.
**2019**, 82, 296–313. [Google Scholar] [CrossRef] - Bai, W.; Pan, Z.; Guo, S.; Chen, Z. RMMDI: A Novel Framework for Role Mining Based on the Multi-Domain Information. Secur. Commun. Netw.
**2019**, 2019, 8085303. [Google Scholar] [CrossRef] - Stoller, S.D.; Bui, T. Mining hierarchical temporal roles with multiple metrics. J. Comput. Secur.
**2018**, 26, 121–142. [Google Scholar] [CrossRef] - Mitra, B.; Sural, S.; Vaidya, J.; Atluri, V. A Survey of Role Mining. ACM Comput. Surv.
**2016**, 48, 50. [Google Scholar] [CrossRef] - Mitra, B.; Sural, S.; Vaidya, J.; Atluri, V. Mining temporal roles using many-valued concepts. Comput. Secur.
**2016**, 60, 79–94. [Google Scholar] [CrossRef] - Vaidya, J.; Atluri, V.; Guo, Q. The role mining problem: A formal perspective. ACM Trans. Inf. Syst. Secur.
**2010**, 13, 27. [Google Scholar] [CrossRef] - Vaidya, J.; Atluri, V.; Guo, Q. The role mining problem: Finding a minimal descriptive set of roles. In Proceedings of the 12th ACM Symposium on Access Control Models and Technologies, Sophia Antipolis, France, 20–22 June 2007; pp. 175–184. [Google Scholar]
- Lu, H.; Vaidya, J.; Atluri, V. Optimal boolean matrix decomposition: Application to role engineering. In Proceedings of the 24th International Conference on Data Engineering, Cancún, Mexico, 7–12 April 2008; pp. 297–306. [Google Scholar]
- Lu, H.; Vaidya, J.; Atluri, V. An optimization framework for role mining. J. Comput. Secur.
**2014**, 22, 1–31. [Google Scholar] [CrossRef] - Lu, H.; Hong, Y.; Yang, Y.; Duan, L.; Badar, N. Towards user-oriented RBAC model. J. Comput. Secur.
**2015**, 23, 107–129. [Google Scholar] [CrossRef] - Colantonio, A.; Pietro, R.D.; Ocello, A.; Verde, N.V. Mining Business-Relevant RBAC States through Decomposition. In Proceedings of the 25th IFIP TC-11 International Information Security Conference, Brisbane, Australia, 20–23 September 2010; pp. 19–30. [Google Scholar]
- Colantonio, A.; Pietro, R.D.; Ocello, A.; Verde, N.V. Taming role mining complexity in RBAC. Comput. Secur.
**2010**, 29, 548–564. [Google Scholar] [CrossRef] - Lang, B.; Wang, J.; Liu, Y. Achieving flexible and self-contained data protection in cloud computing. IEEE Access
**2017**, 5, 1510–1523. [Google Scholar] [CrossRef] - Ultra, J.D.; Pancho-Festin, S. A simple model of separation of duty for access control models. Comput. Secur.
**2017**, 68, 69–80. [Google Scholar] [CrossRef] - Nazerian, F.; Motameni, H.; Nematzadeh, H. Emergency role-based access control (E-RBAC) and analysis of model specifications with alloy. J. Inf. Sec. Appl.
**2019**, 45, 131–142. [Google Scholar] [CrossRef] - Ma, X.; Li, R.; Wang, H.; Li, H. Role mining based on permission cardinality constraint and user cardinality constraint. Secur. Commun. Netw.
**2015**, 8, 2317–2328. [Google Scholar] [CrossRef] - Li, N.; Tripunitara, M.V.; Bizri, Z. On mutually exclusive roles and separation-of-duty. ACM Trans. Inf. Syst. Secur.
**2007**, 10, 5. [Google Scholar] [CrossRef] - Roy, A.; Sural, S.; Majumdar, A.K.; Vaidya, J.; Atluri, V. On Optimal Employee Assignment in Constrained Role-Based Access Control Systems. ACM Trans. Manag. Inf. Syst.
**2017**, 7, 10. [Google Scholar] [CrossRef] - Song, X.; Yang, Y.; Jiang, Y.; Jiang, K. Optimizing partitioning strategies for faster inverted index compression. Front. Comput. Sci.
**2019**, 13, 343–356. [Google Scholar] [CrossRef] - Molloy, I.; Chen, H.; Li, T.; Wang, Q.; Li, N.; Bertino, E.; Calo, S.B.; Lobo, J. Mining roles with semantic meanings. In Proceedings of the 13th ACM Symposium on Access Control Models and Technologies, Estes Park, CO, USA, 11–13 June 2008; pp. 21–30. [Google Scholar]
- Zhang, D.; Ramamohanarao, K.; Ebringer, T. Role engineering using graph optimisation. In Proceedings of the 12th ACM Symposium on Access Control Models and Technologies, Sophia Antipolis, France, 20–22 June 2007; pp. 139–144. [Google Scholar]
- Ene, A.; Horne, W.G.; Milosavljevic, N.; Rao, P.; Schreiber, R.; Tarjan, R.E. Fast exact and heuristic methods for role minimization problems. In Proceedings of the 13th ACM Symposium on Access Control Models and Technologies, Estes Park, CO, USA, 11–13 June 2008; pp. 1–10. [Google Scholar]
- Colantonio, A.; Pietro, R.D.; Ocello, A.; Verde, N.V. Visual Role Mining: A Picture Is Worth a Thousand Roles. IEEE Trans. Knowl. Data Eng.
**2012**, 24, 1120–1133. [Google Scholar] [CrossRef] - Verde, N.V.; Vaidya, J.; Atluri, V.; Colantonio, A. Role engineering: From theory to practice. In Proceedings of the Second ACM Conference on Data and Application Security and Privacy, San Antonio, TX, USA, 7–9 February 2012; pp. 181–192. [Google Scholar]
- Kumar, R.; Sural, S.; Gupta, A. Mining RBAC Roles under Cardinality Constraint. In Proceedings of the 6th International Conference on Information Systems Security, Gandhinagar, India, 17–19 December 2010; pp. 171–185. [Google Scholar]
- Blundo, C.; Cimato, S. Constrained Role Mining. In Proceedings of the Security and Trust Management—8th International Workshop, Pisa, Italy, 13–14 September 2012; pp. 289–304. [Google Scholar]
- Hingankar, M.; Sural, S. Towards role mining with restricted user-role assignment. In Proceedings of the 2nd International Conference on Wireless Communication, Vehicular Technology, Information Theory and Aerospace and Electronic Systems Technology, Chennai, India, 28 February–3 March 2011; pp. 1–5. [Google Scholar]
- John, J.C.; Sural, S.; Atluri, V.; Vaidya, J. Role Mining under Role-Usage Cardinality Constraint. In Proceedings of the 27th IFIP TC 11 Information Security and Privacy Conference on Information Security and Privacy Research, Heraklion, Crete, Greece, 4–6 June 2012; pp. 150–161. [Google Scholar]
- Harika, P.; Nagajyothi, M.; John, J.C.; Sural, S.; Vaidya, J.; Atluri, V. Meeting Cardinality Constraints in Role Mining. IEEE Trans. Depend. Sec. Comput.
**2015**, 12, 71–84. [Google Scholar] [CrossRef] - Sarana, P.; Roy, A.; Sural, S.; Vaidya, J.; Atluri, V. Role Mining in the Presence of Separation of Duty Constraints. Inf. Syst. Secur.
**2015**, 9478, 98–117. [Google Scholar] - Sun, W.; Wei, S.; Guo, H.; Liu, H. Role-Mining Optimization with Separation-of-Duty Constraints and Security Detections for Authorizations. Future Internet
**2019**, 11, 201. [Google Scholar] [CrossRef] - Zhang, Y.; Joshi, J.B.D. Uaq: A framework for user authorization query processing in rbac extended with hybrid hierarchy and constraints. In Proceedings of the 13th ACM Symposium on Access Control Models and Technologies, Estes Park, CO, USA, 11–13 June 2008; pp. 83–92. [Google Scholar]
- Lu, J.; Xin, Y.; Zhang, Z.; Peng, H.; Han, J. Supporting user authorization queries in RBAC systems by role-permission reassignment. Future Gener. Comp. Syst.
**2018**, 88, 707–717. [Google Scholar] [CrossRef] - Roy, A.; Sural, S.; Majumdar, A.K. Impact of Multiple t-t SMER Constraints on Minimum User Requirement inRBAC. Inf. Syst. Secur.
**2014**, 8880, 109–128. [Google Scholar] - Roy, A.; Sural, S.; Majumdar, A.K.; Vaidya, J.; Atluri, V. Minimizing Organizational User Requirement while Meeting Security Constraints. ACM Trans. Manag. Inf. Syst.
**2015**, 6, 12. [Google Scholar] [CrossRef] - Valsesia, D.; Fosson, S.M.; Ravazzi, C.; Bianchi, T.; Magli, E. Analysis of SparseHash: An efficient embedding of set-similarity via sparse projections. Pattern Recognit. Lett.
**2019**, 128, 93–99. [Google Scholar] [CrossRef] - Li, Z.; Wang, G.; He, G. Milling tool wear state recognition based on partitioning around medoids (PAM) clustering. Int. J. Adv. Manuf. Technol.
**2017**, 88, 1203–1213. [Google Scholar] [CrossRef] - Li, R.; Li, H.; Wei, W.; Ma, X.; Gu, X. RMiner: A tool set for role mining. In Proceedings of the 18th ACM Symposium on Access Control Models and Technologies, Amsterdam, The Netherlands, 12–14 June 2013; pp. 193–196. [Google Scholar]

Symbol | Meaning |
---|---|

U,P,R,UA,PA,UPA | Basic components of RBAC |

UCC | Limitation on the number of roles assigned to any user |

MRC_{user} | Threshold of the UCC |

PCC | Limitation the number of roles related to any permission |

MRC_{permission} | Threshold of the PCC |

SMER | Static mutually exclusive roles |

smer<{r_{1},r_{2},…,r_{t}},t> | t-t SMER constraint |

C | Set of the t-t SMER constraints |

UC | Matrix of the user-capability constraints |

CU | Cluster of users |

VC | Set of the compression points |

RR | Role-utilization ratio |

1 | 1 | 0 | 0 | 0 | 0 |

1 | 1 | 0 | 0 | 0 | 0 |

0 | 0 | 1 | 1 | 1 | 0 |

0 | 0 | 1 | 1 | 1 | 1 |

0 | 0 | 0 | 1 | 1 | 1 |

0 | 0 | 0 | 1 | 1 | 1 |

p_{1} | p_{2} | p_{3} | p_{4} | p_{5} | p_{6} | |

u_{1} | 0 | 0 | 0 | 1 | 0 | 1 |

u_{2} | 1 | 1 | 0 | 1 | 0 | 0 |

u_{3} | 0 | 0 | 0 | 0 | 1 | 1 |

u_{4} | 1 | 1 | 0 | 1 | 0 | 0 |

u_{5} | 0 | 1 | 1 | 1 | 0 | 1 |

u_{6} | 0 | 0 | 0 | 0 | 1 | 1 |

u_{7} | 0 | 0 | 1 | 0 | 0 | 1 |

u_{8} | 0 | 1 | 1 | 0 | 0 | 1 |

u_{9} | 1 | 0 | 1 | 0 | 0 | 1 |

u_{10} | 0 | 0 | 0 | 1 | 1 | 0 |

u_{11} | 1 | 1 | 0 | 1 | 1 | 0 |

u_{12} | 0 | 1 | 1 | 1 | 0 | 0 |

u_{13} | 0 | 1 | 1 | 1 | 0 | 0 |

u_{14} | 0 | 1 | 0 | 1 | 0 | 0 |

u_{15} | 1 | 0 | 1 | 0 | 0 | 1 |

p_{1} | p_{2} | p_{4} | p_{3} | p_{6} | p_{5} | |

u_{1} | 0 | 0 | 1 | 0 | 0 | 0 |

u_{4} | 1 | 1 | 1 | 0 | 0 | 0 |

u_{12} | 0 | 1 | 1 | 1 | 0 | 0 |

u_{14} | 0 | 1 | 1 | 0 | 0 | 0 |

u_{3} | 0 | 0 | 0 | 0 | 1 | 1 |

u_{7} | 0 | 0 | 0 | 1 | 1 | 0 |

r_{1} | r_{2} | r_{3} | r_{4} | r_{5} | r_{6} | |

u_{1} | 0 | 0 | 1 | 0 | 0 | 0 |

u_{4} | 1 | 0 | 1 | 0 | 0 | 0 |

u_{12} | 0 | 1 | 0 | 1 | 0 | 0 |

u_{14} | 0 | 1 | 0 | 0 | 0 | 0 |

u_{3} | 0 | 0 | 0 | 0 | 1 | 1 |

u_{7} | 0 | 0 | 0 | 1 | 1 | 0 |

p_{1} | p_{2} | p_{4} | p_{3} | p_{6} | p_{5} | |

r_{1} | 1 | 1 | 0 | 0 | 0 | 0 |

r_{2} | 0 | 1 | 1 | 0 | 0 | 0 |

r_{3} | 0 | 0 | 1 | 0 | 0 | 0 |

r_{4} | 0 | 0 | 0 | 1 | 0 | 0 |

r_{5} | 0 | 0 | 0 | 0 | 1 | 0 |

r_{6} | 0 | 0 | 0 | 0 | 0 | 1 |

Role | Description |
---|---|

r_{1} | Software Designer |

r_{2} | Software Developer |

r_{3} | Software Tester |

r_{4} | Accounts Manager |

r_{5} | Financial Auditor |

r_{1} | r_{2} | r_{3} | r_{4} | r_{5} | |

u_{1} | 1 | 0 | 0 | 1 | 0 |

u_{2} | 0 | 0 | 1 | 1 | 1 |

u_{3} | 1 | 1 | 1 | 0 | 0 |

u_{4} | 0 | 0 | 0 | 1 | 1 |

u_{5} | 1 | 0 | 0 | 0 | 1 |

u_{6} | 1 | 1 | 1 | 1 | 1 |

r_{1} | r_{2} | r_{3} | r_{4} | r_{5} | |

u_{1} | a_{11} | 0 | 0 | a_{14} | 0 |

u_{2} | 0 | 0 | a_{23} | a_{24} | a_{25} |

u_{3} | a_{31} | a_{32} | a_{33} | 0 | 0 |

u_{4} | 0 | 0 | 0 | a_{44} | a_{45} |

u_{5} | a_{51} | 0 | 0 | 0 | a_{55} |

u_{6} | a_{61} | a_{62} | a_{63} | a_{64} | a_{65} |

r_{1} | r_{2} | r_{3} | r_{4} | r_{5} | |

u_{1} | a_{11} | 0 | 0 | 1 | 0 |

u_{2} | 0 | 0 | a_{23} | 1 | 0 |

u_{3} | a_{31} | a_{32} | a_{33} | 0 | 0 |

u_{4} | 0 | 0 | 0 | 1 | 0 |

u_{5} | a_{51} | 0 | 0 | 0 | a_{55} |

u_{6} | a_{61} | a_{62} | a_{63} | 1 | 0 |

r_{1} | r_{2} | r_{3} | r_{4} | r_{5} | |

u_{1} | a_{11} | 0 | 0 | 1 | 0 |

u_{2} | 0 | 0 | a_{23} | 1 | 0 |

u_{3} | a_{31} | a_{32} | a_{33} | 0 | 0 |

u_{4} | 0 | 0 | 0 | 1 | 0 |

u_{5} | a_{51} | 0 | 0 | 0 | 1 |

u_{6} | a_{61} | a_{62} | a_{63} | 1 | 0 |

r_{1} | r_{2} | r_{3} | r_{4} | r_{5} | |

u_{1} | 1 | 0 | 0 | 1 | 0 |

u_{2} | 0 | 0 | a_{23} | 1 | 0 |

u_{3} | 1 | a_{32} | 0 | 0 | 0 |

u_{4} | 0 | 0 | 0 | 1 | 0 |

u_{5} | 1 | 0 | 0 | 0 | 1 |

u_{6} | 1 | a_{62} | 0 | 1 | 0 |

r_{1} | r_{2} | r_{3} | r_{4} | r_{5} | |

u_{1} | 1 | 0 | 0 | 1 | 0 |

u_{2} | 0 | 0 | a_{23} | 1 | 0 |

u_{3} | 1 | 1 | 0 | 0 | 0 |

u_{4} | 0 | 0 | 0 | 1 | 0 |

u_{5} | 1 | 0 | 0 | 0 | 1 |

u_{6} | 1 | 0 | 0 | 1 | 0 |

r_{1} | r_{2} | r_{3} | r_{4} | r_{5} | |

u_{1} | 1 | 0 | 0 | 1 | 0 |

u_{2} | 0 | 0 | 1 | 1 | 0 |

u_{3} | 1 | 1 | 0 | 0 | 0 |

u_{4} | 0 | 0 | 0 | 1 | 0 |

u_{5} | 1 | 0 | 0 | 0 | 1 |

u_{6} | 1 | 0 | 0 | 1 | 0 |

Step | Candidate Role | Identified a_{ij} | Assigned Users | Updated Q |
---|---|---|---|---|

1 | r_{4} | a_{14}, a_{24}, a_{44}, a_{64}, a_{25}, a_{45}, a_{65} | u_{1},u_{2},u_{4},u_{6} | {r_{5},r_{1},r_{2},r_{3}} |

2 | r_{5} | a_{55} | u_{5} | {r_{1},r_{2},r_{3}} |

3 | r_{1} | a_{11}, a_{31}, a_{51}, a_{61}, a_{33}, a_{63} | u_{1},u_{3},u_{5},u_{6} | {r_{2},r_{3}} |

4 | r_{2} | a_{32}, a_{62} | u_{3} | {r_{3}} |

5 (finish) | r_{3} | a_{23} | u_{2} | Φ |

Dataset | |U| | |P| | |UPA| | Density | |CR| | Execution Time(s) |
---|---|---|---|---|---|---|

America-large | 3485 | 10,127 | 185,294 | 0.5% | 423 | 78.78 |

America-small | 3477 | 1587 | 105,205 | 1.9% | 213 | 6.31 |

Apj | 2044 | 1164 | 6841 | 0.3% | 456 | 5.60 |

Customer | 10,961 | 284 | 45,427 | 1.5% | 276 | 4.66 |

Domino | 79 | 231 | 730 | 4% | 20 | 0.01 |

Emea | 35 | 3046 | 7,20 | 6.8% | 34 | 0.02 |

Firewall1 | 365 | 709 | 31,951 | 12.3% | 69 | 0.11 |

Firewall2 | 325 | 590 | 36,428 | 19% | 10 | 0.15 |

Healthcare | 46 | 46 | 1486 | 70% | 15 | 0.01 |

University1 | 493 | 56 | 3955 | 14.3% | 31 | 0.01 |

University2 | 400 | 14 | 3073 | 54.9% | 15 | 0.01 |

MRC_{permission} | MRC_{user} | |||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

6 | 5 | 4 | 3 | |||||||||||||

(1) | (2) | (3) | (4) | (1) | (2) | (3) | (4) | (1) | (2) | (3) | (4) | (1) | (2) | (3) | (4) | |

145 | 423 | 423 | 423 | 423 | 424 | 424 | 424 | 424 | 425 | 425 | 425 | 425 | x | x | x | x |

140 | 424 | 424 | 425 | 425 | 425 | 425 | 426 | 426 | 427 | 428 | 428 | 428 | x | x | x | x |

130 | 424 | 424 | 425 | 425 | 425 | 425 | 426 | 426 | 427 | 428 | 428 | 428 | x | x | x | x |

120 | 425 | 427 | 427 | 427 | 426 | 428 | 428 | 428 | 427 | 431 | 429 | 429 | x | x | x | x |

110 | 427 | 431 | 428 | 428 | 428 | 433 | 429 | 429 | 427 | 433 | 431 | 431 | x | x | x | x |

100 | 428 | 435 | 431 | 431 | 429 | 437 | 432 | 432 | 433 | 437 | 435 | 435 | x | x | x | x |

MRC_{permission} | MRC_{user} | |||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

13 | 11 | 9 | 7 | |||||||||||||

(1) | (2) | (3) | (4) | (1) | (2) | (3) | (4) | (1) | (2) | (3) | (4) | (1) | (2) | (3) | (4) | |

69 | 456 | 456 | 456 | 456 | 457 | 457 | 457 | 457 | 457 | 459 | 458 | 458 | 461 | 463 | 465 | 465 |

65 | 457 | 457 | 457 | 457 | 458 | 458 | 458 | 458 | 458 | 460 | 459 | 459 | 462 | 464 | 466 | 466 |

55 | 458 | 460 | 459 | 459 | 459 | 461 | 460 | 460 | 461 | 463 | 461 | 461 | x | x | 467 | 469 |

45 | 459 | 462 | 460 | 460 | 460 | 463 | 461 | 461 | 463 | 467 | 462 | 462 | x | x | x | x |

35 | 460 | 462 | 460 | 460 | 461 | 463 | 462 | 462 | x | 468 | x | x | x | x | x | x |

25 | 460 | 463 | 462 | 462 | 461 | 463 | 462 | 462 | x | 469 | x | x | x | x | x | x |

MRC_{permission} | MRC_{user} | |||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

21 | 17 | 13 | 9 | |||||||||||||

(1) | (2) | (3) | (4) | (1) | (2) | (3) | (4) | (1) | (2) | (3) | (4) | (1) | (2) | (3) | (4) | |

27 | 69 | 69 | 69 | 69 | 70 | 70 | 70 | 70 | 71 | 71 | 71 | 71 | 73 | 75 | 73 | 73 |

25 | 70 | 70 | 70 | 70 | 71 | 71 | 71 | 71 | 72 | 72 | 72 | 72 | 74 | 76 | 74 | 74 |

22 | 70 | 71 | 71 | 71 | 72 | 73 | 72 | 72 | 73 | 73 | 74 | 74 | x | 77 | 75 | 75 |

18 | 71 | 72 | 73 | 73 | 73 | 74 | 74 | 74 | 74 | 75 | 76 | 76 | x | x | x | x |

15 | 72 | 73 | 74 | 74 | 74 | 75 | 75 | 75 | 75 | 76 | 77 | 77 | x | x | x | x |

11 | 73 | 74 | 75 | 75 | 75 | 76 | 76 | 76 | x | 77 | 78 | 78 | x | x | x | x |

MRC_{permission} | MRC_{user} | |||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

9 | 8 | 7 | 6 | |||||||||||||

(1) | (2) | (3) | (4) | (1) | (2) | (3) | (4) | (1) | (2) | (3) | (4) | (1) | (2) | (3) | (4) | |

3 | 10 | 10 | 10 | 10 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | x | x | x | x |

2 | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x | x |

© 2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
