5-Hydroxymethylfurfural (5-HMF) Production from Hexoses: Limits of Heterogeneous Catalysis in Hydrothermal Conditions and Potential of Concentrated Aqueous Organic Acids as Reactive Solvent System

by
Rodrigo Lopes De Souza
,
Hao Yu
,
Franck Rataboul
and
Nadine Essayem
*
Institut de Recherche sur la Catalyse et l’Environnement de Lyon, IRCELYON, CNRS, Université Lyon 1, 2 avenue Albert Einstein 69626 Villeurbanne, France
*
Author to whom correspondence should be addressed.
Challenges 2012, 3(2), 212-232; https://doi.org/10.3390/challe3020212
Submission received: 25 July 2012 / Accepted: 22 August 2012 / Published: 13 September 2012
(This article belongs to the Special Issue Challenges in Chemical Processes)
Browse Figures
Versions Notes

Abstract

:
5-Hydroxymethylfurfural (5-HMF) is an important bio-sourced intermediate, formed from carbohydrates such as glucose or fructose. The treatment at 150–250 °C of glucose or fructose in pure water and batch conditions, with catalytic amounts of most of the usual acid-basic solid catalysts, gave limited yields in 5-HMF, due mainly to the fast formation of soluble oligomers. Niobic acid, which possesses both Lewis and Brønsted acid sites, gave the highest 5-HMF yield, 28%, when high catalyst/glucose ratio is used. By contrast, we disclose in this work that the reaction of fructose in concentrated aqueous solutions of carboxylic acids, formic, acetic or lactic acids, used as reactive solvent media, leads to the selective dehydration of fructose in 5-HMF with yields up to 64% after 2 hours at 150 °C. This shows the potential of such solvent systems for the clean and easy production of 5-HMF from carbohydrates. The influence of adding solid catalysts to the carboxylic acid media was also reported, starting from glucose.

1. Introduction

Among the organic compounds that can be obtained from biomass, 5-hydroxymethylfurfural (5-HMF) is probably one of the most important platform molecules. Indeed, it can be prepared through catalyzed dehydration of largely available carbohydrates, such as glucose (Scheme I), and transformed into highly valuable intermediates, such as FDCA (2,5-furandicarboxylic acid). Indeed, FDCA presents structural analogies with terephthalic acid (Scheme II) and might replace this carbon fossil-based monomers in polyesters and polyamides synthesis. This is the reason why FDCA is considered as “the sleeping giant” among chemical intermediates issued from renewable carbon [1].
Challenges 03 00212 g017 1024

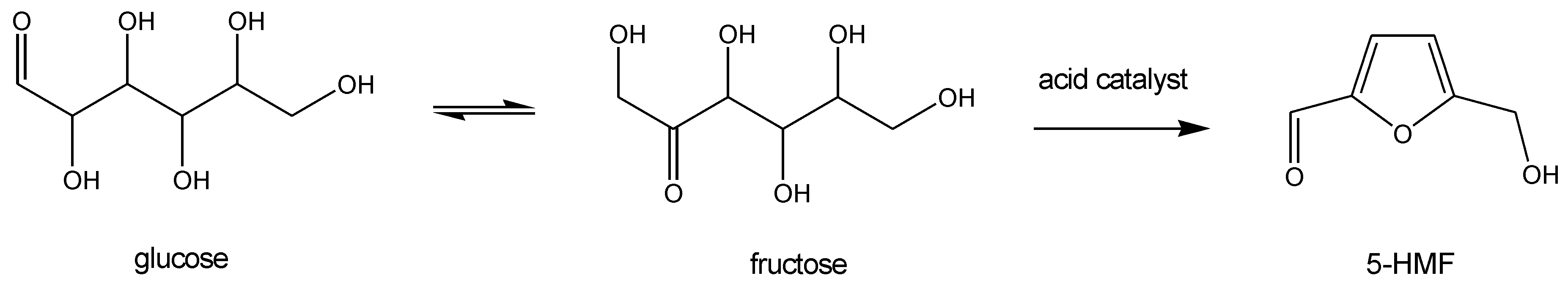

Scheme I. 5-Hydroxymethylfurfural from carbohydrates.
Scheme I. 5-Hydroxymethylfurfural from carbohydrates.
Challenges 03 00212 g017
Challenges 03 00212 g018 1024

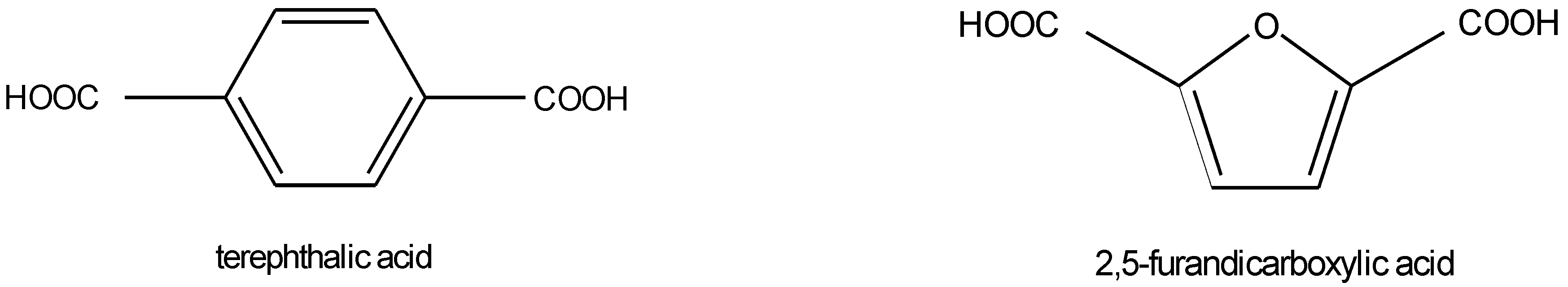

Scheme II. Structural formulas of Terephthalic acid and 2,5-furandicarboxylic acid.
Scheme II. Structural formulas of Terephthalic acid and 2,5-furandicarboxylic acid.
Challenges 03 00212 g018
Therefore, extensive research efforts are currently being performed to develop efficient and sustainable methods to prepare 5-HMF. However, up to now, there is still no intensive commercial production of 5-HMF, due certainly to the lack of an efficient and sustainable process to produce 5-HMF from cheap carbohydrates.
In this field, one can say that it is particularly difficult to analyze the literature data due to the wide variety of conditions used (water/organic media, ionic liquids, use of HMF extractive solvent, amounts of extractive solvent/reactive phase, high catalyst/reactant ratio, concentration of sugars, temperature, nature of the carbohydrate, …). Nevertheless, various aspects of 5-HMF chemistry have been recently reviewed [2,3,4,5] and the main features of 5-HMF synthesis from carbohydrates are summarized in the following.
5-HMF is synthesized via acid catalyzed carbohydrate dehydration, generally from monosaccharides such as fructose or glucose, but one can also obtain 5-HMF directly from lignocellulosic raw materials [6]. This synthesis has been known since the end of the 19th century. The difficulties encountered for a selective 5-HMF synthesis in water mean that increasingly complex methodologies have been attempted [7]: anhydrous organic solvents, sub- or supercritical media, biphasic media in a reactive aqueous phase and a 5-HMF extractive solvent immiscible in water, ionic liquids… This is explained by the low 5-HMF selectivity obtained when the reaction is carried out in pure water, due to the uncontrolled re-hydration of the 5-HMF in levulinic and formic acids. Moreover, intermediates or the 5-HMF itself may polymerize to produce oligomers, called humins, that are more or less soluble in water [8].
To solve the problems of the low 5-HMF selectivity in the water medium, the following approaches were applied more or less successfully:
  • i- In situ extraction of 5-HMF from the reaction media to avoid its successive transformation. This was done using a 5-HMF extractive solvent, immiscible in water [6,7,8,9]. However, the use of large volumes of solvent could be a serious drawback for further industrial applications. On the other hand, 5-HMF separation from the aqueous media was also reported via steam extraction [10]. One can also mention that the continuous water extraction from the reaction media favors 5-HMF yield [7].
  • ii- An alternative solution is to perform the reaction in organic/aqueous media or in pure organic solvent. DMSO (Dimethylsulfoxide) is the usual organic solvent for the 5-HMF synthesis. If the glucose dehydration in 5-HMF in pure water is not selective, in DMSO, higher yields (42%) were reported [9].
  • iii-Ionic liquids are being increasingly investigated to synthesize 5-HMF. In 2006, Moreau et al. [11] reported the efficient dehydration of fructose into 5-HMF in an ionic liquid, 1-H,3-methyl imidazolium chloride. Using diethyl ether to recover 5-HMF, a yield of 85% was reported after a few minutes of reaction time at 90 °C.
Metallic chlorides in ionic liquids were reported to be an exceptional system capable to convert glucose in 5-HMF in high yield. In the catalytic system, CrCl2/EMIMCl, yields in 5-HMF of 62–69% were reported starting from glucose [12,13]. The efficiency of the catalytic system is ascribed to its ability to isomerize glucose in fructose, a ketohexose, more easily dehydrated. Similar results were obtained with the system SnCl4/[EMIm]BF4 [14]. Ionic liquids combined with La-based catalysts, a Cr-free catalytic system, were also applied for the direct conversion of glucose into 5-HMF with a yield of 24%. Very recently, the addition of others chlorides, NbCl5, TaCl5, VCl3, were used in ionic liquids to dehydrate fructose in 5-HMF [15]. The highest yield in 5-HMF was reported over NbCl5. From the authors, the remarkable 5-HMF selectivity obtained with these chlorides could be ascribed to their weak Lewis acidity while strongest Lewis acids would favor side reactions.
From the brief overview presented above, it is clear that the challenge of a selective synthesis of 5-HMF will depend on the acid-basic catalytic system combined with an adequate reaction medium and process. Although many papers deal with carbohydrate dehydration in 5-HMF, only a few gave insights on the catalyst properties which would be favorable to the 5-HMF selective formation. In particular, on the role of the nature and of the strength of the acid sites which would promote a selective dehydration of hexoses into 5-HMF.
Among them, Kuster et al. [16] investigated the role of the pH of aqueous solution to perform the dehydration of fructose in 5-HMF. They showed that a narrow acidic pH range (2.7–3.9) could prevent the successive conversion of 5-HMF in levulinic and formic acids. Concerning heterogeneous catalysts, Carlini et al. [17,18] reported the good performances for 5-HMF synthesis of metallic phosphates, which are generally considered as weak Brønsted/Lewis acids. This strengthens well the former conclusions of Kuster [16].
On the other hand, although it is expected that Lewis acids might dehydrate carbohydrates, the question of the nature of the acid sites is essential but remains controversial, particularly when water media is concerned. By contrast to the ionic liquids media reported above, the use of Lewis acids in water has, for a long time, been considered as meaningless, due to their unavoidable conversion into Brønsted acids. Again, Carlini et al. [19] first addressed this question via the investigation of zirconium and titanium phosphates, which possess Brønsted and Lewis acid sites. From fructose, in water at 100 °C, the authors reported a selectivity in 5-HMF of 81% at relatively high fructose conversion: 52%. From the authors, both Lewis and Brønsted sites would be involved in the fructose dehydration and they reported that the improvement of the Lewis acid strength favored the 5-HMF yield. Later, boric acid was also reported as a weak Lewis acid catalyst active in the aqueous dehydration of fructose into 5-HMF [20]. Boric acid was used in the presence of NaCl. Using the catalytic system, boric acid/NaCl, and MIBK: methyl isobutyl ketone) as extractive solvent, a yield of 60% in 5-HMF was achieved from fructose, while a lower one, 14% was obtained from glucose. Kitano et al. [21] reported that titanate nanotubes were efficient catalysts in the formation of 5-HMF at 120 °C in water. They showed that while the usual mineral acids were inactive at 120 °C in water, the titanate nanotubes promoted fructose and glucose dehydration into 5-HMF with yields of 16% and 14% respectively. The authors explained this result by the presence of a Lewis acidity associated to effective Brønsted sites on the surface of the titanate nanotubes. Very recently, Nakajima et al. [22] reported that niobic acid was an efficient water-tolerant Lewis acid capable of dehydrating glucose into 5-HMF. The authors claimed that the presence of high amounts of niobic acid are essential to isomerize glucose into fructose, and that the 5-HMF formation would proceed also on the Lewis acid sites. Yields in 5-HMF of 20–25% were obtained from glucose when equivalent amounts of glucose and Nb2O5 were used. Note that when niobic acid was treated with phosphoric acid, a higher 5-HMF yield was achieved from glucose: 30–36%, but still using equivalent amounts of catalyst and glucose [22]. Similarly, TiO2 nanoparticles of high surface area were described as efficient Lewis acids for the production of 5-HMF in water from various carbohydrates [23]. Using quantitative amounts of sugar and TiO2, a 5-HMF yield of 36% was obtained in water, but with the assistance of microwaves. Finally, it is worth mentioning that hydrated tantalum oxides, Ta2O5.nH2O, pure or treated with H3PO4, were shown to be as active as the Nb-based catalysts [24]. Yields in 5-HMF of 90% were recently obtained in a biphasic system.
One can conclude that if the most recent literature underlines the role of Lewis acid sites, not only to isomerize glucose into fructose but also for the fructose dehydration step, the earliest studies rather underlined the role of the Brønsted sites in the carbohydrate dehydration step.
At this stage, the question of the use of a catalytic system capable of isomerizing glucose into fructose appears to be the key point. Accordingly, would it be possible to design a catalytic system which could isomerize glucose into fructose and then dehydrate fructose into 5-HMF? For that, it is essential to clarify which types of sites are involved in each elementary step.
As can be seen from the above, from the recent literature data, it seems that this problem could be solved by using Lewis acids capable of promoting both the glucose-fructose isomerization and fructose dehydration. The efficiency of Lewis acid catalysts such as Sn-Beta zeolite to isomerize glucose into fructose in water was shown by Davis et al. [25]. The authors reported that the aldose-ketose isomerization would occur via an intramolecular hydride shift promoted by the Lewis centers, a mechanism close to that promoted by the enzymes.
Currently, glucose isomerization into fructose is a large-scale industrial process, catalyzed by immobilized enzymes [26,27]. Nevertheless, alkali-catalyzed glucose isomerization into fructose has been known since 1895 [28], but NaOH does not selectively catalyze glucose-fructose isomerization [29]. This isomerization can also be promoted by heterogeneous basic catalysts, such as potassium aluminate [30], alkaline exchanged X,Y zeolites and Mg/Al hydrotalcite (HDT) [31], metallosilicates substituted by alkaline or yttrium cations [29] or basic hybrid molecular sieves [32]. Correlation between the isomerization activity and the catalyst basicity was reported by Moreau et al. [33] who investigated glucose isomerization by means of aqueous NaOH solutions of different pH. That was confirmed more recently by S. Lima et al. [29]. Thus, it seems clear that the glucose-fructose isomerization may proceed either by proton transfer (basic catalyzed step) or by hydride transfer (Lewis acid catalyzed step). By contrast, the role of Lewis sites, in the fructose dehydration step, remains questionable from the literature data.
Besides the recent approach consisting of using Lewis acids to isomerize glucose in fructose and to dehydrate the fructose into 5-HMF, another approach consists of using amphoteric catalysts with basic sites to isomerize the glucose and Brønsted acid sites to perform the dehydration. Watanabe et al. [10] reported that TiO2 anatase, which possesses acid and basic sites (in contrast to TiO2 rutile), was shown to convert glucose directly into 5-HMF, while TiO2 rutile did not. Logically, the authors concluded that the glucose conversion into 5-HMF required a preliminary glucose-fructose isomerization promoted by basic sites. In line with this approach, in 2010, Ohara et al. [34] reported the use of a combination of a basic catalyst, HDT, and an acid one, Amberlyst 15, to perform the direct conversion of glucose in 5-HMF, but using DMF (dimethyl formamide) as solvent.
To summarize, we would say that the mechanism of dehydration of hexoses in 5-HMF and the nature of the active sites involved in the elementary steps, the isomerization and the dehydration, are not well established. That is probably why, up to now, the design of an efficient catalytic system for the direct conversion of glucose into 5-HMF, in water, has still not been achieved.
As regards the formation of 5-HMF in pure water, by means of a heterogeneous catalyst, one can turn to some reference works. The use of aluminosilicate catalysts to produce 5-HMF from fructose was patented in 1992 [35]. At 145 °C, yields in 5-HMF of 20–32% were claimed with zeolites and protonic montmorillonite. Niobic acid, niobium or vanadium phosphates have been applied to dehydrate fructose and inulin, giving high yields up to 50% at 80–100 °C [36,37,38]. This is certainly the highest 5-HMF yield reported to date in pure water without the assistance of an extractive solvent. Metal oxides like ZrO2 and TiO2 have been employed under microwave assistance at 200 °C, giving 5-HMF yields of 30–40% from fructose [39]. Using mesoporous TiO2 nanoparticles [23], from fructose, a yield of 36% was obtained in the assistance of microwaves. Starting from glucose, H3PO4-treated Nb2O5 was reported to lead to a 5-HMF yield of 30–36% [22].
In almost all these studies, high conversions of the reactants (especially fructose) were observed but limited yields in 5-HMF were still reported. Moreover, in most of the studies, a quantitative amount of glucose and catalysts were used, combined with the use of a limited volume of water. However, as mentioned above, due to many differences in the experimental conditions used, it is rather difficult to compare the literature data in this field.
We wish here to report our efforts, on one side of the study, in the preparation of 5-hydroxymethylfurfural with the influence of a large panel of solid catalysts in pure hydrothermal conditions using fructose or glucose as reactant. On the other side we introduce our first results in the use of aqueous concentrated liquid carboxylic acids as an alternative reactive solvent system.

2. Results and Discussion

2.1. Pure Hot Water as Reaction Medium

We choose in a first set of experiments to study the reactivity of glucose in water in the absence, then in the presence, of various solid catalysts chosen as regards their acid-basic features. First, let us report in Figure 1 the transformation of aqueous solutions of 1 wt% glucose as a function of temperature. After 2 hours’ reaction in batch conditions, temperatures higher than 150 °C led to an increasing conversion of glucose from 25% at 180 °C up to 95% at 250 °C. Note that only part of the glucose is converted into 5-HMF with a maximum yield of 26% at 220 °C. A higher temperature, 250 °C, is detrimental for HMF formation, as well as for the formation of other products detected by HPLC, (levulinic acid, formic acids, lactic acids, acetol, mannose...). Indeed, most of the products from glucose transformation at 250 °C are soluble oligomers, since the TOC analysis has measured a carbon balance higher than 95% in all experiments. This phenomenon of glucose disappearance and transformation in soluble oligomers is also dependent on the pH of the aqueous media. Figure 2a and 2b present the progressive disappearance of glucose when the temperature is increased from 150 °C to 200 °C at the two pH values, 1 and 11. Interestingly, if at the highest temperature, 200 °C, a near complete transformation of glucose into soluble oligomers is observed in either acid or basic aqueous solutions, at the intermediate temperature of 180 °C, the degradation of glucose is slightly more pronounced in the basic conditions. This tendency is confirmed at the lowest temperature, 150 °C: while the glucose is only slightly converted, 17%, in acidic conditions, half of the initial glucose is consumed at basic pH with limited yields into 5-HMF and other products detectable by HPLC. This suggests, that at 150 °C, at least the formation of undetermined soluble oligomers, not detected by HPLC, proceeds faster via a basic catalyzed mechanism compared to an acidic one.
Challenges 03 00212 g001 1024

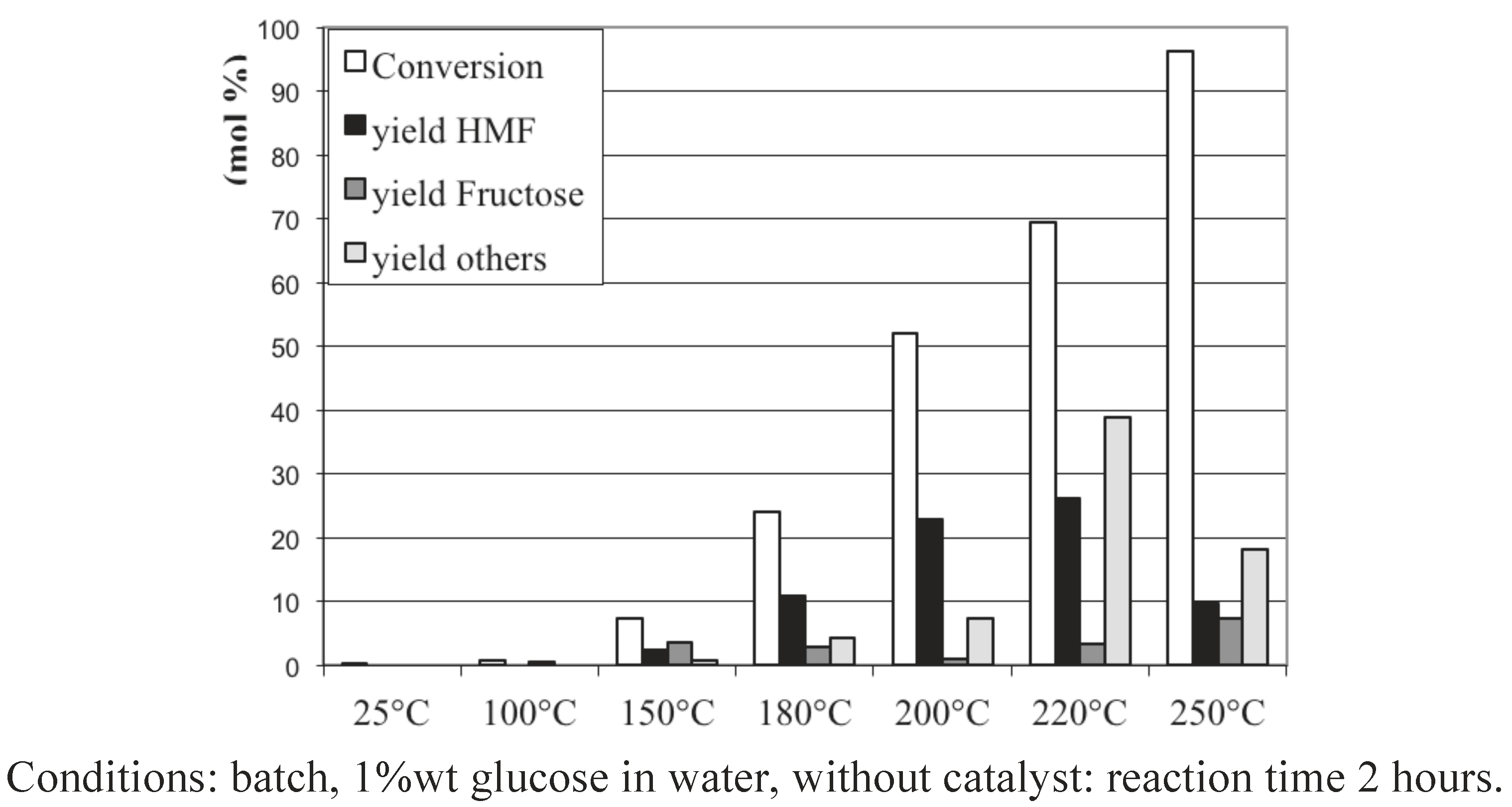

Figure 1. Glucose conversion and 5-HMF yield in water as a function of the temperature.
Figure 1. Glucose conversion and 5-HMF yield in water as a function of the temperature.
Challenges 03 00212 g001
Challenges 03 00212 g002 1024

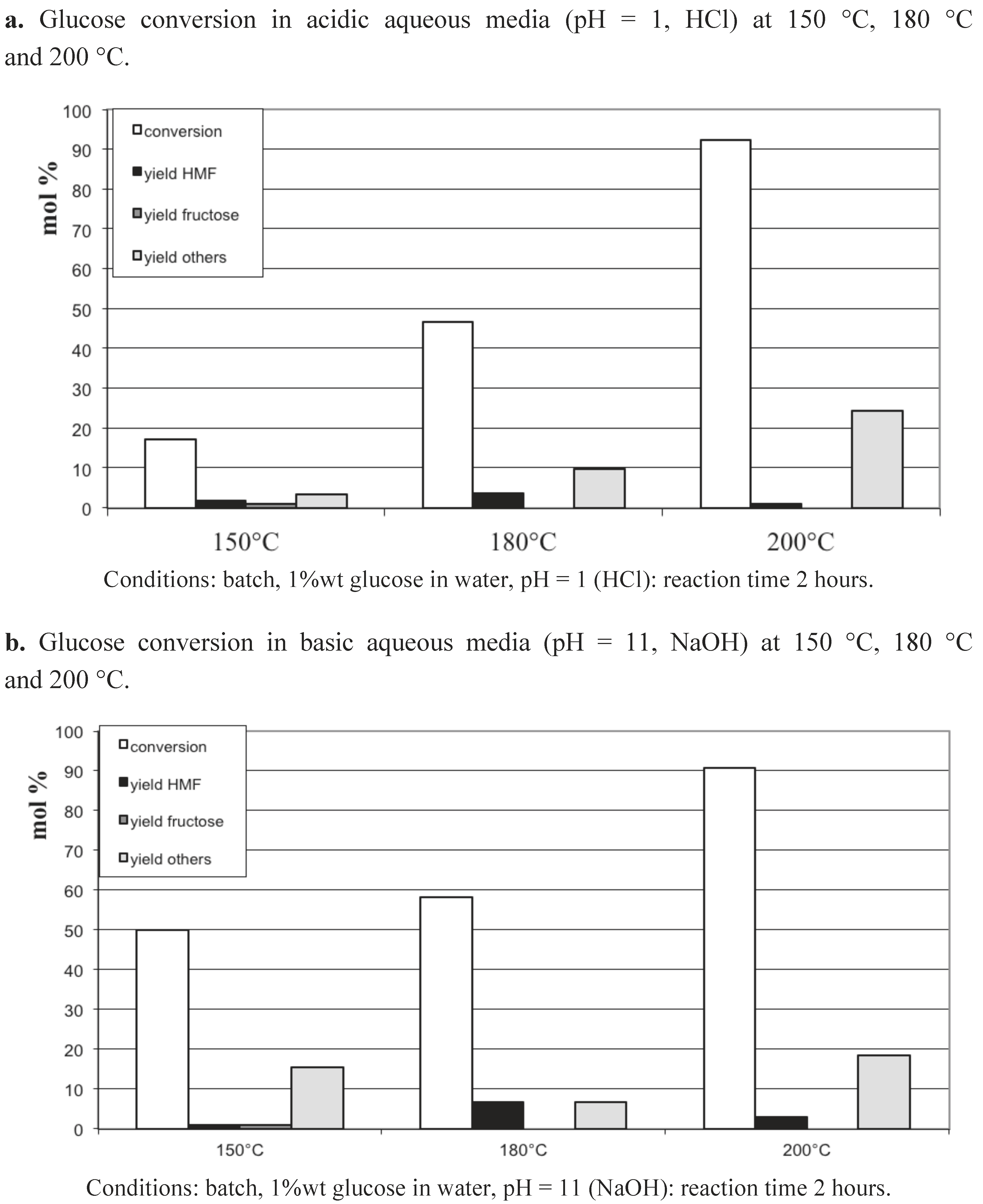

Figure 2. Glucose conversion in aqueous media: temperature and pH dependences.
Figure 2. Glucose conversion in aqueous media: temperature and pH dependences.
Challenges 03 00212 g002
Starting from fructose, the influence of the pH value was investigated in more detail at the lowest temperature, 150 °C (Figure 3). In neutral condition (pH 7), fructose was not converted: neither was glucose. At higher pH values, fructose is more reactive than glucose, and one third of the initial fructose was isomerized into glucose. As expected, the main differences between glucose and fructose are observed in acidic condition. In acidic media, by contrast to glucose, an almost total fructose conversion was observed at pH 1, yielding 27% of 5-HMF. A fine control of the pH value evidences the close dependence of the 5-HMF yield with the pH value in agreement with the earlier work of Kuster [16]: the maximum yield, 38–43%, was obtained between pH 1.5 and 2.15, a pH range slightly lower than that determined by Kuster. Once the pH reached 2.9, the fructose remains un-converted up to pH 10.
Challenges 03 00212 g003 1024

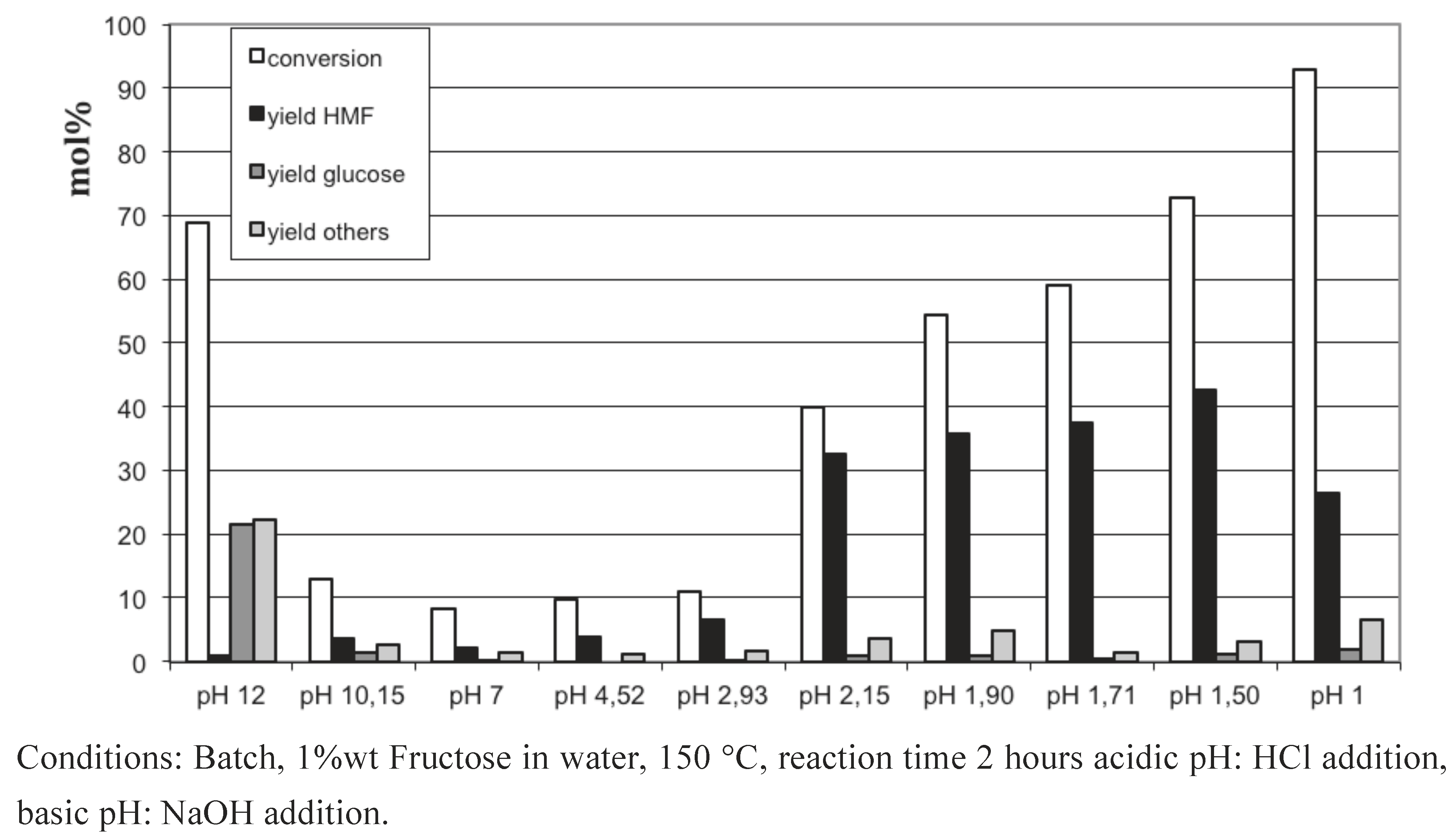

Figure 3. Fructose conversion at 150 °C in aqueous solutions of various pH.
Figure 3. Fructose conversion at 150 °C in aqueous solutions of various pH.
Challenges 03 00212 g003
Since, in neutral conditions, the conversion of glucose and fructose is limited at 150 °C after 2 h of reaction, we choose these conditions to evaluate a large panel of solid catalysts susceptible to promoting the formation of HMF. The selected catalysts evaluated here are well known for their different acid-base features, some of them are commercial catalysts, others have been optimized for different catalytic applications investigated in our group, but their efficiency in this reaction has never been reported or compared in the literature in equivalent aqueous reaction conditions, with catalytic amount of solid, 5 wt%/sugar. Different Brønsted acid catalysts were selected: a strong Brønsted acid, Cs2HPW12O40, and commercial zeolites H-ZSM-5 (Si/Al = 40) and H-Y (Si/Al = 15) which are Brønsted acids of moderate acid strength. Niobic acid (amorphous hydrated niobium oxide from CBMM (Companhia Brasileira de Metalurgia e Mineração), NbO(OH)3 from TGA analysis: abbreviated NbOH in the following) which was reported in the literature to be an efficient catalyst for fructose dehydration was also studied here. Niobic acid modified with H3PO4 and H3PW12O40 were also evaluated as Nb-based oxide with enhanced Brønsted acidity. Amphoteric supports, such as ZrO2 and Al2O3, as well as their corresponding hydroxides, ZrOH and Boehmite were also tested. Zirconia, modified with Cs (ZrCs) or Mg (ZrMg), aimed to improve the zirconia basicity, was also evaluated by comparison to un-modified zirconia. Zirconium phosphate (ZrP) was also included in the list, already described as a weak solid acid, efficient in fructose dehydration [36]. Sn-Beta and tungstated zirconia,WO3/ZrO2 (ZrW) were chosen according to their pronounced Lewis acidity, still effective in water [40]. Finally, a strong solid base, MgLaO [41], was evaluated.
Figure 4 represents the glucose conversion and 5-HMF yield obtained in the presence of the different catalysts presented above.
Challenges 03 00212 g004 1024

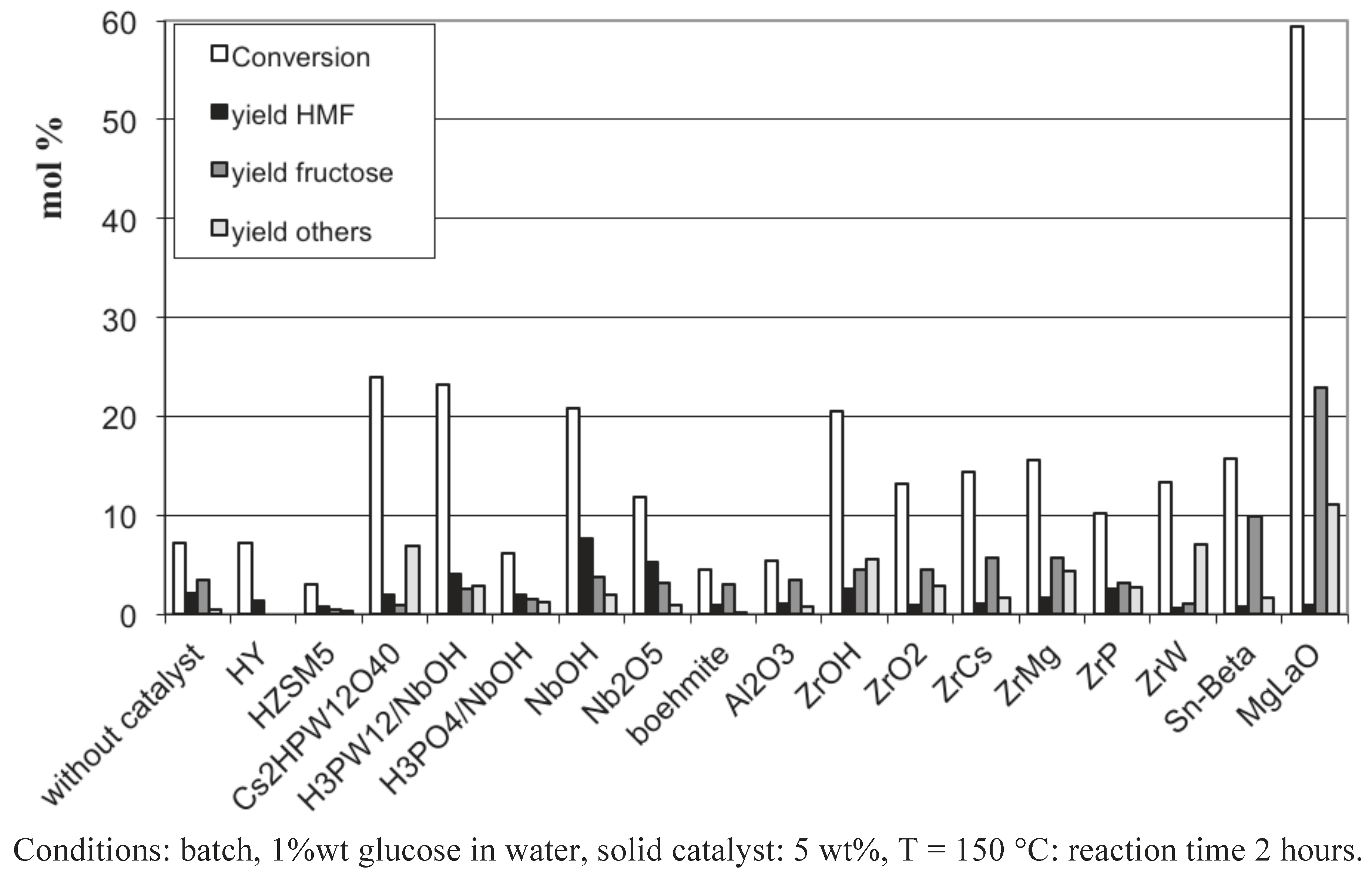

Figure 4. Glucose conversion in aqueous media at 150 °C in the presence of various acid-basic solid catalysts together with amphoteric Zr and Al-based solids.
Figure 4. Glucose conversion in aqueous media at 150 °C in the presence of various acid-basic solid catalysts together with amphoteric Zr and Al-based solids.
Challenges 03 00212 g004
We can clearly see that most of the catalysts present a low activity in the glucose conversion with a limited yield in 5-HMF, except the basic mixed oxide, MgLaO, which only catalyses the glucose isomerization with a conversion of 60% and a yield into fructose of 23%. This result shows the remarkable performance of this mixed oxide to isomerize glucose into fructose, compared to the other basic materials ZrCs and ZrMg [42]. Note that among the solid acids characterized by pronounced Lewis acids, ZrW and Sn-Beta, only Sn-Beta produces fructose from glucose, with a lower yield compared to MgLaO, 10% vs. 23%. The lack of isomerization activity of ZrW might be ascribed to a too-fast degradation of fructose when contacting the catalyst surface. Among the amphoteric solids, the Al-based materials are particularly inert while the Zr and Nb-based supports are more active. NbOH and NbOH400 (NbOH calcined at 400 °C) led to the highest yield in 5-HMF among all the tested catalysts. On the other hand, the promotion of NbOH with H3PO4 or H3PW12O40 did not increase the 5-HMF yield. The performances of NbOH for the formation of 5-HMF was recently ascribed to its Lewis acidity, which would catalyze the glucose-fructose isomerization [21]. A comparison of NbOH and NbOH400 as regards their Lewis/Brønsted acidity and their activity in 5-HMF formation would rather suggest that 5-HMF is favored when the adequate Brønsted to Lewis acid sites balance is present on the catalyst surface. Indeed, from their infrared spectra of pyridine adsorption (Figure 5), NbOH presents a higher Brønsted to Lewis acid sites ratio compared to NbOH400, the latter solid being less active in the formation of 5-HMF. A deeper investigation is required to strengthen these remarks.
Challenges 03 00212 g005 1024

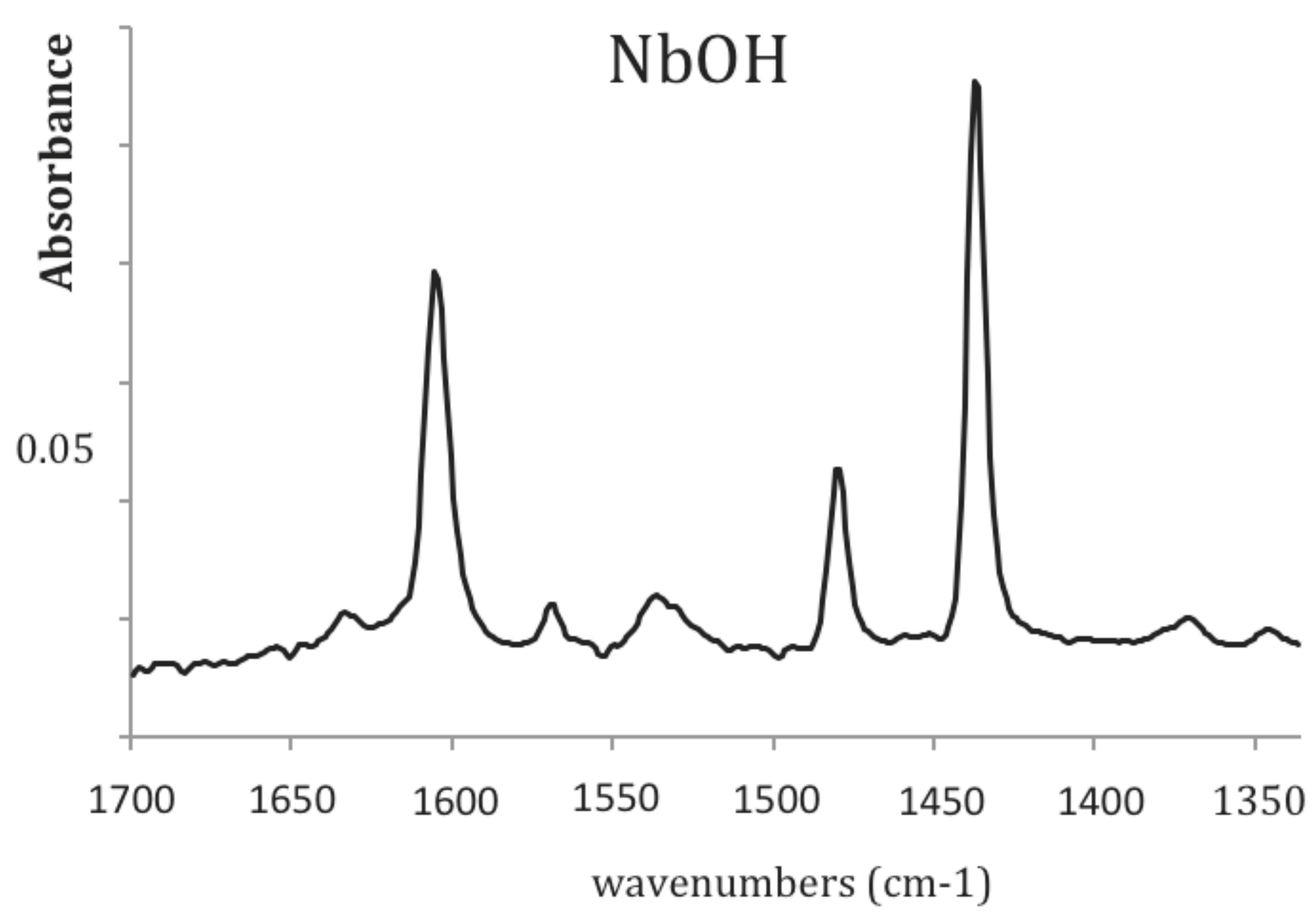

Figure 5. Infrared spectra of pyridine adsorption on NbOH then vacuum treated at 150 °C.
Figure 5. Infrared spectra of pyridine adsorption on NbOH then vacuum treated at 150 °C.
Challenges 03 00212 g005
The heteropolyacid Cs2HPW12O40, possessing the strongest Brønsted acidity within the series, gave the highest glucose conversion, but with a very low 5-HMF yield, explained by its rehydration in levulinic and formic acid, the main products detected by HPLC. Note that the protonic zeolites H-Y and H-ZSM5 are completely inactive in the present conditions.
Starting from fructose, only a few selected solid catalysts were evaluated at 150 °C: Cs2HPW12O40 (Cs2H) and ZrW, a Brønsted and Lewis solid acid, and the most active solid in 5-HMF formation, NbOH (Figure 6). The acidic properties of the selected catalysts are well characterized by pyridine adsorption, monitored by infrared spectroscopy: Cs2HPW12O40 is a pure solid Brønsted acid, while ZrW is a marked Lewis acid solid [40]. NbOH presents both Brønsted and Lewis sites (Figure 5). Note that NbOH400 is characterized by a lower Brønsted/Lewis acid sites balance, as mentioned above. As regards their acid strength, established by NH3 adsorption, followed by calorimetry, the following ranking was obtained: Cs2HPW12O40 > ZrW~NbOH, based on the respective heats of NH3 adsorption of 200 kJ.mol−1(Cs2HPW12O40), 160 kJ.mol−1(ZrW), 150 kJ.mol−1 (NbOH).
In the presence of catalytic amount of solid catalyst (5 wt%/sugar), we note a significant increase of the fructose conversion compared to glucose with ZrW and NbOH, and less significantly with the pure Brønsted solid acid (Figure 6). However, the 5-HMF yield is still not favored, lower than 10%.
Apparently, the best catalyst evaluated here seems to be niobic acid, NbOH, in agreement with the literature data [17,43]. Therefore, we decided to study further this catalyst because of some observed discrepancies from the literature data dealing with the use of niobic acid to dehydrate hexoses because the experimental conditions used were somewhat far from the usual catalytic ones. In particular, it seems important to address the role of the high catalyst/reactant ratio applied both in batch conditions [22,24,36] and in a continuous-recycling reactor [43].
Challenges 03 00212 g006 1024

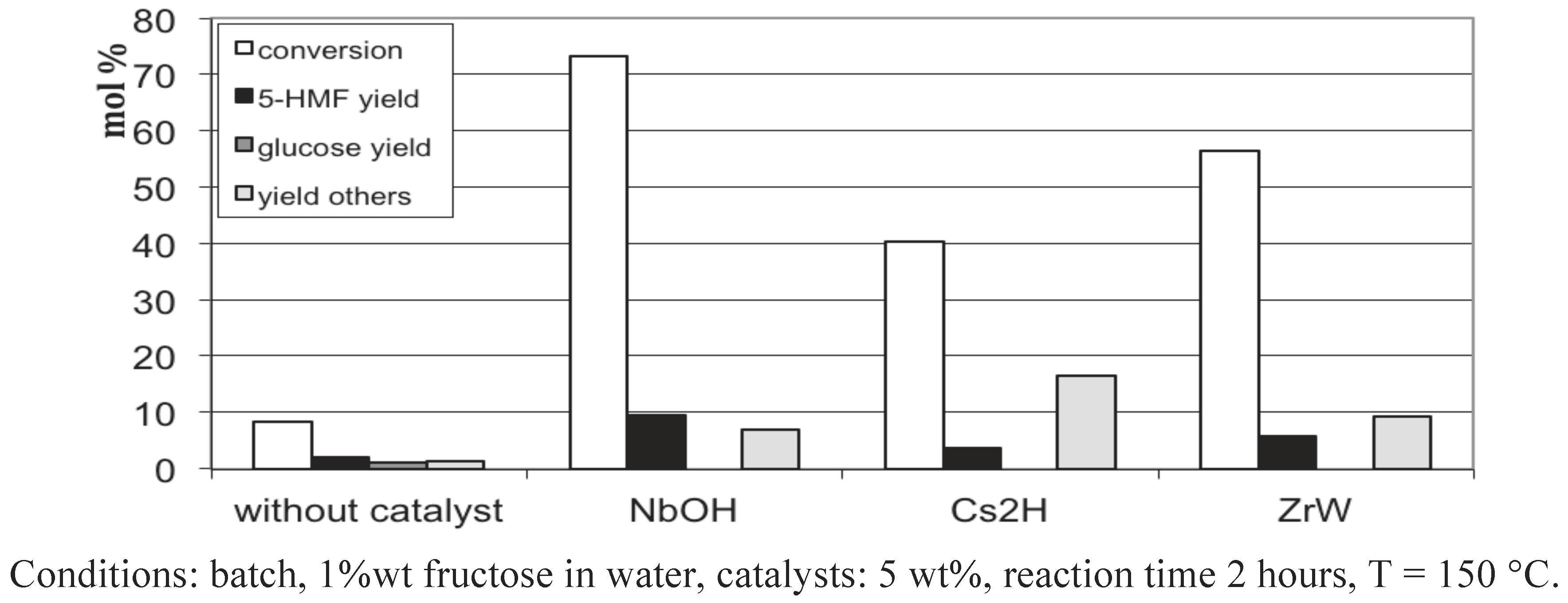

Figure 6. Fructose conversion in aqueous media at 150 °C in the presence of Cs2HPW12O40, ZrW and NbOH.
Figure 6. Fructose conversion in aqueous media at 150 °C in the presence of Cs2HPW12O40, ZrW and NbOH.
Challenges 03 00212 g006
We investigated first the influence of the temperature starting from glucose and fructose in the presence of NbOH. From glucose (Figure 7), with catalytic amount of NbOH, a temperature of 250 °C was required to totally convert glucose. Glucose is principally transformed into soluble oligomers, undetected by HPLC analysis, and the maximum yield in 5-HMF: 16%, was obtained at 200 °C. Starting from fructose (Figure 8), the highest conversion (92%) and yield (18%) were reached at a lower temperature of 180 °C. Similarly, fructose is mainly converted into soluble oligomers. It is noteworthy that higher 5-HMF yields were obtained in pure water: 26% at 220 °C (Figure 1). The main differences between the present studies and those reported in the literature concerned the catalyst/reactant ratio kept in catalytic proportion in the present study. Figure 9 represents the influence of the amount of niobic acid catalyst for the reaction at 150 °C for 2 hours. We see that, as expected, the glucose conversion increases up to 80% when the catalyst amount was raised to 100 wt%, referring to the amount of glucose. A parallel increase of the 5-HMF yield was observed up to 28%. These values are more in line with the 5-HMF yield reported in the literature.
Challenges 03 00212 g007 1024

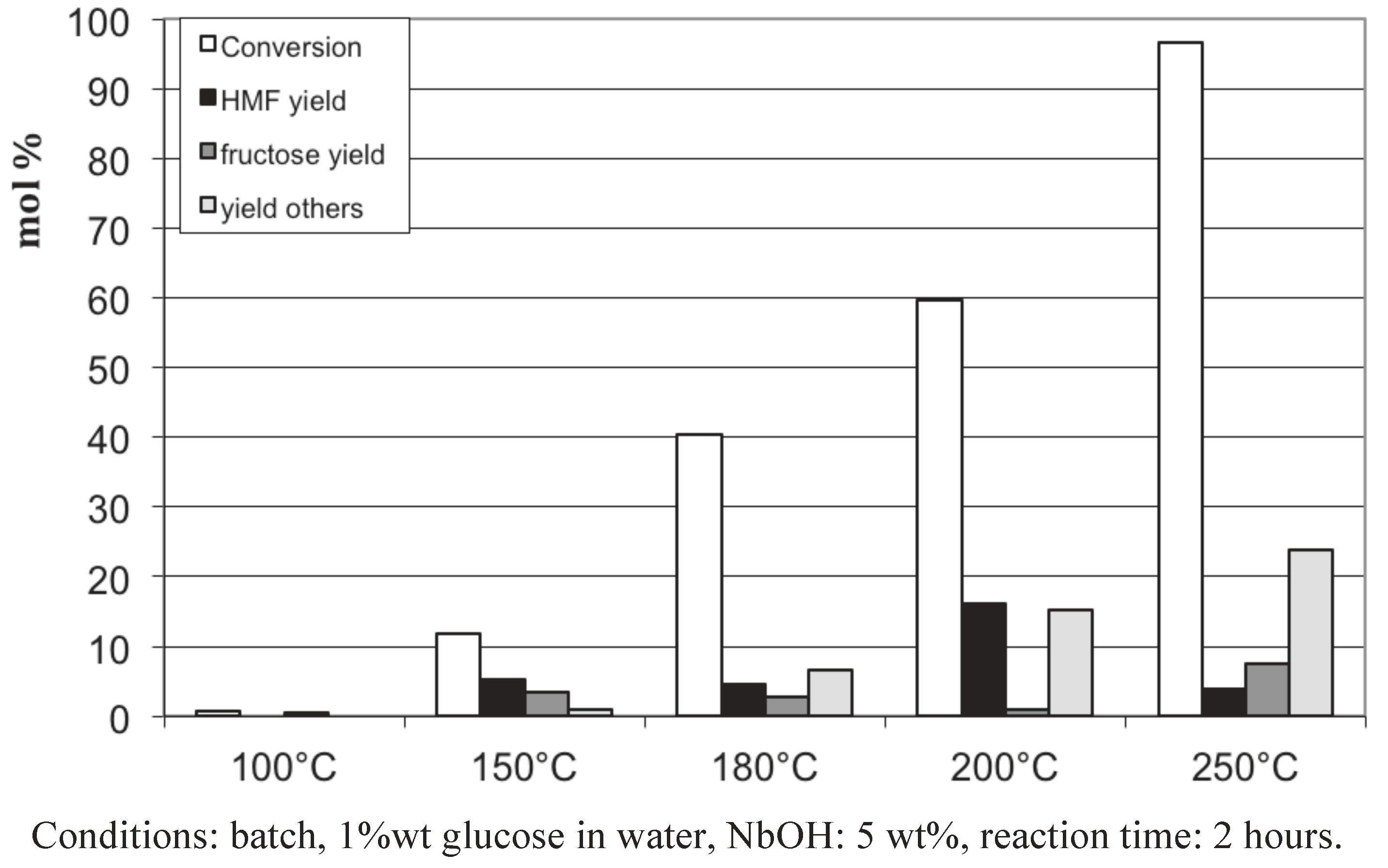

Figure 7. Glucose conversion in aqueous media in the presence of NbOH as a function of the temperature.
Figure 7. Glucose conversion in aqueous media in the presence of NbOH as a function of the temperature.
Challenges 03 00212 g007
Challenges 03 00212 g008 1024

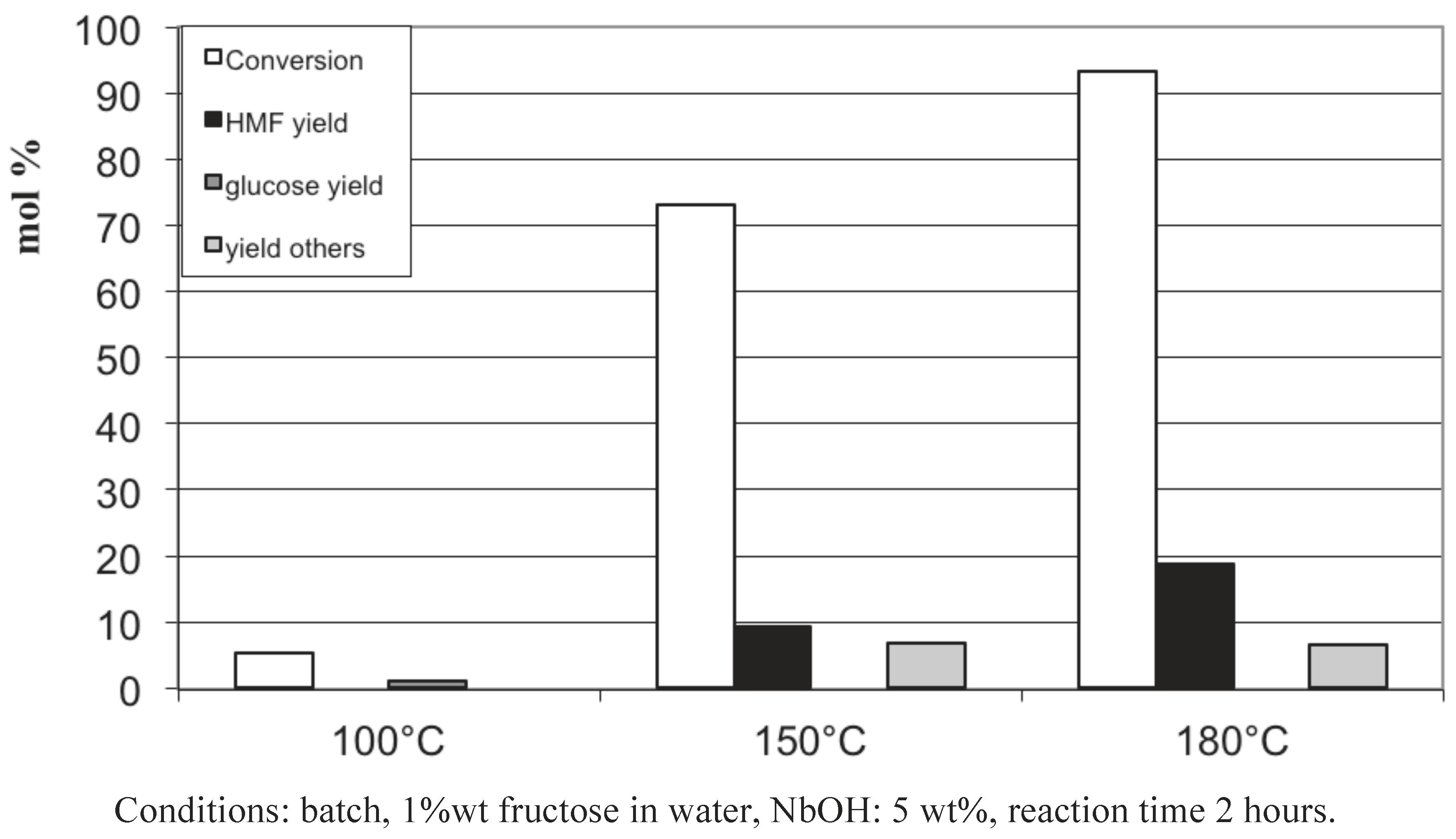

Figure 8. Fructose conversion in aqueous media at 150 °C in the presence of NbOH as a function of the temperature.
Figure 8. Fructose conversion in aqueous media at 150 °C in the presence of NbOH as a function of the temperature.
Challenges 03 00212 g008
Challenges 03 00212 g009 1024

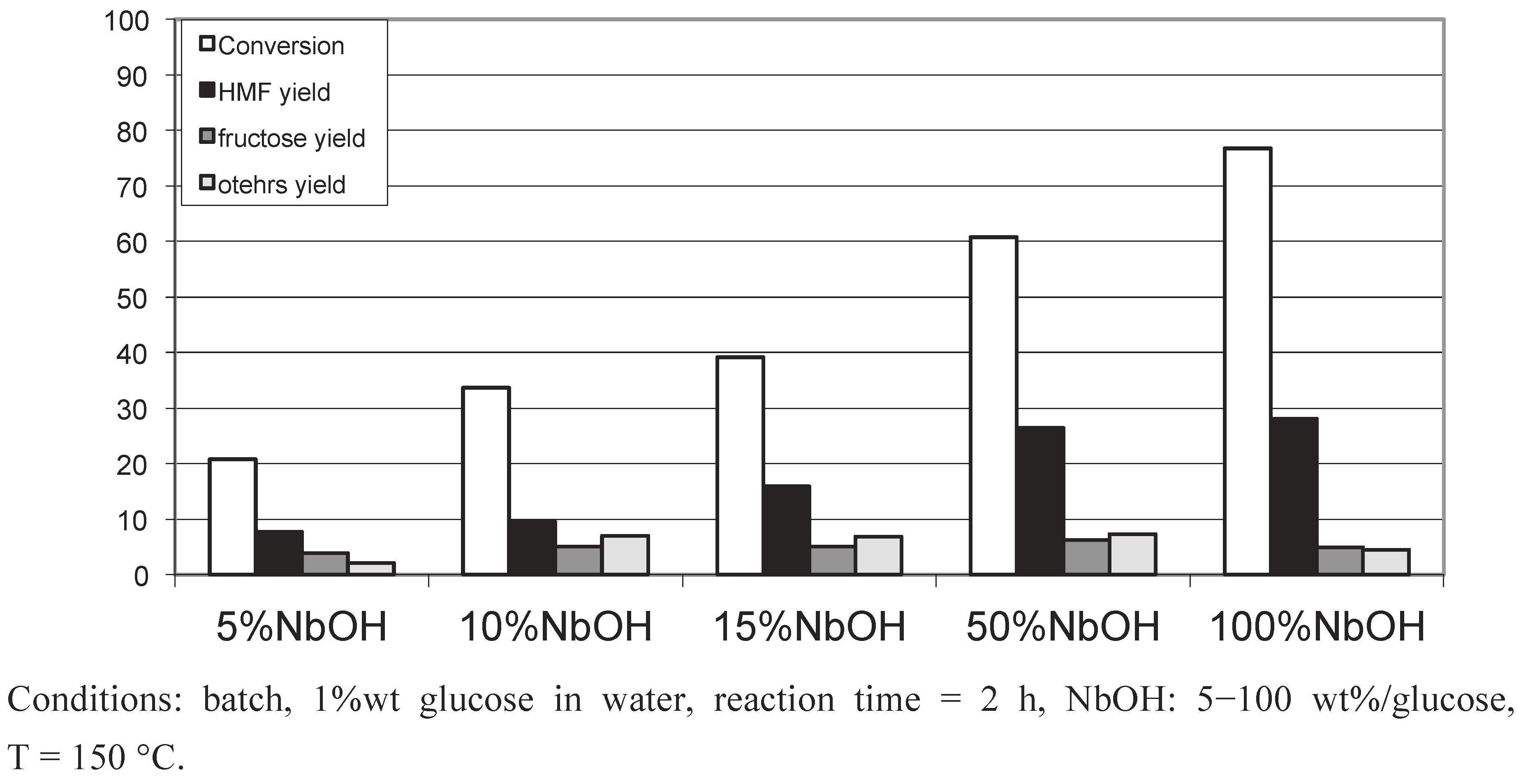

Figure 9. Glucose conversion in water in the presence of increasing amounts of NbOH.
Figure 9. Glucose conversion in water in the presence of increasing amounts of NbOH.
Challenges 03 00212 g009
The results described above as well as those from literature definitively show that pure water is not an easy medium for 5-HMF production. Indeed, to have a significant conversion of either glucose or fructose, many solid acid catalysts are active but none of them form 5-HMF selectively. Whatever the catalytic system employed so far, undesired side-reactions leading to a mixture of levulinic and formic acids and mainly oligomeric by-products soluble in water are always observed. NbOH is certainly one of the most efficient solid acids to produce 5-HMF from aqueous glucose or fructose solutions, but its effect, when used in catalytic amounts, is limited. As a first conclusion, we can say that the glucose and fructose conversion in hot water is a complex process leading easily to the formation of soluble water soluble products of difficult identification. The expected product 5-HMF can be obtained only in a limited amount, whatever the nature of the solid used in catalytic amount. In the presence of a solid catalyst in pure water, we did not succeed in producing 5-HMF in a yield equivalent to the one obtained in an aqueous medium where the pH value is finely tuned between 1.5 and 1.9. 5-HMF yields higher than 40% were obtained in such homogeneous conditions.
The lack of selectivity in the aqueous media is at the origin of the use of extracting organic solvents, insoluble in water, making bi-phasic systems able to avoid this over-reactivity of 5-HMF (see Introduction). By curiosity, we evaluated whether the addition of a 5-HMF extraction solvent in the reaction media might significantly increase the yield in 5-HMF. Thus, experiments were performed in our standard conditions (150 °C, 2 h of reaction, 1 wt% glucose, 5 wt% of NbOH), but half of the water was replaced by MIBK (methyl isobutyl ketone) or ethyl ether. From Figure 10, we can see that the yield of 5-HMF was not improved, probably due to the partition of 5-HMF between the water and the organic extraction solvent. Probably a large excess of organic solvent is required in order to achieve significant results.
Challenges 03 00212 g010 1024
Figure 10. Glucose conversion in water at 150 °C in the presence of NbOH: influence of extractive solvent addition: MIBK and diethyl ether.
Figure 10. Glucose conversion in water at 150 °C in the presence of NbOH: influence of extractive solvent addition: MIBK and diethyl ether.
Challenges 03 00212 g010
Another approach is the use of pure or aqueous organic solvent as reaction medium, which can modify the properties of the aqueous medium and have a positive effect on 5-HMF selectivity. In an effort to find an original and convenient medium to produce 5-HMF, we evaluated liquid carboxylic acids as potential candidates. These are environmentally-friendly solvents produced at low cost, and for some, from renewable resources, and widely used in the chemical industry. As far as we know, only a very few examples of this system have been reported for this application and the earliest studies have reported the use of catalytic amounts of organic acids such as formic, acetic, oxalic or levulinic acids [44,45]. In these conditions, limited yields into 5-HMF were obtained, explained by the too-weak acidity of these organic acids compared to H2SO4 or HCl.
We wish now to report our first results on the reactivity of fructose and glucose in concentrated aqueous solutions of organic acids, disclosed recently as efficient and clean media to directly produce 5-HMF [46].

2.2. Concentrated Aqueous Organic Acids Solutions as Reaction Medium

As a complement to the studies reported above on the 5-HMF formation in pure water in the presence of various solid catalysts, here we report the unexpected efficiency of concentrated aqueous solutions of organic acids used in the absence of added strong acid catalyst, to form directly 5-HMF from fructose, without assistance of an extractive solvent. Then, our first attempts to add solid catalysts to this medium will be presented.
The reactions were still performed in our standard conditions, at 150 °C for 2 hours, with a solution of 20 wt% of organic acid in water and 1 wt% of hexose. In contrast to the study cited above where low concentrations (~1%) of organic acids were evaluated [44,45], we decided to perform the reactions in concentrated aqueous organic acid solutions as a reactive solvent system to convert the hexoses thus far from the use of catalytic amounts of organic acid.
First, Figure 11 discloses the unexpected efficiency of a concentrated solution of lactic acid, 20 wt%, to form 5-HMF in a high yield (50%) starting from fructose. This 5-HMF yield seems to be at least equivalent to the best 5-HMF yield reported in the literature, without the help of an extractive solvent [36,37,38], but definitively far above the best results obtained in pure hot water reported above. By contrast, this medium did not convert glucose into 5-HMF in equivalent conditions. Then, these results prompted us to carry out experiments with various carboxylic acids in water solutions, starting from fructose (Figure 12).
Challenges 03 00212 g011 1024

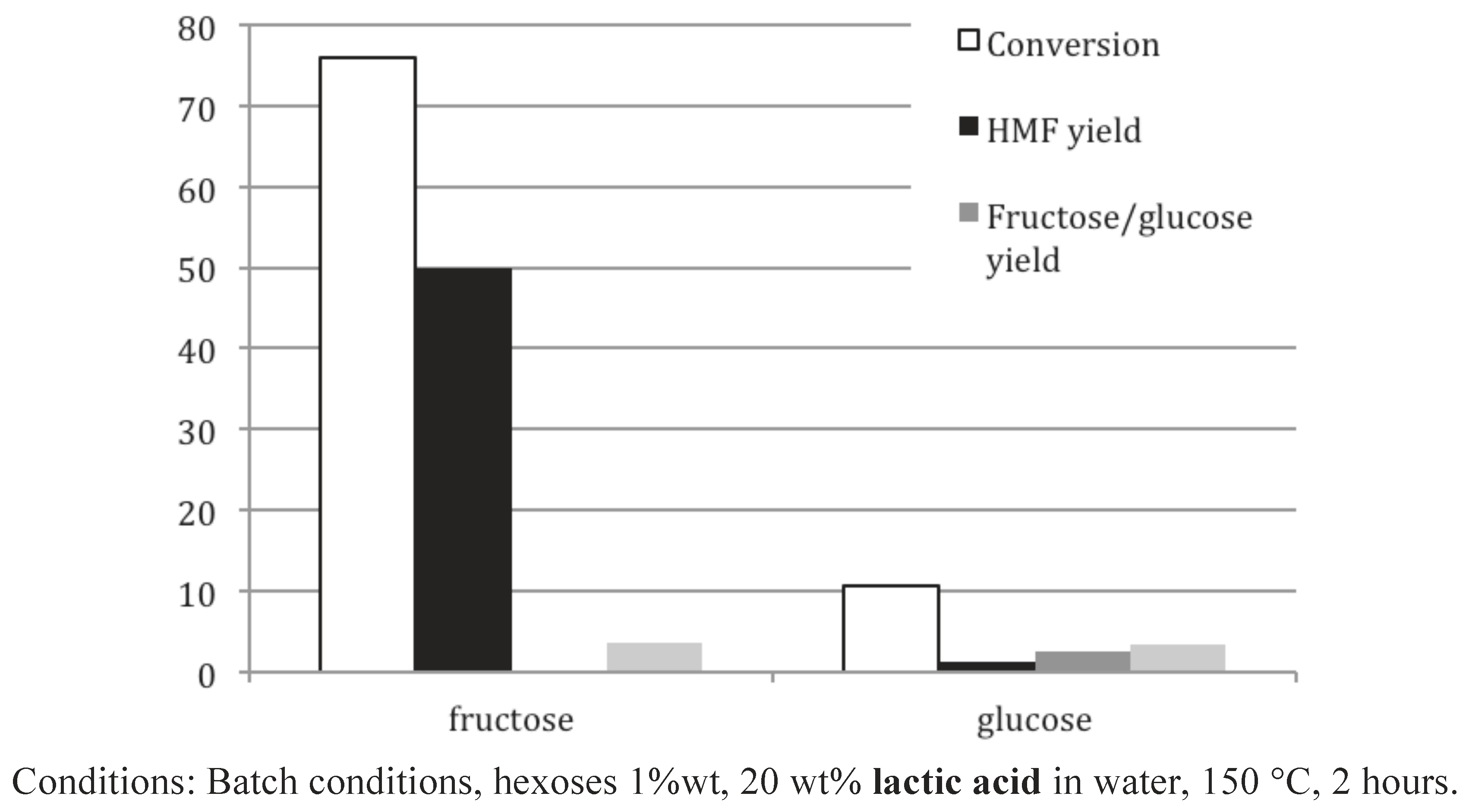

Figure 11. Glucose and fructose conversion in 5-HMF using a concentrated aqueous solution of lactic acid as reactive solvent.
Figure 11. Glucose and fructose conversion in 5-HMF using a concentrated aqueous solution of lactic acid as reactive solvent.
Challenges 03 00212 g011
Challenges 03 00212 g012 1024

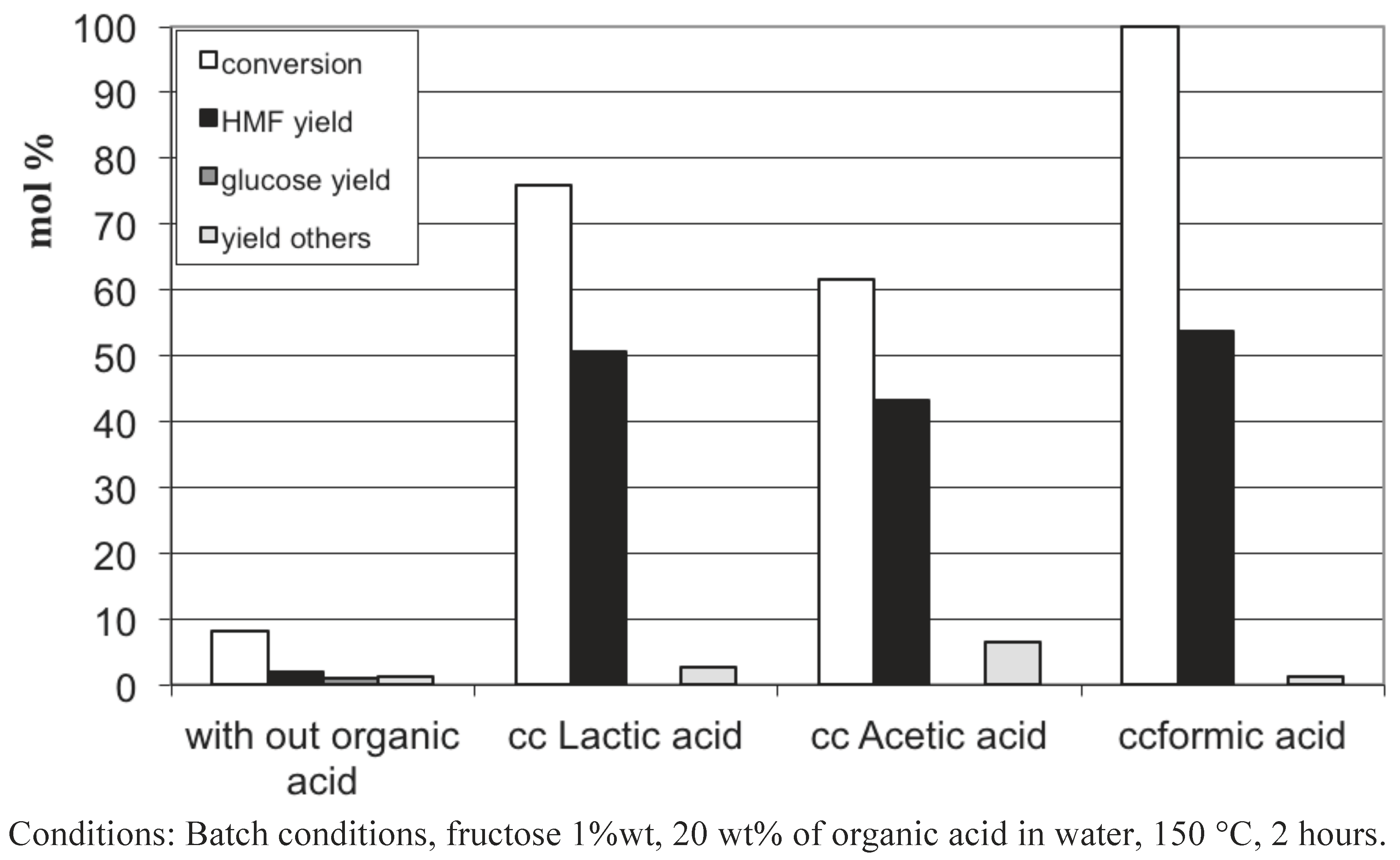

Figure 12. Fructose conversion in 5-HMF using concentrated aqueous solutions of different carboxylic acids as reactive solvent.
Figure 12. Fructose conversion in 5-HMF using concentrated aqueous solutions of different carboxylic acids as reactive solvent.
Challenges 03 00212 g012
To our surprise, we observed that the presence in water of 20 wt% of acetic or formic acids also led to high 5-HMF yields of 43−53%. Figure 13, Figure 14, Figure 15 show the influence of the carboxylic acid concentration for acetic acid, formic acid and lactic acid respectively. One can observe that the presence of water in the medium is necessary, since a dramatic drop in 5-HMF yields was observed when pure carboxylic acids were used. This is probably due to the too-strong acidy of the anhydrous media. In this last case, other acid catalyzed reactions can readily occur, such as esterification of 5-HMF and certainly some 5-HMF oligomerization formed via an acid catalyzed mechanism since most of the products were not detected by HPLC. Note however that we did not observe the formation of the ester of 5-HMF when water is present in the medium. Indeed, this seems to be a prerequisite to obtain selectively 5-HMF using concentrated liquid organic acids as media. The best result is obtained in a 50 wt% lactic acid solution leading to a 5-HMF yield of 64%, certainly one of the highest 5-HMF yield obtained in a single phase, free of 5-MHF extractive solvent.
These results show that carboxylic acids, which are weak acids, possess the required acidity to convert fructose efficiently into 5-HMF without significant transformation of the latter. The pH of 20 wt% acetic acid in water is 1.7. This fits well with the narrow pH range shown to favor the 5-HMF formation in equivalent conditions (Figure 3). This result is also in agreement with the earlier work of Kuster et al. [16], showing that the 5-HMF formation is strongly pH dependent. Moreover, organic acids such as acetic and formic acids can be easily eliminated from the reaction media due to their relative high volatility. Finally, this way is of high importance, since we can simply preclude the use of 5-HMF extractive solvents which can cause problems at the industrial scale.
Challenges 03 00212 g013 1024

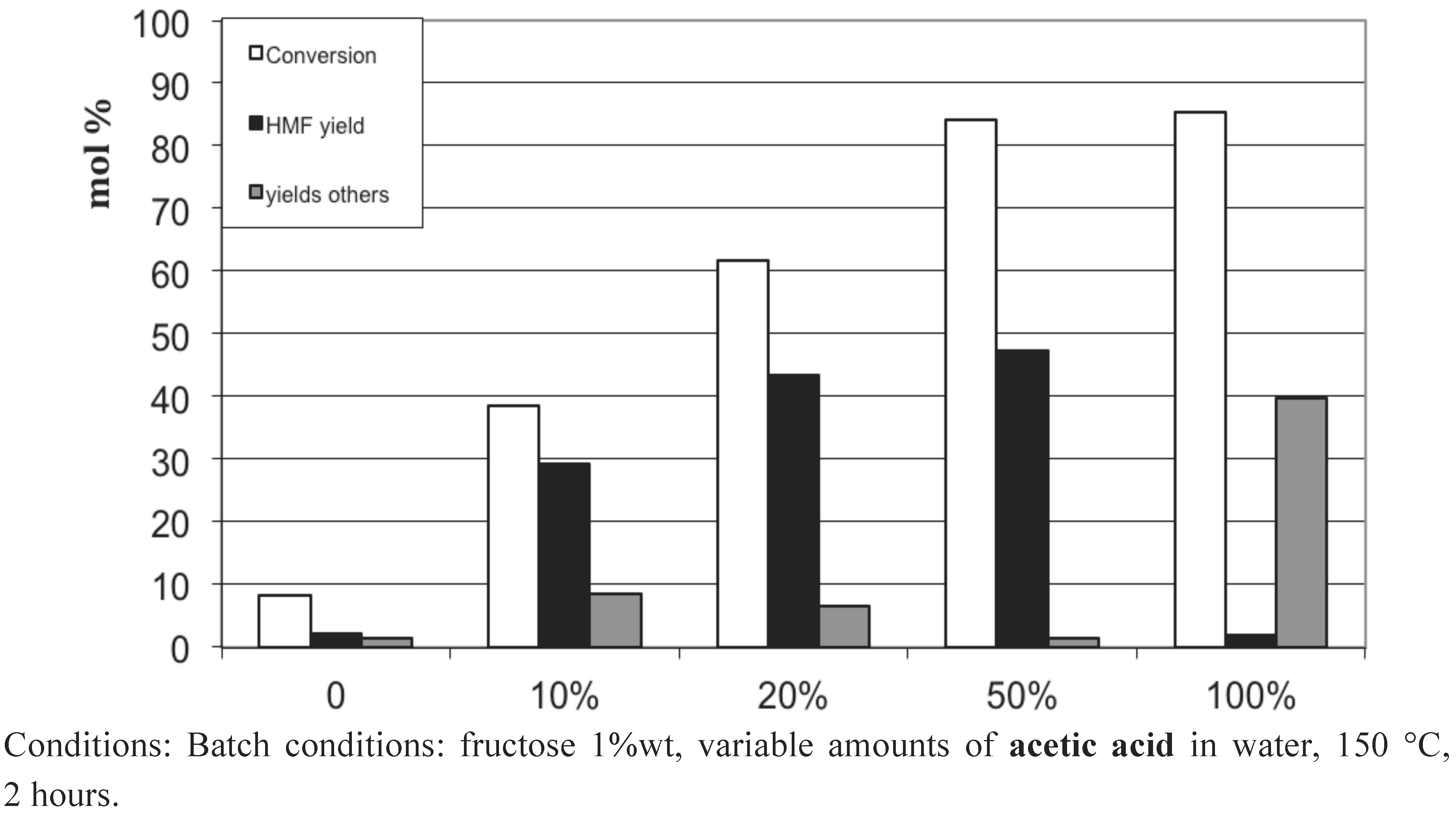

Figure 13. Fructose conversion in 5-HMF obtained in acetic acid aqueous solutions of various compositions in the absence of added solid catalyst.
Figure 13. Fructose conversion in 5-HMF obtained in acetic acid aqueous solutions of various compositions in the absence of added solid catalyst.
Challenges 03 00212 g013
Challenges 03 00212 g014 1024

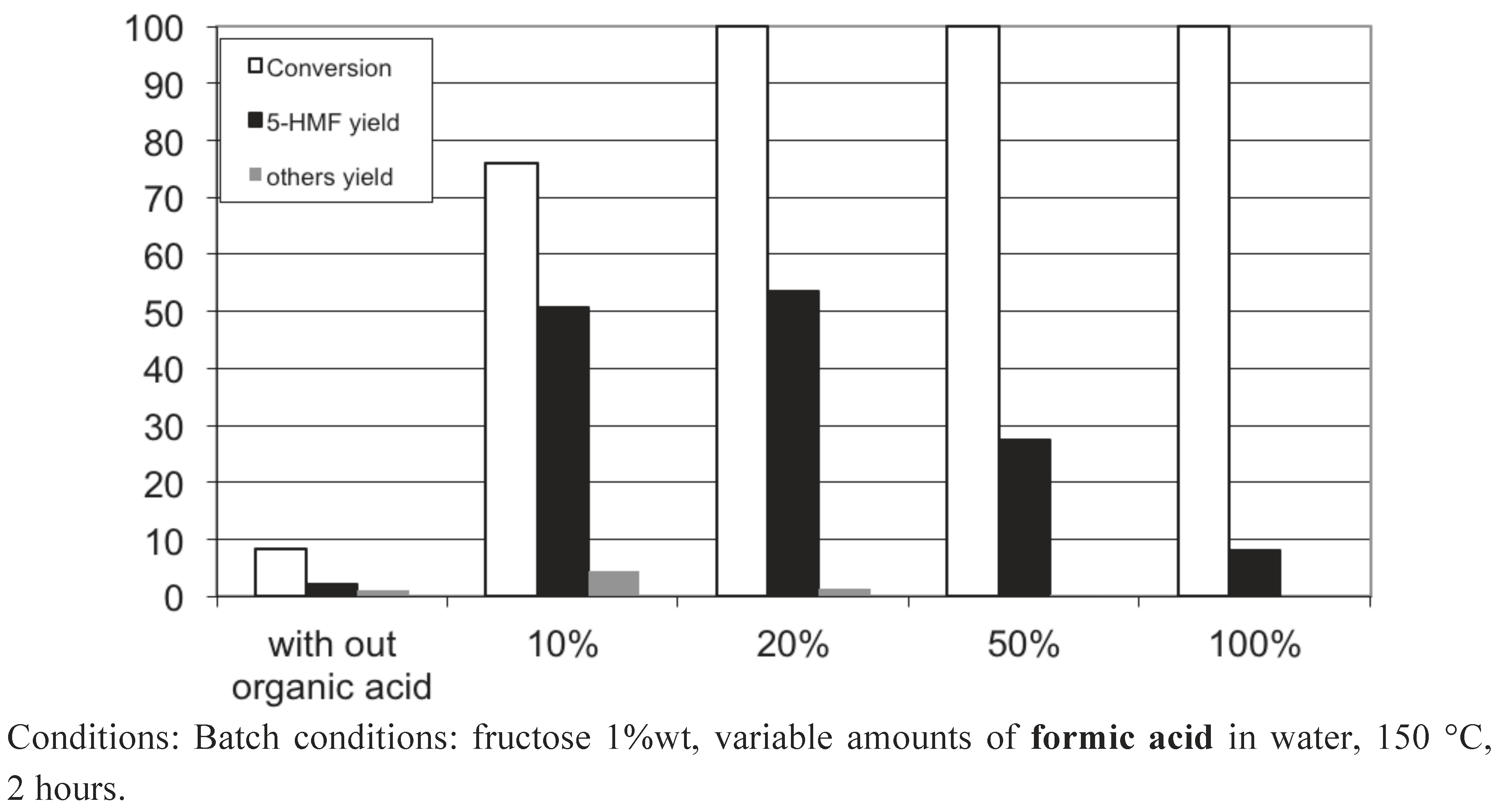

Figure 14. Fructose dehydration in 5-HMF obtained in formic acid aqueous solutions of various compositions in the absence of added solid catalyst.
Figure 14. Fructose dehydration in 5-HMF obtained in formic acid aqueous solutions of various compositions in the absence of added solid catalyst.
Challenges 03 00212 g014
We have shown that the aqueous concentrated organic acid solutions provide a medium for the optimum acidity for 5-HMF formation, starting from fructose. However, since these media do not dehydrate glucose, which, in principle, requires a preliminary isomerization in fructose, it seems reasonable to conclude that the weak Brønsted acidity of these media does not promote glucose isomerization.
Challenges 03 00212 g015 1024

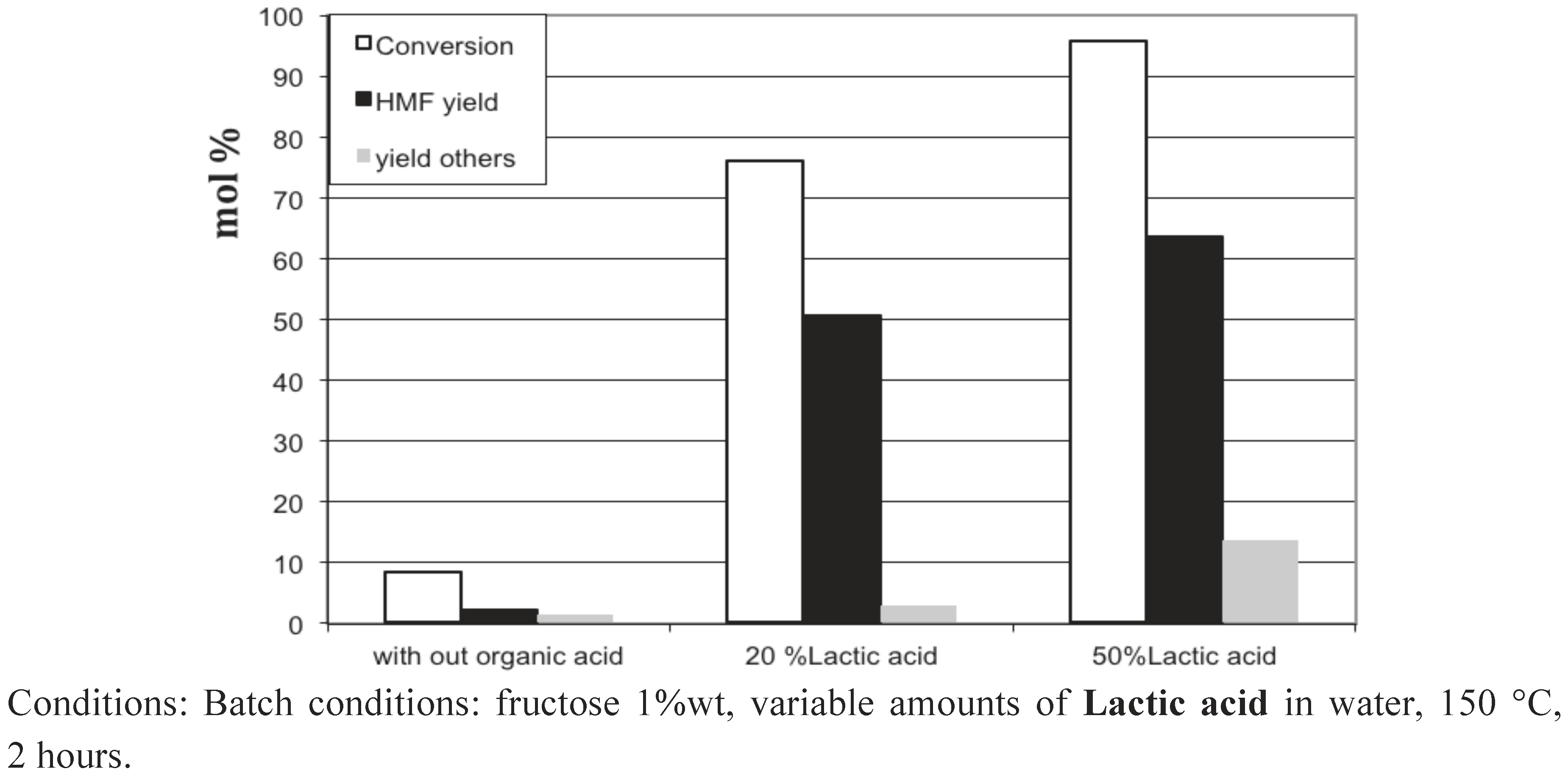

Figure 15. Fructose dehydration in 5-HMF obtained in lactic acid aqueous solutions of various compositions in the absence of added solid catalyst.
Figure 15. Fructose dehydration in 5-HMF obtained in lactic acid aqueous solutions of various compositions in the absence of added solid catalyst.
Challenges 03 00212 g015
Therefore, these first results prompted us to add solid catalysts in the media, which might catalyze the glucose isomerization. Solid Lewis acids: AlW, Sn-Beta, ZrW or a solid base, MgLaO. In addition, we tested the influence of the presence of solid acids with Brønsted acidity (heteropolyacids, sulfonated carbon) or with Brønsted and Lewis sites (H3PO4/NbOH). The idea was to check the possibility to get 5-HMF starting from glucose by combining a heterogeneous acid function of various strengths and the homogeneous weak Brønsted acidity brought by the liquid carboxylic acids medium. Our preliminary results are summarized in Figure 16. In some cases, in the presence of tungstated oxides AlW, ZrW or of H3PO4/NbOH, the glucose conversion is improved, together with 5-HMF yield, but the results remain modest. Work is still in progress to go further in that direction to clarify and explain these preliminary results.
Challenges 03 00212 g016 1024

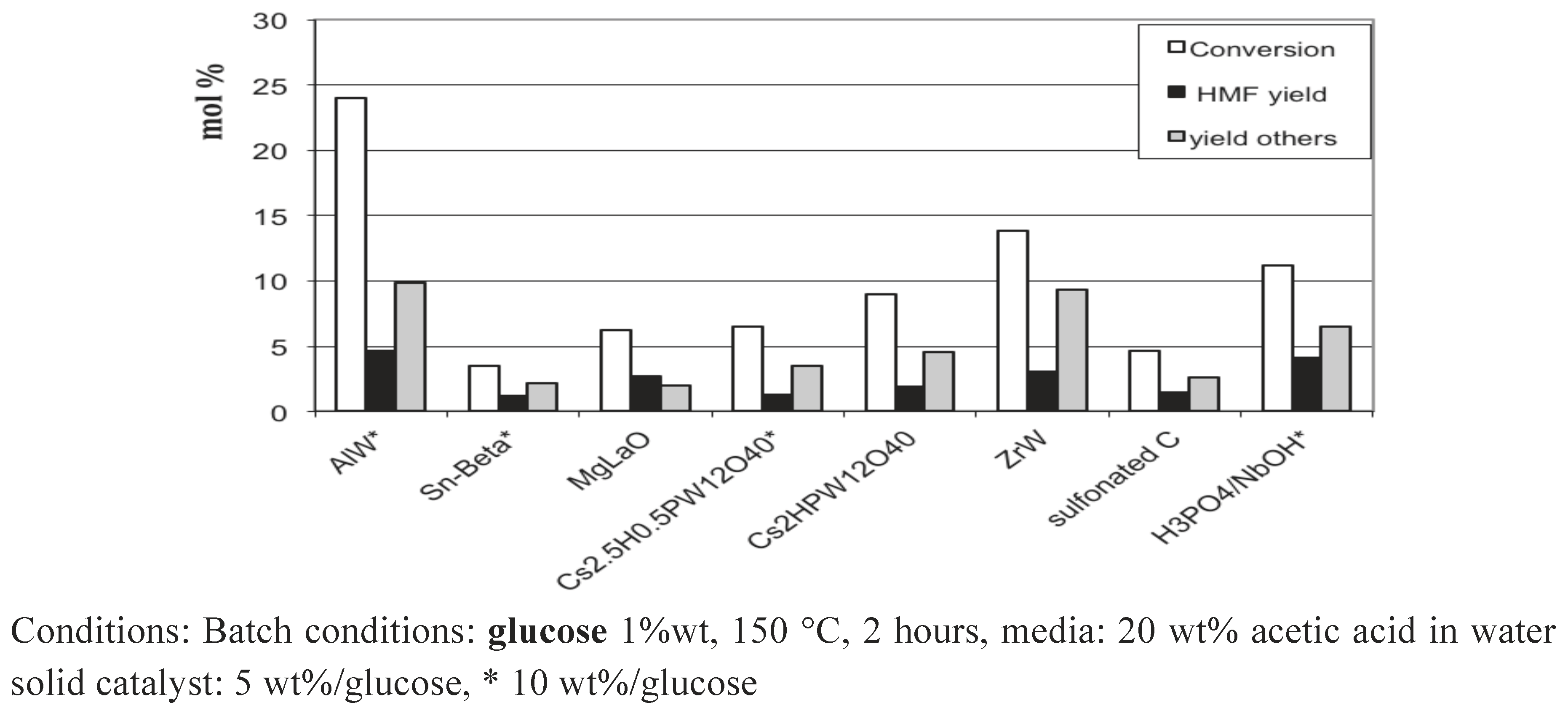

Figure 16. Glucose conversion in 20 wt% acetic acid aqueous solutions in the presence of added solid catalysts.
Figure 16. Glucose conversion in 20 wt% acetic acid aqueous solutions in the presence of added solid catalysts.
Challenges 03 00212 g016

3. Experimental Section

Glucose, fructose, 5-HMF and carboxylic acids were obtained from Aldrich and used as received. The catalysts Cs2HPW12O40, ZrW (W 12 %wt), ZrO2, ZrCs (Cs 3.3 %wt), were prepared according to published methods [32,40]. ZrMg was prepared by a dropwise impregnation 10 g of zirconium hydroxide with a 9 mL aqueous solution of Mg(NO3)2 (1 g) and evaporation of water at 60 °C followed by a calcination (air, 550 °C, 2 hours) of the obtained solid. Niobic acid (HY-340 hydrated niobium oxide) was obtained from CBBM. HY and Y-ZSM-5 were commercial samples.
Reactions were performed in a 100 mL batch autoclave using a Teflon insert and equipped with an internal thermocouple. The aqueous organic acid solutions were prepared by addition of the organic acid to water solutions of hexose. After introduction of the mixture, the reactor was flushed with He before heating (10 °C/min). The reaction medium was stirred using a magnetic stirrer under autogeneous pressure. The reaction mixture was analyzed on a Shimadzu HPLC system equipped with a RID (Coregel 87C column, 80 °C, water as eluent). In addition to 5-HMF, the following products were identified and quantified: mannose, levulinic acid, formic acid, lactic acid, acetol. Some products were detected by HPLC but not identified. In that case, the response coefficient of 5-HMF was applied. The sum of these products was abbreviated “other products”. All given yields are molar yields. The relative error on the hexoses conversion and 5-HMF yield is 5%.
FTIR spectra of self-supported pellets of NbOH) were recorded with a Brucker Vector 22 spectrometer in absorption mode with a resolution of 2 cm−1. The samples were placed in an IR cell equipped with CaF2 windows and treated in situ. The wafer of Nb-based samples was pretreated at 400 °C . Pyridine was adsorbed under saturation vapor pressure at ambient temperature, then desorbed at 150 °C for 1 hour in order to remove the physisorbed species.

4. Conclusions

We first reported in this paper our results on the hydrothermal conversion of glucose and fructose, in batch conditions, varying the reaction conditions, temperature and acidity, in the presence of a large panel of usual solid catalysts. First, we showed that relatively high 5-HMF yield can be achieved via a fine tuning of the pH of the aqueous solution between the values 1.5 and 1.9. A variety of catalysts with various acid-base features were employed. We showed that whatever the catalytic system, limited yields of 20–30% in 5-HMF were obtained in batch conditions with the most efficient solid acid catalyst, NbOH, used in large amounts, far from the catalytic one. Anyway, these results confirmed that the use of pure water as solvent in the presence of solid acids does not permit an easy formation of 5-HMF, due to the reactivity of 5-HMF.
We then reported our first results concerning the use of concentrated aqueous solutions of liquid carboxylic acids as reactive reaction media for this transformation. The presence of 10–50 wt% of formic, acetic or lactic acids in water gave high conversion of fructose with 5-HMF yields up to 64%, indicating that these aqueous solutions present the adequate acidity to promote this reaction. However, these reactive media are unable to convert glucose. Our preliminary results dealing with the addition of solid catalysts in these media which would promote the glucose isomerization into fructose, such as Lewis or basic solid catalysts, did not give the expected results in batch conditions.
Nevertheless, these solvent systems, which are clean and green, deserve a deeper attention and further studies are currently performed to address in detail the influence of external catalyst addition while optimizing the reaction conditions.

Acknowledgments

The authors thank the CNRS, the University of Lyon 1 and the French Research National Agency (POLYGLU Project) for funding.

References and Notes

  1. Bicker, M.; Hirth, J.; Vogel, H. Dehydration of fructose to 5-hydroxymethylfurfural in sub- and supercritical acetone. Green Chem. 2003, 5, 280–284. [Google Scholar] [CrossRef]
  2. Rosatella, A.A.; Simeonov, S.P.; Frade, R.F.M.; Afonso, C.A.M. 5-Hydroxymethylfurfural (HMF) as a building block platform: Biological properties, synthesis and synthetic applications. Green Chem. 2011, 13, 754–793. [Google Scholar] [CrossRef]
  3. Stahlberg, T.; Fu, W.; Woodley, J.M.; Riisager, A. Synthesis of 5-(Hydroxymethyl)furfural in Ionic Liquids: Paving the way to renewable chemicals. ChemSusChem 2011, 4, 451–458. [Google Scholar] [CrossRef]
  4. Tong, X.; Ma, Y.; Li, Y. Biomass into chemicals: Conversion of sugars to furan derivatives by catalytic processes. Appl. Cata. A 2010, 385, 1–13. [Google Scholar] [CrossRef]
  5. Vigier, K.; Jerome, F. Heterogeneously-catalyzed conversion of carbohydrates. Top. Curr. Chem. 2010, 255, 63–92. [Google Scholar] [CrossRef]
  6. Lightner, G.E. U.S. Pat. US 20020123636 A1 20020905, 2002.
  7. Sanborn, A.J.; Bloom, P.D. US 7393963 B2 20080701, 2008.
  8. Gaset, A.; Rigal, L.; Paillassa, G.; Salome, J.-P.; Fleche, G. FR 2551754 A1 19850315, 1985.
  9. Chheda, J.N.; Dumesic, J.A. An overview of dehydration, aldol-condensation and hydrogenation processes for production of liquid alkanes from biomass-derived carbohydrates. Catal. Today 2007, 123, 59–70. [Google Scholar]
  10. Watanabe, M.; Aizawa, Y.; Iida, T.; Nishimura, R.; Inomata, H. Catalytic glucose and fructose conversions with TiO2 and ZrO2 in water at 473K: Relationship between reactivity and acid-base property determined by TPD measurement. Appl. Catal. A 2005, 295, 150–156. [Google Scholar] [CrossRef]
  11. Moreau, C.; Finiels, A.; Vanoye, L. Dehydration of fructose and sucrose into 5-hydroxymethylfurfural in the presence of 1-H-3-methyl imidazolium chloride acting both as solvent and catalyst. J. Mol. Catal. A 2006, 253, 165–169. [Google Scholar] [CrossRef]
  12. Zhao, H.; Holladay, J.E.; Brown, H.; Zhang, Z.C. Metal chlorides in ionic liquid solvents convert sugars to 5-hydroxymethylfurfural. Science 2007, 316, 1597–1600. [Google Scholar] [CrossRef]
  13. Pidko, E.A.; Degirmenci, V.; van Santen, R.A.; Hensen, E.J.M. Glucose activation by transient Cr2+ dimers. Angew. Chem. Int. Ed. 2010, 49, 2530–2534. [Google Scholar] [CrossRef]
  14. Hu, S.; Zhang, Z.; Song, J.; Zhou, Y.; Han, B. Efficient conversion of glucose into 5-hydroxymethylfurfural catalyzed by a common Lewis acid SnCl4 in an ionic liquid. Green Chem. 2009, 11, 1746–1749. [Google Scholar] [CrossRef]
  15. Mittal, N.; Nisole, G.M.; Chung, W.J. Facile catalytic dehydration of fructose to 5-hydroxymethylfurfural by Niobium pentachloride. Tetrahedron 2012, 53, 3149–3155. [Google Scholar] [CrossRef]
  16. Kuster, B.F.M.; Temmink, H.M.G. The dehydration of D-fructose (formation of 5-hydroxymethyl-2-furaldehyde and levulinic acid): Part IV. The influence of pH and weak-acid anions on the dehydration of D-fructose. Carbohydr. Res. 1977, 54, 185–191. [Google Scholar]
  17. Armaroli, T.; Busca, G.; Carlini, C.; Giuttari, M.; Raspolli Galletti, A.M.; Sbrana, G. Acid site characterization of niobium phosphate catalysts and their activity in fructose dehydration to 5-hydroxymethyl-2-furaldehyde. J. Mol. Catal. A 2000, 151, 233–243. [Google Scholar] [CrossRef]
  18. Carlini, C.; Patrono, P.; Raspolli Galletti, A.M.; Sbrana, G. Heterogeneous catalysts based on vanadyl phosphate for fructose dehydration to 5-hydroxymethyl-2-furaldehyde. Appl. Catal. A 2004, 275, 111–118. [Google Scholar] [CrossRef]
  19. Benvenuti, F.; Carlini, C.; Patrono, P.; Raspolli Galletti, A.M.; Sbrana, G.; Massucci, M.A.; Galli, P. Heterogeneous zirconium and titanium catalysts for the selective synthesis of 5-hydroxymethyl-2-furaldehyde from carbohydrates. Appl. Catal. A 2000, 193, 147–153. [Google Scholar] [CrossRef]
  20. Hansen, T.S.; Mielby, J.; Riisager, A. Synergy of boric acid and added salts in the catalytic dehydration of hexoses to 5-hydroxymethylfurfural in water. Green Chem. 2011, 13, 109–114. [Google Scholar] [CrossRef]
  21. Kitano, M.; Nakajima, K.; Kondo, J.N.; Hayashi, S.; Hara, M. Protonated titanate nanotubes as solid acid catalyst. J. Am. Chem. Soc. 2010, 132, 6622–6623. [Google Scholar] [CrossRef]
  22. Nakajima, K.; Baba, Y.; Noma, R.; Kitano, M.; Kondo, J. N.; Hayashi, S.; Hara, M. Nb2O5·nH2O as a Heterogeneous Catalyst with Water-Tolerant Lewis Acid Sites. J. Am. Chem. Soc. 2011, 133, 4224–4227. [Google Scholar] [CrossRef]
  23. Dutta, S.; de, S.; Patra, A.K.; Sasidharan, M.; Bhaumik, A.; Saha, B. Microwave assisted rapid conversion of carbohydrates into 5-hydroxymethylfurfural catalyzed by mesoporous TiO2 nanoparticles. Appl. Catal. A 2011, 409–410, 133–139. [Google Scholar]
  24. Yang, F.; Liu, Q.; Min, Y.; Bai, X.; Du, Y. Tantalum compounds as heterogeneous catalysts for saccharide dehydration to 5-hydroxymethylfurfural. Chem. Commun. 2011, 47, 4469–4471. [Google Scholar]
  25. Roman-Leshkov, Y.; Moliner, M.; Labinger, J.A.; Davis, M.E. Mechanism of glucose isomerization using a solid lewis acid catalyst in water. Angew. Chem. Int. Ed. 2010, 49, 8954–8957. [Google Scholar] [CrossRef]
  26. Jensen, V.J.; Rugh, S. Industrial-scale production and application of immobilized glucose isomerase. Methods Enzymol. 1987, 136, 356–370. [Google Scholar] [CrossRef]
  27. Buchholz, K.; Seibel, J. Industrial carbohydrate biotransformations. Carbohydr. Res. 2008, 343, 1966–1979. [Google Scholar] [CrossRef]
  28. Lobry de Bruyn, C.A.; Alberda van Ekenstein, W. Action of alkalis on the sugars. Reciprocal transformation of glucose, fructose, and mannose. Recueil des Travaux Chimiques des Pays-Bas 1985, 14, 201–216. [Google Scholar]
  29. Lima, S.; Dias, A.S.; Lin, Z.; Brandao, P.; Ferreira, P.; Pillinger, M.; Rocha, J.; Calvino-Casilda, V.; Valente, A.A. Isomerization of D-glucose to D-fructose over metallosilicate solid bases. Appl. Catal. A 2008, 339, 21–27. [Google Scholar] [CrossRef]
  30. Cornille, F. FR 2862973 A1 20050603, 2005.
  31. Moreau, C.; Durand, R.; Roux, A.; Tichit, D. Isomerization of glucose into fructose in the presence of cation-exchanged zeolites and hydrotalcites. Appl. Catal. A 2000, 193, 257–264. [Google Scholar] [CrossRef]
  32. Souza, R.O.L.; Patrick, D.F.; Feche, C.; Cardoso, D.; Rataboul, F.; Essayem, N. Glucose–fructose isomerization promoted by basic hybrid catalysts. Catal. Today 2012. In Press. [Google Scholar] [CrossRef]
  33. Moreau, C.; Lecomte, J.; Roux, A. Determination of the basic strength of solid catalysts in water by means of a kinetic tracer. Catal. Commun. 2006, 7, 941–944. [Google Scholar]
  34. Ohara, M.; Takagaki, A.; Nishimura, S.; Ebitani, K. Syntheses of 5-hydroxymethylfurfural and levoglucosan by selective dehydration of glucose using solid acid and base catalysts. Appl. Catal. A 2010, 383, 149–155. [Google Scholar] [CrossRef]
  35. Avignon, G.; Durand, R.; Faugeras, P.; Geneste, P.; Moreau, C.; Rivalier, P.; Ros, P. FR 2670209 A1 19920612, 1992.
  36. Carlini, C.; Giuttari, M.; Raspolli Galletti, A.M.; Sbrana, G.; Armaroli, T.; Busca, G. Selective saccharide dehydration to 5-(hydroxymethyl)-2-furaldehyde by heterogeneous niobium catalysts. Appl. Catal. A 1999, 183, 295–302. [Google Scholar] [CrossRef]
  37. Carlini, C.; Patrono, P.; Raspolli Galletti, A.M.; Sbrana, G. Heterogeneous catalysts based on vanadyl phosphate for fructose dehydration to 5-hydroxymethyl-2-furaldehyde. Appl. Catal. A 2004, 275, 111–118. [Google Scholar] [CrossRef]
  38. Carniti, P.; Gervasini, A.; Biella, S.; Auroux, A. Niobic acid and niobium phosphate as highly acidic viable catalysts in aqueous medium: Fructose dehydration reaction. Catal. Today 2006, 118, 373–378. [Google Scholar] [CrossRef]
  39. Qi, X.; Watanabe, M.; Aida, T.M.; Smith, R.L., Jr. Catalytical conversion of fructose and glucose into 5-hydroxymethylfurfural in hot compressed water by microwave heating. Catal. Commun. 2008, 9, 2244–2249. [Google Scholar] [CrossRef]
  40. Chambon, F.; Rataboul, F.; Pinel, C.; Cabiac, A.; Guillon, E.; Essayem, N. Cellulose hydrothermal conversion promoted by heterogeneous Bronsted and Lewis acids: Remarkable efficiency of solid Lewis acids to produce lactic acid. Appl. Catal. B 2011, 105, 171–181. [Google Scholar] [CrossRef]
  41. Desmartin-Chomel, A.; Hamad, B.; Palomeque, J.; Essayem, N.; Bergeret, G.; Figueras, F. Basic properties of MgLaO mixed oxides as determined by microcalorimetry and kinetics. Catal. Today 2010, 152, 110–114. [Google Scholar] [CrossRef]
  42. Essayem, N.; Lopes de Souza, R.; Rataboul, F.; Patrick, D.F.; Feche, C.; Cardoso, D. FR 1157575 11, 2011.
  43. Carniti, P.; Gervasini, A.; Marzo, M. Absence of expected side-reactions in the dehydration reaction of fructose to HMF in water over niobic acid catalyst. Catal. Commun. 2011. [Google Scholar] [CrossRef]
  44. Antal, M.J., Jr.; Mok, W.S.L.; Richards, G.N. Kinetic studies of the reactions of ketoses and aldoses in water at high temperature. 1. Mechanism of formation of 5-(hydroxymethyl)-2-furaldehyde from D-fructose and sucrose. Carbohydr. Res. 1990, 199, 91–109. [Google Scholar]
  45. Garber, J.D.; Jones, R.E. US 2929823 19600322, 1960.
  46. Essayem, N.; Lopes de Souza, R.; Rataboul, F. FR 11/54232.

Share and Cite

MDPI and ACS Style

De Souza, R.L.; Yu, H.; Rataboul, F.; Essayem, N. 5-Hydroxymethylfurfural (5-HMF) Production from Hexoses: Limits of Heterogeneous Catalysis in Hydrothermal Conditions and Potential of Concentrated Aqueous Organic Acids as Reactive Solvent System. Challenges 2012, 3, 212-232. https://doi.org/10.3390/challe3020212

AMA Style

De Souza RL, Yu H, Rataboul F, Essayem N. 5-Hydroxymethylfurfural (5-HMF) Production from Hexoses: Limits of Heterogeneous Catalysis in Hydrothermal Conditions and Potential of Concentrated Aqueous Organic Acids as Reactive Solvent System. Challenges. 2012; 3(2):212-232. https://doi.org/10.3390/challe3020212

Chicago/Turabian Style

De Souza, Rodrigo Lopes, Hao Yu, Franck Rataboul, and Nadine Essayem. 2012. "5-Hydroxymethylfurfural (5-HMF) Production from Hexoses: Limits of Heterogeneous Catalysis in Hydrothermal Conditions and Potential of Concentrated Aqueous Organic Acids as Reactive Solvent System" Challenges 3, no. 2: 212-232. https://doi.org/10.3390/challe3020212

APA Style

De Souza, R. L., Yu, H., Rataboul, F., & Essayem, N. (2012). 5-Hydroxymethylfurfural (5-HMF) Production from Hexoses: Limits of Heterogeneous Catalysis in Hydrothermal Conditions and Potential of Concentrated Aqueous Organic Acids as Reactive Solvent System. Challenges, 3(2), 212-232. https://doi.org/10.3390/challe3020212

Article Metrics

Back to TopTop
