Investigation of Adequate Calibration Methods for X-ray Fluorescence Core Scanning Element Count Data: A Case Study of a Marine Sediment Piston Core from the Gulf of Alaska

Abstract

X-ray fluorescence (XRF) core scanner elemental count data are useful for high-resolution paleoceanographic studies. However, because several factors, such as changes in physical core properties, significantly affect element count intensities, the appropriate calibration of the count data is required. Besides, the existing approaches for calibration were not widely employed and require rigorous testing based on sediment variety. In this study, we analyzed high-resolution element intensity (cps) using a wet muddy marine sediment piston core that was collected from the northeast Gulf of Alaska and tested several approaches with ratio and log-ratio methods, and the reliability was evaluated by comparison with the concentrations that were measured by WD-XRF and an elemental analyzer. The results show that the lighter elements (Ti and K) exhibited a significantly weak relationship between raw counts measured by ITRAX and concentrations that were measured by the WD-XRF, indicating that some factors artificially influence ITRAX intensity data. The Cl intensity that is expressed as the water content in marine sediment increased significantly in the upper 202 cm by 42% and the top 25 cm by 73% as compared to the down-core (below 202 cm), which deviates the X-ray scattering and element-counts. The calibration of raw data through coherent/incoherent X-ray scattering ratio (CIR) and additive- and centered-log ratio reduces the offsets. The calibration by CIR performed best for Sr, Fe, Mn, Ti, Ca, K, and Br (0.56 < R² < 0.91), and the correlation with concentration significantly increased for Ti and K of 100% and 56%, respectively. Therefore, the study suggests that the correction of raw counts through CIR is an effective approach for wet marine sediment when core physical properties have greater variability.

1. Introduction

X-ray fluorescence (XRF) core scanner’s non-destructive, rapid, and automated multi-function technique provides useful, high-resolution (sub-millimeter scale) geochemical records from sediment cores [1,2]. Therefore, in paleoceanographic and paleoclimatological research, the use of the XRF core scanner (CS) has increased rapidly due to its capacity for producing ultra-high-resolution elemental proxy records from the decadal to sub-annual scale. It has also the ability to analyze the elemental composition from the unprocessed sediment core, which significantly reduces the experimental cost. However, despite its rapid acquisition of high-resolution elemental datasets, it has some limitations and drawbacks. For instance, its measurements are influenced by factors, such as the variability/heterogeneity of the scanning sample, the scattering of the X-ray radiation due to water content, and the porosity of the sediment [3,4,5,6,7]. Therefore, the paleo-researchers working with sediment cores still have a major debate in the use of X-ray fluorescence core scanner raw data in the paleoceanographic studies when compared to conventional measurement. Thus, to correctly interpret the XRF core scanner data, destructive elemental data measurement by inductively coupled plasma mass spectrometry (ICP-MS), conventional wavelength dispersive-XRF (WD-XRF) spectrometer, or energy dispersive-XRF (ED-XRF) spectrometer is also still needed. These conventional methods require homogenized dry powder samples that eliminate sample physical variations and heterogeneity. Although these conventional (ICP-MS, WD-/ED-XRF) techniques are well established and provide reliable datasets, they are low-resolution and discrete, time-consuming, and not cost-effective [1]. In addition, conventional methods require a complex sample preparation technique and a variety of standard and/or standard reference materials for precision and accuracy.

In fluorescence spectrometry, X-ray scattering has great importance, because the scattering (coherent, incoherent) or scattering ratios (coherent/incoherent, incoherent/coherent) are used for the normalization of X-ray fluorescence intensities [8,9,10]. This X-ray scattering occurred in two different ways—coherent (Rayleigh scattering), when the X-ray beam collides with an atom and deviates with no loss of energy, and incoherent (Compton scattering), when the incident X-ray loses a small fraction of its energy for the target atom’s loosely bound electron [11]. Heavier (high atomic number) elements emit high X-ray fluorescence intensities with less scatter, and the lighter (low atomic number) elements emit low X-ray fluorescence intensities with high scatter. Therefore, the amount of scattering (incoherent and coherent) varies with the mean atomic number of the element [5]. The sample’s physical properties and heterogeneities affect X-ray scattering. If the sediments contain high water and/or high organic matter, this favors generating high incoherent (Compton) and low coherent (Rayleigh) scattering [10]. Because water or organic matter containing low atomic numbers element (H, O, C, and N). Besides, the high water content in sediment absorbs X-ray radiation, thus making weaker fluorescence energies [6,12]. For the normalization of X-ray fluorescence core scanner data, previous studies used coherent [9], incoherent [13], and incoherent/coherent (inc/coh) X-ray scattering ratio [14,15,16]; however, very few studies used the coherent/incoherent X-ray scattering ratio (coh/inc) [8]. In this study, we used coherent and incoherent X-ray scattering for the calibration of raw ITRAX-XRF CS elements intensities together with other calibration approaches. Although, some calibration methods have been developed in order to improve the accuracy of XRF CS data [4,8,9,12,17,18,19,20,21]. The accuracy of these methods requires comprehensive evaluation based on sample types and/or sample location or instrument types (Avaatech, ITRAX, Geotek). In addition, the variability of the presented methods makes the proper selection of calibration methods complex and unclear. Therefore, these methods and their wide-ranging adaptations still need to be rigorously tested using a variety of samples.

In this study, for the development of the reliability of the ITRAX-XRF core scanning proxy use for regional to global consequences and for substrate-specific purposes, we measured the high-resolution elements’ intensities (counts) by utilizing our wet muddy marine sediment piston core KH17-3 CL14PC. The core containing millimeter-scale lamination and ice-rafted debris was collected from the continental slope of the Northeastern Gulf of Alaska (GOA) in the northeast Pacific Ocean. The measured scanning raw intensities (count per second) were normalized through ratio and log-ratio calibration methods with several approaches under each of the groups. Furthermore, to test the accuracy of the raw and calibrated data, they were correlated with the destructive and homogenized sediment sample concentration that was measured by conventional WD-XRF and elemental analyzer, and we evaluated the methods.

2. Materials and Methods

2.1. Sample Collection

The sampling area is located at the continental slope of the Gulf of Alaska at 59°33.35′ N and 144°09.35′ W in the northeast Pacific Ocean. The sediment sample (piston core CL14PC) was collected from the site at 690 m water depth by the R/V Hakuho-Maru KH17-3 cruise in 2017 (Figure 1).

2.2. Core Description and Measurement

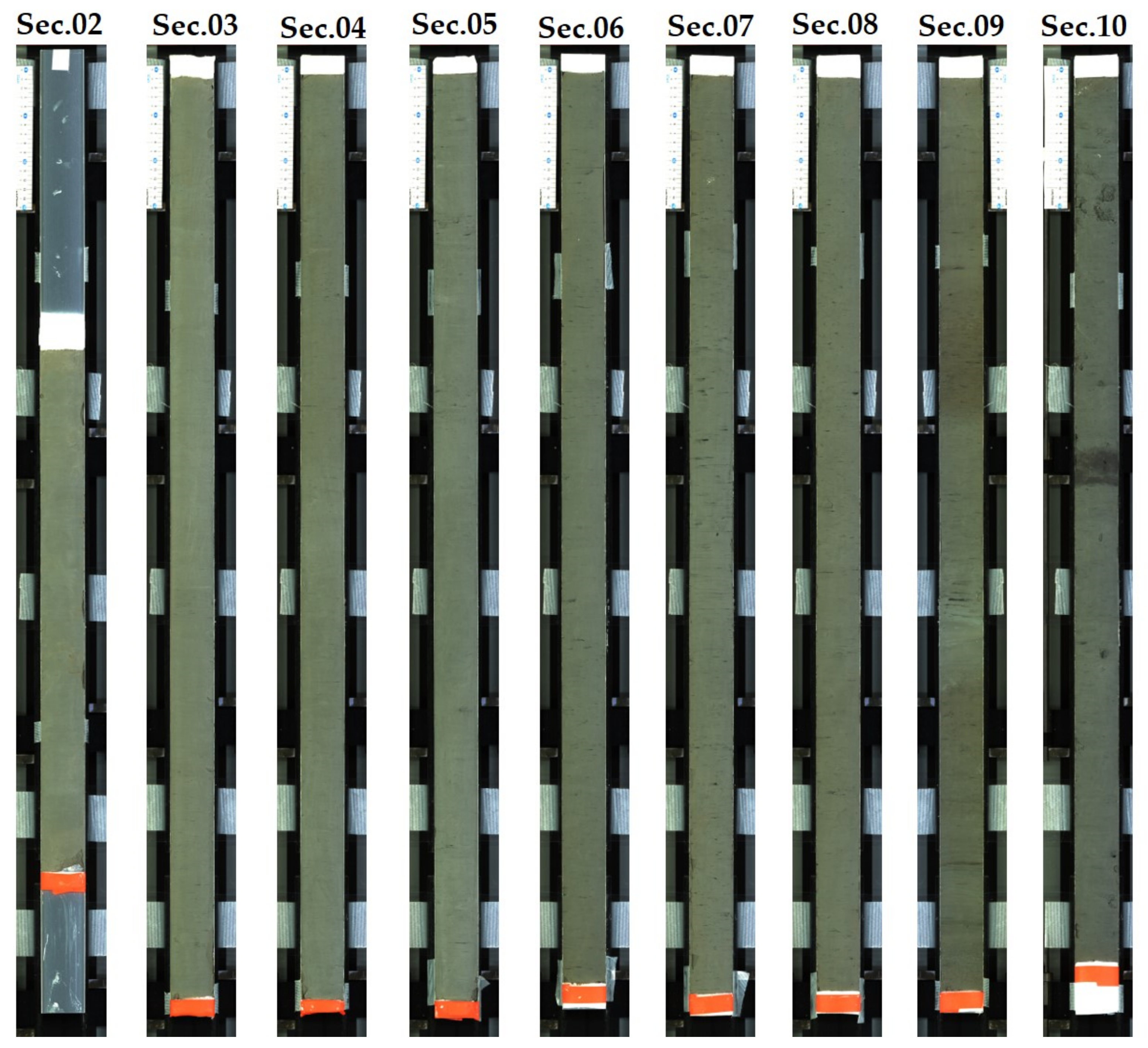

We recovered the interface between the water and sediment (upper 16.5 cm) by the multicore (CL14MC) sediment due to the lack of seafloor sediments in the piston core (CL14PC). The total length of the core was 869 cm. The whole core (piston) was divided into nine sections (Figure 2). We conducted computed tomography scan (CT-scan) (Figure 3) and X-ray photography measurements by an X-ray CT scanner (Aquilion PRIME Focus Edition, Canon Medical System Corporation). The bulk density (gm/cc) of the core CL14PC was measured by using a Multi-Sensor Core Logger (MSCL-S, GEOTEK) gamma-ray attenuation technique at the Kochi Core Center (KCC), Nankoku, Kochi, Japan [22,23]. The MSCL-S is a non-destructive geochemical and petrophysical core logging platform that measures the bulk density, magnetic susceptibility, resistivity, and fractional porosity [22,23].

Afterward, the core sections were split into the archive and working halves for laboratory analysis. The archive half was again subdivided at 1 cm consecutive intervals, and the working half was subdivided at intervals of 2–2.5 cm and then preserved at 4 °C in a refrigerator in the laboratory of the University of Toyama, Gofuku, Toyama, Japan for further study. We define the core depth by the centimeters below the seafloor scale (hereafter cmbsf).

2.3. Sediment Analysis

2.3.1. Optimization of Scanning Parameters for ITRAX-XRF Core Scanner

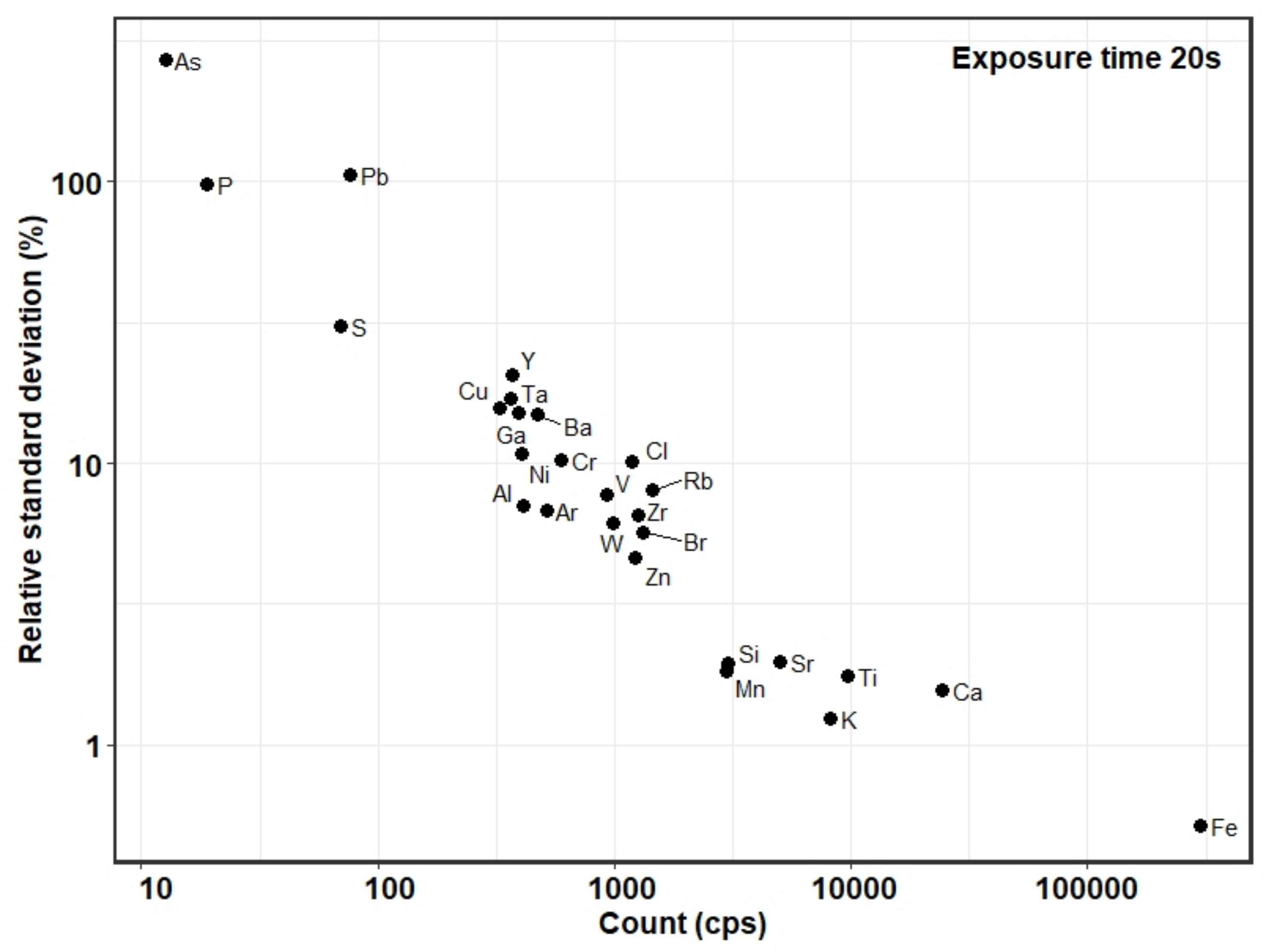

To obtain the elemental profile, an ITRAX-XRF (COX analytical systems) core scanner was used at the Center for Advanced Marine Core Research (CMCR), Kochi University, Nankoku, Kochi, Japan. We made a homogenized sediment test pellet ~3 cm wide from the sediment sample of the core CL14MC at the same site (Figure 1) to optimize the exposure time and analytical precision. By using the test sample, we conducted triplicate measurement analysis along one line with an exposure time of 10, 20, 40, and 80 s. For scanning, we used a Molybdenum (Mo) anode X-ray tube for X-ray source setting in different voltage and current. We found that increasing the exposure time decreases the relative standard deviation (RSD%). Some elements that are usually used in paleoceanographic studies, such as Fe, Ca, K, Ti, Sr, Mn, and Br, have higher counts (count per second (cps)) (Figure 4) setting at 30 kV (kilo Volt) and 55 mA (milli Ampere) of voltage and current, respectively, at 20 s exposure times. The concentration measured through WD-XRF spectrometer (see Section 2.3.5) indicating that these elements are marked by the higher concentration of % order in the sample when compared to other elements. The RSD% of these elements was <10% (Figure 4), specifically 0.52%, 1.57%, 1.24%, 1.76%, 1.97%, 1.82%, and 5.70% for Fe, Ca, K, Ti, Sr, Mn, and Br, respectively. The RSD% that was calculated by using the mean value and standard deviation obtained from the test sample reproduced analysis (triplicate measurement) at 20 s exposure time through the following formula [24]:

RSD% = ((σ/µ) × 100)

(1)

where σ means the standard deviation and µ represents the mean values of the reproduced measurements.

However, given a low enough RSD (%) for the target elements and the required high throughput measurement, we chose the exposure time of 20 s for this study, in accordance with a previous study [25]. At this exposure time (20 s) with a 30 kV voltage and 55 mA current per 1 cm step, a total of 40–50 min is required for measurement of the 1 m long sediment core. Although, with this exposure time (20 s), some elements represent lower counts (cps) and higher RSD% (Figure 4), such elements require careful attention that is related to instrument settings, including measurement time, applied current and voltage supply, and the type of X-ray source tube used. In particular, the lower- to moderate-atomic number elements Al (Z = 13) and Si (Z = 14) exhibit very low counts, and, for Mg (Z = 12), no signal (counts) was found, indicating that the selected scanning parameters and molybdenum X-ray tube cannot perfectly detect these elements. Therefore, enhancement of X-ray excitation is required to detect lower-atomic number elements, although, by changing the X-ray tube (Cr tube) in the second generation ITRAX model we can obtain good detection (counts) for lower-atomic number elements [1,2]. In Figure 4, although, Si (Z = 14) shows less RSD% value in the test sample (homogenized pellet) measurement; however, in the case of the measurements of the down-core sediment samples, we found less Si intensity (counts). The detection of lighter elements (like Al or Si) through the Mo-tube is inefficient when compared to the cases of using Cr-tube [26]. Furthermore, by using a 30 kV voltage and a 55 mA current at a 20 s exposure time, the ITRAX did not provide good intensities for the elements Ni, Rb, Y, and Zr (Z = 28, 37, 39, and 40, respectively). Therefore, by increasing the exposure time from 20 to 60 s, or by changing the voltage and current to 45 kV and 55 mA, respectively, at 20 s ITRAX provides higher counts for these high-atomic number elements.

2.3.2. Measurement of Multi-Element Count through ITRAX-XRF Core Scanner

For the measurement of the high-resolution non-destructive multi-element count, a sediment sample slab from the working half of the core CL14PC was used. To run the ITRAX core scanner, a sample slab 5 cm wide, 100 cm long, and 1 cm thick was used at 1 cm, 0.4 mm, and 0.2 mm resolution, with a Molybdenum X-ray tube set at 30 kV and 55 mA at 20 s exposure time. By using these scanning parameters, the core scanner detected a total of 27 elements (Al, Si, P, S, Cl, Ar, K, Ca, Ti, V, Cr, Mn, Fe, Ni, Cu, Zn, Ga, As, Br, Rb, Sr, Y, Zr, Ba, Ta, W, and Pb). Together with element intensities, we used the coherent and incoherent X-ray scattering of the atoms 13 ≤ Z ≤ 82 of the Mo X-ray tube system. Of the detected elements, eight high-abundance and moderately to highly detectable (higher counts and lower RSD%, Figure 4) elements, such as Sr, Br, Fe, Mn, Ti, Ca, K, and Cl were detected at 1 cm resolution, and the total counts (cps) and coherent (coh) and incoherent (inc) X-ray scattering were selected for further data processing and interpretation. The elemental composition of the measured sediment sample was expressed as the intensity count per second (cps).

2.3.3. Preparation of Calibration Curve for WD-XRF Concentration Measurement

For the preparation of the calibration curve for WD-XRF concentration measurement, we used pressed pellet samples from different certified reference materials (CRMs). After being oven-dried (50 °C at 1 h), 4 g of the ground samples were mixed with 0.4 g (10:1) of Spectro Blend (Cat# 3399N064, Spectro Blend CH660) binder. A set of dies was imposed at 120 kN pressure with high-pressure equipment (Riken equipment Co., Ltd., Tokyo, Japan) that was equipped with a pressure gauge on a 40 mm diameter sample cup filled with a powder sample to make the pressed pellet [27]. In every step of sample preparation, high care was taken to avoid contamination.

Twelve (12) different CRMs (JA-1, JB-1a, JB-2, JB-3, JF-1, JG-3, JGb-1, JP-1, JR-1, JLK-1, and JSd-2 from Geological Survey of Japan (GSJ), Tsukuba, Japan, and MESS-4 from National Research Council Canada (NRCC), Ottawa, ON, Canada) were used to construct a calibration curve. The published certified values of the target elements of these CRMs samples were 0.00033–0.0442, 0.06–10.53, 0.001–0.1817, 0.0021–0.960, 0.39–8.50, and 0.002–8.290 (wt%) for Sr, Fe, Mn, Ti, Ca, and K, respectively. The calibration curve was used for the quantitative analysis of each element prepared through the Empirical Calibration (EC) method. The EC method is the method for calculating the concentration in samples based on the external calibration regression. The external calibration regression can be made by the relationship between the measured intensities of the fluorescence X-ray and the concentration that was obtained from standard samples similar to the unknown samples and intensities of the fluorescence X-ray of the unknown sample to perform the quantitative measurement. The operational flow (steps) for the quantitative measurement through the EC method are the creation of application file, setting of application information, standard samples, analysis information, and measuring condition, measurement of standard samples, calculation of regression, and setting of the control information.

Through different setup conditions (

Table 1. Measuring conditions for the selective elements of interest measured by Wavelength Dispersive X-ray Fluorescence (WD-XRF) Supermini 200 spectrometer.

Element	Analyte Line	Peak Measurement Angle (2θ)	Time (s)	Detector	PHA	Crystal	Voltage (kV)	Current (mA)
Sr	Kα	25.130	20	SC 1	100–300	LiF (200)	50	4.00
Fe	Kα	57.470	20	SC	100–350	LiF (200)	50	4.00
Mn	Kα	62.952	20	SC	100–350	LiF (200)	50	4.00
Ti	Kα	86.110	20	SC	50–300	LiF (200)	50	4.00
Ca	Kα	45.176	40	PC 2	100–300	PET	50	4.00
K	Kα	50.150	40	PC	100–300	PET	50	4.00

¹ SC-Scintillation Counter; ² PC-Proportional Counter.

), and the setting of regression formulae, the background subtraction, drift correction, and matrix/overleap correction methods for smoothing the calibration curve were implemented.

2.3.4. Validation of Calibration Method

To check the validation of the calibration curve that was prepared through the Empirical Calibration method, a sample with known concentration was analyzed. Here, we used JA-3 certified reference material sample from the geological survey of Japan. For the preparation of the pressed pellet, an oven-dried sample (JA-3) was used. The sample preparation was the same as described in the above section (See Section 2.3.3). The analytical uncertainty (percent relative standard deviation (RSD%)) of the reproduced (n = 7) measurements was less than 1% for all elements (K, Ca, Ti, Mn, Fe, and Sr). The percent relative standard deviation is expressed as RSD% = ((σ/µ) × 100), being same as the Equation (1) [24].

According to the guidelines of the international union of pure and applied chemistry (IUPAC), the detection limit (L_D) and the quantification limit (L_Q) were calculated based on the following Equations, respectively [28,29]:

L_D = 3.29 * s

(2)

L_Q = 10 * s

(3)

where s is the standard deviation of the reproduced measurements. In the case of quantification limit the values ten times the standard deviation.

Table 2. The detection limit (L_D) and quantification limit (L_Q) of the elements measured by WD-XRF spectrometer from the replicate measurements (n = 7) of the sample JA-3 according to Equations (2) and (3).

Element	LD (wt%)	LQ (wt%)
K	0.01	0.02
Ca	0.03	0.10
Ti	0.01	0.02
Mn	0.003	0.01
Fe	0.03	0.10
Sr	0.0	0.0

presents the calculated values of the L_D and L_Q based on Equations (2) and (3).

Replicate measurements (n = 7) of the standard sample (JA-3) confirmed that there was no significant difference (Δ_m ≤ U_Δ) between the measured and reference value of the target elements (

Table 3. Comparison of the results obtained from the WD-XRF measurements with the certified reference value for the standard sample (JA-3) to determine the validation of the prepared calibration method.

Element (wt%)	Certified Value a (Mean ± SD)	Value Measured by WD-XRF (Mean ± SD)	Δm	UΔ
K2O	1.41 ± 0.06	1.32 ± 0.003	−0.090	0.120
CaO	6.24 ± 0.16	6.56 ± 0.014	0.318	0.321
TiO2	0.70 ± 0.06	0.69 ± 0.004	−0.015	0.120
MnO	0.104 ± 0.01	0.105 ± 0.001	0.001	0.02
T-Fe2O3	6.60 ± 0.18	6.41 ± 0.012	−0.194	0.361
Sr b	0.0287 ± 0.0018	0.029 ± 0.0	0.0003	0.004

^a Terashima et al., 1994 [31] and Guevara et al., 2005 [32]. ^b Imai et al., 1995 [33].

). The values of Δ_m and U_Δ are obtained from the following expression [29,30]:

Δ_m = |C_m − C_known|

(4)

where Δ_m indicates the absolute difference between the mean measured and certified (known) value, C_m indicates the measured mean value, and C_known indicates the certified (known) value. However, both of the measurements have an uncertainty; therefore, the combined uncertainty of Δ_m is expressed as u_Δ by the following formula:

u_Δ = √(u²_m + u²_known)

(5)

where u_Δ is the combined uncertainty of the measured and certified value (known) that is the uncertainty of Δ_m, u_m and u_known is the uncertainty of the measured value, and the certified (known) value, respectively. Finally, the expanded uncertainty (U_Δ) is calculated by multiplying the combined uncertainty (u_Δ) by a coverage factor (k). The value of k is usually equal to 2, which corresponds to a confidence level of approximately 95%. Thus, expressed as:

U_Δ = 2 u_Δ

(6)

Finally, the method performance was evaluated by the comparison of Δ_m with U_Δ, which is, if Δ_m ≤ U_Δ, then there is no significant difference between the measurement value and the certified (known) value of the analyzed sample.

The good agreement between the measured and certified value, low detection limit, and low uncertainty from reproduced measurement confirm that the method of calibration of WD-XRF for measurement worked well. In every step, like during oven-dried of the sample, sample mixing with the binder, making pressed pellets, and during measurement, we were very careful to avoid contamination.

2.3.5. Measurement of Element Concentration through WD-XRF Spectrometer

In addition to the ITRAX-XRF core scanning results, the quantitative concentrations of the selected elements (high abundance and being suitable for conventional XRF measurement), namely Sr, Fe, Mn, Ti, Ca, and K (Figure 5), were measured using a Wavelength Dispersive X-ray Fluorescence (Rigaku Supermini 200) spectrometer, at the University of Toyama, Japan. To confirm the reliability of ITRAX-XRF CS element count data, we prepared thirty-three discrete bulk sediment samples from the working half. These discrete bulk sediment samples were selected from the basis of significant minima, maxima, and changeover intervals that were indicated by the ITRAX-XRF CS records. The selection of discrete samples also covered all the sections and climate events, such as Heinrich Stadial 1 (HS1), Bølling-Allerød (B-A), Younger Dryas (YD), Preboreal (PB), and Holocene intervals, being demarked after the determination of age through the construction of the age-depth model [34]. For the measurement of concentration, the freeze-dried discrete samples were ground to a particle size < 63 μm. The preparation of the sample for making pressed pellets for the measurement of element concentration the same as described in the above section (See Section 2.3.3). Afterward, the pressed pellets sample concentration was measured by using the prepared calibration curve (discuss in the Section 2.3.3 and Section 2.3.4).

2.4. Total Organic Carbon Analysis

The total organic carbon (TOC) was measured in the decarbonated bulk sediment sample of the core CL14PC. For this purpose, a total of 100 homogenized dried bulk ground sediments samples of ~200 mg each were decarbonated by adding 10 mL of 1 M HCl for each sample. Until the complete removal of the CO₂ bubbles, the samples were kept at room temperature, and were centrifuged at 3000 rotations per minute (rpm) for 10 min, and the supernatant was then discarded. After being rinsed three times with ultrapure water (18.2 MΩ·cm), the samples were completely oven-dried at 50 °C (overnight). The TOC measurement was accomplished at the University of Toyama, Japan by using an elemental analyzer (Vario EL cube CHNOS). The total carbon (TC) and total nitrogen (TN) were measured from the dried bulk sediment using the same facility. For calibration, sulfanilamide (C₆H₈N₂O₂S) was used as a standard. The replicate measurements (n = 4) of the TOC samples had an RSD of 1.6%.

2.5. XRF Core Scanner Data Calibration

The variation of down-core physical properties and matrix effects affect XRF core scanner measurement and reduce the integrity of scanning [4]. Therefore, the calibration (normalization) of XRF CS data is required to minimize the influence due to the matrix or specimen effects or closed-sum effects. In this study, we applied several techniques/approaches for the calibration of raw counts (cps) data, such as calibration by X-ray scattering, element ratio, total count (cps), and log-ratio transformation [2,8,9]. We categorized all of these approaches into two broad groups (methods), such as calibration by ratios (See Section 2.5.1) and log-ratio transformation (See Section 2.5.2). According to these methods, we normalized the XRF CS raw count (cps) data, thereafter, making a comparison based on their correlation with conventionally measured concentration.

A linear formula (Equation) was used to compare the conventional WD-XRF (wt%) measurement concentration with ITRAX-XRF CS values (cps), as:

W_ij = a_i + I_ijb_i

(7)

where W_ij is the concentration (weight) that is measured by WD-XRF (wt%) of element i at depth j, I_ij is the intensity (cps) measured by the ITRAX-XRF CS of element i at depth j, a_i is the y-intercept of element i, and b_i represents the slope of the regression line for element i.

2.5.1. Calibration by Ratios

One of the approaches for minimizing the potential complication/influence that is caused by the variation of the core physical properties or heterogeneities is the calibration of raw data by using different variables ratios. Thus, calibrated data may increase the correlation with their actual concentration when compared to raw data. We normalize the raw data through the application of different approaches under this category, afterward compare the calibrated data with concentration (

Table A1. The Pearson’s (R², through equation (7)) and the Kendall’s Tau (τ) correlations results between ITRAX-XRF CS raw, ratio and log-ratio corrected element intensity (cps) data and WD-XRF concentration (wt%) results. For Br and Br/Cl ratio the correlation was calculated between ITRAX-XRF CS Br intensities (cps) and Br/Cl ratio with TOC (wt%).

Category		Correlation Method	Correlation between ITRAX-XRF CS Intensities (cps) with WD-XRF Concentration ((wt%), n = 33), and TOC ((wt%), n = 100)
			Element
			Sr	Fe	Mn	Ti	Ca	K	Br v TOC	Br/Cl v TOC
Raw XRF CS		Pearson (R2)	0.84	0.84	0.51	0.31	0.72	0.36	0.72	0.64
		Kendall’s τ	0.79	0.66	0.47	0.38	0.71	0.41	0.60	0.53
Calibration by ratio	CIR a	Pearson (R2)	0.89	0.91	0.68	0.62	0.75	0.56	0.72	0.64
		Kendall’s τ	0.83	0.78	0.55	0.45	0.73	0.48	0.61	0.53
	ICR b	Pearson (R2)	0.77	0.62	0.32	0.07	0.69	0.17	0.70	0.64
		Kendall’s τ	0.73	0.55	0.38	0.29	0.68	0.30	0.59	0.53
	coh c	Pearson (R2)	0.74	0.64	0.33	0.05	0.72	0.18	0.70	0.64
		Kendall’s τ	0.75	0.61	0.37	0.30	0.70	0.32	0.60	0.52
	I + C d	Pearson (R2)	0.69	0.45	0.22	0.00	0.68	0.07	0.68	0.64
		Kendall’s τ	0.67	0.53	0.29	0.18	0.66	0.24	0.59	0.53
	Total count (cps)	Pearson (R2)	0.81	0.69	0.25	0.00	0.75	0.15	0.72	0.64
		Kendall’s τ	0.77	0.57	0.27	0.09	0.71	0.30	0.61	0.52
	Ti intensity (cps)	Pearson (R2)	0.85	0.86	0.56		0.82	0.27	0.65	0.64
		Kendall’s τ	0.84	0.80	0.56		0.75	0.32	0.57	0.52
	Ca intensity (cps)	Pearson (R2)	0.00	0.64	0.51	0.46		0.63	0.52	0.64
		Kendall’s τ	−0.09	0.74	0.67	0.57		0.62	0.49	0.52
Calibration by log-ratio	clr e of CIR calibrated data	Pearson (R2)	0.79	0.81	0.69	0.39	0.82	0.66	0.56	0.29
		Kendall’s τ	0.78	0.81	0.70	0.56	0.76	0.62	0.52	0.33
	clr of raw data	Pearson (R2)	0.79	0.81	0.69	0.39	0.82	0.66	0.56	0.34
		Kendall’s τ	0.78	0.81	0.70	0.56	0.76	0.62	0.52	0.36
	alr f by CIR	Pearson (R2)	0.89	0.91	0.69	0.63	0.74	0.58	0.61	0.60
		Kendall’s τ	0.82	0.79	0.58	0.45	0.74	0.48	0.61	0.55
	alr by coh after CIR calibration	Pearson (R2)	0.82	0.82	0.52	0.30	0.74	0.40	0.58	0.52
		Kendall’s τ	0.79	0.75	0.52	0.49	0.72	0.42	0.61	0.50
	alr by coh	Pearson (R2)	0.76	0.66	0.32	0.05	0.67	0.17	0.59	0.52
		Kendall’s τ	0.75	0.61	0.37	0.30	0.70	0.32	0.60	0.50

^a CIR = coherent/incoherent (coh/inc) X-ray scatter ratio; ^b ICR = incoherent/coherent (inc/coh) X-ray scatter ratio; ^c coh = coherent (coh) X-ray scatter, ^d I+ C = incoherent + coherent (ich + coh) X-ray scatter; ^e clr = centered log-ratio, ^f alr = additive log-ratio.

). The variables that were used to normalize the raw cps data were expressed as:

Calibrated intensity (I_ij) = raw intensity (I_ij)/XS_j

(8)

Calibrated intensity (I_ij) = raw intensity (I_ij)/TC_j

(9)

Calibrated intensity (I_ij) = raw intensity (I_ij)/EI_j

(10)

where I_ij is the intensity (cps) measured by the ITRAX-XRF CS of element i at depth j, and XS_j in Equation (8) is the X-ray scattering at depth j. For X-ray scattering, we used the coherent/incoherent (coh/inc) X-ray scatter ratio (CIR), incoherent/coherent (inc/coh) X-ray scatter ratio (ICR), coherent X-ray scattering (coh), and the incoherent plus coherent (inc + coh) X-ray scattering (I + C). The TC_j shown in Equation (9) means the total count (TC) per second (total cps) at depth _j, and the EI_j in Equation (10) means the specific element intensity at depth _j. For the normalization of raw intensities in this study, we used two elements’ intensities (Ti and Ca) as denominators in Equation (10).

2.5.2. Log-Ratio Transformation

The log-ratio transformation reduces the closed-sum effects and facilitates multivariate analysis [12]. Two types of log-ratio transformation of data were employed in this study, namely, the additive log-ratio (alr) and centered log-ratio (clr) transformation. These log-ratio data transformations were calculated based on the following two equations [9]:

alr(I_ij) = ln ((I_ij)/X_j)

(11)

clr(I_ij) = ln ((I_ij)/gm_j)

(12)

where I_ij is the ITRAX-XRF CS intensities of element i at depth j and X_j is the variables applied for calculation at depth j. We used CIR (coherent/incoherent) as the variable for raw intensities, and coh (coherent) as the variable for raw and CIR normalized intensities in Equation (11). In Equation (12), gm_j indicates the geometric mean at depth _j—for the calculation of centered log-ratio (clr), we used the geometric mean of the raw XRF data (mention as clr of raw data in Table A1). Besides, we also calculated clr by using the geometric mean of the coherent/incoherent X-ray scatter ratio (CIR) calibrated XRF data (mentioned as clr of CIR calibrated data in Table A1). For this, we made three groups of elements: (i) Sr, Fe, Mn, K, Ca, and Ti that were transformed in clr for comparison with WD-XRF concentration, (ii) Br and Cl for comparison with TOC, and (iii) Br/Cl ratio and Cl for comparison with TOC. The log-ratio (clr and alr) data transformations were executed by using a compositional data package, CoDaPack 2.03.01 [35], and/or R base ggplot2 package robCompositions.

3. Results

3.1. Raw X-ray Fluorescence Core Scanner Data

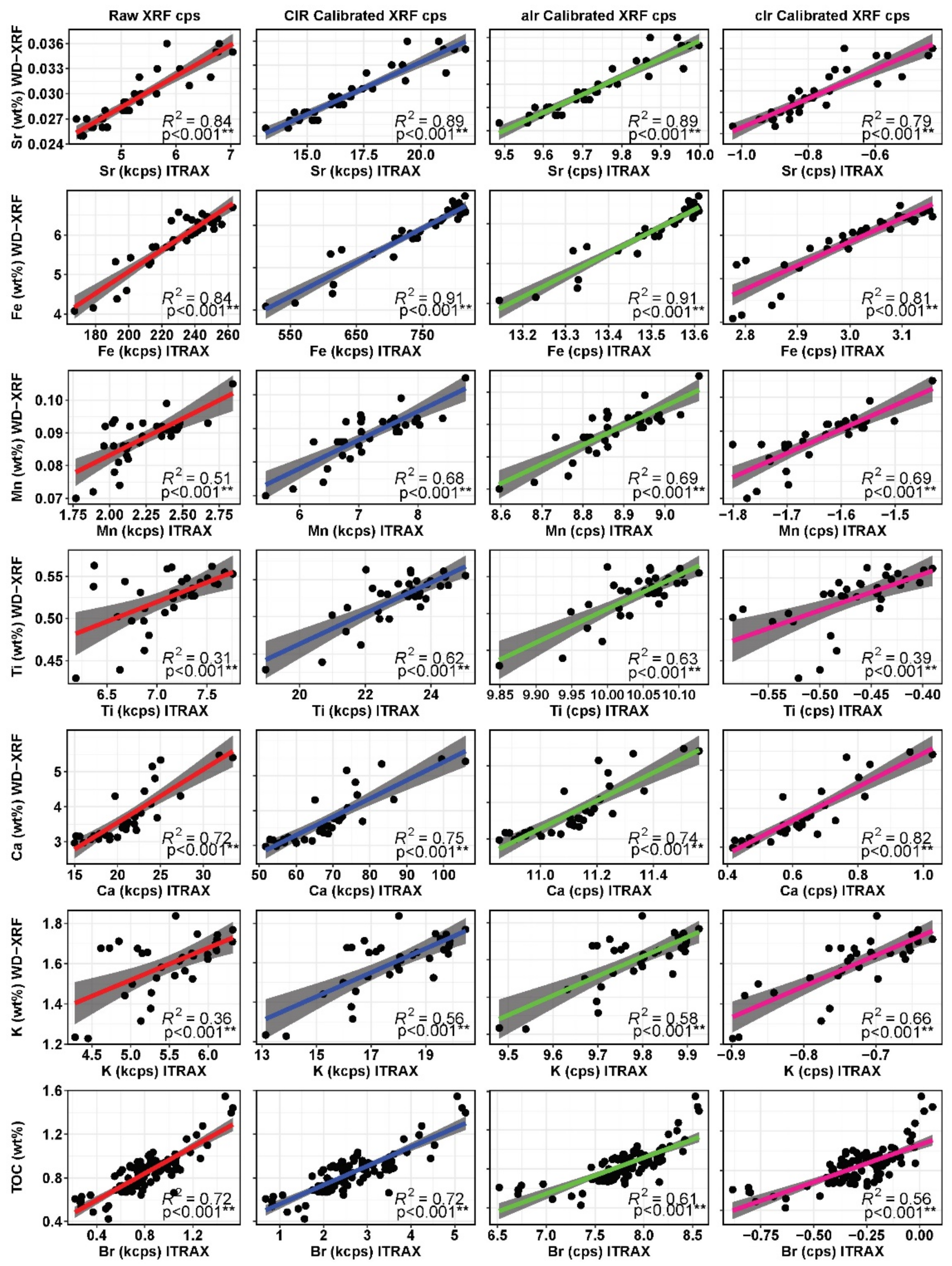

We compared the relationship between the ITRAX-XRF CS intensities (cps) with WD-XRF measured concentration (wt%) using two different methods—linear regression through Pearson’s method and Kendall’s tau (τ) (Table A1) method. Kendall’s tau (τ) method was used to confirm (cross-check) the accuracy of the correlation that was measured by Pearson’s method to avoid miscalculation. Therefore, hereafter, linear regression means that Pearson’s method calculated linear correlation. Because Br and Cl are not elements analyzed by using WD-XRF, the Br and Cl intensities are, thus, excluded for comparison with WD-XRF measured concentration. On the other hand, because Br and TOC are both productivity proxies and are related to organic matter content [36,37,38], the ITRAX-XRF CS Br intensities were compared with TOC (wt%) through linear (R²) regression and Kendall’s τ (Figure 6, Table A1). In this study, the ITRAX-XRF CS raw cps data from the sediment core CL14PC were used as a baseline for comparison with different calibration methods.

The concentration (w%) of the bulk sediment samples was measured using a WD-XRF spectrometer. Among the six elements (Sr, Fe, Mn, Ti, Ca, and K), Fe and Ca showed high concentrations—5.83 (wt%) and 3.74 (wt%), respectively (Figure 5). A comparison of the correlation of raw counts (cps) with the WD-XRF measured concentration (wt%) showed 0.31 < R² < 0.84 for linear regression (R²) and 0.38 < τ < 0.79 for Kendall’s method. The coefficients of determination (R²) of the measured elements, i.e., Sr, Fe, Mn, Ti, Ca, and K, were 0.84, 0.84, 0.51, 0.31, 0.72, and 0.36, respectively (Figure 6), in the raw data, showing less (weak) correlation for Ti and K. In the case of Br and the Br/Cl ratio, the correlations (R²) between the raw intensities and TOC (%) were 0.72 and 0.64, respectively, and, in Kendall’s τ, the values were 0.60 and 0.53, respectively. In both cases (R² and τ), the relationship showed greater values in integral Br as compared to the Br/Cl ratio (Figure 6, Table A1).

3.2. Calibrated X-ray Fluorescence Core Scanner Data

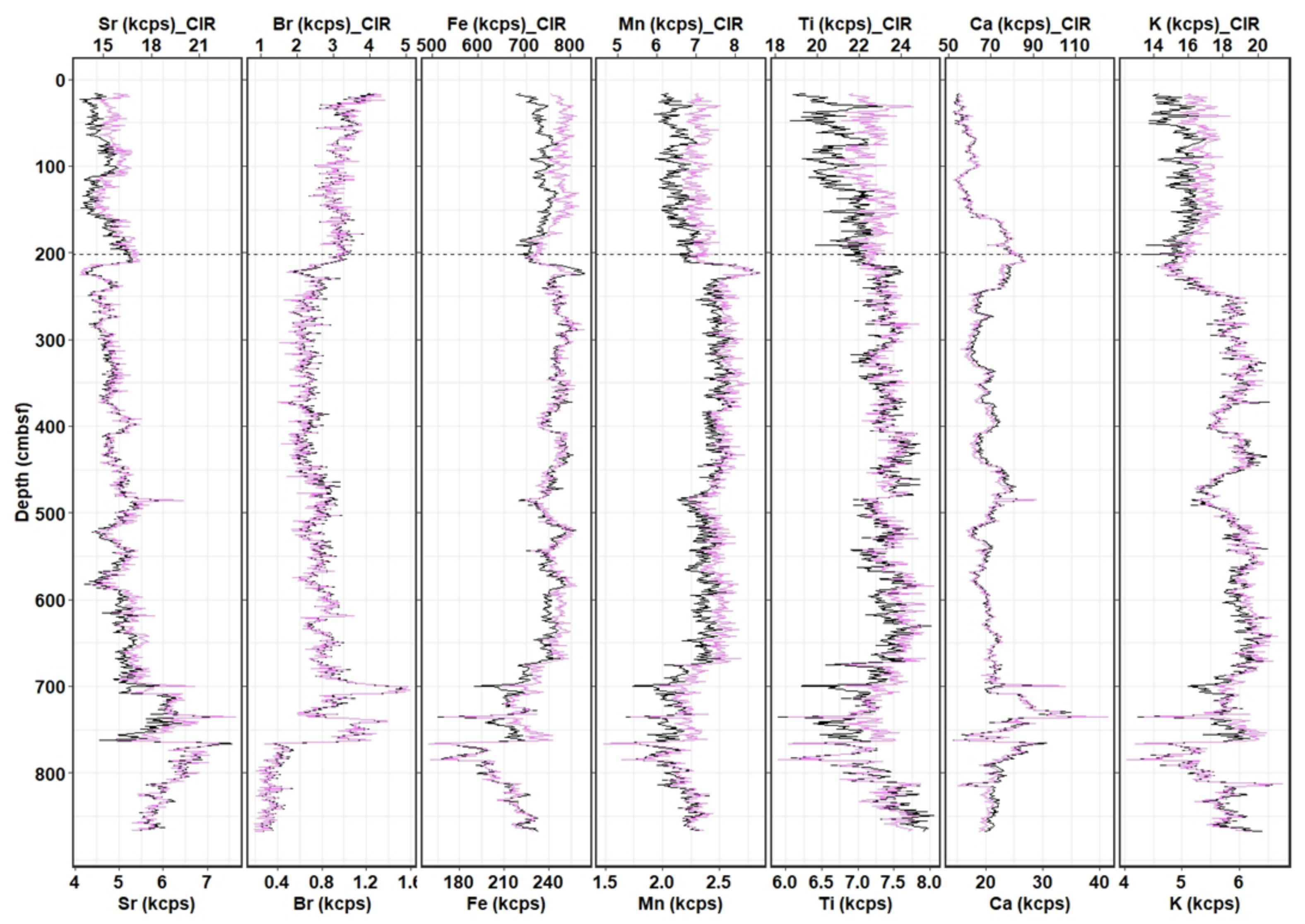

In this study, we calibrated the raw count (cps) data into different procedures of two broad categories (group/method). The correlation (R²) of calibrated cps through different X-ray scattering ratios with WD-XRF concentrations and TOC (%) were 0.56–0.91 for coherent/incoherent X-ray scatter ratio (CIR) calibrated data, 0.07–0.77 for incoherent/coherent X-ray scatter ratio (ICR) calibrated data, 0.05–0.74 for coherent (coh) calibrated data, and 0.0–0.69 for incoherent + coherent calibrated data (I + C) (Table A1). The raw intensity (cps) that was normalized by total counts, Ti, and Ca showed correlation (R²) with conventional concentration (WD-XRF) of 0.0–0.81, 0.27–0.86, and 0.0–0.64, respectively (Table A1), under category ratio calibration. The log-ratio transformation of data (category log-ratio calibration) is an important procedure of XRF data calibration, as it reduces closed-sum effects, and it is suitable for multivariate statistics [9,12,39].

The centered log-ratio transformation using raw and coherent/incoherent X-ray scatter ratio (CIR) calibrated data showed the same correlation with concentration, and the range was 0.29–0.82 (Table A1). The additive log-ratio transformation by using CIR and coh as the denominator in the case of raw data in Equation (11) showed R² values of 0.58–0.91, and 0.05–0.76, respectively, when correlating with WD-XRF concentration and TOC (here, Br and Br/Cl compare with TOC) (Table A1). In the case of the coherent/incoherent X-ray scatter ratio, calibrated data transform in the additive log-ratio by using coherent (coh) X-ray scatter, as the denominator in Equation (11) showed R² values of 0.30–0.82 when compared with concentration and TOC% (Table A1).

4. Discussion

4.1. Sediment Physical Properties Affect Scanning Intensities

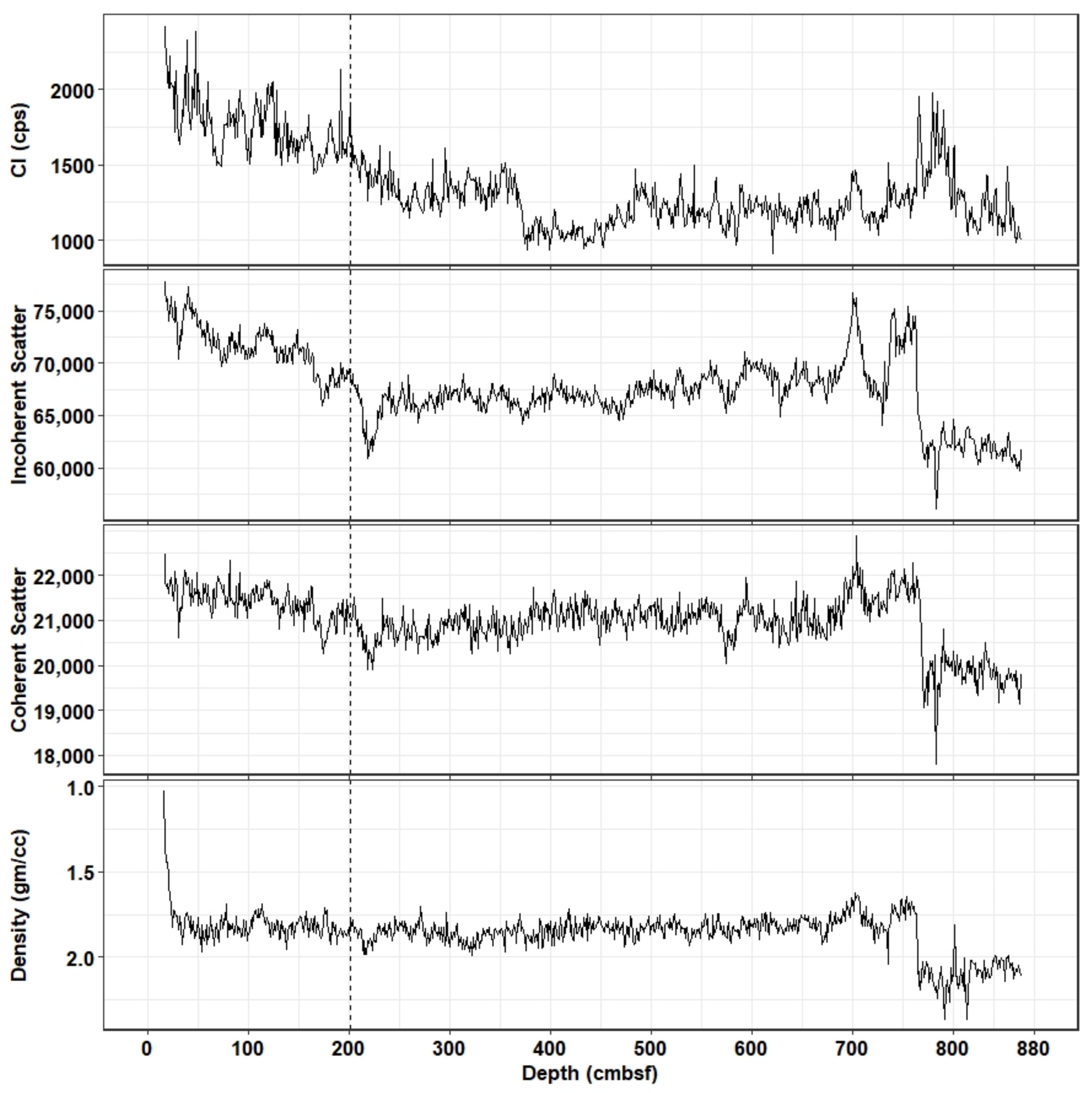

In the sediment core, the top sediments are generally characterized by higher porewater contents that were expressed by high Cl content, especially in marine sediments, because Cl is a major dissolved element of seawater. In lacustrine and other freshwater sediments, the scenario is different, because lacustrine and freshwater sediments contain extremely low Cl content. The XRF intensity of Cl is used as a water content proxy for marine sediment [4]. The Cl intensity in the core CL14PC significant increases in the topmost part, especially in the upper 202 cmbsf depth (Figure 7), suggesting high interstitial/porewater content. At depth 201 cmbsf, the Cl intensity (cps) increases 29% from depth 202 cmbsf Cl cps, and, in the top 202 cmbsf, the average Cl content (cps) increases 42% when compared to the down-core average Cl content (cps). In the core top, the high Cl intensity (cps), indicating high water content, influences X-ray scattering, and further influences element intensity measurement in the core. The Cl intensity also exhibits elevation in the down-core at 793–766 cmbsf depth.

The wet bulk density (gm/cc) at the top of the core from the depth 202 to 25 cmbsf did not show extreme variation (Figure 7). However, at the top-most 25 cmbsf, the density sharply decreases from 1.82 to 1.03 gm/cc, and the average Cl content increases 73% when compared to the down-core average Cl content below 202 cmbsf depth. At the depth 766 to 737 and 716 to 676 cmbsf, the wet bulk density (gm/cc) was more prominently low (Figure 7). At that depth, the Br content (cps) was significantly high. Br has been used as a good proxy for marine organic matter and related productivity tracer in the ocean basins [36,37,38]. These high Br intensity intervals are characterized by organic-rich marine sediments (high TOC and low TOC/TN molar ratio) that are derived from marine algal sources with a dark area (seen in CT-scan photography in Figure 3) and low density. In that depth, the variation of the bulk density (gm/cc) inversely reflects the X-ray scattering. Although a lower sedimentary density at 766–737 and 716–676 cmbsf depth increases the X-ray scattering, with Compton (incoherent) scattering [40] being remarkably high, after correction, the pattern of variation of the element intensity (cps), especially Br and Ca (related to organic matter), did not significantly change (See Section 4.3). Thus, strengthening the water content is responsible for the deviation of the scanning intensity. Therefore, in this study, the coherent/incoherent X-ray scattering ratio calibration of raw intensity showed a high correlation with WD-XRF measured concentration. The coherent/incoherent scattering (inc/coh) ratio (CIR) is used for the calibration of raw intensity (cps), where water content has greater influence [5,8]. Meanwhile, some of the researchers have used X-ray scattering (incoherent/coherent ratio) for the correction of raw XRF counts when the organic matter has a greater influence [15,16].

4.2. Element Intensities Calibration by Ratios

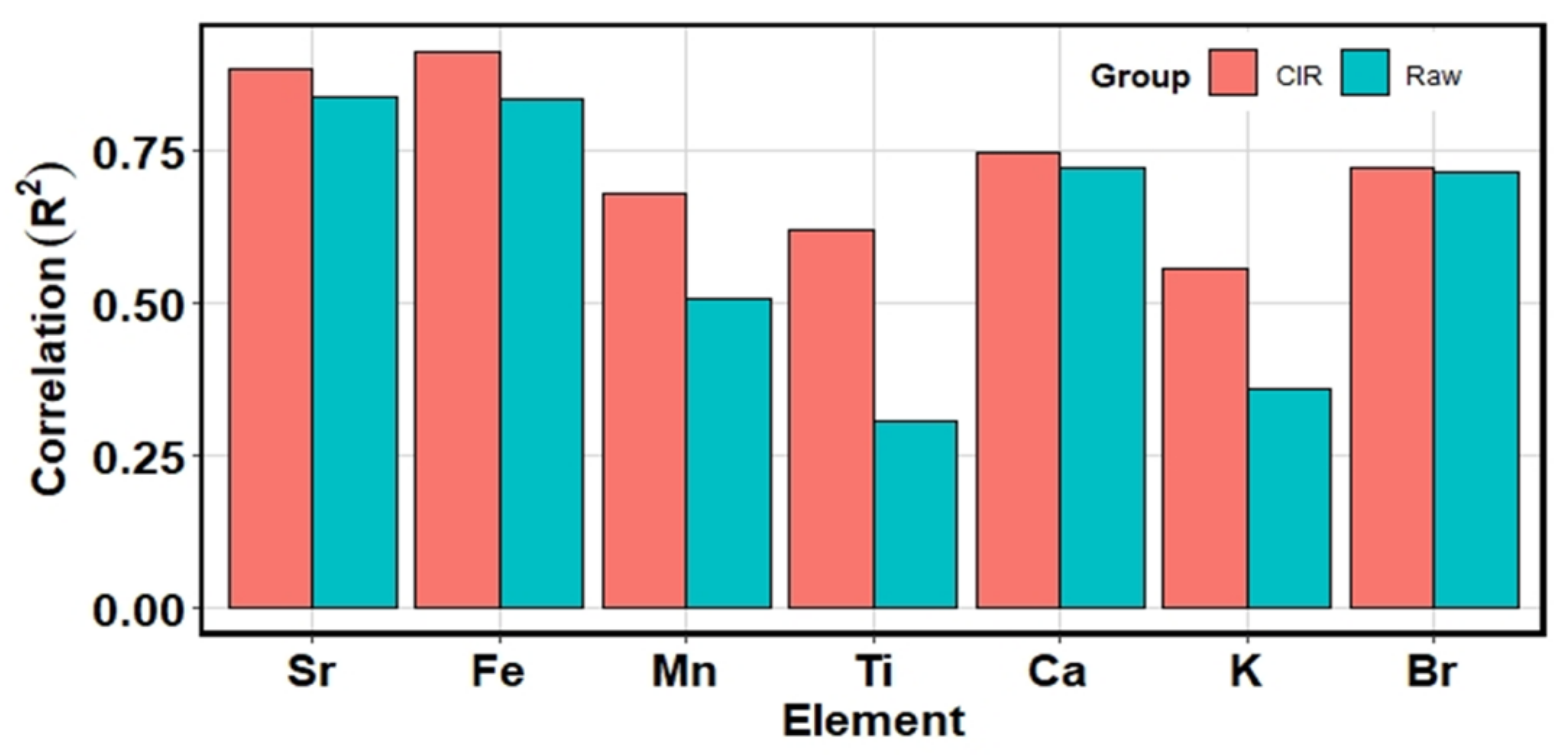

The correlation (R²) that was calculated between the raw counts and WD-XRF concentrations (wt%) of lighter elements, especially Ti and K, showed a weak relationship (Figure 6 and Figure 8), and the scattering distance from the regression line increased (Figure 6). The ITRAX-XRF CS Cl counts exhibited increasing values toward the core-top, and, inversely, the K and Ti intensities decreased at the horizon. This might be a primary factor in artificially influencing element counts through inaccurate or imprecise detection throughout the core. In addition, a previous study [1] reported that the higher porewater content influences K by means of the absorption of the Kα fluorescence of K by seawater Cl atoms. Ti might also be influenced by higher porewater content [6], because porewater increases the looseness and decreases the compaction in sediments. Under ratio calibration methods, we calibrated the raw intensity data using coherent/incoherent X-ray scatter ratio (CIR), incoherent/coherent X-ray scatter ratio (ICR), coherent X-ray scatters (coh), incoherent + coherent X-ray scatter (I + C), total count (cps), Ti, and Ca element intensity. Among these approaches, the calibration of raw K intensity (cps) through Ca intensity and CIR yields the highest correlation, with WD-XRF concentrations of 0.63 and 0.56, respectively, in linear regression and 0.62 and 0.48, respectively, for Kendall’s τ (Table A1). We found the correlation (R²) values for K and Ca to be slightly increased when being normalized by Ca and Ti intensities (element ratio), respectively, as compared to CIR normalization. The geochemically antipathetic behavior of Ca with respect to K or Ti [6] as the atomic numbers of K (19), Ca (20), and Ti (22) are nearly identical, enhanced the correlation with concentration. However, the element ratio calibration does not fully avoid artifacts due to porewater or matrix effects for other elements (Sr, Fe, Mn, Ti, and Br), because the X-ray attenuation due to matrix effects fluctuates with photon energy [5]. Therefore, the calibration of raw data through element ratios (here using Ca and Ti intensities as the denominator) did not provide a good result for all elements and diverged from correlation values that were found in the CIR calibration methods in this study. In the case of Ti, the CIR calibrated intensities showed greater correlation (R² = 0.62) with WD-XRF concentration as compared to raw data. For both elements (K and Ti), the correlation with WD-XRF concentration significantly increased in CIR calibrated data, for which Ti increased 100% and K increased 56% from raw correlation. Similarly, the calibration of raw intensity (cps) through CIR for the elements Sr, Fe, Mn, and Ca showed a greater correlation with WD-XRF concentration when compared to other ratio calibration processes (approaches).

The relationship between the Br count and TOC (wt%) presented a slight deviation in the uppermost part of the core CL14PC that was marked by an interval of high Cl (porewater) content. Because seawater Br sometimes overprints on algal Br, the XRF Br count intensities are sometimes normalized by Cl counts. Although the Br/Cl ratio seems to work as a good tracer with TOC in the upper part of the core, it does not have good agreement with TOC variation in the downcore trends of the core and it has a lower correlation with TOC (R² = 0.64, n = 100) when compared to integral Br (Table A1). However, the correlation of CIR-calibrated Br intensities (R² = 0.7215) showed a very minor increase or almost similar values compared to raw correlation (R² = 0.7156) (Figure 6). This heavier (Z = 35), high-atomic weight (80), and high-excitation (Kα = 11.9 keV) energy element [36,41] is relatively unaffected, and, in most cases, the magnitude of Br cps in CIR calibration increases or decreases proportionately with the relation of raw cps variation.

4.3. Element Intensities Calibration by Log-Ratios

For the raw and CIR calibrated cps, when transformed through centered log-ratio (clr), the geometric mean varies in a similar proportion and after transformation, thus making similar values in both cases. Therefore, when compared with concentration (WD-XRF), we found similar correlation values (Table A1). However, exceptions occur when Br/Cl raw data and the Br/Cl CIR ratio were separately transformed with Cl through clr—they make different geometric means and, furthermore, different calibrated intensities (cps). Therefore, the CIR-calibrated clr Br/Cl ratio data (R² = 0.29) and raw clr Br/Cl ratio data (R² = 0.34) have different correlations with concentration (TOC) (Table A1). The correlation (R²) values for Ti, K, and Mn were 0.39, 0.66, and 0.69, respectively, (Table A1) in the clr approach. The R² value in the case of K slightly increases in the clr log-ratio transformation method, but, in Ti, the value significantly decreases when compared to the CIR ratio calibration discussed in the above section (See Section 4.2). The correlation between clr calibrated intensity with concentration (WD-XRF and TOC) for Sr, Fe, Ca, and Br was 0.79, 0.81, 0.82, and 0.56, respectively. Although Lee [9] suggested that the calibration of data through clr transformation was best when compared to alr transformation and ratio calibration in lacustrine (lake) sediment, our marine-based sediment from northeastern GOA did not show the best performance in the clr transformation method as compared to the CIR and alr approaches, suggesting that the calibration of XRF data is not method-specific—it may vary according to sediment samples, sample condition, region, and/or depend on the scanning instrument.

In the additive log-ratio calibration approach [9,12], when the raw cps was transformed by using the CIR (coh/inc) ratio as the denominator, the values showed a good correlation with concentration (WD-XRF and TOC) (Table A1). The correlation (R²) with concentration (WD-XRF and TOC) for Sr, Fe, Mn, Ti, Ca, K, and Br was 0.89, 0.91, 0.69, 0.63, 0.74, 0.58, and 0.61, respectively. Although the relationship between ITRAX-XRF CS intensities and WD-XRF concentration through the alr and CIR calibration approach showed almost similar values for the elements Sr, Fe, Mn, Ti, Ca, and K, different results were found for the Br intensities when compared with TOC. The relationship between Br intensities and TOC increased 0.11 in the CIR calibrated data as compared to the alr log-ratio calibrated data. However, the goodness of fit for additive log-ratio depends on which parameters or elements are used as the denominator for data transformation. The wrong selection significantly influences the actual agreement.

However, the relationship (correlation) between ITRAX-XRF CS data and the concentration that was measured by conventional WD-XRF in the CIR ratio calibration method shows good agreement [8], and the values were increased from the values of the raw relationship in all of the selected elements (Sr, Fe, Mn, Ti, Ca, K, and Br) in this study (Figure 6 and Table A1). The coefficient of determination of all the elements was above 0.50 (R² > 0.50) in the CIR calibrated data using the ratio method, of which the values of lighter elements (Mn, Ti, K) improved significantly from raw values (Figure 9), although Tjallingii [4] mentioned that K and Ti were relatively unaffected by the variation of core physical properties (water content). The relationship that was measured by Kendall’s tau (τ) method also showed a positive correlation (τ correlation) of all the elements that were higher than the raw data τ correlation (Table A1).

Therefore, from the above evaluation, we can conclude that the raw cps that was calibrated by coherent/incoherent X-ray scatter (coh/inc) ratio (CIR) (ratio calibration method) is the best fit for the calibration or normalization of X-ray fluorescence scanning data. Based on this result, we, therefore, applied the coh/inc ratio (CIR) for the calibration of the entire raw cps data (Figure 10, violet color) of the core CL14PC. In the calibrated data, the element intensity (cps) was rescaled when compared to raw cps, and the relative magnitude of the minima and maxima was changed. In the upper part, the calibrated cps showed a substantially higher magnitude of increase relative to raw cps, particularly for Sr, Fe, Mn, Ti, and K (Figure 10), where the Cl XRF intensity (cps) was higher. The down-core profile for almost all of the elements studied in this experiment showed a high or low scale of magnitude when compared to the raw intensity (cps) variation.

5. Conclusions

In this study, we ran the ITRAX X-ray fluorescence core scanner by using a Molybdenum (Mo) X-ray anode tube at a 30 kV voltage and 55 mA current with a 20-s exposure time for the scanning of a wet marine sediment piston core that was collected from the Northeastern Gulf of Alaska continental slope. The ITRAX provides high counts (cps) for the elements Sr, Fe, Mn, Ti, Ca, K, Br, and Cl, with relatively low RSD (%). The Cl intensity increases toward the top of the core, with an average increase of 42% as compared to the down-core average cps (the dividing point at depth 202 cmbsf). In the down-core, at the depth 793–766 cm below the seafloor, the Cl content also exhibited elevated values. The high Cl content indicated high seawater content, because, in marine sediments, the XRF Cl intensity is expressed as the seawater content. Thus, this significantly affects the correlation between raw counts and concentration measured by WD-XRF spectrometer, especially the lighter elements (K and Ti), which are affected greatly. In this study, we compile several normalization processes under two calibration methods—ratio and log-ratio—that have been sporadically applied in different research works. Therefore, in the future, relevant researchers can utilize these multiple approaches to test their multi-sensor datasets and find the best method of correction for their datasets. However, we tested these multiple techniques in our sediment core to find out the best method for the normalization of the raw intensity data that eliminates the effects and provides the highest accuracy from raw counts. Among the calibration approaches, the correction of the raw cps by coherent/incoherent (coh/inc) X-ray scatter ratio (CIR) showed the best performance when correlating with concentration. The correlation that was measured through linear regression with Pearson’s method and Kendall’s tau (τ) method substantially increased in the CIR normalization using the ratio calibration method as compared to raw correlation. The correlation increased in lighter elements by 100%, 56%, and 33% in Ti, K, and Mn, respectively, when compared to raw correlation. Therefore, based on our evaluation, we can conclude that the normalization of ITRAX-XRF CS raw data by coherent to incoherent X-ray scatter ratio (CIR) can be applied for marine-based sediments to obtain good multi-elemental records through minimizing the effects due to the core physical properties and, thus, may further increase the reliability of using XRF core scanning data.
