# Surface Characterisation of Kolk-Boils within Tidal Stream Environments Using UAV Imagery

^{1}

^{2}

^{3}

^{4}

^{5}

^{*}

## Abstract

**:**

## 1. Introduction

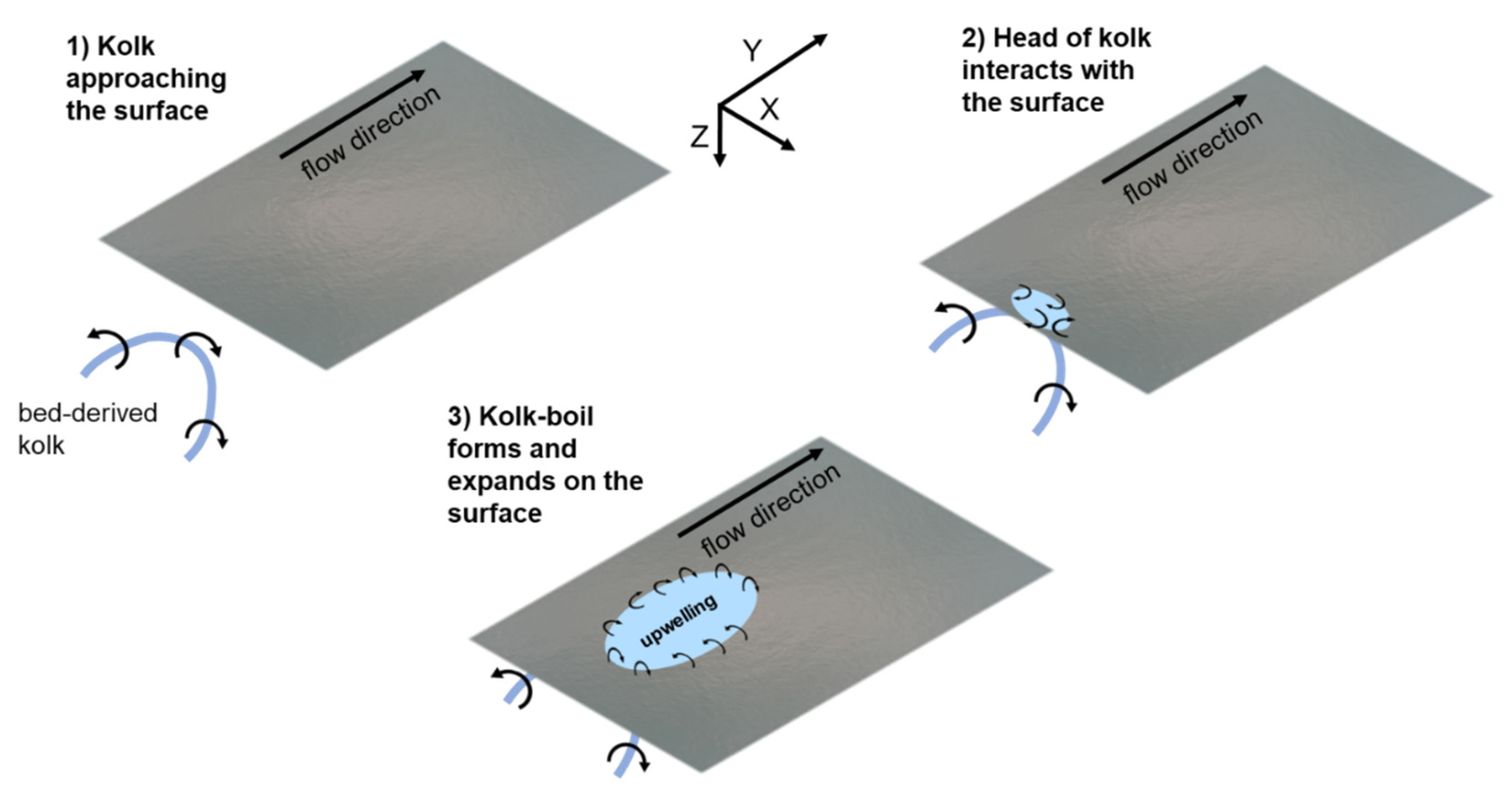

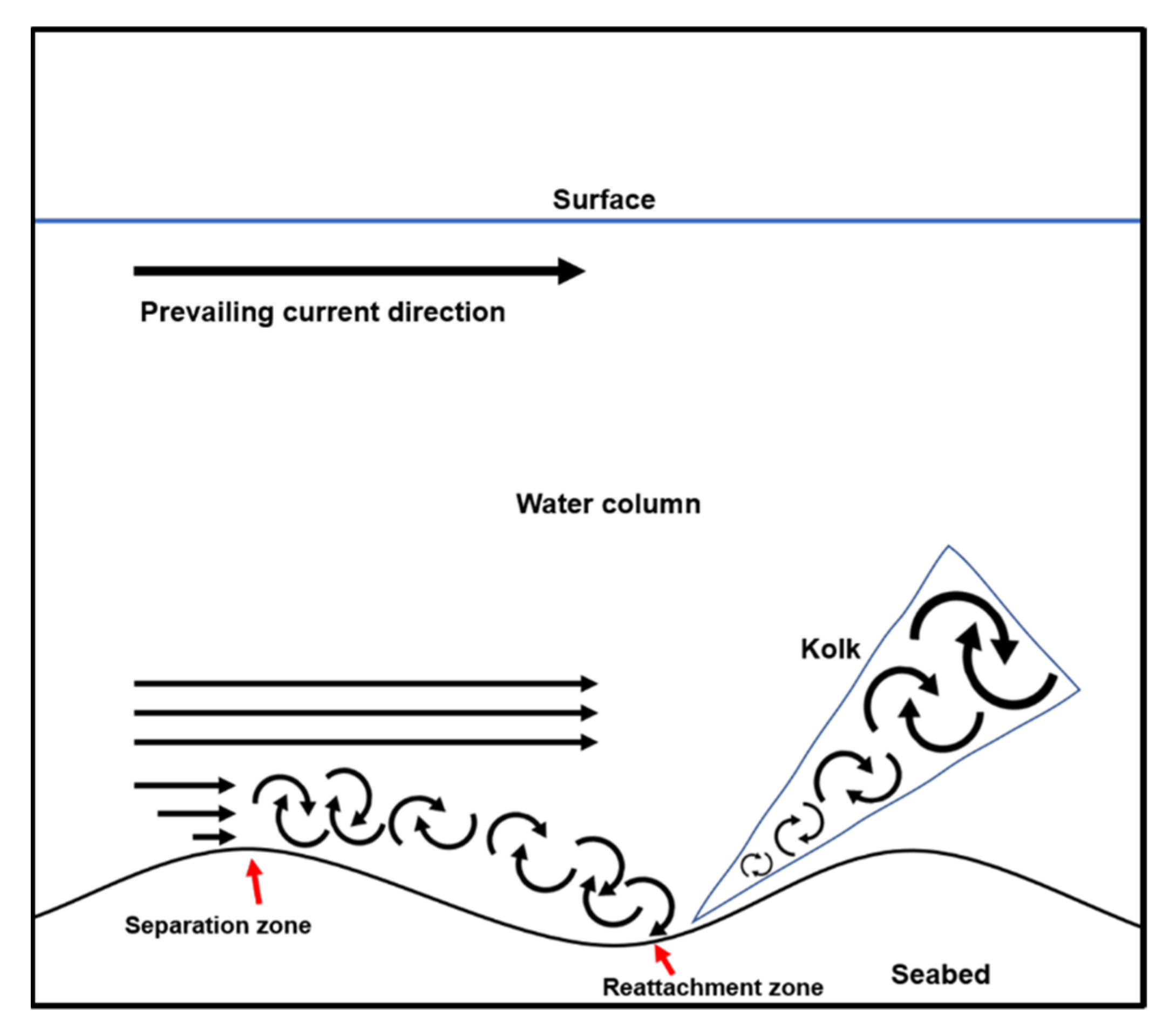

**Figure 2.**A schematic detailing kolk-boil formation at the sea surface [20].

## 2. Materials and Methods

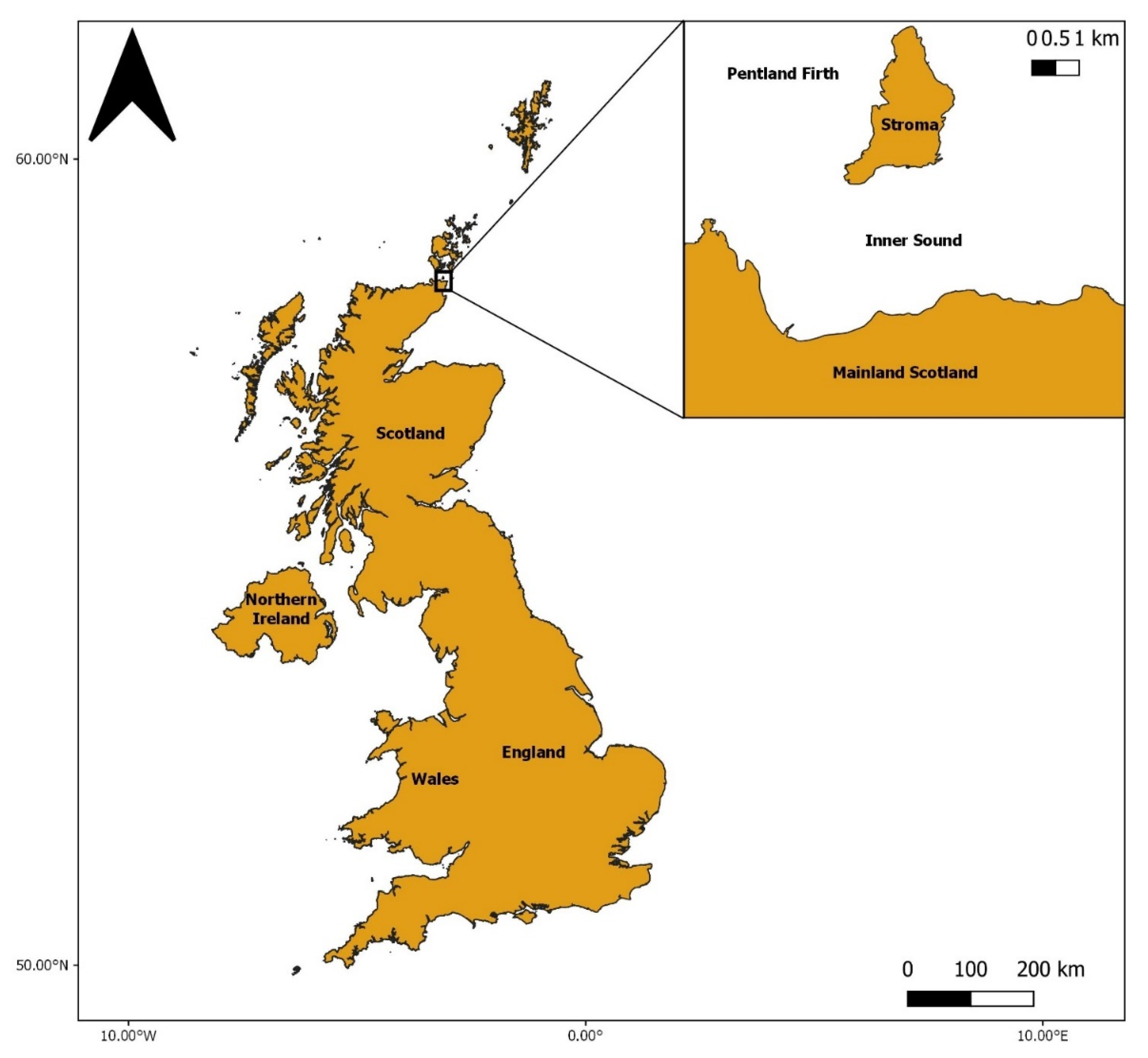

#### 2.1. Study Site

#### 2.2. Data Collection

#### 2.3. Data Processing

^{2}(Figure A1), i.e., >15% of an image) it was possible to quickly identify if no kolk-boils were present and the user could move to the next image if that was the case. If the same kolk-boil was present across multiple images, it was noted what number (identifier) that boil had in the previous image and was recorded as part of the classification process. Once started, a survey was processed in one operation, by the same user, to maintain consistency and avoid between-user bias.

#### 2.4. Post-Processing

^{2}), kolk-boil classification (type and confidence), kolk-boil presence, telemetry data, and relevant explanatory variables taken from the central point of each image (current velocity (m/s), current direction (degrees), tidal phase (assigned based on the average current velocity and direction), depth (m), seabed roughness (m), slope angle (degrees) and aspect (degrees)). Kolk-boils deemed to be visually poorly defined (≤40 confidence score) were excluded due to significant uncertainty around whether they were kolk-boils.

#### 2.5. Data Analysis

_{1}, f

_{3}, f

_{4}and f

_{6}) were used for current velocity (k = 8), seabed slope angle (k = 5), depth (k = 5) and seabed roughness (k = 5). Cyclic cubic regression splines (f

_{2}and f

_{5}) were applied when modelling seabed slope aspect (k = 5) and current direction (k = 5) as for both variables 0° must match 360°. Two anisotropic tensor products (f

_{7}to f

_{8}), henceforth referred to as “interaction” included current velocity and seabed slope angle (k = 5 and 5), as well as current direction and seabed slope aspect (k = 5 and 5) in the model. The first interaction used thin plate splines for both variables while the second utilised cyclic cubic regression splines. The model included tidal phase (α

_{0}to α

_{4}) as the only parametric variable. This included declining ebb (

_{DE}), declining flood (

_{DF}), fast ebb (

_{FE}), fast flood (

_{FF}) and increasing flood (

_{IF}) phases. To avoid the issue of complete separation, and the Hauck–Donner effect, within the binomial model the increasing ebb phase (

_{IE}) data, due to having minimal effect on the overall model fit, were removed from analysis. The numeric classification given to each individual flight ϛ(FlightID

_{i}) was incorporated into the final model as a random effect variable to account for temporal autocorrelation.

_{i})

_{i}) = α0TidalPhase

_{DE,i}+ α1TidalPhase

_{DF,i}+ α2TidalPhase

_{FE,i}+ α

_{3}TidalPhase

_{FF,}i + α

_{4}TidalPhase

_{IF,i}+ f

_{1}(Current Velocity

_{i}) + f

_{2}(Seabed Slope Angle

_{i}) + f

_{3}(Depth

_{i}) + f

_{4}(Seabed Roughness

_{i}) + f

_{5}(Current Direction

_{i}) + f

_{6}(Seabed Slope Aspect

_{i}) + f

_{7}(Current Velocity

_{i}, Seabed Slope Angle

_{i}) + f

_{8}(Current Direction

_{i},Seabed Slope Aspect

_{i}) + ϛ(FlightID

_{i})

## 3. Results

#### 3.1. Kolk-Boil Distribution

#### 3.2. Kolk-Boil Presence

## 4. Discussion

#### 4.1. Kolk-Boil Characterisation

#### 4.1.1. Distribution

#### 4.1.2. Presence

#### 4.2. Implications for Tidal Energy Developments

^{2}(Figure A1).

#### 4.3. Future Work

## 5. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## Appendix A

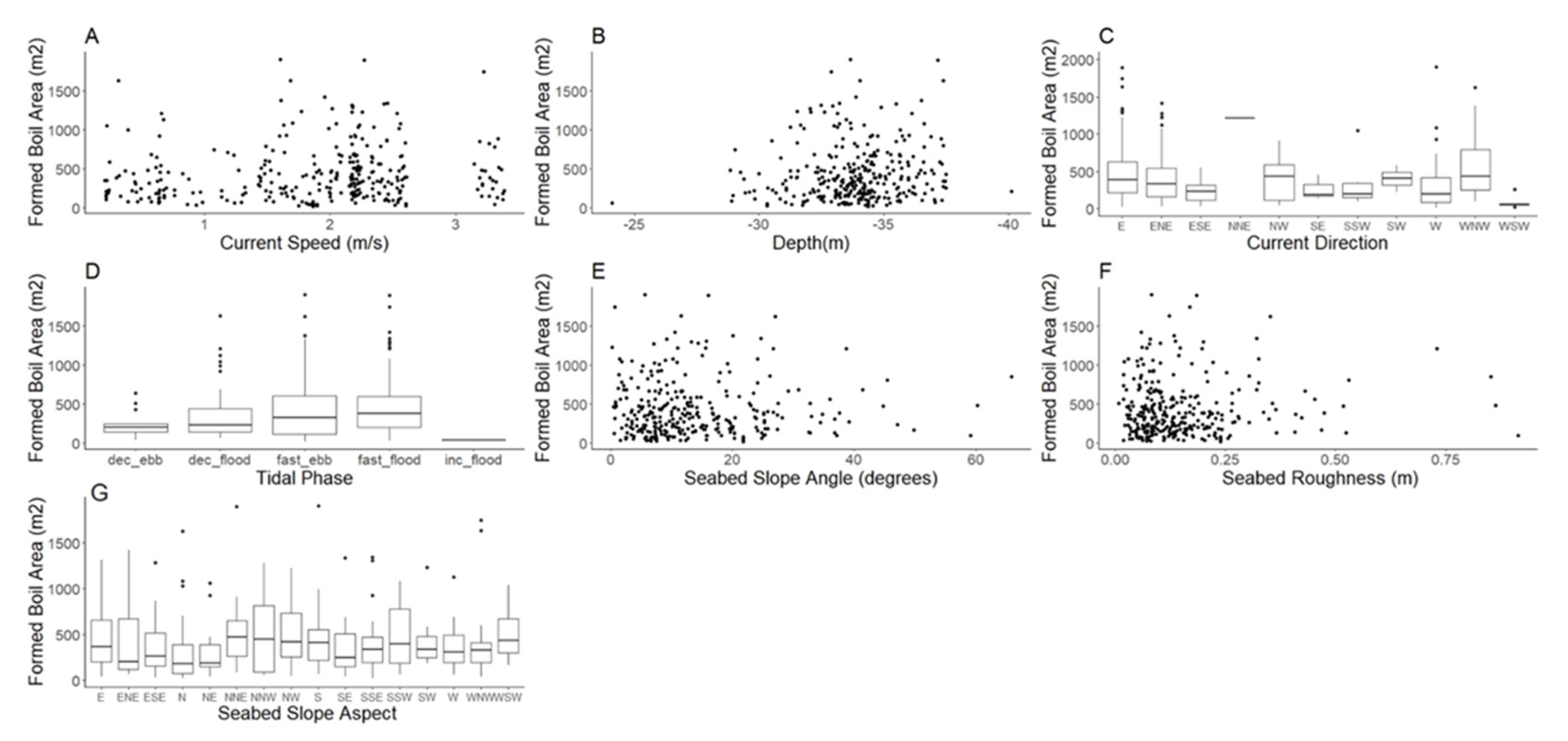

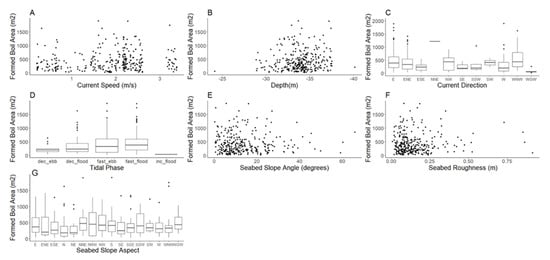

**Figure A1.**(

**A**) The effect of current speed on formed boil area; (

**B**) The effect of depth on formed boil area; (

**C**) The effect of current direction on formed boil area; (

**D**) The effect of tidal phase on formed boil area; (

**E**) The effect of seabed slope angle on formed boil area; (

**F**) The effect of seabed roughness on formed boil area; (

**G**) The effect of seabed slope aspect on formed boil area.

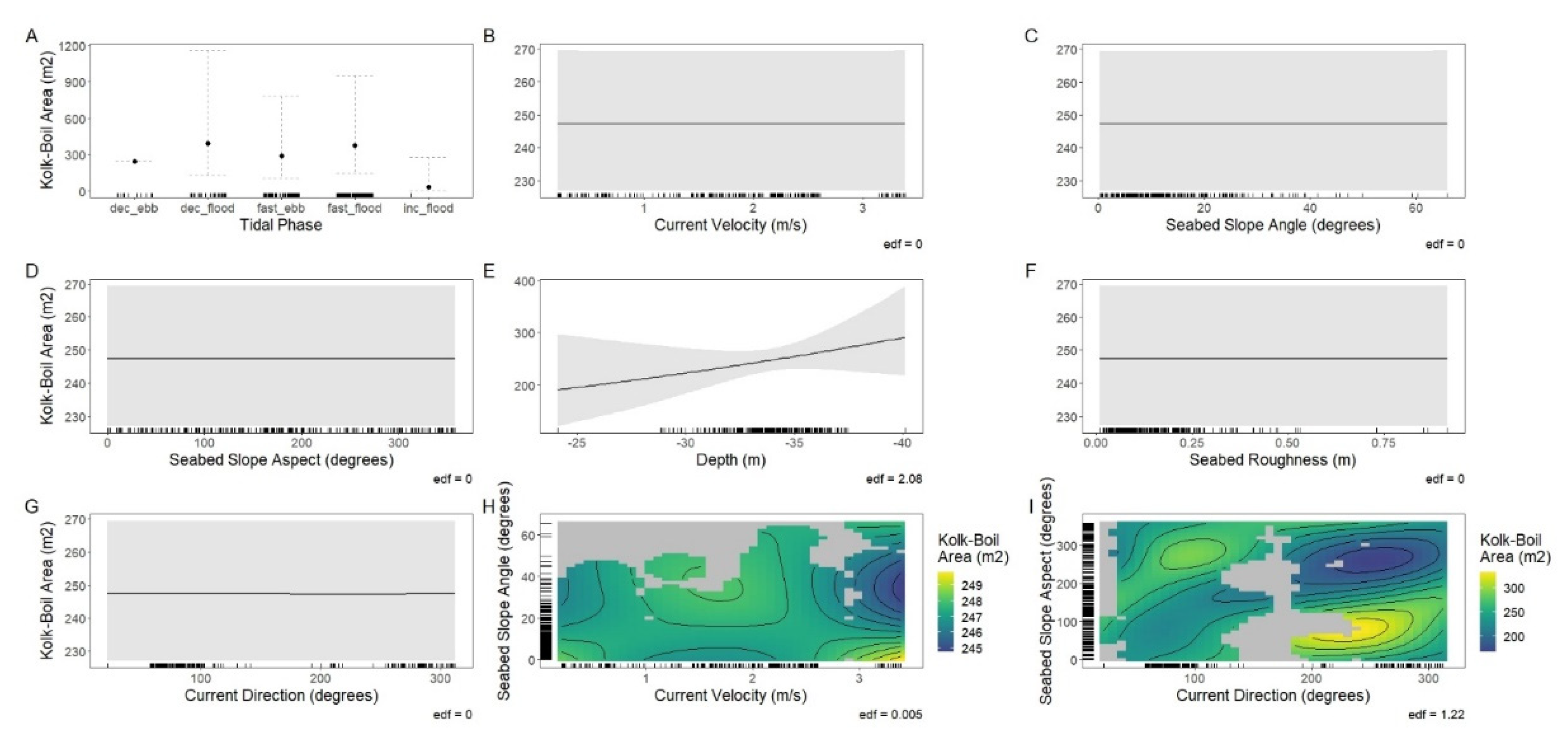

**Figure A2.**(

**A**–

**C**) The effect of tidal phase, current velocity and seabed slope angle on kolk-boils area respec-tively; (

**D**–

**F**) The effect of seabed slope aspect, depth and seabed roughness on kolk-boils area re-spectively; (

**G**) The effect of current direction on kolk-boils area; (

**H**) The effect current velocity on seabed slope angle; (

**I**) The effect of current direction on seabed slope aspect.

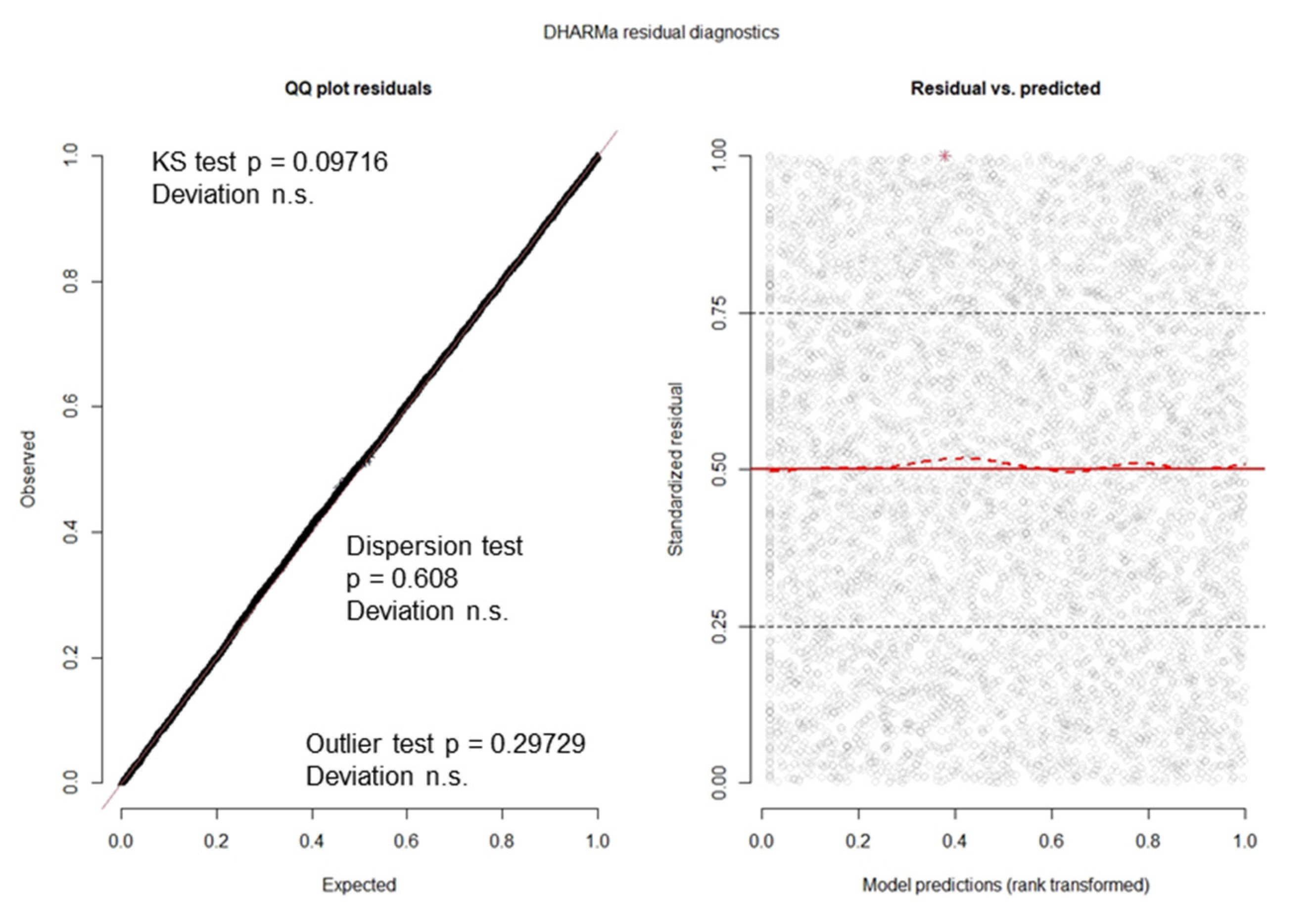

**Figure A3.**QQ and residual vs. fitted plots for kolk-boil presence model detailing a binomial distribution fits well and that there is no clear pattern in residuals.

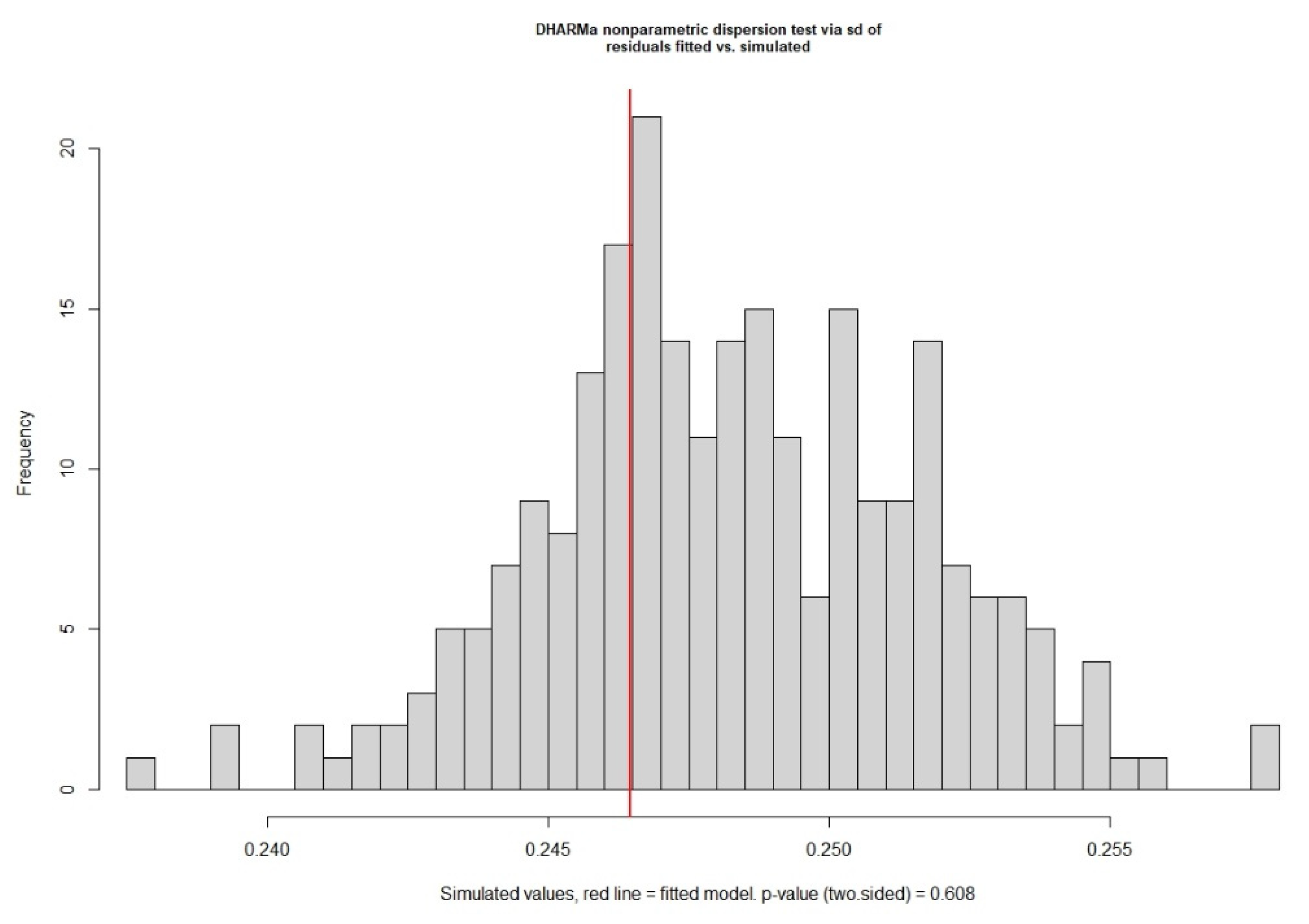

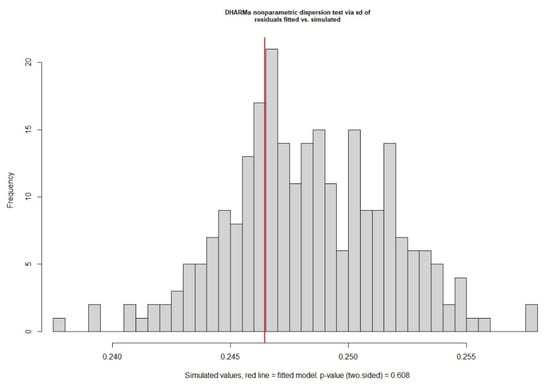

**Figure A4.**Over-dispersion plot for kolk-boil presence model. Given the fitted model (red line) is within the simulated values there was no dispersion.

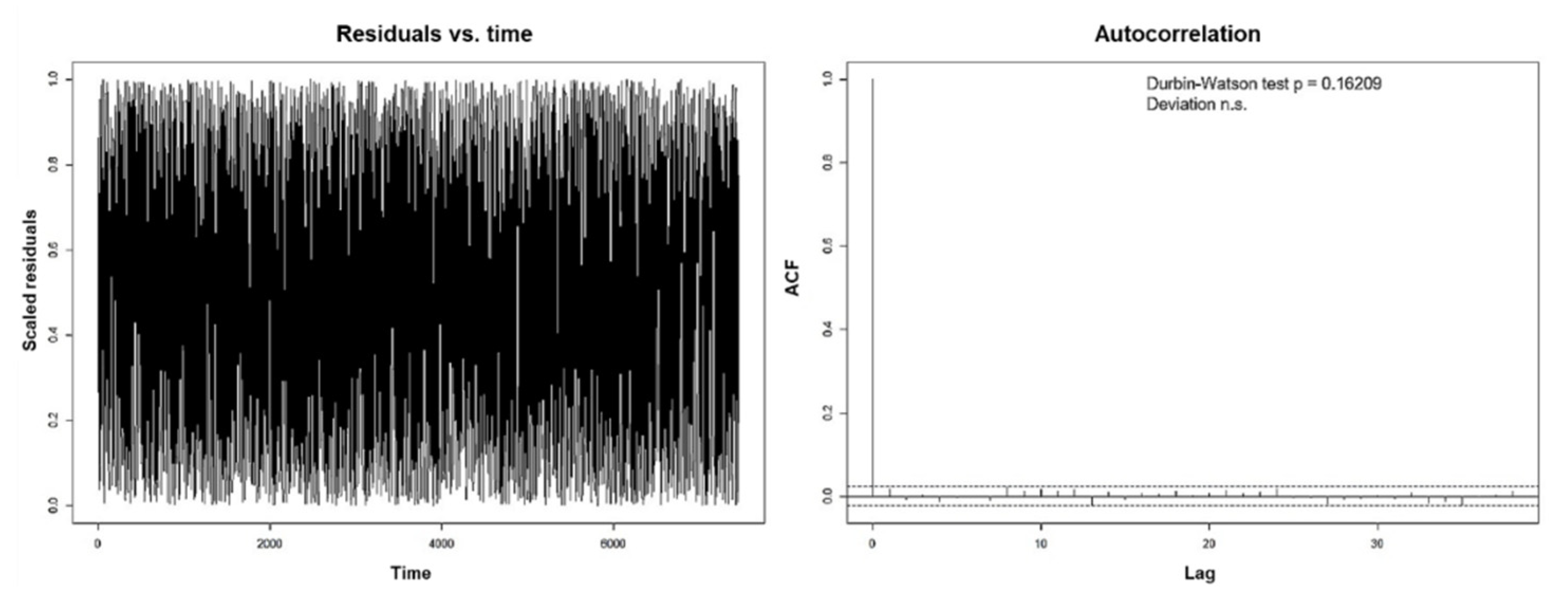

**Figure A5.**Residual vs. time and autocorrelation function (ACF) plots for kolk-boil presence. No temporal correlation is observed.

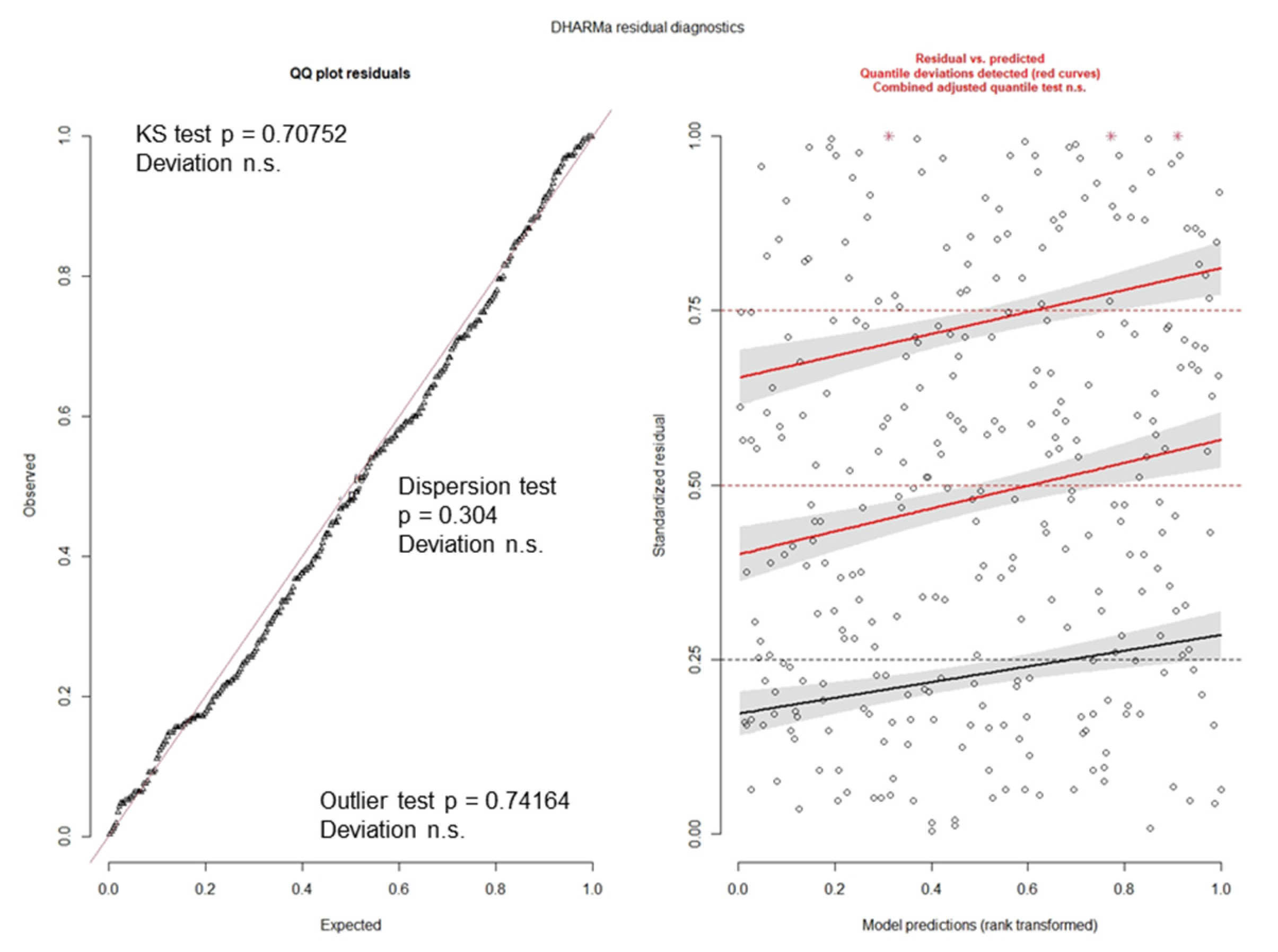

**Figure A6.**QQ and residual vs. fitted plots for kolk-boil area model detailing a gaussian distribution fits well and that there is no clear pattern in residuals.

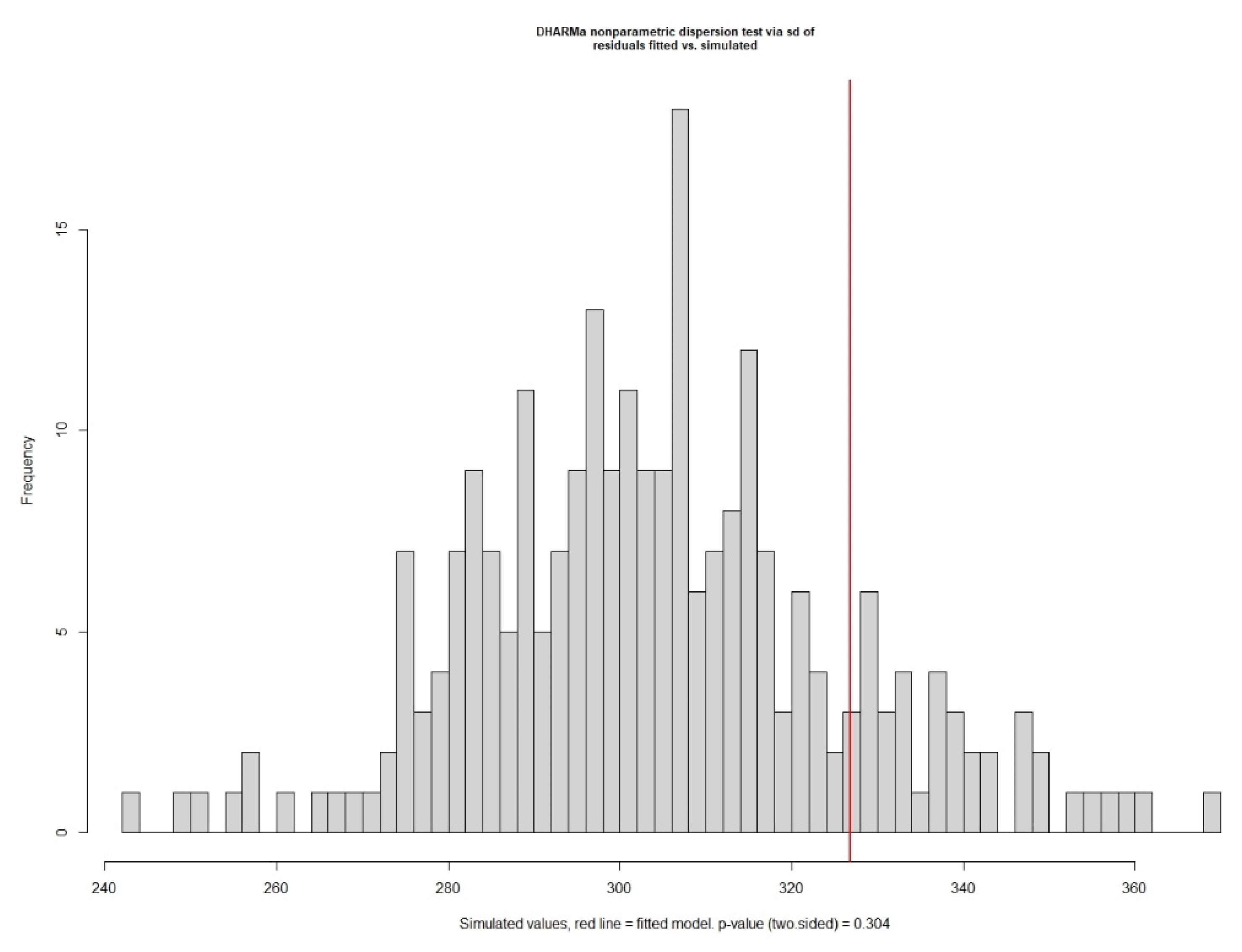

**Figure A7.**Over-dispersion plot for kolk-boil area model. Given the fitted model (red line) is within the simulated values there was no dispersion.

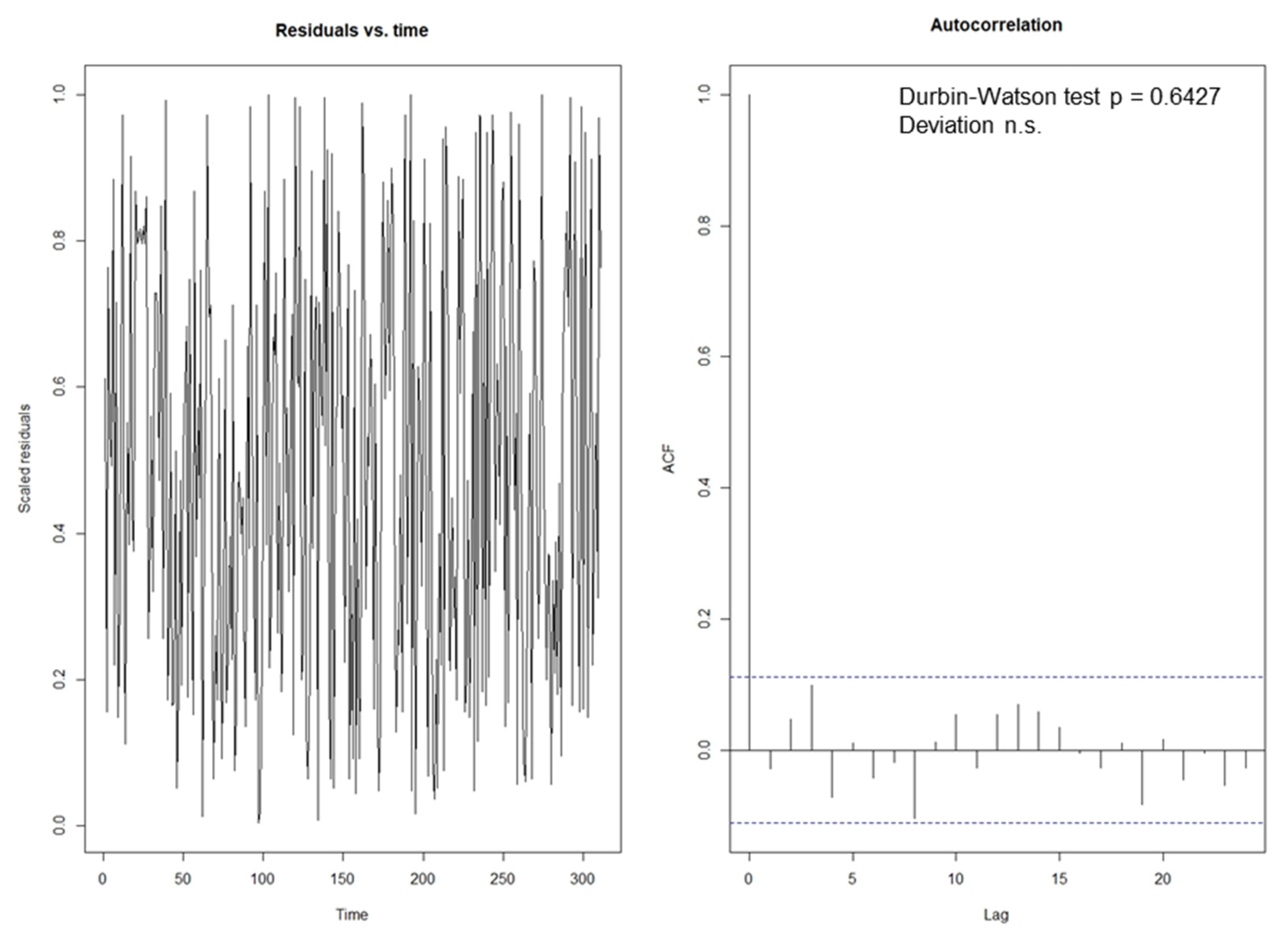

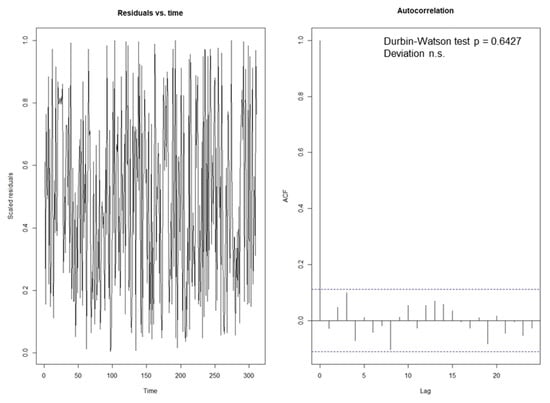

**Figure A8.**Residual vs. time and autocorrelation function (ACF) plots for kolk-boil area. No temporal correlation is observed.

## References

- Committee on Climate Change Net Zero: The UK’s Contribution to Stopping Global Warming. Available online: https://www.theccc.org.uk/publication/net-zero-the-uks-contribution-to-stopping-global-warming/ (accessed on 18 August 2020).
- Roche, R.C.; Walker-Springett, K.; Robins, P.E.; Jones, J.; Veneruso, G.; Whitton, T.A.; Piano, M.; Ward, S.L.; Duce, C.E.; Waggitt, J.J.; et al. Research priorities for assessing potential impacts of emerging marine renewable energy technologies: Insights from developments in Wales (UK). Renew. Energy
**2016**, 99, 1327–1341. [Google Scholar] [CrossRef] [Green Version] - Pye, S.; Li, F.G.N.; Price, J.; Fais, B. Achieving net-zero emissions through the reframing of UK national targets in the post-Paris Agreement era. Nat. Energy
**2017**, 2, 1–7. [Google Scholar] [CrossRef] - Wang, Z.; Carriveau, R.; Ting, D.S.K.; Xiong, W.; Wang, Z. A review of marine renewable energy storage. Int. J. Energy Res.
**2019**, 43, 6108–6150. [Google Scholar] [CrossRef] - González-Gorbeña, E.; Rosman, P.C.C.; Qassim, R.Y. Assessment of the tidal current energy resource in São Marcos Bay, Brazil. J. Ocean Eng. Mar. Energy
**2015**, 1, 421–433. [Google Scholar] [CrossRef] - Nachtane, M.; Tarfaoui, M.; Goda, I.; Rouway, M. A review on the technologies, design considerations and numerical models of tidal current turbines. Renew. Energy
**2020**, 157, 1274–1288. [Google Scholar] [CrossRef] - Benjamins, S.; Van Geel, N.; Hastie, G.; Elliott, J.; Wilson, B. Harbour porpoise distribution can vary at small spatiotemporal scales in energetic habitats. Deep. Sea Res. Part II Top. Stud. Oceanogr.
**2017**, 141, 191–202. [Google Scholar] [CrossRef] [Green Version] - Benjamins, S.; Dale, A.; Hastie, G.; Waggitt, J.J.; Lea, M.-A.; Scott, B.; Wilson, B. Confusion Reigns? A Review of Marine Megafauna Interactions with Tidal-Stream Environments. Oceanogr. Mar. Biol. Annu. Rev.
**2015**, 53, 1–54. [Google Scholar] [CrossRef] - Thiébaut, M.; Filipot, J.-F.; Maisondieu, C.; Damblans, G.; Duarte, R.; Droniou, E.; Chaplain, N.; Guillou, S. A comprehensive assessment of turbulence at a tidal-stream energy site influenced by wind-generated ocean waves. Energy
**2020**, 191, 116550. [Google Scholar] [CrossRef] - Ikhennicheu, M.; Germain, G.; Druault, P.; Gaurier, B. Experimental study of coherent flow structures past a wall-mounted square cylinder. Ocean Eng.
**2019**, 182, 137–146. [Google Scholar] [CrossRef] - Sentchev, A.; Thiébaut, M.; Schmitt, F.G. Impact of turbulence on power production by a free-stream tidal turbine in real sea conditions. Renew. Energy
**2020**, 147, 1932–1940. [Google Scholar] [CrossRef] - Whitton, T.A.; Jackson, S.E.; Hiddink, J.G.; Scoulding, B.; Bowers, D.; Powell, B.; D’Urban Jackson, T.; Gimenez, L.; Davies, A.G. Vertical migrations of fish schools determine overlap with a mobile tidal stream marine renewable energy device. J. Appl. Ecol.
**2020**, 57, 729–741. [Google Scholar] [CrossRef] - Williamson, B.; Fraser, S.; Williamson, L.; Nikora, V.; Scott, B. Predictable changes in fish school characteristics due to a tidal turbine support structure. Renew. Energy
**2019**, 141, 1092–1102. [Google Scholar] [CrossRef] - Dufaur, J. Characteristics of the turbulent flow in the Inner Sound, tidal development site in the Pentland Firth, Scotland. Master’s Thesis, University of Aberdeen, Aberdeen, Scotland, 2016. [Google Scholar]
- Matthes, G.H. Macroturbulence in natural stream flow. Trans. Am. Geophys. Union
**1947**, 28, 255–265. [Google Scholar] [CrossRef] - Ikhennicheu, M.; Druault, P.; Gaurier, B.; Germain, G. An experimental study of bathymetry influence on turbulence at a tidal stream site. In Proceedings of the 12th European Wave and Tidal Energy Conference, Cork, Ireland, 27 August–1 September 2017. [Google Scholar]
- Müller, A.; Gyr, A. On the vortex formation in the mixing layer behind dunes. J. Hydraul. Res.
**1986**, 24, 359–375. [Google Scholar] [CrossRef] - Thorpe, S.A.; Green, J.A.M.; Simpson, J.H.; Osborn, T.R.; Nimmo Smith, W.A.M. Boils and Turbulence in a Weakly Stratified Shallow Tidal Sea. J. Phys. Oceanogr.
**2008**, 38, 1711–1730. [Google Scholar] [CrossRef] - Best, J.L. Kinematics, Topology and Significance of Dune-Related Macroturbulence: Some Observations from the Laboratory and Field. Fluv. Sedimentol. VII
**2009**, 35, 41–60. [Google Scholar] [CrossRef] - Best, J. The fluid dynamics of river dunes: A review and some future research directions. J. Geophys. Res. Earth Surf.
**2005**, 110, 1–21. [Google Scholar] [CrossRef] - Sellar, B.; Harding, S.; Richmond, M. High-resolution velocimetry in energetic tidal currents using a convergent-beam acoustic Doppler profiler. Meas. Sci. Technol.
**2015**, 26, 085801. [Google Scholar] [CrossRef] - Nimmo Smith, W.A.M.; Thorpe, S.A.; Graham, A. Surface effects of bottom-generated turbulence in a shallow tidal sea. Nature
**1999**, 400, 251–254. [Google Scholar] [CrossRef] - Kregting, L.; Elsaesser, B.; Kennedy, R.; Smyth, D.; O’Carroll, J.; Savidge, G. Do Changes in Current Flow as a Result of Arrays of Tidal Turbines Have an Effect on Benthic Communities? PLoS ONE
**2016**, 11, e0161279. [Google Scholar] [CrossRef] [Green Version] - Marmorino, G.O.; Smith, G.B.; Miller, W.D. Turbulence characteristics inferred from time-lagged satellite imagery of surface algae in a shallow tidal sea. Cont. Shelf Res.
**2017**, 148, 178–184. [Google Scholar] [CrossRef] - Chickadel, C.C.; Horner-Devine, A.R.; Talke, S.A.; Jessup, A.T. Vertical boil propagation from a submerged estuarine sill. Geophys. Res. Lett.
**2009**, 36, 1–6. [Google Scholar] [CrossRef] [Green Version] - Easton, M.C.; Woolf, D.K.; Bowyer, P.A. The dynamics of an energetic tidal channel, the Pentland Firth, Scotland. Cont. Shelf Res.
**2012**, 48, 50–60. [Google Scholar] [CrossRef] - Waldman, S.; Bastón, S.; Nemalidinne, R.; Chatzirodou, A.; Venugopal, V.; Side, J. Implementation of tidal turbines in MIKE 3 and Delft3D models of Pentland Firth & Orkney Waters. Ocean Coast. Manag.
**2017**, 147, 21–36. [Google Scholar] [CrossRef] [Green Version] - Neill, S.P.; Vögler, A.; Goward-Brown, A.J.; Baston, S.; Lewis, M.J.; Gillibrand, P.A.; Waldman, S.; Woolf, D.K. The wave and tidal resource of Scotland. Renew. Energy
**2017**, 114, 3–17. [Google Scholar] [CrossRef] - Wang, T.; Adcock, T.A. Power and thrust capping of tidal stream turbines—A case study of the pentland firth. In Proceedings of the International Conference on Offshore Mechanics and Arctic Engineering—OMAE; American Society of Mechanical Engineers: New York, NY, USA, 2018; Volume 10. [Google Scholar]
- Goddijn-Murphy, L.; Woolf, D.K.; Easton, M.C. Current Patterns in the Inner Sound (Pentland Firth) from Underway ADCP Data. J. Atmos. Ocean. Technol.
**2013**, 30, 96–111. [Google Scholar] [CrossRef] - Rajgor, G. Tidal developments power forward. Renew. Energy Focus
**2016**, 17, 147–149. [Google Scholar] [CrossRef] - Policy and Innovation Group UK Ocean Energy Review 2019. Available online: http://www.policyandinnovationedinburgh.org/uploads/3/1/4/1/31417803/policy_and_innovation_group_uk_oceanenergy_review_2019._final.pdf (accessed on 18 August 2020).
- SIMEC MeyGen|Tidal Projects|SIMEC Atlantis Energy. Available online: https://simecatlantis.com/projects/meygen/ (accessed on 17 July 2020).
- Griffiths, T.; Draper, S.; Cheng, L.; Tong, F.; Fogliani, A.; White, D.; Johnson, F.; Coles, D.; Ingham, S.; Lourie, C. Subsea Cable Stability on Rocky Seabeds: Comparison of Field Observations Against Conventional and Novel Design Methods. In Proceedings of the International Conference on Offshore Mechanics and Arctic Engineering—OMAE, New York, NY, USA, 30 December 2018; American Society of Mechanical Engineers: New York, NY, USA, 2018; Volume 5. [Google Scholar]
- Colefax, A.P.; Butcher, P.A.; Kelaher, B.P. The potential for unmanned aerial vehicles (UAVs) to conduct marine fauna surveys in place of manned aircraft. ICES J. Mar. Sci.
**2018**, 75, 1–8. [Google Scholar] [CrossRef] - Hodgson, J.C.; Koh, L.P. Best practice for minimising unmanned aerial vehicle disturbance to wildlife in biological field research. Curr. Biol.
**2016**, 26, R404–R405. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Civil Aviation Authority UK CAA Drone Code. Available online: https://dronesafe.uk/wp-content/uploads/2019/11/Drone-Code_October2019.pdf (accessed on 18 August 2020).
- DJI. DJI Phantom 4 Pro—Specs, Tutorials & Guides—DJI. Available online: https://www.dji.com/uk/phantom-4-pro/info#specs (accessed on 17 July 2020).
- Longuet-Higgins, M.S. Surface manifestations of turbulent flow. J. Fluid Mech.
**1996**, 308, 15–29. [Google Scholar] [CrossRef] - McIlvenny, J.; Williamson, B.J.; MacDowall, C.; Gleizon, P.; O’Hara Murray, R. Modelling hydrodynamics of fast tidal stream around a promontory headland. 2021; in review. [Google Scholar]
- Zamon, J.E. Mixed species aggregations feeding upon herring and sandlance schools in a nearshore archipelago depend on flooding tidal currents. Mar. Ecol. Prog. Ser.
**2003**, 261, 243–255. [Google Scholar] [CrossRef] - QGIS 23.2.1. Raster Analysis—QGIS Documentation. Available online: https://docs.qgis.org/3.10/en/docs/user_manual/processing_algs/gdal/rasteranalysis.html?highlight=roughness#roughness (accessed on 18 August 2020).
- Wood, S.N. Fast stable restricted maximum likelihood and marginal likelihood estimation of semiparametric generalized linear models. J. R. Stat. Soc. Ser. B Stat. Methodol.
**2010**, 73, 3–36. [Google Scholar] [CrossRef] [Green Version] - Pedersen, E.J.; Miller, D.L.; Simpson, G.L.; Ross, N. Hierarchical generalized additive models in ecology: An introduction with mgcv. PeerJ
**2019**, 7, e6876. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Marra, G.; Wood, S.N. Practical variable selection for generalized additive models. Comput. Stat. Data Anal.
**2011**, 55, 2372–2387. [Google Scholar] [CrossRef] - Kadota, A.; Nezu, I. Three-dimensional structure of space-time correlation on coherent vortices generated behind dune crest. J. Hydraul. Res.
**1999**, 37, 59–80. [Google Scholar] [CrossRef] - Stoesser, T.; Braun, C.; García-Villalba, M.; Rodi, W. Turbulence Structures in Flow over Two-Dimensional Dunes. J. Hydraul. Eng.
**2008**, 134, 42–55. [Google Scholar] [CrossRef] - Nezu, I.; Tominaga, A.; Nakagawa, H. Field Measurements of Secondary Currents in Straight Rivers. J. Hydraul. Eng.
**1993**, 119, 598–614. [Google Scholar] [CrossRef] - Kwoll, E.; Venditti, J.G.; Bradley, R.W.; Winter, C. Observations of Coherent Flow Structures Over Subaqueous High- and Low- Angle Dunes. J. Geophys. Res. Earth Surf.
**2017**, 122, 2244–2268. [Google Scholar] [CrossRef] - Kostaschuk, R.A.; Church, M.A. Macroturbulence generated by dunes: Fraser River, Canada. Sediment. Geol.
**1993**, 85, 25–37. [Google Scholar] [CrossRef] - Ikhennicheu, M.; Gaurier, B.; Druault, P.; Germain, G. Experimental analysis of the floor inclination effect on the turbulent wake developing behind a wall mounted cube. Eur. J. Mech. B/Fluids
**2018**, 72, 340–352. [Google Scholar] [CrossRef] [Green Version] - Mao, Y. The effects of turbulent bursting on the sediment movement in suspension. Int. J. Sediment Res.
**2003**, 18, 148–157. [Google Scholar] - Mercier, P.; Grondeau, M.; Guillou, S.; Thiébot, J.; Poizot, E. Numerical study of the turbulent eddies generated by the seabed roughness. Case study at a tidal power site. Appl. Ocean Res.
**2020**, 97, 102082. [Google Scholar] [CrossRef] - Blackmore, T.; Myers, L.E.; Bahaj, A.S. Effects of turbulence on tidal turbines: Implications to performance, blade loads, and condition monitoring. Int. J. Mar. Energy
**2016**, 14, 1–26. [Google Scholar] [CrossRef] [Green Version] - Osalusi, E.; Side, J.; Harris, R. Structure of turbulent flow in EMEC’s tidal energy test site. Int. Commun. Heat Mass Transf.
**2009**, 36, 422–431. [Google Scholar] [CrossRef] - Scherelis, C.; Penesis, I.; Hemer, M.A.; Cossu, R.; Wright, J.T.; Guihen, D. Investigating biophysical linkages at tidal energy candidate sites: A case study for combining environmental assessment and resource characterisation. Renew. Energy
**2020**, 159, 399–413. [Google Scholar] [CrossRef] - Shields, M.A.; Woolf, D.K.; Grist, E.P.; Kerr, S.A.; Jackson, A.C.; Harris, R.E.; Bell, M.C.; Beharie, R.; Want, A.; Osalusi, E.; et al. Marine renewable energy: The ecological implications of altering the hydrodynamics of the marine environment. Ocean Coast. Manag.
**2011**, 54, 2–9. [Google Scholar] [CrossRef] - Waggitt, J.J.; Scott, B.E. Using a spatial overlap approach to estimate the risk of collisions between deep diving seabirds and tidal stream turbines: A review of potential methods and approaches. Mar. Policy
**2014**, 44, 90–97. [Google Scholar] [CrossRef] [Green Version] - Isaksson, N.; Masden, E.A.; Williamson, B.J.; Costagliola-Ray, M.M.; Slingsby, J.; Houghton, J.D.R.; Wilson, J. Assessing the effects of tidal stream marine renewable energy on seabirds: A conceptual framework. Mar. Pollut. Bull.
**2020**, 157, 111314. [Google Scholar] [CrossRef] - Johnston, D.T.; Furness, R.W.; Robbins, A.M.C.; Tyler, G.; Taggart, M.A.; Masden, E.A. Black guillemot ecology in relation to tidal stream energy generation: An evaluation of current knowledge and information gaps. Mar. Environ. Res.
**2018**, 134, 121–129. [Google Scholar] [CrossRef] - Williamson, B.J.; Fraser, S.; Blondel, P.; Bell, P.S.; Waggitt, J.J.; Scott, B.E. Multisensor Acoustic Tracking of Fish and Seabird Behavior around Tidal Turbine Structures in Scotland. IEEE J. Ocean. Eng.
**2017**, 42, 948–965. [Google Scholar] [CrossRef] [Green Version]

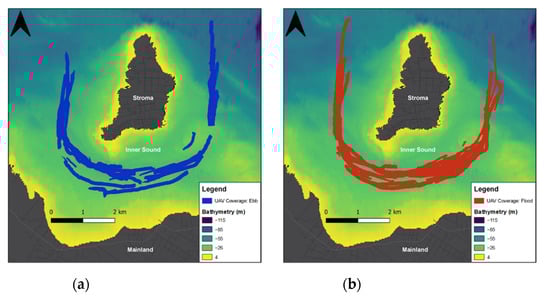

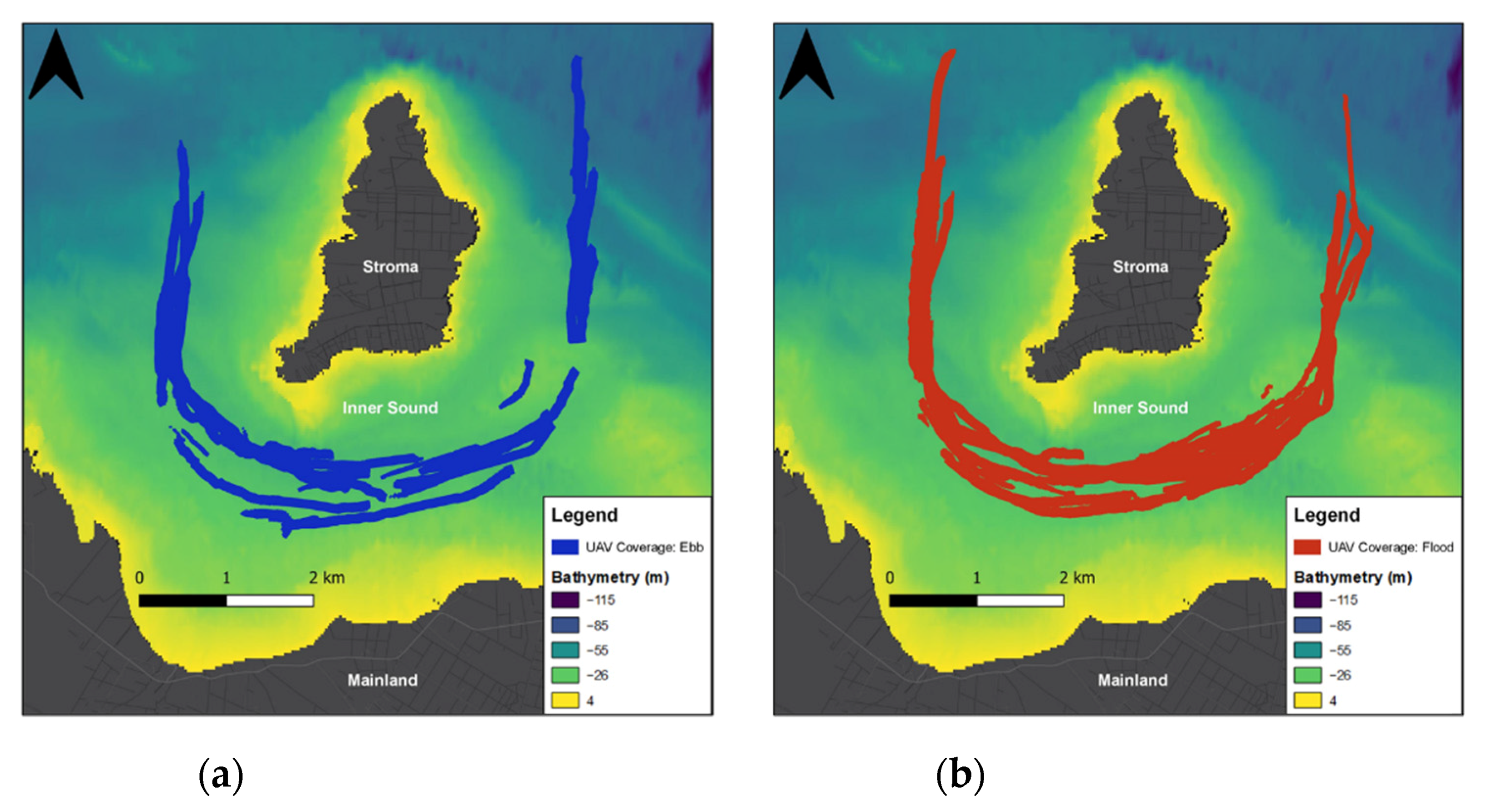

**Figure 4.**UAV coverage, over ground, of surveys split across (

**a**) ebb and (

**b**) flood tidal phases for 2016 and 2018 combined.

**Figure 5.**Example kolk-boils from UAV imagery and the difference between “formed” and un-formed” categorisations, with the red line indicating the visible part of the boil perimeter.

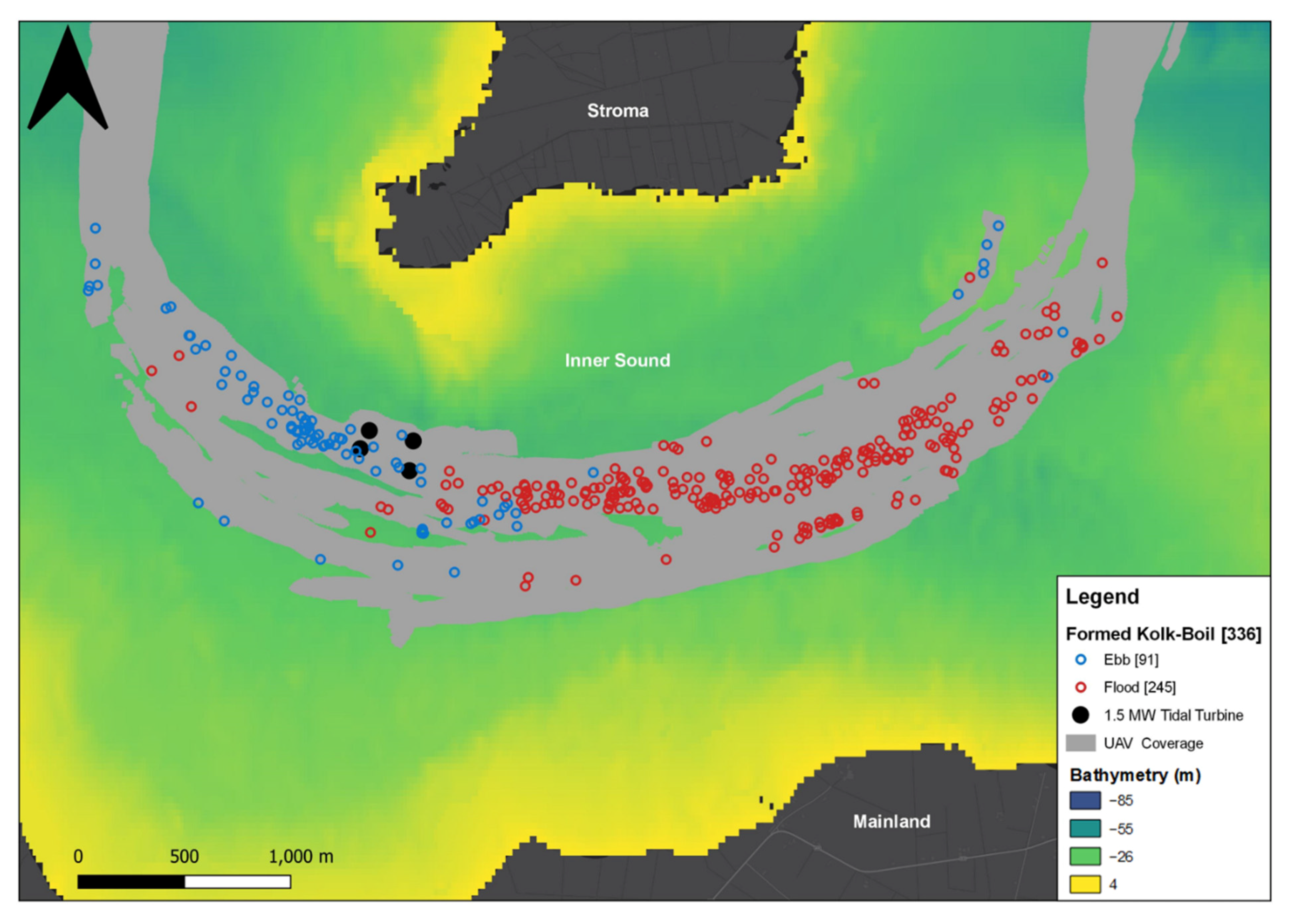

**Figure 6.**The distribution of formed kolk-boils, based on tidal phase, within the Inner Sound from 2016 and 2018 combined. Flood tidal flow is in an easterly direction, ebb flow in a westerly direction. Grey shaded area represents UAV coverage over ground, with black dots highlighting tidal turbine positions.

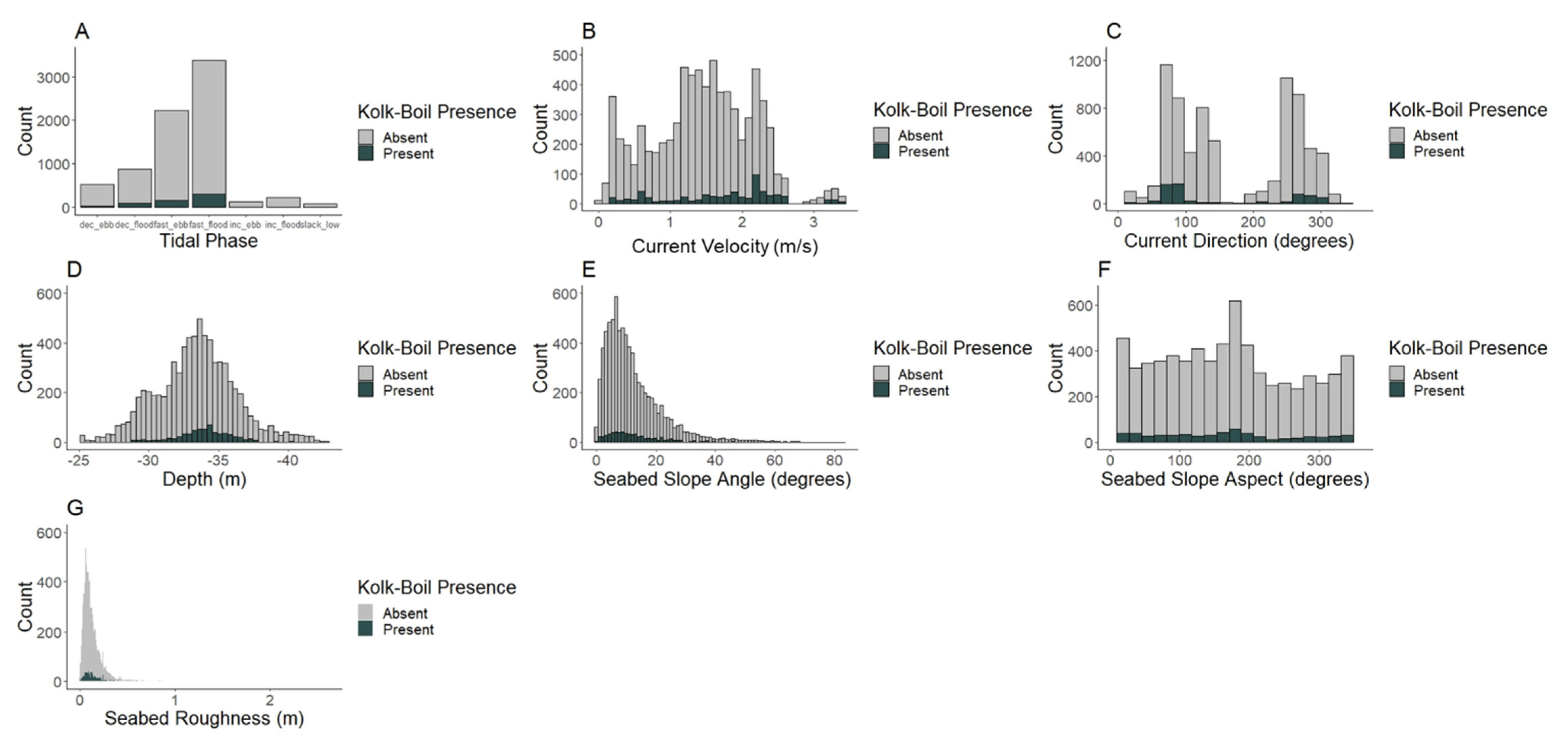

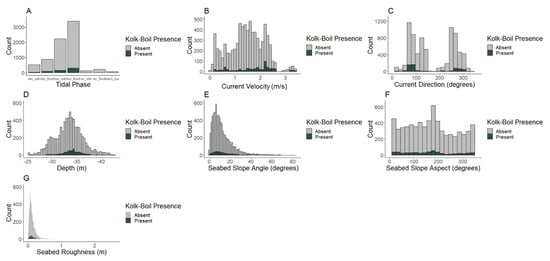

**Figure 7.**Cumulative counts of kolk-boil presence (an image with a kolk-boil in it) and absence (an image without a kolk-boil in it) in relation to tidal phase (

**A**), current velocity (

**B**), current direction (

**C**), depth (

**D**), seabed slope angle (

**E**), seabed slope aspect (

**F**) and seabed roughness (

**G**). Bars for kolk-boil presence (green) and absence (grey) are stacked.

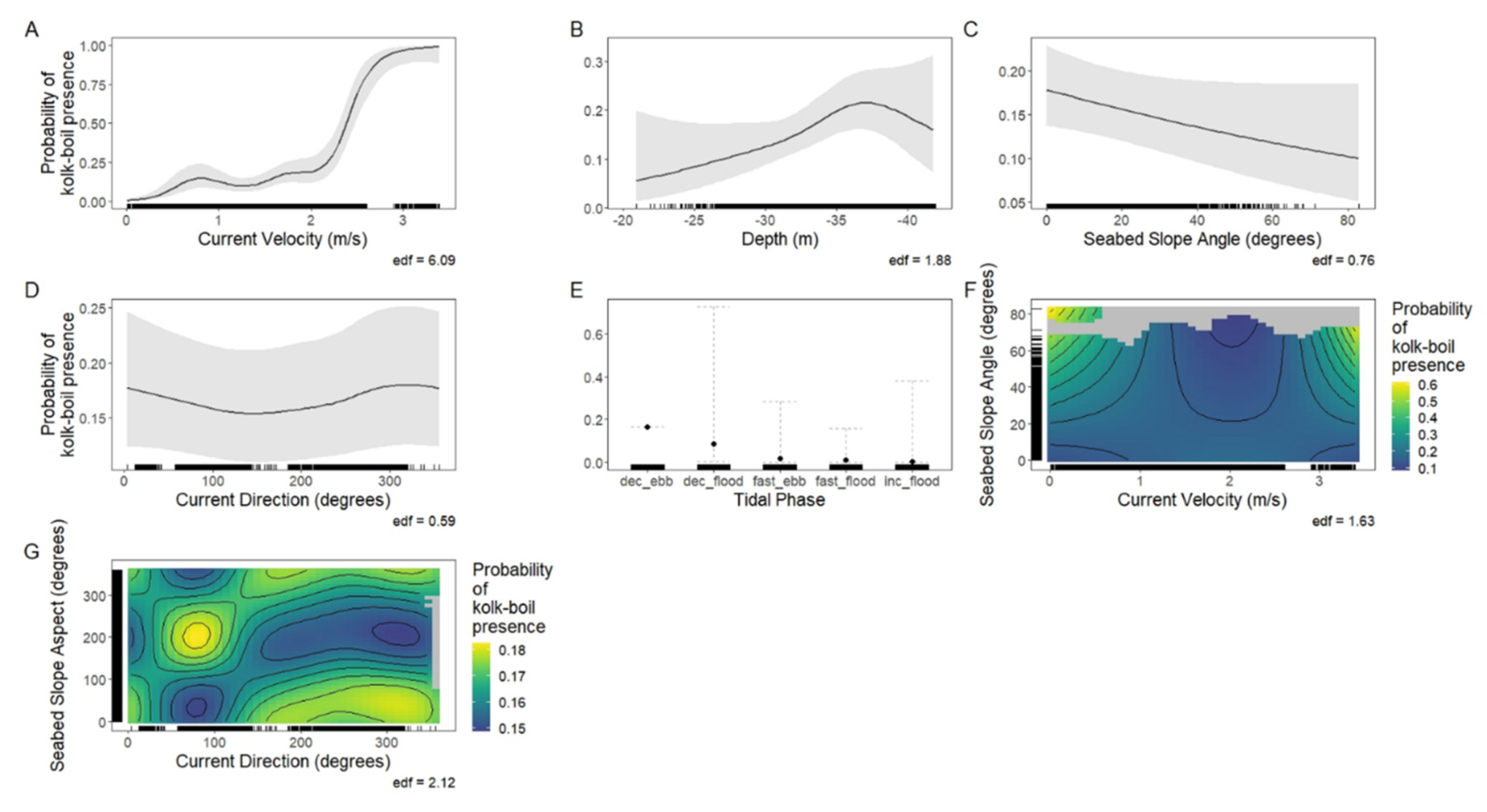

**Figure 8.**GAM relationships for kolk-boil presence are shown. (
