# Particle-Swarm-Optimization-Enhanced Radial-Basis-Function-Kernel-Based Adaptive Filtering Applied to Maritime Data

^{1}

^{2}

^{3}

^{4}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Materials and Methods

#### 2.1. The RBF-Kernel-Based Adaptive Filtering

#### 2.2. The Evolutionary Metaheuristic Optimization Algorithms

#### 2.2.1. Traditional PSO Algorithm

#### 2.2.2. Enhanced Partial Search Particle Swarm Optimization (EPS-PSO) Algorithm

#### 2.2.3. Multiswarm Particle Swarm Optimization (MSPSO)

#### 2.2.4. Genetic Algorithm (GA)

## 3. Results and Discussion

#### 3.1. Simulation Results

#### 3.1.1. Blocks Signal

#### 3.1.2. Bumps Signal

#### 3.1.3. Doppler Signal

#### 3.1.4. HeaviSine Signal

#### 3.1.5. Piece-Regular Signal

#### 3.1.6. Sing Signal

#### 3.1.7. Parameters Sensitivity

#### 3.1.8. Effects of the Signal Length

#### 3.2. Parameters Optimization

#### 3.3. Experimental Results for Real-Life Signals

## 4. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## Appendix A

Algorithm A1 PSO algorithm-general |

Require:$s,MaxIt,{w}_{min},{w}_{max},{c}_{1},{c}_{2}$Ensure:${p}_{g}$1: Initialization:2: for$i\leftarrow 1$tosdo3: Initialize position ${x}_{i}$, velocity ${v}_{i}$ and particle’s personal best ${p}_{i}$; 4: Perform the function evaluation $f\left({x}_{i}\right)$; 5: ${p}_{i}\leftarrow {x}_{i};$ 6: if $f\left({p}_{i}\right)<f\left({p}_{g}\right)$ then7: ${p}_{g}\leftarrow {p}_{i}$; 8: end if9: end for10: Main loop:11: for $it\leftarrow 1$ to $MaxIt$ do12: (17); 13: for $i\leftarrow 1$ to s do14: (15), (16); 15: Perform the function evaluation $f\left({x}_{i}\right)$; 16: if $f\left({x}_{i}\right)<f\left({p}_{i}\right)$ then17: ${p}_{i}\leftarrow {x}_{i}$; 18: end if19: if $f\left({p}_{i}\right)<f\left({p}_{g}\right)$ then20: ${p}_{g}\leftarrow {p}_{i}$; 21: end if22: end for23: end for |

Algorithm A2 EPS-PSO algorithm-general |

Require:$s,MaxIt,{w}_{min},{w}_{max},{c}_{1},{c}_{2},{t}_{g}$Ensure:${p}_{T-g}$1: Initialization:2: for each particle in both swarms do3: Initialize position ${x}_{i}$, velocity ${v}_{i}$ and particle’s personal best ${p}_{i}$; 4: Perform the function evaluation $f\left({x}_{i}\right)$; 5: ${p}_{i}\leftarrow {x}_{i};$ 6: if $f\left({p}_{i}\right)<f\left({p}_{g}\right)$ then7: ${p}_{g}\leftarrow {p}_{i}$; 8: end if9: end for10: Main loop:11: for $it\leftarrow 1$ to $MaxIt$ do12: (17); 13: for each particle in both swarms do14: (15), (16); 15: Perform the function evaluation $f\left({x}_{i}\right)$; 16: if the criterion of the reinitialization period ${t}_{g}$ for the cosearch swarm is met then17: for each particle in the cosearch swarm do18: Reinitialize position ${x}_{i}$, velocity ${v}_{i}$ and particle’s personal best ${p}_{i}$; 19: Perform the evaluation $f\left({x}_{i}\right)$; 20: if $f\left({p}_{CO-g}\right)<f\left({p}_{T-g}\right)$ then21: ${p}_{T-g}\leftarrow {p}_{CO-g}$; 22: end if23: end for24: end if25: end for26: end for |

Algorithm A3 MSPSO algorithm-general |

Require:$s,nSwarm,MaxIt,{w}_{min},{w}_{max},{c}_{1},{c}_{2}$Ensure:${p}_{g}$1: Initialization:2: for$j\leftarrow 1$ to $nSwarm$ do3: for $i\leftarrow 1$ to s do4: Initialize position ${x}_{i,j}$, velocity ${v}_{i,j}$ and particle’s personal best ${p}_{i,j}$ 5: Perform the function evaluation $f\left({x}_{i,j}\right)$ 6: ${p}_{i,j}\leftarrow {x}_{i,j}$; 7: if $f\left({p}_{i,j}\right)<f\left({p}_{g,j}\right)$ then8: ${p}_{g,j}\leftarrow {p}_{i,j}$; 9: end if10: end for11: end for12: Main loop:13: for $it\leftarrow 1$ to $MaxIt$ do14: (17); 15: for $j\leftarrow 1$ to $nSwarm$ do16: for $i\leftarrow 1$ to s do17: (15), (16); 18: Perform the function evaluation $f\left({x}_{i,j}\right)$ 19: if $f\left({x}_{i,j}\right)<f\left({p}_{i,j}\right)$ then20: ${p}_{i,j}\leftarrow {x}_{i,j}$; 21: end if22: if $f\left({p}_{i,j}\right)<f\left({p}_{g,j}\right)$ then23: ${p}_{g,j}\leftarrow {p}_{i,j}$; 24: end if25: end for26: end for27: ${p}_{g}\leftarrow \mathrm{min}\left({p}_{g,j}\right)$ 28: end for |

Algorithm A4 GA algorithm-general |

Require: $s,MaxIt,{p}_{c},{p}_{m}$Ensure:${p}_{g}$1: Initialization:2: for$i\leftarrow 1$tosdo3: Initialize position ${x}_{i}$, velocity ${v}_{i}$ and particle’s personal best ${p}_{i}$ 4: Perform the function evaluation $f\left({x}_{i}\right)$ 5: end for6:Sort population in descending order; 7:${p}_{g}\leftarrow population\left(1\right)$; 8: Main loop:9: for $it\leftarrow 1$ to $MaxIt$ do10: for $j\leftarrow 1$ to ${n}_{c}/2$ do11: Compute crossovers and form new subpopulation; 12: end for13: for $j\leftarrow 1$ to ${n}_{m}$ do14: Compute mutation and form new subpopulation; 15: end for16: Create merged population; 17: Sort population in descending order; 18: Truncate population to s best performing particles; 19: ${p}_{g}\leftarrow population\left(1\right)$; 20: end for |

## References

- Broomhead, D.; King, G.P. Extracting qualitative dynamics from experimental data. Phys. D Nonlinear Phenom.
**1986**, 20, 217–236. [Google Scholar] [CrossRef] - Smyth, A.; Wu, M. Multi-rate Kalman filtering for the data fusion of displacement and acceleration response measurements in dynamic system monitoring. Mech. Syst. Signal Process.
**2007**, 21, 706–723. [Google Scholar] [CrossRef] - Knowles, I.; Renka, R.J. Methods for numerical differentiation of noisy data. Electron. J. Diff. Eqns.
**2014**, 21, 235–246. [Google Scholar] - Layden, D.; Cappellaro, P. Spatial noise filtering through error correction for quantum sensing. Npj Quantum Inf.
**2018**, 4, 1–6. [Google Scholar] [CrossRef] [Green Version] - García-Gil, D.; Luengo, J.; García, S.; Herrera, F. Enabling Smart Data: Noise filtering in Big Data classification. Inf. Sci.
**2019**, 479, 135–152. [Google Scholar] [CrossRef] - Li, H.; Gedikli, E.D.; Lubbad, R. Exploring time-delay-based numerical differentiation using principal component analysis. Phys. A Stat. Mech. Its Appl.
**2020**, 556, 124839. [Google Scholar] [CrossRef] - Zhao, Z.; Wang, S.; Wong, D.; Sun, C.; Yan, R.; Chen, X. Robust enhanced trend filtering with unknown noise. Signal Process.
**2021**, 180, 107889. [Google Scholar] [CrossRef] - Ehlers, F.; Fox, W.; Maiwald, D.; Ulmke, M.; Wood, G. Advances in Signal Processing for Maritime Applications. EURASIP J. Adv. Signal Process.
**2010**. [Google Scholar] [CrossRef] [Green Version] - Singer, A.C.; Nelson, J.K.; Kozat, S.S. Signal processing for underwater acoustic communications. IEEE Commun. Mag.
**2009**, 47, 90–96. [Google Scholar] [CrossRef] - Sazontov, A.; Malekhanov, A. Matched field signal processing in underwater sound channels. Acoust. Phys.
**2015**, 61, 213–230. [Google Scholar] [CrossRef] - Yuan, F.; Ke, X.; Cheng, E. Joint Representation and Recognition for Ship-Radiated Noise Based on Multimodal Deep Learning. J. Mar. Sci. Eng.
**2019**, 7, 380. [Google Scholar] [CrossRef] [Green Version] - Tu, Q.; Yuan, F.; Yang, W.; Cheng, E. An Approach for Diver Passive Detection Based on the Established Model of Breathing Sound Emission. J. Mar. Sci. Eng.
**2020**, 8, 44. [Google Scholar] [CrossRef] [Green Version] - Vicen-Bueno, R.; Carrasco-Álvarez, R.; Rosa-Zurera, M.; Nieto-Borge, J.C.; Jarabo-Amores, M.P. Artificial Neural Network-Based Clutter Reduction Systems for Ship Size Estimation in Maritime Radars. EURASIP J. Adv. Signal Process.
**2010**, 2010, 380473. [Google Scholar] [CrossRef] [Green Version] - Ristic, B.; Rosenberg, L.; Kim, D.Y.; Guan, R. Bernoulli filter for tracking maritime targets using point measurements with amplitude. Signal Process.
**2021**, 181, 107919. [Google Scholar] [CrossRef] - Schettini, R.; Corchs, S. Underwater Image Processing: State of the Art of Restoration and Image Enhancement Methods. EURASIP J. Adv. Signal Process.
**2010**, 2010, 746052. [Google Scholar] [CrossRef] [Green Version] - Lu, H.; Li, Y.; Zhang, Y.; Chen, M.; Serikawa, S.; Kim, H. Underwater Optical Image Processing: A Comprehensive Review. Mob. Netw. Appl.
**2017**, 22, 1204–1211. [Google Scholar] [CrossRef] - Huang, Y.; Li, W.; Yuan, F. Speckle Noise Reduction in Sonar Image Based on Adaptive Redundant Dictionary. J. Mar. Sci. Eng.
**2020**, 8, 761. [Google Scholar] [CrossRef] - Ricci, R.; Francucci, M.; De Dominicis, L.; Ferri de Collibus, M.; Fornetti, G.; Guarneri, M.; Nuvoli, M.; Paglia, E.; Bartolini, L. Techniques for Effective Optical Noise Rejection in Amplitude-Modulated Laser Optical Radars for Underwater Three-Dimensional Imaging. EURASIP J. Adv. Signal Process.
**2010**, 2010, 958360. [Google Scholar] [CrossRef] [Green Version] - Kim, K.S.; Lee, J.B.; Roh, M.I.; Han, K.M.; Lee, G.H. Prediction of Ocean Weather Based on Denoising AutoEncoder and Convolutional LSTM. J. Mar. Sci. Eng.
**2020**, 8, 805. [Google Scholar] [CrossRef] - Yuan, J.; Guo, J.; Niu, Y.; Zhu, C.; Li, Z.; Liu, X. Denoising Effect of Jason-1 Altimeter Waveforms with Singular Spectrum Analysis: A Case Study of Modelling Mean Sea Surface Height over South China Sea. J. Mar. Sci. Eng.
**2020**, 8, 426. [Google Scholar] [CrossRef] - Wei, J.; Xie, T.; Shi, M.; He, Q.; Wang, T.; Amirat, Y. Imbalance Fault Classification Based on VMD Denoising and S-LDA for Variable-Speed Marine Current Turbine. J. Mar. Sci. Eng.
**2021**, 9, 248. [Google Scholar] [CrossRef] - Katkovnik, V.; Egiazarian, K.; Astola, J. Local Approximation Techniques in Signal and Image Processing; SPIE—The International Society for Optical Engineering: Bellingham, WA, USA, 2006. [Google Scholar] [CrossRef] [Green Version]
- Goldenshluger, A.; Nemirovski, A. On spatially adaptive estimation of nonparametric regression. Math. Methods Stat.
**1997**, 6, 135–170. [Google Scholar] - Katkovnik, V. A new method for varying adaptive bandwidth selection. IEEE Trans. Signal Process.
**1999**, 47, 2567–2571. [Google Scholar] [CrossRef] [Green Version] - Katkovnik, V.; Shmulevich, I. Kernel density estimation with adaptive varying window size. Pattern Recognit. Lett.
**2002**, 23, 1641–1648. [Google Scholar] [CrossRef] - Lerga, J.; Vrankic, M.; Sucic, V. A Signal Denoising Method Based on the Improved ICI Rule. IEEE Signal Process. Lett.
**2008**, 15, 601–604. [Google Scholar] [CrossRef] - Sucic, V.; Lerga, J.; Vrankic, M. Adaptive filter support selection for signal denoising based on the improved ICI rule. Digit. Signal Process.
**2013**, 23, 65–74. [Google Scholar] [CrossRef] - Katkovnik, V. Multiresolution local polynomial regression: A new approach to pointwise spatial adaptation. Digit. Signal Process.
**2005**, 15, 73–116. [Google Scholar] [CrossRef] [Green Version] - Cai, Z. Weighted Nadaraya–Watson Regression Estimation. Stat. Probab. Lett.
**2001**, 51, 307–318. [Google Scholar] [CrossRef] - Katkovnik, V.; Egiazarian, K.; Astola, J. Adaptive window size image de-noising based on intersection of confidence intervals (ICI) rule. J. Math. Imaging Vis.
**2002**, 16, 223–235. [Google Scholar] [CrossRef] - Katkovnik, V.; Egiazarian, K.; Astola, J. Adaptive Varying Scale Methods in Image Processing; TTY Monistamo: Tampere, Finland, 2003; Volume 19. [Google Scholar]
- Lerga, J.; Sucic, V.; Sersic, D. Performance analysis of the LPA-RICI denoising method. In Proceedings of the 2009 6th International Symposium on Image and Signal Processing and Analysis, Salzburg, Austria, 16–18 September 2009; pp. 28–33. [Google Scholar] [CrossRef]
- Lopac, N.; Lerga, J.; Cuoco, E. Gravitational-Wave Burst Signals Denoising Based on the Adaptive Modification of the Intersection of Confidence Intervals Rule. Sensors
**2020**, 20, 6920. [Google Scholar] [CrossRef] - Evangeline, S.I.; Rathika, P. Particle Swarm optimization Algorithm for Optimal Power Flow Incorporating Wind Farms. In Proceedings of the 2019 IEEE International Conference on Intelligent Techniques in Control, Optimization and Signal Processing (INCOS), Tamilnadu, India, 11–13 April 2019; pp. 1–4. [Google Scholar] [CrossRef]
- Fan, S.K.S.; Jen, C.H. An Enhanced Partial Search to Particle Swarm Optimization for Unconstrained Optimization. Mathematics
**2019**, 7, 357. [Google Scholar] [CrossRef] [Green Version] - Garg, H. A hybrid PSO-GA algorithm for constrained optimization problems. Appl. Math. Comput.
**2016**, 274, 292–305. [Google Scholar] [CrossRef] - Shen, Y.; Li, Y.; Kang, H.; Zhang, Y.; Sun, X.; Chen, Q.; Peng, J.; Wang, H. Research on Swarm Size of Multi-swarm Particle Swarm Optimization Algorithm. In Proceedings of the 2018 IEEE 4th International Conference on Computer and Communications (ICCC), Chengdu, China, 7–10 December 2018; pp. 2243–2247. [Google Scholar] [CrossRef]
- Donoho, D.L.; Johnstone, I.M. Adapting to Unknown Smoothness via Wavelet Shrinkage. J. Am. Stat. Assoc.
**1995**, 90, 1200–1224. [Google Scholar] [CrossRef] - Schafer, R.W. What Is a Savitzky-Golay Filter? [Lecture Notes]. IEEE Signal Process. Mag.
**2011**, 28, 111–117. [Google Scholar] [CrossRef]

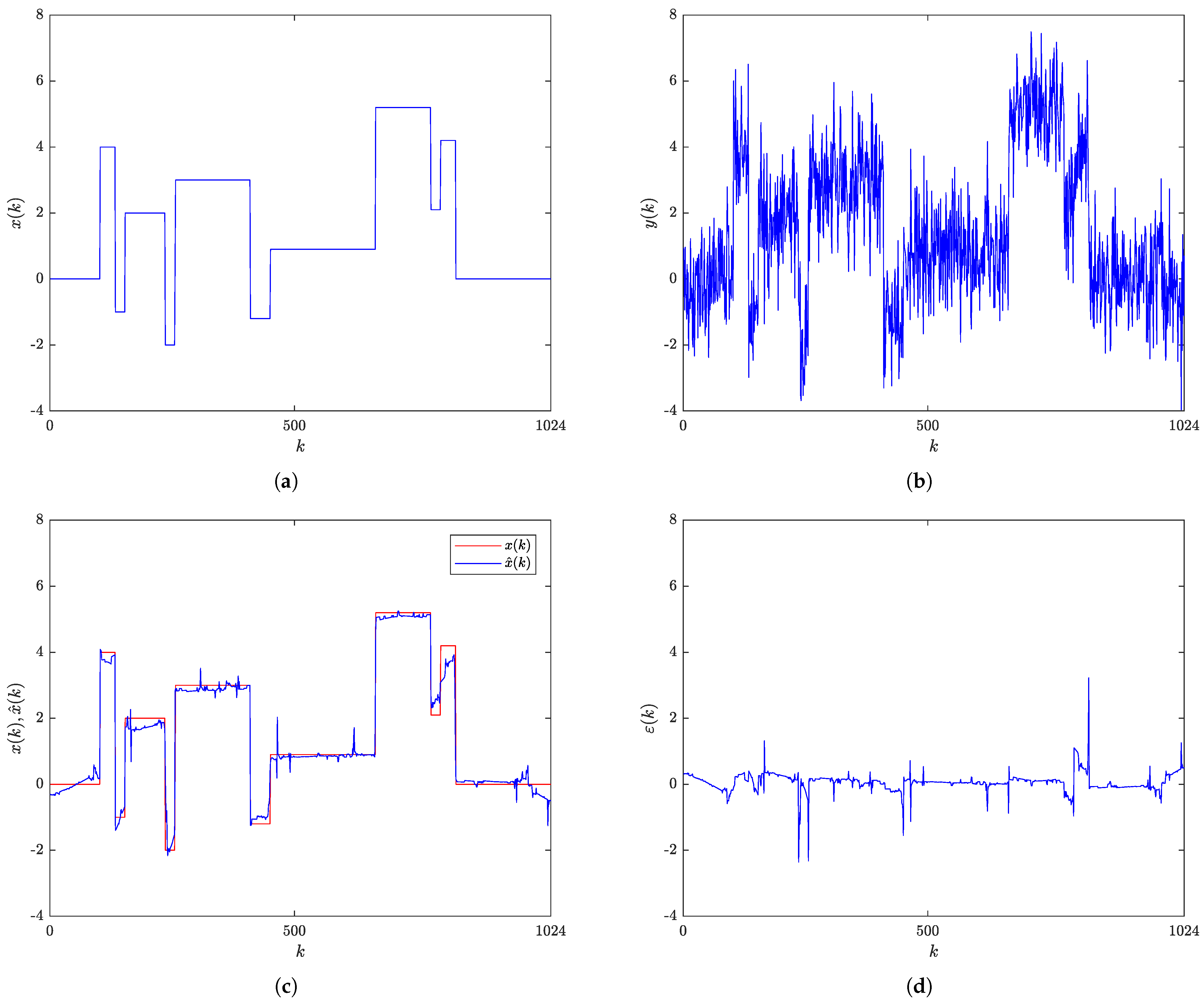

**Figure 1.**Blocks signal: (

**a**) Original signal. (

**b**) Noisy signal (SNR = 7 dB). (

**c**) Original and RBF-RICI filtered signal ($\Gamma =1.44,{R}_{c}=0.67$). (

**d**) Filtering error.

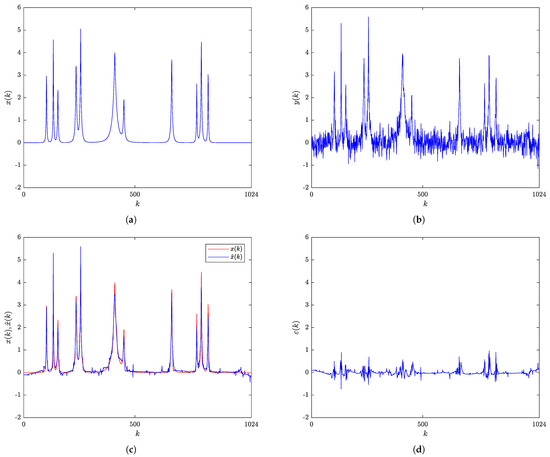

**Figure 2.**Bumps signal: (

**a**) Original signal. (

**b**) Noisy signal (SNR = 7 dB). (

**c**) Original and RBF-RICI filtered signal ($\Gamma =0.82,{R}_{c}=0.33$). (

**d**) Filtering error.

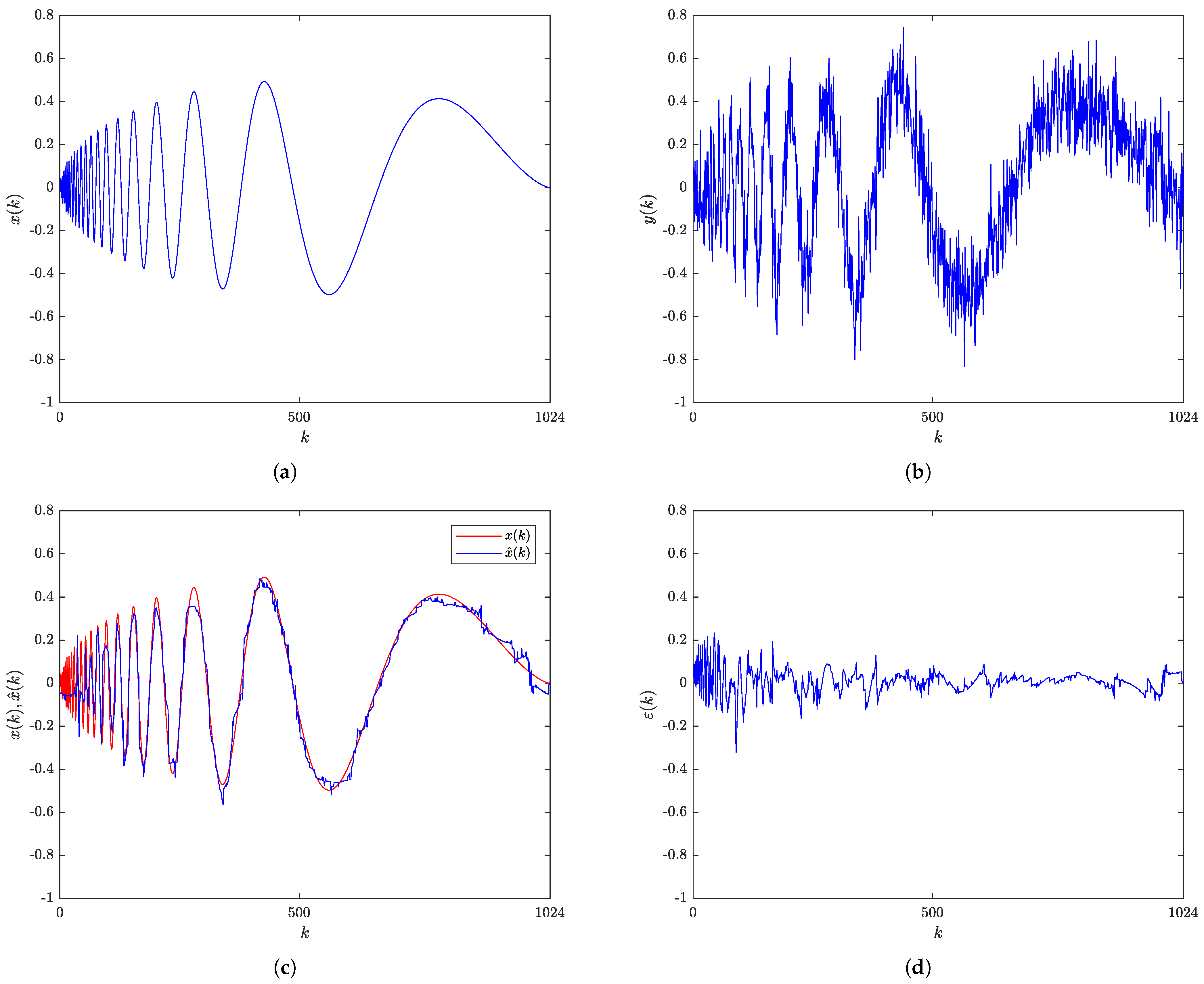

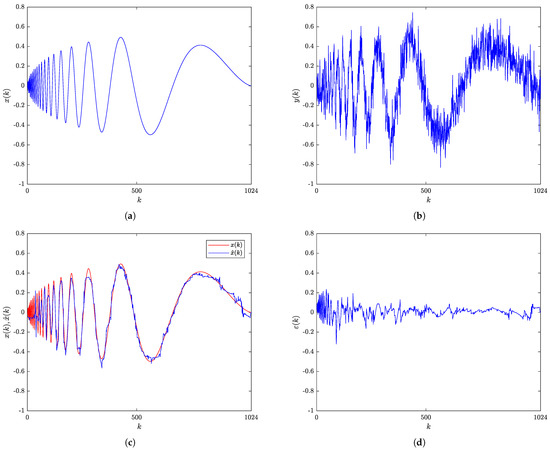

**Figure 3.**Doppler signal: (

**a**) Original signal. (

**b**) Noisy signal (SNR = 7 dB). (

**c**) Original and RBF-RICI filtered signal ($\Gamma =2.29,{R}_{c}=0.94$). (

**d**) Filtering error.

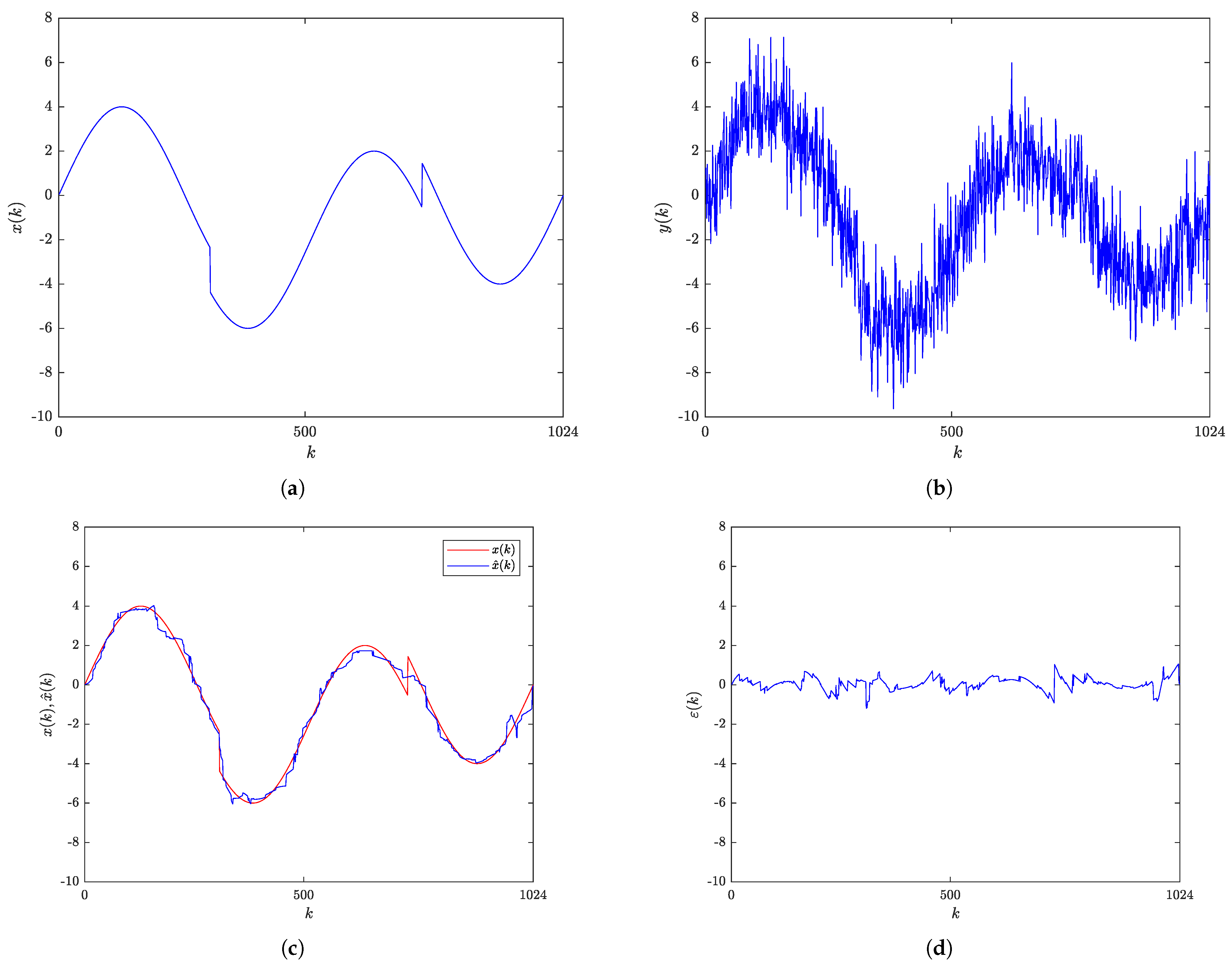

**Figure 4.**HeaviSine signal: (

**a**) Original signal. (

**b**) Noisy signal (SNR = 7 dB). (

**c**) Original and RBF-RICI filtered signal ($\Gamma =4.98,{R}_{c}=0.99$). (

**d**) Filtering error.

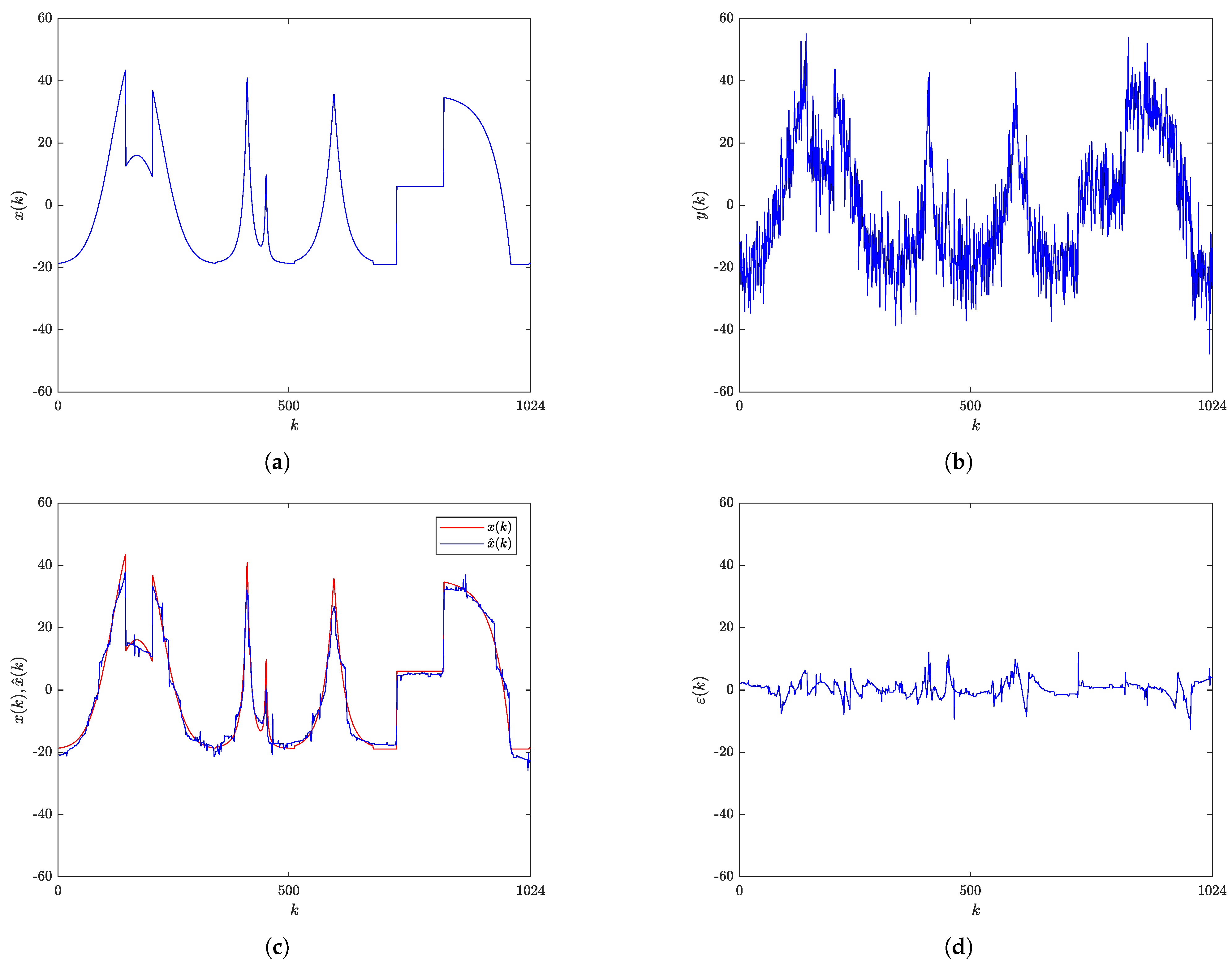

**Figure 5.**Piece-Regular signal: (

**a**) Original signal. (

**b**) Noisy signal (SNR = 7 dB). (

**c**) Original and RBF-RICI filtered signal ($\Gamma =1.44,{R}_{c}=0.81$). (

**d**) Filtering error.

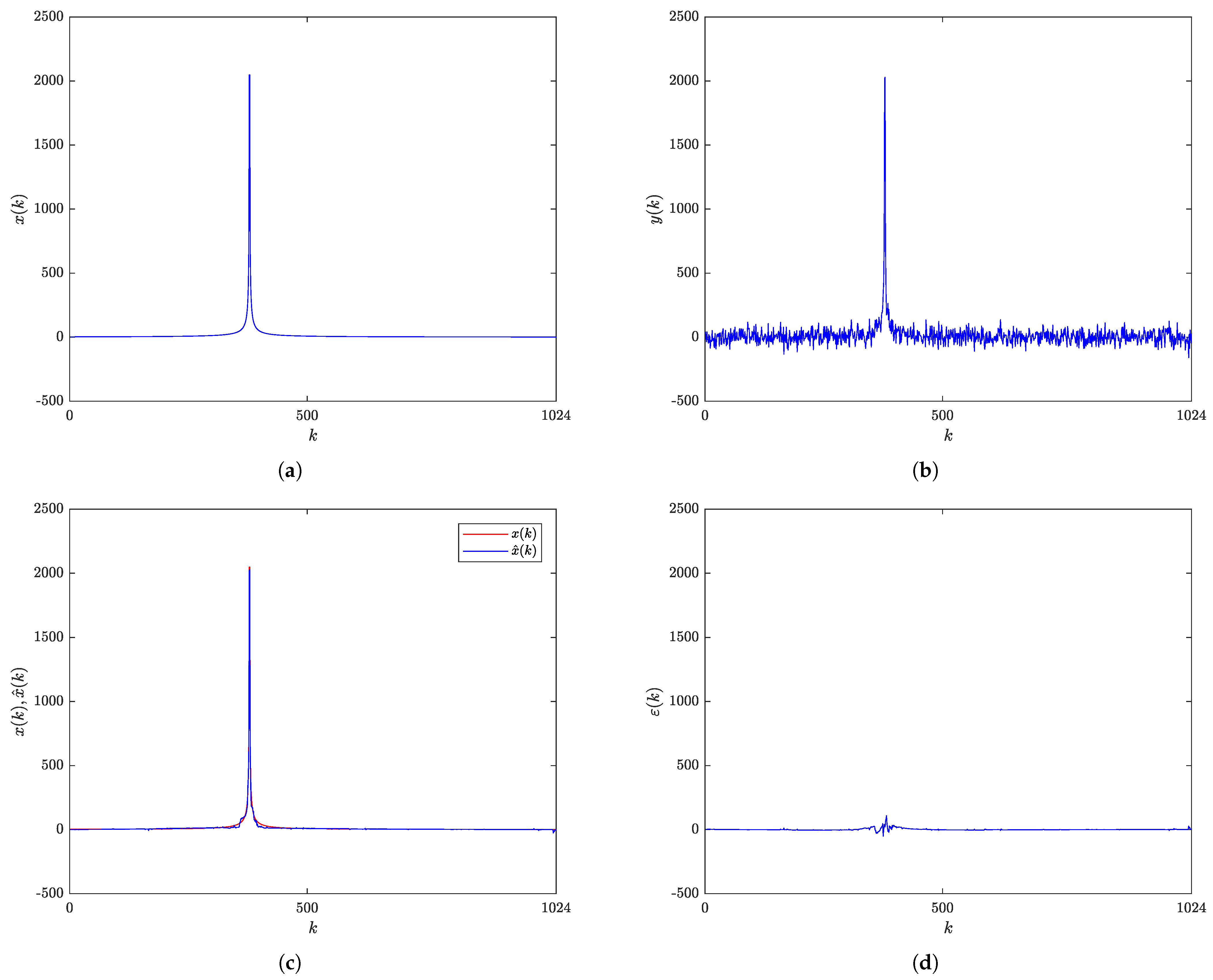

**Figure 6.**Sing signal: (

**a**) Original signal. (

**b**) Noisy signal (SNR = 7 dB). (

**c**) Original and RBF-RICI filtered signal ($\Gamma =0.99,{R}_{c}=0.01$). (

**d**) Filtering error.

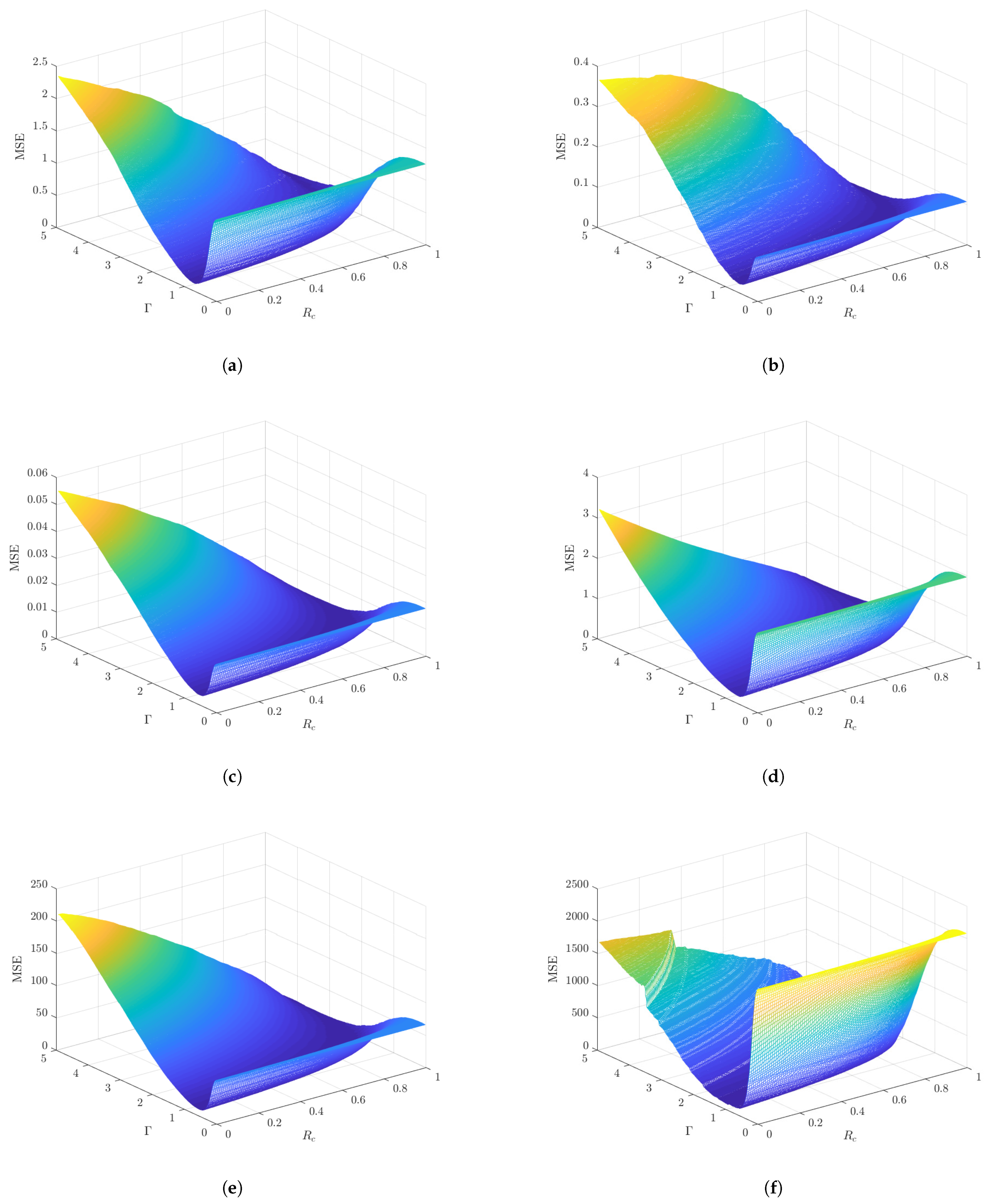

**Figure 7.**The filtering quality indicator MSE as a function of the RBF-RICI algorithm’s parameters $\Gamma $ and ${R}_{c}$ for noisy signals at 7 dB SNR: (

**a**) Blocks. (

**b**) Bumps. (

**c**) Doppler. (

**d**) HeaviSine. (

**e**) Piece-Regular. (

**f**) Sing.

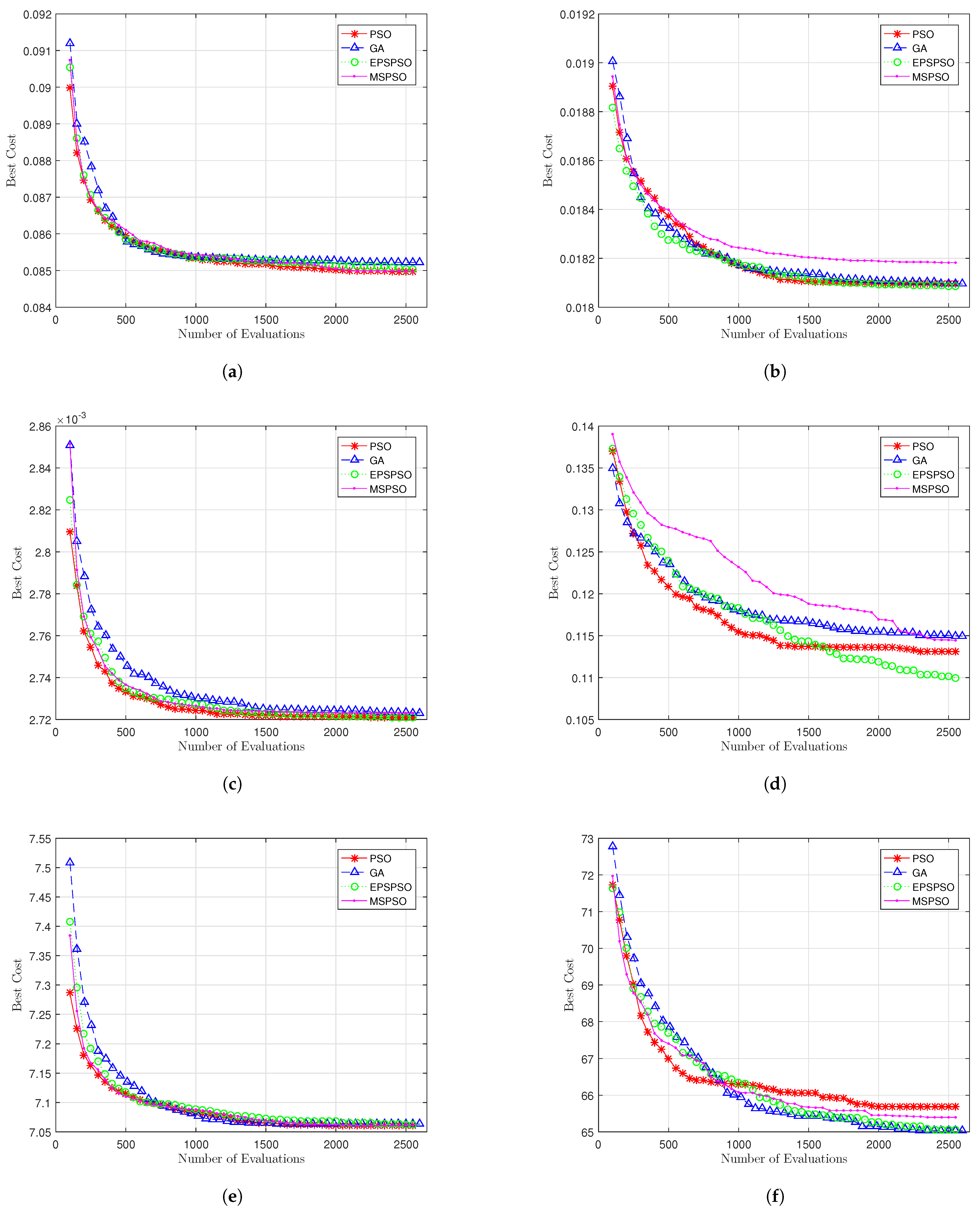

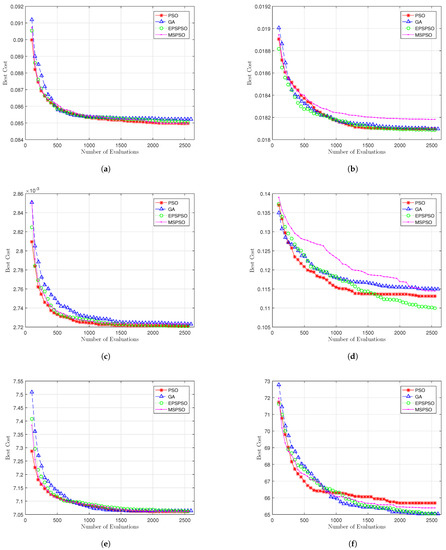

**Figure 8.**Convergence comparison between the considered optimization algorithms for signals: (

**a**) Blocks. (

**b**) Bumps. (

**c**) Doppler. (

**d**) HeaviSine. (

**e**) Piece-Regular. (

**f**) Sing.

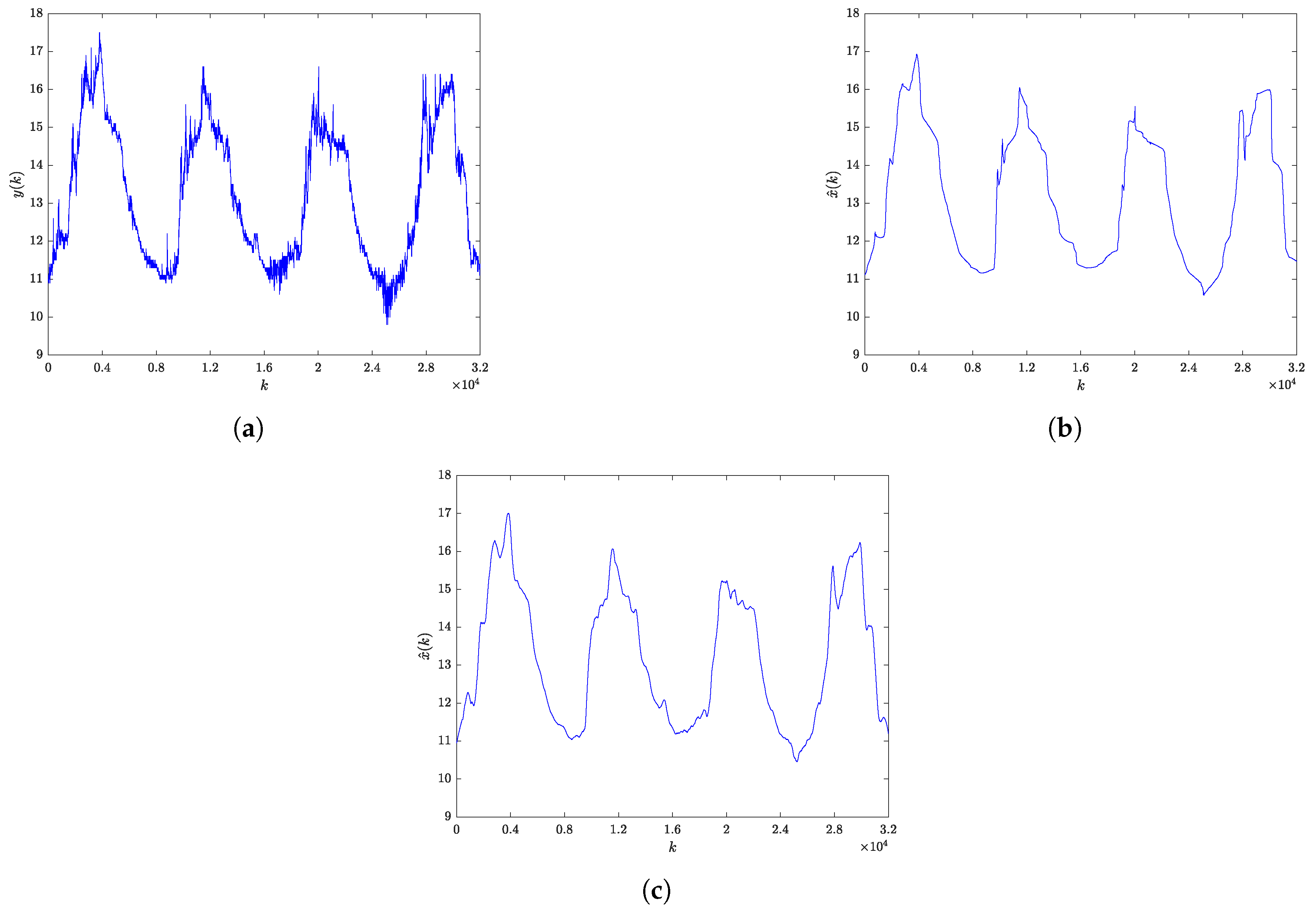

**Figure 9.**Sea temperature: (

**a**) Noisy measured signal. (

**b**) RBF-RICI filtered signal. (

**c**) Savitzky–Golay filtered signal.

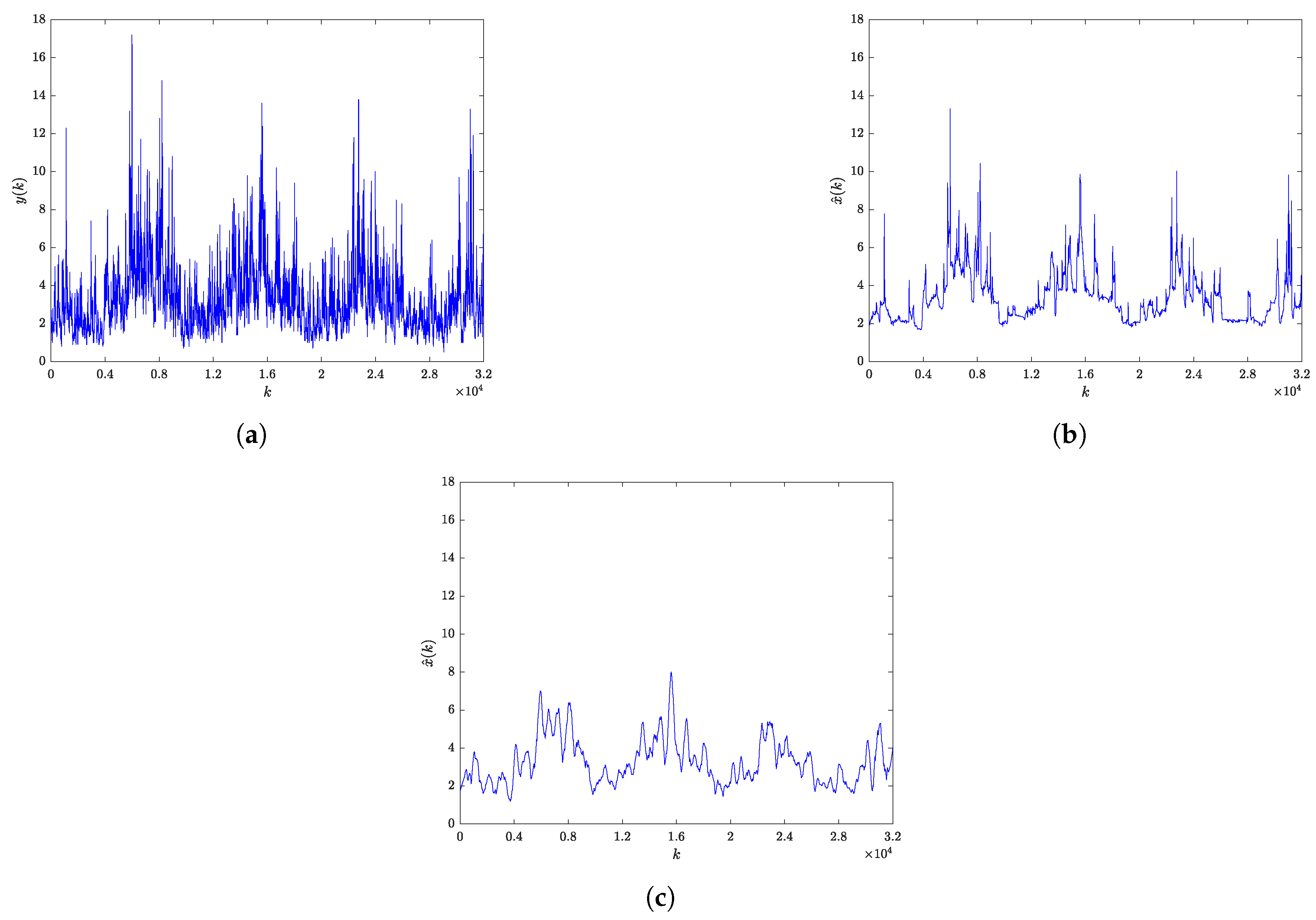

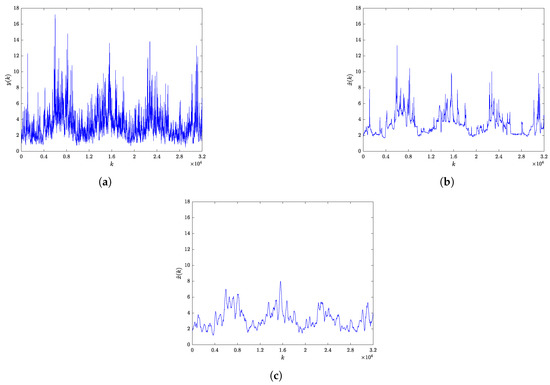

**Figure 10.**Significant wave height: (

**a**) Noisy measured signal. (

**b**) RBF-RICI filtered signal. (

**c**) Savitzky–Golay filtered signal.

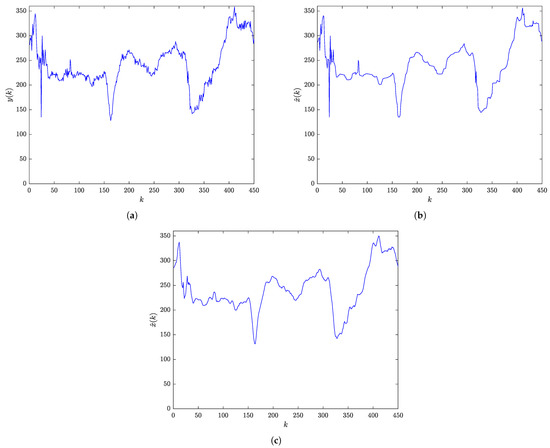

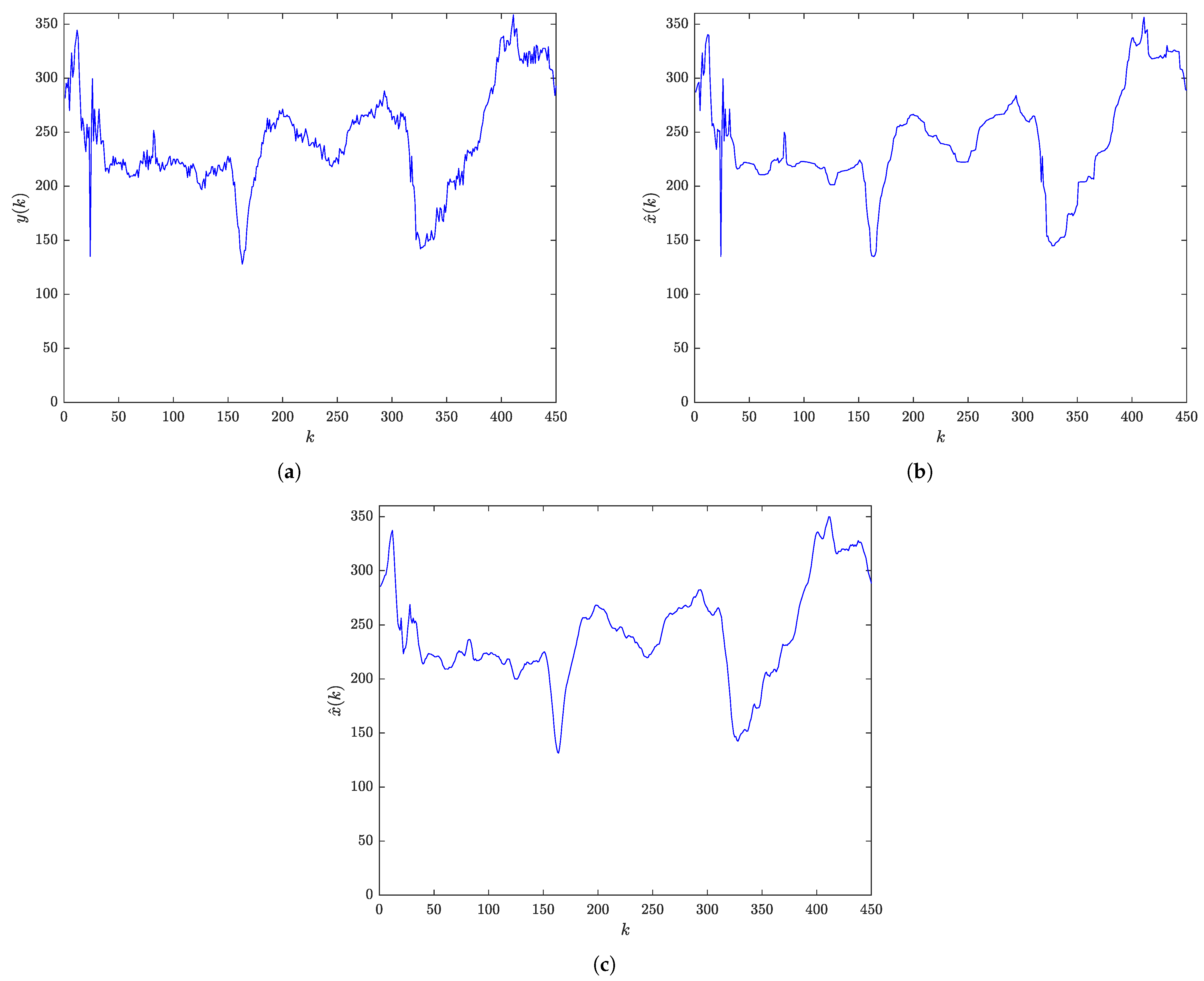

**Figure 11.**Wave direction: (

**a**) Noisy measured signal. (

**b**) RBF-RICI filtered signal. (

**c**) Savitzky–Golay filtered signal.

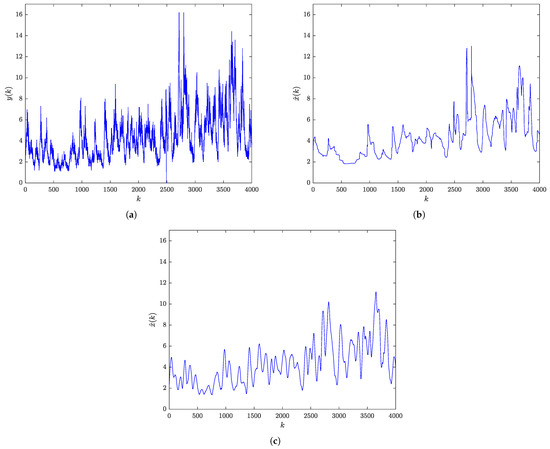

**Figure 12.**Individual maximum wave height: (

**a**) Noisy measured signal. (

**b**) RBF-RICI filtered signal.(

**c**) Savitzky–Golay filtered signal.

**Table 1.**Blocks signal (SNR = 5 dB)—Filtering results. The best filtering quality indicators are marked in bold.

Filtering Quality Indicator | RBF-RICI $\mathbf{\Gamma}=3.67$, ${\mathit{R}}_{\mathit{c}}=0.95$ | LPA-RICI $\mathbf{\Gamma}=4.03$, ${\mathit{R}}_{\mathit{c}}=0.96$ | LPA-ICI $\mathbf{\Gamma}=0.73$ | Savitzky- Golay $\mathit{h}=25$ |
---|---|---|---|---|

MSE | 0.1409 | 0.1459 | 0.2114 | 0.3276 |

MAE | 0.2132 | 0.2100 | 0.3264 | 0.4219 |

MAXE | 3.6682 | 3.6471 | 4.0740 | 2.5848 |

PSNR (dB) | 22.8307 | 22.6801 | 21.0700 | 19.1668 |

ISNR (dB) | 11.4673 | 11.3166 | 9.7065 | 7.8033 |

Filtering Quality Indicator | RBF-RICI $\mathbf{\Gamma}=1.44$, ${\mathit{R}}_{\mathit{c}}=0.67$ | LPA-RICI $\mathbf{\Gamma}=4.12$, ${\mathit{R}}_{\mathit{c}}=0.98$ | LPA-ICI $\mathbf{\Gamma}=0.62$ | Savitzky- Golay $\mathit{h}=21$ |
---|---|---|---|---|

MSE | 0.0849 | 0.0973 | 0.1305 | 0.2599 |

MAE | 0.1797 | 0.1864 | 0.2550 | 0.3684 |

MAXE | 3.2267 | 2.8130 | 2.9652 | 2.3588 |

PSNR (dB) | 25.0323 | 24.4376 | 23.1630 | 20.1717 |

ISNR (dB) | 11.6688 | 11.0741 | 9.7996 | 6.8082 |

Filtering Quality Indicator | RBF-RICI $\mathbf{\Gamma}=1.60$, ${\mathit{R}}_{\mathit{c}}=0.84$ | LPA-RICI $\mathbf{\Gamma}=1.56$, ${\mathit{R}}_{\mathit{c}}=0.89$ | LPA-ICI $\mathbf{\Gamma}=0.47$ | Savitzky- Golay $\mathit{h}=19$ |
---|---|---|---|---|

MSE | 0.0311 | 0.0298 | 0.0595 | 0.1889 |

MAE | 0.1000 | 0.1059 | 0.1703 | 0.2939 |

MAXE | 2.4207 | 2.4023 | 2.4001 | 2.3602 |

PSNR (dB) | 29.3877 | 29.5756 | 26.5776 | 21.5585 |

ISNR (dB) | 13.0243 | 13.2121 | 10.2142 | 5.1951 |

**Table 4.**Blocks signal (SNR = 5 dB)—Filtering quality improvement of the RBF-RICI-based filtering over other tested algorithms.

Filtering Quality Indicator | LPA-RICI $\mathbf{\Gamma}=4.03$, ${\mathit{R}}_{\mathit{c}}=0.96$ | LPA-ICI $\mathbf{\Gamma}=0.73$ | Savitzky- Golay $\mathit{h}=25$ |
---|---|---|---|

MSE | 3.43% | 33.35% | 56.99% |

MAE | −1.52% | 34.68% | 49.47% |

MAXE | −0.58% | 9.96% | −41.91% |

PSNR (dB) | 0.66% | 8.36% | 19.12% |

ISNR (dB) | 1.33% | 18.14% | 46.95% |

**Table 5.**Blocks signal (SNR = 7 dB)—Filtering quality improvement of the RBF-RICI-based filtering over other tested algorithms.

Filtering Quality Indicator | LPA-RICI $\mathbf{\Gamma}=4.12$, ${\mathit{R}}_{\mathit{c}}=0.98$ | LPA-ICI $\mathbf{\Gamma}=0.62$ | Savitzky- Golay $\mathit{h}=21$ |
---|---|---|---|

MSE | 12.74% | 34.94% | 67.33% |

MAE | 3.59% | 29.53% | 51.22% |

MAXE | −14.71% | −8.82% | −36.79% |

PSNR (dB) | 2.43% | 8.07% | 24.10% |

ISNR (dB) | 5.37% | 19.07% | 71.39% |

**Table 6.**Blocks signal (SNR = 10 dB)—Filtering quality improvement of the RBF-RICI-based filtering over other tested algorithms.

Filtering Quality Indicator | LPA-RICI $\mathbf{\Gamma}=1.56$, ${\mathit{R}}_{\mathit{c}}=0.89$ | LPA-ICI $\mathbf{\Gamma}=0.47$ | Savitzky- Golay $\mathit{h}=19$ |
---|---|---|---|

MSE | −4.36% | 47.73% | 83.54% |

MAE | 5.57% | 41.28% | 65.97% |

MAXE | −0.77% | −0.86% | −2.56% |

PSNR (dB) | −0.64% | 10.57% | 36.32% |

ISNR (dB) | −1.42% | 27.51% | 150.70% |

Runtime (s) | ||||
---|---|---|---|---|

SNR (dB) | RBF-RICI | LPA-RICI | LPA-ICI | Savitzky–Golay |

5 | 0.1439 | 0.2301 | 0.1482 | 0.0006 |

7 | 0.2655 | 0.0839 | 0.1351 | 0.0004 |

10 | 0.2136 | 0.2353 | 0.1413 | 0.0010 |

Filtering Quality Indicator | RBF-RICI $\mathbf{\Gamma}=1.13$, ${\mathit{R}}_{\mathit{c}}=0.49$ | LPA-RICI $\mathbf{\Gamma}=2.05$, ${\mathit{R}}_{\mathit{c}}=0.90$ | LPA-ICI $\mathbf{\Gamma}=0.57$ | Savitzky- Golay $\mathit{h}=9$ |
---|---|---|---|---|

MSE | 0.0277 | 0.0356 | 0.0382 | 0.0626 |

MAE | 0.0966 | 0.1093 | 0.1215 | 0.1880 |

MAXE | 1.1582 | 1.2638 | 1.2638 | 1.7304 |

PSNR (dB) | 29.6493 | 28.5563 | 28.2463 | 26.1023 |

ISNR (dB) | 7.8378 | 6.7449 | 6.4348 | 4.2909 |

Filtering Quality Indicator | RBF-RICI $\mathbf{\Gamma}=0.82$, ${\mathit{R}}_{\mathit{c}}=0.33$ | LPA-RICI $\mathbf{\Gamma}=1.57$, ${\mathit{R}}_{\mathit{c}}=0.88$ | LPA-ICI $\mathbf{\Gamma}=0.48$ | Savitzky- Golay $\mathit{h}=9$ |
---|---|---|---|---|

MSE | 0.0181 | 0.0251 | 0.0279 | 0.0454 |

MAE | 0.0806 | 0.0944 | 0.1028 | 0.1546 |

MAXE | 0.9612 | 1.0178 | 1.0178 | 1.7418 |

PSNR (dB) | 31.4981 | 30.0755 | 29.6152 | 27.4996 |

ISNR (dB) | 7.6866 | 6.2640 | 5.8038 | 3.6881 |

Filtering Quality Indicator | RBF-RICI $\mathbf{\Gamma}=0.61$, ${\mathit{R}}_{\mathit{c}}=0.26$ | LPA-RICI $\mathbf{\Gamma}=1.55$, ${\mathit{R}}_{\mathit{c}}=0.96$ | LPA-ICI $\mathbf{\Gamma}=0.34$ | Savitzky- Golay $\mathit{h}=7$ |
---|---|---|---|---|

MSE | 0.0101 | 0.0148 | 0.0166 | 0.0276 |

MAE | 0.0599 | 0.0777 | 0.0790 | 0.1228 |

MAXE | 0.7072 | 0.7327 | 0.8098 | 1.3599 |

PSNR (dB) | 34.0275 | 32.3577 | 31.8621 | 29.6602 |

ISNR (dB) | 7.2161 | 5.5462 | 5.0506 | 2.8487 |

**Table 11.**Bumps signal (SNR = 5 dB)—Filtering quality improvement of the RBF-RICI-based filtering over other tested algorithms.

Filtering Quality Indicator | LPA-RICI $\mathbf{\Gamma}=2.05$, ${\mathit{R}}_{\mathit{c}}=0.90$ | LPA-ICI $\mathbf{\Gamma}=0.57$ | Savitzky- Golay $\mathit{h}=9$ |
---|---|---|---|

MSE | 22.19% | 27.49% | 55.75% |

MAE | 11.62% | 20.49% | 48.62% |

MAXE | 8.36% | 8.36% | 33.07% |

PSNR (dB) | 3.83% | 4.97% | 13.59% |

ISNR (dB) | 16.20% | 21.80% | 82.66% |

**Table 12.**Bumps signal (SNR = 7 dB)—Filtering quality improvement of the RBF-RICI-based filtering over other tested algorithms.

Filtering Quality Indicator | LPA-RICI $\mathbf{\Gamma}=1.57$, ${\mathit{R}}_{\mathit{c}}=0.88$ | LPA-ICI $\mathbf{\Gamma}=0.48$ | Savitzky- Golay $\mathit{h}=9$ |
---|---|---|---|

MSE | 27.89% | 35.13% | 60.13% |

MAE | 14.62% | 21.60% | 47.87% |

MAXE | 5.56% | 5.56% | 44.82% |

PSNR (dB) | 4.73% | 6.36% | 14.54% |

ISNR (dB) | 22.71% | 32.44% | 108.42% |

**Table 13.**Bumps signal (SNR = 10 dB)—Filtering quality improvement of the RBF-RICI-based filtering over other tested algorithms.

Filtering Quality Indicator | LPA-RICI $\mathbf{\Gamma}=1.55$, ${\mathit{R}}_{\mathit{c}}=0.96$ | LPA-ICI $\mathbf{\Gamma}=0.34$ | Savitzky- Golay $\mathit{h}=7$ |
---|---|---|---|

MSE | 31.76% | 39.16% | 63.41% |

MAE | 22.91% | 24.18% | 51.22% |

MAXE | 3.48% | 12.67% | 48.00% |

PSNR (dB) | 5.16% | 6.80% | 14.72% |

ISNR (dB) | 30.11% | 42.88% | 153.31% |

Runtime (s) | ||||
---|---|---|---|---|

SNR (dB) | RBF-RICI | LPA-RICI | LPA-ICI | Savitzky-Golay |

5 | 0.1740 | 0.1614 | 0.1117 | 0.0002 |

7 | 0.1974 | 0.1206 | 0.0937 | 0.0001 |

10 | 0.1812 | 0.0742 | 0.0845 | 0.0001 |

Filtering Quality Indicator | RBF-RICI $\mathbf{\Gamma}=2.15$, ${\mathit{R}}_{\mathit{c}}=0.88$ | LPA-RICI $\mathbf{\Gamma}=4.82$, ${\mathit{R}}_{\mathit{c}}=1$ | LPA-ICI $\mathbf{\Gamma}=0.58$ | Savitzky- Golay $\mathit{h}=23$ |
---|---|---|---|---|

MSE | 0.0037 | 0.0046 | 0.0059 | 0.0044 |

MAE | 0.0452 | 0.0496 | 0.0590 | 0.0481 |

MAXE | 0.2647 | 0.3061 | 0.3028 | 0.2949 |

PSNR (dB) | 18.2042 | 17.1874 | 16.1235 | 17.4454 |

ISNR (dB) | 8.8026 | 7.7858 | 6.7220 | 8.0439 |

Filtering Quality Indicator | RBF-RICI $\mathbf{\Gamma}=2.29$, ${\mathit{R}}_{\mathit{c}}=0.94$ | LPA-RICI $\mathbf{\Gamma}=3.61$, ${\mathit{R}}_{\mathit{c}}=1$ | LPA-ICI $\mathbf{\Gamma}=0.46$ | Savitzky- Golay $\mathit{h}=21$ |
---|---|---|---|---|

MSE | 0.0027 | 0.0033 | 0.0045 | 0.0034 |

MAE | 0.0373 | 0.0417 | 0.0512 | 0.0412 |

MAXE | 0.3212 | 0.2803 | 0.3177 | 0.2776 |

PSNR (dB) | 19.5106 | 18.6596 | 17.3110 | 18.5490 |

ISNR (dB) | 8.1091 | 7.2581 | 5.9094 | 7.1475 |

Filtering Quality Indicator | RBF-RICI $\mathbf{\Gamma}=2.85$, ${\mathit{R}}_{\mathit{c}}=1$ | LPA-RICI $\mathbf{\Gamma}=2.55$, ${\mathit{R}}_{\mathit{c}}=1$ | LPA-ICI $\mathbf{\Gamma}=0.35$ | Savitzky- Golay $\mathit{h}=17$ |
---|---|---|---|---|

MSE | 0.0017 | 0.0021 | 0.0030 | 0.0023 |

MAE | 0.0293 | 0.0319 | 0.0411 | 0.0332 |

MAXE | 0.2097 | 0.2553 | 0.2809 | 0.2643 |

PSNR (dB) | 21.5377 | 20.6978 | 19.1250 | 20.2577 |

ISNR (dB) | 7.1362 | 6.2962 | 4.7235 | 5.8561 |

**Table 18.**Doppler signal (SNR = 5 dB)—Filtering quality improvement of the RBF-RICI-based filtering over other tested algorithms.

Filtering Quality Indicator | LPA-RICI $\mathbf{\Gamma}=4.82$, ${\mathit{R}}_{\mathit{c}}=1$ | LPA-ICI $\mathbf{\Gamma}=0.58$ | Savitzky- Golay $\mathit{h}=23$ |
---|---|---|---|

MSE | 19.57% | 37.29% | 15.91% |

MAE | 8.87% | 23.39% | 6.03% |

MAXE | 13.52% | 12.58% | 10.24% |

PSNR (dB) | 5.92% | 12.90% | 4.35% |

ISNR (dB) | 13.06% | 30.95% | 9.43% |

**Table 19.**Doppler signal (SNR = 7 dB)—Filtering quality improvement of the RBF-RICI-based filtering over other tested algorithms.

Filtering Quality Indicator | LPA-RICI $\mathbf{\Gamma}=3.61$, ${\mathit{R}}_{\mathit{c}}=1$ | LPA-ICI $\mathbf{\Gamma}=0.46$ | Savitzky- Golay $\mathit{h}=21$ |
---|---|---|---|

MSE | 18.18% | 40.00% | 20.59% |

MAE | 10.55% | 27.15% | 9.47% |

MAXE | −14.59% | −1.10% | −15.71% |

PSNR (dB) | 4.56% | 12.71% | 5.18% |

ISNR (dB) | 11.72% | 37.22% | 13.45% |

**Table 20.**Doppler signal (SNR = 10 dB)—Filtering quality improvement of the RBF-RICI-based filtering over other tested algorithms.

Filtering Quality Indicator | LPA-RICI $\mathbf{\Gamma}=2.55$, ${\mathit{R}}_{\mathit{c}}=1$ | LPA-ICI $\mathbf{\Gamma}=0.35$ | Savitzky- Golay $\mathit{h}=17$ |
---|---|---|---|

MSE | 19.05% | 43.33% | 26.09% |

MAE | 8.15% | 28.71% | 11.75% |

MAXE | 17.86% | 25.35% | 20.66% |

PSNR (dB) | 4.06% | 12.62% | 6.32% |

ISNR (dB) | 13.34% | 51.08% | 21.86% |

Runtime (s) | ||||
---|---|---|---|---|

SNR (dB) | RBF-RICI | LPA-RICI | LPA-ICI | Savitzky–Golay |

5 | 0.1600 | 0.0658 | 0.0947 | 0.0010 |

7 | 0.1177 | 0.0464 | 0.0836 | 0.0004 |

10 | 0.0512 | 0.0555 | 0.0702 | 0.0007 |

Filtering Quality Indicator | RBF-RICI $\mathbf{\Gamma}=4.98$, ${\mathit{R}}_{\mathit{c}}=0.98$ | LPA-RICI $\mathbf{\Gamma}=4.97$, ${\mathit{R}}_{\mathit{c}}=0.99$ | LPA-ICI $\mathbf{\Gamma}=0.61$ | Savitzky- Golay $\mathit{h}=217$ |
---|---|---|---|---|

MSE | 0.1683 | 0.2022 | 0.3517 | 0.0995 |

MAE | 0.3264 | 0.3432 | 0.4737 | 0.2217 |

MAXE | 1.2817 | 1.8795 | 2.7010 | 1.0594 |

PSNR (dB) | 19.7793 | 18.9828 | 16.5791 | 22.0611 |

ISNR (dB) | 12.6436 | 11.8471 | 9.4434 | 14.9254 |

Filtering Quality Indicator | RBF-RICI $\mathbf{\Gamma}=4.98$, ${\mathit{R}}_{\mathit{c}}=0.99$ | LPA-RICI $\mathbf{\Gamma}=4.54$, ${\mathit{R}}_{\mathit{c}}=0.99$ | LPA-ICI $\mathbf{\Gamma}=0.51$ | Savitzky- Golay $\mathit{h}=101$ |
---|---|---|---|---|

MSE | 0.1070 | 0.1280 | 0.2540 | 0.0763 |

MAE | 0.2526 | 0.2763 | 0.3987 | 0.2001 |

MAXE | 1.1832 | 1.8756 | 2.6166 | 1.0451 |

PSNR (dB) | 21.7477 | 20.9676 | 17.9928 | 23.2185 |

ISNR (dB) | 12.6119 | 11.8319 | 8.8571 | 14.0828 |

Filtering Quality Indicator | RBF-RICI $\mathbf{\Gamma}=4.85$, ${\mathit{R}}_{\mathit{c}}=1$ | LPA-RICI $\mathbf{\Gamma}=4.67$, ${\mathit{R}}_{\mathit{c}}=1$ | LPA-ICI $\mathbf{\Gamma}=0.38$ | Savitzky- Golay $\mathit{h}=101$ |
---|---|---|---|---|

MSE | 0.0594 | 0.0668 | 0.1549 | 0.0536 |

MAE | 0.1782 | 0.1924 | 0.3101 | 0.1578 |

MAXE | 1.0415 | 0.9900 | 2.4188 | 1.0251 |

PSNR (dB) | 24.3045 | 23.7948 | 20.1394 | 24.7476 |

ISNR (dB) | 12.1688 | 11.6591 | 8.0037 | 12.6118 |

**Table 25.**HeaviSine signal (SNR = 5 dB)—Filtering quality improvement of the RBF-RICI-based filtering over other tested algorithms.

Filtering Quality Indicator | LPA-RICI $\mathbf{\Gamma}=4.97$, ${\mathit{R}}_{\mathit{c}}=0.99$ | LPA-ICI $\mathbf{\Gamma}=0.61$ | Savitzky- Golay $\mathit{h}=217$ |
---|---|---|---|

MSE | 16.77% | 52.15% | −69.15% |

MAE | 4.90% | 31.10% | −47.23% |

MAXE | 31.81% | 52.55% | −20.98% |

PSNR (dB) | 4.20% | 19.30% | −10.34% |

ISNR (dB) | 6.72% | 33.89% | −15.29% |

**Table 26.**HeaviSine signal (SNR = 7 dB)—Filtering quality improvement of the RBF-RICI-based filtering over other tested algorithms.

Filtering Quality Indicator | LPA-RICI $\mathbf{\Gamma}=4.54$, ${\mathit{R}}_{\mathit{c}}=0.99$ | LPA-ICI $\mathbf{\Gamma}=0.51$ | Savitzky- Golay $\mathit{h}=101$ |
---|---|---|---|

MSE | 16.41% | 57.87% | −40.24% |

MAE | 8.58% | 36.64% | −26.24% |

MAXE | 36.92% | 54.78% | −13.21% |

PSNR (dB) | 3.72% | 20.87% | −6.33% |

ISNR (dB) | 6.59% | 42.39% | −10.44% |

**Table 27.**HeaviSine signal (SNR = 10 dB)—Filtering quality improvement of the RBF-RICI-based filtering over other tested algorithms.

Filtering Quality Indicator | LPA-RICI $\mathbf{\Gamma}=4.67$, ${\mathit{R}}_{\mathit{c}}=1$ | LPA-ICI $\mathbf{\Gamma}=0.38$ | Savitzky- Golay $\mathit{h}=101$ |
---|---|---|---|

MSE | 11.08% | 61.65% | −10.82% |

MAE | 7.38% | 42.53% | −12.93% |

MAXE | −5.20% | 56.94% | −1.60% |

PSNR (dB) | 2.14% | 20.68% | −1.79% |

ISNR (dB) | 4.37% | 52.04% | −3.51% |

Runtime (s) | ||||
---|---|---|---|---|

SNR (dB) | RBF-RICI | LPA-RICI | LPA-ICI | Savitzky–Golay |

5 | 0.2017 | 0.1275 | 0.1274 | 0.0010 |

7 | 0.1428 | 0.1061 | 0.1534 | 0.0009 |

10 | 0.0942 | 0.1177 | 0.1102 | 0.0015 |

Filtering Quality Indicator | RBF-RICI $\mathbf{\Gamma}=1.72$, ${\mathit{R}}_{\mathit{c}}=0.82$ | LPA-RICI $\mathbf{\Gamma}=4.80$, ${\mathit{R}}_{\mathit{c}}=1$ | LPA-ICI $\mathbf{\Gamma}=0.57$ | Savitzky- Golay $\mathit{h}=25$ |
---|---|---|---|---|

MSE | 10.6693 | 14.1213 | 18.3593 | 13.3110 |

MAE | 2.3735 | 2.7457 | 3.1596 | 2.7866 |

MAXE | 17.7053 | 19.0331 | 18.5048 | 15.9277 |

PSNR (dB) | 22.4826 | 21.2653 | 20.1255 | 21.5219 |

ISNR (dB) | 9.9092 | 8.6918 | 7.5520 | 8.9485 |

Filtering Quality Indicator | RBF-RICI $\mathbf{\Gamma}=1.44$, ${\mathit{R}}_{\mathit{c}}=0.81$ | LPA-RICI $\mathbf{\Gamma}=3.77$, ${\mathit{R}}_{\mathit{c}}=1$ | LPA-ICI $\mathbf{\Gamma}=0.47$ | Savitzky- Golay $\mathit{h}=25$ |
---|---|---|---|---|

MSE | 7.0609 | 9.5441 | 13.0202 | 9.9522 |

MAE | 1.9533 | 2.2509 | 2.6585 | 2.3151 |

MAXE | 12.7040 | 18.3339 | 15.7328 | 15.2692 |

PSNR (dB) | 24.2754 | 22.9667 | 21.6178 | 22.7848 |

ISNR (dB) | 9.7020 | 8.3932 | 7.0444 | 8.2114 |

Filtering Quality Indicator | RBF-RICI $\mathbf{\Gamma}=1.19$, ${\mathit{R}}_{\mathit{c}}=0.84$ | LPA-RICI $\mathbf{\Gamma}=2.86$, ${\mathit{R}}_{\mathit{c}}=1$ | LPA-ICI $\mathbf{\Gamma}=0.35$ | Savitzky- Golay $\mathit{h}=19$ |
---|---|---|---|---|

MSE | 3.7850 | 5.2971 | 7.6770 | 6.7829 |

MAE | 1.4513 | 1.6479 | 2.0257 | 1.8895 |

MAXE | 8.7759 | 16.1955 | 12.8774 | 14.5437 |

PSNR (dB) | 26.9834 | 25.5236 | 23.9121 | 24.4498 |

ISNR (dB) | 9.4099 | 7.9502 | 6.3386 | 6.8764 |

**Table 32.**Piece-Regular signal (SNR = 5 dB)—Filtering quality improvement of the RBF-RICI-based filtering over other tested algorithms.

Filtering Quality Indicator | LPA-RICI $\mathbf{\Gamma}=4.80$, ${\mathit{R}}_{\mathit{c}}=1$ | LPA-ICI $\mathbf{\Gamma}=0.57$ | Savitzky- Golay $\mathit{h}=25$ |
---|---|---|---|

MSE | 24.45% | 41.89% | 19.85% |

MAE | 13.56% | 24.88% | 14.82% |

MAXE | 6.98% | 4.32% | −11.16% |

PSNR (dB) | 5.72% | 11.71% | 4.46% |

ISNR (dB) | 14.01% | 31.21% | 10.74% |

**Table 33.**Piece-Regular signal (SNR = 7 dB)—Filtering quality improvement of the RBF-RICI-based filtering over other tested algorithms.

Filtering Quality Indicator | LPA-RICI $\mathbf{\Gamma}=3.77$, ${\mathit{R}}_{\mathit{c}}=1$ | LPA-ICI $\mathbf{\Gamma}=0.47$ | Savitzky- Golay $\mathit{h}=25$ |
---|---|---|---|

MSE | 26.02% | 45.77% | 29.05% |

MAE | 13.22% | 26.53% | 15.63% |

MAXE | 30.71% | 19.25% | 16.80% |

PSNR (dB) | 5.70% | 12.29% | 6.54% |

ISNR (dB) | 15.59% | 37.73% | 18.15% |

**Table 34.**Piece-Regular signal (SNR = 10 dB)—Filtering quality improvement of the RBF-RICI-based filtering over other tested algorithms.

Filtering Quality Indicator | LPA-RICI $\mathbf{\Gamma}=2.86$, ${\mathit{R}}_{\mathit{c}}=1$ | LPA-ICI $\mathbf{\Gamma}=0.35$ | Savitzky- Golay $\mathit{h}=19$ |
---|---|---|---|

MSE | 28.55% | 50.70% | 44.20% |

MAE | 11.93% | 28.36% | 23.19% |

MAXE | 45.81% | 31.85% | 39.66% |

PSNR (dB) | 5.72% | 12.84% | 10.36% |

ISNR (dB) | 18.36% | 48.45% | 36.84% |

Runtime (s) | ||||
---|---|---|---|---|

SNR (dB) | RBF-RICI | LPA-RICI | LPA-ICI | Savitzky–Golay |

5 | 0.1522 | 0.0670 | 0.0862 | 0.0003 |

7 | 0.1459 | 0.0532 | 0.0975 | 0.0007 |

10 | 0.1366 | 0.0674 | 0.0873 | 0.0005 |

Filtering Quality Indicator | RBF-RICI $\mathbf{\Gamma}=1.12$, ${\mathit{R}}_{\mathit{c}}=0.11$ | LPA-RICI $\mathbf{\Gamma}=2.81$, ${\mathit{R}}_{\mathit{c}}=0.94$ | LPA-ICI $\mathbf{\Gamma}=0.82$ | Savitzky- Golay $\mathit{h}=5$ |
---|---|---|---|---|

MSE | 83.8782 | 141.4546 | 177.6915 | 1962.6767 |

MAE | 3.8877 | 6.4314 | 6.8539 | 33.8149 |

MAXE | 111.5364 | 211.4573 | 193.0249 | 303.2041 |

PSNR (dB) | 46.9901 | 44.7204 | 43.7299 | 33.2981 |

ISNR (dB) | 15.9259 | 13.6562 | 12.6657 | 2.2339 |

Filtering Quality Indicator | RBF-RICI $\mathbf{\Gamma}=0.99$, ${\mathit{R}}_{\mathit{c}}=0.01$ | LPA-RICI $\mathbf{\Gamma}=1.87$, ${\mathit{R}}_{\mathit{c}}=0.91$ | LPA-ICI $\mathbf{\Gamma}=0.73$ | Savitzky- Golay $\mathit{h}=5$ |
---|---|---|---|---|

MSE | 64.1788 | 80.2616 | 132.0162 | 1338.2816 |

MAE | 3.3283 | 5.4335 | 5.8075 | 27.0899 |

MAXE | 108.9616 | 114.1618 | 171.9973 | 300.6734 |

PSNR (dB) | 48.1527 | 47.1815 | 45.0203 | 34.9611 |

ISNR (dB) | 15.0885 | 14.1173 | 11.9561 | 1.8969 |

Filtering Quality Indicator | RBF-RICI $\mathbf{\Gamma}=0.68$, ${\mathit{R}}_{\mathit{c}}=0.11$ | LPA-RICI $\mathbf{\Gamma}=2.11$, ${\mathit{R}}_{\mathit{c}}=0.96$ | LPA-ICI $\mathbf{\Gamma}=0.44$ | Savitzky- Golay $\mathit{h}=5$ |
---|---|---|---|---|

MSE | 35.3108 | 50.3365 | 73.5058 | 804.6591 |

MAE | 2.4840 | 4.0478 | 4.7087 | 19.5046 |

MAXE | 84.0245 | 99.7517 | 115.0057 | 297.8189 |

PSNR (dB) | 50.7475 | 49.2078 | 47.5634 | 37.1705 |

ISNR (dB) | 14.6833 | 13.1435 | 11.4992 | 1.1062 |

**Table 39.**Sing signal (SNR = 5 dB)—Filtering quality improvement of the RBF-RICI-based filtering over other tested algorithms.

Filtering Quality Indicator | LPA-RICI $\mathbf{\Gamma}=2.81$, ${\mathit{R}}_{\mathit{c}}=0.94$ | LPA-ICI $\mathbf{\Gamma}=0.82$ | Savitzky- Golay $\mathit{h}=5$ |
---|---|---|---|

MSE | 40.70% | 52.80% | 95.73% |

MAE | 39.55% | 43.28% | 88.50% |

MAXE | 47.25% | 42.22% | 63.21% |

PSNR (dB) | 5.08% | 7.46% | 41.12% |

ISNR (dB) | 16.62% | 25.74% | 612.93% |

**Table 40.**Sing signal (SNR = 7 dB)—Filtering quality improvement of the RBF-RICI-based filtering over other tested algorithms.

Filtering Quality Indicator | LPA-RICI $\mathbf{\Gamma}=1.87$, ${\mathit{R}}_{\mathit{c}}=0.91$ | LPA-ICI $\mathbf{\Gamma}=0.73$ | Savitzky- Golay $\mathit{h}=5$ |
---|---|---|---|

MSE | 20.04% | 51.39% | 95.20% |

MAE | 38.74% | 42.69% | 87.71% |

MAXE | 4.56% | 36.65% | 63.76% |

PSNR (dB) | 2.06% | 6.96% | 37.73% |

ISNR (dB) | 6.88% | 26.20% | 695.43% |

**Table 41.**Sing signal (SNR = 10 dB)—Filtering quality improvement of the RBF-RICI-based filtering over other tested algorithms.

Filtering Quality Indicator | LPA-RICI $\mathbf{\Gamma}=2.11$, ${\mathit{R}}_{\mathit{c}}=0.96$ | LPA-ICI $\mathbf{\Gamma}=0.44$ | Savitzky- Golay $\mathit{h}=5$ |
---|---|---|---|

MSE | 29.85% | 51.96% | 95.61% |

MAE | 38.63% | 47.25% | 87.26% |

MAXE | 15.77% | 26.94% | 71.79% |

PSNR (dB) | 3.13% | 6.69% | 36.53% |

ISNR (dB) | 11.72% | 27.69% | 1227.30% |

Runtime (s) | ||||
---|---|---|---|---|

SNR (dB) | RBF-RICI | LPA-RICI | LPA-ICI | Savitzky-Golay |

5 | 1.1708 | 0.9176 | 0.8507 | 0.0001 |

7 | 1.5391 | 0.4543 | 0.8060 | 0.0001 |

10 | 1.1189 | 0.7373 | 0.5872 | 0.0001 |

**Table 43.**Filtering results obtained by applying the RBF-RICI algorithm to signals of different lengths.

Signal | Filtering Quality Indicator | Signal Length | ||||
---|---|---|---|---|---|---|

256 | 512 | 1024 | 2048 | 4096 | ||

Blocks | MSE | 0.3513 | 0.1749 | 0.0849 | 0.0366 | 0.0304 |

MAE | 0.4153 | 0.2670 | 0.1797 | 0.1101 | 0.0879 | |

MAXE | 3.3583 | 2.9265 | 3.2267 | 2.5318 | 2.9030 | |

PSNR (dB) | 18.8633 | 21.8929 | 25.0323 | 28.6845 | 29.4858 | |

ISNR (dB) | 5.3256 | 8.6348 | 11.6688 | 15.1945 | 15.9701 | |

Runtime (s) | 0.0208 | 0.0889 | 0.2655 | 1.2338 | 4.1248 | |

Bumps | MSE | 0.0404 | 0.0292 | 0.0181 | 0.0138 | 0.0094 |

MAE | 0.1331 | 0.1045 | 0.0806 | 0.0675 | 0.0554 | |

MAXE | 1.2079 | 1.0840 | 0.9612 | 0.9261 | 0.9646 | |

PSNR (dB) | 28.0066 | 29.4147 | 31.4981 | 32.6580 | 34.3455 | |

ISNR (dB) | 3.7458 | 5.7128 | 7.6866 | 8.7608 | 10.4151 | |

Runtime (s) | 0.0195 | 0.0652 | 0.1974 | 0.9162 | 2.5284 | |

Doppler | MSE | 0.0073 | 0.0041 | 0.0027 | 0.0018 | 0.0013 |

MAE | 0.0632 | 0.0442 | 0.0373 | 0.0301 | 0.0248 | |

MAXE | 0.3359 | 0.2657 | 0.3212 | 0.4062 | 0.4062 | |

PSNR (dB) | 15.2227 | 17.7765 | 19.5106 | 21.3202 | 22.8532 | |

ISNR (dB) | 3.6592 | 6.4918 | 8.1091 | 9.8028 | 11.3092 | |

Runtime (s) | 0.0134 | 0.0465 | 0.1177 | 0.4334 | 1.0760 | |

HeaviSine | MSE | 0.3413 | 0.1443 | 0.1070 | 0.0661 | 0.0593 |

MAE | 0.5009 | 0.2944 | 0.2526 | 0.2006 | 0.1873 | |

MAXE | 1.3481 | 1.4779 | 1.1832 | 1.0982 | 1.2504 | |

PSNR (dB) | 16.7101 | 20.4488 | 21.7477 | 23.8411 | 24.3073 | |

ISNR (dB) | 7.4158 | 11.4321 | 12.6119 | 14.5912 | 15.0314 | |

Runtime (s) | 0.0182 | 0.0529 | 0.1428 | 0.3319 | 0.8183 | |

Piece-Regular | MSE | 21.2851 | 8.1570 | 7.0609 | 4.2778 | 3.2621 |

MAE | 3.3795 | 2.0880 | 1.9533 | 1.3535 | 1.1571 | |

MAXE | 18.4508 | 15.2367 | 12.7040 | 24.8208 | 24.8185 | |

PSNR (dB) | 19.3473 | 23.7121 | 24.2754 | 26.4571 | 27.6479 | |

ISNR (dB) | 4.7412 | 9.2154 | 9.7020 | 11.7501 | 12.8999 | |

Runtime (s) | 0.0143 | 0.0464 | 0.1459 | 0.4298 | 1.5775 | |

Sing | MSE | 34.2950 | 74.0754 | 64.1788 | 81.2321 | 67.2775 |

MAE | 2.9835 | 3.7794 | 3.3283 | 4.2714 | 3.7723 | |

MAXE | 45.1892 | 72.1926 | 108.9616 | 96.0850 | 249.2586 | |

PSNR (dB) | 38.8331 | 41.5093 | 48.1527 | 53.1499 | 59.9891 | |

ISNR (dB) | 11.6169 | 11.5691 | 15.0885 | 16.9605 | 20.7632 | |

Runtime (s) | 0.0648 | 0.3062 | 1.5391 | 6.0509 | 27.8120 |

Algorithms | s | $\mathit{MaxIt}$ | ${\mathit{w}}_{\mathit{max}}$ | ${\mathit{w}}_{\mathit{min}}$ | ${\mathit{c}}_{1}={\mathit{c}}_{2}$ | Additional |
---|---|---|---|---|---|---|

PSO | 50 | 50 | 0.9 | 0.4 | 2 | |

GA | 50 | 50 | / | / | / | ${p}_{c}={p}_{m}=0.5$ |

EPSPSO | $25+25$ | 50 | 0.9 | 0.4 | 2 | ${t}_{g}=5$ |

MSPSO | $25+25$ | 50 | 0.9 | 0.4 | 2 | $nSwarm=2$ |

**Table 45.**The computational results obtained by the PSO-based and GA-based optimization algorithms after 50 iterations, averaged over 50 independent runs.

Signal | Statistic | PSO | GA | EPS-PSO | MSPSO |
---|---|---|---|---|---|

Mean | 0.0850 | 0.0852 | 0.0850 | 0.0850 | |

Best | 0.0849 | 0.0849 | 0.0849 | 0.0849 | |

Blocks | Worst | 0.0854 | 0.0856 | 0.0854 | 0.0854 |

Std. Dev. | $2.1332\xb7{10}^{-4}$ | $2.7481\xb7{10}^{-4}$ | $2.5420\xb7{10}^{-4}$ | $2.0457\xb7{10}^{-4}$ | |

Median | 0.0849 | 0.0854 | 0.0849 | 0.0849 | |

Mean | 0.0181 | 0.0181 | 0.0181 | 0.0182 | |

Best | 0.0181 | 0.0181 | 0.0181 | 0.0181 | |

Bumps | Worst | 0.0187 | 0.0184 | 0.0181 | 0.0189 |

Std. Dev. | $8.8353\xb7{10}^{-5}$ | $5.3257\xb7{10}^{-5}$ | $8.3062\xb7{10}^{-6}$ | $2.4976\xb7{10}^{-4}$ | |

Median | 0.0181 | 0.0181 | 0.0181 | 0.0181 | |

Mean | 0.0027 | 0.0027 | 0.0027 | 0.0027 | |

Best | 0.0027 | 0.0027 | 0.0027 | 0.0027 | |

Doppler | Worst | 0.0027 | 0.0028 | 0.0027 | 0.0028 |

Std. Dev. | $7.0885\xb7{10}^{-7}$ | $6.2548\xb7{10}^{-6}$ | $9.6431\xb7{10}^{-7}$ | $1.2469\xb7{10}^{-5}$ | |

Median | 0.0027 | 0.0027 | 0.0027 | 0.0027 | |

Mean | 0.1131 | 0.1150 | 0.1100 | 0.1144 | |

Best | 0.1070 | 0.1070 | 0.1070 | 0.1070 | |

HeaviSine | Worst | 0.1330 | 0.1330 | 0.1330 | 0.1333 |

Std. Dev. | $1.10\xb7{10}^{-2}$ | $1.13\xb7{10}^{-2}$ | $8.10\xb7{10}^{-3}$ | $1.15\xb7{10}^{-2}$ | |

Median | 0.1070 | 0.1070 | 0.1070 | 0.1070 | |

Mean | 7.0609 | 7.0632 | 7.0628 | 7.0609 | |

Best | 7.0609 | 7.0609 | 7.0609 | 7.0609 | |

Piece-Regular | Worst | 7.0609 | 7.1043 | 7.0848 | 7.0609 |

Std. Dev. | $3.5888\xb7{10}^{-15}$ | $8.3\xb7{10}^{-3}$ | $6.6\xb7{10}^{-3}$ | $3.5888\xb7{10}^{-15}$ | |

Median | 7.0609 | 7.0609 | 7.0609 | 7.0609 | |

Mean | 65.6770 | 65.0317 | 65.0584 | 65.3961 | |

Best | 64.1788 | 64.1788 | 64.1788 | 64.1788 | |

Sing | Worst | 68.8607 | 68.8607 | 68.8607 | 68.8607 |

Std. Dev. | 2.2062 | 1.7989 | 1.8182 | 2.0745 | |

Median | 64.1788 | 64.1788 | 64.1788 | 64.1788 |

Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |

© 2021 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Lopac, N.; Jurdana, I.; Lerga, J.; Wakabayashi, N.
Particle-Swarm-Optimization-Enhanced Radial-Basis-Function-Kernel-Based Adaptive Filtering Applied to Maritime Data. *J. Mar. Sci. Eng.* **2021**, *9*, 439.
https://doi.org/10.3390/jmse9040439

**AMA Style**

Lopac N, Jurdana I, Lerga J, Wakabayashi N.
Particle-Swarm-Optimization-Enhanced Radial-Basis-Function-Kernel-Based Adaptive Filtering Applied to Maritime Data. *Journal of Marine Science and Engineering*. 2021; 9(4):439.
https://doi.org/10.3390/jmse9040439

**Chicago/Turabian Style**

Lopac, Nikola, Irena Jurdana, Jonatan Lerga, and Nobukazu Wakabayashi.
2021. "Particle-Swarm-Optimization-Enhanced Radial-Basis-Function-Kernel-Based Adaptive Filtering Applied to Maritime Data" *Journal of Marine Science and Engineering* 9, no. 4: 439.
https://doi.org/10.3390/jmse9040439
