Using Artificial-Reef Knowledge to Enhance the Ecological Function of Offshore Wind Turbine Foundations: Implications for Fish Abundance and Diversity

by
Maria Glarou
1,2,*,
Martina Zrust
1 and
Jon C. Svendsen
1
1
DTU Aqua, Technical University of Denmark (DTU), Kemitorvet, Building 202, 2800 Kongens Lyngby, Denmark
2
Department of Ecology, Environment and Plant Sciences, Stockholm University, Svante Arrhenius väg 20 A (or F), 114 18 Stockholm, Sweden
*
Author to whom correspondence should be addressed.
J. Mar. Sci. Eng. 2020, 8(5), 332; https://doi.org/10.3390/jmse8050332
Submission received: 13 April 2020 / Revised: 28 April 2020 / Accepted: 5 May 2020 / Published: 8 May 2020
(This article belongs to the Section Marine Biology)
Browse Figures
Versions Notes

Abstract

:
As the development of large-scale offshore wind farms (OWFs) amplifies due to technological progress and a growing demand for renewable energy, associated footprints on the seabed are becoming increasingly common within soft-bottom environments. A large part of the footprint is the scour protection, often consisting of rocks that are positioned on the seabed to prevent erosion. As such, scour protection may resemble a marine rocky reef and could have important ecosystem functions. While acknowledging that OWFs disrupt the marine environment, the aim of this systematic review was to examine the effects of scour protection on fish assemblages, relate them to the effects of designated artificial reefs (ARs) and, ultimately, reveal how future scour protection may be tailored to support abundance and diversity of marine species. The results revealed frequent increases in abundances of species associated with hard substrata after the establishment of artificial structures (i.e., both OWFs and ARs) in the marine environment. Literature indicated that scour protection meets the requirements to function as an AR, often providing shelter, nursery, reproduction, and/or feeding opportunities. Using knowledge from AR models, this review suggests methodology for ecological improvements of future scour protections, aiming towards a more successful integration into the marine environment.

1. Introduction

Humans rely upon and utilize the marine environment for a variety of ecosystem services and valuable resources, leaving no parts of the oceans unaffected [1,2]. The majority of people live in the coastal zones, where anthropogenic activities have been progressively altering the seascape [3,4,5], resulting in direct and indirect negative impacts on marine biota [6]. The introduction and proliferation of artificial (i.e., engineered) structures to marine ecosystems, driven by commercial and residential demands, causes a phenomenon known as “ocean sprawl” [7]. “Ocean sprawl” refers to a marine environment that is increasingly becoming dominated by artificial structures, including artificial reefs, breakwaters, seawalls, piers, oil platforms, and marine renewable energy installations [7], often causing various effects on the surrounding ecosystems [8].
An artificial reef (hereafter abbreviated as “AR”) may be defined as a structure of “natural or human origin deployed purposefully on the seafloor to influence physical, biological, or socio-economic processes related to living marine resources” [9]. A designated AR can be employed for a variety of purposes, with a primary aim being biological conservation and fisheries enhancement, extending also to ecosystem restoration, as well as socioeconomic development [10,11]. Specific AR purposes may include aquaculture/sea-ranching, biomass increase, biodiversity enrichment, fisheries production, ecosystem management, prevention of coastal erosion, recreational activities (e.g., scuba diving, ecotourism, fishing), and research [10,12,13]. These engineered structures are typically constructed to resemble natural reefs as much as possible, with the ultimate goal to produce similar effects. There are also other structures acting as ARs that (a) have entered the marine environment accidentally (e.g., shipwrecks, lost containers), (b) have been repurposed (e.g., sunken ships for recreational activities) or (c) serve other functions (e.g., offshore oil and gas platforms) [14,15,16,17].
Another example of man-made infrastructure are offshore wind farms (hereafter abbreviated as “OWFs”). OWFs are increasingly established in marine areas with the purpose to meet the rising global demand for renewable energy [18,19]. Apart from the obvious benefits provided by renewable energy, OWFs may have several ecological effects on the marine environment. Ecological disruptions caused by OWF include avian collisions [20,21], underwater noise [22,23,24] and electromagnetic fields [18,25,26], as well as loss of soft-bottom habitat with the introduction of hard substrata [27]. Other changes caused by OWFs include increased abundance and biodiversity of hard-bottom species due to reef effects and creation of no-take zones within the OWF, with possible spill-over effects to neighbouring areas [28,29,30].
OWFs typically consist of an array of individual wind turbines placed on soft-bottom habitats. Since offshore wind turbines are located on soft sediment, scouring inevitably occurs around their foundations. Scour is created when a steady current (e.g., tide, wave activity) encounters a vertical structure on the seabed, causing local increases in flow speeds and turbulence levels and ultimately leading to the creation of a scour pit around the structure [31]. Scouring may compromise the stability and dynamic behaviour of wind turbine foundations [32]. The magnitude of scouring is affected by the current speeds, the water depth and sediment types [31].
Scour protection is a measure used to prevent the erosion of seabed sediment around individual foundations of offshore wind turbines [33]. Typically, scour protection consists of a filter layer made of gravel, shielded by a rock armour layer [34] (Figure 1). The material is placed around the foundation of the turbine (e.g., around the monopile) with a radius typically reaching up to 20 m [34,35]. The size and design of the scour protection is determined by a range of environmental factors (i.e., wave and current activity, water depth, sediment characteristics), as well as structural factors (i.e., monopile diameter and design) [36,37] (Figure 1). Generally, the size of the scour protection area reflects the area of the scour pit that would arise due to the environmental factors (e.g., current speed), if the foundation was left unprotected [31], which is usually four to five times the monopile diameter [38].
It is increasingly recognized that the changes introduced during the Anthropocene, including ocean sprawl and coastal hardening, have transformative effects on natural ecosystems [7,39,40]. Hence, the establishment of a mutually beneficial relationship between biota and man-made infrastructure is crucial. The concept of “renewal ecology”, introduced by Bowman et al. [41], falls directly under this scope. Renewal ecology is defined as “a solutions-focused discipline aimed at creating and managing ecosystems designed to maximize both biodiversity and human well-being in the face of rapid environmental change” [41]. Although renewal ecology remains to be embraced widely, especially in the marine environment, the concept is progressively gaining support. Importantly, renewal ecology resembles IUCN’s principles of “Nature-based solutions”, which was recently embraced by the commission of the European Union [42]. For example, coastal defence structures are increasingly constructed not only to meet engineering requirements, but also to enhance biodiversity and provide ecosystem services [11]. Moreover, in terms of OWFs, the Netherlands recently introduced new permit obligations, requiring engineers to “make demonstrable efforts to design and build the wind farm in such a way that it actively enhances the sea’s ecosystem, helping to foster conservation efforts and goals relating to sustainable use of species and habitats” [43]. These new obligations recognize the increasing presence of anthropogenic infrastructures in the marine environment and therefore seek to design OWFs in a fashion where positive effects exceed negative effects for the marine biota.

Objectives

The concept of eco-engineering man-made infrastructure is increasingly discussed in the existing literature [44,45,46], however, to date, no review has investigated how scour protection in OWFs may be tailored to create productive habitats for various fish species. The present review aims to fill this void by synthesizing current evidence on changes in the abundance and diversity of fish and commercially exploited species in response to the establishment of OWFs in temperate seas and relating this knowledge to existing AR research. The overarching goal is to extract current knowledge of AR designs and use it to suggest scour protection refinements aimed at supporting fish abundance and diversity. Ultimately, improved fish production attributed to scour protection may support commercially exploited fish stocks and contribute to sustainable fisheries. The review concludes by identifying knowledge gaps and suggesting future research directions. Only ARs designed with a purpose (e.g., increasing species abundance and diversity) and designed similarly to scour protection (e.g., gravel, rocks, stones, granite, boulders etc.) were examined in this review, while accidental ARs (e.g., shipwrecks) [12] were disregarded. This allowed for comparisons between ARs and scour protections with the purpose of revealing various AR design refinements that could be transferable to future scour protection construction. Additionally, studies occurring in non-temperate regions were excluded, because the majority of OWFs occur in temperate marine waters.

2. Materials and Methods

The present study was conducted following the systematic literature review protocol developed by Pullin and Stewart [47]. The guidelines have been used by numerous systematic reviews related to offshore energy, including reviews concerning the potential of OWFs to act as marine protected areas [30] and the impacts of energy systems on marine ecosystem services [48].

2.1. Search Terms

A wide range of search terms were selected to incorporate all the components of the study objectives. The specific search terms were formulated to gather all relevant literature from the databases. Similar to previous systematic reviews [49], negative terms were included to increase the efficacy of the string and to remove impertinent search results. Applied search terms are listed in Table 1, where terms with an asterisk (*) represent a search engine wild-card [49]. These search terms were applied to two different databases: “Web of Science” and “Scopus”.

2.2. Screening Process

The papers resulting from the searches were assessed for relevance at three sequential levels: title, abstract, and full text [47]. Papers included in the analyses fulfilled the inclusion criteria (Table 2).

2.3. Data Extraction

Study characteristics and the findings of the resulting papers were recorded (Table 2). Specifically, documented details included: (a) the type of structure (e.g., AR, OWF and the associated scour protection), (b) the spatial scale of the study (e.g., area of AR or scour protection), (c) the temporal scale of the study (e.g., time elapsed after the deployment of structure), (d) the physical characteristics of the structure (e.g., material, shape), and (e) the examined variables (e.g., fish abundance and diversity).

2.4. Data Analysis

A quantitative analysis was conducted based on the data extracted by parsing the literature over 1900–2018. Relevant literature was limited within a 37-year period (1982–2018), and for each year, the total number of AR and OWF papers was recorded. Similar to previous reviews [49], the accumulated number of papers for both subjects was plotted across time and general linear regression was applied to identify research trends. In addition, further analyses compared various parameters related to scour protection and ARs (e.g., material and water depth). Statistical analyses were carried out using the free software R Studio (R Core Team, 2019).

3. Results

3.1. Selection Process

The selection process resulted in 7,027 papers, with a total of 6,537 remaining after duplicate removal. Following the removal of irrelevant subjects, locations, and reviewing the material through title, abstract, or full-text analysis, a total of 115 peer-reviewed papers met the inclusion criteria (Table 2; Figure 2). Of those, 89 and 26 papers pertained to ARs and OWFs, respectively.

3.2. Temporal Research Trends

Published AR research started in the early 1980s, whereas OWF research started around the mid 2000s (Figure 3). Despite this time difference, both topics reveal increasing trends (ARs: R2 = 0.34, p<0.001; OWFs: R2 = 0.39, p<0.001). Earlier peer-reviewed literature could possibly be non-accessible due to historical limitations of certain search databases (e.g., Web of Science), creating potential bias in regard to the commencement of research on both topics.

3.3. Location of Available Studies

Many AR studies originated from Southern Europe, Southwest USA and East Asia (Figure 4). In contrast, OWF studies mainly originated from northern Europe, particularly within the North Sea (including Belgium, Denmark, Germany, the Netherlands and the UK) (Figure 4). This indicates geographical differences between AR research and OWF research. Only Germany and the USA have covered both topics (Figure 4).

3.4. Inconsistent Study Details

The amount of study details varied between papers (Table 3). All studies reported the sampling method, whereas fewer studies included information about the spatial scale and the material used for the structure (Table 3).

3.5. Overlapping Use of Materials for ARs and OWFs

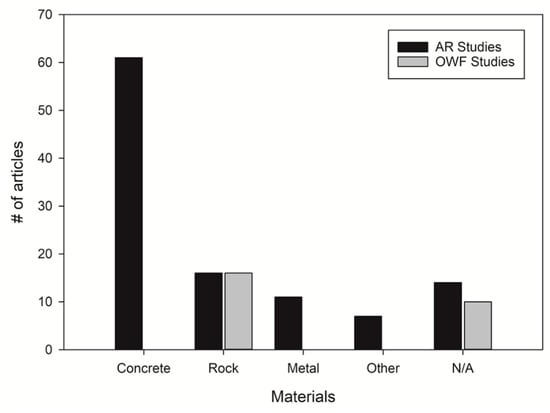

Variable materials have been used for ARs and OWFs (Figure 5). In some occasions, ARs were created using various types of rocks [52,53], but the majority of ARs were made using designed concrete units [12]. Other AR components included metal and scrap materials [54,55] (Figure 5). Some AR studies compared different materials, sizes and shapes used for the construction of ARs and included more eco-friendly materials [56,57]. In contrast, scour protection structures commonly consisted of various rock types (stones, pebbles etc.), with 61% of the literature reporting on at least one of these materials (Figure 5). For the rest of the OWF studies (39%), the material used for scour protection was not described. Thus, evidence suggested that scour protection is mainly made of rocks.

3.6. Overlapping Water Depths Used for ARs and OWFs

Water depths of many AR and OWF studies are overlapping (Figure 6). The majority of AR and OWF studies concern structures that are located at water depths between 15 and 30 m. Studies related to OWFs are, however, absent at water depths exceeding 30 m. This is largely due to OWF foundation typology, as monopiles (Figure 1) are rarely constructed at water depths exceeding 30 m [58].

3.7. Effects of ARs and OWFs on Fish Abundance

Provision of food [59,60], spawning [61] and shelter opportunities [62] by artificial structures are among the main themes dominating the literature, causing changes in fish abundance, biodiversity and distribution. In general, the vast majority of the AR studies (94%) reported that fish abundance and biodiversity increased or was unaffected by AR deployment. More specifically, 49% of the literature reported locally increased fish abundances after AR deployment, while 31% found an increase in species richness in the AR area. Remaining papers did not report on the matter or recorded non-significant differences. Similarly, about half of the OWF literature (46%) also reported increases in fish abundance. Specifically, fish abundance was consistently higher near the OWF foundations compared to reference areas [63,64,65,66,67]. This was particularly the case for species associated with rocky substratum [68], but occasionally it also extended to soft-bottom species when sampling the sandy areas within an OWF [69]. There was evidence of locally increased fish abundance for at least eight fish species in the OWF literature: Atlantic cod (Gadus morhua), European eel (Anguilla anguilla), goldsinny wrasse (Ctenolabrus rupestris), pouting (Trisopterus lucas), rock gunnel (Pholis gunnellus), shorthorn sculpin (Myoxocephalus scorpius), sole (Solea solea), striped red mullet (Mullus surmuletus), and whiting (Merlangius merlangus) [35,65,68,69,70,71]. Reubens et al. [70] found an average density of 14 pouting individuals per m2 on the scour protection, yielding an estimated local population of 22,000 pouting individuals around one wind turbine foundation. It is important to note, however, that the results reflect case studies and not necessarily general findings.
Only 38% of OWF papers reported on changes in fish diversity, however, 40% of those (i.e., 15% of total) indicated that scour protection elevated fish diversity compared to neighbouring control areas [72,73]. Only one OWF study reported lower species diversity. Specifically, Wilhelmsson et al. [64] found lower diversity of demersal fish around the turbine foundations compared to the seabed 1 to 20 m away. Conversely, a few studies indicated that a range of soft-bottom species were unaffected by the scour protection [65,74]. For example, Langhamer et al. [75] found that the abundance of viviparous eelpout (Zoarces viviparous) was unaffected by an OWF in Sweden. Similarly, the abundances of adult individuals of several pelagic species, including horse mackerel (Trachurus trachurus), mackerel (Scomber scombrus), herring (Clupea harengus) and sprat (Sprattus sprattus), were unaffected by the scour protection at a Dutch OWF [69].
A limited number of AR studies examined possible effects on soft-bottom species (e.g., flatfishes). For example, Fabi and Fiorentini [76] reported lower catch rates of the soft-bottom fish species (e.g., Chelidonichthys lucerna and Soleidae), compared to a control site, similar to Bombace et al. [77]. In relation to OWF, 19% of the studies included data on the impact on soft-bottom species. At Block Island Wind Farm, off Rhode Island in US, a study of seven flatfish species revealed no negative impacts [78]. On the contrary, Lindeboom et al. [65] reported a significant decrease in the soft-bottom species lesser weever (Echiichthys vipera) 2 years after construction of a Dutch OWF. Krone et al. [68] also reported low abundances of species associated with soft-bottom habitat, including species of Gobiidae and Callionymus spp., near the scour protection of a German OWF. Similar OWF-related trends have also been observed for flatfish species, including dab (Limanda limanda), sole, and solenette (Buglossidium luteum) [69].

4. Discussion

Although few countries have investigated both AR and OWF, this review identified overlap between AR studies and OWF studies in terms of water depth and materials, indicating that knowledge from temperate AR studies may be used to guide designs of future OWFs. Collectively, AR and OWF studies often observed an increase in abundance and diversity of fish species associated with hard-bottom habitats. Hard-bottom habitats provide food, shelter and habitats for reproduction, supporting the hypothesis that scour protection may create a reef effect [65]. Whether the increase in abundance is due to attraction or production is yet to be determined, however, there is growing evidence of new production associated with OWFs [64,72,79,80]. By modifying the designs of future scour protection, a range of habitats may be supported, increasing the abundance of target species [81] and possibly influencing fisheries via various mechanisms, including spill-over effects [28,29,30].

4.1. Fish Abundance, Biodiversity and Distribution Associated with ARs and OWFs

Artificial structures (i.e., both ARs and OWFs) typically hold higher fish density and biomass [82,83,84], largely attributed to the form, complexity, area coverage [62] and/or food abundance [85]. The findings of this review collectively confirm that artificial structures often increase the abundance of hard-bottom species as well as fish diversity in the local area. In some instances, however, artificial structures have no apparent reef effect for certain fish species, meaning that there is no noticeable increase or decrease for a given species. For example, abundances of adult individuals of several pelagic species, including horse mackerel, mackerel, herring, and sprat were unaffected by the presence of scour protection [69]. While adult individuals of pelagic species seemed unaffected by scour protection, they may still utilize scour protection as spawning or rearing habitat. Hard-bottom substrates are often important for the spawning of herring [86,87,88,89], suggesting that scour protection could have similar function. The loss of soft-bottom substrate arising from OWF installations may occasionally decrease the abundance of soft-bottom fish species [65,68,69]; however, due to the small amount of area covered by scour protection within an OWF (approximately 0.8%), possible negative impacts are considered insignificant at the population level as indicated by previous studies [69,73]. Even though scour protection may have negative effects on soft-bottom species at the local scale, the effects should be evaluated at larger spatial scales and related to fish population sizes and movements.

4.2. Attraction Versus Production

There are mainly two hypotheses aiming to explain the increased fish abundance in artificial structures [90]. Firstly, the attraction hypothesis presumes that fish simply aggregate at the installations from the surrounding environment, without a net increase in the population of the larger area. Secondly, the production hypothesis suggests that the carrying capacity of the ecosystem increases because of the artificial structures. According to the second hypothesis, fish growth, reproduction and/or survival is elevated in the area, resulting in population enhancement, eventually contributing to an increase in the net production, both for biomass and abundance [90,91].
While there is growing evidence of increased fish abundance associated with OWFs, it remains unclear whether fish are simply attracted from surrounding areas or if the OWF facilitates fish production. Recent studies have highlighted the importance of increased production associated with ARs [92,93,94]. For example, Roa-Ureta et al. [94] predicted a 35% increase in the carrying capacity for Diplodus vulgaris 4 years after ARs deployment, indicating new production. In terms of OWFs, several studies have suggested that OWFs act as nursery grounds and therefore, facilitate new fish production at the local scale [64,72,79,80]. In contrast, Wilson et al. [95] suggested that OWF foundations attract species from neighbouring areas, and Bergström et al. [35] concluded that elevated local abundance or diversity of fish near OWF foundations was due to a change in fish distribution, rather than a result of increased productivity.
The attraction versus production debate remains unresolved in most cases and the outcome of the debate relies upon an array of factors. The responses towards introduced hard substrata may vary among species, environments, locations, and age-specific requirements [90], while reef design characteristics, such as location, materials, size and number of units, also influence fish responses [91]. It is increasingly recognized that attraction and production effects are not mutually exclusive but should be considered as the two ends of a continuum [93,96,97,98].

4.3. Community Changes Associated with ARs and OWFs

Adding hard substrate may alter ecosystems in ways that benefit some species more than others [35,99]. For example, based on hydrodynamic modelling, introduced substrates from OWFs and ARs may increase the settlement of jellyfish polyps, potentially leading to jellyfish blooms [100,101]. This can affect fish species, as jellyfish compete with planktivorous fish and may forage on fish larvae [100]. OWFs may also attract fish species that would not naturally reside in the area [64]. For example, goldsinny wrasse and grey triggerfish (Balistes capriscus) were observed in Dutch OWFs, where they had not been recorded previously [69].
Non-indigenous fouling species, possibly invasive, may also utilize hard substrates associated with OWFs and ARs in soft-bottom environments [102]. Accordingly, OWFs may act as stepping-stones [103], enabling species to spread over large distances through a series of short-distance colonization events [63,102,104]; this may be particularly relevant for species like Jassa spp. that lack a distinct planktonic larval stage [104]. Due to the stepping-stone effect, sequential establishment of non-indigenous fouling species may occur rapidly on newly established OWF foundations [65,102]. Considering ocean warming, the placement of new hard substrata on the seascape may also facilitate the poleward expansion of non-indigenous species [105,106,107]. Observed non-indigenous species on OWF foundations include the Japanese oyster (Crassostrea gigas) and amphipods Jassa marmorata, Caprella mutica, and Caprella linearis [63,65,108,109]. In the Belgian part of the North Sea, 10 non-indigenous fouling macrobenthic species were identified on OWFs foundations [102]. OWF sites may also provide settlement habitat for pelagic larval particles that would otherwise have been unsuccessful in the area [110].

4.4. Scour Protection Functioning as An AR

Reviewed literature suggests that OWFs provide similar functions for marine organisms as ARs [18,64,65,69,70,71,79,111,112] and OWF foundations have even been termed Windmill Artificial Reefs (WARs) [71,113]. These structures act as ARs by providing habitat, food, shelter and spawning opportunities, leading to the aggregation of various fish species around the foundations [65]. Importantly, scour protection enhances the habitat complexity and thereby augments the reef effect, as highlighted by previous studies [29,70,95,112,113].

4.4.1. Food Provision

OWFs often increase the local food availability for fish. For example, Leonhard and Pedersen [109] estimated that the scour protection at a Danish OWF provided a 50-fold increase in the local food availability for fish, compared to the previously sandy area. The uneven and coarse surfaces of scour protection and foundations allow sessile, fouling organisms to settle and provide food for various fish species [66,114,115]. To examine the provision of prey items by scour protection, De Troch et al. [66] profiled the energy levels of Atlantic cod and pouting caught just above the scour protection. The study found that the scour protection provided both species with sufficient energy reserves to grow and/or reproduce [66]. Moreover, stomach analyses performed on pouting aggregating near scour protection found a preference for hard substrate prey, amphipod Jassa herdmani and porcelain crab Pisidia longicornis, the dominating epifauna on the OWF foundations [70,113]. Although further studies are needed, these findings suggest that scour protection may provide feeding opportunities for a variety of fish species.

4.4.2. Shelter

The layer of boulders and rocks commonly used for scour protection creates crevices that provide hiding opportunities for fish and other fauna [113], consistent with similar mechanisms occurring in natural boulder reefs [116]. Video footage and diving surveys revealed commercial species such as Atlantic cod and pouting utilizing crevices associated with scour protection for shelter [65,70]. Moreover, acoustic telemetry demonstrated that Atlantic cod exhibit strong residency, high site fidelity and habitat selectivity towards OWF foundations with scour protection [71]. Therefore, scour protection may serve as a potential fish refuge and shelter from predators and strong currents, similar to ARs.

4.4.3. Nursery

Several studies have observed nursery functions of scour protection [64,72,79,80]. For example, Krone et al. [68] revealed that OWF foundations function as nursery grounds for the edible crab, Cancer pagurus. Andersson and Öhman [72] detected pregnant two-spotted goby females, as well as increased numbers of several size-classes associated with scour protection. On this basis, the authors hypothesized that the habitat created by the OWF facilitated recruitment and increased production. These indications signify that OWFs may function as nursery grounds, although the spatial extent is probably limited to the scour protection and the monopile alone.

4.4.4. Distance between Artificial Habitats

The location of OWFs may affect the composition and diversity of species assemblages that colonize and utilize the structures. A shorter distance to neighbouring hard substrata provides a greater likelihood of larvae and juveniles associated with local hard substrata to arrive and colonize [18]. A reef in a given area has a specific carrying capacity; often determined by reef size, in combination with the community composition (e.g., size of individuals and their foraging habits). To create the most productive ARs, it is important to consider the potential overlap with forage areas of neighbouring reef species. If the forage areas of two proximate ARs are overlapping, then the food availability and the potential yield from each AR may decrease [117]. Recently, Rosemond et al. [118] suggested a minimum buffer zone of 60 m to 120 m between neighbouring ARs to optimize the fish habitat utilization. The proposed buffer zone aims to minimize attraction from proximate reefs, maximize food resource availability in soft-bottom habitats around the reef and increase the area for typical fish behaviours, such as reproduction and foraging. Similar buffer zones between scour protections within OWF are de facto in place, since design guidelines highlight that the optimal distance between adjacent monopiles and scour protections should be seven times the rotor diameter of each turbine, resulting in distances exceeding ca. 430 m between individual scour protections [119]. These observations suggest that individual scour protections function as individual reefs.

4.4.5. Reef Size

Numerous studies have indicated that reef volume and coverage area are crucial design requirements for a successful AR. A typical scour protection has a high perimeter-to-area ratio, with a radius up to 20 meters from the monopile [34,35], elevated about 1.5m above the seabed [38] (Figure 1); this is equivalent to a reef with a volume of 471m3. Smaller ARs (i.e., similar to the size of a scour protection) often have increased fish densities in comparison to larger ARs [82,120,121]. This observation, however, applies mainly for attraction and not necessarily for new production [121]. Champion et al. [122] developed a model to examine the relationship between AR size and foraging capacity. Their model predicted that highest per-capita food availability occurs when the AR is relatively small. Ogawa et al. [123] reported that productivity of an AR increases directly with reef size from 400 m3 and up to 4000 m3, indicating that the minimum effective AR size is 400 m3 [123,124]. These AR findings suggest that the volume of an individual scour protection may be adequate to function as a reef.

4.5. Optimizing Scour Protection

A fundamental objective of this review is to extract knowledge from AR designs and apply it to scour protection research with the aim to potentially enhance favourable ecological functions. Even though the ultimate purpose of scour protection is to prevent the scouring of sediment (Figure 1), scour protection may also provide preferred habitats for several species [112]. The level of complexity, the distance between artificial structures, as well as the building material and water depth are the primary characteristics that determine the efficacy of an artificial structure in terms of supporting fish abundance and biodiversity [12,112,118].

4.5.1. Structural Complexity

Previous studies have observed a positive correlation between the structural complexity of ARs and fish diversity and abundance [62,125]. Typically, larger fish require larger crevices, while smaller fish prefer smaller crevices [126]. A heterogeneous structure with a variety of crevice sizes and shapes may augment desired reef effects by elevating habitat heterogeneity, allowing a variety of fish species and life stages to utilize the area [34]. Feeding efficiency and growth of fish are maximized at intermediate levels of structural complexity, since very dense structures may hinder foraging [127]. Required crevice variety may be achieved with the use of mixed-sized blocks or boulders that are adjusted to the preferred shelter size for targeted species. In this fashion, scour protection design may be tailored to certain species or life stages.
The level of complexity can also be adjusted by the number of holes and crevices present in the applied material. For example, concrete modules with two holes may have a higher species abundance than simpler modules without holes [62]. Purposefully designed concrete reef units, also known as Reef Balls®, have 25 to 40 holes in a hollow centre [112]. Reef Balls® are used as coastal defence structures and may also function as scour protection structures [112]. For a scour protection area of ca. 440 m2, a single layer of 169 Reef Balls® is required to protect one monopile [112]. The projected carrying capacity of a Reef Ball® is approximately 385 kg of fish within a year, suggesting that the annual carrying capacity of a scour protection may approach 65,000 kg [29,112]. Although further research is required, these studies indicate that the structural complexity of scour protections may be elevated to enhance fish abundance and may even be tailored to certain fish sizes and life stages.

4.5.2. Materials

Different species settle on disparate substrates [128], suggesting that substrates may be tailored to suit target species. Rock is the most commonly used material for scour protection (Figure 5), because it is strong, stable, cost-efficient, erosion resistant, and suitable for benthic flora and fauna settlement. Nonetheless, concrete-gravel aggregate may be more suitable for design manipulations [129,130]. In addition, a single scour protection may include various materials, such as boulders, gravel and synthetic fronds to replicate a natural range of habitats and further increase habitat heterogeneity [81,112]. While synthetic fronds alone provide less surface area and space for colonization, they mimic vegetation and may provide additional ecological functions when combined with other types of scour protection [29].

4.5.3. Enhancing Ecological Function

Although the large-scale effects of OWFs on marine ecosystems remain uncertain [69,73] and several studies have revealed negative effects of OWFs [131,132,133], the present review identified a range of ecosystem functions that might be enhanced by modifying the foundation of OWFs and the scour protection in particular (Figure 7). The conceptual illustration (Figure 7) is not exhaustive and it remains crucial to develop and test structural manipulations of scour protection designs to achieve favourable outcomes.
Mammalian and fish apex predators may utilize OWFs for foraging; GPS tracking of two seal species (Phoca vitulina and Halichoerus grypus) in the North Sea indicated foraging close to the OWF foundations [134] (Figure 7A). Similarly, significantly higher occurrence of harbour porpoises was recorded inside a Dutch OWF compared to reference areas, partly attributed to increased food availability [138]. Various fish species may exhibit strong residency at OWF foundations with scour protection [71] (e.g., Atlantic cod; Figure 7B), which are also included in the diet of the two seal species [139,140]. This indicates that modified scour protection designs enhancing fish abundance could translate into benefits for a range of apex predators.
Rough surface texture in the materials used for reef construction can enhance benthic settlement [115,141,142] (Figure 7D,E). Orientation of surfaces also plays an important role; bivalves, hydroids and barnacles mainly prefer colonizing vertical surfaces [135] (Figure 7D). High-vertical relief structures often support fish recruitment [143] and planktivore abundances, possibly by creating suitable hydrodynamic conditions [64]. Therefore, combined manipulations of materials and orientations may incite the growth of specific assemblages (Figure 7D,E). This may even be extended to setting up multi-use systems on OWFs, including, for example, mussel cultivation (Figure 7D).
Moreover, the macroalgal colonization of scour protection may be augmented using macroalgae restoration techniques [136,137,144], as macroalgae has been shown to influence the composition and abundance of fish species on rocky habitats [145]. Verdura et al. [136] developed a relevant novel technique to restore patches of the canopy-forming alga Cystoseira barbata, while Fredriksen et al. [137] developed a method to restore kelp forests using rocks (Figure 7E). Macro algae growth may also support fish reproduction (Figure 7C). For example, in the Baltic Sea, herring select red algae Furcellaria lumbricalis and Polysiphonia fucoides as spawning substrate [89] (Figure 7C,E). This function requires that scour protection is in the photic zone, requiring shallow water OWFs. Such cases exist, however, including the “Horns Rev 1” OWF in the North Sea, which is situated at water depths between 6.5–13.5 m [73].
Shelter availability for shellfish species, such as the European lobster, Homarus gammarus, and C. pagurus, may create a demographic bottleneck [91]. Scour protection optimizations in favour of the European lobster could include size, shape, number of shelter entrances, and substrate [146,147] (Figure 7F). Typically, adult lobsters and crayfish select crevices that have entrances analogous to their body size [148], while juveniles (carapace length, CL < 35 mm) are active burrowers and find shelter in soft substrates [149]. Barry and Wickins [149] proposed a mathematical model to estimate the best rock size combination to produce holes suitable for individuals with CL between 38–145 mm. The model estimated that a 10-size rock solution (ranging from 40 to 3000 mm radius) produced the best results. Even though their model is a simplified version of reality, because the modelled rocks are spherical and therefore result in a denser packing than what might occur naturally, the model may still provide rough recommendations for the optimal rock size combination for scour protection designs (Figure 7F). If specific lobster sizes are targeted, the following simplified equation (1) could be used to calculate the appropriate rock size radius (r) that will create the required target hole radius (x) [149]:
x = 0.15 r
For example, assuming that the rocks are spherical and homogenous in size, rocks with a radius of 1078 mm should be used to benefit lobsters with a CL of 145 mm [149]. To the best of our knowledge, preferred shelter sizes have not been quantified for fish, although such data could prove valuable to tailor scour protection designs for specific fish species and life stages.

4.6. Advancing the Field

Soft-bottom species might be vulnerable when hard substrata (e.g., foundations) are introduced in their ecosystem, because soft-bottom habitat is eliminated. Due to conflicting results, further studies are required to determine the impact of scour protection on soft-bottom species. Likewise, edge and transition zone effects [150,151,152,153,154,155], as well as community recovery models [156,157,158] should also be taken into consideration. Given the complexity of patchy habitats induced by scour protection, such studies may reveal unique ecological conditions existing in the transition zones between scour protection and soft-bottom habitats, as well as how soft-bottom species recover after partial loss of their habitat.
To date, no empirical studies have examined ecological effects of different scour protection configurations. It is crucial to identify the size, shape, height, orientation, and material that provide most support for targeted ecosystem functions and services. The use of assorted scour protection materials should also receive further attention. Future studies should test concrete (possibly in Reef Ball® configuration) as an alternative material for scour protection. Further studies on preferred shelter dimensions for fishes are also needed to predict the optimal rock size for scour protections to provide ideal habitats for target species. Coastal defence structures have also been shown to offer opportunities for supporting ecological functions [11,159]. Even though these are not offshore structures, foundation designs of coastal OWFs could possibly benefit from coastal-defence knowledge [11,159]. This knowledge remains to be tested and integrated into cases where OWFs are being deployed in coastal areas.
Many OWF studies concern areas that are de facto no-fishing zones, since trawling and other fishing activities often are prohibited within a radius from the structures. These no-take conditions essentially create a marine-protected area that may increase the abundance of fish in neighbouring areas through spill-over effect [28,29,30,160]. The spill-over could be harvested by sustainable fisheries, but the topic has received limited attention. The main knowledge gap is estimating how much additional fish biomass is added to the ecosystem (at a larger scale) due to the presence and design of scour protection. Mounting evidence suggests spill-over effects of marine protected areas [161,162], but it remains unknown to what degree the effects depend on scour protections inside OWFs.
Existing evidence indicates that OWFs cause little to no effects on fish communities on a large spatial scale; however, due to the expected massive increase in OWFs [18,19], the scale of OWF effects is likely to expand over the coming years. With increased OWF development, effects of scour protection could reach a tipping point (i.e., induce a marine regime shift) [163,164], where a certain density of scour protections may have significant effects on large-scale fish communities.
Apart from the scour protection, effects of the monopiles (or equivalent structures) should also be considered when determining changes in biodiversity and species abundance, as the community composition of the fouling fauna may differ along a depth gradient on a monopile [165]. Monopiles are, however, considered difficult to manipulate, opposite to the scour protection, and were therefore excluded from the present review. Interestingly, monopiles may attract mid-water forage species [64,69] and associated predators, pointing to similar effects recorded at oil and gas platforms [15,166,167,168,169]. There are clearly interactions between these mid-water species and the species linked to scour protection, which should be further explored for a better understanding of community changes.
Lastly, when the production life of offshore infrastructure is over, current international policies call for removal of the structures. This type of decommissioning, however, could result in loss of marine habitat, especially considering species benefitting from OWFs [16,99,170]. Before decommissioning of the first OWF in the world (Vindeby, Denmark), the associated environmental impact assessment indicated that the removal of the foundation could reduce the local Atlantic cod abundance [171]. The impact on Atlantic cod was not attributed to the foundation removal activities per se, but rather to the loss of reef habitat in the area, after eliminating the foundations [171]. Therefore, before removing OWF foundations, reefing options may be considered [172,173]. An alternative to removal could be the “renewables-to-reefs” program, in which the foundation is partially removed, leaving the scour protection intact on the seafloor [174,175]. Modifying scour protection designs to favour fish abundance and diversity may amplify interests in keeping parts of the foundation intact during decommissioning.

5. Conclusions

This review is the first to transfer knowledge from AR studies to scour protection designs. Specifically, the review synthesized the effects of ARs and scour protection on fish biota and suggested approaches for enhancing the ecological function of scour protection. Overall, the vast majority of both AR and OWF studies report increases in fish abundance and diversity within the local area. Current evidence suggests that fish species of both high and low commercial value utilize the hard substrata that scour protection adds to the marine environment. This review has identified several scour protection manipulations that could influence abundance and diversity of marine species. By modifying future scour protection designs, fish abundance and diversity may be enhanced. As such, scour protection designs may be tailored to commercial species or threatened species. Further empirical research is needed to explore and test new and innovative scour protection designs, with the ultimate goal of creating scour protections that support marine goods and ecosystem services.
