Identifying Unregulated Emissions from Conventional Diesel Self-Ignition and PPCI Marine Engines at Full Load Conditions

Abstract

A study on unregulated emissions of a conventional diesel self-ignition and partial premixed compression ignition (PPCI) marine engine at full load condition was performed, respectively. In this work, PPCI was realized in a marine engine by blending 15% diesel with 85% light hydrocarbons (LHC). Gas chromatography-mass spectrometry (GC-MS) was used to detect and identify unregulated emissions, and the chemical formula and peak area of representative species were obtained. Furthermore, the unregulated emissions were classified and semi-quantitatively analyzed. The results show that the maximum in-cylinder pressure of PPCI is almost 11 bar lower than that of conventional diesel combustion, and the crank angle at that moment is also delayed by 2 °CA. Compared to conventional diesel combustion, the maximum pressure rise rate of PPCI is reduced by 3.5%, while the maximum heat release rate of PPCI increases by 23.5%. Further, PPCI produces fewer species in unregulated emissions, and their chemical formula are less complex than that of conventional diesel combustion. Compared to conventional diesel combustion, the relative concentration of alkane and organic components in PPCI decreases significantly, while ketone and ester increase.

1. Introduction

Internal combustion engines are widely used in agriculture, transportation, and industry because of their high efficiency, good economy, and high reliability. However, the emission of internal combustion engines seriously affects the living environment of people [1]. At present, emission regulations mainly restrict regulated emissions such as NOx, HC, CO, and PM. Nevertheless, in recent years, more and more attention has been paid to the unregulated emissions of internal combustion engines, such as alcohols, aldehydes, aromatics, and sulfides. Some species of the unregulated emissions, even in small concentrations in the air, have chronic toxicity. Their presence around the population has a great threat to people’s health [2,3].

Under the pressures of energy, environment, and health, the development and application of new alternative fuels has become a hot issue in the research of internal combustion engines. Currently, the most studied alternative fuels are alcohols (mainly including methanol and ethanol), biodiesel, and dimethyl ether. They come from a wide range of sources and are effective as oxygenated fuels to reduce particulate emissions. Qian et al. [4] conducted the experiments on the combustion and regulated/unregulated emissions characteristics in a gasoline direct injection (GDI) engine fueled with C₃–C₅ alcohols (ethanol, n-propanol, n-butanol, and npentanol). Cheung et al. [5] and Man et al. [6] investigated the regulated and the unregulated emissions of biodiesel at different speed and load conditions, including the two carbonyl compounds (formaldehyde and acetaldehyde), three unsaturated hydrocarbons (1,3-butadiene, propene, and ethene), and three aromatics (benzene, toluene, and xylene). However, relevant studies have found that the use of alcohol and ether fuels intensifies the production of unregulated emissions [5,7]. Agarwal et al. [8] carried out the exhaustive experiments on the effects of burning methanol- and ethanol-gasoline blends on the unregulated emissions. The results revealed that the concentrations of formic acid, iso-butane, and iso-pentane in gasohol blends are lower than that in baseline gasoline. Zhang et al. [9] applied diesel/fumigation methanol compound combustion scheme on a four-cylinder diesel engine and found the reduction of ethyne, ethylene, and 1, 3-butadiene emissions. Nevertheless, the increase of methanol concentration in the test fuel was detrimental to higher emissions of benzene, toluene, xylene, unburned methanol, and formaldehyde.

In addition, some studies on the emissions of diesel blended with several hydrocarbon fuel surrogate components have been carried out. Tsunemoto et al. [10] studied the exhaust emission of the paraffinic hydrocarbons (C₇–C₁₂) with different boiling points and aromatic hydrocarbons blended with paraffinic and olefinic hydrocarbons. Li et al. [11] studied n-dodecane, iso-dodecane, tetralin, and decalin, and analyzed in detail the differences of unregulated emissions of aldehyde, olefins, and methane fueled with diesel blending with 10% and 20% fuel components. In order to meet the requirements of fuel economy, power performance, and emission characteristics, some new concept combustion, such as homogeneous charge compression ignition (HCCI), premixed charge compression ignition (PCCI), and partially premixed compression ignition (PPCI) have been proposed in the recent years to reduce the regulated and unregulated emissions without compromising on engine efficiency. HCCI engines are faced with such challenges as controlled auto ignition, high pressure rise rate, load extension, combustion phasing control, high emissions of CO and HC, and homogeneous charge preparation [12,13]. In PCCI or PPCI derived from HCCI, the end point of fuel injection and the start point of combustion are separated for preferred control over the start of combustion and better fuel-air premixed state at the beginning of combustion [14]. References [15,16,17,18] conducted numerical simulation or experimental study on PPCI combustion.

Due to the diversity of alternative fuels and combustion modes, there are hundreds of unregulated emission species. Therefore, it is necessary to establish a systematic and efficient detection method for unregulated emissions. At present, the main analytical instruments are Fourier transform infrared (FTIR), high performance liquid chromatography (HPLC), and gas chromatography/mass spectrometry (GC-MS). Qu et al. [19] conducted the experiments on a four-cylinder direct-injection spark-ignition (DISI) methanol engine. The measurement methods in which combine with gas chromatography and liquid chromatography were used to separate and measure regulated and unregulated emissions. Wang et al. [20] studied the influence of ash on the emissions. The regulated gaseous emissions, and the unregulated emissions (mainly carbonyl compounds and volatile organic compounds) were measured by a gaseous analyzer, electrical low pressure impactor (ELPI), HPLC, and GC-MS, respectively. Agarwal et al. [8] carried out exhaustive experiments fueled gasohol for characterizing the emissions. The regulated emissions and the unregulated emissions are measured by a raw exhaust emission analyzer and a FTIR emission analyzer, respectively.

Previous studies have been focused on the emission characteristics and regulated pollutants. In recent years, unregulated emissions have received increasing attention, but are mainly concentrated in biodiesel or alcohol-diesel blends. Most of the contents are focused on specific components (formaldehyde, acetaldehyde, 1,3-butadiene, and benzene) or further on the effects of load, rotational speed, injection timing, and ignition on these components [6,21,22]. There is lack of information on the unregulated emissions of diesel-light hydrocarbon fuels as applied to a diesel engine and the measurements of species are not entirely complete. Hence the aim of this study is to identify the unregulated emissions of a marine diesel engine fueled with diesel and light hydrocarbon blends in PPCI at full load, to further compare the results with those obtained in conventional diesel self-ignition combustion.

2. Experimental Setup and Method

The experiments were carried out on the basis of a six-cylinder prototype marine diesel engine manufactured by a Chinese automaker with the purpose of power generation. The prototype engine was refitted to realize PPCI where large amounts of LHC was injected into intake manifold by adopting PFI injector and then premixed LHC-air mixture was ignited by a small quantity of diesel directly injected (DI) into cylinder, and the schematic layout of the experimental setup was presented in Figure 1. In this study, the engine speed and torque were controlled automatically by using an electrical dynamometer (AVL504/4.6 SL). A piezoelectric pressure sensor (Kistler 6052C) along with a combustion analyzer (Dewetron M0391E) was adopted to acquire in-cylinder combustion pressure and corresponding crank angle. A shunt pipe was installed on the exhaust gases pipe to collect the exhaust gas in PPCI and conventional diesel self-ignition combustion, respectively. Under the action of gas sampling pump, exhaust gas was cooled down in the shunt pipe first, and then flowed through the activated carbon. The exhaust particulate impurities and macromolecular substances were absorbed by activated carbon. Finally, the filtered exhaust entered a florence flask with absorption liquid. The absorbent liquid was n-hexane with purity up to 99.99%, which could absorb unregulated gaseous emissions from the exhaust.

Table 1. Specifications of the engine.

Parameters	Details
Combustion system	4-valve PPCI
Number of cylinders	6
Displacement/bore/stroke	27 L/170 mm/200 mm
Compression ratio	14.5
Rated speed/rated power	1000 r/min/330 kW
Brake specific fuel consumption	200 g/(kW × h)
Injection/injection pressure	Direct injection/up to 35 MPa
	PFI injection/0.45 MPa
Inlet valve opening/closing	50 °CA BTDC/40 °CA ABDC
Exhaust gases valve opening/closing	65 °CA BBDC/50 °CA ATDC

lists the main technical parameters of the test diesel engine.

Commercial Euro IV diesel fuel and light hydrocarbon (mainly C₅, C₆) were adopted in the experiments. In this study, the recommended PPCI scheme was that 85% light hydrocarbon was premixed with air through port fuel injection (PFI), and 15% diesel was directly injected into the cylinder. The physical properties of commercial Euro IV diesel fuel and light hydrocarbon are listed in

Table 2. Fuel Properties.

Properties	Diesel Fuel	Light Hydrocarbon
Molecular formula	C9–C18 compounds	C5–C6 compounds
Liquid density (kg/L)	0.82–0.87	0.65–0.68
Lower heating value (MJ/kg)	42.4	48.2
Cetane number	50.8	–
Octane number	–	70
Flash point (°C)	54	−38
Kinematic viscosity (@313 K) (mm2/s)	2.2	0.62

.

GC-MS is a comprehensive analytical technique, which combines the separation ability of gas chromatography with the identification ability of mass spectrometry. In this paper, an Agilent 6890N/5975 gas chromatography/mass spectrometry was adopted. Under each operating condition, 0.5 mg activated carbon granules were taken to make samples. With the CDS Pyrolyzer 5150, samples could be heated rapidly and accurately from room temperature to 1000 °C. Samples placed in pyrolysis tube were pyrolyzed in helium atmosphere. The chemical components, both in particulate and gaseous phase, play a significant role in exhaust gas of engine. While a mass spectrum can contain numerous information representing the highly complex nature of the exhaust gas sample, it also presents considerable challenges for the analysis and interpretation of the sample data. A challenge is the identification and separation of peaks with similar but not identical masses. In this study, specific spectral fitting techniques were needed to resolve the overlapping peaks at the same integer mass, and corresponding squares fit was made to the spectrum by using Squirrel/PIKA software [23]. The pyrolysis products were separated by gas chromatography (GC), and the common pyrolysis products were independently acquired using the same GC-MS conditions and saved as references. The detailed composition of unregulated emissions was then determined through a comparative analysis between the reference standards and the samples of unregulated emissions. The unique interfacing design permits a direct pyrolysis path to the GC inlet or rapid sample heating transfer to the trap without interrupting the pneumatics of the GC-MS Detector for separation and detection. In addition, for the absorbent liquids with exhaust components, 1 μL of liquid was taken respectively. The samples could be directly injected from the gas phase inlet, and the relative proportion of each compound in the sample was determined via integration of individual peak regions arising in the GC.

3. Results and Discussion

3.1. Engine Combustion Characteristics

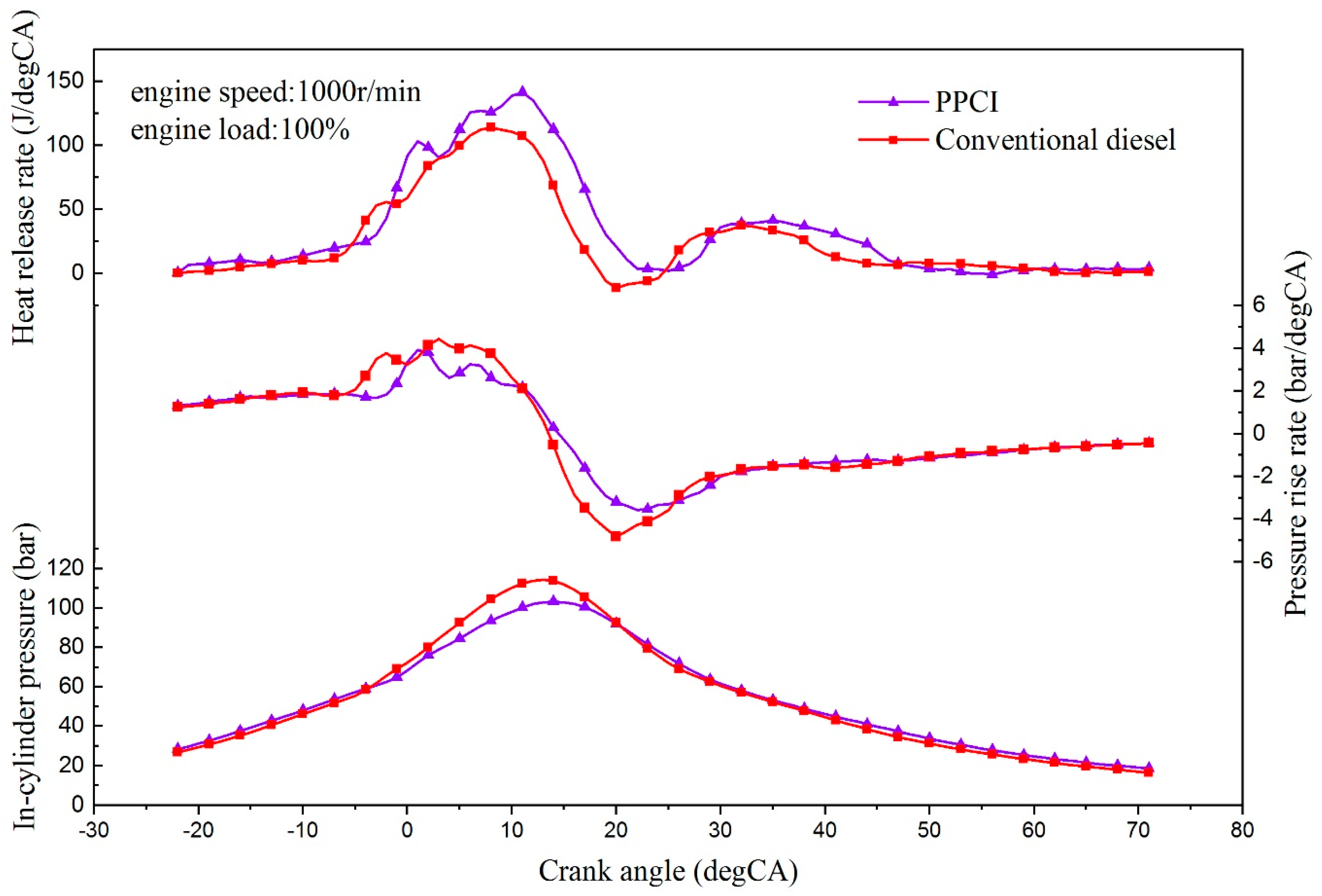

Figure 2 shows the in-cylinder pressure, heat release rate, and pressure rise rate curves of conventional diesel combustion and PPCI at 100% engine load of 1000 r/min, respectively. The combustion start time (θs) is defined as the crank angle of rapid pressure rising determined by the in-cylinder pressure data. The end time of combustion (θe) is defined as the crank angle of the total heat release determined by the heat release rate data. Combustion duration (φ) is defined as the interval between θs and θe.

As can be seen from Figure 2, compared with conventional diesel combustion, the combustion characteristic curve of PPCI has almost the same trend, that is, the corresponding phases move backwards. For the in-pressure curves at 100% load, the maximum in-cylinder pressure of PPCI is almost 11 bar lower than that of conventional diesel combustion, and the crank angle at that moment is also delayed by 2 °CA. It is due to fuel properties, atomization process, start of combustion, and ignition delay period [24,25]. Although a longer ignition delay can enhance fuel-air mixing and increase the amount of burnt fuel during the premixed phase of the combustion process, the endothermic evaporation of premixed intake charge and heat capacity of premixed fuel decrease as the LHC/Diesel increases, which leads to a decrease of atomization and vaporization characteristics of diesel fuel spray. The maximum pressure rise rate is an indication of the ignition delay of the injected fuel that a higher pressure rise rate is due to a longer delay period. The maximum pressure rise rate of PPCI is reduced by 3.5% compared to that of conventional diesel combustion, which makes the dual fuel engine work smoothly. It is due to the eminent volatility and low viscosity of LHC which promotes LHC mixing with air during the intake stroke and enhances the ignition performance of the mixture in cylinder. Compared to conventional diesel engine, the maximum heat release rate of PPCI increases by 23.5% as illustrated in Figure 2. In PPCI combustion, the outstanding atomization and vaporization characteristics facilitates the full mixing of fuel and air, which enhances the mixture combustion rate and complete combustion.

3.2. GC-MS Detection of Unregulated Emissions

The unregulated emissions of conventional diesel combustion and PPCI were detected in this paper. The speed was set to 1000 r/min and the load was 100% of full load. The chromatographic peak, retention time, and peak area were obtained by chromatograph. In each chromatogram figure, the abscissa represents time, the ordinate represents abundance, and each ion peak represents a compound in exhaust gas. Additionally, the number above each ion peak represents the peak time of corresponding species.

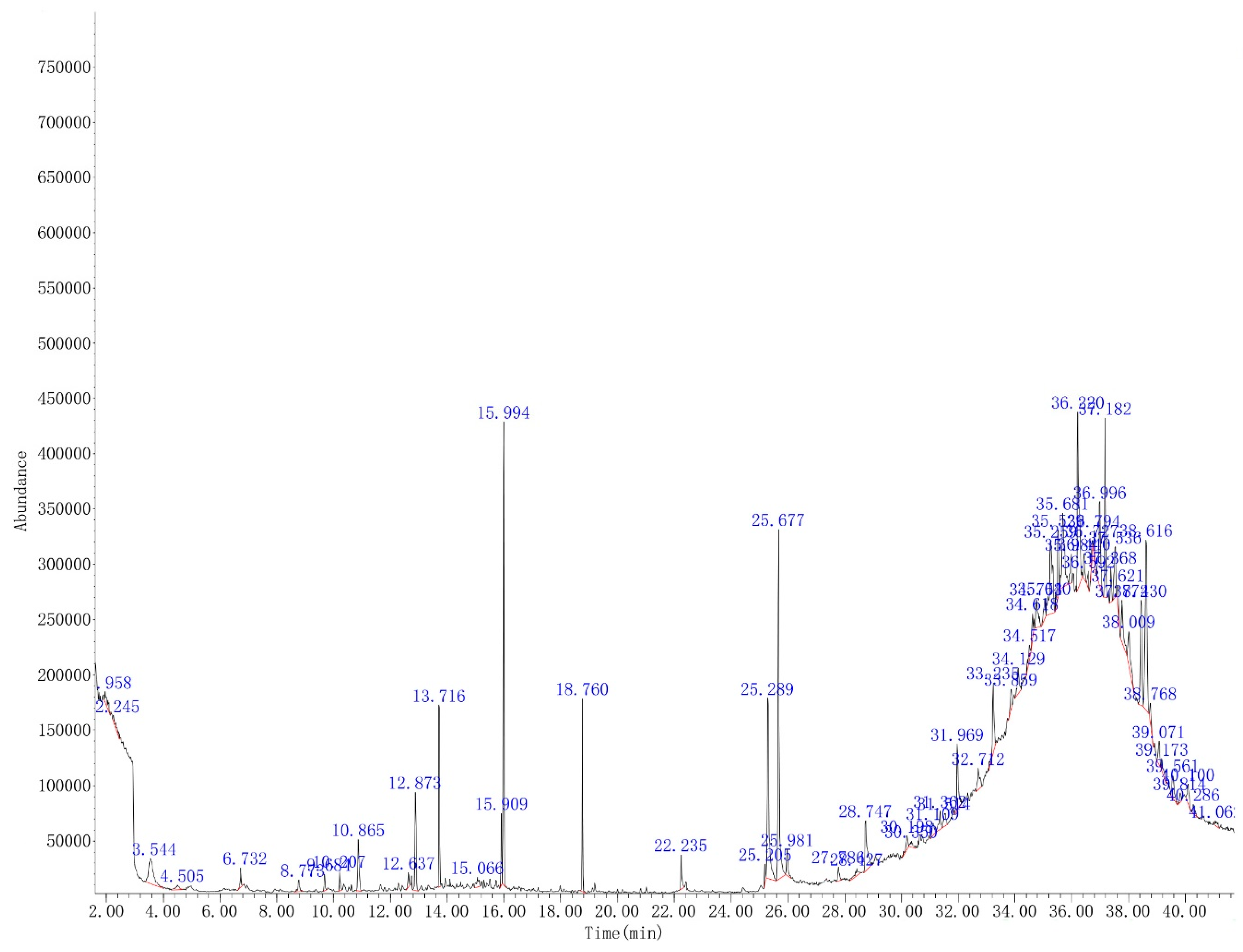

Figure 3 is total ion chromatograms (TIC) of unregulated emissions absorbed by activated carbon in conventional diesel combustion, and

Table 3. Exhaust components absorbed by activated carbon in conventional diesel combustion.

Number	Retention Time	Name	Formula	Matching Degree
1	3.544	Tetrachloroethylene	C2Cl4	96
2	6.732	Cyclotetrasiloxane, octamethyl-	C8H24O4Si4	90
3	8.773	Nonanal	C9H18O	47
4	9.684	Cyclopentasiloxane, decamethyl-	C10H30O5Si5	91
5	10.207	Benzene, 1,2,4-trichloro-	C6H3Cl3	97
6	10.865	Benzene, 1,2,3-trichloro-	C6H3Cl3	97
7	12.637	Phthalic anhydride	C8H4O3	93
8	13.716	Benzene, 1,2,3,5-tetrachloro-	C6H2Cl4	98
9	15.066	2-Pentanone, 4-cyclohexylidene-3,3-diethyl-	C15H26O	43
10	15.909	Dibenzofuran	C12H8O	91
11	15.994	Benzene, pentachloro-	HC6Cl5	99
12	18.76	Benzene, hexachloro-	C6Cl6	99
13	22.235	n-Hexadecanoic acid	C16H32O2	95
14	25.205	9,12-Octadecadienoic acid (Z,Z)-	C18H32O2	99
15	25.289	9-Octadecenoic acid,(E)-	C18H34O2	99
16	25.677	Octadecanoic acid	C18H36O2	99
17	25.981	Hexadecanamide	C16H33NO	87
18	27.786	1-Hexadecanethiol	C16H34S	93
19	28.747	9-Octadecenamide, (Z)-	C18H35NO	98
20	31.109	2H-3,9a-Methano-1-benzoxepin, octahydro-2,2,5a,9-tetramethyl-, [3R-(3.alpha.,5a.alpha.,9.alpha.,9a.alpha.)]-	C15H26O	43
21	31.362	2-(Nonyloxycarbonyl)benzoic acid	C17H24O4	55
22	31.969	Heneicosane	C21H44	97
23	33.235	Heptacosane, 1-chloro	C27H55Cl	99
24	34.129	Cholest-22-ene, (5.alpha.)-	C27H46	53
25	34.517	1-Methyl-4-(1-methylethyl)-3-[1-methyl-1-(4-methylpentyl)-5-methylheptyl]cyclohexene	C25H50	72
26	34.753	D-Homoandrostane, (5.alpha., 13.alpha.)-	C20H34	93
27	35.259	17.alfa.,21.beta.-28,30-Bisnorhopane	C28H48	64
28	35.681	Butanamide, 3-(3-fluorobenzoylhydrazono)-N-(4-fluorobenzyl)-	C18H17F2N3O2	60
29	35.984	Urs-20-en-16-ol, (16.beta., 18.alpha., 19.alpha.)-	C30H50O	59
30	36.22	23,28-Bisnor-17.beta.(H)-hopane	C28H48	81
31	36.794	Antra-9,10-quinone, 1-(3-hydrohy-3-phenyl-1-triazenyl)-	C20H13N3O3	68
32	37.536	28-Nor-17.alpha.(H)-hopane	C29H50	86
33	37.621	Baccharane	C30H54	84
34	38.43	D:A-Friedooleanane	C30H52	50
35	38.616	1-Penten-3-one, 1-(2,6,6-trimethyl-1-cyclohexen-1-yl)-	C14H22O	45
36	39.071	9,10-Methanoanthracen-11-ol, 9,10-dihydro-9,10,11-trimethyl-	C18H18O	46
37	39.561	1H-Indole, 1-methyl-2-phenyl-	C15H13N	43
38	39.814	Anthracene, 9,10-dihydro-9,9,10-trimethyl-	C17H18	55
39	40.286	3,3-Diisopropoxy-1,1,1,5,5,5-hexamethyltrisiloxane	C12H32O4Si3	50
40	40.1	1H-Indole-2-carboxylic acid, 6-(4-ethoxyphenyl)-3-methyl-4-oxo-4,5,6, 7-tetrahydro-, isopropyl ester	C25H50	41
41	41.062	Benzo[h]quinolone, 2,4-dimethyl-	C15H13N	46

lists the main exhaust components in the order of retention time. Polycyclic aromatic hydrocarbons (PAHs) are created by incomplete combustion or pyrolysis at high temperature under oxygen deficiency during the engine combustion process. In conventional diesel combustion, the semi-volatile fractions of exhaust gas samples are dominated by PAHs and their homologues alkylation series [26]. As illustrated in Figure 3 and Table 3, the peak time of corresponding species is in the range from 3.544 min to 41.062 min, and the main 41 species are identified based on matching degree. According to the identified species, the peak time mainly focuses on latter part along the retention time axis, which indicates heavy components contained in the exhaust gas of conventional diesel combustion. It is due to the complicated diesel fuel properties and non-premixed combustion mode in conventional diesel engine.

Figure 4 is TIC of unregulated emissions absorbed by absorption liquid in conventional diesel combustion, and

Table 4. Exhaust components absorbed by absorption liquid in conventional diesel combustion.

Number	Retention Time	Name	Formula	Matching Degree
1	2.298	n-Hexane	C6H14	60
2	3.292	Toluene	C7H8	91
3	3.968	1,2-Bis(trimethylsilyl)benzene	C12H22Si2	83
4	4.793	p-Xylene	C8H10	95
5	7.054	Cyclotetrasiloxane, octamethyl-	C8H24O4Si4	90
6	15.868	Cycloheptasiloxane, tetradecamethyl-	C14H42O7Si7	91
7	18.341	Cyclooctasiloxane, hexadecamethyl-	C16H48O8Si8	91
8	20.328	Cyclononasiloxane, octadecamethyl-	C18H54O9Si9	94
9	21.998	Cyclodecasiloxane, eicosamethyl-	C20H60O10Si10	49
10	23.16	Heneicosane	C21H44	98
11	24.09	Docosane	C22H46	99
12	24.238	Nonacosane	C29H60	99
13	24.957	Nonadecane, 9-methyl-	C20H42	93
14	25.802	Tetracosane	C24H50	99
15	26.605	Pentacosane	C25H52	99
16	27.387	Hexacosane	C26H54	98
17	27.895	Acridin-9-yl-[2-(1H-indol-3-yl)-ethyl]-amine	C23H19N3	35
18	28.212	Heptacosane	C27H56	99
19	28.296	Benzoic acid, 2,5-bis(trimethylsiloxy)-, trimethylsilyl ester	C16H30O4Si3	55
20	28.529	Eicosane	C20H42	96
21	28.782	Octadecane, 3-ethyl-5-(2-ethylbutyl)-	C26H54	49

lists the main exhaust components in the order of retention time. Volatile organic compounds (VOCs) in the C₆–C₁₁ range of diesel engine exhaust gas have been reported in literature [26], while little studies on heavy components with longer carbon chains were discussed. As shown in Figure 4 and Table 4, the retention time of corresponding species is in the range from 2.298 min to 28.782 min, and about 21 species are identified on account of matching degree. In the retention time from 23.16 min to 28.782 min, alkane species with long carbon chains are observed due to the evaporation and pyrolysis of diesel fuel incomplete combustion in high temperature at 100% engine load.

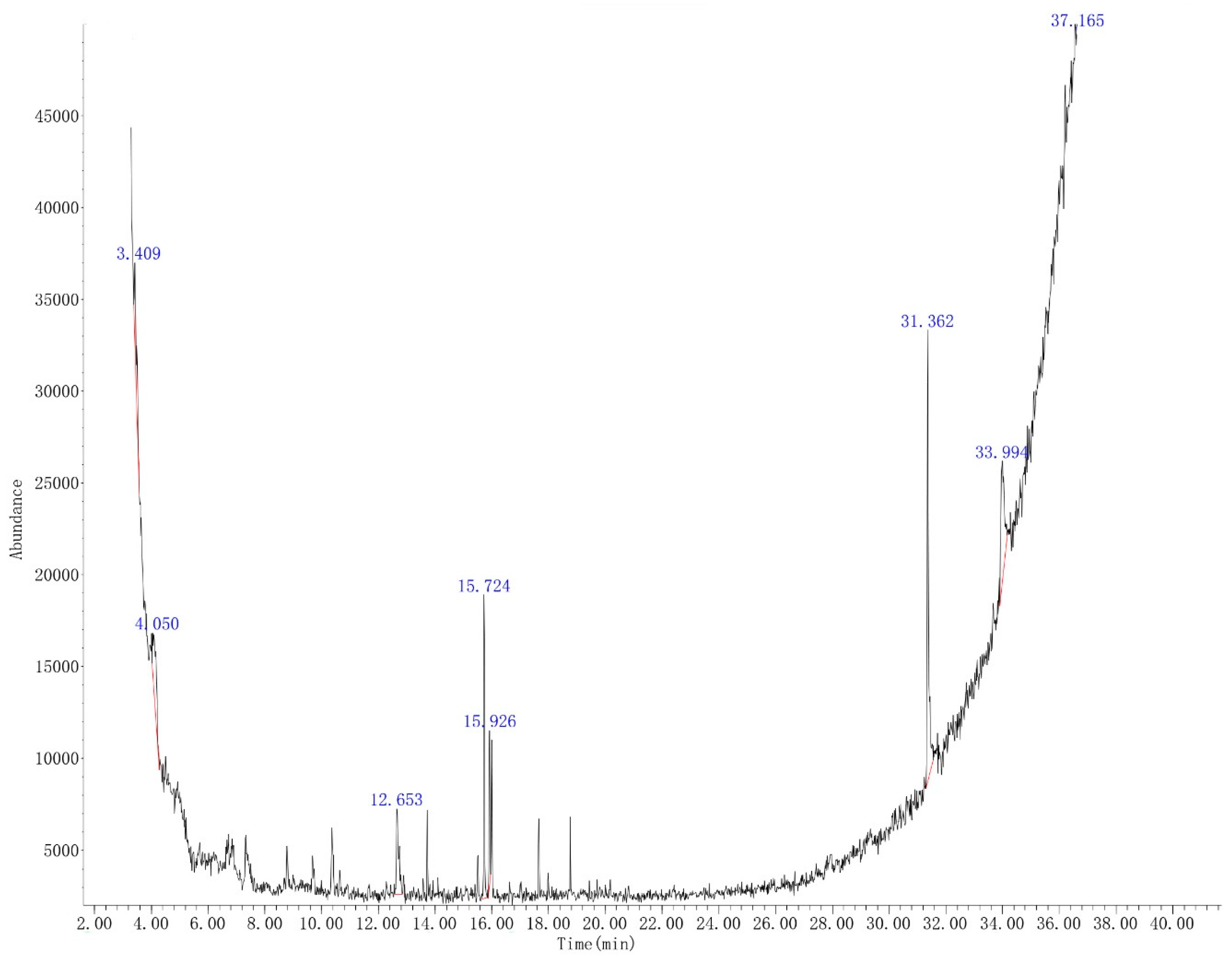

Figure 5 is TIC of unregulated emissions absorbed by activated carbon in PPCI, and

Table 5. Exhaust components absorbed by activated carbon in PPCI.

Number	Retention Time	Name	Formula	Matching Degree
1	3.409	Fumaronitrile	C4H2N2	43
2	4.050	2-Cyclohexen-1-ol, 3-methyl-	C7H12O	38
3	12.653	Phthalic anhydride	C8H4O3	53
4	15.724	Phenol, 3,5-bis(1,1-dimethylethyl)-	C14H22O	78
5	15.926	Dibenzofuran	C12H8O	78
6	31.362	Bis(2-ethylhexyl) phthalate	C24H38O4	72
7	33.994	3,3-Diisopropoxy-1,1,1,5,5,5-hexamethyltrisiloxane	C12H32O4Si3	35
8	37.165	Benzo[h]quinoline, 2,4-dimethyl-	C15H13N	43

lists the main exhaust components in the order of retention time. As illustrated in Figure 5 and Table 5, the peak time of corresponding species is in the range from 3.409 min to 37.165 min, and the main 13 species are identified based on matching degree. Compared to conventional diesel combustion, fewer PAHs are identified in PPCI. That is because PPCI has sufficient time to mix with fresh air in intake stroke which improves the oxygen deficit condition in fuel-rich regions during the mixture formation process [27].

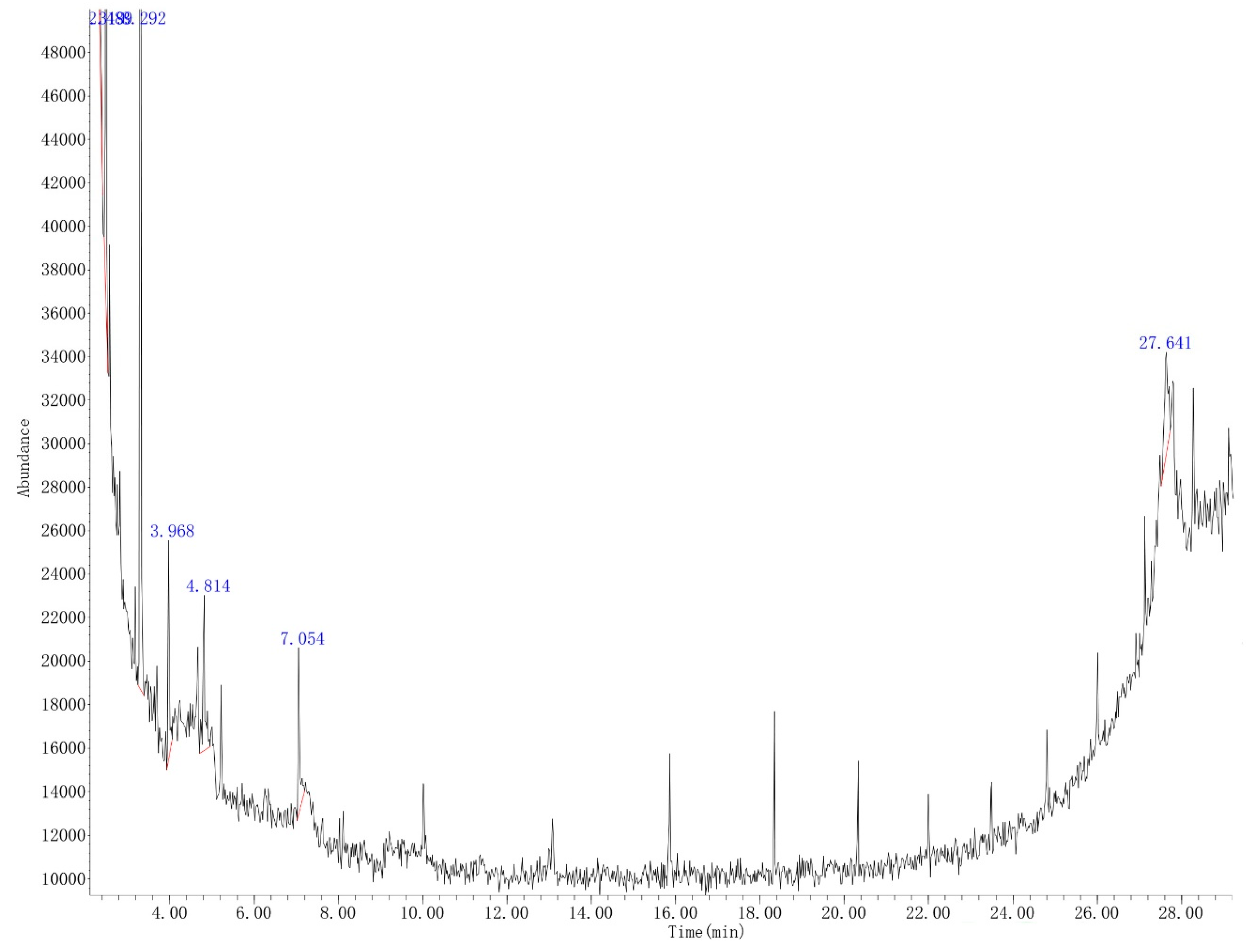

Figure 6 is TIC of unregulated emissions absorbed by absorption liquid in PPCI, and

Table 6. Exhaust components absorbed by absorption liquid in PPCI.

Number	Retention Time	Name	Formula	Matching Degree
1	2.319	Acetic acid, trichloro-, ethyl ester	C4H5Cl3O2	10
2	2.489	Pentane, 2,2,4-trimethyl-	C8H18	64
3	3.292	Toluene	C7H8	93
4	3.968	Cyclotrisiloxane, hexamethyl-	C6H18O3Si3	78
5	4.814	Cyclotrisiloxane, hexamethyl-	C6H18O3Si3	47
6	7.054	Cyclotetrasiloxane, octamethyl-	C8H24O4Si4	78
7	27.641	Tetrasiloxane, decamethyl-	C10H30O3Si4	38

lists the main exhaust components in the order of retention time. As shown in Figure 6 and Table 6, the retention time of corresponding species is in the range from 2.319 min to 27.641 min, and about seven species are identified on account of matching degree. Compared to conventional diesel combustion, fewer VOCs in PPCI are also identified. Compared to diesel fuel, LHC has short carbon chains and most of them represent straight chains, which produces fewer polycyclic aromatic hydrocarbons and other gaseous components [28]. In addition, LHC presents higher volatility and retarded ignition characteristics which facilitates fuel droplet mixing with air sufficiently and further homogeneous mixture is formed. The above-mentioned factors give rise to fewer PAHs and other gaseous components formation in PPCI.

Mass spectrogram was obtained by mass spectrometer, and standard spectrogram was used for retrieval and analysis. The mass-charge ratio (m/z) and its strength of different ions could be adopted to determine the relative molecular mass of organic compounds, so as to determine the chemical formula of the compounds. Due to the complexity of unregulated emissions in conventional diesel combustion, the compounds with matching degree less than 40% were disregarded, and for those with the same molecular formulas, the one with a higher matching degree was retained. For PPCI, all the test results of unregulated emissions were retained.

As shown in Table 3, Table 4, Table 5 and Table 6, there are more components detected in activated carbon than in absorption liquid, indicating that the unregulated emissions of diesel engine exhaust are mostly macromolecular substances. Apparently, the unregulated emissions components in PPCI are much less than those in conventional diesel combustion. From the molecular formula, the emissions components in conventional diesel combustion are more complex, and carbon content of compounds is larger. The main elements of unregulated emissions in conventional diesel combustion are C, H, O, N, Si, and Cl as reported in literature [26,29,30]. Among them, N mainly comes from air, and Si may exist in lubrication oil as well as Cl mainly exists in diesel fuel. As a halogenated element about Cl, it can easily replace hydrogen to produce halogenated hydrocarbons.

It can also be seen from Figure 3, Figure 4, Figure 5 and Figure 6 and Table 3, Table 4, Table 5 and Table 6 that the unregulated emissions components in PPCI are much less than that in conventional diesel combustion at full load condition, no matter what detected from activated carbon or absorption liquid. Further, the peak time of most components in conventional diesel combustion is later than that in PPCI, which indicates that there are more heavy components in the exhaust of conventional diesel combustion. The probable cause may be related to the fuel properties [31,32]. The light hydrocarbons used in this paper are mainly pentane and hexane, while the compositions of commercial diesel fuel are more complex.

3.3. Semi-Quantitative Analysis on Unregulated Emissions

In this study, the relative concentration of components in unregulated emissions between conventional diesel combustion and PPCI was represented with the relative peak area by using semi-quantitative method in GC-MS software [25]. Some hydrocarbons, including olefins, alkynes, and cyclohexanes, are considered to be extremely toxic [33,34]. In this paper, for example, 28-Nor-17.alpha. (H)-hopane, and (5.alpha.)-Cholest-22-ene are considered to be harmful substances. Alcohols mainly include (16.β, 18.α, 19.α)-Urs-20-en-16-ol, 3-methyl-2-Cyclohexen-1-ol and other complex alcohols. Esters include Acetic acid, trichloro-, ethyl ester, and Bis(2-ethylhexyl) phthalate. Bis(2-ethylhexyl) phthalate is an environmental hormone that binds to hormone receptors in the body and can interfere with the maintenance of normal levels of hormones in the blood, affecting human reproduction, development, and behavior. Long-term exposure to environmental hormones can cause chronic harm to human body, mainly manifested in reproductive toxicity to humans and animals. Acids include n-Hexadecanoic acid, octadecanoic acid and some complex acids. Aldehydes are mainly nonanal and heptanal, which, similar to acids, can irritate the skin and eyes to varying degrees, and long-term contact can also corrode the skin. Organosilicon compound is mainly siloxane, which is inflammable and can irritate eyes and skin. Inhalation may result in reduced central nervous system function. As illustrated in Figure 7, others in activated carbon are mostly chlorinated compounds, such as Tetrachloroethylene and Pentachloro-benzene.

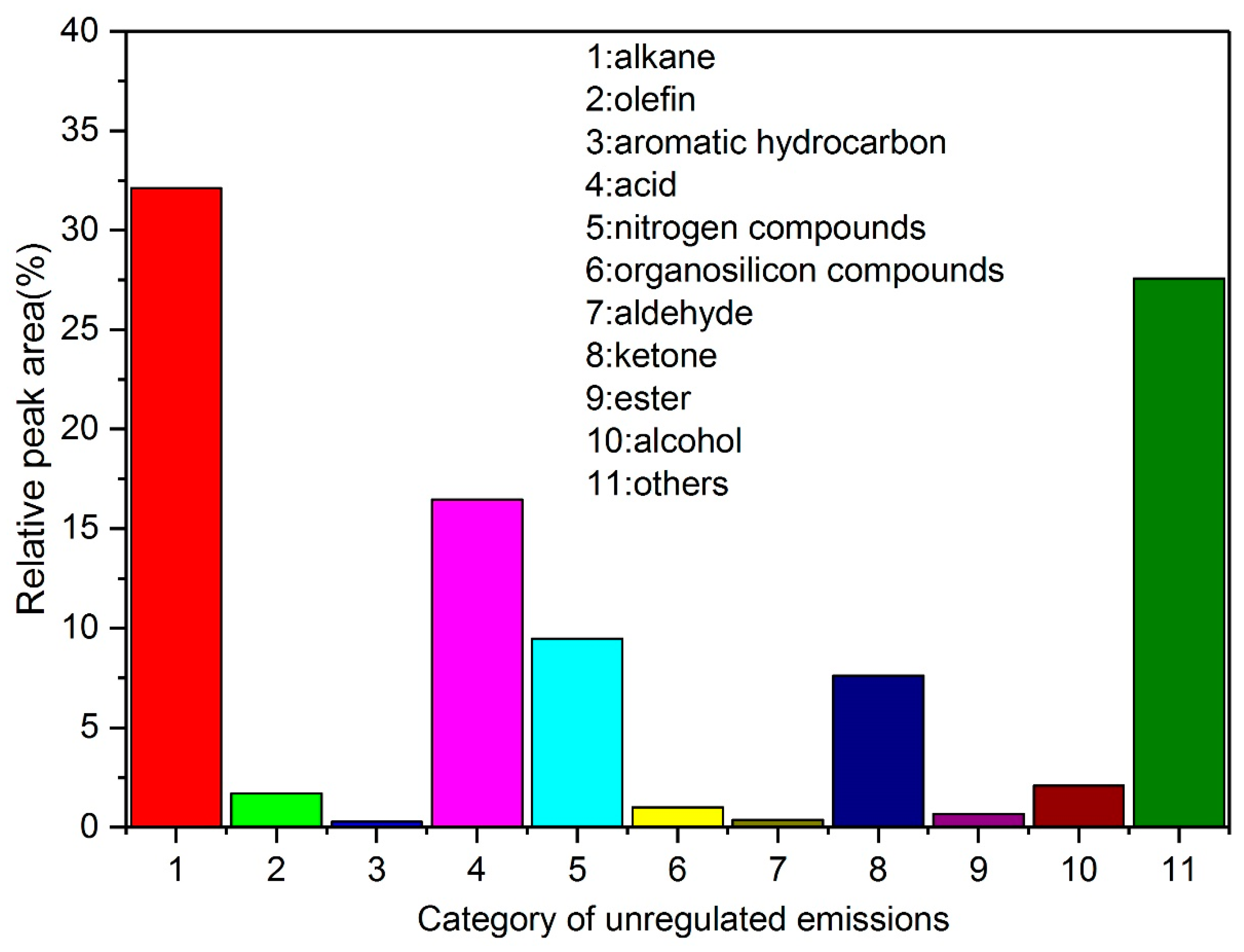

Figure 7 illustrates the relative concentration of unregulated emissions absorbed by activated carbon in conventional diesel combustion. As shown in Figure 7, the relative concentration of primary unregulated emissions by activated carbon is: Alkane 32.12%, acid 16.45%, nitrogen compounds 9.48%, and ketone 7.62%.

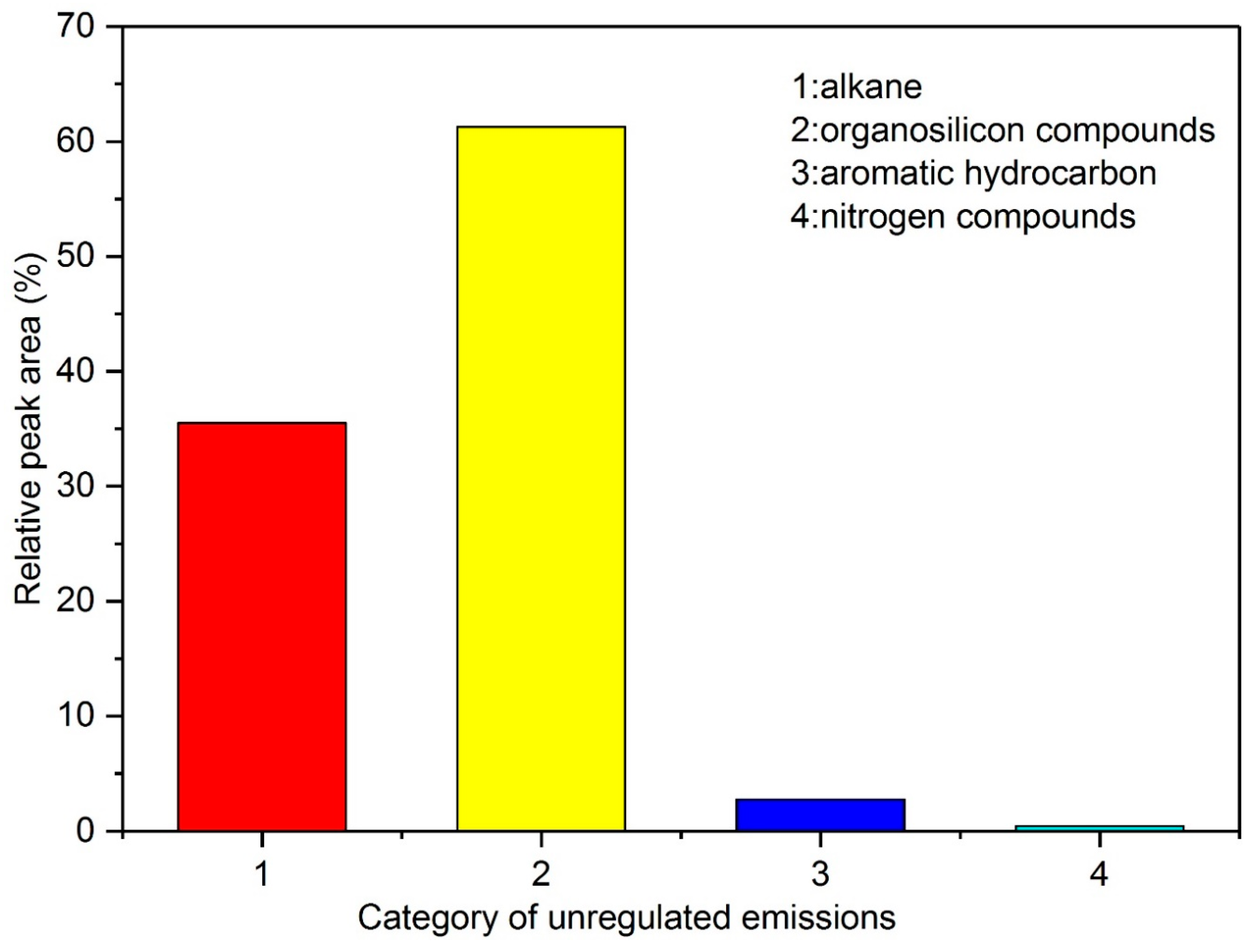

Figure 8 shows the relative concentration of unregulated emissions absorbed by absorption liquid in conventional diesel combustion. As shown in Figure 8, the relative concentration of primary unregulated emissions by absorption liquid is: Alkane 35.49%, organosilicon compounds 61.27%, and aromatic hydrocarbon 2.79%.

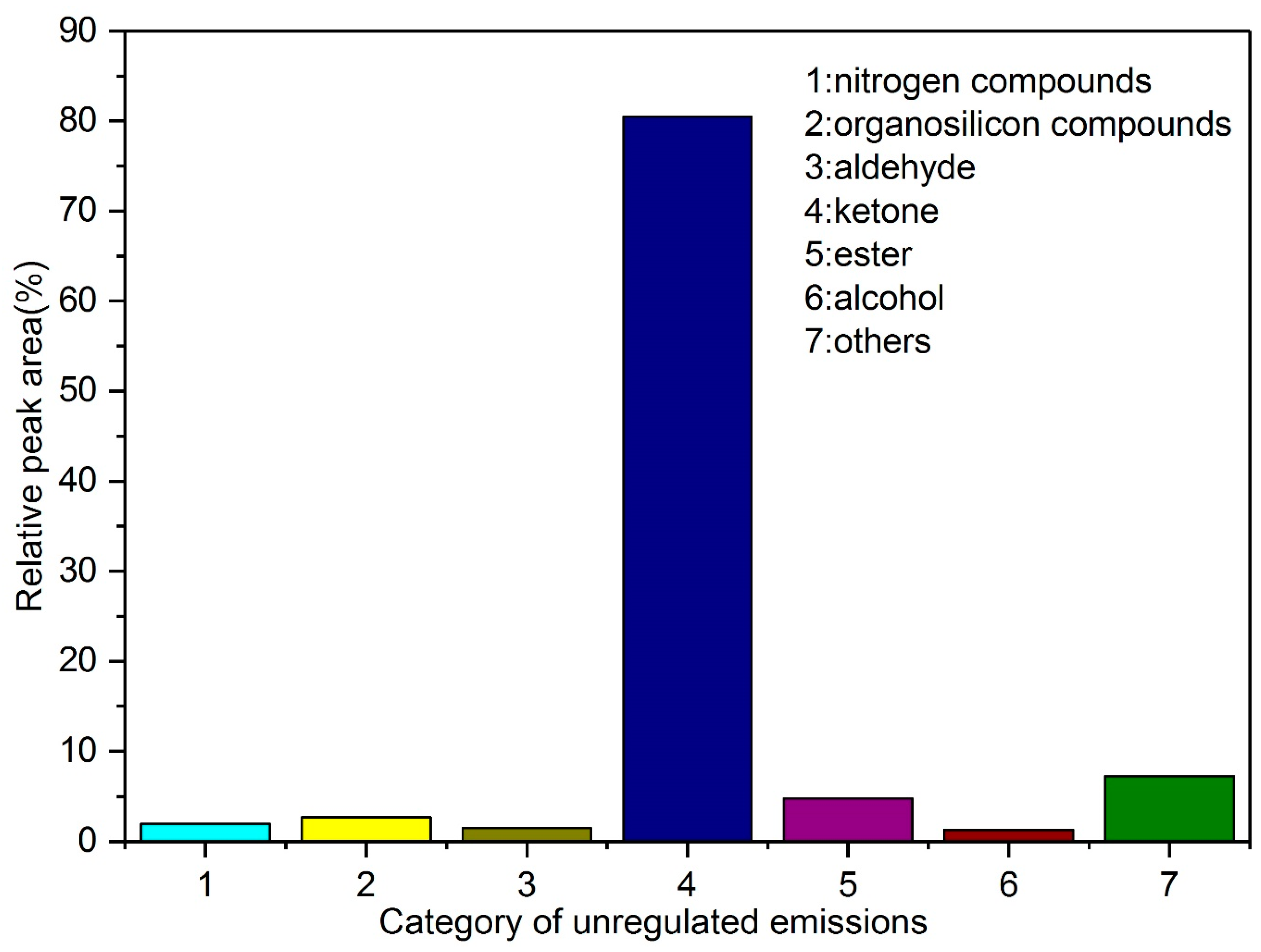

Figure 9 illustrates the relative concentration of unregulated emissions absorbed by activated carbon in PPCI. As shown in Figure 9, the relative concentration of primary unregulated emissions by activated carbon is: Ketone 80.51%, ester 4.77%, and organosilicon compounds 2.70%.

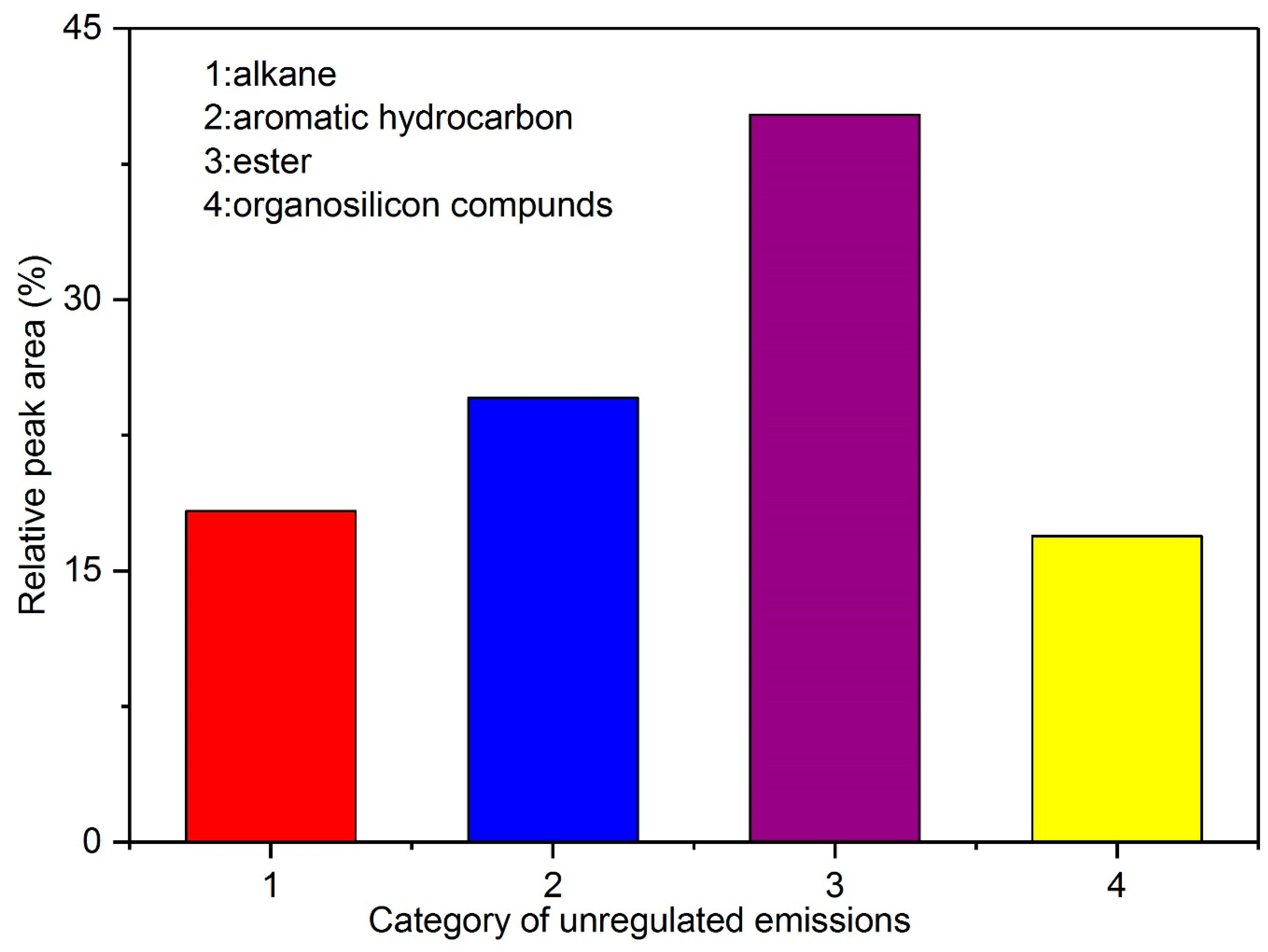

Figure 10 shows the relative concentration of unregulated emissions absorbed by absorption liquid in PPCI. As shown in Figure 10, the relative concentration of primary unregulated emissions by absorption liquid is: Ester 40.23%, aromatic hydrocarbon 24.56%, alkane 18.30%, and organosilicon compounds 16.91%.

Compared to conventional diesel combustion, the relative concentration of alkane and organic components in PPCI decreases significantly, while ketone and ester increase as illustrated in Figure 7, Figure 8, Figure 9 and Figure 10. Similarly to what has been observed for high molecular weight alkane as reported in literature [35], the formation of these compounds is due to the higher engine load where large amounts of fuel is demanded, resulting in evaporation and pyrolysis of fuel [36]. In addition, these unregulated components can also be pyrosynthesised in the combustion process from the lubrication oil constituents [37].

4. Conclusions

In this study, the unregulated emissions of a conventional diesel self-ignition and partial premixed compression ignition marine engine at full load condition were detected, classified, and semi-quantitatively analyzed, respectively. According to the results and discussion presented above, the main conclusions can be summarized as follows:

• For the in-pressure curves at 100% load, the maximum in-cylinder pressure of PPCI is almost 11 bar lower than that of conventional diesel combustion, and the crank angle at that moment is also delayed by 2 °CA. Compared to conventional diesel combustion, the maximum pressure rise rate of PPCI is reduced by 3.5%, while the maximum heat release rate of PPCI increases by 23.5%.
• Total ion chromatograms are obtained by chromatograph, and species detected in PPCI unregulated emissions are much less than those in conventional diesel combustion. Further, the peak time of PPCI component is earlier than that of conventional diesel combustion.
• Compared to conventional diesel combustion, the relative concentration of alkane and organic components in PPCI decreases significantly, while ketone and ester increase.
