# Long-Term Performance of Mega-Nourishments: Role of Directional Wave Climate and Initial Geometry

^{1}

^{2}

^{3}

^{4}

^{5}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Methodology

#### 2.1. Morphology of the Zm and Prevailing Wave Conditions

#### 2.2. Model Description

#### 2.3. Model Settings

#### 2.4. Metrics for Mega-Nourishment Performance

## 3. Effect of Varying the Wave Angle

#### 3.1. Design and Validation of the Synthetic Wave Climate

#### 3.2. Sensitivity to the Frequency of High-Angle Waves

## 4. Effect of Varying the Mega-Nourishment Geometry

#### 4.1. Sensitivity to the Initial Asymmetry

#### 4.2. Sensitivity to the Initial Aspect Ratio

#### 4.3. Sensitivity to The Volume

## 5. Discussion

#### 5.1. Physical Processes Driving Mega-Nourishment Evolution

#### 5.1.1. Importance of High-Angle Waves

#### 5.1.2. Diffusivity and Feeding Asymmetry

#### 5.2. Design Recommendations

## 6. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## Appendix A. Design of the Synthetic Mega-Nourishment

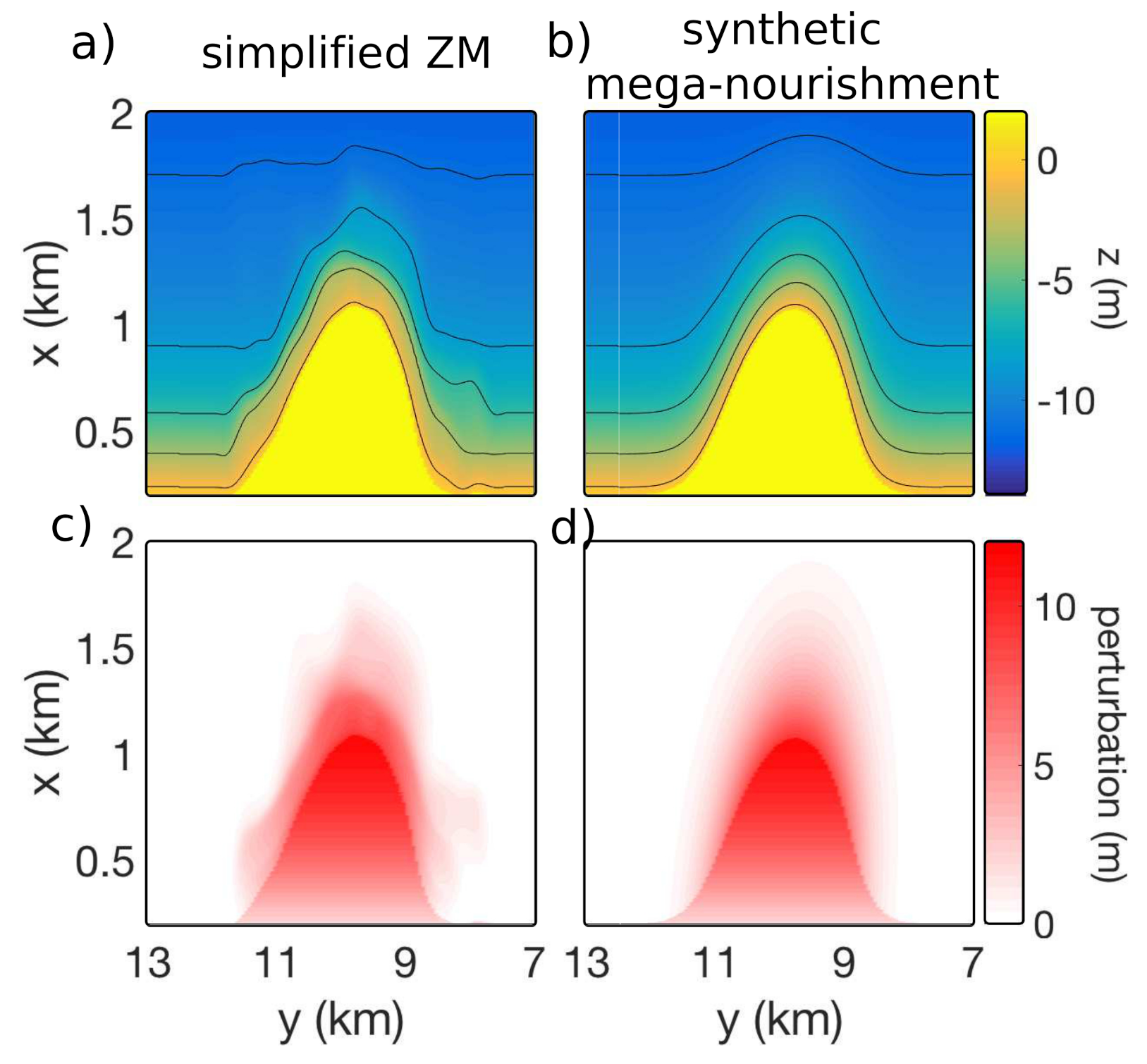

**Figure A1.**Simplified Zandmotor bathymetry (SZM) obtained from measurements (17 January 2012) (

**a**) and synthetic mega-nourishment bathymetry (SMN) adjusted from a Gaussian-shape function (

**b**), both with the dry beach set to 2 m; and (

**c**,

**d**) their respective associated bed level perturbations.

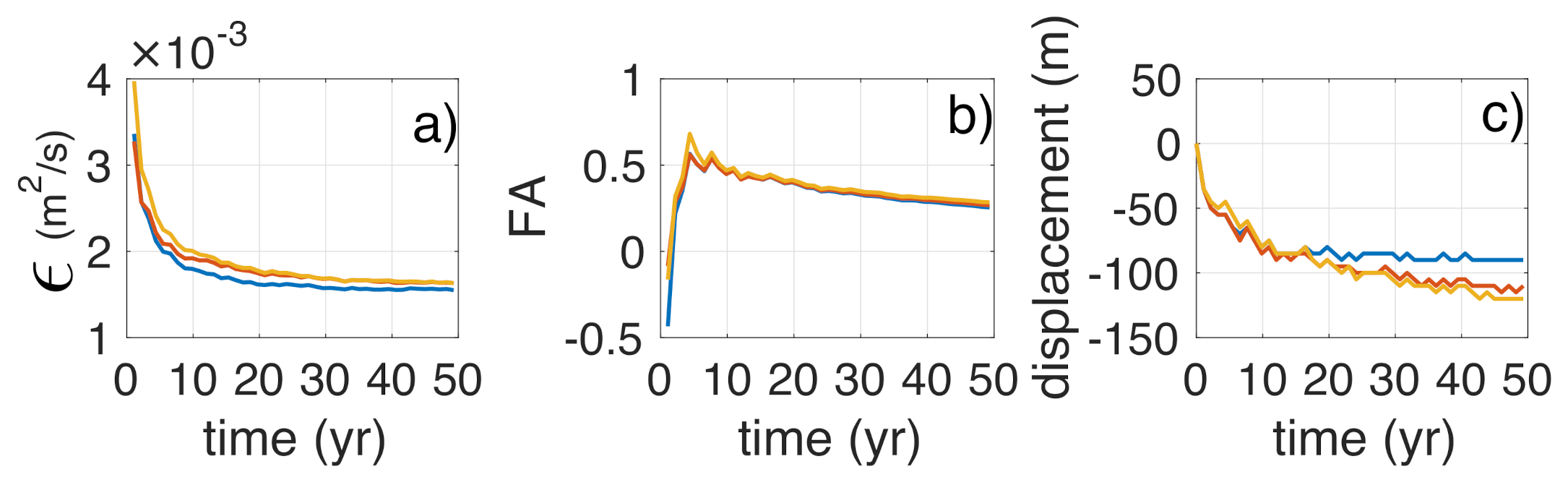

**Figure A2.**The 50-year evolution of: (

**a**) diffusivity; (

**b**) feeding asymmetry; and (

**c**) displacement for the Zandmotor (blue lines), simplified Zandmotor (red lines) and synthetic mega-nourishment (yellow lines) predictions.

## References

- Stive, M.J.F.; de Schipper, M.A.; Luijendijk, A.P.; Aarninkhof, S.G.J.; van Gelder-Maas, C.; van Thiel de Vries, J.S.M.; de Vries, S.; Henriquez, M.; Marx, S.; Ranasinghe, R. A new alternative to saving our beaches from sea-level rise: The Sand Engine. Coast. Eng.
**2013**, 29, 1001–1008. [Google Scholar] [CrossRef] - Hamm, L.; Capobianco, M.; Dette, H.H.; Lechuga, A.; Spanhoff, R.; Stive, M.J.F. A summary of European experience with shore nourishment. Coast. Eng.
**2002**, 47, 237–264. [Google Scholar] [CrossRef] - de Schipper, M.A.; De Vries, S.; Ruessink, B.G.; De Zeeuw, R.C.; Rutten, J.; Van Gelder-Maas, C.; Stive, M.J.F. Initial spreading of a mega feeder nourishment: Observations of the Sand Engine pilot project. Coast. Eng.
**2016**, 111, 23–38. [Google Scholar] [CrossRef][Green Version] - Luijendijk, A.P.; Ranasinghe, R.; de Schipper, M.A.; Huisman, B.A.; Swinkels, C.M.; Walstra, D.J.R.; Stive, M.J.F. The initial morphological response of the Sand Engine: A process-based modelling study. Coast. Eng.
**2017**, 119, 1–14. [Google Scholar] [CrossRef][Green Version] - Rutten, J.; Ruessink, B.G.; Price, T.D. Observations on sandbar behaviour along a man-made curved coast. Earth Surf. Process. Landforms
**2018**, 43, 134–149. [Google Scholar] [CrossRef][Green Version] - Lesser, G.R.; Roelvink, J.A.; van Kester, J.A.T.M.; Stelling, G.S. Development and validation of a three-dimensional morphological model. Coastal Eng.
**2004**, 51, 883–915. [Google Scholar] [CrossRef] - Ruggiero, P.; Buijsman, M.; Kaminsky, G.M.; Gelfenbaum, G. Modeling the effects of wave climate and sediment supply variability on large-scale shoreline change. Mar. Geol.
**2010**, 273, 127–140. [Google Scholar] [CrossRef] - Luijendijk, A.P.; de Schipper, M.A.; Ranasinghe, R. Morphodynamic Acceleration Techniques for Multi-Timescale Predictions of Complex Sandy Interventions. J. Mar. Sci. Eng.
**2019**, 7, 78. [Google Scholar] [CrossRef][Green Version] - Falqués, A.; Garnier, R.; Ojeda, E.; Ribas, F.; Guillén, J. Q2D-morfo: A medium to long term model for beach morphodynamics. In River, Coastal and Estuarine Morphodynamics: RCEM 2007; Dohmen-Jansen, C.M., Hulscher, S.J.M.H., Eds.; Taylor and Francis Group: London, UK, 2008; Volume 1, pp. 71–78. [Google Scholar]
- van den Berg, N.; Falqués, A.; Ribas, F. Long-term evolution of nourished beaches under high angle wave conditions. J. Mar. Syst.
**2011**, 88, 102–112. [Google Scholar] [CrossRef] - Arriaga, J.; Rutten, J.; Ribas, F.; Ruessink, B.; Falqués, A. Modeling the longterm diffusion and feeding capability of a mega-nourishment. Coast. Eng.
**2017**, 121, 1–13. [Google Scholar] [CrossRef][Green Version] - Tonnon, P.K.; Huisman, B.J.A.; Stam, G.N.; van Rijn, L.C. Numerical modelling of erosion rates, life span and maintenance volume of mega nourishments. Coast. Eng.
**2018**, 131, 51–69. [Google Scholar] [CrossRef][Green Version] - Falqués, A.; Calvete, D. Large scale dynamics of sandy coastlines. Diffusivity and instability. J. Geophys. Res.
**2005**, 110. [Google Scholar] [CrossRef][Green Version] - Idier, D.; Falqués, A.; Rohmer, J.; Arriaga, J. Self-organized kilometre-scale shoreline sandwave generation: Sensitivity to model and physical parameters. J. Geophys. Res.
**2017**, 122. [Google Scholar] [CrossRef][Green Version] - Ashton, A.; Murray, A.B. High-angle wave instability and emergent shoreline shapes: 1. Modeling of sand waves, flying spits, and capes. J. Geophys. Res.
**2006**, 111, F04011. [Google Scholar] [CrossRef][Green Version] - Kaergaard, K.; Fredsoe, J. Numerical modeling of shoreline undulations part 2: Varying wave climate and comparison with observations. Coastal Eng.
**2013**, 75, 77–90. [Google Scholar] [CrossRef][Green Version] - Kaergaard, K.; Fredsoe, J. Numerical modeling of shoreline undulations part 1: Constant wave climate. Coastal Eng.
**2013**, 75, 64–76. [Google Scholar] [CrossRef] - Falqués, A. Wave driven alongshore sediment transport and stability of the Dutch coastline. Coast. Eng.
**2006**, 53, 243–254. [Google Scholar] [CrossRef] - Ashton, A.; Murray, A.B.; Arnault, O. Formation of coastline features by large-scale instabilities induced by high-angle waves. Nature
**2001**, 414, 296–300. [Google Scholar] [CrossRef] - Falqués, A.; Ribas, F.; Idier, D.; Arriaga, J. Formation mechanisms for self-organized kilometer-scale shoreline sand waves. J. Geophys. Res. Earth Surf.
**2017**, 122, 10.1002/2016JF003964. [Google Scholar] [CrossRef][Green Version] - Portos, L. Effect of Sea Level Variations in the Long-Term Dynamics of the Zandmotor Meganourishment. Bachelor’s Thesis, Universitat Politècnica de Catalunya, Barcelona, Spain, 2020. [Google Scholar]
- van den Berg, N.; Falqués, A.; Ribas, F. Modelling large scale shoreline sand waves under oblique wave incidence. J. Geophys. Res.
**2012**, 117. [Google Scholar] [CrossRef][Green Version] - Komar, P.D. Beach Processes and Sedimentation, 2nd ed.; Prentice Hall: Englewood Cliffs, NJ, USA, 1998. [Google Scholar]
- Battjes, J.A. Modeling of turbulence in the surfzone. Symp. Model. Tech.
**1975**, 2, 1050–1061. [Google Scholar] - Pelnard-Considère, R. Essai de theorie de l’Evolution des Formes de Rivage en Plages de Sable et de Galets. Journees L’Hydraulique
**1956**, 3, 289–298. [Google Scholar] - Falqués, A. On the diffusivity in coastline dynamics. Geophys. Res. Lett.
**2003**, 30, 2119. [Google Scholar] [CrossRef] - Ashton, A.; Murray, A.B. High-angle wave instability and emergent shoreline shapes: 2. Wave climate analysis and comparisons to nature. J. Geophys. Res.
**2006**, 111, F04012. [Google Scholar] [CrossRef][Green Version] - Roelvink, J.A.; Reniers, A.J.H.M. A guide to modeling coastal morphology. In Advances in Coastal and Ocean Engineering; World Scientific: Singapore, 2011. [Google Scholar] [CrossRef]
- Walstra, D.J.R.; Hoekstra, R.; Tonnon, P.K.; Ruessink, B.G. Input reduction for long-term morphodynamic simulations in wave-dominated coastal settings. Coast. Eng.
**2013**, 77, 57–70. [Google Scholar] [CrossRef] - Benedet, L.; Dobrochinski, J.P.F.; Walstra, D.J.R.; Klein, A.H.F.; Ranasinghe, R. A morphological modeling study to compare different methods of wave climate schematization and evaluate strategies to reduce erosion losses from a beach nourishment project. Coast. Eng.
**2016**, 112, 69–86. [Google Scholar] [CrossRef] - Yu, J.; Slinn, D.N. Effects of wave-current interaction on rip currents. J. Geophys. Res.
**2003**, 108. [Google Scholar] [CrossRef]

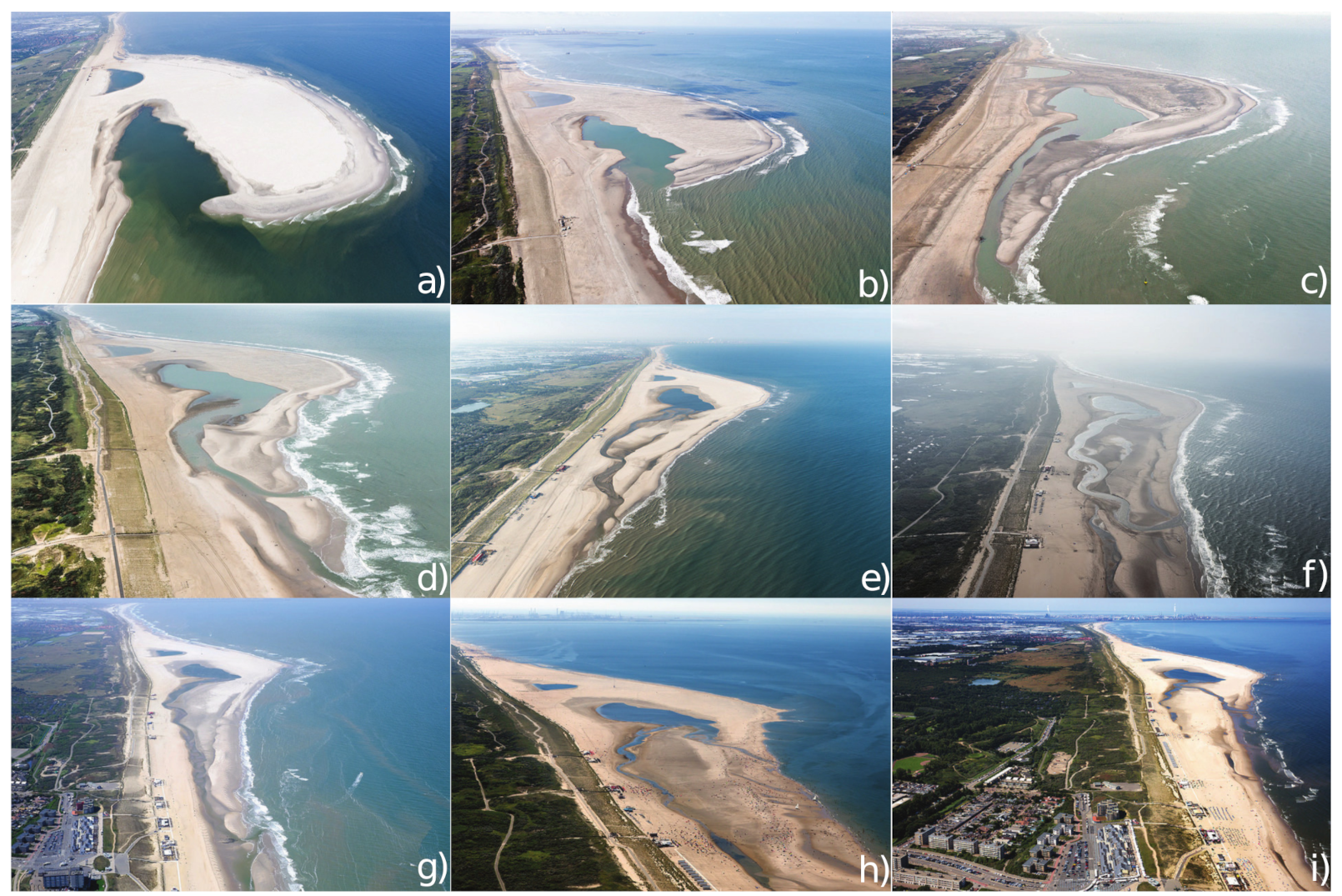

**Figure 1.**Aerial pictures of the first concentrated mega-nourishment (ZM, The Netherlands), showing its morphological evolution in the initial six years. Pictures were taken in: (

**a**) July 2011 (shortly after construction); (

**b**) October 2011; (

**c**) January 2012; (

**d**) October 2012; (

**e**) October 2013; (

**f**) September 2014; (

**g**) May 2015; (

**h**) August 2016; and (

**i**) July 2017. Courtesy: Rijkswaterstaat, Joop van der Hout.

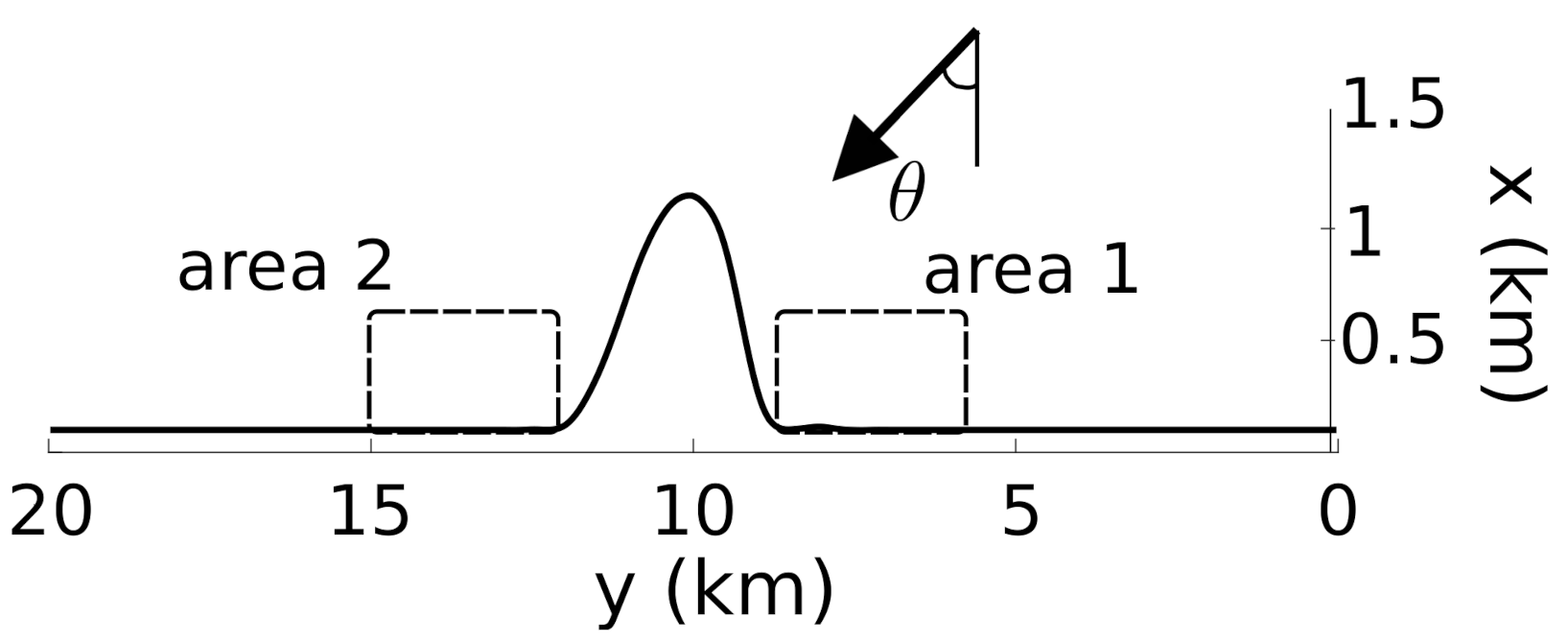

**Figure 2.**Sketch of the model simulations, where the y-axis would point into the southwestern direction if this was the real Zandmotor in the Dutch coast. The wave angle $\theta $ indicated has a positive sign and the shown mega-nourishment has a negative orientation. The areas defined to compute the feeding to adjacent beaches are marked with a dashed rectangle.

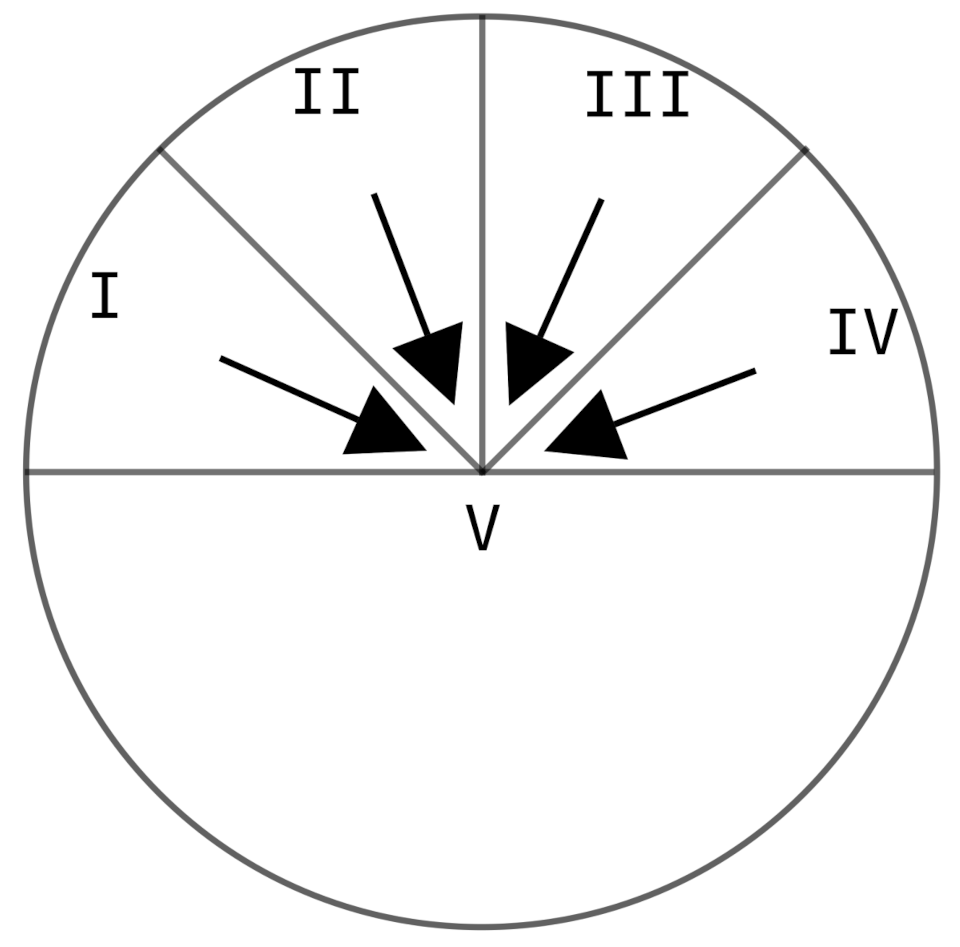

**Figure 3.**Schematic sketch of wave rose with the five different wave sectors. Sector V represents seaward-directed waves and therefore time periods without morphological changes. The horizontal and vertical line represent the mean coastline and the shore-normal, respectively.

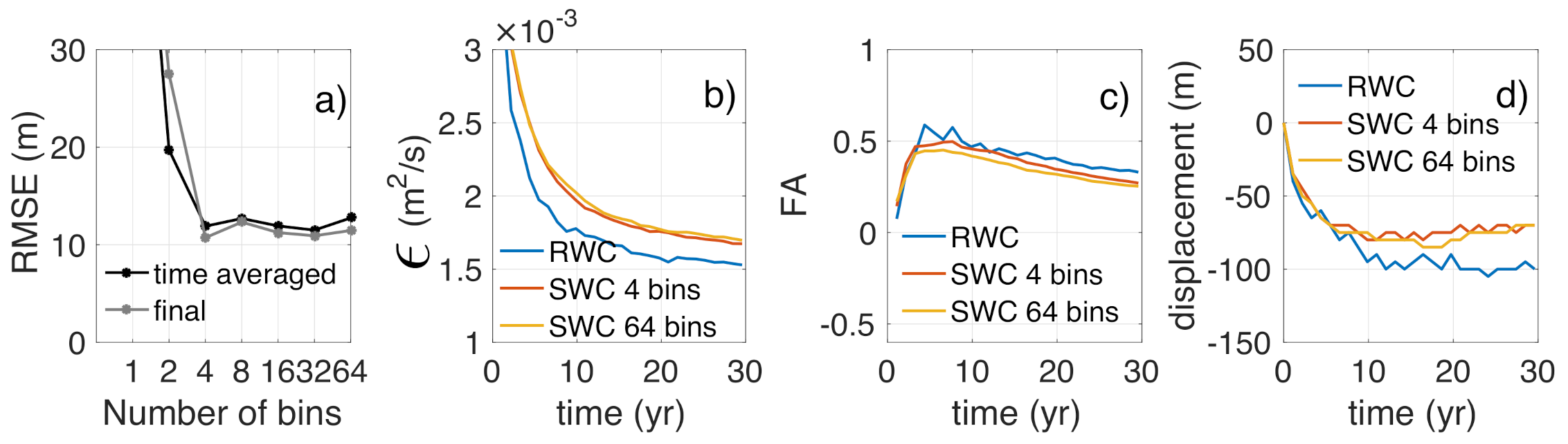

**Figure 4.**Time-averaged shoreline RMSE in the first 30 years and the final 5 years (Years 25–30) for SWCs with a different number of directional sectors (

**a**); and the time evolution of the diffusivity (

**b**), feeding asymmetry (

**c**), and alongshore displacement (

**d**) for the RWC and SWCs with 4 or 64 sectors.

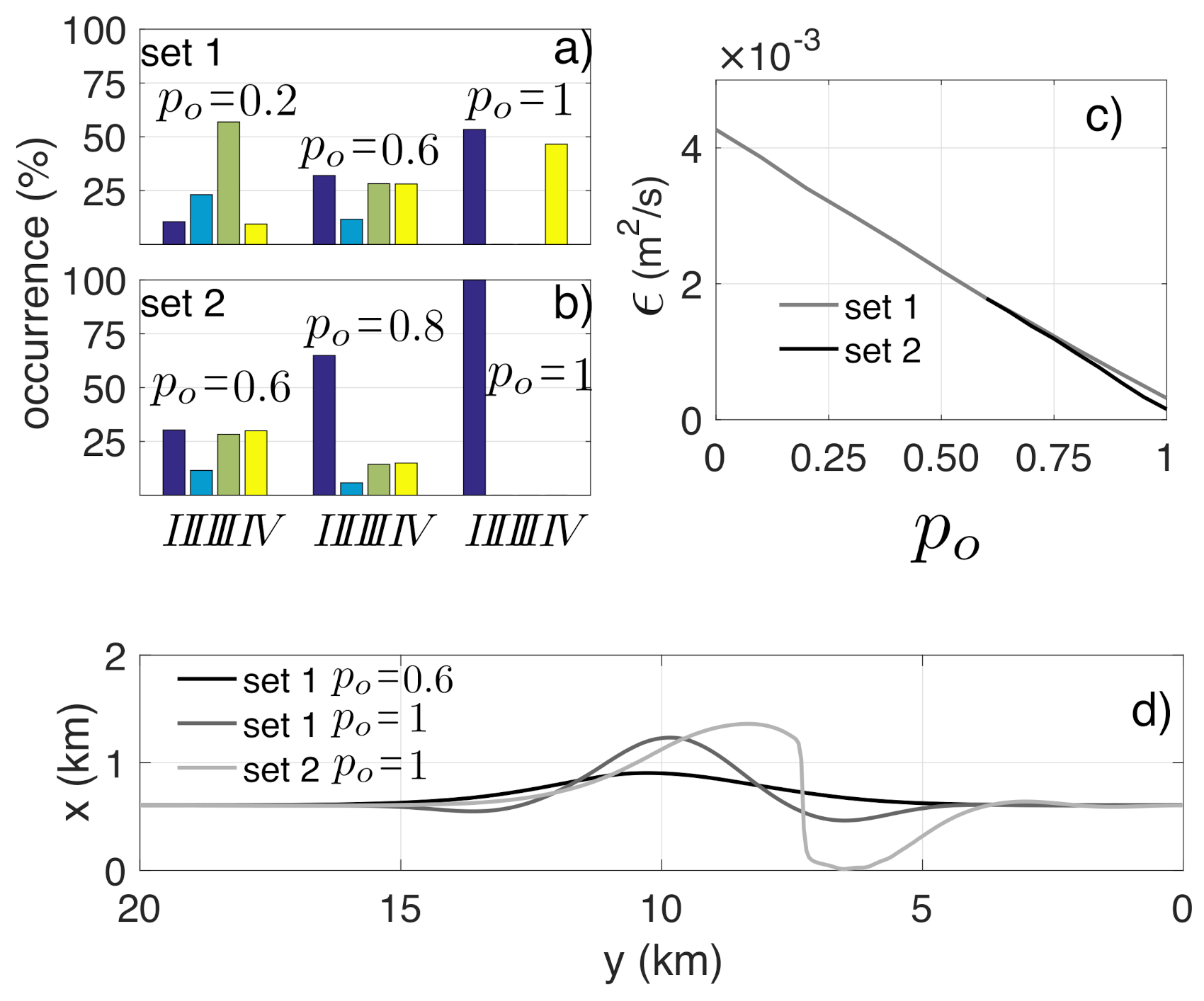

**Figure 5.**Probability of occurrence of each wave sectors for varying high-angle wave frequency, ${p}_{O}$, for: (

**a**) bimodal conditions assuming that both Sectors I and IV are modified proportionally; and (

**b**) unimodal conditions assuming that only the probability of occurrence of Sector I increases. Averaged diffusivity over the last five years of simulations as a function of high-angle wave frequency (

**c**). Shorelines after 50 years of evolution for the indicated simulations (

**d**).

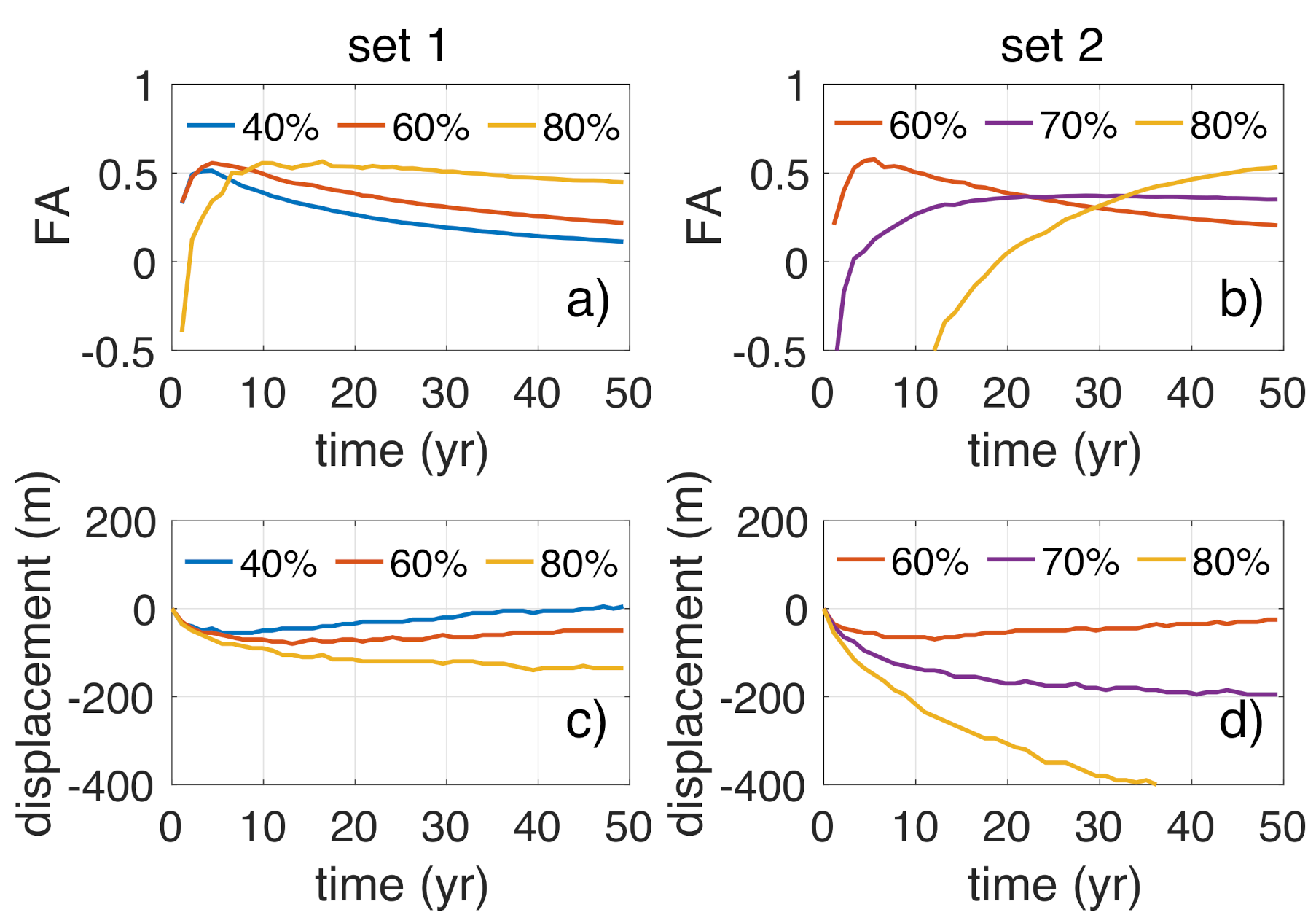

**Figure 6.**Sensitivity of the long-term mega-nourishment evolution to the percentage of high-angle waves in a bimodal wave climate (Set 1 (

**a**,

**c**)) and in a unimodal wave climate (Set 2 (

**b**,

**d**)). Time evolution of: (

**a**,

**b**) the associated feeding asymmetry; and (

**c**,

**d**) the displacement during 50 years.

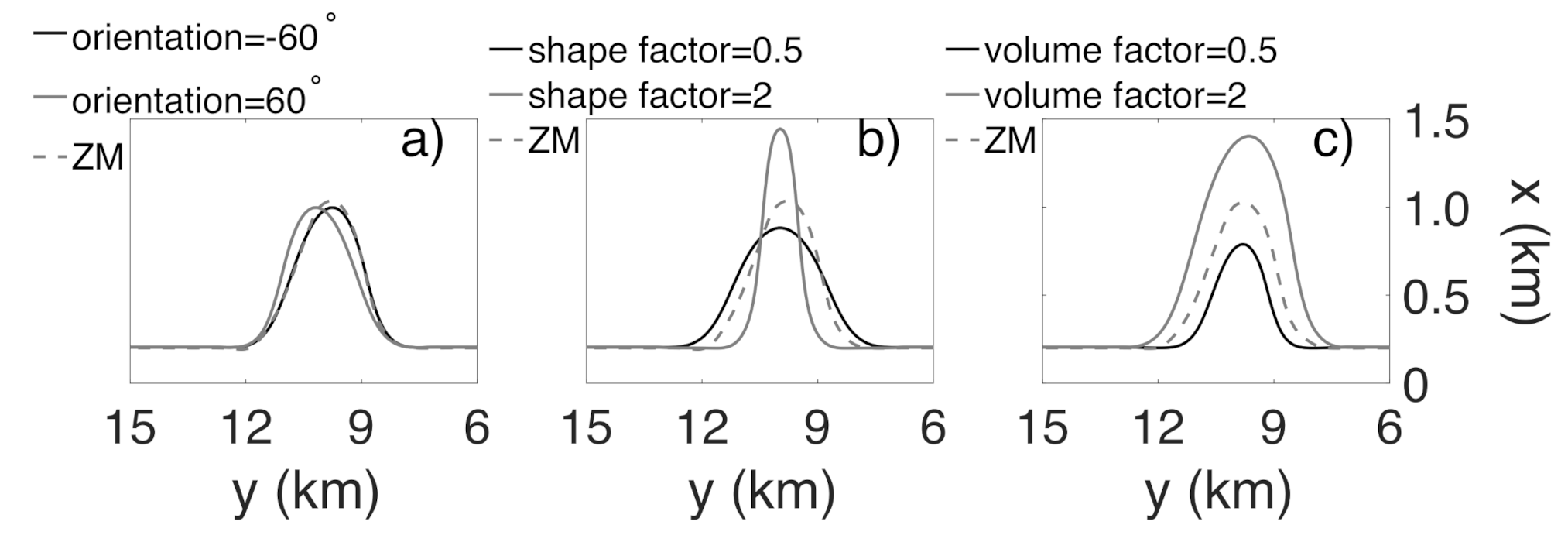

**Figure 7.**Sketch of the different initial mega-nourishment geometries, including variations on: (

**a**) the orientation or asymmetry; (

**b**) the shape factor; and (

**c**) the volume factor. Notice that the scaling of both axis is not the same.

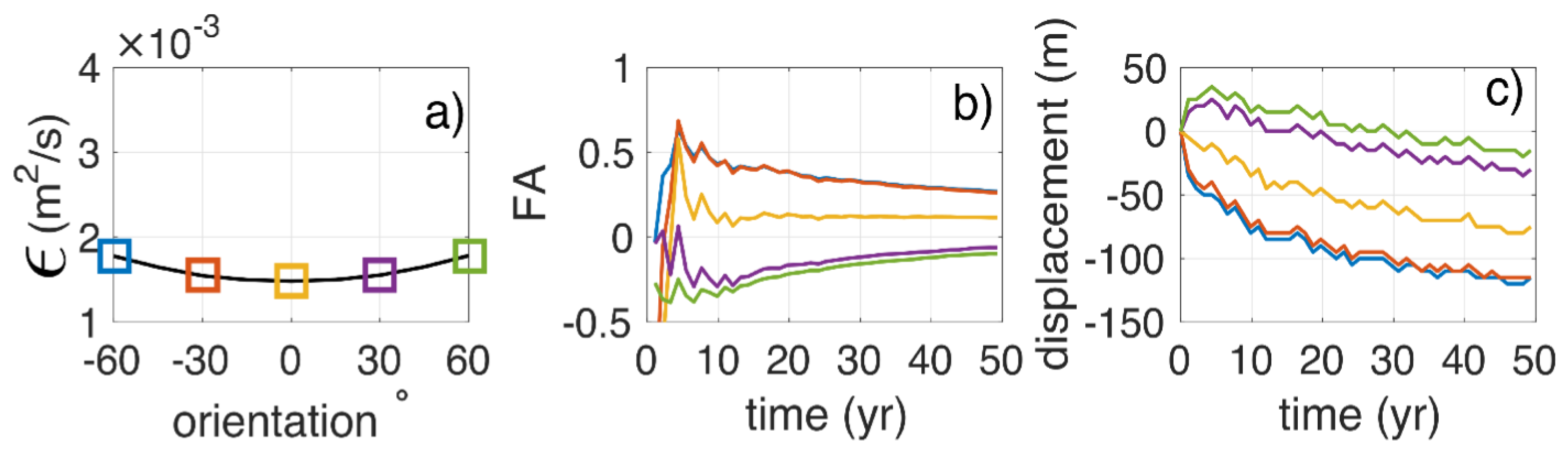

**Figure 8.**Effect of the initial mega-nourishment orientation on: (

**a**) the final five-year diffusivity, as well as on the 50-year evolution of (

**b**) the FA and (

**c**) the displacement.

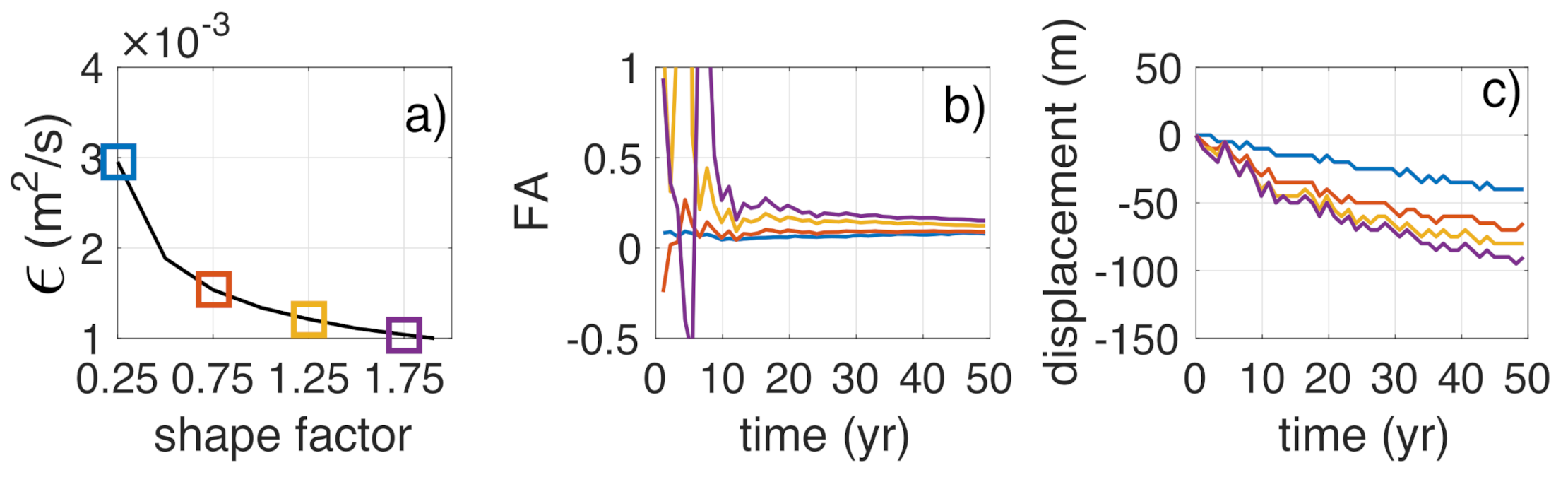

**Figure 9.**Effect of the initial mega-nourishment shape factor on: (

**a**) the final five-year diffusivity, as well as on the 50-year evolution of (

**b**) the FA and (

**c**) the displacement.

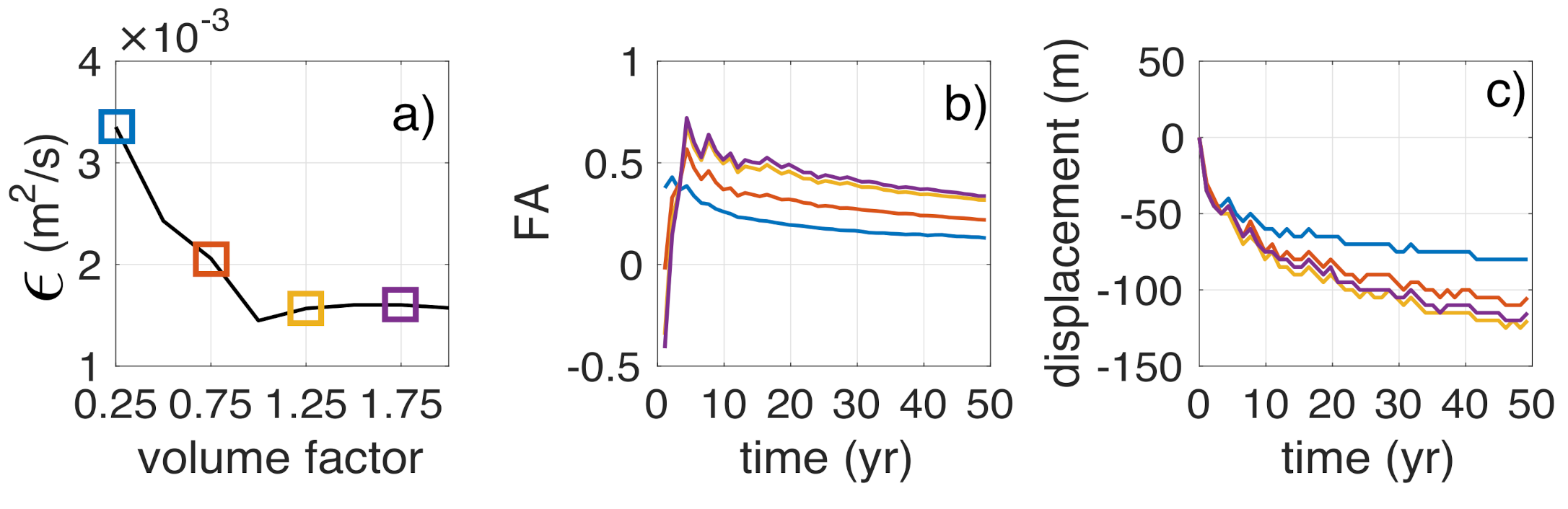

**Figure 10.**Effect of the initial mega-nourishment volume ratio on: (
