# The Potential for Tidal Range Energy Systems to Provide Continuous Power: A UK Case Study

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Case Study

- (a)
- (b)
- (c)

## 3. Methodology

#### 3.1. Hydrodynamic Model of the Irish Sea

#### 3.2. Modelling Tidal Power Plants

- Water level data: Ambient tidal elevations ${\eta}_{o}$ (m) in each power plant location are extracted from outputs of the 2D Irish Sea model, harmonically reconstructed for a given duration at any point in time (Figure 3).
- Surface plan area data: In applying the three tidal power plant basins to the computational mesh as subdomains, the manner in which the water surface plan A (m${}^{2}$) changes with basin free surface elevation ${\eta}_{i}$ (m) is determined for each tidal power plant (Figure 3). This provides a simplified means to represent intertidal regions.
- Hydraulic structure parameterisations: Given operation mode and water elevations inside ${\eta}_{i}$ and outside ${\eta}_{o}$ the basin, head difference $H\phantom{\rule{3.33333pt}{0ex}}=\phantom{\rule{3.33333pt}{0ex}}{\eta}_{i}-{\eta}_{o}$ (m), flow rate Q (m${}^{3}$ s${}^{-1}$) and power output P (MW) through the turbines and sluices can be calculated where applicable. This allows energy yield E (MWh) to be determined.
- Control schedule: Based on either time intervals or specific head differences, the control schedule determines how the tidal power plant will shift between the different operation modes (holding, generating and sluicing in the ebb and flood phases) [5].

#### 3.3. Control Schedule Optimisation

- EM-I: Energy maximisation, inflexible.
- EM-F: Energy maximisation, flexible.
- CG-I: Continuous generation, inflexible.
- CG-F: Continuous generation, flexible.

#### 3.3.1. Energy Maximisation (EM)

#### 3.3.2. Continuous Generation (CG)

#### 3.4. Economics

- Hourly Variable Market (HVM), $p{\left(t\right)}_{HVM}$ (£/MWh): This market is applied to reflect the value in providing power during periods of high demand. A price signal is derived from the Nord Pool N2EX market for the year 2018 [51]. The price of electricity changes hourly, with the tidal power system only needing to generate over the whole hour in question for valid market trading. While Nord Pool requires a constant rate for each hour, it is assumed that all energy generated by the power plant system in this hour is sold.
- Baseload Market (BM), $p{\left(t\right)}_{BM}$ (£/MWh): This market considers a constant supply of electricity over the course of a day. Nord Pool does not regulate a UK-based baseload market [51]. Analysis of Ofgem baseload contract prices [52] reveals that monthly averages over a ten-year period are similar to equivalent monthly averages on the hourly Nord Pool N2EX market (HVM), albeit at a slight increase [51]. The employed BM data does therefore not directly reflect a historic price signal, but instead encompasses an averaging of the HVM price signal. Daily $p{\left(t\right)}_{BM,D}$, weekly $p{\left(t\right)}_{BM,W}$ and monthly $p{\left(t\right)}_{BM,M}$ averages are tested.

#### 3.5. Optimisation Cases

- Default, $\delta $: In the event of continuous generation not being permissible over a tidal cycle, the algorithm defaults to the system’s secondary priority. Defaulting the cycle to maximise energy, as with $\delta $ = EM-I or $\delta $ = EM-F, considers a commitment to increasing the economic gain from that particular cycle. Meanwhile, $\delta $ = CG-I might prioritise phasing the system in a better position to attempt continuous generation in the next cycle.
- Cut-off power, ${P}_{c}$(MW): Employing a cut-off power ${P}_{c}$ recognises that, if only low levels of minimum cumulative power output $\wedge P$ are possible, it might not be worthwhile pursuing continuous generation. It also acknowledges that the required shift in ${t}_{h,e}$ and ${t}_{h,f}$ from the default might be large enough that the energy output is significantly reduced. ${P}_{c}$ values of 0 MW, 75 MW, 150 MW, 225 MW, and 300 MW are tested in the CG-F algorithm.

## 4. Results

#### 4.1. Performance of System

- Total energy output, ${E}_{T}$ (TWh/year).
- Number of “CG days” in which a continuous supply of energy is achieved.
- Energy output on CG days to be traded on the Baseload Market, ${E}_{BM}$ (TWh/year), determined by the cumulative minimum power output $\wedge P$ of that day.
- Average $\wedge P$ annually, $\overline{\wedge P}$ (MW).
- Average $\wedge P$ on CG Days only, ${\overline{\wedge P}}_{CG}$ (MW).
- Average power output peaks on all days, $\overline{\vee P}$ (MW).
- Average power output peaks on CG days only, ${\overline{\vee P}}_{CG}$ (MW).

#### 4.2. Income

## 5. Discussion

#### 5.1. Continuous Generation Potential

#### 5.2. Economics

#### 5.3. Optimisation Methodology

## 6. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## Abbreviations

TLP | Tidal Lagoon Power Ltd. |

CfD | Contract for Difference |

CBL | Colwyn Bay Tidal Lagoon |

MB | Mersey Tidal Barrage |

WSL | West Somerset Tidal Lagoon |

EM-I | Energy Maximisation Optimisation, Inflexible |

EM-F | Energy Maximisation Optimisation, Flexible |

CG-I | Continuous Generation optimisation, Inflexible |

CG-F | Continuous Generation optimisation, Flexible |

HVM | Hourly Variable Market |

BM | Baseload Market |

CG Days | Continuous Generation Days |

## References

- Waters, S.; Aggidis, G. Tidal range technologies and state of the art in review. Renew. Sustain. Energy Rev.
**2016**, 59, 514–529. [Google Scholar] [CrossRef] [Green Version] - Neill, S.P.; Angeloudis, A.; Robins, P.E.; Walkington, I.; Ward, S.L.; Masters, I.; Lewis, M.J.; Piano, M.; Avdis, A.; Piggott, M.D.; et al. Tidal range energy resource and optimization—Past perspectives and future challenges. Renew. Energy
**2018**, 127, 763–778. [Google Scholar] [CrossRef] - Neill, S.P.; Hashemi, M.R. Chapter 3—Tidal Energy. In Fundamentals of Ocean Renewable Energy; Neill, S.P., Hashemi, M.R., Eds.; E-Business Solutions; Academic Press: Cambridge, MA, USA, 2018; pp. 47–81. [Google Scholar] [CrossRef]
- Egbert, G.D.; Erofeeva, S.Y. Efficient Inverse Modeling of Barotropic Ocean Tides. J. Atmos. Ocean. Technol.
**2002**, 19, 183–204. [Google Scholar] [CrossRef] [Green Version] - Angeloudis, A.; Piggott, M.; Kramer, S.; Avdis, A.; Coles, D.; Christou, M. Comparison of 0-D,1D and 2D model capabilities for tidal range energy resource assessments. In Proceedings of the Twelfth European Wave and Tidal Energy Conference, Cork, Ireland, 27 August–2 September 2017. [Google Scholar]
- Angeloudis, A.; Kramer, S.C.; Avdis, A.; Piggott, M.D. Optimising tidal range power plant operation. Appl. Energy
**2018**, 212, 680–690. [Google Scholar] [CrossRef] - Harcourt, F.; Angeloudis, A.; Piggott, M.D. Utilising the flexible generation potential of tidal range power plants to optimise economic value. Appl. Energy
**2019**, 237, 873–884. [Google Scholar] [CrossRef] [Green Version] - Xue, J.; Ahmadian, R.; Falconer, R.A. Optimising the Operation of Tidal Range Schemes. Energies
**2019**, 12, 2870. [Google Scholar] [CrossRef] [Green Version] - Prandle, D. Simple theory for designing tidal power schemes. Adv. Water Resour.
**1984**, 7, 21–27. [Google Scholar] [CrossRef] - Burrows, R.; Walkington, I.; Yates, N.; Hedges, T.; Wolf, J.; Holt, J. The tidal range energy potential of the West Coast of the United Kingdom. Appl. Ocean. Res.
**2009**, 31, 229–238. [Google Scholar] [CrossRef] - Baker, C. Tidal Power. Energy Policy
**1991**, 19, 792–797. [Google Scholar] [CrossRef] - Hendry, C. The Role of Tidal Lagoons: Final Report; Technical Report; UK Government: London, UK, 2016. [CrossRef] [Green Version]
- Baker, A.L.; Craighead, R.M.; Jarvis, E.J.; Stenton, H.C.; Angeloudis, A.; Mackie, L.; Avdis, A.; Piggott, M.D.; Hill, J. Modelling the impact of tidal range energy on species communities. Ocean. Coast. Manag.
**2020**, 193, 105221. [Google Scholar] [CrossRef] - Elliott, K.; Smith, H.C.; Moore, F.; van der Weijde, A.H.; Lazakis, I. Environmental interactions of tidal lagoons: A comparison of industry perspectives. Renew. Energy
**2018**, 119, 309–319. [Google Scholar] [CrossRef] [Green Version] - Hooper, T.; Austen, M. Tidal barrages in the UK: Ecological and social impacts, potential mitigation, and tools to support barrage planning. Renew. Sustain. Energy Rev.
**2013**, 23, 289–298. [Google Scholar] [CrossRef] - Jack, M.; Thomas, H. Marine Renewables: UK Parliament POSTnote. June 2020, p. 625. Available online: https://post.parliament.uk/research-briefings/post-pn-0625/ (accessed on 24 July 2020).
- Angeloudis, A.; Ahmadian, R.; Falconer, R.A.; Bockelmann-Evans, B. Numerical model simulations for optimisation of tidal lagoon schemes. Appl. Energy
**2016**, 165, 522–536. [Google Scholar] [CrossRef] [Green Version] - Bunn, D.; Yusupov, T. The progressive inefficiency of replacing renewable obligation certificates with contracts-for-differences in the UK electricity market. Energy Policy
**2015**, 82, 298–309. [Google Scholar] [CrossRef] - Mohr, P.; Lloyd, A. Levelised Costs of Power From Tidal Lagoons; Technical Report; Pöyry Management Consulting (UK) Ltd: London, UK, 2014. [Google Scholar]
- Petley, S.; Aggidis, G. Swansea Bay tidal lagoon annual energy estimation. Ocean. Eng.
**2016**, 111, 348–357. [Google Scholar] [CrossRef] [Green Version] - Yates, N.; Walkington, I.; Burrows, R.; Wolf, J. Appraising the extractable tidal energy resource of the UK’s western coastal waters. Philos. Trans. R. Soc. Math. Phys. Eng. Sci.
**2013**, 371, 20120181. [Google Scholar] [CrossRef] - Aggidis, G.; Feather, O. Tidal range turbines and generation on the Solway Firth. Renew. Energy
**2012**, 43, 9–17. [Google Scholar] [CrossRef] - Shaw, T.L.; Watson, M.J. Flexible power generation from the tides. Proc. Inst. Civ. Eng. Eng. Sustain.
**2003**, 156, 119–123. [Google Scholar] [CrossRef] - Ueckerdt, F.; Kempener, R. From Baseload to Peak: Renewables Provide a Reliable Solution; Technical Report; International Renewable Energy Agency: Abu Dhabi, UAE, 2015. [Google Scholar]
- Matek, B.; Gawell, K. The Benefits of Baseload Renewables: A Misunderstood Energy Technology. Electr. J.
**2015**, 28, 101–112. [Google Scholar] [CrossRef] [Green Version] - Price, J.; Zeyringer, M.; Konadu, D.; Sobral Mourão, Z.; Moore, A.; Sharp, E. Low carbon electricity systems for Great Britain in 2050: An energy-land-water perspective. Appl. Energy
**2018**, 228, 928–941. [Google Scholar] [CrossRef] - Joos, M.; Staffell, I. Short-term integration costs of variable renewable energy: Wind curtailment and balancing in Britain and Germany. Renew. Sustain. Energy Rev.
**2018**, 86, 45–65. [Google Scholar] [CrossRef] - Angeloudis, A.; Kramer, S.C.; Hawkins, N.; Piggott, M.D. On the potential of linked-basin tidal power plants: An operational and coastal modelling assessment. Renew. Energy
**2020**, 155, 876–888. [Google Scholar] [CrossRef] [Green Version] - Mackay, D. Enhancing Electrical Supply By Pumped Storage in Tidal Lagoons; University of Cambridge: Cambridge, UK, 2007. [Google Scholar]
- Angeloudis, A.; Falconer, R.A. Sensitivity of tidal lagoon and barrage hydrodynamic impacts and energy outputs to operational characteristics. Renew. Energy
**2017**, 114, 337–351. [Google Scholar] [CrossRef] [Green Version] - Mackie, L.; Harcourt, F.; Angeloudis, A.; Piggott, M.D. Income optimisation of a fleet of tidal lagoons. In Proceedings of the 13th Wave and Tidal Energy Conference, Naples, Italy, 1–6 September 2019. [Google Scholar]
- Cooper, B.; Firth, A. Tidal Range Developments: Considerations for the Historic Environment; Technical Report; Historic England: Portsmouth, UK, 2018. [Google Scholar]
- North Wales Tidal Energy. North Wales Presents A World-Class Site for A Tidal Lagoon. Available online: https://www.northwalestidalenergy.com/concept (accessed on 27 June 2020).
- BBC News. River Mersey Tidal Power Plan Granted £2.5 m Funding. Available online: https://www.bbc.co.uk/news/uk-england-merseyside-51677360 (accessed on 27 June 2020).
- Binnie, C. A review of Tidal power. Presented at the BHA Hydro Network, Shrewsbury, UK, 27 June 2019; Available online: http://www.british-hydro.org/wp-content/uploads/2019/07/1.3-Binnie-C.pdf (accessed on 28 September 2020).
- Offshore Energy. LongBay SeaPower Plans to Build Large Tidal Lagoon (UK). 2014. Available online: https://www.offshore-energy.biz/longbay-seapower-plans-to-build-large-tidal-lagoon-uk/ (accessed on 27 June 2020).
- North Wales Tidal Energy. Electricity Consumption Keeps Rising: Tidal Lagoons Offer the Solution. Available online: https://www.northwalestidalenergy.com/energy-generation (accessed on 29 July 2020).
- Kärnä, T.; Kramer, S.C.; Mitchell, L.; Ham, D.A.; Piggott, M.D.; Baptista, A.M. Thetis coastal ocean model: Discontinuous Galerkin discretization for the three-dimensional hydrostatic equations. Geosci. Model Dev.
**2018**, 11, 4359–4382. [Google Scholar] [CrossRef] [Green Version] - Pan, W.; Kramer, S.C.; Piggott, M.D. Multi-layer non-hydrostatic free surface modelling using the discontinuous Galerkin method. Ocean Model.
**2019**, 134, 68–83. [Google Scholar] [CrossRef] - Rathgeber, F.; Ham, D.A.; Mitchell, L.; Lange, M.; Luporini, F.; Mcrae, A.T.T.; Bercea, G.T.; Markall, G.R.; Kelly, P.H.J. Firedrake: Automating the Finite Element Method by Composing Abstractions. ACM Trans. Math. Softw.
**2016**, 43, 1–27. [Google Scholar] [CrossRef] - Vouriot, C.V.; Angeloudis, A.; Kramer, S.C.; Piggott, M.D. Fate of large-scale vortices in idealized tidal lagoons. Environ. Fluid Mech.
**2019**, 19, 329–348. [Google Scholar] [CrossRef] [Green Version] - Kärnä, T.; de Brye, B.; Gourgue, O.; Lambrechts, J.; Comblen, R.; Legat, V.; Deleersnijder, E. A fully implicit wetting–drying method for DG-FEM shallow water models, with an application to the Scheldt Estuary. Comput. Methods Appl. Mech. Eng.
**2011**, 200, 509–524. [Google Scholar] [CrossRef] - Avdis, A.; Candy, A.S.; Hill, J.; Kramer, S.C.; Piggott, M.D. Efficient unstructured mesh generation for marine renewable energy applications. Renew. Energy
**2018**, 116, 842–856. [Google Scholar] [CrossRef] - Geuzaine, C.; Remacle, J.F. Gmsh Reference Manual; Technical Report 4.6.0; GNU General Public: Boston, MA, USA, 2020. [Google Scholar]
- Environment Agency. LIDAR Composite DSM—2m; Environment Agency: Bristol, UK, 2019. [Google Scholar]
- Seazone Solutions Ltd. Edina Digimap Service, Hydrospatial One, Gridded Bathymetry; Seazone Solutions Ltd.: Wallingford, UK, 2014. [Google Scholar]
- National River Flow Archive. National River Flow Archive: Wallingford, UK. 2019. Available online: https://nrfa.ceh.ac.uk/ (accessed on 20 April 2020).
- British Oceanographic Data Centre. UK Tide Gauge Network Data; British Oceanographic Data Centre: Liverpool, UK, 2017; Available online: https://www.bodc.ac.uk/ (accessed on 20 April 2020).
- Nocedal, J.; Wright, S.J. Numerical Optimization, 2nd ed.; Springer: New York, NY, USA, 2006. [Google Scholar]
- Angeloudis, A.; Falconer, R.A.; Bray, S.; Ahmadian, R. Representation and operation of tidal energy impoundments in a coastal hydrodynamic model. Renew. Energy
**2016**, 99, 1103–1115. [Google Scholar] [CrossRef] [Green Version] - Historical Market Data. Nord Pool: London, UK. 2018. Available online: https://www.nordpoolgroup.com/Market-data1/ (accessed on 15 May 2020).
- Report—State of the Market 2019; Ofgem: London, UK, 2019.
- Yates, N.; Walkington, I.; Burrows, R.; Wolf, J. The energy gains realisable through pumping for tidal range energy schemes. Renew. Energy
**2013**, 58, 79–84. [Google Scholar] [CrossRef] - Harby, A.; Schäffer, L.E.; Arnesen, F.; Bauhofer, P.; Beckitt, A.; Bockenhauer, S.; Botterud, A.; Christensen, T.H.; Middleton, L.; Nielsen, N.; et al. Flexible Hydropower Providing Value to Renewable Energy Integration; IEA Hydropower Annex IX//White Paper No 1—October 2019; IEA Hydropower: Paris, France, 2019. [Google Scholar]
- Khoshrou, A.; Dorsman, A.B.; Pauwels, E.J. The evolution of electricity price on the German day-ahead market before and after the energy switch. Renew. Energy
**2019**, 134, 1–13. [Google Scholar] [CrossRef] [Green Version]

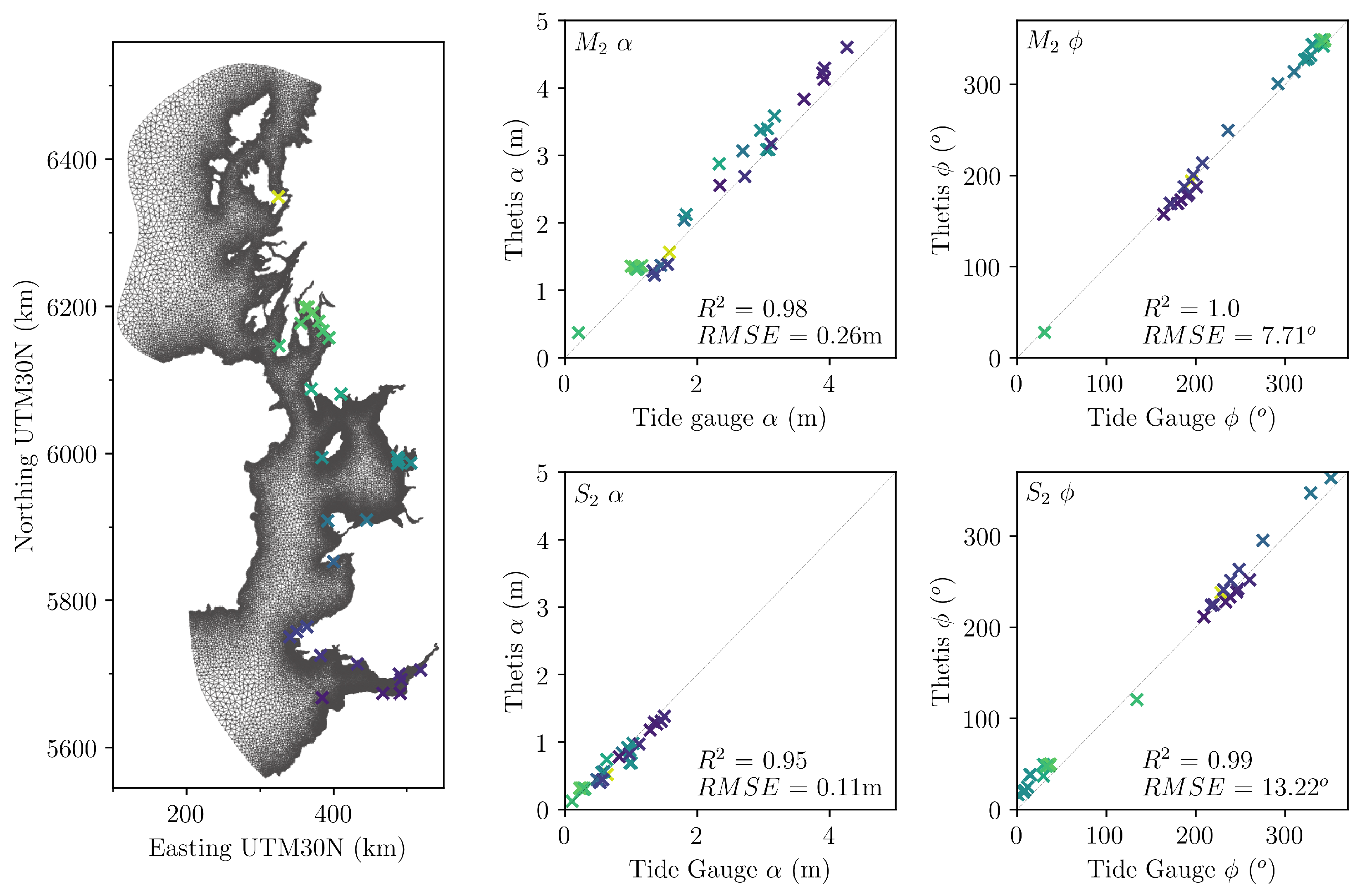

**Figure 2.**Unstructured mesh and computational domain including elevation data sampling locations for validation against BODC tide constituent data. ${R}^{2}$ correlation coefficient and Root Mean Square Error ($RMSE$) are computed between model and gauge data ${M}_{2}$ and ${S}_{2}$ tide constituent amplitude $\alpha $ (m) and phase $\varphi $ (${}^{\circ}$).

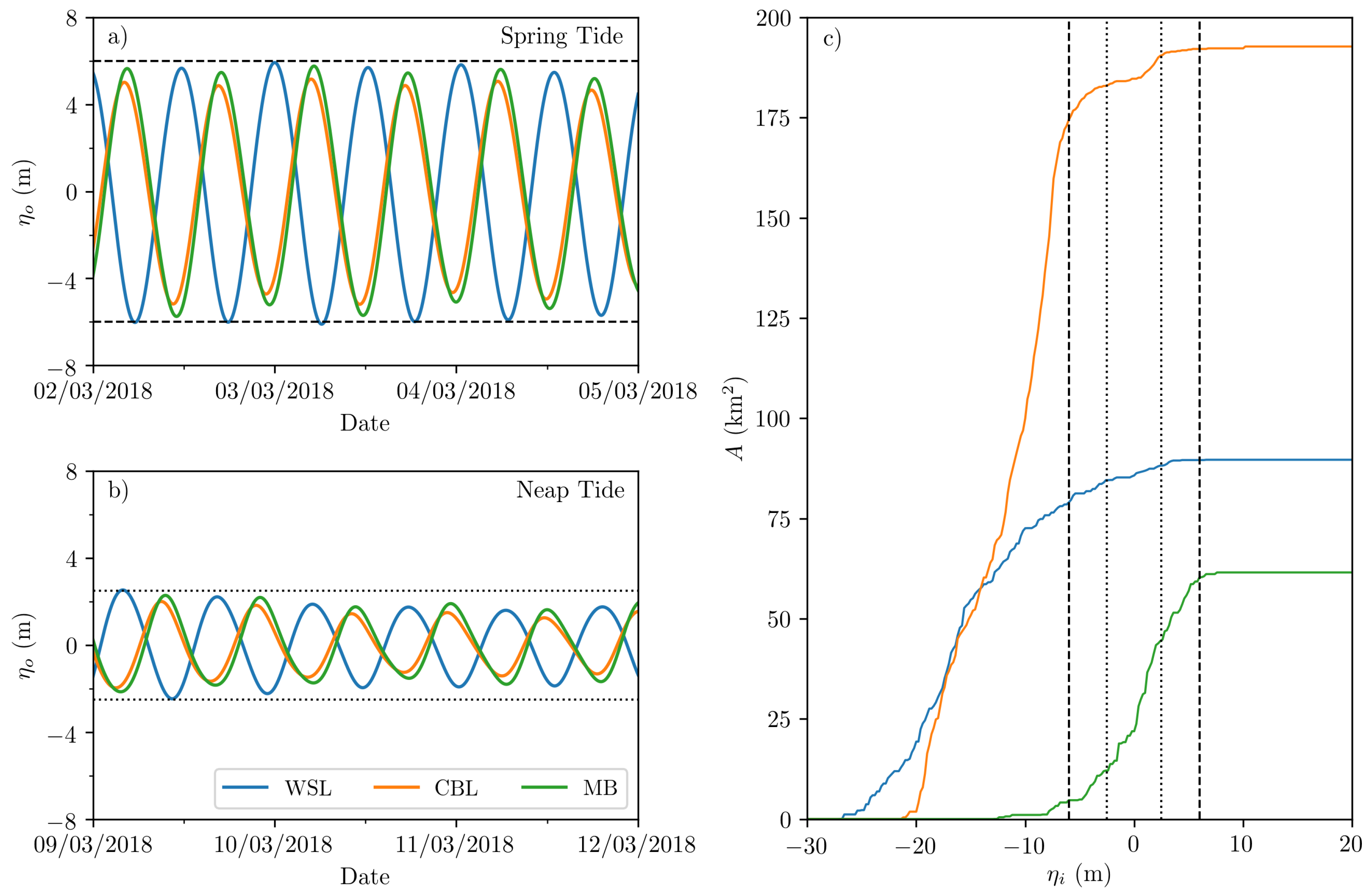

**Figure 3.**Ambient tidal elevations ${\eta}_{o}$ (m) in three scheme locations for (

**a**) spring and (

**b**) neap tides, and (

**c**) the relationship between basin surface plan area A (km${}^{2}$) and basin elevation ${\eta}_{i}$ (m) in the corresponding tidal power plants.

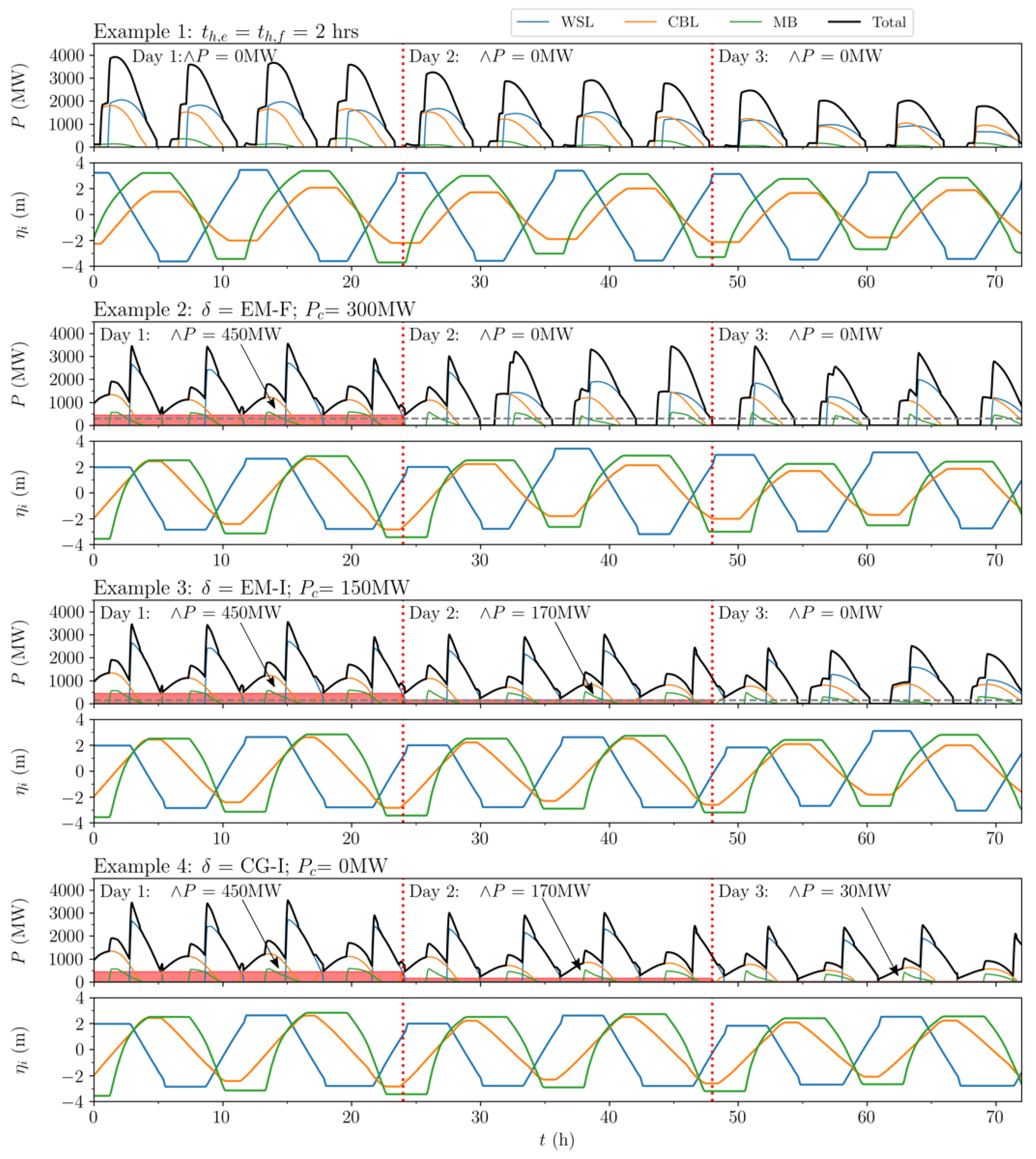

**Figure 4.**Power output P (MW) and basin elevations ${\eta}_{i}$ (m) of the tidal power plants. Example 1 indicates a scenario where the holding periods ${t}_{h,e}\phantom{\rule{3.33333pt}{0ex}}=\phantom{\rule{3.33333pt}{0ex}}{t}_{h,f}=$ 2 h for each scheme. Examples 2–4 display BG-F optimised schedules, applying different examples of “default” $\delta $, defined as the operation schedule reverted to when cut-off power ${P}_{c}$ (MW) cannot be achieved in the CG-F case. Daily minimum power $\wedge P$ (MW) determines the power sold on the Baseload Market (BM), indicated with red.

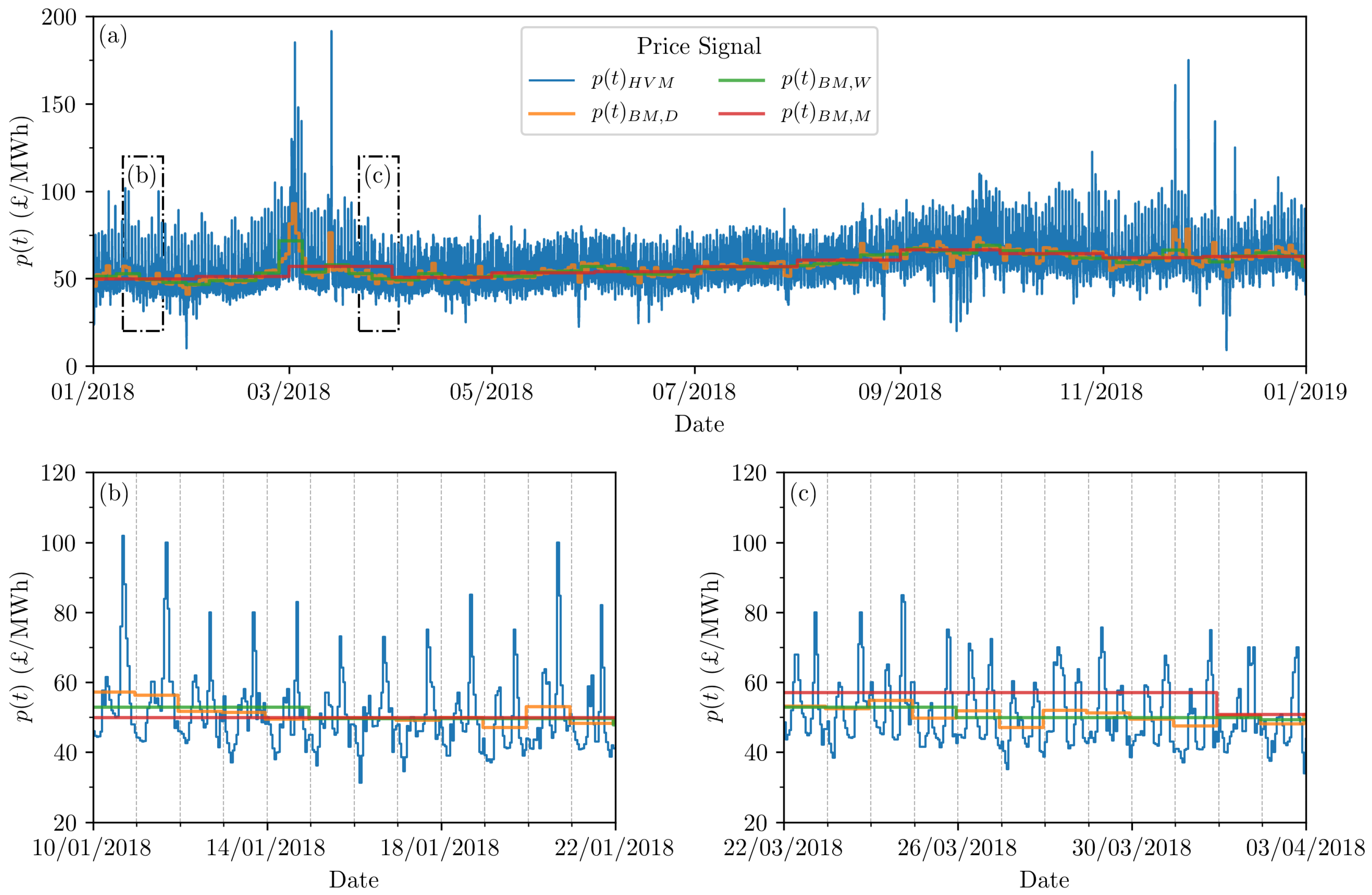

**Figure 5.**Hourly Variable $p{\left(t\right)}_{HVM}$ and corresponding Baseload Market price signals (£/MWh). $p{\left(t\right)}_{BM,D}$, $p{\left(t\right)}_{BM,W}$, $p{\left(t\right)}_{BM,M}$ refer to daily, weekly and monthly averaging respectively. The displayed snapshots indicate (

**a**) the entirety of 2018, and periods where (

**b**) $p{\left(t\right)}_{BM,D}$ and (

**c**) $p{\left(t\right)}_{BM,M}$ would be financially advantageous.

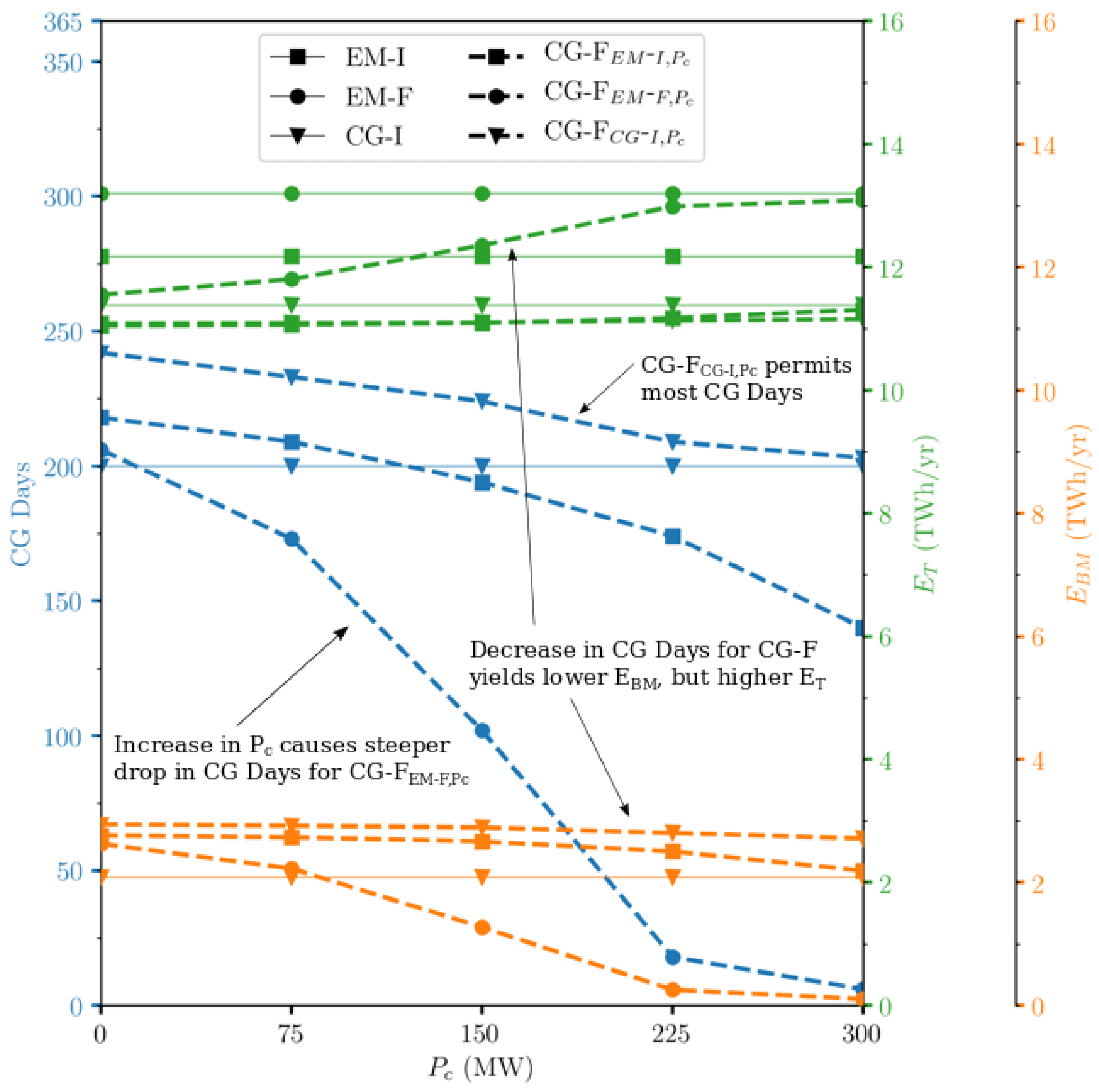

**Figure 6.**Annual (705 tidal cycles) energy results of optimisation cases from Table 3: total energy output ${E}_{T}$ (TWh/year), total Baseload Market output ${E}_{BM}$ (TWh/year) and number of days where $\wedge P$ > 0 MW.

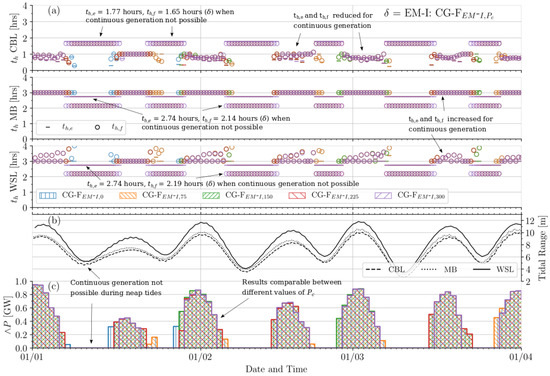

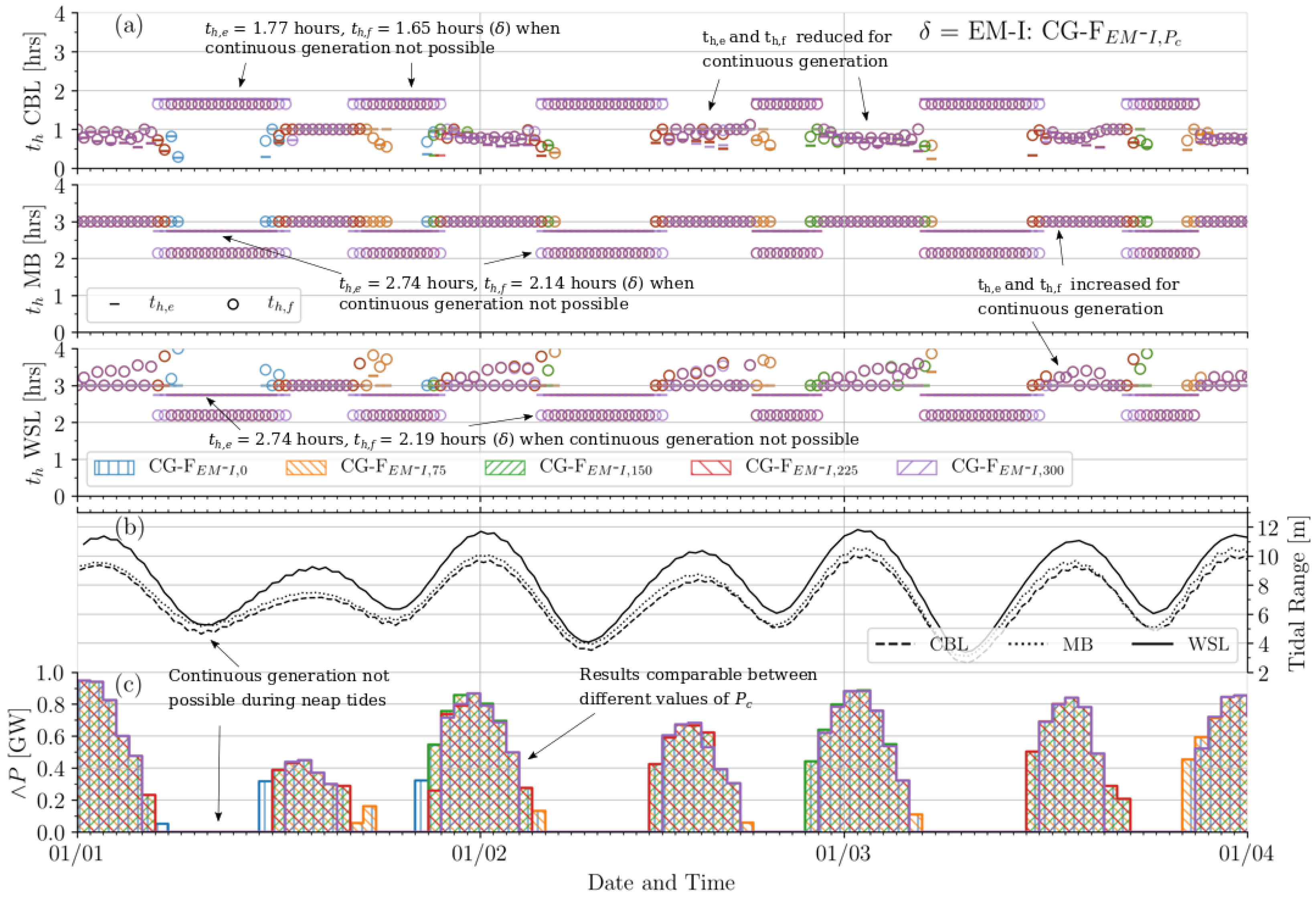

**Figure 7.**Temporal operation characteristics of the tidal power plant system in applying flexible controls to optimise towards continuous generation, with $\delta $ = EM-I, an inflexible energy maximisation default (CG-I${}_{EM-I,{P}_{c}}$). For all three power plants,

**(a)**indicates holding periods ${t}_{h,e}$ and ${t}_{h,f}$ per tidal cycle

**(b)**the tidal range each cycle and

**(c)**daily cumulative minimum power output $\wedge P$ (GW).

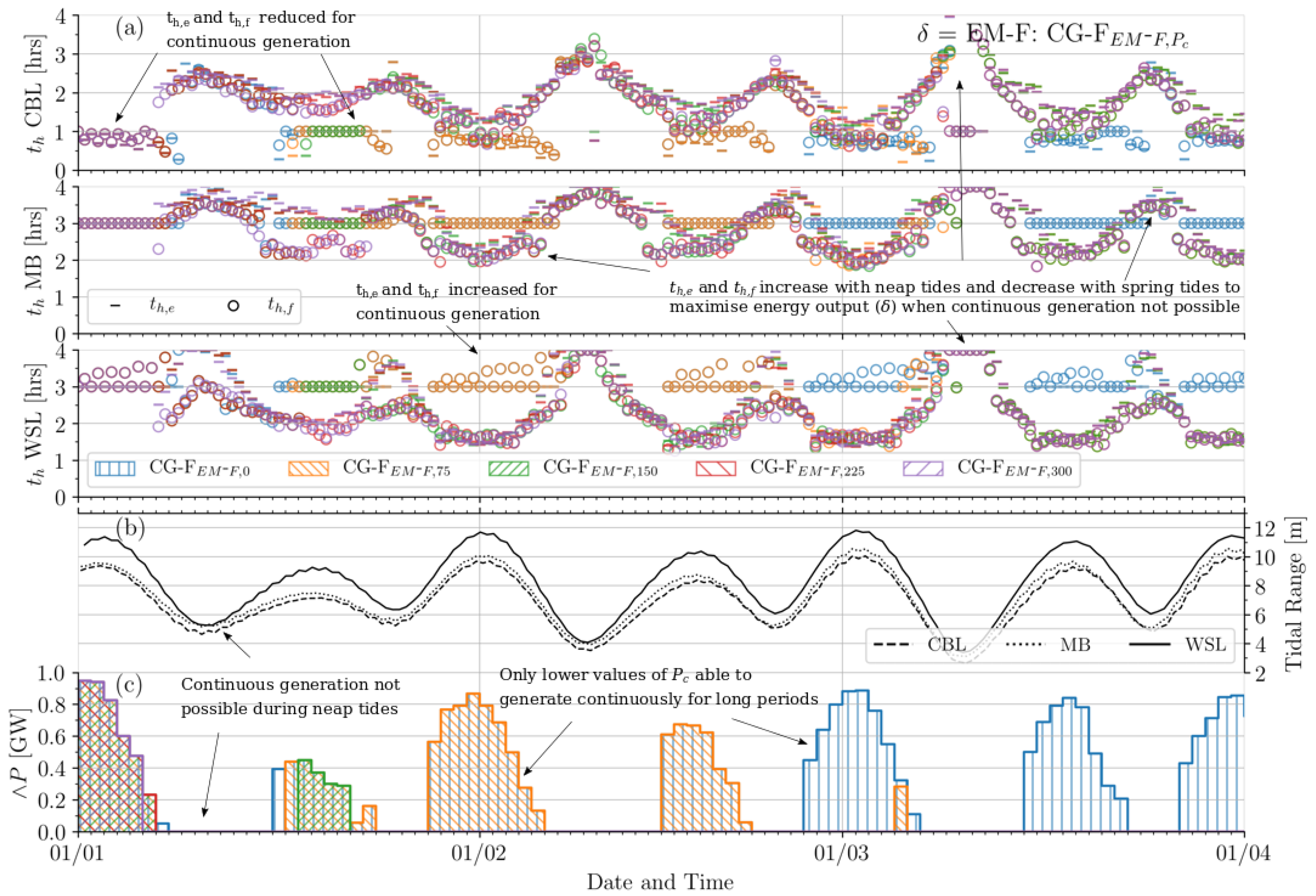

**Figure 8.**Temporal operation characteristics of the tidal power plant system in applying flexible controls to optimise towards continuous generation, with $\delta $ = EM-F, a flexible energy maximisation default (CG-I${}_{EM-F,{P}_{c}}$). For all three power plants, (

**a**) indicates holding periods ${t}_{h,e}$ and ${t}_{h,f}$ per tidal cycle (

**b**) the tidal range each cycle and (

**c**) daily cumulative minimum power output $\wedge P$ (GW).

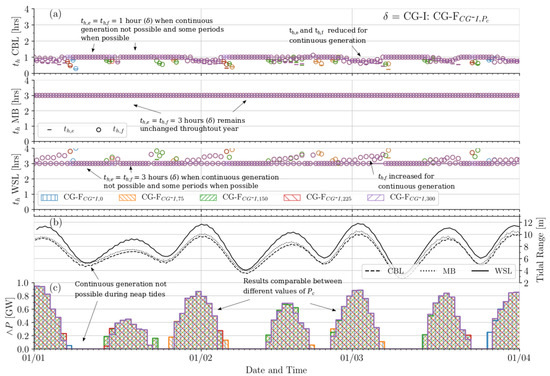

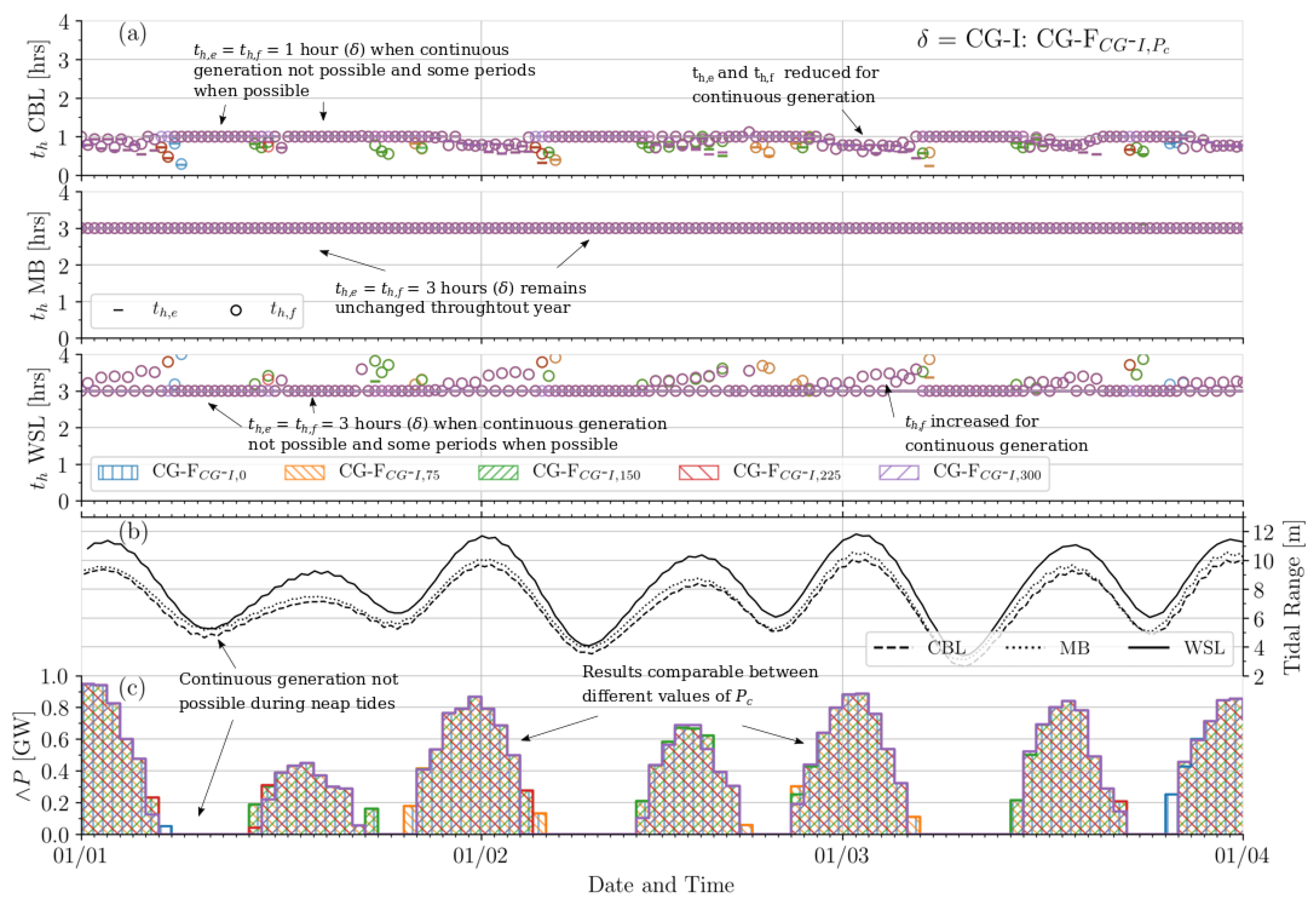

**Figure 9.**Temporal operation characteristics of the tidal power plant system in applying flexible controls to optimise towards continuous generation, with $\delta $ = CG-I, an inflexible baseload generation default (CG-I${}_{CG-I,{P}_{c}}$). For all three power plants, (

**a**) indicates holding periods ${t}_{h,e}$ and ${t}_{h,f}$ per tidal cycle (

**b**) the tidal range each cycle and (

**c**) daily cumulative minimum power output $\wedge P$ (GW).

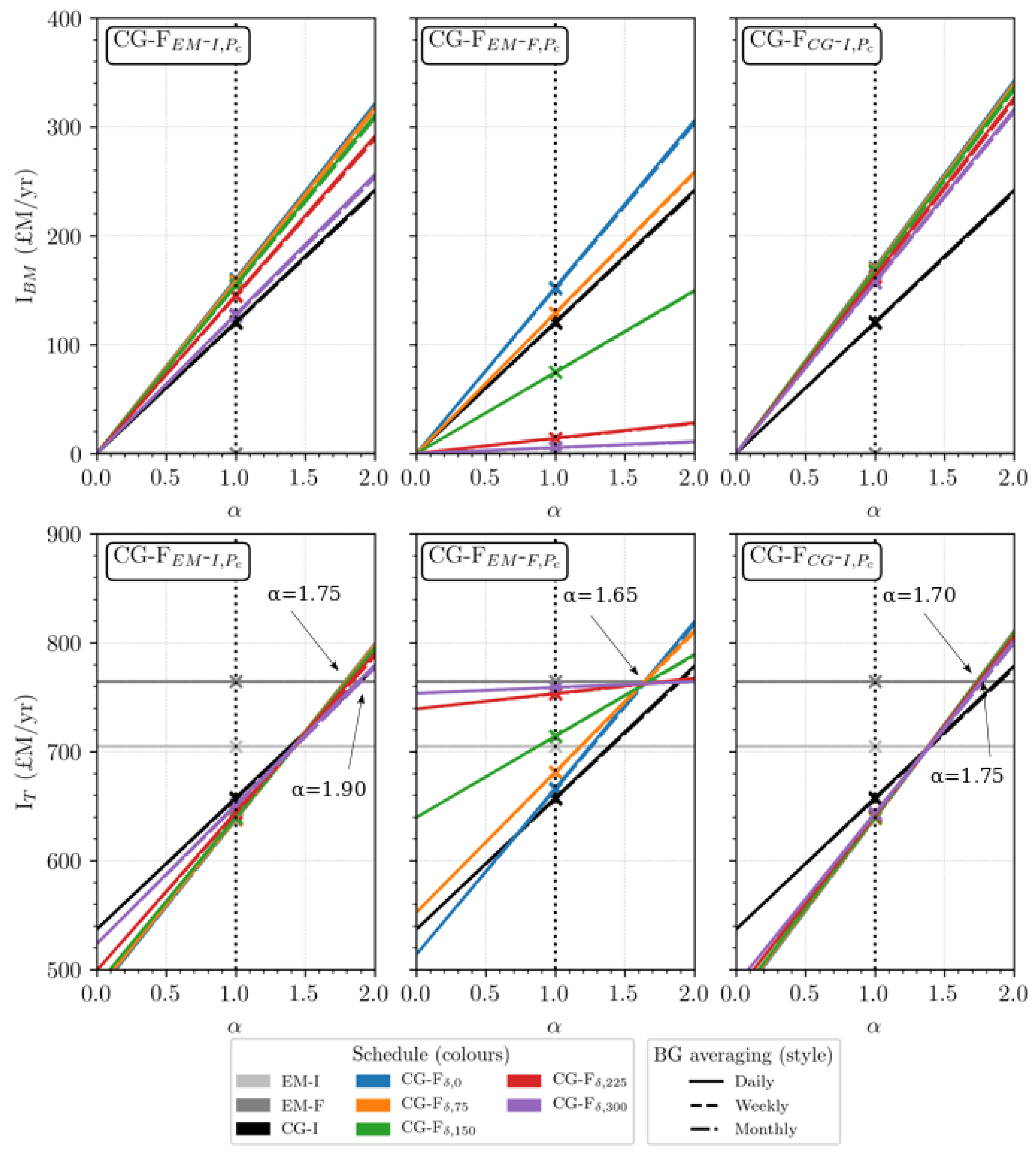

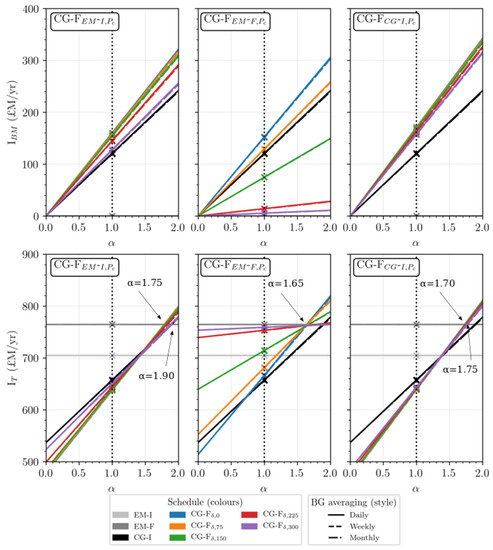

**Figure 10.**How scaling $\alpha $ of the Baseload Market electricty price $p{\left(t\right)}_{BM}$ (£/MWh) affects income both exclusively in the Baseload Market (BM), and in combination with the Hourly Variable Market (HVM). l-r is $\delta $ = EM-I, $\delta $ = EM-F, and $\delta $ = BG-I default cases.

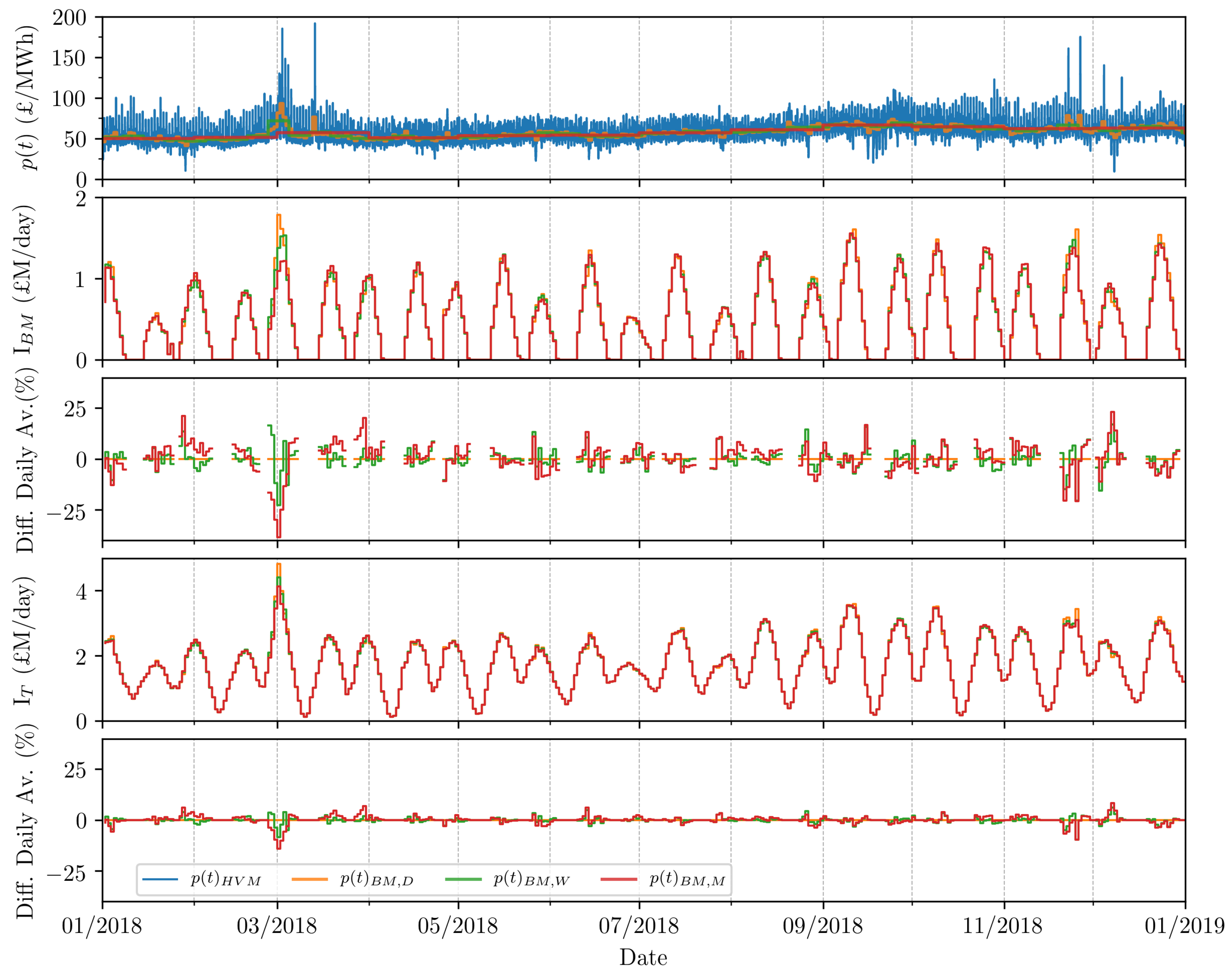

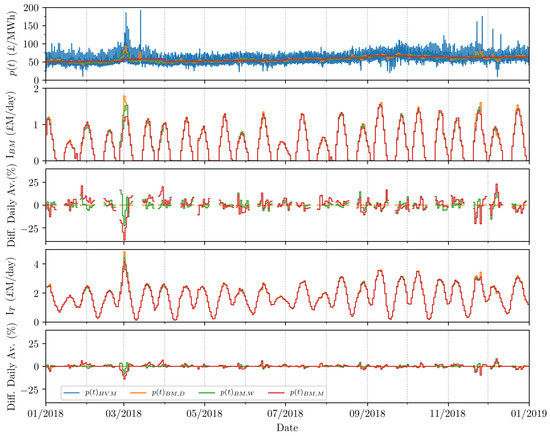

**Figure 11.**Tidal range power plant system daily income upon trading in baseload markets I${}_{BM}$ and hourly variable markets I${}_{HVM}$ (I${}_{BM}$ + I${}_{HVM}$ = I${}_{T}$). Displayed results are from CG-F${}_{CG-I,0}$ control schedule, which yields the highest baseload energy E${}_{CG}$ of all optimisation cases. Percentage difference between daily averaged baseload price and the weekly and monthly equivalents is provided.

Power Plant: | (a) Colwyn Bay Tidal Lagoon | (b) Mersey Tidal Barrage | (c) West Somerset Tidal Lagoon |
---|---|---|---|

Notation | CBL | MB | WSL |

Number turbines | 125 [37] | 28 [32] | 960 [32] |

Number sluices | 40 [37] | 10 | 300 |

Turbine diameter (m) | 7.35 | 8 [32] | 3.12 [32] |

Turbine power output (MW) | 20 [32] | 25 [32] | 3.12 [32] |

Installed capacity (MW) | 2500 | 700 | 2995.2 |

Operation mode | Bi-directional | Bi-directional | Bi-directional |

Basin area (km${}^{\mathbf{2}}$) | 192.8 | 61.5 | 89.7 |

Mean tidal range (m) | 6.77 | 7.65 | 8.27 |

${\mathbf{M}}_{\mathbf{2}}$tidal phase (${}^{\circ}$) | 315.3 | 328.3 | 171.1 |

**Table 2.**Summary of optimisation cases applied in this study. Unless classed as “Flexible”, inflexible holding periods are presented in the following order: CBL ${t}_{h,e}$, CBL ${t}_{h,f}$, MB ${t}_{h,e}$, MB ${t}_{h,f}$, WSL ${t}_{h,e}$, WSL ${t}_{h,f}$.

Optimisation Case | Objective Functional | Holding Periods (h) | Default $\mathit{\delta}$ | Cut-off Power ${\mathit{P}}_{\mathit{c}}$ (MW) |
---|---|---|---|---|

EM-I | Energy maximisation | 1.77, 1.65, 2.74, 2.14, 2.74, 2.19 | N/A | N/A |

EM-F | Energy maximisation | Flexible | N/A | N/A |

CG-I | Continuous generation | 1.00, 1.00, 3.00, 3.00, 3.00, 3.00 | N/A | N/A |

CG-F${}_{EM-I,0}$ | Continuous generation | Flexible | EM-I | 0 |

CG-F${}_{EM-I,75}$ | Continuous generation | Flexible | EM-I | 75 |

CG-F${}_{EM-I,150}$ | Continuous generation | Flexible | EM-I | 150 |

CG-F${}_{EM-I,225}$ | Continuous generation | Flexible | EM-I | 225 |

CG-F${}_{EM-I,300}$ | Continuous generation | Flexible | EM-I | 300 |

CG-F${}_{EM-F,0}$ | Continuous generation | Flexible | EM-F | 0 |

CG-F${}_{EM-F,75}$ | Continuous generation | Flexible | EM-F | 75 |

CG-F${}_{EM-F,150}$ | Continuous generation | Flexible | EM-F | 150 |

CG-F${}_{EM-F,225}$ | Continuous generation | Flexible | EM-F | 225 |

CG-F${}_{EM-F,300}$ | Continuous generation | Flexible | EM-F | 300 |

CG-F${}_{CG-I,0}$ | Continuous generation | Flexible | CG-I | 0 |

CG-F${}_{CG-I,75}$ | Continuous generation | Flexible | CG-I | 75 |

CG-F${}_{CG-I,150}$ | Continuous generation | Flexible | CG-I | 150 |

CG-F${}_{CG-I,225}$ | Continuous generation | Flexible | CG-I | 225 |

CG-F${}_{CG-I,300}$ | Continuous generation | Flexible | CG-I | 300 |

**Table 3.**Energy and power output results of all optimisation cases over 705 tidal cycles (≈1 year). CG-F subscript indicates associated $\delta $ and cut-off power ${P}_{c}$ (MW). Days where continuous generation is achieved are indicated as CG Days, as well as the associated proportion of the total energy ${E}_{T}$ (TWh/year) to be traded in the idealised baseload market ${E}_{BM}$ (TWh/year). $\overline{\wedge P}$ and ${\overline{\wedge P}}_{CG}$ (MW) indicate average daily minimum cumulative power output over the year and exclusively on CG Days, respectively, while $\overline{\vee P}$ and ${\overline{\vee P}}_{CG}$ (MW) show equivalent daily average power peaks. The combined installed capacity of the power plant system is 6195.2 MW.

Optimisation | CG | ${\mathit{E}}_{\mathbf{BM}}$ | ${\mathit{E}}_{\mathit{T}}$ | $\overline{\wedge \mathit{P}}$ | ${\overline{\wedge \mathit{P}}}_{\mathbf{CG}}$ | $\overline{\vee \mathit{P}}$ | ${\overline{\vee \mathit{P}}}_{\mathbf{CG}}$ | $\overline{\vee \mathit{P}}-\overline{\wedge \mathit{P}}$ | ${\overline{\vee \mathit{P}}}_{\mathbf{CG}}-{\overline{\wedge \mathit{P}}}_{\mathbf{CG}}$ |
---|---|---|---|---|---|---|---|---|---|

Function | Days | (TWh/year) | (TWh/year) | MW | MW | MW | MW | MW | MW |

EM-I | 0 | 0.00 | 12.18 | 0 | N/A | 3439.6 | N/A | 3439.6 | N/A |

EM-F | 0 | 0.00 | 13.20 | 0 | N/A | 3528.8 | N/A | 3528.8 | N/A |

CG-I | 200 | 2.08 | 11.39 | 237.3 | 433.1 | 3179.8 | 3891.0 | 2942.5 | 3457.9 |

CG-F${}_{EM-I,0}$ | 218 | 2.76 | 11.05 | 315.5 | 528.2 | 3040.5 | 3630.3 | 2725.0 | 3102.1 |

CG-F${}_{EM-I,75}$ | 209 | 2.73 | 11.06 | 312.1 | 545.1 | 3040.8 | 3669.0 | 2728.7 | 3123.8 |

CG-F${}_{EM-I,150}$ | 194 | 2.67 | 11.09 | 304.3 | 572.3 | 3044.6 | 3729.5 | 2740.3 | 3157.0 |

CG-F${}_{EM-I,225}$ | 174 | 2.50 | 11.17 | 285.6 | 599.1 | 3063.4 | 3793.8 | 2777.8 | 3194.7 |

CG-F${}_{EM-I,300}$ | 140 | 2.19 | 11.31 | 250.0 | 651.9 | 3111.2 | 3891.5 | 2861.2 | 3239.6 |

CG-F${}_{EM-F,0}$ | 206 | 2.63 | 11.55 | 299.8 | 531.1 | 3286.7 | 3645.6 | 2986.9 | 3114.5 |

CG-F${}_{EM-F,75}$ | 173 | 2.22 | 11.80 | 253.9 | 535.6 | 3331.2 | 3658.9 | 3077.3 | 3123.3 |

CG-F${}_{EM-F,150}$ | 102 | 1.27 | 12.36 | 145.3 | 520.0 | 3413.9 | 3650.4 | 3268.6 | 3130.4 |

CG-F${}_{EM-F,225}$ | 18 | 0.26 | 12.98 | 29.1 | 590.5 | 3515.4 | 3752.6 | 3486.3 | 3162.0 |

CG-F${}_{EM-F,300}$ | 6 | 0.11 | 13.09 | 12.0 | 730.8 | 3529.3 | 3902.8 | 3517.3 | 3172.0 |

CG-F${}_{CG-I,0}$ | 242 | 2.94 | 11.08 | 335.8 | 506.5 | 3071.5 | 3600.7 | 2735.7 | 3094.1 |

CG-F${}_{CG-I,75}$ | 233 | 2.92 | 11.09 | 333.5 | 522.4 | 3074.1 | 3636.5 | 2740.6 | 3114.1 |

CG-F${}_{CG-I,150}$ | 224 | 2.89 | 11.10 | 330.0 | 537.7 | 3077.2 | 3676.3 | 2747.2 | 3138.6 |

CG-F${}_{CG-I,225}$ | 209 | 2.80 | 11.13 | 320.0 | 558.8 | 3082.6 | 3716.9 | 2762.6 | 3158.1 |

CG-F${}_{CG-I,300}$ | 203 | 2.72 | 11.15 | 310.0 | 557.4 | 3090.2 | 3731.7 | 2780.3 | 3174.4 |

© 2020 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Mackie, L.; Coles, D.; Piggott, M.; Angeloudis, A.
The Potential for Tidal Range Energy Systems to Provide Continuous Power: A UK Case Study. *J. Mar. Sci. Eng.* **2020**, *8*, 780.
https://doi.org/10.3390/jmse8100780

**AMA Style**

Mackie L, Coles D, Piggott M, Angeloudis A.
The Potential for Tidal Range Energy Systems to Provide Continuous Power: A UK Case Study. *Journal of Marine Science and Engineering*. 2020; 8(10):780.
https://doi.org/10.3390/jmse8100780

**Chicago/Turabian Style**

Mackie, Lucas, Daniel Coles, Matthew Piggott, and Athanasios Angeloudis.
2020. "The Potential for Tidal Range Energy Systems to Provide Continuous Power: A UK Case Study" *Journal of Marine Science and Engineering* 8, no. 10: 780.
https://doi.org/10.3390/jmse8100780
