Study on the Anchored Bearing Characteristics of Mooring Pile Foundations in Sandy Soil for Floating Wind Turbines

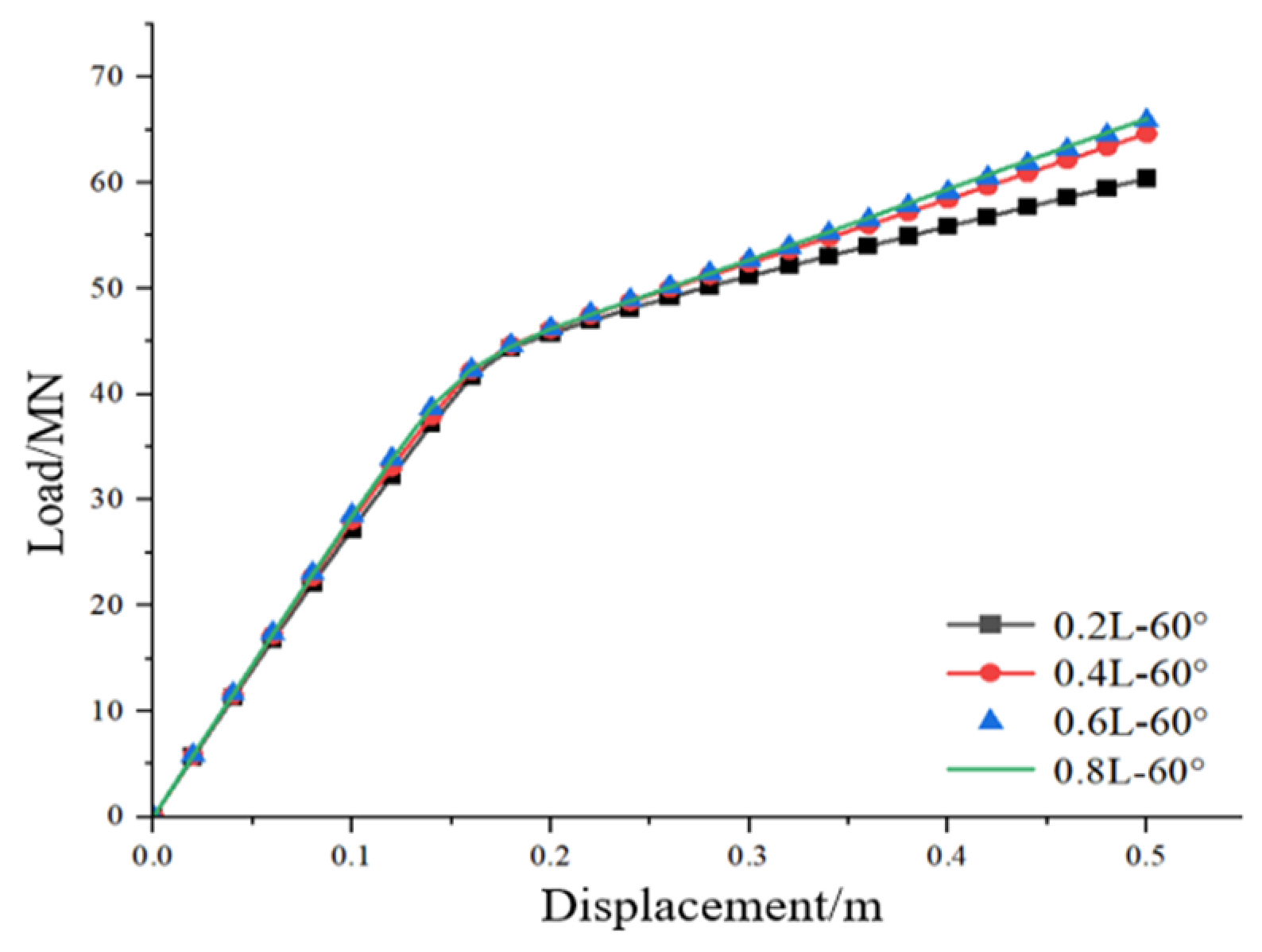

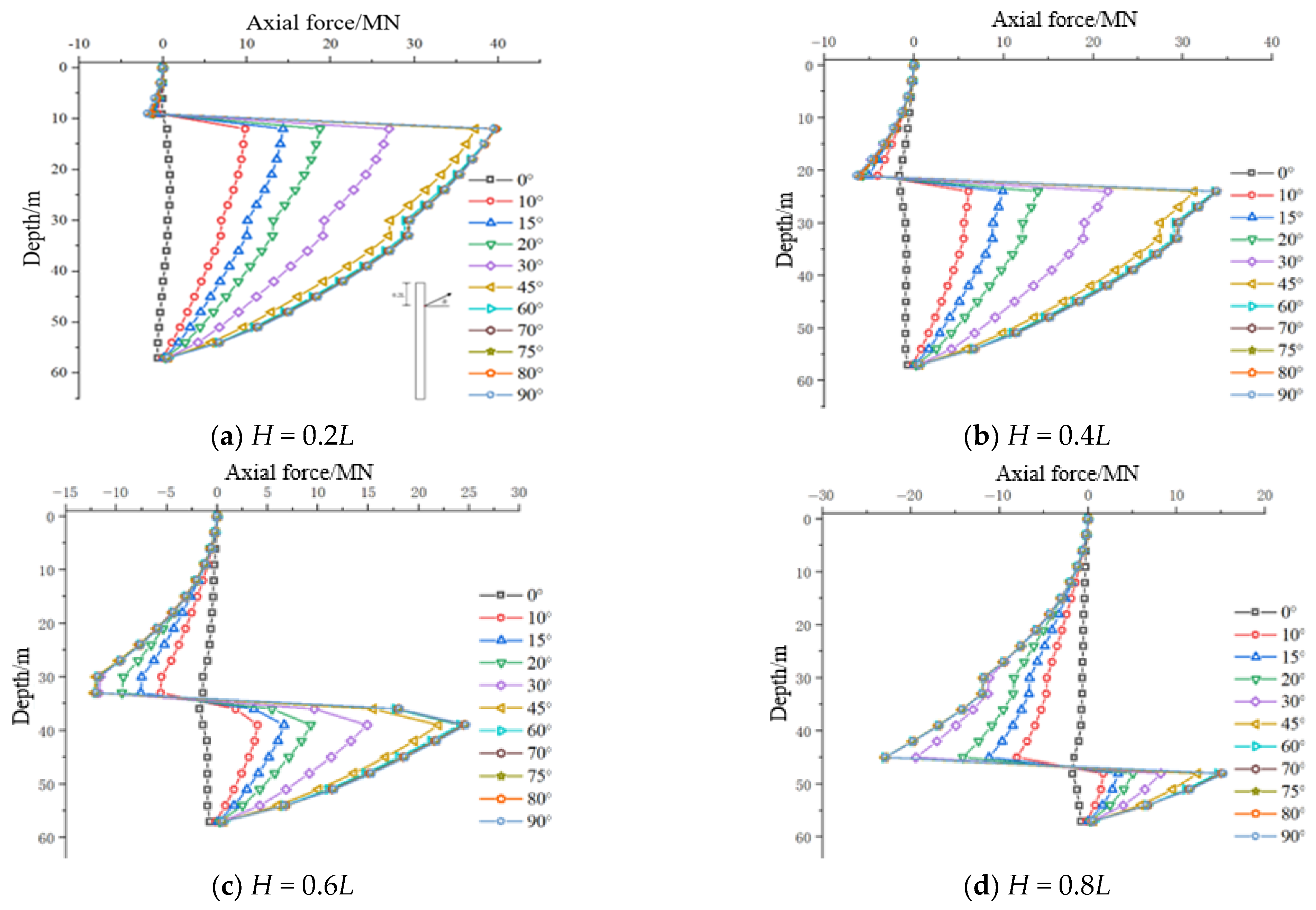

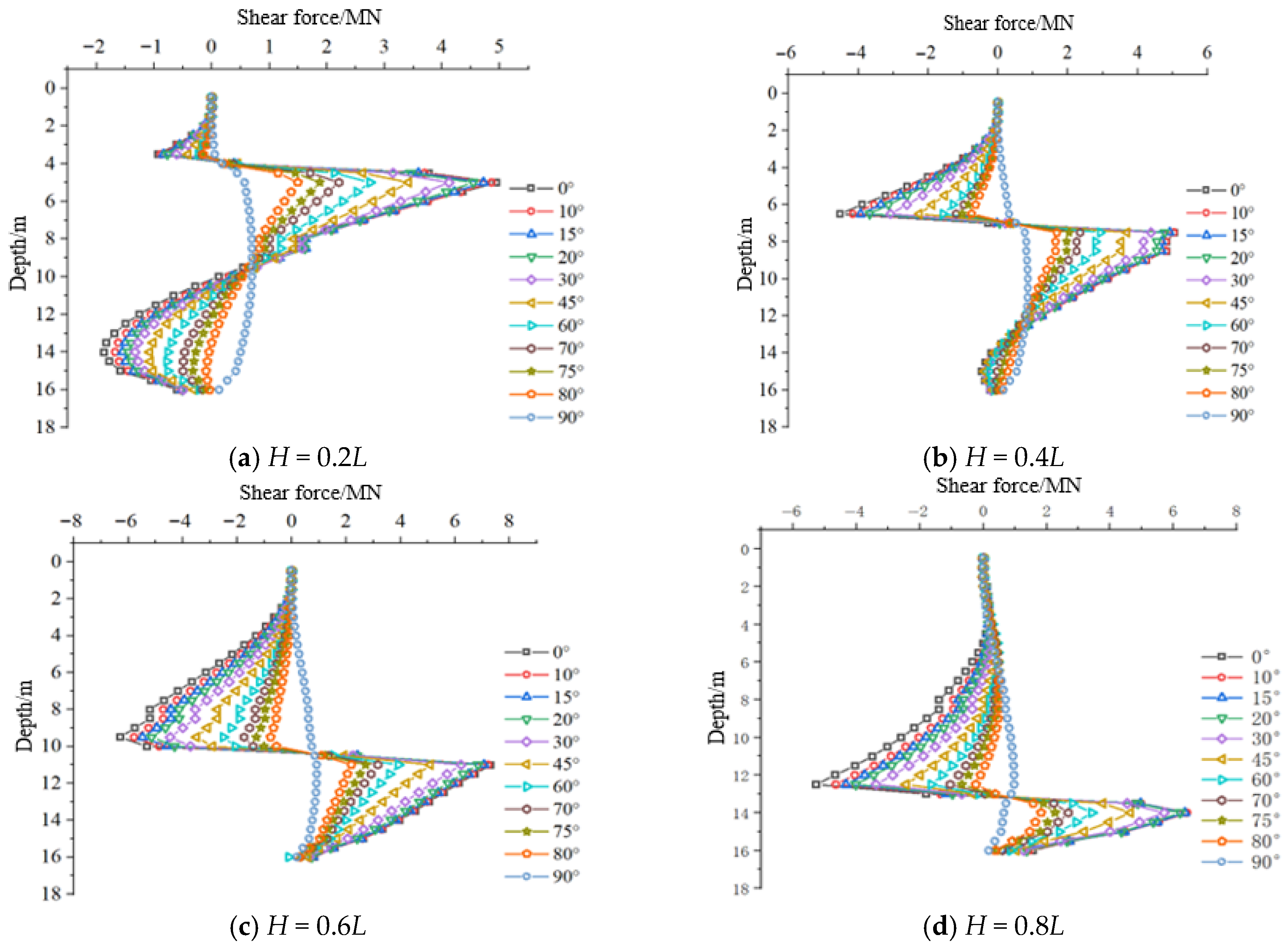

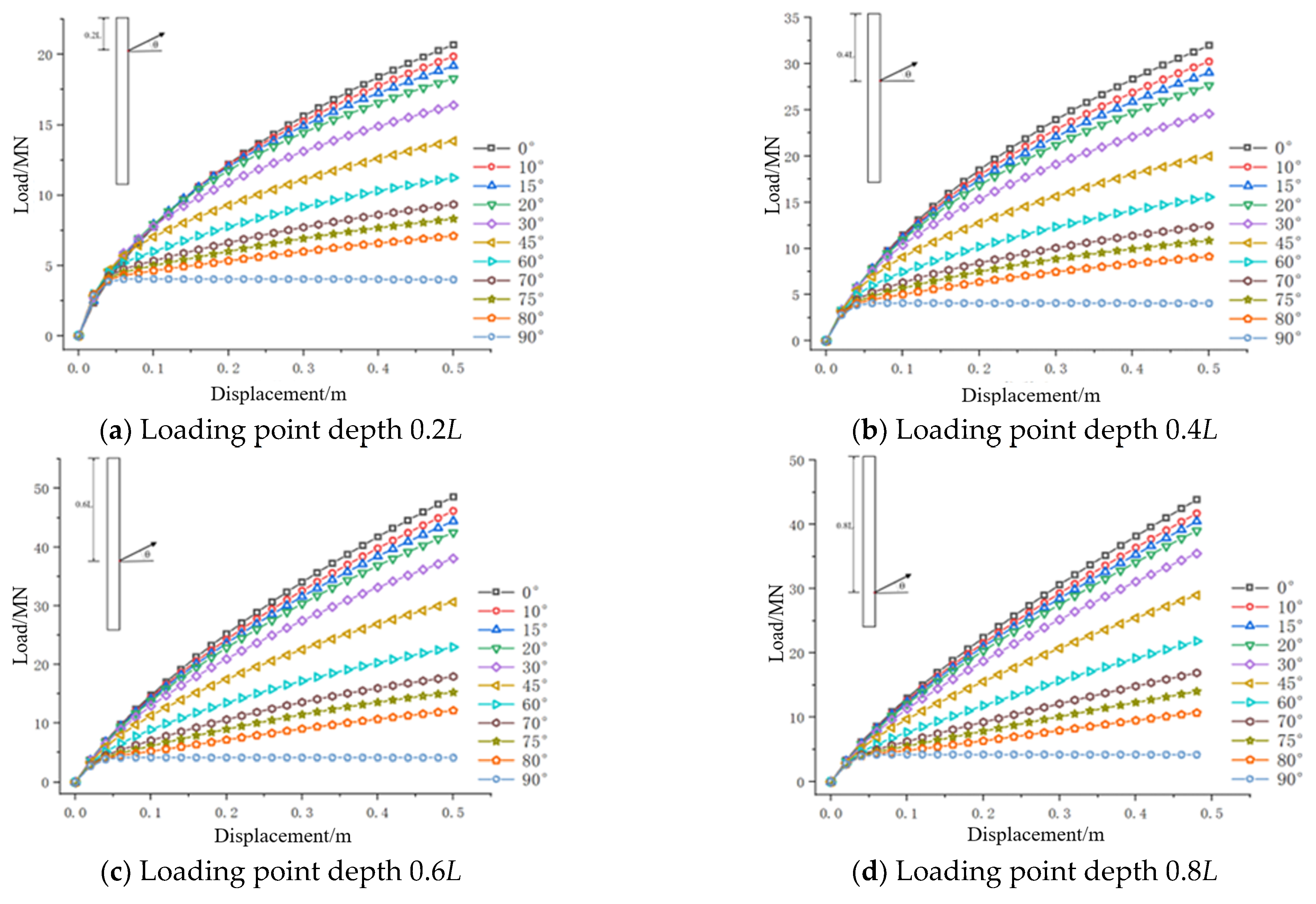

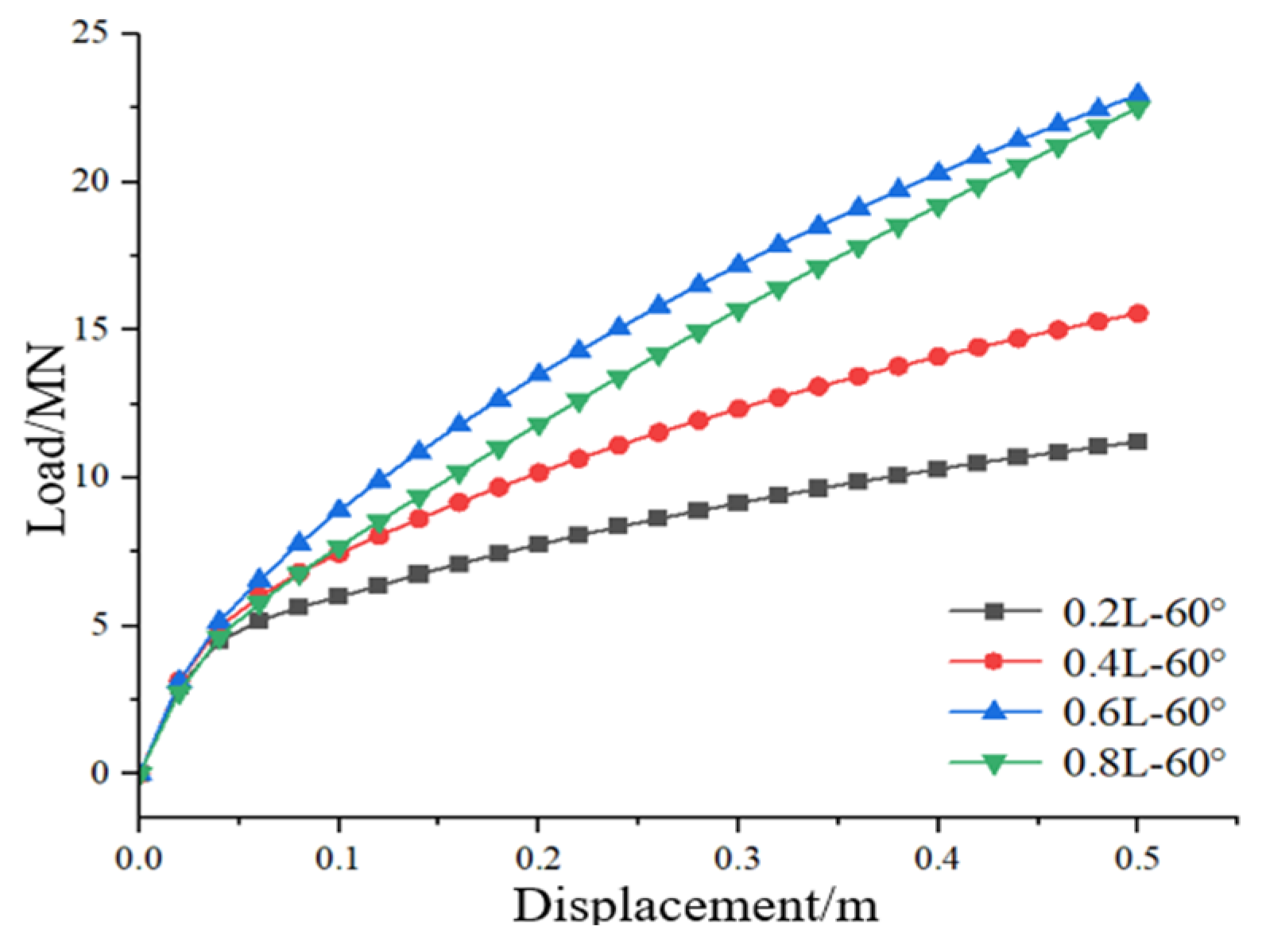

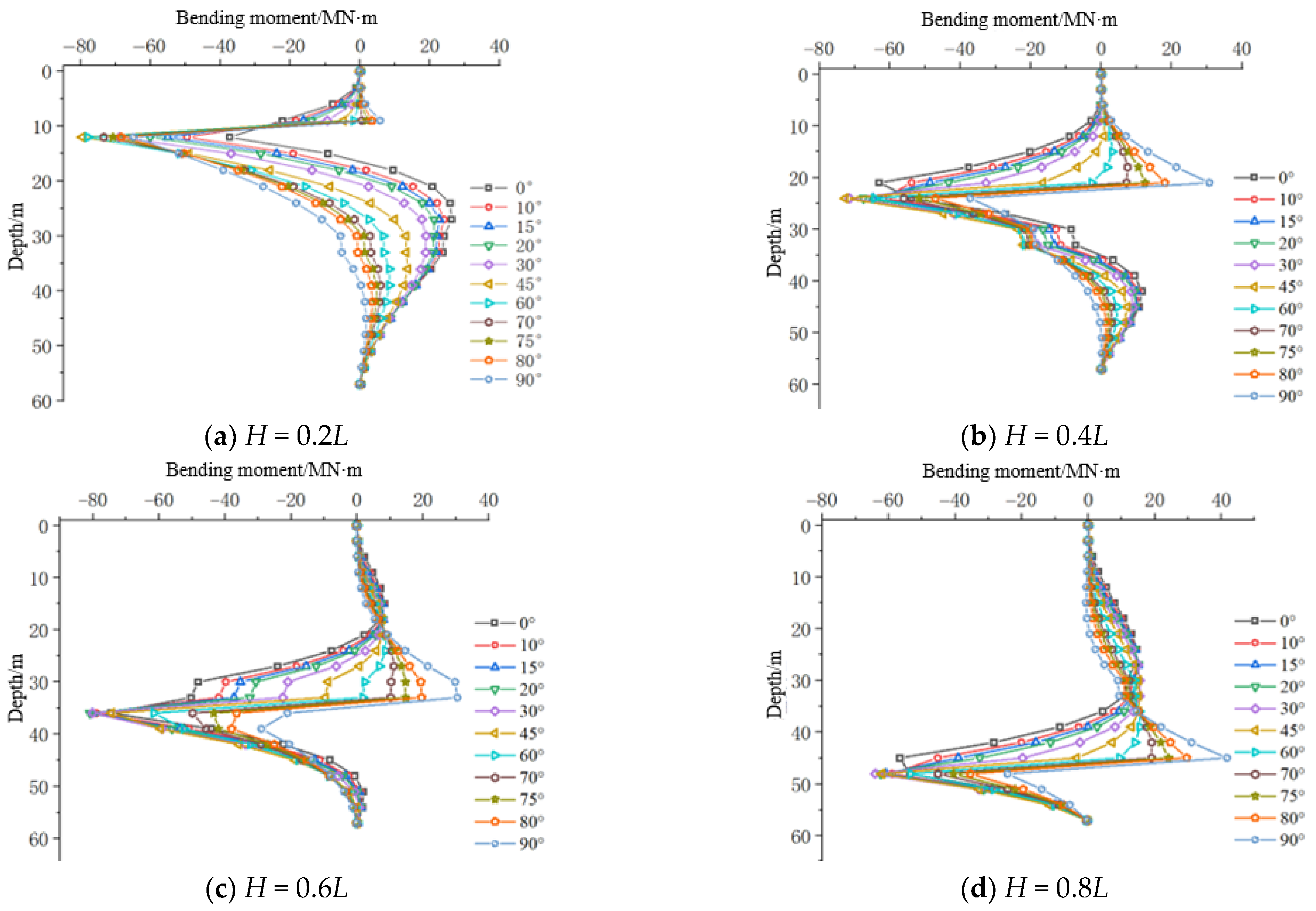

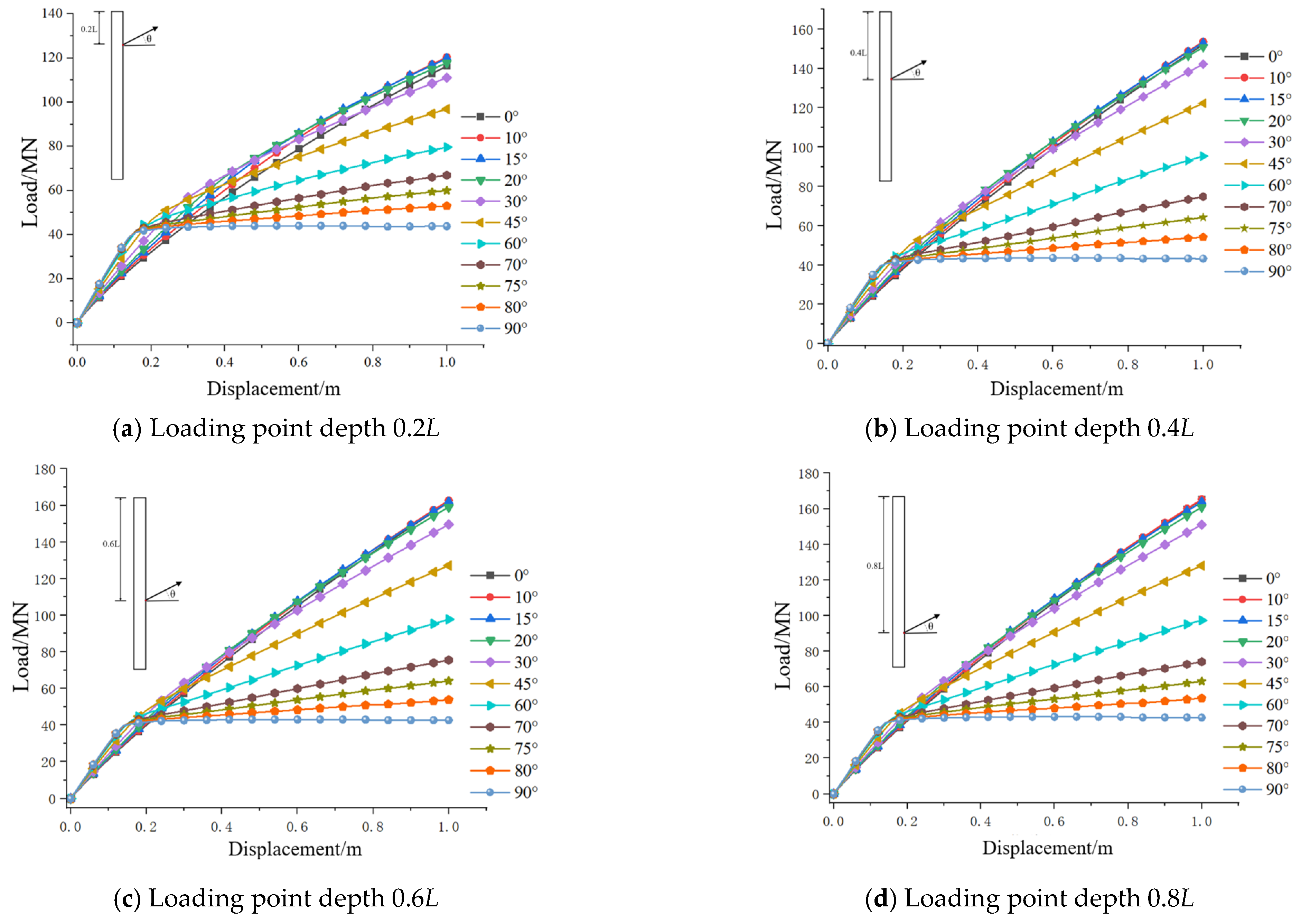

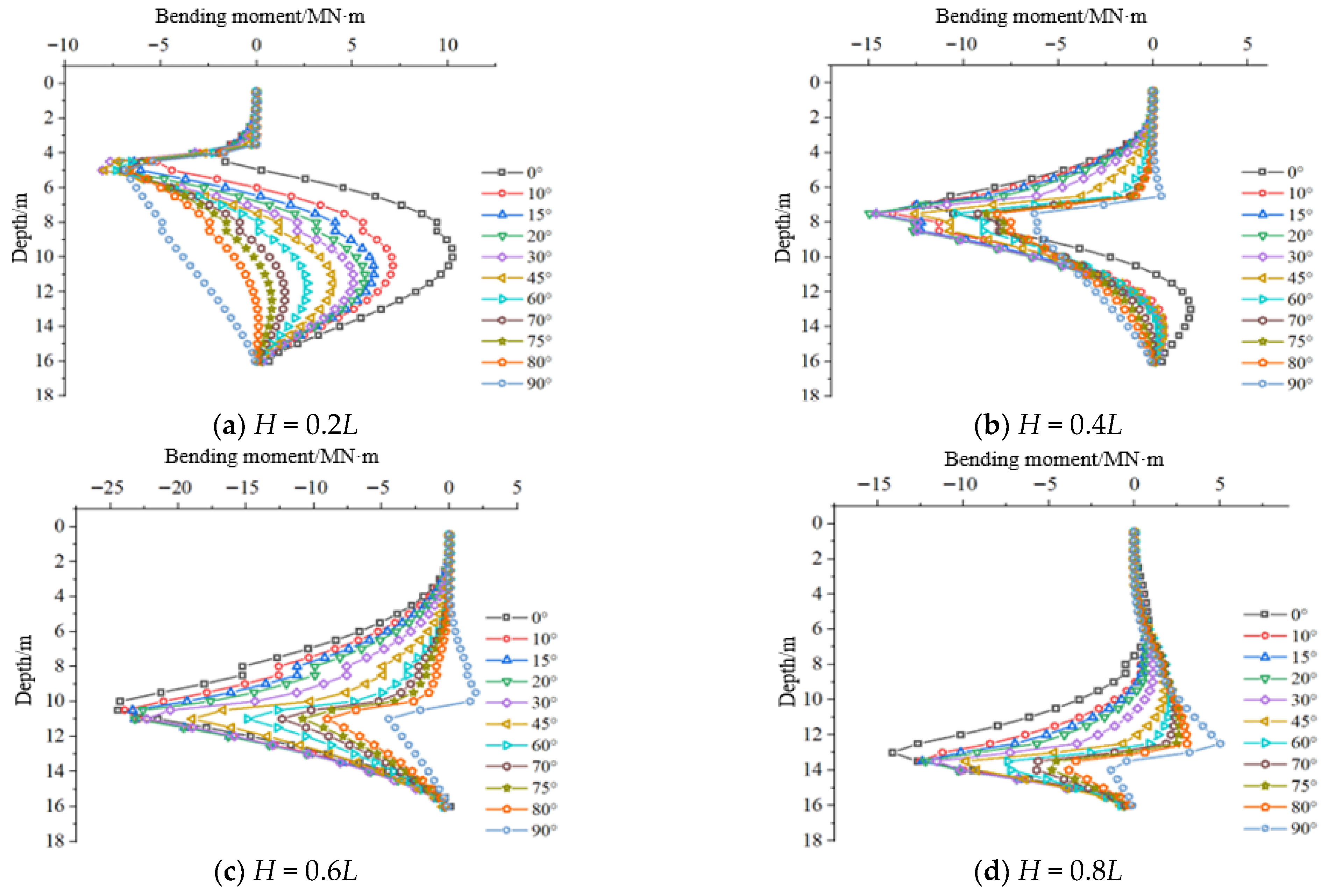

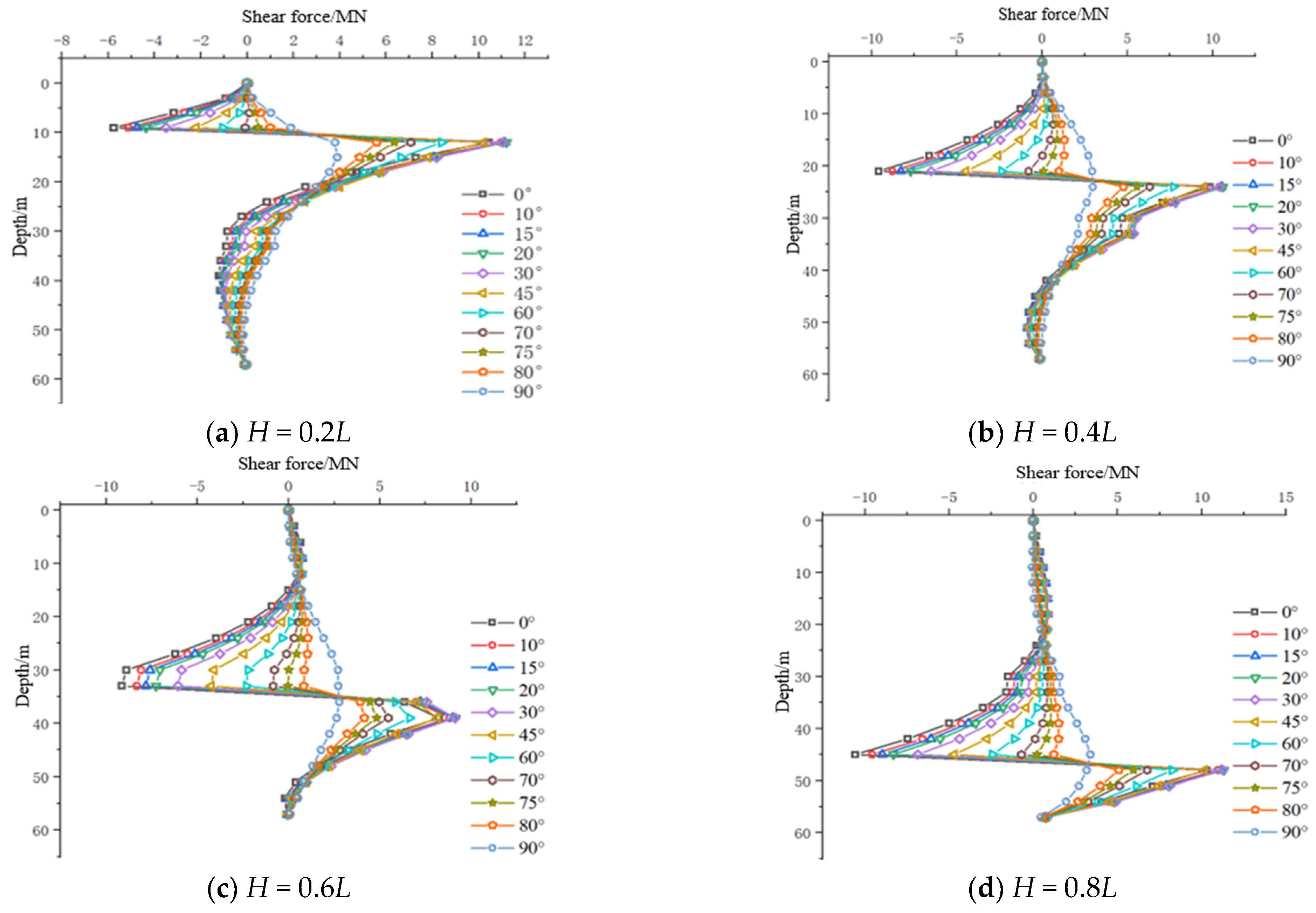

As one of the mooring foundation types for floating wind turbine platforms, research on the anchor pullout bearing characteristics of mooring pile foundations remains insufficient, and the underlying mechanism of anchor pullout bearing capacity needs further investigation and clarification. This paper conducts a numerical study on the bearing characteristics of mooring pile foundations under tensile anchoring forces with loading angles ranging from 0° to 90° and loading point depths of 0.2L, 0.4L, 0.6L, and 0.8L (where L is the pile length). The research findings indicate that the anchor pullout bearing capacity decreases as the loading angle increases from 0° to 90°, and exhibits a trend of first increasing and then decreasing with the increase in loading point depth. For rigid pile-anchors, the maximum anchor pullout bearing capacity occurs at a loading point depth of 0.6–0.8L, while for flexible piles, it appears at 0.4–0.6L. Both the bending moment and shear force of the pile shaft show abrupt changes at the loading point, where their maximum values also occur. This implies that the structural design at the loading point of the mooring pile foundation requires reinforcement. Meanwhile, the bending moment and shear force of the pile shaft gradually decrease with the increase in the loading angle, which is attributed to the gradual reduction of the horizontal load component. The axial force of the pile shaft also undergoes an abrupt change at the loading point, presenting characteristics where the upper section of the pile is under compression, the lower section is in tension, and both the pile top and pile tip are subjected to zero axial force. The depth of the loading point significantly influences the movement mode of the pile shaft. Shallow loading (0.2–0.4L) induces clockwise rotation, and the soil pressure around the pile is concentrated in the counterclockwise direction (90–270°). In the case of deep loading, counterclockwise rotation or pure translation of the pile shaft results in a more uniform stress distribution in the surrounding foundation soil, with the maximum soil pressure concentrated near the loading point.
