# Application of Discrete Element Method Coupled with Computational Fluid Dynamics to Predict the Erosive Wear Behavior of Arctic Vessel Hulls Subjected to Ice Impacts

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. State of the Art

**Table 1.**The summary of reference studies which evaluate floe behavior on the fluid flow of the route.

Author | Numerical Scheme | Floe Shape | Purpose |
---|---|---|---|

Kim et al. [18] | ALE-based FEA | Rectangular box | - Evaluating the ice resistance of the icebreaker - The ice resistance of the icebreaker was measured and compared with that of ALE-based FEA |

Robb et al. [19] | SPH-DEM | Sphere | - Simulating the behavior of an ice floe on a free surface |

Huang et al. [20] | CFD-DEM Coupling (DEM embedded in CFD) | Pancake | - Evaluating the ship resistance in response to ice collision |

Liu et al. [21] | CFD-DEM Coupling (DEM embedded in CFD) | Spherical | - Evaluate hull resistance by accounting for the motion of ice floes - Comparing one-way and two-way coupling schemes in CFD-DEM coupling |

Zhang et al. [23] | CFD-DEM Coupling (DEM embedded in CFD) | Glued sphere | - Simulate the behavior of ice floes surrounding a moving ship - Compare results from experiments and analysis - Analyze how variable settings affect analysis results in numerical simulations |

Shunying et al. [33] | CFD-DEM Coupling | Pancake | - Evaluating the ice impact loads under different operating conditions |

## 3. Numerical Scheme

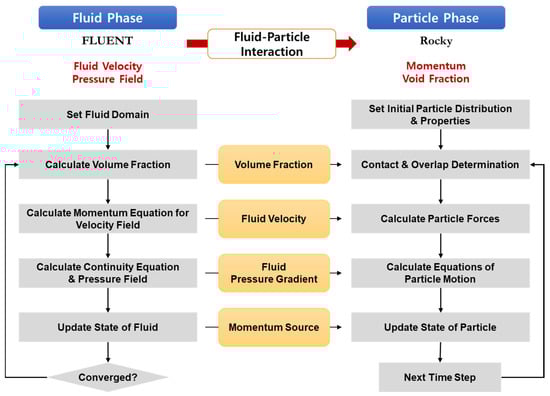

#### 3.1. Analysis Process

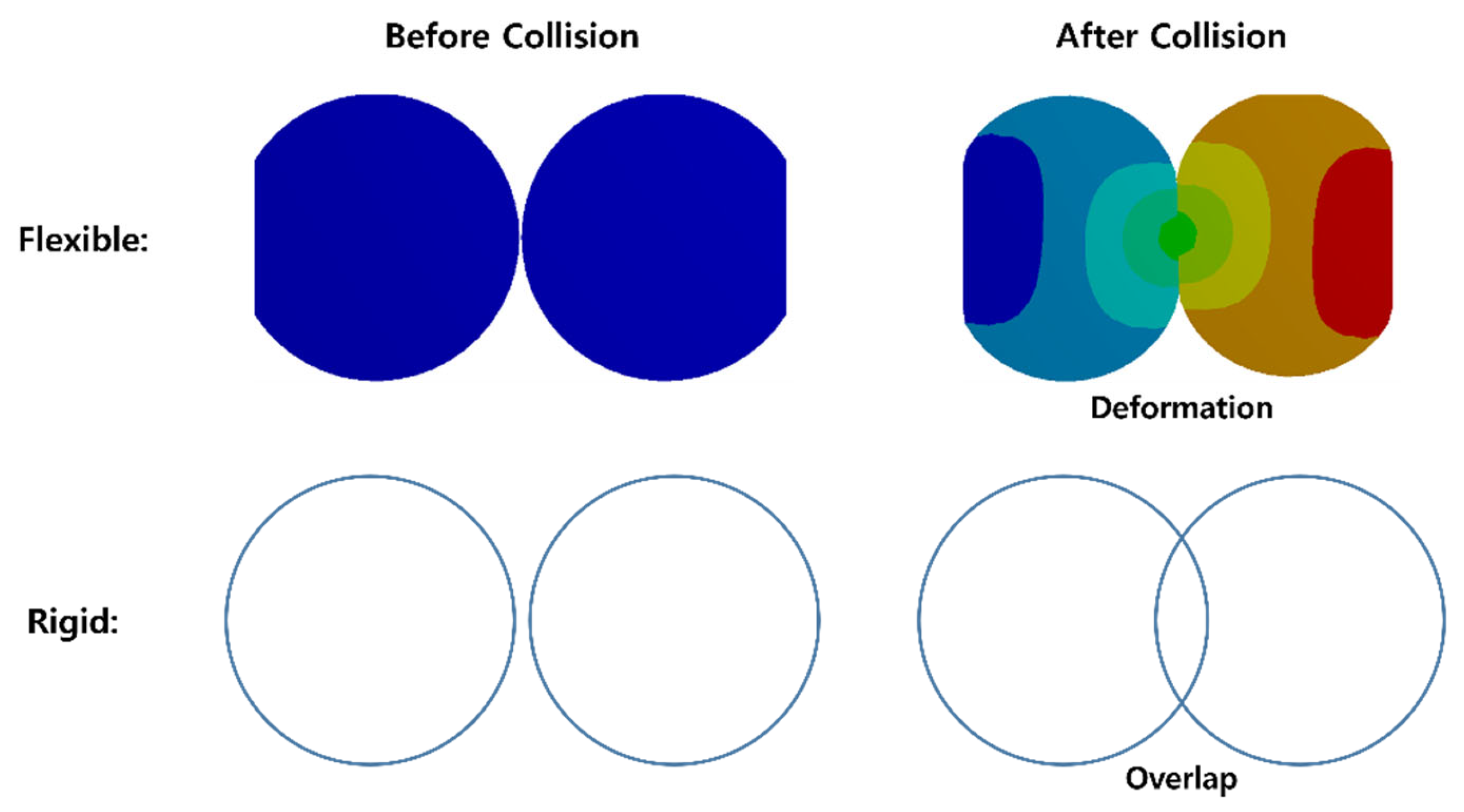

#### 3.2. Theoretical Background of DEM

#### 3.3. Theoretical Background of CFD [42]

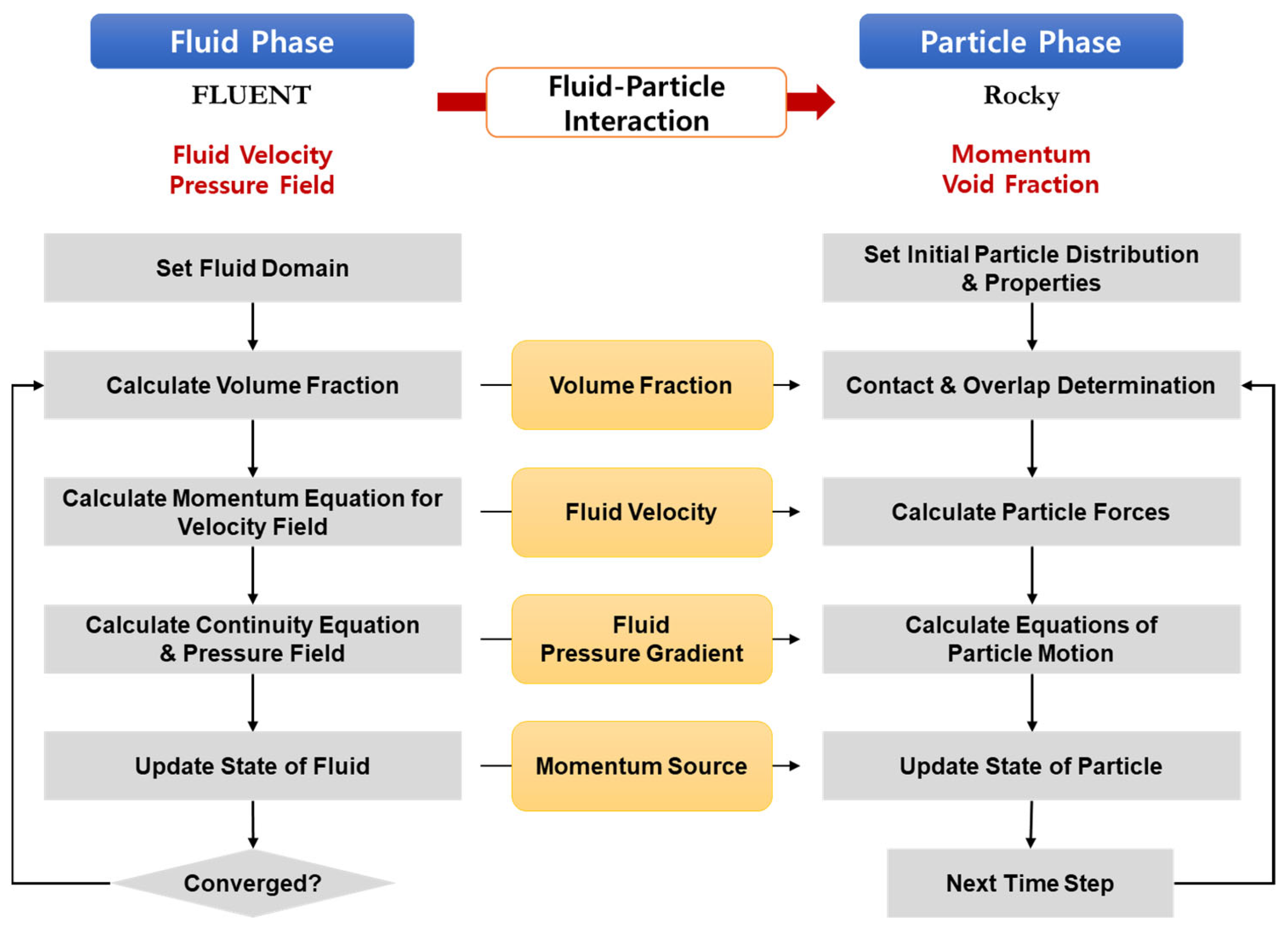

#### 3.4. Theoretical Background of DEM-CFD Coupling [43]

#### 3.5. Archard Wear Law

## 4. Evaluation of Hull Wear Due to Collision with Ice Floes

^{3}/J was defined as 100 m

^{3}/J, then $N$ is 100. According to Equation (26), shear work accumulated for 1 s of simulation time can be evaluated as shear work accumulated for 100 s of real time by $N$. Therefore, the volume of wear loss that occurred for 100 s can be evaluated through the 1 s analysis result. N can be determined according to the acceptable analysis time and how much micro material loss can be tolerated. The purpose of this study is to develop a numerical model for assessing wear in ships traveling Arctic routes. The shape of ship, operating conditions, and wear-inducing material properties were not of primary interest in this study. Therefore, the wear magnitude evaluated in this study is not representative of actual operational ships.

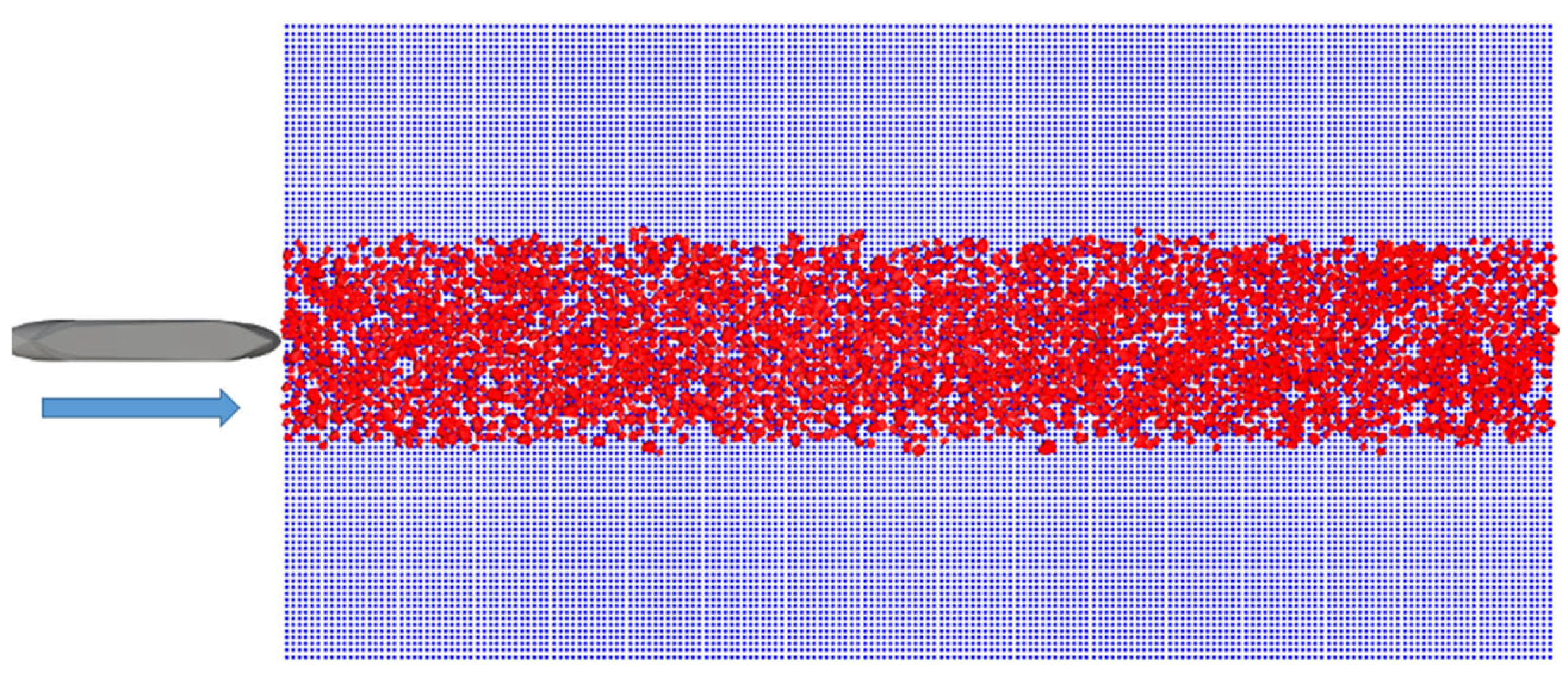

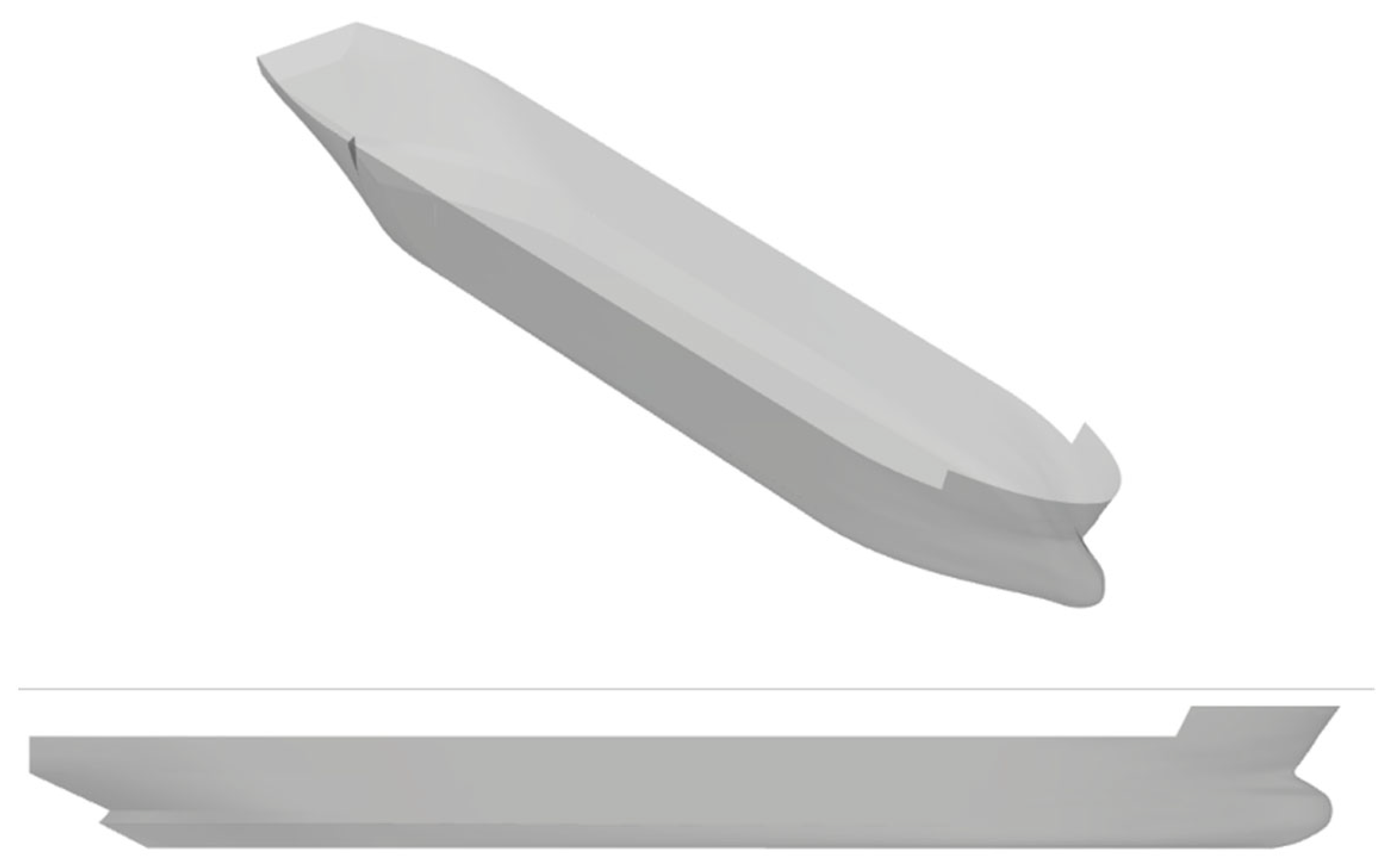

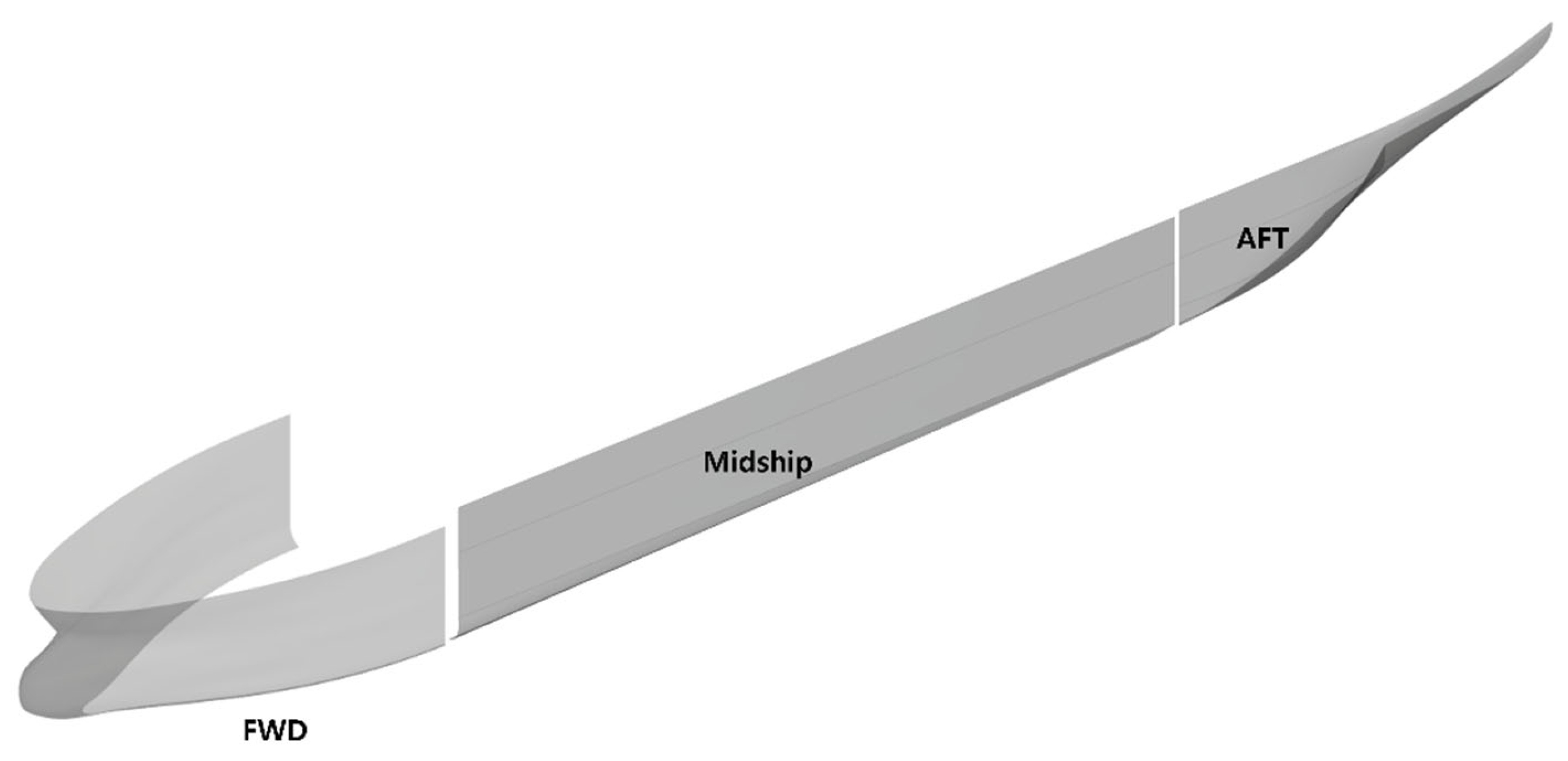

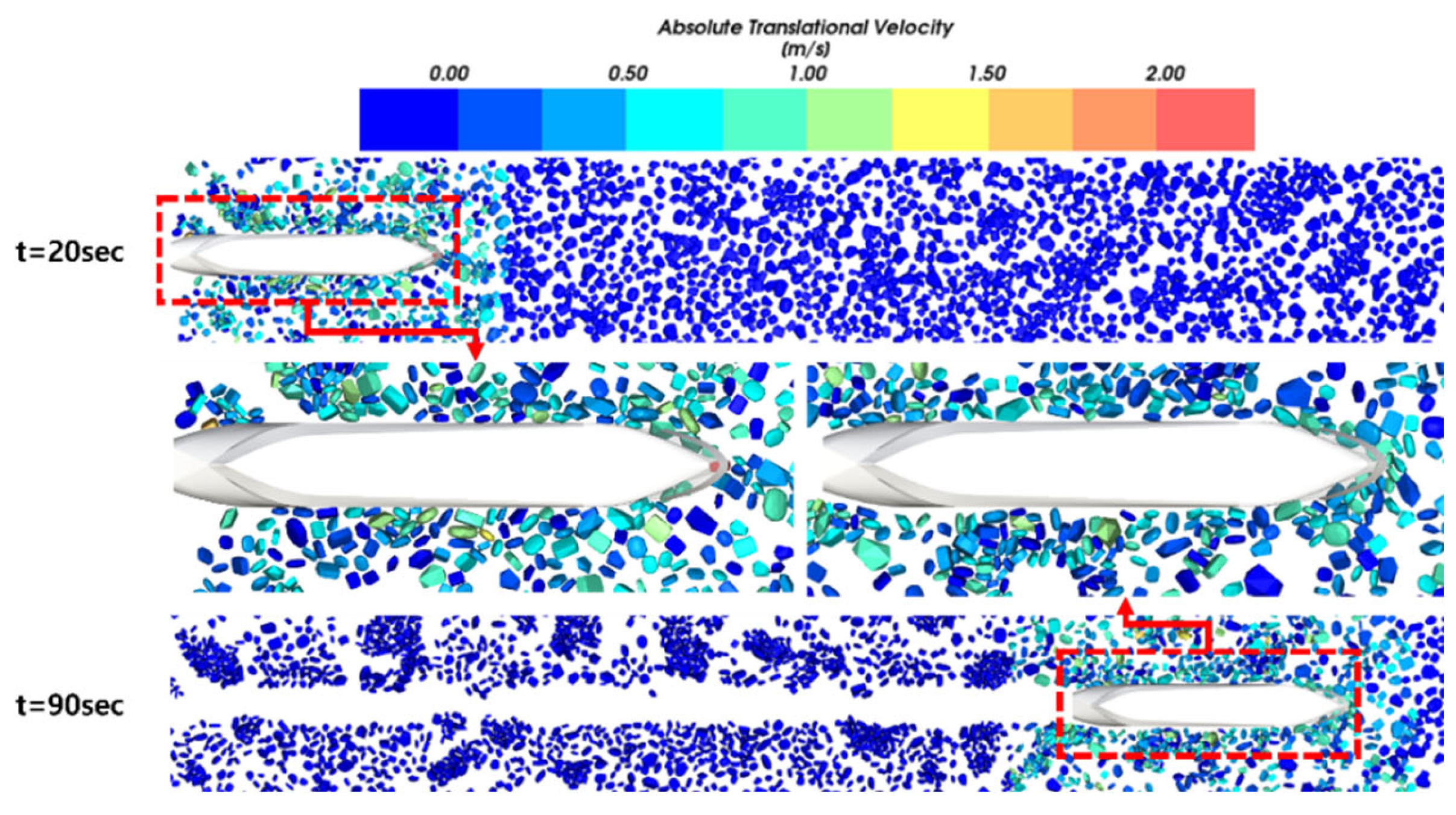

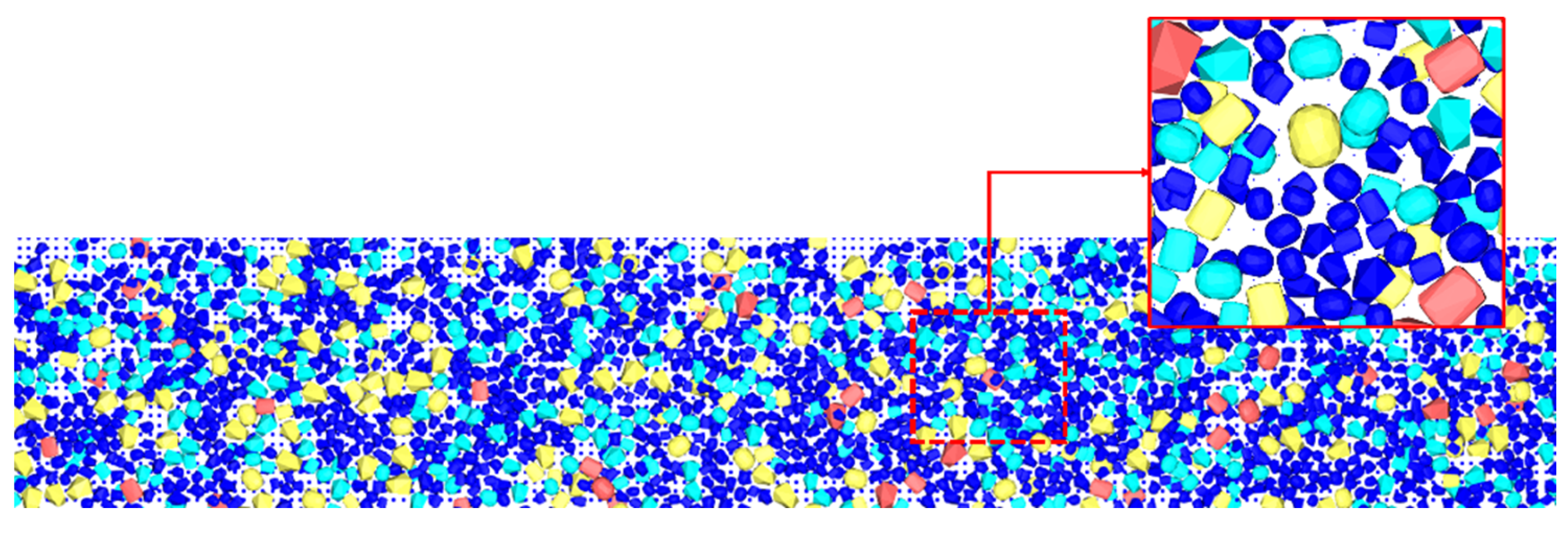

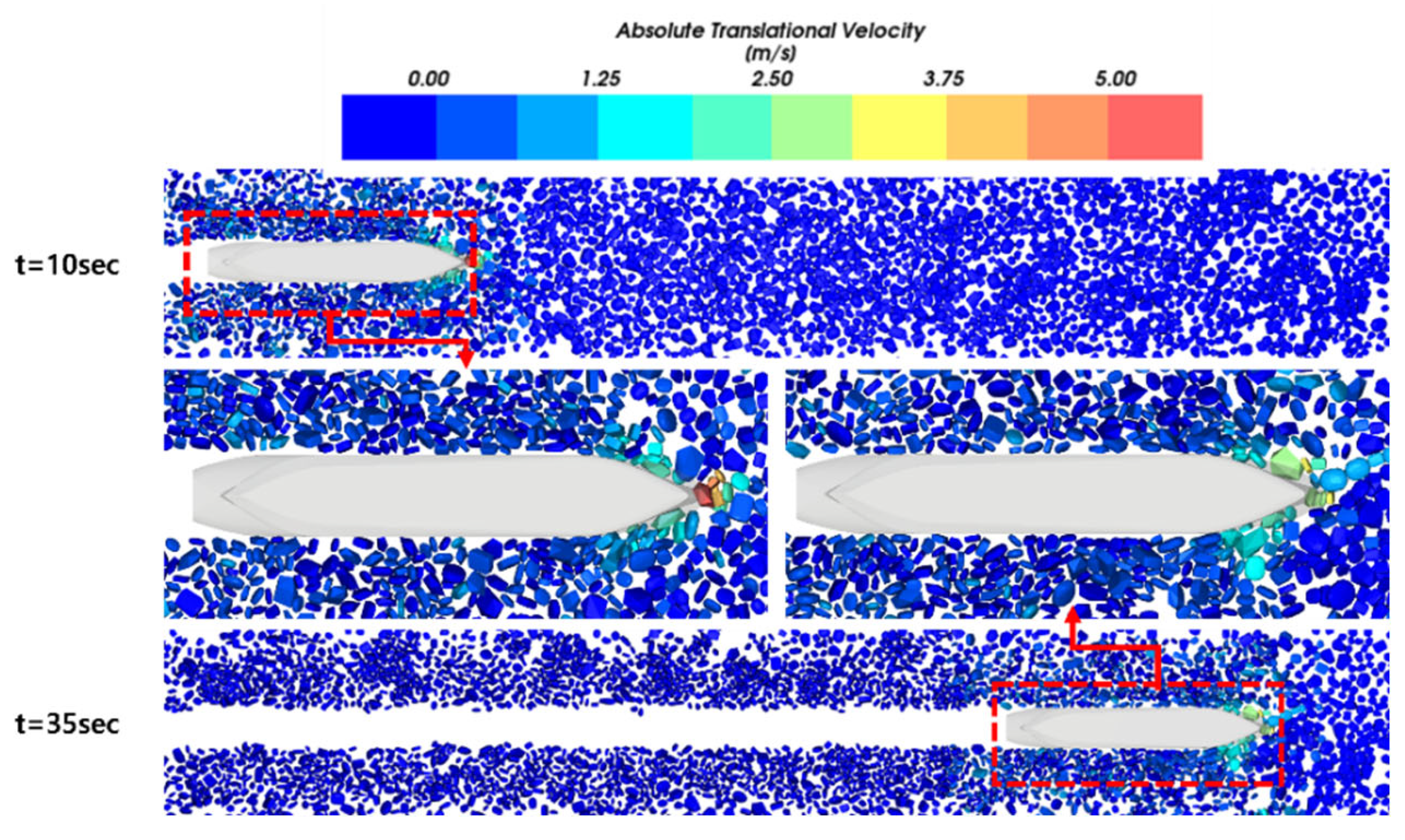

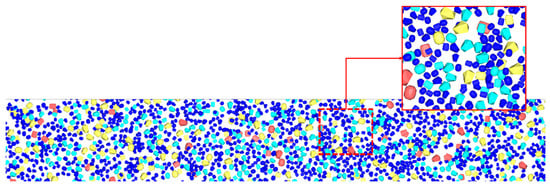

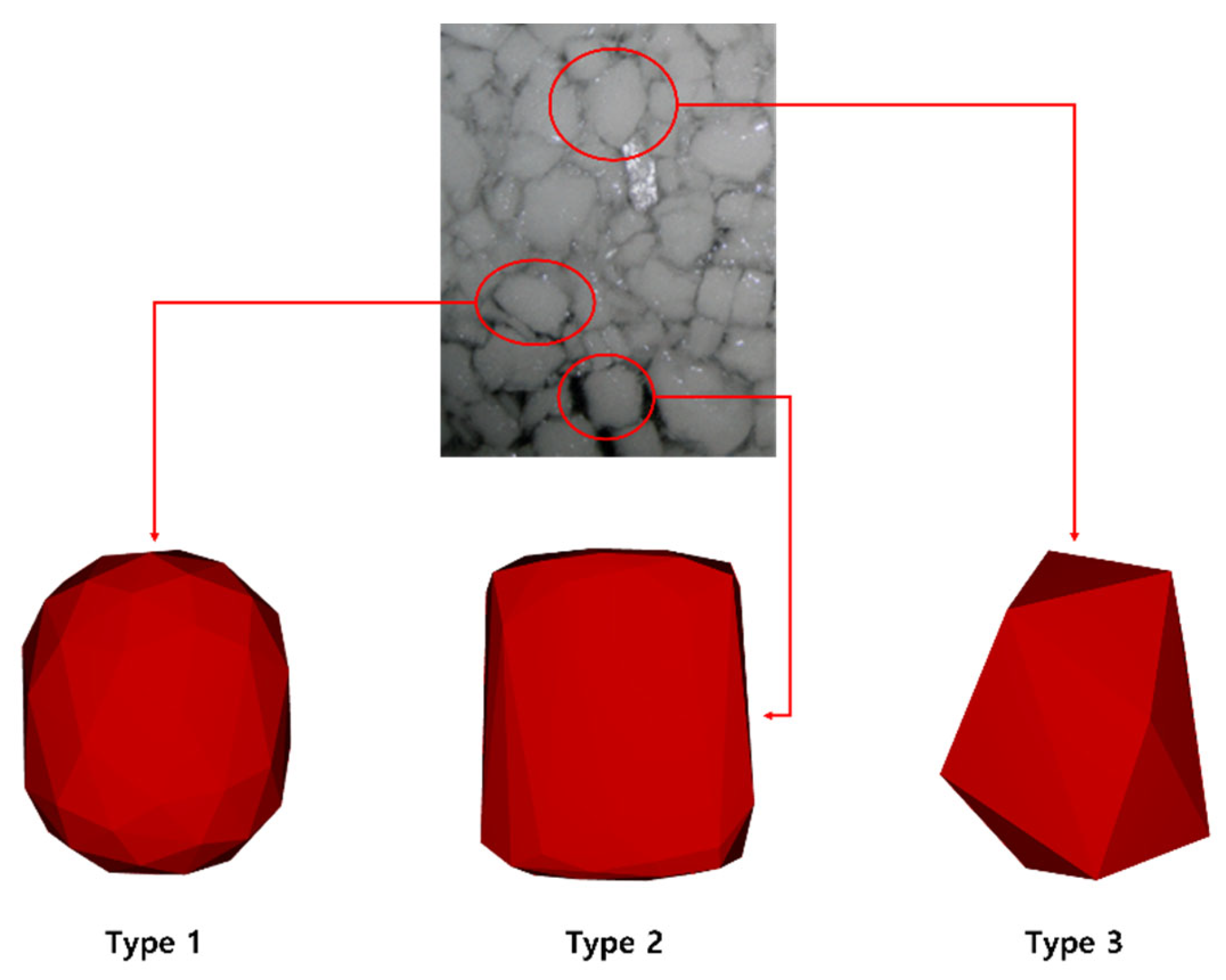

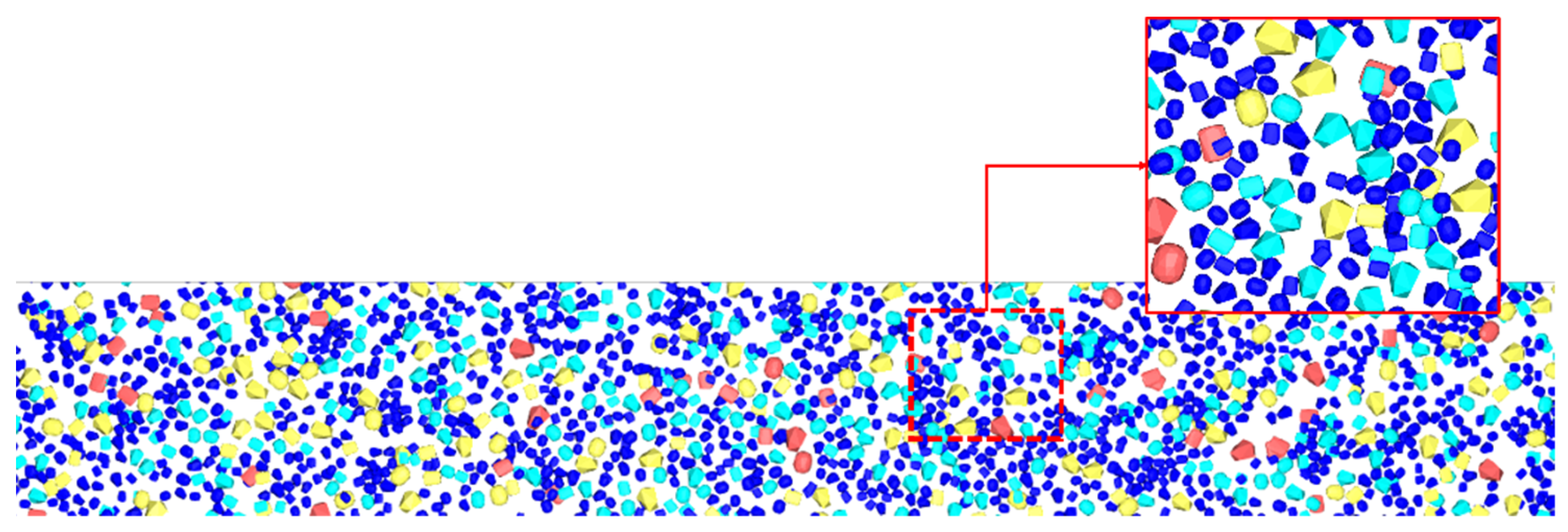

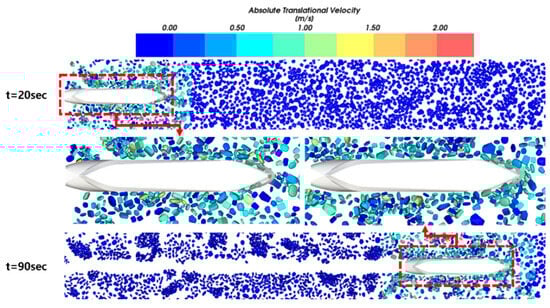

#### 4.1. Evaluation Conditions

^{3}and the viscosity as 0.001003 kg/m

^{−s}.

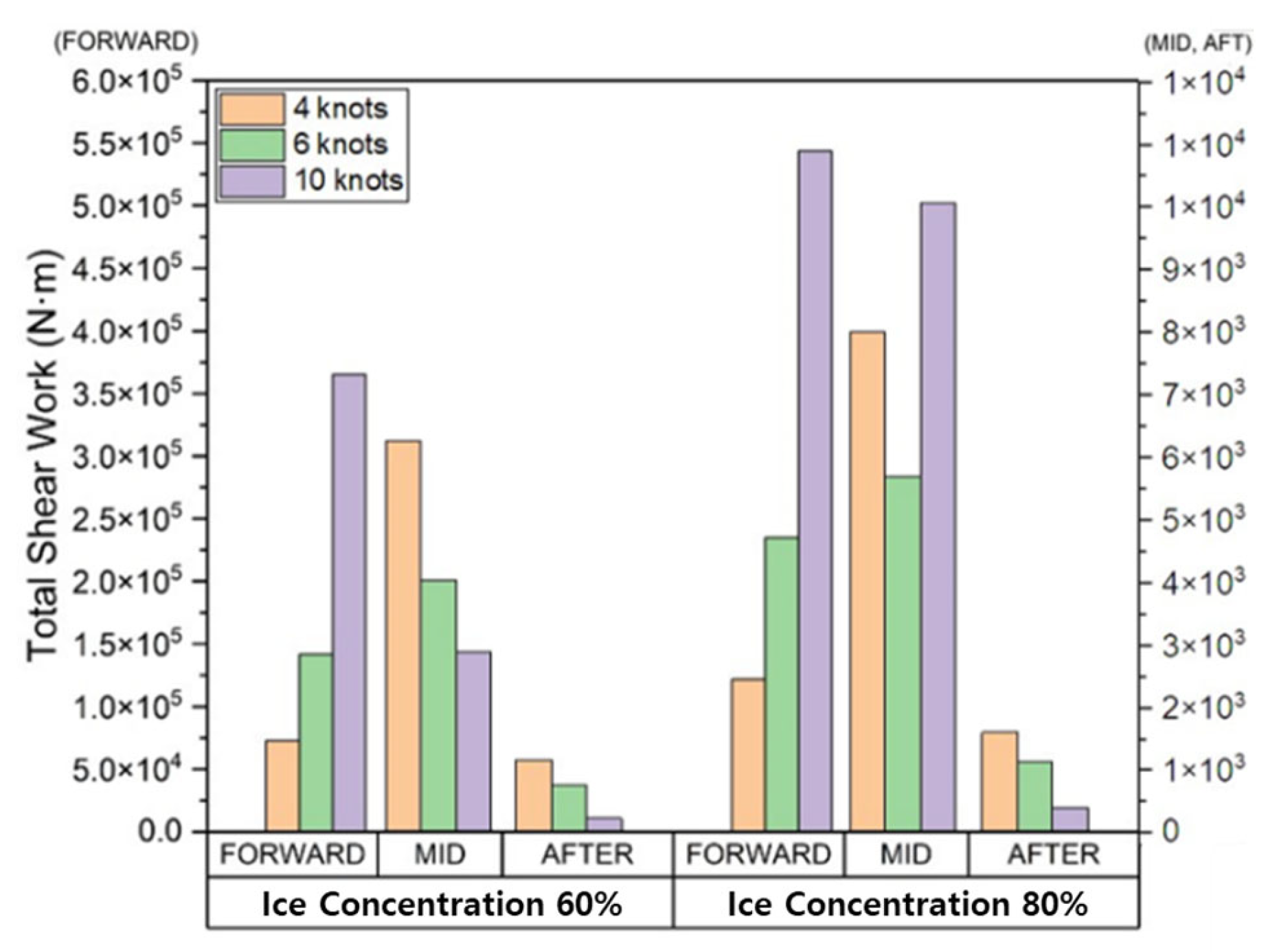

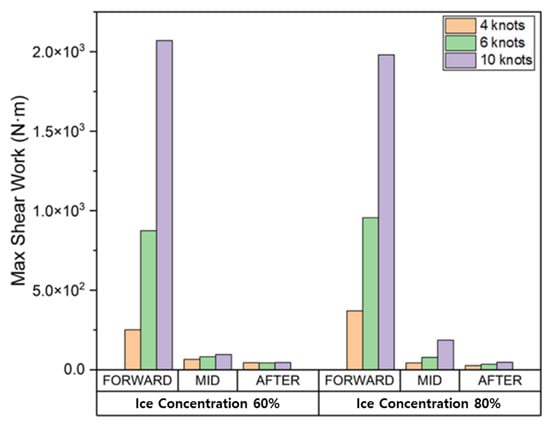

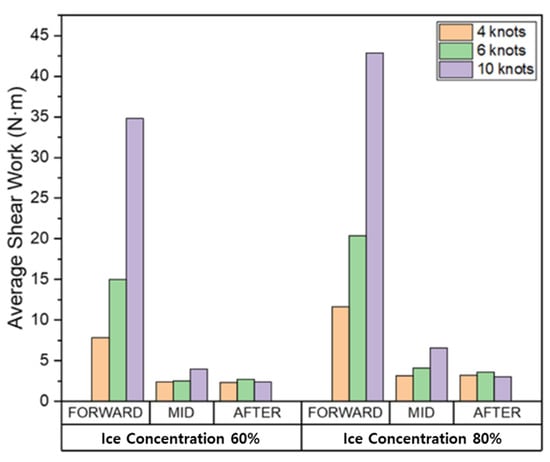

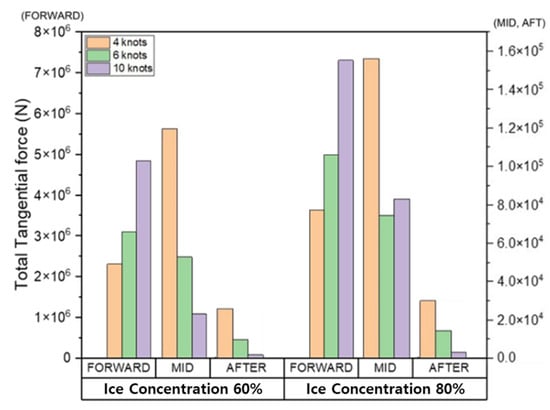

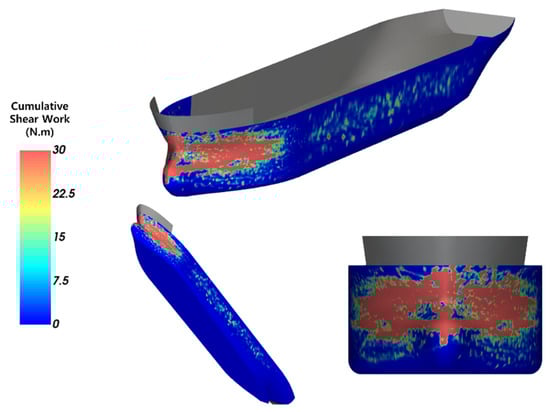

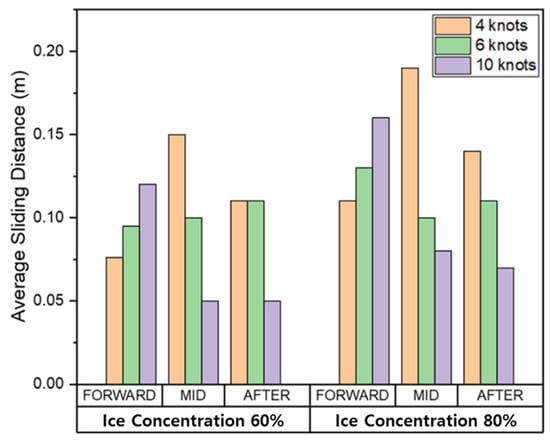

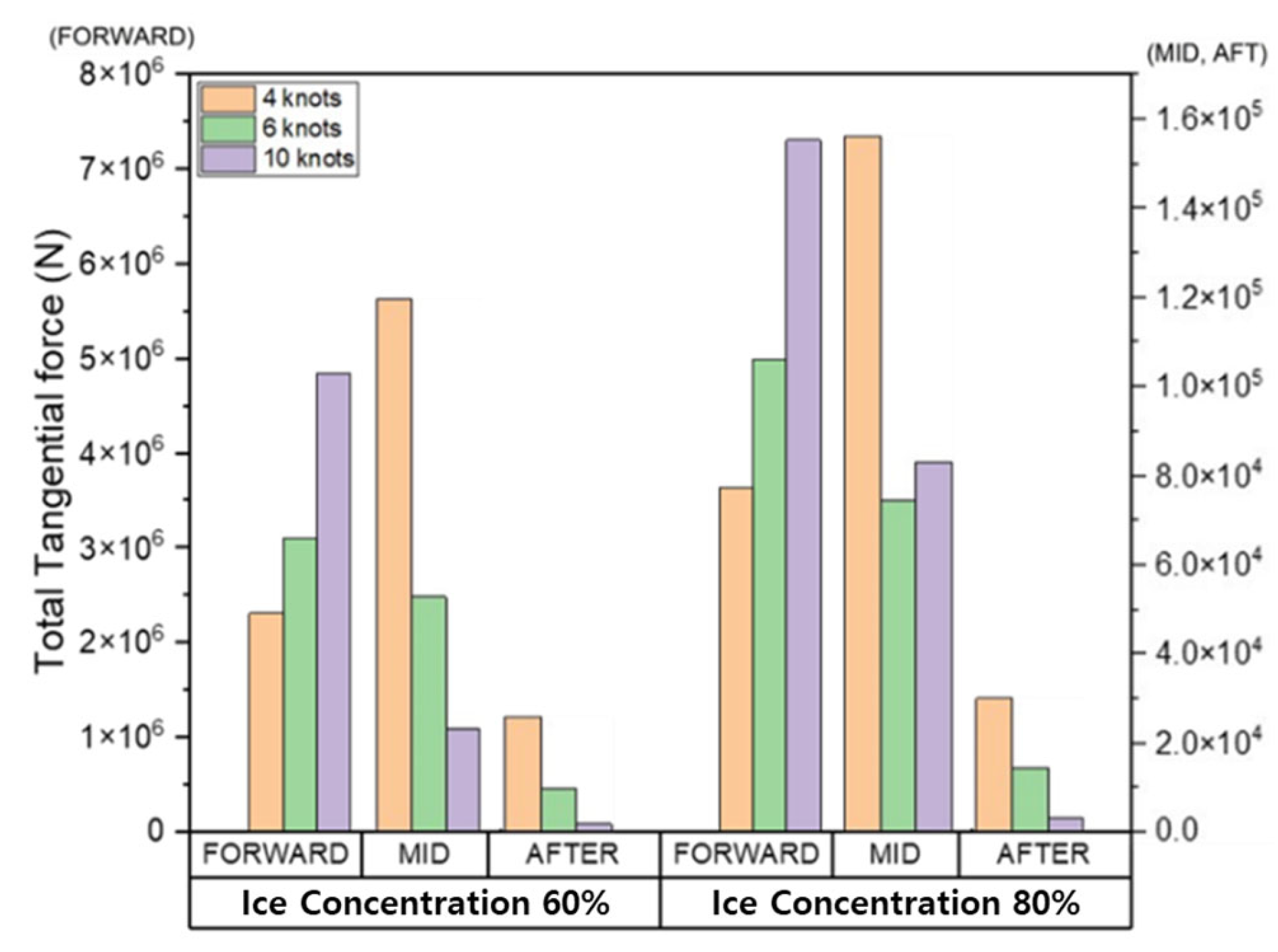

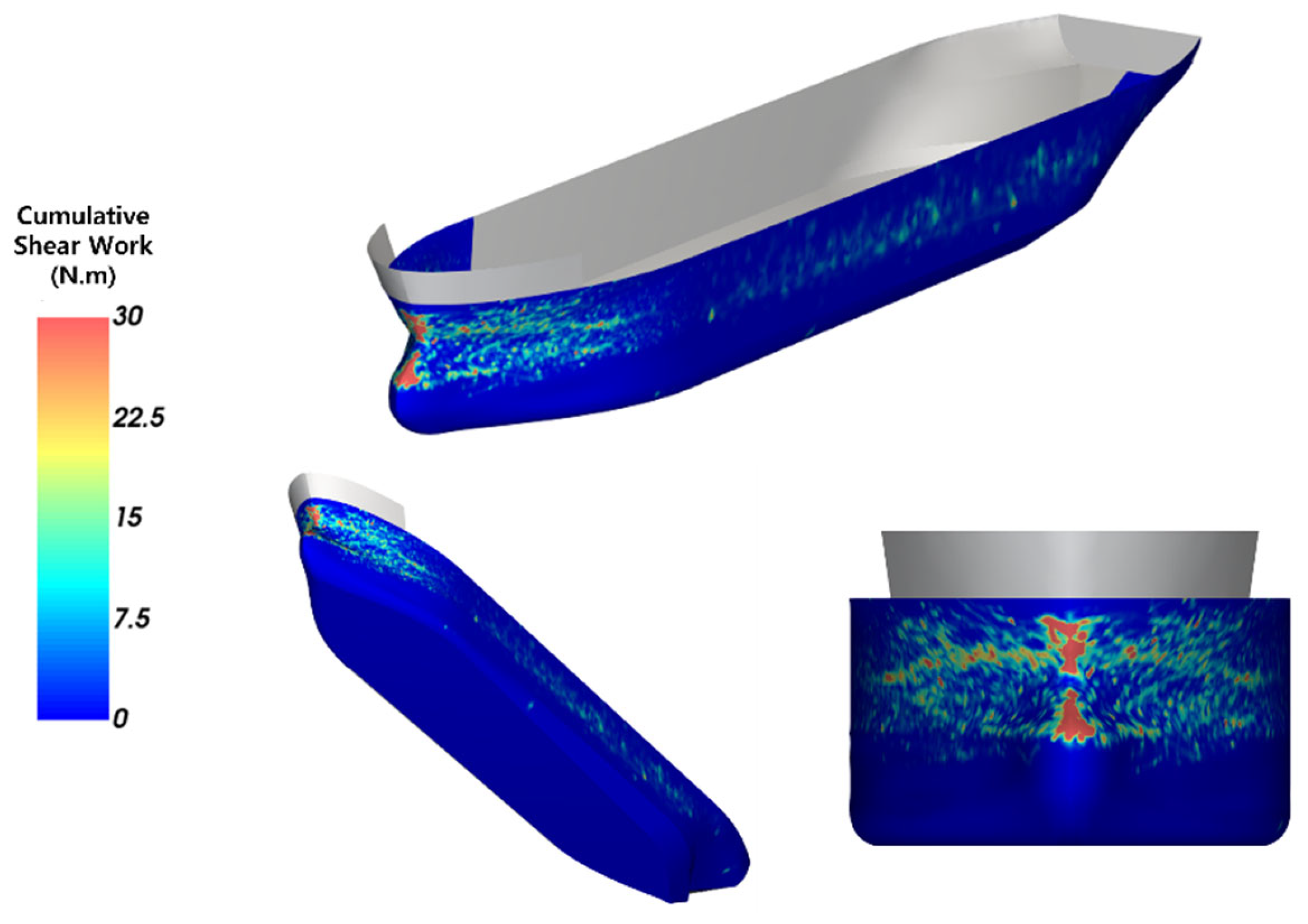

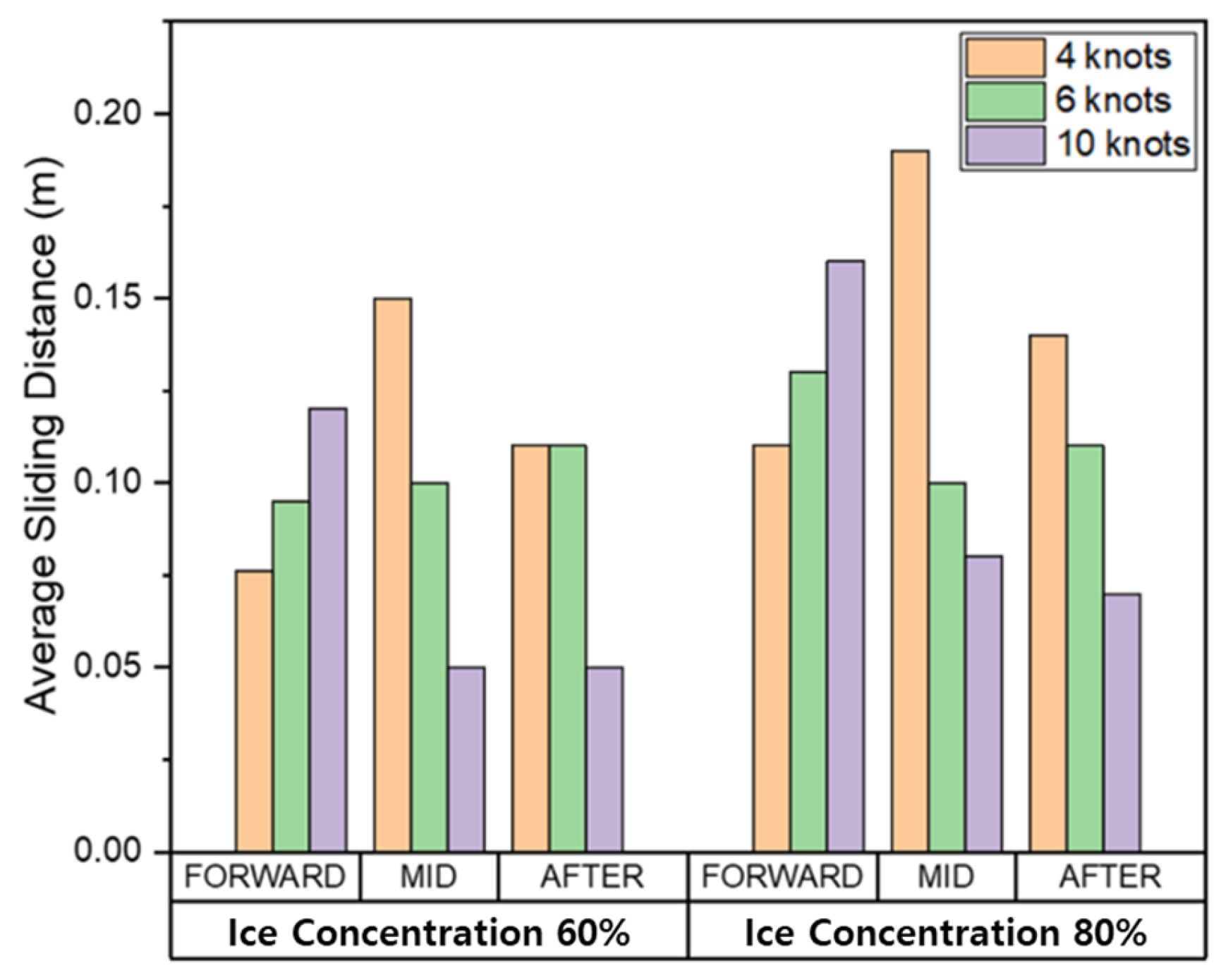

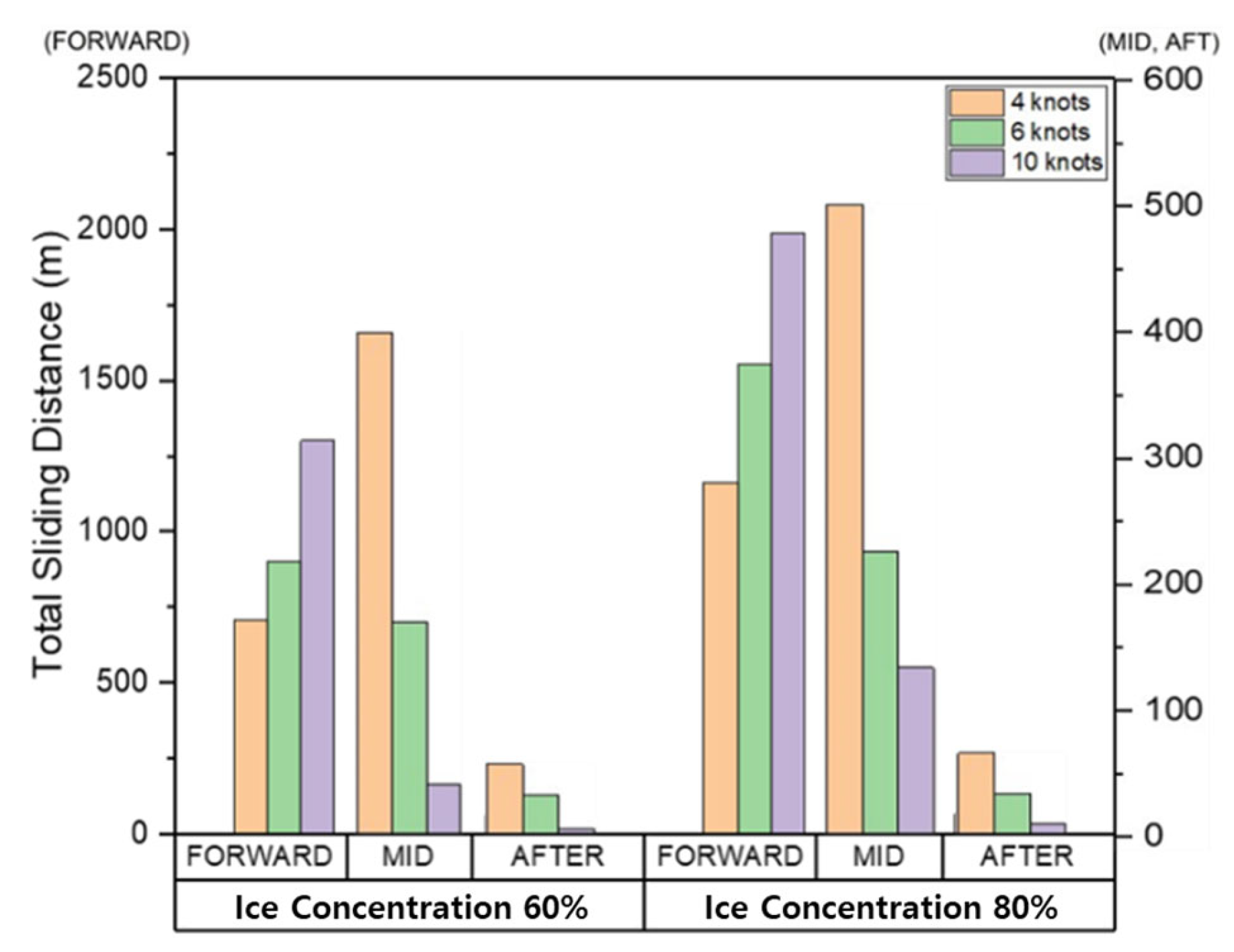

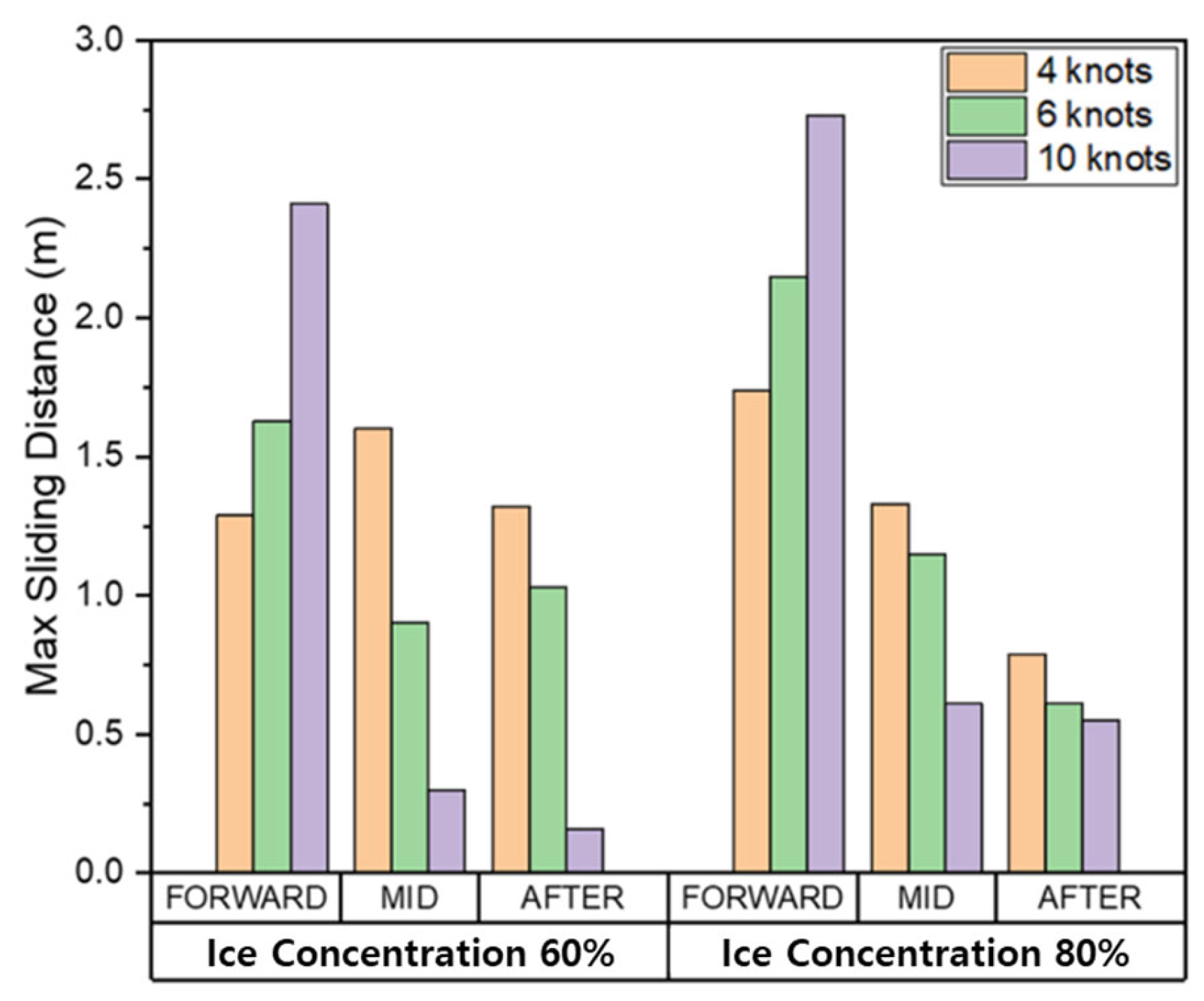

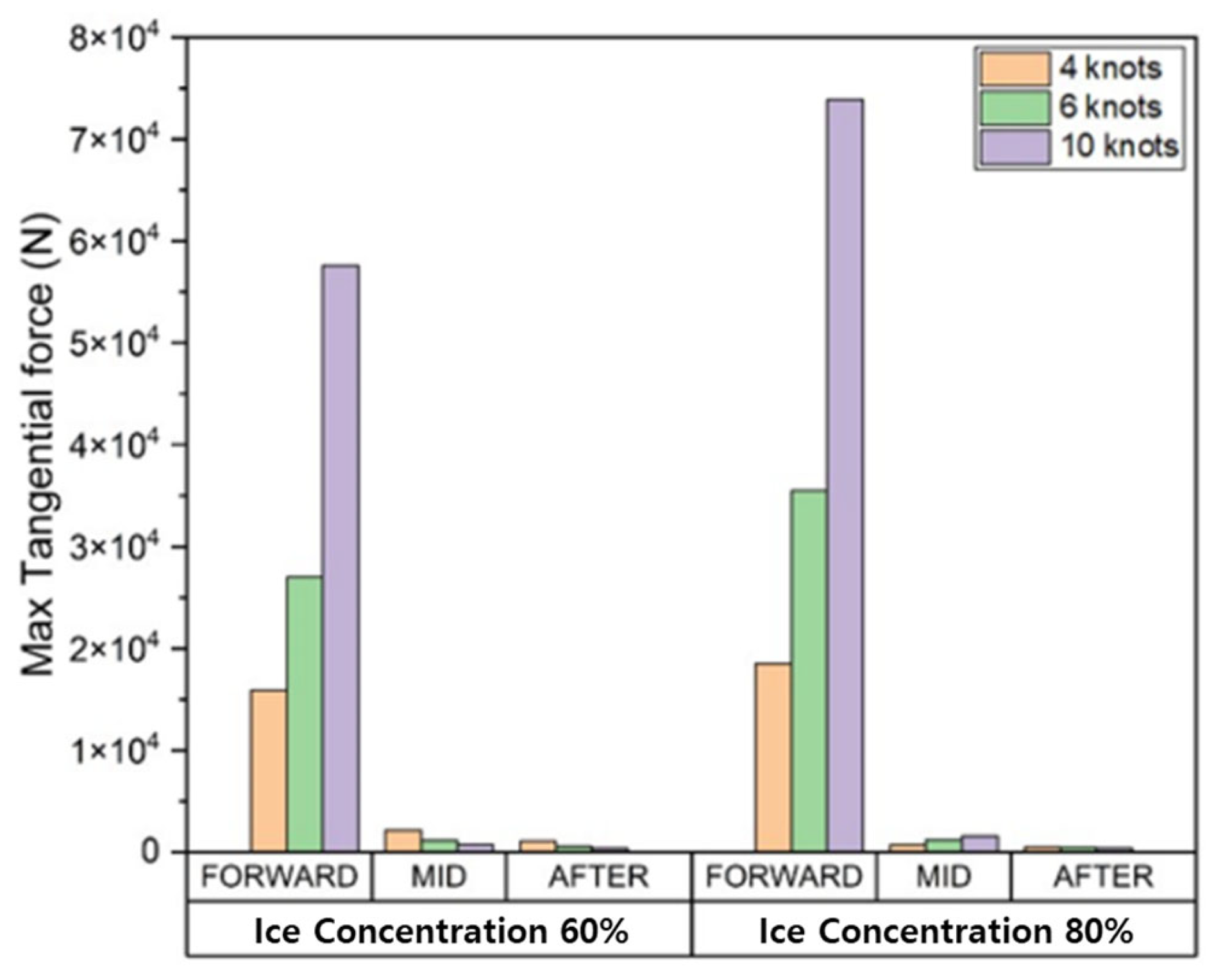

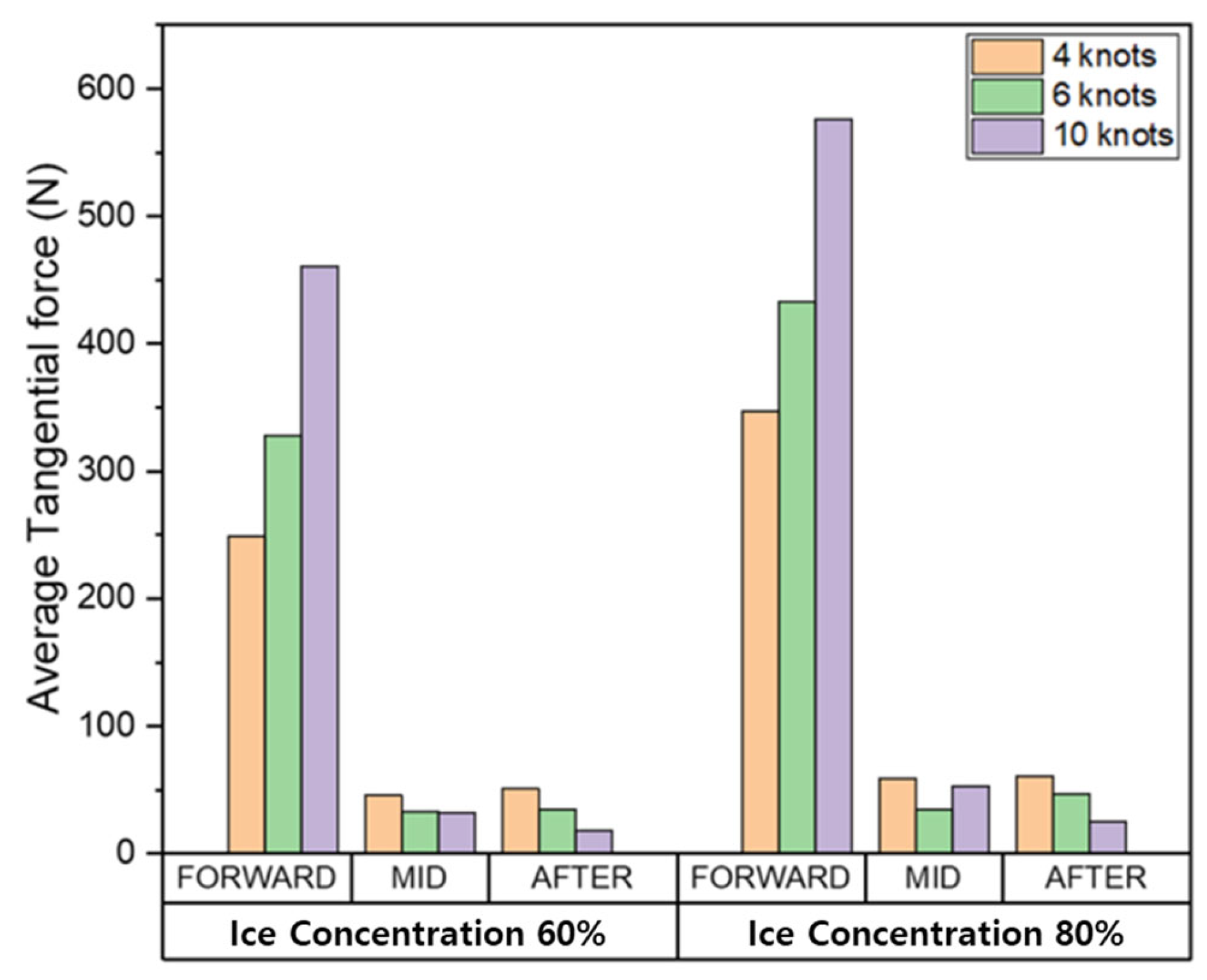

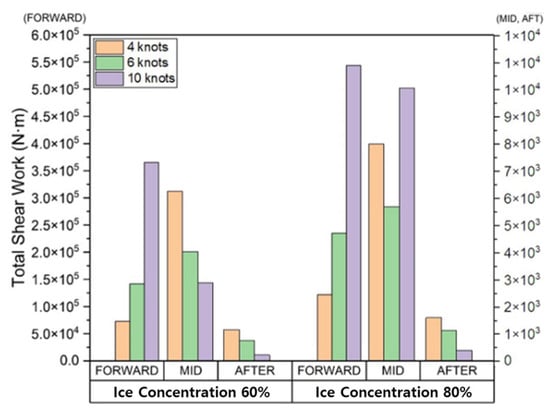

#### 4.2. Coating Material Wear Assessment

^{−7}m

^{3}/J, which is the same as the value applied in the following section. The wear depth according to ship speed and ice concentration for each hull position was evaluated as shown in Table 5. Considering the distance traveled by the ship, the predicted wear is very large. By adjusting the parameters of the Archard law, smaller wear values that align more closely with expectations can be achieved. However, the primary focus of the present study was to propose a numerical model capable of predicting the wear resulting from ice collisions. Therefore, the development of the numerical model was our priority rather than the achievement of accurate wear predictions.

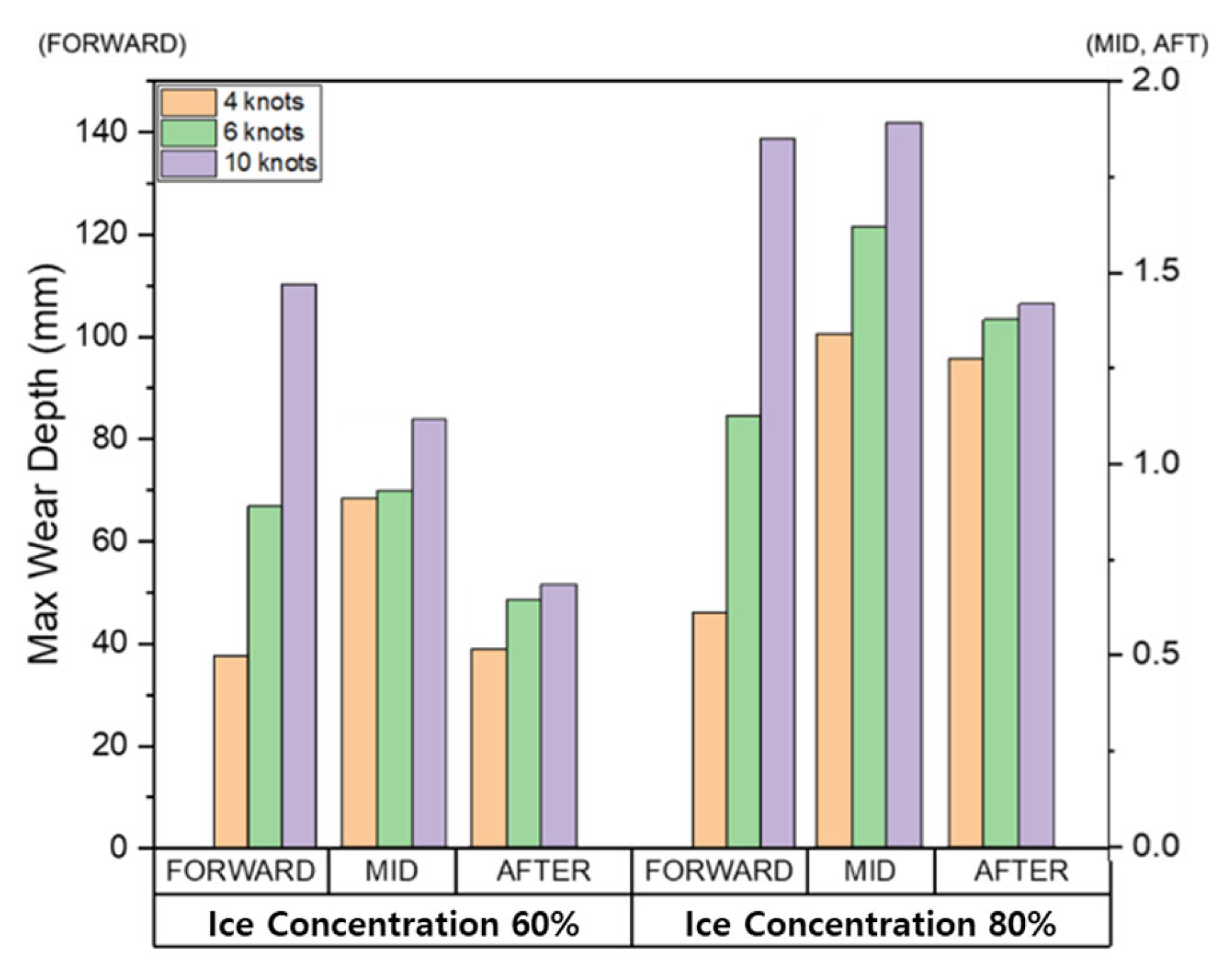

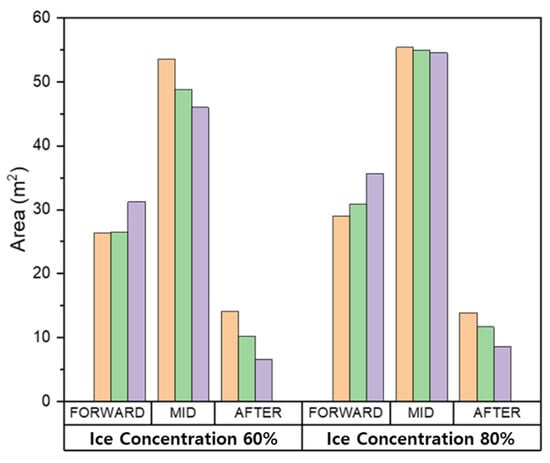

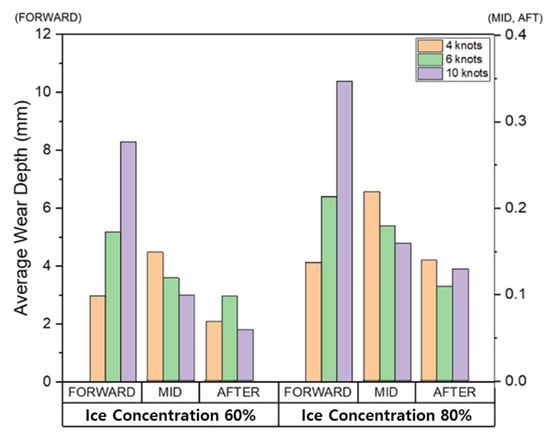

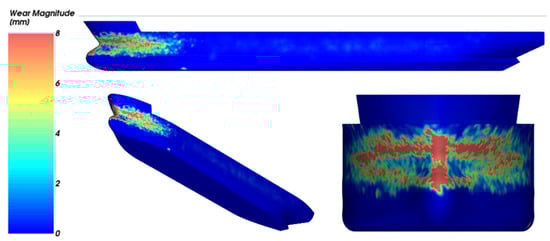

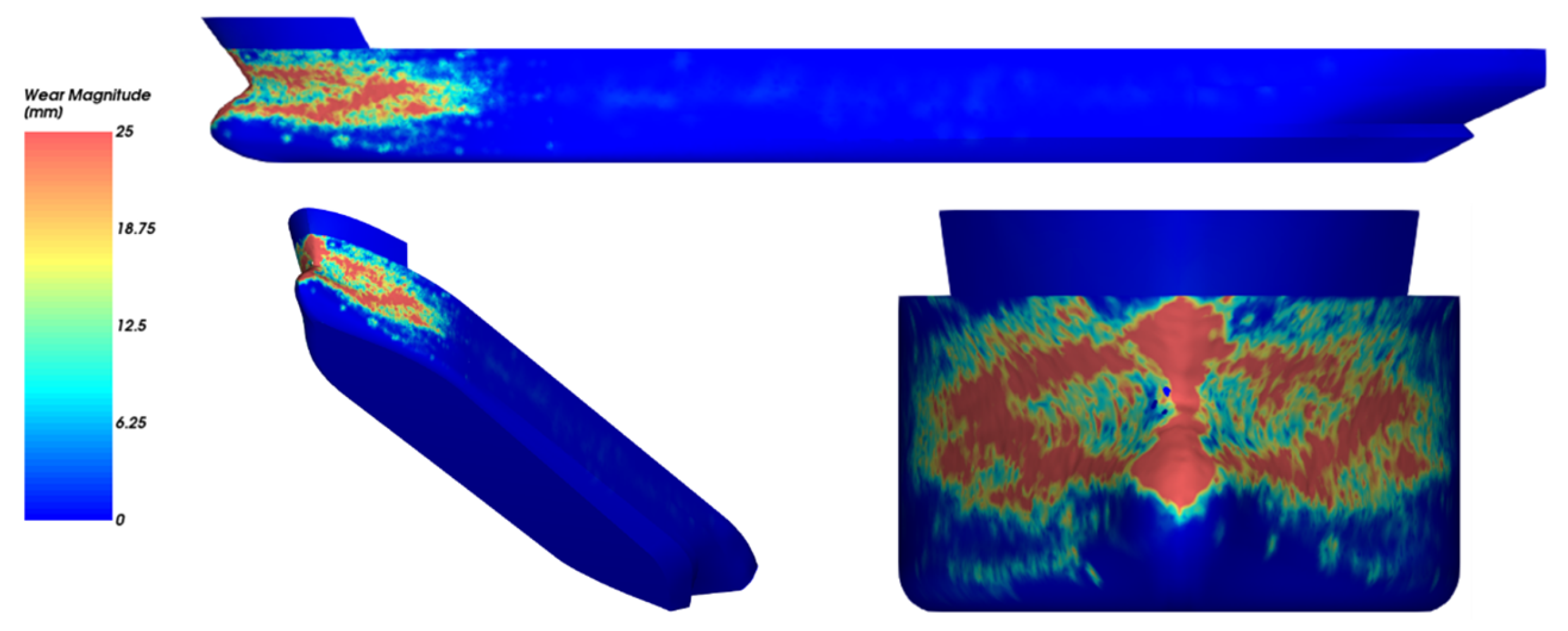

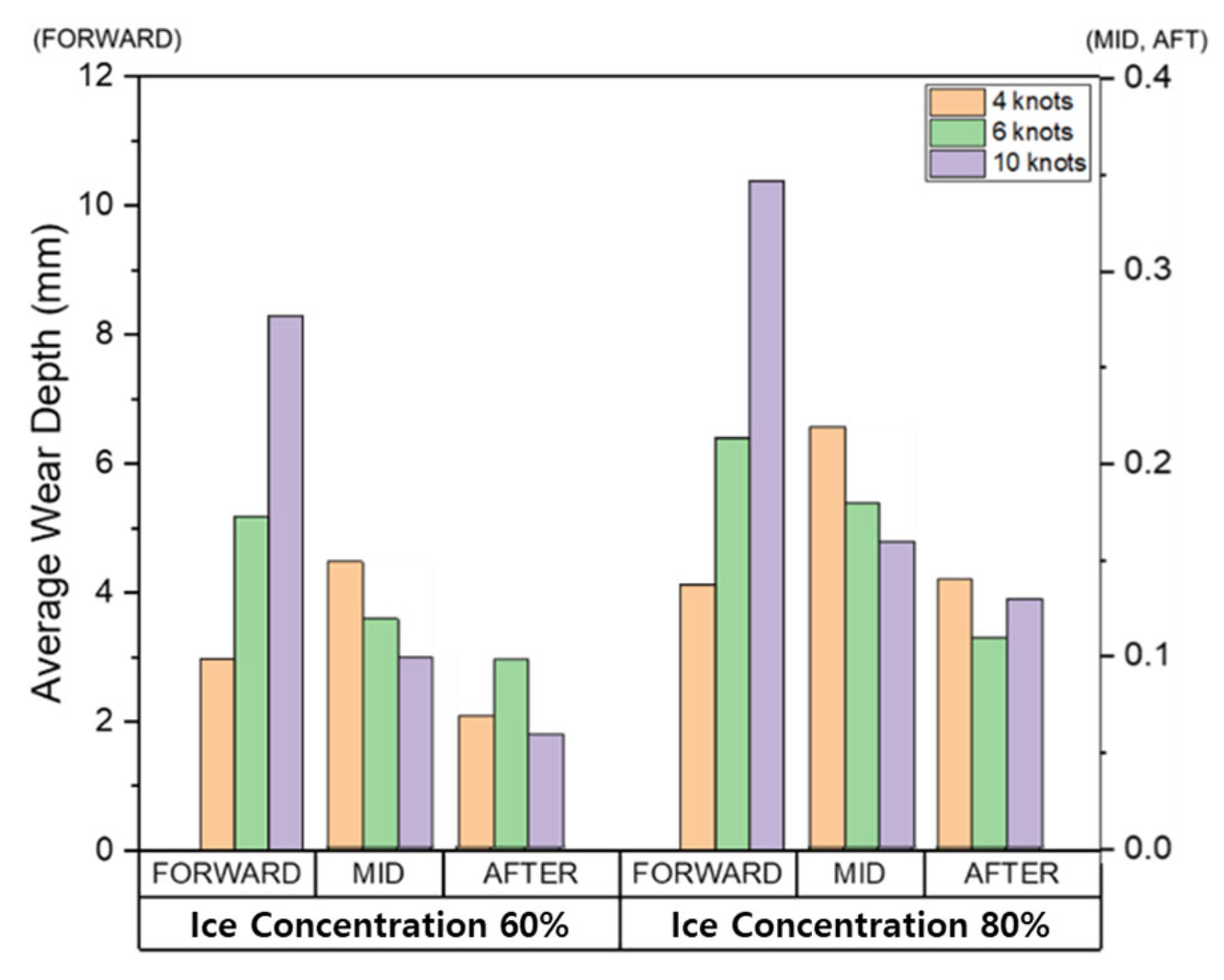

#### 4.3. Hull Material Wear Assessment

^{3}/J, and the shape deformed by wear was automatically updated every 0.005 s. That is, the shape change due to abrasive wear was added in the analysis conditions described in Section 4.1.

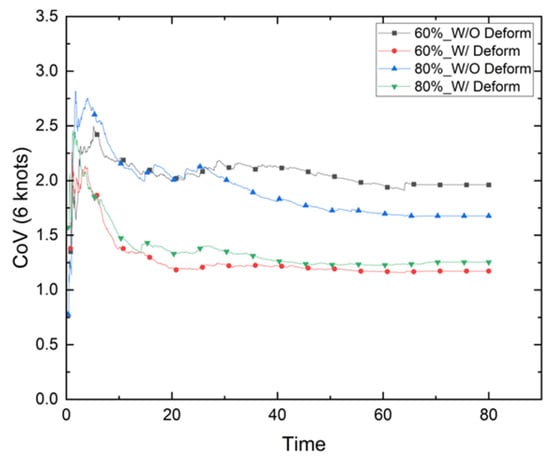

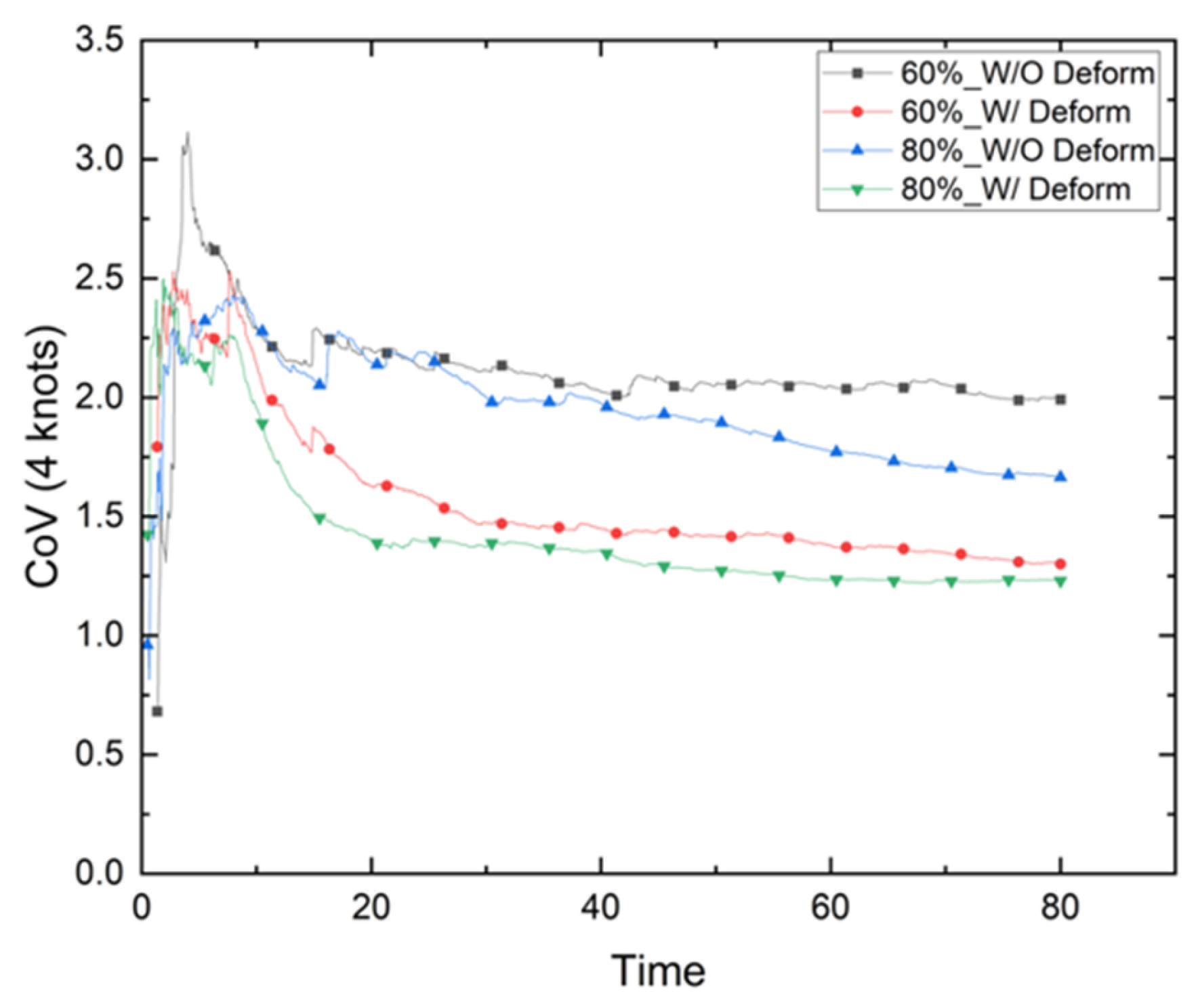

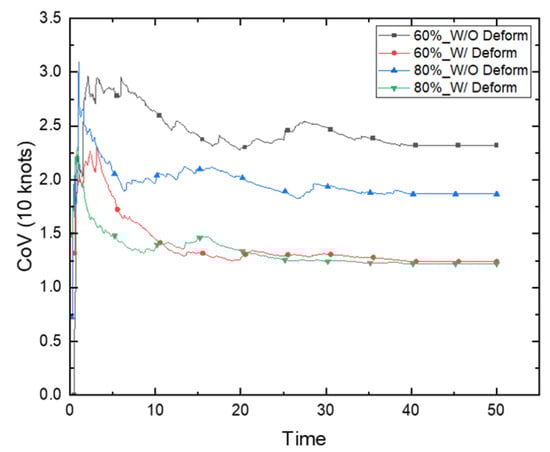

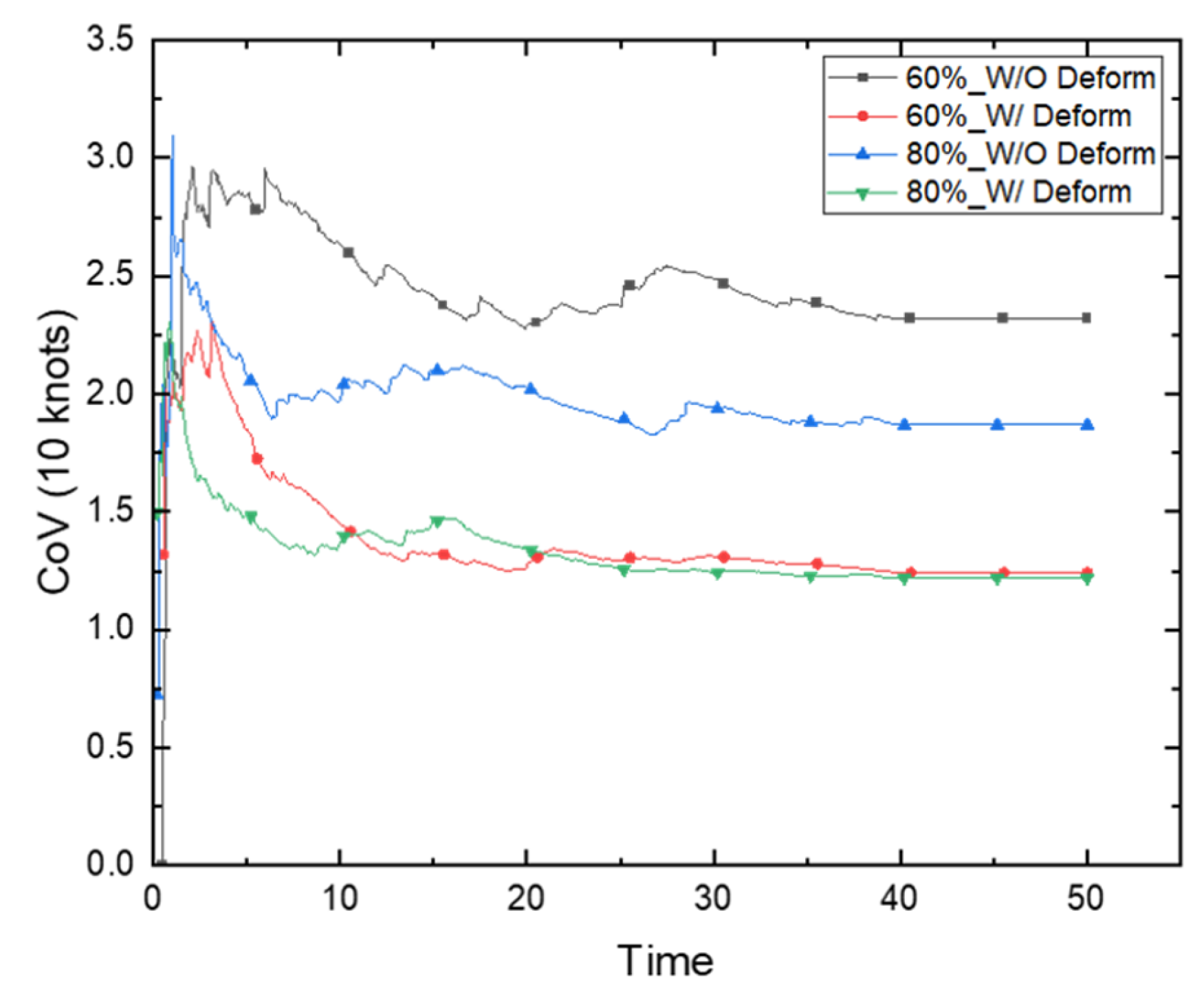

#### 4.4. Comparison of the Results According to the Evaluation Method

## 5. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## References

- Ardhuin, F.; Sutherland, P.; Doble, M.; Wadhams, P. Ocean waves across the Arctic: Attenuation due to dissipation dominates over scattering for periods longer than 19s. Geophys. Res. Lett.
**2016**, 43, 5775–5783. [Google Scholar] [CrossRef] - Riska, K.; Bridges, R. Limit state design and methodologies in ice class rules for ships and standards for Arctic offshore structures. Mar. Struct.
**2019**, 63, 462–479. [Google Scholar] [CrossRef] - Adumene, S.; Ikue-John, H. Offshore system safety and operational challenges in harsh Arctic operations. J. Saf. Sci. Resil.
**2022**, 3, 153–168. [Google Scholar] [CrossRef] - International Association of Classification Societies (IACS). UR I. Available online: https://iacs.org.uk/resolutions/unified-requirements/ur-i (accessed on 10 April 2016).
- International Association of Classification Societies (IACS). Unified Requirements. Available online: https://iacs.org.uk/resolutions/unified-requirements (accessed on 10 April 2016).
- Jensen, Ø. The International Code for Ships Operating in Polar Waters. Arct. Rev. Law Politics
**2016**, 7, 60–82. [Google Scholar] - Deggim, H. The international code for ships operating in polar waters (Polar Code). In Sustainable Shipping in a Changing Arctic; Springer: Cham, Switzerland, 2018; pp. 15–35. [Google Scholar]
- Gao, Y.; Hu, Z.; Wang, J. Sensitivity analysis for iceberg geometry shape in ship–iceberg collision in view of different material models. Math. Probl. Eng.
**2014**, 2014, 414362. [Google Scholar] [CrossRef] - Kim, H.; Daley, C.; Colbourne, B. A numerical model for ice crushing on concave surfaces. Ocean Eng.
**2015**, 106, 289–297. [Google Scholar] [CrossRef] - Liu, L.; Sun, S.; Ji, S. Interaction between Floater and Sea Ice Simulated with Dilated Polyhedral DEM, DEM 2016. In Proceedings of the 7th International Conference on Discrete Element Methods, Dalian, China, 1–4 August 2016. [Google Scholar]
- van den Berg, M. Discrete Numerical Modelling of the Interaction between Broken Ice Fields and Structures. Ph.D. Thesis, Norwegian University of Science and Technology, Trondheim, Norway, 2019. [Google Scholar]
- Sun, S.; Shen, H. Simulation of pancake ice load in a circular cylinder in a wave and current field. Cold Reg. Sci. Technol.
**2012**, 78, 31–39. [Google Scholar] [CrossRef] - Kwon, J.; Jeon, B.; Kim, J.; Bo Wang, H.Y.; Basu, R.; Lee, H.; Kendrick, A. Structural Integrity Assessment of Cargo Containment Systems in Arctic LNG Carriers under Ice Loads. In Proceedings of the Fourth Annual Arctic Shipping 2008 Conference, St. Petersburg, Russia, 13–15 May 2008. [Google Scholar]
- Nho, I.S.; Lim, S.J.; Kang, K.J. Safe Speed Estimation of Arctic Ships considering Structural Safety. J. Soc. Nav. Archit. Korea
**2018**, 55, 236–242. [Google Scholar] [CrossRef] - Han, Y.; Sawamura, J. Fatigue Damage Calculation for Ship Hulls Operating in Pack Ice. In Proceedings of the 24th International Conference on Port and Ocean Engineering under Arctic Conditions, Busan, Republic of Korea, 11–16 June 2017. [Google Scholar]
- Cai, W.; Zhu, L.; Yu, T.X.; Li, Y. Numerical simulations for plates under ice impact based on a concrete constitutive ice model. Int. J. Impact Eng.
**2020**, 143, 103594. [Google Scholar] [CrossRef] - Zhu, L.; Qiu, X.; Chen, M.; Yu, T.X. Simplified ship-ice collision numerical simulations. In Proceedings of the 26th International Ocean and Polar Engineering Conference, Rhodes, Greece, 26 June–1 July 2016. [Google Scholar]
- Kim, M.; Lee, S.; Lee, W.; Wang, J. Numerical and experimental investigation of the resistance performance of an icebreaking cargo vessel in pack ice conditions. Int. J. Nav. Archit. Ocean Eng.
**2013**, 5, 116–131. [Google Scholar] [CrossRef] - Robb, D.M.; Gaskin, S.J.; Marongiu, J.C. SPH-DEM model for free-surface flows containing solids applied to river ice jams. J. Hydraul. Res.
**2016**, 54, 27–40. [Google Scholar] [CrossRef] - Huang, L.; Tuhkuri, L.; Igrec, B.; Li, M.; Stagonas, D.; Toffoli, A.; Cardiff, P.; Thomas, G. Ship resistance when operating in floating ice floes: A combined CFD&DEM approach. Mar. Struct.
**2020**, 74, 102817. [Google Scholar] - Luo, W.; Jiang, D.; Wu, T.; Guo, C.; Wang, C.; Deng, R.; Dai, S. Numerical simulation of an ice-strengthened bulk carrier in brash ice channel. Ocean Eng.
**2020**, 196, 106830. [Google Scholar] [CrossRef] - Liu, L.; Ji, S. Dilated-polyhedron-based DEM analysis of the ice resistance on ship hulls in escort operations in level ice. Mar. Struct.
**2021**, 80, 103092. [Google Scholar] [CrossRef] - Zhang, J.; Zhang, Y.; Shang, Y.; Jin, Q.; Zhang, L. CFD-DEM based full-scale ship-ice interaction research under FSICR ice condition in restricted brash ice channel. Cold Reg. Sci. Technol.
**2022**, 194, 103454. [Google Scholar] [CrossRef] - Suyuthi, A.; Leira, B.J.; Riska, K. Fatigue damage of ship hulls due to local ice-induced stresses. Appl. Ocean Res.
**2013**, 42, 87–104. [Google Scholar] [CrossRef] - Cho, S.; Chun, E.; Yoo, C.; Jeong, S.; Lee, C. The measuring methodology of friction coefficient between ice and ship hull. J. Soc. Nav. Archit. Korea
**2011**, 48, 363–367. [Google Scholar] [CrossRef] - Kietzig, A.M.; Hatzikiriakos, S.G.; Englezos, P. Physics of ice friction. J. Appl. Phys.
**2010**, 107, 081101. [Google Scholar] [CrossRef] - Shimizu, K.; Noguchi, T.; Seitoh, H.; Okada, M.; Matsubara, Y. FEM Analysis of Erosive Wear. Wear
**2001**, 250, 779–784. [Google Scholar] [CrossRef] - Xie, L.-J.; Schmidt, J.; Schmidt, C.; Biesinger, F. 2D FEM estimate of tool wear in turning operation. Wear
**2005**, 258, 1479–1490. [Google Scholar] [CrossRef] - Chen, J.; Wang, Y.; Li, X.; He, R.; Han, S.; Chen, Y. Erosion prediction of liquid-particle two-phase flow in pipeline elbows via CFD–DEM coupling method. Powder Technol.
**2015**, 282, 25–31. [Google Scholar] [CrossRef] - Xu, L.; Zhang, Q.; Zheng, J.; Zhao, Y. Numerical prediction of erosion in elbow based on CFD-DEM simulation. Powder Technol.
**2016**, 302, 236–246. [Google Scholar] [CrossRef] - Zhang, D.M.; Gao, C.P.; Yin, Z.Y. CFD-DEM modeling of seepage erosion around shield tunnels. Tunn. Undergr. Space Technol.
**2019**, 83, 60–72. [Google Scholar] [CrossRef] - Walker, C.I.; Hambe, M. Influence of particle shape on slurry wear of white iron. Wear
**2015**, 332, 1021–1027. [Google Scholar] [CrossRef] - Shunying, J.I.; Zilin, L.I.; Chunhua, L.I.; Shang, J. Discrete element modeling of ice loads on ship hulls in broken ice fields. Acta Oceanol. Sin.
**2013**, 32, 50–58. [Google Scholar] - Cleary, P.W.; Morrisson, R.; Morrell, S. Comparison of DEM and experiment for a scale model SAG mill. Int. J. Miner. Process.
**2003**, 68, 129–165. [Google Scholar] [CrossRef] - Morrison, R.D.; Cleary, P.W. Using DEM to model ore breakage within a pilot scale SAG mill. Miner. Eng.
**2004**, 17, 1117–1124. [Google Scholar] [CrossRef] - Mucha, P. Fully-coupled CFD-DEM for simulations of ships advancing through brash ice. In Proceedings of the SNAME Maritime Convention, Tacoma, WA, USA, 30 October–1 November 2019; p. D023S004R005. [Google Scholar]
- Guo, W.; Zhao, Q.S.; Tian, Y.K.; Zhang, W.C. Research on total resistance of ice-going ship for different floe ice distributions based on virtual mass method. Int. J. Nav. Arch Ocean
**2020**, 12, 957–966. [Google Scholar] [CrossRef] - Ni, B.Y.; Chen, Z.W.; Zhong, K.; Li, X.A.; Xue, Y.Z. Numerical Simulation of a Polar Ship Moving in Level Ice Based on a One-Way Coupling Method. J. Mar. Sci. Eng.
**2020**, 8, 692. [Google Scholar] [CrossRef] - Huang, L.F.; Li, F.; Li, M.H.; Khojasteh, D.; Luo, Z.H.; Kujala, P. An investigation on the speed dependence of ice resistance using an advanced CFD plus DEM approach based on pre-sawn ice tests. Ocean. Eng.
**2022**, 264, 112530. [Google Scholar] [CrossRef] - ESSS Rocky, Release 2022 R1.1. DEM Technical Manual. ESSS Rocky DEM, S.R.L.: Florianópolis, Brazil, 2022.
- Lee, S.; Lee, J.; Hwang, S. Suggestion of Practical Application of Discrete Element Method for Long-Term Wear of Metallic Materials. Appl. Sci.
**2022**, 12, 10423. [Google Scholar] [CrossRef] - Ansys Inc. Fluent Theory Guide Release 2020; Ansys Inc.: Canonsburg, PA, USA, 2020. [Google Scholar]
- ESSS Rocky, Release 2022 R1.1. CFD Coupling Technical Manual. ESSS Rocky DEM, S.R.L.: Florianópolis, Brazil, 2022.
- Ganser, G.H. A rational approach to drag prediction of spherical and nonspherical particles. Powder Technol.
**1993**, 77, 143–152. [Google Scholar] [CrossRef] - Archard, J.F. Wear theory and mechanisms. In Wear Control Handbook; American Society of Mechanical Engineers: New York, NY, USA, 1980. [Google Scholar]
- Transport Canada. Safe Speed in Ice: An Analysis of Transit Speed and Ice Decision Numerals; Ship Safety Northern (AMNS): Ottawa, ON, Canada, 1996. [Google Scholar]
- Arctic Ice Regime Shipping System (AIRSS); Pictorial Guide; Transport Canada: Ottawa, ON, Canada, 2003.
- Lee, S. Application of DEM Coupled with CFD to Predict the Erosive Behavior of Arctic Vessel’s Hull Subject to ICE. Ph.D. Thesis, INHA University, Incheon, Republic of Korea, 2019. [Google Scholar]
- Do, Y.; Kim, Y. Basic Experimental Study for Ice-Concrete Friction Behavior. J. Soc. Nav. Archit. Korea
**2020**, 57, 365–372. [Google Scholar] [CrossRef]

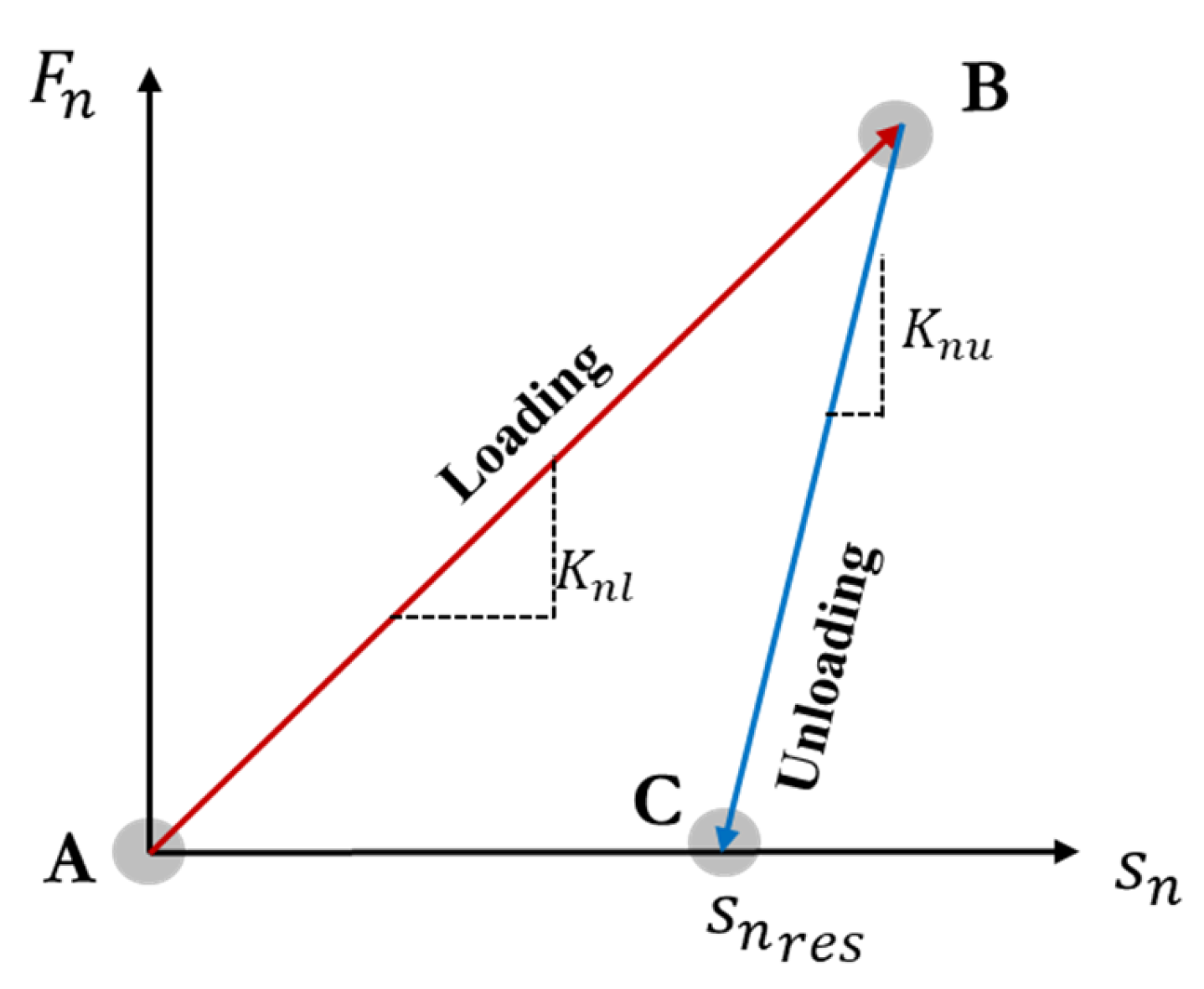

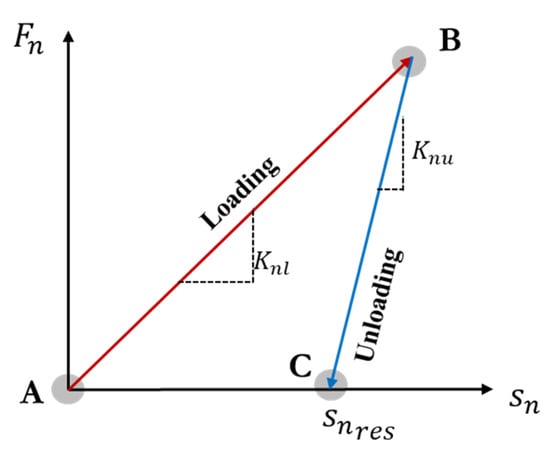

**Figure 3.**Overlap–normal force relationship in the HLS model [41].

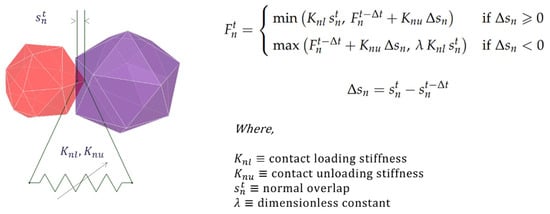

**Figure 4.**HLS normal force model (ESSS Rocky [40]).

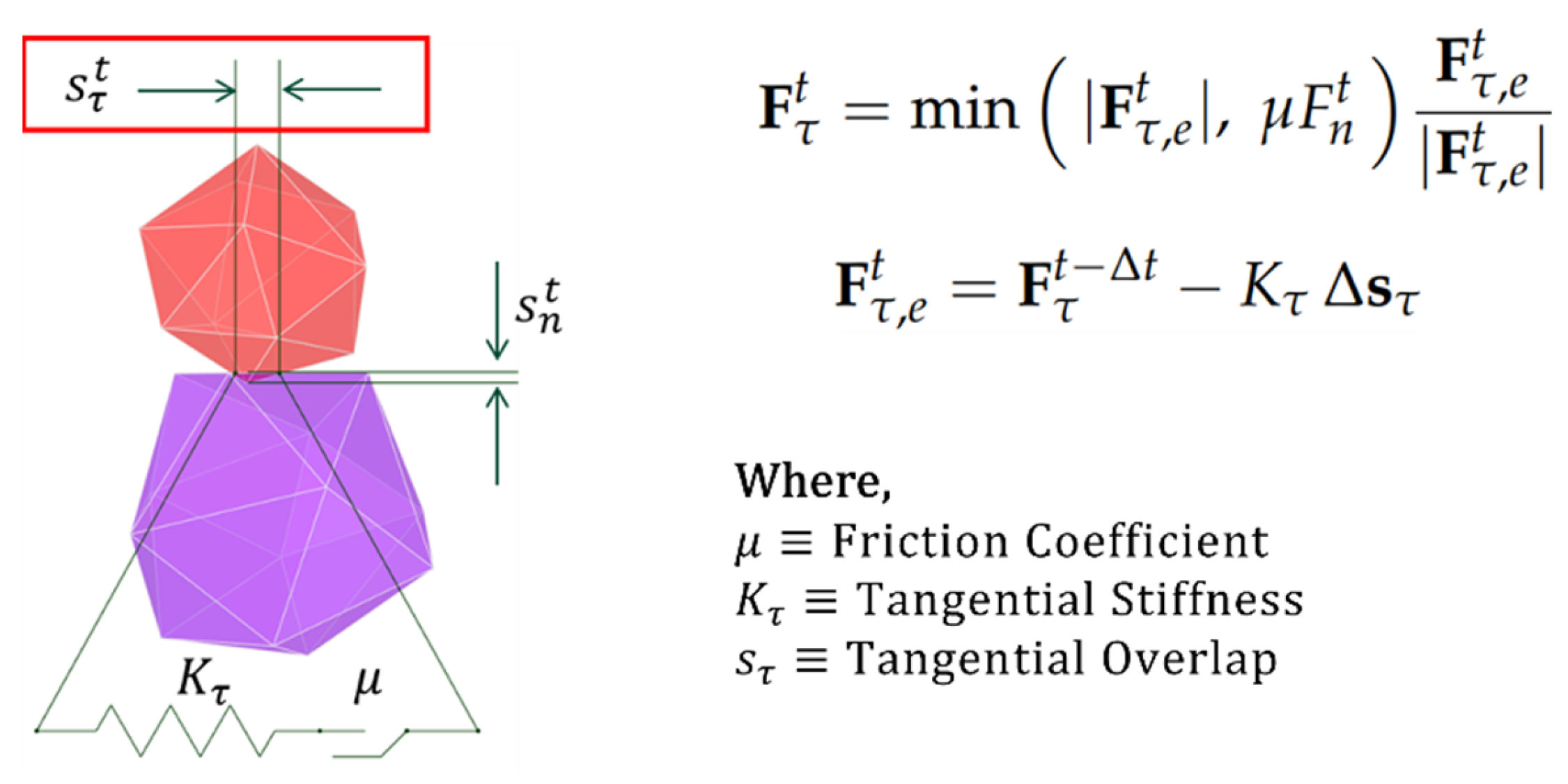

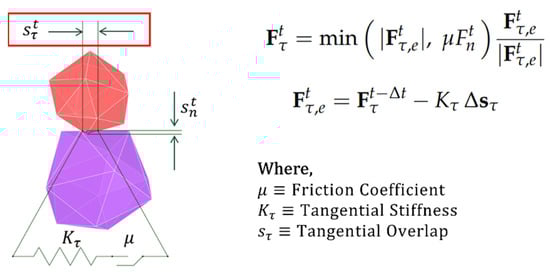

**Figure 5.**LSCL tangential force model (ESSS Rocky [40]).

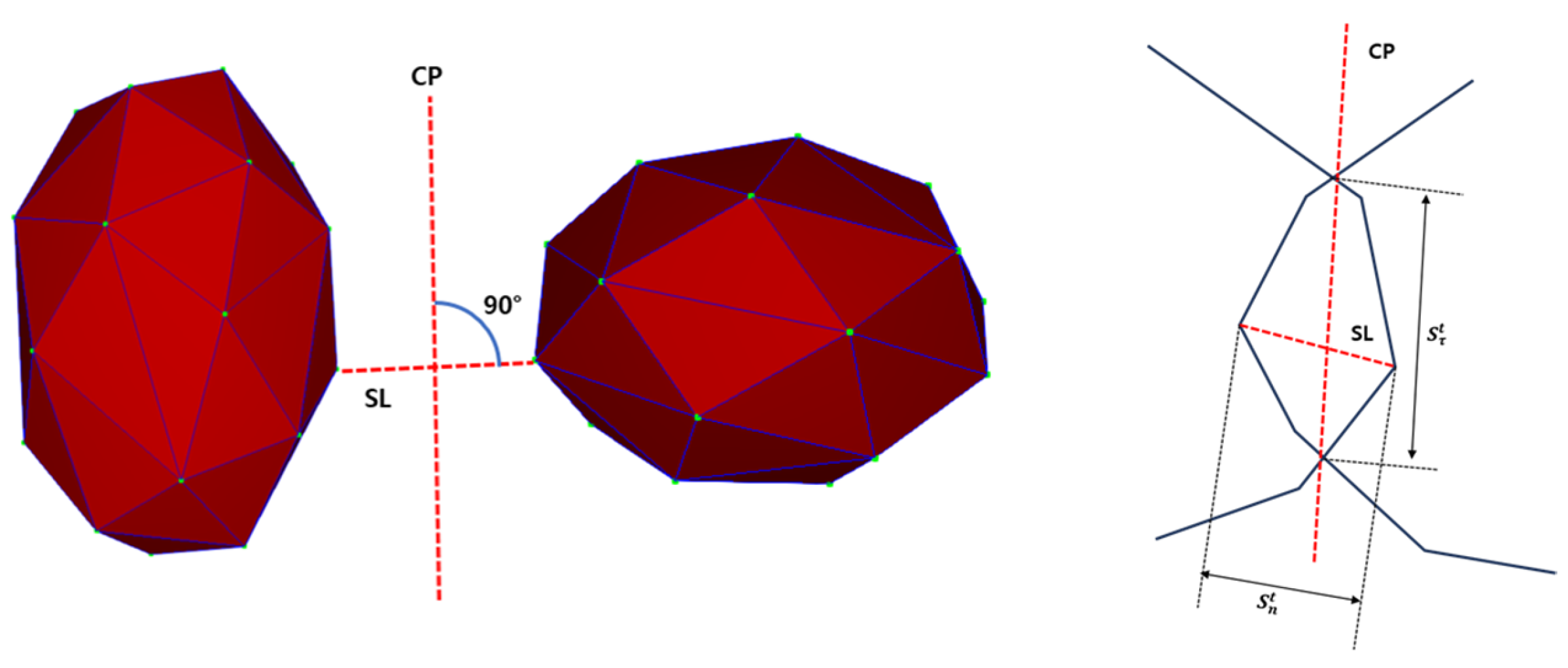

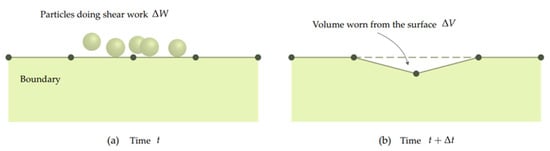

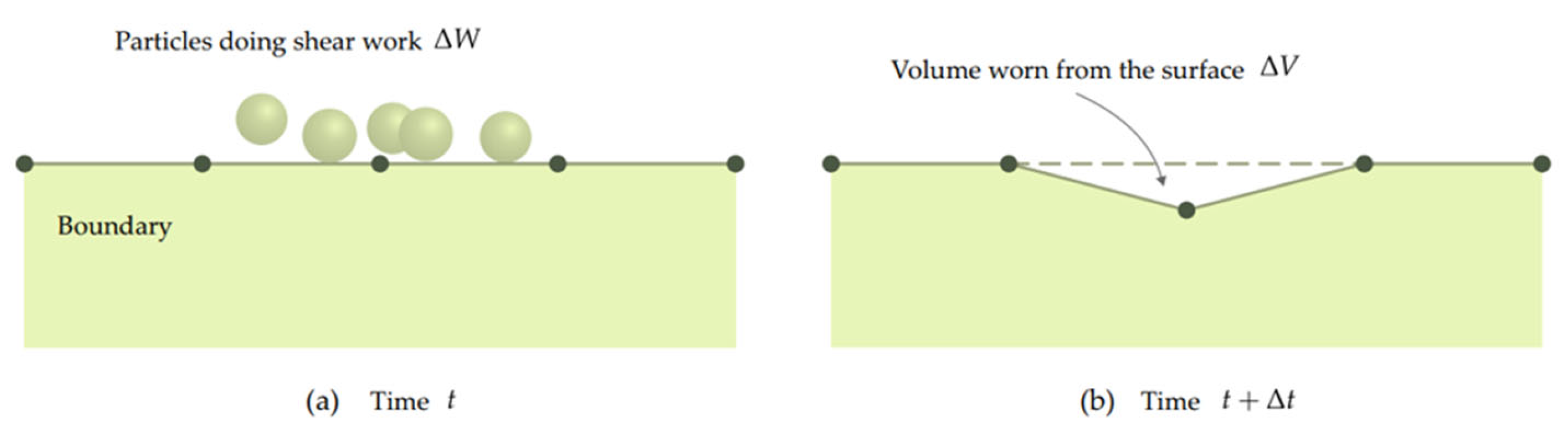

**Figure 7.**Mechanism of shape change caused by wear (ESSS Rocky [40]).

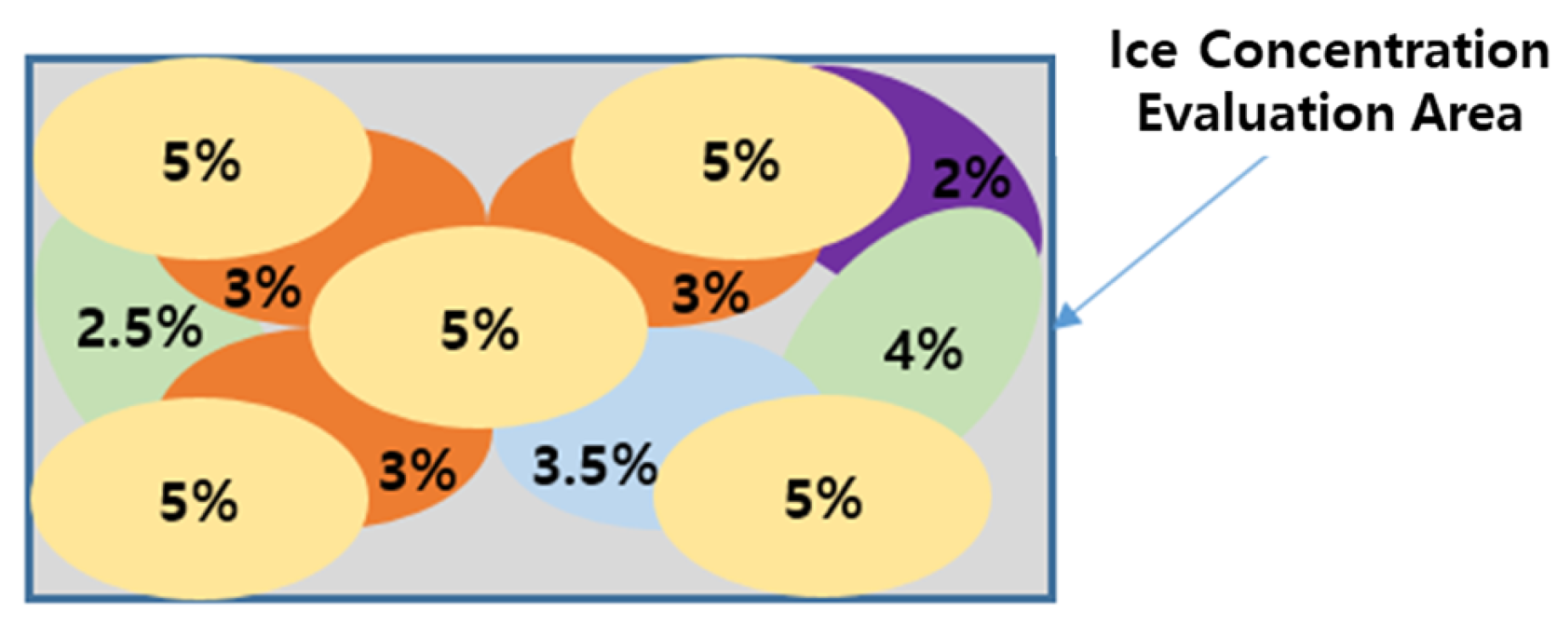

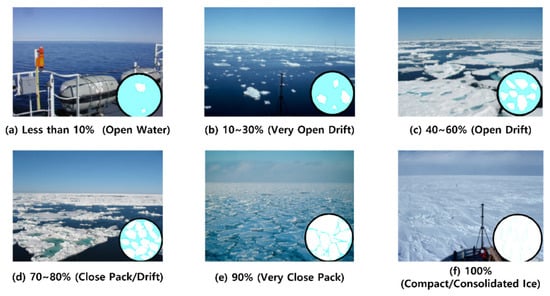

**Figure 8.**Ice concentration (Transport Canada [47]).

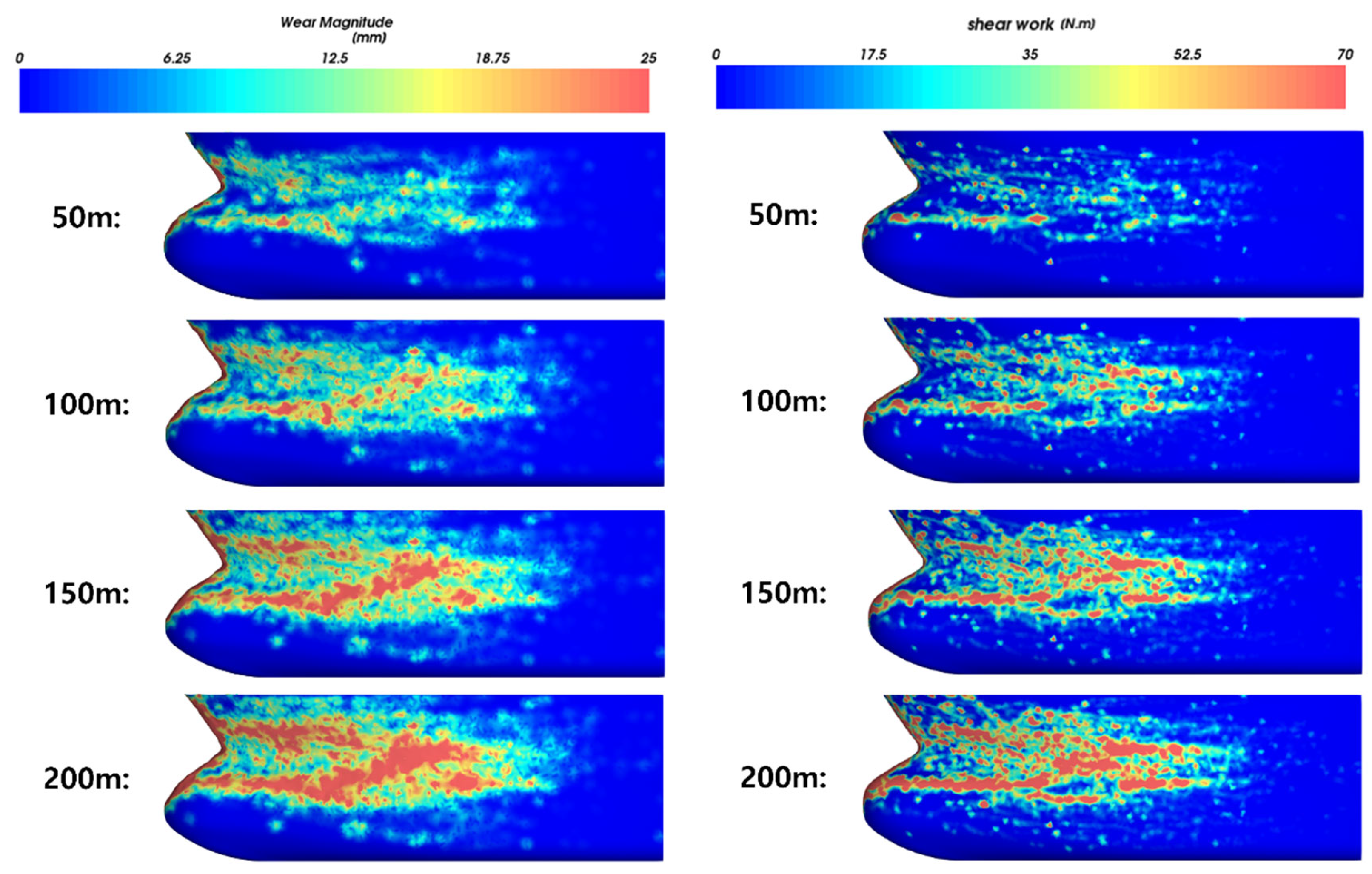

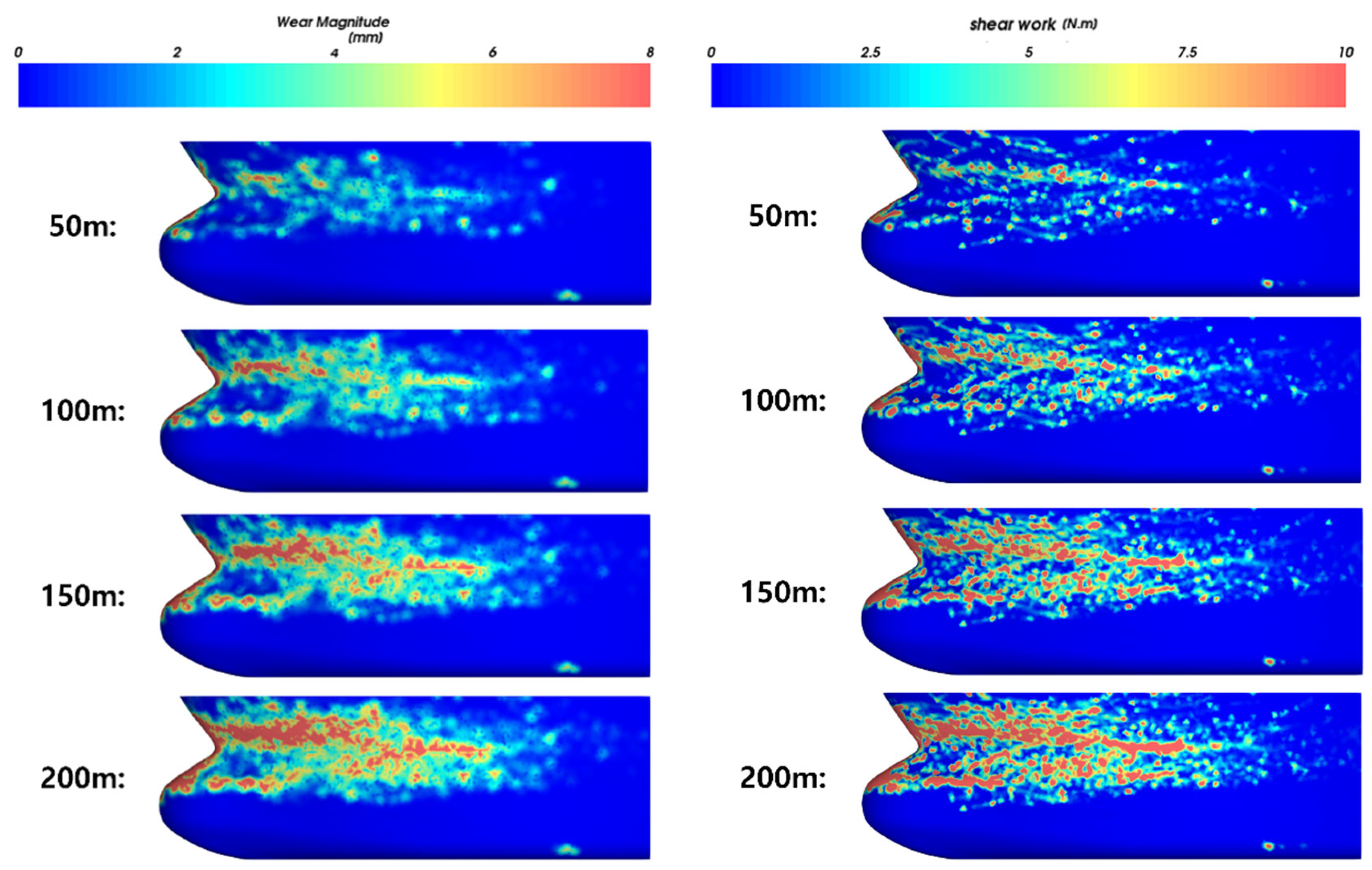

**Figure 35.**Accumulated wear process of the shape change reflection model (

**left**) and non-reflected models (

**right**) (4 knots, 60%).

**Figure 36.**Accumulated wear process of the shape change reflection model (

**left**) and non-reflected models (

**right**) (10 knots, 80%).

Ice | Ship | |
---|---|---|

Density (kg/m^{3}) | 900 | 7850 |

Bulk Young’s modulus (MPa) | 61 | 2.0 × 10^{5} |

Poisson’s ratio | 0.003 | 0.3 |

Ice-Ice | Ice-Ship | |
---|---|---|

Friction coefficient | 0.1 | 0.131 |

Tangential stiffness ratio | 1 | 1 |

Restitution coefficient | 0.1 | 0.2 |

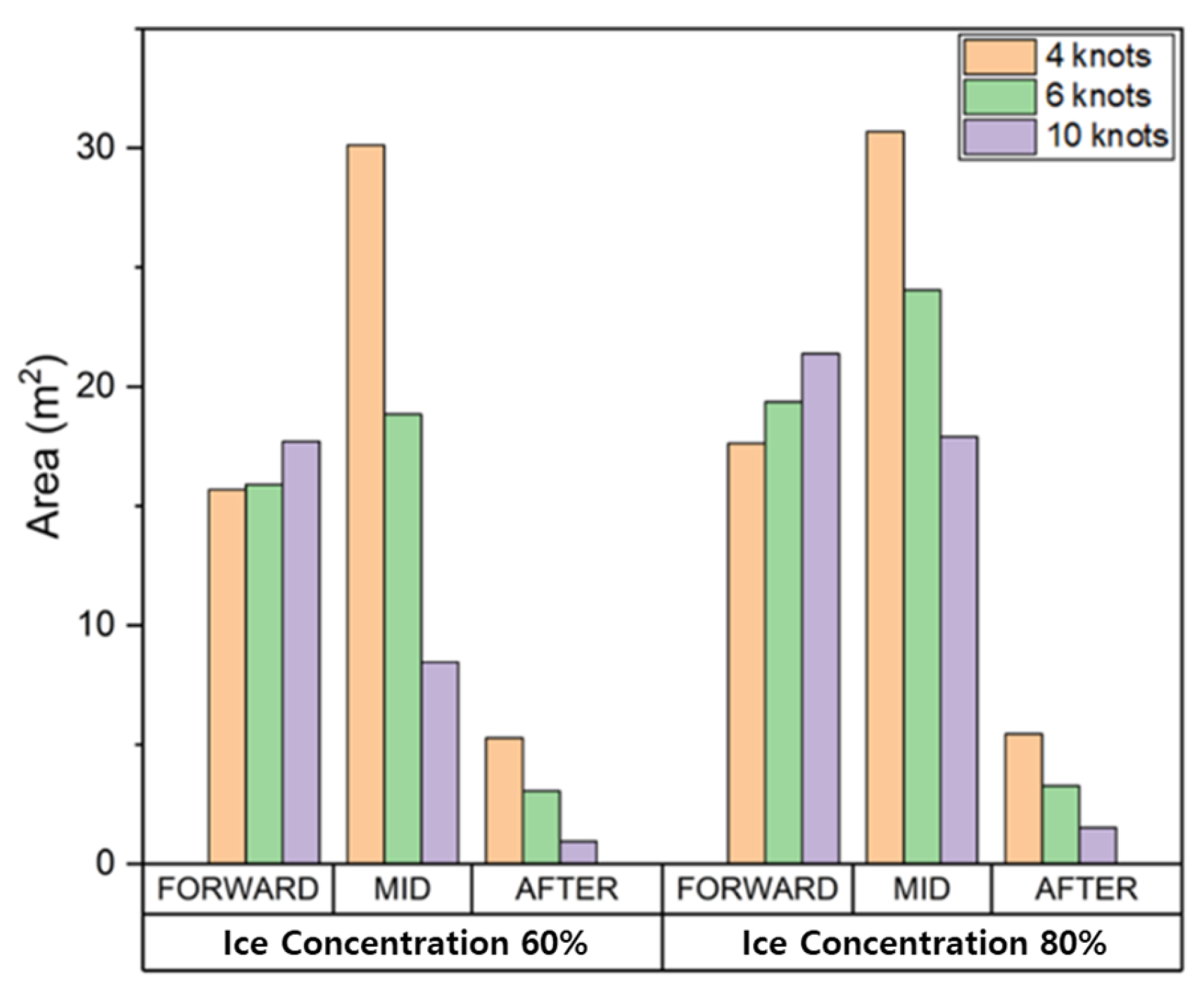

Speed [Knots] | (1) Affected Area [m ^{2}] | (2) Total Shear Work/(1) [N·m/m ^{2}] | (3) Ratio to Bow in (2) (%) | ||||
---|---|---|---|---|---|---|---|

Ice Concentration | |||||||

60% | 80% | 60% | 80% | 60% | 80% | ||

Bow (Forward) | 4 | 15.69 | 19.63 | 4.60 × 10^{3} | 6.90 × 10^{3} | - | - |

6 | 15.90 | 19.36 | 8.92 × 10^{3} | 1.21 × 10^{4} | - | - | |

10 | 17.71 | 21.38 | 2.06 × 10^{4} | 2.54 × 10^{4} | - | - | |

Midship | 4 | 30.12 | 30.69 | 209.72 | 270.49 | 4.56 | 3.92 |

6 | 18.85 | 24.05 | 215.60 | 244.86 | 2.42 | 2.02 | |

10 | 8.46 | 17.90 | 343.09 | 583.56 | 1.67 | 2.30 | |

Stern (After) | 4 | 5.28 | 5.44 | 229.31 | 296.24 | 4.99 | 4.29 |

6 | 3.06 | 3.28 | 254.47 | 346.18 | 2.85 | 2.86 | |

10 | 0.95 | 1.52 | 247.15 | 264.33 | 1.20 | 1.04 |

Speed [Knots] | Ice Concentration = 60% | Ice Concentration = 80% | |||
---|---|---|---|---|---|

Average [mm] | Max [mm] | Average [mm] | Max [mm] | ||

Bow (Forward) | 4 | 2.38 | 90.83 | 3.51 | 109.81 |

6 | 4.59 | 284.00 | 6.20 | 412.03 | |

10 | 10.76 | 863.34 | 13.06 | 953.36 | |

Mid Ship | 4 | 0.11 | 5.78 | 0.14 | 4.14 |

6 | 0.11 | 5.00 | 0.13 | 3.38 | |

10 | 0.19 | 4.83 | 0.30 | 10.38 | |

Stern (AFTER) | 4 | 0.12 | 1.90 | 0.16 | 2.22 |

6 | 0.14 | 2.39 | 0.25 | 9.95 | |

10 | 0.12 | 2.63 | 0.13 | 2.52 |

Ice Concentration | Numerical Model | Average Wear Depth [mm] | Maximum Wear Depth [mm] | Area [m ^{2}] | ||||||
---|---|---|---|---|---|---|---|---|---|---|

4 Knots | 6 Knots | 10 Knots | 4 Knots | 6 Knots | 10 Knots | 4 Knots | 6 Knots | 10 Knots | ||

60% | With deformed geometry | 2.97 | 5.18 | 8.28 | 37.73 | 66.89 | 110.3 | 26.38 | 26.56 | 31.25 |

Without deformed geometry | 2.38 | 4.59 | 10.76 | 90.83 | 284.0 | 863.3 | 15.69 | 15.90 | 19.36 | |

80% | With deformed geometry | 4.13 | 6.39 | 10.38 | 46.10 | 84.53 | 138.8 | 29.00 | 30.88 | 35.65 |

Without deformed geometry | 3.51 | 6.20 | 13.06 | 109.8 | 512.0 | 953.4 | 19.63 | 19.36 | 21.38 |
