Formation Control of Multiple Autonomous Underwater Vehicles under Communication Delay, Packet Discreteness and Dropout
Abstract
:1. Introduction
 (1)
 The communication delay is estimated based on the kernel density estimation method. Kernel density estimation is a nonparametric estimation method that does not need prior knowledge and an accurate mathematical model of communication delay. Instead, we can obtain an accurate distribution of delay with this method according to the characteristics and properties of delay values based on underwater experiments. Compared with other methods, this method has more extensive applications.
 (2)
 The packet discreteness and dropout problems are solved by information prediction based on the curve fitting method. This method can be used to predict the key states of the leader AUV to generate a continuous and precise trajectory for the follower AUVs.
 (3)
 We derive a kinematic model for the error of the formation control system. The follower controller is designed using the input–output feedback linearization method and the stability of this method is proved by Lyapunov stability theory.
 (4)
 Both the simulation in MATLAB and the field tests on the lake are carried out to verify the feasibility of the scheme presented in this paper.
2. Problem Formulation and Preliminaries
2.1. AUV Model

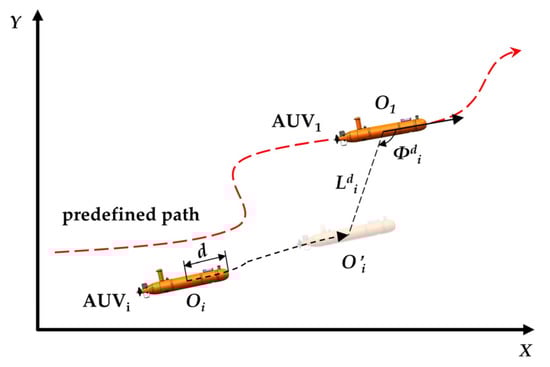

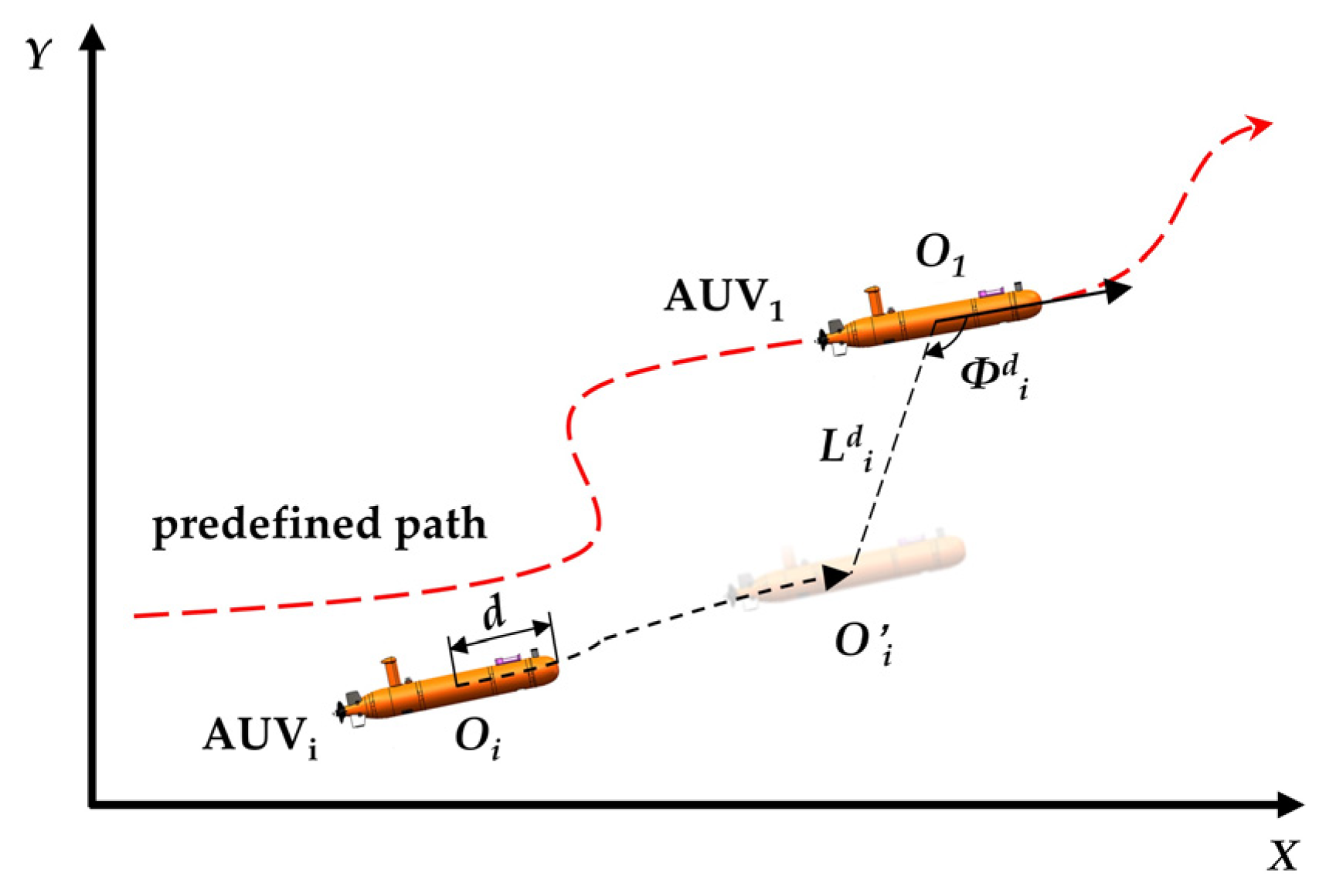

2.2. Description of Formation Control

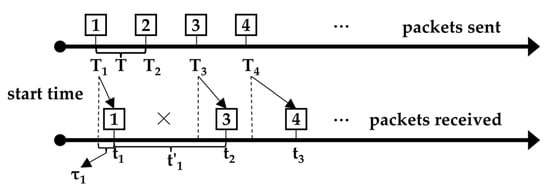

3. Solutions of Communication Delay, Packet Discreteness and Dropout

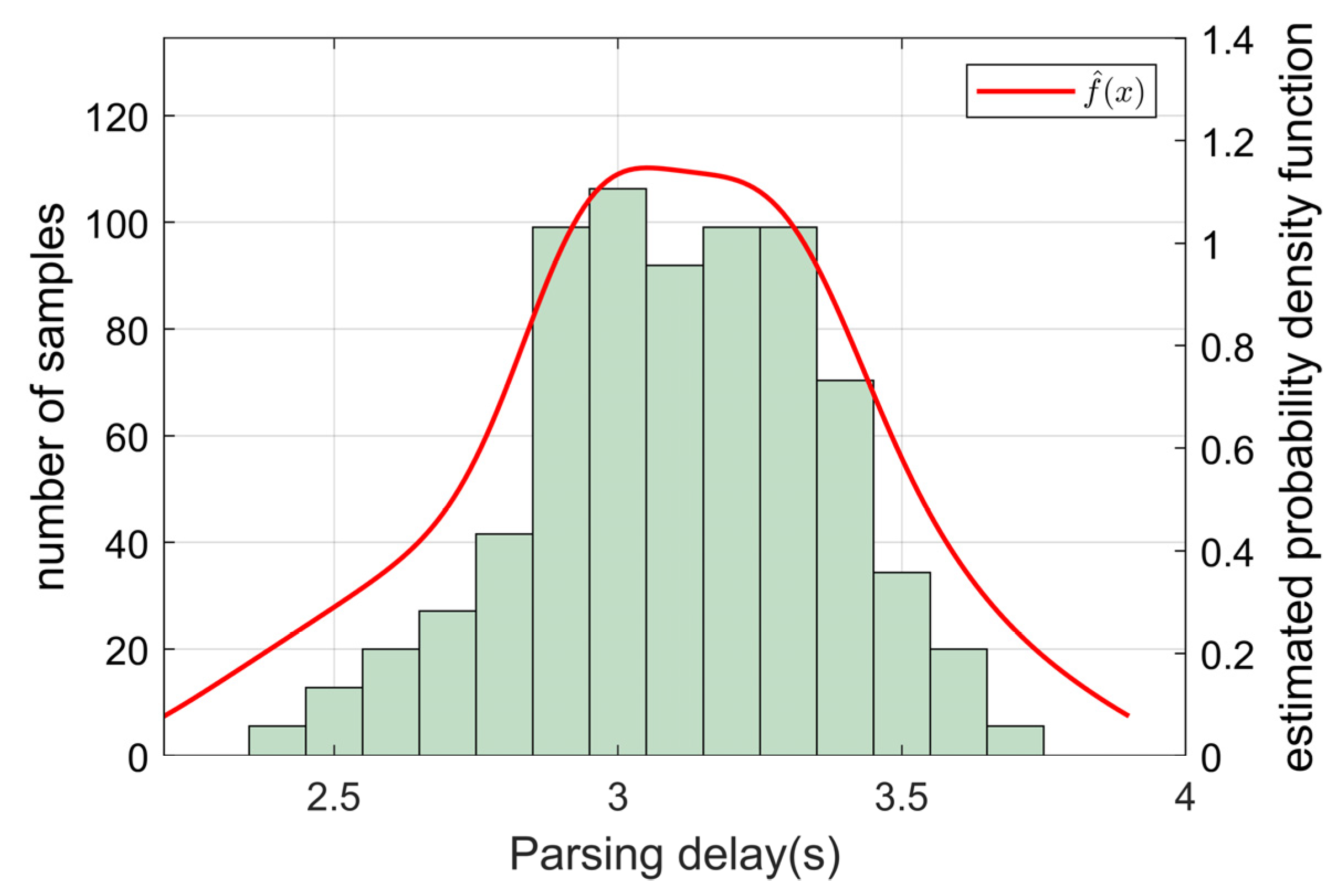

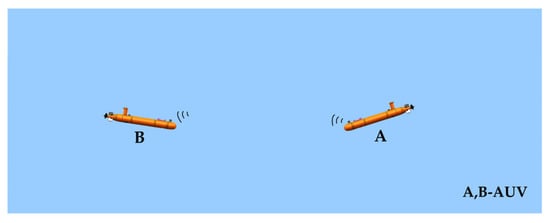

3.1. Estimation of Communication Delay
3.2. Prediction of Leader States
4. Formation Control Scheme
4.1. Generate Continuous Trajectories of the Leader
Algorithm 1. Continuous Trajectories of the Leader
1: The followers receive packets from the leader $\left({x}_{1}\left({t}_{i}\right),{y}_{1}\left({t}_{i}\right),{u}_{1}\left({t}_{i}\right),{\Psi}_{1}\left({t}_{i}\right)\right)$
2: if $K<k$ 3: if$t={t}_{i}$, where $t$ denotes the time 4: then we obtain the communication delay using Equation (17) and the states of the leader are corrected 5:
$$\widehat{{x}_{1}}\left({t}_{i}\right)={x}_{1}\left({t}_{i}\right)+\tau {u}_{1}\left({t}_{i}\right)\mathrm{sin}\left(\Psi \left({t}_{i}\right)\right)$$
$$\widehat{{y}_{1}}\left({t}_{i}\right)={y}_{1}\left({t}_{i}\right)+\tau {u}_{1}\left({t}_{i}\right)\mathrm{cos}\left(\Psi \left({t}_{i}\right)\right)$$
7: then continuous trajectories of the leader are predicted 8:
$$\widehat{{x}_{1}}\left(t\right)={x}_{1}\left(\mathrm{arg}\underset{{t}_{i}}{\mathrm{min}}(t{t}_{i})\right)+\left(t{t}_{i}\right){u}_{1}\left(\mathrm{arg}\underset{{t}_{i}}{\mathrm{min}}(t{t}_{i})\right)\mathrm{sin}\left(\mathrm{arg}\underset{{t}_{i}}{\mathrm{min}}(t{t}_{i})\right)$$
$$\widehat{{y}_{1}}\left(t\right)={y}_{1}\left(\mathrm{arg}\underset{{t}_{i}}{\mathrm{min}}(t{t}_{i})\right)+\left(t{t}_{i}\right){u}_{1}\left(\mathrm{arg}\underset{{t}_{i}}{\mathrm{min}}(t{t}_{i})\right)\mathrm{cos}\left(\mathrm{arg}\underset{{t}_{i}}{\mathrm{min}}(t{t}_{i})\right)$$

9: else$K\ge k$ 10: if$t={t}_{i}$ 11: then we obtain the communication delay using Equation (17) and the states of the leader are corrected 12:
$$\widehat{{x}_{1}}\left({t}_{i}\right)=x\left({t}_{i}+\tau \right)=P({t}_{i}+\tau )M$$
$$\widehat{{y}_{1}}\left({t}_{i}\right)=y\left({t}_{i}+\tau \right)=P({t}_{i}+\tau )N$$
14: then $M$ and $N$ are updated using Equation (20) and the continuous trajectories of the leader are predicted according to Equations (21) and (22) 15: end
4.2. Design the Follower Controller
5. Simulation Results

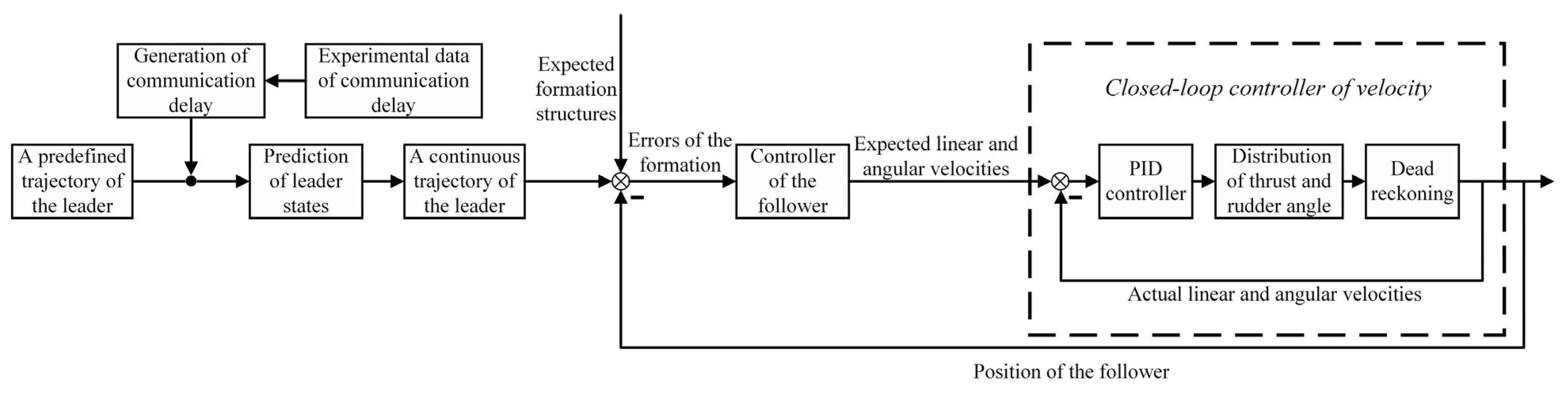

5.1. Simulation Environment
 Experimental methods
 Experimental scenario
 Communication environments

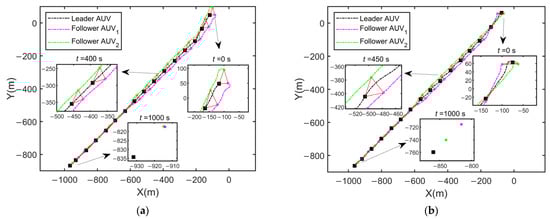

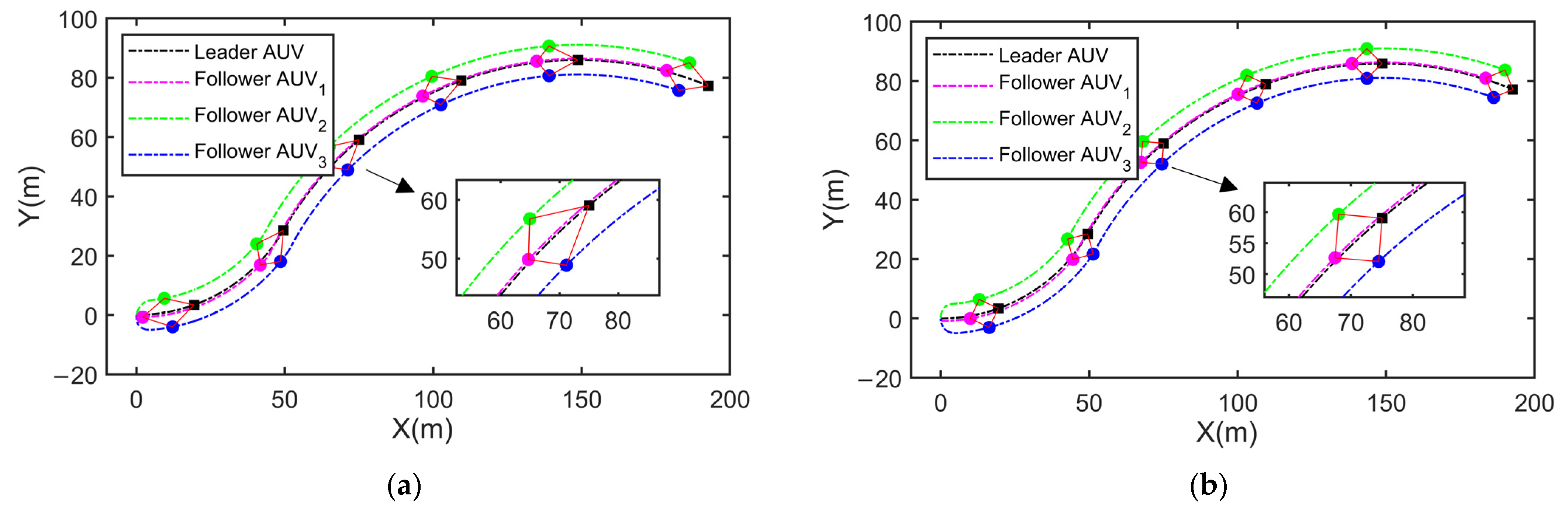

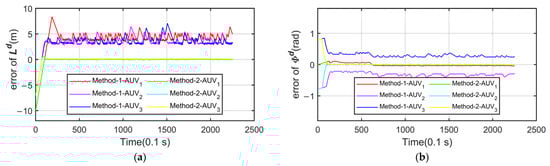

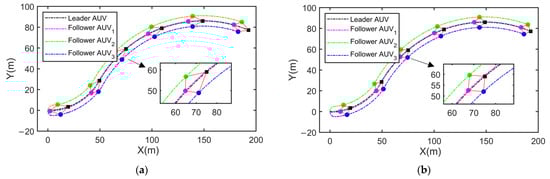

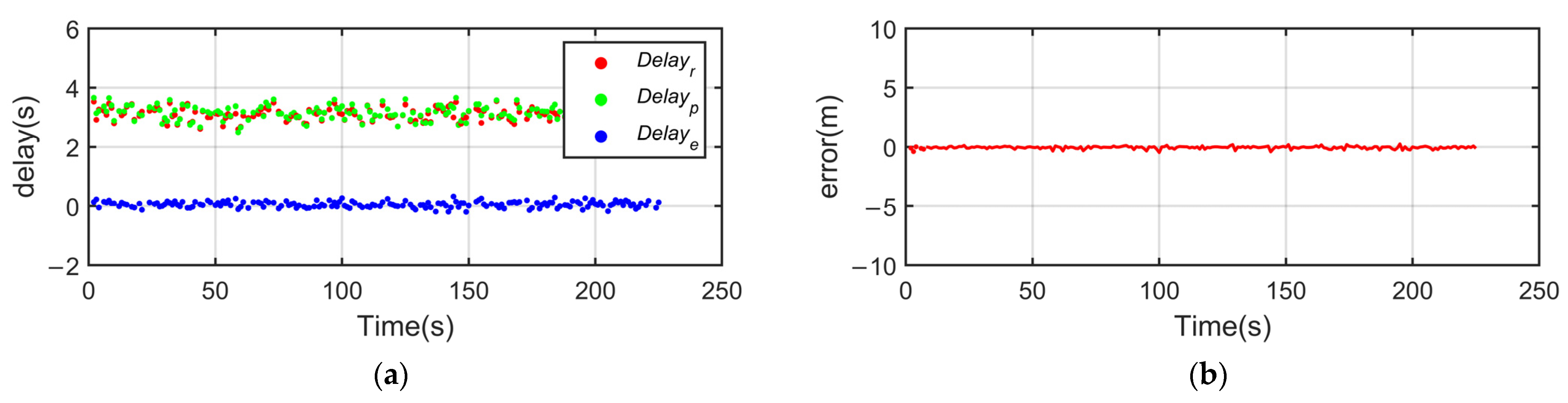

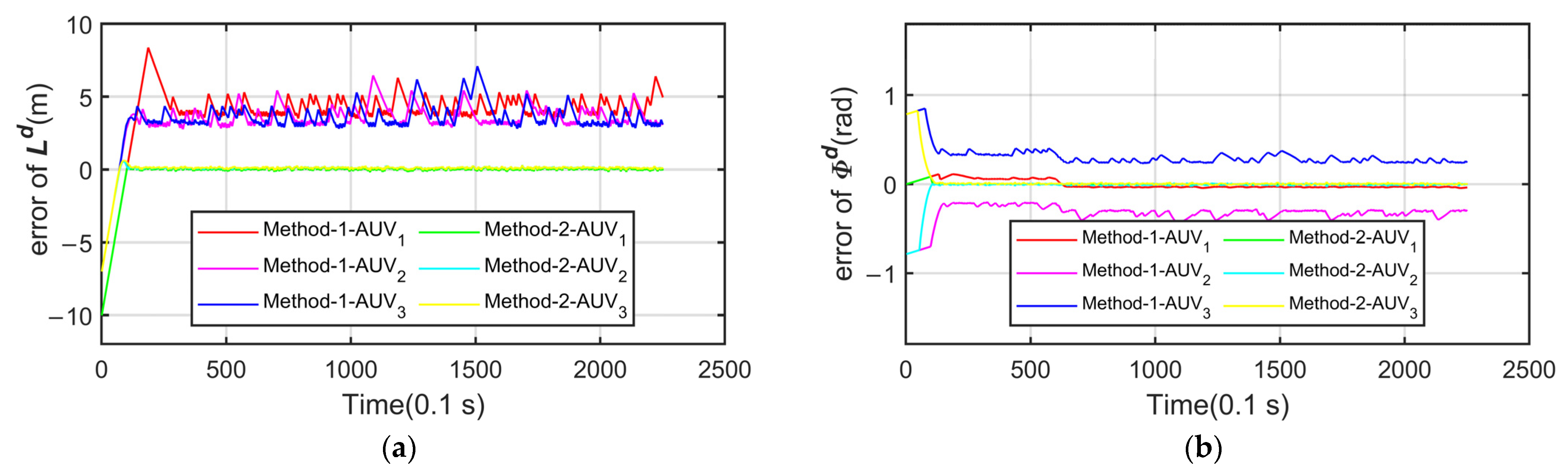

5.2. Simulation Results and Discussion
6. Field Tests

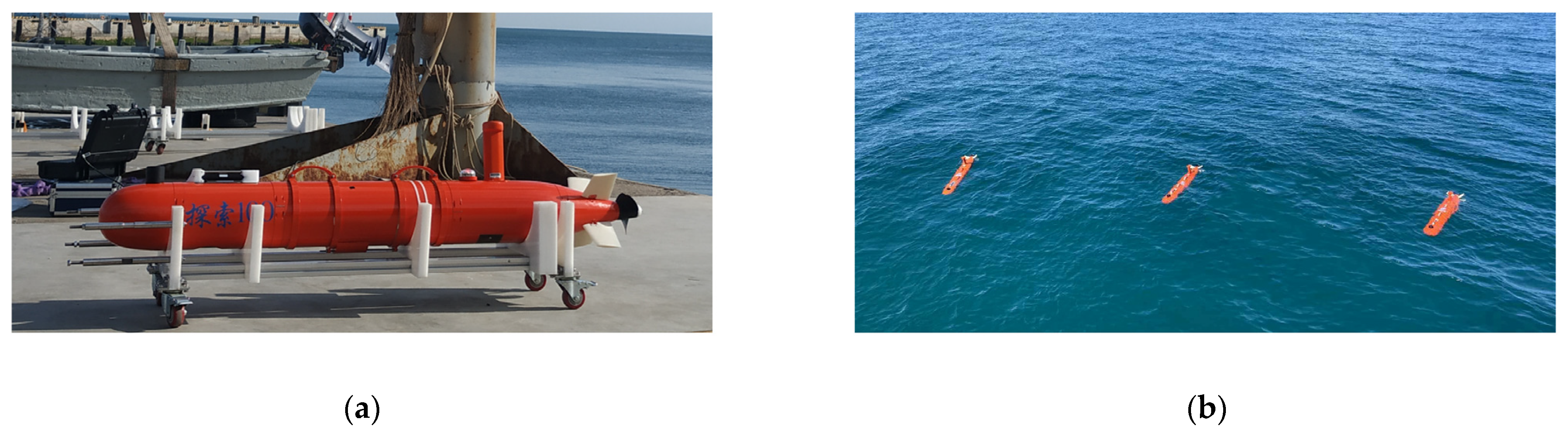

6.1. Vehicle Characteristics

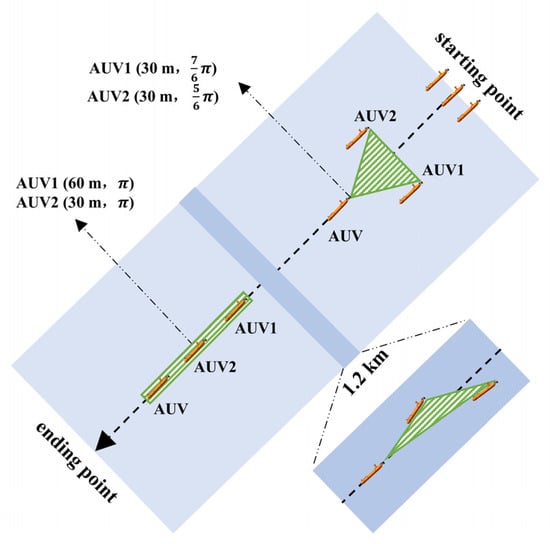

6.2. Preparation and Scenario

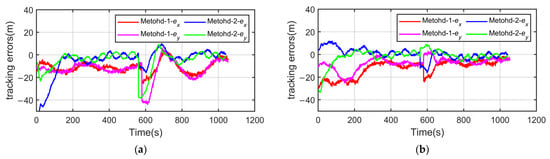

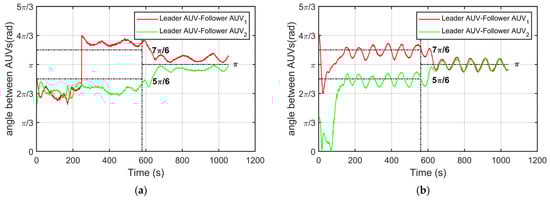

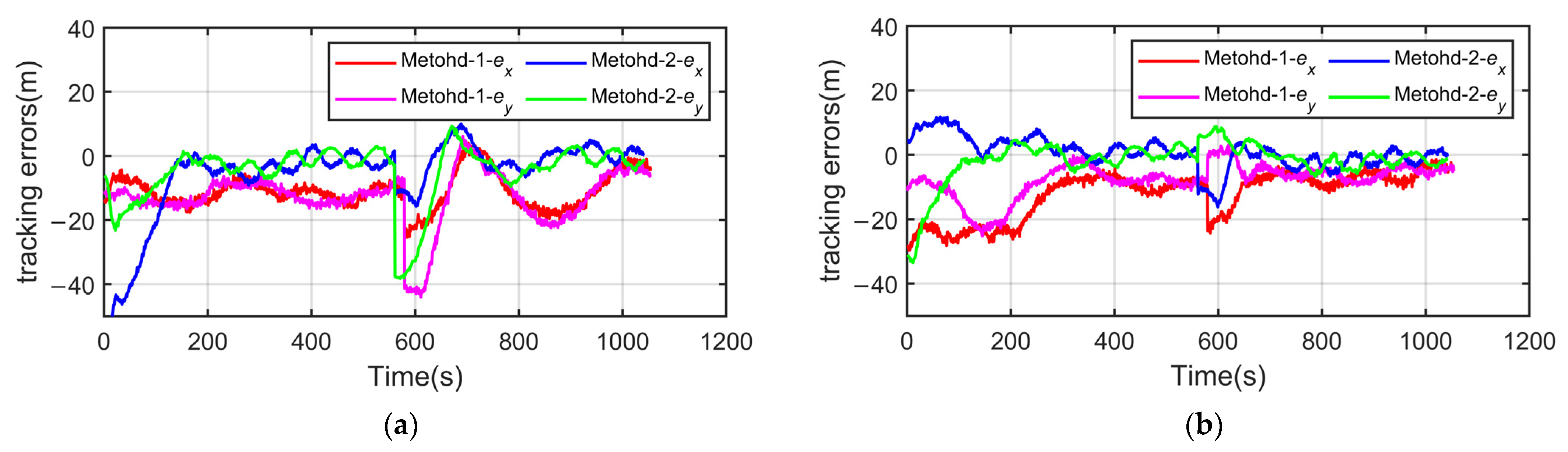

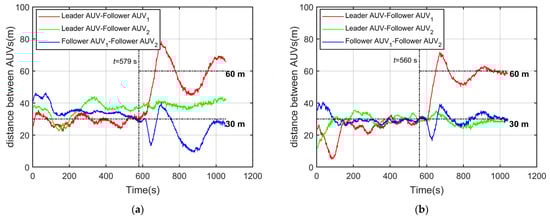

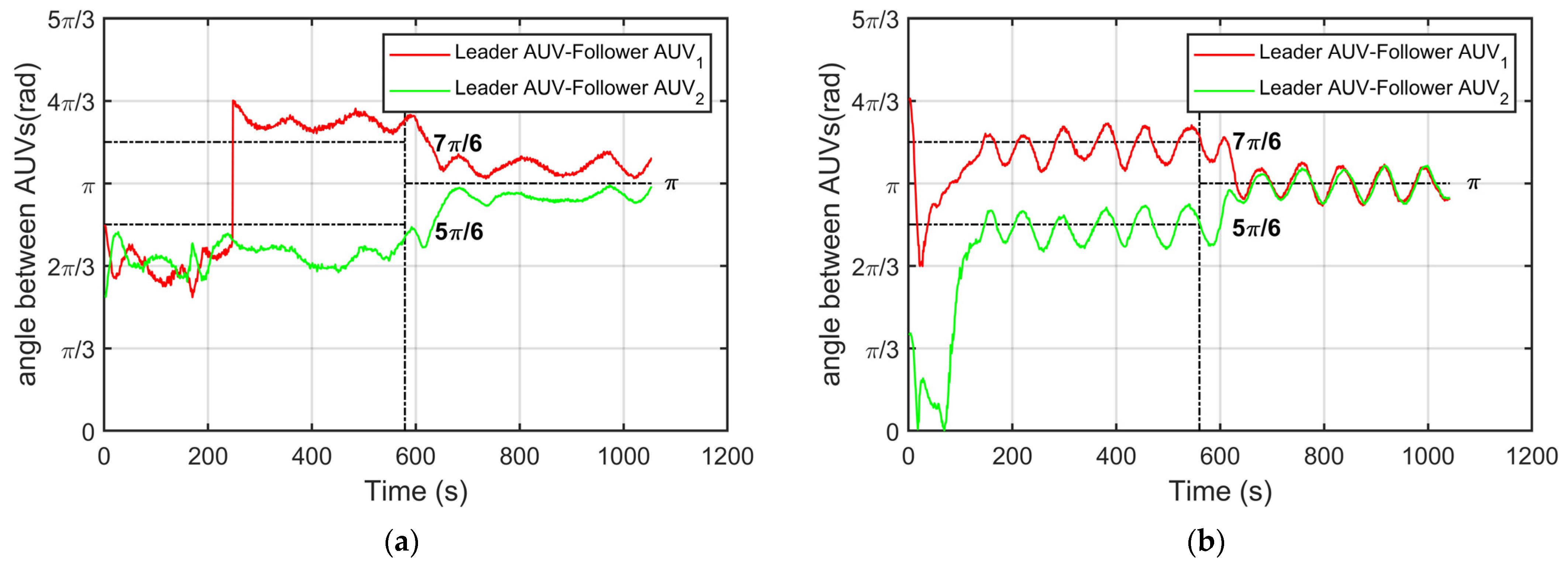

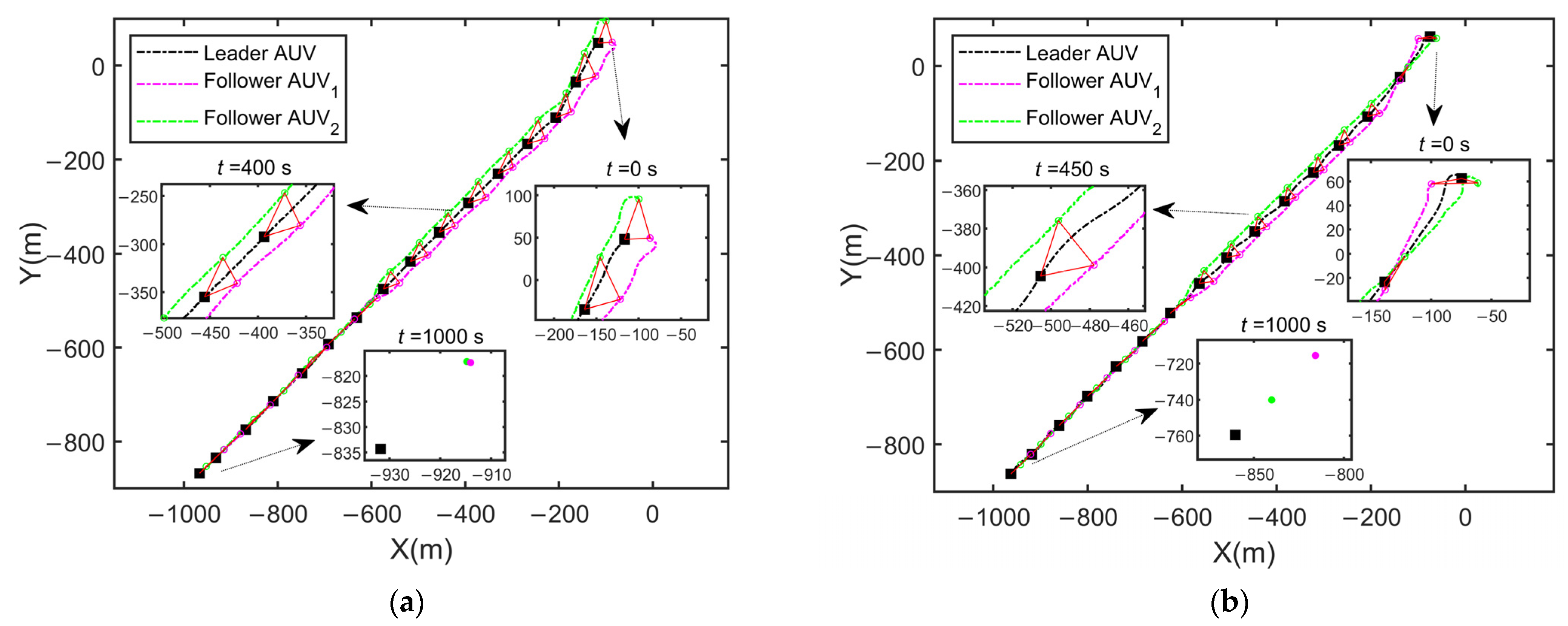

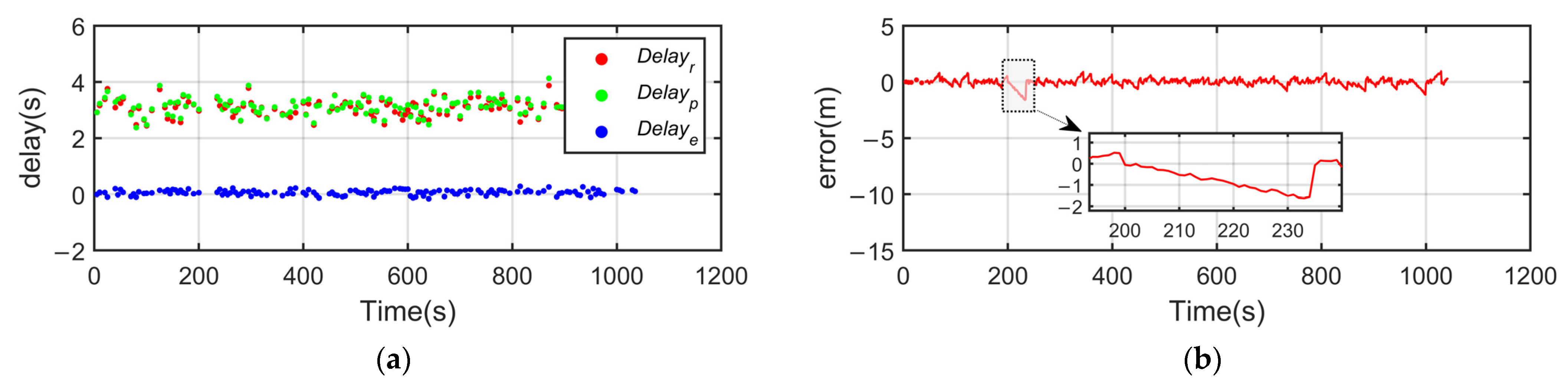

6.3. Test Results and Discussion
7. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
 Nad, D.; Mandic, F.; Miskovic, N. Using Autonomous Underwater Vehicles for Diver Tracking and Navigation Aiding. J. Mar. Sci. Eng. 2020, 8, 413. [Google Scholar] [CrossRef]
 Pierdomenico, M.; Guida, V.G.; Macelloni, L.; Chiocci, F.L.; Rona, P.A.; Scranton, M.I.; Asper, V.; Diercks, A. Sedimentary facies, geomorphic features and habitat distribution at the Hudson Canyon head from AUV multibeam data. DeepSea Res. Part IITop. Stud. Oceanogr. 2015, 121, 112–125. [Google Scholar] [CrossRef]
 Hwang, J.; Bose, N.; Nguyen, H.D.; Williams, G. Acoustic Search and Detection of Oil Plumes Using an Autonomous Underwater Vehicle. J. Mar. Sci. Eng. 2020, 8, 618. [Google Scholar] [CrossRef]
 Song, Y.; He, B.; Liu, P. RealTime Object Detection for AUVs Using SelfCascaded Convolutional Neural Networks. IEEE J. Ocean. Eng. 2021, 46, 56–67. [Google Scholar] [CrossRef]
 MartinAbadal, M.; PinarMolina, M.; MartorellTorres, A.; OliverCodina, G.; GonzalezCid, Y. Underwater Pipe and Valve 3D Recognition Using Deep Learning Segmentation. J. Mar. Sci. Eng. 2021, 9, 5. [Google Scholar] [CrossRef]
 Zhang, Y.W.; Bellingham, J.G.; Ryan, J.P.; Kieft, B.; Stanway, M.J. Autonomous FourDimensional Mapping and Tracking of a Coastal Upwelling Front by an Autonomous Underwater Vehicle. J. Field Robot. 2016, 33, 67–81. [Google Scholar] [CrossRef] [Green Version]
 Feng, H.; Yu, J.C.; Huang, Y.; Qiao, J.A.; Wang, Z.Y.; Xie, Z.B.; Liu, K. Adaptive coverage sampling of thermocline with an autonomous underwater vehicle. Ocean Eng. 2021, 233, 109151. [Google Scholar] [CrossRef]
 Mao, Y.B.; Gao, F.R.; Zhang, Q.Z.; Yang, Z.Y. An AUV TargetTracking Method Combining Imitation Learning and Deep Reinforcement Learning. J. Mar. Sci. Eng. 2022, 10, 383. [Google Scholar] [CrossRef]
 Das, B.; Subudhi, B.; Pati Bibhuti, B. Cooperative Formation Control of Autonomous Underwater Vehicles: An Overview. Int. J. Autom. Comput. 2016, 13, 199–225. [Google Scholar] [CrossRef]
 Zhang, L.c.; Wang, J.; Wang, T.; Liu, M.; Gao, J. Optimal Formation of Multiple Auvs Cooperative Localization Based on Virtual Structure. In Proceedings of the MTS/IEEE Oceans Conference, Monterey, CA, USA, 19–23 September 2016. [Google Scholar] [CrossRef]
 Zhen, Q.; Wan, L.; Li, Y.; Jiang, D. Formation control of a multiAUVs system based on virtual structure and artificial potential field on SE(3). Ocean Eng. 2022, 253, 111148. [Google Scholar] [CrossRef]
 Chen, G.; Shen, Y.; Qu, N.; He, B. Path planning of AUV during diving process based on behavioral decisionmaking. Ocean Eng. 2021, 234, 109073. [Google Scholar] [CrossRef]
 Xia, G.; Zhang, Y.; Zhang, W.; Zhang, K.; Yang, H. Robust adaptive supertwisting sliding mode formation controller for homing of multiunderactuated AUV recovery system with uncertainties. ISA Trans. 2022. [Google Scholar] [CrossRef] [PubMed]
 Li, Y.; Li, X.; Zhu, D.; Yang, S.X. SelfCompetition LeaderFollower MultiAuv Formation Control Based on Improved Pso Algorithm with Energy Consumption Allocation. Int. J. Robot. Autom. 2022, 37, 288–301. [Google Scholar] [CrossRef]
 Chen, B.; Hu, J.; Zhao, Y.; Ghosh, B.K. Finitetime observer based tracking control of uncertain heterogeneous underwater vehicles using adaptive sliding mode approach. Neurocomputing 2022, 481, 322–332. [Google Scholar] [CrossRef]
 Zhang, Y.; Wang, X.; Wang, S.; Tian, X. Threedimensional formationcontainment control of underactuated AUVs with heterogeneous uncertain dynamics and system constraints. Ocean Eng. 2021, 238, 109661. [Google Scholar] [CrossRef]
 Xia, G.; Zhang, Y.; Zhang, W.; Chen, X.; Yang, H. Dual closedloop robust adaptive fast integral terminal sliding mode formation finitetime control for multiunderactuated AUV system in three dimensional space. Ocean Eng. 2021, 233, 108903. [Google Scholar] [CrossRef]
 Wang, Y.; Wang, Z.; Chen, M.; Kong, L. Pre define dtime sliding mode formation control for multiple autonomous underwater vehicles with uncertainties. Chaos Solitons Fractals 2021, 144, 110680. [Google Scholar] [CrossRef]
 Wang, C.; Cai, W.; Lu, J.; Ding, X.; Yang, J. Design, Modeling, Control, and Experiments for Multiple AUVs Formation. IEEE Trans. Autom. Sci. Eng. 2021, PP, 1–12. [Google Scholar] [CrossRef]
 Li, J.; Zhang, Y.; Li, W. Formation Control of a MultiAutonomous Underwater Vehicle EventTriggered Mechanism Based on the Hungarian Algorithm. Machines 2021, 9, 346. [Google Scholar] [CrossRef]
 Hou, S.P.; Cheah, C.C. Can a Simple Control Scheme Work for a Formation Control of Multiple Autonomous Underwater Vehicles? IEEE Trans. Control Syst. Technol. 2011, 19, 1090–1101. [Google Scholar] [CrossRef]
 Huang, X.; Li, Y.; Du, F.; Jin, S. Horizontal path following for underactuated AUV based on dynamic circle guidance. Robotica 2017, 35, 876–891. [Google Scholar] [CrossRef]
 Fabiani, F.; Fenucci, D.; Caiti, A. A distributed passivity approach to AUV teams control in cooperating potential games. Ocean Eng. 2018, 157, 152–163. [Google Scholar] [CrossRef]
 Yu, H.; Zeng, Z.; Guo, C. Coordinated Formation Control of DiscreteTime Autonomous Underwater Vehicles under Alterable Communication Topology with TimeVarying Delay. J. Mar. Sci. Eng. 2022, 10, 712. [Google Scholar] [CrossRef]
 Li, Y.P.; Yan, S.X. Formation Control of Multiple Autonomous Underwater Vehicles Based on State Feedback. In Proceedings of the 11th World Congress on Intelligent Control and Automation (WCICA), Shenyang, China, 29 June–4 July 2014; pp. 5523–5527. [Google Scholar]
 Stojanovic, M. Recent advances in highspeed underwater acoustic communications. IEEE J. Ocean. Eng. 1996, 21, 125–136. [Google Scholar] [CrossRef]
 Chitre, M.; Shahabudeen, S.; Stojanovic, M. Underwater acoustic communications and networking: Recent advances and future challenges. Mar. Technol. Soc. J. 2008, 42, 103–116. [Google Scholar] [CrossRef]
 Yang, G.; Dai, L.; Wei, Z.Q. Challenges, Threats, Security Issues and New Trends of Underwater Wireless Sensor Networks. Sensors 2018, 18, 3907. [Google Scholar] [CrossRef] [Green Version]
 Caiti, A.; Crisostomi, E.; Munafo, A. Physical Characterization of Acoustic Communication Channel Properties in Underwater Mobile Sensor Networks. In Proceedings of the 1st International ICST Conference on Sensor Systems and Software (SCUBE 2009), Pisa, Italy, 7–9 September 2009; pp. 111–126. [Google Scholar]
 Ismail, A.S.; Wang, X.; Hawbani, A.; Alsamhi, S.; Aziz, S.A. Routing protocols classification for underwater wireless sensor networks based on localization and mobility. Wirel. Netw. 2022, 28, 797–826. [Google Scholar] [CrossRef]
 Farooq, M.U.; Wang, X.; Hawbani, A.; Khan, A.; Ahmed, A.; Alsamhi, S.; Qureshi, B. POWER: Probabilistic weightbased energyefficient cluster routing for largescale wireless sensor networks. J. Supercomput. 2022, 78, 12765–12791. [Google Scholar] [CrossRef]
 Wang, H.; Yemeni, Z.; Ismael, W.M.; Hawbani, A.; Alsamhi, S.H. A reliable and energy efficient dual prediction data reduction approach for WSNs based on Kalman filter. IET Commun. 2021, 15, 2285–2299. [Google Scholar] [CrossRef]
 Suryendu, C.; Subudhi, B. Formation Control of Multiple Autonomous Underwater Vehicles Under Communication Delays. IEEE Trans. Circuits Syst. IIExpress Briefs 2020, 67, 3182–3186. [Google Scholar] [CrossRef]
 Yang, H.Z.; Wang, C.F.; Zhang, F.M. A decoupled controller design approach for formation control of autonomous underwater vehicles with time delays. IET Control Theory Appl. 2013, 7, 1950–1958. [Google Scholar] [CrossRef]
 Yan, Z.P.; Yang, Z.W.; Yue, L.D.; Wang, L.; Jia, H.M.; Zhou, J.J. Discretetime coordinated control of leaderfollowing multiple AUVs under switching topologies and communication delays. Ocean Eng. 2019, 172, 361–372. [Google Scholar] [CrossRef]
 Chen, Y.; Guo, X.; Luo, G.; Liu, G. A Formation Control Method for AUV Group Under Communication Delay. Front. Bioeng. Biotechnol. 2022, 10, 848641. [Google Scholar] [CrossRef] [PubMed]
 Yan, Z.P.; Xu, D.; Chen, T.; Zhang, W.; Liu, Y.B. LeaderFollower Formation Control of UUVs with Model Uncertainties, Current Disturbances, and Unstable Communication. Sensors 2018, 18, 662. [Google Scholar] [CrossRef] [Green Version]
 Yan, Z.P.; Pan, X.L.; Yang, Z.W.; Yue, L.D. Formation Control of LeaderFollowing MultiUUVs With Uncertain Factors and TimeVarying Delays. IEEE Access 2019, 7, 118792–118805. [Google Scholar] [CrossRef]
 Yang, Y.; Xiao, Y.; Li, T.S. A Survey of Autonomous Underwater Vehicle Formation: Performance, Formation Control, and Communication Capability. IEEE Commun. Surv. Tutor. 2021, 23, 815–841. [Google Scholar] [CrossRef]
 Millan, P.; Orihuela, L.; Jurado, I.; Rubio, F.R. Formation Control of Autonomous Underwater Vehicles Subject to Communication Delays. IEEE Trans. Control Syst. Technol. 2014, 22, 770–777. [Google Scholar] [CrossRef]
 Chen, K.; Luo, G.; Zhou, H.; Zhao, D. Research on Formation Control Method of Heterogeneous AUV Group under EventTriggered Mechanism. Mathematics 2022, 10, 1373. [Google Scholar] [CrossRef]
 Wang, J.Q.; Wang, C.; Wei, Y.J.; Zhang, C.J. Filterbackstepping based neural adaptive formation control of leaderfollowing multiple AUVs in three dimensional space. Ocean Eng. 2020, 201, 107150. [Google Scholar] [CrossRef]
 Chen, C.T.; Millero, F.J. Speed of Sound in Seawater at HighPressures. J. Acoust. Soc. Am. 1977, 62, 1129–1135. [Google Scholar] [CrossRef]
 Dai, J.; Liu, Y.; Chen, J.; Liu, X. Fast feature selection for intervalvalued data through kernel density estimation entropy. Int. J. Mach. Learn. Cybern. 2020, 11, 2607–2624. [Google Scholar] [CrossRef]
 Kim, J. Tracking Controllers to Chase a Target Using Multiple Autonomous Underwater Vehicles Measuring the Sound Emitted from the Target. IEEE Trans. Syst. Man Cybern. Syst. 2021, 51, 4579–4587. [Google Scholar] [CrossRef]
 Xia, G.; Zhang, Y.; Zhang, W.; Chen, X.; Yang, H. Multitimescale 3D coordinated formation control for multiunderactuated AUV with uncertainties: Design and stability analysis using singular perturbation methods. Ocean Eng. 2021, 230, 109053. [Google Scholar] [CrossRef]
 Wei, H.; Shen, C.; Shi, Y. Distributed LyapunovBased Model Predictive Formation Tracking Control for Autonomous Underwater Vehicles Subject to Disturbances. IEEE Trans. Syst. Man Cybern. Syst. 2021, 51, 5198–5208. [Google Scholar] [CrossRef]
 Su, B.; Wang, H.; Wang, Y.; Gao, J. Fixedtime Formation of AUVs with Disturbance via Eventtriggered Control. Int. J. Control Autom. Syst. 2021, 19, 1505–1518. [Google Scholar] [CrossRef]
 Kim, J.H.; Yoo, S.J. Distributed eventdriven adaptive threedimensional formation tracking of networked autonomous underwater vehicles with unknown nonlinearities. Ocean Eng. 2021, 233, 109069. [Google Scholar] [CrossRef]
 Liu, H.; Wang, Y.; Lewis, F.L. Robust Distributed Formation Controller Design for a Group of Unmanned Underwater Vehicles. IEEE Trans. Syst. Man Cybern. Syst. 2021, 51, 1215–1223. [Google Scholar] [CrossRef]
Parameter  Leader AUV  Follower AUV_{1}  Follower AUV_{2}  Follower AUV_{3}

Starting point (x, y)  (0,0)  (0,0)  (0,0)  (0,0)
Yaw (rad)  $\pi /2$  $\pi /2$  $\pi /2$  $\pi /2$
Linear velocity (m/s)  1.0289  none *  none  none
Yaw velocity (rad/s)  −0.0175  none  none  none
$\mathrm{Formation}\mathrm{structures}({L}^{d},{\Phi}^{d}$)  none  $\left(10,\pi \right)$  $\left(5\sqrt{2},\frac{5\pi}{4}\right)$  $\left(5\sqrt{2},\frac{3\pi}{4}\right)$
Maximum linear velocity (m/s)  1.5433  1.5433  1.5433  1.5433
Maximum yaw velocity (rad/s)  0.1  0.1  0.1  0.1
Parameter  Environment1  Environment2  Environment3  Environment4

Communication delay (s)  $N\left(3,0.1\right)$ *  $N\left(3,0.1\right)$  $N\left(5,0.1\right)$  $N\left(3,0.1\right)$
Interval of sent packets (s)  1  2  1  1
Packet dropout rate (%)  20  20  20  40
Parameter  Environment1  Environment2  Environment3  Environment4  Average

Errors of distance (m)  3.902  4.988  5.754  4.658  4.826
Errors of angle (rad)  0.226  0.261  0.284  0.253  0.256
Parameter  Environment1  Environment2  Environment3  Environment4  Average

Errors of estimated communication delay (s)  0.092  0.095  0.087  0.098  0.093
Errors of the prediction of the leader states (m)  0.239  0.236  0.277  0.232  0.246
Errors of distance (m)  0.242  0.234  0.283  0.251  0.216
Errors of angle (rad)  0.021  0.022  0.026  0.021  0.023
Parameter  Method1  Method2  Method3  Method 4

Errors of distance (m)  4.826  0.216  2.137  2.695
Errors of angle (rad)  0.256  0.023  0.152  0.169
Parameter  Test1  Test2  Test3  Test4  Average

Packet dropout rate (%)  31.3  32.4  31.8  31.1  31.5
Errors of distance (m)  12.204  11.989  12.221  12.187  12.150
Errors of angle (rad)  0.408  0.419  0.412  0.399  0.410
Parameter  Test1  Test2  Test3  Test4  Average

Packet dropout rate (%)  33.1  31.2  30.5  32.3  31.8
Errors of estimated communication delay (s)  0.103  0.092  0.096  0.108  0.998
Errors of the prediction of the leader states (m)  0.833  1.142  0.986  1.048  1.002
Errors of distance (m)  5.453  5.398  5.429  5.364  5.411
Errors of angle (rad)  0.218  0.205  0.211  0.196  0.208
