Recent Progress on Wave Energy Marine Buoys
Abstract
:1. Introduction

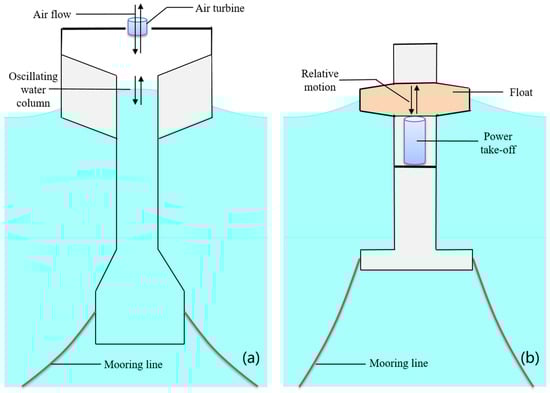

2. Energy Capture from Wave to Structure
2.1. OWC Prototype for Marine Buoys
2.2. OB Prototype for Marine Buoys
3. PTO from Structure to Wire

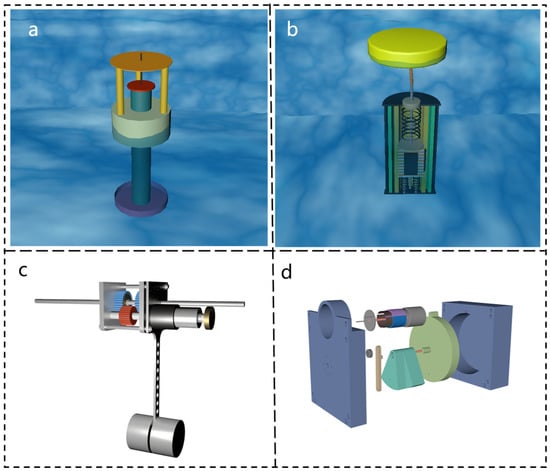

3.1. EMG-Based PTO

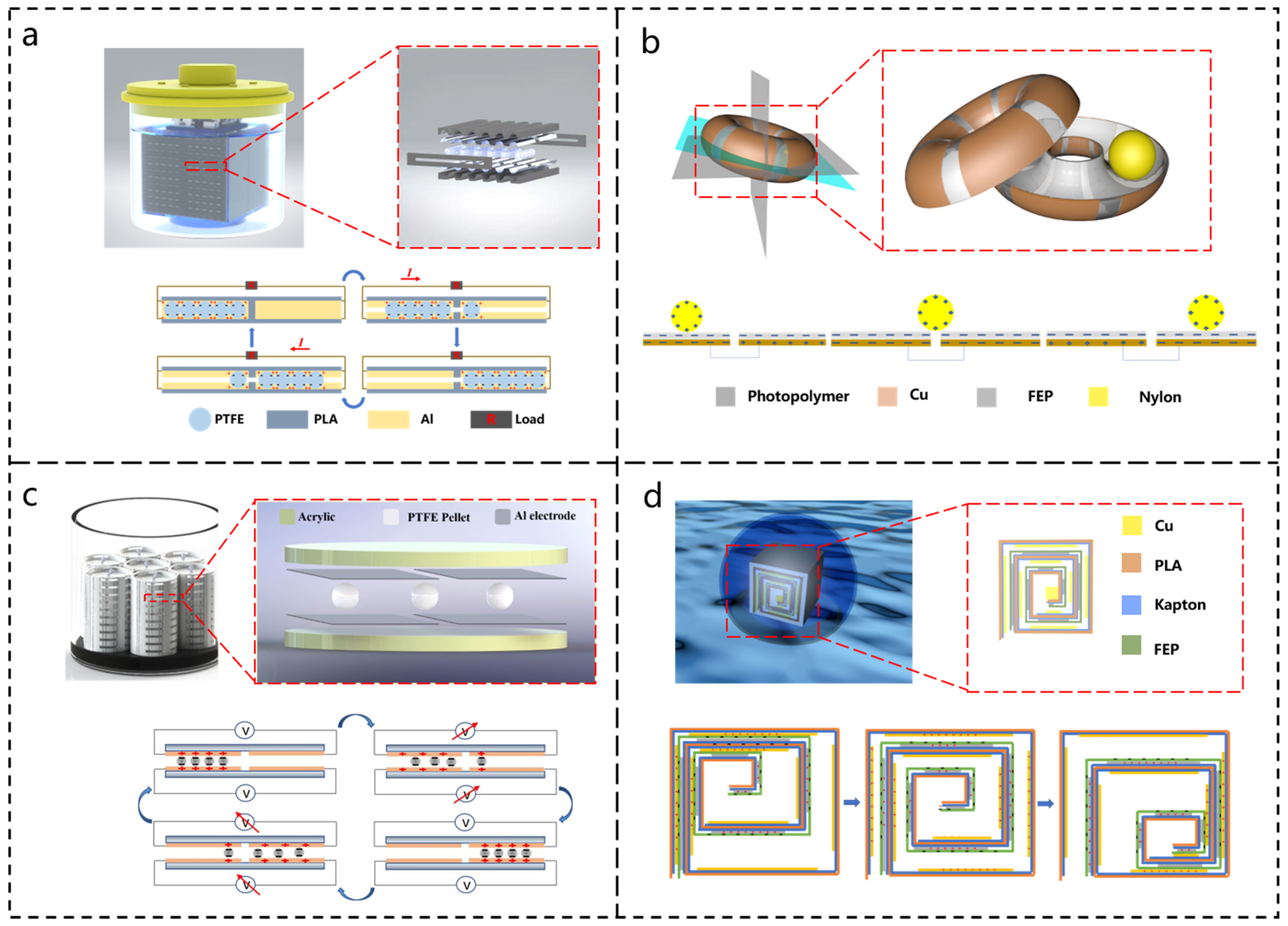

3.2. TENG-Based PTO
4. Applications of Wave Energy Marine Buoy
5. Conclusions and Prospects
- Concurrent marine buoys usually adopt solar photovoltaic systems as the in situ supplemental power, followed by wind turbines. However, the power density, access easiness and engineering factors make wave energy a more promising alternative (if not a replacement) for marine buoys.
- Wave energy capturing has evolved into three major categories. Though the design has not converged, some prototypes have entered full-scale sea trial stage, demonstrating partial readiness for commercialization. As far as a marine buoy is concerned, essentially, it prefers a smaller size, structure simplicity and axisymmetry for main geometry. Therefore, the two-body point absorber, OWC spar type buoy and single body point absorber appear to be more appropriate for marine buoys.
- Conventional rotational EMGs are the common PTOs for wave energy, and adopt turbine/gears to transmit the wave-induced motion to motor rotations. Linear direct generators are a developing technique used to directly utilize the significant relative heave motion. TENGs are a novel technique that directly converts miscellaneous mechanical energy to electricity. Their adaptivity to a high-entropy input makes them a promising alternative for small-scale buoys.
- The application of marine buoys has mainly extended to power supply buoys, navigation buoys, data/sensor buoys and aquaculture buoys. Power supply buoys and navigation buoys have partially implemented wave energy technologies with EMGs. Sensor buoys and aquaculture buoys require a relatively smaller scale. Therefore, wave energy technologies could become very effective in achieving self-power for these buoys.
- It is determined by the functions of many small-scale buoys that they are largely disposable. Wave energy technologies could extend such buoys’ service time so that the unit cost of such buoys can be greatly reduced. In this sense, wave energy PTO should be low-cost, simple and robust. A combination of a single OB and flexible track TENG seems to be a promising technique.
- Wave energy buoys tend to differentiate into “wave energy converter buoys” and “wave-energy-powered buoys”, which is indicated by the ratio of the PTO power to the load power. The former specialize in outputting the converted electricity to the clients, whereas the latter emphasize self-powering the applications on the buoy. Both of them need to improve the power density and reduce the costs. The philosophy of converter buoys is concerned more with hydrodynamic responses, whereas the philosophy of wave-powered buoys is concerned more with the integration level.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
