Nonlinear Hydrodynamic Analysis of Ships Moored in a VLFS Service Basin in the East Mediterranean Sea

Abstract

Very large floating structure (VLFS) is an environmentally sensitive technology which creates artificial land at sea. Designated for the open sea, the Delta is a new type of VLFS. Formed, inherently, by the innovative geometry, the sheltered basin is a unique feature of the Delta. Its year-round operability as the gateway of the structure directly affects the Delta’s utilization. This study examines the basin in terms of its operability as a service port. Relying on potential flow theory and applying the boundary element method, we conducted a nonlinear hydrodynamic analysis of a moored vessel at the basin. It consists of a time-domain simulation of a tanker, berthed via nonlinear mooring system along the Delta’s side hull under severe wave conditions typical to the East Mediterranean Sea. The system is evaluated in terms of acceptable motion of the ship and permissible load on the mooring system. The favorable results indicate that the basin enables most cargo handling operations under waves conditions of ${\mathrm{H}}_{\mathrm{mo}}=2.5\mathrm{m}$, and minimal downtime of less than 6% of the year. In this paper we present the analysis procedure, the evaluation criteria, and the mooring system’s design. The study results and their significance are presented and discussed as well.

1. Introduction

Overexploitation of the land, enhanced by the constant rise of population density in coastal regions is a major global concern [1,2,3]. A very large floating structure (VLFS) is an environmentally sensitive alternative for the creation of artificial land at sea [4,5,6,7]. Offering broad space and high stability, it can be utilized for the accommodation of land-based operations out at sea. Thus, it may provide a much-needed relief and enable a more sustainable development in coastal regions.

VLFS types are traditionally categorized by their hull configurations into the pontoon or the semisubmersible types [8,9]. The Delta-type VLFS [10,11] is a newly developed concept. It is designed to operate at intermediate open sea condition and to withstand severe weather conditions with minimal downtime. The unique delta shape (see Figures 1 and 3) is designated to provide high hydrodynamic efficiency and a broad operational area. The innovative hull design maintains acceptable loads and motions and minimizes the structural complexity. A unique and important feature of the Delta concept is the integrated sheltered basin. Protected from the incoming waves by the frontal delta and the side hulls, the sheltered basin provides a year-round access to and from the facility. The basin’s ability to host a wide range of cargo handling operations with minimal downtime directly influences the operability and the utilization range of the Delta. Drimer and Gafter [10] introduced the Delta VLFS, elaborated on the design considerations, studied the hydrodynamic attributes, and showed the favorable performance of the structure. Focusing on the structural design aspects of the Delta, [11] presented a primary strength assessment tool, developed for the Delta. This study focuses on the sheltered basin and examines its operability as a service port and, as an expansion to the mentioned hydrodynamic study, we constructed an analysis procedure so it may be utilized as a design evaluation tool. The study aims to assess by practical engineering methods the performance of the sheltered basin serving the VLFS. While the same practice is common to the development of harbors, by means of numerical or physical agitation models, we here applied it to assess an innovative concept of VLFS, to extend the use of the open sea.

For the mooring design [10], as well as for the structural design of the VLFS [11], we applied extreme storms. However, for the operability aspects, as the downtime is in the order of few percent, we indicated the limit storms that will disturb the operability, which are storms that statistically appear every year. This is a common practice for harbors design, where the stability of the breakwaters is tested for extreme storms (stability models), while the operability is tested for storms that statistically appear every year (agitation models) [12]. We followed this practice for the VLFS. For the storms that statistically dominate the downtime, the representation of a real sea by a spectrum of nonbreaking waves is practical and valid.

The hydrodynamic performances of the Delta are fundamental to the operability and feasibility of the concept. While the motion attributes of the hull were fairly examined in previous work, as presented by [10], under severe wave conditions, the motion response of the structure was extremely low. The results of the application of the comfort evaluation criteria, presented in [10], clearly demonstrated that low motion response. In addition, the time-domain analysis of the moored structure, presented in [10], showed that under severe oblique waves, the structure maintained its preferable position, oscillating within acute angle while facing nearly head-on to the incoming waves. Presented in [10] as well, the operability of the sheltered basin was studied in terms of wave agitation parameters alone. This work expands the operability research of the sheltered basin by conducting a hydrodynamic study of a typical ship moored to the Delta under severe sea conditions. As a significant part of the methodology, developed for the advancement of the Delta concept, the preliminary design of the mooring system aims to provide an initial frame of reference for basic evaluation and qualitative measure. The behavior of the system (the interacting Delta VLFS and moored ship) was simulated in the time domain, enabling the modeling of the mooring system with realistic nonlinear response characteristics. Such a simulation fairly represents the actual motion of the berthed ship and allow the evaluation of the sheltered basin in terms of its operability as the service port of the Delta. While, at this stage, we implemented the mooring analysis for the evaluation of the design that was hydrodynamically optimized in early stages, on later design stages (as more specific requirements emerge), the procedure may be readily used for other geometrical configurations as well.

Following the introduction, Section 2 presents the theoretical background, the analysis methods, the analysis tools, and provides the system’s description, evaluation criteria, and the load cases. Section 3 details the results and, finally, Section 4 presents a discussion and conclusions.

2. Materials and Methods

2.1. Analysis Method

The motion response to waves is fundamental to most design stages of a VLFS and is at the base of many of the operability and maintenance considerations [13,14,15]. In this study, the analyzed hulls have substantial dimensions, and the hydrodynamics is characterized by a large Reynolds number (ratio of inertia to viscous forces). Therefore, we may neglect the viscous forces and use potential flow theory for the resolution of the wave–(large) body interaction problem [16]. Several methods may be implemented for the study of dynamic fluid structure interaction systems: the finite volume method [17], finite-element-based arbitrary Lagrangian–Eulerian method [18], smoothed particle hydrodynamics [19], and hybrid methods [20,21]. However, the BEM practical technique is implemented extensively for the research and design of VLFS [22]. To analyze hulls, such as that of the Delta, at zero forward speed, it is common to use the boundary element method (BEM). Relying on potential flow theory, the BEM is used for the numeric resolution of the linearized wave–structure interaction problem. The calculation of the first-order motions of large floating bodies under regular waves are almost exclusively obtained using the BEM [23,24]. In such procedures, second-order loads and motions, or viscosity effects, may be approximated by postprocessing the linear solution [25]. The real sea emulation is conducted by combining the first-order response with a spectral representation of real conditions [24,26,27,28,29]. While it is obvious that the motion response of a floating structure under wave conditions is governed by the dynamic wave–structure interaction, it is important to note that it may govern the structural response as well. Specifically, in the field of VLFS, the hydroelastic response of flexible structures such as the pontoon of a VLFS is a major concern as it governs both the motion and the structural response of the structure [30]. As presented by [31,32,33], for example, the dynamic coupling effect of the interaction between the structural response and the wave loading may have a significant amplification/deamplification effect on the system. However, as presented in [10], we conducted our research under the assumption that in the case of the Delta, such effects are relatively low and may be neglected.

As presented by [34,35,36], the ANSYS AQWA (BEM) (Ansys Inc., Canonsburg, PA, USA) software tool provides a high accuracy and valid description of the motion characteristics of floating structures. Therefore, the study consisted in employing AQWA for the hydrodynamic analysis and time-domain simulation of the system. AQWA-LINE (Ansys Inc., Canonsburg, PA, USA) solves wave–structure interaction linear problems to obtain the hydrodynamic database at a representative range of wave periods. AQWA-LIBRIUM (Ansys Inc., Canonsburg, PA, USA) evaluates the equilibrium state of the system applied to the steady forces, and, finally, AQWA-DRIFT (Ansys Inc., Canonsburg, PA, USA) simulates the time-domain response. The simulation emulates real sea conditions, accounts (approximately) for the second-order slow-varying wave loads and enables the modeling of a nonlinear mooring system in the time domain. The formulation of the wave–structure interaction problem as well as the mathematical description of the numeric solution and its postprocessing for the time-domain simulation are detailed in [37].

2.2. Conceptual Framework

2.2.1. Model Description

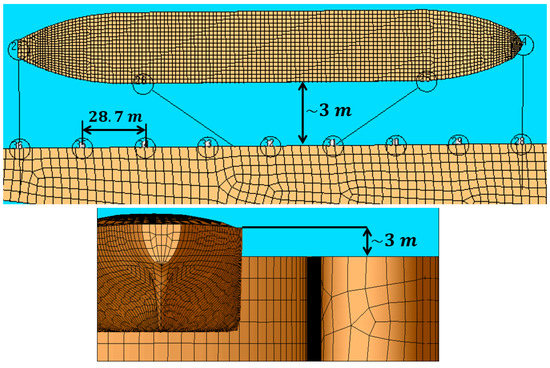

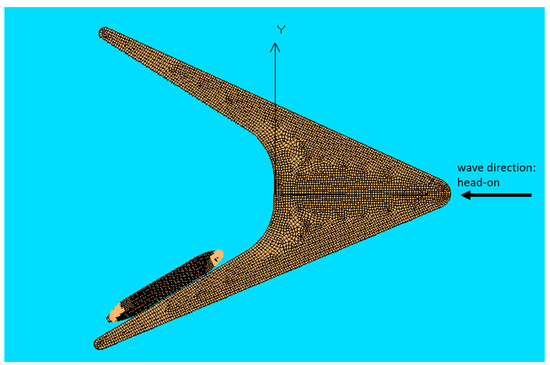

As presented in Figure 1 and Figure 2, the system consists of the Delta VLFS, anchored to the seabed via a single point mooring (SPM) system, and a tanker, berthed along the side hull in the sheltered basin. As presented by [10], the SPM system assures that the Delta’s position is maintained close to the optimal head-on direction to the waves, with small variations. Therefore, to reduce the transition response, we specified the incoming wave initial direction to the head-on to bow direction. As a result, the calculation of the equilibrium position by AQWA-LIBRIUM was significantly shortened.

The layout of the mooring system (see Figure 2) of the tanker to the Delta berth, followed the Oil Companies International Marine Forum (OCIMF) recommendations [38]. At the initial position, the vertical angles of all lines were less than $5°$ and so were the horizontal angles of the spring lines. The breast lines were, initially, perpendicular to the berth and the ship and all the lines were approximately 40 m long (upstretched). The fenders were spread evenly along the berth, 28.7 m apart.

Figure 3 and

Table 1. The Delta VLFS—additional dimensions.

Length over all (parallel to the x axis in Figure 3)	611 m
Breadth over all	558 m
Depth	50 m
Draft	20 m
displacement	~1,600,000 ton

present the geometry and main dimensions of the Delta VLFS as modeled for the mooring analysis. This geometry results from a previous design and analysis of the hydrodynamic and structural aspects [10,11].

The ship model was of a generic tanker (or bulk carrier) in weight and dimensions that are typical to the large vessels that we expect to berth at the Delta basin.

Table 2. Ship’s specifications.

Length over all	230 m
Breadth	32.5 m
Depth	19.85 m
Draft	14 m
Displacement	84,000 ton

presents the ship’s general dimensions and displacement. The natural periods of the Delta in the vertical Degrees of Freedom (DOFs) are presented in

Table 3. Natural period of the Delta and the berthed ship.

DOF	Delta (s)	Ship (s)
Heave	20.1	10.1
Roll	13.6	12.9
Pitch	13.6	9.0

.

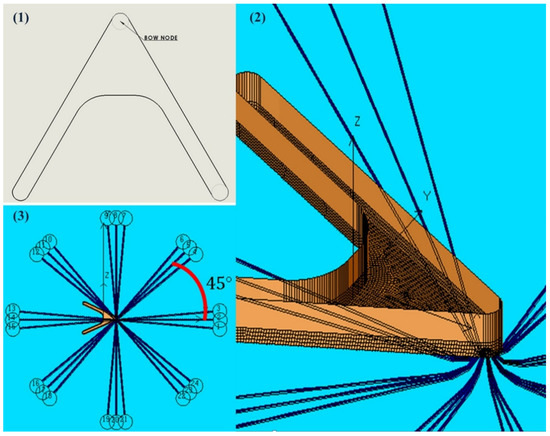

The Delta, anchored at 50 m water depth, was moored to the seabed by a SPM system, consisting of 24 catenary lines of 3 segments each, as shown in Figure 4.

Table 4. Specification of the Delta’s SPM mooring lines.

		Segment 1 (Ground): Chain K4 Studless	Segment 2: Polyester Cable	Segment 3 (Top): Chain K4 Studless
Length	m	50	1584	250
Diameter	mm	122	223	122
Mass	kg/m	326.0	31.8	326.0
Weight in water	N/m	2429.1	78.5	2429.1
Stiffness AE	kN	1,327,000	384,600	1,327,000
Mean braking load (MBL)	kN	14,360	13,730	14,360

specifies the mooring lines characteristics. For elaborations on this mooring system, see [10].

Following the Permanent International Association of Navigation Congresses (PIANC) [39] and OCIMF [38] recommendations, the berth mooring system consisted of 4 linear mooring lines and 9 fenders. Figure 2 presents the layout of the lines and fenders of the berth. For the study of the system, we considered a relatively stiff and a more compliant setup. For convenience, load cases in which the compliant system was used are marked with “c”, and load cases where the stiff system was used are marked with “s”.

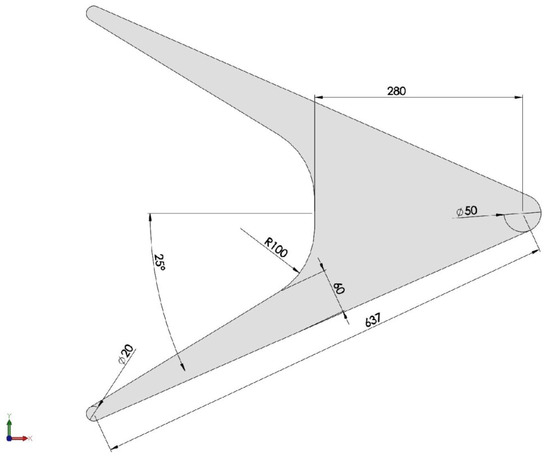

For both setups, we considered a Super Cone Fenders, SCF2500 (Trelleborg Marine System Company, Trelleborg, Sweden) [40]. Figure 5 and Figure 6 present the stiffness curves and the polynomial representation of the complaint and stiff fenders, respectively.

The fenders specifications were:

• SCN2500 F2.2
  • Length: 2500 mm;
  • 100% energy: 6888.6 kN/m (72% deflection);
  • 100% reaction force: 4882 kN (35% and 72% deflection);

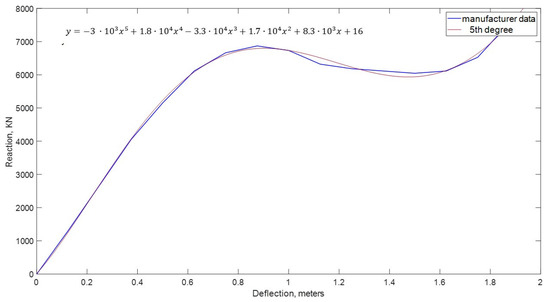

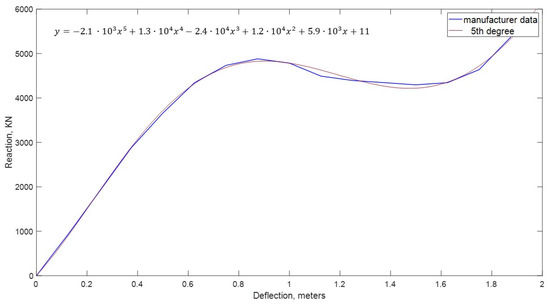

  • Stiffness: see Figure 5 for stiffness curve and its polynomial representation.
• SCN2500 F3.1:
  • Length: 2500 mm;
  • 100% Energy: 9151 kN/m (72% deflection);
  • 100% reaction force: 6871 kN (35% and 72% deflection);
  • Stiffness: see Figure 6 for stiffness curve and its polynomial representation.

The mooring lines were modeled as four single linear lines of the following specifications:

• Compliant system:
  • Length: ~40 m;
  • Stiffness: 7420 kN/m;
• Stiff system:
  • Length: ~40 m;
  • Stiffness: 10,440 kN/m.

For the evaluation of the results, we considered an 80 mm polyester rope with no tail (Superline Polyester by the English Braids company [41]). The specifications of the rope are:

• • Diameter: 80 mm;
  • Stiffness: 931 kN/m;
  • MBL: 4473 kN.

While the same type of rope was used for both systems, we considered for each line 7 ropes in parallel for the compliant (“c”) system and 10 ropes in parallel for the stiff (“s”) system.

For the analysis, we applied sea conditions typical to severe weather from the East Mediterranean Sea. Such wave conditions are at the upper 6th percentile of annual events expected in the region. The real sea conditions were represented by the Joint North Sea Wave Project (JONSWAP) spectrum.

The significant wave heights and peak periods were:

• • ${\mathrm{H}}_{\mathrm{mo}}=2\mathrm{m}\left({\mathrm{T}}_{\mathrm{p}}=7.71\mathrm{s}\right)$, exceeding probability: 6%
  • ${\mathrm{H}}_{\mathrm{mo}}=2.5\mathrm{m}\left({\mathrm{T}}_{\mathrm{p}}=8.62\mathrm{s}\right))$, exceeding probability: 3%
  • ${\mathrm{H}}_{\mathrm{mo}}=3\mathrm{m}\left({\mathrm{T}}_{\mathrm{p}}=9.44\mathrm{s}\right)$, exceeding probability: 2%
  • ${\mathrm{H}}_{\mathrm{mo}}=3.5\mathrm{m}\left({\mathrm{T}}_{\mathrm{p}}=10.20\mathrm{s}\right)$, exceeding probability: 0.5%

The probabilities were based on long-term wave statistics [42].

2.2.2. Evaluation of Operability Criteria

The acceptable motions of the moored ship were in accordance with the PIANC [43] recommendations, presented in

Table 5. Acceptable motion for moored ships [43].

Ship Type	Cargo Handling Equipment	Surge (m)	Sway (m)	Heave (m)	$\mathbf{Yaw}(°)$	$\mathbf{Pitch}(°)$	$\mathbf{Roll}(°)$
Container vessels	100% efficiency	1.0	0.6	0.8	1	1	3
	50% efficiency	2	1.2	1.2	1.5	2	6
Bulk carriers	Cranes	2.0	1.0	1.0	2	2	6
	Elevator/bucket-wheel	1.0	0.5	1.0	2	2	2
	Conveyor belt	5.0	2.5		3
Oil tankers	Loading arms	3.0	3.0
Gas tankers	Loading arms	2.0	2.0		2	2	2

.

The loads applied to the mooring system were evaluated in terms of permissible loads (i.e., tension in cables and compression in fenders).

As recommended by OCIMF [28], the maximal tension in any single mooring line should not exceed the following level of the maximal breaking load (MBL):

• • 55% MBL for wires;
  • 50% MBL for synthetic ropes;
  • 45% MBL for polyamide.

Unlike the case of the mooring lines, the fender’s manufacturer does not specify the maximal permissible load or deflection values. However, for a qualitative analysis such as this, reasonable values may be deduced from the provided data. For the SCN fenders, the installation requirement is to provide clearance for deflection of 75% of the nominal length. The manufacturer also specifies that 100% of the impact energy (nominal) is absorbed at about 72% deflection.

2.2.3. Load Cases

Table 6. Load cases specifications.

Compliant System (c)		Stiff System (s)
Load Case	${\mathbf{H}}_{\mathbf{m}\mathbf{o}}\left(\mathbf{m}\right)$	Load Case	${{H}}_{\mathbf{m}\mathbf{o}}\left(\mathbf{m}\right)$
c1	2	s1	2
c2	2.5	s2	2.5
c3	3	s3	3
c4	3.5	s4	3.5

presents the load cases where the ‘c’ indicates the compliant mooring system and ‘s’ indicates the stiff mooring system.

3. Results

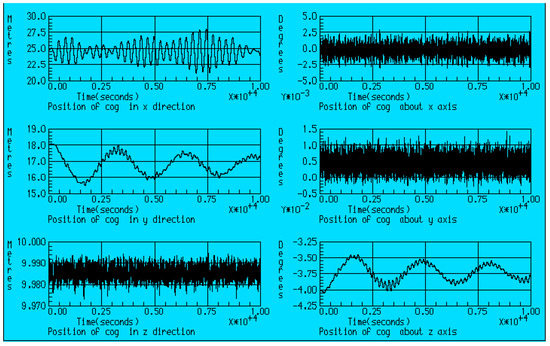

Typical to all load cases, the Delta’s position in load case c2, under the incoming waves is presented in Figure 7. As expected, in all load cases, the structure oscillates within an acute angle to the incoming waves. Due to the asymmetry of the system, caused by the ship berthed to one side of the Delta, the point of equilibrium of the motion is not along the symmetry axis of the Delta.

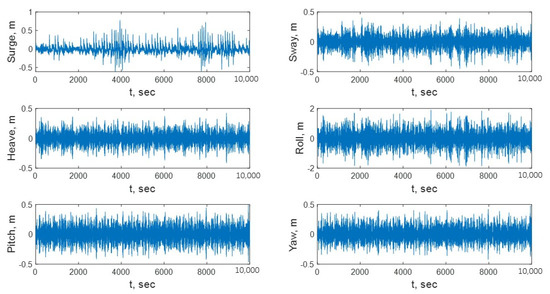

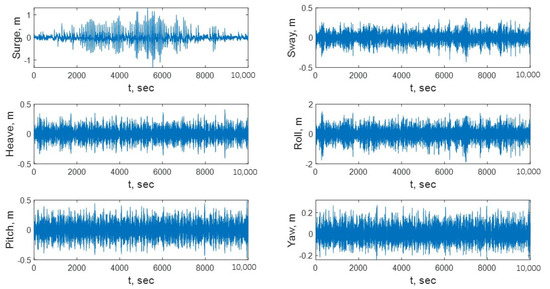

The wave frequency position of the berthed ship along the 10,000-s simulations of the c2 and s2 load cases, are presented in Figure 8 and Figure 9, respectively. The surge and sway motion are relative to the motions of the delta and the heave and rotational motions are absolute. However, in such conditions, the heave and rotational motions of the Delta are minimal and, therefore, negligible. The frequency position of the ship in all load cases are presented in Appendix A.

Table 7. Maximal motions in each degree of freedom per load case.

$\mathbf{Load}\mathbf{Case}\left({\mathbf{H}}_{\mathbf{m}\mathbf{o}}\right)$	Surge (m)	Sway (m)	Heave (m)	$\mathbf{Yaw}(°)$	$\mathbf{Pitch}(°)$	$\mathbf{Roll}(°)$
c1 (2)	0.58	0.47	0.38	0.38	0.43	2.45
c2 (2.5)	1.04	0.84	0.83	0.85	0.95	3.68
c3 (3)	2.94	1.18	1.25	1.78	1.73	6.60
c4 (3.5)	14.31	1.26	1.70	3.43	2.39	7.63
s1 (2)	0.79	0.35	0.38	0.33	0.42	2.07
s2 (2.5)	2.49	0.73	0.82	0.54	0.96	3.14
s3 (3)	4.187	0.71	1.25	0.87	1.74	4.07
s4 (3.5)	11.35	1.02	1.67	1.55	2.49	5.63

presents the maximal motions (for a relatively high sea state duration of 10,000 s) of the moored ship in each load case.

Table 8. Maximal load on the mooring lines and fenders per load case.

$\mathbf{Load}\mathbf{Case}\left({\mathbf{H}}_{\mathbf{m}\mathbf{o}}\right)$	Acceptable Tension on Lines (% of MBL)	Max. Tension on Breast Line (kN)	% of MBL	Max. Tension on Spring Line (kN)	% of MBL	Acceptable Load on Fenders (kN)	Max. Compression on Fender (kN)	% of Max. Reaction Force
c1 (2)	50	4930	16	2301	7	4882	2733	56
c2 (2.5)	50	8859	28	2726	9	4882	4630	95
c3 (3)	50	18,455	59	5542	18	4882	4824	99
c4 (3.5)	50	29,772	95	12,515	40	4882	9789	200
s1 (2)	50	5297	12	3704	8	6871	2984	43
s2 (2.5)	50	7969	18	4737	11	6871	5205	76
s3 (3)	50	12,442	28	6348	14	6871	6910	101
s4 (3.5)	50	19,041	43	11,992	27	6871	7515	109

presents the maximal tension in the mooring lines and the maximal compression in the fenders for each load case.

The acceptable load cases, in terms of motions, for each ship type and cargo handling equipment were:

• Container vessel
  • 100% efficiency: c1, s1;
  • 50% efficiency: c1, c2, s1;
• Bulk carriers
  • Cranes: c1, c2, s1;
  • Elevator/bucket-wheel: -;
  • Conveyor belt: c1–c3, s1–s3;
• Oil tanker
  • Loading arms: c1–c3, s1, s2;
• Gas tankers
  • Loading arms: -.

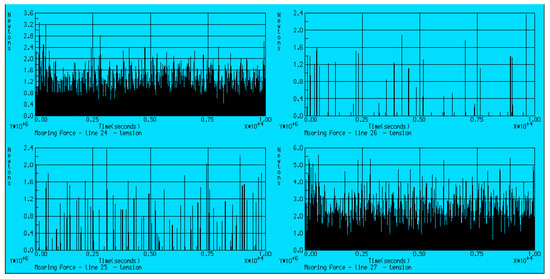

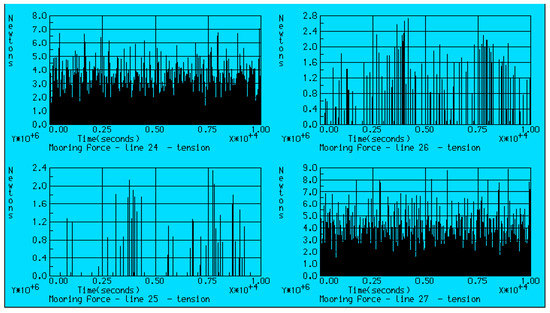

The tension loads applied on the berths’ mooring lines in load case c2 are presented in Figure 10. While the maximal load varies, the general trend is similar in all load cases. The highest load is applied on the breast lines, from which the stern line is the most loaded (line 27 in Figure 10). From the spring lines, the highest load is applied on the line closer to the stern (line 26 in Figure 10).

In terms of fender loading (compression), for significant wave heights of up to 2.5 m (load cases c1, c2 and s1, s2), the maximal reaction force does not reach the maximal nominal values of the fenders and, therefore, the maximal deflection is less than 35%.

For the assessment of the mooring line tension, we considered for each line 7 ropes for the compliant (“c”) system and 10 ropes for the stiff (“s”) system. As can be seen in Table 7, the 50% MBL is reached for wave heights of over 2.5 m in the case of the compliant system and, in the case of the stiff system, the maximal tension is within acceptable limits for all load cases.

4. Discussion and Conclusions

The wave conditions considered in this study were selected to obtain the operability limits, in order to present the operability of the VLFS that forms a service basin at the selected design site. Indeed, the results are representative of the East Mediterranean Sea, while the method of assessment is general.

As investigated by [44,45,46] and others, the analysis of the effects of important load mechanisms, such as wave breaking, slamming loads, and two-phase flow, directly influences the design of marine structure. While treating these subjects was out of the scope of this analysis they will be addressed in later stages of the design.

The modeling of the mooring system was simplified into the very basics: compression bearing fenders and tension bearing (linear) ropes. As such, unlike an actual mooring system, the simplified system offered no damping mechanisms (e.g., material damping, friction) that can reduce the risks of resonant effects and suppress loads and motions. For example, while the surge peaks at the 4000 s and 8000 s can be explained as a dynamic reaction to the Delta’s surge motion, that peaks approximately at those instances as well (see Figure 7), still, the amplitude of the ship’s motion may well be affected by a resonance response. However, considering that such phenomena is directly related to the specific ship dimensions, its dimension-to-wavelength ratio [47], and to the mooring system specification, it is an important matter to attend to at later stages of the more detailed design However, as it is, the study indicates that for most types of ships and cargo-handling equipment, the sheltered basin provides adequate protection and allow for safe berthing conditions for waves conditions of up to $H_{\mathrm{mo}}=2.5$ m (operability during 95% of the year). In some cases, higher wave conditions are acceptable as well.

Providing additional assurance to the validity of the analysis, we conducted a sensitivity test in which we forced the incoming wave direction to a different, less acute, angle of about 15 degrees. As can be seen in Figure 11, the applied tension on the mooring lines is even lower than in the more acute angle incoming direction presented in Figure 10. Therefore, we are confident in the validity of our findings.

We expect that a detailed design and optimization of the mooring system may improve the operability of the sheltered basin. First, such design will include modeling the material damping of the fenders and the friction between the moored ship and the fenders, which will reduce the loads and motions as well as reduce resonant effects. Second, the design will include a more specific selection of the mooring equipment. Adjusting the mooring system specifically to each expected ship type, size, or cargo-handling operation, will improve its performance and assure the expected minimal downtime operability of the sheltered basin. In addition, if required, a structural optimization of the hull, oriented towards maximizing the basin’s performance will surely produce significant improvements as well.

The study clearly points towards a general trend in the mooring line tension. The results show that the highest loads are applied on the breast line and the loads applied on the spring lines are lower. However, as all loads are practically in the same order of magnitude, especially in the case of the bow and stern division, we cannot recommend optimization measures regarding the rope selection or division between the mooring lines.

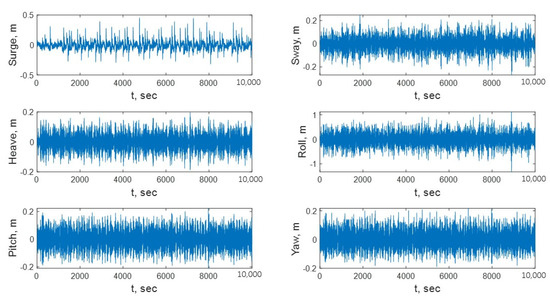

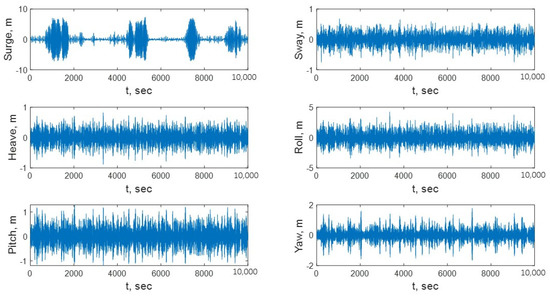

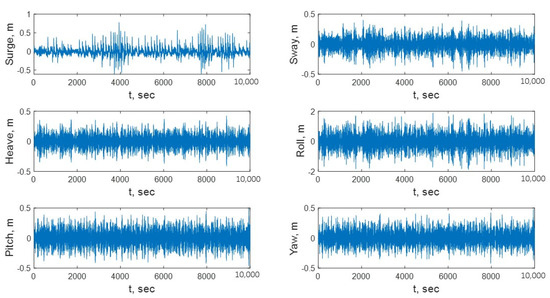

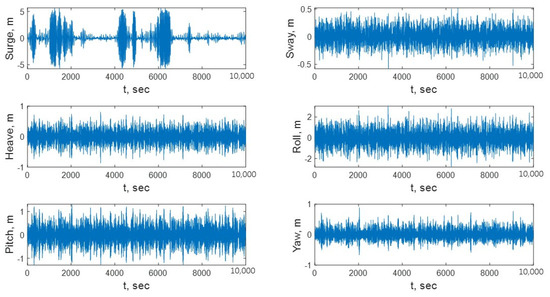

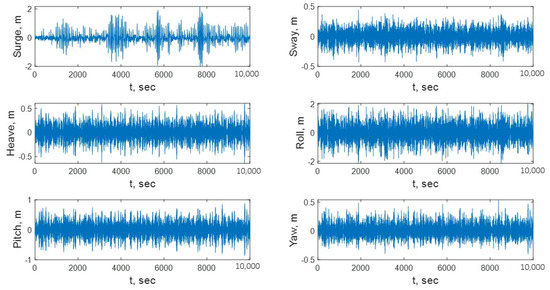

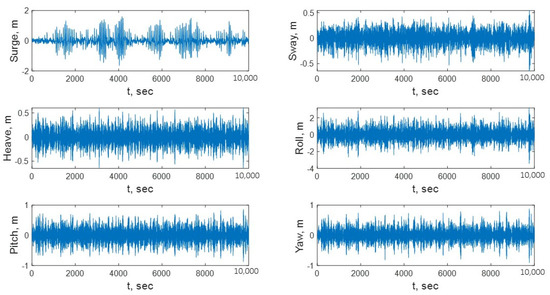

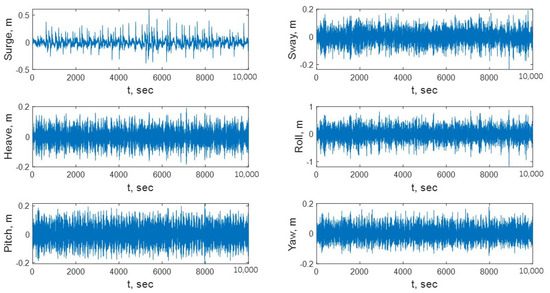

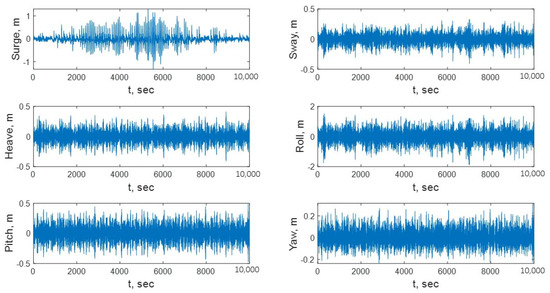

As presented in the appendix figures, the compliant system’s surge increases with the wave height. Since the surge DOF of the moored ship is dominated by the second-order drift loads, the nonlinear growth of the surge amplitude with the increase of the wave height is expected. In addition, for wave heights of up to 3 m the surge motions are much lower with the compliant mooring, while the sway and yaw motions are lower with the stiff mooring. As, typically, the surge is the most critical, we conclude that the compliant mooring is more efficient.

As expected and practical, the vertical movements (heave, roll, pitch) are not considerably affected by the mooring stiffness.

As a design tool, especially in early, preliminary stages, the application of the time-domain simulation using AQWA-DRIFT is practical and efficient. The evaluated results of the mooring system’s loads and the ship’s motion provide comparable numerical measures to the basin’s operability and may be readily used as an integral part of the design methodology of the Delta concept.
