A Comparative Study on Energy Consumption Forecast Methods for Electric Propulsion Ship
Abstract
:1. Introduction
2. Methodology

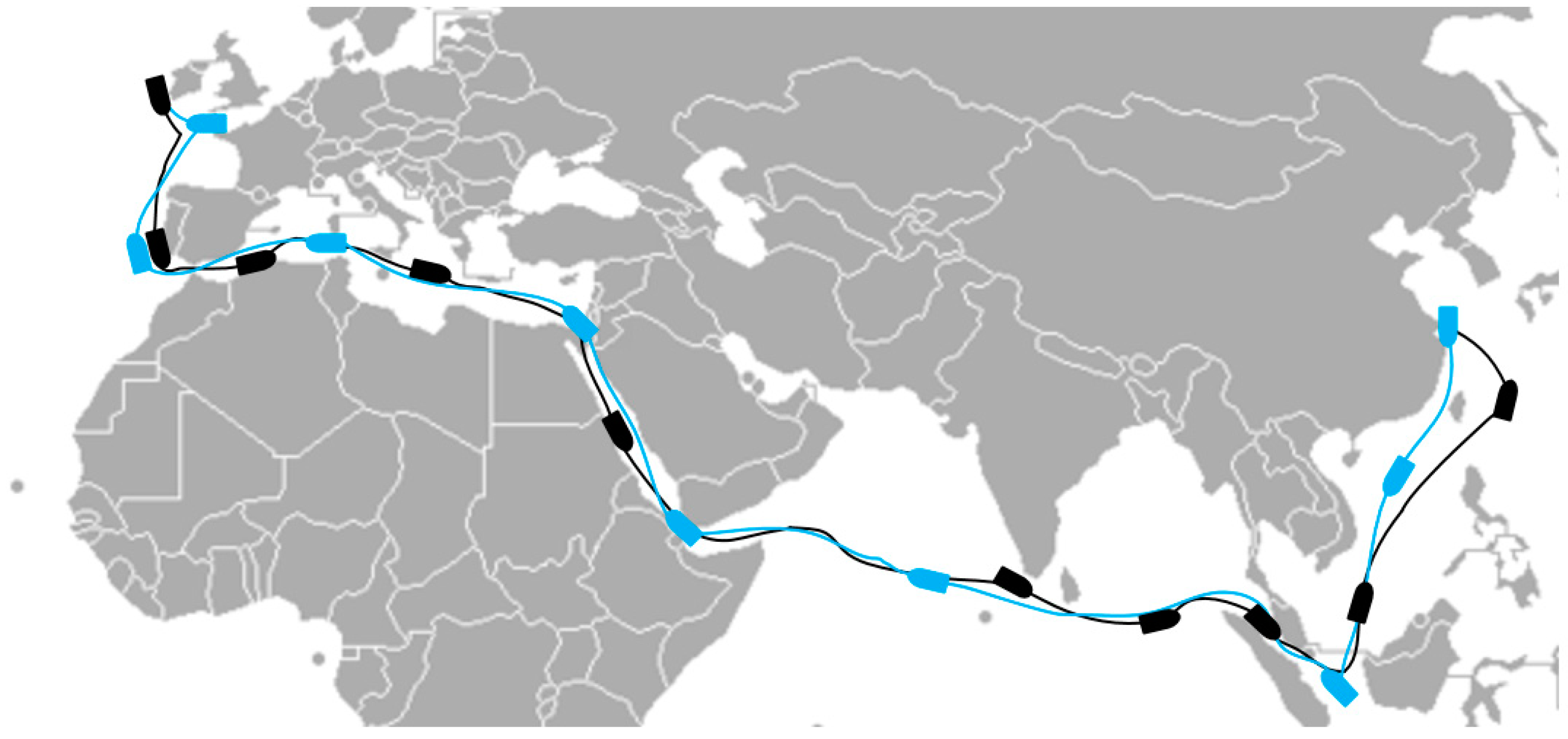

2.1. Dataset Acquisition
2.2. Modeling Methodologies

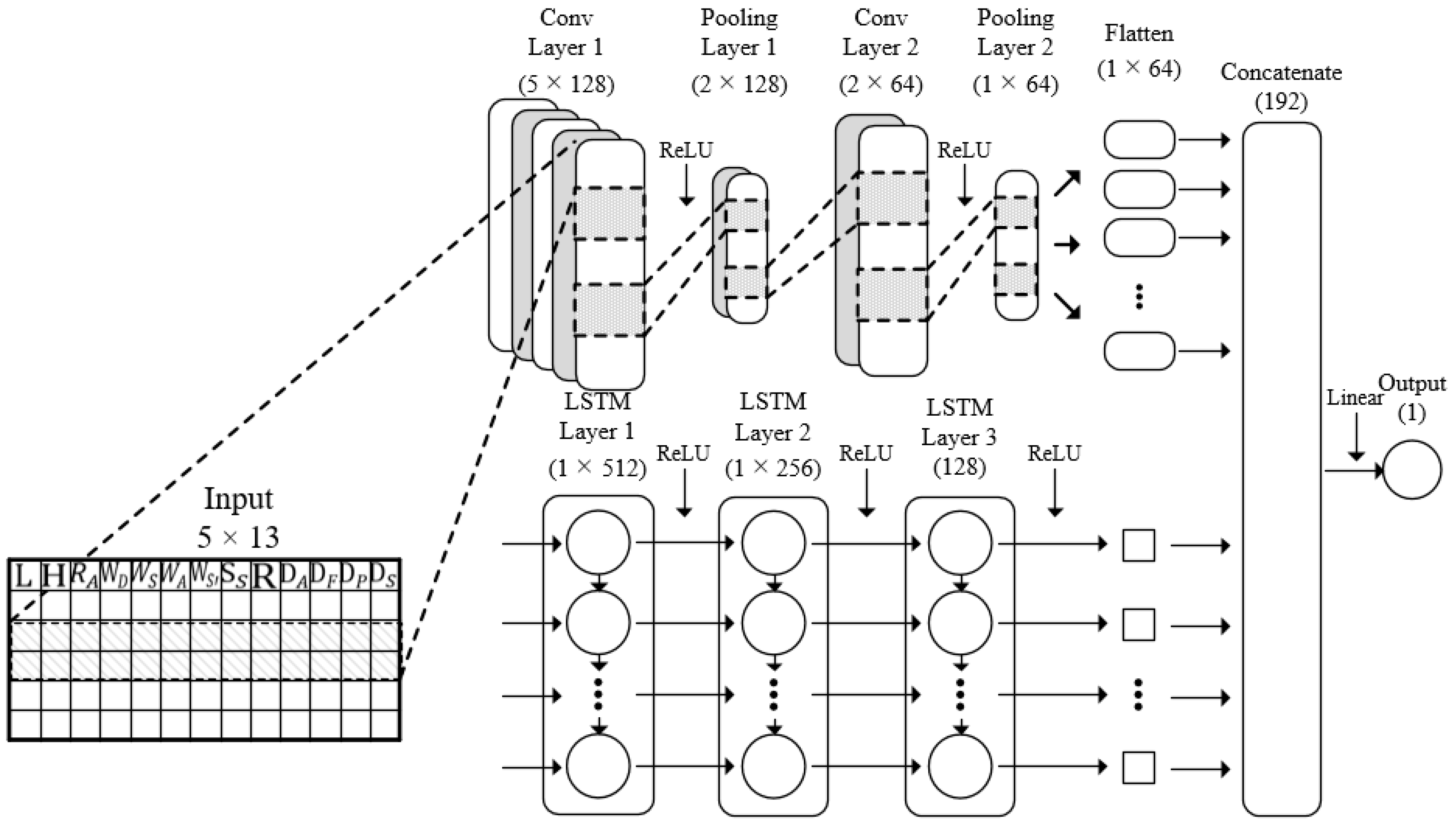

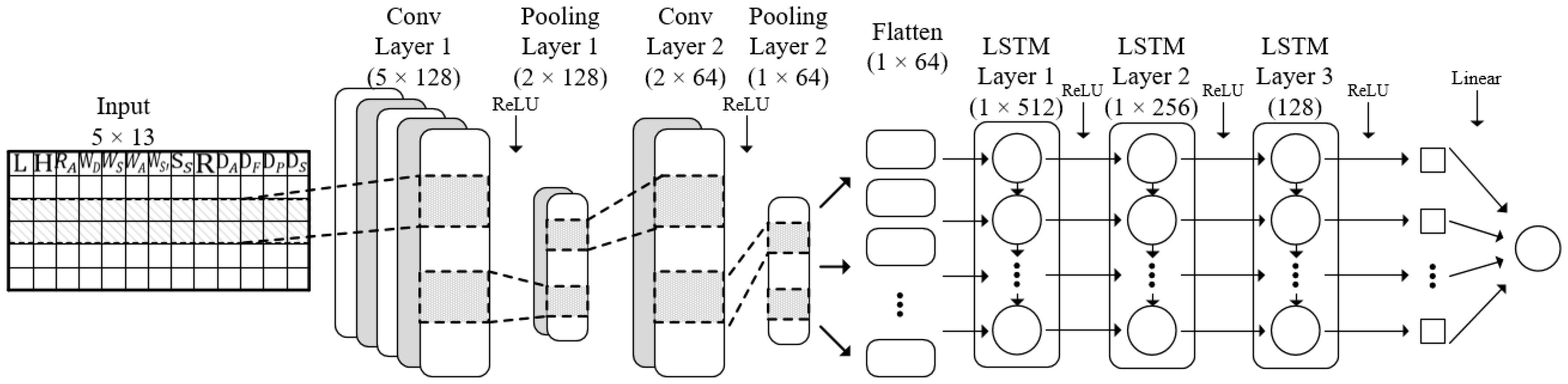

2.2.1. CNN–LSTM (Direct)

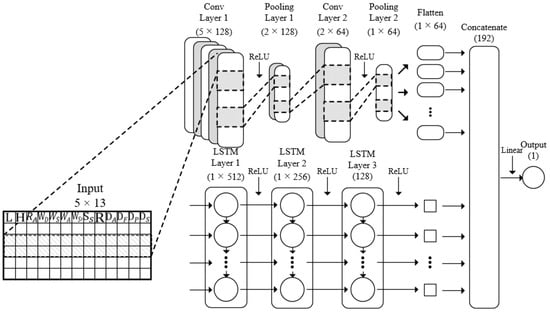

2.2.2. CNN–LSTM (Parallel)

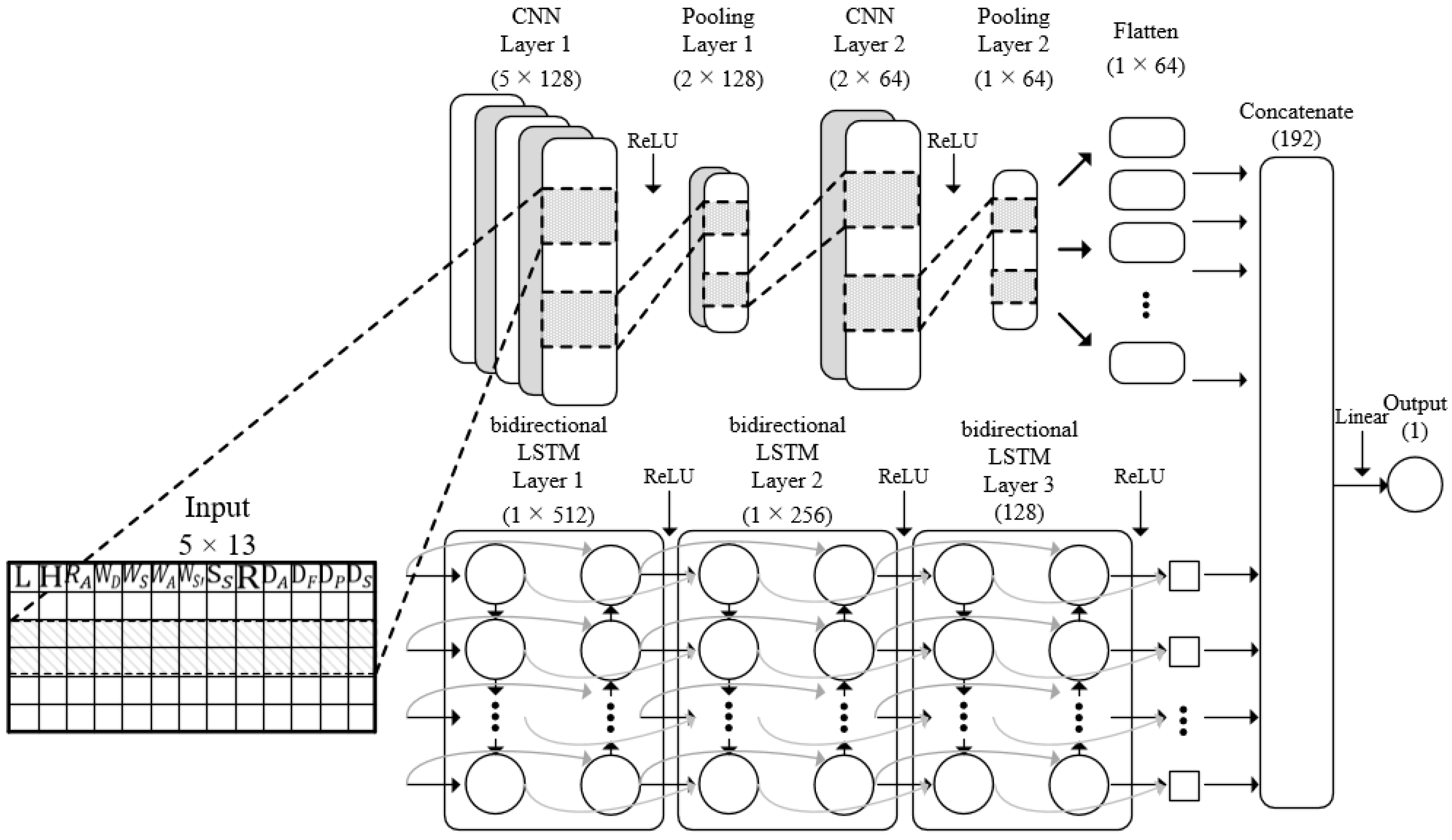

2.2.3. CNN–Bidirectional LSTM (Direct)

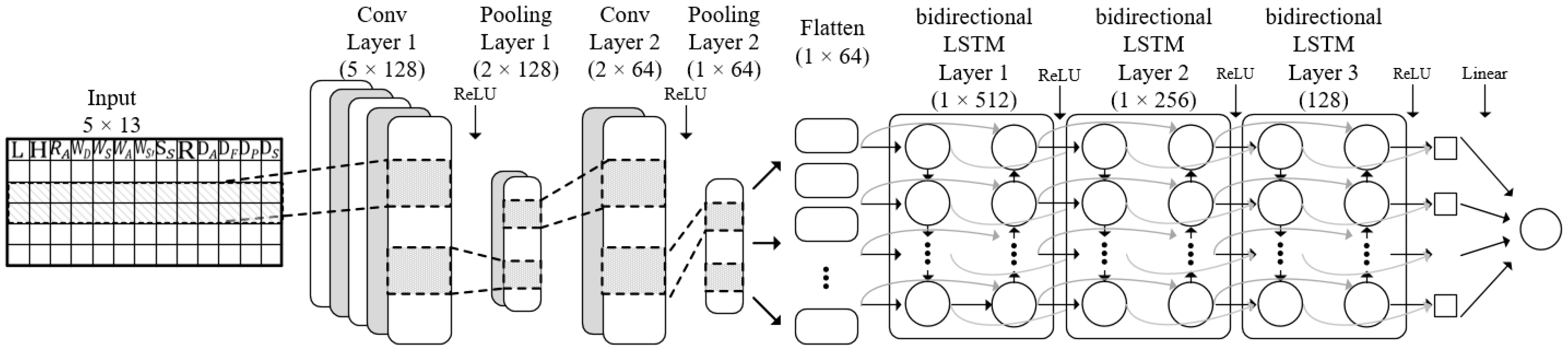

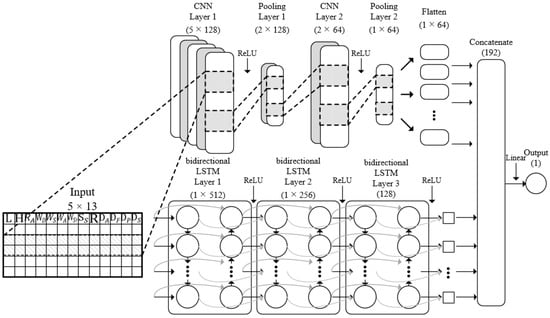

2.2.4. CNN–Bidirectional LSTM (Parallel)

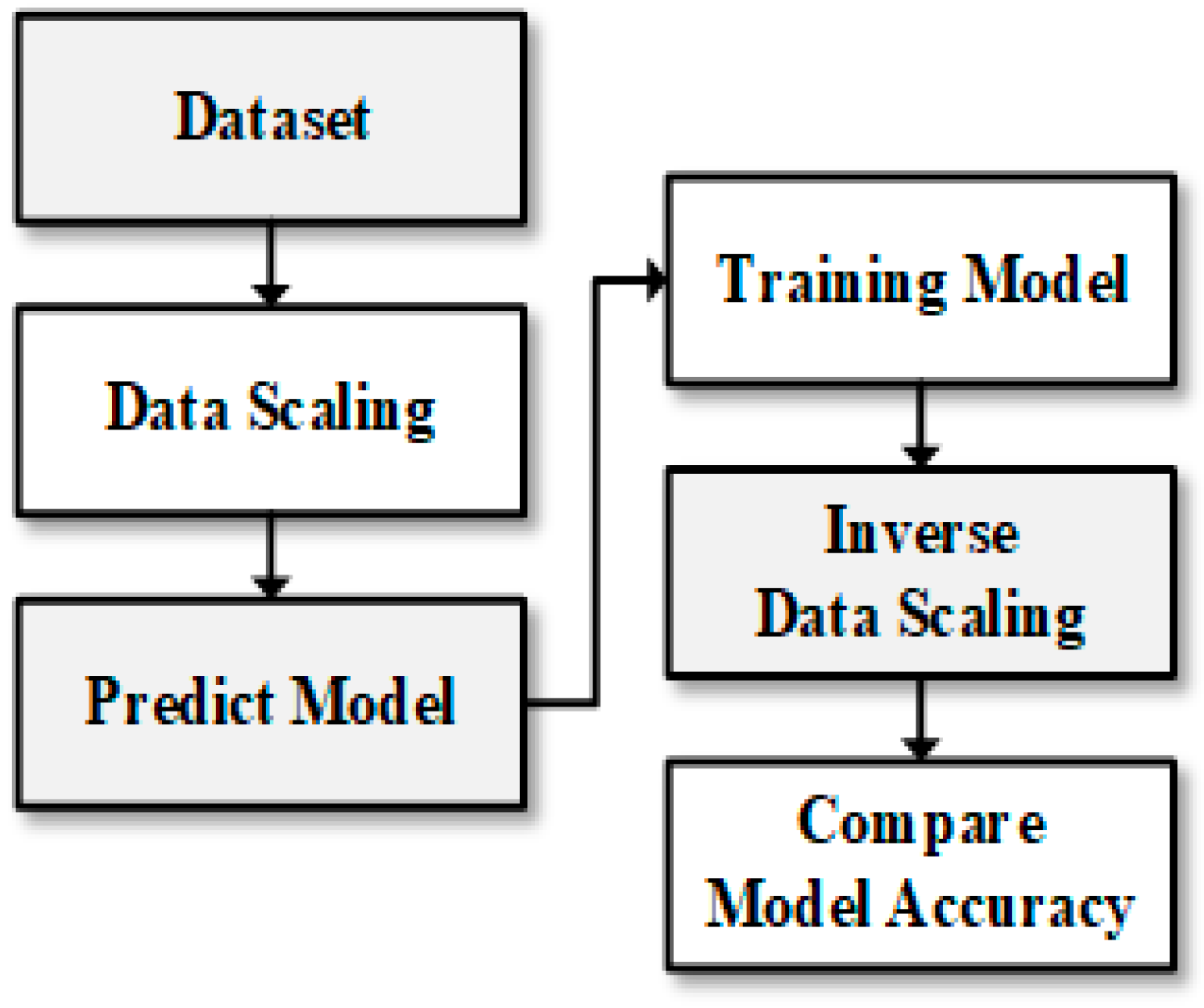

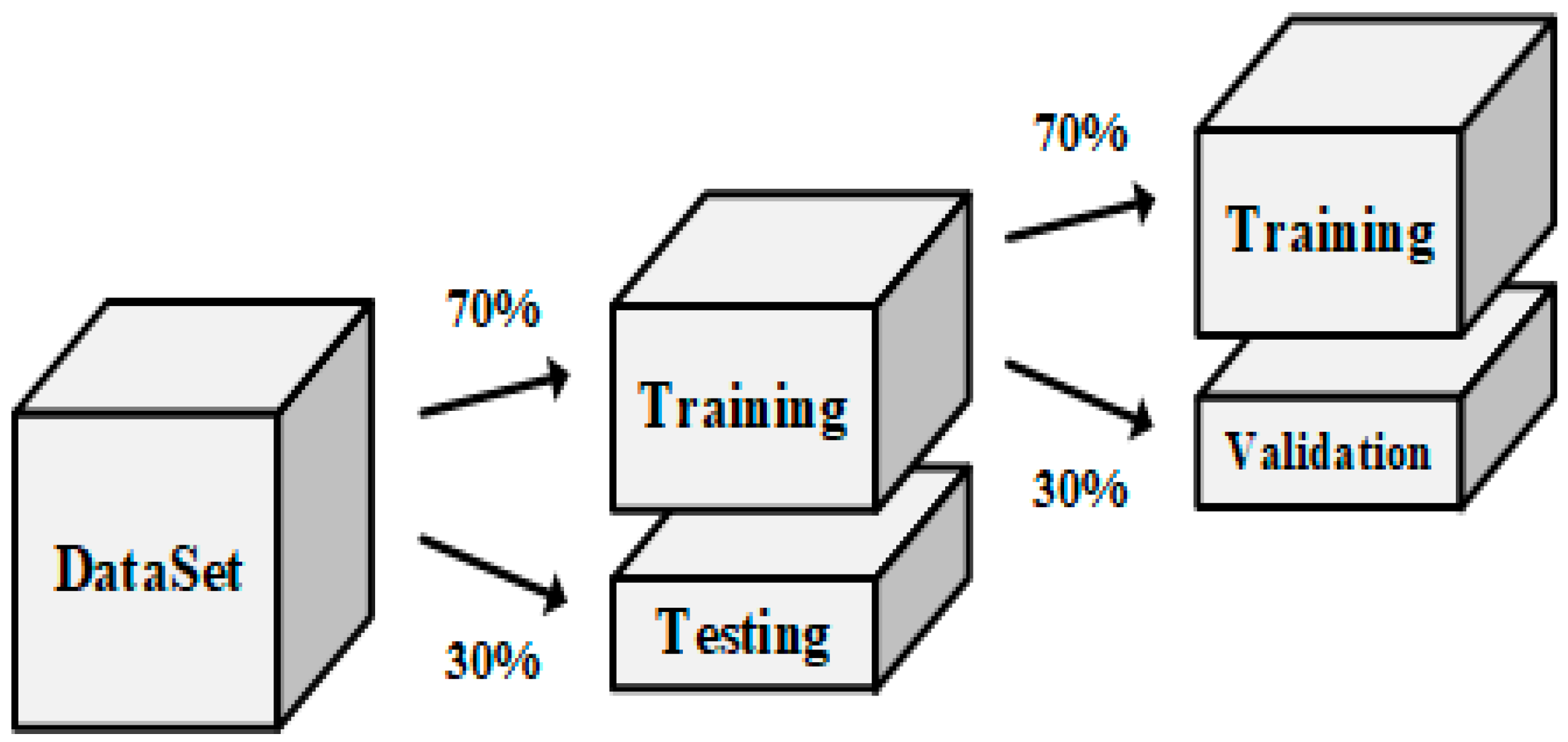

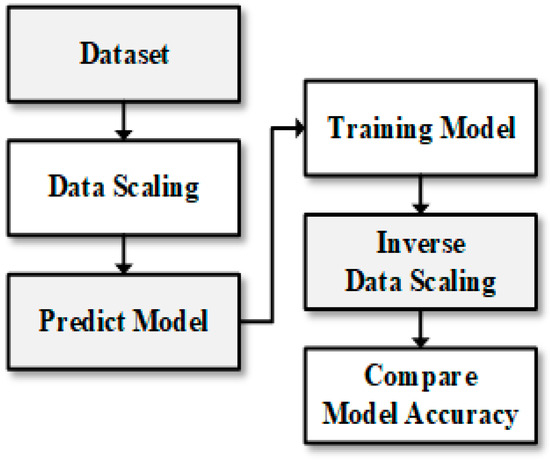

2.3. Experiment Procedures
2.4. Design Implementation of Models
3. Validation of Generalization Capabilities of the Models
- All data used in learning and assessing were equal, and learning was repeated five times.
- All LSTM and CNN hyperparameters were tuned equally for every model combination, and RMSE was used. The stored RMSE data distribution was used when comparing model performances.
- Statistical analysis was performed using the RMSE value obtained from repeated learning when comparing model performances.
- Average value: used as a value representing performance;
- Standard deviation: used as an indicator for assessing dispersion;
- Minimum value: used for estimating standard deviation;
- Quartile: use range of learning results set;
- Maximum value: used for estimating standard deviation.
- Evaluation functions such as precision or recall, which are used for classification, were not considered numeric data and used for learning. The proximity between the forecast and actual values was considered instead.

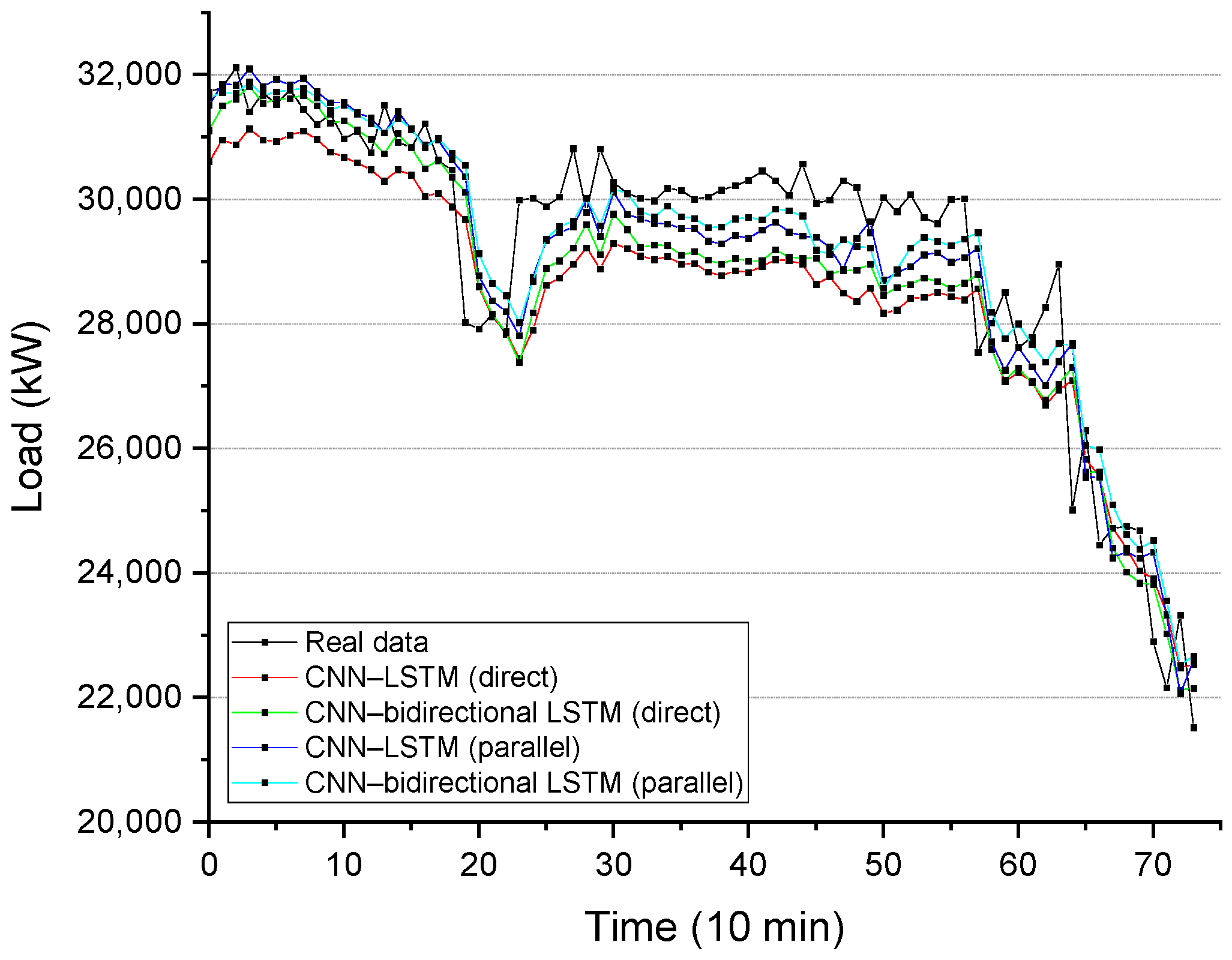

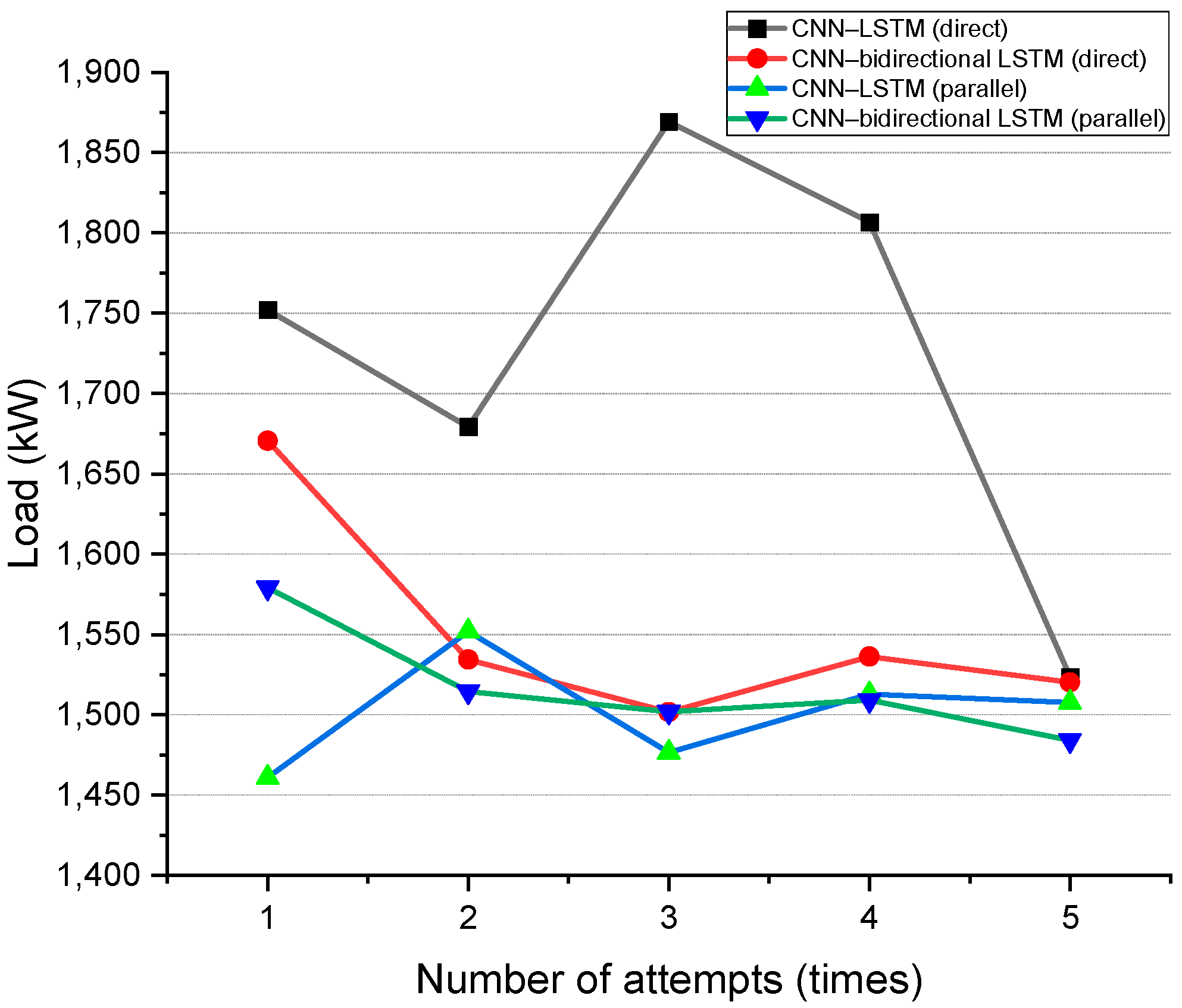

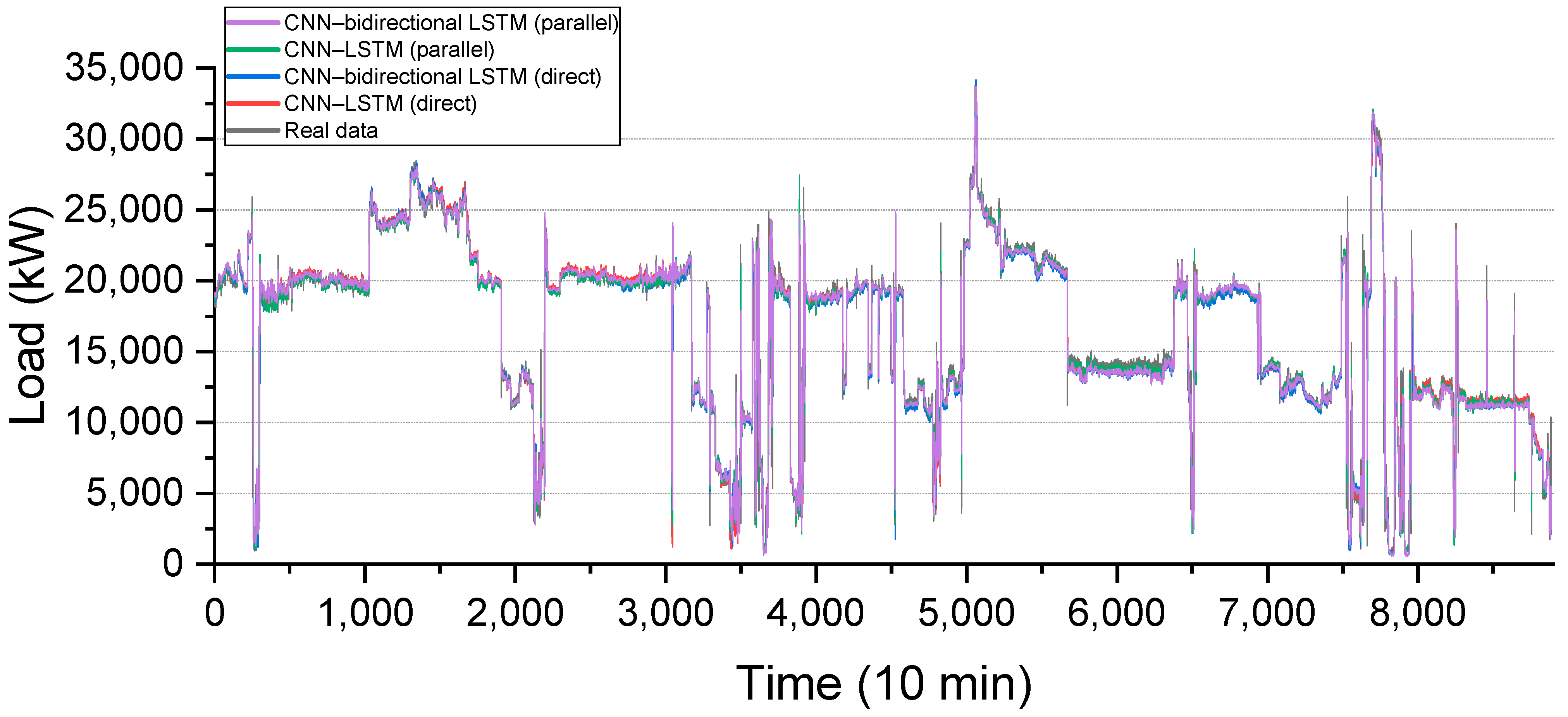

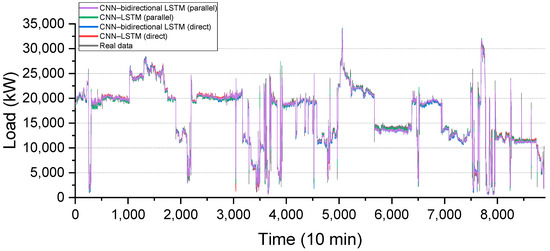

4. Results and Discussion
5. Conclusions
