Agriculture 2019, 9(4), 73; https://doi.org/10.3390/agriculture9040073

Article
A Multi-Parameter Approach for Apricot Texture Analysis
Agroscope Research Center, 1964 Conthey, Switzerland
*
Author to whom correspondence should be addressed.
Received: 4 March 2019 / Accepted: 3 April 2019 / Published: 9 April 2019

Abstract

:
Apricots have a short storage life principally caused by a rapid softening, which increases the sensitivity of the fruit to mechanical damage, and to the development of fungal diseases. The current methods to assess fruit firmness give limited information on the evolution and the mechanisms of softening. With the aim of developing novel strategies to better monitor fruit softening, a multi-parameter approach measuring textural properties was evaluated and compared to a reference method whose results are obtained from a unique parameter. ‘Goldrich’ and ‘Orangered®’ apricots were used in this study as representative cultivars with substantially different post-harvest behavior. The results showed that this multi-parametric approach allows detailed evaluation of the influence of storage conditions on apricots’ textural properties. The correlations found between firmness values measured by the standard method and the multiple textural parameters obtained by the compression and the puncture tests on the fruit flesh had r-values ranging from 0.6 to 0.78. Parameters related to the skin were, however, poorly correlated with the standard method, with r-values all below 0.4. Taken together, these results demonstrate that a multi-parameter approach allows a better understanding of how storage conditions influence the softening of apricots in a cultivar-specific manner.
Keywords:
apricot; storage; texture; puncture test; compression test

1. Introduction

Consumer awareness of the quality of fresh fruit has increased remarkably in the past few years and consequently so has their demand for high-quality products. Apricots are appreciated by consumers for their taste, sweetness and flavor and are the third most produced stone fruit after plums and peaches [1]. In 2016, the world production of apricots reached 3.9 million tons and Turkey was the most important country of production followed by Uzbekistan, Iran and Algeria [1]. In Switzerland, domestic production represents ca. 7500 tons and 3.4 kg per person are consumed per year [2]. The consumption of apricots in Switzerland has increased during the last 10 years [2] as well as the pressure for a high commercial quality.
Besides color and appearance, flavor (taste and aroma), and nutritional value which are important attributes describing fruit quality and influencing consumer choices [3], texture is a key parameter influencing not only the acceptance of the fruit by consumers but also their suitability to postharvest manipulations such as transport, storage, conditioning and, therefore, their final commercial value on the market. This is particularly true for apricot fruit. As soft fruit are more susceptible to mechanical damage and disease, apricots are usually harvested at an early stage of maturity when they are still firm in order to maximize storage life and to reduce losses caused by physical damages through the entire supply chain [4,5]. Harvesting at an early maturity stage is particularly achieved when fruit are intended to long shipping time. However, according to Bruhn et al. [6], consumers are generally not satisfied by the texture properties and the low flavor of such fruits. The consumption of apricots would be enhanced if they could be harvested at an optimal maturity stage corresponding to a typical flavor and a good texture corresponding to the consumer’s expectation [6].
Apricots are climacteric fruits [7] characterized by a rapid ripening and softening after harvest. This ripening process is highly influenced by ethylene, which displays a peak of production during the climacteric stage. An increase of respiration is also observed at the same time. The softening is cultivar dependent [8] and is highly influenced by maturity stage at harvest [9,10], storage conditions such as temperature and relative humidity, and storage duration [11]. In order to reduce firmness loss of apricots after harvest, storing fruit at low temperature is an efficient method [12]. Decreasing O2 levels and increasing CO2 levels in the atmosphere by keeping the fruit under modified or controlled atmosphere can increase the storage life of apricots [12,13]. Many studies also showed that 1-MCP treatment can help to maintain apricot quality after harvest [14,15]. All these postharvest methods influence directly the texture properties of the apricots by slowing down the physiological processes leading to softening.
New methods are needed to better characterize the texture of apricots and understand the evolution of this parameter after harvest, according to the cultivar and the pre- and post-harvest factors. Sensory analyses are the best methods to evaluate texture parameters influencing the appreciation of the fruit by the consumers, such as hardness, juiciness or elasticity [3]. Such approaches are, however, time consuming, require the participation of a trained sensory panel, and are therefore expensive to conduct. Instrumental methods that are objective and rapid have been developed in order to evaluate the texture properties of fruit. Several commercial instruments are available to measure fruit firmness. A frequently used technique is the puncture test, which consists in measuring the force required to push a cylindrical probe into the fruit to a determined depth. Some devices such as the AGROSTA®100 (formerly Durofel DFT 100, Agrosta Sàrl, Serqueux, France) or the Effegi (Facchini srl, Alfonsine, Italy) are manual and have been widely used for the measurement of apricot firmness [16,17,18,19]. Such instruments are easy to use and the result is obtained quickly, but they provide only single dimension value (e.g., hardness). Moreover, the reproducibility of this method is hampered by the manual handling required. More complex analyses of textural attributes of fruit can be assessed using motorized instruments such as the Texture Analyser recording of complete force/displacement curves [20]. Multitest devices can be fitted with different probe types and different test types can be achieved (compression, puncture). Parameters are extracted from the force/displacement curves.
Many studies have been carried out on the textural properties of fruit such as apples, pears, peaches [21,22,23,24,25], but only little information is available on the texture of apricots. Some studies were reported on the impact of cooking on apricot texture [26,27,28,29]. Stanley et al. [9] assessed the influence of harvest maturity and cold storage on the firmness, mealiness and gel formation of apricots but only firmness was measured by an instrument, as mealiness and gel formation were determined by trained assessors.
Quantitative measurement of texture is essential to ensure an optimal commercial quality of apricots on the market and to characterize the mechanisms involved in the evolution of this parameter before and after harvest. Thanks to a better understanding of the textural properties of apricots and their changes as the fruit ripens, quality for the consumers could be improved and losses reduced along the entire supply chain. In this study, we evaluated the influence of cultivar, storage temperature and storage duration on the textural attributes of the apricots fruits. More specific objectives were to compare these multi-parameter approaches to the classical measurement of firmness performed with a manual device.

2. Materials and Methods

2.1. Fruit

Apricots of ‘Orangered®’ and ‘Goldrich’ cultivars were harvested at commercial maturity stage in 2016 from experimental orchards in the region of Valais in Switzerland. Fruit were stored at three temperatures (1, 8 and 20 °C) under normal air conditions at 90% of relative humidity. After 3 days of storage at 20 °C or 1 and 2 weeks of storage at 1 and 8 °C, fruit texture was assessed. Measurements were performed on apricots at ambient temperature.

2.2. Texture Measurements

Homogeneous batches of 40 fruits per sample were used for the texture measurements. Compression tests on the whole fruit and puncture tests on fruit skin were performed on the same batches of 20 fruits. As measurements done with the AGROSTA®100 device and the puncture tests on fruit flesh caused significant changes in the texture of the apricots, separate batches of 10 fruits were used for these tests.

2.2.1. Classical Firmness Measurements

Firmness was determined on two opposite sides of apricots using an AGROSTA®100 device fitted with a 0.10 cm2 probe (Agrosta Sàrl, Serqueux, France). This method consists in measuring the force required to push a probe against the fruit to a maximal depth. Results were expressed as DI10 on a scale going from 0 (very soft) to 100 (very hard).

2.2.2. Compression Test on Whole Fruit

The whole fruit firmness was determined by a compression test using a TA-XTplus Texture Analyzer (Stable Micro Systems, Godalming, UK) fitted with a 75 mm diameter flat probe. Fruit were compressed at a speed of 2 mm/s to a maximal deformation corresponding to 5% of fruit caliber. The force (expressed in Newton) was recorded for every step of displacement. 6 parameters identified as Fc, Ec, Wc1, Wc1, ΔWc1–2 and Dc were computed from the force/deformation curves as illustrated on Figure 1. Fc represents the maximal force applied to push the probe until the fruit deformation reaches 5% of the caliber. This first phase of the measurement corresponds to the ‘compression’. The young’s modulus, represented by Ec, is also known as ‘elastic modulus’ and corresponds to the slope from the origin to Fc. Ec gives indications about the rigidity of the product. Wc1 is the mechanical work needed to compress 5% of the fruit caliber and represents the area under the curve up to 5 mm of deformation. The second phase, called “decompression” gives indications on the “elastic” properties of the fruit. Wc2 is the work measured during the decompression phase and represents the area under the curve going from 5 to 0 mm of deformation. ΔWc1–2 corresponds to the hysteresis and Dc represents the plastic deformation.

2.2.3. Puncture Test on Fruit Skin

Puncture was performed on one side of each apricot using the TA-XTplus Texture Analyzer fitted with a needle probe of 2 mm diameter. The probe was moved at a speed of 20 mm/s to a final depth of 3 mm. The force (expressed in Newton) was recorded for every step of displacement and force/displacement curves included 294 data points were obtained for each measurement (Figure 2).
10 texture parameters were computed from the curves. Fp1 corresponds to the force needed to puncture the apricot skin. Dp1 represents the displacement of the probe at Fp1. Ep1 indicates the stiffness of the apricot and is the slope of the curve from the beginning of the measurement (0 mm) to Fp1. Wp1 is the mechanical work needed to reach the rupture point and corresponds to the area under the curve from 0 mm to Fp1. In the second part of the curve, Fp2 was extracted as the minimal force occurring after the rupture of the skin. Dp2 corresponds to the distance measured at Fp2. In the third part, a second peak occurred around 2.5 mm. This peak represents the maximal force applied to move the probe in the flesh until a maximal depth of 3 mm and corresponds to Fp3. The displacement Dp3 indicates the position of the probe at Fp3. The slope between Fp2 and Fp3 (Ep3) and the mechanical work (Wp3) needed to move the probe through the flesh were also computed.

2.2.4. Puncture Test on Fruit Flesh

Apricots were cut in half longitudinally and measurements were performed on a tissue slice of about 1.5 cm thick of one side. Two measurements were carried out on the opposite sides of each slice at the equatorial position. TA-XTplus Texture Analyzer was fitted with a stainless steel puncture probe of 2 mm diameter. The probe was moved at a speed of 10 mm/s to a final depth of 8 mm. The force (expressed in Newton) was recorded for every step of displacement and force/displacement curves including 172 data points were analyzed (Figure 3). Eight parameters were extracted from the curves. Fp1 represents the force at the first rupture point and Dp1 the displacement of the probe at Fp1. Ep1 corresponds to the slope from 0 mm to Fp1 and Wp1 is the mechanical work to reach the first rupture point. The maximal force applied to move the probe into the flesh until 8 mm was extracted and is represented by Fpmax. Dpmax correspond to the displacement of the probe at Fpmax. The mean force between Fp1 and Fpmax (Fpmean) was computed. Wp2 represents the mechanical work needed to move the probe through the flesh until 8 mm.

2.3. Data Analyses

Texture parameters were computed from each curve with the Texture Exponent Software (Version 6, Stable Micro Systems, Godalming, UK). Statistical analyses were achieved using the software XLSTAT (Version 2018.1, Addinsoft, Paris, France) and R (Version 3.5.1, R Development Core Team, Vienna, Austria).
Multivariate analyses were first performed on the parameters (compression tests) and on the whole curves (puncture tests) to evaluate the efficiency of the texture measurements to discriminate the different storage conditions. Principal component analyses (PCA) on normalized data from the whole force/displacement curves allowed the influence of storage conditions on the skin and flesh texture of the tested fruits to be explored. Then, the most significant textural parameters were chosen based on the results of the discriminant analyses (DA) computed from normalized data to perform analyses of variance (ANOVA, p ≤ 0.05). The influence of storage conditions on these parameters was evaluated based on Tukey’s multiple range test. Finally, Pearson’s correlation coefficient (p ≤ 0.05) were computed to evaluate the relationships between the different methods. As the measurements were performed on different fruits, correlation coefficients were calculated using the mean values of each test.

3. Results

3.1. Texture Variability Related to Storage Temperature and Duration

3.1.1. Classical Firmness Measurement

Firmness measurement using an AGROSTA®100 device showed that storing apricots at 1 °C strongly delayed softening (Figure 4). The behavior of the two cultivars during storage at 1 and 8 °C was slightly different: the firmness of ‘Goldrich’ decreased gradually up to two weeks of storage, whereas a significant softening was observed only during the first week of storage of ‘Orangered®’. Firmness value of this cultivar then remained constant during the additional week of storage at 1 and 8 °C.

3.1.2. Compression Test on Whole Fruit

In contrast to the firmness measurements performed with AGROSTA®100 giving one parameter as a result, force/deformation curves were obtained by the compression tests achieved with the TA-XTplus Texture Analyzer. Based on the 6 parameters extracted from these curves (Figure 1), discriminant analyses (DA) were calculated separately for each cultivar. Temperature and storage duration were the qualitative groups taken for samples discrimination. The mean percentage of correctly classified samples was comparable for both cultivars (Table 1); 75% (group ‘2 weeks’) and 80% (group ‘1 week’) of ‘Goldrich’ apricots stored at 1 °C were correctly classified, whereas only 55% (group ‘2 weeks’) and 45% (group ‘1 week’) were correctly identified at 8 °C. Inversely, the percentage of correctly classified ‘Orangered®’ fruit was higher at 8 °C than at 1 °C (Table 1), indicating that the influence of temperature on the textural parameters measured by compression test was different depending on the cultivar. As shown in Table 2, ΔWc1–2 was the most significant textural parameter correlated with the first factor (F1) of the DA performed on ‘Goldrich’ fruit, followed by Wc1, Fc and Ec (r-values of −0.95, −0.90, −0.87 and −0.85 respectively). In the case of ‘Orangered®’, Wc2 had the best correlation with F1 followed by Fc, Ec and Wc1 (r values of −0.91, −0.84, −0.83 and −0.82 respectively). The second factor (F2) was mainly correlated with Dc for ‘Goldrich’ and ΔWc1–2 for ‘Orangered®’. Fc, Wc1 and Ec contributed in a similar way to the discrimination of the samples for both cultivars, but the most significant parameters were different (ΔWc1–2 respectively Wc2 in the case of ‘Goldrich’ resp. ‘Orangered®’).
To understand the influence of temperature and storage duration on textural parameters measured by the compression test, analyses of variance were performed separately for each cultivar (Table 3). The maximal force applied to move the probe until the fruit’s deformation reached 5% of fruit caliber (Fc) decreased with storage duration. Similar results were observed for Ec and Wc1 (data not shown). A stronger force was required to move the probe at 1 °C compared to 8 °C. This was particularly true for ‘Orangered®’. A higher plastic deformation (Dc) was observed on ‘Goldrich’ fruit stored at 20 °C, and for both cultivar after a storage at 8 °C during 2 weeks. No influence of a 1 week of storage at 1 °C was observed on Dc for both cultivar. Hysteresis decreased during storage, indicating a reduction of fruit elasticity. This effect was more pronounced on fruit stored at 8 °C.

3.1.3. Puncture Test on the Skin

Needle tests were performed to characterize textural properties of the skin and the first layers of the flesh, as well as to determine the influence of storage conditions on these tissues. Principal component analyses (PCA) were first performed on whole force/displacement curves issued form the tests to explore the variability of the curves as a function of the storage temperature and duration. 90.2%, respectively 89.4% of the variation was explained by the two first components (PC1 and PC2) for ‘Goldrich’ resp. ‘Orangered®’ cultivars (Figure 5). PC1 of both PCA accounted for 75.6% and 77.1% respectively of the variation and were mainly correlated with the second part of the curve corresponding to the first layers of the flesh (ca. 0.5 to 3 mm). PC2 accounted for 14.6% and 12.3% respectively of the variation and showed a high correlation with the first part of the curve corresponding to the skin (ca. 0 to 0.3 mm). Concerning ‘Goldrich’, fruit at harvest and stored at 1 °C during 1 week were discriminated from apricots stored at 1 °C during 2 weeks and at 8 °C during 1 week and were positively correlated with PC1 (Figure 5a, b). Storing fruit at room temperature for a short time or at 8 °C but for a longer time induced changes in the texture of the first layers of the flesh of this cultivar. These results suggest that textural changes in the first layers of the flesh occurred more rapidly in ‘Goldrich’ apricots stored at 8 and 20 °C compared to 1 °C. In the case of ‘Orangered®’, separation between the samples was less obvious. Only fruit stored at 8 °C during 2 weeks showed a strong positive correlation with the first axis. PC2, which was highly correlated with skin texture properties (Figure 5d) was negatively correlated with the samples measured at harvest. All other samples were not discriminated on this component, which indicates that storage influenced in a similar manner the textural properties of the skin, independent of the temperature and the duration.
DA were performed based on the 10 parameters extracted from the force/distance curves obtained by the puncture tests (Table 4). The mean percentage of correctly classified samples was comparable for both cultivars (53.4% for ‘Goldrich’ and 54.9% for ‘Orangered®’), albeit low. ‘Goldrich’ fruit stored at 20 °C during 0.5 week were better discriminated compared to the other samples. For ‘Orangered®’, storing fruit at 8 °C during 2 weeks leaded to a higher percentage of correct classified samples. The textural parameters Wp3, Fp3, Fp2, Dp3 and Fp1 had the higher correlations with the F1 DA factor for both cultivars (Table 5). These 5 textural parameters were, therefore, chosen to perform ANOVA and to evaluate in more details the changes of these parameters under the three tested storage temperatures (Table 6). The lower the temperature was, the higher were the force needed to puncture the skin and the mechanical work needed to move the probe through the flesh of ‘Goldrich’ apricots (Fp1, Wp3). For ‘Orangered®’ fruit, smaller differences were observed on these two parameters between the different storage conditions. The minimal force measured after the rupture of the skin (Fp2) and the maximal force applied to move the probe into the flesh until a maximal depth of 3 mm were significantly comparable at harvest and after 1 week at 1 °C in the case of ‘Goldrich’ cultivar. Concerning ‘Orangered®’, a significant decrease of Fp2 and Fp3 was observed after 2 weeks at 8 °C compared to harvest, but not under the other storage conditions. Interestingly, the maximal force applied to move the probe in the flesh until a depth of 3 mm just after the rupture of the skin (Fp3) was about 5 times higher for ‘Orangered®’ apricots compared to the ‘Goldrich’. ‘Goldrich’ fruit, however, needed a slightly higher force to puncture the skin.

3.1.4. Puncture Test on the Flesh

PCA calculated on the whole force/displacement curves showed that 90.9% and 91.2%, respectively, of the variation was explained by the two first components for ‘Goldrich’ resp. ‘Orangered®’ cultivars (Figure 6). Despite good discrimination of the fruit on the two first components, the discrimination of the different groups was poor, in particular for fruit at harvest or stored at 1 °C for 1 or 2 weeks and at 8 °C for 1 week. Storage of both apricot cultivars at 20 °C or at 8 °C during 2 weeks induced more changes in the flesh than the other groups, as illustrated by the discrimination on PC1. DA were then performed on the 8 extracted parameters from the force/displacement curves (data not shown). The 4 most correlated factors with F1 were then chosen to perform ANOVA (Table 7). Samples measured at harvest and after 1 week of storage at 1 °C showed similar values of Fpmax, Fp1 and Wptot, indicating that the forces needed to move the probe into the flesh (Fpmax and Fp1) and the mechanical work needed to reach the maximal force decreased at higher temperature of storage or after a 2-week storage duration. However, this was only true for the cultivar ‘Goldrich’, whereas for ‘Orangered®’, diminution of these parameters was already significant after 1 week at 1 °C, indicating that storage at 1 °C influenced textural properties of the flesh in a different manner according to the cultivar. Interestingly, the different forces (Fpmax, Fp1 and Fpmean) and the mechanical work to reach Fpmax decreased in a similar way at 20 °C during 0.5 week and at 8 °C during 2 weeks for both cultivars. The same observation was done for the storage at 8 °C for 1 week and at 1 °C for 2 weeks.

3.2. Correlations between Classical Firmness and Textural Parameters

The correlation coefficients (r) between the firmness values measured with the AGROSTA®100 device and the textural parameters issued from the compression tests on the whole fruit, as well as from puncture tests performed on the skin and flesh of both cultivars are illustrated in Figure 7. The correlations between the hand device AGROSTA®100 and the textural parameters issued from the compression tests and the puncture tests on the flesh had r-values ranging from 0.60 to 0.78, with the exception of the parameters Dc (from compression tests), Dpmax and Dp1 (from puncture tests on the flesh) which showed insignificant r-values. No correlations were observed between the AGROSTA®100 and the parameters related to the skin obtained by puncturing the apricots with a needle (Fp1, Ep1, Wp1 and Dp1). After the rupture of the skin, positive correlations were, however, observed for most of the parameters (r-values ranging from 0.65 to 0.76). Concerning the measurements performed by the three tests of texturometry, correlations were found between the parameters issued from the compression and puncture tests of the flesh. Typical skin parameters issued from the punctures tests were not correlated with the other textural parameters, with the exception of the parameter Ep1 obtained by puncture test on the skin.

4. Discussion

Firmness measured with an AGROSTA®100 device was considered as the reference method in this study, as it is the classical method applied by the producers and retailers in Switzerland along the apricot supply chain. This method consists in measuring the force needed to push a flat probe of 0.10 cm2 against the fruit surface. It is easy to use and relatively cheap. In this study, results obtained with this device showed that reducing the temperature of storage limited apricot softening, in particular at 1 °C. This is in line with the study of Aubert et al. [17] in which firmness measurements with the AGROSTA®100 device showed a significant softening of ‘Bergeron’ apricots stored at 20 °C compared to 1 °C. This trend was also demonstrated by authors working on other apricot cultivars and using different instruments for measuring firmness: Stanley et al. [11] showed that post-harvest temperature significantly impacted apricot softening based on measurement performed with a Fruit Texture Analyzer (Güss Manufacturing Ltd., Strand, South Africa) and Botondi et al. [18] demonstrated a higher firmness loss of ‘Monaco bello’ apricots stored at 15 °C compared to 5 °C using an Effegi penetrometer (Facchini srl, Alfonsine, Italy). All these results obtained with puncture tests showed comparable influence of low storage temperature on the firmness evolution of apricots. However, these methods are based on one parameter, the maximal force needed to push a probe against the apricot surface (non-destructive) or into the fruit flesh to a determined distance (destructive), preventing detailed description of the influence of the skin and of the flesh on the results.
Measurements performed with the TA-XTplus Texture Analyzer allowed a multi-tests approach that described more precisely the influence of cultivar and storage conditions on different textural properties of the fruit. This instrument gives whole curves from which parameters can be computed. This has the advantage that the evaluation of the influence of the different factors can be done based on the whole curves or only on the extracted parameters. Unlike measurements performed on an AGROSTA®100 device on a small surface of each fruit, compression tests are done on the whole fruit. This test gives information on the viscoelastic properties of the apricot, which is particularly useful for predicting its ability to resist to pressure forces occurring during the post-harvest handling of the fruit (during transport for example). In our study, the plastic deformation (Dc) was influenced by both temperature and duration of storage, in a different manner according to the cultivar. ‘Goldrich’ apricots showed a higher plastic deformation at 20 °C, while this parameter decreased in a more substantial way at 8 °C for ‘Orangered®’ fruit. Unlike free-fall drop tests used in other studies to evaluate the sensitivity of apricot to mechanical damages [30,31,32], compression tests have the advantage of being objective as the rate and the percentage of strain are controlled.
The results obtained by puncture tests allowed more precise evaluation of the influence of the storage conditions on the textural properties of the skin and the flesh of ‘Goldrich’ and ‘Orangered®’ apricot cultivars. A higher force was needed to puncture the skin of ‘Goldrich’ apricots after a storage at 1 °C compared to harvest. This may indicate that the skin became tougher under a low temperature, what could contribute greatly to the good storability of this cultivar [33]. Evolution of texture properties related to the skin of ‘Orangered®’ fruit was less impressive, as substantial changes were observed in the flesh for this cultivar depending on the storage temperature. Interestingly, the cultivar ‘Orangered®’ needed higher forces to puncture the flesh compared to ‘Goldrich’, in both puncture tests of the skin (after skin rupture) and of the flesh, in particular at harvest. Storability of ‘Orangered®’ apricots is, however, lower compared to ‘Goldrich’, principally due to a higher rate of softening during storage, in line with previous observations [15].
Some of the parameters obtained with the TA-XTplus Texture Analyzer were well correlated with firmness measured by an AGROSTA®100 device, particularly those issued from the compression test and puncture tests of the flesh. The correlations, however, varied between 0% and 78% depending on the texture parameter, indicating that the multi-parameter texturometry approach allowed it to describe between 22% and 100% of texture variability which was not measured by the classical firmness measurement method. Such additional texture information could help in better understanding the texture variations occurring after harvest. Moreover, texturometry allowed more detailed analysis of the properties of the skin which were not correlated with the firmness obtained with the manual device.
Skin maintains the integrity of the fruit and is an important barrier to the development of fungal diseases. As demonstrated on other fruit [34,35,36], mechanical properties of the skin greatly influence firmness and resistance to splitting. As splitting is influenced by the genotype [37], measuring textural properties of the skin could be a useful tool not only to improve the post-harvest management of apricots, but also for breeding programs.

5. Conclusions

The influence of the cultivar, pre- and post-harvest factors as well as storage conditions on the firmness of an apricot can today be evaluated in detail thanks to the use of different approaches. By combining data issued from a classical manual device and advanced methodologies such as texturometry, this study shows, using ‘Goldrich’ and ‘Orangered®’ apricot cultivars as models, that varying storage conditions influence firmness, and thereby fruit quality. In regard to that, this study demonstrates that novel methodologies can complement the traditional method well, both in the fruit industry to ensure that optimal fruit quality is obtained and in the research community to better understand the evolution of texture under various storage conditions.

Author Contributions

Conceptualization, S.G.R.; Formal analysis, S.G.R.; Investigation, A.J. and P.-Y.C.; Methodology, S.G.R. and C.C.; Supervision, D.C.; Writing—original draft, S.G.R.; Writing—review and editing, C.C.

Acknowledgments

The authors thank Fabien Rebeaud for his support in writing this paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. FAOSTAT. Available online: http://www.fao.org/faostat/en/#data/QC (accessed on 12 February 2019).
  2. Fruit-Union Suisse. Rapport d’activité 2017. Available online: https://www.swissfruit.ch/sites/default/files/rapport-dactivite-fruit-union-suisse-2017.pdf (accessed on 12 February 2019).
  3. Barrett, D.M.; Beaulieu, J.C.; Shewfelt, R. Color, flavor, texture, and nutritional quality of fresh-cut fruits and vegetables: Desirable levels, instrumental and sensory measurement, and the effects of processing. Crit. Rev. Food Sci. 2010, 50, 369–389. [Google Scholar]
  4. Salunkhe, D.K.; Deshpande, P.B.; Do, J.Y. Effects of maturity and storage on physical and biochemical changes in peach and apricot fruits. J. Hortic. Sci. 1968, 43, 235–242. [Google Scholar] [CrossRef]
  5. Hewett, E.W. Perceptions of supply chain management for perishable horticultural crops: An introduction. Acta Hortic. 2003, 604, 37–46. [Google Scholar]
  6. Bruhn, C.M.; Feldman, N.; Garlitz, C.; Harwood, J.; Ivans, E.; Marshall, M.; Riley, A.; Thurber, D.; Williamson, E. Consumer perceptions of quality-apricots, cantaloupes, peaches, pears, strawberries, and tomatoes. J. Food Qual. 1991, 14, 187–195. [Google Scholar]
  7. Biale, J.B. Respiration of Fruits; Springer: Berlin, Germany, 1960; Volume 12, pp. 536–592. [Google Scholar]
  8. Hajnal, V.; Szalay, L.; Németh, S.; Ficzek, G.; Bujdosó, G.; Tóth, M. Changes in the fruit texture parameters and composition of apricot cultivars during ripening. Acta Aliment. 2012, 41, 73–82. [Google Scholar]
  9. Stanley, J.; Prakash, R.; Marshall, R.; Schröder, R. Effect of harvest maturity and cold storage on correlations between fruit properties during ripening of apricot (prunus armeniaca). Postharvest Biol. Technol. 2013, 82, 39–50. [Google Scholar]
  10. Infante, R.; Meneses, C.; Defilippi, B.G. Effect of harvest maturity stage on the sensory quality of ‘palsteyn’ apricot (prunus armeniaca l.) after cold storage. J. Hortic. Sci. Biotech. 2008, 83, 828–832. [Google Scholar] [CrossRef]
  11. Stanley, J.; Marshall, M.; Ogwaro, J.; Feng, R.; Wohlers, M.; Woolf, A. Postharvest storage temperature impact significantly on apricot fruit quality. Acta Hortic. 2009, 880, 525–532. [Google Scholar] [CrossRef]
  12. Manolopoulou, H.; Mallidis, C.; Karayiannis, I. Storage and processing of apricots. Acta Hortic. 1999, 567–576. [Google Scholar] [CrossRef]
  13. Gabioud Rebeaud, S.; Cotter, P.Y.; Siegrist, J.P.; Christen, D. Influence de la température et de l’atmosphère modifiée sur la qualité des abricots. Revue Suisse Vitic. Arboric. Hortic. 2013, 45, 168–173. [Google Scholar]
  14. Fan, X.; Argenta, L.; Mattheis, J.P. Inhibition of ethylene action by 1-methylcyclopropene prolongs storage life of apricots. Postharvest Biol. Technol. 2000, 20, 135–142. [Google Scholar]
  15. Gabioud Rebeaud, S.; Cotter, P.Y.; Christen, D. Influence du stade de maturité, de la température et du traitement au 1-mcp sur la qualité des abricots. Revue Suisse Vitic. Arboric. Hortic. 2015, 47, 356–362. [Google Scholar]
  16. Camps, C.; Christen, D. On-tree follow-up of apricot fruit development using a hand-held nir instrument. J. Food Agric. Environ. 2009, 7, 394–400. [Google Scholar]
  17. Aubert, C.; Bony, P.; Chalot, G.; Hero, V. Changes in physicochemical characteristics and volatile compounds of apricot (prunus armeniaca l. Cv. Bergeron) during storage and post-harvest maturation. Food Chem. 2010, 119, 1386–1398. [Google Scholar] [CrossRef]
  18. Botondi, R.; Crisa, A.; Massantini, R.; Mencarelli, F. Effects of low oxygen short-term exposure at 15 degrees on postharvest physiology and quality of apricots harvested at two ripening stages. J. Hortic. Sci. Biotech. 2000, 75, 202–208. [Google Scholar] [CrossRef]
  19. Defilippi, B.G.; Juan, W.S.; Valdés, H.; Moya-León, M.A.; Infante, R.; Campos-Vargas, R. The aroma development during storage of castlebrite apricots as evaluated by gas chromatography, electronic nose, and sensory analysis. Postharvest Biol. Technol. 2009, 51, 212–219. [Google Scholar] [CrossRef]
  20. Chen, L.; Opara, U.L. Texture measurement approaches in fresh and processed foods—A review. Food Res. Int. 2013, 51, 823–835. [Google Scholar] [CrossRef]
  21. Camps, C.; Guillermin, P.; Mauget, J.C.; Bertrand, D. Data analysis of penetrometric force/displacement curves for the characterization of whole apple fruits. J. Texture Stud. 2005, 36, 387–401. [Google Scholar]
  22. Harker, F.R.; Redgwell, R.J.; Hallett, I.C. Texture of fresh fruit. Hortic. Rev 1997, 20, 121–224. [Google Scholar]
  23. Johnston, J.W.; Hewet, E.W.; Banks, N.H.; Harker, F.R.; Hertog, M.L.A.T.M. Physical change in apple texture with fruit temperature: Effects of cultivars and time of storage. Postharvest Biol. Technol. 2001, 23, 13–21. [Google Scholar] [CrossRef]
  24. Yang, Y.; Ma, R.; Zhang, B.; Song, Z.; Zhang, C.; Guo, S.; Yu, M. Different expression analysis in fruit softening and ethylene biosynthetic pathways in peaches of different flesh textures. Hortic. Plant J. 2016, 2, 75–81. [Google Scholar]
  25. Hallet, I.C.; Harker, F.R. Microscopic investigations of fruit texture. Acta Hortic. 1998, 464, 411–416. [Google Scholar]
  26. Ella Missang, C.; Maingonnat, J.F.; Renard, C.M.G.C.; Audergon, J.-M. Texture variation in apricot: Intra-fruit heterogeneity, impact of thinning and relation with the texture after cooking. Food Res. Int. 2011, 44, 46–53. [Google Scholar] [CrossRef]
  27. Ella Missang, C.; Maingonnat, J.F.; Renard, C.M.G.C.; Audergon, J.-M. Apricot cell wall composition: Relation with the intra-fruit texture heterogeneity and impact of cooking. Food Chem. 2012, 133, 45–54. [Google Scholar] [CrossRef]
  28. Ayour, J.; Gouble, B.; Reling, P.; Ribas-Agustí, A.; Audergon, J.-M.; Maingonnat, J.-F.; Benichou, M.; Renard, C.M.G.C. Impact of cooking on apricot texture as a function of cultivar and maturity. LWT 2017, 85, 385–389. [Google Scholar][Green Version]
  29. Mallidis, C.G.; Katsaboxakis, C. Effect of thermal processing on the texture of canned apricots. Int. J. Food Sci. Technol. 2002, 37, 569–572. [Google Scholar] [CrossRef]
  30. De Martino, G.; Vizovitis, K.; Botondi, R.; Bellincontro, A.; Mencarelli, F. 1-mcp controls ripening induced by impact injury on apricots by affecting sod and pox activities. Postharvest Biol. Technol. 2006, 39, 38–47. [Google Scholar]
  31. DeMartino, G.; Massantini, R.; Botondi, R.; Mencarelli, F. Temperature affects impact injury on apricot fruit. Postharvest Biol. Technol. 2002, 25, 145–149. [Google Scholar] [CrossRef]
  32. Di Natale, C.; Filippini, D.; Pennazza, G.; Santonico, M.; Paolesse, R.; Bellincontro, A.; Mencarelli, F.; D’Amico, A.; Lundström, I. Sorting of apricots with computer screen photoassisted spectral reflectance analysis and electronic nose. Sens. Actuat. B-Chem. 2006, 119, 70–77. [Google Scholar] [CrossRef]
  33. Gabioud Rebeaud, S.; Maurer, A.; Cotter, P.Y.; Baumgartner, D.; Christen, D. Influence of temperature, 1-mcp, ma and ca on quality and aroma profiles of ‘goldrich’ apricots. Acta Hortic. 2015, 1071, 297–302. [Google Scholar] [CrossRef]
  34. Duprat, F.; Loonis, D.; Piétri, E. Mechanical properties of the skin and the flesh of apples au-grotte, m. Int. J. Food Prop. 2001, 4, 149–161. [Google Scholar]
  35. Jackman, R.L.; Stanley, D.W. Influence of the skin on puncture properties of chilled and nonchilled tomato fruit. J. Texture Stud. 1994, 25, 221–230. [Google Scholar]
  36. Lustig, I.; Bernstein, Z. Determination of the mechanical properties of the grape berry skin by hydraulic measurements. Sci. Hortic. 1985, 25, 279–285. [Google Scholar] [CrossRef]
  37. Gülsen, Y.; Dumanoglu, H.; Kunter, B. Fruit cracking in some turkish apricot cultivars. Acta Hortic. 1995, 384, 277–282. [Google Scholar] [CrossRef]

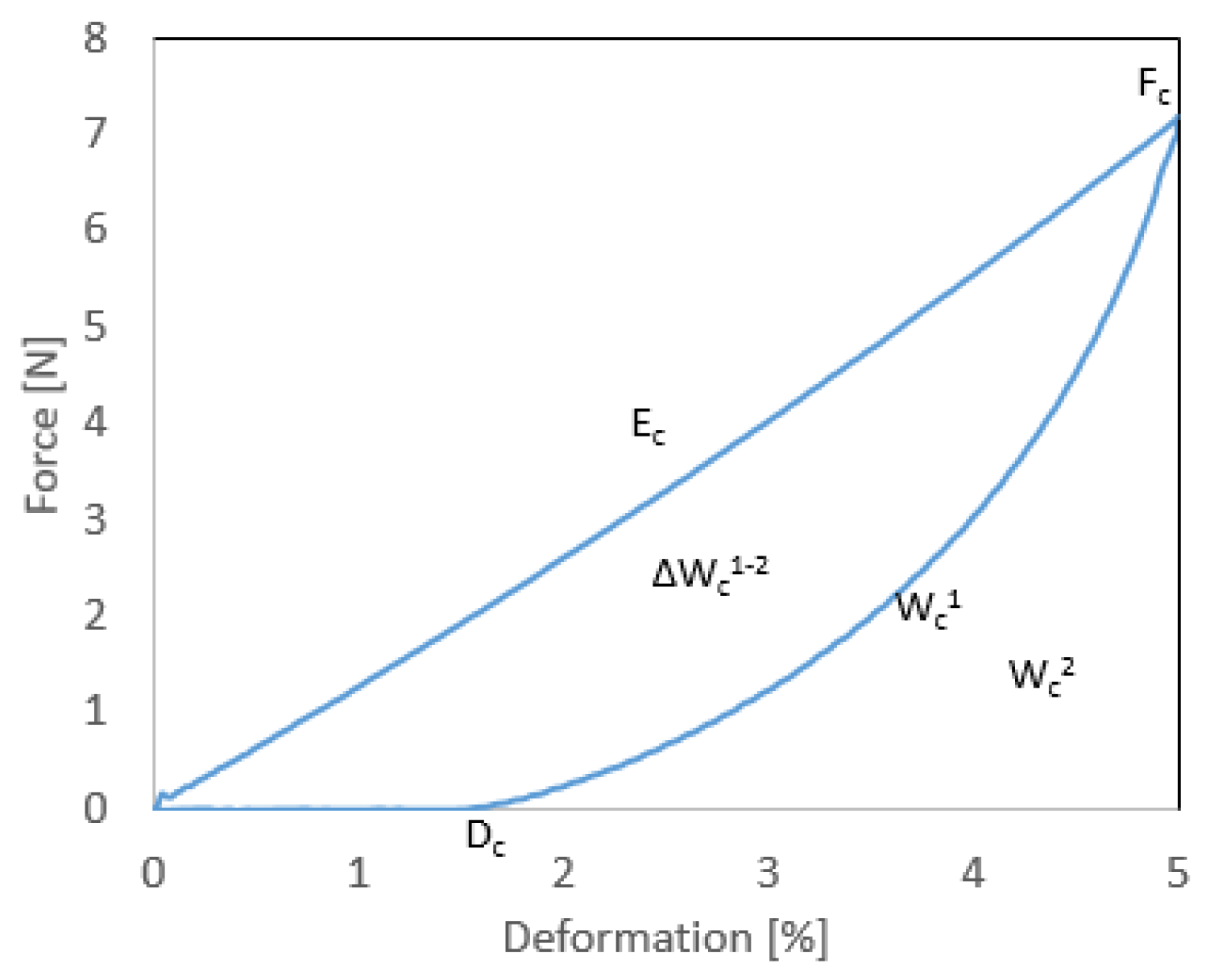

Figure 1. Force/deformation curve obtained from compression test and extracted parameters.
Figure 1. Force/deformation curve obtained from compression test and extracted parameters.
Agriculture 09 00073 g001

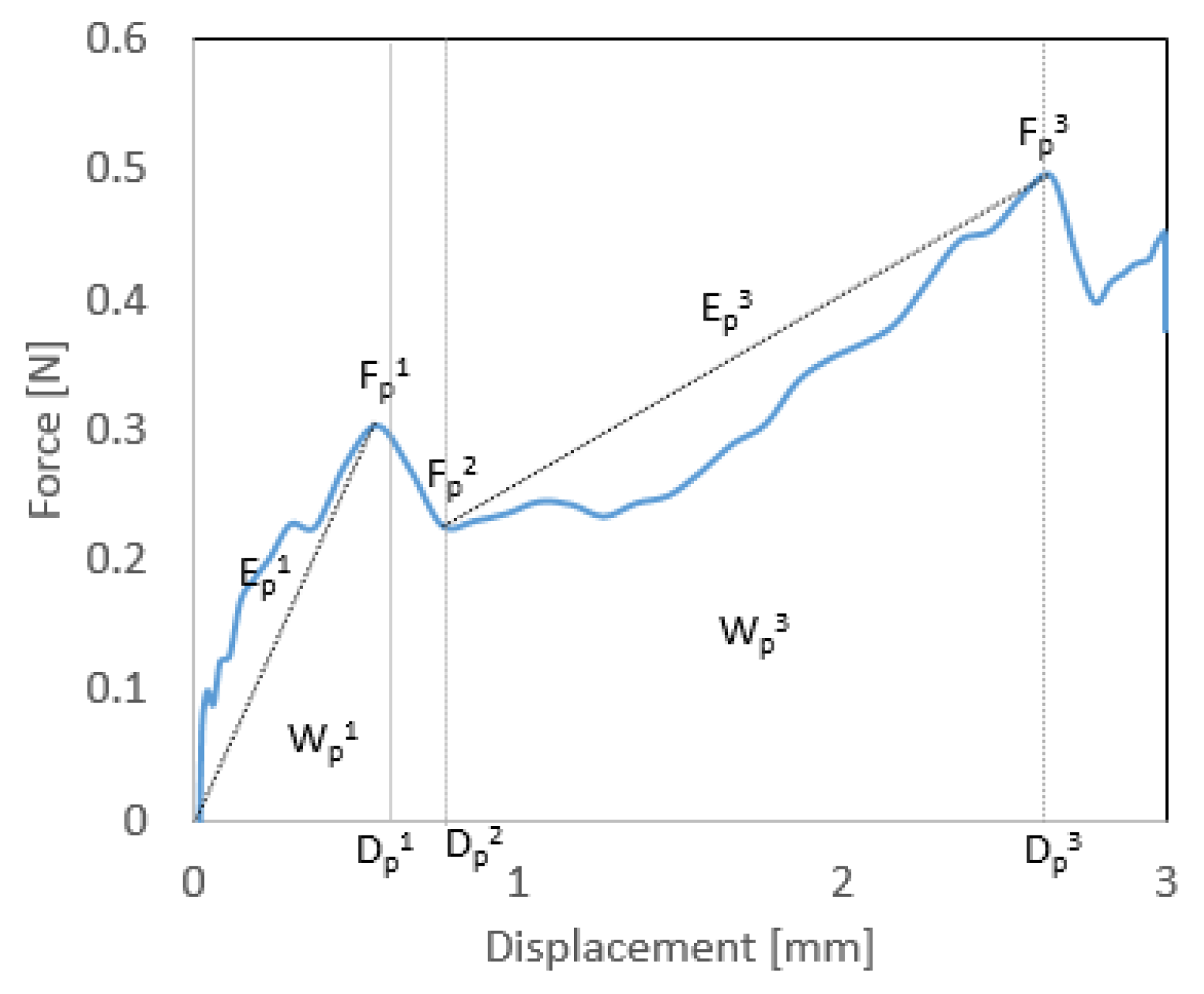

Figure 2. Force/displacement curve obtained from puncture test on fruit skin and extracted parameters.
Figure 2. Force/displacement curve obtained from puncture test on fruit skin and extracted parameters.
Agriculture 09 00073 g002

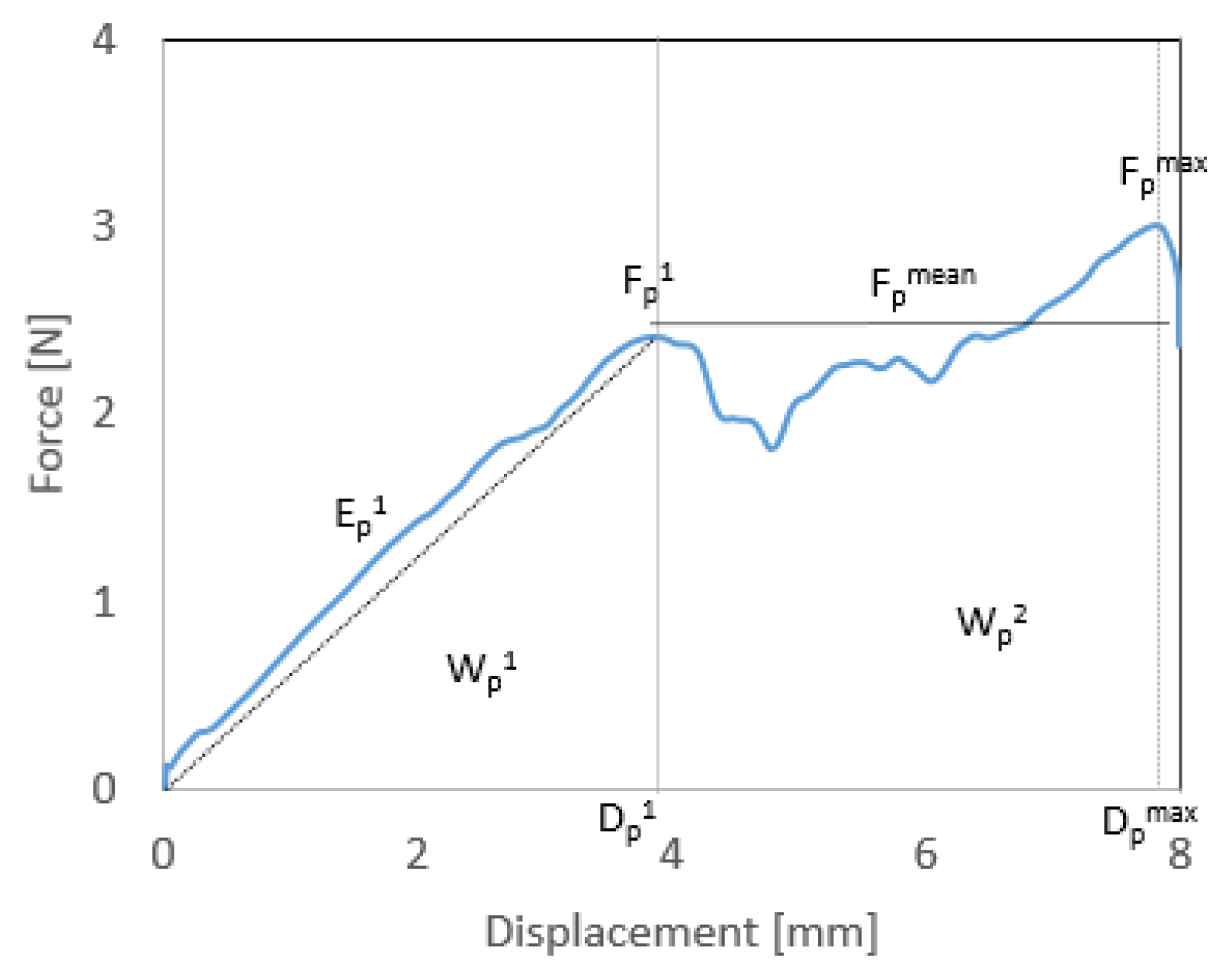

Figure 3. Force/displacement curve obtained from puncture test on fruit flesh and extracted parameters.
Figure 3. Force/displacement curve obtained from puncture test on fruit flesh and extracted parameters.
Agriculture 09 00073 g003

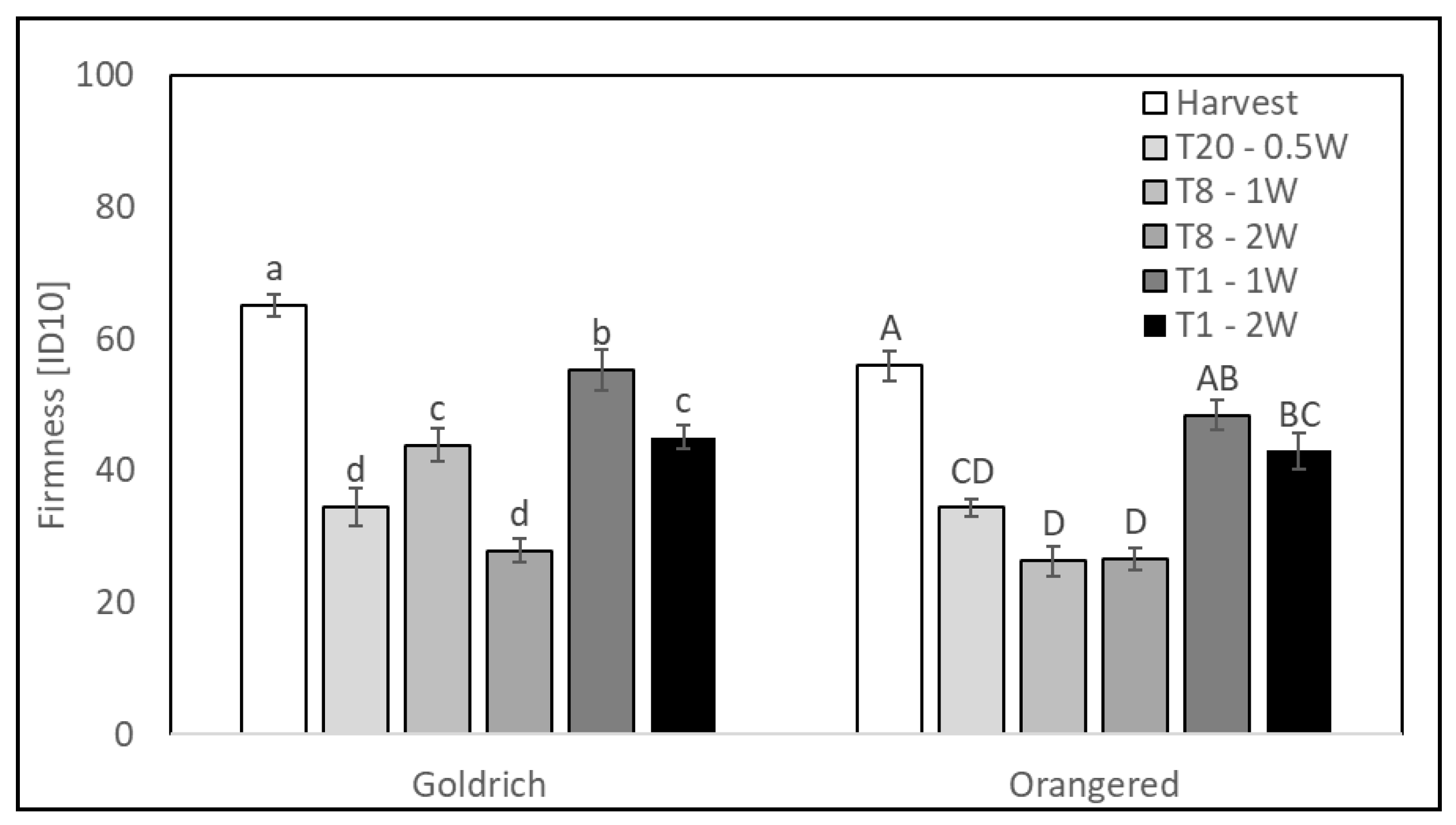

Figure 4. Influence of storage temperature on firmness measured by AGROSTA®100 device on ‘Goldrich’ and ‘Orangered®’ apricots stored at 1 °C (T1), 8 °C (T8) and 20 °C (T20) during 0.5, 1 or 2 weeks (W). Means with the same letters are not significantly different at p ≤ 0.05 in Tukey’s multiple range test.
Figure 4. Influence of storage temperature on firmness measured by AGROSTA®100 device on ‘Goldrich’ and ‘Orangered®’ apricots stored at 1 °C (T1), 8 °C (T8) and 20 °C (T20) during 0.5, 1 or 2 weeks (W). Means with the same letters are not significantly different at p ≤ 0.05 in Tukey’s multiple range test.
Agriculture 09 00073 g004

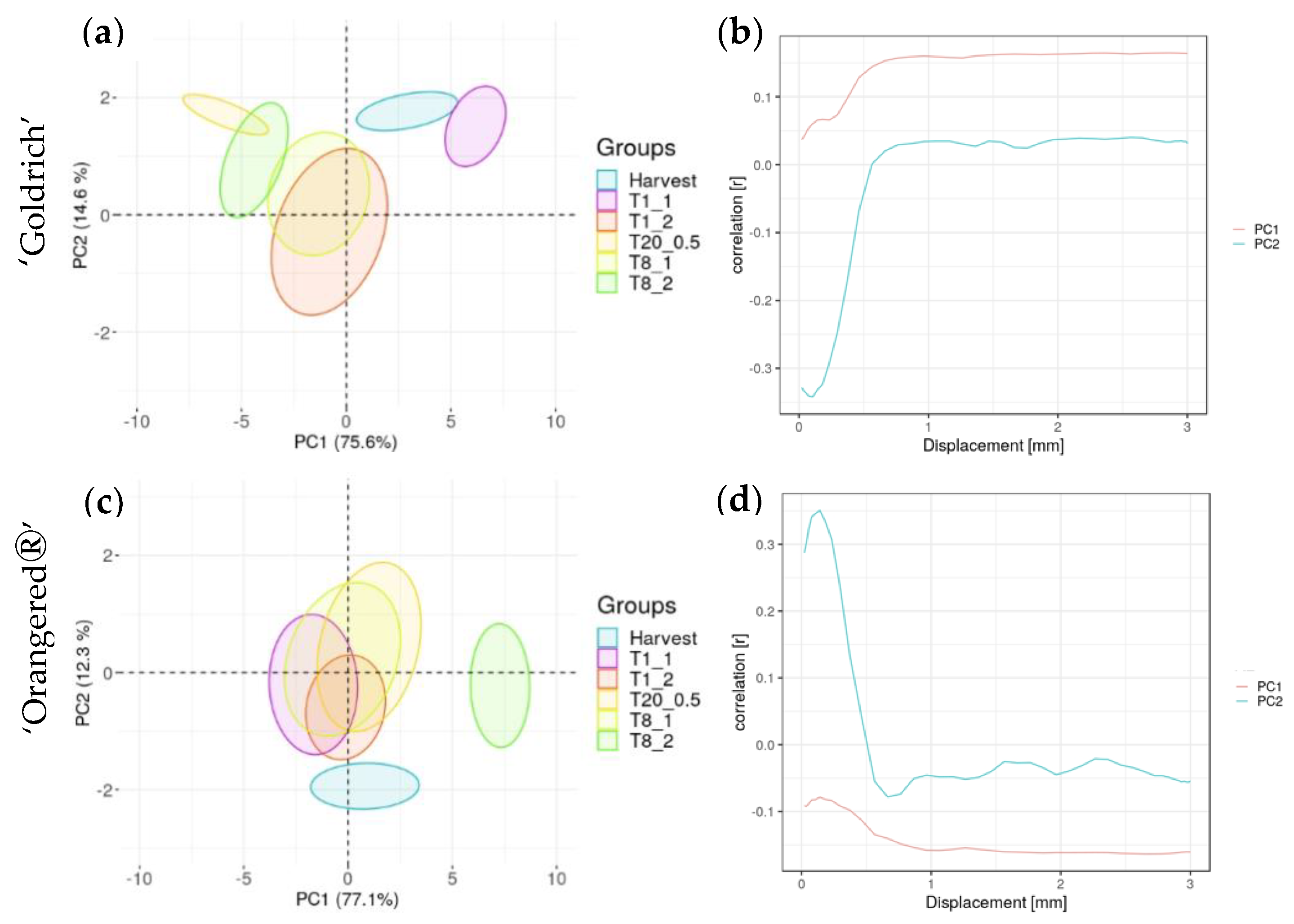

Figure 5. Principal component analysis (PCA) performed on force/displacement curves issued from puncture tests of the skin of (a,b) ‘Goldrich’ and (c,d) ‘Orangered®’ apricots at harvest and after 0.5 week at 20 °C (T20_0.5), 1 and 2 weeks at 1 °C and 8 °C (T8_1, T8_2, T1_1 and T1_2). (a,c): PCA scores, (b,d): PCs loadings.
Figure 5. Principal component analysis (PCA) performed on force/displacement curves issued from puncture tests of the skin of (a,b) ‘Goldrich’ and (c,d) ‘Orangered®’ apricots at harvest and after 0.5 week at 20 °C (T20_0.5), 1 and 2 weeks at 1 °C and 8 °C (T8_1, T8_2, T1_1 and T1_2). (a,c): PCA scores, (b,d): PCs loadings.
Agriculture 09 00073 g005

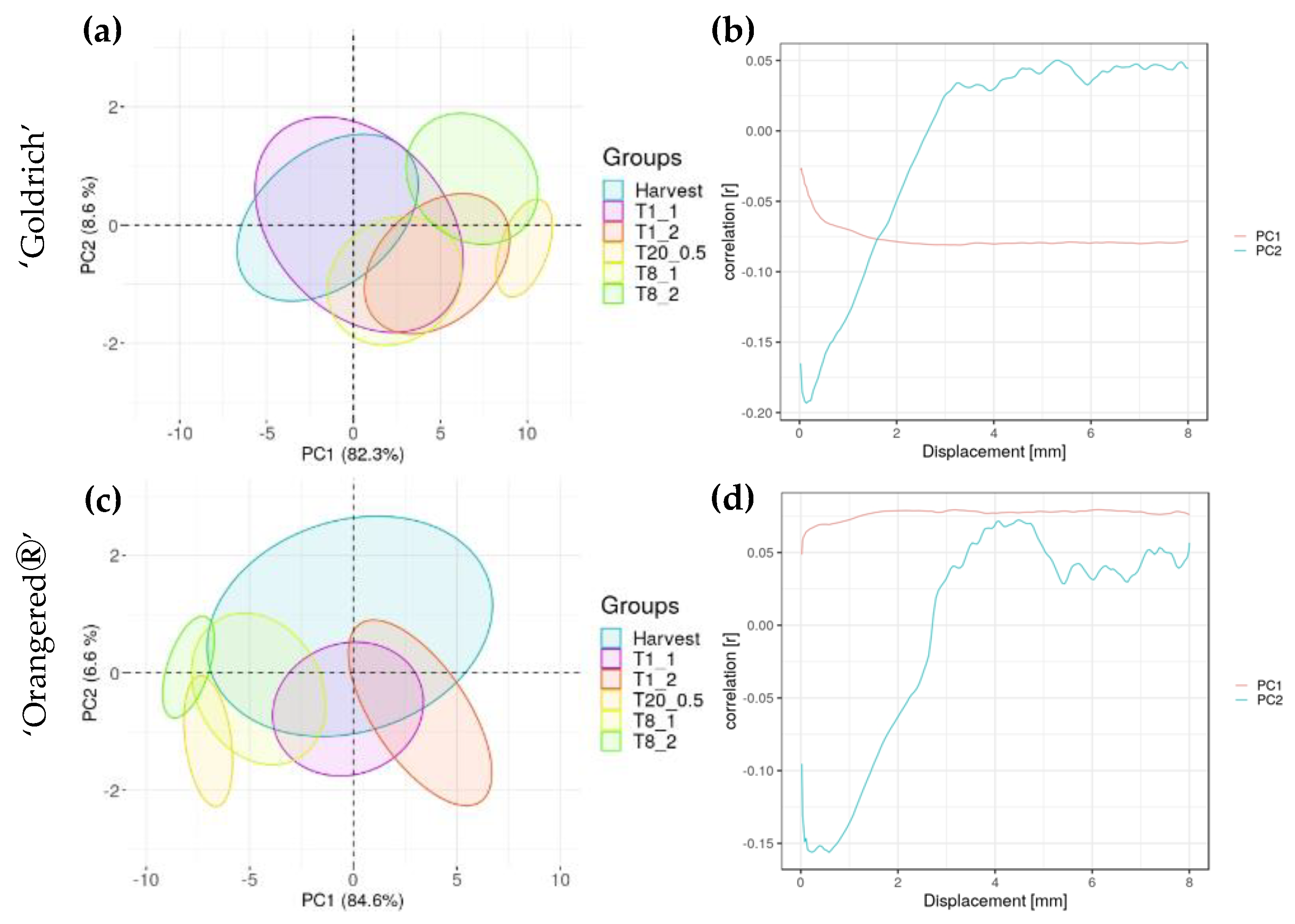

Figure 6. PCA performed on force/displacement curves issued from puncture tests of the flesh of (a,b) ‘Goldrich’ and (c,d) ‘Orangered®’ apricots at harvest and after 0.5 week at 20 °C (T20_0.5), 1 and 2 weeks at 1 °C and 8 °C (T8_1, T8_2, T1_1 and T1_2). (a,c): PCA scores, (b,d): PCs loadings.
Figure 6. PCA performed on force/displacement curves issued from puncture tests of the flesh of (a,b) ‘Goldrich’ and (c,d) ‘Orangered®’ apricots at harvest and after 0.5 week at 20 °C (T20_0.5), 1 and 2 weeks at 1 °C and 8 °C (T8_1, T8_2, T1_1 and T1_2). (a,c): PCA scores, (b,d): PCs loadings.
Agriculture 09 00073 g006

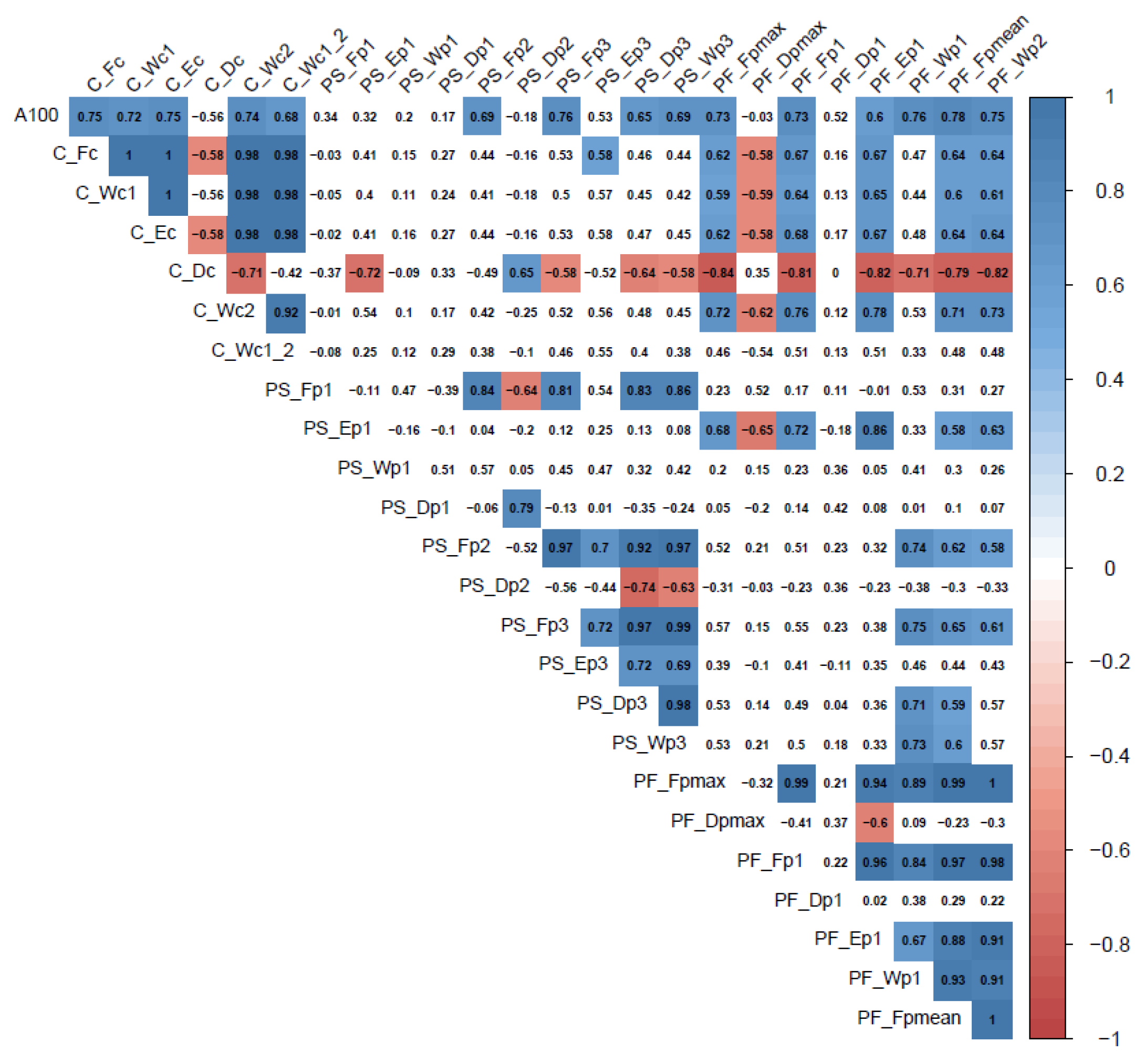

Figure 7. Pearson’s correlation coefficients (p ≤ 0.05) between firmness measured by AGROSTA®100 (A100) and textural parameters issued from compression test (C), and puncture tests on the skin (PS) and on the flesh (PF). Non-significant values are blank.
Figure 7. Pearson’s correlation coefficients (p ≤ 0.05) between firmness measured by AGROSTA®100 (A100) and textural parameters issued from compression test (C), and puncture tests on the skin (PS) and on the flesh (PF). Non-significant values are blank.
Agriculture 09 00073 g007
Table 1. Percentage of correctly classified ‘Goldrich’ and ‘Orangered®’ apricots according to storage temperature and duration obtained with discriminant analyses (DA) performed on 6 parameters extracted from force/deformation curves from compression test (Fc, Wc1, Ec, Dc, Wc2 and ΔWc1–2).
Table 1. Percentage of correctly classified ‘Goldrich’ and ‘Orangered®’ apricots according to storage temperature and duration obtained with discriminant analyses (DA) performed on 6 parameters extracted from force/deformation curves from compression test (Fc, Wc1, Ec, Dc, Wc2 and ΔWc1–2).
Storage TemperatureWeeks of StorageGoldrichOrangered®
Harvest073.7%75.0%
200.573.7%60.0%
8145.0%78.9%
255.0%81.3%
1180.0%45.0%
275.0%40.0%
Mean 66.9%62.6%
Table 2. Correlation coefficients (p ≤ 0.05) between the first two discriminant scores (F1 and F2) and texture parameters extracted from the force/deformation curves.
Table 2. Correlation coefficients (p ≤ 0.05) between the first two discriminant scores (F1 and F2) and texture parameters extracted from the force/deformation curves.
FcWc1EcDcWc2ΔWc1–2
GoldrichF1−0.87−0.90−0.85−0.22−0.78−0.95
F2−0.47−0.42−0.480.80−0.62−0.26
Orangered®F1−0.84−0.82−0.830.77−0.91−0.71
F2−0.32−0.35−0.340.21−0.23−0.45
Table 3. Influence of storage temperature and duration on Fc, Wc2, ΔWc1–2 and Dc. Means with the same letters in a column are not significantly different at p ≤ 0.05 in Fisher’s multiple range test. G: ‘Goldrich’ and O: ‘Orangered®’.
Table 3. Influence of storage temperature and duration on Fc, Wc2, ΔWc1–2 and Dc. Means with the same letters in a column are not significantly different at p ≤ 0.05 in Fisher’s multiple range test. G: ‘Goldrich’ and O: ‘Orangered®’.
Storage TemperatureWeeks of StorageFc (N)Wc2 (N·mm)ΔWc1–2 (N·mm)Dc (%)
GOGOGOGO
Harvest05.80 a5.84 a2.43 a2.84 a3.56 a3.11 a1.78 cd1.48 c
200.53.91 b3.75 bc1.40 b1.51 bc2.73 b2.36 b2.14 a1.83 b
812.63 c3.03 c1.11 c1.29 c1.68 d1.82 c1.84 c1.72 b
22.15 c2.00 d0.79 d0.74 d1.38 de1.23 d2.00 b2.04 a
113.84 b5.41 a1.53 b2.47 a2.19 c3.14 a1.82 cd1.56 c
22.32 c4.23 b0.96 cd1.83 b1.29 e2.49 b1.71 d1.76 b
Table 4. Percentage of correctly classified ‘Goldrich’ and ‘Orangered®’ apricots according to storage temperature and duration obtained with DA performed on 10 parameters extracted from force/distance curves from puncture test.
Table 4. Percentage of correctly classified ‘Goldrich’ and ‘Orangered®’ apricots according to storage temperature and duration obtained with DA performed on 10 parameters extracted from force/distance curves from puncture test.
Storage TemperatureWeeks of StorageParameters Needle Test
GoldrichOrangered®
Harvest060.0%70.6%
200.577.8%30.0%
8145.0%42.1%
236.8%88.2%
1155.0%50.0%
247.4%55.0%
Mean 53.4%54.9%
Table 5. Correlation coefficients (p ≤ 0.05) between discriminant scores (F1 and F2) and texture parameters extracted from the force/deformation curves.
Table 5. Correlation coefficients (p ≤ 0.05) between discriminant scores (F1 and F2) and texture parameters extracted from the force/deformation curves.
Fp1Ep1Wp1Dp1Fp2Dp2Fp3Ep2Dp3Wp3
GoldrichF10.680.110.38−0.060.82−0.250.920.120.810.96
F2−0.35−0.630.550.870.240.510.240.15−0.010.10
Orangered®F1−0.53−0.38−0.020.42−0.690.59−0.70−0.29−0.78−0.78
F20.140.28−0.37−0.54−0.45−0.17−0.33−0.14−0.14−0.20
Table 6. Influence of storage temperature and duration on Fp1, Fp2, Fp3, Dp3 and Wp3. Means with the same letters in a column are not significantly different at p ≤ 0.05 in Fisher’s multiple range test. G: ‘Goldrich’ and O: ‘Orangered®’.
Table 6. Influence of storage temperature and duration on Fp1, Fp2, Fp3, Dp3 and Wp3. Means with the same letters in a column are not significantly different at p ≤ 0.05 in Fisher’s multiple range test. G: ‘Goldrich’ and O: ‘Orangered®’.
Storage TemperatureWeeks of StorageFp1 (N)Fp2 (N) Fp3 (N) Dp3 (mm) Wp3 (N·mm)
GOGOGOGOGO
Harvest00.282 c0.240 bc0.190 a0.142 a0.062 a0.338 ab0.425 b0.347 b0.767 b0.597 b
200.50.222 d0.277 ab0.108 d0.141 a0.044 b0.334 ab0.220 c0.395 b0.413 d0.658 ab
810.284 bc0.285 a0.148 bc0.135 a0.033 b0.313 b0.366 b0.363 b0.618 c0.616 b
20.264 c0.204 c0.128 cd0.061 b0.045 b0.149 c0.267 c0.107 c0.501 d0.272 c
110.330 a0.279 ab0.216 a0.153 a0.065 a0.382 a0.548 a0.496 a0.923 a0.744 a
20.313 ab0.266 ab0.157 b0.164 a0.044 b0.340 ab0.411 b0.404 ab0.702 bc0.662 ab
Table 7. Influence of storage temperature and duration on Fpmax, Fp1, Fpmean and Wptot. Means with the same letters in a column are not significantly different at p ≤ 0.05 in Fisher’s multiple range test. G: ‘Goldrich’ and O: ‘Orangered®.
Table 7. Influence of storage temperature and duration on Fpmax, Fp1, Fpmean and Wptot. Means with the same letters in a column are not significantly different at p ≤ 0.05 in Fisher’s multiple range test. G: ‘Goldrich’ and O: ‘Orangered®.
Storage TemperatureWeeks of StorageFpmax (N)Fp1 (N)Fpmean (N)Wptot (N·mm)
GOGOGOGO
Harvest01.988 a3.088 a1.677 a2.791 a1.572 a2.057 a9.812 a14.277 a
200.50.477 c0.988 d0.346 c0.770 d0.317 d0.613 cd2.286 c4.395 de
811.397 b1.396 cd0.942 b1.134 cd0.940 c1.005 bc6.414 b6.978 cd
20.687 c1.003 d0.499 c0.702 d0.430 d0.584 d2.939 c4.049 e
111.988 a2.337 b1.651 a1.813 b1.509 ab1.703 a9.815 a11.567 b
21.724 ab1.781 c1.236 b1.411 bc1.219 bc1.232 b7.914 ab8.468 c
