Article

Use of Farmer Knowledge in the Delineation of Potential Management Zones in Precision Agriculture: A Case Study in Maize (Zea mays L.)

Research Group in AgroICT and Precision Agriculture, Agrotecnio Center, University of Lleida, Av. Rovira Roure 191, 25198 Lleida, Catalonia, Spain
*
Author to whom correspondence should be addressed.
Agriculture 2018, 8(6), 84; https://doi.org/10.3390/agriculture8060084
Submission received: 28 May 2018 / Revised: 8 June 2018 / Accepted: 11 June 2018 / Published: 13 June 2018
(This article belongs to the Special Issue Precision Agriculture)

Abstract

:
One of the fields of research in precision agriculture (PA) is the delineation of potential management zones (PMZs, also known as site-specific management zones, or simply management zones). To delineate PMZs, cluster analysis is the main used and recommended methodology. For cluster analysis, mainly yield maps, remote sensing multispectral indices, apparent soil electrical conductivity (ECa), and topography data are used. Nevertheless, there is still no accepted protocol or guidelines for establishing PMZs, and different solutions exist. In addition, the farmer’s expert knowledge is not usually taken into account in the delineation process. The objective of the present work was to propose a methodology to delineate potential management zones for differential crop management that expresses the productive potential of the soil within a field. The Management Zone Analyst (MZA) software, which implements a fuzzy c-means algorithm, was used to create different alternatives of PMZ that were validated with yield data in a maize (Zea mays L.) field. The farmers’ expert knowledge was then taken into account to improve the resulting PMZs that best fitted to the yield spatial variability pattern. This knowledge was considered highly valuable information that could be also very useful for deciding management actions to be taken to reduce within-field variability.

1. Introduction

Precision agriculture (PA) is a new paradigm in agriculture that dates back to the middle of the 1980s [1] and is experiencing exponential growth, being considered as the one of the top ten revolutions in agriculture [1,2]. For example, in the recent past, the number of research works related to PA has increased enormously. A simple search in Google Academics with the term “precision agriculture” returns 2130 records for 2005, 5670 for 2015, and 6670 for 2017. In terms of farmers as well as food and agricultural companies, progressively more and more users are starting to use some kind of PA-based system [3]. Many of them are focused on automation of agricultural tasks, remote sensing crop monitoring (e.g., [4]), and on segmentation of within-field variability to delineate potential management zones [5,6]. Nevertheless, although PA is little by little gaining weight in the day-to-day of farms, there is still a big gap between scientific research and real implementation and/or full adoption.
One of the fields of research in PA is the delineation of potential management zones (PMZs; also called site-specific management zones (SSMZs), or simply management zones [1]). This is an important task in PA because it supposes the identification of areas within a field with different productive potential, allowing the opportunity for differential management to be assessed [7,8,9]. Specifically, site-specific crop management is the management of agricultural crops at a spatial scale smaller than the whole field by considering local variability to cost-effectively maximize crop production and the efficient use of agrichemicals to minimize detrimental environmental impacts [10]. To identify and delineate PMZs, information about the yield variation pattern is a good starting point [11]. When yield maps are not available, this delineation is usually performed on the basis of other related (proxy) parameters such as remote sensing multispectral indices, soil mapping units, apparent soil electrical conductivity (ECa), or topography, among others [12,13].
To delineate PMZs, cluster analysis is the main used and recommended methodology [14,15]. This procedure allows pixel values of different maps to be classified into homogeneous groups (map classes). For this, the user can choose between a hard-type or a fuzzy-type classification algorithm. For example, the k-means algorithm or the Isodata [16] are examples of hard classifiers in which each observation (map pixel) can only belong to a single class or cluster. On the other hand, the fuzzy c-means algorithm, as an example of a fuzzy-type classifier, allows more than one class or cluster to be assigned to each observation, with different membership values of belonging [8]. The Management Zone Analyst (MZA) software [17] is an example of successful implementation of this algorithm. In short, 2–6 classes can be created using MZA. The program calculates two coefficients to help the user decide on the optimal solution. This is made based on the degree of separation (or overlap) between the partitioned classes (fuzziness performance index, FPI) and on the amount of disorganisation created by the fuzzy partition (normalized classification entropy, NCE).
One of the extensive crops in which precision management has gained adepts due to economic and environmental considerations is maize (Zea mays L.) as stated by Jin et al. [18]. One of the most frequent applications of PA techniques is the use of multi-spectral images to improve in-season N management and yield prediction [19]. Those applications are very interesting for maize growers, because maize is a high N-demanding crop where insufficient supply of N can result in important economic losses, whereas excessive fertilization implies wasting resources and increasing environmental pollution. Then, to take advantage of the productive potential of different areas within a field, delineation of management zones for variable rate seeding or variable rate fertilization is considered as an opportunity to achieve higher yields while optimizing agricultural inputs, reducing environmental impact.
As mentioned above, geospatial measurement of apparent soil electrical conductivity (ECa) is one of the most reliable and frequently used measurements to characterize within-field variability of edaphic properties to apply site-specific crop management [20]. In relation to differential management of maize, different research works have used ECa to generate management zones and/or recommendations for spatially variable rate applications of N fertilizer [21]. However, these zones were not only based on ECa but on other relevant properties such as elevation and slope, or also taking into account soil brightness images [22]. Other researchers have found that the best predictor of the spatial pattern of yield variability is the aggregation of yield maps from previous years [23]. Nevertheless, in the absence of yield maps, or when zones within the field are more sensitive to weather conditions fluctuating from one year to the other, the spatial patterns can be derived from within-season remote sensing images. In this respect, other works have demonstrated the effectiveness of remote sensing-based vegetation indices to track phenological changes such as leaf greenness to infer the maize N status and needs, as well as for yield prediction. For example, Maresma et al. [19,24] investigated the correlation of different multispectral vegetation indices with the N status at V12 (12 leaves with visible leaf collar) just before tasselling with a single date image. However, other authors point out that good estimator of biomass and yield can be derived from the use of temporal series of remote-sensing images to characterize dynamics of crop canopy throughout the growing and development cycle [25,26]. From that, the accumulation of vegetation index values (e.g., the normalized difference vegetation index, NDVI) from the beginning of the biomass accumulation to grain maturity could be a good alternative to yield maps to estimate the within-field variability to finally delineate potential zones for different management practices.
As can be deduced from the above, there is still no accepted protocol or guidelines for establishing potential management zones [10]. Then, the delineation of potential management zones for differential crop management may have different solutions, since the resulting zones can vary depending on the input variables considered for clustering [8]. Then, some important questions arise, which many studies sometimes ignore. For example, do the resulting zones reflect the real soil productive potential? Do the proposed class maps give information about the soil and/or environmental properties/conditions that may limit the productive potential? On the other hand, was the farmer’s expert knowledge taken into account in the management zone delineation process? Within precision agriculture research much emphasis has been put on technology, whereas the knowledge that farmers have and ways to explore it have received little attention [27]. Farmers know which areas of a field are more or less productive, and the use of this knowledge may allow or help in the identification of management zones. Few studies, however, have specifically addressed the use of farmers’ knowledge for that purpose. Schenatto et al. [28] evaluated the application of farmers’ experience to determine management zones in soybean fields. They found that the use of farmers’ experience could be an efficient and simple tool that could reduce costs in comparison with the traditional method of using stable soil variables and relief. Another interesting experience, although not specifically addressed to the delineation of management zones, analysed how to integrate farmers’ experience-based knowledge in decision support systems, in order to calculate variable N rate application from satellite images [29]. They found that PA technology must fit doubly the technical needs of farmers and their usual practices to be adopted.
In accordance with this background, the objective of the present work was to propose a methodology that uses the farmers’ expert knowledge to improve the delineation of potential management zones for differential crop management that result from unsupervised clustering. Our hypothesis is that the farmers’ expert knowledge can add highly valuable information which can guide the segmenting of the initial proposed zones. This knowledge can include information on soil and/or local environmental limitations. This information could be also very useful to decide about management actions to be taken to reduce within-field variability.

2. Materials and Methods

2.1. Study Area and Plot Characteristics

The research was carried out in a commercial plot of 45 ha located in the municipality of Tamarite de Litera (Huesca, NE Spain, Latitude 41.75455°, Longitude 0.36386°, WGS84, Figure 1). The plot was sown with maize (Zea mays L.) on 16 April 2017 and was harvested on 20 October 2017. The hybrid was DKC6729YG (Monsanto Company, St. Louis, MO, USA), which is a FAO 700 cycle adapted to the conditions of the Ebro Valley, where the farm is located. The average yield was 12.7 t ha−1. The precedent crop was second-harvest sunflower (Helianthus annuus L.). The elevation of the plot ranges from 212 to 235 m.a.s.l., with average slopes of 5%, and a maximum of 20%. Soils were classified as Typic Xerorthents, Typic Xerofluvents, and Haplocalcid Xerics [30]. The plot is irrigated by a centre pivot consisting of six pipe segments of 60-m each, with a total length of 360 m. The outer-most span has a canyon that irrigates an additional length of 25 m.

2.2. Methodological Approach

The idea that motivated the present research was to analyse some of the affordable possibilities that service companies and/or (advanced) farmers have to delineate potential management zones (PMZs) in order to apply precision agriculture in extensive crops. For that, we proposed the delineation of PMZ based on information acquired during the previous crop season to guide management practices for the next one. The information should be easy to obtain by service companies and/or farmers, for example: freely available remote sensing data, elevation data from public digital elevation models, and apparent electrical conductivity as proxy monitoring of soil variability. The resulting PMZs were delineated according to a clustering procedure (see Section 2.5) using different input data and were validated with the crop yield map obtained at the end of the season. In addition, the farmer’s expert knowledge was considered in order to revise and refine the results, and to identify the causes of within-field variability to propose solutions (see Section 2.7). Figure 2 shows the summary of the proposed methodological approach.

2.3. Remote Sensing Data—Sentinel-2 Imagery: Acquisition, Processing, and Vegetation Indices

According to Figure 2, multispectral images along the maize cycle in 2017 (from sowing to harvest) were acquired and considered to map PMZs as a first option. These images corresponded to Sentinel-2A satellite and were downloaded from the Copernicus Open Access Hub (https://scihub.copernicus.eu/). Copernicus is the European Union’s Earth Observation Programme, which is coordinated and managed by the European Commission (http://www.copernicus.eu/). Table 1 shows the downloaded images with the identifiers, the cloud cover percentage and the maize development stage at image acquisition date according to Ritchie et al. [31].
Some of the listed images were discarded due to cloud cover affecting the study area (Table 1). On the other hand, three of the images were downloaded as Level 1C (Top-of-Atmosphere, ToA reflectance), and the rest were Level-2A (Bottom-of-Atmosphere, BoA reflectance). The Level-1C images were converted to Level-2A with the plugin Sen2Cor (http://step.esa.int/main/third-party-plugins-2/sen2cor) implemented in the open source ESA Sentinel Application Platform (SNAP), which includes the Sentinel-2 Toolbox. Sen2Cor is a processor for Sentinel-2 Level-2A product generation and formatting. It performs the physical atmospheric, terrain, and cirrus correction of ToA Level-1C Sentinel-2 products and creates, among others, BoA reflectance-corrected bands. The output format is equivalent to the Level-1C User Product: georeferenced JPEG 2000 images with bands with three different resolutions: 10, 20, and 60 m. Table 2 summarizes the basic spectral information about the Sentinel-2A bands acquired by the onboard Multi Spectral Instrument (MSI). More detailed information about the Sentinel-2 mission, satellites, payloads, spectral bands, and products can be found in Drusch et al. [32].
Only the B04 (Red 664.5 nm, width 38 nm) and B08 (near infrared NIR 835.1 nm, width 145 nm), with 10-m pixel size, were used to calculate the normalized difference vegetation index (NDVI) according to the Equation (1) [33]. There are other multispectral broad-band vegetation indices available for use in PA that can be calculated from Sentinel-2 bands (for example, normalized difference index bands B04 and B05 (NDI45) [34], and the red edge inflection point [35], among others). However, although several limitations have been recognised, it is one of the most frequently used index used to estimate spatial patterns in crop biomass and/or potential crop yield [1,25]. In addition, at present it starts to be widely used in PA services for end users.
NDVI = NIR Red NIR + Red
After calculating the NDVI for each valid image, and following the criteria proposed by González-Gómez et al. [26], we plotted the average NDVI of the field for each date to identify the date of the green-up and the date of grain maturity (Figure 3).
The green-up corresponds to the beginning of the growing phase or crop development stage [36]. The time series of NDVI allowed for the identification of the green-up moment [26]. Specifically, the green-up does not correspond to any phenological stage. It is a matter of change from pure soil reflectance to the detection of the growing vegetation cover. In the present case study, it corresponded to the stage characterized by the appearance of 2–4 leaves (V2–V4), which was registered in the Sentinel-2A image acquired on 16 May 2017. From this point on, the crop begins a period of rapid growth until plants reach the plateau of maximum canopy cover and start the tasselling phase (V12–VT). In the reproductive growth stages (silking to grain maturity) the NDVI decreases rapidly.
In the present case study, the accumulated NDVI (aNDVI) was calculated between the green-up date (16 May) and the end of the dent stage (13 September) to map the within-field variability of plant vigour. The aNDVI, as proposed by Campos et al. [25] and González-Gómez [26], was preferred to map the within-field variability instead of only using indices of a specific date (e.g., just before tasselling) because, according to our experience, the crop development stage in different parts of the plot is not uniform. It can vary according to soil properties, irrigation rates, and other factors. Therefore, at a specific date there can be parts of the plot in stage VT (tasselling) and others that have not yet reached this stage. For this reason, the aNDVI can better represent the variability of the crop development within the plot, since it is not dependent on the different crop stages at a specific time.

2.4. Apparent Electrical Conductivity and Elevation Data

The second option to delineate PMZs was by considering the combination of the aNDVI with a map of the apparent soil electrical conductivity (ECa). For that, an ECa survey was carried out on 20 June 2016 with a Veris 3100 sensor (Veris Technologies Inc., Salina, KS, USA). Veris 3100 uses two coulter pairs to measure ECa at 0–30 cm (shallow ECa) and 0–90 cm (deep ECa) soil depths simultaneously. Data was georeferenced by means of a Trimble AgGPS332 receiver with EGNOS (European Geostationary Navigation Overlay Service) augmentation to obtain differential global position system (DGPS) locations in geographic coordinates WGS84 (EPSG 4326). Negative ECa values were filtered. Then, values above or below ±2.5 standard deviations (SDs) were considered as outliers and were removed from the original raw data according to the criteria of Taylor et al. [12]. The final ECa data set consisted of 8230 points with shallow and deep readings. These data were interpolated on a 2-m grid by means of ordinary kriging using an exponential semivariogram model. For this purpose, ArcGIS Geostatistical Analyst 10.4 (ESRI, Redlands, CA, USA) was used.
In the present work, and according to Sudduth et al. [37], we only used the deep ECa data, since it represents the integrated signal for the 0–90 cm soil profile.
To compare ECa values with saturated paste extract electrical conductivity (ECe), ECa original values were first standardized at the reference temperature of 25 °C using a polynomial function proposed by Sheets and Hendrickx [38]. Then, ECa values at the reference temperature were converted to ECe according to an empirical regression line calculated with data of our own from a close study area (Equation (2), unpublished),
ECe = 2.625 + 3.146 ECa; based on 11 sampling points, R2 = 0.63
where ECe is the estimated electrical conductivity of the saturated paste extract in dS m−1 at 25 °C and ECa is the apparent electrical conductivity converted from mS m−1 to dS m−1 at 25 °C according to Sheets and Hendrickx [38]).
In addition to the first two approaches, the third option to delineate PMZ was to consider elevation data as an input variable, together with the aNDVI and the ECa. For this purpose, a publically available 5 × 5 m spatial resolution digital elevation model (DEM) was used. This DEM was produced by the Spanish National Geographic Institute by means of airborne flights using LiDAR (Light Detection and Ranging), with a density of 0.5 points m−2 or higher.

2.5. Clustering Procedure to Delineate Potential Management Zones

For clustering, we selected a fuzzy logic unsupervised classification method (fuzzy c-means algorithm), implemented in the Management Zone Analyst (MZA) software of the United States Department of Agriculture Agricultural Research Service [17]. The fuzzy c-means algorithm allows more than one class or cluster to be assigned to each individual (pixel inside the plot), according to its characteristics and with different membership values. The class in which each pixel obtained the highest score (assignment) was the class which would finally appear on the classified PMZ map (“defuzzification” process).
According to Fridgen et al. [17], the optimal fuzzy classification of the input data (n observations) into classes (c clusters) is the classification which minimizes the objective function Jm (Equation (3)):
J m = i = 1 n j = 1 c ( u i j ) m ( d i j ) 2
where m is the fuzziness exponent (m is usually set in the range 1 < m ≤ 2; in this particular case m was set to 1.30), (dij)2 is the squared distance between observations and centroids (clusters), and uij is the membership value assigned to pixel i within the cluster j.
As it can be seen in Equation (3), the fuzzy c-means algorithm introduces the use of a weighting exponent (fuzziness exponent), the function of which was to control the degree of overlap established between the classes or clusters. The algorithm also incorporates the concept of distance between points to evaluate the similarity (proximity) between observations and the centroids of each class. In this respect, the distance used in the present research was the Mahalanobis distance, which was calculated through the matrix product (Equation (4)):
d i j = [ ( y i v j )   S 1   ( y i v j ) ] 1 / 2
where yi represents the vector of the ith observation of the data, vj is the means vector (centroid) corresponding to the cluster j, and S is the matrix of variances and covariances of the original data. In this way, as a measure of similarity, the use of Mahalanobis distance enabled a “bringing together” or “separation” of the points, taking into consideration the existing degree of correlation between the original variables (aNDVI, ECa, and DEM).
The selection of the most appropriate number of classes was done on the basis of the calculation of two coefficients: the fuzziness performance index (FPI) and the normalized classification entropy (NCE). The FPI measured the degree of separation (or overlap) between the partitioned classes for the original data matrix [15], and was calculated using Equation (5):
FPI = 1 c F 1 c 1 ,   with   F = 1 n i = 1 n j = 1 c ( u i j ) 2
where c is the number or clusters. FPI values range between 0 and 1. Those values close to 0 were indicative of distinct classes with little overlap between them, while values close to 1 indicated non-distinct classes or, in other words, classes with a very high degree of overlap.
On the other hand, the NCE provided an estimate of the amount of disorganisation created by the fuzzy partition of the data matrix using a specific number of clusters. It was calculated using Equation (6):
NCE = H [ 1 ( c n ) ] ,   with   H = 1 n i = 1 n j = 1 c u i j · log a ( u i j )
where H is the entropy, in which the logarithmic base a could be any positive integer, with the values of H varying from 0 to loga (c). As before, the NCE values close to 0 were indicative of an appropriate classification (or clustering with a higher degree of organisation). The optimum number of clusters was, therefore, the number which managed to minimize the two proposed coefficients, the FPI and NCE.

2.6. Validation of Potential Management Zones

The validation of PMZ was done with yield data acquired at the end of the season. Specifically, yield data were acquired by means of a Trimble Ag FMX yield monitor (Trimble Inc., Sunnyvale, CA, USA) installed in a Fendt 6335 CPL combine harvester. The combine had a cutting width of 5.60 m (8 rows) and was equipped with tilt sensors to correct the effect of slope on the sensor readings. The yield monitor operation principle is based on an optical sensor to measure grain volume flow rate (l s−1) and grain moisture in real time. The system measured the volume of grain harvested and estimates the weight by multiplying the measured volume by the test weight (grain density). In order to get a higher accuracy, the monitor was calibrated with real grain weight from the first load on 20 October 2017 (the day of harvest). The calibration was done following the recommendations prescribed by Trimble and according to the expertise of the experienced combine driver.
Yield monitor data consisted of a set of 43,580 points. Each point contained data related to the effective harvest width (m), the combine forward speed (km h−1), the grain flow rate cm3 s−1, grain yield (kg ha−1), grain moisture (%), grain temperature (°C), and other less relevant measures.
The procedure to obtain the yield map was as follows. First of all, the points with yield equal to zero were removed. Those mainly corresponded to points of combine displacement within the plot without harvesting. Then, the ratio between the average yield of the monitor and the actual average yield from the loads was calculated (r1). This ratio was used to multiply the yield of each acquired point to adjust it to match the actual yield average. In a second step, adjusted yield values above or below 2.5 SD were considered outliers and were removed from the data set, according to the criteria used in Taylor et al. [14]. This procedure was repeated twice until a normal distribution of yield data was achieved without variation in the average yield data compared to the actual yield average. Finally, grain yield values per point were converted to the reference grain moisture content of 14% according to Equation (7).
Y r = 100 H g 100 H r
where Yr is the grain yield at 14% moisture content, Hg is the moisture content provided by the monitor, and Hr is the reference moisture content (14% in the present case).
After data filtering, the final set of yield points consisted of 38,507 points, which were used to interpolate to a continuous grid. This process was performed with VESPER (Variogram Estimation and Spatial Prediction plus Error) [39], using ordinary kriging in 20 m blocks and projecting interpolated data over a regular 5-m grid. A global variogram of raw data was initially fitted using the exponential model, and a minimum of 90 and a maximum of 100 neighbouring yield data points were used to interpolate each point in the grid.
To check the suitability of PMZ to discriminate areas of different potential yield, an analysis of variance (ANOVA) was performed for each clustering to assess its effect on yield taking the number of classes as factor levels. For that purpose, 80 sample points were randomly distributed within the plot and sampled with respect to yield, the aNDVI class, the aNDVI-ECa class, and the aNDVI-ECa-elevation class. The software JMP Pro 13 (SAS Institute Inc., Cary, NC, USA) was used to perform this data analysis.

2.7. Refinement of Potential Management Zones: Adding Farmer’s Expert Knowledge

Once the clustering option that best matched with the final yield was selected, a refinement of the zones according to the farmer’s expert knowledge was proposed. The objective was double. First, to avoid a very fragmented map of PMZs, which could complicate the application of differential management actions (e.g., addition of cow manure, variable-rate-application of fertilizers, etc.), and second, associate to the zones the farmer’s knowledge of the possible causes of variability. In this respect, we tried to follow the concept of “on-farm experimentation” built around the farmer’s experiences, observation and analysis of farm operations [40]. In the present case study, the farmer had 25 years of experience in the farm. This knowledge is summarized in Figure 4, making use of the elevation map to facilitate the reader with an understanding of the subsequent revision of PMZs presented in the results section. As mentioned above, such expert knowledge was also used to recommend solutions to reduce the within-field variability.

3. Results

3.1. Accumulated NDVI, ECa and Yield Maps

Figure 5 shows the intermediate results from the input data. Those are: (a) the accumulated NDVI (aNDVI), (b) the apparent soil electrical conductivity (ECa) at 0–90 cm, and (c) the maize yield. The latter two are a result of spatial interpolation (kriging). In addition, Table 3 presents the summary statistics for the three variables.
Figure 5 allows different spatial patterns of the variables to be observed. On the one hand, the aNDVI seems to be quite related to elevation (Figure 4), with higher values in the upper areas, while the ECa shows an inverse pattern, with higher values in the lower areas of the plot. Visually, yield seems to follow a pattern similar to the aNDVI, although with a higher salt-and-pepper effect due to the different origin of data. The inverse correlation between aNDVI and ECa could be due to salinity problems in the lower parts of the field, where ECa values higher than 100 mS m−1 (max of 143.7 mS m−1) were mapped. According to Sheets and Hendrickx [38] and Corwin and Lesch [10], these values would come to correspond to ECa values of 1.20 to 1.70 dS m−1 at 25 °C, which when converted to ECe represent values between 6.7 to 8.5 dS m−1 at 25 °C. It is known that ECa values above 100 mS m−1 corresponded to moderate saline soils. Taking into account that the threshold from which maize start to decrease yield is 1.70 dS m−1 at 25 °C [41], the low aNDVI at the lower part of the plot is directly related to salinity. This problem could have been affecting the growth from the seedling growth stage, when it is much more sensitive, with a threshold of 1 dS m−1 at 25 °C [42]. Salinity problems in the lower areas of the plot were also confirmed by the farmer (Figure 4).

3.2. Clustering to Discriminate Areas of Different Yield Potential

Table 4 presents the results of the fuzziness performance index (FPI) and the normalized classification entropy (NCE) after clustering using the fuzzy c-means algorithm (MZA software). Minimum values for the two indices are marked (*) per column, indicating the optimal number of classes, that is, the number of clusters that minimize the overlap between groups (lower values of FPI), and the number of clusters that, also with smaller values of NCE, allows the degree of organization to be increased.
In the case of considering only aNDVI, the minimum values for FPI and NCE differed (two and four classes, respectively), while for the rest of clustering procedures the recommended number of classes was coincident for both indices (three classes using both the aNDVI and the ECa, and four classes for the combination aNDVI-ECa-DEM). Since in the case of using the aNDVI alone there was no agreement between the FPI and NCE indices, we opted for choosing the two types of maps (two and four classes of aNDVI) to validate them against the maize yield map. In fact, FPI values for two and four clusters were not so different, and nor for the NCE, since both indices can vary between 0 and 1.
Figure 6 shows the resulting classified maps for the different combinations of input variables. Specifically, two maps classified into two and four classes based on the aNDVI, one map classified into three classes based on the combination of aNDVI-ECa, and one map classified into four classes based on the combination of aNDVI-ECa-DEM are shown.
The results of the ANOVA of maize yield according to different clustering alternatives are shown in Table 5. Average maize yield is shown according to classes in addition to the representative value of the input variables in each class.
According to Table 5, the only case in which maize yield presented clearly significant differences corresponded to the clustering according to two classes of aNDVI. In the other cases, at least one of the classes presented no significantly different yield average than the others. For example, in the case of four classes of aNDVI the results indicated that Class 3 was in between the lowest and the medium yield class. This could signal the possibility that mapping three classes of aNDVI could produce yield differentiation, as in the case of two classes. Regarding the three classes of aNDVI-ECa, although there was a clear difference in the average yield of the three classes, those differences were not statistically significant. The same occurred in the case of four classes of aNDVI-ECa-DEM, in which elevation together with ECa was not able to distinguish yield in more classes than the aNDVI alone.
Table 5 also gives information about the average values in each class of the input variables. In this respect, it can be observed that yield is always positively correlated with the aNDVI. In the case of ECa, the relationship with yield was not clear. Although the highest yield was related to the lowest ECa values (Class 2 in the aNDVI-ECa 3C map) and medium yield was related to higher ECa values (Class 3 in the aNDVI-ECa 3C map), there was a third class that presented the lowest yield with also low values of ECa (Class 1 in the aNDVI-ECa 3C map). The reason for that could be other problems different than soil salinity, such as for example root asphyxia in zones with upwelling problems and poor drainage identified by the farmer (Figure 4). On the other hand, concerning the elevation, the highest yield was obtained in the upper area of the plot (Class 2 in the aNDVI-ECa-DEM 4C map), but in addition the lowest yield values (on average) were obtained in the same elevation range (Class 1 in the aNDVI-ECa-DEM 4C map). This indicates that elevation may not be a satisfactory variable for yield discrimination or, at least, its contribution is masked by the other more powerful input variables such as aNDVI. Nevertheless, logically lower yield values were found in the lower areas of the plot, in concordance with the limited drainage and higher soil salinity.

3.3. Final Delineation of PMZ According to the Farmer’s Expert Knowledge

According to the results, and since ECa and elevation were not able to clearly distinguish more than two yield classes, we proposed the delineation of a third class to segment the aNDVI 2C map on the basis of the farmer’s expert knowledge about the soils, environment, and the history of precedent crops in the plot (Figure 4). Intermediate productive potential zones were then delineated segmenting and/or merging together low and high accumulated vigour zones in those areas that were identified by the farmer as with specific behaviour or problems. The result of this delineation is presented in Figure 7, in which the aNDVI 2C map and its segmentation according to the farmer’s knowledge (aNDVI-Farmer 3C map) are compared. In comparison with the aNDVI 2C map, the revised map has fewer zones (patches of different classes, 13 versus 37), avoiding a very fragmented map of PMZs, in which the application of differential management actions (e.g., addition of cow manure, variable-rate-application of fertilizers, etc.), could be more difficult for the farmer. In some cases, highly productive potential zones were classified as of medium productive potential. In other cases, low productive potential zones were the ones classified as the new intermediate class.
The PMZs as delineated from the farmer’s expert knowledge (aNDVI-Farmer 3C map) were also tested against maize yield using the same validation points as in the other PMZ maps. ANOVA results are shown in Table 6.
The analysis of variance (Table 6) indicates that the modification of the aNDVI 2C map (derived from the fuzzy c-means unsupervised classification) according to the farmer’s expert knowledge allowed yield to be significantly differentiated into three classes within the plot. In this map, Class 1 corresponded to the most productive areas, mainly located in the upper area of the plot corresponding to the highest accumulated NDVI and the lowest ECa. Class 2 corresponded to the areas showing intermediate yield that were either located in hanged infilled valleys or in lower parts of the plot. In this class, soil salinity would not be the main problem, the higher values of ECa probably being associated to finer textures as compared to Class 1. Lower yields would be related to water spouts and limited drainage. Finally, Class 3 had the lowest yield. Areas belonging to this class were mainly located in the lower part of the plot, where salinity problems are more frequent. In this respect, high values of ECa and the lowest accumulated NDVI were the predominant characteristics.

4. Discussion

This research work showed different aspects of within-field variability and zoning that are worth discussing. First, the results revealed an inverse relationship between the accumulated NDVI along the maize cycle and the ECa, and between the yield and ECa. The explanation was the higher values of electrical conductivity in relation to the tolerance level of maize. This is in agreement with the theoretical framework of soil electrical conductivity [10,37], which indicates that for saline soils most of the variation in ECa can be related to salt concentration, but in non-saline soils, conductivity variations are primarily a function of soil texture, moisture content, and cation exchange capacity (CEC). However, the highly productive potential zones in the plot (with high aNDVI) mainly corresponded to the lowest ECa values, which in the case of non-saline soils was not expected [37]. In the present case, the lowest ECa values corresponded to coarse-texture soils which are located in the upper part of the plot and have very good drainage. In good conditions of water supply and fertilization, these soils are the most productive within the plot.
Regarding the unsupervised clustering results, the classification of the accumulated NDVI presented no agreement between the fuzziness performance index (FPI) and the normalized classification entropy (NCE). The two indices indicated different numbers of recommended classes. The ANOVA of the maize yield according to previously delimited classes indicated that the best option was the classification into two classes instead of four. This result is in agreement with the recommendation of Lark and Stafford [43] and Arnó et al. [11], who found that the best option is to choose the lowest number of classes.
Clustering the aNDVI in combination with the ECa into three classes did not produce a clear separation of yield levels (Table 5). Having sorted the classes according to the accumulated NDVI values, there was a class with medium yield (13.1 t ha−1) and high average ECa (65.9 mS m−1) and another class with low yield (11.8 t ha−1) and low average ECa (21.4 mS m−1). Moreover, similar average ECa values (Class 2 and Class 1 in Table 5) had very different yields (15.3 and 11.8 t ha−1, respectively). This reveals that factors other than soil properties could have affected maize growth in areas within Class 1. In the case study plot, these areas suffered a problem of drainage water upwelling coming from the upper parts of the plot (Figure 4). As is known, excess moisture can produce root hypoxia, which can be one of the major production constrains for maize [44].
Assessing PMZs resulting from the combined classification of aNDVI, ECa, and DEM, the latter did not seem to be useful in segmenting four yield classes as recommended by the FPI and NCE indices. A priori, the hypothesis could be that the lower parts had to be less productive than the higher parts due to limited drainage and salinity. However, as shown in Table 5, yield was very different in Classes 1 and 2 characterized by the same high average in elevation, which indicates that topography is not a good discriminant variable to delineate potential management zones, at least in the plot under study. This finding is in contradiction with other works, as in the one by Fraisse et al. [12], who analysed the “goodness” of PMZ using ECa and topographical data, indicating that elevation and ECa showed better behaviour than slope and a topographic index in defining soil potential management zones.
The accumulated NDVI has been shown to be a good yield predictor, but neither the aNDVI map nor the yield map itself provides information about the cause of spatial variability. In this sense, ECa survey is useful to detect problems of salinity or fine textures that can lead to drainage problems [13,37]. In this respect, information revealed as very useful was the farmer’s expert knowledge. There are few works in the literature relating farmer knowledge to precision agriculture, but they have shown interesting results in agreement with the present research. For example, Oliver et al. [45] integrated farmer’s knowledge and spatial data to define yield zones where targeted soil sampling and crop simulation were then used to determine yield potential and particular constraints. The results provided farmers with a good method for making decisions about spatial management in their fields. Also, Heijting et al. [27] stated that, given the farmers’ spatial knowledge of their fields, that knowledge is a good starting point to map the within-field variation of soil properties. The results of this work corroborate this concept, highlighting that farmer’s knowledge cannot be ignored and should be considered as an important information source in precision agriculture.
The farmer’s inertia to changes is usually slow and it is difficult for them to adopt new farming practices [46]. However, we believe that their participation in the process of delineation of PMZs is important. In the present work, this contribution has been able to use the resulting areas of the unsupervised classification and segment them in such a way that an intermediate class of productive potential was added. This was in line with the idea of the farmer of avoiding high fragmentation. In addition, the results showed that the resulting three classes had statistically different average yields.

5. Conclusions

The present research demonstrates that precision agriculture practices such as decision-making on how to delimit potential management zones (PMZs) benefit from farmers’ experiences and knowledge of their fields. Farmers’ knowledge can complement the information given by other sources of spatial data and methods frequently used for precision agriculture purposes. From a practical point of view, this knowledge could be used to modify or refine the delineation of PMZs created by numerical and computational analysis. In addition, farmers’ experience is crucial to identify soil limitations and other types of spatio-temporal constrains that can limit yield to correct their effects. Moreover, ECa readings have a complex nature, making their interpretation difficult. Knowledge about soil–landscape relationships and/or drainage conditions is essential. For that, again the farmer’s expert knowledge may be important. In addition, we believe that this strategy of combining scientific methodologies with their contribution of expert knowledge can further promote the adoption of precision agriculture technologies.

Author Contributions

J.A.M.-C. and J.A. conceived and designed the experiment, analysed the data, and wrote the paper; A.E. participated in field data acquisition and image processing, and collaborated in writing and revising the paper.

Funding

This research was funded by the contract C16022 between the University of Lleida and Ventafarinas, S.L. (Lleida, Spain).

Acknowledgments

The authors thank to J.R. Rosell-Polo and A. Uribeetxebarria, members of the Research Group in AgroICT and Precision Agriculture of the University of Lleida-Agrotecnio Center (www.grap.udl.cat), for their support in field data acquisition.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Mulla, D.J. Twenty-five years of remote sensing in precision agriculture: Key advances and remaining knowledge gaps. Biosyst. Eng. 2013, 114, 358–371. [Google Scholar] [CrossRef]
  2. Crookston, R.K. A top 10 list of developments and issues impacting crop management and ecology during the past 50 years. Crop Sci. 2006, 46, 2253–2262. [Google Scholar] [CrossRef]
  3. Pavón-Pulido, N.; López-Riquelme, J.A.; Torres, R.; Morais, R.; Pastor, J.A. New trends in precision agriculture: A novel cloud-based system for enabling data storage and agricultural task planning and automation. Precis. Agric. 2017, 18, 1038. [Google Scholar] [CrossRef]
  4. Bansod, B.; Singh, R.; Thakur, R.; Singhal, G. A comparison between satellite based and drone based remote sensing technology to achieve sustainable development: A review. J. Agric. Environ. Int. Dev. 2017, 111, 383–407. [Google Scholar] [CrossRef]
  5. Peralta, N.R.; Costa, J.L. Delineation of management zones with soil apparent electrical conductivity to improve nutrient management. Comput. Electron. Agric. 2013, 99, 218–226. [Google Scholar] [CrossRef] [Green Version]
  6. Castrignanò, A.; Buttafuoco, G.; Quarto, R.; Vitti, C.; Langella, G.; Terribile, F.; Venezia, A. A combined approach of sensor data fusion and multivariate geostatistics for delineation of homogeneous zones in an agricultural field. Sensors 2017, 17, 2794. [Google Scholar] [CrossRef] [PubMed]
  7. Arnó, J.; Martínez-Casasnovas, J.A.; Ribes, M.; Rosell, J.R. Review. Precision viticulture. Research topics, challenges and opportunities in site-specific vineyard management. Span. J. Agric. Res. 2009, 7, 779–790. [Google Scholar] [CrossRef]
  8. Gavioli, A.; Godoy de Souza, E.; Bazzi, C.L.; Carvalho Guedes, L.P.; Schenatto, K. Optimization of management zone delineation by using spatial principal components. Comput. Electron. Agric. 2016, 127, 302–310. [Google Scholar] [CrossRef]
  9. Uribeetxebarria, A.; Daniele, E.; Escolà, A.; Arnó, J.; Martínez-Casasnovas, J.A. Spatial variability in orchards after land transformation: Consequences for precision agriculture practices. Sci. Total Environ. 2018, 635, 343–352. [Google Scholar] [CrossRef] [PubMed]
  10. Corwin, D.L.; Lesch, S.M. Apparent soil electrical conductivity measurements in agriculture. Comput. Electron. Agric. 2005, 46, 11–43. [Google Scholar] [CrossRef]
  11. Arno, J.; Martinez-Casasnovas, J.A.; Ribes-Dasi, M.; Rosell, J.R. Clustering of grape yield maps to delineate site-specific management zones. Span. J. Agric. Res. 2011, 9, 721–729. [Google Scholar] [CrossRef]
  12. Fraisse, C.W.; Sudduth, K.A.; Kitchen, N.R. Delineation of site-specific management zones by unsupervised classification of topographic attributes and soil electrical conductivity. Trans. ASABE 2001, 44, 155–166. [Google Scholar] [CrossRef]
  13. Tagarakis, A.; Liakos, V.; Fountas, S.; Koundouras, S.; Gemtos, T.A. Management zones delineation using fuzzy clustering techniques in grapevines. Precis. Agric. 2013, 14, 18. [Google Scholar] [CrossRef]
  14. Taylor, J.A.; McBratney, A.B.; Whelan, B.M. Establishing management classes for broadacre agricultural production. Agron. J. 2007, 99, 1366–1376. [Google Scholar] [CrossRef]
  15. Moral, F.J.; Terrón, J.M.; Marques da Silva, J.R. Delineation of management zones using mobile measurements of soil apparent electrical conductivity and multivariate geostatistical techniques. Soil Tillage Res. 2009, 106, 335–343. [Google Scholar] [CrossRef]
  16. Jensen, J.R. Introductory Digital Image Processing: Remote Sensing Perspective, 2nd ed.; Prentice-Hall: Englewood Cliffs, NJ, USA, 1996. [Google Scholar]
  17. Fridgen, J.J.; Kitchen, N.R.; Sudduth, K.A.; Drummond, S.T.; Wiebold, W.J.; Fraisse, C.W. Management zone analyst (MZA). Agron. J. 2004, 96, 100–108. [Google Scholar] [CrossRef]
  18. Jin, Z.; Prasad, R.; Shriver, J.; Zhuang, Q. Crop model- and satellite imagery-based recommendation tool for variable rate N fertilizer application for the US Corn system. Precis. Agric. 2017, 18, 779. [Google Scholar] [CrossRef]
  19. Maresma, A.; Lloveras, J.; Martínez-Casasnovas, J.A. Use of multispectral airborne images to improve in-season nitrogen management, predict grain yield and estimate economic return of maize in irrigated high yielding environments. Remote Sens. 2018, 10, 543. [Google Scholar] [CrossRef]
  20. Corwin, D.L.; Plant, R.E. Applications of apparent soil electrical conductivity in precision agriculture. Comput. Electron. Agric. 2005, 46, 1–10. [Google Scholar] [CrossRef]
  21. Tremblay, N.; Bouroubi, M.Y.; Panneton, B.; Guillaume, S.; Vigneault, P.; Bélec, C. Development and validation of fuzzy logic inference to determine optimum rates of N for corn on the basis of field and crop features. Precis. Agric. 2010, 11, 621–635. [Google Scholar] [CrossRef]
  22. Schepers, A.R.; Shanahan, J.F.; Liebig, M.A.; Schepers, J.S.; Johnson, S.H.; Luchiari, A. Appropriateness of management zones for characterizing spatial variability of soil properties and irrigated corn yields across years. Agron. J. 2004, 96, 195–203. [Google Scholar] [CrossRef]
  23. Maestrini, B.; Basso, B. Predicting spatial patterns of within-field crop yield variability. Field Crops Res. 2018, 219, 106–112. [Google Scholar] [CrossRef]
  24. Maresma, A.; Ariza, M.; Martínez, E.; Lloveras, J.; Martínez-Casasnovas, J.A. Analysis of vegetation indices to determine nitrogen application and yield prediction in maize (Zea mays L.) from a standard UAV service. Remote Sens. 2016, 8, 973. [Google Scholar] [CrossRef]
  25. Campos, I.; González-Gómez, L.; Villodre, J.; González-Piqueras, J.; Suyker, A.E.; Calera, A. Remote sensing-based crop biomass with water or light-driven crop growth models in wheat commercial fields. Field Crops Res. 2018, 216, 175–188. [Google Scholar] [CrossRef]
  26. González-Gómez, L.; Campos, I.; Calera, A. Use of different temporal scales to monitor phenology and its relationship with temporal evolution of normalized difference vegetation index in wheat. J. Appl. Remote Sens. 2018, 12, 026010. [Google Scholar] [CrossRef]
  27. Heijting, S.; de Bruin, S.; Bregt, A.K. The arable farmer as the assessor of within-field soil variation. Precis. Agric. 2011, 12, 488. [Google Scholar] [CrossRef]
  28. Schenatto, K.; Godoy de Souza, E.; Bazzi, C.L.; Betzek, N.M.; Gavioli, A.; Beneduzzi, H.M. Use of the farmer’s experience variable in the generation of management zones. Ciências Agrárias 2017, 38, 2305–2322. [Google Scholar] [CrossRef] [Green Version]
  29. Lundström, C.; Lindblom, J. Considering farmers’ situated knowledge of using agricultural decision support systems (AgriDSS) to Foster farming practices: The case of CropSAT. Agric. Syst. 2018, 159, 9–20. [Google Scholar] [CrossRef]
  30. Soil Survey Staff. Keys to Soil Taxonomy, 12th ed.; USDA-Natural Resources Conservation Service: Washington, DC, USA, 2014.
  31. Ritchie, S.W.; Hanway, J.J.; Benson, G.O. How a Corn Plant Develops; Special Report No. 48; Iowa State University Cooperative Extension Service: Ames, IA, USA, 1997. [Google Scholar]
  32. Drusch, M.; Del Bello, U.; Carlier, S.; Colin, O.; Fernandez, V.; Gascon, F.; Hoersch, B.; Isola, C.; Laberinti, P.; Martimort, P.; et al. Sentinel-2: ESA’s Optical High-Resolution Mission for GMES Operational Services. Remote Sens. Environ. 2012, 120, 25–36. [Google Scholar] [CrossRef]
  33. Rouse, J.W., Jr.; Haas, R.H.; Deering, D.W.; Schell, J.A.; Harlan, J.C. Monitoring the Vernal Advancement and Retrogradation (GreenWave Effect) of Natural Vegetation; NASA/GSFC Type III Final Report; Goddard Space Flight Center: Greenbelt, MD, USA, 1974; 371p.
  34. Delegido, J.; Verrelst, J.; Alonso, L.; Moreno, J. Evaluation of Sentinel-2 Red-Edge Bands for Empirical Estimation of Green LAI and Chlorophyll Content. Sensors 2011, 11, 7063–7081. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Herrmann, I.; Pimstein, A.; Karnieli, A.; Cohen, Y.; Alchanatis, V.; Bonfil, D.J. LAI assessment of wheat and potato crops by VENμS and Sentinel-2 bands. Remote Sens. Environ. 2011, 115, 2141–2151. [Google Scholar] [CrossRef]
  36. Allen, R.G.; Pereira, L.S.; Raes, D.; Smith, M. Crop Evapotranspiration: Guidelines for Computing Crop Requirements; FAO Irrigation and Drainage Paper No. 56; FAO: Rome, Italy, 1998. [Google Scholar]
  37. Sudduth, K.A.; Kitchen, N.R.; Wiebold, W.J.; Batchelor, W.D.; Bollero, G.A.; Bullock, D.G.; Clay, D.E.; Palm, H.L.; Pierce, F.J.; Schuler, R.T.; et al. Relating apparent electrical conductivity to soil properties across the north-central USA. Comput. Electron. Agric. 2005, 46, 263–283. [Google Scholar] [CrossRef]
  38. Sheets, K.R.; Hendrickx, J.M.H. Non-invasive soil water content measurement using electromagnetic induction. Water Resour. Res. 1995, 31, 2401–2409. [Google Scholar] [CrossRef]
  39. Minasny, B.; McBratney, A.B.; Whelan, B.M. VESPER Version 1.62; Australian Centre for Precision Agriculture, McMillan Building A05, The University of Sydney: Sydney, Australia, 2006; Available online: https://sydney.edu.au/agriculture/pal/software/vesper.shtml (accessed on 28 May 2018).
  40. Cook, S.; Cock, J.; Oberthür, T.; Fisher, M. On-Farm Experimentation. Better Crops 2013, 97, 17–20. [Google Scholar]
  41. Tanji, K.; Kielen, N.C. Agricultural Drainage Water Management in Arid and Semi-Arid Areas; FAO Irrigation and Drainage Paper 61; FAO: Rome, Italy, 2002; ISBN 92-5-104839-8. [Google Scholar]
  42. Maas, E.V.; Hoffman, G.J.; Chaba, G.D.; Poss, J.A.; Shannon, M.C. Salt sensitivity of corn at various growth stages. Irrig. Sci. 1983, 4, 45–57. [Google Scholar] [CrossRef]
  43. Lark, R.M.; Stafford, J.V. Classification as a first step in the interpretation of temporal and spatial variation of crop yield. Ann. Appl. Biol. 1997, 130, 111–121. [Google Scholar] [CrossRef]
  44. Zaidi, P.H.; Rafique, S.; Rai, P.K.; Singh, N.N.; Srinivasan, G. Tolerance to excess moisture in maize (Zea mays L.): Susceptible crop stages and identification of tolerant genotypes. Field Crops Res. 2004, 90, 189–202. [Google Scholar] [CrossRef]
  45. Oliver, Y.M.; Robertson, M.J.; Wong, M.T.F. Integrating farmer knowledge, precision agriculture tools, and crop simulation modelling to evaluate management options for poor-performing patches in cropping fields. Eur. J. Agron. 2010, 32, 40–50. [Google Scholar] [CrossRef]
  46. Anastasiadis, S.; Chukova, S. An inertia model for the adoption of new farming practices. Int. Trans. Oper. Res. 2016, 1–19. [Google Scholar] [CrossRef]

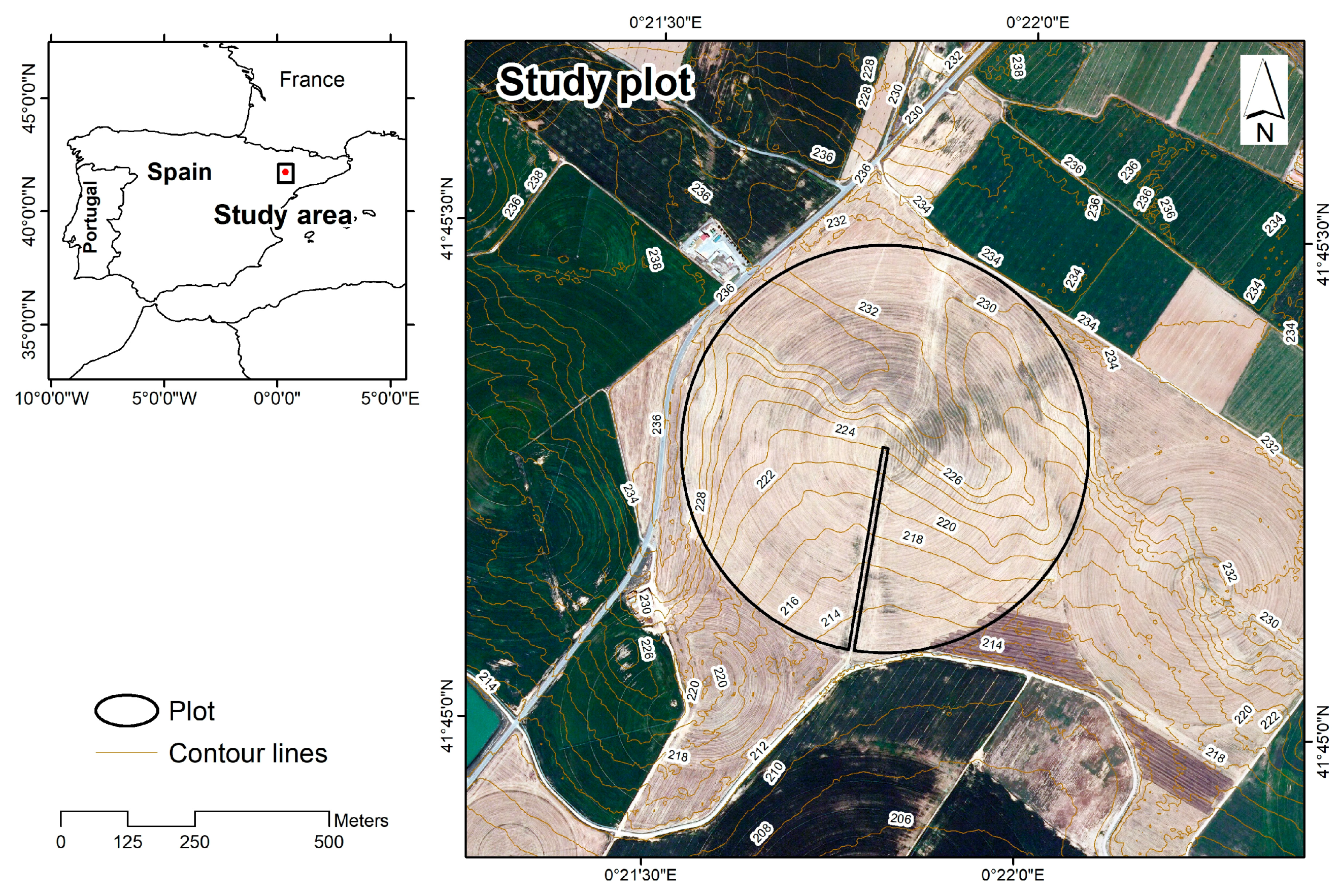

Figure 1. Location of the study area.
Figure 1. Location of the study area.
Agriculture 08 00084 g001

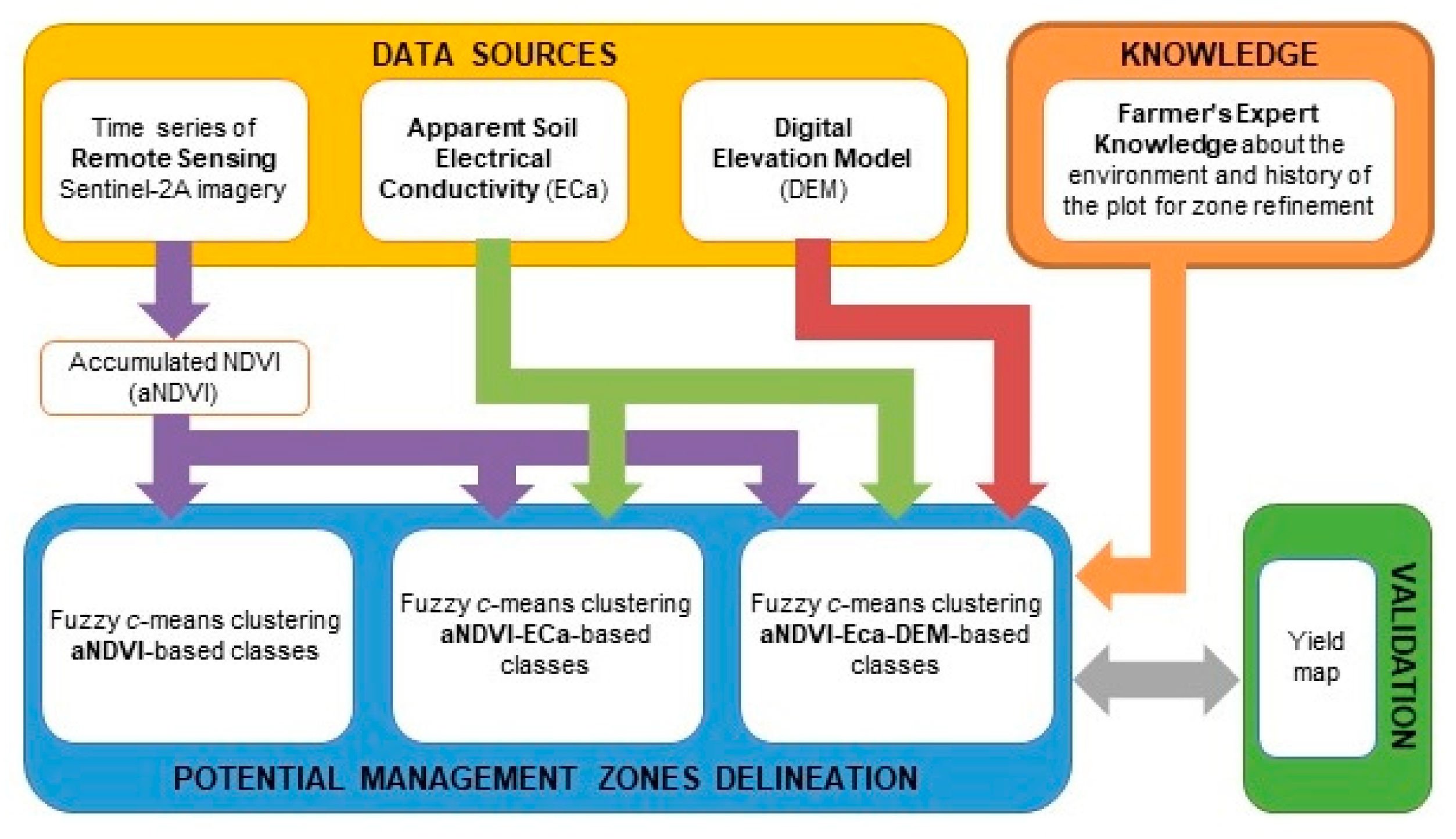

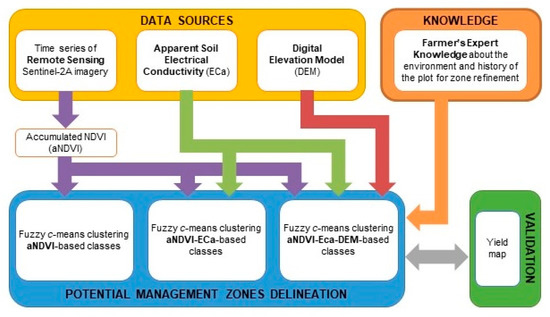

Figure 2. Summary of the methodological approach applied in the present research. This approach uses remote sensing, apparent soil electrical conductivity (ECa), and elevation data from a digital elevation model (DEM) to delineate potential management zones, which are revised according to farmer’s expert knowledge. NDVI: normalized difference vegetation index.
Figure 2. Summary of the methodological approach applied in the present research. This approach uses remote sensing, apparent soil electrical conductivity (ECa), and elevation data from a digital elevation model (DEM) to delineate potential management zones, which are revised according to farmer’s expert knowledge. NDVI: normalized difference vegetation index.
Agriculture 08 00084 g002

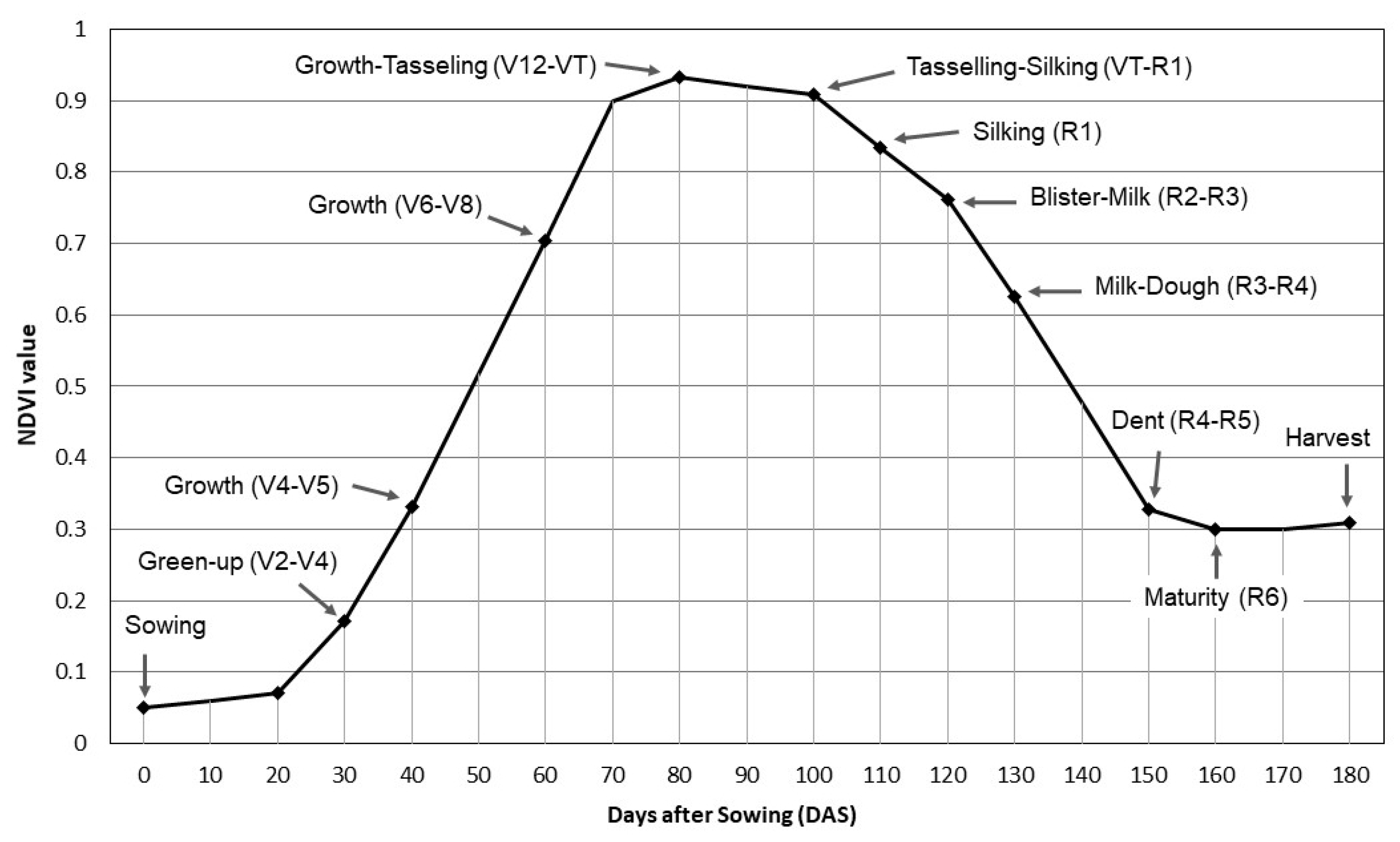

Figure 3. Evolution of NDVI according to the number of days after sowing (DAS) for the different valid images that cover the maize cycle during 2017. The main development stages are indicated according to Ritchie et al. [31].
Figure 3. Evolution of NDVI according to the number of days after sowing (DAS) for the different valid images that cover the maize cycle during 2017. The main development stages are indicated according to Ritchie et al. [31].
Agriculture 08 00084 g003

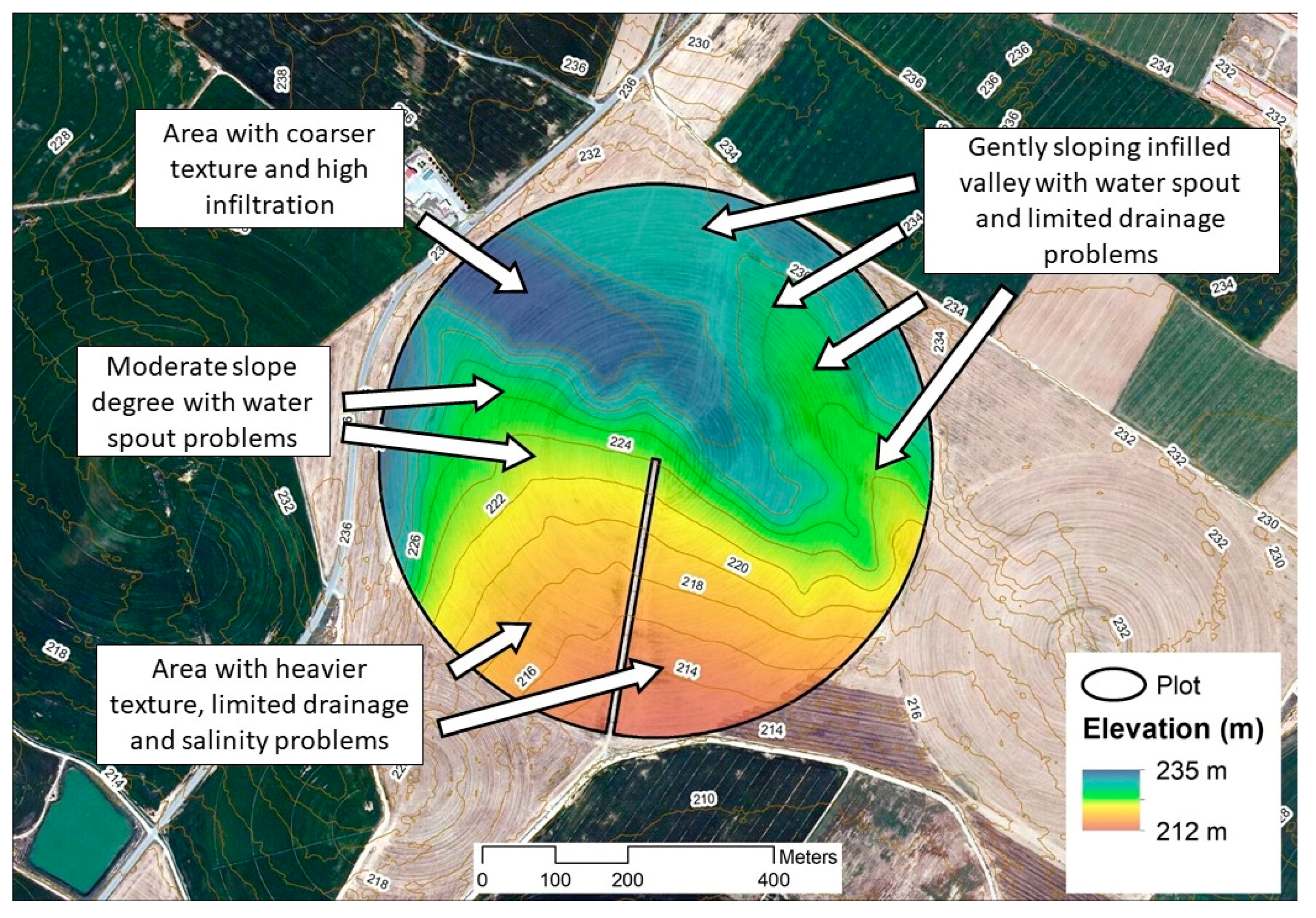

Figure 4. Knowledge of the farmer about soil characteristics and problems in the study plot localized on top of elevation data.
Figure 4. Knowledge of the farmer about soil characteristics and problems in the study plot localized on top of elevation data.
Agriculture 08 00084 g004

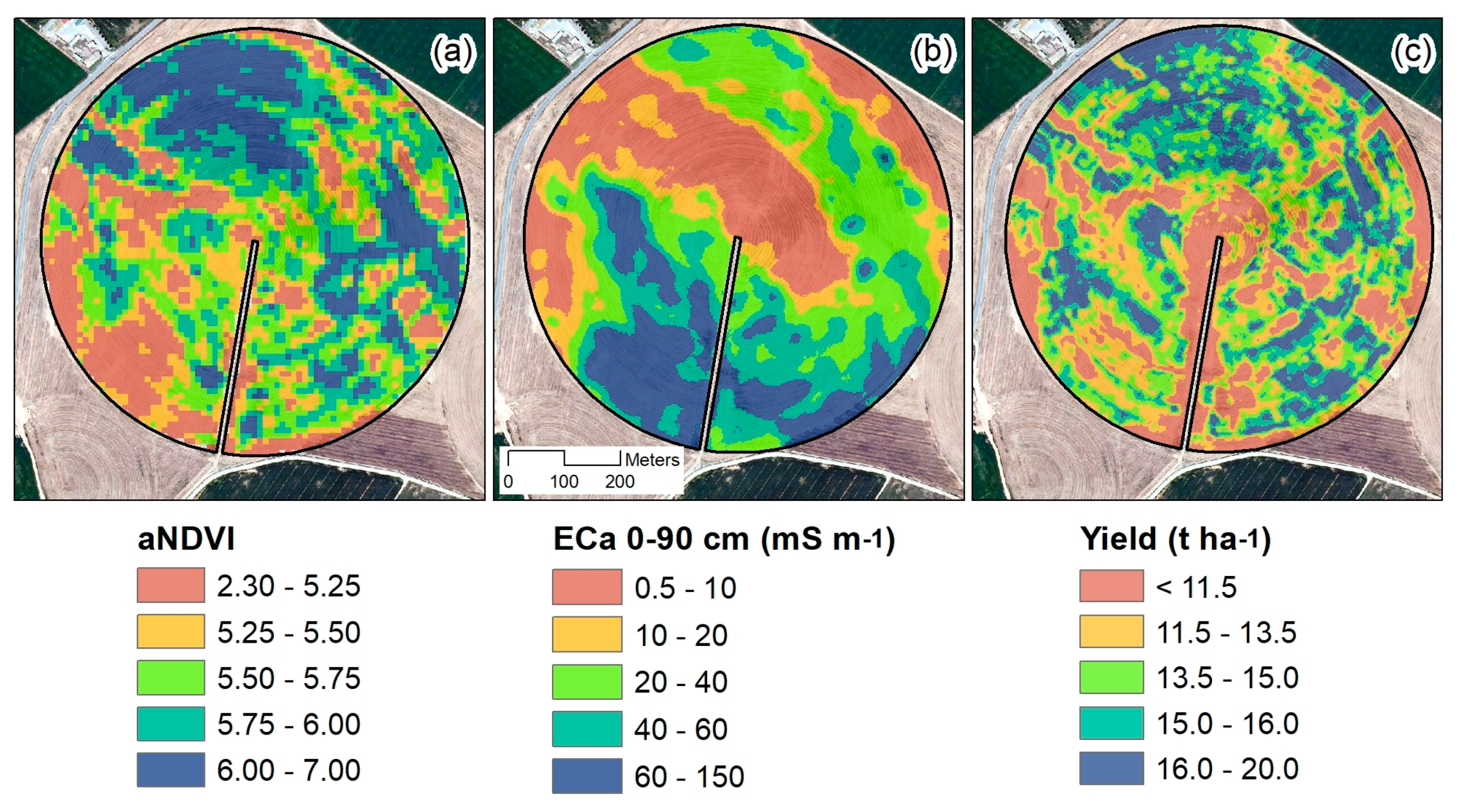

Figure 5. (a) Accumulated NDVI (aNDVI), (b) apparent soil electrical conductivity (ECa) at 0–90 cm, and (c) maize yield with 14% grain moisture content. The maps are displayed according to five intervals of quantile distribution.
Figure 5. (a) Accumulated NDVI (aNDVI), (b) apparent soil electrical conductivity (ECa) at 0–90 cm, and (c) maize yield with 14% grain moisture content. The maps are displayed according to five intervals of quantile distribution.
Agriculture 08 00084 g005

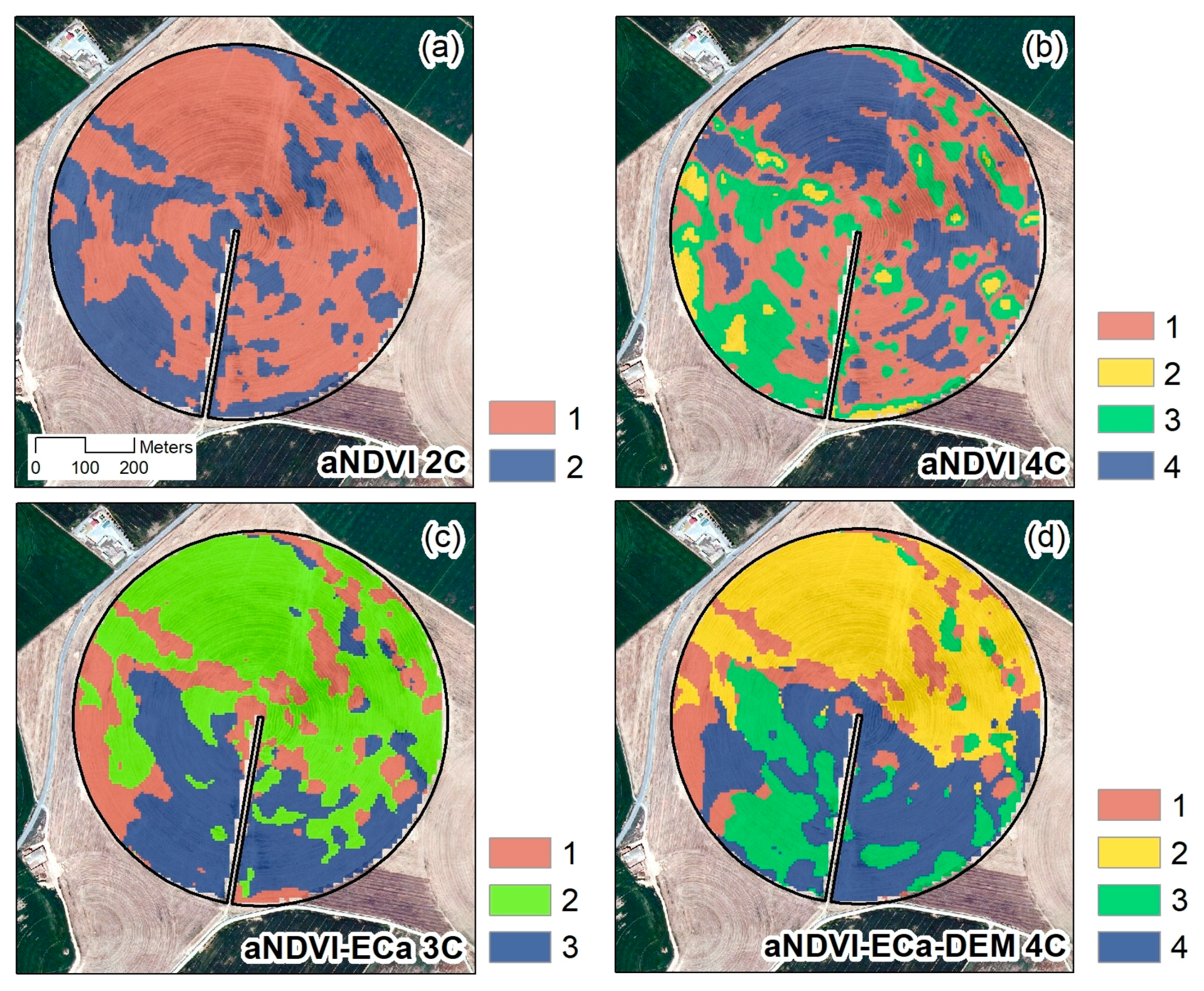

Figure 6. Classified maps as result of the fuzzy c-means algorithm implemented in the Management Zone Analyst (MZA) software based on: (a) the aNDVI with two and (b) four classes, (c) the combination of aNDVI-ECa with three classes, and (d) the combination of aNDVI-ECa-DEM with four classes. Numbers in the legends indicate the name of the classes.
Figure 6. Classified maps as result of the fuzzy c-means algorithm implemented in the Management Zone Analyst (MZA) software based on: (a) the aNDVI with two and (b) four classes, (c) the combination of aNDVI-ECa with three classes, and (d) the combination of aNDVI-ECa-DEM with four classes. Numbers in the legends indicate the name of the classes.
Agriculture 08 00084 g006

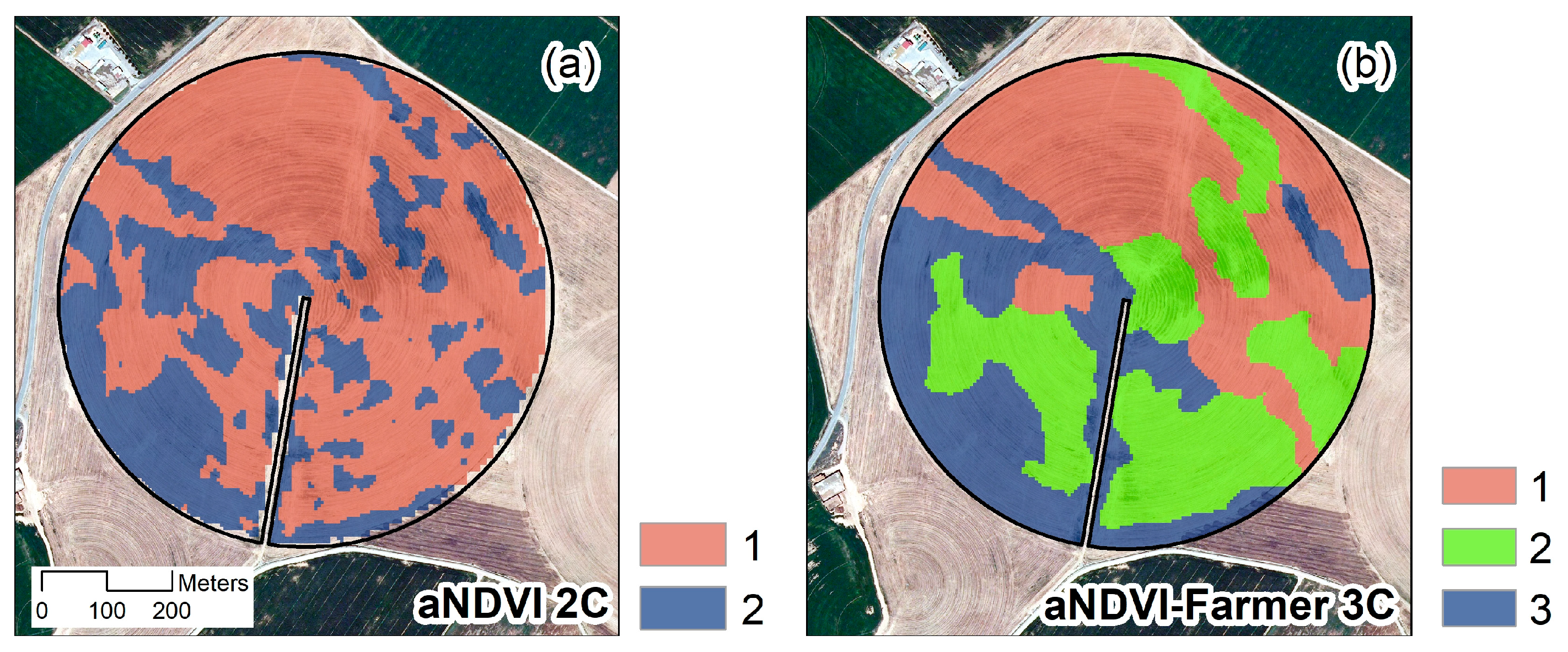

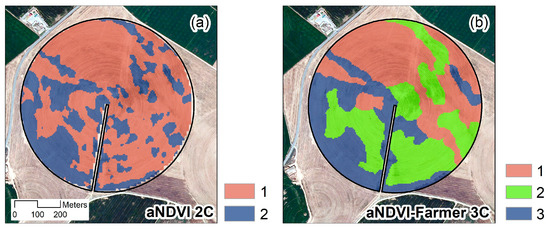

Figure 7. Comparison of the potential management zone (PMZ) maps according to (a) the clustering of the accumulated NDVI (aNDVI, two classes), and (b) the classes as result of adding the farmer’s expert knowledge (three classes).
Figure 7. Comparison of the potential management zone (PMZ) maps according to (a) the clustering of the accumulated NDVI (aNDVI, two classes), and (b) the classes as result of adding the farmer’s expert knowledge (three classes).
Agriculture 08 00084 g007
Table 1. Sentinel-2A images considered in the present study and maize stage of development according to Ritchie et al. [31].
Table 1. Sentinel-2A images considered in the present study and maize stage of development according to Ritchie et al. [31].
Acquisition DateImage IdentifierCloud Cover (%)Maize Development Stage
04/16/2017S2A_MSIL1C_20170416T105031_N0204_R051_T31TBG_20170416T10560127.0Sowing
04/26/2017S2A_MSIL1C_20170426T105031_N0204_R051_T31TBG_20170426T10532188.0 (*)VE
05/06/2017S2A_MSIL2A_20170506T105031_N0205_R051_T31TBG_20170506T1050290.4V1–V2
05/16/2017S2A_MSIL2A_20170516T105031_N0205_R051_T31TBG_20170516T1053228.0V2–V4
05/26/2017S2A_MSIL2A_20170526T105031_N0205_R051_T31TBG_20170526T1055181.0V4–V5
06/05/2017S2A_MSIL2A_20170605T105031_N0205_R051_T31TBG_20170605T10530320.0 (*)V5–V6
06/15/2017S2A_MSIL2A_20170615T105031_N0205_R051_T31TBG_20170615T1055056.0V6–V8
06/25/2017S2A_MSIL2A_20170625T105031_N0205_R051_T31TBG_20170625T10532251.0 (*)V8–V9
07/05/2017S2A_MSIL2A_20170705T105031_N0205_R051_T31TBG_20170705T1056050.5V9–V10
07/15/2017Unavailability of image in Copernicus Open Access Hub V10–V11
07/25/2017S2A_MSIL1C_20170725T105031_N0205_R051_T31TBG_20170725T1055200.0VT
08/04/2017S2A_MSIL1C_20170804T105031_N0205_R051_T31TBG_20170804T1053280.0VT–R1
08/14/2017S2A_MSIL2A_20170814T105031_N0205_R051_T31TBG_20170814T1055170.3R2–R3
08/24/2017S2A_MSIL2A_20170824T105031_N0205_R051_T31TBG_20170824T1052401.0R3–R4
09/03/2017S2A_MSIL2A_20170903T105031_N0205_R051_T31TBG_20170903T10551559.0 (*)R4
09/13/2017S2A_MSIL2A_20170913T105021_N0205_R051_T31TBG_20170913T1053350.5R4–R5
09/23/2017S2A_MSIL2A_20170923T105021_N0205_R051_T31TBG_20170923T1057171.5R5–R6
10/03/2017S2A_MSIL2A_20171003T105021_N0205_R051_T31TBG_20171003T10585658.0 (*)R6
10/13/2017S2A_MSIL2A_20171013T105031_N0205_R051_T31TBG_20171013T1053151.0R6
10/20/2017 Harvest
(*) Images discarded due to clouds affecting the study area.
Table 2. Spectral bands of the Sentinel-2A Multi-Spectral Instrument (MSI).
Table 2. Spectral bands of the Sentinel-2A Multi-Spectral Instrument (MSI).
Band NumberBand NameCentral Wavelength (nm)Bandwidth (nm)
1Coastal aerosol443.927
2Blue496.698
3Green560.045
4Red664.538
5Red Edge 1703.919
6Red Edge 2740.218
7Red Edge 3782.528
8NIR835.1145
8ANarrow NIR864.833
9Water vapour945.026
10SWIR* Cirrus1373.575
11SWIR 11613.7143
12SWIR 22202.4242
* SWIR: Short Wave Infrared.
Table 3. Summary statistics of the accumulated NDVI (aNDVI), apparent soil electrical conductivity (ECa) at 0–90 cm, and maize yield with 14% grain moisture content.
Table 3. Summary statistics of the accumulated NDVI (aNDVI), apparent soil electrical conductivity (ECa) at 0–90 cm, and maize yield with 14% grain moisture content.
VariableMinMaxMeanStandard DeviationCV (%)
aNDVI2.37.05.60.58.4
ECa 0–90 cm (mS m−1)0.5143.733.526.177.7
Maize yield (t ha−1)3.919.813.62.719.9
* CV: Coefficient of variation.
Table 4. Values of the fuzziness performance index (FPI) and the normalized classification entropy (NCE) for different number of classes after clustering using the Management Zone Analyst (MZA) software.
Table 4. Values of the fuzziness performance index (FPI) and the normalized classification entropy (NCE) for different number of classes after clustering using the Management Zone Analyst (MZA) software.
Number of ClassesBased on aNDVIBased on aNDVI-ECaBased on aNDVI-ECa-DEM
FPINCEFPINCEFPINCE
20.04580.0164 *0.09960.03500.14090.0499
30.04350.02090.0694 *0.0336 *0.10880.5330
40.0399 *0.02150.07700.04310.0858 *0.0483 *
50.04040.02300.07260.04290.10040.0613
* Minimum index value in columns for the optimum selection of the number of classes.
Table 5. Analysis of variance (ANOVA) of maize yield according to classes for the different types of proposed potential management zones (PMZs).
Table 5. Analysis of variance (ANOVA) of maize yield according to classes for the different types of proposed potential management zones (PMZs).
Clustered VariablesClassNumber of Validation Points (n = 80)Average Maize Yield
(t ha−1) *
aNDVIECa 0–90 cm
(mS m−1)
Elevation
(m)
aNDVI 2C14814.7 a5.8 ± 0.3
23211.7 b5.2 ± 0.4
aNDVI 4C42015.5 a6.0 ± 0.2
12613.5 b5.6 ± 0.3
32112.1 bc5.2 ± 0.3
21310.8 c4.6 ± 0.6
aNDVI-ECa 3C23215.2 a5.9 ± 0.319.2 ± 13.2
32013.1 b5.4 ± 0.365.9 ± 18.5
12811.8 b5.2 ± 0.521.4 ± 14.6
aNDVI-ECa-DEM 4C22614.9 a5.9 ± 0.317.2 ± 13.0230.0 ± 2.3
42513.4 ab5.6 ± 0.337.6 ± 17.5220.2 ± 3.5
31013.4 ab5.3 ± 0.374.7 ± 18.8220.0 ± 4.1
11911.7 b5.1 ± 0.519.4 ± 14.0229.0 ± 3.2
* Average values with the same letter are not significantly different for a 95% confidence level.
Table 6. Analysis of variance (ANOVA) of maize yield according to PMZs (aNDVI-Farmer 3C map) arising from the farmer’s expert modification of the original map of two accumulated NDVI classes.
Table 6. Analysis of variance (ANOVA) of maize yield according to PMZs (aNDVI-Farmer 3C map) arising from the farmer’s expert modification of the original map of two accumulated NDVI classes.
Clustered VariablesClassNum. of Validation Points (total n = 80)Average Maize Yield (t ha−1)aNDVIECa 0–90 cm (mS m−1)Elev. (m)
aNDVI-Farmer 3C12215.4 a5.9 ± 0.218.5 ± 14.6230.1 ± 3.8
23013.8 b5.6 ± 0.342.6 ± 24.6222.4 ± 5.5
32811.4 c5.4 ± 0.442.3 ± 30.1223.2 ± 6.4
Average values with the same letter are not significantly different for a 95% confidence level.

Share and Cite

MDPI and ACS Style

Martínez-Casasnovas, J.A.; Escolà, A.; Arnó, J. Use of Farmer Knowledge in the Delineation of Potential Management Zones in Precision Agriculture: A Case Study in Maize (Zea mays L.). Agriculture 2018, 8, 84. https://doi.org/10.3390/agriculture8060084

AMA Style

Martínez-Casasnovas JA, Escolà A, Arnó J. Use of Farmer Knowledge in the Delineation of Potential Management Zones in Precision Agriculture: A Case Study in Maize (Zea mays L.). Agriculture. 2018; 8(6):84. https://doi.org/10.3390/agriculture8060084

Chicago/Turabian Style

Martínez-Casasnovas, José A., Alexandre Escolà, and Jaume Arnó. 2018. "Use of Farmer Knowledge in the Delineation of Potential Management Zones in Precision Agriculture: A Case Study in Maize (Zea mays L.)" Agriculture 8, no. 6: 84. https://doi.org/10.3390/agriculture8060084

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
