Article

Application of Mathematical Models and Thermodynamic Properties in the Drying of Jambu Leaves

1
Federal Institute of Education, Science and Technology of Goiano-Campus of Rio Verde, Rio Verde 75900-000, Goiás, Brazil
2
Federal Institute of Education, Science and Technology of Rio Grande do Norte–Campus Pau dos Ferros, Pau dos Ferros 59900-000, Rio Grande do Norte, Brazil
*
Author to whom correspondence should be addressed.
Agriculture 2022, 12(8), 1252; https://doi.org/10.3390/agriculture12081252
Received: 31 July 2022 / Revised: 13 August 2022 / Accepted: 16 August 2022 / Published: 18 August 2022
(This article belongs to the Special Issue Agricultural Products Processing and Postharvest Storage)

Abstract

:
Jambu is a vegetable originally from the northern region of Brazil, has bioactive properties, being little explored by other regions, due to its high peresivity. And one of the methods to increase the shelf life of plant products is the removal of water. The objective of this work was to evaluate the drying kinetics of jambu leaf mass. Two treatments were carried out: The mass of fresh jambu leaves and the mass of fresh jambu leaves with the addition of drying foam, both submitted in an oven with forced air circulation at temperatures (50, 60 and 70 °C and thickness of 1.0 cm). The proximate composition of the materials was performed before and after drying. Twelve mathematical models were tested on drying kinetics data and thermodynamic properties were calculated. The parameters of the proximate composition for the mass of leaves and foam after drying were: Moisture content of (2 to 7%), ash content of (13 to 17%), protein content of (22 to 30%), lipids of (0.6 to 4%) and total titratable acidity (0.20 to 0.28%) of tartaric acid. The models that best fit the experimental data to describe the drying kinetics of jambu masses were: Wang & Singh. The use of foam mat presented higher values of effective diffusion coefficient and activation energy and lower values of enthalpy and entropy, reducing the drying time.

1. Introduction

Several vegetables are limited to some regions; consequently, they are not well known and are little consumed in other regions of Brazil, and many of them contain higher levels of micro and macro nutrients when compared to conventional vegetable [1,2]. Studies show that there is a large amount of vegetables that are little explored and known in the country, and their scientific dissemination can contribute to food security. [1]. Jambu (Acmella oleracea) is an abundant vegetable in the Northern region of Brazil, where its different plant organs (flowers, leaves and stems) are consumed in preparations of typical foods of the Amazon region and as traditional medicinal herb in the treatment of diseases of mouth and throat [2,3,4].
The species Acmella oleracea is investigated for several applications, including evaluation of larvicidal activity of different crude extracts of leaves, as well as antioxidant and immunomodulatory properties, and many studies have focused on its use for centuries in the treatment of oral pain due to its analgesic properties [4,5,6].
Jambu is a perishable vegetable and requires post-harvest treatment in order to prevent and minimize losses that occur during its marketing, seeking to reduce to a minimum the losses of the active ingredients of interest and compounds aimed at adding flavor or aroma to food [7,8]. Conservation processes include artificial drying by hot air convection, one of the oldest used methods [9].
The temperature and drying time must be appropriate for each vegetable, in order to preserve its physical characteristics, nutritional and sensory properties. It is necessary to use drying techniques that better preserve the qualities of the food [10].
The foam mat drying process in can be carried out on liquid or semi-liquid foods, the foam is incorporated by means of aeration with a foaming agent and then dried [11]. Due to the foam structure, which generates a larger area exposed to the drying air, there is a higher mass transfer rate and shorter dehydration time [12].
Drying of agricultural products can be organized in several ways in which drying kinetics data can be represented by theoretical, semi-theoretical and empirical mathematical models [13]. The drying kinetics process presents important information about the characteristics of the typical drying behavior, heating, the period of fast drying due to the constant rate and the falling rate periods [14]. Drying curves are extremely important for the development of processes and equipment sizing; from the curves it is possible to estimate the necessary drying time of a certain amount of products and the time for production, obtaining an estimate of energy expenditure that reflects in the processing cost and influences the final price of the product.
Therefore, Acmella oleracea is a plant of commercial interest, due to its pharmacological properties, but there are few studies assessing its processing and application of conservation methods [15,16]. Thus, the objective of the present work was to perform the drying kinetics of jambu leaf mass and jambu leaf mass with foam, at different temperatures (50, 60 and 70 °C) in a thickness of 1.0 cm. determine thermodynamic properties and evaluate its physicochemical characterization.

2. Material and Methods

2.1. Obtaining of Raw Material and Drying

Jambu vegetable were collected on octuber the 2020 on a family farm in the municipality of Macapá, AP (0°01′26.0″ South and 51°06′53.5″ West of Greenwich), and the experiment it was made at the Food Laboratory of the Federal Institute of Amapá-IFAP (0°05′12.3″ North and 51°05′31.0″ West of Greenwich).
Jambu leaves were washed in chlorinated water, sanitized (solution composed of 2.5% sodium hypochlorite, for 15 min) and crushed (without adding water, for 2 min) in processor to obtain a homogeneous mass.
The foam was prepared by the mixture and aeration for 15 min in a domestic mixer (Mundial Chantilly, São Paulo, Brazil) of the mass of jambu leaves, 1% of a stabilizing agent (Super Liga Neutra®) combined with 2% of an emulsifier (Emustab®). The mass of leaves and the foam were subjected to thin-layer convective drying.
Drying was carried out in a forced air circulation oven (Lucadema), at temperatures of 50, 60 and 70 °C and air velocity of 1.0 ms−1 (measured in a digital anemometer Homis Mod 489). The materials (mass of leaves and foam) were spread evenly in rectangular stainless steel trays (25.5 × 13.5 cm), forming a thin layer of 1.0 cm thickness measured with a digital caliper (King Tools).
During drying, the trays were weighed at regular intervals until they reached constant mass. The experiment was carried out in triplicate. The dehydrated material was removed from the tray with a spatula and crushed in a household food processor (Black Decker, Brazil) for 1 min to obtain the powder, which were subsequently stored in laminated packaging composed of two layers (Pet-Low-density polyethylene terephthalate and metallized PET-metallized polyethylene terephthalate).

Physicochemical Characterization

The mass of leaves, foam and powder were evaluated for the following physicochemical parameters: moisture content 103 °C/24 h; ash content determined by muffle incineration at 550 °C; Lipid content the soxlet was used; Protein was determined by kjedahl and total acidity by titration [17].

2.2. Mathematical Modeling

From the experimental data of drying kinetics, the values of the moisture content ratio were calculated according to Equation (1).
RX = X X e X i X e
where: RX: moisture content ratio of the product, dimensionless; X; moisture content of the product (d.b.); Xi: initial moisture content of the product (d.b.); Xe: equilibrium moisture content of the product (d.b.).
Table 1 presents the mathematical models widely used to describe drying kinetics of vegetables. The models were fitted by nonlinear regression analysis using the Gauss-Newton method.
The preliminary criteria to select the model with best fit were: coefficient of determination (R2), relative mean error (P), estimated mean error (SE) and the mean chi-square ( χ 2).
χ 2 = ( Y Y ^ ) 2   DF
P = 100   n | Y Y ^ |   Y
SE = ( Y Y ^ ) 2   DF
where: Y: experimental RX value; Ŷ: RX value estimated by the model; n: number of observations; DF: degrees of freedom of the model (observations minus the number of model parameters).
In order to select a single model to describe the drying process under each condition, those models that preliminarily select (according to the criteria R2, P and SE) were subjected to the selection criteria of Akaike Information (AIC) and Schwarz’s Bayesian Information (BIC).
The information criteria were determined by the following Equations:
AIC = 2 logL   + 2 p
BIC = 2 logL   + plog ( N r )
where: p: number of model parameters; logL: logarithm of the likelihood function considering the estimates of the parameters; N: total observations; r: matrix X rank (incidence matrix for fixed effects).
Fick’s diffusive model was fitted to the drying data considering the geometric shape of flat plate [18], with eight-terms approximation [19], according to Equation (19), for the determination of effective diffusivity.
RX = ( 8 π 2 ) n = 0 1 ( 2 n + 1 ) 2 exp ( ( 2 n + 1 ) 2   π 2 D   t 4 L 0 2   S V )
where: RX: moisture content ratio, dimensionless; D: effective diffusion coefficient, m2 s−1; S: equivalent plate area, m2; V: equivalent plate volume, m3; L0: mass thickness, m; n: number of terms of the Equation; t: time, s.
The expression described by Arrhenius Equation (20) was applied, relating the dependence of effective diffusivity as a function of temperature.
D = D 0 exp (   E a R T a   )
where: Do: pre-exponential factor; Ea: activation energy, kJ mol−1; R: universal constant of gases, 8.314 kJ kmol−1. K−1; Ta: absolute temperature, K.
The linearization of the coefficients of the equationthe Arrhenius was used to calculate the activation energy from, applying the logarithm as follows:
Ln   D = LnD 0 E a R .   1 T a

2.3. Thermodynamic Properties

The thermodynamic properties of the drying process of the mass of leaves and foam determined were: enthalpy, entropy and Gibbs free energy, according to Equations (22)–(24), respectively.
Δ H = E a R .   T a
Δ S = R   . [ Ln ( D 0 ) Ln   ( K B h p ) Ln ( T a ) ]
Δ G = Δ H   T a .   Δ S
where: ΔH-specific enthalpy, J mol−1; ΔS-specific entropy, J mol−1 K−1; ΔG-Gibbs free energy, J mol−1; KB-Boltzmann constant, 1.38 × 10−23 J K−1; hp-Planck constant, 6.626 × 10–34 J s−1; T-temperature, °C.

3. Results and Discussion

3.1. Physicochemical Characterization

Table 2 shows the means of the evaluations of physicochemical composition of the mass of jambu leaves, foam and powder obtained at different temperatures.
The results found for the fresh mass of jambu leaves and foam showed that they have a significant contents of moisture and protein and reduced contents of lipids, ash and total titratable acidity. These contents are close to those described by Neves et al. [1], who found moisture content of 89% w.b., ash of 1.11%, lipids of 0.16%, proteins of 2.44%. The moisture contents obtained in the drying of the mass of jambu leaves ranged from 5.70 to 2.21% w.b. and showed a non-significant decrease with the increase in temperature. For the drying of the foam, there was a higher moisture retention, significant at temperatures of 60 and 70 °C when compared with the dried mass of leaves, with no significant influence of the increase in temperature.
However, the fresh mass of leaves and foam of jambu showed relevant contents of protein (3.39% and 3.3%, respectively) and lipids (0.24 and 0.26%, respectively), so drying led to a reduction in moisture content that contributed to a significant increase in the contents of proteins and lipids, and the lipid content found in the foam after drying was higher than that found in the mass of leaves. Values similar to those obtained here were reported by Gomes et al. [16], who found that jambu powder had moisture contents between 4 and 6% w.b. and lipid and protein parameters of 7% and 27%, respectively, with no significant degradation under the studied conditions.
For the ash content of the fresh mass of jambu leaves and foam, there was no variation with the increase in temperature. It was found that the mass of leaves had higher percentages of ash, with values between 16 and 17%. The total acidity levels of the mass of leaves (0.26–0.29% tartaric acid) and foam (0.20–0.24 tartaric acid) after drying showed an acidic character compared with the fresh material (0.03 and 0.04% tartaric acid). The acidity content increased when temperature drying was applied, possibly due to the conversion of sugars into organic acids [11]. In the comparison of the materials before and after drying, there was a reduction in moisture content, while the protein and lipid contents increased, and the dried foam stood out with higher, values, differ dried mass of leaves. This increase may be linked to the addition of stabilizer and emulsifier used to obtain the foam.
Convective drying with forced air circulation is a method recommended for drying leaves because it helps reduce heat losses and improves drying quality [20]. The physicochemical parameters evaluated showed that the addition of stabilizers and emulsifiers did not cause significant changes in the mass of jambu composition. And foaming was a positive factor in the process as it reduced drying time, since this is a limiting factor for the drying conditions (temperature, speed and relative humidity of the air, as well as thickness), which must be controlled to maintain the quality of the final product and reduce moisture content [12].

3.2. Mathematical Modeling

To better understand the drying kinetics of the crushed mass of jambu leaves and foam, different mathematical models were evaluated. Table 3 shows the values of the estimated mean error (SE), relative mean error (P), coefficient of determination (R2) and chi-square test (χ2) for the mathematical models fitted to the experimental data of the drying kinetics of the mass of jambu leaves and foam at temperatures of 50, 60 and 70 °C and thickness of 1.0 cm Table 3.
Wang & Singh, Midilli and Logarithmic models showed the best fits under all drying conditions according to the preliminary criteria of evaluation: R2 higher than 99%, lower estimated mean error (SE) and chi-square test (χ2), as well as relative mean error (P) lower than 10%, which is considered as an adequate representation of the model [21].
Together with the previous statistical parameters (Table 3), the Akaike information criterion (AIC) and Schwarz’s Bayesian Information criterion (BIC) were adopted as additional criteria to select the best model. The results of AIC and BIC for Wang & Singh, Midilli and Logarithmic models are described in Table 4.
Considering the lower values of the AIC and BIC information criteria as indication of better fit, Wang & Singh model showed the best fit to the experimental data for temperature of 50 °C of thin-layer and foam-mat drying. For the other treatment conditions, Midilli model obtained better fit to the experimental data. These results indicate that, regardless of the drying method used, the mathematical models fitted well to the data. Logarithmic and Midilli models were indicated as those with better fit to the experimental data of drying kinetics of the mass of jambu leaves [22].
Data of drying kinetics at different temperatures were analyzed in terms of moisture content ratio (RX), as shown in Figure 1. The moisture content ratio decreases continuously until the equilibrium is reached. The increase in air temperature resulted in a reduction in the time required to reach the equilibrium moisture content for the different conditions studied.
The moisture content ratio curve has been considered the best way to explain the behavior during the drying process [23]. Combined with the adequate model for drying kinetics, it is used to explain the total drying behavior [14]. As the model describes the mechanisms of heat and mass transport, it can be used to simulate other process conditions such as variation in thickness, foam composition and temperature, velocity and relative humidity of the air, among others [12].
The results indicated that just as air temperature played an important role in reducing drying time, the use of foam mat enhanced this reduction. The drying time was between 4 and 7 h in the drying of the mass of leaves and showed a considerable reduction in the drying of the foam, being 2 and 5 h.
Increase in drying temperature reduces the drying time due to molecular movement, thus increasing the rate of moisture content removal from the sample, which results in the reduction of drying time [11]. Franco et al. [12] report that the porous structure of the foam and the large surface area in contact with the drying air cause higher mass transfer rates, thus leading to a reduction in drying time and, therefore, a final product with better quality. The coefficients of fits of the mathematical equations obtained under the different experimental conditions of drying kinetics are presented in Table 5.
The constant “k” increases with increasing temperature, since higher temperatures lead to higher drying rates [24], a behavior also observed. Considering that the parameter n is related to the internal resistance of the material to drying [25], with the addition of temperature the constant n of the Midilli and Wang and Sing model showed a tendency to increase with increasing temperature.
Figure 2 shows the values of the effective diffusion coefficient during the drying of the crushed mass of jambu leaves and foam. The effective diffusion coefficient showed higher values at the higher drying temperatures and with application of the foam mat.
The effective diffusion coefficient showed a trend of linear increase as the drying air temperature increased. The use of foam promoted higher values of the effective diffusion coefficient compared to the material without foam mat for the three temperatures analyzed. The same was observed for the hot air drying of mint leaves, whose effective diffusivity was slightly higher when the air temperature was increased from 60 °C to 70 °C [26]. Gomes et al. [22] described a trend of increase in diffusion coefficient with the increase in drying air temperature and material layer thickness when studying the mass of jambu leaves.
The increasing values of effective diffusivity with the increase in temperature can be attributed to the fact that water molecules are more weakly bound to the food matrix at higher temperatures, requiring less energy for diffusion [27].
The activation energy increased with the application of the foam mat, from 31 kJ mol−1 (samples without foam mat) to 43–48 kJ mol−1 (samples with foam mat). These differences in activation energy may result from the variation in effective diffusivity, depending on the variability and physical structure of the sample, chemical composition, geometry and air drying temperature [28].

3.3. Thermodynamic Properties

The enthalpy values decreased with the increase in drying air temperature, and compared to the mass of jambu leaves, the smallest magnitudes are obtained with foam mat (Table 6). The lowest enthalpy value was observed with increased temperature, which indicates that the amount of energy needed to remove water bound to the product during drying was lower [27], showing that the foam-mat drying process required lower energy expenditure for water removal.
Entropy was consistent with enthalpy, showing lower values for foam-mat drying. Such reduction indicates a lower excitation of water molecules and an increase in the degree of order of the water-foam system [29]. Regarding Gibbs free energy, the values were positive for both dried materials. According to Chen et al. [30], positive values of Gibbs free energy are characteristic of endergonic reaction, which indicates that the drying and absorption processes under the studied conditions were not spontaneous [27].
In a comparison of the thermodynamic properties for the different drying conditions, it is possible to observe that foam-mat drying shows a better performance. Drying is one of the most energy-consuming processes and is widely used in food industries, so increasing efficiency has the potential to reduce the energy demand of drying operations and, consequently, of the industry [31].

4. Conclusions

In the comparison of the material before and after drying, there was a reduction in moisture content, while protein and lipid contents increased. The addition of stabilizers and emulsifiers for foaming did not cause significant changes in the physicochemical composition of the material. Foaming was a positive factor in the drying process as it reduced the time required to achieve the equilibrium moisture content, also shown by the effective diffusion coefficients, which increased with the application of the foam mat, as well as the thermodynamic properties evaluated, which also pointed to this enhancing effect, with reduction of enthalpy and entropy and higher values of Gibbs free energy. The selection criteria indicated Wang & Singh and Midilli models to describe the drying kinetics of the mass of jambu leaves and foam. We suggest carrying out studies of the bioactive compounds present in the powder material.

Author Contributions

F.P.G.: data collection, data analysis and interpretation, performing the analysis, drafting the article. O.R.: conception or design of the work, critical revision, final approval of the version to be published. E.P.d.S.: data analysis and interpretation, conception or design of the work, critical revision. J.A.C. and K.B.d.O. Review and formatting of work. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Acknowledgments

To the Food Laboratory of IFAP, Embrapa–AP, IF Goiano, CAPES, FAPEG, FINEP and CNPq for their support, which was indispensable to the execution of this study.

Conflicts of Interest

The authors report there are no competing interests to declare.

References

  1. Neves, D.A.; Schmiele, M.; Pallone, J.; Orlando, E.A.; Risso, E.M.; Cunha, E.C.E.; Godoy, H.T. Chemical and nutritional characterization of raw and hydrothermal processed jambu (Acmella oleracea (L.) R.K. Jansen). Food Res. Int. 2019, 116, 1144–1152. [Google Scholar] [CrossRef] [PubMed]
  2. Nascimento, A.M.; de Souza, L.M.; Baggio, C.H.; Werner, M.F.D.P.; Maria-Ferreira, D.; da Silva, L.M.; Sassaki, G.L.; Gorin, P.A.; Iacomini, M.; Cipriani, T.R. Gastroprotective effect and structure of a rhamnogalacturonan from Acmella oleracea. Phytochemistry 2013, 85, 137–142. [Google Scholar] [CrossRef] [PubMed]
  3. Nascimento, L.E.S.; Arriola, N.D.A.; da Silva, L.A.L.; Faqueti, L.G.; Sandjo, L.P.; de Araújo, C.E.S.; Biavatti, M.W.; Barcelos-Oliveira, J.L.; Amboni, R.D.D.M.C. Phytochemical profile of different anatomical parts of jambu (Acmella oleracea (L.) R.K. Jansen): A comparison between hydroponic and conventional cultivation using PCA and cluster analysis. Food Chem. 2020, 332, 127393. [Google Scholar] [CrossRef] [PubMed]
  4. Rondanelli, M.; Fossari, F.; Vecchio, V.; Braschi, V.; Riva, A.; Allegrini, P.; Petrangolini, G.; Iannello, G.; Faliva, M.A.; Peroni, G.; et al. Fitoterapia Acmella oleracea for pain management. Fitoterapia 2020, 140, 104419. [Google Scholar] [CrossRef]
  5. Araújo, I.F.; Loureiro, H.A.; Marinho, V.H.; Neves, F.B.; Sarquis, R.S.; Faustino, S.M.; Yoshioka, S.A.; Ferreira, R.M.; Souto, R.N.; Ferreira, I.M. Biocatalysis and Agricultural Biotechnology Larvicidal activity of the methanolic, hydroethanolic and hexanic extracts from Acmella oleracea, solubilized with silk fibroin, against Aedes aegypti. Biocatal. Agric. Biotechnol. 2020, 24, 101550. [Google Scholar] [CrossRef]
  6. Nipate, S.S.; Tiwari, A.H. Journal of Ayurveda and Integrative Medicine Antioxidant and immunomodulatory properties of Spilanthes oleracea with potential effect in chronic fatigue syndrome in fi rmity. J. Ayurveda Integr. Med. 2020, 11, 124–130. [Google Scholar] [CrossRef]
  7. Martinazzo, A.P.; Melo, E.C.; Corrêa, P.C.; Santos, R.H.S. Modelagem matemática e parâmetros qualitativos da secagem de folhas de capim-limão [Cymbopogon citratus (DC.) Stapf]. Rev. Bras. Plantas Med. 2010, 12, 488–498. [Google Scholar] [CrossRef]
  8. Oliveira, M.T.R.; Berbert, P.A.; Martinazzo, A.P. Avaliação de modelos matemáticos na descrição das curvas de secagem por convecção de Pectis brevipedunculata (Gardner) Sch. Bip. Rev. Bras. Plantas Med. 2013, 15, 1–12. [Google Scholar] [CrossRef]
  9. Zarein, M.; Samadi, S.H.; Ghobadian, B. Investigation of microwave dryer effect on energy efficiency during drying of apple slices. J. Saudi Soc. Agric. Sci. 2015, 14, 41–47. [Google Scholar] [CrossRef]
  10. Influência da Secagem Nas Propriedades Funcionais de Biopolímeros Alimentares_ Das Técnicas Tradicionais Às Novas técnicas de Desidratação Pdf. Available online: https://ainfo.cnptia.embrapa.br/digital/bitstream/item/77765/1/doc-276.pdf (accessed on 20 May 2022).
  11. Abbasi, E.; Azizpour, M. Evaluation of physicochemical properties of foam mat dried sour cherry powder. LWT—Food Sci. Technol. 2016, 68, 105–110. [Google Scholar] [CrossRef]
  12. Franco, T.S.; Perussello, C.A.; Ellendersen, L.D.S.N.; Masson, M.L. Foam mat drying of yacon juice: Experimental analysis and computer simulation. J. Food Eng. 2015, 158, 48–57. [Google Scholar] [CrossRef]
  13. Santos, N.C.; Almeida, R.L.J.; Pereira, T.D.S.; De Queiroga, A.P.R.; Silva, V.M.D.A.; Amaral, D.S.D.; Almeida, R.D.; Ribeiro, V.H.D.A.; Barros, E.R.; Da Silva, L.R.I. Modelagem matemática aplicada a cinética de secagem das cascas de pitomba (Talisia esculenta). Res. Soc. Dev. 2020, 9, e46921986. [Google Scholar] [CrossRef]
  14. Pinar, H.; Çetin, N.; Ciftci, B.; Karaman, K.; Kaplan, M. Biochemical composition, drying kinetics and chromatic parameters of red pepper as affected by cultivars and drying methods. J. Food Compos. Anal. 2021, 102, 103976. [Google Scholar] [CrossRef]
  15. Balieiro, O.C.; Pinheiro, M.S.D.S.; Silva, S.Y.; Oliveira, M.N.; Silva, S.C.; Gomes, A.A.; Pinto, L. Analytical and preparative chromatographic approaches for extraction of spilanthol from Acmella oleracea flowers. Microchem. J. 2020, 157, 105035. [Google Scholar] [CrossRef]
  16. Gomes, F.P.; Resende, O.; Sousa, E.P.; Damasceno, L.F. Comparison of powdered and fresh jambu (Acmella oleracea). Heliyon 2020, 6, e05349. [Google Scholar] [CrossRef]
  17. Instituto Adolfo Lutz. Métodos Físico-Químicos Para Análise de Alimentos, 4th ed.; 1° edição digital: São Paulo, Brazil, 2008. [Google Scholar]
  18. Brooker, C.W.; Bakker-Arkema, D.B.; Hall, F.W. Drying and Storage of Grains and Oilseeds; The Avi Publishing Company: Westport, CT, USA, 1992. [Google Scholar]
  19. Afonso, P.C. Paulo Cesar e Corrêa, Comparação de modelos matemáticos para descrição da cinética de secagem em camada fina de sementes de feijão. Rev. Bras. Eng. Agrícola e Ambient. 1999, 3, 349–353. [Google Scholar] [CrossRef]
  20. Babu, A.K.; Kumaresan, G.; Raj, V.A.A.; Velraj, R. Review of leaf drying: Mechanism and influencing parameters, drying methods, nutrient preservation, and mathematical models. Renew. Sustain. Energy Rev. 2018, 90, 536–556. [Google Scholar] [CrossRef]
  21. Mohapatra, D.; Rao, P.S. A thin layer drying model of parboiled wheat. J. Food Eng. 2005, 66, 513–518. [Google Scholar] [CrossRef]
  22. Gomes, F.P.; Resende, O.; Sousa, E.P.; de Oliveira, D.E.C.; Neto, F.R.d. Drying kinetics of crushed mass of ‘jambu’: Effective diffusivity and activation energy. Rev. Bras. Eng. Agric. e Ambient. 2018, 22, 499–505. [Google Scholar] [CrossRef]
  23. Tunde-Akintunde, T.Y. Mathematical modeling of sun and solar drying of chilli pepper. Renew. Energy 2011, 36, 2139–2145. [Google Scholar] [CrossRef]
  24. Corrêa, P.C.; Oliveira, G.H.H.; Botelho, F.M.; Goneli, A.L.D.; Carvalho, F.M. Modelagem matemática e determinação das propriedades termodinâmicas do café (Coffea arabica L.) durante o processo de secagem. Rev. Ceres 2010, 57, 595–601. [Google Scholar] [CrossRef]
  25. Perez, L.G.; de Oliveira, F.M.N.; Andrade, J.S.; Filho, M.M. Cintica de secagem da polpa cupuau (Theobroma grandiflorum) prdesidratada por imerso-impregnao. Rev. Cienc. Agron. 2013, 44, 102–106. [Google Scholar] [CrossRef]
  26. Therdthai, N.; Zhou, W. Characterization of microwave vacuum drying and hot air drying of mint leaves (Mentha cordifolia Opiz ex Fresen). J. Food Eng. 2009, 91, 482–489. [Google Scholar] [CrossRef]
  27. Lisboa, H.M.; Araujo, H.; Paiva, G.; Oriente, S.; Pasquali, M.A.D.B.; Duarte, M.E.; Mata, M.E.C. Determination of characteristic properties of mulatto beans (Phaseolus vulgaris L.) during convective drying. J. Agric. Food Res. 2019, 1, 100003. [Google Scholar] [CrossRef]
  28. Zhao, C.C.; Ameer, K.; Eun, J.B. Effects of various drying conditions and methods on drying kinetics and retention of bioactive compounds in sliced persimmon. LWT 2021, 143, 111149. [Google Scholar] [CrossRef]
  29. Jideani, V.A.; Mpotokwana, S.M. Modeling of water absorption of Botswana bambara varieties using Peleg’s equation. J. Food Eng. 2009, 92, 182–188. [Google Scholar] [CrossRef]
  30. Chen, X.; Li, X.; Mao, X.; Huang, H.; Wang, T.; Qu, Z.; Miao, J.; Gao, W. Effects of drying processes on starch-related physicochemical properties, bioactive components and antioxidant properties of yam flours. Food Chem. 2017, 224, 224–232. [Google Scholar] [CrossRef]
  31. Acar, C.; Dincer, I.; Mujumdar, A. A comprehensive review of recent advances in renewable-based drying technologies for a sustainable future. Dry Technol. 2020, 40, 1029–1050. [Google Scholar] [CrossRef]

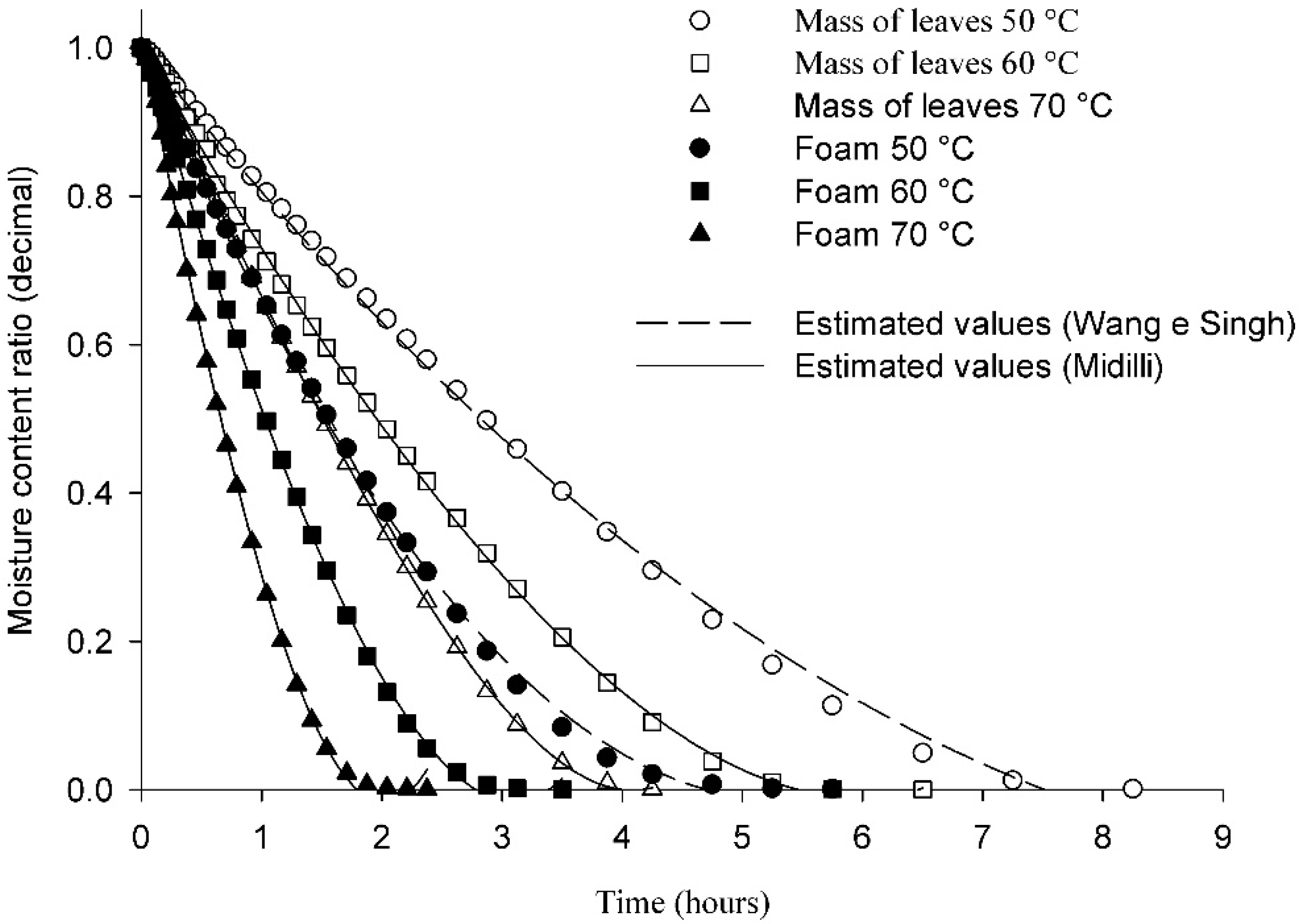

Figure 1. Moisture content ratio in the drying of crushed mass of jambu leaves, obtained experimentally and estimated by the Wang & Singh and Midilli models for the different drying conditions.
Figure 1. Moisture content ratio in the drying of crushed mass of jambu leaves, obtained experimentally and estimated by the Wang & Singh and Midilli models for the different drying conditions.
Agriculture 12 01252 g001

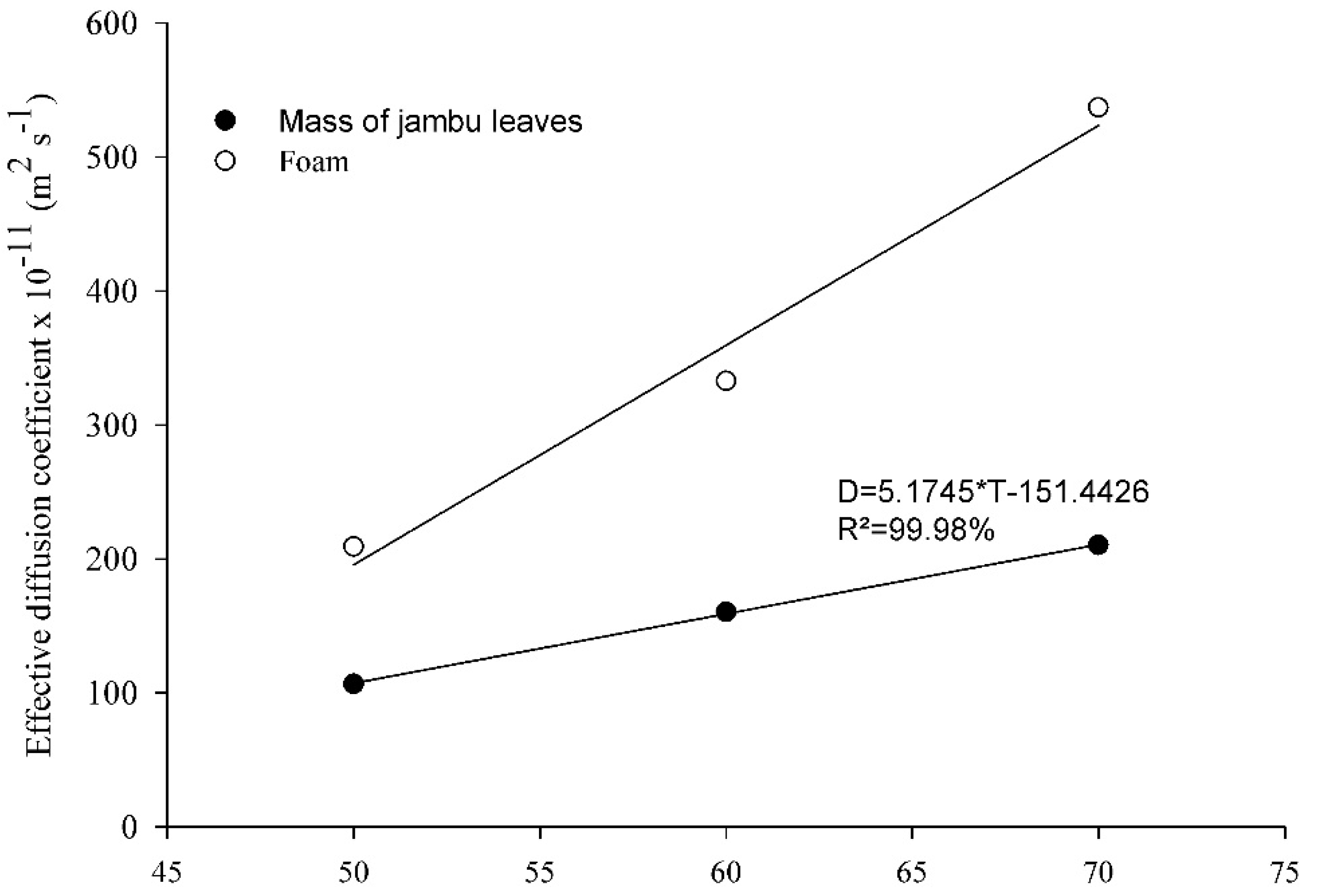

Figure 2. Mean value of the effective diffusion coefficient (D) obtained in the drying of the crushed mass of jambu leaves and foam at temperatures of 50, 60 and 70 °C.
Figure 2. Mean value of the effective diffusion coefficient (D) obtained in the drying of the crushed mass of jambu leaves and foam at temperatures of 50, 60 and 70 °C.
Agriculture 12 01252 g002
Table 1. Empirical and semi-empirical equations used to represent drying kinetics.
Table 1. Empirical and semi-empirical equations used to represent drying kinetics.
Model DesignationModelEquation
1Page RX = e x p   e x p   ( k t n ) (2)
2Midilli RX = a e x p   e x p   ( k t n ) + b t (3)
3Henderson & Pabis RX = a e x p   e x p   ( k t ) (4)
4Approximation of Diffusion RX = a e x p   e x p   ( k t ) + ( 1 a ) e x p   e x p   ( k b t ) (5)
5Two Terms RX = a e x p   e x p   ( k 0 t ) + b e x p   e x p   ( k 1 t ) (6)
6Two-Term Exponential RX = a e x p   e x p   ( k t ) + ( 1 a ) e x p   e x p   ( k a t ) (7)
7Logarithmic RX = a e x p   e x p   ( k t n ) + c (8)
8Thompson RX = ( a ( a 2 + 4 b   t ) 0 , 5 ) 2 b (9)
9Newton RX = e x p   e x p   ( k t ) (10)
10Verma RX = a e x p   e x p   ( k t ) + ( 1 a ) e x p   e x p   ( k 1 t ) (11)
11Wang & Singh RX = 1 + a t + b t 2 (12)
12Valcam RX = a + b t + c t 1 , 5 + d t 2 (13)
RX-Moisture content ratio of the product, dimensionless; k, k0, k1-Drying constants; h−1; a, b, c, n-Coefficients of the models; t-Drying time, h.
Table 2. Mean values of the physicochemical composition of the mass of jambu leaves, foam and powder obtained under different drying conditions.
Table 2. Mean values of the physicochemical composition of the mass of jambu leaves, foam and powder obtained under different drying conditions.
MaterialTemperature °CAnalyses
Moisture Content
(% w.b.)
Protein %Lipids %Ash %Total Titratable Acidity * %
Fresh mass of jambu leaves---92.71 ± 0.293.39 ± 0.230.24 ± 0.081.34 ± 0.040.03 ± 0.0
Foam---90.31 ± 0.053.30 ± 0.220.26 ± 0.071.31 ± 0.010.04 ± 0.0
Dried mass of jambu leaves505.70 aA28.33 aA0.78 aB17.18 aA0.26 aA
603.79 aB30.44 aA0.68 aB16.28 aA0.29 aA
702.21 aB28.48 aA0.69 aB16.32 aA0.27 aA
Dried foam506.29 aA24.75 aA4.72 aA14.20 aB0.24 aA
607.67 aA22.98 aB4.71 aA13.74 aA0.24 aA
706.58 aA23.37 aA4.09 aA13.00 aB0.20 aB
Lowercase letters in the column refer to the comparison between the different temperatures for the same material, and uppercase letters in the column refer to the comparison of the same temperature between the two materials, and the same letters do not differ from each other by Tukey test (p < 0.05). * Tartaric Acid.
Table 3. Estimated mean error (SE), relative mean error (P), coefficient of determination (R2) and chi-square test (χ2) for the twelve models analyzed in the drying of crushed mass of jambu leaves.
Table 3. Estimated mean error (SE), relative mean error (P), coefficient of determination (R2) and chi-square test (χ2) for the twelve models analyzed in the drying of crushed mass of jambu leaves.
ModelMass of Leaves
50 °C60 °C70 °C
SE (Decimal)P (%)χ2 (Decimal) × 10³R2 (%)SE (Decimal)P (%)χ2 (Decimal) × 10³R2 (%)SE (Decimal)P (%)χ2 (Decimal) × 10³R2 (%)
Wang & Singh0.00746.900.05599.940.0097.0750.0999.910.0114.20.1399.87
Verma0.088175.957.753291.790.180167.932.5168.310.0124.90.1599.85
Valcam0.036335.561.318498.600.04754.32.1997.860.04210.71.7797.19
Thompson0.052846.592.790296.960.05156.82.6597.330.06027.53.5496.36
Page0.023420.440.549499.400.02426.20.5699.440.02110.10.4699.53
Newton0.052146.582.709996.960.05156.82.5797.330.05827.53.4296.36
Midilli0.00696.130.048099.950.0098.20.0799.930.0062.40.0399.97
Logarithmic0.00838.220.068699.930.0099.30.0899.920.0083.60.0799.93
Henderson & Pabis0.046041.132.115597.690.04349.51.8898.110.04922.92.3997.54
Two-term exponential0.052846.582.789696.960.05156.82.6597.330.06027.53.5496.36
Two terms0.023621.840.557699.430.04549.52.0198.110.02411.50.5799.46
Approximation of diffusion0.00948.980.088299.910.01110.60.1399.870.0124.90.1599.85
ModelFoam
50 °C60 °C70 °C
SE (decimal)P (%)χ2 (decimal) × 10³R2 (%)SE (decimal)P (%)χ2 (decimal) × 10³R2 (%)SE (decimal)P (%)χ2 (decimal) × 10³R2 (%)
Wang & Singh0.0064.10.0399.970.0106.20.1099.900.0167.30.2799.77
Verma0.242154.658.3844.480.346217.0119.560.000.439313.1192.320.00
Valcan0.05037.22.5097.620.04329.41.8398.400.05238.22.7297.80
Thompson0.04935.82.4397.610.06039.83.5996.730.06446.44.0896.52
Page0.02215.60.5099.500.02315.00.5299.520.02015.20.3999.67
Newton0.04835.82.3597.610.05939.83.4496.730.06246.43.8796.52
Midilli0.0085.00.0699.950.0074.80.0599.950.0084.30.0699.95
Logarithmic0.0107.20.0999.910.0107.00.1099.910.0137.50.1699.87
Henderson & Pabis0.04331.51.8698.170.05033.62.4897.740.05037.52.4797.89
Two-term exponential0.04935.82.4397.610.06039.83.5996.730.06446.44.0796.52
Two terms0.02115.80.4699.580.02517.00.6299.480.05337.52.7697.89
Approximation of diffusion0.0107.40.1099.910.0138.30.1799.860.01910.40.3799.70
Table 4. Akaike Information criterion (AIC) and Schwarz’s Bayesian Information criterion (BIC) for the models that best fitted to the drying data of the crushed mass of jambu leaves.
Table 4. Akaike Information criterion (AIC) and Schwarz’s Bayesian Information criterion (BIC) for the models that best fitted to the drying data of the crushed mass of jambu leaves.
ModelWang & SinghMidilliLogarithmic
DryingTemperature °CBICAICBICAICBICAIC
Mass of Leaves50−242.58−247.33−242.15−250.07−231.76−238.10
60−205.62−210.11−207.35−214.83−207.87−213.86
70−150.17−154.48−173.45−180.62−147.70−153.43
Foam50−224.32−228.62−189.15−194.88−189.15−194.88
60−156.83−160.61−169.75−176.04−154.81−159.84
70−106.23−109.36−133.10−138.32−114.71−118.88
Table 5. Coefficients of the models that best fitted to the drying data of crushed mass of jambu leaves and foam.
Table 5. Coefficients of the models that best fitted to the drying data of crushed mass of jambu leaves and foam.
ModelTemperature (°C)Mass of LeavesFoam
abknabkn
Midilli500.997247−0.0149300.0738791.1423970.990898−0.0176960.1575791.160437
601.006883−0.0193780.1277611.0883240.998051−0.0326040.2429101.185451
701.003061−0.0314940.1434531.1781461.008538−0.0387540.4447151.204884
Wang & Singh50−0.0991480.002023−−−−−−−−−0.1866750.008153−−−−−−−−
60−0.1461700.004782−−−−−−−−−0.2757890.016182−−−−−−−−
70−0.1819390.005765−−−−−−−−−0.4353030.041703−−−−−−−−
Table 6. Mean values of enthalpy (ΔH), entropy (ΔS) and Gibbs free energy (ΔG) obtained in the drying of the crushed mass of jambu leaves with and without foam mat at temperatures of 50, 60 and 70 °C.
Table 6. Mean values of enthalpy (ΔH), entropy (ΔS) and Gibbs free energy (ΔG) obtained in the drying of the crushed mass of jambu leaves with and without foam mat at temperatures of 50, 60 and 70 °C.
Mass of Jambu Leaves
Temperature (°C)ΔH (KJ mol−1)ΔS (KJ mol−1 K−1)ΔG (KJ mol−1)
5040.79223−0.27725130.3847
6040.70909−0.2775133.1584
7040.62595−0.27775135.9347
Foam
Temperature (°C)ΔH (KJ mol−1)ΔS (KJ mol−1 K−1)ΔG (KJ mol−1)
5028.62219−0.32029132.1241
6028.53905−0.32054135.3282
7028.45591−0.32079138.5349
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Gomes, F.P.; Resende, O.; Sousa, E.P.d.; Célia, J.A.; de Oliveira, K.B. Application of Mathematical Models and Thermodynamic Properties in the Drying of Jambu Leaves. Agriculture 2022, 12, 1252. https://doi.org/10.3390/agriculture12081252

AMA Style

Gomes FP, Resende O, Sousa EPd, Célia JA, de Oliveira KB. Application of Mathematical Models and Thermodynamic Properties in the Drying of Jambu Leaves. Agriculture. 2022; 12(8):1252. https://doi.org/10.3390/agriculture12081252

Chicago/Turabian Style

Gomes, Francileni Pompeu, Osvaldo Resende, Elisabete Piancó de Sousa, Juliana Aparecida Célia, and Kênia Borges de Oliveira. 2022. "Application of Mathematical Models and Thermodynamic Properties in the Drying of Jambu Leaves" Agriculture 12, no. 8: 1252. https://doi.org/10.3390/agriculture12081252

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
