Review

Smart Farming: Internet of Things (IoT)-Based Sustainable Agriculture

1
Department of Remote Sensing and GIS, Tamil Nadu Agricultural University, Coimbatore 641 003, Tamilnadu, India
2
Department of Electronics and Communication Engineering, Bannari Amman Institute of Technology, Sathyamangalam 638 401, Tamilnadu, India
3
Water Technology Centre, Tamil Nadu Agricultural University, Coimbatore 641 003, Tamilnadu, India
*
Author to whom correspondence should be addressed.
Agriculture 2022, 12(10), 1745; https://doi.org/10.3390/agriculture12101745
Submission received: 7 September 2022 / Revised: 11 October 2022 / Accepted: 12 October 2022 / Published: 21 October 2022
(This article belongs to the Special Issue Digital Innovations in Agriculture)

Abstract

:
Smart farming is a development that has emphasized information and communication technology used in machinery, equipment, and sensors in network-based hi-tech farm supervision cycles. Innovative technologies, the Internet of Things (IoT), and cloud computing are anticipated to inspire growth and initiate the use of robots and artificial intelligence in farming. Such ground-breaking deviations are unsettling current agriculture approaches, while also presenting a range of challenges. This paper investigates the tools and equipment used in applications of wireless sensors in IoT agriculture, and the anticipated challenges faced when merging technology with conventional farming activities. Furthermore, this technical knowledge is helpful to growers during crop periods from sowing to harvest; and applications in both packing and transport are also investigated.

1. Introduction

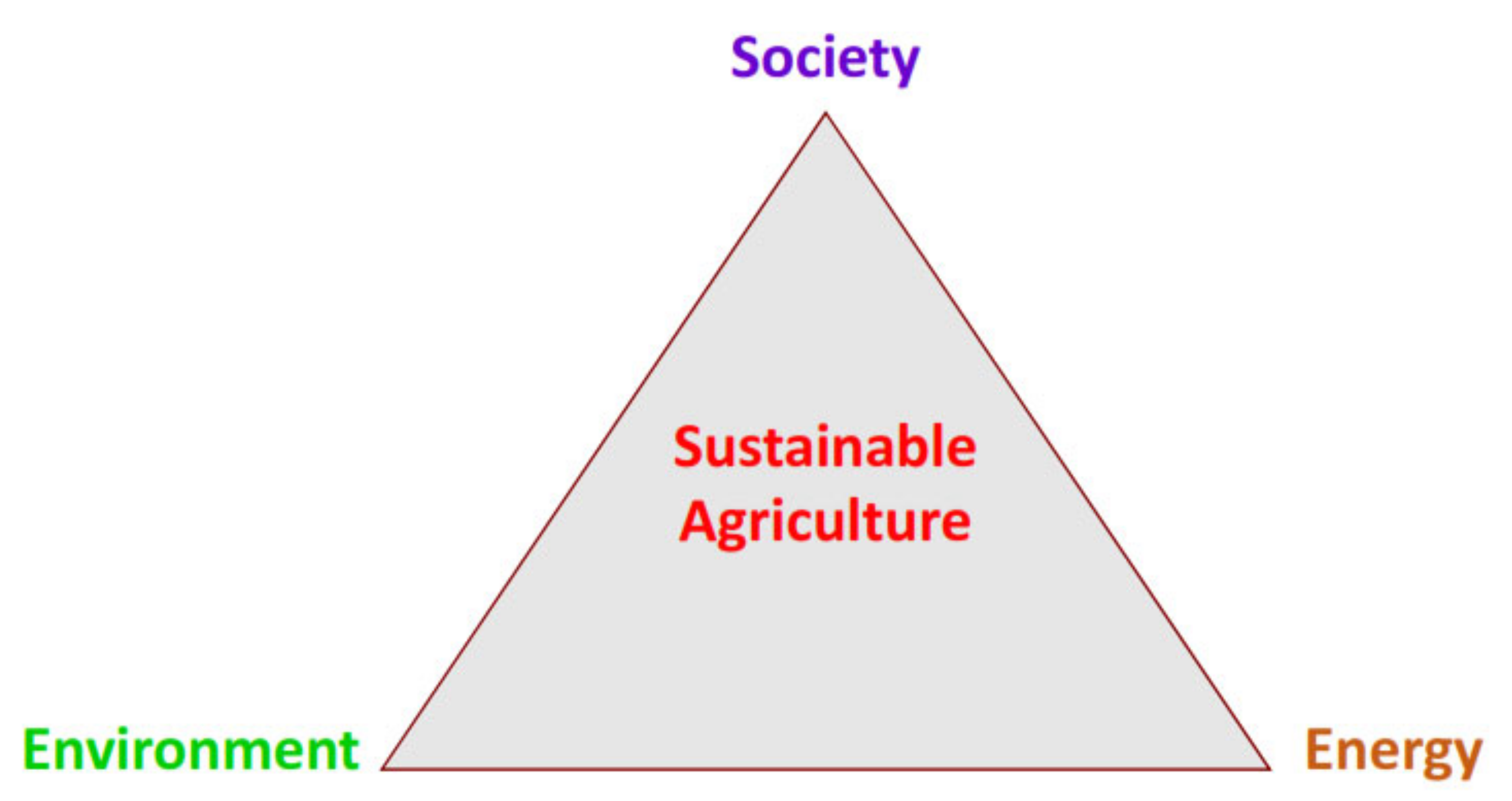

Sustainable agriculture is a measure of the endurance and sustenance of food grains produced in an eco-friendly manner [1]. Sustainable agriculture helps in the encouragement of farming practices and approaches to help sustain farmers and resources. It is economically feasible and maintains soil quality, reduces soil degradation, saves water resources, improves land biodiversity, and ensures a natural and healthy environment [2]. Sustainable agriculture plays a significant role in preserving natural resources, halting biodiversity loss, and reducing greenhouse gas emissions [3].
Sustainable agriculture farming is a method of preserving nature without compromising the future generation’s basic needs, whilst also improving the effectiveness of farming. The basic accomplishments of smart farming in terms of sustainable agriculture are crop rotation, the control of nutrient deficiency in crops, the control of pests and diseases, recycling, and water harvesting, leading to an overall safer environment. Living organisms depend on the nature of biodiversity, and are contaminated by waste emissions, the use of fertilizers and pesticides, degraded dead plants, etc. The emission of greenhouse gases affects plants, animals, humans, and the environment; hence, it necessitates a better environment for living things [4] (Figure 1).
Agriculture is the largest contributor in India, with an 18% gross domestic product involving approximately 57% of people in rural areas. Over the years, although India’s total agronomic output has increased, the number of growers has fallen from 71.9% in 1951 to 45.1% in 2011 [5]. The Economic Survey 2018 revealed that the number of agricultural workers in the total workforce will drop to 25.7% in 2050. In rural areas, farming families gradually lose the next generation of farmers, overwhelmed by higher costs of cultivation, low per capita productivity, inadequate soil maintenance, and migrations to a non-farming or higher remunerative occupation. Presently, the world is on the verge of a digital revolution, and so it is the appropriate time to connect the agricultural landform with wireless technology to introduce and accommodate digital connectivity with farmers.
Regrettably, not all parts of the Earth’s surface are suitable for agriculture due to various restrictions, such as: soil quality, topography, temperature, climate, and most relevant cultivable areas are also not homogenous [6]. Further, existing farming land is fragmented by political and fiscal features, and rapid urbanization, which consistently increases pressure on arable land availability (Figure 2). Recently, total agricultural land used for food production has declined [7]. Furthermore, every crop field has different critical characteristics, such as soil type, flow of irrigation, presence of nutrients, and pest resistance, which are all measured separately both in quality and quantity regarding a specific crop. Both spatial and temporal differences are necessary for optimizing crop production in the same field by crop rotation and an annual crop growth development cycle [8].
In most cases, variations in characteristics occur within a single crop, or the same crop is grown on the whole farm and requires site-specific analyses for optimum yield production. New technology-based approaches are needed to produce more from less land, and to address these various issues. In traditional farming practices, farmers frequently visit their fields throughout the crop’s life in routine farming activities to better understand the crop conditions [9]. The current sensor and communication technologies offer an precise view of the field, from which farmers can detect ongoing field activities without being in the field in person. Wireless sensors monitor the crops with higher accuracy and detect issues at early stages, often facilitating the use of smart tools from initial sowing to the harvest of crops [10].
The timely use of sensors has made the entire farming operation smart and cost-effective, due to precise monitoring. The various autonomous harvesters, robotic weeders, and drones have sensors attached to collect data over short intervals. However, the vastness of agriculture puts extreme demands on technological solutions for sustainability with minimum ecological impact. Sensor technology through wireless communication helps farmers to know the various needs and requirements of crops without being in the fields, and they are then able to take remote action [11].

2. Smart Farming

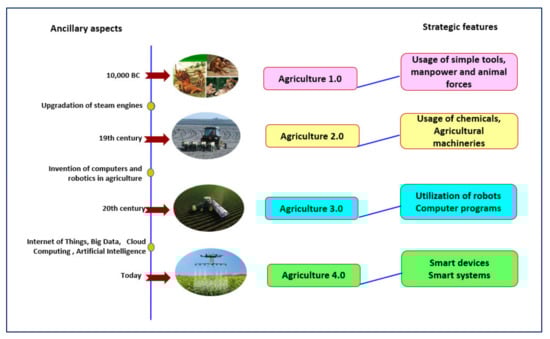

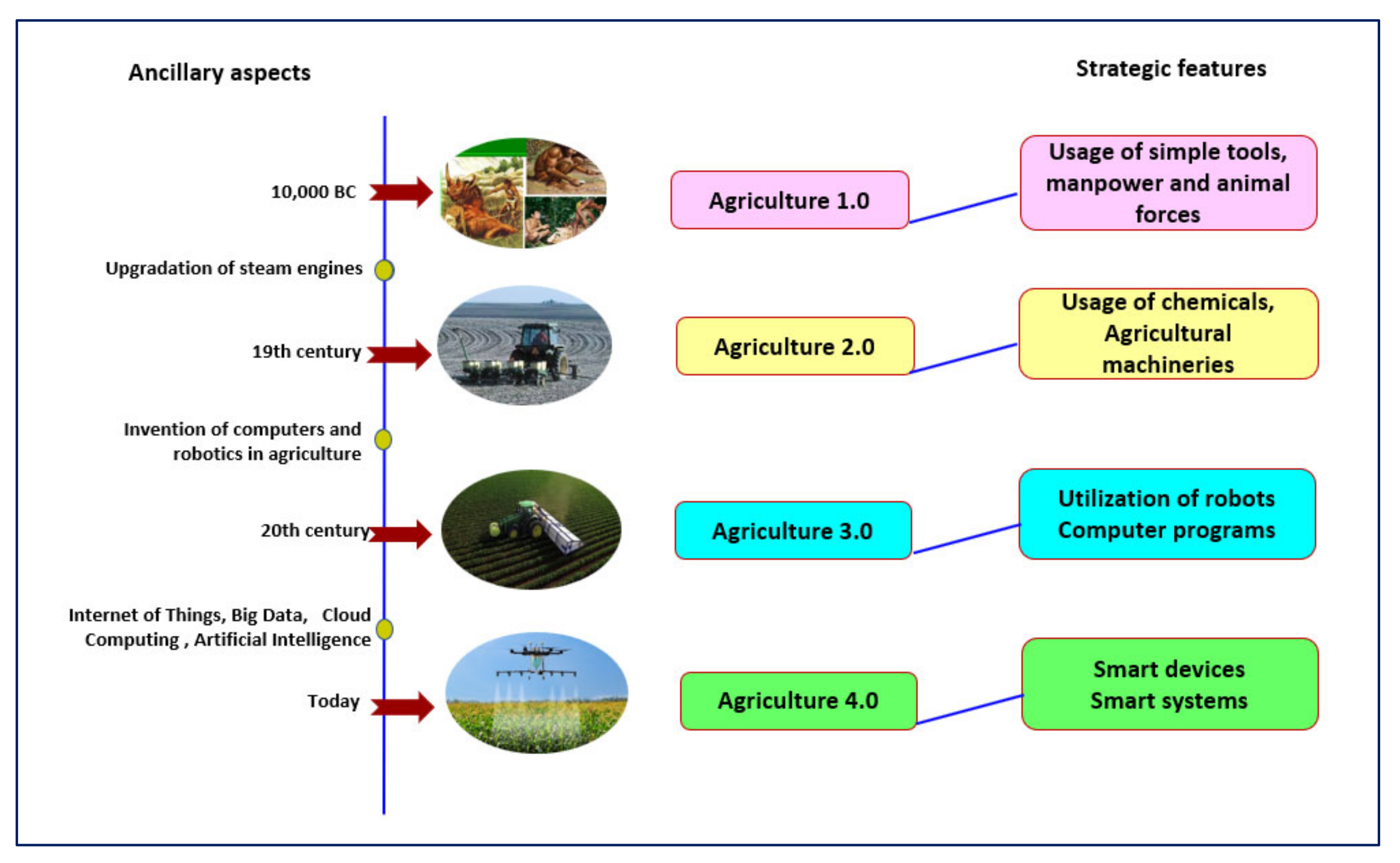

Historically, ancient agriculture practices were related to the production of food in cultivated lands for the survival of humans and the breeding of animals [12], and was called the traditional agricultural era 1.0. This mainly resorted to using manpower and animals. Simple tools were used for farming activities, such as sickles and shovels. Work was mainly conducted through manual labor, and subsequently, productivity continued at a low level (Figure 3).
During the 19th Century, new types of machinery appeared in the agricultural industries, in the form of steam engines. The wide use of agricultural machinery and abundant chemicals by farmers signaled the start of the agricultural era 2.0, and outwardly improved effectiveness and productivity of farmers and farms. However, considerably harmful implications, such as chemical pollution, environmental devastation, waste of natural resources, and excess utilization of energy, simultaneously developed.
The agricultural era 3.0 emerged during the 20th Century, due to the rapid growth of computation and electronics. Robotic techniques, programed agricultural machinery, and other technologies enhanced the agricultural processes efficiently. The issues that had arisen during agricultural era 2.0 were solved, and policies were readapted to the agricultural era 3.0 through work distribution, precise irrigation, the reduced use of chemicals, site-specific nutrient application, and efficient pest control technologies, etc.
The next agricultural era is also the current iteration of agriculture, the agricultural era 4.0, involving the engagement of recent technologies, such as the Internet of Things, big data analysis, artificial intelligence, cloud computing and remote sensing, etc. The adoption of new technologies has significantly improved agricultural activities by developing low-cost sensor and network platforms, aimed towards the optimization of production efficiency, along with reductions in the usage of water resources and energy with minimum environmental effects [13]. Big data in smart farming provides extrapolative overviews of real-time agricultural situations, allowing farmers to make effective decisions [14]. Real-time programming is developed with artificial intelligence concepts and embedded in IoT devices, helping farmers make the most suitable decisions [15].
Smart farming promotes precision agriculture with modern, sophisticated technology and enables farmers to remotely monitor the plants. Smart farming helps agricultural processes, such as harvesting and crop yields, as the automation of sensors and machinery has made the farming workforce more efficient [16]. The technologies convert traditional farming methods to automatic devices, causing a technological revolution in agriculture. Today, the technology in agriculture has altered the way farming is conducted, and conventional techniques have been transformed by the Internet of Things [17].
In terms of optimizing farm labor requirements and increasing the quantity and quality of products, smart farming is an emerging modern technique implemented with information and communication technologies (ICT) [16]. Modern ICT technologies, such as the Internet of Things, GPS (Global Positioning Systems), sensors, robotics, drones, precision equipment, actuators, and data analytics, are used to identify the farmers’ needs and select suitable solutions to their problems. These innovations increase the accuracy and timeliness of decisions taken, and improve crop productivity. Several multilateral organizations and developing countries around the world have proposed smart farming technologies to increase agricultural output [18].
Sensors are constantly monitoring crops with greater accuracy, detecting any undesirable conditions during the early stages of the crop’s lifecycle. Current farming incorporates smart tools from crop sowing to harvest, storing, and conveyance. The appropriate use of a wide variety of sensors has made the entire operation both more efficient and profitable, due to its accurate monitoring competencies. In addition, sensors that collect data quickly are directly available online for further evaluation, and they provide crop and site-specific agriculture for every site.

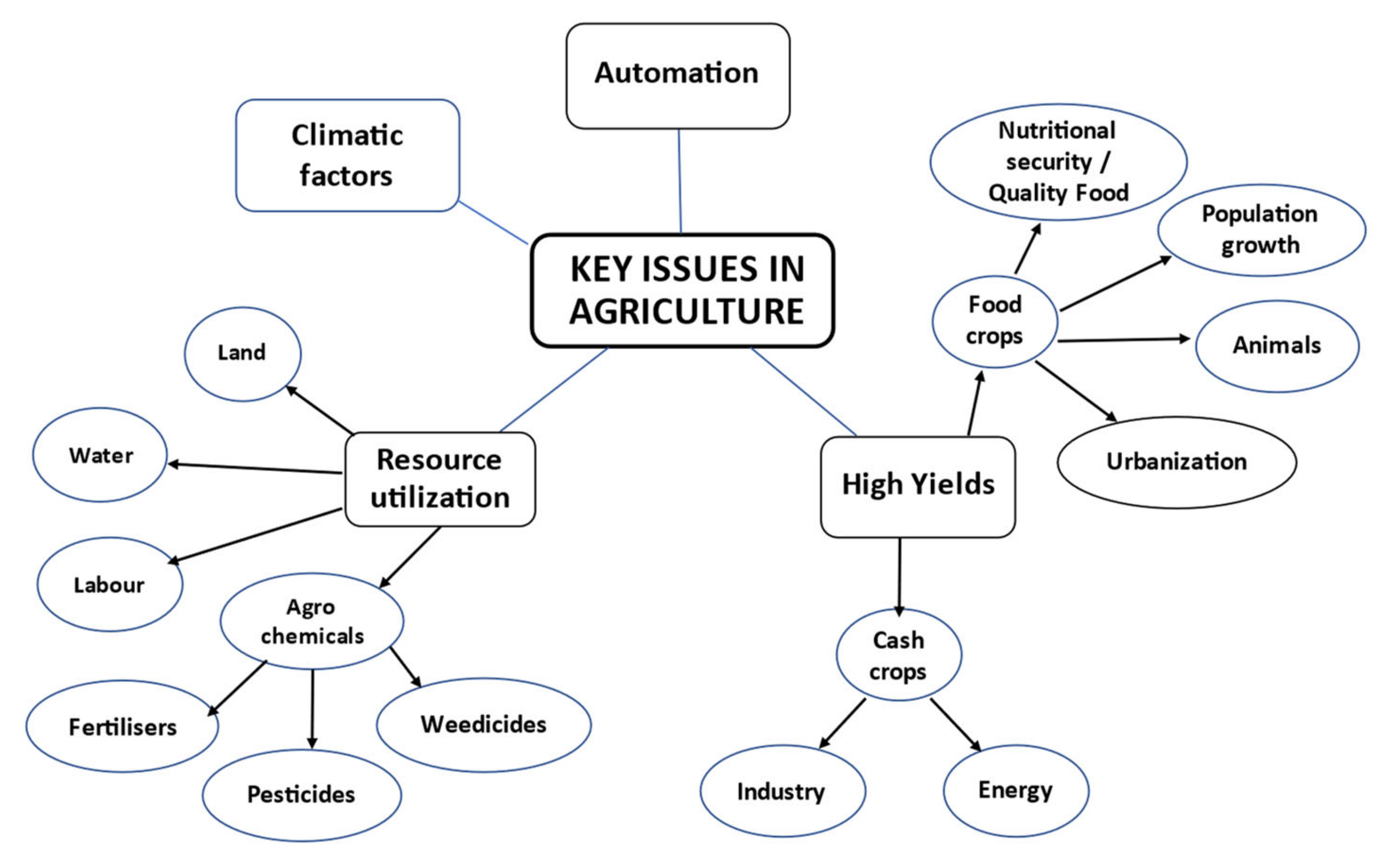

The many issues related to crop production are addressed by smart agriculture and monitoring, particularly regarding changes in soil characteristics, climate factors, soil moisture, etc., to improve the spatial management practices that increase crop production and avoid the excess use of fertilizers and pesticides [19]. The ANN models in smart irrigation water management (SIWM) regulate irrigation scheduling support systems (DSS) and offer data on irrigation efficiency, water productivity index, and irrigation water demand and supply on a real-time basis. Climate-smart agriculture (CSA) is an upcoming technology, especially in developing countries, due to its potential to improve food security, farm system resilience, and lower greenhouse gas emissions [20]. Smart agriculture technology based on IoT technologies has many advantages in all agricultural processes and practices in real-time, including irrigation, plant protection, improving product quality, fertilization, disease prediction, etc. [21]. The benefit of smart agriculture lies in its collection of real-time data on crops, the precise assessment of soil and crops, remote monitoring by farmers, supervising water and other natural resources, and improving livestock and agricultural production. Therefore, smart agriculture is considered to be the progression of precision agriculture through modernization and smart methods to attain various information of farm activities that are then remotely managed, and reinforced by suitable alternative real-time farm maintenance solutions.

3. Internet of Things

The Internet of Things (IoT) is a new technology that allows devices to connect remotely to achieve smart farming [22]. The IoT has begun to influence a vast range of industries, from health, trade, communications, energy and agriculture, to enhance efficiency and performance across all markets [23,24,25].
Current applications provide information on the IoT’s effects, and its practices that are yet to be observed. However, by considering the advancement of technologies, one can envisage the IoT technologies perform a crucial role in numerous activities of farming, such as the utilization of communication infrastructure, data acquisition, smart objects, sensors, mobile devices, cloud-based intelligent information, decision-making, and the automation of agricultural operations (Figure 4).
The IoT technology monitors plants and animals and remotely retrieves information from mobile phones and devices. Sensors and instruments empower farmers to assess the weather and to anticipate production levels. The IoT plays a role in water harvesting, monitoring and controlling the flow amount, assessing crops’ water requirements, time of supply, and the saving of water, more than ever before [26]. Sensors and cloud connectivity through the gateway can remotely monitor the status and water supply based on soil and plant needs [27]. To correct nutrient deficiencies, pests, and diseases, farmers cannot monitor and observe every plant manually, but IoT technology is still beneficial and has led farmers to a new milestone in modern agriculture [28].
Recently, the development of IoT technologies has played a major role throughout the farming sector, particularly through its communication infrastructure. This has included connecting smart objects, remote data acquisition, using vehicles and sensors through mobile devices and the internet, cloud-based intelligent analysis, interfacing, decision formation, and the automation of agricultural operations. These proficiencies have revolutionized the agriculture industry in terms of resource optimization, controlling climate effects, and improving crop yields.
Researchers have proposed different methods, architectures, and various equipment to monitor and convey crop information at different growth stages, based on several crop and field types. Many manufacturers provide communication devices, multiple sensors, robots, heavy machinery, and drones to collect and then distribute data. Food and agriculture organizations, along with other government organizations, develop guidelines and policies for regulating the use of technologies to preserve food and environment safety [29,30].

Fundamentals of IoT Applications in Agriculture

The accessible, inexpensive and interactive tracking platform provides consolidated information on traditional agricultural methods, techniques, implements, crop pests and diseases, etc., collected from various sources for sustainable agriculture. Interactive agriculture allows easy access to the data by users through multiple devices, such as computers and mobile phones [31].
  • Robust Models: The distinctive features of the agriculture sector are diversity, complexity, spatio-temporal variability, and uncertainties of the right types of harvests and facilities.
  • Scalability: The variation in farm size from smaller to larger; hence, the results should be scalable. The placement and testing planning should be progressively scaled up with fewer expenses.
  • Affordability: Affordability is vital to farming achievement, and therefore price should be suitable with significant assistance. Standardized platforms, products, tools, and facilities could obtain a satisfactory price.
  • Sustainability: The problem of sustainability is a vital issue due to strong economic pressure and intense competition worldwide.

4. Technologies Used in Smart Farming

4.1. Global Positioning System (GPS)

GPS accurately records latitude, longitude, and elevation information [32]. Global Positioning System satellites transmit signals and permit GPS receivers to compute their location in real-time, and provide continuous positions while moving. The exact location information offers farmers the opportunity to discover the precise position of field data, such as pest occurrence, type of soil, weeds, and other barriers. The system facilitates the recognition of various field locations in order to then apply the necessary inputs (seed, fertilizer, herbicide, pesticide, and water) to a particular field [33].

4.2. Sensor Technologies

Technics, such as photo electricity, electromagnetics, conductivity, and ultrasound, are used to estimate soil texture and structure, nutrient level, vegetation, humidity, vapor, air, temperature, etc. Remote sensing data can differentiate between crop types, categorize pests and weeds, locate stress in soil and plant conditions, and monitor drought [34].
Plant health is affected by many factors, such as soil moisture, nutrient availability, exposure to light, humidity, the amount of rainfall, the color of leaves, etc. The plants are monitored by maintaining the optimum temperature and light intensity, and conserving water and energy through micro-irrigation. Different sensors are used to detect many parameters. If they cross a threshold, the sensor senses the changes and transmits them to the microcontroller to perform the required actions until the parameter returns to its optimum level [1].
The temperature, humidity, soil pattern monitoring, airflow sensor, location, CO2, pressure, light, and moisture sensors are generally used in sensing technologies. Prominent sensor characteristics include reliability, memory, portability, durability, coverage, and computational efficiency, and make them suitable for agriculture [35]. Currently available wireless sensors play a vital role in collecting data on crop conditions and providing other information. These sensors are standalone types and can be integrated with advanced agricultural tools and heavy machinery, based on application necessities.
The major sensor types with their corresponding working procedure and purpose are represented in Table 1.

4.3. Variable-Rate of Technology (VRT) and Grid Soil Sampling

Variable-rate technologies (VRT) are used in farming to predict the delivery rate of inputs based on a predetermined map extrapolated from GIS for the placement of inputs at variable amounts in the right place and at the right time [16,33]. Grid soil sampling is soil collection from a systematic grid to establish a map for every parameter. These maps are the basis for VRT and are loaded into a variable-rate applicator. The computer and GPS receiver direct and control the changes in the delivery amount or fertilizer product, based on map features [58,59].
New technologies, such as variable rate technology and associated practices (grid soil sampling), potentially improve soil fertility management and assess the spatial distribution of nutrients and yields [60]. In grid sampling, samples are collected from sampled sections based on the subdivision of a field into small areas, or cells, by superimposing the grid lines onto the field. Composite samples represent an entire area of each much smaller area (grid-point sampling) at the intersections of grid lines. Soil-test values from grid sampling are mapped by interpolating methods from non-measured locations between sampled points. The variability of phosphorus and potassium is field-specific, and each field should be fertilized differently to improve nutrient management practices by uniform applications of fertilizers and manure for better precision agriculture [61].

4.4. Geographic Information System (GIS)

The GIS comprises hardware and software designed to provide compilation, storage, retrieval, attributes analysis, and location data to generate maps and analyze characters and geography for statistics and spatial methods [62]. The GIS database provides information on field soil types, nutrient status, topography, irrigation, surface and subsurface drainage, quantity of chemical applications, and crop production, and also establishes the relationship between elements that affect a crop on a particular farming field [63]. Apart from data storage and display, the GIS is used to assess present and alternative management by compounding and altering data layers for decision-making.

4.5. Crop Management

Satellite images provide information on variations in soil conditions, as well as crop performances affected by topography within the field. Therefore, farmers can exactly monitor production factors, such as seeds, fertilizers, and pesticides, that are responsible for yield increase and efficiency.
The spatial coverage and temporal revisit frequency of satellite images provide the information in near real-time at a regional scale. The relationship between the spectral properties of crops and their biomass/yield experiments [64] is predicted by spectral reflectance properties of vegetation, especially in red and near-infrared combinations (vegetation indices) to monitor green foliage. Among the different indices, the normalized difference vegetation index (NDVI) is the most popular indicator to assess vegetation health and crop production, due to the closely related leaf area index (LAI) and photosynthetic activity of green vegetation [25]. Crop monitoring methods are based on the interpretation of remote-sensing-derived indicators by comparing actual crop status to previous or normal seasons [65]. The relationship between vegetation indices and biomass permits early crop yield estimation in certain periods before harvest [66]. The automated data acquisition, processing, monitoring, decision-making, and management of farm operations [67], including the basic functions of crop production (yields), profits and losses, farm weather prediction, field mapping, soil nutrients tracking, are the more complicated functionalities available through automated field management.

4.6. Soil and Plant Sensors

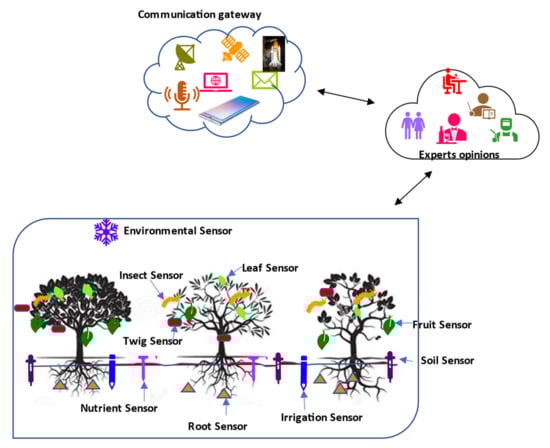

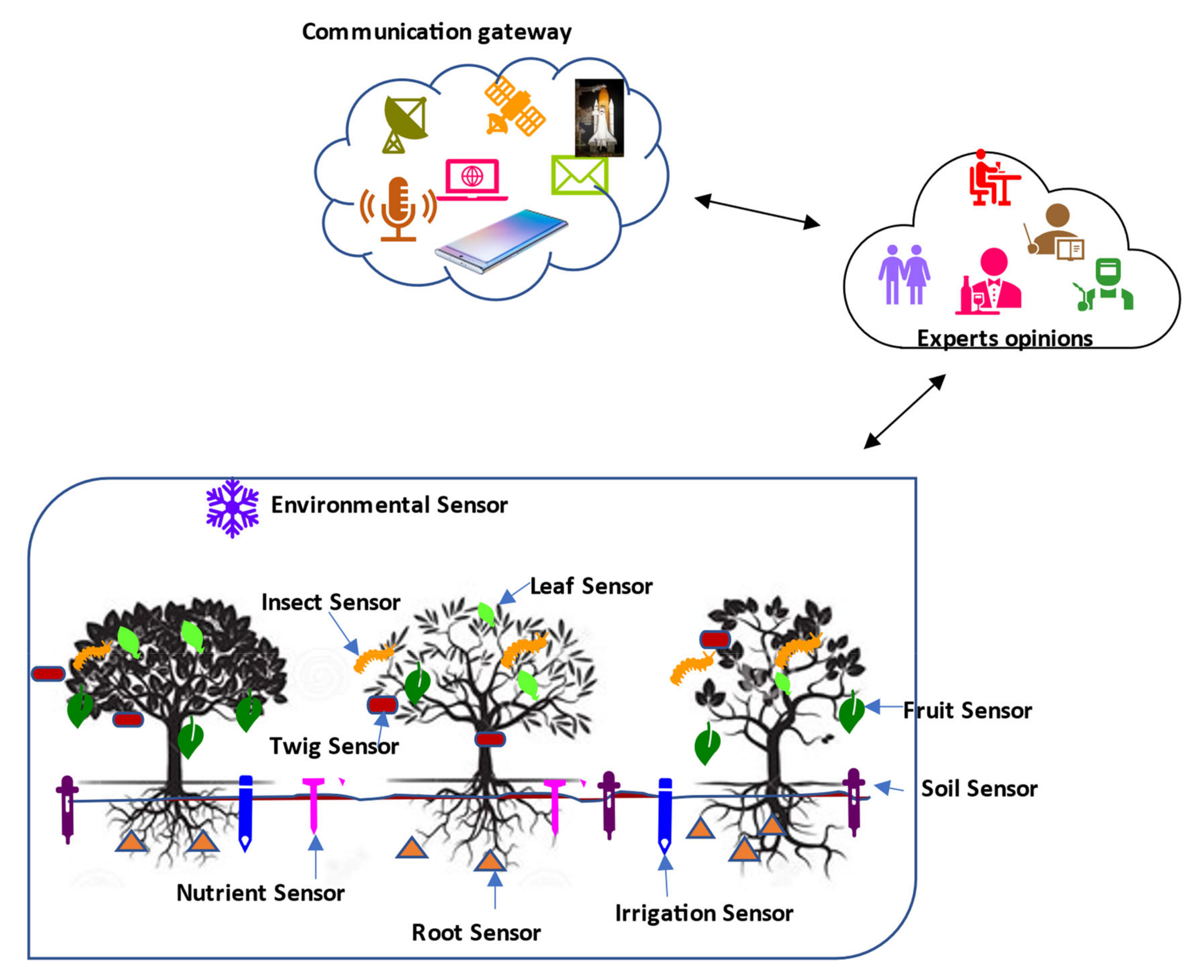

Sensor technology, a significant constituent of precision agriculture, provides soil properties information, fertility, and water status. Hence, new sensors have been developed based on desirable features and established apart from currently available sensors [68].
Soil sensors and plant wearables monitor real-time physical and chemical signals in soil, such as moisture, pH, temperature, and pollutants, and provide information to optimize crop growth conditions, fight against biotic and abiotic stresses, and increase crop yields. Soil organic matters (SOMs), nitrogen (N), phosphorus (P), and potassium (K) are the most important nutrients for crop production. The NIR reflectance-based sensors measure the spatial variation of surface and subsurface soil nitrogen [69]. SOM is predicted based on optimal wavelengths by assessing soil spectral reflectance in IR and visible wavelength regions [70]. The soil nitrogen and phosphorus are predicted using NIR spectrophotometry technology [71,72,73]. The soil apparent electrical conductivity (ECa) sensors collect information continuously on the field surface, since ECa is sensitive to changes in soil texture and salinity. Soil insects/pests are detected using optoelectronic, acoustic, impedance sensors, and nanostructured biosensors [74].

4.7. Rate Controllers

Rate controllers are designed to control the delivery rate of inputs by monitoring the speed of vehicles across the field, and altering the flow rate of material on a real-time basis at the target rate. Rate controllers are commonly used as stand-alone systems [75].

4.8. Precision Irrigation in Pressurized Systems

Recent developments in irrigation systems have introduced irrigation machines, devoted to motion control, GPS-based controllers, sensor technologies, and wireless communication to monitor soil and climatic conditions together with an assessment of irrigation parameters, i.e., flow and pressure, to attain greater water utilization efficiency by crop. These technologies show significant potential; however, further progress is required before they can become commercially available [76].

4.9. Yield Monitor

Yield monitors are the combination of sensors and components, including a data storage device, a computer, and user interface, that control integration and interaction components. The sensor measures yield continuously by evaluating the force of mass or volume of grain flow. The mass flow sensor was based on the principle of transmitting microwave energy beams and measuring the energy that bounces back after hitting. In yield monitors, GPS receivers create yield maps based on the location yield data [77].
The yield monitor is mounted on a harvester and connected with the mobile app for displaying live harvest data, and automatically uploads to the web-based platform. The app can generate and share high-quality yield maps with an agronomist, and farmers can export other farm management data for analysis. In horticultural crops, to precisely determine the yield quantity and quality of produce, fruit growth is considered one of the most relevant parameters in the crop progressing period [78]. Color images are used to track fruit conditions for estimating fruit maturation, making decisions for harvesting, and targeting the right market [79]. Satellite images are one of the options for real-time monitoring of the yield of crops over vast areas; for example, Sentinel-1A images are used to map the rice yield and crop intensity in Myanmar [80].
The crop yield estimation system was designed using both software and hardware components. Based on a Bluetooth terminal android application and yield estimator software program, crop yield is estimated using a mathematical calculation through a mobile application [81]. Satellite-based crop yield predictions based on spectral signatures reveal the estimated yields are as reliable as actual yields. The maize yield predictions were successfully carried out under varying environments using machine learning and satellite-derived data assimilation in crop models [82].

4.10. Software

The software has multiple tasks, such as mapping, display controller interfacing, data processing, analysis, and interpretation, etc. Most commonly, software is used to generate the maps for soil properties and nutrient status, yield maps, variable rate applications maps for inputs, and overlaying different kinds of maps with advanced geostatistical features [83].

5. Applications in Agriculture

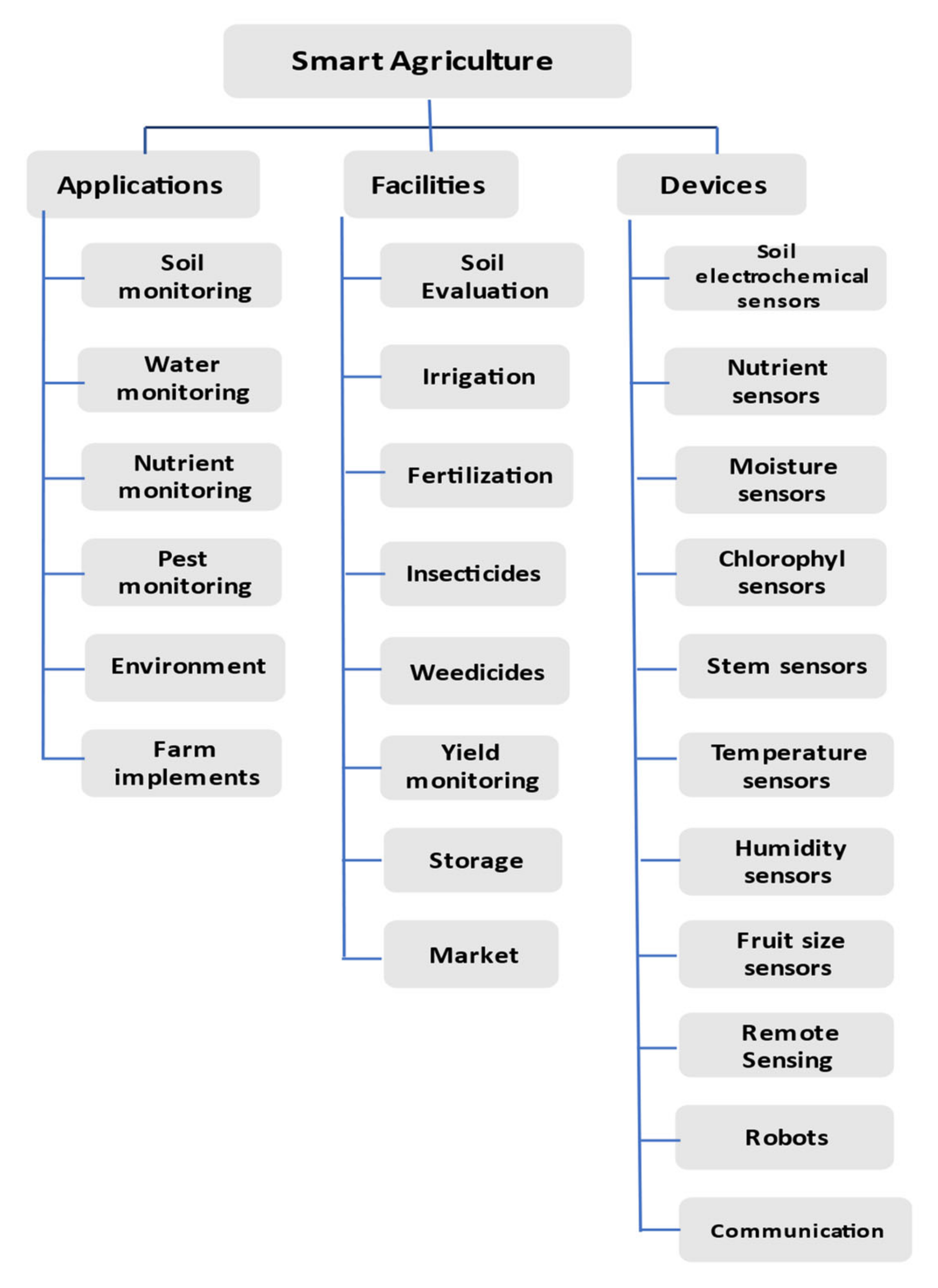

By adopting the current sensor and IoT technologies in agriculture, each characteristic of conventional farming practices is rehabilitated. The incorporation of wireless sensors and IoT in smart farming answers many of the issues facing conventional agriculture; for example, land suitability, drought monitoring, irrigation, pest control, and yield maximization. Figure 5 demonstrates the order of main applications, facilities, and devices for smart agriculture applications. Using advanced technologies at various stages in the following few applications enhances efficiency and revolutionizes agriculture.

5.1. Soil Mapping and Plant Monitoring

Soil analysis estimates the nutrient status of the field based on GPS position and field-specific information, and critical decisions are then taken according to the nutrient deficiencies at different stages of the crop. The factors controlling soil fertility status are topography, type and texture, cropping pattern, application of fertilizer, irrigation, etc. [84]. Soil mapping is useful for assessing crop suitability or varieties in a specific field, as well as planting depth, the physical, chemical and biological properties of soil, in order to best utilize resources. Presently, a wide range of sensors and tools are used to monitor soil properties, such as water-holding capacity, texture, and absorption rate, which assists farmers in tracking the soil quality and adopting suitable remedies to avoid soil degradation such as erosion, alkalization, acidification, salinization, and pollution. Drought is another concern that affects plant productivity and crop yield. Remote sensing techniques that can obtain soil moisture data frequently assist in analyzing agricultural drought in remote regions. Soil moisture maps generated from satellite data are used to estimate the soil water deficit index (SWDI), which enables the development of prediction models based on soil physical properties [85,86].
Various factors, such as soil type, soil nutrients, irrigation, and pests, affect rice yield and quality. The IoT-based mobile application aids crop management and provides real-time information on soil nutrition and characteristics. The system consists of electrical conductivity (EC), temperature sensors with a T-Beam microcontroller, and IoT connectivity, and the estimated EC value near the calibration solution is 12.88 mS/cm, and 150 mS/cm is less than 2% of the calibration solution’s value. The measured EC values are linearly proportional to temperature and depth, and values of 1.04 and 3.86 mS/cm were noticed with and without fertilizer at 5 cm depth, while it was 0.656 and 420 mS/cm at 10 cm depth, respectively [87].
Plant monitoring conducted through the IoT ADCON-based station, with sensors and mobile devices (smartphones and tablets), farmers are able to collect data on soil and ambient parameters, such as leaf wetness, air and soil temperature, soil and air humidity to improve the grape productivity, and crop quality from seeding to harvest. Further, the data transmission system highlights the soil-plant-atmosphere interactions needed to optimize agricultural production [88]. By analyzing the data from soil moisture, carbon dioxide, light, and temperature sensors in bell peppers grown in a greenhouse were compared with day and night CO2, rolling the doors and windows of the greenhouse open and closed, based on soil moisture [89].

5.2. Irrigation

According to the UN Convention to Combat Desertification (UNCCD), 168 countries will be inundated with desertification by 2030, and nearly 50% of the world population lives in high water shortage areas [90]. Considering the water crises and increasing demand for farming and other activities, it must be provided to regions with water quantities. Water resources are conserved by adopting more controlled and efficient irrigation systems; for example, drip and sprinkler irrigations. Water demand estimation for crops is controlled by soil type, precipitation, irrigation method, crop type, and requirement, as well as soil moisture retention. Using air and soil moisture control systems with wireless sensors optimizes water resources and improves crop health. In the current scenario, a substantial increase in crop productivity is anticipated using IoT techniques, namely CWSI (crop water stress index)-based water management [91], calculated from the crop canopy at varying crop growth stages and air temperatures. The information from climate data, sensors, and satellite imaging are related to the CWSI model for water requirement calculation, and predictions using the irrigation index values can be used for every field based on slope or soil variability to improve water usage efficiency.

5.3. Site-Specific Nutrient Management

Fertilizer is a either natural or synthetic chemical substance that provides nutrients for plant growth and soil fertility. Both nutrient deficiency and excessive fertilizer use harms soil, plant health, and the environment [92]. The site-specific soil nutrient fertilization under smart agriculture estimates the required quantity of nutrients precisely, and minimizes their negative effects through excessive use on soil and in the environment. The site-specific soil, nutrient measurements are influenced by soil types, crop type, yield targets, exchange capacity, use efficiency, the type of fertilizer, weather conditions, etc. The IoT-based fertilizing technique estimates the nutrient’s spatial patterns of distribution [93,94]. The normalized difference vegetation index (NDVI) was obtained from satellite images to observe crop nutrient status [95,96], crop health, vegetation vigor, and plant density, as well as soil nutrient level. Recent technologies, like GPS [97], geo mapping [98], variable rate technology (VRT) [99,100], and autonomous vehicles [101] strongly contribute to IoT-based smart fertilization. Apart from these, fertigation [102] and chemigation [103,104], i.e., the use of water-soluble fertilizers in soil amendments and pesticides, are considered effective management practices to improve fertilization efficiency.

5.4. Crop Pest and Disease Management

The Food and Agriculture Organization (FAO) concluded that an annual global crop yield loss of 20- 40% was only due to pests and diseases [105], and these losses are controlled by the use of pesticides and other agrochemicals [106]. Most of them are harmful to human and animal health, and ultimately cause contamination of environmental systems [107,108]. The IoT-based devices, such as robots, wireless sensors, and drones, precisely spot and control the crop opponents by real-time monitoring, modelling, and disease forecasting, increasing overall effectiveness [109,110] more than traditional pest control procedures. The IoT-based disease and pest management process depends on detection and image processing. The remote sensing imagery and field sensors are used to collect data, such as plant health and pest incidence, in every field for the entire crop period. IoT-based automated traps [111,112] capture, count, and describe insect types, and further upload data to the Cloud for complete analysis. Due to advancements in robotic technology, an agricultural robot with multispectral image sensing devices and precision spraying nozzles is utilized to detect and control pest problems more accurately under the IoT management system.

5.5. Yield Monitoring and Forecasting

The yield monitoring mechanism conforms to yield, moisture content, and quality of produce. The quality depends on pollination with good pollen, especially under changing environmental circumstances [113,114,115]. Crop forecasting predicts the yield before the crop harvest, and assists the farmer in future planning, decision-making, and further analysis of the yield quality. Maturity determines the right harvesting time by monitoring the crop at different development stages, including factors such as fruit color, size, etc. Predictions of the correct harvesting time aids in maximizing crop quality and production, and regulates market management strategies. Therefore, farmers should know the exact harvest time of crops to obtain profit. Figure 6 outlines the idea of a farm area network, representing the whole farm in real-time conditions.
The development and installation of a yield monitor [116] on a harvester, connected with a mobile app, shows real-time crop harvest, and automatically transmits data to the manufacturer’s web-based platform. To estimate crop production and monitoring, satellite images are exploited to cover vast areas [80]. For fruit crops, multicolor (RGB) satellite images [79] are utilized to track the diverse fruit conditions, especially fruit size and color, and plays a major role in estimating its maturation, making decisions on harvest, and market opportunities. Similarly, multiple optical sensors are used [117] to monitor shrinking fruits during drying conditions.

6. Role of IoT in Advanced Farming Practices

Adopting the new methods based on sensor and IoT-based technologies improved the yield of crops more than conventional agriculture processes. The involvement of new sophisticated sensor-based technologies in controlled environments plays an important role in enhancing the quality and quantity of produce.

6.1. Greenhouse Farming and Protected Cultivation

Growing plants in a controlled environment gained popularity in the 19th Century, and is considered one of the oldest methods of smart farming. These practices further accelerated during the 20th Century in countries facing severe weather conditions [118]. Crops grown in indoor conditions are less affected by the environment. As a result, crops grown traditionally under suitable conditions are today being raised at anytime and anywhere by the use of sensors and communication devices. The success of crop production under a controlled environment depends on various factors, such as shed structures and material for controlling wind effects, aeration systems, accuracy of monitoring parameters, decision support system, etc. [119]. One of the greatest challenges in greenhouses is the precise monitoring of environmental parameters; hence, it requires several measurement points to predict the various parameters for controlling and ensuring the local climate. In an IoT-based greenhouse, sensors are used to measure and monitor the internal parameters, such as humidity, temperature, light, and pressure [120].
The smart greenhouse has helped farmers automatically conduct farm work, without manual inspection, and protects the plants from hailstorms, winds, ultraviolet radiation, and insect and pest attacks. Hibiscus plants are grown with the required wavelength during the night using lights, temperature, and air humidity sensors. A study revealed a reduction in 70–80% water requirement, and the IoT enables direct contact between the farmer and consumer to make farming as efficient and profitable as possible [121]. The IoT-enabled automated system increased the productivity of rose plants grown in a greenhouse by monitoring and controlling various parameters, such as humidity, mist, CO2 level, UV light intensity, pH and EC value, water nutrients solution level, temperature, and amount of pesticides, through sensors for further efficient detection and diagnosis [122].

6.2. Hydroponics

Hydroponics, a subdivision of hydroculture, is growing plants without soil to improve greenhouse farming benefits. Hydroponic-based irrigation systems enable a balanced rate of application of dissolved nutrients in the water to crop roots as a solution. Presently, the available systems and sensors [123] detect a wide range of parameters and perform data analysis at predetermined intervals. Precise measurement and monitoring of nutrient content in solution is crucial for plant growth and considers its demands. On a real-time basis, the wireless-sensor-based prototype [124] has delivered a solution for soilless cultivation, and measures the concentration of numerous nutrients and water levels [125].
An automated smart hydroponics system integrated with IoT consists of three major components: input data, cloud server and output data. These monitor lettuce cultivation from anywhere through the internet by analyzing parameters, such as pH level, water, nutrient-rich water-based solution, room temperature, and humidity, on a real-time basis [126]. The hydroponic system of the deep flow technique is a method for cultivating plants by placing roots in deep water layers, and ensuring the continuous circulation of plant nutrient solution. The plant growth elements data, such as pH, temperature, humidity, and water level in the hydroponic reservoir, are acquired by sensors integrated into Raspberry Pi, and data are processed and monitored automatically on a real-time basis to ensure proper water circulation [127].

6.3. Vertical Farming

The industrial-based agricultural farming practices damage soil quality at a faster rate than nature can reconstruct. The alarming erosion rate and use of fresh water for agriculture has led to the reduction of arable land, and increased the overburden on present water reservoirs [128]. Vertical farming (VF) offers an opportunity to keep the plants in a precisely controlled environment, significantly reducing resource consumption and, at the same time, increasing production at varied times; and only a portion of the ground surface is needed depending on the number of stacks. VF is also extremely effective in higher yields and reducing water consumption compared to traditional farming [129]. The carbon dioxide measurement is the most critical parameter; hence, nondispersive infrared (NDIR) CO2 sensors play a vital part in tracking and controlling the conditions in vertical farms.

6.4. Phenotyping

Phenotyping is an emerging crop engineering technique, relating plant genomics with ecophysiology and agronomy. The advancement of genetic and molecular tools is significant for crop breeding; however, quantitative analysis of crop behaviors, such as pathogen resistance, grain weight, etc., is inadequate due to the absence of effective technologies and efficient techniques. In this condition, [130] reported that plant phenotyping is highly useful in investigating the quantitative characteristics responsible for growth, resistance to various stresses, yield quality, and quantity. The sensing technologies and image-based phenotyping describe screening of biostimulants and an understanding of their mode of action [131]. IoT-based phenotyping is intended to observe the crop and related trait measurements, and offer facilities for the breeding of crops and digital agriculture [132]. The trait analysis algorithms and modelling support determine the relationships among genotypes, phenotypes, and their growing condition.

7. The Role of the Engineer in Smart Farming

Farmers face many issues when they adopt IoT-based agriculture. Therefore, engineers must develop solutions for specific problems related to smart farming techniques. An engineering role concerns the application and use of innovative technologies and methods for precision agricultural machinery, and smart farming is a creative way to mechanize agricultural engineering through means different from conventional mechanization [133]. The concepts and synergy-based information are obtained from different technology areas, such as agricultural mechanization, mechatronics, instrumentation, control systems, and knowledge in artificial and computational intelligence [134]. Big data, satellite, and aerial images have revolutionized precision agriculture, and these new technologies increase production efficiency by creating a balance between productivity and environmental protection. As a system integrator, engineering combines technical experience and strong business skills in both the public and private sectors [135].
At the same time, engineering exploits the rewards of digital transformation in the entire agri-food chain, from day-to-day farming activities to supporting sales operations, logistics, and the maintenance of farm assets. For example, knowledge of the IoT, AI, mobile, precision farming technologies, remote sensing, advanced analytics, the Cloud, RPA, and blockchain technologies are necessary [136]. The data collected from the various types of machinery through sensors and other devices generates responses concerning cereals, viticulture, fruit, and vegetables, as well as soil and monitoring [137].
The use of digital technologies and control systems to automate production processes also reduces manual human intervention. The production process, from field to final product, is carried out by planning, organizing, and analyzing data received from machines. The data acquired are stored in historical archives and correlated with each other to retrieve useful information for products through traceable systems working based on radio-frequency signals [138].

7.1. Purpose

Purpose is based on the user’s final requirement, and influences the monitoring of crops during the growth period. Sensors provide the IoT solutions to their problems. For example, the end-user is a corn farmer, faced by problems mainly concerning water usage and ensuring that a crop gets adequate water; therefore, water level and moisture monitoring sensors are accommodated to prevent water wastage.

7.2. Technology

Distance plays an important role in technology selection because the sensors collect data and send to the server; hence, similar technology cannot be used for varying distances. For example, radio frequency identification (RFID) or near field communication (NFC) and low power, wide area network (LPWAN) technologies could send data over a distance of hundreds or even thousands of meters.

7.3. Power Requirements

Most IoT solutions are spread across a large farm, so it is better to develop low-power applications. On the other hand, more data transmission requires huge data costs and power consumption; hence, designers need to consider developing cost-effective IoT solutions for farmers. Usually, engineers save costs with customized IoT-based farming solutions, and develop apps for sending the data less frequently.

7.4. Data Frequency

The end user’s necessities are critical in deciding the number of sensors and data packets. Sometimes, a farmer does not require information frequently, but developer design an IoT application to function on a continual and real-time basis, with very high data frequency.

7.5. Placement of Sensors

Sensors are placed in such a way that they provide optimal performance, even if the farm has all the essential sensors with proper placement.

8. Barriers to Implementing Smart Farming Technologies

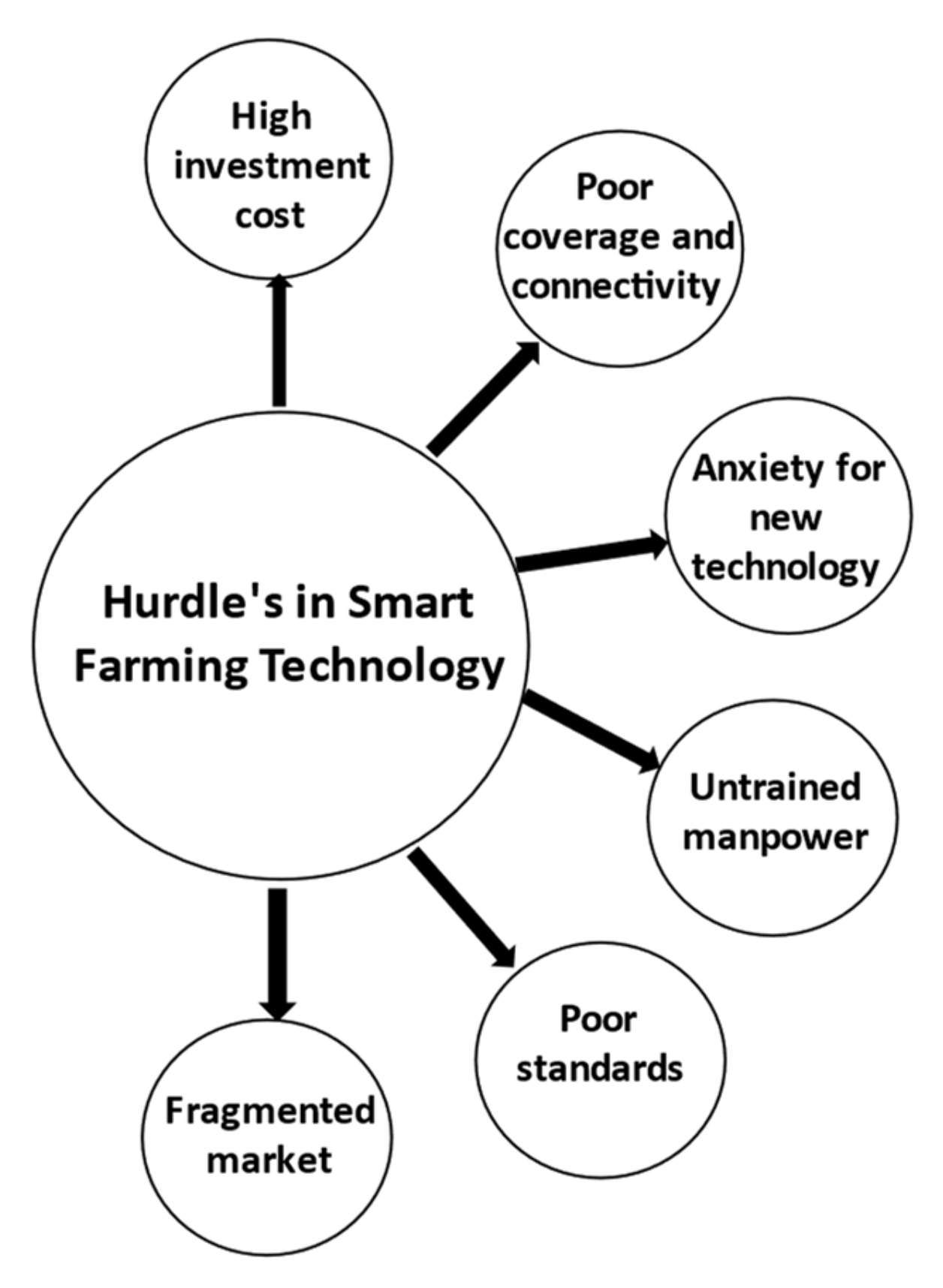

Technology adoption is a method with a certain level of heterogeneity factors that are affective [139]. Technology implemented in farming systems has provided accuracy, efficiency, and eased time pressures. Although smart farming increases the productivity of crops, there are still problems in adopting these technologies

8.1. Cost of Technology

Existing technologies minimize the workforce and perform extremely fast with high accuracy. Therefore, it is anticipated that machines would probably replace a human workforce in the near future. However, it is impossible, since many countries have experienced poverty wherever the workforce was the main source for the agriculture sector. The implementation of devices and technologies requires a huge amount of money; therefore, farmers face difficulties in terms of affordability when they look beyond conventional tools.

8.2. Lack of Financial Resources

Financial supporters could provide adequate loans to farmers if farmers did not get the anticipated yield, perhaps because unexpected calamities like drought, flood, pests, and diseases impacted the crops.

8.3. Literacy Status of Farmers

The education level among the farmers is one of the greater challenges in implementing technologies in developing countries. The knowledge needed encompasses educational and technical abilities to manage the tools. The level of education increases a farmers’ aptitude to process information, and thus make decisions using smart farming technologies [140], facilitating farmers’ use of computers [141]. Farmers in developing nations are mostly uneducated and unskilled because of a lack of desire to gain knowledge, or any new technology awareness [142]. Hence, it is a reason for farmers in choosing traditional farming over smart farming [143]. Farmers have considered that usage is too complex, sometimes incapable of recognizing the icons used in a mobile application as the farmers use general icons based on traditional understanding. Farmers need to be digitally literate to reinforce the advantages of smart farming technologies and, simultaneously, agri-tech companies should ensure farmers easily understand the limitations of the technology.

8.4. Lack of Integration between the Systems

Integration across systems is one of the areas where smart farming technologies needs to be advanced further by incorporating production, property management, and decision-making tools. The communication between academics and interdisciplinary groups must overcome the gap between agricultural and information science. More emphasis has been given to increasing user effectiveness during the development of an information system [144]. The basis for improved decision-making is based on the timely obtainability of superior quality data; hence, data must be integrated to generate information and knowledge.

8.5. Telecommunications Infrastructure

Farming activities mostly occur in rural areas more effectively in arable land than contaminated land. However, poor telecommunication infrastructure makes data transmission unreliable, especially through mobile phones and tablets. Smart farming necessitates a real-time connection with the internet to enable the use of information. In addition, various operation control systems, such as fertilizers, pesticides, and seed volume, requires high-quality internet connection to produce outcomes. Recently, with the expansion of mobile phones, rural producers have gained to access mobile internet; however, signal quality and input speed are limited.

8.6. Data Management

Farmers are facing problems in organizing and manipulating data obtained by the sensors. The weather stations are generating data; however, farmers do not recognize how to use the information and how to change the data into a more available form. Its complex systems, alongside issues of acceptability and usability, lead to incorrect calculations. Farmers, consultants, and others involved in the production process must provide greater accessibility to data and information in productive systems.

9. Current Challenges and Future Expectations

In the 2030 Agenda for Sustainable Development, the United Nations and international community established a goal to end hunger by 2030. Currently, the World Health Organization reports that more than 800 million people are facing food shortages worldwise [145]. In addition, the increasing global population is increasing the demand for quality food; therefore, food and cash crops could improve overall crop production.

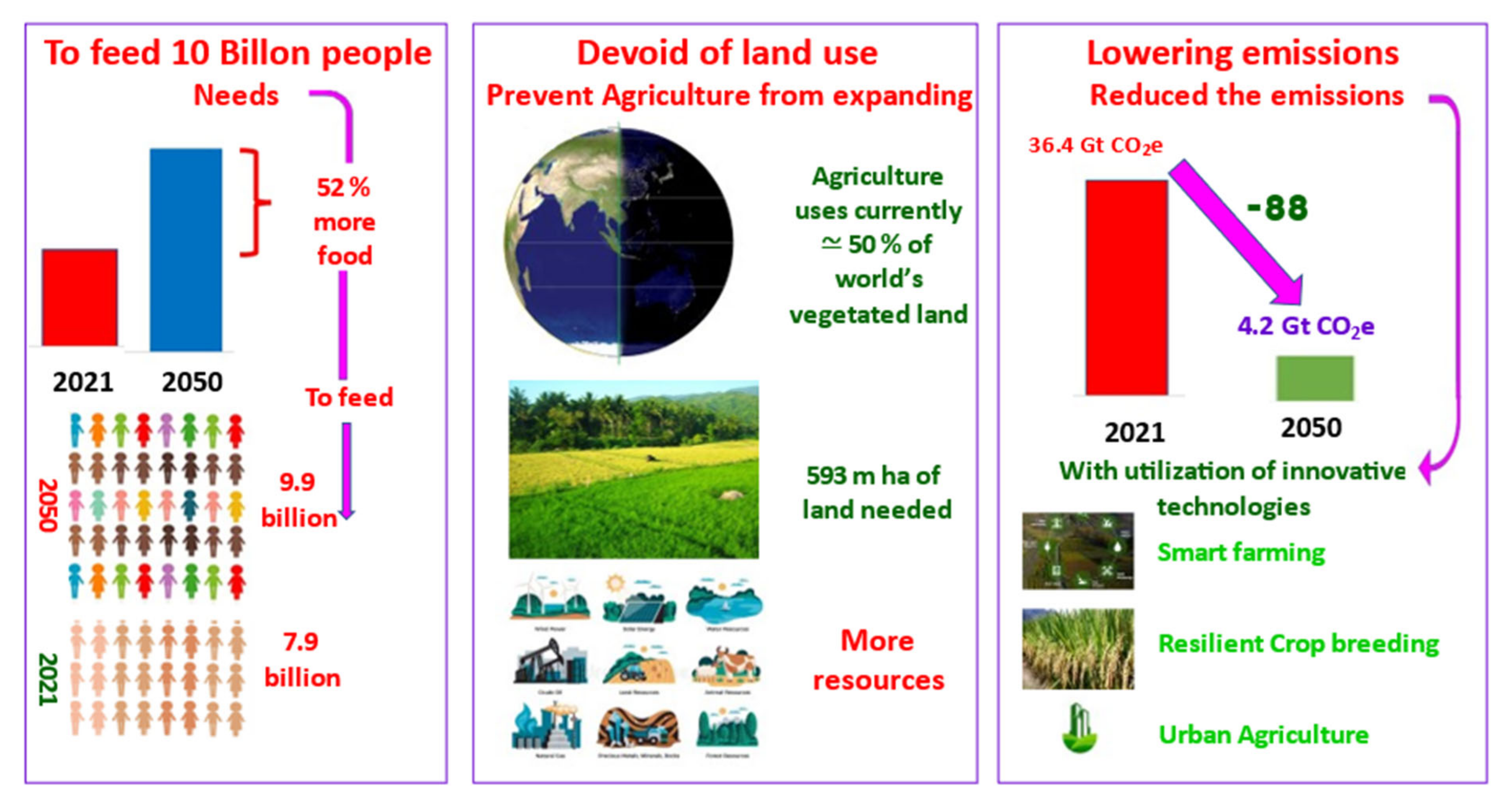

Figure 7 represents the future challenges agriculture is anticipated to face in 2050. This illustration offers three major problems: (1) feeding 10 billion people, (2) limitations in the expansion of land, and (3) the reduction of greenhouse gases emissions. These challenges lead to new thinking about water scarcity, shrinking arable land, rural labor, climate conditions, and much more. The diminishment in rural populations due to urbanization is not only shrinking communities, but is also leading to ageing populations; therefore, younger growers must step forward to take responsibility. The generation shift and population imbalance create further implications for the workforce and production.
The further shrinking of arable land and the suitability of particular crops in specific regions are due to geographic and ecological conditions. Abrupt weather changes enhance the intensity of environmental issues, such as drought, groundwater depletion, and soil degradation, affecting crop production. Moreover, traditional agricultural methods have historically met food demands by employing fertilizers and pesticides; however, it increases food production only to a certain level and negligent use of chemical deteriorate the environment. In developing countries, various problems facing the agricultural sector include no suitable crop selection, soil testing, efficient irrigation systems, weather forecasting, animal husbandry, etc. Technological advancements have proved beneficial in developed countries, both quantitively and qualitatively, but, in developing countries, 50% of the population is already engaged in agriculture.
The future of agriculture is expected to interconnect with artificial intelligence and big data services. As a result, the systems will converge into a single unit, where farm machinery and management start from seeding to production forecasting. Few of the key technologies and methods are focused on achieving sustainable future agriculture.

9.1. Communication

The achievement of the IoT in agriculture mostly depends on connectivity between devices [146]. Most telecom operators provide connectivity services, but represent a small percentage of smart farming as a whole. Cellular operators offer new services to target growers and enhance market facilities, especially in rural areas. The success of cellular technology is feasible when service providers guarantee its benefits, such as flexibility, portability, and extravagance, of both-way communication at low cost. In developing countries, mobile services and smartphone technology offer a hopeful future for farmers to enhance their crop yields. The low power wide area technology (LPWA) is anticipated to play a major role in smart farming agriculture, due to its improved facilities, efficient coverage, low power consumption, and cost economics. The cellular operators with robust IoT create significant returns by offering smart agriculture facilities in collaboration with LPWA technology.

9.2. Wireless Sensors and IoT

Placing wireless sensors around the field provides timely information on a real-time basis to farmers in order to make decisions and act in order to obtain higher crop yields. Wireless sensor networks (WSNs) with GPS technology update all information on crop growth and terrain features. Recently, digital images and signal processing offer additional competencies to WSN, and precisely ascertain crop quality and health. The IoT technology can streamline tasks in a predictable manner by diagnosing crop requirements at each stage to maximize their effectiveness. In the future, IoT will be upgraded to the fifth-generation (5G) cellular mobile communication technologies, to provide real-time data to farmers at any time and everywhere. Based on this achievement, around 29 billion IoT-based components are expected to operate in the agriculture sector by the end of 2022. Furthermore, it is expected to create 4.1 million data points daily from farms by 2050 [147].

9.3. Drones and Unarmed Vehicles

Farmers widely use drones for crop growth monitoring, spraying nutrient solutions and water, and pesticides in tough terrains and for different crop heights. Drones have proven their value for spraying speed, area coverage, and precision, compared to traditional machinery. Due to advancements in technology, drones are equipped with various sensors, and 3D cameras provide comprehensive capabilities in land management by farmers. With the addition of UAVs in agriculture, many challenges, particularly the incorporation of technologies and use in inclement weather conditions, are addressed by farmers. Other than drones, robotics in agriculture has also enhanced productivity due to higher yields achieved by spraying and weeding without human intervention. The seeding, transplanting, and fruit harvest/picking robots have recently added a new efficiency level to traditional methods.
The UAV technology in smart agriculture provides information on fertilization, irrigation, use of pesticides, plant growth monitoring, weed management, crop disease management, and field-level phenotyping to enhance cultivation practices. A new method of 3D modeling has been used to monitor crop growth parameters to determine the height of maize and sorghum plants under field conditions using UAV, and the average root mean square error (RMSE) of sorghum height with hand sampling field data was 0.33 m [148]. The UAV and 3D models were also restored to extract leaf area index (LAI) in soybean plants, the measured LAI predicted accuracy corresponding to the handheld device (R2 = 0.92) was correlated with destructive LAI measurements (R2 = 0.89) [149].
Weed detection and management were assessed by integrating low-resolution multi-spectral high-resolution RGB images [150] using the Random Forest (RF) technique in field-grown rice and sugar beet crops [151]. Multi-spectral digital images obtained by UAVs are used for evaluating vegetation indices (VIs) and multi-temporal VIs to predict grain yield in wheat [152]. The indices, including the normalized difference vegetation index (NDVI), spectral vegetation index (SVI), and green area index (GAI), are evaluated in wheat crops to predict grain yield [153], monitor breeding [154], detect plant stress caused by yellow rust disease [155], and quantify plant density [156]. The usage of pesticides in agriculture is crucial for crop yields and the environment, and efforts have been made to develop and evaluate an algorithm to self-adjust UAV routes during chemical spraying in a crop field to reduce the waste of pesticides and fertilizers [157].

9.4. Vertical Farming and Hydroponics

The shrinking of arable land and rapid urbanization results in greater pressure on the present resources [158], which causes hardships for food production with current agriculture practices. Vertical farming (VF) navigates land and water shortage challenges, and is highly suitable for adoption in nearby cities. Hydroponics plays a key role in lowering water requirements. Hydroponics, along with VF, increases available arable land without distressing forests and other natural habitats. The presence of advanced technologies, especially the IoT, makes the agriculture industry highly remunerative with a reduction in labor requirements and other resources, in addition to minimizing environmental impact.

9.5. Performance Analysis Using Machine Learning

Data analytics and machine learning concepts are applied to analyze the real-time data. In crop production, identifying the best genes is an important process that can be conducted using machine learning techniques. In agriculture, machine learning is used to envisage the best genes suited for crop production, especially for selecting seed varieties that are highly suitable to specific climate conditions and locations. Machine learning algorithms identify high demand products and currently unavailable products. Recent developments in machine learning and analytics allow farmers to correctly categorize their harvests before it is processes and delivered to customers.
Machine learning (ML) in big data systems solves the issues related to farmers’ decision-making, crops, animal research, land, food availability and security, weather and climate change, and weeds [159]. ML-based applications accommodate a large number of agricultural activities, such as yield prediction based on a deep memory model for maize [160], binary classification model with logistic regression technique to assess rainfall intensity [161], and a short-term memory model to predict soil water content with data parameters of rainfall, temperature, water diversion, evaporation, and time for the next 1, 2, and 7 days with greater R2 compared to artificial neural networks [162]. As a result, the agricultural sector is increasing farmers’ incomes, and so communities are further integrated into the agricultural value chain to reduce poverty and provide access to health care, education, and nutritious food for their families [163].

9.6. Renewable Energy, Microgrids and Smart Grids

Smart farming requires extensive energy due to power consumption by long-standing sensor placement, use of GPS, and data transmission. Traditionally, using renewable energy sources in remote areas solves long-term power issues. Smart grids and microgrids are integrated into distributed energy sources (DERs). Recent advances in storage devices combine electricity and heat systems to stock energy and use the heat produced.
Globally, smart grid technology enables a smooth transition from traditional to smart energy systems, ensuring energy security. In developing countries, power-strengthening systems integrated with renewable sources have enhanced the transport sector, and increased bioenergy use in the power sector through profuse renewable energy sources identified using smart technologies, such as, energy storage devices, smart appliances, computational intelligence, and the IoT. For example, the smart grid provides a broad range of opportunities for power sector reform in Nepal, alleviating the rural electricity problem by implementing smart microgrids, and subsequently, connecting to the national grid [164]. The Dayalbagh renewable energy smart microgrid in India is a small-scale electricity system comprising distributed loads and renewable energy resources, acting as a single controllable entity in the grid. The smart microgrids are integrated into renewable resources and form building blocks of smart grids, especially for the dairy plant to produce various dairy products [165].
The mixed integer linear programme (MILP) systematically and efficiently managed energy consumption and subsequently lowered the cost, especially in residential areas, by scheduling the use of smart appliances and charging/discharging electric vehicles (EVs). The model generates its own energy from a microgrid containing solar panels and wind turbines, and forecasts wind speed and solar radiation for effective energy management. MILP-based energy planning sustains the effectiveness and productiveness of energy-efficient techniques [166].

10. Conclusions

Smarter and more efficient crop production methodologies are needed to address the issues of shrinking arable land and the food demands of an increasing world population. There is a necessity for everyone to be aware of food security in terms of sustainable agriculture. The growth of new technologies for increasing crop yield and encouraging the adoption of farming by innovative young people as a legitimate profession. This paper emphasized the role of many technologies used for farming, particularly the IoT, in making agriculture smarter and more effective in meeting future requirements. The current challenges faced by the industry and future prospects are noted to guide scholars and engineers. Hence, every piece of farmland is important to enhance crop production by dealing with every inch of land using sustainable IoT-based sensors and communication technologies.

Author Contributions

Conceptualization, M.D.; investigation, P.C., K.R.; methodology, M.D., S.P.; resources, K.R., R.K.; supervision, S.P.; visualization, R.K.; writing—original draft, M.D.; writing—review & editing, P.C.; funding acquisition, S.P., validation, R.K. All authors have read and agreed to the published version of the manuscript.

Funding

This research and APC were funded by GIZ, Germany by Deutsche Gesellschaft für Internationale Zusammenarbeit (Grant number 81278637).

Conflicts of Interest

The authors declare that no competing financial interests or personal relationships could have appeared to influence the work reported in this paper.

References

  1. Srisruthi, S.; Swarna, N.; Ros, G.M.S.; Elizabeth, E. Sustainable agriculture using eco-friendly and energy efficient sensor technology. In Proceedings of the 2016 IEEE International Conference on Recent Trends in Electronics, Information & Communication Technology (RTEICT), Bangalore, India, 20–21 May 2016; IEEE: Bangalore, India, 2016; pp. 1442–1446. [Google Scholar] [CrossRef]
  2. Brodt, S.; Six, J.; Feenstra, G.; Ingels, C.; Campbell, D. Sustainable Agriculture. Nat. Educ. Knowl. 2011, 3, 1. [Google Scholar]
  3. Obaisi, A.I.; Adegbeye, M.J.; Elghandour, M.M.M.Y.; Barbabosa-Pliego, A.; Salem, A.Z.M. Natural Resource Management and Sustainable Agriculture. In Handbook of Climate Change Mitigation and Adaptation; Lackner, M., Sajjadi, B., Chen, W.Y., Eds.; Springer: Cham, Switzerland, 2022. [Google Scholar] [CrossRef]
  4. Latake, P.T.; Pawar, P.; Ranveer, A.C. The Greenhouse Effect and Its Impacts on Environment. Int. J. Innov. Res. Creat. Technol. 2015, 1, 333–337. [Google Scholar]
  5. Reddy, T.; Dutta, M. Impact of Agricultural Inputs on Agricultural GDP in Indian Economy. Theor. Econ. Lett. 2018, 8, 1840–1853. [Google Scholar] [CrossRef] [Green Version]
  6. World Agriculture: Towards 2015/2030: An FAO Perspective and Summary Report; FAO: Rome, Italy, 2002; Available online: www.fao.org/3/a-y4252e.pdf (accessed on 1 August 2022).
  7. Roser, M.; Ritchie, H.; Ortiz-Ospina, E. World Population Growth. 2013. Available online: https://ourworldindata.org/world-population-growth (accessed on 1 August 2022).
  8. Hernández-Ochoa, I.M.; Gaiser, T.; Kersebaum, K.C.; Webber, H.; Seidel, S.J.; Grahmann, K.; Ewert, F. Model-based design of crop diversification through new field arrangements in spatially heterogeneous landscapes. A review. Agron. Sustain. Dev. 2022, 42, 74. [Google Scholar] [CrossRef]
  9. Navulur, S.; Sastry, A.S.C.S.; Giri Prasad, M.N. Agricultural Management through Wireless Sensors and Internet of Things. Int. J. Electr. Comput. Eng. 2017, 7, 3492–3499. [Google Scholar] [CrossRef] [Green Version]
  10. Ayaz, M.; Ammad-uddin, M.; Baig, I.; Aggoune, E.M. Wireless Sensor‘s Civil Applications, Prototypes, and Future Integration Possibilities: A Review. IEEE Sens. J. 2018, 18, 4–30. [Google Scholar] [CrossRef]
  11. Lin, J.; Yu, W.; Zhang, N.; Yang, X.; Zhang, H.; Zhao, W. A Survey on Internet of Things: Architecture, Enabling Technologies, Security and Privacy, and Applications. IEEE Internet Things J. 2017, 4, 1125–1142. [Google Scholar] [CrossRef]
  12. Tekinerdogan, B. Strategies for Technological Innovation in Agriculture 4.0. Reports; Wageningen University: Wageningen, The Netherlands, 2018. [Google Scholar]
  13. Ferrandez-Pastor, F.J.; Garcia-Chamizo, J.M.; Nieto-Hidalgo, M.; Mora-Pascual, J.; MoraMartinez, J. Developing ubiquitous sensor network platform using Internet of Things: Application in precision agriculture. Sensors 2016, 16, 1141. [Google Scholar] [CrossRef] [Green Version]
  14. Wolfert, S.; Ge, L.; Verdouw, C.; Bogaardt, M.J. Big data in smart farming—A review. Agric. Syst. 2017, 153, 69–80. [Google Scholar] [CrossRef]
  15. Liakos, K.G.; Busato, P.; Moshou, D.; Pearson, S.; Bochtis, D. Machine learning in agriculture: A review. Sensors 2018, 18, 2674. [Google Scholar] [CrossRef]
  16. O’Grady, M.J.; O’Hare, G.M.P. Modelling the smart farm. Inf. Process. Agric. 2017, 4, 179–187. [Google Scholar] [CrossRef]
  17. Quy, V.K.; Hau, N.V.; Anh, D.V.; Quy, N.M.; Ban, N.T.; Lanza, S.; Randazzo, G.; Muzirafuti, A. IoT-Enabled Smart Agriculture: Architecture, Applications, and Challenges. Appl. Sci. 2022, 12, 3396. [Google Scholar] [CrossRef]
  18. Raj Kumar, G.; Chandra Shekhar, Y.; Shweta, V.; Ritesh, R. Smart agriculture—Urgent need of the day in developing countries. Sustain. Comput. Inform. Syst. 2021, 30, 100512. [Google Scholar]
  19. El Nahry, A.H.; Mohamed, E.S. Potentiality of land and water resources in African Sahara: A case study of south Egypt. Environ. Earth Sci. 2011, 63, 1263–1275. [Google Scholar] [CrossRef]
  20. Palombi, L.; Sessa, R. Climate-Smart Agriculture: Source Book; Food and Agriculture Organization: Rome, Italy, 2013. [Google Scholar]
  21. Adamides, G.; Kalatzis, N.; Stylianou, A.; Marianos, N.; Chatzipapadopoulos, F.; Giannakopoulou, M.; Papadavid, G.; Vassiliou, V.; Neocleous, D. Smart Farming Techniques for Climate Change Adaptation in Cyprus. Atmosphere 2020, 11, 557. [Google Scholar] [CrossRef]
  22. Patil, K.A.; Kale, N.R. A model for smart agriculture using IoT. In Proceedings of the 2016 International Conference on Global Trends in Signal Processing, Information Computing and Communication, Jalgaon, India, 22–24 December 2016; IEEE: Jalgaon, India, 2016; pp. 543–545. [Google Scholar] [CrossRef]
  23. Sisinni, E.; Saifullah, A.; Han, S.; Jennehag, U.; Gidlund, M. Industrial Internet of Things: Challenges, Opportunities, and Directions. IEEE Trans. Ind. Inform. 2018, 14, 4724–4734. [Google Scholar] [CrossRef]
  24. Shi, X.; An, X.; Zhao, Q.; Liu, H.; Xia, L.; Sun, X.; Guo, Y. State- of- the- Art Internet of Things in Protected Agriculture. Sensors 2019, 19, 1833. [Google Scholar] [CrossRef] [Green Version]
  25. Elijah, O.; Rahman, T.A.; Orikumhi, I.; Leow, C.Y.; Hindia, M.N. An Overview of Internet of Things (IoT) and Data Analytics in Agriculture: Benefits and Challenges. IEEE Internet Things J. 2018, 5, 3758–3773. [Google Scholar] [CrossRef]
  26. Yong, W.; Shuaishuai, L.; Li, L.; Minzan, L.; Ming, L.; Arvanitis, K.G.; Grorgieva, C.; Sigrimis, N. Smart Sensors from Ground to Cloud and Web Intelligence. IFAC Pap. OnLine 2018, 51, 31–38. [Google Scholar] [CrossRef]
  27. Mekala, M.S.; Viswanathan, P. A Survey: Smart agriculture IoT with cloud computing. In Proceedings of the 2017 International Conference on Microelectronic Devices, Circuits and Systems (ICMDCS), Vellore, India, 10–12 August 2017; IEEE: Vellore, India, 2017; pp. 1–7. [Google Scholar] [CrossRef]
  28. Mittal, A.; Singh, A. Microcontroller based pest management system. In Proceedings of the Second International Conference on Systems (ICONS’07), Martinique, France, 22–28 April 2007; IEEE: Martinique, France, 2007; p. 43. [Google Scholar] [CrossRef]
  29. Bonneau, V.; Copigneaux, B. Industry 4.0 in Agriculture: Focus on IoT Aspects, European Commission, Digital Transformation Monitor. 2017. Available online: https://ec.europa.eu/growth/tools-databases/dem/monitor/content/industry-40-agriculture-focus-iot-aspects (accessed on 30 December 2020).
  30. King, T.; Cole, M.; Farber, J.M.; Eisenbrand, G.; Zabaras, D.; Fox, E.M.; Hill, J.P. Food safety for food security: Relationship between global megatrends and developments in food safety. Trends Food Sci. Technol. 2017, 68, 160–175. [Google Scholar] [CrossRef]
  31. Chandhini, K. A Literature Study on Agricultural Production System Using IoT as Inclusive Technology. Int. J. Innov. Technol. Res. 2016, 4, 2727–2731. [Google Scholar]
  32. Lang, L. GPS + GIS + remote sensing: An overview. Earth Obs. Mag. 1992, 1, 23–26. [Google Scholar]
  33. Batte, M.T.; VanBuren, F.N. Precision farming—Factor influencing productivity. In Proceedings of the Northern Ohio Crops Day Meeting, Wood County, OH, USA, 21 January 1999. [Google Scholar]
  34. Chen, F.; Kissel, D.E.; West, L.T.; Adkin, W.; Clark, R.; Rickman, D.; Luvall, J.C. Field Scale Mapping of Surface Soil Clay Concentration. Precis. Agric. 2004, 5, 7–26. [Google Scholar] [CrossRef]
  35. Muhammad, S.F.; Shamyla, R.; Adnan, A.; Tariq, U.; Yousaf, B.Z. Role of IoT Technology in Agriculture: A Systematic Literature Review. Electronics 2020, 9, 319. [Google Scholar] [CrossRef] [Green Version]
  36. Srivastava, N.; Chopra, G.; Jain, P.; Khatter, B. Pest Monitor and Control System Using Wireless Sensor Network (With Special Reference to Acoustic Device Wireless Sensor). In Proceedings of the International Conference on Electrical and Electronics Engineering, Khartoum, Sudan Goa, 26–28 August 2013. ISBN: 978-93-82208-58-7. [Google Scholar]
  37. Kong, Q.; Chen, H.; Mo, Y.L.; Song, G. Real-time monitoring of water content in sandy soil using shear mode piezoceramic transducers and active sensing-A feasibility study. Sensors 2017, 17, 2395. [Google Scholar] [CrossRef] [Green Version]
  38. García-Ramos, F.J.; Vidal, M.; Boné, A.; Malón, H.; Aguirre, J. Analysis of the Air Flow Generated by an Air-Assisted Sprayer Equipped with Two Axial Fans Using a 3D Sonic Anemometer. Sensors 2012, 12, 7598–7613. [Google Scholar] [CrossRef] [Green Version]
  39. Moureaux, C.; Ceschia, E.; Arriga, N.; Béziat, P.; Eugster, W.; Kutsch, W.L.; Pattey, E. Eddy covariance measurements over crops. In Eddy Covariance: A Practical Guide to Measurement and Data Analysis; Aubinet, M., Vesala, T., Papale, D., Eds.; Springer: Dordrecht, The Netherlands, 2012. [Google Scholar]
  40. Kumar, A.; Bhatia, A.; Fagodiya, R.K. Eddy covariance flux tower: A promising technique for greenhouse gases measurement. Adv. Plants Agric. Res. 2017, 7, 337–340. [Google Scholar]
  41. Yew, T.K.; Yusoff, Y.; Sieng, L.K.; Lah, H.C.; Majid, H.; Shelida, N. An electrochemical sensor ASIC for agriculture applications. In Proceedings of the 37th International Convention on Information and Communication Technology, Electronics and Microelectronics (MIPRO), Opatija, Croatia, 26–30 May 2014; pp. 85–90. [Google Scholar]
  42. Cocovi-Solberg, D.J.; Rosende, M.; Miro, M. Automatic kinetic bioaccessibility assay of lead in soil environments using flow-through micro dialysis as a front end to electrothermal atomic absorption spectrometry. Environ. Sci. Technol. 2014, 48, 6282–6290. [Google Scholar] [CrossRef]
  43. Yunus, M.A.M.; Mukhopadhyay, S.C. Novel Planar Electromagnetic Sensors for Detection of Nitrates and Contamination in Natural Water Sources. IEEE Sens. J. 2011, 11, 1440–1447. [Google Scholar] [CrossRef]
  44. Millan-Almaraz, J.R.; Romero-Troncoso, R.J.; Guevara-Gonzalez, R.G.; Contreras-Medina, L.M.; Carrillo-Serrano, R.V.; Osornio Rios, R.A.; Duarte-Galvan, C.; Rios-Alcaraz, M.A.; Torres Pacheco, I. FPGA-based fused smart sensor for real-time plant transpiration dynamic estimation. Sensors 2010, 10, 8316–8331. [Google Scholar] [CrossRef] [Green Version]
  45. Weiss, U.; Biber, P. Plant detection and mapping for agricultural robots using a 3D-LIDAR sensor. Robot. Auton. Syst. 2011, 59, 265–273. [Google Scholar] [CrossRef]
  46. Montagnoli, A.; Fusco, S.; Terzaghi, M.; Kirschbaum, A.; Pflugmacher, D.; Cohen, W.B.; Scippa, G.S.; Chiatante, D. Estimating forest aboveground biomass by low-density LiDAR data in mixed broad-leaved forests in the Italian Pre-Alps. For. Ecosyst. 2015, 2, 10. [Google Scholar] [CrossRef] [Green Version]
  47. Schuster, J.N.; Darr, M.J.; McNaull, R.P. Performance benchmark of yield monitors for mechanical and environmental influences. In Agricultural and Biosystems Engineering Conference Proceedings and Presentations; IOWA State University: Ames, IA, USA, 2017. [Google Scholar]
  48. Hemmat, A.; Binandeh, A.R.; Ghaisari, J.; Khorsandi, A. Development and field testing of an integrated sensor for on-the-go measurement of soil mechanical resistance. Sens. Actuators A Phys. 2013, 198, 61–68. [Google Scholar] [CrossRef]
  49. Murray, S.C. Optical Sensors Advancing Precision In Agricultural Production. Photonics Spectra 2018, 51, 48. [Google Scholar]
  50. Molina, I.; Morillo, C.; García-Meléndez, E.; Guadalupe, R.; Roman, M.I. Characterizing olive grove canopies by means of ground-based hemispherical photography and spaceborne RADAR data. Sensors 2011, 11, 7476–7501. [Google Scholar] [CrossRef]
  51. Andújar, D.; Ribeiro, Á.; Fernández-Quintanilla, C.; Dorado, J. Accuracy and feasibility of optoelectronic sensors for weed mapping in wide row crops. Sensors 2011, 11, 2304–2318. [Google Scholar] [CrossRef] [Green Version]
  52. Crabit, A.; Colin, F.; Bailly, J.S.; Ayroles, H.; Garnier, F. Soft water level sensors for characterizing the hydrological behaviour of agricultural catchments. Sensors 2011, 11, 4656–4673. [Google Scholar] [CrossRef]
  53. Mark, T.; Griffin, T. Defining the Barriers to Telematics for Precision Agriculture: Connectivity Supply and Demand. In Proceedings of the SAEA Annual Meeting, San Antonio, TX, USA, 6–9 February 2016. [Google Scholar]
  54. Dvorak, J.S.; Stone, M.L.; Self, K.P. Objct Detection for Agricultural and Construction Environments Using an Ultrasonic Sensor. J. Agric. Saf. Health 2016, 22, 107–119. [Google Scholar]
  55. Pajares, G.; Peruzzi, A.; Gonzalez-de-Santos, P. Sensors in agriculture and forestry. Sensors 2013, 13, 12132–12139. [Google Scholar] [CrossRef] [Green Version]
  56. Zhmud, V.A.; Kondratiev, N.O.; Kuznetsov, K.A.; Trubin, V.G.; Dimitrov, L.V. Application of ultrasonic sensor for measuring distances in robotics. J. Phys. Conf. Ser. 2018, 1015, 032189. [Google Scholar] [CrossRef] [Green Version]
  57. Yalew, S.G.; van Griensven, A.; Mul, M.L.; van der Zaag, P. Land suitability analysis for agriculture in the Abbay basin using remote sensing, GIS and AHP techniques. Model Earth Syst. Environ. 2016, 2, 101. [Google Scholar] [CrossRef] [Green Version]
  58. Berntsen, J.; Thomsen, A.; Schelde, K.; Hansen, O.M.; Knudsen, L.; Broge, N.; Hougaard, H.; Horfarter, R. Algorithms for sensor-based redistribution of nitrogen fertilizer in winter wheat. Precis. Agric. 2006, 7, 65–83. [Google Scholar] [CrossRef]
  59. Ferguson, R.B.; Hergert, G.W.; Schepers, J.S.; Gotway, C.A.; Cahoon, J.E.; Peterson, T.A. Site-specific nitrogen management of irrigated maize; Yield and soil residual nitrate effects. Soil Sci. Soc. Am. J. 2002, 66, 544–553. [Google Scholar]
  60. Fleming, K.L.; Westfall, D.G.; Bausch, W.C. Evaluating management zone technology and grid soil sampling for variable rate nitrogen application. In Proceedings of the 5th International Conference on Precision Agriculture, Bloomington, MN, USA, 16–19 July 2000; pp. 1–13. [Google Scholar]
  61. Mallarino, A.P.; Wittry, D.J. Use of DGPS, yield monitors, soil testing and variable rate technology to improve phosphorus and potassium management. In Proceedings of the Integrated Crop Management Conference; Iowa State University Extension and Outreach: Ames, IA, USA, 1997; pp. 267–275. [Google Scholar]
  62. Ehlers, M. Geoinformatics and digital earth initiatives: A German perspective. Int. J. Digit. Earth 2008, 1, 17–30. [Google Scholar] [CrossRef]
  63. Ojo, O.I.; Ilunga, M.F. Geospatial Analysis for Irrigated Land Assessment Modeling and Mapping. In Multi-Purposeful Application of Geospatial Data; Rustamov, R.B., Ed.; IntechOpen: London, UK, 2018; pp. 65–84. [Google Scholar] [CrossRef] [Green Version]
  64. Tucker, C.J.; Holben, B.N.; Elgin, J.H., Jr.; McMurtrey, J.E., III. Relationship of spectral data to grain yield variation. Photogramm. Eng. Remote Sens. 1980, 46, 657–666. [Google Scholar]
  65. Muthumanickam, D.; Kannan, P.; Kumaraperumal, R.; Natarajan, S.; Sivasamy, R.; Poongodi, C. Drought assessment and monitoring through remote sensing and GIS in western tracts of Tamil Nadu, India. Int. J. Remote Sens. 2011, 32, 5157–5176. [Google Scholar] [CrossRef]
  66. Felix, R.; Clement, A.; Igor, S.; Oscar, R. Using Low Resolution Satellite Imagery for Yield Prediction and Yield Anomaly Detection. Remote Sens. 2013, 5, 1704–1733. [Google Scholar]
  67. Chowdhury, M.E.H.; Khandakar, A.; Ahmed, S.; Al-Khuzaei, F.; Hamdalla, J.; Haque, F.; Reaz, M.B.I.; Shafei, A.A.; Emadi, N.A. Design, Construction and Testing of IoT Based Automated Indoor Vertical Hydroponics Farming Test-Bed in Qatar. Sensors 2020, 20, 5637. [Google Scholar] [CrossRef]
  68. Adamchuk, V.I.; Hummel, J.W.; Morgan, M.T.; Upadhyaya, S.K. On-the-go soil sensors for precision agriculture. Comput. Electron. Agric. 2004, 44, 71–91. [Google Scholar] [CrossRef] [Green Version]
  69. Sudduth, K.A.; Hummel, J.W. Soil Organic Matter, CEC, and Moisture Sensing with a Portable NIR Spectrophotometer. Trans. ASAE 1993, 36, 1571–1582. [Google Scholar] [CrossRef]
  70. Daniel, K.; Tripathi, N.K.; Honda, K.; Apisit, E. Analysis of spectral reflectance and absorption patterns of soil organic matter. In Proceedings of the 22nd Asian Conference on Remote Sensing, Singapore, 5–9 November 2011. [Google Scholar]
  71. Kuang, B.; Mouazen, A.M. Non-biased prediction of soil organic carbon and total nitrogen with vis-NIR spectroscopy, as affected by soil moisture content and texture. Biosyst. Eng. 2013, 114, 249–258. [Google Scholar] [CrossRef] [Green Version]
  72. Maleki, M.R.; Van Holm, L.; Ramon, H.; Merckx, R.; De Baerdemaeker, J.; Mouazen, A.M. Phosphorus Sensing for Fresh Soils using Visible and Near Infrared Spectroscopy. Biosyst. Eng. 2006, 95, 425–436. [Google Scholar] [CrossRef]
  73. Lvova, L.; Nadporozhskaya, M. Chemical sensors for soil analysis: Principles and applications. In Series Nanotechnology in the Agri-Food Industry; New Pesticides and Soil Sensors; Grumezescu, A.M., Ed.; Elsevier: Amsterdam, The Netherlands, 2017; Volume 10, pp. 637–678. [Google Scholar] [CrossRef]
  74. Potamitis, I.; Rigakis, I.; Tatlas, N.A.; Potirakis, S. In-Vivo Vibroacoustic Surveillance of Trees in the Context of the IoT. Sensors 2019, 19, 1366. [Google Scholar] [CrossRef] [Green Version]
  75. Sushil, S.; Radha Mohan, S.; Manhas, S.S.; Shiv Kumar, L. Potential of Variable Rate Application Technology in India. AMA Agric. Mech. Asia Afr. Lat. Am. 2014, 45, 74–89. [Google Scholar]
  76. Hassan, A.; Aitazaz, A.F.; Farhat, A.; Bishnu, A.; Travis, E. Precision Irrigation Strategies for Sustainable Water Budgeting of Potato Crop in Prince Edward Island. Sustainability 2020, 12, 2419. [Google Scholar] [CrossRef]
  77. Naorem, A.; Rani, A.; Roy, D.; Kundu, S.; Rao, N.S.; Sreekanth, P.D.; Kumar, A.; Manjaiah, A.M.; Rao, C.S. Frontier Soil Technologies for Sustainable Development Goals (SDGs) in India. In Challenges and Emerging Opportunities in Indian Agriculture; Rao, C.S., Senthil, V., Meena, P.C., Eds.; National Academy of Agricultural Research Management: Hyderabad, India, 2019; pp. 113–152. [Google Scholar]
  78. Luigi, L.M.; Emanuele, E.P.; Zibordi, M.; Morandi, B.; Muzzi, E.; Losciale, P.; Corelli, L.; Grappadelli, L.C. Monitoring Strategies for Precise Production of high quality Fruit and Yield in Apple in Emilia Romagna. Chem. Eng. Trans. 2015, 44, 301–306. [Google Scholar]
  79. Wang, Z.; Walsh, K.B.; Verma, B. On-tree mango fruit size estimation using RGB-D images. Sensors 2017, 17, 2738. [Google Scholar] [CrossRef] [Green Version]
  80. Torbick, N.; Chowdhury, D.; Salas, W.; Qi, J. Monitoring Rice Agriculture across Myanmar Using Time Series Sentinel-1 Assisted by Landsat-8 and PALSAR-2. Remote Sens. 2017, 9, 119. [Google Scholar] [CrossRef] [Green Version]
  81. Mishachandar, B.; Vairamuthu, S. Crop Yield Estimation Using the Internet of Things. J. Inf. Knowl. Manag. 2021, 20, 2140006. [Google Scholar] [CrossRef]
  82. Olipa, N.L.; Lydia, M.C.; Chabala1, S.; Chizumba, S. Satellite-Based Crop Monitoring and Yield Estimation—A Review. J. Agric. Sci. 2021, 13, 180–194. [Google Scholar]
  83. Ferrández-Pastor, F.J.; García-Chamizo, J.M.; Nieto-Hidalgo, M.; Mora-Martínez, J. Precision Agriculture Design Method Using a Distributed Computing Architecture on Internet of Things Context. Sensors 2018, 18, 1731. [Google Scholar] [CrossRef] [Green Version]
  84. Dinkins, C.P.; Jones, C. Interpretation of Soil Test Results for Agriculture; MontGuide. Publication no. MT200702AG; Montana State University Extension: Bozeman, MT, USA, 2013. [Google Scholar]
  85. Martínez-Fernández, J.; González-Zamora, A.; Sánchez, N.; Gumuzzio, A.; Herrero-Jiménez, C.M. Satellite soil moisture for agricultural drought monitoring: Assessment of the SMOS derived Soil Water Deficit Index. Remote Sens. 2016, 177, 277–286. [Google Scholar] [CrossRef]
  86. Vågen, T.G.; Winowiecki, L.A.; Tondoh, J.E.; Desta, L.T.; Gumbricht, T. Mapping of soil properties and land degradation risk in Africa using MODIS reflectance. Geoderma 2016, 263, 216–225. [Google Scholar] [CrossRef] [Green Version]
  87. Othaman, N.N.C.; Md Isa, M.N.; Hussin, R.; Zakaria, S.M.M.S.; Isa, M.M. IoT Based Soil Nutrient Sensing System for Agriculture Application. Int. J. Nanoelectron. Mater. 2021, 14, 279–288. [Google Scholar]
  88. Ioana, M.; George, S.; Cristina, M.B.; Ana-Maria, D.; Marius, A.D. IoT Solution for Plant Monitoring in Smart Agriculture. In Proceedings of the IEEE 25th International Symposium for Design and Technology in Electronic Packaging, Cluj-Napoca, Romania, 23–26 October 2019; pp. 194–197. [Google Scholar]
  89. Pallavi, S.; Mallapur, J.D.; Bendigeri, K.Y. Remote sensing and controlling of greenhouse agriculture parameters based on IoT. In Proceedings of the International Conference on Big Data, IoT and Data Science (BID), Pune, India, 20–22 December 2017; pp. 44–48. [Google Scholar]
  90. Rubio, V.S.; Ma, F.R. From Smart Farming towards Agriculture 5.0: A Review on Crop Data Management. Agronomy 2020, 10, 207. [Google Scholar] [CrossRef] [Green Version]
  91. Yuan, G.; Luo, Y.; Sun, X.; Tang, D. Evaluation of a crop water stress index fordetecting water stress in winter wheat in the North China Plain. Agric. Water Manag. 2004, 64, 29–40. [Google Scholar] [CrossRef]
  92. Köksal, Ö.; Tekinerdogan, B. Architecture design approach for IoT-based farm management information systems. Precis. Agric. 2019, 20, 926–958. [Google Scholar] [CrossRef] [Green Version]
  93. Xue, J.; Su, B. Significant Remote Sensing Vegetation Indices: A Review of Developments and Applications. J. Sens. 2017, 2017, 1353691. [Google Scholar] [CrossRef]
  94. Lavanya, G.; Rani, C.; Ganeshkumar, P. An automated low cost IoT based Fertilizer Intimation System for smart agriculture. Sustain. Comput. Inform. Syst. 2020, 28, 100300. [Google Scholar] [CrossRef]
  95. Benincasa, P.; Antognelli, S.; Brunetti, L.; Fabbri, C.; Natale, A.; Sartoretti, V.; Vizzari, M. Reliability of NDVI Derived by High Resolution Satellite and UAV Compared to In-Field Methods for the Evaluation of Early Crop N Status and Grain Yield in Wheat. Exp. Agric. 2018, 54, 604–622. [Google Scholar] [CrossRef]
  96. Pinheiro Lisboa, I.; Melo Damian, J.; Roberto Cherubin, M.; Silva Barros, P.P.; Ricardo Fiorio, P.; Cerri, C.C.; Eduardo Pellegrino Cerri, C. Prediction of Sugarcane Yield Based on NDVI and Concentration of Leaf Tissue Nutrients in Fields Managed with Straw Removal. Agronomy 2018, 8, 196. [Google Scholar] [CrossRef] [Green Version]
  97. Sishodia, R.P.; Ray, R.L.; Singh, S.K. Applications of Remote Sensing in Precision Agriculture: A Review. Remote Sens. 2020, 12, 3136. [Google Scholar] [CrossRef]
  98. Suradhaniwar, S.; Kar, S.; Nandan, R.; Raj, R.; Jagarlapudi, A. Geo-ICDTs: Principles and Applications in Agriculture. In Geospatial Technologies in Land Resources Mapping, Monitoring and Management; Obi Reddy, G.P., Singh, S.K., Eds.; Geotechnologies and the Environment; Springer: Cham, Switzerland, 2018; Volume 21, pp. 75–99. [Google Scholar] [CrossRef]
  99. Colaço, A.F.; Molin, J.P. Variable rate fertilization in citrus: A long term study. Precis. Agric. 2017, 18, 169–191. [Google Scholar] [CrossRef]
  100. Bruno, B.; Benjamin, D.; Davide, C.; Andrea, P.; Francesco, M.; Luigi, S. Environmental and Economic benefits of variable rate nitrogen fertilization in a nitrate vulnerable zone. Sci. Total Environ. 2016, 545–546, 227–235. [Google Scholar]
  101. Khan, N.; Medlock, G.; Graves, S.; Anwar, S. GPS Guided Autonomous Navigation of a Small Agricultural Robot with Automated Fertilizing System; SAE Technical Paper 2018-01-0031; SAE International: Warrendale, PA, USA, 2018. [Google Scholar] [CrossRef]
  102. Raut, R.; Varma, H.; Mulla, C.; Pawar, V.R. Soil Monitoring, Fertigation, and Irrigation System Using IoT for Agricultural Application. In Intelligent Communication and Computational Technologies; Springer: Singapore, 2017; pp. 67–73. [Google Scholar]
  103. Briones, A.G.; Castellanos-Garzón, J.A.; Martín, Y.M.; Prieto, J.; Corchado, J.M. A Framework for Knowledge Discovery from Wireless Sensor Networks in Rural Environments: A Crop Irrigation Systems Case Study. Wirel. Commun. Mob. Comput. 2018, 2018, 6089280. [Google Scholar] [CrossRef] [Green Version]
  104. Villarrubia, G.; De Paz, J.F.; De La Iglesia, D.H.; Bajo, J. Combining Multi-Agent Systems and Wireless Sensor Networks for Monitoring Crop Irrigation. Sensors 2017, 17, 1775. [Google Scholar] [CrossRef] [Green Version]
  105. Newlands, N.K. Model-Based Forecasting of Agricultural Crop Disease Risk at the Regional Scale, Integrating Airborne Inoculum, Environmental, and Satellite-Based Monitoring Data. Front. Environ. Sci. 2018, 6, 63. [Google Scholar] [CrossRef]
  106. Khattaba, A.S.; Habiba, E.D.; Ismail, H.; Zayanc, S.; Fahmya, Y.; Khairya, M.M. An IoT-based cognitive monitoring system for early plant disease forecast. Comput. Electron. Agric. 2019, 166, 105028. [Google Scholar] [CrossRef]
  107. Carvalho, F.P. Pesticides, environment, and food safety. Food Energy Secur. 2017, 6, 48–60. [Google Scholar] [CrossRef]
  108. Ramalingam, B.; Mohan, R.E.; Pookkuttath, S.; Gómez, B.F.; Sairam Borusu, C.S.C.; Wee Teng, T.W.; Tamilselvam, Y.K. Remote Insects Trap Monitoring System Using Deep Learning Framework and IoT. Sensors 2020, 20, 5280. [Google Scholar] [CrossRef]
  109. Kim, S.; Lee, M.; Shin, C. IoT-Based Strawberry Disease Prediction System for Smart Farming. Sensors 2018, 18, 4051. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  110. Venkatesan, R.; Kathrine, G.; Jaspher, W.; Ramalakshmi, K. Internet of Things Based Pest Management Using Natural Pesticides for Small Scale Organic Gardens. J. Comput. Theor. Nanosci. 2018, 15, 2742–2747. [Google Scholar] [CrossRef]
  111. Ennouri, K.; Kallel, A. Remote Sensing: An Advanced Technique for Crop Condition Assessment. Math. Probl. Eng. 2019, 2019, 9404565. [Google Scholar] [CrossRef] [Green Version]
  112. Marinelli, M.C.; Scavuzzo, C.M.; Giobellina, B.L.; Scavuzzo, C.M. Geoscience and Remote Sensing on Horticulture as Support for Management and Planning. J. Agron. Res. 2019, 2, 43–54. [Google Scholar] [CrossRef] [Green Version]
  113. Wietzke, A.; Westphal, C.; Gras, P.; Kraft, M.; Pfohl, K.; Karlovsky, P.; Pawelzik, E.; Tscharntke, T.; Smit, I. Insect pollination as a key factor for strawberry physiology and marketable fruit quality. Agric. Ecosyst. Environ. 2018, 258, 197–204. [Google Scholar] [CrossRef]
  114. Chung, S.O.; Choi, M.C.; Lee, K.H.; Kim, Y.J.; Hong, S.J.; Li, M. Sensing Technologies for Grain Crop Yield Monitoring Systems: A Review. J. Biosyst. Eng. 2016, 41, 408–417. [Google Scholar] [CrossRef] [Green Version]
  115. Talaei, G.H.T.H.; Gholami, S.; Pishva, Z.K.; Dehaghi, M.A. Effects of Biological and Chemical Fertilizers Nitrogen on Yield Quality and Quantity in Cumin (Cuminum cyminum L.). J. Chem. Health Risks 2014, 4, 55–64. [Google Scholar]
  116. Singh, R.; Singh, G.S. Traditional agriculture: A climate-smart approach for sustainable food production. Energy Ecol. Environ. 2017, 2, 296–316. [Google Scholar] [CrossRef] [Green Version]
  117. Udomkun, P.; Nagle, M.; Argyropoulos, D.; Mahayothee, B.; Müller, J. Multi-sensor approach to improve optical monitoring of papaya shrinkage during drying. J. Food Eng. 2016, 189, 82–89. [Google Scholar] [CrossRef]
  118. Theopoulos, A.; Boursianis, A.; Koukounaras, A.; Samaras, T. Prototype wireless sensor network for real-time measurements in hydroponics cultivation. In Proceedings of the 7th International Conference on Modern Circuits and Systems Technologies (MOCAST), Thessaloniki, Greece, 7–9 May 2018. [Google Scholar] [CrossRef]
  119. Shamshiri, R.R.; Kalantari, F.; Ting, K.C.; Thorp, K.R.; Hameed, I.A.; Weltzien, C.; Ahmad, D.; Shad, Z. Advances in greenhouse automation and controlled environment agriculture: A transition to plant factories and urban agriculture. Int. J. Agric. Biol. Eng. 2018, 11, 1–22. [Google Scholar] [CrossRef]
  120. Akkaş, M.A.; Sokullu, R. An IoT-based greenhouse monitoring system with Micaz motes. Procedia Comput. Sci. 2017, 113, 603–608. [Google Scholar] [CrossRef]
  121. Kodali, R.K.; Jain, V.; Karagwal, S. IoT based smart greenhouse. In Proceedings of the 2016 IEEE Region 10 Humanitarian Technology Conference (R10-HTC), Agra, India, 21–23 December 2016. [Google Scholar] [CrossRef]
  122. Tripathy, P.K.; Tripathy, A.K.; Agarwal, A.; Mohanty, S.P. MyGreen: An IoT-Enabled Smart Greenhouse for Sustainable Agriculture. IEEE Consum. Electron. Mag. 2021, 10, 57–62. [Google Scholar] [CrossRef]
  123. Sambo, P.; Nicoletto, C.; Giro, A.; Pii, Y.; Valentinuzzi, F.; Mimmo, T.; Lugli, P.; Orzes, G.; Mazzetto, F.; Astolfi, S.; et al. Hydroponic Solutions for Soilless Production Systems: Issues and Opportunities in a Smart Agriculture Perspective. Front. Plant Sci. 2019, 10, 923. [Google Scholar] [CrossRef] [PubMed]
  124. Yang, W.; Feng, H.; Zhang, X.; Zhang, J.; Doonan, J.H.; Batchelor, W.D.; Xiong, L.; Yan, J. Crop Phenomics and High-Throughput Phenotyping: Past Decades, Current Challenges, and Future Perspectives. Mol. Plant 2020, 13, 187–214. [Google Scholar] [CrossRef] [Green Version]
  125. Rouphael, Y.; Spíchal, L.; Panzarová, K.; Casa, R.; Colla, G. High-Throughput Plant Phenotyping for Developing Novel Biostimulants: From Lab to Field or From Field to Lab? Front. Plant Sci. 2018, 9, 1197. [Google Scholar] [CrossRef]
  126. Lakshmanan, R.; Djama, M.; Selvaperumal, S.; Abdulla, R. Automated smart hydroponics system using internet of things. Int. J. Electr. Comput. Eng. 2020, 10, 6389–6398. [Google Scholar] [CrossRef]
  127. Usman, N.; Arief, P.; Gilang, L.; Erfan, R.; Hendra, P. Implementation IoT in System Monitoring Hydroponic Plant Water Circulation and Control. Int. J. Eng. Technol. 2018, 7, 122–126. [Google Scholar]
  128. Pimentel, D.; Burgess, M. Soil erosion threatens food production. Agriculture 2013, 3, 443–463. [Google Scholar] [CrossRef] [Green Version]
  129. Benke, K.; Tomkins, B. Future food-production systems: Vertical farming and controlled-environment agriculture. Sustain. Sci. Pract. Policy 2017, 13, 13–26. [Google Scholar] [CrossRef] [Green Version]
  130. Tripodi, P.; Massa, D.; Venezia, A.; Cardi, T. Sensing Technologies for Precision Phenotyping in Vegetable Crops: Current Status and Future Challenges. Agronomy 2018, 8, 57. [Google Scholar] [CrossRef] [Green Version]
  131. Paul, K.; Sorrentino, M.; Lucini, L.; Rouphael, Y.; Cardarelli, M.; Bonini, P.; Reynaud, H.; Canaguier, R.; Trtílek, M.; Panzarová, K.; et al. Understanding the Biostimulant Action of Vegetal-Derived Protein Hydrolysates by High-Throughput Plant Phenotyping and Metabolomics: A Case Study on Tomato. Front. Plant Sci. 2019, 10, 47. [Google Scholar] [CrossRef]
  132. Zhou, J.; Reynolds, D.; Websdale, D.; Le Cornu, T.; Gonzalez Navarro, O.; Lister, C.; Orford, S.; Laycock, S.; Finlayson, G.; Stitt, T.; et al. Cropquant: An automated and scalable field phenotyping platform for crop monitoring and trait measurements to facilitate breeding and digital agriculture. bioRxiv 2017. [Google Scholar] [CrossRef] [Green Version]
  133. Bochtis, D.; Sørensen, C.A.G.; Kateris, D. Operations Management in Agriculture; Elsevier: Amsterdam, The Netherlands, 2019; pp. 1–18. [Google Scholar] [CrossRef]
  134. Terence, S.; Purushothaman, G. Systematic review of Internet of Things in smart farming. Trans. Emerg. Telecommun. Technol. 2020, 31, e3958. [Google Scholar] [CrossRef]
  135. James, A.; Saji, A.; Nair, A.; Joseph, D. CropSense–A Smart Agricultural System using IoT. J. Electron. Des. Eng. 2019, 5, 1–7. [Google Scholar]
  136. Bacco, M.; Barsocchi, P.; Ferro, E.; Gotta, A.; Ruggeri, M. The digitization of agriculture: A survey of research activities on smart farming. Array 2019, 3–4, 100009. [Google Scholar] [CrossRef]
  137. Ahmed, A.T.; El Gohary, F.; Tzanakakis, V.A.; Angelakis, A.N. Egyptian and Greek Water Cultures and Hydro-Technologies in Ancient Times. Sustainability 2020, 12, 9760. [Google Scholar] [CrossRef]
  138. Adebayo, S.; Ogunti, E.O.; Akingbade, F.K.; Oladimeji, O. A review of decision support system using mobile applications in the provision of day-to-day information about farm status for improved crop yield. Period. Eng. Nat. Sci. 2018, 6, 89–99. [Google Scholar] [CrossRef]
  139. Foster, A.D.; Mark, R.R. Microeconomics of technology adoption. Annu. Rev. Econ. 2010, 2, 395–424. [Google Scholar] [CrossRef] [Green Version]
  140. Feder, G.; Just, R.E.; Zilberman, D. Adoption of agricultural innovations in developing countries: A survey. Econ. Dev. Cult. Chang. 1985, 33, 255–298. [Google Scholar] [CrossRef] [Green Version]
  141. Alvarez, J.; Peter, N. Adoption of computer based information systems: The case of dairy farmers in Canterbury, NZ, and Florida, Uruguay. Comput. Electron. Agric. 2006, 50, 48. [Google Scholar] [CrossRef]
  142. Kimiti, J.M.; Odee, D.W.; Vanlauwe, B. Area under Grain Legumes Cultivation and Problems Faced by Smallholder Farmers in Legume Production in the Semi-Arid Eastern Kenya; Academic Press: Cambridge, MA, USA, 2009. [Google Scholar]
  143. Khan, A.R.; Dubey, M.K.; Bisen, P.K.; Saxena, K.K. Constraints faced by farmers of Narsing Kheda village of Sihore district. Young 2007, 8, 16. [Google Scholar]
  144. Abdul Hakkim, V.M.; Abhilash Joseph, E.; Ajay Gokul, A.J.; Mufeedha, K. Precision Farming: The Future of Indian Agriculture. J. Appl. Biol. Biotechnol. 2016, 4, 068–072. [Google Scholar] [CrossRef] [Green Version]
  145. Fróna, D.; Szenderák, J.; Rákos, M.H. The Challenge of Feeding the World. Sustainability 2019, 11, 5816. [Google Scholar] [CrossRef] [Green Version]
  146. Tzounisa, A.; Katsoulasa, N.; Bartzanasb, T.; Kittas, C. Internet of Things in agriculture, recent advances and future challenges. Biosyst. Eng. 2017, 164, 31–48. [Google Scholar] [CrossRef]
  147. Henriksen, A.V.; Edwards, T.C.G.; Pesonen, L.A.; Green, O.; Sørensen, C.A.G. Internet of Things in arable farming: Implementation, applications, challenges and potential. Biosyst. Eng. 2019, 191, 60–84. [Google Scholar] [CrossRef]
  148. Roth, L.; Aasen, H.; Walter, A.; Liebisch, F. Extracting leaf area index using viewing geometry effects new perspective on high-resolution unmanned aerial system photography. ISPRS J. Photogramm. Remote Sens. 2018, 141, 161–175. [Google Scholar] [CrossRef]
  149. Chang, A.; Jung, J.; Maeda, M.; Landivar, J. Crop height monitoring with digital imagery from unmanned aerial system (UAV). Comput. Electron. Agric. 2017, 141, 232–237. [Google Scholar] [CrossRef]
  150. Barrero, O.; Perdomo, S.A. RGB and multispectral UAV image fusion for Gramineae weed detection in rice fields. Precis. Agric. 2018, 19, 809–822. [Google Scholar] [CrossRef]
  151. Lottes, P.; Khanna, R.; Pfeifer, J.; Siegwart, R.; Stachniss, C. UAV-based crop and weed classification for smart farming. In Proceedings of the 2017 IEEE International Conference on Robotics and Automation (ICRA), Singapore, 29 May–3 June 2017; pp. 3024–3031. [Google Scholar]
  152. Stroppiana, D.; Migliazzi, M.; Chiarabini, V.; Crema, A.; Musanti, M.; Franchino, C.; Villa, P. Rice yield estimation using multispectral data from UAV: A preliminary experiment in northern Italy. In Proceedings of the 2015 IEEE International Geoscience and Remote Sensing Symposium (IGARSS), Milan, Italy, 26–31 July 2015; pp. 4664–4667. [Google Scholar]
  153. Hassan, M.A.; Yang, M.; Rasheed, A.; Yang, G.; Reynolds, M.; Xia, X.; Xiao, Y.; He, Z. A rapid monitoring of NDVI across the wheat growth cycle for grain yield prediction using a multi-spectral UAV platform. Plant Sci. 2019, 282, 95–103. [Google Scholar] [CrossRef]
  154. Duan, T.; Chapman, S.; Guo, Y.; Zheng, B. Dynamic monitoring of NDVI in wheat agronomy and breeding trials using an unmanned aerial vehicle. Field Crops Res. 2017, 210, 71–80. [Google Scholar] [CrossRef]
  155. Su, J.; Liu, C.; Coombes, M.; Hu, X.; Wang, C.; Xu, Z.; Li, Q.; Guo, L.; Chen, W.H. Wheat yellow rust monitoring by learning from multispectral UAV aerial imagery. Comput. Electron. Agric. 2018, 155, 157–166. [Google Scholar] [CrossRef]
  156. Jin, X.; Liu, S.; Baret, F.; Hemerl, M.; Comar, A. Estimates of plant density of wheat crops at emergence from very low altitude UAV imagery. Remote Sens. Environ. 2017, 198, 105–114. [Google Scholar] [CrossRef] [Green Version]
  157. Faial, B.S.; Costa, F.G.; Pessin, G.; Ueyama, J.; Freitas, H.; Colombo, A.; Fini, P.H.; Villas, L.; Osrio, F.S.; Vargas, P.A.; et al. The use of unmanned aerial vehicles and wireless sensor networks for spraying pesticides. J. Syst. Archit. 2014, 60, 393–404. [Google Scholar]
  158. Al-Kodmany, K. The Vertical Farm: A Review of Developments and Implications for the Vertical City. Buildings 2018, 8, 24. [Google Scholar] [CrossRef] [Green Version]
  159. Cravero, A.; Pardo, S.; Sepúlveda, S.; Muñoz, L. Challenges to Use Machine Learning in Agricultural Big Data: A Systematic Literature Review. Agronomy 2022, 12, 748. [Google Scholar] [CrossRef]
  160. Kaneko, A.; Kennedy, T.W.; Mei, L.; Sintek, C.; Burke, M.; Ermon, S.; Lobell, D.B. Deep Learning for Crop Yield Prediction in Africa. In Proceedings of the International Conference on Machine Learning AI for Social Good Workshop, LongBeach, CA, USA, 10–15 June 2019. [Google Scholar]
  161. Oswal, N. Predicting rainfall using Machine Learning Techniques. arXiv 2019, arXiv:1910.13827. [Google Scholar]
  162. Zhang, J.; Zhu, Y.; Zhang, X.; Ye, M.; Yang, J. Developing a Long Short-Term Memory (LSTM) based model for predicting water table depth in agricultural areas. J. Hydrol. 2018, 561, 918–929. [Google Scholar] [CrossRef]
  163. Ouyang, H.; Wei, X.; Wu, Q. Agricultural commodity futures prices prediction via long- and short-term time series network. J. Appl. Econ. 2019, 22, 468–483. [Google Scholar] [CrossRef] [Green Version]
  164. Bhattarai, T.N.; Ghimire, S.; Mainali, B.; Gorjian, S.; Treiche, H.; Paudel, S.R. Applications of smart grid technology in Nepal: Status, challenges, and opportunities. Environ. Sci. Pollut. Res. 2022, 1–25. [Google Scholar] [CrossRef] [PubMed]
  165. Kedri, J. Simulation and Validation of SPV Micro Grid Comprising 518.2 KWp Distributed Solar Power Plants at Dayalbagh Educational Institute. Ph.D. Thesis, Dayalbagh Educational Institute, Dayalbagh, Agra, India, 2014. [Google Scholar]
  166. Aslam, S.; Khalid, A.; Javaid, N. Towards Efficient Energy Management in Smart Grids Considering Microgrids with Day-ahead Energy Forecasting. Electr. Power Syst. Res. 2020, 182, 106232. [Google Scholar] [CrossRef]
Figure 1. Factors of sustainable agriculture.
Figure 1. Factors of sustainable agriculture.
Agriculture 12 01745 g001
Figure 2. Key issues of technology in the agriculture industry.
Figure 2. Key issues of technology in the agriculture industry.
Agriculture 12 01745 g002
Figure 3. Agricultural decision support system framework.
Figure 3. Agricultural decision support system framework.
Agriculture 12 01745 g003
Figure 4. Barriers in the implementation of smart agriculture technology.
Figure 4. Barriers in the implementation of smart agriculture technology.
Agriculture 12 01745 g004
Figure 5. Hierarchy of probable applications, facilities and devices for smart agriculture.
Figure 5. Hierarchy of probable applications, facilities and devices for smart agriculture.
Agriculture 12 01745 g005
Figure 6. An Internet-of-Things-based network for smart farming.
Figure 6. An Internet-of-Things-based network for smart farming.
Agriculture 12 01745 g006
Figure 7. Challenges in sustainable future agriculture.
Figure 7. Challenges in sustainable future agriculture.
Agriculture 12 01745 g007
Table 1. Sensor types and their applications.
Table 1. Sensor types and their applications.
SensorsApplicationsWorking Procedure
Acoustic sensorsPest monitoring and detection classifying seed varieties, fruit harvesting [36].Measuring the variations in noise level when intermingling with other materials, i.e., soil particles [37].
Airflow sensorsMeasuring soil air permeability, moisture, and structure in a static position or mobile mode [38].Based on various soil properties, unique identifying signatures [38].
Eddy covariance-based sensorsQuantifying exchanges of CO2, water vapor, methane, or other gases. Measuring surface atmosphere and trace gas fluxes in various agricultural ecosystems [39]. Measuring continuous flux over large areas [40].
Electrochemical sensorsTo analyze soil nutrient levels and pH [41]. Nutrients in soil, salinity, and pH are measured using sensors [42]
Electromagnetic sensorsRecording electrical conductivity, electromagnetic responses, residual nitrates, and organic matter in soil [43]. Electrical circuits measure the capability of soil particles to conduct or accumulate electrical charge [44].
Field programmable gate array (FAAA) based sensorsMeasuring real-time plant transpiration, irrigation, and humidity [45].Programmable silicon chips and logic blocks are surrounded together by programmable interconnected resources of the digital circuit [46].
Light detection and ranging (LIDAR)Land mapping, soil type determination, farm 3D modelling, erosion monitoring and soil loss, and yield forecasting [47]. Sensors emit pulsed light waves and bounce off when colliding with objects and are returned to the sensor. The time taken for each pulse to return is used for assessment [47].
Mass flow sensorsYield monitoring based on the
amount of grain flow through a combine harvester [48].
Sensing the mass flow of grain with modules, e.g., grain moisture sensor, data storage device, and an internal software [48]
Mechanical sensorsSoil compaction or mechanical resistanceSensors record the force assessed by strain gauges or load cells [48].
Optical sensorsSoil organic substances, soil moisture, color, minerals, composition, clay content, etc. Fluorescence-based optical sensors are used to supervise fruit maturation [49]. Integrating optical sensors with microwave scattering to characterize orchard canopies [50]Sensors use light reflectance phenomena to measure changes in wave reflections [44].
Optoelectronic sensorsDifferentiate plant types to detect weeds in wide-row crops [51]. Sensors differentiate based on reflection spectra [51].
Soft water level-based (SWLB) sensorsUsed in catchments to characterize hydrological behaviors (water level and flow, time-step acquisitions) [52]Measuring rainfall, stream flow, and other water presence options [52].
Telematics sensorsAssessing location, travel routes, and machine and farm operation activities [53].Telecommunication between places (especially inaccessible points) [53].
Ultrasonic ranging sensorsTank monitoring, spray distance
measurement, uniform spray coverage, object detection, monitoring crop canopy [54], and weed detection [55].
An ultrasonic sensor uses a transducer to send and receive ultrasonic pulses that relay information about an object’s proximity [56].
Remote sensingCrop assessment, yield modeling, forecasting yield date, land cover and degradation mapping, forecasting, the identification of plants and pests, etc [57]. Satellite-based sensor systems collect, process, and disseminate environmental data from fixed and mobile platforms [57].
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Dhanaraju, M.; Chenniappan, P.; Ramalingam, K.; Pazhanivelan, S.; Kaliaperumal, R. Smart Farming: Internet of Things (IoT)-Based Sustainable Agriculture. Agriculture 2022, 12, 1745. https://doi.org/10.3390/agriculture12101745

AMA Style

Dhanaraju M, Chenniappan P, Ramalingam K, Pazhanivelan S, Kaliaperumal R. Smart Farming: Internet of Things (IoT)-Based Sustainable Agriculture. Agriculture. 2022; 12(10):1745. https://doi.org/10.3390/agriculture12101745

Chicago/Turabian Style

Dhanaraju, Muthumanickam, Poongodi Chenniappan, Kumaraperumal Ramalingam, Sellaperumal Pazhanivelan, and Ragunath Kaliaperumal. 2022. "Smart Farming: Internet of Things (IoT)-Based Sustainable Agriculture" Agriculture 12, no. 10: 1745. https://doi.org/10.3390/agriculture12101745

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
