A Preliminary Study on Flight Characteristics of the Longhorn Date Palm Stem Borer Jebusaea hammerschmidtii (Reiche 1878) (Coleoptera: Cerambycidae) Using a Computerized Flight Mill

Abstract

The longhorn date palm stem borer, Jebusaea hammerschmidtii (Reiche), is a highly destructive beetle of edible date palm Phoenix dactylifera L. The flight capabilities and dispersal potential of this beetle are unknown, which hinders the planning for its proper management in date palm groves. In this study, the flight propensity of this insect pest was investigated using a computerized flight-testing system. The flight system consisted of a flight mill, a digitally controlled testing chamber, and a data logging and processing unit with a USB digital oscilloscope connected with a laptop. A total of 40 field-collected beetles of unknown sex and mating history were used in the experiments; about 34% of this number failed to fly on the flight mill. The relationship between temperature treatments (°C) and flight speed (m/min), cumulative flight time (min), and cumulative flight distance (km) of the test beetles were studied using regression equations with correlation coefficients (R²) of 0.91, 0.98, and 0.98, respectively. The maximum cumulative distance flown by the beetle was 11.5 km at a temperature of 35 °C, and a minimum distance of 2.4 km was recorded at 45 °C. The flight threshold of the beetle was 20 °C, at which flight activities ceased utterly. The velocity of the beetle increased with increasing temperature and reached a maximum of 107 m/min at 40 °C, before starting to decline. The obtained information on the flight characteristics of the J. hammerschmidtii may aid in understanding the dispersal of this pest in date palm plantations and in setting up management strategies.

1. Introduction

The edible date palm Phoenix dactylifera L. is widely cultivated under arid conditions and has many economical, aesthetical, and ecological values [1]. Globally, date palm suffers from many stresses that seriously weaken growth and reduce yield quantitatively and qualitatively. In addition, numerous insect pests inflict serious damage on date palms. However, only a few species cause economic damage that necessitates adopting management measures [2]. The longhorn date palm borer (LHB) Jebusaea hammerschmidtii (Coleoptera: Cerambycidae) (Reiche 1878) is a major pest of date palm grown in the Middle East and North Africa that causes serious damage [3,4,5,6,7,8]. This beetle belongs to the family Cerambycidae in the order Coleoptera, which has a relatively large body of ~30–45 mm long and is characterized by having a very long antennae that may exceed the length of the body in the males [7]. The mitochondrial of the LHB has been announced recently; it includes 15,619 bp and contains 13 protein-coding, 22 transfer RNAs, and two ribosomal RNAs genes. Phylogenetically, the LHB belongs to the subfamily Cerambycinae with gene content and organization similar to other Cerambycid beetles [9]. The LHB is geographically found in Bahrain, Kuwait, Qatar, Libya, United Arab Emirates, Yemen Arab Republic, Iraq, Saudi Arabia, Algeria, Oman, Iran, and India [10]. The LHB is a true pest on date palm, so far, with no other known hosts [11,12,13]. The larva is the destructive stage that makes tunnels into the trunk of the date palm and can eventually lead to its death [14]. The LHB has only one generation per year (univoltine), and the adult beetles appear in the field in late April and early May for a very short time (15–20 days) [7].

Infestation by the J. hammerschmidtii begins when the gravid females lay their eggs at the base of palm petiole, on the cracks on the trunks, and on the young offshoots. Immediately after hatching, the developing larvae excavate undulating, intermingled, and irregular feeding galleries in the palm trunk [4]. The overall impact of LHB infestation results in shortening the date palm life span and reducing palm yield [15]. In addition, the tunnels made in the palm stem by the larvae reduce the aesthetic and quality value of the palm wood. The number of emergence holes and the presence or absence of live beetles affects the monetary value of the date palm orchards in Iraq [16]. Young offshoots (small side shoots or pups) are highly susceptible to infestation by the LHB [4]. The infestation of the offshoots tremendously limits the commercialization of such planting materials, which eventually reduces farmers’ revenues. Like other cerambycid beetles, the LHB can be easily introduced into new uninfested areas through commercialization and transportation of infested palms intended either for plantations or landscaping purposes [17,18]. In addition to human-assisted dispersal, the LHB can disperse naturally in and between date palm plantations. Therefore, understanding the flight capabilities of J. hammerschmidtii is essential for designing management strategies. Flight mill is a valuable tool that has been used for a long time to quantify distance flown by insects [19,20]. Recently, computerized flight mills have been developed and used extensively by entomologists to study insects’ flight behavior under laboratory conditions [19,21]. Although flying insects tethered to a flight mill arm and under a controlled environment differ significantly from flight under natural conditions, this practice provides clues and insights into the potential flight capabilities of the test insect [19]. Unfortunately, to our knowledge, no documented studies have been made on the flight capabilities of this beetle. The present investigation aims to study flight characteristics of J. hammerschmidtii, such as flight velocity and distance flown using a computerized flight mill under a controlled temperature.

2. Materials and Methods

2.1. Adult Beetles

Being a univoltine (one generation per year) with short-lived adults coupled with a relatively long larval stage (~1 year) makes J. hammerschmidtii challenging to rear in the laboratory for obtaining a sufficient number of adults for the trials. Therefore, adults were collected in June 2021 from the field of the Date Palm Research Center of Excellence, King Faisal University at Al-Ahsa, Kingdom of Saudi Arabia (Latitude: 25.268528° N, Longitude: 49.707218° E) using an automated solar-powered light trap [22]. The traps were fitted with ultraviolet (UV-A) black light fluorescent tubes (BLF) with 350–400 nm wavelength (Mohammed et al., 2018). The captured beetles were brought to the laboratory in large plastic boxes provided with fresh-cut bases of date palm leaves to keep the boxes humid. The collection of the beetles from the traps was carried out in the early morning hours before sunrise, to avoid the beetles being killed by the hot temperatures. The adult beetles of J. hammerschmidtii are very sensitive to high ambient temperature. They cannot withstand temperatures above 45 °C and, accordingly, they are usually found dead in the light traps if the collection is delayed until after sunrise [8]. The mating history and age of the field-collected beetles used in the trials were unknown. To our knowledge, no information or observation is available on the feeding biology or source of adult feed for this beetle, or whether they feed in the adult stage or not. Thus, the satiation status of the flown beetles can not be specified.

2.2. Computerized Flight Mill

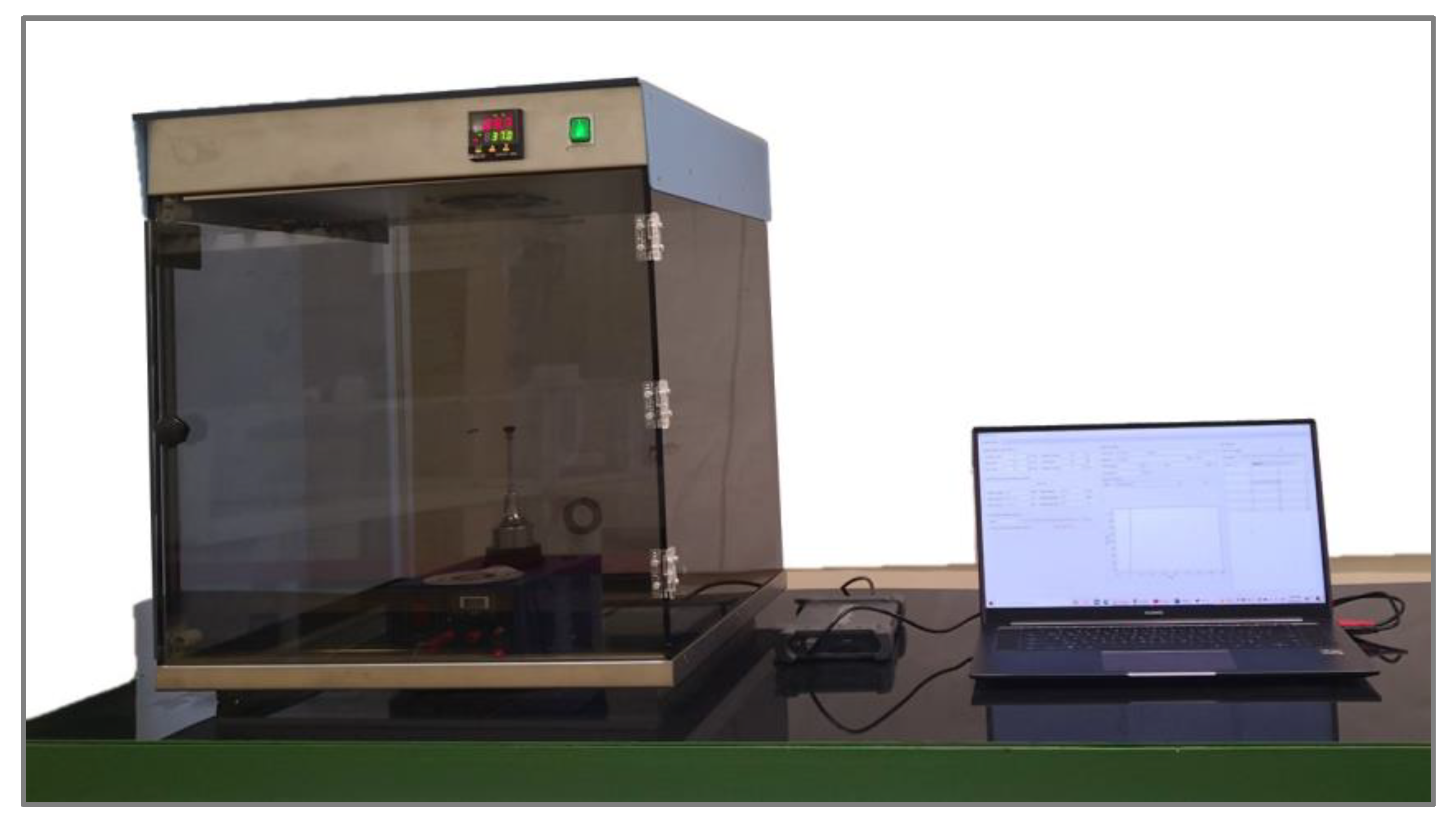

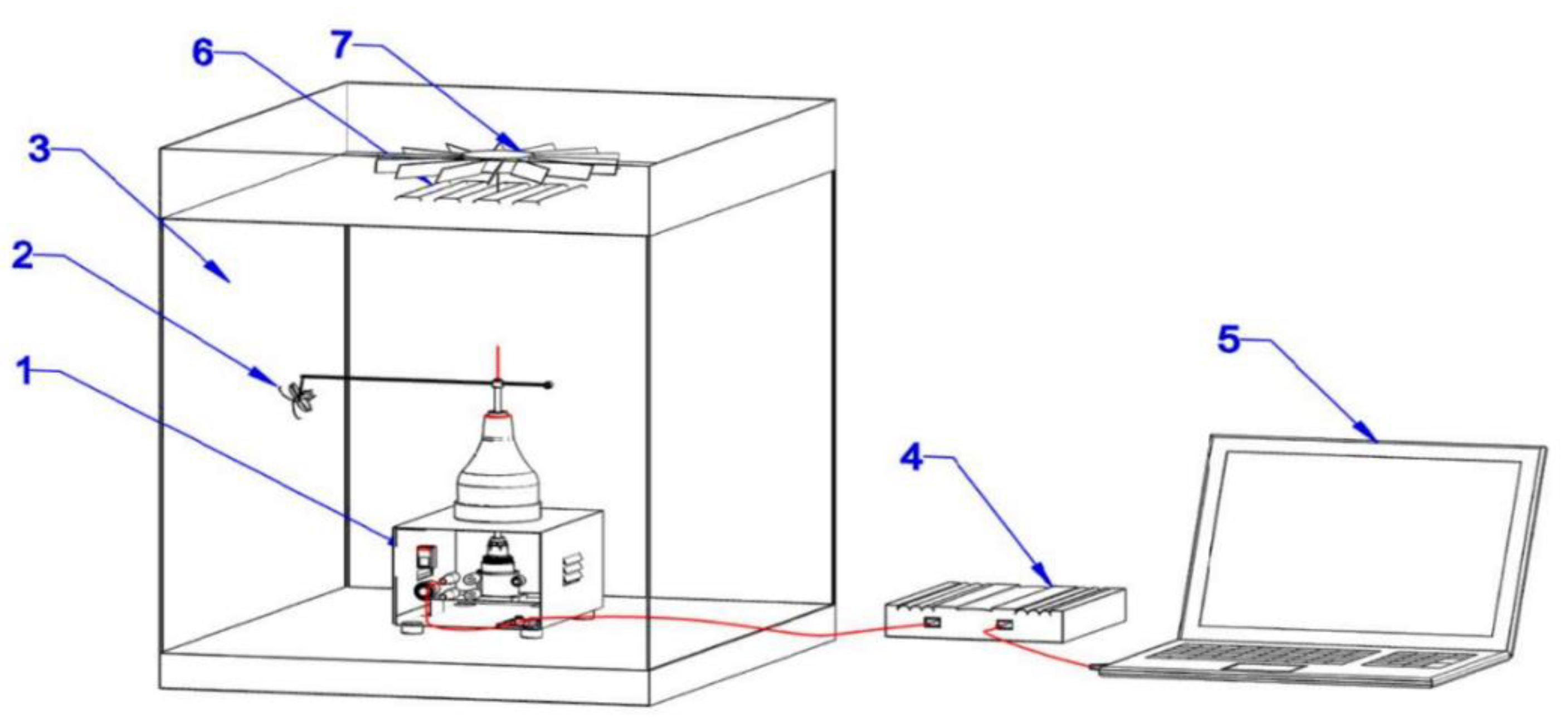

The computerized flight mill used in this study was designed by the second author [21] (Figure 1). Some modifications were made to the system to promote the fight of LHB under a controlled atmosphere condition. In addition, some preliminary experiments were carried out to verify the system’s performance concerning mill operating accuracy and controlling in the microclimate of its testing chamber. Figure 2 shows the main components of the computerized flight-testing used to study the flight parameters of the LHB.

The first part of the system was the flight mill which had an arm that could be rotated and whose function was counting the rotation number when the LHB was tethered to its flight arm, and allowed to fly freely. The flight mill consisted of a box with 20 cm length, 10 cm width, and 10 cm height, with a thickness of 0.05 cm made from the galvanized sheet, a rotating part, and a digital counter. The rotating part consisted of an opaque plastic disc with ten equidistant holes on its periphery mounted on the spindle shaft lightweight. The spindle shaft diameter was 0.04 cm, and made from aluminum to decrease the rotating friction. The rotating arm was made from highly flexible spring steel with 30 cm total length, 0.05 cm thickness, and 0.4 cm width to allow vertical free motion of the tested LHD. The rotating arm was attached to the spindle shaft, and LHB rotated it on the spindle rotation axis. When the LHD was suspended in this arm and left to fly freely, the arm and the rotor were rotated, and the holes of the opaque disk interrupting the IR (infrared light) of the attached optoelectronic switched to generate the signal. The output signals of the optoelectronic switch were wired with the comparator circuit to switch the output voltage from a low to a high state. Then the output signal of the comparator circuit was connected with the flight mill counter circuit. The second part was a testing chamber provided by digital controllers to control its inner temperature and relative humidity by a 300 W electric air heater with an automatic temperature controller and an ultrasonic humidifier with an automatic relative humidity controller. This testing chamber was made from 6-mm-thick PVC (polyvinyl chloride transparent sheets) with a length of 50 cm, a width of 50 cm, and a height of 62 cm. The third part was the processing and data logging unit, which consisted of a digital oscilloscope connected with a laptop via USB (model: Hantek6022BE, Hantek Electronic Co., Ltd., Qingdao, China). The graphical user interface of the Hantek digital oscilloscope was installed on the laptop for real-time data logging and processing for flight time, and output signal count. The graphical user interface (GUI) designed and achieved by Mohammed et al. [21] was used to immediately find the actual flight time, rotation speed, flight speed, flight distance, mean flight speed, and cumulative distance. This GUI was installed on the laptop for real-time data processing of the LHB flight parameters (Figure 3). These flight parameters were determined based on the input data of actual flight time, target duration, rotation radius, and rest time based on the number of the signal recorded directly by the data of the USB digital oscilloscope, or by the counter of the flight mill. When the required data was entered, the results of the flight parameters were shown in a required form for total time, flight speed, and cumulative distance of the LHB flight based on the selected parameter by the slider. It was also possible to upload or import an excel file containing the flight data.

2.3. Experimental Setup

A total of 40 adult unsexed beetles of unknown age and mating status were flown on the flight mill to obtain flight metrics such as distance flown, flight velocity, and frequency and length of flight bouts. The morphometric characteristics of each beetle, such as mass, body length, width, thickness, calculated volume, density, and wing area, were measured before tethering on the flight mill. These measurements were used to calibrate the flight mill based on the flight coefficient, flight force, the moment of inertia, and the optimum suspension angle according to the described method by Mohammed et al. [21]. Then, the experimental beetles were tethered on the flight mill by their thoraxes, and they were attached dorsally to an “L”-shaped metal plate flattened at one end to facilitate insect adhesion. A small drop of Gorilla Super Glue Brush & Nozzle was applied on the dorsal side of the beetle thorax. The flattened end of the metal plate was then immersed into the glue for 45 s to dry. The beetle was then fixed to the rotating arm of the flight mill by the distal part of the metal plate [19]. Before the experiment, the tethered beetles were carefully examined to make them move their wings and legs freely. Then, each test beetle was allowed to fly on the mill until it died.

To elucidate the effect of temperature on LHB flight characteristics, six different treatment temperatures of 20, 25, 30, 35, 40, and 45 °C were applied. Three replicates of each temperature were used under a controlled relative humidity of 35%. Therefore, 18 LHB were used through 18 workdays, since only one insect was tested daily. This number was chosen from 41 insects, as some insects did not fly after being suspended.

2.4. Statistical Analysis

The statistical analysis was conducted using one-way analysis of variance (ANOVA) by the statistical software package IBM SPSS (SPSS Inc., Version 24, Chicago, IL, USA). In addition, Tukey’s multiple range tests were used to find means significantly different between the different treatment temperatures of 20, 25, 30, 35, 40, and 45 °C with three replicates at p ˂ 0.05. The regression models and the correlation coefficients were determined using Microsoft Excel (Microsoft 365).

3. Results

3.1. Morphometric Parameters of the Test Beetles

The mass, body size, volume, and density of 40 LHB are presented in

Table 1. Mean, standard deviation (Std), minimum, and maximum values (n = 40) of some morphometric characteristics of the tested J. hammerschmidtii.

	Morphometric Characteristic
	Mass (g)	Body Length (mm)	Body Width (mm)	Body Thickness (mm)	Calculated Volume (mm3)	Density (g/cm3)	Wing Length (mm)	Wings Area (mm2)
Mean	0.65	31.29	8.71	5.80	831.4	0.79	22.45	230.3
Std	0.08	1.82	0.29	0.37	117.3	0.07	0.64	6.5
Max	0.76	34.50	9.10	6.30	980.3	0.93	23.20	240.1
Min	0.53	29.20	8.20	5.10	646.9	0.72	21.35	220.1

. These data are essential, and upon which the angle of tethering the beetle was based for the flight mill arm, as well as the beetle counterbalance weight on the opposite end of the arm. Additionally, based on the measurements of the morphometric characteristics, the flight coefficient of 1.13 and the suspension angle of 40° for the tested LHB were applied to compensate for friction force between the rotating parts and reduce the circular flight motion resistance effects.

3.2. Effect of Temperature on Flight Characteristics

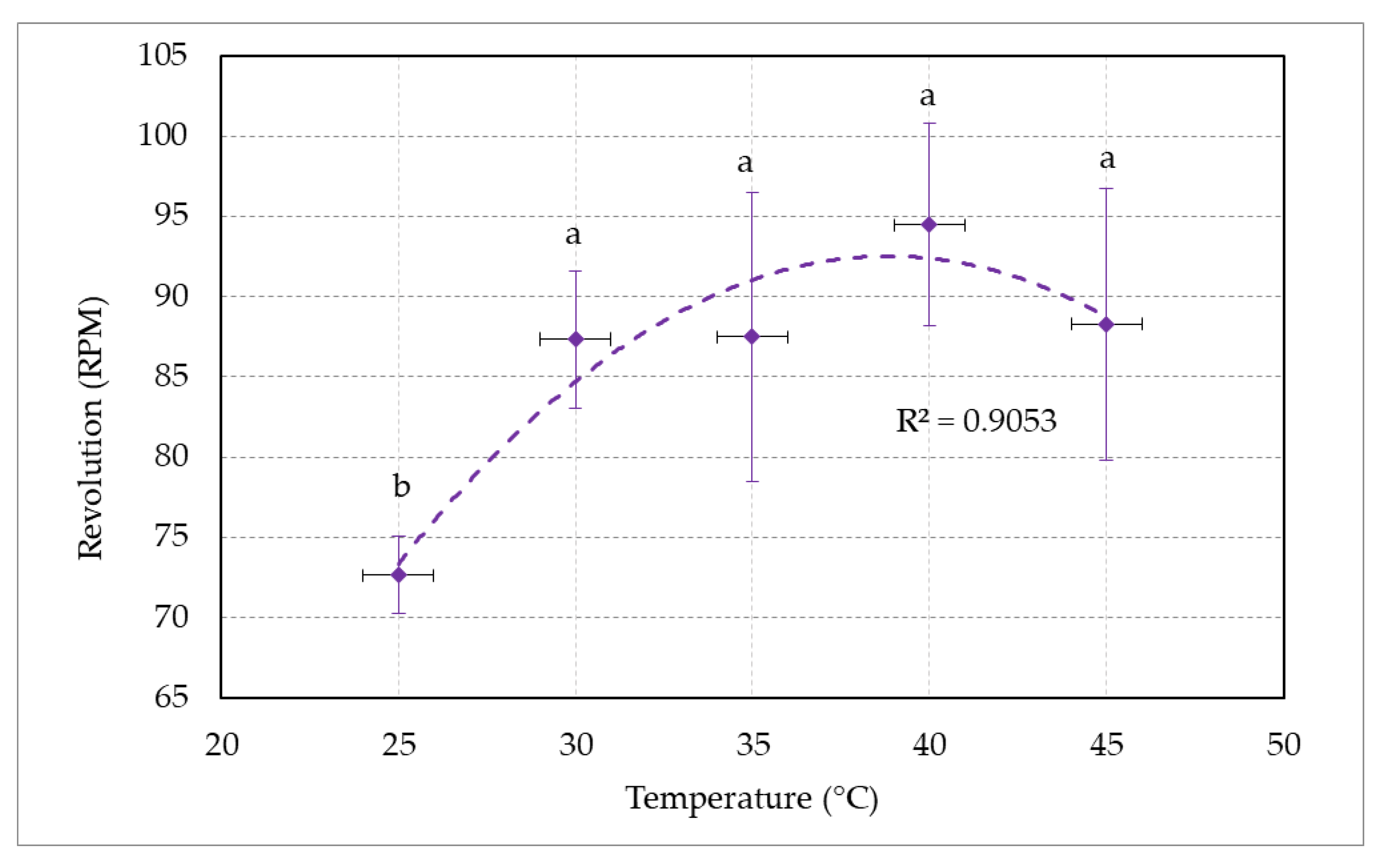

Figure 4 shows the effect of atmosphere temperature on the ability of the insect to rotate the flight arm of the flight mill. There was a significant difference between the mean revolution per minute of the flight arm at the tested temperatures (ANOVA, F_{5, 17} = 182.9, p < 0.001). The flight arm’s revolution was much higher at 35 to 45 °C than 25 °C. The flight arm never moved at 20 °C, and no significant difference was observed between the mean value of the flight arm revolution (RPM) at the tested temperatures of 30, 35, 40, and 45 °C. In comparison, there was a significant difference between these means and the mean value at 25 °C using Tukey’s test. As shown in the trend line in Figure 1, the following regression model was obtained for the effect of atmosphere temperature on the arm revolution per minute with a correlation coefficient (R²) of 0.905.

Re = −0.1 x² + 7.77 x − 58.31

where Re is the flight arm revolution (RPM) and x is the atmosphere temperature °C.

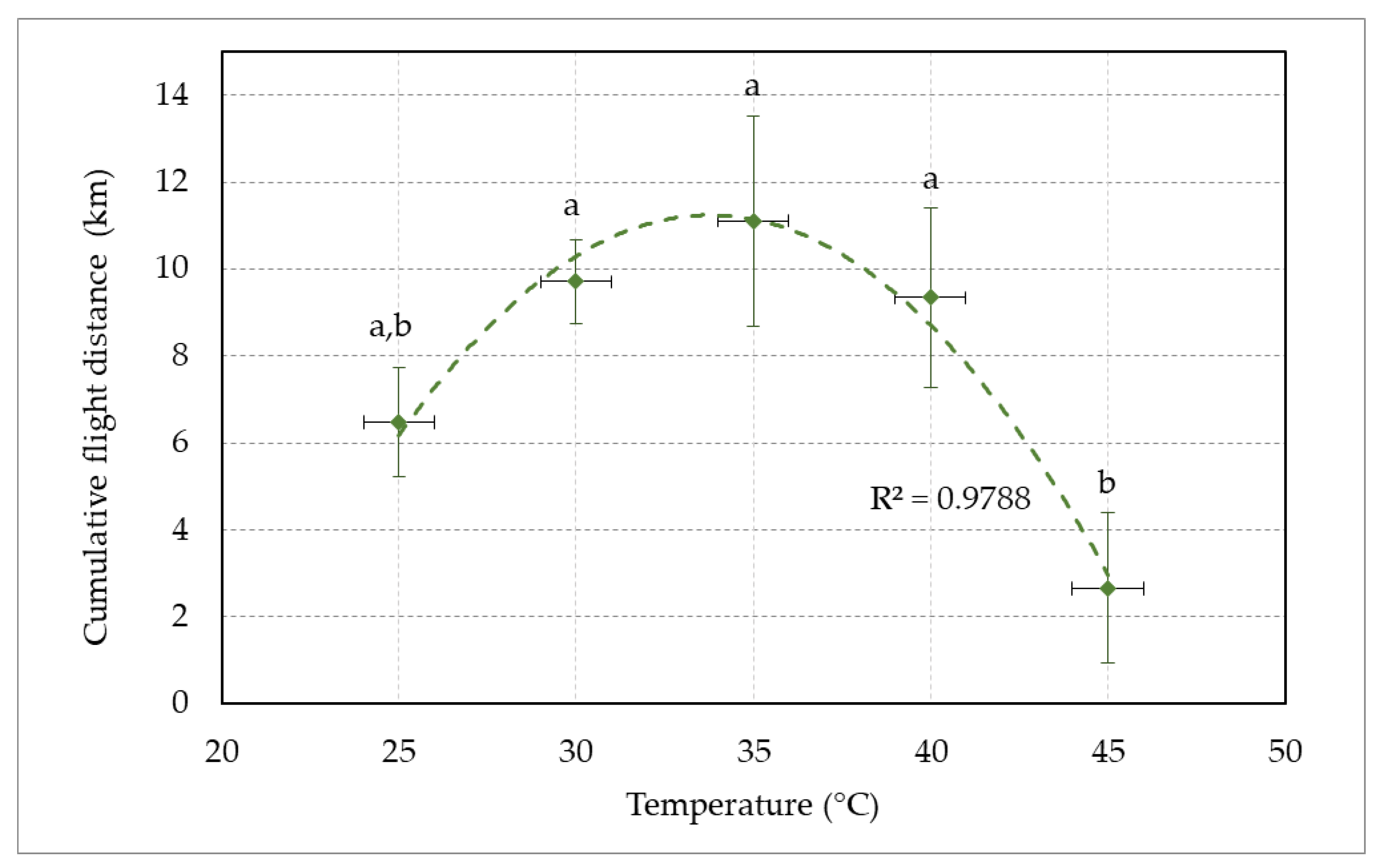

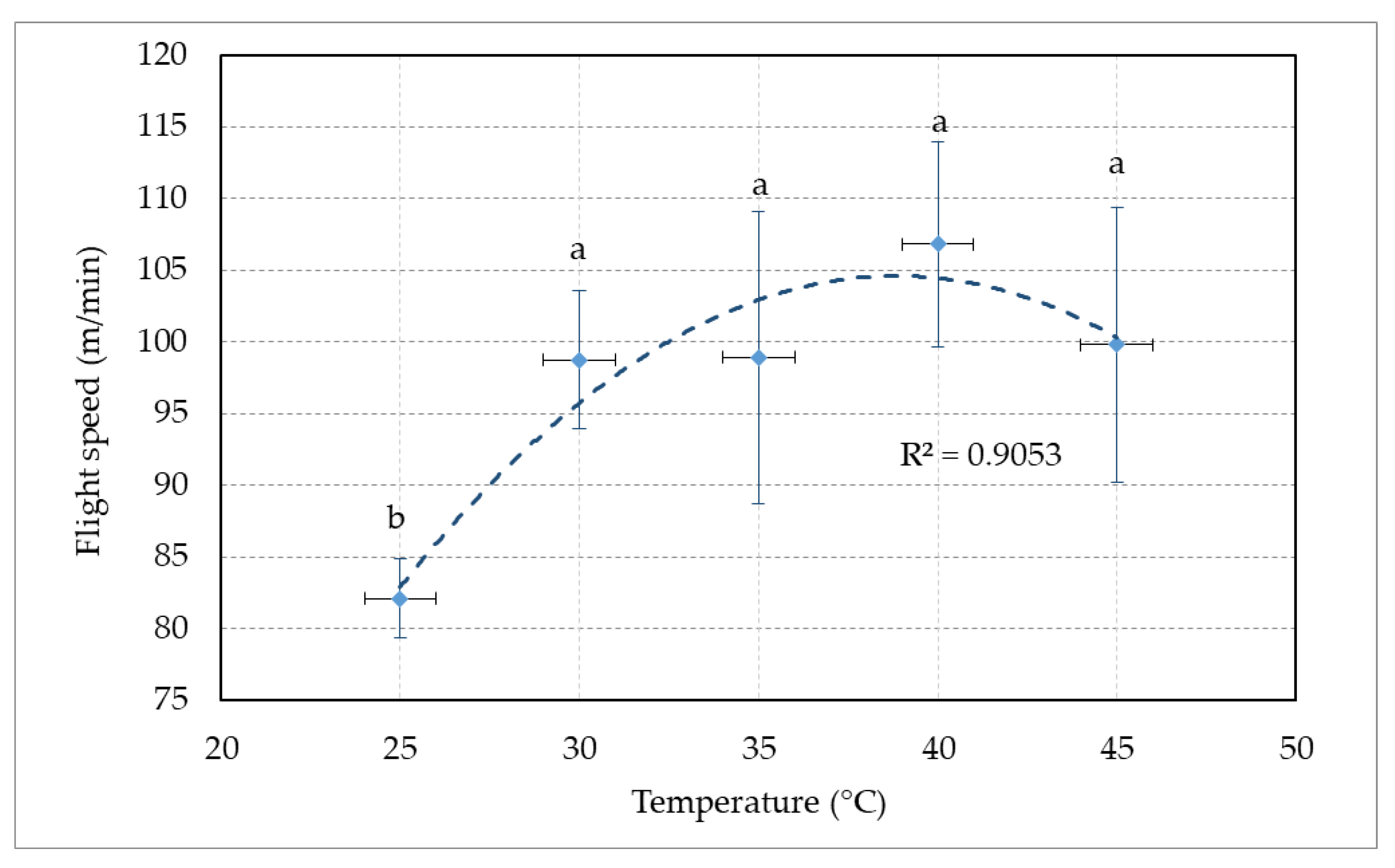

Figure 5, Figure 6 and Figure 7 display the effect of atmospheric temperature on the flight speed (m/min), cumulative flight time (min), and cumulative flight distance (km) of the LHB using the computerized flight mill system. There was significant difference between the mean flight speed (RM ANOVA, F_{5, 17} = 182.6, p < 0.001), cumulative flight time (RM ANOVA, F_{5, 17} = 50.92, p < 0.001), and the cumulative flight distance (RM ANOVA, F_{5, 17} = 36.31, p < 0.001) of the LHB under temperature treatments of 20, 25, 30, 35, 40, 45 °C. The LHB stopped flying at 20 °C, and a normal flight was noted from 25 to 40 °C. Based on these results, the temperature of 35 °C is considered optimal for flying the LHB with a high cumulative flight distance of 11.20 ± 2.4 km. However, the maximum flight speed of 107.05 ± 7.1 m/min was achieved at 40 °C.

The following regression equations express the relationship between temperature treatments (°C) and flight speed (m/min), cumulative flight time (min), and cumulative flight distance (km) of the tested LHB with a correlation coefficient (R²) of 0.905, 0.981, and 0.98, respectively.

S = −0.11 x² + 8.78 x − 65.91

T = −0.44 x² + 28.81 x − 390.04

D = −0.066 x² + 4.44 x − 63.73

where S is the LHB flight speed (m/min), x is the atmosphere temperature °C, T is the cumulative flight time (min), and D is the cumulative flight distance (km).

4. Discussion

Knowledge of the flight and dispersal capacities of cerambycid beetles is essential for establishing quarantine zones, setting survey boundaries, studying key factors affecting the species’ survival, and modeling the potential spread of the exotic or alien pest. The flight potential of insect species might provide essential data for management decisions [23,24]. Nevertheless, the flight capacity, dispersal, and mobility patterns of J. hammerschmidtii populations in date palm groves are unknown. Several factors, including habitat structure, climatic conditions, and other biotic factors, could significantly affect the beetle in-groves and long-distance dispersal. In addition, the sizes of individuals in populations might affect the speed of flight and distance flown. In this respect, Hanks et al. [25] reported that adult individuals of the cerambycid Phoracantha semipunctata Fabricius with larger sizes dispersed for longer distances than smaller ones. In the present study, we attempted to reveal some flight characteristics of this important date palm insect pest in the laboratory using a computerized flight mill under controlled conditions.

Our results revealed that the flight threshold for a J. hammerschmidtii adult was 20 °C, and ambient temperature in the flight system should be well above this threshold to initiate flight activity in this species. Above the flight temperature threshold, the beetle flight activity increased with increasing temperature until it reached the optimum temperature of 35 °C, where the maximum flight occurred. The relationship between temperature and flight parameters, notably flight speed (m/min), cumulative flight time (min), and cumulative flight distance (km) was significant. This reflects the impact of ambient temperature on the flight characteristic of this insect. Being ectothermic animals, insects depend mainly on the temperature of the surrounding environment [26], and increasing temperature to the thermal optima increases the metabolism and eventually the insect activities, including flight. Under semi-field conditions, the optimum temperature for adult emergence of J. hammerschmidtii in Iraq ranged between 33 and 34 °C [7], which conforms with our study. Hanks et al. [25] reported that the dispersal of P. semipunctata declines sharply as the temperature falls below 22 °C, whereas Keena [27] stated that the cerambycid beetle Anoplophora glabripennis Motschulsky could not fly at the temperature of 15 °C, and 95% of test beetles flew at the temperature of 30 °C.

Methods other than flight mills used to estimate the flight capabilities of cerambycid beeltes include mark-recapture and radio-tracking (telemetry). For example, Drag and Cizek [24] studied the dispersal ability of the great Capricorn beetle, Cerambyx cerdo L. that damages oak trees using a radio-tracking approach and a mark-recapture method. They reported that the beetle flew 1498 m and 1080 m in one day for males and females, respectively. The radio-tracking approach revealed that the beetle has a high dispersal ability, whereas the mark-recapture method suggested a low dispersal tendency and sedentary behavior. In general, the mark-recapture method underestimates insect movement compared with the radio-tracking method [28].

Future studies are required to answer the questions concerning the flight periodicity of the J. hammerschmidtii. Hoddle et al. [29] studied the flight periodicity of the palm weevil, Rhynchophorus palmarum L. on a flight mill. They concluded that flight periodicity data should be taken with caution, as weevils on a flight mill lose tarsal contact with a substrate. This could terminate flight and obtain different information from what has been reported. The time when the flight mill studies commence would determine the initiation of flight activities due to the loss of contact of tethered insects with a substrate [29]. The cerambycid beetle P. semipunctata was forced to fly during the day, although it is well known as a nocturnal flyer [25]. They further stated that this forced day flight subjected the beetle to predation by birds. The experimental design, including the weight of the rotating arm, the resistance of friction, and the angle with which the beetle was tethered to the rotating arm, greatly influenced insect flight activity. Using smart traps with pheromones could solve the problem of the longhorn beetle flight periodicity. However, a sex or aggregation pheromone has not yet been discovered for J. hammerschmidtii. Most of the cerambycids in the temperate regions are day flyers (diurnal), whereas those in the tropics are night flyers (nocturnal) [30]. The diurnal beetles are faster in flight than the nocturnal ones, which are more readily attracted to artificial light [31]. Several investigators reported that adults of J. hammerschmidtii are nocturnal, strong flyers, and strongly attracted to artificial light [4,7,32,33].

The results of the present investigation revealed that J. hammerschmidtii can potentially fly an estimated cumulative distance of ~11.5 km. The maximum velocity recorded for this beetle on the flight mill was 107 m/min. Compared with other cerambycid beetles, the estimated maximum distance flown by Monochamus carolinensis (Olivier) on a flight mill was 10.3 km [34]. The maximum distance flown by the cerambycid Asian longhorn beetle Anoplophora glabripennis was approximately 14 km/day [35,36]. They also reported that beetle age and mating status affected the flight propensity of this invasive beetle. Other cerambycids can still fly longer on flight mills; for example, the cerambycid beetle Monochamus galloprovincialis flew an estimated maximum distance of 62.7 km [37]. The mean velocity of the Asian longhorn beetle A. glabripennis using a harmonic radar was 108 m/min, and the maximum velocity was 318 m/min [38]. However, flight mill data indicated that the beetle had a 66 m/min velocity, which was slower than when the beetle was allowed to fly freely. In comparison with the red palm weevil, Rhynchophorus ferrugineus, it has been reported that sex had no significant effect on total distance flown and mean flight velocity by male and female [39,40]. However, Armes and Cooter [41] reported that mating significantly decreased flight duration in the cotton bollworm Helicoverpa armigera (Hübner). Mating status was reported to have no effect on flight activity of the tarnished plant bug Lygus lineolaris (Palisot de Beauvois); however, gravid females flew more than ungarvid ones [42]. From the aforementioned discussion, it seems that the influence of sex, age, and mating status on the flight parameters of the J. hammerschmidti need to be further investigated in future studies. The data on the flight propensity of the J. hammerschmidtii presented in this investigation reflects the capacity of this beetle to disperse in date palm plantations in the absence of human-assisted movement of infested date palms intended for cultivation or use in landscape designs. This data could also be used in setting up date palm in-grove management strategies and the demarcation of quarantine boundaries.

5. Conclusions

Flight mill data showed that the J. hammerschmidtii is a strong flyer and can potentially fly for long distances. Air temperature greatly influences the beetle flight parameters, such as fight velocity, flight time, and distance flown. It is more challenging to determine flight periodicity on a flight mill, due to the loss of tarsal contact to the substrate of the tethered insect, which usually initiates flight. The preliminary results presented in this study may pave the way for more future investigations on the effect of sex, age, mating status, and season on the flight characteristics of J. hammerschmidti. Such information on the flight behavior of this beetle is needed for designing management strategies for this pest.
