Performance Evaluation of Soil Moisture Sensors in Coarse- and Fine-Textured Michigan Agricultural Soils

Abstract

Soil moisture content is a critical parameter in understanding the water movement in soil. A soil moisture sensor is a tool that has been widely used for many years to measure soil moisture levels for their ability to provide nondestructive continuous data from multiple depths. The calibration of the sensor is important in the accuracy of the measurement. The factory-based calibration of the soil moisture sensors is generally developed under limited laboratory conditions, which are not always appropriate for field conditions. Thus, calibration and field validation of the soil moisture sensors for specific soils are needed. The laboratory experiment was conducted to evaluate the performance of factory-based calibrated soil moisture sensors. The performance of the soil moisture sensors was evaluated using Root Mean Squared Error (RMSE), Index of Agreement (IA), and Mean Bias Error (MBE). The result shows that the performance of the factory-based calibrated CS616 and EC5 did not meet all the statistical criteria except the CS616 sensor for sand. The correction equations are developed using the laboratory experiment. The validation of correction equations was evaluated in agricultural farmlands. Overall, the correction equations for CS616 and EC5 improved the accuracy in field conditions.

1. Introduction

Soil moisture content is a critical parameter to understand the water and solute transports in soil. Soil moisture sensors have been used in agriculture for many years to improve the water management through precise irrigation scheduling [1,2,3,4] because of their practicability in providing continuous data, the fact that they can be installed at multiple depths, and the fact that they are not destructive. The common sensor technologies are Time Domain Reflectometry (TDR) and Frequency Domain Reflectometry (FDR). TDR uses the speed of an electromagnetic signal passing through a material that varies with the dielectric of the material and is the most accurate method to measure the soil moisture content [5]. Previous studies discuss that TDR provides the most accurate data but is expensive. While not economical, the results are independent of soil texture, temperature, and electrical conductivity, which are soil properties that affect some of the other methods [6]. FDR (electrical capacitance) uses an embedded oscillating circuit and sensor. The dielectric permittivity of the soil is recorded, and changes in the permittivity correlate with changes in the circuit frequency, which correlate with soil moisture content. This method requires calibration for different soil types since the recordings are soil specific, but the initial cost is lower than that of TDR [7].

The direct method to measure the soil moisture content is collecting soil samples using a 3-inch diameter ring and drying it in the oven at 105 °C to calculate the mass of water lost [8]. This method allows for calculating gravimetric water content and soil bulk density. The volumetric water content can be calculated by multiplying the gravimetric water content by the soil bulk density. It has been commonly used to calibrate the soil moisture sensors under field conditions [9,10,11,12]. This soil sample collection method requires intense labor, soil disturbance, and does not measure the soil moisture content continuously. The continuous soil moisture content measurement provides useful information such as how the rainfall and irrigation infiltrate into the soil, and how the crop uses the water from what soil depths.

The factory-based calibration of these soil moisture sensors is generally developed under limited laboratory conditions, which are not always appropriate for field conditions [13]. Previous studies show that the factory-based calibrated sensors have shown overestimate or underestimate the soil moisture content, depending on the characteristics of the soil [14,15]. Because the calibration of the soil moisture sensor is soil specific, assessments on more soils are needed. The objectives of this study were (1) to evaluate the performance of factory-based calibrated soil moisture sensors; (2) to develop the correction equations for sand, loamy sand, and sandy clay loam; and (3) to validate the correction equations with a field experiment.

2. Materials and Methods

2.1. Laboratory Experiment

In order to evaluate the performance of factory-based calibrated soil moisture sensors, the laboratory experiment was conducted using 144-liter size containers (80 × 41 × 35 cm). Figure 1 shows the overall view of this laboratory experiment. The duration of the laboratory experiment was 30 days. Sand, loamy sand, and sandy clay loam, typical soil types in Michigan, were tested. Soils were collected from the Michigan agricultural fields and the texture classification was analyzed by Michigan State University Soil Lab (East Lansing, MI, USA). The result of the soil classification is shown in

Table 1. Soil classification result for the laboratory experiment.

Container	Class	Bulk Density (g/cm3)	Sand (%)	Silt (%)	Clay (%)
1	Sand	1.71	89.5	4	6.5
2	Loamy Sand	1.64	83.2	7.2	9.6
3	Sandy Clay Loam	1.42	63.4	12.4	24.2

. This laboratory research evaluated CS616 manufactured by Campbell Scientific (Logan, UT, USA) and EC5 manufactured by Metergroup (Pullman, WA, USA). CS616 represents TDR and EC5 represent FDR. The sensors were installed at 15 cm depth from the surface. The CS616 sensors were connected to CR1000 datalogger, manufactured by Campbell Scientific. EM60g datalogger, manufactured by Metergroup, was used to record the measurements for EC5 soil moisture sensors. The dataloggers were programmed to record the measurement every hour. The soils were air-dried before the experiment. The sensor performance was evaluated at low soil moisture levels, for drought condition. The water was applied manually to the containers by a sprayer with a 12V diaphragm pump. Soil samples were collected using a 61 cm³ size soil ring for volumetric water content analysis. The samplings were performed six times during the experiment. The small size of the soil ring was used to minimize disturbing the soil. The containers were covered with a plastic liner to minimize the evaporation. The soil temperature was measured using 107 temperature probes, manufactured by Campbell Scientific, which was connected to CR1000 datalogger.

2.2. Statistical Analysis

The performance of the soil moisture sensors was evaluated using Root Mean Squared Error (RMSE), Index of Agreement (IA), and Mean Bias Error (MBE). RMSE measures the difference between sensor values and soil sample values and is defined in Equation (1). The index of agreement was proposed by Willmott (1981), as defined in Equation (2) [16]. MBE is defined in Equation (3).

$$\mathrm{RMSE}=\sqrt{\frac{1}{\mathrm{N}}{\displaystyle \sum }_{i=1}^N{\left(M_i-P_i\right)}^2}$$

(1)

$$\mathrm{IA}=1-\frac{{{\displaystyle \sum }}_{i=1}^N{\left(M_i-P_i\right)}^2}{{{\displaystyle \sum }}_{i=1}^N{\left(\left|P_i-\overline{M}\right|+\left|M_i-\overline{M}\right|\right)}^2}$$

(2)

$$\mathrm{MBE}=\frac{1}{\mathrm{N}}{\displaystyle \sum }_{i=1}^N\left(P_i-M_i\right)$$

(3)

where N is the sample size, M is the measured (soil sampling) value, P is the predicted (sensor measurement) value, $\overline{M}$ is the average measured value. The units for RMSE and MBE are volumetric water content (cm³/cm³), and IA is dimensionless. A range of IA lies between 0 and 1, and a value of 0 indicates no agreement between measured and predicted values. A value of 1 indicates a perfect fit of observed to predicted values. The higher value of IA indicates better agreement between observed and predicted values. Hignett and Evett (2008) discussed that the sensor measurement accuracy for most agricultural applications needs to be less than 0.02 cm³/cm³ [17]. Varble and Chavez (2011) reported that the criteria for MBE and RMSE were ± 0.02 and less than 0.035 cm³/cm³ [14], respectively. Therefore, this study evaluated the sensor performance using the following criteria: MBE ± 0.02 cm³/cm³ and RMSE < 0.035 cm³/cm³.

2.3. Field Experiment

The validation of correction equations was evaluated in the agricultural fields. Four agricultural fields were selected to cover the same soil types, such as sand, loamy sand, and sandy clay loam, as the laboratory experiment. These fields were growing corn, tomato, and blueberry. The soil texture classification was analyzed by Michigan State University Soil Lab and the texture classification results are shown in

Table 2. Soil classification for field demonstration.

Sensor	Class	Sand (%)	Silt (%)	Clay (%)
CS616	Sand	91.9	3.7	4.4
	Loamy Sand	87.9	5.8	6.3
	Sandy Clay Loam	54.8	23.6	21.6
EC5	Sand	92.3	1.3	6.4
	Loamy Sand	86.8	4.8	8.4
	Sandy Clay Loam	53.3	26.6	20.1

. Soil samples were collected using a 3-inch diameter ring to calculate the volumetric water content. A limited number of the soil sampling were conducted to minimize disturbing the soils around the sensors. This volumetric water content data were compared to factory-based calibrated and corrected soil moisture sensor data. Sensors were installed by digging a shallow trench and inserting the sensors horizontally into the soil, then backfilling the trench. CR 1000 and EM60g dataloggers were connected to CS616 and EC5, respectively. The datalogger was programmed to collect the soil moisture levels every hour.

3. Results and Discussion

3.1. Performance Evaluation of Factory-Based Calibrated CS616 and EC5

The performance evaluation of factory-based calibrated CS616 and EC5 in the sand, loamy sand, and sandy clay loam were conducted by laboratory experiments. Soil temperature during this laboratory experiment was constant at 22 ± 1 °C.

Table 3. Statistical analysis to compare measured value to sensor values.

Soil Type	Sensor	RMSE	IA	MBE
Sand	CS616	0.010	0.96	−0.01
	EC5	0.035	0.82	0.03
Loamy Sand	CS616	0.046	0.74	−0.03
	EC5	0.032	0.91	−0.03
Sandy Clay Loam	CS616	0.040	0.88	−0.02
	EC5	0.063	0.62	−0.05

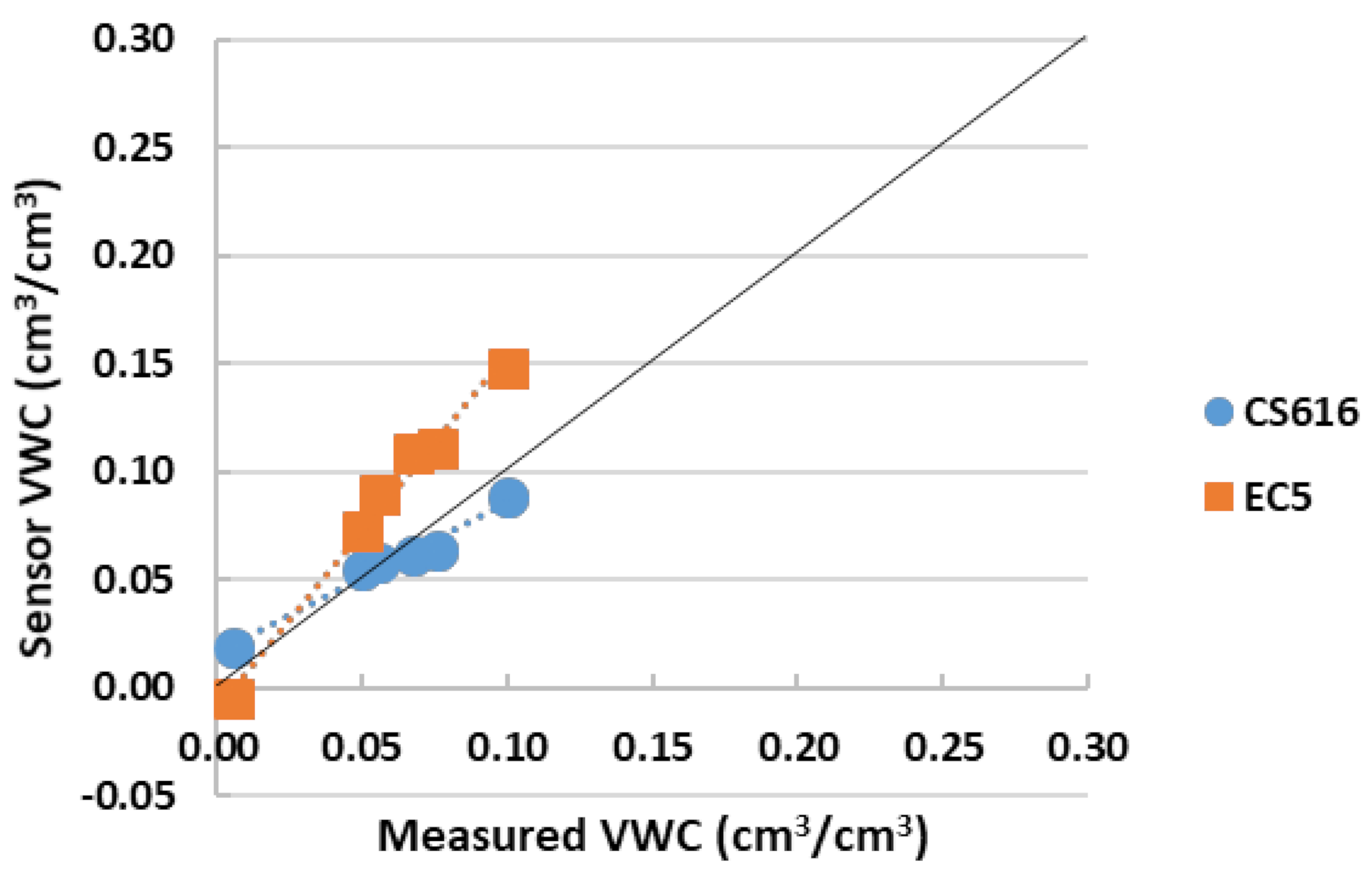

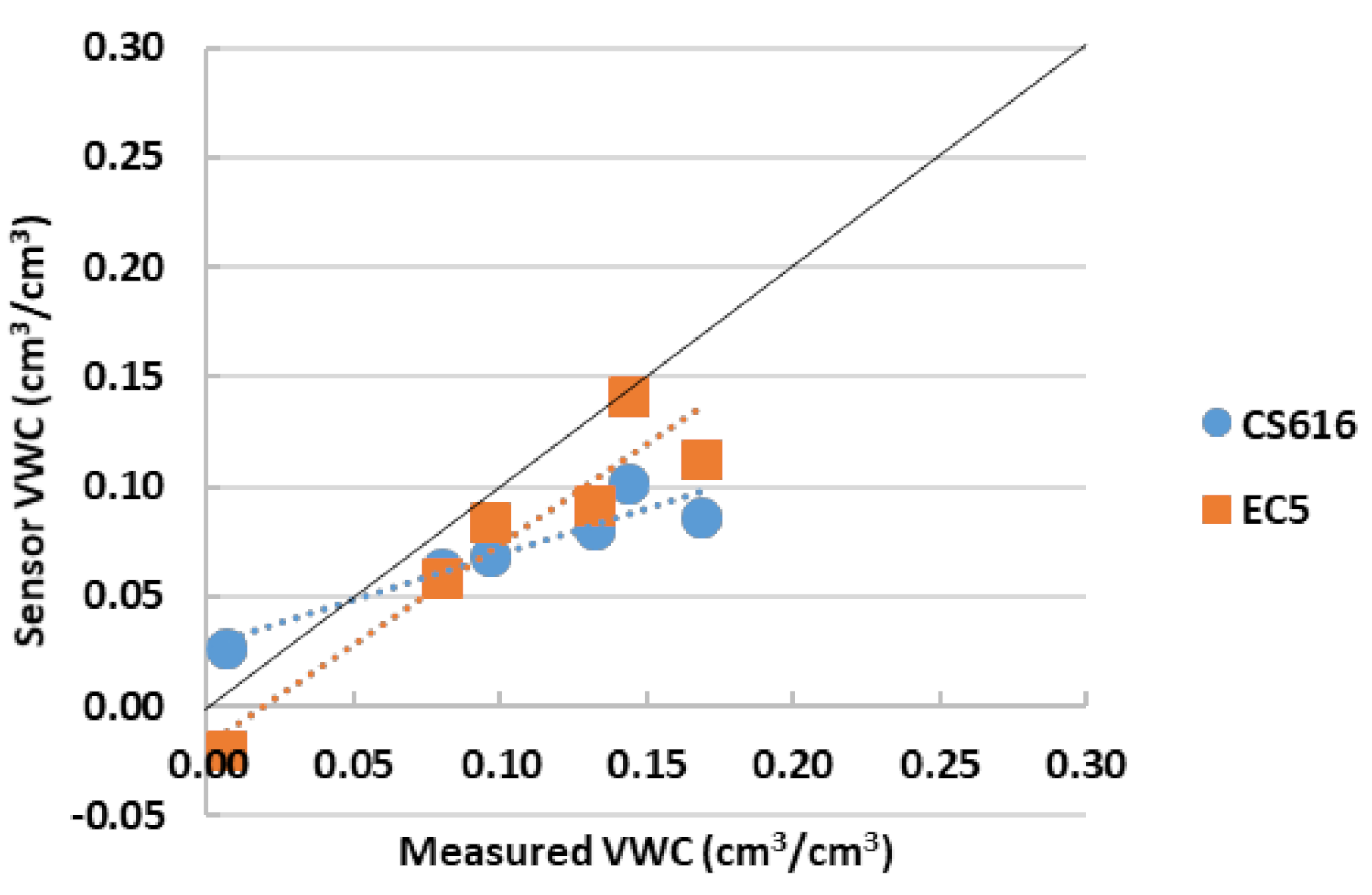

describes the result of statistical analysis. Figure 2, Figure 3 and Figure 4 show the comparison of sensor values with measured volumetric water content by taking soil samples for sand, loamy sand, and sandy clay loam, respectively. The MBE values for the CS616 show that this sensor underestimated volumetric water content by an average of 0.01 cm³/cm³ in the sand, 0.03 cm³/cm³ in the loamy sand, and 0.02 cm³/cm³ in the sandy clay loam. The RMSE value for sand has met the criteria, but not loamy sand and sandy clay loam. The performance of CS616 for sand satisfied both MBE and RMSE criteria. The criteria are MBE ± 0.02 cm³/cm³ and RMSE <0.035 cm³/cm³. The statistical values for the EC5 show that the sensor overestimated the volumetric water content by an average of 0.03 cm³/cm³ in the sand, underestimated by 0.03 cm³/cm³ in the loamy sand, and underestimated by 0.05 cm³/cm³ in the sandy clay loam. Figure 2 and Figure 3 show that the EC5 values were negative at the lowest moisture content, which was interesting and seemed to be a calibration issue. Except for sandy clay loam, the RMSE values for sand and loamy sand have met the criteria.

Overall, the performance of the factory-based calibrated CS616 and EC5 sensors did not meet all the statistical criteria except the CS616 sensor in the sand. This was not unforeseen as the accuracy for CS616 and EC5 from the user manual were ±0.025 and ±0.03 cm³/cm³, respectively [18,19]. This laboratory experiment result shows that soil moisture sensors should be calibrated for specific types of soil (site-specific conditions) to improve accuracy. This was also discussed by previous researchers [14,15,20].

Based on the laboratory data, correction equations for CS616 and EC5 were developed (

Table 4. Correction equations for CS616 and EC5 soil moisture sensors.

Soil Type	Sensor	Equation Type	Equation	RMSE	IA	MBE	R2
Sand	CS616	Linear	${\mathsf{\theta }}_{\mathrm{v}}=1.4011{\ast \mathsf{\theta }}_{\mathrm{vi}}-0.0213$	0.005	0.99	0.001	0.97
		Exponential	${\mathsf{\theta }}_{\mathrm{v}}=0.0036{\mathrm{e}}^{43.906\ast {\mathsf{\theta }}_{\mathrm{vi}}}$	0.031	0.84	0.004	0.88
		Logarithmic	${\mathsf{\theta }}_{\mathrm{v}}=0.0577\ast \ln \left({\mathsf{\theta }}_{\mathrm{vi}}\right)+0.2294$	0.008	0.97	0.001	0.92
		Quadratic	${\mathsf{\theta }}_{\mathrm{v}}=-0.5029\ast {\left({\mathsf{\theta }}_{\mathrm{vi}}\right)}^2+1.4532{\ast \mathsf{\theta }}_{\mathrm{vi}}-0.0225$	0.005	0.99	0.001	0.97
	EC5	Linear	${\mathsf{\theta }}_{\mathrm{v}}=0.6055{\ast \mathsf{\theta }}_{\mathrm{vi}}+0.0064$	0.003	0.99	0.001	0.99
		Exponential	${\mathsf{\theta }}_{\mathrm{v}}=0.0083{\mathrm{e}}^{19.316\ast {\mathsf{\theta }}_{\mathrm{vi}}}$	0.020	0.92	0.002	0.93
		Logarithmic	N/A	N/A	N/A	N/A	N/A
		Quadratic	${\mathsf{\theta }}_{\mathrm{v}}=1.0217\ast {\left({\mathsf{\theta }}_{\mathrm{vi}}\right)}^2+0.4689{\ast \mathsf{\theta }}_{\mathrm{vi}}+0.0083$	0.002	0.99	0.001	0.99
Loamy Sand	CS616	Linear	${\mathsf{\theta }}_{\mathrm{v}}=2.1154{\ast \mathsf{\theta }}_{\mathrm{vi}}-0.0465$	0.016	0.97	−0.001	0.89
		Exponential	${\mathsf{\theta }}_{\mathrm{v}}=0.0032{\mathrm{e}}^{43.918\ast {\mathsf{\theta }}_{\mathrm{vi}}}$	0.061	0.78	0.006	0.85
		Logarithmic	${\mathsf{\theta }}_{\mathrm{v}}=0.1157\ast \ln \left({\mathsf{\theta }}_{\mathrm{vi}}\right)+0.4187$	0.017	0.56	0.001	0.88
		Quadratic	${\mathsf{\theta }}_{\mathrm{v}}=-12.181\ast {\left({\mathsf{\theta }}_{\mathrm{vi}}\right)}^2+3.6501{\ast \mathsf{\theta }}_{\mathrm{vi}}-0.0873$	0.016	0.97	−0.001	0.89
	EC5	Linear	${\mathsf{\theta }}_{\mathrm{v}}=0.9759{\ast \mathsf{\theta }}_{\mathrm{vi}}-0.0283$	0.059	0.76	−0.057	0.89
		Exponential	${\mathsf{\theta }}_{\mathrm{v}}=0.0149{\mathrm{e}}^{20.471\ast {\mathsf{\theta }}_{\mathrm{vi}}}$	0.055	0.81	0.005	0.85
		Logarithmic	N/A	N/A	N/A	N/A	N/A
		Quadratic	${\mathsf{\theta }}_{\mathrm{v}}=-1.7108\ast {\left({\mathsf{\theta }}_{\mathrm{vi}}\right)}^2+1.1702{\ast \mathsf{\theta }}_{\mathrm{vi}}+0.028$	0.017	0.97	0.001	0.90
Sandy Clay Loam	CS616	Linear	${\mathsf{\theta }}_{\mathrm{v}}=1.7905{\ast \mathsf{\theta }}_{\mathrm{vi}}-0.093$	0.011	0.99	0.001	0.97
		Exponential	${\mathsf{\theta }}_{\mathrm{v}}=0.0131{\mathrm{e}}^{16.505\ast {\mathsf{\theta }}_{\mathrm{vi}}}$	0.017	0.99	0.001	0.99
		Logarithmic	${\mathsf{\theta }}_{\mathrm{v}}=0.2036\ast \ln \left({\mathsf{\theta }}_{\mathrm{vi}}\right)+0.5697$	0.015	0.99	0.001	0.94
		Quadratic	${\mathsf{\theta }}_{\mathrm{v}}=13.837\ast {\left({\mathsf{\theta }}_{\mathrm{vi}}\right)}^2-1.5894{\ast \mathsf{\theta }}_{\mathrm{vi}}+0.0858$	0.016	0.99	0.001	0.99
	EC5	Linear	${\mathsf{\theta }}_{\mathrm{v}}=1.2857{\ast \mathsf{\theta }}_{\mathrm{vi}}+0.0142$	0.037	0.88	−0.001	0.65
		Exponential	${\mathsf{\theta }}_{\mathrm{v}}=0.0439{\mathrm{e}}^{10.074\ast {\mathsf{\theta }}_{\mathrm{vi}}}$	0.043	0.87	−0.011	0.49
		Logarithmic	${\mathsf{\theta }}_{\mathrm{v}}=0.1532\ast \ln \left({\mathsf{\theta }}_{\mathrm{vi}}\right)+0.5019$	0.024	0.89	−0.011	0.67
		Quadratic	${\mathsf{\theta }}_{\mathrm{v}}=-9.1965\ast {\left({\mathsf{\theta }}_{\mathrm{vi}}\right)}^2+3.5828{\ast \mathsf{\theta }}_{\mathrm{vi}}-0.1146$	0.034	0.89	0.020	0.68

). ${\mathsf{\theta }}_{\mathrm{vi}}$ is the value from the factory-based calibrated sensor. ${\mathsf{\theta }}_{\mathrm{v}}$ is the corrected value. The logarithmic equations for EC5 for sand and loamy sand are not available, because the EC5 values at the lowest moisture content measurement were negative. Based on the previous literature, this study evaluated the performance of the sensor using the following criteria: RMSE < 0.035 cm³/cm³, IA > 0.8, MBE ± 0.02 cm³/cm³, and R² > 0.65 [14,17,21].

The statistical analysis result shows that all types of equations for CS616 in the sand have met the criteria. This was expected because the factory calibrated CS616 already met the criteria. Of these equations, linear and quadratic type equations of CS616 performed the best in the sand. In loamy sand, linear and quadratic type equations of CS616 have met the criteria; however, exponential and logarithmic equations did not. In sandy clay loam, all equation types have met the criteria. Linear, exponential, and quadratic equations of EC5 have met the criteria in the sand. Linear and exponential equations did not meet the criteria in loamy sand, but the quadratic equation did. In sandy clay loam, the performance of linear, exponential, and logarithmic equations was poor. Only the quadratic equation met the criteria. In general, the quadratic equations had the lowest RMSE and MBE and the highest IA and R², which is also confirmed by other literature [21].

3.2. Validation of Correction Equations

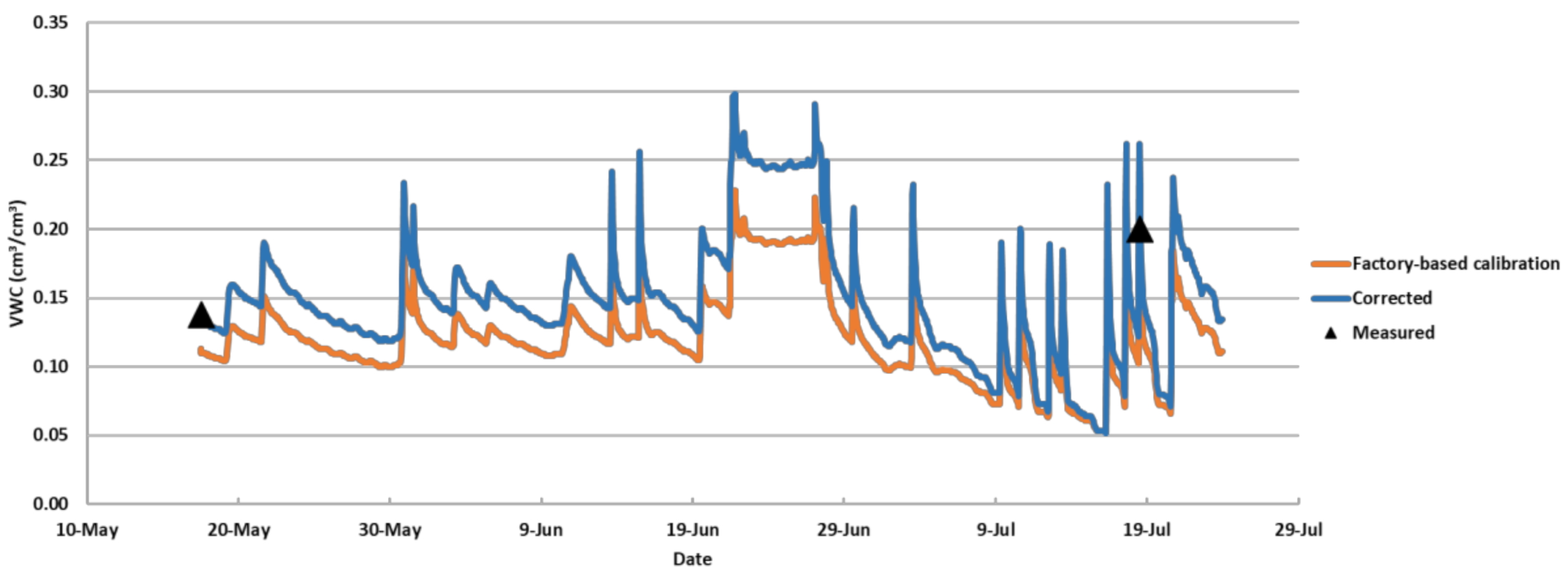

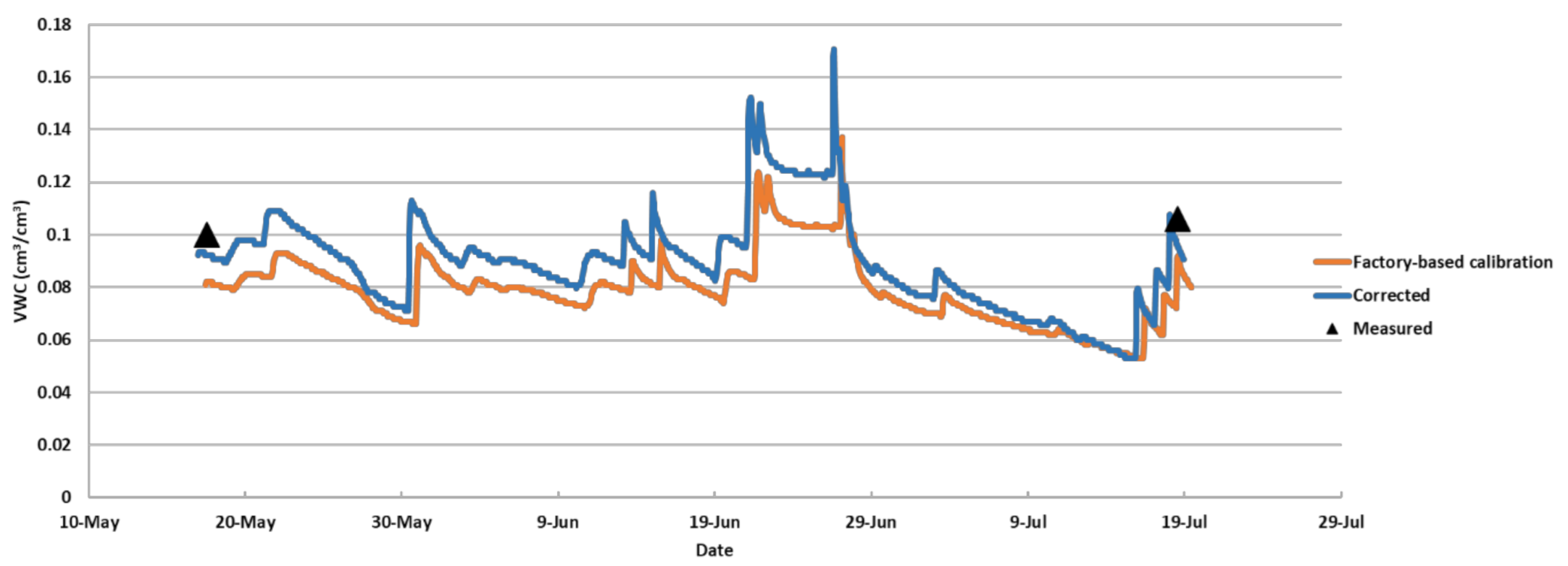

The field experiment was performed to validate the correction equations. Figure 5, Figure 6 and Figure 7 show the comparisons of factory-based calibration of CS616 soil moisture sensors to corrected values for sand, loamy sand, and sandy clay loam, respectively. The RMSE values for factory-based calibration and after correction in sand are 0.017 and 0.006 cm³/cm³, respectively. This result shows the improvement of 0.011 cm³/cm³ with the correction equation for sand. The RMSE values for factory-based calibration and after correction in loamy sand are 0.023 and 0.021 cm³/cm³, respectively. This result shows that the correction equation slightly improved (0.002 cm³/cm³) in loamy sand. Another study also had RMSE values of 0.024, 0.023, and 0.044 cm³/cm³ in loamy sand [14]. The RMSE values for factory-based calibration and after correction in sandy clay loam are 0.039 and 0.012 cm³/cm³, respectively. Overall, the CS616 sensor performance was improved with the correction equations.

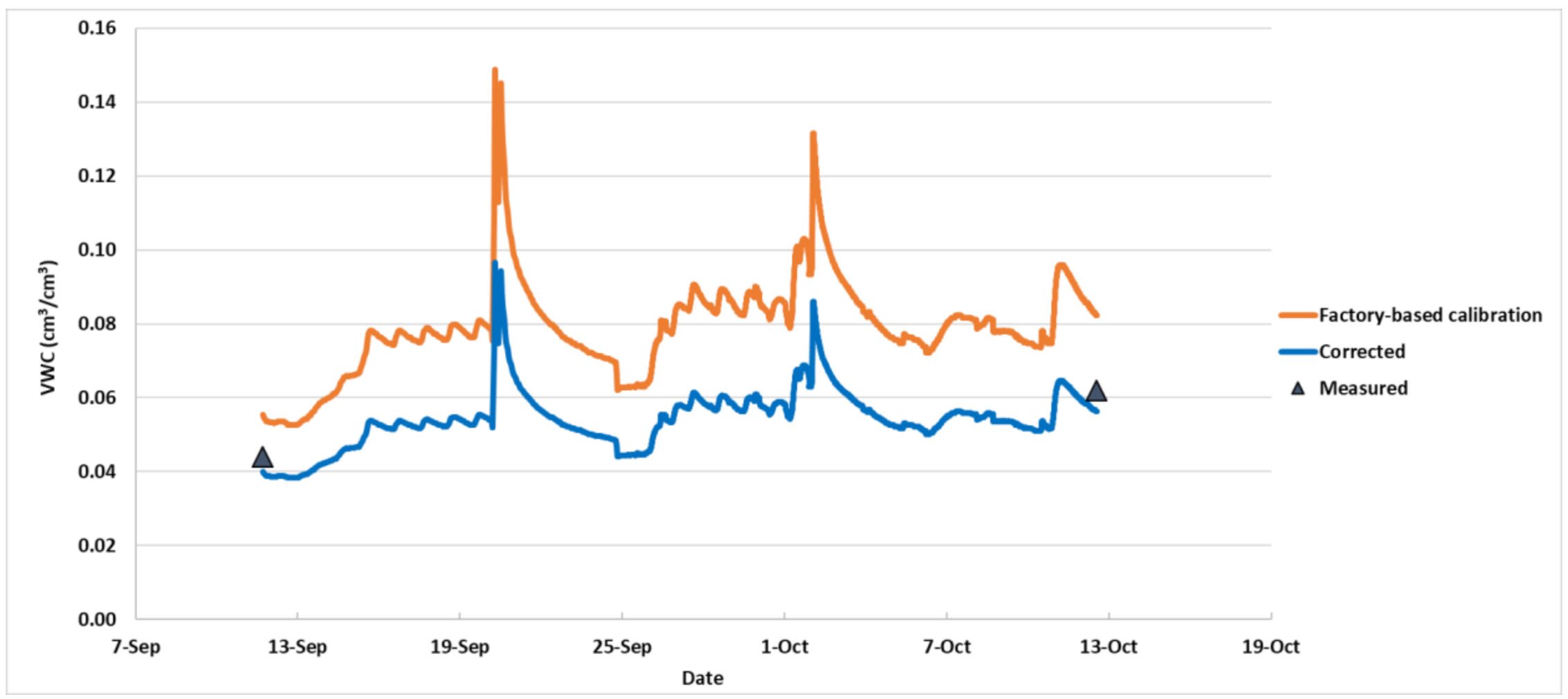

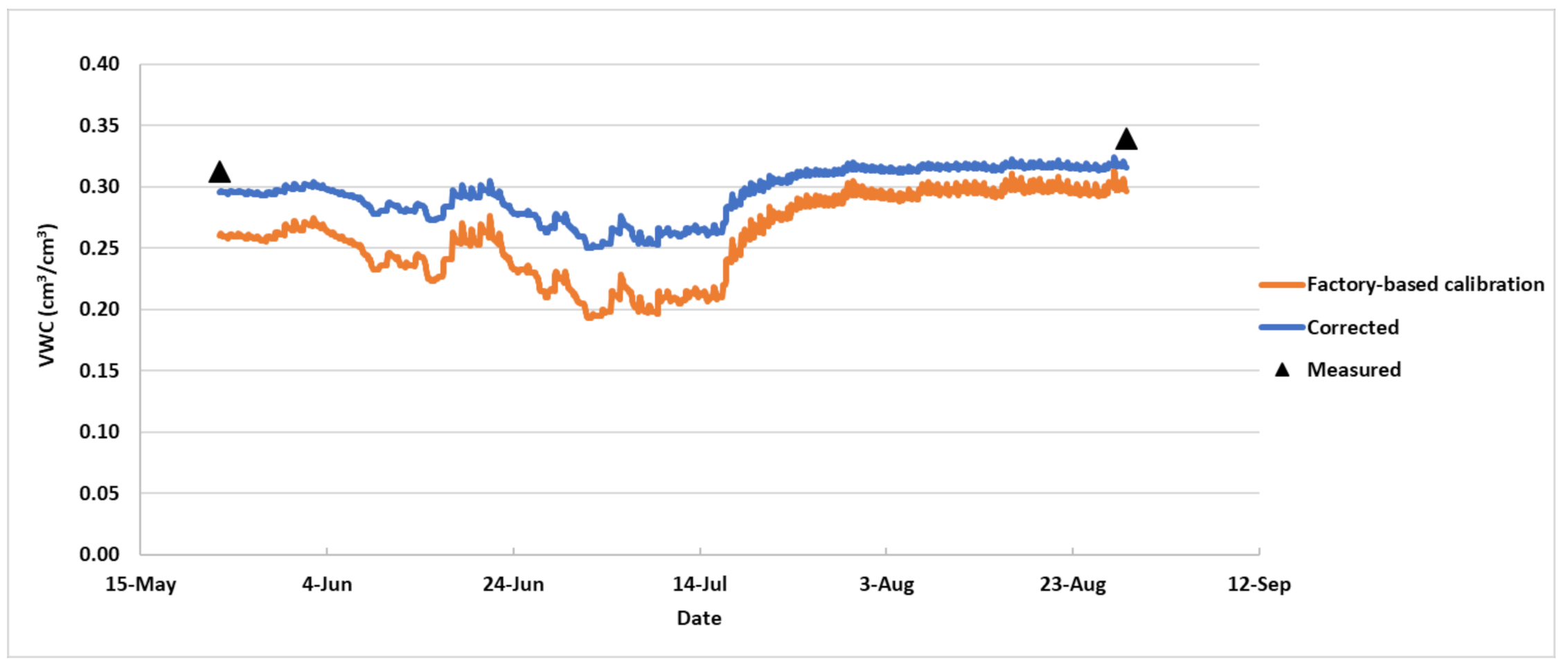

Figure 8, Figure 9 and Figure 10 show the comparisons of the factory-based calibration of EC5 soil moisture sensors to corrected values for sand, loamy sand, and sandy clay loam, respectively. The RMSE values for factory-based calibration and after correction in sand are 0.018 and 0.004 cm³/cm³, respectively. This result shows the improvement of 0.014 cm³/cm³ with the correction equation for sand. The RMSE values for factory-based calibration and after correction in loamy sand are 0.026 and 0.006 cm³/cm³, respectively. This result shows the improvement of 0.019 cm³/cm³ with the correction equation for sand. The RMSE values for factory-based calibration and after correction in sandy clay loam are 0.047 and 0.020 cm³/cm³, respectively. Overall, the EC5 sensor performance was much improved with the correction equations.

Besides correcting the calibration equation, the soil moisture sensor installation technique plays a significant role in determining the performance of the sensor. Because the soil moisture sensor measures only a small volume of soil surrounding the sensor, the installation should be conducted carefully. There must be good contact between the sensor and soil to avoid creating an air gap, which was also emphasized in many previous studies [22,23,24,25,26,27]. Other literature also discussed that factors, including soil temperature and salinity, could impact the sensor measurement [11,28]. Soil temperature fluctuations are minimized as the soil depth increases; however, an investigation under field conditions is needed in the future study.

4. Conclusions

This study evaluated the performance of CS616 and EC5 soil moisture sensors through laboratory and field experiments. The performance of the factory-based calibrated CS616 and EC5 did not meet the statistical criteria except the CS616 for sand. Therefore, sensor calibration of CS616 and EC5 soil moisture sensors for each soil type is recommended. The correction calibration equations for CS616 and EC5 were developed by the laboratory experiment. Sensor demonstration from the field experiment confirmed that the correction equations improved the accuracy of the CS616 and EC5 sensor performance.
