1. Introduction
Euphorbia heterophylla, commonly known as wild poinsettia, milkweed, and painted euphorbia, is a weed of difficult management affecting agricultural crops throughout South America, Africa, Asia, and Australia [
1]. The plant infests annual as well as perennial crops, and herbicide resistant populations are common [
1,
2,
3]. Therefore, novel and effective methods of control are required. In northwestern Paraná State, Brazil,
E. heterophylla directly affects corn and soybean, increasing management costs and yield losses [
4,
5,
6]. Thus, natural herbal preparations could be a solution for the more diversified management of
Euphorbia heterophylla.
Allelopathy, a phenomenon by which organisms interfere in the development of other living beings, can be used as a tool to control weeds [
7]. Research in allelopathy show that it can be used to control weeds and to reduce synthetic chemical input in agriculture. A large number of plant and weed species produce secondary metabolites known as allelochemicals. They can be used to control weeds in agricultural systems by using allelopathic crops for intercropping, crop rotation, or mulching. A few important examples of crop species with high allelopathic potential are wheat, rice, sorghum, rye, barley, and sunflower [
8].
Among the tested species and varieties of rice, several have been found to have allelopathic effects on other plants and, therefore, the potential to be used for weed control in agriculture [
9]. According to Dhungana [
10], weed suppression by intercropping is basically attributed to increasing competition between the crop plants and the weeds and/or the allelopathy effect of some crop plants. Therefore, the effect of root extracts of maize or soybean on
Bidens sp. and
Eleusine sp. weeds, as well as the effect of sole cropping of corn or soybean on weed occurrence and growth were efficient in controlling them.
Allelopathic chemicals have been found in root exudates, leachates, leaf volatiles and decomposing plant material. They can belong to several chemical classes, such as phenolic acids, flavonoids, lactones, ketones, coumarins, alcohols, polyphenols, glycosides, alkaloids, aldehydes, and terpenes. Understanding the importance of allelochemicals for interactions between weeds and crops, weeds and weeds, weeds and plant pathogens and weed autotoxicity are keys for successful weed management without herbicides. In addition, weed allelochemicals and the syntheses of their derivatives may have potential in the development of bioactive pesticides [
11].
An example of allelopathic interactions between crops and weeds can be seen in no-till systems—a crop management strategy widely used in Brazil because of its long-term benefits to soil quality and agricultural production. Allelopathic chemicals are released during the decomposition of green manure, affecting weed growth and germination [
12]. Allelopathy shows potential as an innovative control strategy capable of reducing the environmental impacts caused by excessive herbicide use and increasing agricultural sustainability. The efficacy of this strategy depends on the capacity of beneficial plant species to produce allelopathic chemicals in sufficient concentrations to inhibit the development of harmful species [
13].
Previous studies have shown that
Urochloa ruziziensis (R. Germ. and CM Evrard) Crins (basionym
Brachiaria ruziziensis), when used as cover crop, reduces the emergence of certain plants and weeds in the field [
14,
15,
16,
17,
18]. According to Moreno et al. [
18], eight compounds were isolated from
U. ruziziensis: friedelin, oleanolic acid,
α-amyrin, 1-dehydrodiosgenone, sitosterol and stigmasterol glycosides, tricin and
p-coumaric acid. The phytotoxic effects of crude methanolic extract and fractions of ruzigrass were assessed using germination rate, initial seedling growth, and biomass of
Bidens pilosa,
Euphorbia heterophylla and
Ipomoea grandifolia, as
B. pilosa was the most affected by fractions of ruzigrass.
Urochloa spp. occupy about 100 million hectares of pasture area in Brazil [
19]. Their suppressive effects are likely related to the release of water-soluble allelochemicals in the soil [
20]. Another cover crop species,
Brachiaria plantaginea, was found to inhibit the germination of tropical spiderwort (
Commelina benghalensis),
E. heterophylla, and
Ipomoea grandifolia in soybean fields [
12,
21]. When planted as cover crops, millet and
U. ruziziensis show potential to suppress the emergence and initial growth of weeds [
22].
Sorghum has one of the greatest allelopathic activities against weeds [
23,
24]. Phenolic acids are released during sorghum decomposition promoting short-term suppression of weeds [
25,
26]. According to Cheema and Khaliq [
27], Sorghum is well recognized for its allelopathic effects on other crops. Mature sorghum plants possess a number of water soluble allelochemicals (nine) (for example: sorgoleone, cyanogenic glycosides-dhurrin, and a number of breakdown products of phenolics) which are phytotoxic to the growth of certain weeds such as
Phalaris minor Retz.,
Chenopodium album L.,
Rumex dentatus L. and
Convolvulus arvensis L. Furthermore,
Sorghum allelopathy can be used as sorgaab (water extract of mature
Sorghum bicolor L. Moench plants obtained after soaking in water for 24 h and sprayed as a natural herbicide), sorghum mulch, sorghum soil incorporation and in crop rotation.
Weston et al. [
28], observed the allelopathic effects of sorghum residues on various weeds in monocrop and intercrop systems. Another report found that the use of both
U. ruziziensis and sorghum as cover crops in soybean fields enhanced the allelopathic effects against weeds because of their increased plant cover and biomass generation [
29].
Although
U. ruziziensis and
Sorghum bicolor L. Moench have been shown to exert inhibitory effects on the germination and growth of various weeds, including
E. heterophylla [
6,
30,
31], little is known about the biochemical effects of their allelochemicals on target weeds, particularly on mitochondrial metabolism. Given the herbicidal and growth regulatory effects of allelochemicals, added to the competition generated by allelopathic plants against weeds, it is crucial to identify which molecules act as allelochemicals and understand their action on plant cells. This study aimed to investigate the effects and mode of action of aqueous mixtures of
U. ruziziensis and
S. bicolor on
E. heterophylla seed germination, seedling growth, antioxidant enzyme activity, and respiration.
2. Materials and Methods
2.1. Location
The research was carried out at the Laboratory of Biochemistry and the experimental farm (CAU-Umuarama campus, Umurama, Brazil) and the Laboratory of Biological Oxidation (Maringá, Brazil) of the State University of Maringá, Paraná, Brazil.
2.2. Weed Seeds
Seeds of E. heterophylla were collected from the Caiuá sandstone region of Paraná State in 2018. The seeds were stored at a temperature of 10 °C/dark for 1 month.
2.3. Plant Material and Extract Preparation
Seeds of of S. bicolor cv. BRS 506 and U. ruziziensis were collected from the Caiuá sandstone region of Paraná State in 2018. They were planted on the experimental farm (Umuarama campus), (23°47′28″ S, 53°15′22″ W and elevation: 340 m). After they were grown from seed, they were harvested, dried, and extracted in January 2018.
S. bicolor plants were harvested at 60 days after emergency, that is, in the pre-flowering stage [
29]. After collection, the plant material was separated into roots and stems. Both fractions were oven-dried to constant weight for 5 days at 65 °C and ground. The resulting powder was mixed with distilled water to obtain mixtures concentrations of 250, 500, 750, and 1000 ppm (parts per million). Then, the mixtures were left to stand for 24 h/dark at room temperature (25 °C), filtered through filter paper, and used as aqueous mixtures [
32]. Distilled water was used as control.
Urochloa ruzuziensis plants were harvested at 60 days after emergence, and separated into aerial parts. The stems were oven-dried to constant weight for 3 days at 65 °C and ground. Then, the resulting powders were mixed with distilled water, left to stand for 24 h/dark at room temperature (25 °C), and filtered to obtain mixtures at 250, 500, 750, and 1000 ppm (parts per million) Distilled water was used as control.
2.4. Seed Germination Studies
In the laboratory,
E. heterophylla seeds were sterilized with 1% sodium hypochlorite solution, washed with distilled water, and placed, in groups of 50, in a transparent plastic box (11 × 11 × 3 cm) containing 2 sheets of germination paper, which was moistened with 10 mL of distilled water (control) or aqueous mixtures. Samples were incubated in a biochemical oxygen demand incubator at 28 °C under a 12 h/12h light/dark photoperiod for 16 days [
33]. The seeds were evaluated daily for germination percentage and speed. Germination speed (GS) was calculated by the following formula [
34]: GS = (G
1/N
1) + (G
2/N
2) + … + (G
f/N
f), where G
1, G
2, and G
f are the number of germinated seeds in the first, second, and final count, respectively, and N
1, N
2, and N
n are the first, second, and final evaluation days, respectively.
During the experiment, it was observed that the first leaves appeared at 4 days after incubation, indicating that photosynthesis had begun to contribute to the energy metabolism of seedlings. Thus, subsequent experiments were carried out using 4-day-old seedlings.
2.5. Initial Seedling Growth
The development of control and mixture-treated seedlings was assessed by determining the length of the primary root and hypocotyl (primary stem). After 4 days of incubation, the primary roots and hypocotyl were removed, measured (cm), and weighed (mg) on an analytical balance to obtain the root and hypocotyl fresh weights. Then, samples were oven-dried to constant weight at 65 °C and weighed to obtain the root and hypocotyl dry weights.
2.6. Seedling Respiration

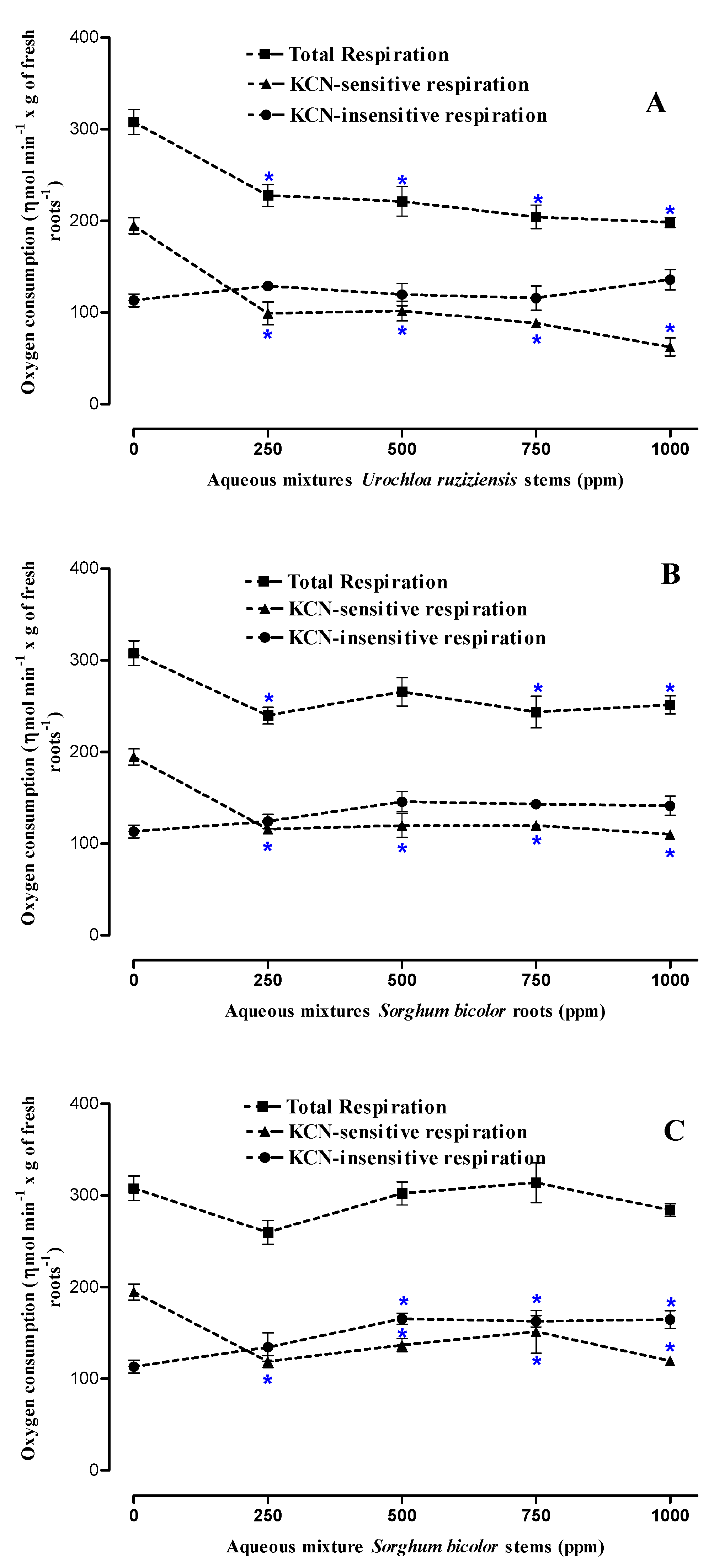

At 4 days after germination, control and mixture-treated seedlings were evaluated for respiratory activity. Oxygen consumption was measured at 25 °C using a Clark-type oxygen electrode in an acrylic chamber connected to a polarograph [
35]. Root samples (
n = 6 replicates) were cut into 5 cm segments, weighed, and immediately placed in an oxygen electrode vessel containing 2 mL of a solution (pH 5.8) of 2 mM Ca(NO
3)
2, 2 mM KNO
3, 0.43 mM NH
4Cl, 0.75 mM MgSO
4, and 20 mM NaH
2PO
4 [
36], (medium free of FeCl
3, pH adjusted to 6.5). Each measurement was performed in 6 replicate samples. The contribution of mitochondrial cytochrome oxidase (COX), alternative mitochondrial oxidase (AOX), and extramitochondrial oxidases to total respiration was estimated by adding 200 μM potassium cyanide (KCN) to the reaction medium. Oxygen uptake was monitored for 15 min. Absorption rates were calculated from polarographic records assuming an initial dissolved oxygen concentration of 240 μM at 25 °C [
37]. Results are presented in relation to the root fresh weight.

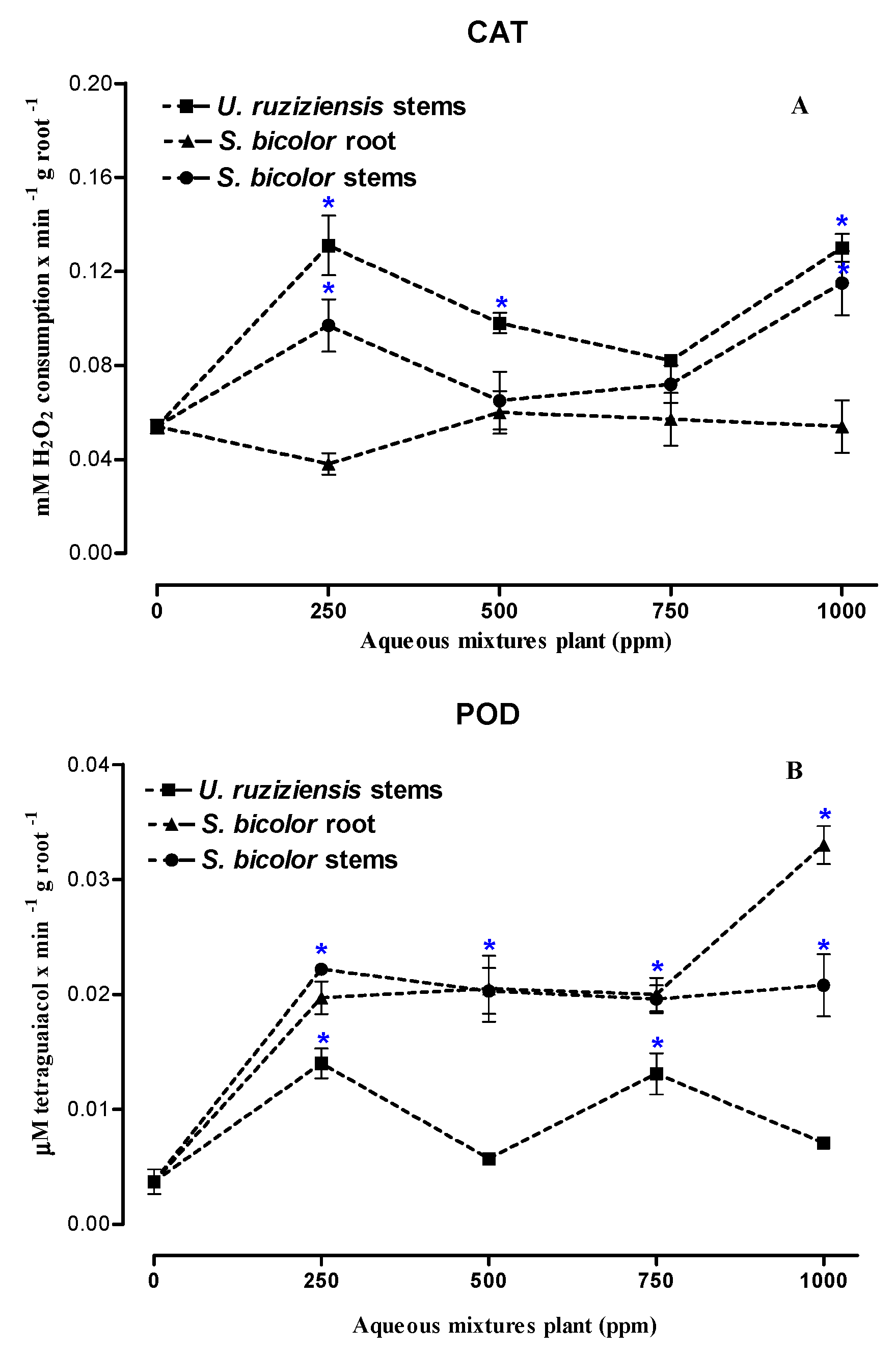

2.7. Antioxidant Enzyme Activity
At 4 days after germination, root fragments (0.2 g) from control and mixture-treated seedlings were collected and homogenized in a mortar (4 °C) with 2.0 mL of extraction medium (phosphate buffer, 67 mM potassium, pH = 7.0; 2% polyvinylpyrrolidone). The homogenate was centrifuged at 3000 rpm for 10 min at 4 °C, and the supernatant was used as enzyme extract for evaluation of peroxidase (POD) and catalase (CAT) activities.
For determination of POD activity, a 200 µL aliquot of enzyme extract was added to 3 mL of reaction medium (25 mM potassium phosphate buffer, pH 6.8; 10 mM H
2O
2; and 2.58 mM guaiacol). POD activity was measured spectrophotometrically at 470 nm using an extinction coefficient of 25.5 mM
−1 cm
−1 [
38]. Results are expressed in millimoles of tetraguaiacol produced per minute per gram of root.
For determination of CAT activity, enzyme extract (100 μL) was added to 3 mL of reaction medium (67 mM potassium phosphate buffer, pH 7.0; 10 mM H
2O
2). CAT activity was measured spectrophotometrically at 240 nm using an extinction coefficient of 0.0394 mM
−1 cm
−1 [
39]. Results are expressed in millimoles of peroxide consumed per minute of reaction per gram of root.
2.8. Statistical Analysis
Four replicate experiments were conducted using a completely randomized design with five mixtures concentrations and four replications. Data were subjected to regression analysis using SigmaPlot version 12.0 (Systat Software, Inc., San Jose, CA, USA), and biologically sound, significant, good-fitting (R2) models (p ≤ 0.05) were selected. Because not all data were satisfactorily described by the tested models, we also compared differences between means using analysis of variance followed by Tukey’s or Duncan’s multiple range test (p ≤ 0.05).
4. Discussion
Euphorbia heterophylla germination was not affected by treatment with aqueous mixtures. However, seedling development was significantly influenced by all tested mixture concentrations. The pattern of changes in respiratory and antioxidant enzyme activities revealed that the production of reactive oxygen species (ROS) started early in E. heterophylla development, as assessed during the 4-day incubation period. Root respiration was predominantly cyanide sensitive, suggesting activation of the cytochrome oxidase pathway.
In the presence
U. ruziziensis aqueous mixture, mitochondria managed to produce substantial amounts of ROS, despite the reduction in mitochondrial respiration and oxygen consumption. This hypothesis was corroborated by the increase in CAT and POD activities. Similar results were observed by Coelho-Pergo et al. [
30], who reported that
U. ruziziensis aqueous extract inhibited mitochondrial respiration and increased CAT activity in
Bidens pilosa roots after only 4 days of incubation. This result shows that inhibition of mitochondrial respiration induces oxidative stress, as ATP production is reduced. ATP is essential for seedling growth, because, in the initial phase of development, seedlings cannot yet rely on photosynthesis for energy production. Another problem with ATP reduction is that the plant’s repair system, that is, the machinery of antioxidant enzymes such as CAT and POD, need this energy source to be produced on a large scale due to the production of ROS. Thus, much of the ATP that is still being produced for the plant goes to the production metabolism of antioxidant enzymes, further hampering energy expenditure with the development of the plant, as seen in this study.
According to Wang et al. [
40], mitochondria are key targets for cell death induction. When a molecule binds to mitochondrial membrane receptors, it can directly affect mitochondrial activity and induce fragmentation and mitophagy. These processes occur from depolarization of the mitochondrial membrane, increasing ROS generation and, consequently, the activity of antioxidant enzymes such as superoxide dismutase and CAT.
Foletto et al. [
41], demonstrated that water-soluble compounds of
U. ruziziensis were phytotoxic to
Ipomoea triloba, disturbing root respiration and lipid peroxidation.
U. ruziziensis extracts contain compounds such as protodioscin and triterpenoid saponins, which are believed to act against weeds [
17]. Protodioscin [
42], is a bidesmosidic saponin formed by a hydrophobic furostanol unit and two sugar units. The compound is easily soluble in water and, therefore, easily absorbed by the plant root. Roots were greatly affected by
U. ruziziensis extract-mixture in this study. It is probable that protodioscin disturbed the mitochondrial membrane, decreasing respiration via cytochrome oxidase and consequently increasing ROS generation.
Sorghum bicolor root mixture had a similar effect as U. ruziziensis mixture on the weed, with the exception that the former did not increase CAT activity. Therefore, it is likely that the mode of action of S. bicolor root mixture was similar to that of U. ruziziensis.
The respiratory activity of primary roots was probably altered via cytochrome oxidase in the presence of
S. bicolor stems mixture. However, the increase in KCN-insensitive respiration suggests that the consumption of non-mitochondrial oxygen was stimulated by activation of transient oxidases not linked to the mitochondrial electron chain, including NAD(P)H oxidase, amine oxidase, polyphenol oxidase, oxalate oxidase, peroxidase, and lipoxygenase [
43]. These enzymes contribute to KCN-insensitive respiration, which accounted for only 37% of the total respiratory activity in the control. Thus, the 17% increase in non-mitochondrial respiration caused by the mixture is a reflection of the increase in ROS production and CAT and POD activities. Detoxification of hydrogen peroxide is an essential aspect of the response of plants to a variety of stressors [
44]. Among other enzymes, class III peroxidases carry out peroxide detoxification. POD isoenzymes may respond differently to the effects of stress.
According to Murimwa et al. [
45], aqueous stem extracts of sorghum increased sesame, black jack, and goose grass phenylalanine amonialiasis (PAL), POD, and polyphenol oxidase (PPO) activity. Stem extracts induced greater oxidative stress on the test species which in turn stimulated enhanced enzyme activity in the test species. This suggests that stem extracts possess more potent allelochemicals because they contain a variety of potent allelochemicals, including dhurrin, a nonpoisonous glycoside which is hydrolysed to from hydrogen cyanide (HCN), and other phenolic compounds responsible for short-term allelopathic effects.
Zucareli et al. [
31], found that
S. bicolor aqueous extract exerted a dose-dependent inhibitory effect on cabbage germination and initial growth. Extracts were obtained from pre-flowering plants (60 days after emergence), as also performed in the present study. The allelopathic activity of sorghum crops is mainly due to the action of cyanogenic glycosides, tannins, flavonoids, ferulic acid, syringic acid, and vanillic acid [
46]. The major allelochemical was found to be the quinone sorgoleone [
47]. The compound inhibits the growth of both roots and shoots in various crop and weed species [
24,
48].
Sorgoleone, together with juglone and flavonoids, greatly affects mitochondrial activity [
49,
50,
51] when used at a concentration of 20 to 1000 μM. Phenolic acids are not as active [
52]. According to Guenzi et al. [
53], decomposed sorghum residues contain substantial amounts of ferulic acid,
p-coumaric acid, vanillic acid, serum, and hydroxybenzoic acid. These allelochemicals stimulate ROS production and therefore contribute to the increase in soluble peroxidases. Phenolic acids react directly with sulfhydryl groups that are fundamental to ATPase activity. These compounds induce the activity of oxidative enzymes such as peroxidases and increase free radical production by promoting lipid peroxidation and altering membrane permeability [
54]. Simultaneously, lignin synthesis in the cell wall is activated. Lignification is putatively associated with increased permeability. Such associated effects contribute to the reduction of root and plant growth [
55]. However, the causal sequence of these events remains unknown.
Aqueous mixtures of S. bicolor roots and stems directly interfered with the mitochondrial respiratory chain, that is, in seedling respiration, affecting E. heterophylla metabolism. Such effects triggered an intense oxidative response, leading to oxidative stress, activation of peroxidases, and, consequently, inhibition of plant development.
According to the literature studied, it is quite clear that each allelochemical present in each aqueous mixture used in this work may present a mechanism of action within the plant. In this study, however, regardless of this, the mode of action of the three mixtures tested was very similar, as it reduced mitochondrial respiration and increased the main antioxidant enzymes, generating oxidative stress in the studied plant.
