Comparative Genomic Mapping Implicates LRRK2 for Intellectual Disability and Autism at 12q12, and HDHD1, as Well as PNPLA4, for X-Linked Intellectual Disability at Xp22.31

by
Jonathan D. J. Labonne
1,
Terri M. Driessen
2,
Marvin E. Harris
1,
Il-Keun Kong
3,
Soumia Brakta
1,
John Theisen
1,
Modibo Sangare
4,
Lawrence C. Layman
1,5,
Cheol-Hee Kim
6,
Janghoo Lim
2,7 and
Hyung-Goo Kim
1,8,*
1
Section of Reproductive Endocrinology, Infertility & Genetics, Department of Obstetrics & Gynecology, Augusta University, Augusta, GA 30912, USA
2
Department of Genetics, Yale University, New Haven, CT 06510, USA
3
Department of Animal Science, Division of Applied Life Science (BK21plus), Institute of Agriculture and Life Science, Gyeongsang National University, Jinju 52828, Korea
4
Faculty of Medicine and Odontostomatology (FMOS), University of Sciences, Techniques and Technologies of Bamako (USTTB), Bamako, Mali
5
Department of Neuroscience and Regenerative Medicine, Augusta University, Augusta, GA 30912, USA
6
Department of Biology, Chungnam National University, Daejeon 34134, Korea
7
Department of Neuroscience, Program in Cellular Neuroscience, Neurodegeneration and Repair, Yale Stem Cell Center, Yale University, New Haven, CT 06510, USA
8
Neurological Disorders Research Center, Qatar Biomedical Research Institute, Hamad Bin Khalifa University, Doha P.O. Box 34110, Qatar
*
Author to whom correspondence should be addressed.
J. Clin. Med. 2020, 9(1), 274; https://doi.org/10.3390/jcm9010274
Submission received: 30 October 2019 / Revised: 28 November 2019 / Accepted: 6 December 2019 / Published: 19 January 2020
(This article belongs to the Special Issue Genetics of Autism Spectrum Disorders)
Browse Figures
Versions Notes

Abstract

:
We report a genomic and phenotypic delineation for two chromosome regions with candidate genes for syndromic intellectual disability at 12q12 and Xp22.31, segregating independently in one family with four affected members. Fine mapping of three affected members, along with six unreported small informative CNVs, narrowed down the candidate chromosomal interval to one gene LRRK2 at 12q12. Expression studies revealed high levels of LRRK2 transcripts in the whole human brain, cerebral cortex and hippocampus. RT-qPCR assays revealed that LRRK2 transcripts were dramatically reduced in our microdeletion patient DGDP289A compared to his healthy grandfather with no deletion. The decreased expression of LRRK2 may affect protein–protein interactions between LRRK2 and its binding partners, of which eight have previously been linked to intellectual disability. These findings corroborate with a role for LRRK2 in cognitive development, and, thus, we propose that intellectual disability and autism, displayed in the 12q12 microdeletions, are likely caused by LRRK2. Using another affected member, DGDP289B, with a microdeletion at Xp22.31, in this family, we performed the genomic and clinical delineation with six published and nine unreported cases. We propose HDHD1 and PNPLA4 for X-linked intellectual disability in this region, since their high transcript levels in the human brain substantiate their role in intellectual functioning.

1. Introduction

Comparative deletion mapping is a powerful strategy to narrow down chromosomal regions of interest to identify underlying disease-causing gene(s) [1,2,3,4,5,6,7,8]. With the availability of high-resolution microarray technology, an increasing number of pathogenic copy number variations (CNVs) responsible for recognizable syndromes are being discovered [9,10,11]. These microdeletion and microduplication syndromes are often associated with intellectual disability, autism spectrum disorders, and multiple congenital anomalies [9,11,12].
Chromosome interval 12q12 is 8.2 Mb in size, containing 28 annotated genes. Interstitial deletions of this region are rare, having only been reported in six patients to our knowledge [13,14,15,16,17,18]. Individuals with 12q12 interstitial microdeletions display a number of clinical features, including psychomotor retardation, craniofacial anomalies, as well as limb and genital anomalies [13,14,15]. Genomic and clinical delineation has enabled the dissection of this region, allowing for the identification of intellectual disability and craniofacial candidate genes YAF2 (MIM 607534) and PRICKLE1 (MIM 608500), while haploinsufficiency of NELL2 (MIM 602320) and DBX2 are suggested to be the cause of psychomotor delay and motor delay, respectively [13,14,15].
CNVs at Xp22.31 are frequently associated with X-linked ichthyosis and intellectual disability, particularly when the CNVs encompass STS (MIM 300747) and VCX3A (MIM 300533) [19,20,21,22]. The STS gene located at Xp22.31 has been shown to be responsible for X-linked ichthyosis, a disorder characterized by dry, thickened, and scaly skin [23,24]. The Xp22.31 segment harbors a dozen annotated genes, including several members of the VCX gene family, including VCX3A (variable charge, X-linked 3A). The VCX families have a high degree of sequence similarity and members of this multi-gene family are known to be ubiquitously expressed in human tissues [20,25].
Here, we report a genomic and clinical delineation at 12q12 and Xp22.31 to identify causative genes for intellectual disability. A total of 14 unpublished and five published CNV cases at 12q12 were used for this comparative genomic mapping study.

2. Clinical Report

The proband DGDP298A (Figure 1A) is presently a nine year old boy born to Australian Caucasian parents, the mother currently being 38 years old and the father 42 years old. The pregnancy was complicated by pregnancy-induced hypertension, and the birth was by C-section (birth weight 3.05 kg). The infant had a right undescended testis which was later repaired. At the age of eight months, the proband could only babble and made no progress with words. The sitting and crawling milestones were reached at the age of nine and 18 months, respectively. A microarray at 16 months revealed a 12q12 microdeletion. MRI and fragile X testing at 18 months were normal.
At age 17/12, the proband displayed global developmental delay and mild failure to thrive—weight (3rd), length (10th), and head circumference (75th) percentiles. Vision and hearing were normal. At age two, gross and fine motor delays and motor planning difficulties were blatant. Appearing right-handed, he could scribble, but had not started shape sorting, construction, or completing basic inset puzzles. He had echolalia, but did not sing along with nursery rhymes. The infant showed minimal comprehension and displayed some eye contact. When responding to commands, nodding, pointing and gesturing were observed. However, his responses were uncoordinated and the boy did not consistently respond to his name being called. The infant walked at 28 months and enjoyed transport toys, blocks, books, TV, and music. His play was mostly exploratory to functional and he did not use symbolic, animative or role-play. He was clingy with his mother and observed play when with his peers. Significant communication disorder in expressive, receptive, and pragmatic areas were observed. His social interaction was limited, and he displayed unusual behavioral patterns. His features were most consistent with a pervasive developmental disorder not otherwise specified (PDD-NOS). A score of >30 was obtained on the Childhood Autism Scale (CARS) and in the Autism Spectrum range on the Autism Diagnostic Observational Schedule (ADOS).
At 35/12 years, there were concerns with his comprehension, intelligibility of speech, ability to attend to tasks, and lack of awareness of saliva control. The child started a program to improve saliva control, oral language, and speech production. He engaged in reciprocal play (Figure 1B), and used appropriate verbal and non-verbal control. The proband could sustain on-task behavior for 2–3 min and accept re-direction to complete tasks. On the pre-school language scale, 5th edition (PLS-5), he scored 50 on receptive oral language, 51 on expressive oral language, and 50 on total language composite, all well below average. His forehead appeared broad and flattened (Figure 1B–D).
At age five, the child struggled to follow basic instructions and spoke only a few words. He displayed anxiety, impaired social skills, poor attention, and constant motion. The boy could not dress himself and was not toilet trained. He fell frequently and could not perform one foot activities (kicking and hopping). His father, who struggles in mathematics and suffers from depression, has the same 12q12 microdeletion, as does the paternal grandmother, who was late walking and struggles to move her hand (Figure 1A). She has had life-long learning difficulties and struggles to say some words.
DGDP289B (Figure 1A), the younger brother by two years of DGDP289A, was admitted to the Children’s Hospital at two months of age for failure to thrive. He had ichthyosis due to the deletion of STS, but upon examination there were no apparent concerns about developmental delay. At seven months, the baby weighed 6.01 kg (<3rd percentile). His length was 65.5 cm (10–25th percentile), while his head circumference was 42.6 cm (10th percentile). He also displayed notable frontal bossing (Figure 1E,F,H). At seven months, the infant was not able to roll from front to back or sit, and had limited neck control. He had dry skin, but no lesions or breakdown of the skin. His testes were palpable bilaterally in the scrotum. The toddler did not grasp or reach for toys and often had unusual hand posturing, holding his arms in an internally rotated and extended position. He held his legs in a scissored extended posture and, when standing, did not take much weight and collapsed. However, his muscle tone in all limbs was normal, and he was not hyperreflexic. DGDP289B was also examined by a physiotherapist and a pediatrician, who noted both mild developmental and speech delays. The infant had some feeding difficulties and displayed bronchiolitis. His mother had concerns about plagiocephaly and noted early right-hand preference. Microarray at nine months revealed a microdeletion at Xp22.31 with no chromosome 12 anomaly. At age one, a videofluroscopy was performed by a speech pathologist, during which he participated cooperatively. He presented with delayed swallowing and an aspiration risk. DGDP289B walked at 32 months, and at 36 months displayed gross motor delay. According to his neurologist, his clinical features resembled cerebral palsy. His healthy mother has the same Xp22.31 microdeletion, with no 12q12 genomic deletion.

3. Materials and Methods

3.1. Cell Culture

Blood obtained from patients DGDP289A, DGDP289B and other family members (Figure 1A) was used to isolate lymphocytes by density gradient centrifugation. From patient’s whole blood samples, lymphocytes were isolated using density gradient centrifugation. Ten mL of the blood sample was layered on top of the 5 mL of Lymphocyte Separation Medium (Cellgro, Manassas, VA, USA) in 15 mL tubes, and the tubes were centrifuged at 400× g for 30 min. From the tubes, the lymphocyte layer in the middle was carefully removed and washed in PBS (Fisher, Pittsburgh, PA, USA) twice at 300× g for 10 min. Then, the lymphocytes were immortalized by adding cyclosporine A (Sigma, St. Louis, MO, USA) and Epstein–Barr virus (EBV) to the cell pellet, and maintained in RPMI (Hyclone, South Logan, Australia) containing 20% fetal bovine serum (Atlas Biologicals, Fort Collins, CO, USA), 1% l-glutamine (Corning, Corning, NY, USA), and 1% penicillin/streptomycin/amphotericin B solution (Corning, Corning, NY, USA) [26].

3.2. Genomic DNA Isolation

Genomic DNA was extracted from blood samples using a standard phenol-chloroform method. [27].

3.3. Microarray

Microarray analysis was performed using the Illumina HumanCytoSNP-12 v2.1 (Illumina, San Diego, CA, USA) in order to detect pathogenic copy number variations (CNVs).

3.4. Quantitative PCR (qPCR) and RT-qPCR

Primers targeting LRRK2 exon 2 and HDHD1 3′-UTR were used to investigate inheritance of the microdeletions at 12q12 and Xp22.31, respectively. We designed primers against the genic and non-genic regions around the boundaries of both microdeletions to determine the location of the proximal as well as the distal deletion breakpoints (Table S1). Primers from non-repetitive regions targeting PNPLA4 3′-UTR, SLC2A13 exon 2, CNTN1 exon 4, and MUC19 exon 7 were also designed for RT-qPCR. Total RNA was isolated from LCLs using the RNeasy Plus Mini kit (Qiagen, Germantown, MD, USA) following the manufacturer’s instructions. One microgram of total RNA from the whole human brain, fetal brain, hippocampus, cerebellum, cerebral cortex, heart, liver, lung, and skeletal muscle was purchased from Clontech (Mountain View, CA, USA). Details of the ages of the individuals from whom the total RNA samples originate have been described previously [7]. Synthesis of cDNA was performed using the RevertAid First cDNA Synthesis Kit (Thermo Scientific, Waltham, MA, USA). Real-Time PCR was carried out using 2 µL cDNA, 2.5 µM primer and 10 µL FastStart DNA Green Master (Roche, Indianapolis, IN, USA) in a 20 µL reaction volume. Samples were run in triplicates and standard deviations were calculated from 2–3 independent experiments. The ΔΔct method was used to determine relative quantification of copy number (qPCR) and transcripts levels (RT-qPCR) [28].

3.5. Protein Network Analysis

An intellectual disability gene list was assembled from a recently published review and two independently curated databases: DISEASES and MalaCards [29,30]. The genes of interest were compared to known LRRK2-interacting proteins documented in the Biological General Repository for Interaction Datasets (BioGRID) [31]. In order to visualize physical and genetic interactions between LRRK2 and intellectual disability genes, as well as among the intellectual disability genes themselves, the search tool for recurring instances of neighboring genes (STRING) was used but limited to interactions derived from experimentation, co-expression, or database mining [32]. Two direct physical interactions listed on BioGRID were not visualized on the STRING network, and were added manually after the production of the STRING network with relevant citations next to the edges [33,34,35]. Protein and disease names with the Online Mendelian Inheritence of Man phenotype ID can be found in Table 1.
The built-in STRING enrichment analysis for gene ontology and KEGG pathways was utilized to identify notable cellular components or biological pathways that proteins of interest are localized to. A similar analysis in ToppCluster and NIH DAVID was used to replicate, and verify, STRING findings [39,40].

4. Results

4.1. Comparative Deletion Mapping at 12q12

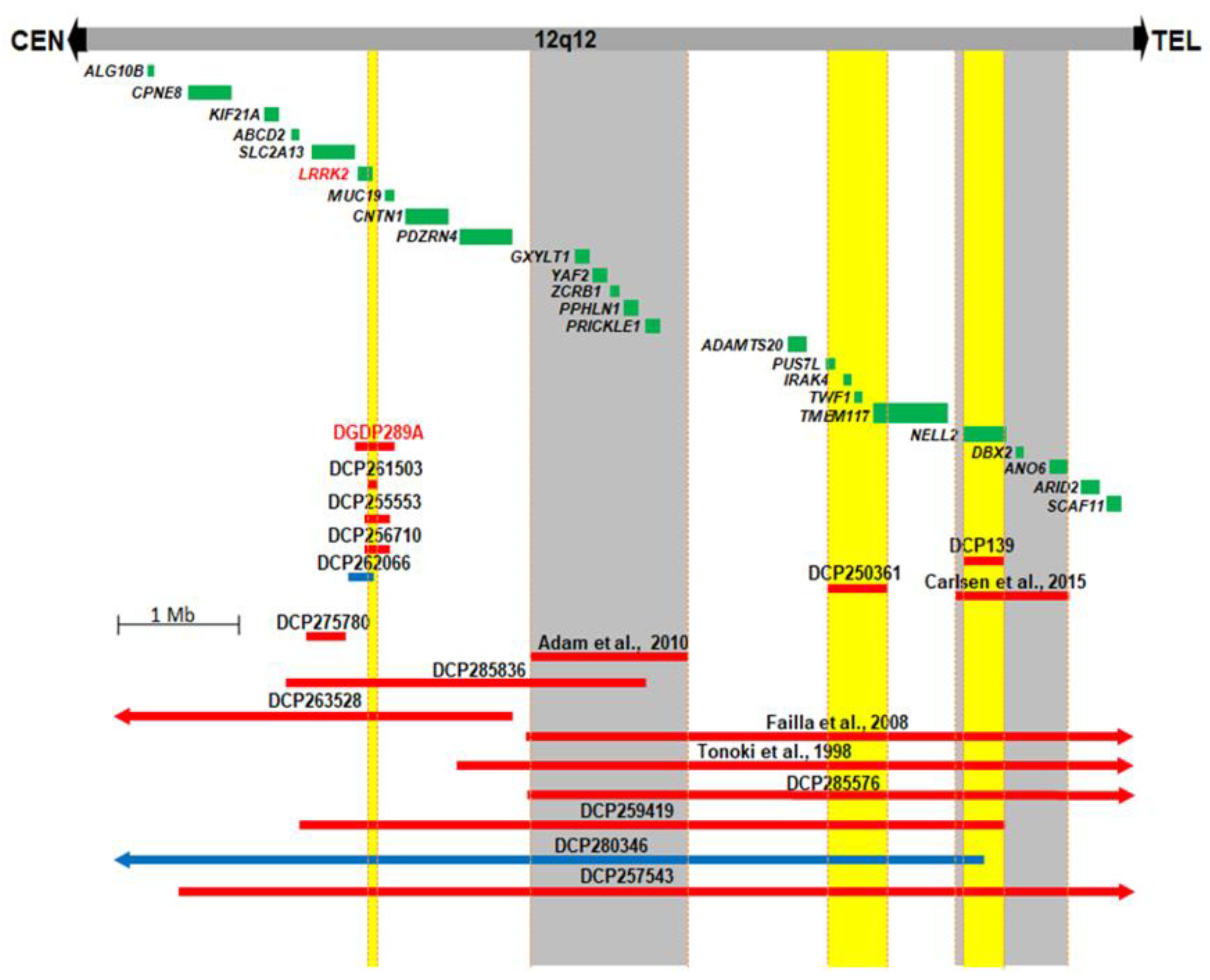

We compared the 12q12 microdeletion in our patient DGDP289A with five CNVs (DCP261503, DCP255553, DCP256710, DCP262066, DCP275780) described in the DECIPHER database [41] (Figure 2). The candidate region, encompassing three genes, SLC2A13, LRRK2, and MUC19, was narrowed down to LRRK2. In addition to the microdeletion and clinical phenotype in DGP289A, two other DECIPHER cases (DCP250361 and DCP139) and two reported cases suggest a total of four 12q12 chromosomal segments which are likely involved in the clinical features of developmental delay/intellectual disability and craniofacial anomalies (Figure 2) [13,14]. Four chromosomal segments highlighted in yellow or gray (Figure 2), each of which are likely involved in clinical features of developmental delay/intellectual disability and craniofacial anomalies, were identified. The first segment encompasses LRRK2, the second segment, a previously published microdeletion [14], includes five genes, GXYLT1, YAF2, ZCRB1, PPHLN1 and PRICKLE1, the third region (DECIPHER case DCP250361) contains deletions of PUS7L, IRAK4, TWF1 and TMEM117, and, in the fourth segment, NELL2 is deleted [13] (Figure 2).

4.2. Comparative Deletion Mapping at Xp22.31

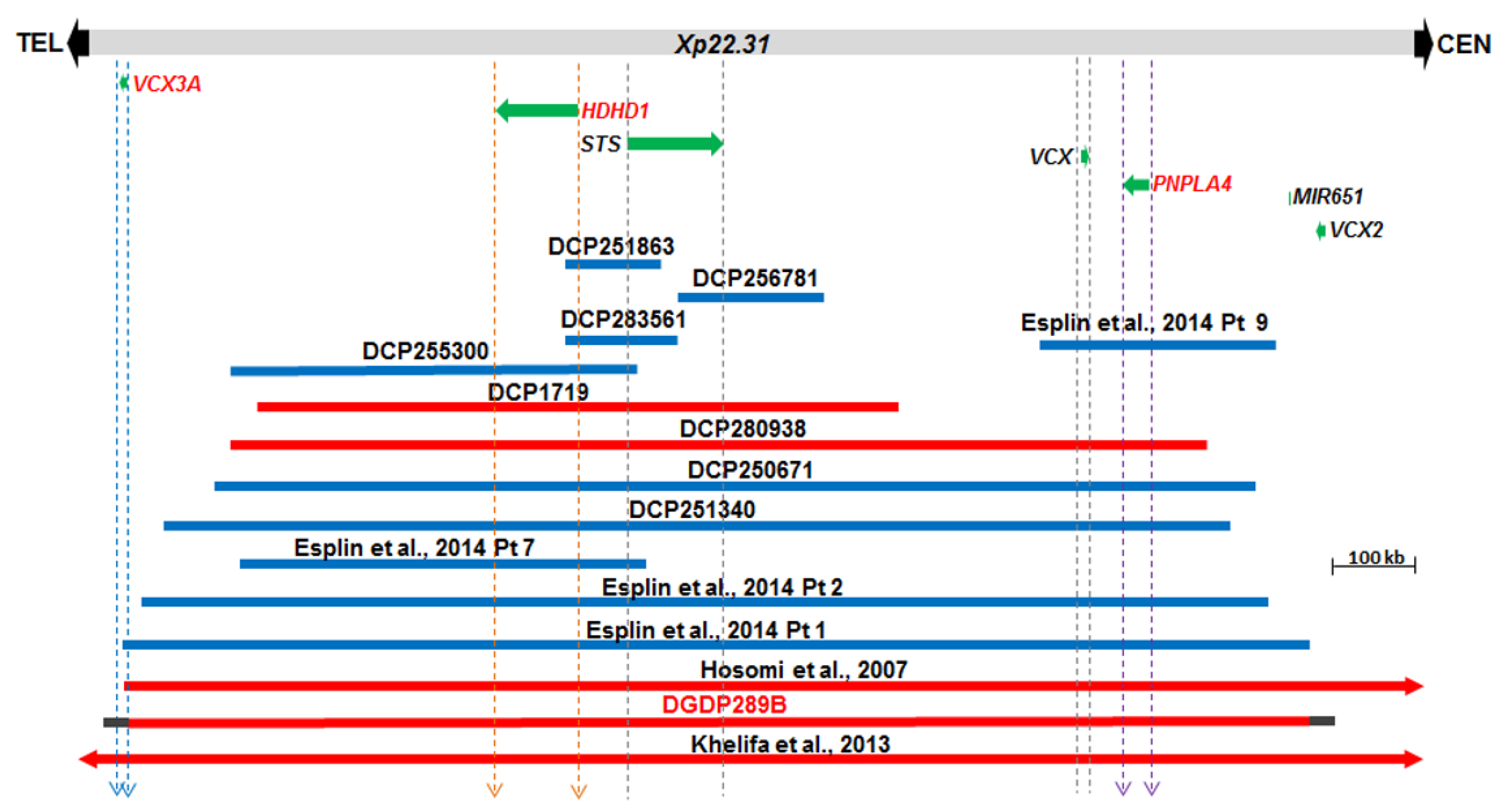

The Xp22.31 microdeletion in the proband’s brother, DGDP289B was compared to 14 CNVs including eight cases derived from the DECIPHER database [41]. The microduplication in DCP256781 involves STS only (Figure 3). Four CNVs (DCP251863, DCP283561, DCP255300, and DCP1719) encompass HDHD1 and STS only, while the microduplication in Patient 9 of Esplin et al. spans VCX and PNPLA4 only [42]. Four larger CNVs (DCP280938, DCP250671, DCP251340 and Patient 2 of Esplin et al. include HDHD1, STS, VCX and PNPLA4 only [42]. The microdeletion in Patient 1 of Esplin et al. truncates VCX3A and spans the four aforementioned genes [42]. The CNVs in patients of Hosomi et al. and Ben Khelifa et al. span at least VCX3A, HDHD1, STS, VCX, PNPLA4, VCX2 and microRNA MIR651 [19,43]. The microdeletion in DGDP289B also includes MIR651. However, due to the repetitive nature of sequences around the VCX genes, we do not know whether VCX3A and VCX2 are also included in the microdeletion in DGDP289B.

4.3. Microarray Analysis of DGDP289A and DGDP289B

A 328 kb minimal deletion at 12q12 (chr12: 40,187,072–40,515,212 GRCh38/hg38) was identified in patient DGDP289A by microarray analysis. The genes involved in the microdeletion include LRRK2 and MUC19 (Figure 2 and Table 1). Patient DGDP289B did not have the 12q12 genomic deletion but possessed a ~1.6 Mb microdeletion at Xp22.31 (chrX: 6,598,694–8,163,401, GRCh38/hg38). The genes encompassed in the Xp22.31 microdeletion include, HDHD1, STS, VCX and PNPLA4 (Figure 3 and Table 2).

4.4. LRRK2 Transcript Levels Were Significantly Reduced in Patient DGDP289A

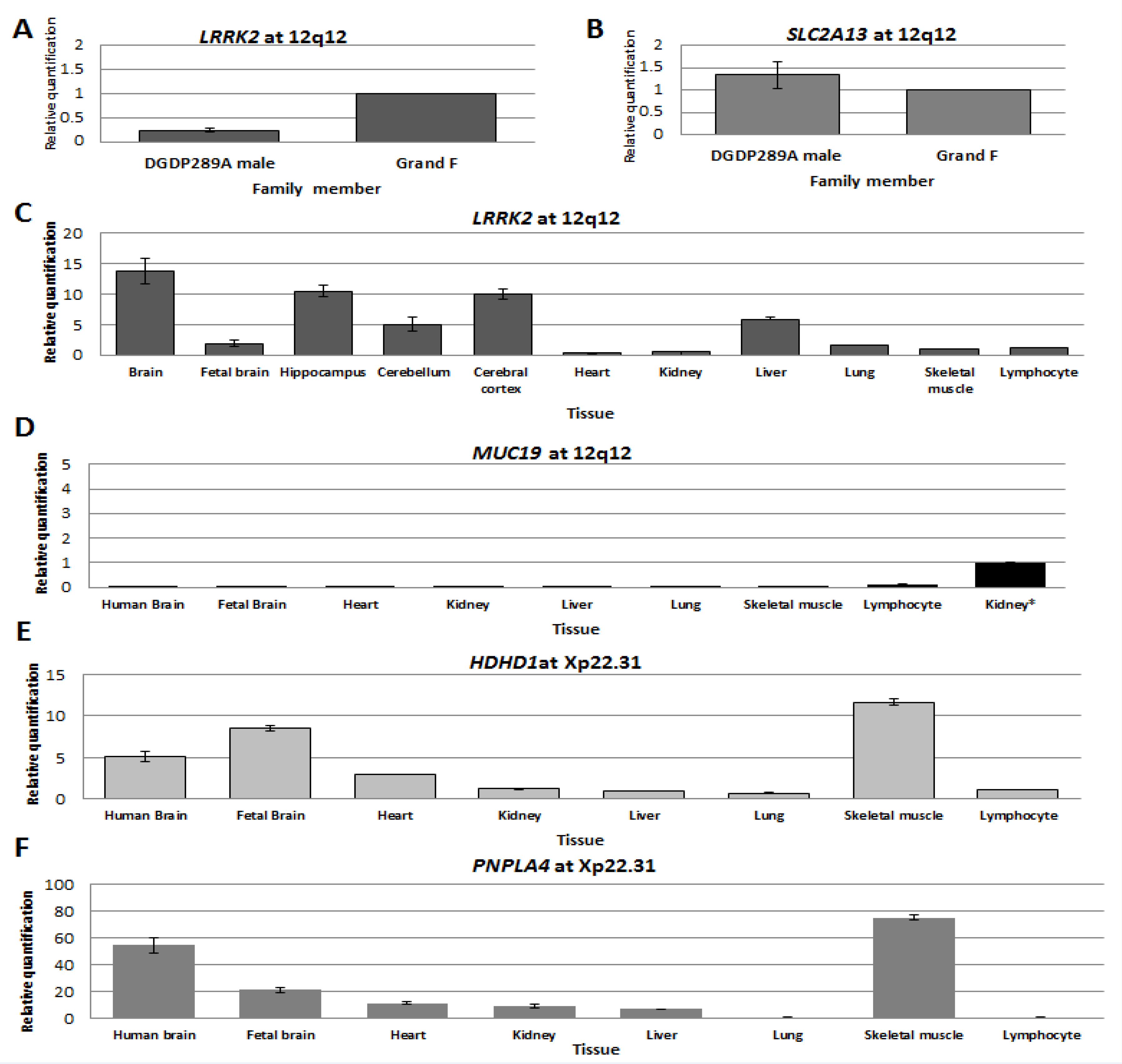

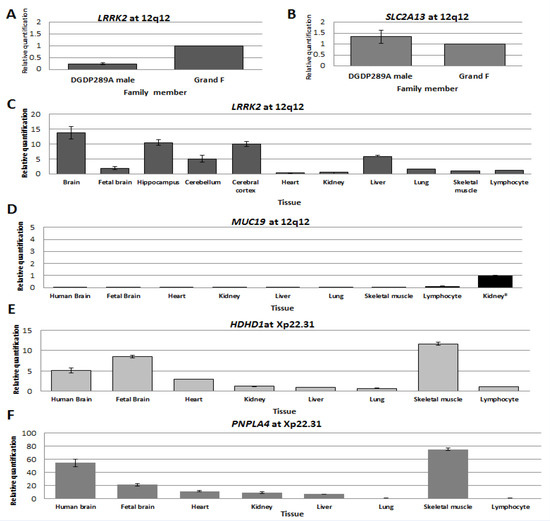

RT-qPCR assays revealed that LRRK2 transcripts were dramatically reduced in DGDP289A compared to his healthy grandfather (Figure 4A). Notably, the expression of SLC2A13 was similar to his grandfather (Figure 4B). We observed high levels of variation in CNTN1 transcripts between the patient, his mother and his grandfather.

4.5. Transcripts Levels of LRRK2 and MUC19 in the Brain and Other Tissues

We determined the levels of LRRK2 and MUC19 transcripts in different regions of the brain and other major human tissues. Compared to skeletal muscle, LRRK2 transcripts were ~14-fold higher in whole human brain, 10-fold higher in the hippocampus and cerebral cortex, and five-fold higher in the cerebellum and liver (Figure 4C). No MUC19 transcripts were detected in tissues assayed, except in lymphocytes, where they were very low (Figure 4D).

4.6. Transcript Levels of HDHD1 and PNPLA4 in the Brain and Other Tissues

In the case of HDHD1, relative to lymphocyte, transcript levels were 12-fold higher in skeletal muscle, eight-fold higher in the fetal brain and five-fold higher in the whole human brain (Figure 4E). High levels of PNPLA4 transcripts were detected in skeletal muscle (~70-fold increase) and the whole human brain (50-fold increase compared to lymphocytes), while levels were lower in the fetal brain, heart, kidney and liver (Figure 4F).

4.7. Inheritance of 12q12 and Xp22.31 Microdeletions in the DGDP289 Family

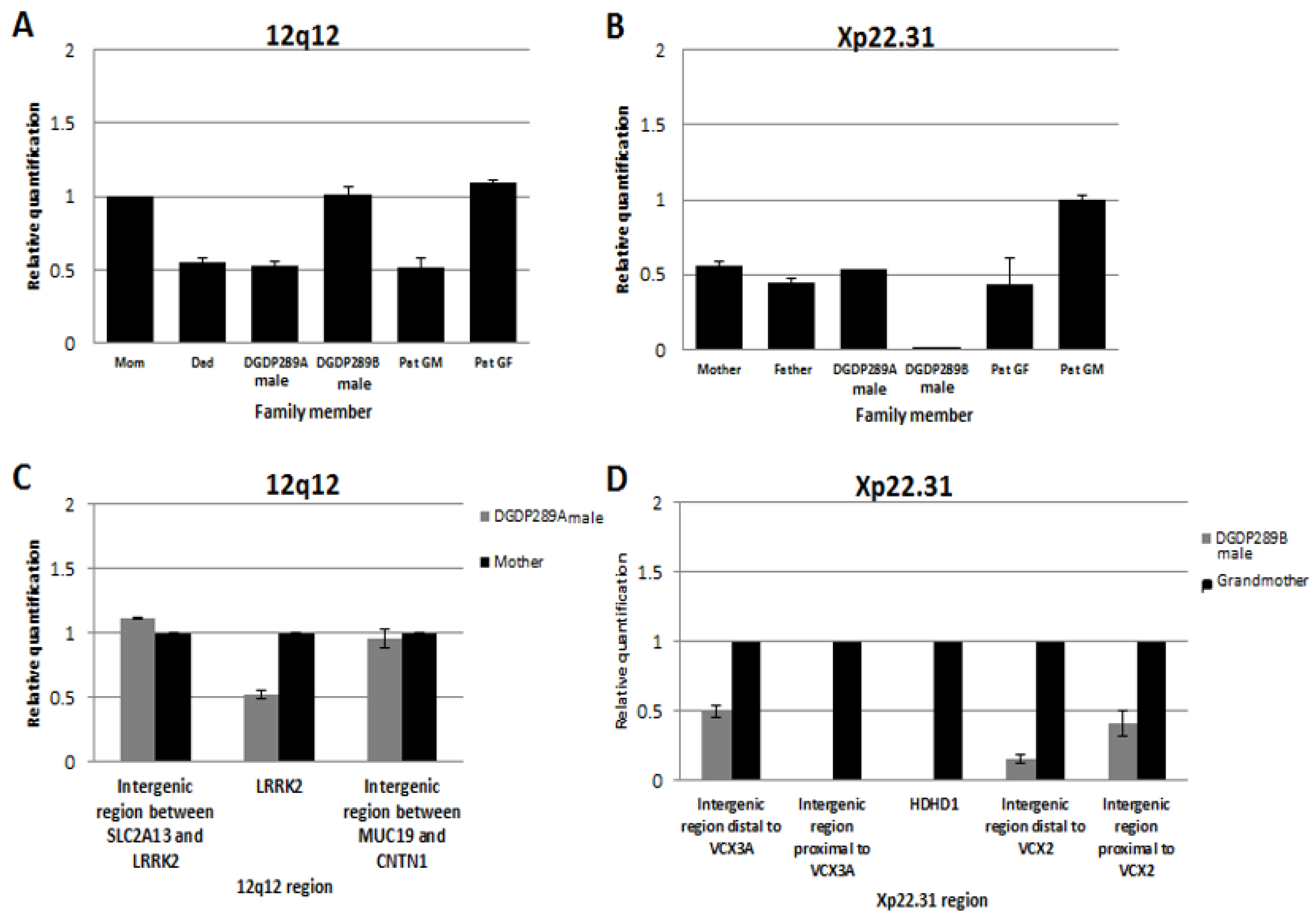

Assays by qPCR revealed that the 12q12 microdeletion in DGDP289A was inherited from his father, who in turn acquired it from his mother (the patient’s paternal grandmother) (Figure 5A). The mother and paternal grandfather of DGDP289A did not have the 12q12 microdeletion. qPCR assays also revealed that the Xp22.31 microdeletion in DGDP289B was inherited from his healthy mother (Figure 5B). Males are hemizygous for the Xp22.31 region, as seen in the copy number in the patient’s father compared to the paternal grandmother.

4.8. Delineation of Deletion Breakpoints by qPCR in DGDP289A and DGDP289B

Assays by qPCR revealed that the 12q12 microdeletion does not extend into the two neighboring genes SLC2A13 or CNTN1 in the centromeric and telomeric directions, respectively. The proximal breakpoint was found to reside in the intergenic region between SLC2A13 and LRRK2, while the distal deletion breakpoint was located in the intergenic region between MUC19 and CNTN1 (Figure 5C). As a result, this microdeletion encompasses only two genes, LRRK2 and MUC19 at 12q12 in DGDP289A. The distal breakpoint of the Xp22.31 microdeletion was found to reside either within or in the immediate telomeric vicinity of VCX3A. A first intergenic region, which is 2.4 kb proximal to VCX3A, was deleted, while a second intergenic region, 5.7 kb distal to VCX3A, was intact. On the centromeric side, a 3.7 kb intergenic region distal to VCX2 was deleted, but a 0.1 kb proximal intergenic region was intact, indicating the distal breakpoint was located between VCX2 and VCX3B (Figure 5D). Because of the repetitive sequences within VCX genes, it was not possible to determine whether VCX3A and VCX2 are truncated. At least five genes (HDHD1, STS, VCX, PNPLA4, MIR651) are deleted at Xp22.31 in DGDP289B.

4.9. LRRK2 Interacts with Proteins Previously Linked to Intellectual Disability

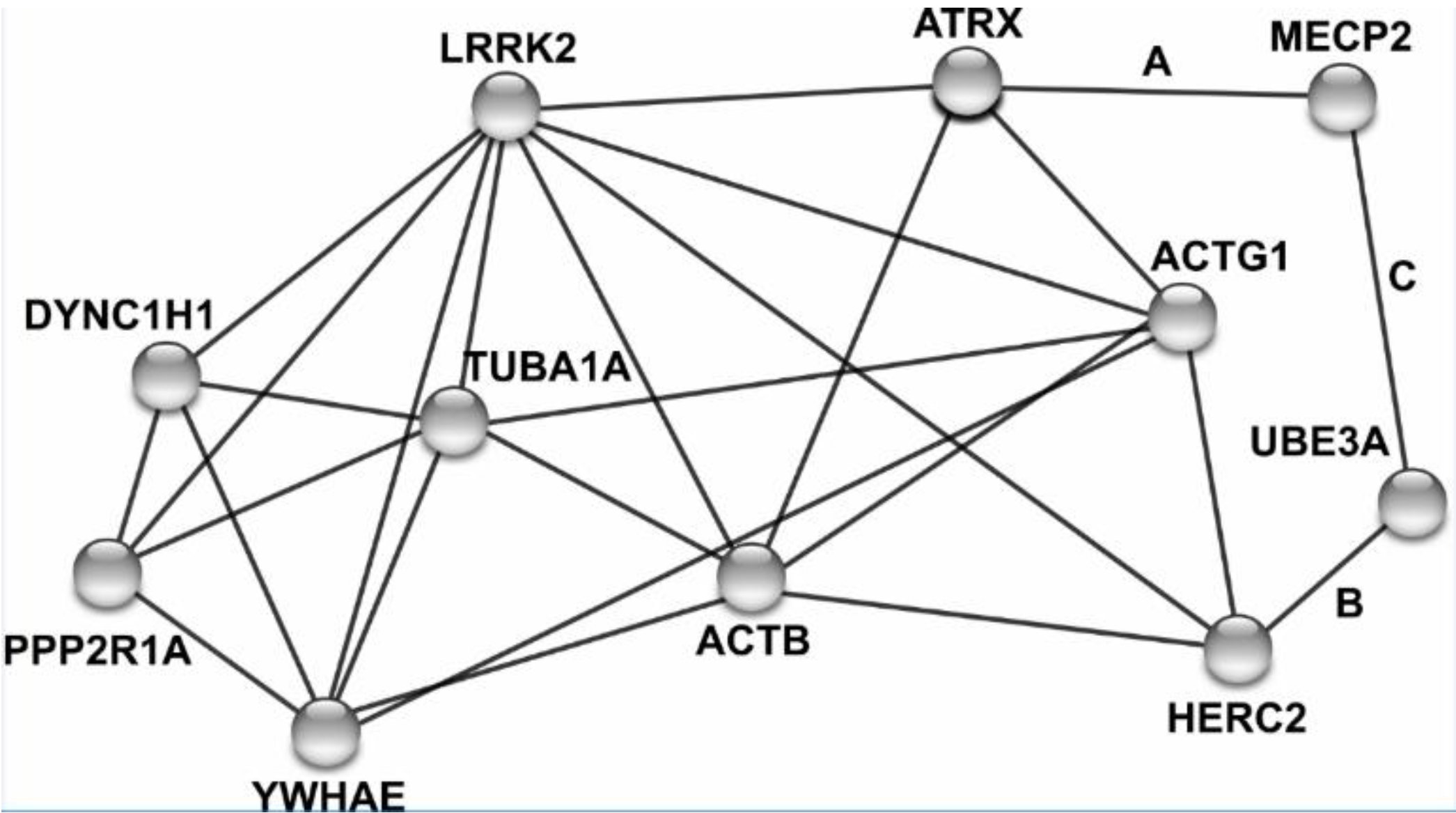

After consolidating intellectual disability gene lists from two databases and one recent review article, we identified eight LRRK2 interacting proteins that have previously been linked to intellectual disability: ACTB [48], ACTG1 [48], ATRX [49], DYNC1H1 [50], HERC2 [51], PPP2R1A [52], TUBA1A [53,54], and YWHAE [55] (Figure 6 and Table 3).
Expanding the network to include a secondary set of physical interactions revealed MECP2 and UBE3A interact themselves, and physically interacted with ATRX and HERC2, respectively [33,34,35]. Pathway analysis with the eight initial genes of interest with LRRK2 did not yield enrichment for notable biological pathways, however, it did identify a large proportion of the six interacting proteins that localize to the cytoskeleton (ACTB, ACTG1, DYNC1H1, HERC2, PPP2R1A, and TUBA1A).

5. Discussion

There are few published cases of pathogenic CNVs in the gene-rich 12q12 interval [13,14,15,18]. Patient DGDP289A displays developmental delays, autism, impaired motor skills and craniofacial anomalies and has a ~328 kb minimal microdeletion at 12q12, encompassing LRRK2 and MUC19 (Figure 2). We searched the DECIPHER database and identified three additional small-sized microdeletions (DCP261503, DCP255553, and DCP256710) and one microduplication DCP262066 involving LRRK2 and MUC19. LRRK2 is likely dysregulated in DCP275780 by a position effect (Figure 2) [64]. Phenotypic availability from two of the six cases shows that both DCP255553 and DCP256710 present with intellectual disability as well as craniofacial anomalies, and DCP256710 also exhibits autistic behavior (Table 4). The MUC19 gene is involved in the synthesis of mucus, which is important for the protection of mammalian epithelia of various tissues against environmental damage. It is expressed in several glandular tissues, including the submandibular gland, submucosal gland and sublingual gland [38]. LRRK2 is known to cause autosomal-dominant late-onset Parkinson disease 8 (PARK8, MIM 607060) [65]. It physically interacts with Parkin at 6q26 (PARK2, MIM 602544), a component of a multiprotein E3 ubiquitin ligase complex, and is the cause of 50% of autosomal recessive juvenile Parkinsonism (ARJP) [66,67,68]. The neurological function of LRRK2, along with the results of comparative deletion mapping, suggest that this gene is likely to be involved in intellectual disability, craniofacial anomalies, and autism.
The 328 kb deletion at 12q12, segregating with all three affected members of the three generations (Figure 1A), suggests the pathogenicity of this CNV in intellectual disability. In addition to depression, the father of DGDP298A has a learning disability in mathematics. This cognitive phenotype was seen in other patients with intellectual disabilities [8,69]. To further support our hypothesis that LRRK2 is a candidate gene for cognitive impairment, we examined the transcript levels of both LRRK2 and MUC19 in human tissues. No MUC19 transcripts were detected in the whole human brain, fetal brain, heart, kidney, liver and lung, while low levels of expression were recorded in lymphocytes. This observed expression pattern indeed shows that MUC19 is highly unlikely to be the causative gene for intellectual disability and autism. Interestingly, LRRK2 transcripts were expressed at high levels in the whole human brain, cerebral cortex and hippocampus (Figure 4C), the latter being a brain region known to be associated with memory and learning [70]. Lower expression levels of LRRK2 were detected in the cerebellum and liver, while its transcripts were present at a much lower level in the heart, kidney, lung, and skeletal muscle. The high level of LRRK2 expression in the different regions of the brain, particularly in the hippocampus, is consistent with a potential role in autism and learning disability. This notion is further corroborated by the clinical features of intellectual disability and autism seen in DCP255553 and DCP256710 (Figure 2 and Table 4).
The age of onset of autosomal-dominant Parkinson disease (PD), caused by LRRK2, is approximately 53 years [65], while autism was observed in DGDP289A at age two. This suggests that neuronal dysfunction occurring as a result of the LRRK2 heterozygous deletion manifests early in infancy. In contrast to the gain-of-function mechanism involved in LRRK2-mediated autosomal-dominant PD [37], intellectual disability or autism appears to be due to LRRK2 loss-of-function from haploinsufficiency. Transcript levels of SLC2A13 in DGDP289A were similar to his healthy grandfather (Figure 4B), while CNTN1 showed a high variation in transcripts between family members (data not shown). Therefore, SLC2A13 and CNTN1, flanking the microdeletion, appear unlikely to be dysregulated by a position effect.
The transcript level of LRRK2 was drastically reduced in our microdeletion patient DGDP289A compared to his grandfather, corroborating its role in cognitive development (Figure 4A). The decreased expression of LRRK2 in patient DGDP289A may adversely affect LRRK2 in vivo activity via decreased binding to LRRK2 binding partners. The physical interaction between LRRK2 and eight proteins with documented mutations linked to intellectual disability is further evidence to support the role of LRRK2 in cognitive impairment (Table 3). Mutations in the eight proteins listed have been shown to result in varying degrees of craniofacial abnormalities, intellectual disability, and motor or psychomotor retardation [56,57,58,59,60,61,71,72,73,74,75]. However, the relationship between LRRK2 and the eight proteins of interest have been largely studied in relation to PD or Crohn’s disease, but not intellectual disability, though extrapolations can be made. For example, LRRK2 has been shown to interact with NEURL4 and HERC2, an E3 ubiquitin ligase, and together, they negatively regulate Notch signaling and increase neuronal differentiation in embryonic mouse brain [51]. Several previous studies have shown that Notch signaling is associated with learning and memory and neuronal plasticity [76]. Based on these associations, and the interaction between LRRK2 and known intellectual disability genes, it appears that LRRK2 may play a role in a core molecular pathway that governs cognitive development, though future studies are necessary.
Though pathway analysis requires a more substantial list of genes to identify enrichment for specific biological processes, the observation that the majority of the interacting proteins are localized in the cytoskeleton is noteworthy. Previous studies have shown that alterations in dendrites and dendritic spines are a hallmark of intellectual disability, and the mutations of LRRK2 has been shown to alter dendritic morphology [77]. In particular, loss of Lrrk2 in mice contributes to a decrease in the number of striatal projection neuron spines and alters their morphology [78], and knockdown of Lrrk2 has been systematically shown to increase neurite length [79]. The expression pattern of LRRK2 in the CNS also points to its involvement in cognitive development. Lrrk2 is first expressed on postnatal day (P) 8 in rat striatum, though it is expressed in the hippocampus and cerebral cortex as well, and expression levels increase over the course of development until they remain constant during adulthood [80]. The P8 time point in rodents is characterized by increasing axonal and dendritic density that developmentally corresponds with a late third trimester human infant [79]. Thus, the increase in LRRK2 mRNA expression during rodent development appears to coincide with increasing synaptic density and neuronal complexity, making it a likely candidate for intellectual disability, where there are known alterations in dendritic spines and neurite length.
Comparative deletion mapping with a total of 19 CNVs delimited three chromosomal segments in the 12q12 region, in addition to the region encompassing LRRK2 (Figure 2). The second segment is represented by a previously reported microdeletion [14]. This region also overlaps with three published cases, as well as five DECIPHER cases (Figure 2) [14,15,18]. Common clinical features between these published cases include intellectual disability and craniofacial anomalies, and are also represented in a patient [14]. Failla et al. suggested YAF2 and PRICKLE1 as candidate genes in their patients, which were substantiated by a smaller microdeletion found in another patient with similar phenotypes [14]. Interestingly, a homozygous mutation in PRICKLE1 (prickle homolog 1 Drosophila, aka RILP for REST/NRSF interacting LIM domain protein) causes an autosomal recessive myoclonus epilepsy-ataxia syndrome (EPM1B, MIM 612437) [81]. The third segment, demarcated by the deletion in DCP250361, with clinical features of intellectual disability and craniofacial anomalies, encompasses four annotated genes (Figure 2). Among them, two genes are conspicuous. PUS7L (pseudouridylate synthase 7 homolog (S. cerevisiae)-like) interacts with APP (amyloid beta A4 protein isoform a precursor, MIM 104760) [82], a well-known gene for autosomal-dominant Alzheimer disease [83]. TWF1 (twinfilin actin-binding protein 1) interacts with APP [82] and UBE2A (ubiquitin-conjugating enzyme E2A isoform 1, MIM 312180) [84]. Intriguingly, the mutations of UBE2A cause XLID [85]. We propose PUS7L and TWF1 as likely candidate genes on the telomeric region of 12q12 for the intellectual disability and craniofacial anomalies seen in DCP250361 (Figure 2, Table 4).
The microdeletion case reported in Carlsen et al. designates the fourth segment highlighted in gray (Figure 2), and the smaller-sized microdeletion in DCP139 is completely contained within this region [13]. Both patients display intellectual disability, craniofacial and eye anomalies. Carlsen et al. suggested two candidate genes in this region, NELL2 (NEL-like 2 chicken) and DBX2 (brain homeobox 2) [13]. The intragenic microdeletion of DCP139 within NELL2 strongly suggests that it is the more likely candidate for the intellectual disability seen in the patient DCP139 (Figure 2 and Table 4). A yeast two-hybrid (Y2H) screen found that NELL2 interacts physically with CACNA1A (calcium channel, voltage-dependent, P/Q type, alpha 1A subunit) [86]. Mutations of CACNA1A were reported in familial hemiplegic migraine and episodic ataxia type-2, spinocerebellar ataxia type 6 (SCA6), and cognitive impairment, including intellectual disability, autism, epilepsy, and ADHD [87,88,89]. Moreover, the same study showed that NELL2 interacts with ATAXIN7 (ATXN7, MIM 607640), the causative gene for spinocerebellar ataxia type 7 (SCA7) [90]. These data suggest the plausible candidacy of NELL2 in intellectual disability and craniofacial anomalies. As a transcription repressor, Xenopus Dbx2 (developing brain homeobox 2) is involved in primary neurogenesis and early neural plate patterning [91]. A homozygous intronic splice-acceptor mutation in ANO6 (Anoctamin 6) resulting in a premature stop codon has been identified in a patient with Scott syndrome, a bleeding disorder defined by reduced surface exposure of procoagulant phosphatidylserine (PS) on blood cells as a consequence of activation with Ca2+-elevating agents [92]. Genital anomalies were also observed in patients with genomic deletions in the 12q12 interval [15,18]. However, this phenotype appears to be sporadic, displayed by patients with CNVs involving one or more of the delimited chromosomal segments (Table 4).
CNVs at Xp22.31 encompassing STS and VCX3A are frequently associated with ichthyosis, and sometimes intellectual disability [19,23,24,93]. There are at least 100 XLID genes identified so far [94,95]. Among them, NLGN4 is the only gene identified for XLID, along with autism and Asperger syndrome at Xp22.31 [96,97] and, more than a decade ago, VCX3A was proposed as a candidate gene to account for intellectual disability in this region [20]. The VCX3A gene was found to be deleted in patients with intellectual disability, whereas patients with more proximal CNVs, not including VCX3A, displayed normal intelligence [20]. The manifestation of intellectual disability in individuals with CNVs encompassing VCX3A appears to be under the influence of incomplete penetrance, because not all male patients with a deletion involving VCX3A display cognitive impairment [98,99]. Four small microduplications (DCP251863, DCP256781, DCP283561, DCP255300), one microdeletion DCP1719, and microduplication Patient 7 of Esplin [42] were identified as encompassing both HDHD1 and STS only. The common phenotype of all these patients is intellectual disability, strongly suggesting HDHD1 as a candidate gene for this cognitive impairment, since STS is the causative for X-linked ichthyosis (Figure 3 and Table 5). This is more evident if we look at the two smallest CNVs, DCP251863 and DCP283561, with the common phenotype of intellectual disability. Although DCP256781 is not directly disrupting HDHD1, it is likely that a position effect dysregulates its expression. Patient 2 of Esplin [42] and three CNV patients from Decipher (DCP280938, DCP250671, and DCP251340) involving HDHD1, STS, VCX, PNPLA4 also display intellectual disability. Interestingly, Patient 9 of Esplin et al., with only PNPLA4 and VCX duplicated, presents with cognitive impairment. This suggests that additional genes for intellectual disability reside in the centromeric Xp22.31 region.
The transcript levels of two positional candidate genes (HDHD1 and PNPLA4) in this chromosomal region were examined in the human brain and other tissues. The HDHD1 gene is a pseudouridine-5′-phosphatase [44], while the PNPLA4 (patatin-like phospholipase domain containing 4) encodes a triacylglycerol lipase/acetylase [47]. The transcript levels of HDHD1 were higher in the skeletal muscle, whole human brain, and fetal brain, with significantly lower levels detected in the heart, kidney, lung and lymphocyte (Figure 4E). The high HDHD1 expression in the brain and skeletal muscle supports its role in cognitive and muscle dysfunction, such as intellectual disability and hypotonia, exemplified in Patient 7 of Esplin et al. [42] (Figure 3 and Table 5). Transcripts levels of the second positional candidate gene (PNPLA4) showed a similar pattern of expression, except that its expression level is higher in the whole human brain than the fetal brain. PNPLA4 transcript levels were lower in the heart, kidney and liver, and extremely low in the lung and lymphocytes (Figure 4F). The very high levels of PNPLA4 transcript in the brain and skeletal muscle suggest that it also contributes to cognitive and muscle impairment, exemplified in Patient 9 of Esplin et al. [42] (Figure 3 and Table 5).

6. Conclusions

We provide supporting data of the pathogenicity of the 12q12 and Xp22.31 microdeletions in neurological phenotype through comparative deletion mapping and expression analysis. Most importantly, for the first time, we show the likely involvement of LRRK2 haploinsufficiency in early-onset cognitive impairment, in stark contrast to late-onset Parkinsonism by the gain-of function mechanism of LRRK2. Additionally, we suggest PUS7L and TWF1 as candidate genes for intellectual disability and craniofacial anomalies on the telomeric region of 12q12. We also propose HDHD1 and PNPLA4 as likely genes for XLID at Xp22.31. Further refinement of phenotype–genotype correlations at 12q12 and Xp22.31 will require the identification of smaller informative microdeletions, microduplications or rare point mutations of individual genes within these two chromosome regions. The unavailability of deleterious mutations in our positional candidate genes, including LRRK2, is the current limitation to this study to further investigate their functional consequences. Point mutations in single genes would be invaluable in understanding the individual contributions of each gene in syndromic intellectual disability or autism at 12q12 and Xp22.31.

Supplementary Materials

The following are available online at https://www.mdpi.com/2077-0383/9/1/274/s1, Table S1: Primers used for qPCR and RT-qPCR.

Author Contributions

J.D.J.L. wrote the manuscript and performed experiments. T.M.D. and J.L. performed system biology work. M.E.H., I.-K.K., S.B., J.T., and M.S. organized the collaboration and contributed to the analysis and interpretation of the clinical data of the patients. L.C.L. and C.-H.K. supervised the research and designed the experiments, and co-wrote the paper. H.-G.K. conceived and designed the study, analyzed the data, and wrote the manuscript. All authors contributed to the interpretation of data, to reviewing the manuscript critically, and approved its final version. All authors have read and agreed to the published version of the manuscript.

Funding

The publication of this article was funded by the Qatar National Library. We gratefully acknowledge the funding support provided by Caroline Jones-Carrick and Collin Carrick, the National Institute of Mental Health grant R21 MH119803 (to J.L.), the National Institute of Neurological Disorders and Stroke grants R01 NS083706 (to J.L.), R01 NS088321 (to J.L.), and the National Institute on Aging grant P50 AG047270 (Pilot Project Grant to J.L.), and the startup funding of the Qatar Biomedical Research Institute at Hamad Bin Khalifa University (H.-G.K.).

Acknowledgments

We would like to thank the family who kindly consented to participate in this genetics study. We also wish to thank Lynn Chorich for reading this manuscript and Tyler Graves for the cell culture. This study was undertaken following the guidelines established by the Institutional Review Board (IRB) at Augusta University.

Conflicts of Interest

The authors declare no conflict of interest.
