Article

Molecular Pattern and Density of Axons in the Long Head of the Biceps Tendon and the Superior Labrum

by
Sandra Boesmueller
1,*,†,
Roland Blumer
2,†,
Bernhard Gesslbauer
3,
Lena Hirtler
2,
Christian Fialka
1,4 and
Rainer Mittermayr
1,5
1
AUVA Trauma Center Vienna Meidling, Kundratstraße 37, 1120 Vienna, Austria
2
Center for Anatomy and Cell Biology, Medical University of Vienna, Währinger Straße 13, 1090 Vienna, Austria
3
Department of Surgery, Division of Plastic and Reconstructive Surgery, Medical University of Vienna, Währinger Gürtel 18-20, 1090 Vienna, Austria
4
Faculty of Medicine, Sigmund Freud University, Freudplatz 1, 1020 Vienna, Austria
5
Ludwig Boltzmann Institute for Experimental and Clinical Traumatology, Donaueschingen Straße 13, 1200 Vienna, Austria
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
J. Clin. Med. 2019, 8(12), 2129; https://doi.org/10.3390/jcm8122129
Submission received: 19 October 2019 / Revised: 24 November 2019 / Accepted: 26 November 2019 / Published: 3 December 2019
(This article belongs to the Section Orthopedics)
Browse Figures
Versions Notes

Abstract

:
The type II superior labrum anterior to posterior (SLAP) repair is a viable option in young and demanding patients, although a prolonged period of pain after surgery is described in the literature. The reason for this fact remains unknown. Thus, the purpose of this study was to investigate the molecular pattern of the biceps tendon anchor, where the sutures for repair are placed. The long head of the biceps tendon (LHBT), including the superior labrum, was dissected in the setting of reverse total shoulder arthroplasty. Immunohistochemical staining was performed using neurofilament (NF) and protein gene product (PGP) 9.5 as general markers for axons and calcitonin gene-related peptide (CGRP) and substance P for nociceptive transmission. A quantitative assessment was performed according to the two regions of interest (ROIs), i.e., the anterosuperior (ROI I) and the posterosuperior labrum (ROI II). Eleven LHBTs with a mean age of 73 years (range: 66–87 years) were harvested intraoperatively. Six LHBTs were gained in osteoarthrosis and five in fractures. We found an inhomogeneous distribution of axons in the anterosuperior and posterosuperior parts of the labrum in all the specimens irrespective of the age, gender, and baseline situation. There was a significantly higher number (p < 0.01) as well as density (p < 0.001) of NF-positive axons in ROI I compared to ROI II. Nociceptive fibers were always found along the NF-positive axons. Thus, our results indicate that the biceps tendon anchor itself is a highly innervated region comprising different nerve qualities. The anterosuperior labrum contains a higher absolute number and density of axons compared to the posterosuperior parts. Furthermore, we were able to prove the presence of nociceptive fibers in the superior labrum. The results obtained in this study could contribute to the variability of pain after SLAP repair.

1. Introduction

One of the recommended surgical options for the type II superior labrum anterior to posterior (SLAP) lesion is arthroscopic repair using knotless suture anchors [1,2,3]. Although SLAP lesions represent a rare entity in the spectrum of shoulder injuries in younger patients, the number of repairs has tremendously increased in the first decade of this century [4,5]. Later on, the treatment priority changed toward biceps tenodesis as clinical results and the interval to return to sports activities, especially in overhead athletes as well as in patients aged 40 years or older, were not that promising [6,7,8,9,10,11]. The latest results even suggest that surgical treatment has no superiority over sham surgery or non-operative treatment [12,13,14]. Interestingly, recent editorial comments in high impact journals have pointed out that there still do not exist any guidelines regarding history, examination, diagnosis, and imaging of the SLAP lesion [15,16]. In addition, it is criticized that there are no criteria for successful SLAP repair and no consensus is available for surgical indications, characteristics, or rehabilitation [17]. This deficiency might even cause the impression that time has brought us back to the start.
Research focuses on clinical outcomes with no direct indications for or against a surgical technique [5,8,9,10,11,18]. Detrimental facts like persistent pain after SLAP repair is commonly described, but a possible explanation for this is still under investigation [6,9,19,20,21,22]. An increase in knowledge could be achieved by a more fundamental approach investigating the anatomical and histological features of the area of interest. As pain derives from unmyelinated axons, a few authors have already performed histological studies using neurofilament visualization to verify neural structures in the long head of the biceps tendon (LHBT) [23,24]. Furthermore, neurons have also been traced by neurofilament staining in the superior labrum, where suture anchors for SLAP repair are usually placed with an inhomogeneous density and distribution [25]. An evidence for differentiation into different nerve qualities has not yet been investigated in this area so far.
Thus, this study aims to prove that axons are present in the biceps tendon anchor comprising different nerve qualities, especially fibers responsible for the transmission of pain, by using different antibody staining. Since there is evidence that following SLAP repair, pain is more prominent when anchors are placed anterior and posterior versus posterior [26], we hypothesize that the neuronal structures display an unequal distribution with varying density in the anterosuperior as well as posterosuperior labrum.

2. Materials and Methods

The long head of the biceps tendon (LHBT), including the anterior and posterior parts of the superior labrum, was dissected intraoperatively in the setting of reverse total shoulder arthroplasty (RTSA) implanted either in osteoarthrosis (OA) or non-reconstructable Neer grade III or IV fractures (Figure 1). The anterosuperior labrum was marked with a suture to assure the correct orientation in the histological investigations. The inclusion criterion was a macroscopically intact long biceps tendon and its anchor in the superior labral region. Exclusion criteria were patients with a LHBT rupture, patients who had undergone previous biceps tenotomy, and patients with an apparent damage such as longitudinal ruptures or tendinosis. All tendons were assessed by the first (S.B.) and senior (R.M.) authors prior to histological investigations.

2.1. Immunohistochemistry

All specimens were fixed in 4.5% formaldehyde immediately after harvest, and immersion fixation was done for 24 h. Afterwards, they were kept in PBS buffer (pH 7.4, 0.1 M) for another 24 h. The specimens were cryoprotected in 40% sucrose, frozen, and kept at −80 °C until further processing. Transversal sections of 10 μm thickness were cut.
Immunofluorescence staining was performed on the frozen sections using several antibodies for different nerve qualities. As general markers for axons, we used chicken anti-neurofilament (Merck, Billerica, MA, USA; Cat# AB5539, RRID: AB_177520; 1:2000) and rabbit anti-protein gene product (PGP) 9.5 (Merck; Cat# NE1013, RRID: AB_2210632; 1:300). For nociceptive axon visualization, rabbit anti-CGRP (Merck; Cat# AB15360, RRID: AB_672958; 1:1000) and mouse anti-substance P (Abcam; Cat# AB14184, RRID: AB_300971; 1:500) were used. Four combinations of double-labeling were performed as follows: incubation with (i) antibodies against neurofilament and protein gene product (PGP) 9.5, (ii) antibodies against neurofilament and calcitonin gene-related peptide (CGRP), (iii) antibodies against neurofilament and substance P, and (iv) antibodies against CGRP and substance P [27]. Positive controls were performed in the human spinal cord obtained from an organ donor to test the validity of the antibodies used in the present study [28].

2.2. Detection and Quantification of Neurofilament (NF)-Positive Cells

Slides were labeled with the primary antibody against neurofilament, followed by the secondary, Alexa Fluor 568-conjugated antibody. After that, slides were scanned with a slide scanner at 20-fold magnification (Virtual slide microscope VS120; Olympus Europa SE & Co. KG, Hamburg, Germany). Axon quantification was performed using the imaging software, StrataQuest (Tissuegnostic, Vienna, Austria). The first step in detecting axons was to eliminate the background from images, by performing a subtraction between the original Alexa Fluor 568 marker and the gray image obtained after applying a median filter. The second step was to use the pre-processed Alexa Fluor 568 image as the input for the Dot Detection Engine. This engine detects specific, dot-like features present in a sample using a gray image as its input. Two detections were performed using different parameters, one set for the nerve fiber candidates with a high-intensity value and the other for nerve fibers with low-intensity values. These two separate detections were then combined in a single detection and used for a quantitative analysis. Figure 2A shows axons immunolabeled with anti-neurofilament and Figure 2A′ shows the same axons following automatic detection by StrataQuest.
The quantitative assessment was performed according to the two regions of interest (ROIs), i.e., the anterosuperior labrum (anterior to the LHBT origin; 1 o’clock) and the posterosuperior labrum (posterior to the LHBT origin; 11 o’clock).

2.3. Statistical Methods

All data obtained from the automated scanning process were analyzed by IBM SPSS® Statistics (Version 23.0, IBM Corp., Armonk, NY, USA). The Kolmogorov–Smirnov test was applied to evaluate Gaussian data distribution. If data were distributed normally, a paired t-test was used to test for statistical significance between anterosuperior and posterosuperior axon distribution (i.e., absolute number, area, and density). If the normality test failed, the Wilcoxon signed-rank test was performed. To determine the correlation of variables, a linear regression analysis was applied in variables with an interval measurement level (axon distribution and age). The phi coefficient was used to figure out the association of variables with a nominal level (i.e., osteoarthrosis or fracture).
A p-value ≤ 0.05 was regarded as statistically significant. Furthermore, descriptive histological as well as immunohistochemical statistics were performed for all study groups.

2.4. Ethics and Informed Consent

Prior to commencing this study, it was approved by the corresponding local ethics review board (AUVA Ethikkommission) with the approval number 06/2017. All patients signed an informed consent that they donate their intraoperatively dissected tendon tissues for scientific purposes in research. The entire study was conducted according to the guidelines for good scientific practice. The level of evidence was not applicable as this was a basic science research.

3. Results

Eleven LHBTs, including the superior labrum, were harvested intraoperatively. There were five right and six left shoulders from three male and eight female patients with a mean age of 73 years (range: 66–87 years). Six LHBTs were harvested from osteoarthritic shoulders dedicated to RTSA and five LHBTs were harvested from Neer grade III or IV fractures. All specimens were macroscopically healthy without signs of tendinitis, longitudinal ruptures, or degeneration like an hour-glass shape.
We found in all specimens, irrespective of age, gender, and baseline situation (OA vs. fracture), an inhomogeneous distribution of axons in the anterosuperior and posterosuperior parts of the labrum with high inter-individual variations (Figure 3).
There was high expression and overlap of all used markers. The double-labeling of NF and PGP 9.5 proved the presence of axons (Figure 4A,B) and double-labeling with NF/CGRP and NF/substance P proved the presence of pain fibers (Figure 5A,B). Additional double-labeling with CGRP/substance P exhibited a co-localization of both neuropeptides (Figure 5C).
In absolute numbers, ROI I representing the anterosuperior labrum showed a statistically significant higher number of NF-positive cells (194.2 ± 48.5) compared to ROI II (105.4 ± 29.5), representing the posterosuperior labrum (p < 0.01; Figure 6).
The area of NF-positive cells per square millimeters showed no significant difference (p = 0.85) between ROI I and ROI II (20.75 ± 2.92 vs. 20.28 ± 2.84). The density of NF-positive cells in ROI I (14.45 ± 5.32) was significantly higher compared to ROI II (6.26 ± 2.3) (p < 0.001; Figure 7).
The mean density of NF-positive cells was 1.5-fold higher in the anterosuperior labrum compared with the posterosuperior parts of the labrum. It was not possible to quantify the nociceptive fibers due to their small diameter (in the micrometer range). They were always found along the NF-positive axons. There was no significant difference in the absolute numbers of NF-positive cells and the density of axons when the baseline situation (OA vs. fracture) as well as gender (male vs. female) or age groups (<70 vs. >70 years) were compared.
The qualitative assessment of the specimens showed only mild signs of acute or chronic inflammation usually represented by higher vascularity or cellularity. The collagen fibers were well organized in parallel without separation showing only mild signs of degeneration.

4. Discussion

Concerning the variability of pain after SLAP repair, we presented data that the biceps tendon anchor is a highly innervated region with an enormous inter-individual variation independent of age, gender, or baseline situation. We found an inhomogeneous distribution of axons in the superior labrum with a significantly higher number and density in the anterior parts compared with posterior parts. Nociceptive markers were shown to overlap with the general markers for axons.
Only a few authors have analyzed neural structures in the LHBT [29,30] as it is known to act as a pain generator in various shoulder pathologies [30,31,32]. Most studies focused on the LHBT itself, but did not extend into the superior labrum [23,24,29], and analyses were only performed qualitatively [23]. So far, only one study has quantitatively assessed the distribution and density of NF in the superior labrum [25]. This study firstly investigated tissues derived from fresh specimens harvested post-mortem; secondly, the specimens were embedded in paraffin; and thirdly, only neurofilament staining worked, while the detection of CGRP and neuropeptide Y failed.
In the present study, we used intraoperatively harvested tissues and applied the techniques of cryoprotection as well as double-labeling with NF and PGP 9.5 antibodies to detect axons. Alpantaki et al. [23] described a net-like pattern of NF-positive fibers in the most proximal part of the LHBT, but we could not find this network in our specimens. In contrast, we found a cord-like fiber arrangement throughout the superior labrum. Furthermore, our results showed an association of axons with blood vessels, which is well in line with the results by Curtis et al. [33], but in contrast to the study by Alpantaki et al. [23]. Despite the specimens’ mean age of 73 years, we did not see any increased cell count or number of vessels, but some flattened and spindle-shaped nuclei, thus indicating mild degeneration.
The presence of sympathetic and sensory fibers in tendons has already been investigated [23,24,29,34,35] using different antibodies for protein S-100, neuropeptide Y, substance P, or CGRP. The last two are known to co-exist in tendons and ligaments and are involved in the process of neurogenic inflammation and vasoregulation [35]. In order to confirm the presence as well as the distribution pattern of the nociceptive markers, we performed several double-labeling experiments. This included incubation with anti-NF/anti-CGRP, anti-NF/anti-substance P, and anti-CGRP/anti-substance P. In the merged picture, the overlap of the markers was finally visualized, thus indicating the uneven distribution of nociceptors with a considerably higher amount in the anterosuperior parts of the labrum. A quantitative assessment of the nociceptive fibers, however, was not possible due to their small diameter.
Our findings of a higher and denser innervation of the anterosuperior labrum compared with the posterosuperior labrum are also supported by the anatomy of the labrum itself. Tuoheti et al. [36] described three patterns of LHBT attachment to the labrum. In all of them, the major tendinous portion of the LHBT composed of collagen fibers extended into the posterosuperior labrum, whereas the anterosuperior labrum mainly consisted of pure labral tissue. Understandably, the labral tissue contains more nerve fibers than the tendon itself.
The clinical background for this basic research study was the problem of persisting pain after SLAP repair, which is described in several studies [6,9,18,20,21]. The recommended surgical technique is anchor placement posterior to the biceps tendon anchor via the Neviaser portal [37,38] with an additional anterior anchor if the SLAP lesion extends anteriorly. The labral tissue is thereby looped by the suture, causing a strangling effect, potentially leading to nerve irritation and pain. In contrast, other techniques releasing the biceps tendon from its origin, such as tenotomy or tenodesis, are known to lead to rapid pain relief [9,39]. A very recent review article has shown that biceps tenotomy and tenodesis provide a better clinical outcome and satisfaction rate compared with repair [40]. Looking only at tenotomy versus tenodesis, tenotomy leads to better clinical results in terms of faster recovery compared with tenodesis [41,42].
Burkhart et al. [37,43] pointed out that the right position of suture anchors in SLAP repair is essential to restore stable conditions and allow proper healing. One anchor in good position has been proved to be biomechanically sufficient [44,45]. Morgan et al. [46] showed that anterior placement of the anchor has no biomechanical advantage compared to posterior placement. In a biomechanical cadaveric throwing model, McCulloch et al. [47] found that standard biceps attachment and excursion are compromised by anterior, 12 o’clock, and either side placement of the anchors leading to restricted range of motion (ROM) and even damage to the tendon.
Interestingly, Kibler and Sciascia [2] lamented in their recent systematic review that in most clinical studies, there is a lack of baseline information about the technique used, making it nearly impossible to compare clinical outcomes; 35% of the included papers did not report the number of anchors at all, and some studies used 1 or 2 anchors and others 2 to 4 anchors; and 31% did not refer to where the anchors were placed and 35% placed the anchor in a variation of 12 o’clock with sutures on either side of the biceps tendon anchor.
So far, there has been only one clinical study that investigated the clinical outcome by comparing anterior and posterior anchor placement [26]. In this study, 46 out of 49 patients were treated with an anterior and posterior anchor, whereas three patients received a posterior anchor only. Although the authors did not see any inferiority in clinical outcomes regarding anterior anchor placement, 18% of the patients underwent medical discharge from military function due to significant persistent pain, and 22% underwent subsequent biceps tenodesis for failed SLAP repair.
Taking into consideration the most recent editorial comments [15,16,17] and studies comparing different treatment options for SLAP lesions [14] as well as the results of the present study showing an inhomogeneous distribution and density of axons with a higher density of nociceptors in the anterosuperior labrum, we recommend a more cautious approach regarding the location of anchor placement in SLAP repair. A posterosuperior anchor placement seems to be beneficial for the neural structures.
The strengths of the present study are the intraoperatively harvested material, the quantitative analysis of NF-positive axons in the superior labrum, as well as double-labeling with different antibodies to increase the quality of the neural structure analysis. The limitations include the limited number of specimens and their relatively high age, which is not comparable to patients undergoing SLAP repair.

5. Conclusions

In conclusion, this study shows the inhomogeneous density and distribution of axons in the superior labrum with a significantly higher number and density of axons in the anterior labrum compared to the posterior parts, as evaluated by the quantitative analysis. Furthermore, we were able to prove the presence of nociceptive fibers along with other axons in the investigated specimens.

Author Contributions

Conceptualization, S.B., R.B., C.F., and R.M.; data curation, S.B. and R.M.; formal analysis, S.B., R.B., and R.M.; investigation, S.B., B.G., L.H. and R.M.; methodology, S.B., R.B., B.G., L.H., and R.M.; project administration, S.B.; resources, C.F.; supervision, C.F. and R.M.; validation, S.B., R.B., B.G., L.H., and R.M.; visualization, R.B., B.G., and L.H.; writing—original draft, S.B.; writing—review and editing, R.B., B.G., L.H., C.F. and R.M.

Funding

This research received no external funding.

Acknowledgments

We thank Regina Mayer and Marlene Rodler for their technical assistance.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Brockmeyer, M.; Tompkins, M.; Kohn, D.M.; Lorbach, O. SLAP lesions: A treatment algorithm. Knee Surg. Sports Traumatol. Arthrosc. 2016, 24, 447–455. [Google Scholar] [CrossRef] [PubMed]
  2. Kibler, W.B.; Sciascia, A. Current Practice for the Surgical Treatment of SLAP Lesions: A Systematic Review. Arthroscopy 2016, 32, 669–683. [Google Scholar] [CrossRef]
  3. Gorantla, K.; Gill, C.; Wright, R.W. The outcome of type II SLAP repair: A systematic review. Arthroscopy 2010, 26, 537–545. [Google Scholar] [CrossRef] [PubMed]
  4. Onyekwelu, I.; Khatib, O.; Zuckerman, J.D.; Rokito, A.S.; Kwon, Y.W. The rising incidence of arthroscopic superior labrum anterior and posterior (SLAP) repairs. J. Shoulder Elbow Surg. 2012, 21, 728–731. [Google Scholar] [CrossRef]
  5. Provencher, M.T.; McCormick, F.; Dewing, C.; McIntire, S.; Solomon, D. A prospective analysis of 179 type 2 superior labrum anterior and posterior repairs: Outcomes and factors associated with success and failure. Am. J. Sports Med. 2013, 41, 880–886. [Google Scholar] [CrossRef]
  6. Katz, L.M.; Hsu, S.; Miller, S.L.; Richmond, J.C.; Khetia, E.; Kohli, N.; Curtis, A.S. Poor outcomes after SLAP repair: Descriptive analysis and prognosis. Arthroscopy 2009, 25, 849–855. [Google Scholar] [CrossRef]
  7. Taylor, S.A.; Degen, R.M.; White, A.E.; McCarthy, M.M.; Gulotta, L.V.; O’Brien, S.J.; Werner, B.C. Risk Factors for Revision Surgery After Superior Labral Anterior-Posterior Repair: A National Perspective. Am. J. Sports Med. 2017, 45, 1640–1644. [Google Scholar] [CrossRef]
  8. Neuman, B.J.; Boisvert, C.B.; Reiter, B.; Lawson, K.; Ciccotti, M.G.; Cohen, S.B. Results of arthroscopic repair of type II superior labral anterior posterior lesions in overhead athletes: Assessment of return to preinjury playing level and satisfaction. Am. J. Sports Med. 2011, 39, 1883–1888. [Google Scholar] [CrossRef]
  9. Boileau, P.; Parratte, S.; Chuinard, C.; Roussanne, Y.; Shia, D.; Bicknell, R. Arthroscopic treatment of isolated type II SLAP lesions: Biceps tenodesis as an alternative to reinsertion. Am. J. Sports Med. 2009, 37, 929–936. [Google Scholar] [CrossRef]
  10. Brockmeier, S.F.; Voos, J.E.; Williams, R.J., III; Altchek, D.W.; Cordasco, F.A.; Allen, A.A.; Hospital for Special Surgery Sports Medicine and Shoulder Service. Outcomes after arthroscopic repair of type-II SLAP lesions. J. Bone Jt. Surg. Am. 2009, 91, 1595–1603. [Google Scholar] [CrossRef] [Green Version]
  11. Ek, E.T.; Shi, L.L.; Tompson, J.D.; Freehill, M.T.; Warner, J.J. Surgical treatment of isolated type II superior labrum anterior-posterior (SLAP) lesions: Repair versus biceps tenodesis. J. Shoulder Elbow Surg. 2014, 23, 1059–1065. [Google Scholar] [CrossRef] [PubMed]
  12. Edwards, S.L.; Lee, J.A.; Bell, J.E.; Packer, J.D.; Ahmad, C.S.; Levine, W.N.; Bigliani, L.U.; Blaine, T.A. Nonoperative treatment of superior labrum anterior posterior tears: Improvements in pain, function, and quality of life. Am. J. Sports Med. 2010, 38, 1456–1461. [Google Scholar] [CrossRef]
  13. Jang, S.H.; Seo, J.G.; Jang, H.S.; Jung, J.E.; Kim, J.G. Predictive factors associated with failure of nonoperative treatment of superior labrum anterior-posterior tears. J. Shoulder Elbow Surg. 2016, 25, 428–434. [Google Scholar] [CrossRef]
  14. Schroder, C.P.; Skare, O.; Reikeras, O.; Mowinckel, P.; Brox, J.I. Sham surgery versus labral repair or biceps tenodesis for type II SLAP lesions of the shoulder: A three-armed randomised clinical trial. Br. J. Sports Med. 2017, 51, 1759–1766. [Google Scholar] [CrossRef]
  15. Lubowitz, J.H. Editorial Commentary: Lesions of the Superior Labrum From Anterior to Posterior (SLAP) Are a Slap in the Face to the Traditional Trinity of History, Examination, and Imaging. Arthroscopy 2015, 31, 2470–2471. [Google Scholar] [CrossRef] [Green Version]
  16. Provencher, M.T. Editorial Commentary: The Not So Benign Nature of an Isolated SLAP Repair. Arthroscopy 2016, 32, 1963–1964. [Google Scholar] [CrossRef] [Green Version]
  17. Harris, J.D. Editorial Commentary: On Kibler & Sciascia: What Did the Five Fingers Say to the Face? SLAP. A Systematic Review Wake-Up Call to Improve SLAP Repair Guidelines. Arthroscopy 2016, 32, 684–685. [Google Scholar] [CrossRef]
  18. Yung, P.S.; Fong, D.T.; Kong, M.F.; Lo, C.K.; Fung, K.Y.; Ho, E.P.; Chan, D.K.; Chan, K.M. Arthroscopic repair of isolated type II superior labrum anterior-posterior lesion. Knee Surg. Sports Traumatol. Arthrosc. 2008, 16, 1151–1157. [Google Scholar] [CrossRef] [Green Version]
  19. Boesmueller, S.; Mayerhofer, S.; Huf, W.; Fialka, C. Short-term clinical results after arthroscopic type II SLAP repair. Wiener Klin. Wochenschr. 2012, 124, 370–376. [Google Scholar] [CrossRef]
  20. Boesmueller, S.; Tiefenboeck, T.M.; Hofbauer, M.; Bukaty, A.; Oberleitner, G.; Huf, W.; Fialka, C. Progression of function and pain relief as indicators for returning to sports after arthroscopic isolated type II SLAP repair-a prospective study. BMC Musculoskelet. Disord. 2017, 18, 257. [Google Scholar] [CrossRef]
  21. Cohen, D.B.; Coleman, S.; Drakos, M.C.; Allen, A.A.; O’Brien, S.J.; Altchek, D.W.; Warren, R.F. Outcomes of isolated type II SLAP lesions treated with arthroscopic fixation using a bioabsorbable tack. Arthroscopy 2006, 22, 136–142. [Google Scholar] [CrossRef]
  22. Weber, S.C.; Martin, D.F.; Seiler, J.G., III; Harrast, J.J. Superior labrum anterior and posterior lesions of the shoulder: Incidence rates, complications, and outcomes as reported by American Board of Orthopedic Surgery. Part II candidates. Am. J. Sports Med. 2012, 40, 1538–1543. [Google Scholar] [CrossRef] [PubMed]
  23. Alpantaki, K.; McLaughlin, D.; Karagogeos, D.; Hadjipavlou, A.; Kontakis, G. Sympathetic and sensory neural elements in the tendon of the long head of the biceps. J. Bone Jt. Surg. Am. 2005, 87, 1580–1583. [Google Scholar] [CrossRef]
  24. Tosounidis, T.; Hadjileontis, C.; Triantafyllou, C.; Sidiropoulou, V.; Kafanas, A.; Kontakis, G. Evidence of sympathetic innervation and alpha1-adrenergic receptors of the long head of the biceps brachii tendon. J. Orthop. Sci. 2013, 18, 238–244. [Google Scholar] [CrossRef]
  25. Boesmueller, S.; Nogradi, A.; Heimel, P.; Albrecht, C.; Nurnberger, S.; Redl, H.; Fialka, C.; Mittermayr, R. Neurofilament distribution in the superior labrum and the long head of the biceps tendon. J. Orthop. Surg. Res. 2017, 12, 181. [Google Scholar] [CrossRef] [Green Version]
  26. Arroyo, W.; Misenhimer, J.; Cotter, E.J.; Wang, K.C.; Heida, K.; Pallis, M.P.; Waterman, B.R. Effect of Anterior Anchor on Clinical Outcomes of Type II SLAP Repairs in an Active Population. Orthopedics 2018, 42, e32–e38. [Google Scholar] [CrossRef]
  27. Blumer, R.; Boesmueller, S.; Gesslbauer, B.; Hirtler, L.; Bormann, D.; Streicher, J.; Mittermayr, R. How to visualize the innervation pattern in tendons: A methodical guide. Ann. Anat. Anat. Anz. 2019, 225, 21–27. [Google Scholar] [CrossRef]
  28. Gesslbauer, B.; Hruby, L.A.; Roche, A.D.; Farina, D.; Blumer, R.; Aszmann, O.C. Axonal components of nerves innervating the human arm. Ann. Neurol. 2017, 82, 396–408. [Google Scholar] [CrossRef]
  29. Joseph, M.; Maresh, C.M.; McCarthy, M.B.; Kraemer, W.J.; Ledgard, F.; Arciero, C.L.; Anderson, J.M.; Nindl, B.C.; Mazzocca, A.D. Histological and molecular analysis of the biceps tendon long head post-tenotomy. J. Orthop. Res. 2009, 27, 1379–1385. [Google Scholar] [CrossRef]
  30. Tosounidis, T.; Hadjileontis, C.; Georgiadis, M.; Kafanas, A.; Kontakis, G. The tendon of the long head of the biceps in complex proximal humerus fractures: A histological perspective. Injury 2010, 41, 273–278. [Google Scholar] [CrossRef]
  31. Longo, U.G.; Franceschi, F.; Ruzzini, L.; Rabitti, C.; Morini, S.; Maffulli, N.; Denaro, V. Characteristics at haematoxylin and eosin staining of ruptures of the long head of the biceps tendon. Br. J. Sports Med. 2009, 43, 603–607. [Google Scholar] [CrossRef]
  32. Szabo, I.; Boileau, P.; Walch, G. The proximal biceps as a pain generator and results of tenotomy. Sports Med. Arthrosc. Rev. 2008, 16, 180–186. [Google Scholar] [CrossRef] [PubMed]
  33. Curtis, A.S.; Snyder, S.J. Evaluation and treatment of biceps tendon pathology. Orthop. Clin. N. Am. 1993, 24, 33–43. [Google Scholar]
  34. Ljung, B.O.; Forsgren, S.; Friden, J. Sympathetic and sensory innervations are heterogeneously distributed in relation to the blood vessels at the extensor carpi radialis brevis muscle origin of man. Cells Tissues Organs 1999, 165, 45–54. [Google Scholar] [CrossRef]
  35. Ljung, B.O.; Forsgren, S.; Friden, J. Substance P and calcitonin gene-related peptide expression at the extensor carpi radialis brevis muscle origin: Implications for the etiology of tennis elbow. J. Orthop. Res. 1999, 17, 554–559. [Google Scholar] [CrossRef] [PubMed]
  36. Tuoheti, Y.; Itoi, E.; Minagawa, H.; Yamamoto, N.; Saito, H.; Seki, N.; Okada, K.; Shimada, Y.; Abe, H. Attachment types of the long head of the biceps tendon to the glenoid labrum and their relationships with the glenohumeral ligaments. Arthroscopy 2005, 21, 1242–1249. [Google Scholar] [CrossRef]
  37. Burkhart, S.S.; Morgan, C.D.; Kibler, W.B. The disabled throwing shoulder: Spectrum of pathology. Part II: Evaluation and treatment of SLAP lesions in throwers. Arthroscopy 2003, 19, 531–539. [Google Scholar] [CrossRef]
  38. Nord, K.D.; Masterson, J.P.; Mauck, B.M. Superior labrum anterior posterior (SLAP) repair using the Neviaser portal. Arthroscopy 2004, 20 (Suppl. S2), 129–133. [Google Scholar] [CrossRef]
  39. Walch, G.; Edwards, T.B.; Boulahia, A.; Nove-Josserand, L.; Neyton, L.; Szabo, I. Arthroscopic tenotomy of the long head of the biceps in the treatment of rotator cuff tears: Clinical and radiographic results of 307 cases. J. Shoulder Elbow Surg. 2005, 14, 238–246. [Google Scholar] [CrossRef]
  40. Ren, Y.M.; Duan, Y.H.; Sun, Y.B.; Yang, T.; Hou, W.Y.; Tian, M.Q. Is arthroscopic repair superior to biceps tenotomy and tenodesis for type II SLAP lesions? A meta-analysis of RCTs and observational studies. J. Orthop. Surg. Res. 2019, 14, 48. [Google Scholar] [CrossRef]
  41. Frost, A.; Zafar, M.S.; Maffulli, N. Tenotomy versus tenodesis in the management of pathologic lesions of the tendon of the long head of the biceps brachii. Am. J. Sports Med. 2009, 37, 828–833. [Google Scholar] [CrossRef]
  42. Longo, U.G.; Loppini, M.; Marineo, G.; Khan, W.S.; Maffulli, N.; Denaro, V. Tendinopathy of the tendon of the long head of the biceps. Sports Med. Arthrosc. Rev. 2011, 19, 321–332. [Google Scholar] [CrossRef] [PubMed]
  43. Burkhart, S.S.; Morgan, C.D.; Kibler, W.B. The disabled throwing shoulder: Spectrum of pathology Part I: Pathoanatomy and biomechanics. Arthroscopy 2003, 19, 404–420. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Baldini, T.; Snyder, R.L.; Peacher, G.; Bach, J.; McCarty, E. Strength of single- versus double-anchor repair of type II SLAP lesions: A cadaveric study. Arthroscopy 2009, 25, 1257–1260. [Google Scholar] [CrossRef]
  45. Domb, B.G.; Ehteshami, J.R.; Shindle, M.K.; Gulotta, L.; Zoghi-Moghadam, M.; MacGillivray, J.D.; Altchek, D.W. Biomechanical comparison of 3 suture anchor configurations for repair of type II SLAP lesions. Arthroscopy 2007, 23, 135–140. [Google Scholar] [CrossRef]
  46. Morgan, R.J.; Kuremsky, M.A.; Peindl, R.D.; Fleischli, J.E. A biomechanical comparison of two suture anchor configurations for the repair of type II SLAP lesions subjected to a peel-back mechanism of failure. Arthroscopy 2008, 24, 383–388. [Google Scholar] [CrossRef]
  47. McCulloch, P.C.; Andrews, W.J.; Alexander, J.; Brekke, A.; Duwani, S.; Noble, P. The effect on external rotation of an anchor placed anterior to the biceps in type 2 SLAP repairs in a cadaveric throwing model. Arthroscopy 2013, 29, 18–24. [Google Scholar] [CrossRef]
Jcm 08 02129 g001 550
Figure 1. Macroscopic view of a dissected long head of the biceps tendon (LHBT), including the superior labrum.
Figure 1. Macroscopic view of a dissected long head of the biceps tendon (LHBT), including the superior labrum.
Jcm 08 02129 g001
Jcm 08 02129 g002 550
Figure 2. (A) shows axons immunolabeled with anti-neurofilament (NF) and (A′) the same axons following automatic detection by StrataQuest (scale bar = 50 µm; magnification = 20x).
Figure 2. (A) shows axons immunolabeled with anti-neurofilament (NF) and (A′) the same axons following automatic detection by StrataQuest (scale bar = 50 µm; magnification = 20x).
Jcm 08 02129 g002
Jcm 08 02129 g003 550
Figure 3. Neurofilament staining of region of interest (ROI) I and II (scale bars: (A,B) = 500 µm, (C) = 100 µm, (D) = 50 µm; magnification = 20x).
Figure 3. Neurofilament staining of region of interest (ROI) I and II (scale bars: (A,B) = 500 µm, (C) = 100 µm, (D) = 50 µm; magnification = 20x).
Jcm 08 02129 g003
Jcm 08 02129 g004 550
Figure 4. Double-labeling of NF and protein gene product (PGP) 9.5 as general markers for axons. Fluorescence images and bright field images are merged to match immuno-labeling with the anatomical structure of the tendon. (A,B) Showing nerve fibers in NF staining and (A′,B′) in PGP 9.5 staining. (A″,B″) Overlay of immuno-labeling and bright field images showing complete overlap of NF and PGP 9.5 resulting in yellow-mixed color. The bright field view shows a nerve fascicle (A″) and a blood vessel surrounded by axons (B″) (scale bars = 20 µm; magnification = 40x).
Figure 4. Double-labeling of NF and protein gene product (PGP) 9.5 as general markers for axons. Fluorescence images and bright field images are merged to match immuno-labeling with the anatomical structure of the tendon. (A,B) Showing nerve fibers in NF staining and (A′,B′) in PGP 9.5 staining. (A″,B″) Overlay of immuno-labeling and bright field images showing complete overlap of NF and PGP 9.5 resulting in yellow-mixed color. The bright field view shows a nerve fascicle (A″) and a blood vessel surrounded by axons (B″) (scale bars = 20 µm; magnification = 40x).
Jcm 08 02129 g004
Jcm 08 02129 g005 550
Figure 5. Double-labeling with NF in combination with calcitonin gene-related peptide (CGRP) (A–A″) and substance P (B–B″) as nociceptive markers as well as CGRP and substance P (C–C″). (A″,B″,C″) Fluorescence images and bright field images are merged to match immuno-labeling with the anatomical structure of the tendon. (A″,B″) Showing partial overlap of NF and CGRP immuno-labeling (A″) and NF and substance P immuno-labeling (B″). (C″) Showing co-localization of CGRP/substance P (scale bars: 5A″ = 20 µm, 5B″ = 10 µm, and 5C″ = 20 µm; magnification = 40x).
Figure 5. Double-labeling with NF in combination with calcitonin gene-related peptide (CGRP) (A–A″) and substance P (B–B″) as nociceptive markers as well as CGRP and substance P (C–C″). (A″,B″,C″) Fluorescence images and bright field images are merged to match immuno-labeling with the anatomical structure of the tendon. (A″,B″) Showing partial overlap of NF and CGRP immuno-labeling (A″) and NF and substance P immuno-labeling (B″). (C″) Showing co-localization of CGRP/substance P (scale bars: 5A″ = 20 µm, 5B″ = 10 µm, and 5C″ = 20 µm; magnification = 40x).
Jcm 08 02129 g005
Jcm 08 02129 g006 550

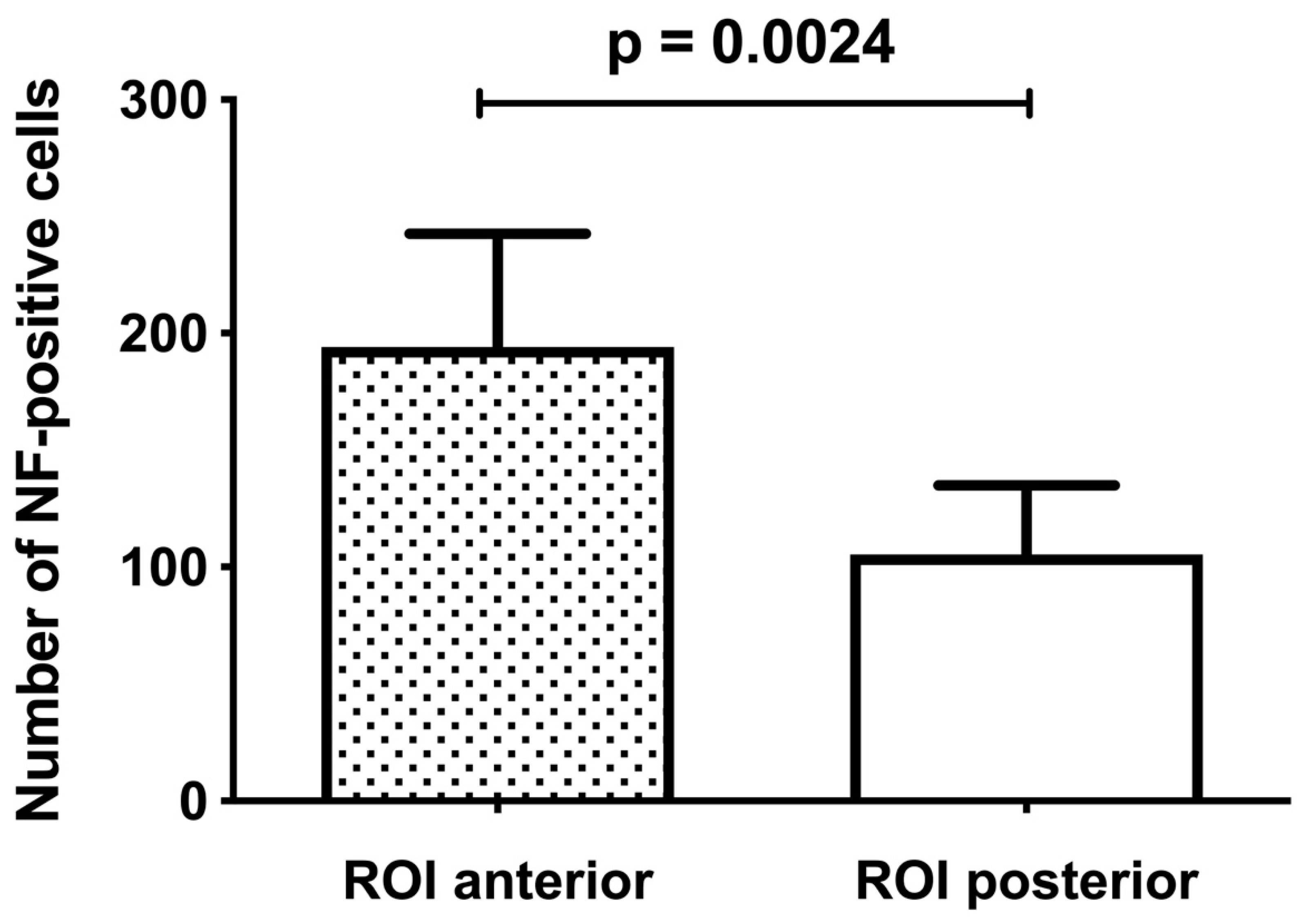

Figure 6. Quantitative measurement of NF-positive cells at ROI I and II. Distribution of NF-positive cells in absolute numbers revealed a significantly higher number in favor of ROI I (p = 0.0024).
Figure 6. Quantitative measurement of NF-positive cells at ROI I and II. Distribution of NF-positive cells in absolute numbers revealed a significantly higher number in favor of ROI I (p = 0.0024).
Jcm 08 02129 g006
Jcm 08 02129 g007 550

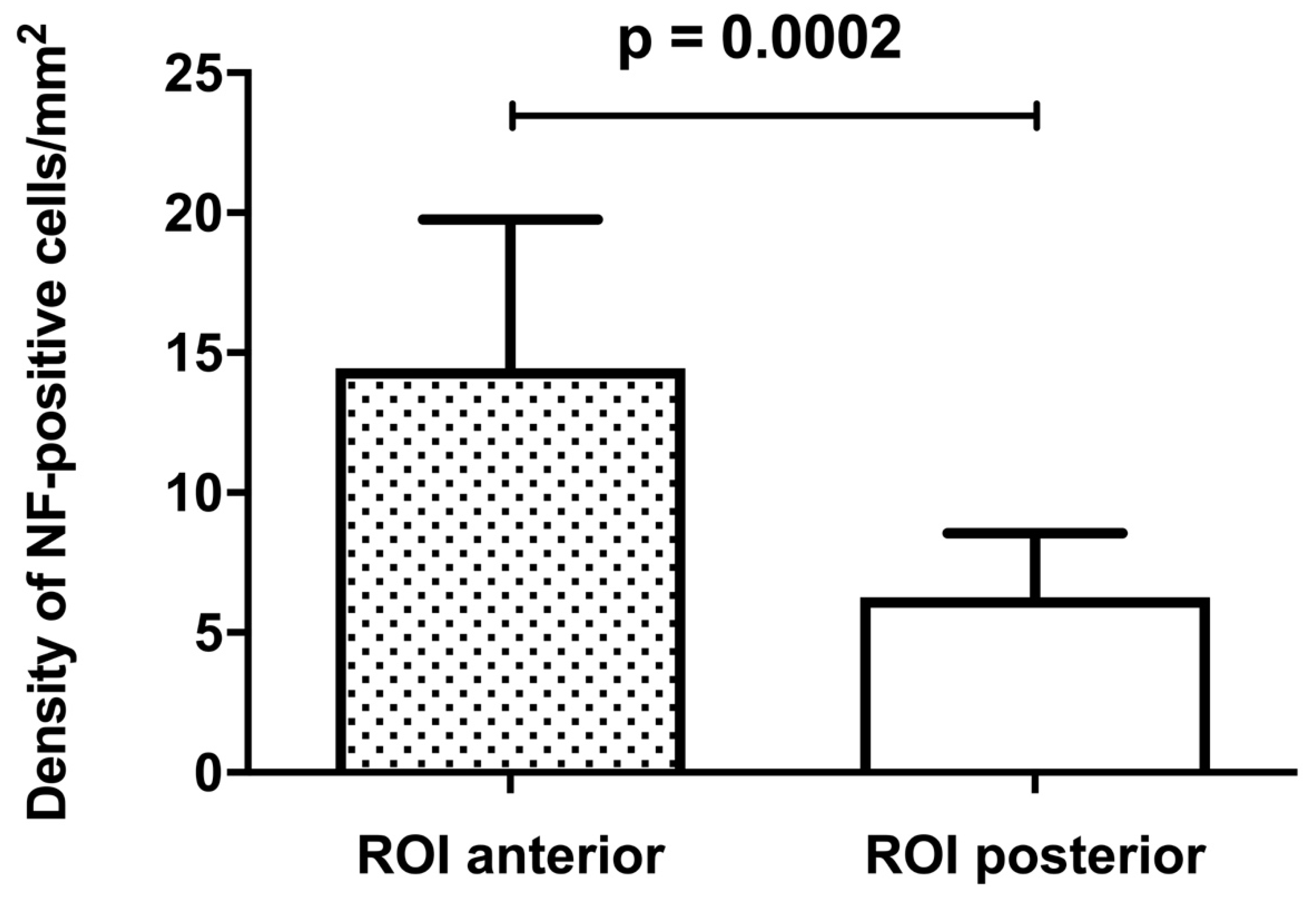

Figure 7. Quantitative measurement of NF-positive cells at ROI I and II. The density of NF-positive cells revealed a significantly higher density in favor of ROI I (p = 0.0002).
Figure 7. Quantitative measurement of NF-positive cells at ROI I and II. The density of NF-positive cells revealed a significantly higher density in favor of ROI I (p = 0.0002).
Jcm 08 02129 g007
