Review

Multi-Hole Self-Expandable Metallic Stent for Malignant Distal Biliary Obstruction: A Literature Review

by
Koh Kitagawa
1,*,
Shohei Asada
1,
Jun-ichi Hanatani
1,
Yuki Motokawa
1,
Yui Osaki
1,
Tomihiro Iwata
1,
Akira Mitoro
2 and
Hitoshi Yoshiji
1
1
Department of Gastroenterology, Nara Medical University, Nara 634-8521, Japan
2
Division of Endoscopy, Nara Medical University, Nara 634-8521, Japan
*
Author to whom correspondence should be addressed.
J. Clin. Med. 2026, 15(4), 1410; https://doi.org/10.3390/jcm15041410
Submission received: 5 January 2026 / Revised: 23 January 2026 / Accepted: 3 February 2026 / Published: 11 February 2026
(This article belongs to the Special Issue Endoscopic Management of Pancreaticobiliary Diseases)
Browse Figures
Versions Notes

Abstract

Endoscopic biliary drainage using self-expanding metal stents (SEMSs) is a standard palliative therapy for cholangitis and obstructive jaundice caused by malignant distal biliary obstruction (MDBO). Fully-covered SEMSs (FC-SEMSs) prevent tumor ingrowth and provide longer patency; however, recent advances in chemotherapy have increased stent migration due to tumor shrinkage, resulting in reduced functional patency compared with uncovered SEMSs. Partially covered SEMSs can reduce migration but are often difficult to remove after deployment. In addition, adverse events such as acute pancreatitis and cholecystitis remain a concern with FC-SEMSs. To address these limitations, Dr. Kobayashi introduced a novel porous SEMS with multiple side holes in the covering membrane (MH-SEMSs) in 2019. This design allows limited bile duct epithelial ingrowth through side holes, providing anchorage while maintaining removability. The side-hole structure may also reduce cholecystitis and pancreatitis by preserving flow through the pancreatic and cystic duct orifices. Over five years since their introduction, clinical evidence supporting MH-SEMSs has steadily increased. This review summarizes current data and explores future perspectives for MH-SEMS use in MDBO management.

1. Introduction

Endoscopic biliary drainage using self-expanding metallic stents (SEMSs) is widely employed as a palliative treatment for cholangitis and obstructive jaundice caused by malignant distal biliary obstruction (MDBO) [1,2]. Historically, uncovered SEMSs (U-SEMSs) were the only available option [3,4,5,6]; however, since the early 2000s, fully-covered SEMSs (FC-SEMSs)—in which the stent body is coated with a polymer membrane such as silicone—have become increasingly utilized [7,8,9]. FC-SEMSs can prevent stent occlusion due to tumor ingrowth, and several studies have reported longer stent patency compared with U-SEMSs [7,10].
However, recent advances in chemotherapy for pancreaticobiliary malignancies have increased the likelihood of tumor shrinkage, thereby increasing the risk of stent migration [11,12,13,14]. Consequently, FC-SEMSs have not consistently demonstrated superiority over U-SEMSs, largely because of their higher migration rates [9,15]. Partially covered SEMSs (PC-SEMSs), which have uncovered ends designed to reduce migration, have also been reported to be useful [16,17,18,19]. Nevertheless, PC-SEMSs are generally difficult to remove once deployed. In pancreatic cancer, two main regimens have been widely used: one based primarily on gemcitabine and the other on fluorouracil [11,12]. In recent years, the usefulness of regimens incorporating nanoliposomal irinotecan has also been reported, with the median survival period for patients with unresectable pancreatic cancer approaching one year [20,21]. Progress in chemotherapy for biliary tract cancer has been even more remarkable. In addition to conventional regimens combining gemcitabine, cisplatin, and S1 [22,23,24,25], the efficacy of regimens incorporating durvalumab or pembrolizumab has been reported. These combination therapies with immune checkpoint inhibitors have improved median survival in patients with biliary tract cancer, with an increasing proportion achieving long-term survival of 2–3 years [13,14]. Consequently, the survival period of patients with MDBO is beginning to exceed the average patency period of SEMSs. Therefore, these patients are increasingly likely to develop recurrent biliary obstruction (RBO) during their lifetime and require SEMS replacement. In recent years, SEMSs have been required to achieve the conflicting goals of preventing migration while also allowing removal and replacement. In addition, the risk of post-procedural adverse events, particularly acute pancreatitis and cholecystitis following FC-SEMS placement, remains a significant clinical concern [26,27,28,29,30,31].
To address these limitations, Dr. Kobayashi developed a porous multi-hole SEMS (MH-SEMS) with multiple side holes in the covering membrane, first reported in 2019 [32]. This novel stent is designed to reduce migration despite being covered, as partial embedding of the bile duct epithelium into the stent body occurs through the side holes. Furthermore, the presence of these side holes may decrease the risk of cholecystitis and pancreatitis by preventing obstruction of the cystic duct and pancreatic duct orifices. More than five years after its introduction, clinical reports evaluating endoscopic biliary drainage with MH-SEMSs in patients with MDBO have begun to accumulate [33,34,35,36,37,38]. However, clinical outcomes have varied considerably across studies. This review summarizes the current evidence and discusses the future prospects of MH-SEMSs in the management of MDBO.

2. Methods

Two authors (K.K. and S.A.) conducted a comprehensive literature search on MH-SEMS using PubMed, covering the period from the 2019 report by Kobayashi et al. [32] to December 2025. The search was limited to English-language studies involving human participants and used the keywords (“muti hole”) AND (“stent” OR “biliary”). Studies on hilar biliary drainage and publications available only as abstracts were excluded. Reference lists of relevant articles were carefully reviewed to identify additional studies. All endoscopic images presented in the figures were obtained from cases in which MH-SEMS was placed at our institution. Written informed consent was obtained from all patients for the publication of these images.

3. Multi-Hole Metallic Stents

The currently commercially available MH-SEMS is shown in Figure 1. The stent is manufactured by M.I. Tech (Pyeongtaek, Republic of Korea) and marketed as the HANAROSTENT® Biliary Multi-holeTM NEO. The stent body is constructed by braiding 0.0065-inch nitinol wire using a “hook & cross” technique, with a hook-to-cross ratio of 5:1. This structure provides a balanced combination of moderate radial expansion force and flexibility. The inner surface of the stent is covered with a silicone membrane, into which six longitudinal rows of side holes are incorporated (Figure 1, yellow circles). Each side hole has a diameter of 1.8 mm. MH-SEMSs are available in diameters of 8 mm and 10 mm, with lengths of 5, 6, 7, 8, and 10 cm. The stent is mounted on an 8-Fr delivery catheter with a total length of 180 cm, which is compatible with balloon-assisted endoscopic retrograde cholangiopancreatography (ERCP) in patients with surgically altered anatomy [39].

4. Stent Patency of Multi-Hole Metallic Stents

Stent migration is influenced by multiple factors, including the presence of flared ends, the radial expansion force of the stent body, and the physical properties of the wires used [40,41]. A conventional strategy to prevent migration of FC-SEMSs has been the use of PC-SEMSs, which have bare ends that allow embedding of the bile duct mucosa while maintaining central coverage to suppress tumor ingrowth. Although PC-SEMSs effectively prevent migration and maintain patency, they are essentially non-removable once deployed. With recent advances in chemotherapy for pancreatobiliary neoplasms leading to improved patient prognosis [11,12,13,14], the need for repeated endoscopic re-interventions has increased. Consequently, the use of non-removable PC-SEMSs has become less favorable in the palliative management of MDBO.
Although MH-SEMS is broadly categorized as PC-SEMS, it was developed based on a distinct concept and is designed to be removable when necessary. To date, seven studies evaluating MH-SEMSs in patients with MDBO have been identified through a PubMed search (Table 1) [32,33,34,35,36,37,38]. In 2019, Dr. Kobayashi first reported clinical outcomes using prototype MH-SEMSs in six patients [32]. These prototypes consisted of “small-hole” and “large-hole” designs, differing in side-hole size, and the small-hole type included a removal lasso. Among these initial cases, four involved malignant hilar biliary obstruction, one involved MDBO, and one involved a benign biliary condition.
Subsequently, Kulpatcharapong et al. reported outcomes of MH-SEMSs in a large cohort of patients with MDBO in Thailand [33]. This retrospective propensity score–matched study compared MH-SEMSs, FC-SEMSs, and U-SEMSs, demonstrating significantly longer patency in the MH-SEMSs, with a median time to recurrent biliary obstruction (TRBO) of 479 days. The authors attributed this favorable outcome to reduced migration compared with FC-SEMSs and reduced tumor ingrowth compared with U-SEMSs. In this report, the symptomatic stent migration rate for MH-SEMSs was 2.6%, which was significantly lower than the 15.8% rate observed for FC-SEMSs. However, it should be noted that the MH-SEMS used in this study differed from the currently marketed model. Early in the study period, first-generation MH-SEMSs with a greater number of side holes were used, but frequent tumor ingrowth through these holes prompted a transition to a second-generation design with approximately 30% fewer side holes.
From 2024 onward, reports focusing on the currently available MH-SEMS model began to emerge. Takeda et al. evaluated MH-SEMSs exclusively in patients with MDBO caused by unresectable pancreatic cancer, using a fully-covered HANARO stent as the comparator [34]. Contrary to earlier findings, MH-SEMSs demonstrated a significantly shorter patency period than FC-SEMSs, with a median TRBO of 101 days. The authors postulated that “small ingrowth” through the side holes may disturb antegrade bile flow, leading to sludge formation or non-obstructive cholangitis even without complete stent occlusion. They further suggested that the prolonged TRBO reported by Kulpatcharapong et al. may have been influenced by short follow-up duration and early censoring in the Kaplan–Meier analysis. Based on these observations, modification of the number and size of side holes was proposed. In contrast, this study also found that the stent migration rate with MH-SEMSs was significantly lower than that with FC-SEMSs (MH-SEMSs, 0% versus FC-SEMSs, 17.6%). Therefore, the antimigration performance of MH-SEMSs was consistent with the findings of Kulpatcharapong et al.
By 2025, additional studies further expanded the evidence base. Matsumoto et al. compared MH-SEMSs with FC-SEMSs in patients with MDBO and found a median TRBO of 151 days for MH-SEMSs, which was slightly shorter but not significantly different from that of FC-SEMSs [38]. In contrast, Takahashi et al. conducted a large multicenter retrospective study involving 111 patients, representing the largest MH-SEMS cohort to date [35]. The incidence of RBO during follow-up was 21%, with a median TRBO of 446 days, comparable to the results reported by Kulpatcharapong et al. Notably, symptomatic stent migration occurred in only two cases (1.9%).
Conversely, we recently reported two additional studies evaluating MH-SEMSs [36,37]. In the first, outcomes of MH-SEMSs were compared with conventional PC-SEMSs in patients with unresectable pancreatic cancer–related MDBO [36]. MH-SEMSs demonstrated an antimigration effect comparable to that of PC-SEMSs (migration rate: MH-SEMS, 4.8% versus PC-SEMSs, 3.2%); however, stent patency tended to be shorter, although the difference was not statistically significant. The most common cause of RBO was sludge formation, and the median TRBO was 318 days, intermediate between values reported by Takahashi et al. and Takeda et al. In our second report, MH-SEMSs were evaluated for preoperative biliary drainage in patients with resectable or borderline resectable pancreatic cancer undergoing neoadjuvant chemoradiotherapy [37]. Among 14 patients, the median time to surgery was 105 days, with only one case of RBO due to sludge. Despite tumor shrinkage, no stent migration was observed, and pathological assessment confirmed that MH-SEMS removal did not compromise diagnostic accuracy. Conversely, in our two studies evaluating MH-SEMSs in patients with MDBO caused by pancreatic cancer, sludge obstruction was the most frequent cause of RBO. This observation supports the hypothesis proposed by Takeda et al., suggesting that minor tumor ingrowth can disrupt bile flow and promote sludge accumulation.
Accordingly, reported patency periods of MH-SEMSs vary widely among studies. Nevertheless, there is consistent agreement that MH-SEMS is associated with a low incidence of stent migration. Among the seven studies on MH-SEMS, three directly compared it with FC-SEMS (Table 1) [33,34,38]. Regarding the incidence of adverse events, including pancreatitis and cholecystitis, none reported significant differences between the two stent types. However, findings regarding stent patency were inconsistent: one study reported no difference between MH-SEMSs and FC-SEMSs [38], one reported longer patency with MH-SEMSs [33], and one reported shorter patency with MH-SEMS [34]. Studies with larger sample sizes and heterogeneous malignancies tend to report longer TRBO, whereas studies limited to pancreatic cancer often demonstrate shorter TRBO. Pancreatic cancer–associated MDBO often involves duodenal invasion, which may impair duodenal peristalsis and predispose patients to sludge formation or non-obstructive cholangitis caused by “small ingrowth.” Consistent with this mechanism, our comparative study of MH-SEMSs and PC-SEMSs identified duodenal invasion in pancreatic cancer as an independent risk factor for shorter TRBO on multivariate analysis [36].

5. Removability of Multi-Hole Metallic Stents

Removal of SEMSs is commonly performed in cases of FC-SEMS occlusion or in the management of severe adverse events such as cholecystitis or pancreatitis [42]. However, evidence regarding the safety and feasibility of MH-SEMS removal remains limited. As summarized in Table 1, published reports suggest that MH-SEMS removal is generally feasible and safe. Nonetheless, publication bias should be considered, as unsuccessful or complicated removal cases may be underreported. While bile duct mucosal embedding into the side holes of the MH-SEMSs is minimal, stent removal is typically straightforward, as previously described (Figure 2). In contrast, prolonged indwelling time, damage to the cover membrane, or extensive tumor ingrowth involving the metallic framework may significantly complicate removal. Even in such scenarios, placement of an FC-SEMS within the MH-SEMS may facilitate removal using the stent-in-stent technique [43,44,45].

6. Re-Intervention for Recurrent Biliary Obstruction of Multi-Hole Metallic Stents

Re-intervention following FC-SEMS occlusion generally involves one of two strategies: (1) removal of the occluded stent followed by placement of a new stent, or (2) deployment of an additional stent within the existing stent [42]. The optimal approach depends primarily on the underlying cause of RBO (Figure 3). However, there is no consensus regarding the optimal stent type for re-intervention. If the initially placed MH-SEMSs demonstrated adequate long-term patency, reinsertion of the same device may be reasonable. Conversely, in cases of early occlusion or tumor-related hemorrhage, switching to a conventional FC-SEMS may be preferable. At our facility, MH-SEMS removal and replacement is performed when dislocation occurs or when sludge obstruction predominates with minimal tumor ingrowth. In contrast, in cases with significant tumor ingrowth or hemorrhagic complications, forced removal is avoided, and an FC-SEMS is deployed within the MH-SEMS using the stent-in-stent technique [43,44,45]. In this setting, the anchoring effect of the outer MH-SEMSs may reduce migration of the inner FC-SEMSs. When transpapillary re-intervention is not feasible, alternative approaches such as endoscopic ultrasound-guided biliary drainage (EUS-BD) should be considered. Indeed, the development of stents specifically for EUS-BD is progressing, as has been observed for stents used in MDBO, and EUS-BD may become the first-line option for biliary drainage in patients with MDBO [46,47,48,49].

7. Preventive Effect of Multi-Hole Metallic Stents on Post-Placement Pancreatitis and Cholecystitis

The unique side-hole design of MH-SEMSs was hypothesized to confer benefits beyond migration prevention, specifically, by preserving flow through the pancreatic duct and cystic duct and thereby reducing post-procedural pancreatitis and cholecystitis. However, published data do not consistently support this expectation. Across prior reports, the incidence of post-placement acute pancreatitis with MH-SEMSs is approximately 5–10% (Table 1), comparable to rates reported for other FC-SEMSs [31,50,51,52,53,54,55,56]. Notably, four comparative studies found no significant difference in pancreatitis incidence between MH-SEMS and competing stents [33,34,36,38].
In contrast, our study in patients with resectable pancreatic cancer (R-PC) showed a higher incidence of pancreatitis at 21.4% [37]. Because resectable tumors are typically smaller, many patients in this cohort likely had preserved pancreatic duct patency and pancreatic parenchymal volume, increasing their susceptibility to pancreatitis. Furthermore, in this MH-SEMS study, which exclusively targeted R-PC, endoscopic sphincterotomy (EST) was not performed in most cases, and rectal administration of indomethacin was also not performed. Based on these findings, we suggest that modifications such as reducing stent diameter may be necessary when MH-SEMS is used for preoperative biliary drainage in pancreatic cancer. Consistent with this need, a 6 mm-diameter MH-SEMS has recently been developed.
Cholecystitis following FC-SEMS placement is generally reported in 5–20% of cases [26,27,28,29,30,31]. Established risk factors include tumor invasion of the cystic duct, gallstones, and common bile duct diameter [27,28,31]. Reports on MH-SEMS indicate a cholecystitis incidence of approximately 5% (Table 1), suggesting a trend toward lower rates compared with conventional FC-SEMSs. However, in comparative studies, no significant difference in cholecystitis incidence was observed between MH-SEMSs and other stent types [33,34,36,38]. Notably, our 2025 study specifically examined risk factors for cholecystitis following MH-SEMS placement and found that MH-SEMS use itself did not confer protection [36]. Tumor invasion of the cystic duct was identified as the sole independent risk factor. Importantly, among patients with MDBO without cystic duct invasion of tumor, no cases of cholecystitis occurred after MH-SEMS placement.
Overall, current evidence does not clearly demonstrate a preventive effect of MH-SEMS on post-placement pancreatitis. The incidence of post-ERCP pancreatitis is not solely determined by the type of SEMS. It is also influenced by patient factors such as age, gender, and primary cancer type as well as procedural factors including pancreatic duct stent placement, EST, and the use of pancreatic duct guidewires [57,58,59,60,61]. Therefore, the side holes of MH-SEMS are unlikely to play a role in preventing post-stent placement pancreatitis. Furthermore, while MH-SEMSs may reduce cholecystitis risk in selected patients, this effect appears limited. Larger studies with detailed subgroup analyses are required to clarify these potential benefits.

8. Discussion

MH-SEMS may be particularly advantageous in patients with malignant pancreaticobiliary tumors undergoing aggressive chemotherapy, for whom stent migration is a major concern. However, MH-SEMS use may be contraindicated in cases where bleeding from the side holes is a risk, such as in hypervascular tumors. For patients receiving best supportive care without active chemotherapy, conventional FC-SEMS may remain preferable. Currently, there is no evidence that MH-SEMS prevents post-stent placement pancreatitis or cholecystitis. Further research is needed to test the hypothesis that the side holes of MH-SEMS help preserve flow through the pancreatic and cystic duct orifices.
Current evidence regarding MH-SEMSs is derived predominantly from retrospective studies. The type of tumor, presence of duodenal invasion, use of chemotherapy, stent generation and design, follow-up period, and even the definitions of outcomes (TRBO/RBO and their causes) vary across studies. Bias from these confounding factors may contribute to the variability in MH-SEMS patency observed above. To establish its true clinical value, large-scale, multicenter prospective studies are warranted. In contrast, further refinement of the MH-SEMS design may also be necessary, including optimization of side-hole size, number, and configuration. Such modifications may influence stent expandability and flexibility, highlighting the importance of complementary bench-top mechanical evaluations. Finally, the clinical utility of newly developed thinner-diameter MH-SEMS should be validated in future studies involving patients with MDBO.

9. Conclusions

MH-SEMS is a PC-SEMS with a low risk of migration and potential removability, making it a novel option for endoscopic biliary drainage in patients with MDBO.

Author Contributions

Conceptualization, K.K. and S.A.; Methodology, K.K. and S.A.; Software, K.K.; Validation, K.K. and A.M.; Formal Analysis, K.K. and A.M.; Investigation, K.K. and A.M.; Resources, K.K. and S.A.; Data Curation, K.K., A.M., S.A., J.-i.H., Y.M., T.I. and Y.O.; Writing—Original Draft Preparation, K.K.; Writing—Review and Editing, K.K. and S.A.; Visualization, K.K.; Supervision, H.Y.; Project Administration, K.K. and S.A.; Funding Acquisition, not applicable. All authors have drafted the article and revised it critically for important intellectual content. All authors agreed to be accountable for all aspects of the work and ensure that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

No new data were created or analyzed in this study.

Acknowledgments

We are grateful to the staff at our ward and endoscopy unit for their assistance with clinical management.

Conflicts of Interest

Koh Kitagawa has received a speaker honorarium from Boston Scientific Japan. Koh Kitagawa has received a consulting fee from M.I. Tech.

Abbreviations

The following abbreviations are used in this manuscript:
MDBOMalignant distal biliary obstruction
MHMulti-hole
SEMSSelf-expanding metal stent
TRBOTime to recurrent biliary obstruction

References

  1. Dumonceau, J.-M.; Tringali, A.; Papanikolaou, I.S.; Blero, D.; Mangiavillano, B.; Schmidt, A.; Vanbiervliet, G.; Costamagna, G.; Devière, J.; García-Cano, J.; et al. Endoscopic biliary stenting: Indications, choice of stents, and results: European Society of Gastrointestinal Endoscopy (ESGE) clinical guideline—Updated October 2017. Endoscopy 2018, 50, 910–930. [Google Scholar] [CrossRef]
  2. Yamada, R.; Miwata, T.; Nakamura, Y.; Nose, K.; Tanaka, T.; Owa, H.; Urata, M.; Shimada, Y.; Nakagawa, H. Advances in endoscopic management of distal biliary stricture: Integrating clinical evidence into patient-specific decision-making. Cancers 2025, 17, 2644. [Google Scholar] [CrossRef] [PubMed]
  3. Huibregtse, K.; Cheng, J.; Coene, P.P.L.O.; Fockens, P.; Tytgat, G.N.J. Endoscopic placement of expandable metal stents for biliary strictures—A preliminary report on experience with 33 patients. Endoscopy 1989, 21, 280–282. [Google Scholar] [CrossRef] [PubMed]
  4. Daivids, P.H.; Groen, A.K.; Rauws, E.A.; Tytgat, G.N.; Huibregtse, K. Randomised trial of self-expanding metal stents versus polyethylene stents for distal malignant biliary obstruction. Lancet 1992, 340, 1488–1492. [Google Scholar] [CrossRef] [PubMed]
  5. Knyrim, K.; Wagner, H.J.; Pausch, J.; Vakil, N. A prospective, randomized, controlled trial of metal stents for malignant obstruction of the common bile duct. Endoscopy 1993, 25, 207–212. [Google Scholar] [CrossRef]
  6. Lammer, J.; Hausegger, K.A.; Flückiger, F.; Winkelbauer, F.W.; Wildling, R.; Klein, G.E.; Thurnher, S.A.; Havelec, L. Common bile duct obstruction due to malignancy: Treatment with plastic versus metal stents. Radiology 1996, 201, 167–172. [Google Scholar] [CrossRef]
  7. Isayama, H.; Komatsu, Y.; Tsujino, T.; Sasahira, N.; Hirano, K.; Toda, N.; Nakai, Y.; Yamamoto, N.; Tada, M.; Yoshida, H.; et al. A prospective randomised study of “covered” versus “uncovered” diamond stents for the management of distal malignant biliary obstruction. Gut 2004, 53, 729–734. [Google Scholar] [CrossRef]
  8. Park, D.H.; Kim, M.H.; Choi, J.S.; Lee, S.S.; Seo, D.W.; Kim, J.H.; Han, J.; Kim, J.C.; Choi, E.K.; Lee, S.K. Covered versus uncovered wallstent for malignant extrahepatic biliary obstruction: A cohort comparative analysis. Clin. Gastroenterol. Hepatol. 2006, 4, 790–796. [Google Scholar] [CrossRef]
  9. Kullman, E.; Frozanpor, F.; Sderlund, C.; Linder, S.; Sandstrm, P.; Lindhoff-Larsson, A.; Toth, E.; Lindell, G.; Jonas, E.; Freedman, J.; et al. Covered versus uncovered self-expandable nitinol stents in the palliative treatment of malignant distal biliary obstruction: Results from a randomized, multicenter study. Gastrointest. Endosc. 2010, 72, 915–923. [Google Scholar] [CrossRef]
  10. Ghazi, R.; AbiMansour, J.P.; Mahmoud, T.; Martin, J.A.; Law, R.J.; Levy, M.J.; Abu Dayyeh, B.K.; Storm, A.C.; Petersen, B.T.; Chandrasekhara, V. Uncovered versus fully covered self-expandable metal stents for the management of distal malignant biliary obstruction. Gastrointest. Endosc. 2023, 98, 577–584.e4. [Google Scholar] [CrossRef]
  11. Von Hoff, D.D.; Ervin, T.; Arena, F.P.; Chiorean, E.G.; Infante, J.; Moore, M.; Seay, T.; Tjulandin, S.A.; Ma, W.W.; Saleh, M.N.; et al. Increased survival in pancreatic cancer with nab-paclitaxel plus gemcitabine. N. Engl. J. Med. 2013, 369, 1691–1703. [Google Scholar] [CrossRef] [PubMed]
  12. Conroy, T.; Desseigne, F.; Ychou, M.; Bouche, O.; Guimbaud, R.; Becouarn, Y.; Adenis, A.; Raoul, J.L. FOLFIRINOX versus gemcitabine for metastatic pancreatic cancer. N. Engl. J. Med. 2011, 364, 1817–1825. [Google Scholar] [CrossRef] [PubMed]
  13. Oh, D.-Y.; Ruth He, A.; Qin, S.; Chen, L.-T.; Okusaka, T.; Vogel, A.; Kim, J.W.; Suksombooncharoen, T.; Ah Lee, M.; Kitano, M.; et al. Durvalumab plus gemcitabine and cisplatin in advanced biliary tract cancer. NEJM Evid. 2022, 1, EVIDoa2200015. [Google Scholar] [CrossRef] [PubMed]
  14. Kelley, R.K.; Ueno, M.; Yoo, C.; Finn, R.S.; Furuse, J.; Ren, Z.; Yau, T.; Klümpen, H.J.; Chan, S.L.; Ozaka, M.; et al. Pembrolizumab in combination with gemcitabine and cisplatin compared with gemcitabine and cisplatin alone for patients with advanced biliary tract cancer (KEYNOTE-966): A randomised, double-blind, placebo-controlled, phase 3 trial. Lancet 2023, 401, 1853–1865. [Google Scholar] [CrossRef]
  15. Conio, M.; Mangiavillano, B.; Caruso, A.; Filiberti, R.A.; Baron, T.H.; De Luca, L.; Signorelli, S.; Crespi, M.; Marini, M.; Ravelli, P.; et al. Covered versus uncovered self-expandable metal stent for palliation of primary malignant extrahepatic biliary strictures: A randomized multicenter study. Gastrointest. Endosc. 2018, 88, 283–291.e3. [Google Scholar] [CrossRef]
  16. Vanella, G.; Coluccio, C.; Cucchetti, A.; Leone, R.; Dell’Anna, G.; Giuffrida, P.; Abbatiello, C.; Binda, C.; Fabbri, C.; Arcidiacono, P.G. Fully covered versus partially covered self-expandable metal stents for palliation of distal malignant biliary obstruction: A systematic review and meta-analysis. Gastrointest. Endosc. 2024, 99, 314–322.e19. [Google Scholar] [CrossRef]
  17. Kitagawa, K.; Mitoro, A.; Ozutsumi, T.; Furukawa, M.; Fujinaga, Y.; Seki, K.; Nishimura, N.; Sawada, Y.; Kaji, K.; Kawaratani, H.; et al. Laser-cut-type versus braided-type covered self-expandable metallic stents for distal biliary obstruction caused by pancreatic carcinoma: A retrospective comparative cohort study. Clin. Endosc. 2022, 55, 434–442. [Google Scholar] [CrossRef]
  18. Yokota, Y.; Fukasawa, M.; Takano, S.; Kadokura, M.; Shindo, H.; Takahashi, E.; Hirose, S.; Kawakami, S.; Fukasawa, Y.; Sato, T.; et al. Partially covered metal stents have longer patency than uncovered and fully covered metal stents in the management of distal malignant biliary obstruction: A retrospective study. BMC Gastroenterol. 2017, 17, 105. [Google Scholar] [CrossRef]
  19. Kitano, M.; Yamashita, Y.; Tanaka, K.; Konishi, H.; Yazumi, S.; Nakai, Y.; Nishiyama, O.; Uehara, H.; Mitoro, A.; Sanuki, T.; et al. Covered self-expandable metal stents with an anti-migration system improve patency duration without increased complications compared with uncovered stents for distal biliary obstruction caused by pancreatic carcinoma: A randomized multicenter trial. Am. J. Gastroenterol. 2013, 108, 1713–1722. [Google Scholar] [CrossRef]
  20. Wainberg, Z.A.; Melisi, D.; Macarulla, T.; Pazo Cid, R.; Chandana, S.R.; De La Fouchardière, C.; Dean, A.; Kiss, I.; Lee, W.J.; Goetze, T.O.; et al. NALIRIFOX versus nab-paclitaxel and gemcitabine in treatment-naive patients with metastatic pancreatic ductal adenocarcinoma (NAPOLI 3): A randomised, open-label, phase 3 trial. Lancet 2023, 402, 1272–1281. [Google Scholar] [CrossRef]
  21. Wang-Gillam, A.; Li, C.P.; Bodoky, G.; Dean, A.; Shan, Y.S.; Jameson, G.; MacArulla, T.; Lee, K.H.; Cunningham, D.; Blanc, J.F.; et al. Nanoliposomal irinotecan with fluorouracil and folinic acid in metastatic pancreatic cancer after previous gemcitabine-based therapy (NAPOLI-1): A global, randomised, open-label, phase 3 trial. Lancet 2016, 387, 545–557. [Google Scholar] [CrossRef] [PubMed]
  22. Valle, J.; Wasan, H.; Palmer, D.H.; Cunningham, D.; Anthoney, A.; Maraveyas, A.; Madhusudan, S.; Iveson, T.; Hughes, S.; Pereira, S.P.; et al. Cisplatin plus gemcitabine versus gemcitabine for biliary tract cancer. N. Engl. J. Med. 2010, 362, 1273–1281. [Google Scholar] [CrossRef] [PubMed]
  23. Sakai, D.; Kanai, M.; Kobayashi, S.; Eguchi, H.; Baba, H.; Seo, S.; Taketomi, A.; Takayama, T.; Yamaue, H.; Ishioka, C.; et al. Randomized phase III study of gemcitabine, cisplatin plus S-1 (GCS) versus gemcitabine, cisplatin (GC) for advanced biliary tract cancer (KHBO1401-MITSUBA). Ann. Oncol. 2018, 29, viii205. [Google Scholar] [CrossRef]
  24. Morizane, C.; Okusaka, T.; Mizusawa, J.; Takashima, A.; Ueno, M.; Ikeda, M.; Hamamoto, Y.; Ishii, H.; Boku, N.; Furuse, J. Randomized phase II study of gemcitabine plus S-1 versus S-1 in advanced biliary tract cancer: A Japan clinical oncology group trial (JCOG 0805). Cancer Sci. 2013, 104, 1211–1216. [Google Scholar] [CrossRef]
  25. Morizane, C.; Okusaka, T.; Mizusawa, J.; Katayama, H.; Ueno, M.; Ikeda, M.; Ozaka, M.; Okano, N.; Sugimori, K.; Fukutomi, A.; et al. Combination gemcitabine plus S-1 versus gemcitabine plus cisplatin for advanced/recurrent biliary tract cancer: The FUGA-BT (JCOG1113) randomized phase III clinical trial. Ann. Oncol. 2019, 30, 1950–1958. [Google Scholar] [CrossRef]
  26. Watanabe, M.; Okuwaki, K.; Woo, J.; Kida, M.; Imaizumi, H.; Iwai, T.; Yamauchi, H.; Kaneko, T.; Hasegawa, R.; Kurosu, T.; et al. Cholecystitis after placement of covered self-expandable metallic stents in patients with distal malignant biliary obstructions. Clin. Endosc. 2021, 54, 589–595. [Google Scholar] [CrossRef]
  27. Nakai, Y.; Isayama, H.; Kawakubo, K.; Kogure, H.; Hamada, T.; Togawa, O.; Ito, Y.; Matsubara, S.; Arizumi, T.; Yagioka, H.; et al. Metallic stent with high axial force as a risk factor for cholecystitis in distal malignant biliary obstruction. J. Gastroenterol. Hepatol. 2014, 29, 1557–1562. [Google Scholar] [CrossRef]
  28. Ishii, T.; Hayashi, T.; Yamazaki, H.; Nakamura, R.; Iwano, K.; Ando, R.; Toyonaga, H.; Kin, T.; Takahashi, K.; Katanuma, A. Risk factors for early and late cholecystitis after covered metal stent placement for distal biliary obstruction. J. Hepatobiliary. Pancreat. Sci. 2023, 30, 1180–1187. [Google Scholar] [CrossRef]
  29. Matsumi, A.; Kato, H.; Ogawa, T.; Ueki, T.; Wato, M.; Fujii, M.; Toyokawa, T.; Harada, R.; Ishihara, Y.; Takatani, M.; et al. Risk factors and treatment strategies for cholecystitis after metallic stent placement for malignant biliary obstruction: A multicenter retrospective study. Gastrointest. Endosc. 2024, 100, 76–84. [Google Scholar] [CrossRef]
  30. Ishii, T.; Kin, T.; Yamazaki, H.; Hama, K.; Nakamura, R.; Iwano, K.; Ando, R.; Toyonaga, H.; Shimizu, T.; Hayashi, T.; et al. Prophylactic endoscopic gallbladder stent placement for cholecystitis after covered metal stent placement for distal biliary obstruction (with video). Gastrointest. Endosc. 2023, 98, 36–42.e1. [Google Scholar] [CrossRef]
  31. Tamura, T.; Yamai, T.; Uza, N.; Yamasaki, T.; Masuda, A.; Tomooka, F.; Maruyama, H.; Shigekawa, M.; Ogura, T.; Kuriyama, K.; et al. Adverse events of self-expandable metal stent placement for malignant distal biliary obstruction: A large multicenter study. Gastrointest. Endosc. 2024, 99, 61–72.e8. [Google Scholar] [CrossRef] [PubMed]
  32. Kobayashi, M. Development of a biliary multi-hole self-expandable metallic stent for bile tract diseases: A case report. World J. Clin. Cases 2019, 7, 1323–1328. [Google Scholar] [CrossRef] [PubMed]
  33. Kulpatcharapong, S.; Piyachaturawat, P.; Mekaroonkamol, P.; Angsuwatcharakon, P.; Ridtitid, W.; Kongkam, P.; Rerknimitr, R. Efficacy of multi-hole self-expandable metal stent compared to fully covered and uncovered self-expandable metal stents in patients with unresectable malignant distal biliary obstruction: A propensity analysis. Surg. Endosc. 2024, 38, 212–221. [Google Scholar] [CrossRef]
  34. Takeda, T.; Sasaki, T.; Okamoto, T.; Mie, T.; Sato, Y.; Maegawa, Y.; Hirai, T.; Suzuki, Y.; Furukawa, T.; Ozaka, M.; et al. Outcomes of multi-hole self-expandable metal stents versus fully covered self-expandable metal stents for malignant distal biliary obstruction in unresectable pancreatic cancer. DEN Open 2025, 5, e70014. [Google Scholar] [CrossRef] [PubMed]
  35. Takahashi, S.; Takeda, T.; Kobayashi, M.; Saito, K.; Suda, K.; Yamamoto, N.; Mizuno, S.; Fukuda, R.; Kato, H.; Tomishima, K.; et al. Efficacy and safety of a novel multi-hole fully covered self-expandable metallic stent for malignant distal biliary obstruction: Multicenter retrospective study. Dig. Endosc. 2025, 37, 766–774. [Google Scholar] [CrossRef]
  36. Asada, S.; Kitagawa, K.; Tomooka, F.; Hanatani, J.I.; Motokawa, Y.; Osaki, Y.; Iwata, T.; Kaji, K.; Mitoro, A.; Yoshiji, H. Efficacy of multi-hole self-expandable metallic stents versus partially covered self-expandable metallic stents in patients with malignant distalbiliary obstruction caused by unresectable pancreatic cancer: A retrospective comparative cohort study in Japan. Clin. Endosc. 2025, 58, 744–756. [Google Scholar] [CrossRef]
  37. Asada, S.; Kitagawa, K.; Hanatani, J.; Motokawa, Y.; Osaki, Y.; Iwata, T.; Kaji, K.; Mitoro, A.; Nagai, M.; Yoshiji, H.; et al. Endoscopic biliary drainage with multi-hole self-expandable metallic stent during neoadjuvant chemoradiotherapy in pancreatic cancer. World J. Gastrointest. Endosc. 2025, 17, 111107. [Google Scholar] [CrossRef]
  38. Matsumoto, K.; Iwasa, K.; Watanabe, A.; Takiyama, H.; Okabe, S.; Osugi, N.; Nakamatsu, D.; Yamamoto, M.; Hayashi, S.; Fukui, K.; et al. Efficacy and safety of multihole partially covered self-expandable metal stents for distal malignant biliary obstruction: A single-center retrospective study. DEN Open 2026, 6, e70168. [Google Scholar] [CrossRef]
  39. Kitagawa, K.; Tomooka, F.; Yoshiji, H. Efficacy of a novel covered metallic stent with side holes for malignant anastomotic stenosis of choledochojejunostomy. Dig. Endosc. 2024, 36, 628–630. [Google Scholar] [CrossRef]
  40. Park, D.H.; Lee, S.S.; Lee, T.H.; Ryu, C.H.; Kim, H.J.; Seo, D.W.; Park, S.H.; Lee, S.K.; Kim, M.H.; Kim, S.J. Anchoring flap versus flared end, fully covered self-expandable metal stents to prevent migration in patients with benign biliary strictures: A multicenter, prospective, comparative pilot study (with videos). Gastrointest. Endosc. 2011, 73, 64–70. [Google Scholar] [CrossRef]
  41. Minaga, K.; Kitano, M.; Imai, H.; Harwani, Y.; Yamao, K.; Kamata, K.; Miyata, T.; Omoto, S.; Kadosaka, K.; Sakurai, T.; et al. Evaluation of anti-migration properties of biliary covered self-expandable metal stents. World J. Gastroenterol. 2016, 22, 6917–6924. [Google Scholar] [CrossRef]
  42. Jirapinyo, P.; AlSamman, M.A.; Thompson, C.C. Impact of infected stent removal on recurrent cholangitis with time-to-event analysis. Surg. Endosc. 2019, 33, 4109–4115. [Google Scholar] [CrossRef]
  43. González, N.; Ramesh, J.; Wilcox, C.M.; Mönkemüller, K. Endoscopic removal of an impacted bile duct self-expanding metal stent (SEMS) using the SEMS-in-SEMS technique. Endoscopy 2013, 45, E254–E255. [Google Scholar] [CrossRef]
  44. Komori, Y.; Hijioka, S.; Nagashio, Y.; Harai, S.; Yamashige, D.; Onuma, K.; Fujisaki, K.; Agarie, D.; Okamoto, K.; Yagi, S.; et al. Efficacy of the stent-in-stent technique as a rescue method for removing embedded metallic biliary stents. DEN Open 2026, 6, e70246. [Google Scholar] [CrossRef] [PubMed]
  45. Tringali, A.; Blero, D.; Boškoski, I.; Familiari, P.; Perri, V.; Devière, J.; Costamagna, G. Difficult removal of fully covered self expandable metal stents (SEMS) for benign biliary strictures: The “SEMS in SEMS” technique. Dig. Liver Dis. 2014, 46, 568–571. [Google Scholar] [CrossRef] [PubMed]
  46. Alsakarneh, S.; Madi, M.Y.; Dahiya, D.S.; Jaber, F.; Kilani, Y.; Ahmed, M.; Beran, A.; Abdallah, M.; Al Ta’ani, O.; Mittal, A.; et al. Is Endoscopic ultrasound-guided hepaticogastrostomy safe and effective after failed endoscopic retrograde cholangiopancreatography?—A systematic review and meta-analysis. J. Clin. Med. 2024, 13, 3883. [Google Scholar] [CrossRef] [PubMed]
  47. Amato, A.; Sinagra, E.; Celsa, C.; Enea, M.; Buda, A.; Vieceli, F.; Scaramella, L.; Belletrutti, P.; Fugazza, A.; Cammà, C.; et al. Efficacy of lumen-apposing metal stents or self-expandable metal stents for endoscopic ultrasound-guided choledochoduodenostomy: A systematic review and meta-analysis. Endoscopy 2021, 53, 1037–1047. [Google Scholar] [CrossRef]
  48. Dhir, V.; Singh, V.K.; Lakhtakia, S.; Puri, R.; Rai, P.; Pausawasdi, N.; Tonozuka, R.; Jahangeer, B.; Prachayakul, V.; Kathuria, A.; et al. Endoscopic ultrasound-guided trans-papillary versus trans-luminal biliary stenting: Randomized comparison of long term stent patency. Endoscopy 2025. Online ahead of print. Erratum in Endoscopy 2025, Online ahead of print. https://doi.org/10.1055/a-2775-1692. [Google Scholar] [CrossRef]
  49. Matsubara, S.; Nakagawa, K.; Suda, K.; Otsuka, T.; Oka, M.; Nagoshi, S. Practical tips for safe and successful endoscopic ultrasound-guided hepaticogastrostomy: A state-of-the-art technical review. J. Clin. Med. 2022, 11, 1591. [Google Scholar] [CrossRef]
  50. Cot, G.A.; Kumar, N.; Ansstas, M.; Edmundowicz, S.A.; Jonnalagadda, S.; Mullady, D.K.; Azar, R.R. Risk of Post-ERCP pancreatitis with placement of self-expandable metallic stents. Gastrointest. Endosc. 2010, 72, 748–754. [Google Scholar] [CrossRef]
  51. Nam, H.S.; Kang, D.H.; Kim, H.W.; Choi, C.W.; Park, S.B.; Kim, S.J.; Ryu, D.G. Efficacy and safety of limited endoscopic sphincterotomy before self-expandable metal stent insertion for malignant biliary obstruction. World J. Gastroenterol. 2017, 23, 1627–1636. [Google Scholar] [CrossRef][Green Version]
  52. Onnekink, A.M.; Gorris, M.; Bekkali, N.L.H.; Bos, P.; Didden, P.; Dominguez-Muñoz, J.E.; Friederich, P.; van Halsema, E.E.; Hazen, W.L.; van Huijgevoort, N.C.; et al. Endoscopic sphincterotomy to prevent Post-ERCP pancreatitis after self-expandable metal stent placement for distal malignant biliary obstruction (SPHINX): A multicentre, randomised controlled trial. Gut 2024, 74, 246–254. [Google Scholar] [CrossRef]
  53. Tamura, T.; Ogura, T.; Takenaka, M.; Tanioka, K.; Itonaga, M.; Yamao, K.; Kamata, K.; Hirono, S.; Okada, K.; Imanishi, M.; et al. Endoscopic sphincterotomy to prevent post-ercp pancreatitis in patients with biliary neoplasms: A multicenter retrospective cohort study. Endosc. Int. Open 2020, 8, E513–E522. [Google Scholar] [CrossRef]
  54. Umemura, M.; Shimura, E.; Asai, Y.; Tsuji, A.; Nishino, M.; Takahashi, Y.; Sasada, Y.; Saida, Y.; Kawata, K.; Sugimoto, K.; et al. Dilated main pancreatic duct can be a negative predictor of pancreatitis related to biliary SEMS insertion across the papilla. Scand. J. Gastroenterol. 2021, 56, 865–869. [Google Scholar] [CrossRef] [PubMed]
  55. Xia, M.X.; Zhou, Y.F.; Zhang, M.; Wang, W.; Wu, J.; Wang, T.T.; Zhang, X.F.; Hu, B. Influence of fully covered metal stenting on the risk of post-endoscopic retrograde cholangiopancreatography pancreatitis: A large multicenter study. J. Gastroenterol. Hepatol. 2020, 35, 2256–2263. [Google Scholar] [CrossRef] [PubMed]
  56. Zeng, C.; Zhang, Y.; Yang, H.; Hong, J. Prevention of pancreatitis after stent implantation for distal malignant biliary strictures: Systematic review and meta-analysis. Expert Rev. Gastroenterol. Hepatol. 2022, 16, 141–154. [Google Scholar] [CrossRef] [PubMed]
  57. Tenner, S.; Vege, S.S.; Sheth, S.G.; Sauer, B.; Yang, A.; Conwell, D.L.; Yadlapati, R.H.; Gardner, T.B. American College of Gastroenterology guidelines: Management of acute pancreatitis. Am. J. Gastroenterol. 2024, 119, 419–437. [Google Scholar] [CrossRef]
  58. Mukai, S.; Takeyama, Y.; Itoi, T.; Ikeura, T.; Irisawa, A.; Iwasaki, E.; Katanuma, A.; Kitamura, K.; Takenaka, M.; Hirota, M.; et al. Clinical practice guidelines for post-ERCP pancreatitis 2023. Dig. Endosc. 2025, 37, 573–587. [Google Scholar] [CrossRef]
  59. Elmunzer, B.J.; Foster, L.D.; Serrano, J.; Coté, G.A.; Edmundowicz, S.A.; Wani, S.; Shah, R.; Bang, J.Y.; Varadarajulu, S.; Singh, V.K.; et al. Indomethacin with or without prophylactic pancreatic stent placement to prevent pancreatitis after ERCP: A randomised non-inferiority trial. Lancet 2024, 403, 450–458. [Google Scholar] [CrossRef]
  60. Crinò, S.F.; Aabakken, L.; Bapaye, A.; Chan, S.; Kida, M.; Law, R.; Maluf-Filho, F.; Mekaroonkamol, P.; de Moura, E.G.H.; Bestetti, A.; et al. World endoscopy organization guidelines on endoscopic retrograde cholangiopancreatography biliary cannulation and sphincterotomy techniques. Dig. Endosc. 2025, 37, 1029–1053. [Google Scholar] [CrossRef]
  61. Nebiki, H.; Fujita, K.; Yazumi, S.; Takenaka, M.; Maruo, T.; Matsumoto, K. Does endoscopic sphincterotomy contribute to the prevention of post-endoscopic retrograde cholangiopancreatography pancreatitis after endoscopic biliary stenting for malignant biliary obstruction? A multicenter prospective cohort study. Surg. Endosc. 2023, 37, 3463–3470. [Google Scholar] [CrossRef]
Jcm 15 01410 g001

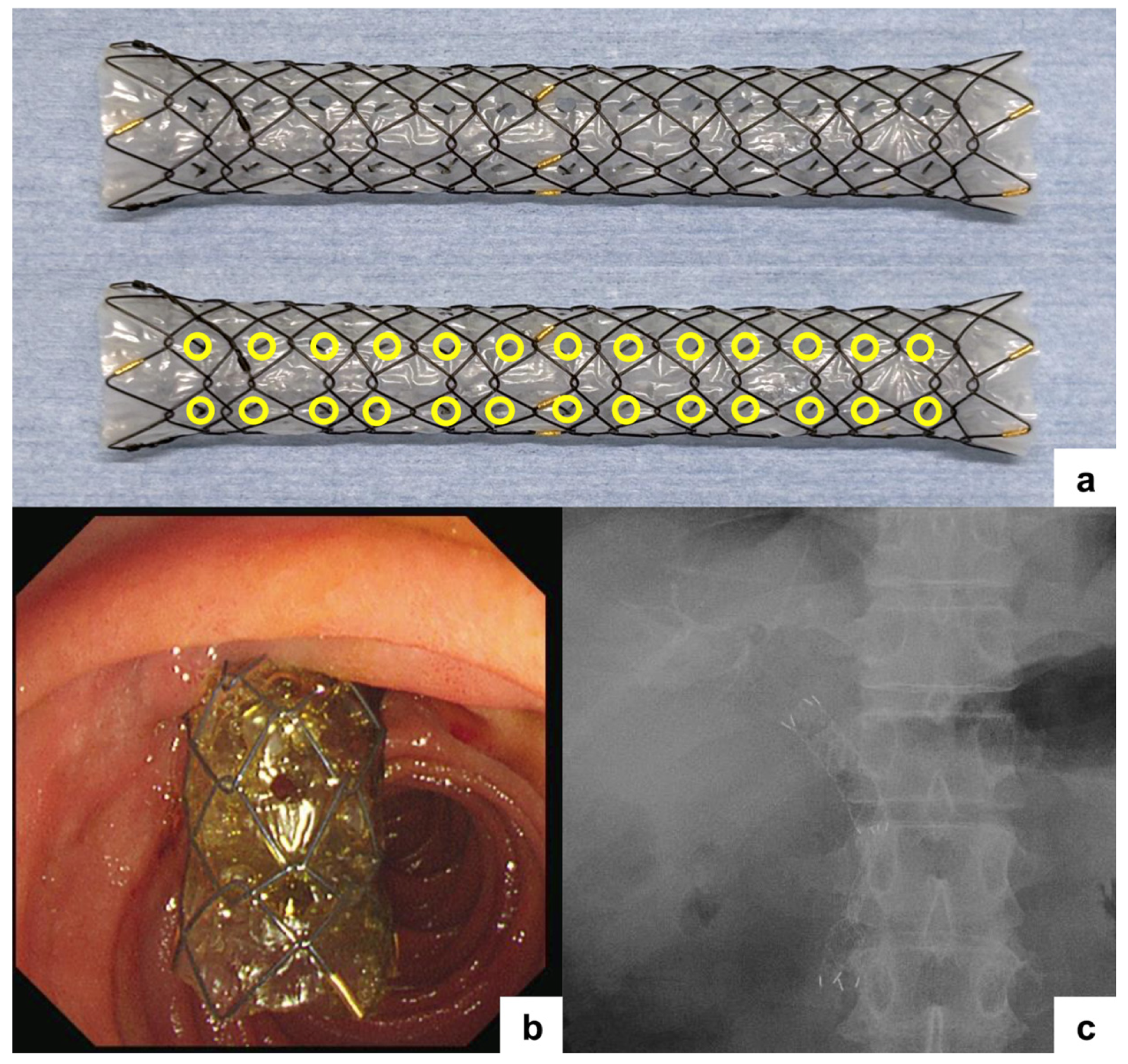

Figure 1. Structure and clinical placement of the multi-hole self-expandable metallic stent (MH-SEMS). (a) Image of the MH-SEMS showing six longitudinal rows of side holes in the covering membrane (yellow circles). Each side hole had a diameter of 1.8 mm. (b) Endoscopic view of MH-SEMS placement in a patient with a malignant distal biliary obstruction. (c) Corresponding fluoroscopic image confirming appropriate stent deployment.
Figure 1. Structure and clinical placement of the multi-hole self-expandable metallic stent (MH-SEMS). (a) Image of the MH-SEMS showing six longitudinal rows of side holes in the covering membrane (yellow circles). Each side hole had a diameter of 1.8 mm. (b) Endoscopic view of MH-SEMS placement in a patient with a malignant distal biliary obstruction. (c) Corresponding fluoroscopic image confirming appropriate stent deployment.
Jcm 15 01410 g001
Jcm 15 01410 g002
Figure 2. Endoscopic removal of a multi-hole self-expandable metallic stent (MH-SEMS). A patient with malignant distal biliary obstruction due to pancreatic cancer underwent MH-SEMS placement. (a) Computed tomography image obtained one month after stent placement demonstrating acute cholecystitis. Because of a bleeding tendency, percutaneous transhepatic biliary drainage and endoscopic ultrasound-guided gallbladder drainage were contraindicated. (b) Endoscopic view of the indwelling MH-SEMS. (c,d) Endoscopic images demonstrating MH-SEMS removal. The stent was grasped with a snare and successfully retrieved without any adverse events. (e,f) Plastic stents were subsequently placed in the bile duct and gallbladder.
Figure 2. Endoscopic removal of a multi-hole self-expandable metallic stent (MH-SEMS). A patient with malignant distal biliary obstruction due to pancreatic cancer underwent MH-SEMS placement. (a) Computed tomography image obtained one month after stent placement demonstrating acute cholecystitis. Because of a bleeding tendency, percutaneous transhepatic biliary drainage and endoscopic ultrasound-guided gallbladder drainage were contraindicated. (b) Endoscopic view of the indwelling MH-SEMS. (c,d) Endoscopic images demonstrating MH-SEMS removal. The stent was grasped with a snare and successfully retrieved without any adverse events. (e,f) Plastic stents were subsequently placed in the bile duct and gallbladder.
Jcm 15 01410 g002
Jcm 15 01410 g003
Figure 3. Endoscopic findings of recurrent biliary obstruction following multi-hole self-expandable metallic stent placement. (a) Partial stent migration. (b) Stent occlusion due to sludge accumulation. (c) Tumor ingrowth through the side holes. (d) Hemobilia originating from the side holes.
Figure 3. Endoscopic findings of recurrent biliary obstruction following multi-hole self-expandable metallic stent placement. (a) Partial stent migration. (b) Stent occlusion due to sludge accumulation. (c) Tumor ingrowth through the side holes. (d) Hemobilia originating from the side holes.
Jcm 15 01410 g003
Table 1. Summary of studies on the clinical outcomes of MH-SEMS for malignant distal biliary obstruction (MDBO).
Table 1. Summary of studies on the clinical outcomes of MH-SEMS for malignant distal biliary obstruction (MDBO).
Author (year)No. of MH-SEMS CasesStudy DesignCompeting SEMSCenterMedian Follow-Up PeriodsPrimary Disease, nRate of Anti-cancer Treatment Received CasesMedian TRBOIncidence Rate of PEPIncidence Rate of CholecystitisIncidence Rate of RBOIncidence Rate of Stent MigrationMost Common Reason of RBOSuccess Rate of MH-SEMS Removal, (n/N)Results of the Comparative Study on TRBO
Kobayashi [32]
(2019)		1Case reportN/DSingleN/DUR-PC 1N/D223 days0%0%100%0%N/D100% (1/1)N/D
Kulpatcharapong et al. [33]
(2024)		40Retrospective comparative studyFC-SEMS, U-SEMSSingle177 daysUR-PC 23; Other malignancies 1742.5%479 days7.5%5.3%21.1%2.6% †Tumor ingrowth2 cases *MH-SEMS > FC-SEMS, U-SEMS
Takeda et al. [34]
(2024)		27Retrospective comparative studyFC-SEMSSingleN/DUR-PC only85.2%101 days3.7%0%53.8%0% †Non-occlusion cholangitis100% (11/11)MH-SEMS < FC-SEMS
Matsumoto et al. [38]
(2025)		26Retrospective comparative studyFC-SEMSSingle103 daysUR-PC 22; Other malignancies 4N/D151 days3.9%0%7.7%3.8%Food impaction, migrationN/DMH-SEMS = FC-SEMS
Takahashi et al. [35]
(2025)		111Retrospective studyN/DMulticenter107 daysR/UR-PC 85; Other malignancies 2660.4%446 days11.7%2.7%21.0%1.9%Tumor ingrowth, Non-occlusion cholangitis88.9% (16/18)N/D
Asada et al. [36]
(2025)		43Retrospective comparative studyPC-SEMSSingle177 daysUR-PC only62.8%318 days4.8%7.1%28.6%4.8% ‡Sludge occlusion100% (7/7)MH-SEMS = PC-SEMS
Asada et al. [37]
(2025)		14Retrospective studyN/DSingleN/DR/BR-PC only100% (NACRT)N/D21.4%0%7.1%0%Sludge occlusion100% (1/1)N/D
SEMS, self-expandable metallic stent; MH-SEMS, multi-hole self-expandable metallic stent; FC-SEMS, fully-covered self-expandable metallic stent; U-SEMS, uncovered self-expandable metallic stent; PC-SEMS, partially covered self-expandable metallic stent; TRBO, time to recurrent biliary obstruction; PEP, post-endoscopic retrograde cholangiopancreatography pancreatitis; UR-PC, unresectable pancreatic cancer; R-PC, resectable pancreatic cancer; BR-PC, borderline resectable pancreatic cancer; NACRT, neoadjuvant chemoradiation therapy; N/D, not described; * The success rate of MH-SEMS removal is not described; † The migration rate of MH-SEMS was significantly lower than that of FC-SEMS. ‡ The migration rate of MH-SEMS was equivalent to that of PC-SEMS.
