Placental Shear Wave Elastography Assessment in Early and Late Fetal Growth Restriction

by
Erika Cavanagh
1,2,3,4,
Kylie Crawford
1,
Jesrine Hong
1,4,5,
Davide Fontanarosa
2,3,
Christopher Edwards
2,3,
Marie-Luise Wille
6,
Jennifer Hong
4,
Vicki L. Clifton
1 and
Sailesh Kumar
1,4,7,*
1
Mater Research Institute, University of Queensland, Level 3, Aubigny Place, Raymond Terrace, South Brisbane, QLD 4101, Australia
2
School of Clinical Sciences, Faculty of Health, Queensland University of Technology, Brisbane, QLD 4000, Australia
3
Centre for Biomedical Technologies (CBT), Queensland University of Technology, Brisbane, QLD 4000, Australia
4
Mater Centre for Maternal and Fetal Medicine, Mater Mothers’ Hospital, South Brisbane, QLD 4101, Australia
5
Department of Obstetrics and Gynecology, Faculty of Medicine, Universiti Malaya, Kuala Lumpur 50603, Malaysia
6
School of Mechanical, Medical and Process Engineering and ARC Training Centre for Multiscale 3D Imaging, Modelling and Manufacturing, Queensland University of Technology, Brisbane, QLD 4000, Australia
7
Faculty of Medicine, The University of Queensland, Herston, QLD 4006, Australia
*
Author to whom correspondence should be addressed.
J. Clin. Med. 2025, 14(14), 4980; https://doi.org/10.3390/jcm14144980
Submission received: 19 May 2025 / Revised: 7 July 2025 / Accepted: 10 July 2025 / Published: 14 July 2025
(This article belongs to the Section Obstetrics & Gynecology)
Browse Figures
Versions Notes

Abstract

Background/Objectives: The application of shear wave elastography (SWE) for the assessment of placental disease is still unproven and there is limited data correlating placental biomechanical properties with aberrations in fetal growth. This study investigated changes in placental shear wave velocity (SWV) in early and late fetal growth restriction (FGR). Methods: We analyzed three study cohorts: Pregnancies with appropriate growth for gestational age (AGA) and those with early (<32 weeks’) and late (>32 weeks’) FGR. Mean SWV at two time points was compared in the following cohorts: all FGR vs. AGA, early FGR vs. late FGR, early FGR vs. AGA, and late FGR vs. AGA. Results: The study comprised 222 women—79 (35.6%) FGR and 143 (64.4%) AGA. Of the FGR pregnancies, 37 (46.8%) were early and 42 (53.2%) were late. On multivariate analysis mean, SWV was not increased in FGR compared to AGA placentae (β 0.21, 95% CI −0.17–0.60, p 0.28). It was also not increased in early FGR compared to late FGR or AGA placentae (β 0.36, 95% CI −0.06–0.77, p 0.09). We observed an effect measure modification by pre-eclampsia, increasing mean SWV to a greater extent in AGA compared to FGR cases. Conclusions: Although previous studies have shown an association between placental SWV and FGR, our study showed no difference between cases and controls. The interaction of pre-eclampsia indicated that SWE may have a greater role in pre-eclampsia than in FGR alone. Further investigation of the influence of increased maternal vascular pressure on placental stiffness would be beneficial.

1. Introduction

Fetal growth restriction (FGR) is a common complication of pregnancy, and a leading cause of stillbirth and perinatal morbidity and mortality worldwide [1,2]. Growth restricted neonates are also at disproportionately increased risk of developing chronic non-communicable diseases throughout their lifetime [3,4]. Perturbations in utero-placental circulation and placental dysfunction are key factors in the etiology of FGR and pre-eclampsia [5]. Placentae from pregnancies complicated by FGR show characteristic macro and microscopic histopathological abnormalities, such as ischemic and haemorrhagic infarctions, fibrosis and parenchymal hemorrhage, which are reflective of maternal vascular malperfusion and hypoxia-induced insult to the placental villous tree [5,6,7]. Although these changes are readily appreciated after birth, prenatal ultrasound assessment of placental morphology is poorly correlated with these findings [8,9]. Instead, evidence of placental dysfunction is inferred from the presence of a small-for-gestational-age (SGA) fetus, decrease in fetal growth velocity and/or characteristic fetoplacental Doppler changes [4,10,11,12].
Shear wave elastography (SWE) is an emerging ultrasound technology that has shown some promise in measuring tissue elasticity [13,14,15]. This technique involves the transmission of a modified sound wave of greater intensity than conventional diagnostic ultrasound, resulting in lateral deformation of tissue. As the mechanical properties of biological tissues are controlled by their viscoelasticity, these elastography techniques can be utilized to quantify changes in the “stiffness” of biological tissue which are altered during inflammation and fibrosis, and may also help differentiate between healthy and impaired tissue [15,16,17]. The measured velocity of the shear wave propagating away from the pulse is proportionate to the rigidity of the tissue, with higher mean shear wave velocity (SWV) observed in stiffer and more dense tissues [17]. SWE as a non-invasive and reproducible marker of tissue inflammation and disease can be used to assess the severity of fibrosis and inflammation in various tissues [13,14,17,18] and this technique has recently been applied to assessing the biomechanical properties of placentae, with variable results [14,16,19]. Although various investigators have attempted to correlate placental stiffness measured by elastography with placental function in pregnancies with FGR, the evidence supporting its reliability and utility as a proxy for placental function is limited and generally inconclusive [20,21,22,23,24,25,26,27].
The aim of this study was to prospectively investigate whether, compared to controls, shear wave velocity is increased in placentae from pregnancies with confirmed early and late FGR defined using the International Society for Ultrasound in Obstetrics and Gynecology’s (ISUOG) Delphi consensus diagnostic criteria [28].

2. Materials and Methods

2.1. Design and Study Population

This was a prospective, observational, longitudinal study of women with a singleton fetus referred to the Mater Centre for Maternal and Fetal Medicine at the Mater Mothers’ Hospital in Brisbane, Australia between May 2022 and May 2023. All women provided informed consent for involvement in the study. Cases with known chromosomal or genetic abnormalities or major structural malformations were excluded. The study was conducted in accordance with the Declaration of Helsinki [29], with ethical and governance approvals provided on 9 September 2020 by the Mater Misericordiae Limited Human Research Ethics Committee (HREC/MML/66263) and the Mater Governance Office, respectively. Administrative review approval was also provided on 2 February 2024 by the Queensland University of Technology Office of Research Ethics and Integrity (HE-AdRev 2024-8281-17583). Maternal demographic data, relevant medical and obstetric history, and biometric data were collected.
Early and late onset FGR were defined using the ISUOG Delphi consensus criteria, defined as follows: Early FGR (<32 + 0 weeks): (1) Abdominal Circumference (AC) or Estimated Fetal Weight (EFW) < 3rd centile, (2) absent end-diastolic flow in umbilical artery, or (3) AC or EFW < 10th centile in combination with Uterine Artery Pulsatility Index (UtA PI) > 95th centile and/or Umbilical Artery Pulsatility Index (UA PI) > 95th centile. Late FGR (≥32 + 0 weeks): (1) AC or EFW < 3rd centile, (2) at least two out of three of the following: AC or EFW < 10th centile, AC or EFW crossing more than two growth quartiles and Cerebroplacental Ratio (CPR) < 5th centile or UA PI > 95th centile. A fetus appropriate for gestational age (AGA) was defined as one with AC and EFW > 10th centile and UA PI < 95th centile for gestational age [11,28].
The referent population was women with fetuses that were AGA. All fetal growth and wellbeing ultrasound and shear wave elastography examinations were performed by a single sonographer (EC) consistent with ISUOG practice guidelines [11,30] at 1–4-week intervals until birth, determined by the severity of FGR. The EFW was calculated using Hadlock’s formula [31]. At all ultrasound scans, the UA PI, Middle Cerebral Artery Pulsatility Index (MCA PI) and Ductus Venosus Pulsatility Index (DV PI) and Ductus Venosus Peak Velocity Index for Veins (DV PVIV) were measured and referenced against appropriate gestational charts [32,33,34]. The CPR was calculated as the ratio of the MCA PI and UA PI.

2.2. Equipment and Methods

SWE measurements were obtained using a Canon Aplio i-series 600 ultrasound system (Canon Medical, Otawara-shi, Japan) with a curved 8C1 transducer, using the method described in our previous manuscripts [35,36]. Summarily, the placenta was examined in gray-scale imaging to determine the shortest distance from transducer to placenta whilst maintaining a plane roughly perpendicular to the placental mass. As shown in Figure 1, the SWE acquisition box was positioned centrally within the placental mass, in an area of parenchymal homogeneity. SWV measurements were taken using the system’s single-shot technique, discharging a 2.5 MHz acoustic radiation force pulse over a single frame. A 5 mm region of interest (ROI) is placed in an area of uniform reliability as indicated by the system’s propagation map. The mean SWV (m/s2) was derived from thirteen separate ROIs within the same SWE acquisition box [37]. Mean SWV where the standard deviation of the mean was greater than 10 percent were excluded as this was indicative of unsatisfactory reliability of the measurement [38,39]. If thirteen measurements of reliable quality could not be achieved due to suboptimal SWV acquisition, the assessment was considered inadequate and the data excluded from the study. As the depth of ROI is known to affect measurement reliability, the average depth of the thirteen ROIs was also calculated and integrated into the analysis [38]. The duration of the elastography examination did not exceed five minutes per examination and care was taken to ensure no fetal tissue was included in the SWE acquisition [40].
All data (maternal demographic information, ultrasound measurements and other relevant clinical details) were collected and recorded using REDCap™ (Research Electronic Data Capture, Version 15.5.0). REDCap™ is a secure, web-based software platform designed to support data capture for research projects [41,42]. All healthcare providers were blinded to the resultant SWV data, and any clinical management decisions were made primarily on the findings of fetal biometry, EFW, fetal Dopplers, and/or the overall maternal clinical condition.
Participants were categorized into early FGR, late FGR and AGA groups according to the Delphi consensus [28]. We analyzed ultrasound and SWE data from the last examination prior to 32 weeks’ gestation and the last examination prior to delivery.
We compared SWV at the two time points for the following cohorts:
  • All FGR vs. AGA
  • Early FGR vs. late FGR
  • Early FGR vs. AGA
  • Late FGR vs. AGA
Clinically relevant confounders [43,44] of the association between FGR and z-score of SWV included body mass index (BMI) and tissue depth [45]. Pre-eclampsia was considered both a confounder and an effect measure modifier because it is associated with FGR and SWV. As missing data were less than 1%, a complete case analysis was used. The primary study outcome was the z-score of mean SWV.

2.3. Statistical Analysis

Preliminary assessment of the associations between FGR status, health and demographic characteristics, and ultrasound findings were performed using chi-squared tests for categorical variables and Analysis of Variance (ANOVA) or Kruskal–Wallis ANOVA according to distribution. The distribution of continuous variables was evaluated using histograms and mean/standard deviation < 2 to indicate extreme skewness [46]. Preliminary assessment of the associations between FGR, early-onset FGR, late-onset FGR, pre-eclampsia, and SWV were performed using box plots. Multivariable generalized linear models were built, using a Gaussian distribution and identity link, adjusting for clinically relevant confounders. The correlation between average tissue depth and BMI was determined using Spearman’s rank correlation coefficients, with correlations considered significant at p < 0.05. Tissue depth was omitted from all models of the last scan before 32 weeks due to collinearity with BMI (p < 0.0001 for all models). The assumption of normality was checked by plotting histograms of deviance residuals. The assumption of homoskedasticity was checked by plotting deviance residuals against linear fitted values. Cook’s distance was used to investigate observations with undue influence.
As this was an exploratory study and previous studies investigating the association between FGR and SWV are limited, sample size calculations were not performed. Significance was set at α = 0.05 for all statistical tests. The reporting of this study conforms to the STROBE (Strengthening the Reporting of Observational Studies in Epidemiology) statement [47]. Statistical analyses were performed using Stata 18.5® (Statacorp LLC, College Station, TX, USA).

3. Results

Over the study period, 247 women met the inclusion criteria and agreed to participate. SWE was unable to be performed in 25 women (8.8%) because increased maternal BMI or posterior placental location impaired the quality of the examination. The final cohort comprised 222 women (89.9%) in whom SWV was successfully measured (Figure 2). Of these, 35.6% (79/222) were FGR and 64.4% (143/222) were AGA. Of the FGR cases, 46.8% (37/79) were early FGR, and 53.2% (42/79) were late FGR. Table 1 outlines the demographic and health characteristics of the study population. Women with FGR were more likely to smoke, have diabetes mellitus and gestational hypertension and/or pre-eclampsia.
When we compared the last examination < 32 weeks’ gestation, we found on univariate analysis that the z-score of mean SWV was not significantly different in any FGR vs. AGA placentae. It was also not significantly different between placentae from early FGR vs. late FGR, early FGR vs. AGA, or late FGR vs. AGA cases. Table 2 lists the univariate analysis results. On multivariate analysis, the mean SWV was not increased in FGR compared to AGA placentae (β 0.21, 95% CI −0.17–0.60, p 0.28). It was also not increased in early FGR compared to late FGR or AGA placentae (β 0.36, 95% CI −0.06–0.77, p 0.09), as demonstrated in Figure 3A,B. There was an effect measure modification by pre-eclampsia which increased the mean SWV to a greater extent in AGA compared to any FGR or early FGR cases (Figure 3C–E).
When the last examination prior to birth was assessed, we found that the z-score of mean SWV was not increased in FGR compared to AGA placentae (−0.09, 95% CI −0.36–0.18 p < 0.001). There was also no increase in the z-score between early FGR (0.09, 95% CI −0.22–0.39 p < 0.001) or late FGR (−0.29, 95% CI −0.65–0.07 p < 0.001) vs. AGA placentae. On multivariate analysis, as demonstrated in Table 3, the mean SWV was not increased in FGR vs. AGA placentae (β −0.002, 95% CI −0.28–0.28, p 0.99). The mean SWV was also not increased in early FGR compared to AGA placentae (β 0.13, 95% CI −0.21–0.46, p 0.46). Similarly, the mean SWV was not increased in late FGR compared to AGA placentae (β −0.13 95% CI −0.48–0.22, p 0.47). This is shown in Figure 4A–C. A similar association and effect measure modification due to pre-eclampsia was again present (Figure 4D–F).

4. Discussion

In this study of well characterized FGR cases, we did not find any difference in placental SWV between FGR cases and AGA controls. We also found no difference in SWV between early FGR vs. late FGR placentae or early FGR and late FGR placentae compared to AGA placentae. Our findings suggest that evaluation of placental SWV as a surrogate measure of placental function may not be useful in assessing either the severity or progression of placental dysfunction in pregnancies complicated by early or late FGR. We undertook the current study because in a previous SWE study of placentae from SGA pregnancies compared to AGA controls [36] we found no difference in mean SWV between cases and control. We postulated that the severity of placental dysfunction in the SGA cohort may not have been substantial enough to cause a change in placental mechanical properties which, in turn, would be reflected by differences in SWV. Therefore, in this prospective study, we specifically included cases of early and late FGR and compared them to AGA controls. Our results also indicate that pre-eclampsia in isolation, rather than FGR, has a greater impact on placental SWV.
A strength of our analysis is the reliability of the SWV measurements we obtained. Previous studies have shown that measurement of SWV is highly influenced by depth of the ROI, attenuation of overlying tissues, or operator-related variations [38,39]. In our study, all measurements were performed by a single experienced sonographer according to a strict imaging protocol. A previous publication from our group [38] concluded that accurate assessment of mean SWV requires a large number of small ROIs when assessing a large inhomogeneous structure such as the placenta. Our study derived the mean SWV from thirteen 5 mm ROIs, and our threshold for remeasurement or rejection of the sample limited the standard deviation of mean SWV to 10 percent. Our study’s large number of observations and rigorous measurement protocols ensured a high level of reliability and reproducibility. This is a significant consideration as SWE reliability studies have shown a wide variation in results and high operator dependency [15,39,48]. Comparable placental elastography studies have demonstrated a wide variation in SWV measurements of up to 40 percent [20,22,23,24,49]. Increased maternal BMI has previously been shown to influence mean SWV [45]. Our analysis adjusted for maternal BMI, however the independent increased risk of pre-eclampsia in high BMI women may compound this effect [50].
We acknowledge that there are some limitations of this study, the first being that it was conducted in a single center. The second limitation is that subjects were recruited when initially referred to Maternal Fetal Medicine for a medically indicated growth scan, and then followed up with a subsequent scan as clinically required. This resulted in data being collected at variable gestational ages; thus, data collection points were not uniform. Furthermore, it is possible that some women who were referred after 32 weeks’ gestation may have had undiagnosed early FGR.
Deficiencies in placental angiogenesis underpin the etiology of both FGR and pre-eclampsia [5,7,12,51]. Failure of the uterine spiral arteries to remodel during early pregnancy gives rise to hypoperfusion of the placenta and suboptimal maternal-fetal exchange, with both growth restriction and pre-eclampsia being common outcomes [5]. Many previous investigations of placental SWV in pregnancies with FGR and/or pre-eclampsia have assumed that there is relative homogeneity in placental biomechanical properties. However, the placenta is a highly complex vascular organ representing the interface between maternal and fetal circulations and has a wide phenotype [52]. In their review of the biomechanical properties of the umbilical-placenta system, Saw et al. (2021) [48] suggest that the pressure and stress of blood flow within placental tissue could potentially distend and alter placental parenchyma. Flow conditions in the placenta in vivo reflect both the maternal (uterine artery) and fetal (umbilical artery) vascular resistance, and vascular pressure applied to placental tissue from high-resistance uterine artery flow (such as in pre-eclampsia) may extrinsically influence vascular elasticity within the organ [53,54,55,56]. In this way, biofluid mechanical properties may also influence the stiffness of placental tissue [18,48]. This observation may possibly account for our finding of increased SWV in pre-eclampsia, both with and without FGR, and thus SWE may have more of a role to play in pre-eclampsia than in FGR alone. Future work should include investigation of the influence of increased maternal vascular pressure on placental stiffness in the setting maternal hypertension in pregnancy.

5. Conclusions

The complexities in diagnosing and monitoring placenta-mediated early and late fetal growth restriction remain a major challenge for clinicians. Current obstetric practice relies on ultrasound-derived biometric and Doppler measurements as inferred measures of placental function. Ultrasound elastographic measurement of the biomechanical properties of placental tissue has offered some promise in supporting the diagnosis of placenta-related growth disruption. However its utility for placental assessment remains to be confirmed, and although previous research has shown some correlation between increased placental stiffness and fetal growth disturbance [20,21,22,23,24,25,26,27], our results did not support this finding. The outcomes from our study show potentially limited utility for SWE in the evaluation of FGR placentae.

Author Contributions

Conceptualization, E.C., S.K., J.H. (Jesrine Hong) and C.E.; methodology, E.C., K.C. and S.K.; software, K.C.; validation, E.C., K.C., J.H. (Jesrine Hong), C.E., J.H. (Jennifer Hong) and S.K.; formal analysis, K.C., J.H. (Jesrine Hong) and S.K.; investigation, E.C., J.H. (Jesrine Hong), J.H. (Jennifer Hong) and S.K.; resources, K.C., D.F. and S.K.; data curation, E.C., K.C., J.H. (Jesrine Hong) and J.H. (Jennifer Hong); writing—original draft preparation, E.C., K.C. and S.K.; writing—review and editing, E.C., J.H. (Jesrine Hong), D.F., C.E., M.-L.W., V.L.C. and S.K.; visualization, K.C. and S.K.; supervision, J.H. (Jesrine Hong), D.F., C.E., M.-L.W., V.L.C. and S.K.; project administration, S.K.; funding acquisition, S.K. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Health and Medical Research Council and The Mater Foundation. J.G.S.H. is supported by a University of Queensland scholarship and the Mater Foundation.

Institutional Review Board Statement

This study was conducted in accordance with the Declaration of Helsinki [29], with ethical and governance approvals provided by the Mater Misericordiae Limited Human Research Ethics Committee (HREC/MML/66263) and the Mater Governance Office, respectively, and approval date 9 September 2020. Administrative review approval was also provided by the Queensland University of Technology Office of Research Ethics and Integrity (HE-AdRev 2024-8281-17583).

Informed Consent Statement

Informed consent was obtained from all subjects prior to their involvement in the study.

Data Availability Statement

Data used to produce the results in this article will be available to any researcher, provided appropriate ethics approval, inter-institutional data sharing agreements, and other regulatory requirements are in place.

Conflicts of Interest

The authors declare no conflicts of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

Abbreviations

The following abbreviations are used in this manuscript:
SWEShear wave elastography
SWVShear wave velocity
FGRFetal growth restriction
AGAAppropriate (growth) for gestational age
ISUOGInternational Society for Ultrasound in Obstetrics and Gynecology
ACAbdominal circumference
EFWEstimated fetal weight
CPRCerebroplacental ratio
UA PIUmbilical artery pulsatility index
MCA PIMiddle cerebral artery pulsatility index
DV PIDuctus venosus pulsatility index
DV PVIVDuctus venosus peak velocity index for veins
ROIRegion of interest
BMIBody mass index
ANOVAAnalysis of Variance
SGASmall for gestational age
CIConfidence interval
PETPre-eclampsia toxemia

References

  1. Lawn, J.E.; Ohuma, E.O.; Bradley, E.; Idueta, L.S.; Hazel, E.; Okwaraji, Y.B.; Erchick, D.J.; Yargawa, J.; Katz, J.; Lee, A.C.C.; et al. Small babies, big risks: Global estimates of prevalence and mortality for vulnerable newborns to accelerate change and improve counting. Lancet 2023, 401, 1707–1719. [Google Scholar] [CrossRef] [PubMed]
  2. Triggs, T.; Crawford, K.; Hong, J.; Clifton, V.; Kumar, S. The influence of birthweight on mortality and severe neonatal morbidity in late preterm and term infants: An Australian cohort study. Lancet Reg. Health West. Pac. 2024, 45, 101054. [Google Scholar] [CrossRef]
  3. de Mendonça, E.L.S.S.; de Lima Macêna, M.; Bueno, N.B.; de Oliveira, A.C.M.; Mello, C.S. Premature birth, low birth weight, small for gestational age and chronic non-communicable diseases in adult life: A systematic review with meta-analysis. Early Human Dev. 2020, 149, 105154. [Google Scholar] [CrossRef] [PubMed]
  4. Audette, M.C.; Kingdom, J.C. Screening for fetal growth restriction and placental insufficiency. Semin. Fetal Neonatal Med. 2018, 23, 119–125. [Google Scholar] [CrossRef]
  5. Burton, G.J.; Jauniaux, E. Pathophysiology of placental-derived fetal growth restriction. Am. J. Obstet. Gynecol. 2018, 218, S745–S761. [Google Scholar] [CrossRef]
  6. Levytska, K.; Higgins, M.; Keating, S.; Melamed, N.; Walker, M.; Sebire, N.J.; Kingdom, J.C. Placental Pathology in Relation to Uterine Artery Doppler Findings in Pregnancies with Severe Intrauterine Growth Restriction and Abnormal Umbilical Artery Doppler Changes. Am. J. Perinatol. 2017, 34, 451–457. [Google Scholar] [CrossRef]
  7. Khong, Y.; Brosens, I. Defective deep placentation. Best Pract. Res. Clin. Obstet. Gynaecol. 2011, 25, 301–311. [Google Scholar] [CrossRef] [PubMed]
  8. Schiffer, V.; van Haren, A.; De Cubber, L.; Bons, J.; Coumans, A.; van Kuijk, S.M.; Spaanderman, M.; Al-Nasiry, S. Ultrasound evaluation of the placenta in healthy and placental syndrome pregnancies: A systematic review. Eur. J. Obstet. Gynecol. Reprod. Biol. 2021, 262, 45–56. [Google Scholar] [CrossRef]
  9. Abramowicz, J.S.; Sheiner, E. Ultrasound of the placenta: A systematic approach. Part I: Imaging. Placenta 2008, 29, 225–240. [Google Scholar] [CrossRef]
  10. Abramowicz, J.S.; Sheiner, E. Ultrasound of the placenta: A systematic approach. Part II: Functional assessment (Doppler). Placenta 2008, 29, 921–929. [Google Scholar] [CrossRef]
  11. Lees, C.C.; Stampalija, T.; Baschat, A.; da Silva Costa, F.; Ferrazzi, E.; Figueras, F.; Hecher, K.; Kingdom, J.; Poon, L.C.; Salomon, L.J.; et al. ISUOG Practice Guidelines: Diagnosis and management of small-for-gestational-age fetus and fetal growth restriction. Ultrasound Obstet. Gynecol. 2020, 56, 298–312. [Google Scholar] [CrossRef] [PubMed]
  12. Brosens, I.; Pijnenborg, R.; Vercruysse, L.; Romero, R. The “Great Obstetrical Syndromes” are associated with disorders of deep placentation. Am. J. Obstet. Gynecol. 2011, 204, 193–201. [Google Scholar] [CrossRef] [PubMed]
  13. Sigrist, R.M.S.; Liau, J.; Kaffas, A.E.; Chammas, M.C.; Willmann, J.K. Ultrasound Elastography: Review of Techniques and Clinical Applications. Theranostics 2017, 7, 1303–1329. [Google Scholar] [CrossRef] [PubMed]
  14. Cosgrove, D.; Piscaglia, F.; Bamber, J.; Bojunga, J.; Correas, J.M.; Gilja, O.H.; Klauser, A.S.; Sporea, I.; Calliada, F.; Cantisani, V.; et al. EFSUMB guidelines and recommendations on the clinical use of ultrasound elastography. Part 2: Clinical applications. Ultraschall Med. 2013, 34, 238–253. [Google Scholar] [CrossRef]
  15. Ferraioli, G.; Parekh, P.; Levitov, A.B.; Filice, C. Shear wave elastography for evaluation of liver fibrosis. J. Ultrasound Med. 2014, 33, 197–203. [Google Scholar] [CrossRef]
  16. Özkaya, N.; Leger, D.; Goldsheyder, D.; Nordin, M. Mechanical Properties of Biological Tissues. In Fundamentals of Biomechanics: Equilibrium, Motion, and Deformation; Özkaya, N., Leger, D., Goldsheyder, D., Nordin, M., Eds.; Springer International Publishing: Cham, Switzerlands, 2017; pp. 361–387. [Google Scholar]
  17. Shiina, T.; Nightingale, K.R.; Palmeri, M.L.; Hall, T.J.; Bamber, J.C.; Barr, R.G.; Castera, L.; Choi, B.I.; Chou, Y.H.; Cosgrove, D.; et al. WFUMB guidelines and recommendations for clinical use of ultrasound elastography: Part 1: Basic principles and terminology. Ultrasound Med. Biol. 2015, 41, 1126–1147. [Google Scholar] [CrossRef]
  18. Ferraioli, G.; Wong, V.W.-S.; Castera, L.; Berzigotti, A.; Sporea, I.; Dietrich, C.F.; Choi, B.I.; Wilson, S.R.; Kudo, M.; Barr, R.G. Liver Ultrasound Elastography: An Update to the World Federation for Ultrasound in Medicine and Biology Guidelines and Recommendations. Ultrasound Med. Biol. 2018, 44, 2419–2440. [Google Scholar] [CrossRef]
  19. Edwards, C.; Cavanagh, E.; Kumar, S.; Clifton, V.; Fontanarosa, D. The use of elastography in placental research—A literature review. Placenta 2020, 99, 78–88. [Google Scholar] [CrossRef]
  20. Ohmaru, T.; Fujita, Y.; Sugitani, M.; Shimokawa, M.; Fukushima, K.; Kato, K. Placental elasticity evaluation using virtual touch tissue quantification during pregnancy. Placenta 2015, 36, 915–920. [Google Scholar] [CrossRef]
  21. Arioz Habibi, H.; Alici Davutoglu, E.; Kandemirli, S.G.; Aslan, M.; Ozel, A.; Kalyoncu Ucar, A.; Zeytun, P.; Madazli, R.; Adaletli, I. In vivo assessment of placental elasticity in intrauterine growth restriction by shear-wave elastography. Eur. J. Radiol. 2017, 97, 16–20. [Google Scholar] [CrossRef]
  22. Akbas, M.; Koyuncu, F.M.; Artunç-Ulkumen, B. Placental elasticity assessment by point shear wave elastography in pregnancies with intrauterine growth restriction. J. Perinat. Med. 2019, 47, 841–846. [Google Scholar] [CrossRef] [PubMed]
  23. Anuk, A.T.; Tanacan, A.; Erol, S.A.; Alkan, M.; Altinboga, O.; Celen, S.; Keskin, H.L.; Sahin, D. Value of shear-wave elastography and cerebral-placental-uterine ratio in women diagnosed with preeclampsia and fetal growth restriction in prediction of adverse perinatal outcomes. J. Matern. Fetal Neonatal Med. 2022, 35, 10001–10009. [Google Scholar] [CrossRef] [PubMed]
  24. Menon, A.; Meena, J.; Manchanda, S.; Singhal, S.; Shivhare, S.; Kumar, S. Role of Placental Vascularization Indices and Shear Wave Elastography in Fetal Growth Restriction. J. Obstet. Gynaecol. India 2023, 73, 75–82. [Google Scholar] [CrossRef]
  25. Imtiaz, S.; Naz, N.; Walid, A.; Rahim, A.; Waseem, H.F. Role Of Shear Wave Elastography In Assessment Of Placental Elasticity In Normal And High-Risk Pregnancies In Third Trimester. J. Pak. Med. Assoc. 2023, 73, 2205–2208. [Google Scholar] [CrossRef] [PubMed]
  26. Ansar, M.; Ali, M.A.; Ali, N.; Haider, Z.; Latif, A.; Tazeen, A.; Fatima, Z.; Anjum, M.N. Ultrasound shear wave elastography of the placenta: A potential tool for early detection of fetal growth restriction. Clin. Imaging 2024, 116, 110329. [Google Scholar] [CrossRef]
  27. Hasegawa, T.; Kuji, N.; Notake, F.; Tsukamoto, T.; Sasaki, T.; Shimizu, M.; Mukaida, K.; Ito, H.; Isaka, K.; Nishi, H. Ultrasound elastography can detect placental tissue abnormalities. Radiol. Oncol. 2018, 52, 129–135. [Google Scholar] [CrossRef]
  28. Gordijn, S.J.; Beune, I.M.; Thilaganathan, B.; Papageorghiou, A.; Baschat, A.A.; Baker, P.N.; Silver, R.M.; Wynia, K.; Ganzevoort, W. Consensus definition of fetal growth restriction: A Delphi procedure. Ultrasound Obstet. Gynecol. 2016, 48, 333–339. [Google Scholar] [CrossRef]
  29. World Medical Association. World Medical Association Declaration of Helsinki: Ethical Principles for Medical Research Involving Human Subjects. JAMA 2013, 310, 2191–2194. [Google Scholar] [CrossRef]
  30. Khalil, A.; Sotiriadis, A.; D’Antonio, F.; Da Silva Costa, F.; Odibo, A.; Prefumo, F.; Papageorghiou, A.T.; Salomon, L.J. ISUOG Practice Guidelines: Performance of third-trimester obstetric ultrasound scan. Ultrasound Obstet. Gynecol. 2024, 63, 131–147. [Google Scholar] [CrossRef]
  31. Hadlock, F.P.; Harrist, R.B.; Sharman, R.S.; Deter, R.L.; Park, S.K. Estimation of fetal weight with the use of head, body, and femur measurements--a prospective study. Am. J. Obstet. Gynecol. 1985, 151, 333–337. [Google Scholar] [CrossRef]
  32. Flatley, C.; Kumar, S.; Greer, R.M. Reference centiles for the middle cerebral artery and umbilical artery pulsatility index and cerebro-placental ratio from a low-risk population—A Generalised Additive Model for Location, Shape and Scale (GAMLSS) approach. J. Matern. Fetal Neonatal Med. 2019, 32, 2338–2345. [Google Scholar] [CrossRef] [PubMed]
  33. Kessler, J.; Rasmussen, S.; Hanson, M.; Kiserud, T. Longitudinal reference ranges for ductus venosus flow velocities and waveform indices. Ultrasound Obstet. Gynecol. 2006, 28, 890–898. [Google Scholar] [CrossRef] [PubMed]
  34. Cavoretto, P.I.; Salmeri, N.; Candiani, M.; Farina, A. Reference ranges of uterine artery pulsatility index from first to third trimester based on serial Doppler measurements: Longitudinal cohort study. Ultrasound Obstet. Gynecol. 2023, 61, 474–480. [Google Scholar] [CrossRef] [PubMed]
  35. Edwards, C.; Cavanagh, E.; Kumar, S.; Clifton, V.L.; Borg, D.J.; Priddle, J.; Wille, M.L.; Drovandi, C.; Fontanarosa, D. Changes in placental elastography in the third trimester—Analysis using a linear mixed effect model. Placenta 2021, 114, 83–89. [Google Scholar] [CrossRef]
  36. Cavanagh, E.; Crawford, K.; Hong, J.G.S.; Fontanarosa, D.; Edwards, C.; Wille, M.L.; Hong, J.; Clifton, V.L.; Kumar, S. The Relationship between Placental Shear Wave Elastography and Fetal Weight-A Prospective Study. J. Clin. Med. 2024, 13, 4432. [Google Scholar] [CrossRef]
  37. Weiher, M.; Richtering, F.G.; Dörffel, Y.; Müller, H.P. Simplification of 2D shear wave elastography by enlarged SWE box and multiple regions of interest in one acquisition. PLoS ONE 2022, 17, e0273769. [Google Scholar] [CrossRef]
  38. Edwards, C.; Cavanagh, E.; Kumar, S.; Clifton, V.; Fontanarosa, D. Intra-system reliability assessment of 2-dimensional shear wave elastography. Appl. Sci. 2021, 11, 2992. [Google Scholar] [CrossRef]
  39. O’Hara, S.; Zelesco, M.; Rocke, K.; Stevenson, G.; Sun, Z. Reliability Indicators for 2-Dimensional Shear Wave Elastography. J. Ultrasound Med. 2019, 38, 3065–3071. [Google Scholar] [CrossRef]
  40. AIUM. Recommended Maximum Scanning Times for Displayed Thermal Index (TI) Values. Available online: https://www.aium.org/resources/official-statements/view/recommended-maximum-scanning-times-for-displayed-thermal-index-(ti)-values (accessed on 4 August 2023).
  41. Harris, P.A.; Taylor, R.; Thielke, R.; Payne, J.; Gonzalez, N.; Conde, J.G. Research electronic data capture (REDCap)—A metadata-driven methodology and workflow process for providing translational research informatics support. J. Biomed. Inform. 2009, 42, 377–381. [Google Scholar] [CrossRef]
  42. Harris, P.A.; Taylor, R.; Minor, B.L.; Elliott, V.; Fernandez, M.; O’Neal, L.; McLeod, L.; Delacqua, G.; Delacqua, F.; Kirby, J.; et al. The REDCap consortium: Building an international community of software platform partners. J. Biomed. Inform. 2019, 95, 103208. [Google Scholar] [CrossRef]
  43. Wolff, R.F.; Moons, K.G.M.; Riley, R.D.; Whiting, P.F.; Westwood, M.; Collins, G.S.; Reitsma, J.B.; Kleijnen, J.; Mallett, S. PROBAST: A Tool to Assess the Risk of Bias and Applicability of Prediction Model Studies. Ann. Intern. Med. 2019, 170, 51–58. [Google Scholar] [CrossRef]
  44. Heinze, G.; Wallisch, C.; Dunkler, D. Variable selection—A review and recommendations for the practicing statistician. Biom. J. 2018, 60, 431–449. [Google Scholar] [CrossRef]
  45. Edwards, C.; Cavanagh, E.; Kumar, S.; Clifton, V.L.; Borg, D.J.; Priddle, J.; Marie-Luise, W.; Drovandi, C.; Fontanarosa, D. Relationship between placental elastography, maternal pre-pregnancy body mass index and gestational weight gain. Placenta 2022, 121, 1–6. [Google Scholar] [CrossRef] [PubMed]
  46. Mansournia, M.A.; Nazemipour, M. Recommendations for accurate reporting in medical research statistics. Lancet 2024, 403, 611–612. [Google Scholar] [CrossRef] [PubMed]
  47. von Elm, E.; Altman, D.G.; Egger, M.; Pocock, S.J.; Gøtzsche, P.C.; Vandenbroucke, J.P. The Strengthening the Reporting of Observational Studies in Epidemiology (STROBE) statement: Guidelines for reporting observational studies. J. Clin. Epidemiol. 2008, 61, 344–349. [Google Scholar] [CrossRef] [PubMed]
  48. Saw, S.N.; Dai, Y.; Yap, C.H. A Review of Biomechanics Analysis of the Umbilical-Placenta System With Regards to Diseases. Front. Physiol. 2021, 12, 587635. [Google Scholar] [CrossRef]
  49. Altunkeser, A.; Alkan, E.; Günenç, O.; İsmet, T.; Körez, M.K. Evaluation of a Healthy Pregnant Placenta with Shear Wave Elastography. Iran. J. Radiol. 2019, 16, e68280. [Google Scholar] [CrossRef]
  50. Townsend, R.; Khalil, A.; Premakumar, Y.; Allotey, J.; Snell, K.I.E.; Chan, C.; Chappell, L.C.; Hooper, R.; Green, M.; Mol, B.W.; et al. Prediction of pre-eclampsia: Review of reviews. Ultrasound Obstet. Gynecol. 2019, 54, 16–27. [Google Scholar] [CrossRef]
  51. Xiao, R.; Sorensen, T.K.; Williams, W.A.; Luthy, D.A. Influence of pre-eclampsia on fetal growth. J. Matern.-Fetal Neonatal Med. 2003, 13, 157–162. [Google Scholar] [CrossRef]
  52. Burton, G.J.; Jauniaux, E. What is the placenta? Am. J. Obstet. Gynecol. 2015, 213, S6.e1–S6.e4. [Google Scholar] [CrossRef]
  53. Abramowicz, J.S.; Sheiner, E. In utero imaging of the placenta: Importance for diseases of pregnancy. Placenta 2007, 28 (Suppl. A), S14–S22. [Google Scholar] [CrossRef] [PubMed]
  54. Kingdom, J.C.; Audette, M.C.; Hobson, S.R.; Windrim, R.C.; Morgen, E. A placenta clinic approach to the diagnosis and management of fetal growth restriction. Am. J. Obstet. Gynecol. 2018, 218, S803–S817. [Google Scholar] [CrossRef] [PubMed]
  55. Brosens, I.; Puttemans, P.; Benagiano, G. Placental bed research: I. The placental bed: From spiral arteries remodeling to the great obstetrical syndromes. Am. J. Obstet. Gynecol. 2019, 221, 437–456. [Google Scholar] [CrossRef]
  56. Morley, L.C.; Debant, M.; Walker, J.J.; Beech, D.J.; Simpson, N.A.B. Placental blood flow sensing and regulation in fetal growth restriction. Placenta 2021, 113, 23–28. [Google Scholar] [CrossRef] [PubMed]
Jcm 14 04980 g001

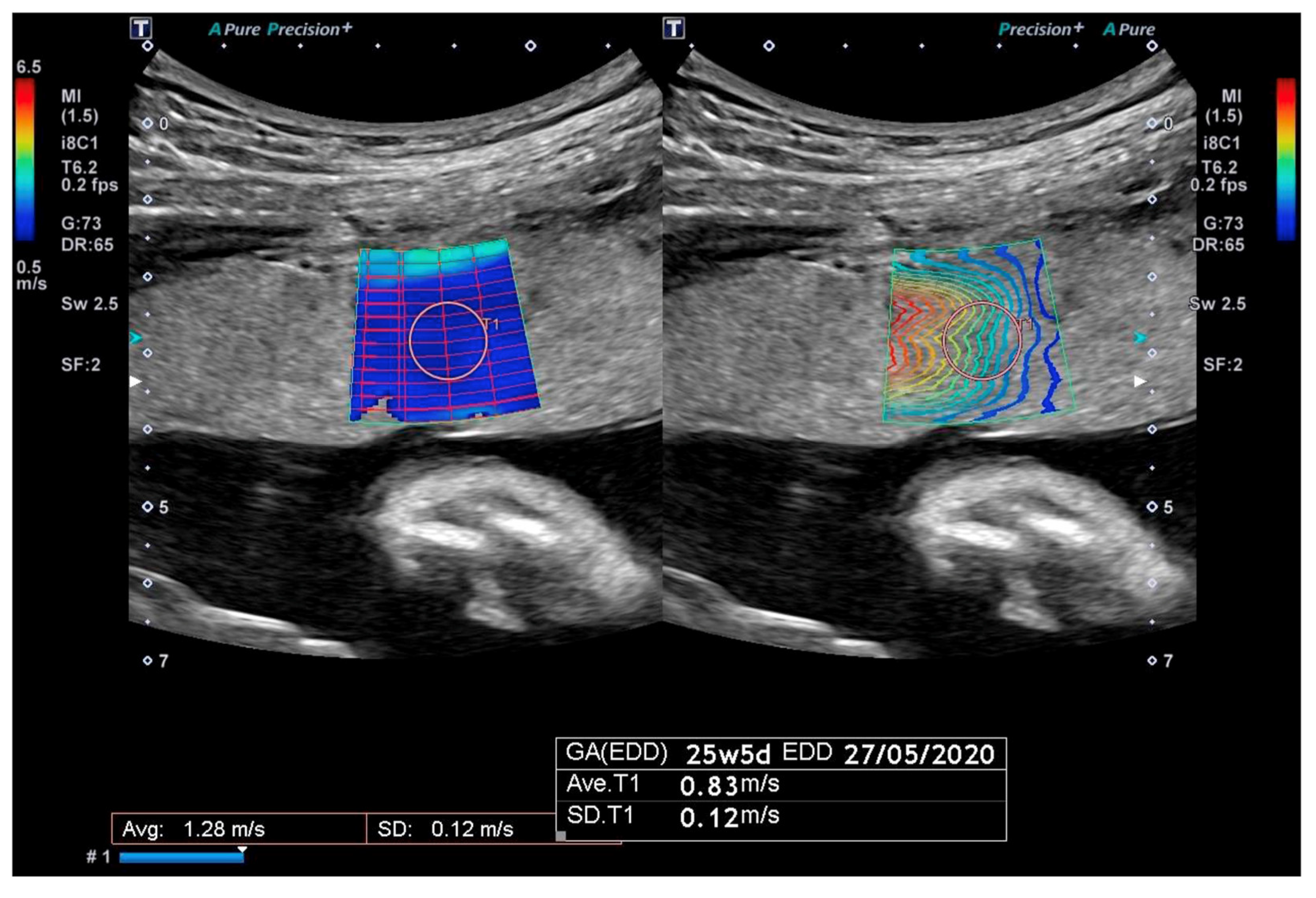

Figure 1. Placental 2D-SWE display demonstrating acquisition of SWV measurement with 10 mm region-of-interest (ROI); left image shows 2D color-coded shear wave speed map; right image shows reliability propagation map with parallel lines representing areas of high reliability.
Figure 1. Placental 2D-SWE display demonstrating acquisition of SWV measurement with 10 mm region-of-interest (ROI); left image shows 2D color-coded shear wave speed map; right image shows reliability propagation map with parallel lines representing areas of high reliability.
Jcm 14 04980 g001
Jcm 14 04980 g002

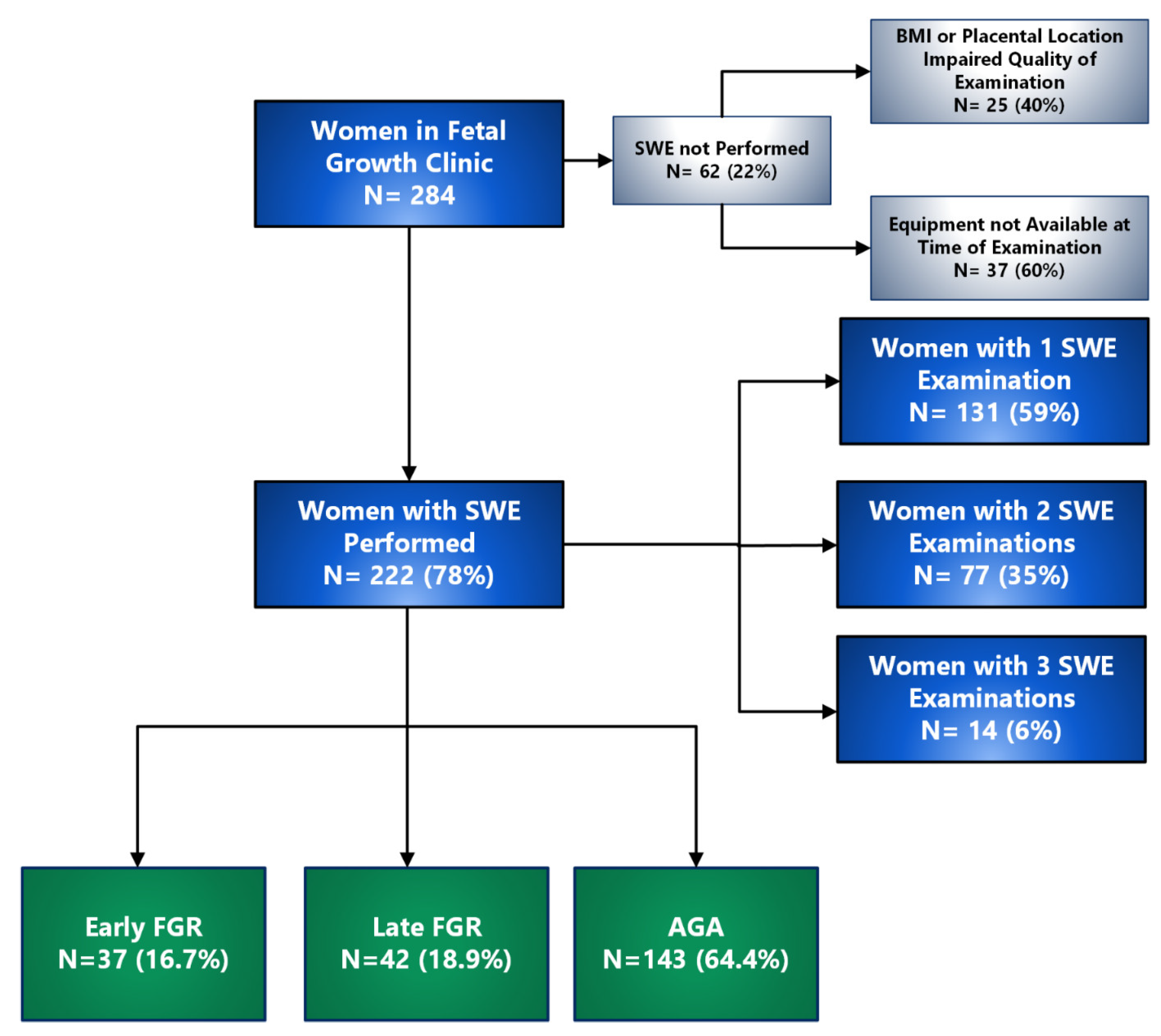

Figure 2. Study flow chart. SWE: shear wave elastography, BMI: body mass index, FGR: fetal growth restriction, AGA: appropriate for gestational age.
Figure 2. Study flow chart. SWE: shear wave elastography, BMI: body mass index, FGR: fetal growth restriction, AGA: appropriate for gestational age.
Jcm 14 04980 g002
Jcm 14 04980 g003

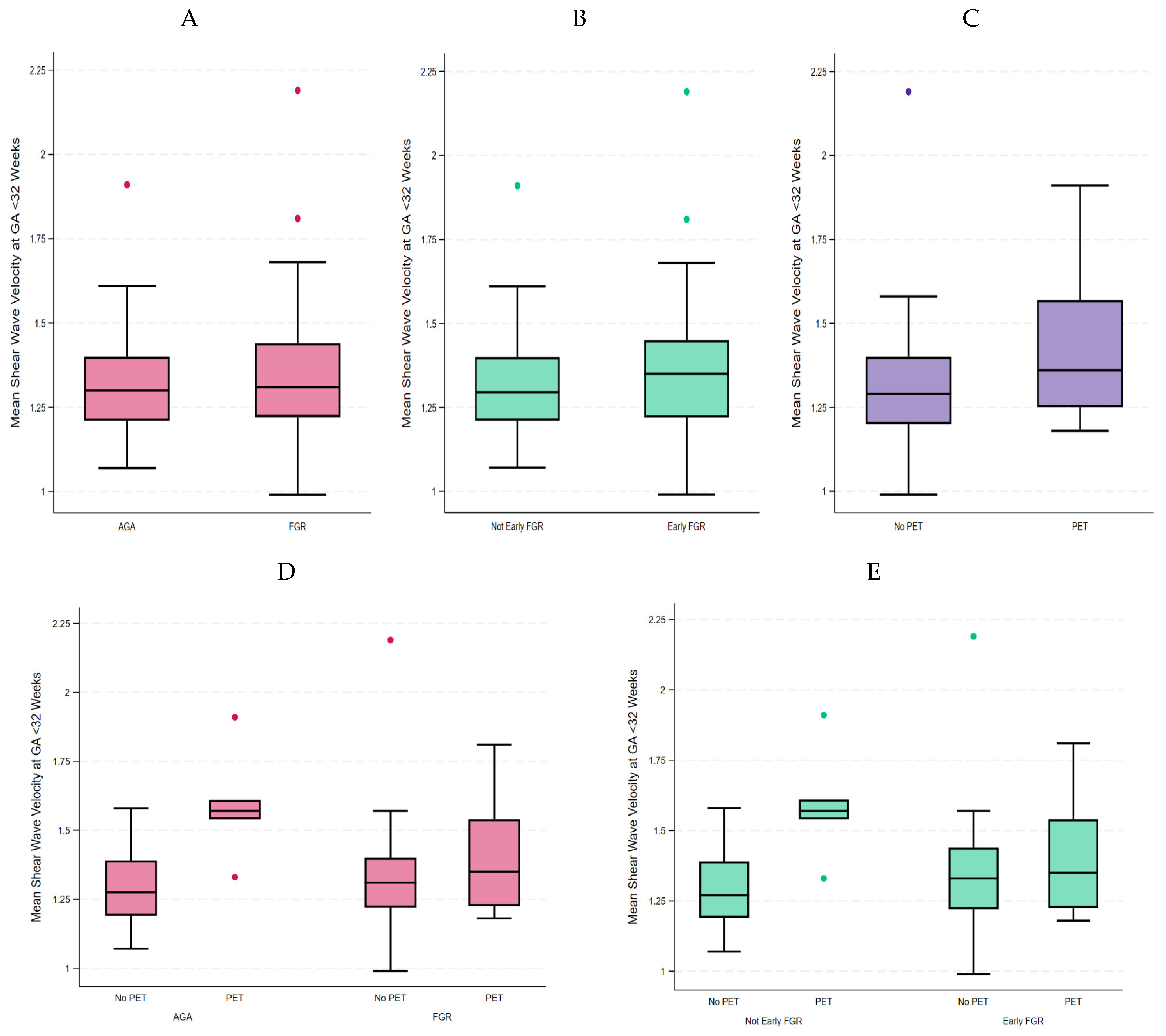

Figure 3. Mean SWV at final scan before 32 weeks: (A) All FGR, (B) Early FGR, (C) Pre-eclampsia, (D) FGR stratified by pre-eclampsia, and (E) Early FGR stratified by pre-eclampsia. GA: gestational age, AGA: appropriate for gestational age, FGR: fetal growth restriction, PET: pre-eclampsia.
Figure 3. Mean SWV at final scan before 32 weeks: (A) All FGR, (B) Early FGR, (C) Pre-eclampsia, (D) FGR stratified by pre-eclampsia, and (E) Early FGR stratified by pre-eclampsia. GA: gestational age, AGA: appropriate for gestational age, FGR: fetal growth restriction, PET: pre-eclampsia.
Jcm 14 04980 g003
Jcm 14 04980 g004

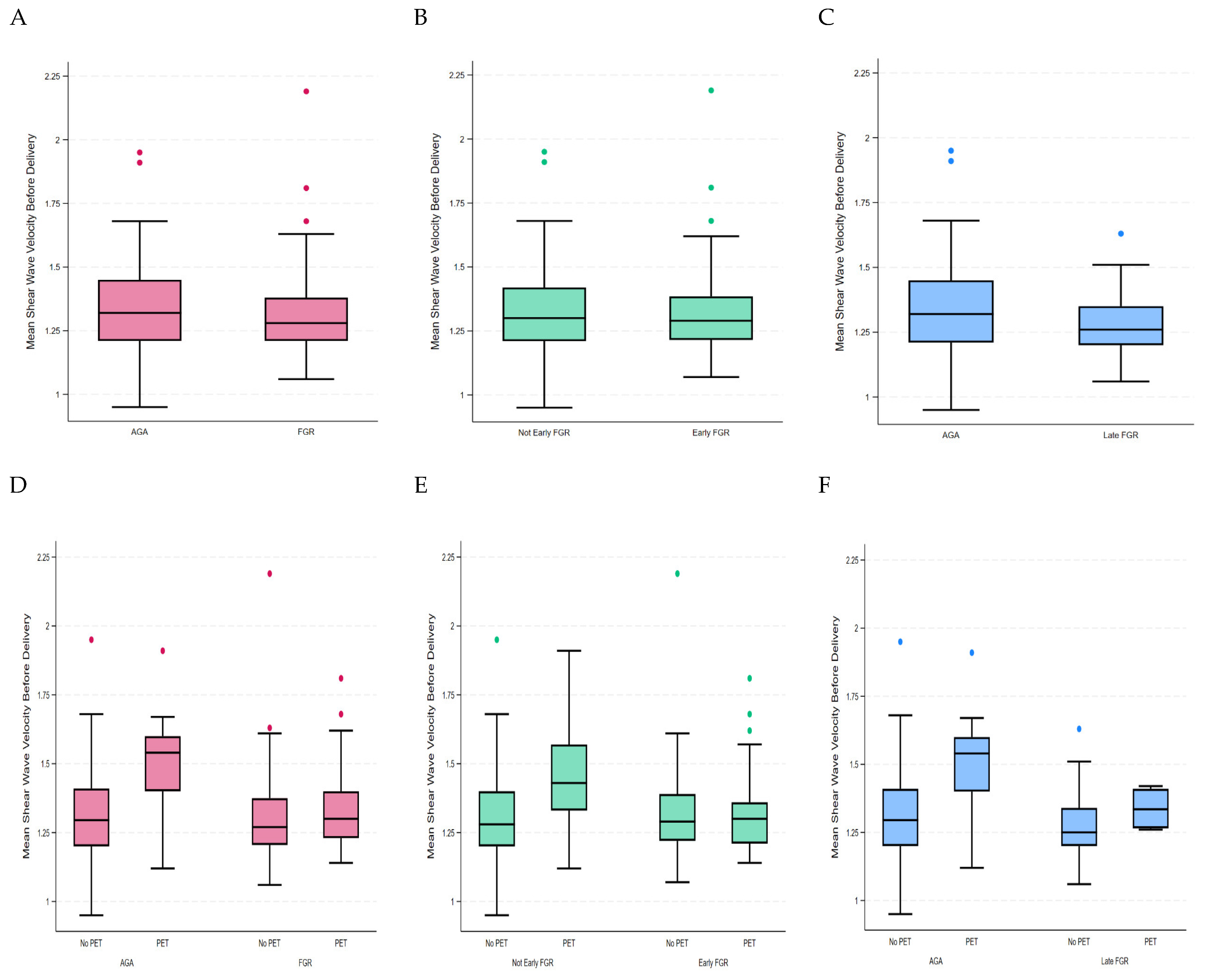

Figure 4. Mean Shear Wave Velocity at final scan before birth: (A) All FGR, (B) Early FGR, (C) Pre-eclampsia, (D) FGR, (E) Early FGR, and (F) Late FGR stratified by pre-eclampsia. AGA: appropriate for gestational age, FGR: fetal growth restriction, PET: pre-eclampsia.
Figure 4. Mean Shear Wave Velocity at final scan before birth: (A) All FGR, (B) Early FGR, (C) Pre-eclampsia, (D) FGR, (E) Early FGR, and (F) Late FGR stratified by pre-eclampsia. AGA: appropriate for gestational age, FGR: fetal growth restriction, PET: pre-eclampsia.
Jcm 14 04980 g004
Table 1. Demographic table, ultrasound parameters, and pregnancy outcomes.
Table 1. Demographic table, ultrasound parameters, and pregnancy outcomes.
TotalEarly FGRLate FGRAGAp-Value
N = 222N = 56N = 33N = 133
Age31 ± 633 ± 530 ± 531 ± 60.058
Body Mass Index at recruitment (kg/m2)25 (21, 31)26 (23, 31)24 (21, 27)24 (21, 31)0.062
Mean Arterial Pressure at time of recruitment (mmHg)82 (77, 88)83 (77, 93)82 (78, 87)82 (77, 87)0.190
Nulliparous86 (38.7%)24 (42.9%)14 (42.4%)48 (36.1%)0.610
Born in Australia94 (42.3%)21(37.5%13 (39.4%)60 (45.1%)0.890
Born outside Australia128 (57.7%)35 (62.5%)20 (60.6%)73 (55.9%)0.720
Mode of Conception 0.066
  Spontaneous205 (92.3%)48 (85.7%)30 (90.9%)127 (95.5%)
  Assisted Reproductive Technology17 (7.7%)8 (14.3%)3 (9.1%)6 (4.5%)
Smoking during pregnancy21 (9.5%)5 (8.9%)7 (21.2%)9 (6.8%)0.039
Alcohol during pregnancy3 (1.4%)2 (3.6%)0 (0.0%)1 (0.8%)0.240
History of SGA baby73 (32.9%)22 (39.3%)11 (33.3%)40 (30.1%)0.470
Previous stillbirth15 (6.8%)5 (8.9%)0 (0.0%)10 (7.5%)0.230
Previous preterm birth27 (12.2%)12 (21.4%)4 (12.1%)11 (8.3%)0.041
Hypertension in current pregnancy43 (19.4%)18 (32.1%)4 (12.1%)21 (15.8%)0.018
Pre-eclampsia in current pregnancy36 (16.2%)21 (37.5%)4 (12.1%)11 (8.3%)<0.001
Low dose aspirin use62 (27.9%)22 (39.3%)3 (9.1%)37 (27.8%)0.009
Connective tissue disease in pregnancy4 (1.8%)3 (5.4%)0 (0.0%)1 (0.8%)0.066
Low Molecular Weight Heparin use12 (5.4%)7 (12.5%)0 (0.0%)5 (3.8%)0.020
Diabetes in pregnancy65 (29.3%)25 (44.6%)5 (15.2%)35 (26.3%)0.006
Renal disease in pregnancy3 (1.4%)1 (1.8%)0 (0.0%)2 (1.5%)0.76
Gestational age at last scan before 32 weeks’ gestation28 (26, 30)28 (26, 30)31 (30, 31)28 (25, 30)0.021
Gestational age at last scan before birth35 (32, 36)33 (30, 35)36 (35, 37)36 (32, 36)<0.001
EFW at last scan before 32 weeks’ gestation1126 (764, 1418)844 (628, 1223)1420 (1252, 1480)1171 (776, 1485)0.003
EFW at last scan before birth2190 (1627, 2493)1571 (1106, 1968)2136 (1895, 2288)2371 (1964, 2622)<0.001
Gestational age at birth38 (37, 39)37 (32, 37)37 (37, 38)38 (37, 39)<0.001
Mean SWV at last scan before 32 weeks’ gestation (m/s2)1.30 (1.22, 1.41)1.35 (1.22, 1.45)1.23 (1.19, 1.32)1.30 (1.21, 1.40)0.330
Mean SWV at last scan before delivery (m/s2)1.29 (1.21, 1.41)1.29 (1.22, 1.38)1.26 (1.20, 1.35)1.32 (1.21, 1.45)0.360
Average depth of SWV sample at last scan before 32 weeks’ gestation (cm)4.78 (3.82, 5.51)4.54 (3.65, 5.72)4.88 (4.26, 5.14)4.90 (3.87, 5.60)0.640
Average depth of SWV sample at last scan before delivery (cm)4.48 (3.80, 5.22)4.30 (3.68, 5.02)4.20 (3.72, 5.00)4.67 (3.90, 5.42)0.280
Values represent N(%) for categorical variables and mean (±standard deviation) or median (25%, 75%) for continuous variables, according to distribution. FGR: fetal growth restriction, AGA: appropriate for gestational age, SGA: small for gestational age, EFW: estimated fetal weight, SWV: shear wave velocity.
Table 2. Univariable analysis. FGR: fetal growth restriction, AGA: appropriate for gestational age, CI: confidence interval.
Table 2. Univariable analysis. FGR: fetal growth restriction, AGA: appropriate for gestational age, CI: confidence interval.
Model 1FGR vs. AGA (Last Scan Before 32-Weeks’ Gestation)
Univariable Coefficient (95% CI)p-Value
FGR0.13 (−0.25, 0.51)0.51
Model 2Early FGR vs. No early FGR (last scan before 32 weeks’ gestation)
Univariable coefficient (95% CI)p-value
Early FGR0.27 (−0.13, 0.66)0.18
Model 3FGR vs. AGA (last scan before delivery)
Univariable coefficient (95% CI)p-value
FGR−0.09 (−0.36, 0.18)0.52
Model 4Early FGR vs. AGA (last scan before delivery)
Univariable coefficient (95% CI)p-value
Early FGR0.09 (−0.22, 0.39)0.57
Model 5Late FGR vs. AGA (last scan before delivery)
Univariable coefficient (95% CI)p-value
Late FGR−0.29 (−0.65, 0.07)0.12
Table 3. Multivariable analysis adjusting for pre-eclampsia and body mass index and considering the interaction (|) between fetal growth restriction and pre-eclampsia.
Table 3. Multivariable analysis adjusting for pre-eclampsia and body mass index and considering the interaction (|) between fetal growth restriction and pre-eclampsia.
Model 1FGR vs. AGA (Last Scan Before 32-Weeks’ Gestation)
VariableMultivariable Coefficient (95% CI)p-Value
FGR0.21 (−0.17, 0.60)0.28
Pre-eclampsia1.48 (0.69, 2.27)<0.001
FGR # Pre-eclampsia−1.37 (−2.32, −0.42)0.005
BMI0.06 (0.03, 0.08)<0.001
Model 2Early FGR vs. No early FGR (last scan before 32 weeks’ gestation)
VariableMultivariable coefficient (95% CI)p-value
Early FGR0.36 (−0.06, 0.77)0.09
Pre-eclampsia1.50 (0.72, 2.28)<0.001
FGR # Pre-eclampsia−1.52 (−2.47, −0.56)0.002
BMI0.06 (0.03, 0.08)<0.001
Model 3FGR vs. AGA (last scan before delivery)
VariableMultivariable coefficient (95% CI)p-value
FGR−0.002 (−0.28, 0.28)0.99
Pre-eclampsia1.10 (0.54, 1.66)<0.001
FGR # Pre-eclampsia−1.09 (−1.80, −0.38)0.003
BMI0.05 (0.03, 0.07)<0.001
Model 4Early FGR vs. AGA (last scan before delivery)
VariableMultivariable coefficient (95% CI)p-value
Early FGR0.13 (−0.21, 0.46)0.46
Pre-eclampsia0.90 (0.41, 1.39)<0.001
FGR # Pre-eclampsia−1.06 (−1.76, −0.36)0.003
BMI0.05 (0.03, 0.07)<0.001
Model 5Late FGR vs. AGA (last scan before delivery)
VariableMultivariable coefficient (95% CI)p-value
Late FGR−0.13 (−0.48, 0.22)0.47
Pre-eclampsia1.10 (0.57, 1.63)<0.001
FGR # Pre-eclampsia−0.71 (−1.74, 0.33)0.18
BMI0.05 (0.03, 0.07)<0.001
FGR: fetal growth restriction, AGA: appropriate for gestational age, BMI: body mass index, CI: confidence interval, #: interaction with.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Cavanagh, E.; Crawford, K.; Hong, J.; Fontanarosa, D.; Edwards, C.; Wille, M.-L.; Hong, J.; Clifton, V.L.; Kumar, S. Placental Shear Wave Elastography Assessment in Early and Late Fetal Growth Restriction. J. Clin. Med. 2025, 14, 4980. https://doi.org/10.3390/jcm14144980

AMA Style

Cavanagh E, Crawford K, Hong J, Fontanarosa D, Edwards C, Wille M-L, Hong J, Clifton VL, Kumar S. Placental Shear Wave Elastography Assessment in Early and Late Fetal Growth Restriction. Journal of Clinical Medicine. 2025; 14(14):4980. https://doi.org/10.3390/jcm14144980

Chicago/Turabian Style

Cavanagh, Erika, Kylie Crawford, Jesrine Hong, Davide Fontanarosa, Christopher Edwards, Marie-Luise Wille, Jennifer Hong, Vicki L. Clifton, and Sailesh Kumar. 2025. "Placental Shear Wave Elastography Assessment in Early and Late Fetal Growth Restriction" Journal of Clinical Medicine 14, no. 14: 4980. https://doi.org/10.3390/jcm14144980

APA Style

Cavanagh, E., Crawford, K., Hong, J., Fontanarosa, D., Edwards, C., Wille, M.-L., Hong, J., Clifton, V. L., & Kumar, S. (2025). Placental Shear Wave Elastography Assessment in Early and Late Fetal Growth Restriction. Journal of Clinical Medicine, 14(14), 4980. https://doi.org/10.3390/jcm14144980

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
