Article

The Trouser Technique: A Novel Approach for Peri-Implant Soft Tissue Augmentation

by
Pablo Pavón
1,
Carla Fons-Badal
2,*,
Natalia Pérez-Rostoll
2,
Jorge Alonso-Pérez-Barquero
2,
María Fernanda Solá-Ruiz
2 and
Rubén Agustín-Panadero
2
1
Private Practice, 46005 Seville, Spain
2
Department of Oral Medicine, Faculty of Medicine and Dentistry, University of Valencia, C/Gascó Oliag, 1, 46010 Valencia, Spain
*
Author to whom correspondence should be addressed.
J. Clin. Med. 2025, 14(14), 4974; https://doi.org/10.3390/jcm14144974
Submission received: 4 June 2025 / Revised: 1 July 2025 / Accepted: 4 July 2025 / Published: 14 July 2025
(This article belongs to the Section Dentistry, Oral Surgery and Oral Medicine)
Browse Figures
Versions Notes

Abstract

Background/Objectives: Peri-implant mucosa plays a key role in both peri-implant health and aesthetics. Differences in contour and color between implants and natural teeth can negatively affect patient satisfaction, while soft tissue deficiency may lead to complications such as peri-implantitis. Peri-implant plastic surgery aims to improve these conditions. The objective of this study is to describe the trouser-shaped connective tissue graft technique designed to enhance vestibular and interproximal peri-implant tissue volume in a single surgical procedure, and to assess its effectiveness and morbidity. Methods: Ten patients requiring soft tissue augmentation in edentulous areas prior to delayed implant placement were selected. Intraoral scanning was performed before and 6 months after treatment to evaluate tissue thickness gain. Results: Significant soft tissue volume gain was observed at both the coronal (mean: 2.74 mm with a 95% confidence interval of 2.21–3.26 mm) and vestibular (mean: 2.79 mm with a 95% confidence interval of 2.24–3.35 mm) levels in all analyzed positions (p < 0.001). The procedure exhibited low morbidity, with minimal complications and discomfort reported by the patients. Conclusions: The trouser-shaped connective tissue graft technique is effective in increasing peri-implant soft tissue. It allows for vestibular and interproximal tissue augmentation in a single procedure, minimizing tissue contraction and morbidity. This technique could be a predictable and minimally invasive alternative for managing volume deficiencies in peri-implant tissues, particularly in aesthetic areas.

1. Clinical Relevance

The trouser-shaped connective tissue graft technique is a predictable, minimally invasive procedure that enables the augmentation of both vestibular and interproximal peri-implant tissues in a single intervention. This reduces postoperative morbidity and promotes greater patient acceptance. The technique is especially beneficial in the anterior zone, where soft tissue volume is critical to clinical success.

2. Introduction

The peri-implant mucosa plays a fundamental role in aesthetics and in maintaining health around implants. To prevent inflammation and achieve satisfactory aesthetic results, an adequate band of keratinized mucosa around the implant is essential [1,2]. Regarding aesthetics, differences in contour and color between the implant and natural teeth can significantly affect patient satisfaction [3]. Increased soft tissue thickness improves contour, color, and provides dimensional stability [4,5]. Furthermore, after tooth loss, the interproximal tissue level is critical, and changes in interproximal architecture and papilla recession often occur [6,7].
In terms of health maintenance, the peri-implant mucosa has a barrier function that helps prevent bacterial invasion. Certain studies indicate the need for a minimum of 2 mm of keratinized tissue to prevent inflammatory and infectious processes such as mucositis or peri-implantitis [8]. When its thickness is insufficient, bacterial biofilm accumulates more easily, increasing the probability of infection [3,9]. Numerous studies have shown that implants with insufficient keratinized tissue exhibit higher rates of peri-implantitis, greater biofilm accumulation, soft tissue inflammation, recession, patient discomfort, and require more frequent periodontal maintenance [10,11,12,13]. Additionally, the vertical volume of peri-implant soft tissues has been linked to the prevention of bone remodeling [13,14].
Techniques to enhance soft tissue conditions around both teeth and implants have been documented over many years, notably by Edel in 1974, who compared different grafting approaches. A statistically significant increase in the width of keratinized attached gingiva was observed at 6 months [15]. Travelli et al. in 2021 conducted a review comparing different types of grafts, concluding that bilaminar grafts with type I collagen or acellular dermal matrix showed greater soft tissue gain, while the partial thickness flap technique combined with a connective tissue graft proved more effective in increasing the width of keratinized mucosa (KM) [2]. A subsequent review by Stefanini et al. in 2023 indicated that locations where soft tissue augmentation was performed had greater volumetric stability over time for both peri-implant mucosa and marginal bone, whereas implants where augmentation was not performed sometimes experienced apical displacement of the gingival margin [16]. Therefore, peri-implant plastic surgery has improved both the aesthetic appearance and the quality of life of patients [17].
If we focus on the papilla, a large number of techniques exist for its reconstruction, such as its repositioning with regeneration procedures [18] or through tunneling procedures [19]. However, papilla deficiency around implants is relatively common, and the treatment of these aesthetic complications is considered a challenge in the literature due to its limited predictability [20,21,22]. Occasionally, multiple interventions are necessary to obtain satisfactory results both buccally and at the papilla level.
The objective of this article is to describe the Trouser Technique, a connective tissue graft technique that aims to improve the volume of peri-implant tissues buccally and interproximally with a single surgical intervention.

3. Materials and Methods

Ten patients requiring soft tissue augmentation in the edentulous area where a dental implant was to be placed in a delayed manner were selected. The treatment and data analysis were performed at the Department of Stomatology, University of Valencia. Inclusion criteria included adult patients requiring the placement of a single implant in the anterior sector in an already healed edentulous area with adjacent, periodontally healthy teeth, with sufficient bone to place the implant (measured by CBCT) but needing soft tissue volume augmentation both buccally and interproximally. Exclusion criteria were smoking patients; those requiring bone regeneration for implant placement; those with health problems or medication contraindicating the intervention or taking drugs that could affect gingival anatomy, such as phenytoin, cyclosporines, or nifedipine; or inability to sign informed consent. The study protocol, which fulfilled guidelines established in the Declaration of Helsinki for experiments involving human subjects, was approved by the University of Valencia Ethics Committee for Research Conducted on Humans (2024-ODON-3712410). All participants were provided with full information about the study protocol, and all provided their informed consent to take part.

3.1. Clinical Records and Treatment

All the selected patients had keratinized tissue in the edentulous area, but the profile at the vestibular level was sunken (Figure 1), which compromised the aesthetics and adequate brushing of the future restoration. A pre-surgical scan of the area was performed using the Medit® i700 scanner (version 3.3.3, 2024, Seoul, Republic of Korea) to obtain an STL file of the patient’s initial condition. A delayed implant placement was then carried out using the MIS® C1 implant system (MIS Implants Technologies Ltd., Bar-Lev Industrial Park, Karmiel, Israel) with the MGUIDE (MIS®) guided surgery system, using a flapless approach. The implant was placed subcrestally between 0.5 and 1 mm, and the trouser-shaped connective tissue graft technique was simultaneously applied with a de-epithelialized connective tissue graft obtained from the tuberosity. Bone grafting was not performed as there was sufficient autologous bone for implant placement (measured by CBCT). After 6 months, a new scan was performed to assess soft tissue gain, considering whether the tissues had fully matured. Pre- and post-operative photographs were also taken to document the evolution of each case (Figure 2 and Figure 3).
Morbidity was assessed by clinical evaluation and a patient questionnaire about discomfort and limitations in their quality of life during the months following grafting. A 5-point Likert scale was used, where 0 was no discomfort and 5 was severe discomfort. Eight questions were asked regarding postoperative pain, medication, swelling, bleeding, functional limitations (eating, speaking, and brushing), and general perception.

3.2. Graft Technique Description

The trouser-shaped connective tissue graft technique is a mucogingival surgical procedure designed to increase soft tissue volume both in the vestibular area and papillae during implant placement surgery via tissue tunneling.
Harvesting and preparation of the graft: The preferred donor site is the tuberosity due to its thickness and tissue density. If this area is not suitable, a de-epithelialized free graft from the palate may be used. A rectangular graft is harvested with a thickness ranging from 1.5 to 3 mm, and three incisions are made (Figure 4): (1) a central incision dividing part of the graft into two and (2) two small 45° incisions to increase mobility of the split section. The dimensions of the graft and incisions vary depending on the treatment site. The graft consists of an upper (vestibular) and a split lower section. The upper section is positioned vestibularly, while each split limb of the graft is tunneled interproximally beneath each papilla, extending palatally (Figure 5 and Figure 6). The design depends on donor tissue availability and the edentulous space. The length of each limb is determined by the vestibulo–palatal width of the edentulous area (Video S2).
Recipient site preparation involves (1) partial-thickness tunneling of the vestibular area extending mesio–distally to the adjacent teeth and down to the vestibular depth, cutting muscle fibers to release tension; (2) intrasulcular incision on adjacent teeth and papillae tunneling by introducing the scalpel through the implant hole at 1.5–2 mm depth until it makes contact with the adjacent tooth, connecting the vestibular area with the interproximal areas; and (3) palatal tunneling from the mesial to the distal aspect of the edentulous area to mobilize the papillae and optimally position the limbs. This is performed using an ophthalmic scalpel (Equipsa®, Madrid, Spain) and tunnel elevators (Schwert®, Tuttlingen, Germany).
Graft placement and fixation: The split section is first inserted under the tunneled flap and fixed using non-resorbable 6/0 polyvinylidene fluoride sutures (Seralene®, Osteogenos, Madrid, Spain) at the mesio–palatal and disto–palatal aspects. Sutures are not tied until the healing abutment or provisional crown is placed, to allow for adjustment. Next, the vestibular section is positioned (Figure 7). Finally, the abutment or provisional crown is installed, the graft is adjusted by pulling the palatal sutures to optimize volume gain, and the sutures are tied (Video S1).
Healing abutment or provisional crown placement: After screwing in the provisional or healing abutment, it is unscrewed to verify proper graft seating. If displaced, the graft is repositioned using a probe. The emergence profile of the provisional should be as concave and narrow as possible to accommodate the graft during healing and maturation.
A 6/0 coronal traction suture is then placed to gently stabilize the graft, avoiding excessive traction and ischemia-related necrosis (Figure 8).

3.3. Digital Protocol

STL files were analyzed using Geomagic Wrap 2021 (Geomagic Verify medTM, Geomagic, Morrisville, NC, USA) and GOM Inspect 2018 (GOM GmbH, Braunschweig, Germany).
Initial STL files (STL1) were aligned with post-surgical models (STL2) using a best-fit algorithm in Geomagic Wrap 2021. Only unaltered regions, specifically, the teeth, were used for alignment to ensure greater stability and precision, while the gingival areas were excluded. Each aligned object was then exported in binary STL format and imported into GOM Inspect 2018 for measurements.
To measure volumetric changes in the gingiva, a reference plane corresponding to the y-axis was used to generate a longitudinal section through the center of the edentulous area in the bucco–palatal direction. Parallel sections were then created every 0.5 mm along the entire edentulous area. The study area was divided into three zones: mesial papilla, the central zone, and distal papilla, each further subdivided into mesial, medial, and distal sections for a total of nine sections (Figure 9). In each section, two measurements were taken, one at the coronal level and another at the vestibular level, by measuring the distance between corresponding points on STL1 and STL2.
Additionally, the software allowed for the generation of a color heat map to visually compare volumetric differences between initial and final models, clearly highlighting areas with soft tissue volume gain (Figure 10).

3.4. Statistical Analysis

A descriptive analysis of tissue gain was performed, and normality was assessed using the Kolmogorov–Smirnov test. To analyze the effect of location and zone on the dependent variable, a generalized estimating equation (GEE) linear model was applied. Beta regression coefficients with 95% confidence intervals (CI) were obtained. The significance level was set at α = 0.05, with a statistical power of 66.4%. The statistical software utilized for data analysis was SPSS Statistics, version 30.0.0, developed by IBM Corp. in Armonk, NY, USA.

4. Results

The study sample included ten patients. A total of 90 sections of observations (10 patients × 3 locations × 3 zones) were analyzed across three anatomical locations (mesial papilla, central zone, and distal papilla), each subdivided into mesial, medial, and distal segments.
A statistically significant gain in soft tissue volume 6 months post-graft was observed at both the coronal and vestibular levels in all positions analyzed (p < 0.001). At the coronal level, the overall average gain was 2.74 mm (95% CI: 2.21–3.26 mm, p < 0.001). When stratified by location, the mesial papilla demonstrated an average gain of 2.66 mm (95% CI: 2.23–3.10 mm, p < 0.001), the medial zone demonstrated 2.79 mm (95% CI: 2.24–3.33 mm, p < 0.001), and the distal papilla demonstrated 2.76 mm (95% CI: 2.16–3.37 mm, p < 0.001). An analysis by zone revealed average gains of 2.63 mm (95% CI: 2.12–3.13 mm, p < 0.001) for the mesial zone, 2.83 mm (95% CI: 2.33–3.32 mm, p < 0.001) for the medial zone, and 2.76 mm (95% CI: 2.19–3.33 mm, p < 0.001) for the distal zone (Table 1).
Similarly, at the buccal level, the overall average gain was 2.79 mm (95% CI: 2.24–3.35 mm, p < 0.001). By location, the mesial papilla exhibited an average gain of 2.74 mm (95% CI: 2.29–3.19 mm, p < 0.001), the medial zone exhibited 2.88 mm (95% CI: 2.36–3.39 mm, p < 0.001), and the distal papilla exhibited 2.77 mm (95% CI: 2.07–3.46 mm, p < 0.001). Zone-specific averages were 2.71 mm (95% CI: 2.17–3.25 mm, p < 0.001) for the mesial zone, 2.87 mm (95% CI: 2.38–3.36 mm, p < 0.001) for the medial zone, and 2.81 mm (95% CI: 2.19–3.42 mm, p < 0.001) for the distal zone (Table 1).
The following figure (Figure 11) represents mean ± SD of coronal (left) and vestibular (right) gain.
An analysis of the postoperative morbidity questionnaire revealed that although functional limitations in mastication and some pain were common experiences, the overall morbidity perceived by patients was manageable and generally of low intensity (Figure 12). The total morbidity composite score (summing up responses to the eight questions, with a maximum of 40 points) had a mean of 12.7 (standard deviation [SD] = 2.05), with a range of 10 to 16.

5. Discussion

The use of soft tissue grafts around implants to improve aesthetics and peri-implant stability is widely supported by the literature [23,24]. Authors such as Stefanini et al. in 2016 and Wang et al. in 2018 demonstrate the efficacy of submarginal connective tissue grafts for these purposes [25,26].
The results obtained in this present study provide relevant evidence regarding the effectiveness of the trouser-shaped connective tissue graft technique for peri-implant soft tissue augmentation. A statistically significant volume gain was observed at both coronal and buccal levels, with means of 2.74 mm and 2.79 mm, respectively. This gain is also clinically relevant in terms of peri-implant tissue stability and aesthetics (Figure 13, Figure 14, Figure 15, Figure 16 and Figure 17).
When analyzing the results by evaluated zones, a greater increase in thickness was detected in the medial area of the middle region. This is likely because this area corresponds to the center of the graft, where a larger volume of tissue is concentrated. Similarly, in the papillae, the area with the greatest thickening was closest to the implant’s emergence profile, i.e., the center of the graft, while at the extremities, closer to the adjacent teeth, the volume gain was smaller.
Comparing these findings with those observed in the literature, we can see that they partially align with other studies. Eeckhout et al. reported a mean horizontal volume gain of 1.2 ± 0.7 mm in the buccal zone at three years [27]. In another study by Thoma et al., a similar increase in soft tissue thickness was shown at 90 days, with a median of 1.3 mm in both the collagen matrix and autologous graft groups [4]. Hosseini et al. observed stable volumetric improvement in the anterior maxilla, although the augmentation was limited to the buccal zone [28].
It should be noted that many studies employ methods based on linear measurements with a periodontal probe and an analysis of standardized clinical photographs, without three-dimensional reconstruction, so data comparison must be approached with some caution [29,30]. In this study, STL file superimposition was performed, a technique that has been consolidated in the recent literature as the method of choice, offering non-invasive and high-precision measurement, surpassing traditional techniques in reliability [31,32].
Regarding the follow-up time to assess treatment effectiveness, it varies greatly in the literature. The 6 months of observation established in this study can be considered sufficient based on the work of Lin et al., which indicates that the main parameters related to soft tissue stability (such as keratinized tissue width or mucosal recession) stabilize approximately three months after surgery [33]. Nevertheless, other research, including studies by Zuiderveld et al. (2021, 2025), has reported no statistically significant differences in aesthetic outcomes at one-year and five-year assessments [34,35].
Compared to other described techniques, one of the main advantages of the technique presented in this study is the possibility of increasing both buccal and interproximal tissue volume in a single intervention using a single donor site thanks to the graft’s design and manipulation. Furthermore, by employing a tunneling technique instead of incisions in the papillae, physiological tissue contraction is minimized.
Regarding morbidity, no clinical complications were recorded. This can be attributed to both the use of tunneling and the choice of the tuberosity as the donor site, factors that are usually associated with less postoperative discomfort [36,37]. Mancini et al. in 2023 highlight that appropriate indication and timing for soft tissue augmentation contribute to reducing the complication rate [38]. Additionally, factors such as operator experience, implant position, and patient expectations should be considered.
Finally, it is important to acknowledge the limitations of this study, as the low sample size may compromise the robustness of the statistical results and might affect optimal statistical power. The results should be interpreted with caution due to the short follow-up period, absence of a control group, and the inherent limitations of a Likert scale, such as the potential for response biases, the difficulty in capturing nuances in complex opinions, and the challenge in inferring the reasons behind the responses. It is important to consider that methodological differences, study design, follow-up duration, and interindividual variability can influence the comparison of results among different investigations.

6. Conclusions

The Trouser Technique with connective tissue grafting is a predictable and minimally invasive alternative to manage volume defects in peri-implant soft tissues, especially in aesthetic areas.
Its design allows for simultaneous vestibular and interproximal thickness augmentation in a single procedure and from a single donor site, which reduces postoperative morbidity and promotes greater patient acceptance. It is particularly valuable in the anterior region, where stability of the emergence profile and soft tissue volume are critical to long-term clinical success and patient satisfaction.
A statistically significant soft tissue volume gain was observed at both the coronal and vestibular levels in all positions tested (p < 0.001). Therefore, future studies with larger sample sizes and longer follow-ups are necessary to validate these findings and establish more robust clinical recommendations since this present study has a short follow-up period.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/jcm14144974/s1, Video S1: Graft placement; Video S2: Preparation of the graft.

Author Contributions

Conceptualization, P.P. and R.A.-P.; methodology, C.F.-B. and M.F.S.-R.; validation, P.P. and N.P.-R.; formal analysis, P.P. and J.A.-P.-B.; investigation, P.P. and N.P.-R.; resources, P.P.; data curation, J.A.-P.-B.; writing—original draft preparation, P.P. and C.F.-B.; writing—review and editing, R.A.-P. and M.F.S.-R.; visualization, P.P.; supervision, R.A.-P.; project administration, P.P. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

This study was conducted according to the guidelines of the Declaration of Helsinki and approved by the Institutional Review Board (or Ethics Committee) of the University of Valencia (protocol code 2024-ODON-3712410, approval date: 11 December 2024).

Informed Consent Statement

Informed consent was obtained from all subjects involved in this study. Written informed consent has been obtained from the patient(s) to publish this paper.

Data Availability Statement:

The original contributions presented in this study are included in the article/Supplementary Material. Further inquiries can be directed to the corresponding author.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Lee, K.H.; Kim, B.O.; Jang, H.S. Clinical evaluation of a collagen matrix to enhance the width of keratinized gingiva around dental implants. J. Periodontal. Implant. Sci. 2010, 40, 96–101. [Google Scholar] [CrossRef] [PubMed]
  2. Tavelli, L.; Barootchi, S.; Avila-Ortiz, G.; Urban, I.A.; Giannobile, W.V.; Wang, H.L. Peri-implant soft tissue phenotype modification and its impact on peri-implant health: A systematic review and network meta-analysis. J. Periodontol. 2021, 92, 21–44. [Google Scholar] [CrossRef] [PubMed]
  3. Schwarz, F.; Derks, J.; Monje, A.; Wang, H.L. Peri-implantitis. J. Periodontol. 2018, 89 (Suppl. S1), S267–S290. [Google Scholar] [CrossRef]
  4. Thoma, D.S.; Zeltner, M.; Hilbe, M.; Hammerle, C.H.; Husler, J.; Jung, R.E. Randomized controlled clinical study evaluating effectiveness and safety of a volume-stable collagen matrix compared to autogenous connective tissue grafts for soft tissue augmentation at implant sites. J. Clin. Periodontol. 2016, 43, 874–885. [Google Scholar] [CrossRef]
  5. Zucchelli, G.; Mazzotti, C.; Mounssif, I.; Marzadori, M.; Stefanini, M. Esthetic treatment of peri-implant soft tissue defects: A case report of a modified surgical-prosthetic approach. Int. J. Periodontics Restor. Dent. 2013, 33, 327–335. [Google Scholar] [CrossRef]
  6. Tarnow, D.P.; Magner, A.W.; Fletcher, P. The effect of the distance from the contact point to the crest of bone on the presence or absence of the interproximal dental papilla. J. Periodontol. 1992, 63, 995–996. [Google Scholar] [CrossRef]
  7. Araújo, M.G.; Lindhe, J. Dimensional ridge alterations following tooth extraction. An experimental study in the dog. J. Clin. Periodontol. 2005, 32, 212–218. [Google Scholar] [CrossRef]
  8. Gobbato, L.; Avila-Ortiz, G.; Sohrabi, K.; Wang, C.W.; Karimbux, N. The effect of keratinized mucosa width on peri-implant health: A systematic review. Int. J. Oral Maxillofac. Implant. 2013, 28, 1536–1545. [Google Scholar] [CrossRef]
  9. Kornman, K.S.; Giannobile, W.V.; Duff, G.W. Quo vadis: What is the future of periodontics? How will we get there? Periodontol. 2000 2017, 75, 353–371. [Google Scholar] [CrossRef]
  10. Fons-Badal, C.; Agustín-Panadero, R.; Labaig-Rueda, C.; Solá-Ruiz, M.F.; García-Selva, M.; Fons Font, A. The Influence of Keratinized Mucosa on the Nonsurgical Therapeutic Treatment of Peri-Implantitis. J. Clin. Med. 2022, 11, 4118. [Google Scholar] [CrossRef]
  11. Kungsadalpipob, K.; Supanimitkul, K.; Manopattanasoontorn, S.; Sophon, N.; Tangsathian, T.; Arunyanak, S.P. The lack of keratinized mucosa is associated with poor peri-implant tissue health: A cross-sectional study. Int. J. Implant. Dent. 2020, 6, 28. [Google Scholar] [CrossRef]
  12. Oliveira, C.A.B.; Pereira, V.L.; Dos Santos, J.N.; Araujo, N.S.; Cury, P.R. Influence of keratinized mucosa on peri-implant diseases: A retrospective cohort study in humans. Oral Maxillofac. Surg. 2024, 28, 331–336. [Google Scholar] [CrossRef]
  13. Sanz, M.; Schwarz, F.; Herrera, D.; McClain, P.; Figuero, E.; Molina, A.; Ramanauskaite, A.; Pascual, A.; Renouard, F.; Heitz-Mayfield, L.; et al. Importance of Keratinized Mucosa Around Dental Implants: Consensus Report of Group 1 of the DGI/SEPA/Osteology Workshop. Clin. Oral Implant. Res. 2022, 33, 47–55. [Google Scholar] [CrossRef]
  14. Linkevicius, T.; Apse, P.; Grybauskas, S.; Puisys, A. Influence of thin mucosal tissues on crestal bone stability around implants with platform switching: A 1-year pilot study. J. Oral Maxillofac. Surg. 2010, 68, 2272–2277. [Google Scholar] [CrossRef]
  15. Edel, A. Clinical evaluation of free connective tissue grafts used to increase the width of keratinised gingiva. J. Clin. Periodontol. 1974, 1, 185–196. [Google Scholar] [CrossRef]
  16. Stefanini, M.; Barootchi, S.; Sangiorgi, M.; Pispero, A.; Grusovin, M.G.; Mancini, L.; Zucchelli, G.; Tavelli, L. Do soft tissue augmentation techniques provide stable and favorable peri-implant conditions in the medium and long term? A systematic review. Clin. Oral Implant. Res. 2023, 34 (Suppl. S26), 28–42. [Google Scholar] [CrossRef]
  17. Moussa, H.; Nasri, W.; Gargouri, R.; Bouslema, A. Management of Soft Tissue Defects Around Single Implants: A Systematic Review of the Literature. Clin. Exp. Dent. Res. 2024, 10, e70003. [Google Scholar] [CrossRef]
  18. Urban, I.A.; Klokkevold, P.R.; Takei, H.H. Papilla Reformation at Single-Tooth Implant Sites Adjacent to Teeth with Severely Compromised Periodontal Support. Int. J. Periodontics Restor. Dent. 2017, 37, 9–17. [Google Scholar] [CrossRef]
  19. Tavelli, L.; Akhondi, S.; Vinueza, M.E.G.; Mancini, L.; Lanis, A.; Barootchi, S. The Tunneled Coronally Advanced Flap for Vertical Soft Tissue Reconstruction and Papilla Augmentation at Implant Sites (verTCAF). Int. J. Periodontics Restor. Dent. 2025, 1–26. [Google Scholar] [CrossRef]
  20. Blatz, M.B.; Hürzeler, M.B.; Strub, J.R. Reconstruction of the lost interproximal papilla--presentation of surgical and nonsurgical approaches. Int. J. Periodontics Restor. Dent. 1999, 19, 395–406. [Google Scholar]
  21. Singh, V.P.; Uppoor, A.S.; Nayak, D.G.; Shah, D. Black triangle dilemma and its management in esthetic dentistry. Dent. Res. J. 2013, 10, 296–301. [Google Scholar] [PubMed] [PubMed Central]
  22. Urban, I.A.; Mancini, L.; Wang, H.L.; Tavelli, L. The ‘Iceberg’ Connective Tissue Graft Technique for Peri-implant Papilla Augmentation Following Interproximal Bone Reconstruction. Int. J. Periodontics Restor. Dent. 2024, 44, 510–519. [Google Scholar] [CrossRef] [PubMed]
  23. Thoma, D.S.; Gasser, T.J.W.; Jung, R.E.; Hämmerle, C.H.F. Randomized controlled clinical trial comparing implant sites augmented with a volume-stable collagen matrix or an autogenous connective tissue graft: 3-year data after insertion of reconstructions. J. Clin. Periodontol. 2020, 47, 630–639. [Google Scholar] [CrossRef] [PubMed]
  24. Seyssens, L.; De Lat, L.; Cosyn, J. Immediate implant placement with or without connective tissue graft: A systematic review and meta-analysis. J. Clin. Periodontol. 2021, 48, 284–301. [Google Scholar] [CrossRef]
  25. Stefanini, M.; Felice, P.; Mazzotti, C.; Marzadori, M.; Gherlone, E.F.; Zucchelli, G. Transmucosal implant placement with submarginal connective tissue graft in area of shallow buccal bone dehiscence: A three-year follow-up case series. Int. J. Periodontics Restor. Dent. 2016, 36, 621–630. [Google Scholar] [CrossRef]
  26. Wang, I.I.; Barootchi, S.; Tavelli, L.; Wang Zucchelli, G.; Felice, P.; Mazzotti, C.; Marzadori, M.; Mounssif, I.; Monaco, C.; Stefanini, M. 5-year outcomes after coverage of soft tissue dehiscence around single implants: A prospective cohort study. Eur. J. Oral Implantol. 2018, 11, 215–224. [Google Scholar]
  27. Era el 19 Eeckhout, C.; Bouckaert, E.; Verleyen, D.; De Bruyckere, T.; Cosyn, J. A 3-year prospective study on a porcine-derived acellular collagen matrix to re-establish convexity at the buccal aspect of single implants in the molar area: A volumetric analysis. J. Clin. Med. 2020, 9, 1568. [Google Scholar] [CrossRef]
  28. Hosseini, M.; Worsaae, N.; Gotfredsen, K. Tissue changes at implant sites in the anterior maxilla with and without connective tissue grafting: A five-year prospective study. Clin. Oral Implant. Res. 2020, 31, 18–28. [Google Scholar] [CrossRef]
  29. Huber, S.; Zeltner, M.; Hämmerle, C.H.F.; Jung, R.E.; Thoma, D.S. Non-interventional 1-year follow-up study of peri-implant soft tissues following previous soft tissue augmentation and crown insertion in single-tooth gaps. J. Clin. Periodontol. 2018, 45, 504–512. [Google Scholar] [CrossRef]
  30. Thoma, D.S.; Gasser, T.J.W.; Hämmerle, C.H.F.; Strauss, F.J.; Jung, R.E. Soft tissue augmentation with a volume-stable collagen matrix or an autogenous connective tissue graft at implant sites: Five-year results of a randomized controlled trial post implant loading. J. Periodontol. 2023, 94, 230–243. [Google Scholar] [CrossRef]
  31. Fons-Badal, C.; Alonso Pérez-Barquero, J.; Martínez-Martínez, N.; Faus-López, J.; Fons-Font, A.; Agustín-Panadero, R. A novel, fully digital approach to quantifying volume gain after soft tissue graft surgery. A pilot study. J. Clin. Periodontol. 2020, 47, 614–620. [Google Scholar] [CrossRef] [PubMed]
  32. Rebele, S.F.; Zuhr, O.; Schneider, D.; Jung, R.E.; Hürzeler, M.B. Tunnel technique with connective tissue graft versus coronally advanced flap with enamel matrix derivative for root coverage: A RCT using 3D digital measuring methods. Part II. Volumetric studies on healing dynamics and gingival dimensions. J. Clin. Periodontol. 2014, 41, 593–603. [Google Scholar] [CrossRef]
  33. Lin, C.Y.; Chen, Z.; Pan, W.L.; Wang, H.L. Impact of timing on soft tissue augmentation during implant treatment: A systematic review and meta-analysis. Clin. Oral Implant. Res. 2018, 29, 508–521. [Google Scholar] [CrossRef]
  34. Zuiderveld, E.G.; van Nimwegen, W.G.; Meijer, H.J.A.; Jung, R.E.; Mühlemann, S.; Vissink, A.; Raghoebar, G.M. Effect of connective tissue grafting on buccal bone changes based on cone beam computed tomography scans in the esthetic zone of single immediate implants: A 1-year randomized controlled trial. J. Periodontol. 2021, 92, 553–561. [Google Scholar] [CrossRef]
  35. Zuiderveld, E.G.; Raghoebar, G.M.; Vissink, A.; Gareb, B.; Meijer, H.J.A. Efficacy of soft tissue augmentation in the maxillary esthetic region: A 5-year randomized controlled trial. J. Periodontol. 2025, 1–11. [Google Scholar] [CrossRef]
  36. Zuhr, O.; Rebele, S.F.; Cheung, S.L.; Hürzeler, M.B. Surgery without papilla incision: Tunneling flap procedures in plastic periodontal and implant surgery. Periodontol. 2000 2018, 77, 123–149. [Google Scholar] [CrossRef]
  37. Salenbauch, N.M.; Allen, E.P. Augmentation of Interdental Papilla at Implant/Tooth Sites with the Tunneling Technique and a Pedicle Graft: Technique and Case Report. Int. J. Periodontics Restor. Dent. 2022, 42, e21–e26. [Google Scholar] [CrossRef]
  38. Mancini, L.; Simeone, D.; Roccuzzo, A.; Strauss, F.J.; Marchetti, E. Timing of soft tissue augmentation around implants: A clinical review and decision tree. Int. J. Oral Implantol. 2023, 16, 289–302. [Google Scholar]
Jcm 14 04974 g001
Figure 1. Occlusal view pre- and 6 months post-graft that shows soft tissue volume gain.
Figure 1. Occlusal view pre- and 6 months post-graft that shows soft tissue volume gain.
Jcm 14 04974 g001
Jcm 14 04974 g002
Figure 2. Profile with pre- and 6 months post-graft that shows soft tissue volume gain.
Figure 2. Profile with pre- and 6 months post-graft that shows soft tissue volume gain.
Jcm 14 04974 g002
Jcm 14 04974 g003
Figure 3. Pre- and 6 months post-graft frontal image. Gingival inflammation was noted on the tooth adjacent to the graft, presumably related to the newly placed veneer.
Figure 3. Pre- and 6 months post-graft frontal image. Gingival inflammation was noted on the tooth adjacent to the graft, presumably related to the newly placed veneer.
Jcm 14 04974 g003
Jcm 14 04974 g004
Figure 4. The first image is the de-epithelialized tuberosity graft, the second shows the incisions that will be made (1: central incision, 2 and 3: small 45° incisions), and the third shows the incisions already made and the parts into which the graft is divided.
Figure 4. The first image is the de-epithelialized tuberosity graft, the second shows the incisions that will be made (1: central incision, 2 and 3: small 45° incisions), and the third shows the incisions already made and the parts into which the graft is divided.
Jcm 14 04974 g004
Jcm 14 04974 g005

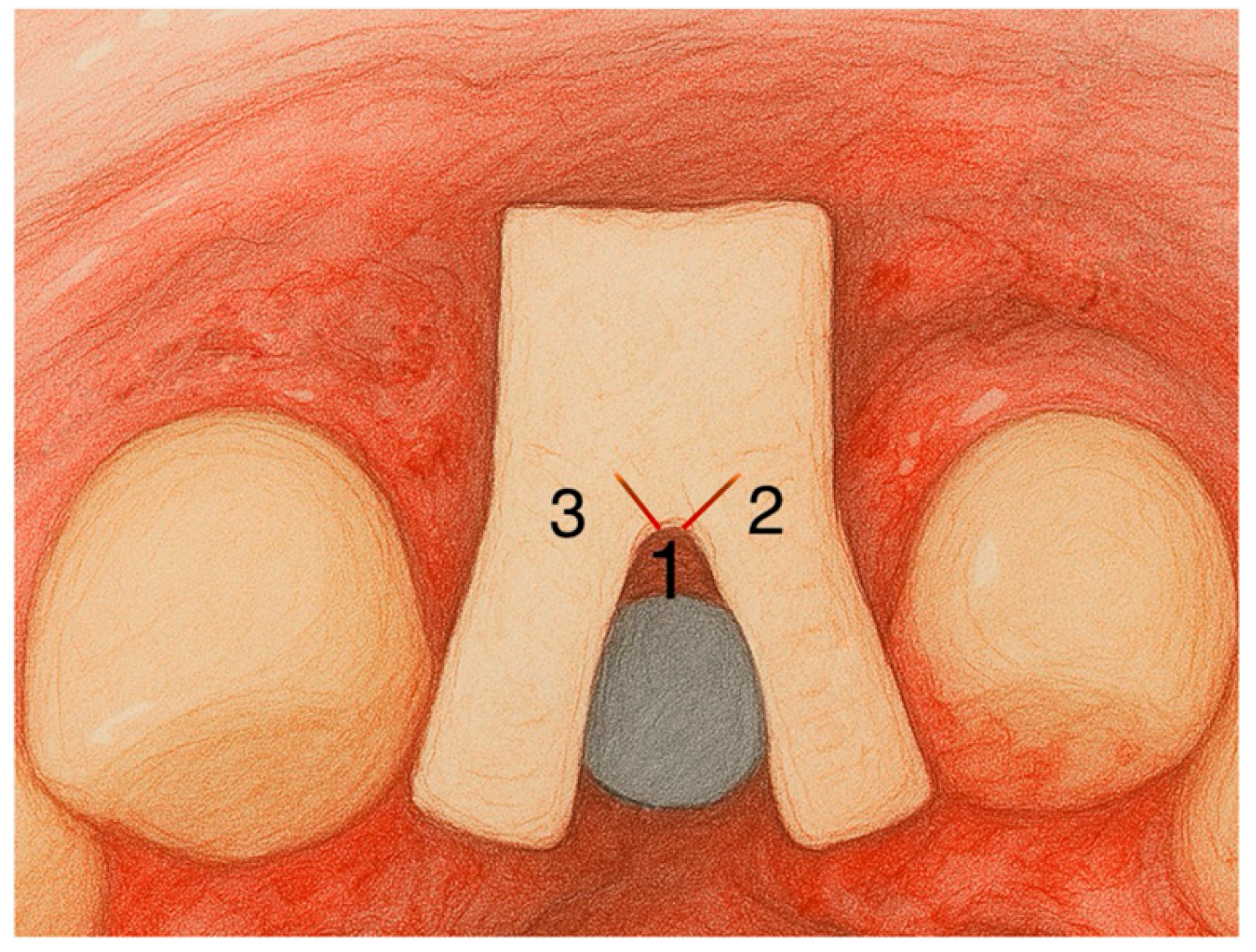

Figure 5. Graft positioning diagram illustrating the position of the graft of the graft in the recipient site. Number s 1, 2 and 3 are the incisions.
Figure 5. Graft positioning diagram illustrating the position of the graft of the graft in the recipient site. Number s 1, 2 and 3 are the incisions.
Jcm 14 04974 g005
Jcm 14 04974 g006
Figure 6. Graft from tuberosity positioned before insertion to check the position.
Figure 6. Graft from tuberosity positioned before insertion to check the position.
Jcm 14 04974 g006
Jcm 14 04974 g007
Figure 7. Graft inserted with the palatine sutures untied.
Figure 7. Graft inserted with the palatine sutures untied.
Jcm 14 04974 g007
Jcm 14 04974 g008
Figure 8. Frontal image of the graft with the 6/0 coronal traction suture and the temporary crown.
Figure 8. Frontal image of the graft with the 6/0 coronal traction suture and the temporary crown.
Jcm 14 04974 g008
Jcm 14 04974 g009

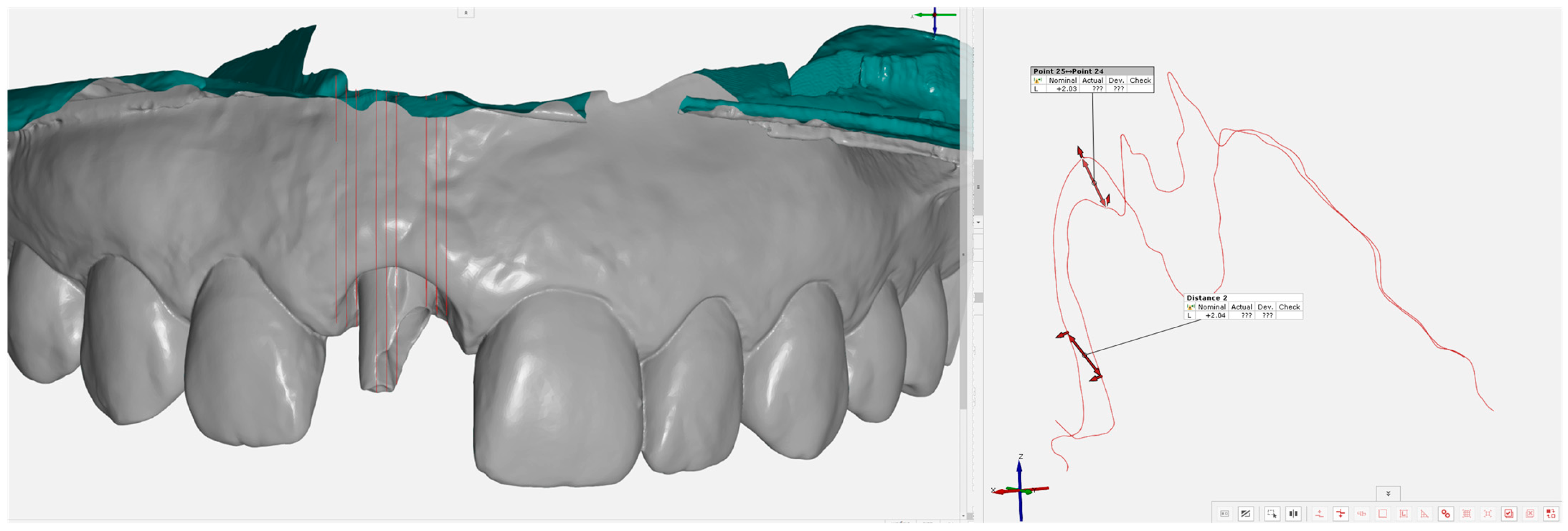

Figure 9. Perpendicular sections and measurement of soft tissue increment.
Figure 9. Perpendicular sections and measurement of soft tissue increment.
Jcm 14 04974 g009
Jcm 14 04974 g010

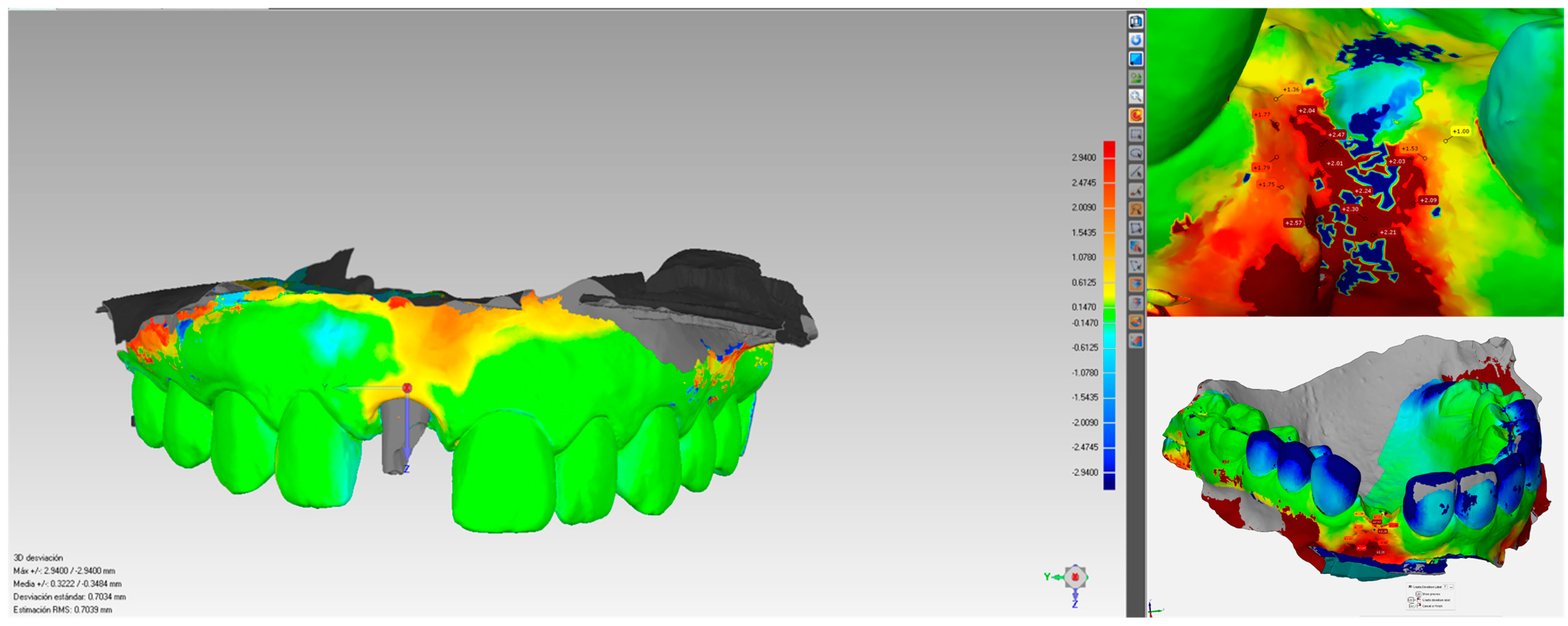

Figure 10. Color heat map with volumetric change.
Figure 10. Color heat map with volumetric change.
Jcm 14 04974 g010
Jcm 14 04974 g011

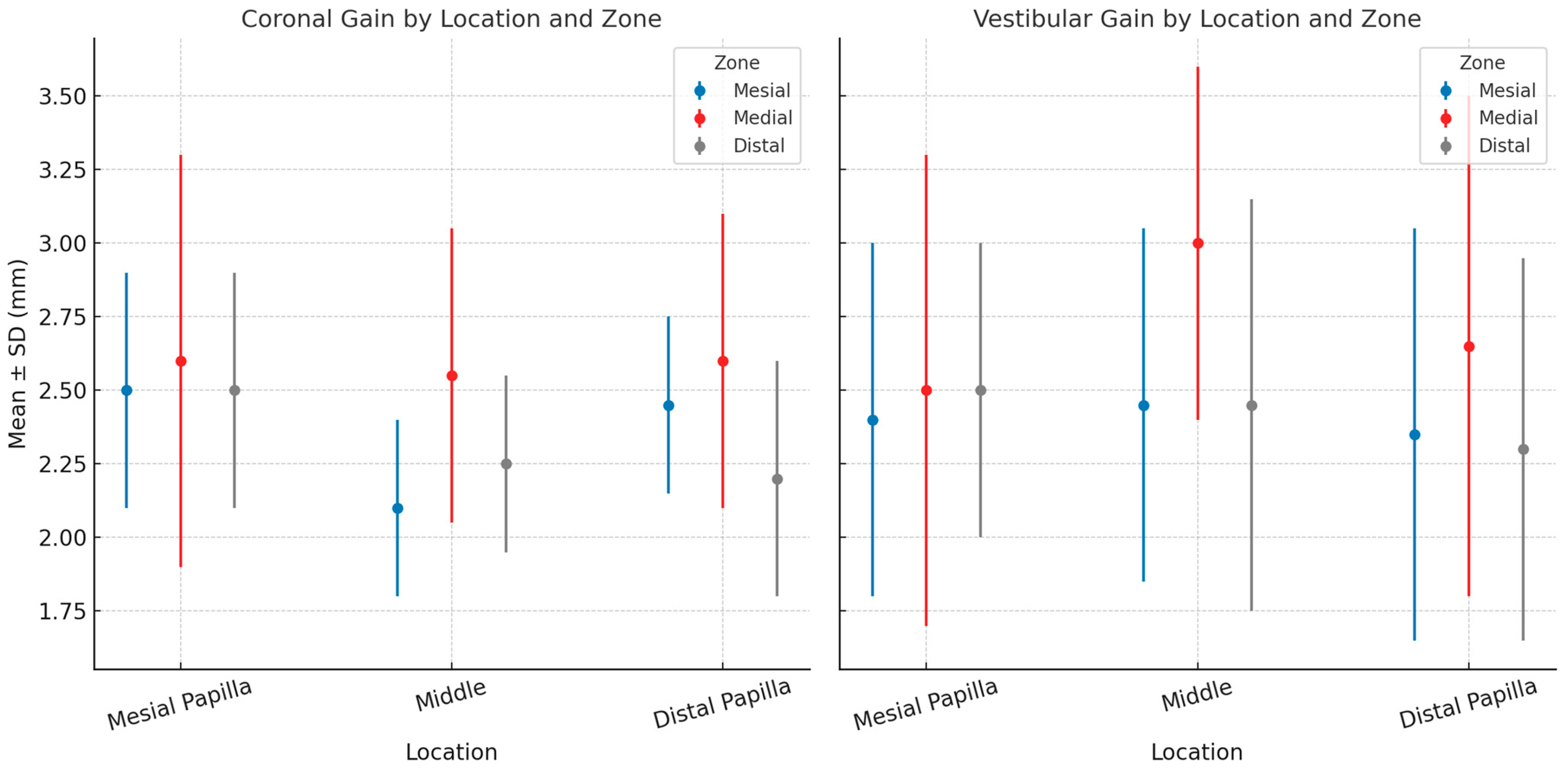

Figure 11. Graph illustrating tissue gain in coronal and vestibular areas.
Figure 11. Graph illustrating tissue gain in coronal and vestibular areas.
Jcm 14 04974 g011
Jcm 14 04974 g012

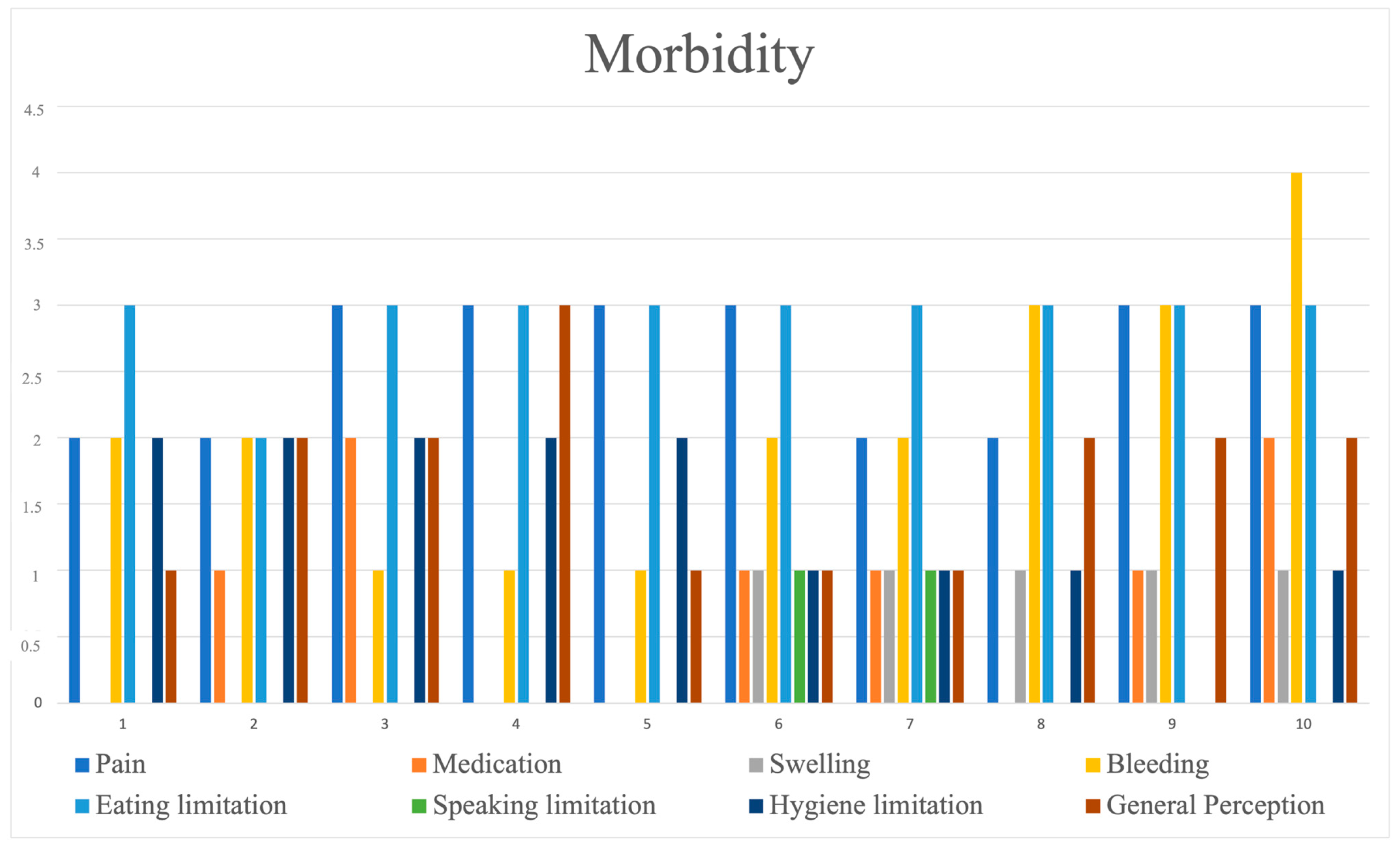

Figure 12. Distribution of patient responses to the eight postoperative morbidity questionnaire items, which were assessed using a 5-point Likert scale ranging from 0 (none) to 5 (very severe).
Figure 12. Distribution of patient responses to the eight postoperative morbidity questionnaire items, which were assessed using a 5-point Likert scale ranging from 0 (none) to 5 (very severe).
Jcm 14 04974 g012
Jcm 14 04974 g013
Figure 13. Occlusal view pre- and 6 months post-graft.
Figure 13. Occlusal view pre- and 6 months post-graft.
Jcm 14 04974 g013
Jcm 14 04974 g014
Figure 14. Occlusal view pre- and 6 months post-graft.
Figure 14. Occlusal view pre- and 6 months post-graft.
Jcm 14 04974 g014
Jcm 14 04974 g015
Figure 15. Occlusal view pre- and 6 months post-graft.
Figure 15. Occlusal view pre- and 6 months post-graft.
Jcm 14 04974 g015
Jcm 14 04974 g016
Figure 16. Occlusal view pre- and 6 months post-graft.
Figure 16. Occlusal view pre- and 6 months post-graft.
Jcm 14 04974 g016
Jcm 14 04974 g017
Figure 17. Frontal image pre- and 6 months post-graft.
Figure 17. Frontal image pre- and 6 months post-graft.
Jcm 14 04974 g017
Table 1. Mean gain (mm) and its 95% confidence intervals at coronal and vestibular levels (general and by location/zone).
Table 1. Mean gain (mm) and its 95% confidence intervals at coronal and vestibular levels (general and by location/zone).
LevelCategoryNMediaIC 95%p-Value
CoronalGlobal902.742.21–3.26<0.001
Mesial papila302.662.23–3.10<0.001
Medial302.772.24–3.33<0.001
Distal papila302.762.16–3.37<0.001
Mesial zone302.632.12–3.13<0.001
Medial zone302.832.33–3.32<0.001
Distal zone302.762.19–3.33<0.001
VestibularGlobal902.792.24–3.35<0.001
Mesial papila302.742.29–3.19<0.001
Medial302.882.36–3.39<0.001
Distal papila302.772.07–3.46<0.001
Mesial zone302.712.17–3.25<0.001
Medial zone302.872.38–3.36<0.001
Distal zone302.812.19–3.42<0.001
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Pavón, P.; Fons-Badal, C.; Pérez-Rostoll, N.; Alonso-Pérez-Barquero, J.; Solá-Ruiz, M.F.; Agustín-Panadero, R. The Trouser Technique: A Novel Approach for Peri-Implant Soft Tissue Augmentation. J. Clin. Med. 2025, 14, 4974. https://doi.org/10.3390/jcm14144974

AMA Style

Pavón P, Fons-Badal C, Pérez-Rostoll N, Alonso-Pérez-Barquero J, Solá-Ruiz MF, Agustín-Panadero R. The Trouser Technique: A Novel Approach for Peri-Implant Soft Tissue Augmentation. Journal of Clinical Medicine. 2025; 14(14):4974. https://doi.org/10.3390/jcm14144974

Chicago/Turabian Style

Pavón, Pablo, Carla Fons-Badal, Natalia Pérez-Rostoll, Jorge Alonso-Pérez-Barquero, María Fernanda Solá-Ruiz, and Rubén Agustín-Panadero. 2025. "The Trouser Technique: A Novel Approach for Peri-Implant Soft Tissue Augmentation" Journal of Clinical Medicine 14, no. 14: 4974. https://doi.org/10.3390/jcm14144974

APA Style

Pavón, P., Fons-Badal, C., Pérez-Rostoll, N., Alonso-Pérez-Barquero, J., Solá-Ruiz, M. F., & Agustín-Panadero, R. (2025). The Trouser Technique: A Novel Approach for Peri-Implant Soft Tissue Augmentation. Journal of Clinical Medicine, 14(14), 4974. https://doi.org/10.3390/jcm14144974

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
