Hepatic Artery Thrombosis After Orthotopic Liver Transplant: A 20-Year Monocentric Series
Abstract
1. Introduction
2. Materials and Methods
2.1. Organ Procurement and Back-Table Procedure
2.2. Operative Details
2.3. Postoperative Management
2.4. Data Analysis
- Length of post-OLT hospital stay (mean±SD);
- Reoperations within 90 days;
- Re-OLT within 90 days;
- 90-day post-OLT mortality;
- Duration of post-OLT follow-up (from transplant to last outpatient visit);
- Overall post-OLT survival (from transplant to last follow-up or death);
- Overall re-OLT rate;
- Graft loss rate (defined as patient death or need for re-OLT).
- Postoperative day of onset;
- Presence of symptoms (yes/no);
- Type of treatment (medical or surgical);
- HAT-related mortality (short-term within 90 days and long-term).
2.5. Statistical Analysis
3. Results
3.1. Donor Characteristics (Table 2)
3.2. Recipient Characteristics (Table 3)
3.3. Intraoperative Factors (Table 5)
3.4. Postoperative Outcomes (Table 7)
Outcome | n (%) |
---|---|
Post-OLT mortality within 90 days | 7.1% |
Post-OLT morbidity within 90 days | 420 (78.9%) |
Grade ≥3 morbidity according to Clavien–Dindo class | 237 (44.5%) |
Reoperation | 119 (22.3%) |
Hemostasis revision | 41 (7.7%) |
Abdominal cavity lavage | 13 (2.4%) |
Creation of bilio-digestive anastomosis | 31 (5.8%) |
Reconstruction of the hepatic artery | 6 (1.1%) |
Cavo-cavostomy | 2 (0.3%) |
Overall re-OLT rate | 37 (6.9%) |
Re-OLT for HAT | 6 (1.1%) |
Re-OLT for other causes | 31 (5.8%) |
Median post-OLT hospital stay (IQR) | 15 (7–39) days |

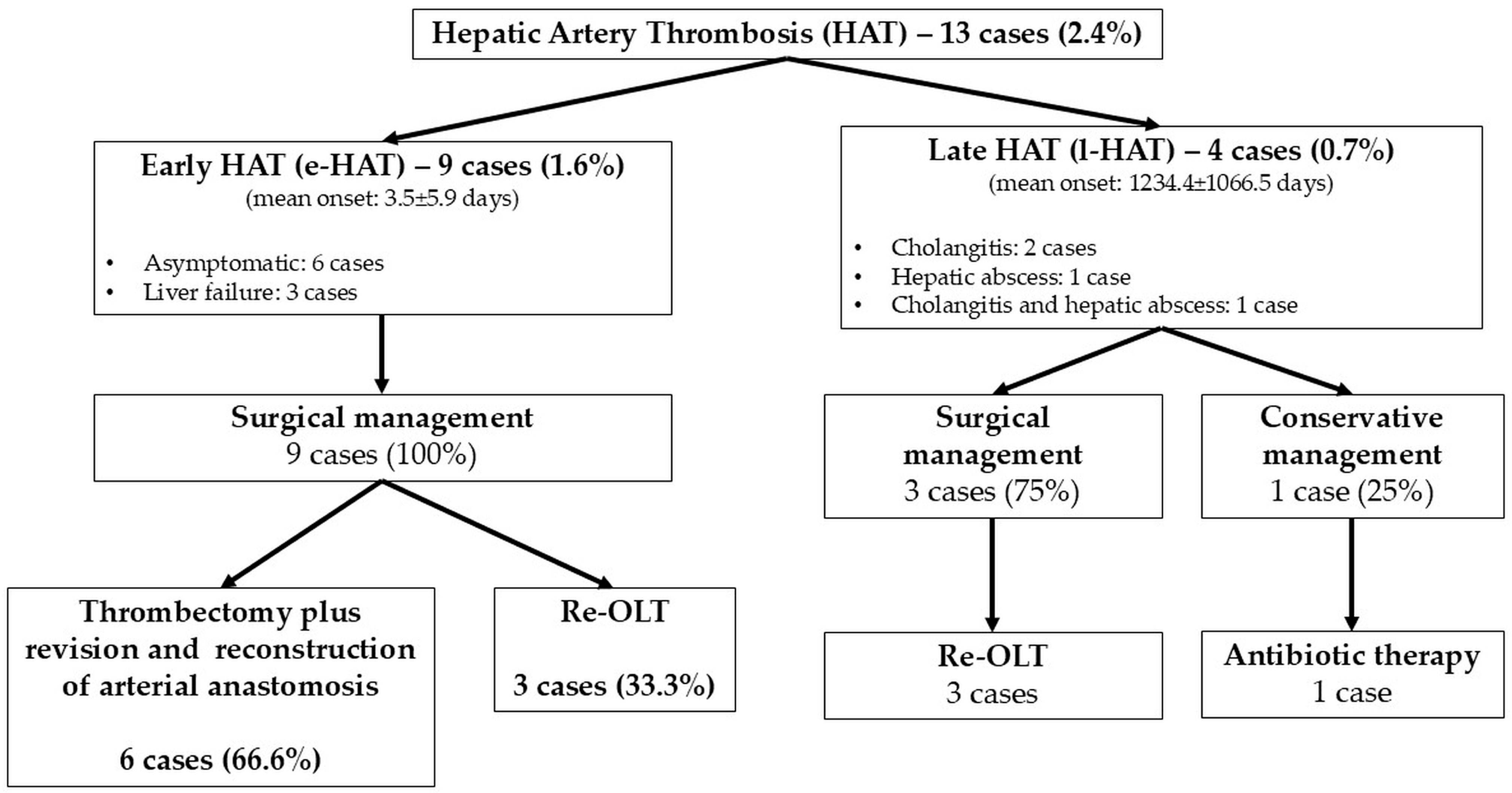

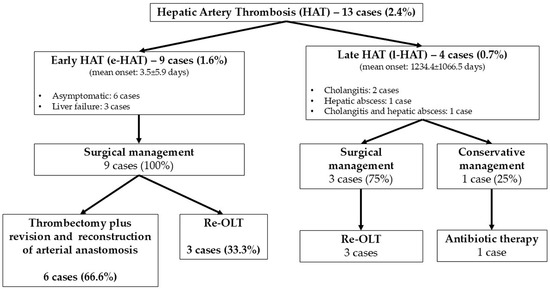

HAT rate | 13 (2.4%) |
Early HAT | 9 (1.6%) |
Late HAT | 4 (0.7%) |
HAT management (on 13 cases) | |
Re-OLT | 6 (46.0%) |
Reconstruction of arterial anastomosis | 6 (46.0%) |
Medical treatment | 1 (7.6%) |
Overall HAT-related reoperation rate | 12 (92.3%) |
HAT-related mortality | 1 (7.6%) |
4. Discussion
5. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- European Association for the Study of the Liver. EASL clinical practice guidelines on liver transplantation. J. Hepatol. 2024, 81, 1040–1086. [Google Scholar] [CrossRef] [PubMed]
- Nacif, L.S.; Waisberg, D.R.; Zanini, L.Y.; Pinheiro, R.S.; Rocha-Santos, V.; Macedo, R.A.; Ducatti, L.; Haddad, L.; de Martino, R.B.; Galvão, F.; et al. Clinical validation of a novel scoring system based on donor and recipient risk factors for predicting outcomes in liver transplantation. Ann. Transpl. 2022, 27, e936271. [Google Scholar] [CrossRef]
- Bleszynski, M.S.; Punnen, S.; Desai, S.; Hussaini, T.; Marquez, V.; Yoshida, E.M.; Jayakumar, S.; Chartier-Plante, S.; Segedi, M.; Scudamore, C.H.; et al. Outcomes of liver transplant recipients with high MELD scores: An experience from a Canadian centre. Can. J. Surg. 2022, 65, e425–e439. [Google Scholar] [CrossRef] [PubMed]
- Asrani, S.K.; Saracino, G.; O’Leary, J.G.; Gonzalez, S.; Kim, P.T.; McKenna, G.J.; Klintmalm, G.; Trotter, J. Recipient characteristics and morbidity and mortality after liver transplantation. J. Hepatol. 2018, 69, 43–50. [Google Scholar] [CrossRef]
- Buros, C.; Dave, A.A.; Furlan, A. Immediate and late complications after liver transplantation. Radiol. Clin. N. Am. 2023, 61, 785–795. [Google Scholar] [CrossRef] [PubMed]
- Vivarelli, M.; Cucchetti, A.; La Barba, G.; Bellusci, R.; De Vivo, A.; Nardo, B.; Cavallari, A.; Pinna, A.D. Ischemic arterial complications after liver transplantation in the adult: Multivariate analysis of risk factors. Arch. Surg. 2004, 139, 1069–1074. [Google Scholar] [CrossRef]
- Bhattacharjya, S.; Gunson, B.K.; Mirza, D.F.; Mayer, D.A.; Buckels, J.A.; McMaster, P.; Neuberger, J.M. Delayed hepatic artery thrombosis in adult orthotopic liver transplantation: A 12-year experience. Transplantation 2001, 71, 1592–1596. [Google Scholar] [CrossRef]
- Lui, S.K.; Garcia, C.R.; Mei, X.; Gedaly, R. Re-transplantation for hepatic artery thrombosis: A national perspective. World J. Surg. 2018, 42, 3357–3363. [Google Scholar] [CrossRef]
- Herrero, A.; Souche, R.; Joly, E.; Boisset, G.; Habibeh, H.; Bouyabrine, H.; Panaro, F.; Ursic-Bedoya, J.; Jaber, S.; Guiu, B.; et al. Early hepatic artery thrombosis after liver transplantation: What is the impact of the arterial reconstruction type? World J. Surg. 2017, 41, 2101–2110. [Google Scholar] [CrossRef] [PubMed]
- Park, J.; Kim, S.H.; Park, S.J. Hepatic artery thrombosis following living donor liver transplantation: A 14-year experience at a single center. J. Hepatobiliary Pancreat. Sci. 2020, 27, 548–554. [Google Scholar] [CrossRef] [PubMed]
- De Pietri, L.; Montalti, R.; Nicolini, D.; Troisi, R.I.; Moccheggiani, F.; Vivarelli, M. Perioperative thromboprophylaxis in liver transplant patients. World J. Gastroenterol. 2018, 24, 2931–2948. [Google Scholar] [CrossRef] [PubMed]
- Settmacher, U.; Stange, B.; Haase, R.; Heise, M.; Steinmüller, T.; Bechstein, W.O.; Neuhaus, P. Arterial complications after liver transplantation. Transpl. Int. 2000, 13, 372–378. [Google Scholar] [CrossRef]
- Pinna, A.D.; Smith, C.V.; Furukawa, H.; Starzl, T.E.; Fung, J.J. Urgent revascularization of liver allografts after early hepatic artery thrombosis. Transplantation 1996, 62, 1584–1587. [Google Scholar] [CrossRef] [PubMed]
- Sakamoto, Y.; Harihara, Y.; Nakatsuka, T.; Kawarasaki, H.; Takayama, T.; Kubota, K.; Kimura, W.; Kita, Y.; Tanaka, H.; Ito, M.; et al. Rescue of liver grafts from hepatic artery occlusion in living-related liver transplantation. Br. J. Surg. 1999, 86, 886–889. [Google Scholar] [CrossRef]
- Nishida, S.; Kato, T.; Levi, D.; Naveen, M.; Berney, T.; Vianna, R.; Selvaggi, G.; Buitorago, E.; Al-Niami, A.; Nakamura, N.; et al. Effect of protocol Doppler ultrasonography and urgent revascularization on early hepatic artery thrombosis after pediatric liver transplantation. Arch. Surg. 2002, 137, 1279–1283. [Google Scholar] [CrossRef]
- Bekker, J.; Ploem, S.; de Jong, K.P. Early hepatic artery thrombosis after liver transplantation: A systematic review of the incidence, outcome and risk factors. Am. J. Transpl. 2009, 9, 746–757. [Google Scholar] [CrossRef]
- Pastacaldi, S.; Teixeira, R.; Montalto, P.; Rolles, K.; Burroughs, A.K. Hepatic artery thrombosis after orthotopic liver transplantation: A review of nonsurgical causes. Liver Transpl. 2001, 7, 75–81. [Google Scholar] [CrossRef]
- Mas, V.R.; Fisher, R.A.; Maluf, D.G.; Wilkinson, D.S.; Garrett, C.T.; Ferreira-Gonzalez, A. Hepatic artery thrombosis after liver transplantation and genetic factors: Prothrombin G20210A polymorphism. Transplantation 2003, 76, 247–249. [Google Scholar] [CrossRef] [PubMed]
- Feldman, K.; Heble, D.E., Jr.; Hendrickson, R.J.; Fischer, R.T. Hepatic artery thrombosis and use of anticoagulants and antiplatelet agents in pediatric liver transplantation. Pediatr. Transpl. 2024, 28, e14516. [Google Scholar] [CrossRef] [PubMed]
- Tondolo, V.; Manzoni, A.; Zamboni, F. A liver donor with double hepatic artery aneurysm: A saved graft. Hepatobiliary Pancreat. Dis. Int. 2015, 14, 443–445. [Google Scholar] [CrossRef] [PubMed]
- Clavien, P.A.; Barkun, J.; de Oliveira, M.L.; Vauthey, J.N.; Dindo, D.; Schulick, R.D.; de Santibañes, E.; Pekolj, J.; Slankamenac, K.; Bassi, C.; et al. The Clavien-Dindo classification of surgical complications: Five-year experience. Ann. Surg. 2009, 250, 187–196. [Google Scholar] [CrossRef] [PubMed]
- Yang, Y.; Zhao, J.C.; Yan, L.N.; Ma, Y.K.; Huang, B.; Yuan, D.; Li, B.; Wen, T.F.; Wang, W.T.; Xu, M.Q.; et al. Risk factors associated with early and late HAT after adult liver transplantation. World J. Gastroenterol. 2014, 20, 10545–10552. [Google Scholar] [CrossRef] [PubMed]
- Bastón Castiñeiras, M.; Benítez Linero, I.; Serrano Zarcero, V.; Fernández Castellano, G.; Suárez-Artacho, G.; López Romero, J.L. Hepatic artery thrombosis after orthotopic liver transplant: Experience in the last 10 years. Transpl. Proc. 2022, 54, 51–53. [Google Scholar] [CrossRef]
- Tan, E.K.; Tan, B.K.; Fong, H.C.; Chua, D.; Chew, K.Y.; Koh, Y.X.; Chung, A.Y.F.; Lee, S.Y.; Teo, J.Y.; Cheow, P.C.; et al. Impact of microsurgical anastomosis of hepatic artery on arterial complications and survival outcomes after liver transplantation. Transpl. Proc. 2021, 53, 65–72. [Google Scholar] [CrossRef]
- Nickel, K.J.; Staples, J.; Meeberg, G.; Kwan, P.O.; Gilmour, S.; Bigam, D.L.; Dajani, K.; Shapiro, A.J.; Kneteman, N.M.; Ladak, A. The transition to microsurgical technique for hepatic artery reconstruction in pediatric liver transplantation. Plast. Reconstr. Surg. 2021, 148, 248e–257e. [Google Scholar] [CrossRef]
- Dziodzio, T.; Martin, F.; Gül-Klein, S.; Globke, B.; Ritschl, P.V.; Jara, M.; Hillebrandt, K.H.; Nösser, M.; Koulaxouzidis, G.; Fehrenbach, U.; et al. Hepatic artery reconstruction using an operating microscope in pediatric liver transplantation—Is it worth the effort? Pediatr. Transpl. 2022, 26, e14188. [Google Scholar] [CrossRef] [PubMed]
- Jwa, E.K.; Kim, J.D.; Choi, D.L. Comparison of hepatic artery reconstruction using surgical loupe and operating microscope during living donor liver transplantation focusing on the beginner’s point. Ann. Hepatobiliary Pancreat. Surg. 2019, 23, 122–127. [Google Scholar] [CrossRef] [PubMed]
- Hamby, B.A.; Ramirez, D.E.; Loss, G.E.; Bazan, H.A.; Smith, T.A.; Bluth, E.; Sternbergh, W.C., III. Endovascular treatment of hepatic artery stenosis after liver transplantation. J. Vasc. Surg. 2013, 57, 1067–1072. [Google Scholar] [CrossRef]
- Mourad, M.M.; Liossis, C.; Gunson, B.K.; Mergental, H.; Isaac, J.; Muiesan, P.; Mirza, D.F.; Perera, M.T.P.; Bramhall, S.R. Etiology and management of hepatic artery thrombosis after adult liver transplantation. Liver Transpl. 2014, 20, 713–723. [Google Scholar] [CrossRef]
- Buchholz, B.M.; Khan, S.; David, M.D.; Gunson, B.K.; Isaac, J.R.; Roberts, K.J.; Muiesan, P.; Mirza, D.F.; Tripathi, D.; Perera, M.T.P. Retransplantation in late hepatic artery thrombosis: Graft access and transplant outcome. Transpl. Direct 2017, 3, e186. [Google Scholar] [CrossRef] [PubMed]
- Stange, B.J.; Glanemann, M.; Nuessler, N.C.; Settmacher, U.; Steinmüller, T.; Neuhaus, P. Hepatic artery thrombosis after adult liver transplantation. Liver Transpl. 2003, 9, 612–620. [Google Scholar] [CrossRef]
- Wu, L.; Zhang, J.; Guo, Z.; Tai, Q.; He, X.; Ju, W.; Wang, D.; Zhu, X.; Ma, Y.; Wang, G.; et al. Hepatic artery thrombosis after orthotopic liver transplant: A review of the same institute 5 years later. Exp. Clin. Transpl. 2011, 9, 191–196. [Google Scholar] [PubMed]
- Lee, H.; Lim, C.W.; Yoo, S.H.; Koo, C.H.; Kwon, W.I.; Suh, K.S.; Ryu, H.G. The effect of Doppler ultrasound on early vascular interventions and clinical outcomes after liver transplantation. World J. Surg. 2014, 38, 3202–3209. [Google Scholar] [CrossRef] [PubMed]
- Capra, R.P.; Lazzarotto-da-Silva, G.; Grezzana-Filho, T.J.M.; Viana, G.S.; Prediger, J.E.; Rabolini, B.; Silva, R.K.; Prediger, L.; de Araujo, A.; Alvares-da-Silva, M.R.; et al. Low hepatic artery resistive index on Doppler ultrasound performed on the first post-liver transplant day is associated both with hepatic artery thrombosis and decreased graft survival. Langenbecks Arch. Surg. 2023, 408, 231. [Google Scholar] [CrossRef] [PubMed]
- Oh, C.K.; Pelletier, S.J.; Sawyer, R.G.; Dacus, A.R.; McCullough, C.S.; Pruett, T.L.; Sanfey, H.A. Uni- and multi-variate analysis of risk factors for early and late hepatic artery thrombosis after liver transplantation. Transplantation 2001, 71, 767–772. [Google Scholar] [CrossRef] [PubMed]
- Pinto, L.E.V.; Coelho, G.R.; Coutinho, M.M.S.; Torres, O.J.M.; Leal, P.C.; Vieira, C.B.; Garcia, J.H.P. Risk factors associated with hepatic artery thrombosis: Analysis of 1050 liver transplants. Arq. Bras. Cir. Dig. 2021, 33, e1556. [Google Scholar] [CrossRef]
- Warner, P.; Fusai, G.; Glantzounis, G.K.; Sabin, C.A.; Rolando, N.; Patch, D.; Sharma, D.; Davidson, B.R.; Rolles, K.; Burroughs, A.K. Risk factors associated with early hepatic artery thrombosis after orthotopic liver transplantation: Univariable and multivariable analysis. Transpl. Int. 2011, 24, 401–408. [Google Scholar] [CrossRef]
- Silva, M.A.; Jambulingam, P.S.; Gunson, B.K.; Mayer, D.; Buckels, J.A.C.; Mirza, D.F.; Bramhall, S.R. Hepatic artery thrombosis following orthotopic liver transplantation: A 10-year experience from a single centre in the United Kingdom. Liver Transpl. 2006, 12, 146–151. [Google Scholar] [CrossRef]
- Kirchner, V.A.; O’Farrell, B.; Imber, C.; McCormack, L.; Northup, P.G.; Song, G.W.; Spiro, M.; Raptis, D.A.; Durand, F.; ERAS4OLT.org Working Group; et al. What is the optimal management of thromboprophylaxis after liver transplantation regarding prevention of bleeding, hepatic artery, or portal vein thrombosis? A systematic review of the literature and expert panel recommendations. Clin. Transpl. 2022, 36, e14629. [Google Scholar] [CrossRef]
- Craig, E.V.; Heller, M.T. Complications of liver transplant. Abdom. Radiol. 2021, 46, 43–67. [Google Scholar] [CrossRef]
Donor-Related Variables | Recipient-Related Variables | Intraoperative Variables |
---|---|---|
Age Sex (M vs. F) Cause of death:
| Age Sex (M vs. F) BMI CMV seropositivity (Yes/No) CMV-negative recipient with CMV-positive donor graft (Yes/No) Indication for transplantation:
Child–Pugh score Pre-OLT HCC treatment (Yes/No) | Standard OLT (elective setting) (Yes/No) Re-OLT (Yes/No) Combined liver-kidney transplantation (Yes/No) Total ischemia time (CIT) Warm ischemia time (WIT) Use of arterial conduits (Yes/No) Arterial reconstructions at back table (Yes/No) Ligation of GDA at OLT (Yes/No) Ligation of SA at OLT (Yes/No) Ligation of both GDA and SA at OLT (Yes/No) More than one arterial anastomosis (Yes/No) Rescue cavo-cavostomy (Yes/No) Piggyback technique (Yes/No) Biliary reconstruction using choledochocholedochal or hepaticocholedochal anastomosis (Yes/No) Placement of a Kehr tube (Yes/No) |
Variable | n (%) |
---|---|
Number of OLTs | 532 |
Media age (IQR) | 57.5 (42–72) years |
Gender | M 285 (53.6%) F 247 (46.4%) |
Median Body Mass Index (BMI, IQR) | 24.97 (23.04–27.14) Kg/cm2 |
Cause of death | |
Traumatic brain injury | 133 (25%) |
Cerebral hemorrhage | 304 (57.1%) |
Ischemic stroke | 48 (9.0%) |
Post-anoxic encephalopathy | 42 (7.9%) |
Cerebral edema | 3 (0.5%) |
Gunshot wound | 2 (0.3%) |
CMV+ | 436 (81.9%) |
Anti-HBcAb-positive | 95 (17.8%) |
Intensive Care Unit stay | 4.17 (3.9%) |
Cardiac arrests | 76 (14.2%) |
Hypotensive episodes | 146 (28.3%) |
Blood derivatives used | 115 (21.6%) |
Use of inotropes | 437 (81.2%) |
Graft steatosis | 245 (46.0%) |
Macrovescicular steatosis >30% | 181 (34.0%) |
Median body weight ratio (IQR) | 1 (0.87–1.18) |
Median graft weight (IQR) | 1378 (1166–1581) g |
Preservation fluid positive | 149 (28.1%) |
Variable | n (%) |
---|---|
OLTs | 532 (492 patients) |
Median age (IQR) | 54 (48–60) years |
Gender | M 405 (82.3%) F 87 (17.7%) |
Median BMI (IQR) | 23.9 (22.6–26.8) Kg/cm2 |
CMV+ | 446 (90.6%) |
dCMV+ to rCMV- | 45 (8.4%) |
Both donor and recipient CMV− | 14 (2.6%) |
Median MELD score (IQR) | 16 (11–22) |
Child–Pugh score | |
A (5–6) | 152 (28.5%) |
B (7–9) | 233 (43.8%) |
C (10–14) | 114 (21.4%) |
Pre-OLT HCC treatment | 80/202 (39.6%) |
Indications for OLT | n (%) |
---|---|
Hepatocellular carcinoma (HCC) | 202 (37.0%) |
Cirrhosis related to HCV infection (PHCC) | 175 (32.8%) |
Cirrhosis related to HBV infection (PHBC) | 76 (14.2%) |
Cirrhosis related to HBV-HDV co-infection (PHBC + PHDC) | 36 (6.7%) |
Recurrent viral hepatitis | 10 (1.8%) |
Fulminant hepatitis (FUHE) | 16 (3.0%) |
Primary non-function (PNF) | 16 (3.0%) |
Delayed non-function (DNF) | 7 (0.1%) |
Toxic cirrhosis (e.g., alcohol-related) (ALCI) | 250 (46.9%) |
Wilson’s disease | 18 (3.3%) |
Cryptogenic cirrhosis | 9 (1.6%) |
Autoimmune liver cirrhosis | 19 (3.5%) |
Primary biliary cirrhosis | 10 (1.8%) |
Secondary biliary cirrhosis | 2 (0.3%) |
Primary sclerosing cholangitis | 4 (0.7%) |
Polycystic liver disease | 4 (0.7%) |
Hemangioendothelioma | 1 (0.1%) |
Adenomatosis | 1 (0.1%) |
Metabolic cirrhosis | 24 (4.5%) |
Drug-induced cirrhosis | 1 (0.1%) |
Others | 9 (1.6%) |
Variable | n (%) |
---|---|
Types of OLT | |
Standard | 435 (81.7%) |
Early | 47 (8.8%) |
Urgent | 50 (9.3%) |
Re-OLT | 37 (6.9%) |
Combined transplantation (liver–kidney) | 8 (1.5%) |
Median time of cold ischemia (IQR) | 400 (350.5–462) min |
Median warm ischemia time (IQR) | 30 (25–37) min |
Types of arterial anastomosis | |
Standard | 470 (88.3%) |
Non-standard | 62 (11.6%) |
Arterial conduits | 4 (0.7%) |
Back table anastomosis | 149 (28.0%) |
Arterial ligation | |
Gastroduodenal artery | 135 (25.3%) |
Splenic artery | 13 (2.4%) |
Gastroduodenal and splenic artery | 300 (56.3%) |
Multiple vascular anastomosis | 14 (2.6%) |
Choledochocholedochal anastomosis | 290 (54.5%) |
Types of Arterial Reconstruction | HAT Rate | n (%) |
---|---|---|
Standard Reconstruction | ||
dPHA–rPHA | 6 (6.5%) | 92 (17.2%) |
dCHA–rPHA | 2 (1.3%) | 155 (29.1%) |
dPHA–rCHA | 1 (3.0%) | 33 (6.2%) |
dCHA–rCHA | 1 (1.4%) | 73 (13.7%) |
dPHA–rRHA | 1 (2.6%) | 38 (7.1%) |
dCHA–rRHA | - | 45 (8.4%) |
Other Reconstruction | 2 (5.7%) | 35 (6.6%) |
Risk Factors for the Occurrence of HAT |
---|
Donor-related factors |
Body weight ratio (BWR, recipient weight/donor weight) |
Intraoperative factors |
Need for re-OLT due to graft failure |
Warm ischemia time |
Need for rescue cavo-cavostomy |
