Ultrasound-Guided Access Reduces Vascular Complications in Patients Undergoing Catheter Ablation for Cardiac Arrhythmias
by
Leonie Foerschner
*,†,
Nico Erhard
†,
Stephan Dorfmeister
,
Marta Telishevska
,
Marc Kottmaier
,
Felix Bourier
,
Sarah Lengauer
,
Carsten Lennerz
,
Fabian Bahlke
,
Hannah Krafft
,
Florian Englert
,
Miruna Popa
,
Christof Kolb
,
Gabriele Hessling
,
Isabel Deisenhofer
and
Tilko Reents
Department of Electrophysiology, German Heart Center Munich, Technical University of Munich, Lazarettstr. 36, 80636 Munich, Germany
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
J. Clin. Med. 2022, 11(22), 6766; https://doi.org/10.3390/jcm11226766
Submission received: 4 October 2022
/
Revised: 11 November 2022
/
Accepted: 14 November 2022
/
Published: 15 November 2022
(This article belongs to the Special Issue Recent Advances in Catheter Ablation of Arrhythmias)
Abstract
:Background: Femoral vascular access using the standard anatomic landmark-guided method is often limited by peripheral artery disease and obesity. We investigated the effect of ultrasound-guided vascular puncture (UGVP) on the rate of vascular complications in patients undergoing catheter ablation for atrial or ventricular arrhythmias. Methods: The data of 479 patients (59% male, mean age 68 years ± 11 years) undergoing catheter ablation for left atrial (n = 426; 89%), right atrial (n = 28; 6%) or ventricular arrhythmias (n = 28; 6%) were analyzed. All patients were on uninterrupted oral anticoagulants and heparin was administered intravenously during the procedure. Femoral access complications were compared between patients undergoing UGVP (n = 320; 67%) and patients undergoing a conventional approach (n = 159; 33%). Complication rates were also compared between patients with a BMI of >30 kg/m2 (n = 136) and patients with a BMI < 30 kg/m2 (n = 343). Results: Total vascular access complications including mild hematomas were n = 37 (7.7%). In the conventional group n = 17 (10.7%) and in the ultrasound (US) group n = 20 (6.3%) total vascular access complications occurred (OR 0.557, 95% CI 0.283–1.096). UGVP significantly reduced the risk of hematoma > 5 cm (OR 0.382, 95% CI 0.148, 0.988) or pseudoaneurysm (OR 0.160, 95% CI 0.032, 0.804). There was no significant difference between the groups regarding retroperitoneal hematomas or AV fistulas (p > 0.05). In patients with BMI > 30 kg/m2, UGVP led to a highly relevant reduction in the risk of total vascular access complications (OR 0.138, 95% CI 0.027, 0.659), hematomas > 5 cm (OR 0.051, 95% CI 0.000, 0.466) and pseudoaneurysms (OR 0.051, 95% CI 0.000, 0.466). Conclusion: UGVP significantly reduces vascular access complications. Patients with a BMI > 30 kg/m2 seem to particularly profit from a UGVP approach.
1. Introduction
Catheter ablation is increasingly used to treat patients with various cardiac arrhythmias [1]. Most ablation procedures require periprocedural oral anticoagulation treatment to minimize the risk of thrombus formation [1,2]. In patients with atrial fibrillation (AF), complications rates are reported between 6–8% [3]. Other studies show thromboembolic events in 0.7%, major bleeding events in 1.6% and minor bleeding events in 9.5% [4,5]. The incidence of vascular complications in patients undergoing ventricular tachycardia ablation is reported to be higher (4–6%) than in patients undergoing AF ablation (1–2%) due to femoral arterial access [6,7,8]. In patients with vascular disease or obesity, a standard anatomic-landmark-guided method for femoral access is often associated with multiple puncture attempts, inadvertent arterial puncture or unsuccessful cannulation resulting in vascular access complications [9,10]. Additionally, current literature shows that female gender and age can impact the incidence of vascular access complications [11].
To improve safety, the use of two-dimensional US has become standard practice in fields such as anesthesia and nephrology [12].
To date, conflicting data exist regarding the benefit of UGVP in patients undergoing catheter ablation for atrial and ventricular arrhythmias.
2. Methods
The data of 479 adult patients (59% male, mean age 68 years ± 11 years) undergoing catheter ablation (primary as well as redo ablations) between May and December 2020 for atrial or ventricular arrhythmias were analyzed.
Clinical data including type of arrhythmia, relevant medical history, oral anticoagulation (OAC), ablation strategy and periprocedural complications were derived from the center’s database.
Medical history included heart failure (ejection fraction ≤ 45%), CHA2DS2-VASc-Score, hypertension, diabetes, history of stroke/TIA, vascular disease, coronary artery disease (CAD), peripheral artery disease (PAD) and BMI. BMI >/<30 kg/m2 was prespecified for sub-group analysis. Arrhythmias were defined as paroxysmal or persistent atrial fibrillation (AF), atrial flutter or atrial tachycardia, as well as right and left premature ventricular contractions (PVC) or ventricular tachycardias (VT). Patients with ventricular arrhythmias or atrial tachycardias were only included if they were receiving oral anticoagulation (OAC) (e.g., because of concomitant AF or other indications for OAC).
All patients were on uninterrupted oral anticoagulants prior to catheter ablation (58% apixaban, 15% rivaroxaban, 15% edoxaban, 3.8% dabigatran and 7.7% vitamin-K antagonists) and heparin was administered by IV during the procedure targeting an ACT of >300 s. Although several studies reported no difference in complication rates between patients with and without previous OAC, we aimed to generate the most standardized condition for the study collective [12,13,14]. Femoral access complications were compared between two patient groups (US guidance, n = 320, 67%; or conventional approach, n = 159, 33%).
Our preprocedural management has been described previously [15]. All patients received a US of their groin vessels on the day before ablation to exclude major anomalies. No previous anomalies could be found before the ablation procedure. However, US diagnostics before the ablation procedure can also facilitate puncture conditions in the conventional group. Importantly, it should be mentioned that in our institution, a diagnostic US of groin vessels is conducted one day before the procedure by the angiological staff, and not by the EP staff, only to guarantee the possibility of puncturing the groin vessel. If anomalies or previous AV fistulas are found, alternative access (e.g., right jugular vein/left subclavian vein) is preferred.
Periprocedural patient management was identical in the US-guided and the conventional group.
3. Vascular Access by Conventional or UGVP Technique
Between May and June 2020, vascular access was obtained using the modified Seldinger technique, conventional surface anatomical landmarks and palpation of the femoral arterial pulse for femoral vein/arterial puncture.
Between November and December 2020, a real-time 2-dimensional vascular US (SonoSite S-II, Fujifilm SonoSite Inc., Bothell, WA, USA) was used to guide femoral venous or arterial access.
Between June and November, US was not yet used by default in our EP laboratories.
An 8 MHz linear array ultrasonography transducer (US beam depth between 4 to 6 cm) was connected to the portable echocardiograph and covered with a sterile sleeve. After placement of the transducer at a 90-degree angle to the course of the vein at the transverse view (Figure 1), the femoral vein was differentiated from the artery by compression by the transducer, and vascular cannulation was performed under visualization of the needle passing into the vein and aspiration of venous blood into the syringe [16]. To avoid an incorrect puncture, access was gained above the bifurcation of the artery, where the vein and artery are placed next to each other, not above.
All operators were appropriately trained (>10 US-guided procedures) to qualify for the study.
4. Ablation Procedure and Periprocedural Management
The ablation procedures were performed as previously described by our group [15].
Heparin was administered by IV during the procedure, targeting an ACT of >300 s. At the end of the procedure, no protamine was given. In all cases, a purse-string suture was applied to venous puncture sites. Venous sheaths were removed directly after purse-string suture, and a groin compression bandage was applied for 2 h in patients with only venous sheaths. For arterial punctures, a vascular closure system (FemoSeal®, Angio-Seal®) was used. A groin compression bandage was additionally implemented for 6 h in these cases.
On the day, after the ablation procedure, all punctured groins were carefully clinically examined focusing on hematoma size and individual pain levels, as well as overall clinical presentation. All patients with mild hematoma or pain received a routine in-hospital US of the groin vessel on the first day post-ablation in order to rule out any vascular access complications.
5. Study Endpoints
Primary endpoints of the study were the occurrence of vascular complications including hematoma >5 cm, AV fistulas, pseudoaneurysms and retroperitoneal hematomas, treated conservatively or requiring intervention within the first 48 h after the procedure. Secondary endpoints were hemoglobin drop within the first 48 h after the procedure and procedure duration.
6. Statistical Analysis
Continuous variables in both groups are presented as mean ± standard deviation and compared by two-sided t-test for independent samples, by or Mann–Whitney U test, as appropriate. Fisher’s exact test or chi-square test was used for categorical variables. Risk reduction was calculated using the binary logistic regression for the overall collective as well as for the subgroup analysis (BMI </> 30 kg/m2, presence of vascular disease, arterial vs. venous puncture). All results were adjusted to differences in the baseline characteristics to avoid confounding. A p-value < 0.05 was considered significant. All analyses were performed using the SPSS 27.0 statistical package (SPSS Inc., Chicago, IL, USA).
7. Results
All baseline characteristics are presented in Table 1. International normalized ratio (INR) was significantly lower in patients with the conventional approach compared to patients with UGVP (1.18 ± 0.0.36 vs. 1.26 ± 0.48; p-value 0.009). For all other baseline characteristics, no significant differences between the groups were present.
In Table 2, types of arrhythmias are presented. No significant differences between the types of arrhythmias or arterial or venous puncture were shown (p > 0.05). All patients (also patients with ventricular tachycardias and atrial tachycardias) were under oral anticoagulants.
In Table 3, oral anticoagulation and antiplatelet agents before the procedure are shown.
In Table 4 procedural data are listed.
8. Peri-/Postprocedural In-Hospital Vascular Access Complications
Total vascular access complications within the first 48 h after the procedure are shown in Table 5.
One patient in the conventional group with an AV fistula was transferred to another hospital for vascular surgery on day three after the procedure. One patient in the US group with hemodynamic relevant AV fistula received a stenting of the right superficial femoral artery on day two after the procedure. One patient in the conventional group with retroperitoneal bleeding received a stenting of the right superficial external pudendal artery on day one after the procedure.
9. Peri-/Postprocedural In-Hospital Thromboembolic and Other Complications
Other peri-/postprocedural complications are shown in Table 6. One patient in the US group after left atrial tachycardia re-ablation was resuscitated, because of higher AV-block and received a pacemaker one day after the procedure. One patient in the conventional group generated ventricular fibrillation during the VT ablation and received CPR because of cardiogenic shock.
10. Risk Factors for Vascular Access Complications
All results for vascular complications were adjusted to the significant group differences for baseline characteristics. Significant risk factors for AV fistulas were vascular disease (OR 3.1; p = 0.007) and ventricular ablation procedures (OR 12.7; p-value 0.003).
A BMI > 30 kg/m2 (OR 4.3; p-value = 0.047) and ventricular ablation procedures (OR = 5.274; p-value = 0.049) were significant risk factors for pseudoaneurysms (Supplementary Table S1). INR at admission to the hospital had a significant impact on AV fistulas (OR 2.05; p = 0.022). Minimal ACT had a significant impact on incidence of pseudoaneurysms (OR 1.014; p = 0.010). After adjustment to minimal ACT, a significant reduction in the risk of pseudoaneurysms for patients with UGVP was still obtained (OR = 7.6; p = 0.027). Maximal and mean ACT as well as total heparin dose had no impact on the incidence of any vascular access complication (p > 0.05).
Additionally, age > 70 years and female sex had no significant impact on total vascular access complications, hematomas >5 cm, AV fistulas or pseudoaneurysms (p > 0.05) (see Supplementary Tables S2 and S3).
All other significant group differences for baseline characteristics (medication with apixaban or rivaroxaban, procedure duration, RF duration) had no significant impact on any vascular access complications (p > 0.05). Thus, these baseline and procedural data were not confounders for vascular access complications.
11. Reduction in the Risk of Vascular Access Complications in the Overall Collective and in the Subgroup Analysis
The subgroup analysis for patients with BMI > 30 kg/m2 is shown in Table 7.
UGVP led to a 95% reduction in hematomas >5 cm and pseudoaneurysms, and an 87% reduction in total vascular access complications. For AV fistulas and retroperitoneal hematomas, no significant risk reduction could be obtained in patients with BMI > 30 kg/m2.
In patients with BMI < 30 kg/m2 no significant reduction in the risk of hematoma, pseudoaneurysms or total vascular access complications was obtained.
12. Discussion
Our study demonstrated that UGVP reduces major vascular complications (hematoma >5 cm, pseudoaneurysms), particularly in patients with elevated BMI (>30 kg/m2).
In accordance with our findings, La Greca et al. demonstrated a significant risk reduction of 86% (1% vs. 7%; p = 0.004) in major vascular access complications using UGVP and intracardiac echocardiography during catheter ablation of atrial fibrillation. The combined approach also required less fluoroscopy time (−6 min) (median with US 14 min; IQR 8–12 vs. median without US 22 min; IQR 17-32; p < 0.001) and less radiofrequency time (median with US 1686 s; IQR 1367-1998 vs. median without US 1792 s; IQR 1390-2400; p = 0.012) [13]. In our study, we found a significant reduction of 18.5 min in procedure duration using UGVP. US also led to a reduction in radiofrequency time by 4.7 min. This may be caused by unsuccessful cannulation or inadvertent arterial puncture with consequent manual compression.
In a large single-center study, Sharma et al. showed that UGVP for patients undergoing EP procedures for various cardiac arrhythmias was associated with a significantly lower 30-day risk of vascular access complications (5.3% vs. 1.1%; p = 0.002). Increased age and non-US vascular access were risk factors for vascular access complications. In our study, especially in patients with elevated BMI, non-US vascular access was a risk factor for vascular access complications.
In the recently published prospective trial (ULTRA-FAST trial) with 320 consecutive atrial fibrillation ablation procedures, patients undergoing UGVP showed no significant difference in complication rates, but lower puncture time (288 vs. 369 s: p = 0.001), fewer inadvertent arterial punctures and unsuccessful cannulations, as well as fewer extra puncture attempts and higher first-pass success [10]. This effect was particularly evident in the subgroup of trainees. This indicates that trainees may have less understanding of groin anatomy and can benefit from UGVP. Yamagata also stated that anatomical difficulties with position of the femoral vein directly above the artery (65% of patients overlap with the artery in the anteroposterior plane [17]) can lead to inadvertent artery puncture and AV fistula. In this case, US can be of particular benefit.
Compared to the above-mentioned studies, our overall complication rate might seem to be higher. This is caused by the documentation of even minor complications (hematomas, mild AV fistulas and pseudoaneurysms without treatment) and the high frequency of US documentation in our center. However, we would like to point out that in our study all patients with mild hematoma or pain received a routine in-hospital US of the groin vessel on the first day post-ablation. To the best of our knowledge, post-ablation US is not commonly performed in most centers. Above-mentioned studies conducted US only in highly symptomatic patients or documented only major complications (AV fistulas or pseudoaneurysms with intervention) [13].
Major complications requiring intervention, in our study, only represent 0.4% (0.3% in the UGVP group and 0.6% in the conventional group), which is similar to the percentages reported in previous studies.
Therefore, we believe that the higher overall incidence of AV fistulas is mainly the result of a higher overall detection rate compared to previous studies, resulting in identifying more asymptomatic fistulas, which otherwise would not have been noticed.
13. Periprocedural Anticoagulation, Intraprocedural Heparin Dose and ACT Levels
Similar to our findings, Tanaka-Esposito et al. showed in a large retrospective study of patients undergoing pulmonary vein isolation for atrial fibrillation a significant reduction in the risk of vascular complications despite a higher INR in the US group. An INR > 1.2 was associated with more vascular complications, which is comparable to our study [20].
In our study mean ACT, maximal ACT and total heparin dose showed no impact on the incidence of vascular access complications, while elevated INR and had an impact on the incidence of AV fistulas.
Interestingly, in our study, ACT values (min., max.) were significantly higher in the US group, while vascular complications were significantly more frequent in the conventional group.
This suggests an additional safety effect of the US group allowing for safe puncture/access even in patients at higher risk for bleeding.
Current literature demonstrates that continuation of warfarin at a therapeutic INR at the time of atrial fibrillation ablation without use of heparin or enoxaparin for bridging is a safe and efficacious periprocedural anticoagulation strategy [21,22]. Furthermore, the optimal INR range during uninterrupted periprocedural anticoagulation using warfarin is estimated to be narrow and has not been defined yet in current guidelines [23].
Unfractionated heparin is commonly administered after sheath insertion and continued to maintain an ACT longer than 250–350 s. Thus, intraprocedural anticoagulation schemes differ between centers. About 70% of centers routinely administer heparin before the transseptal puncture, when a transseptal approach is used [24,25]. In our center, ACT target values differ between 300 and 350 s.
Our findings, i.e., that mean ACT, maximal ACT and heparin dose during the ablation procedure had no major impact on the incidence of vascular access complications, indicate that quality of puncture (improved by US guidance) is probably more important than ACT values for the occurrence of vascular access site complications.
14. Risk Factors for Vascular Complications
The current literature focuses almost exclusively on risk factors for overall complications for patients undergoing atrial fibrillation ablation or ablation for ventricular tachycardias. In most studies, predictors for these overall complications were coronary artery disease and peripheral artery disease, as well as age > 50 years, chronic kidney disease, hypertension and female gender [11,26,27]. Additionally, an analysis of the Nationwide Inpatient Sample (2005–2013) shows that obesity is an independent risk factor for immediate post-ablation complications and higher costs for patients undergoing catheter ablation for atrial fibrillation [28,29].
However, to the best of our knowledge, data with conflicting results exist about the predictors of vascular complications after catheter ablation.
Dalsgaard et al. also showed that ACT levels had no impact of the incidence on vascular complications. His study indicates that any immediate hematoma after the procedure is the sole predictor for groin hematomas after the procedure. Thus, the purse-strig suture, which is routinely performed in our center, as well as arterial closure systems, can reduce the incidence of hematomas [30,31].
A higher BMI in our cohort was associated with a higher incidence of total vascular access complications, hematoma > 5 cm and pseudoaneurysms. The correlation between BMI and groin complications is controversial in the current literature. Although some studies state that the incidence of groin complications is independent of a patient’s weight, others show that a higher BMI (moderately high BMI ≥ 28 kg/m2–obesity class 3 BMI ≥ 40 kg/m²) might be a significant risk factor for the development of vascular access complications [32,33,34].
15. Limitations
The study is limited by its retrospective design. Due to multiple atrial and ventricular arrhythmia forms, the cohort is heterogeneous. Further randomized controlled trials are desirable to implement the findings in current practice and guidelines. To guarantee standardized bleeding conditions in this heterogenous group of cardiac arrhythmias, we only included patients on OAC in our study. However, several studies reported no difference in complication rates between patients with and without previous OAC [12,13,14]. This selection criteria might cause a potential bias in our study.
Furthermore, we conducted a US of the groin vessel in all patients before catheter ablation to exclude major anomalies. Although no anomalies could be found before the procedure, this could cause a potential selection bias in our study.
A comparatively high incidence of overall AV fistulas was observed in this study. However, we would like to point out that all patients with mild hematoma or pain received a routine in-hospital US of the groin vessel on the first day post-ablation. This is routine practice at our center. We believe that the higher overall incidence of AV fistulas is mainly the result of a higher overall detection rate compared to previous studies, resulting in identifying more asymptomatic fistulas, which otherwise would not have been noticed.
16. Conclusions
Vascular complications are the most common complications in patients undergoing catheter ablation for cardiac arrhythmias. Peripheral artery disease, obesity and ventricular ablation procedures are predictors for vascular complications. UGVP is a safe method with a short learning curve (estimated at six patients) with special benefits for trainees to prevent major vascular complications and to improve workflow, as well as to reduce procedure duration. Patients with a BMI > 30 kg/m2 received the highest benefit from US guidance.
Supplementary Materials
The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/jcm11226766/s1, Table S1: Risk factors for vascular access complications; Table S2: Risk factor age >70 years for vascular access complications; Table S3: Risk factor female sex.
Author Contributions
Conceptualization, L.F. and F.E.; Methodology, L.F.; Validation, M.P.; Formal analysis, S.D., M.T., M.K., F.B. (Felix Bourier), S.L., C.L., F.B. (Fabian Bahlke), H.K. and I.D.; Investigation, L.F. and S.D.; Resources, M.P. and T.R.; Data curation, L.F., S.D., M.T., M.K., F.B. (Felix Bourier), S.L., C.L., F.B. (Fabian Bahlke), H.K., F.E. and I.D.; Writing—original draft, L.F.; Writing—review & editing, N.E.; Visualization, C.K. and I.D.; Supervision, N.E., G.H. and T.R.; Project administration, L.F., N.E., C.K., I.D. and T.R. All authors have read and agreed to the published version of the manuscript.
Funding
This research received no external funding.
Institutional Review Board Statement
The research reported in this paper adhered to the Human research Helsinki Declaration as revised in 2013. Category: clinical study.
Informed Consent Statement
Not applicable.
Data Availability Statement
Not applicable.
Conflicts of Interest
The authors declare no conflict of interest.
References
- Prudente, L.A.; Moorman, J.R.; Lake, D.; Xiao, Y.; Greebaum, H.; Mangrum, J.M.; DiMarco, J.P.; Ferguson, J.D. Femoral vascular complications following catheter ablation of atrial fibrillation. J. Interv. Card. Electrophysiol. 2009, 26, 59–64. [Google Scholar] [CrossRef] [PubMed]
- König, S.; Svetlosak, M.; Grabowski, M.; Duncker, D.; Nagy, V.K.; Bogdan, S.; Vanduynhoven, P.; Sohaib, S.M.A.; Malaczynska-Raipold, K.; Lane, D.A. Utilization and perception of same-day discharge in electrophysiological procedures and device implantations: An EHRA survey. EP Eur. 2021, 23, 149–156. [Google Scholar] [CrossRef] [PubMed]
- Sra, J. Atrial fibrillation ablation complications. J. Interv. Card. Electrophysiol. 2008, 22, 167–172. [Google Scholar] [CrossRef] [PubMed]
- Li, P.J.; Xiao, J.; Yang, Q.; Feng, Y.; Wang, T.; Liu, G.J.; Liang, Z.A. Network meta-analysis of efficacy and safety of competitive oral anticoagulants in patients undergoing radiofrequency catheter ablation of atrial fibrillation. J. Interv. Card. Electrophysiol. 2016, 46, 213–224. [Google Scholar] [CrossRef]
- Guckel, D.; Lucas, P.; Isgandarova, K.; El Hamriti, M.; Bergau, L.; Fink, T.; Sciacca, V.; Imnadze, G.; Braun, M.; Khalaph, M. News from the Cold Chamber: Clinical Experiences of POLARx versus Arctic Front Advance for Single-Shot Pulmonary Vein Isolation. J. Cardiovasc. Dev. Dis. 2022, 9, 16. [Google Scholar] [CrossRef]
- Calkins, H.; Hindricks, G.; Cappato, R.; Kim, Y.-H.; Saad, E.B.; Aguinaga, L.; Akar, J.G.; Badhwar, V.; Brugada, J.; Camm, J. 2017 HRS/EHRA/ECAS/APHRS/SOLAECE expert consensus statement on catheter and surgical ablation of atrial fibrillation. Ep Eur. 2017, 20, e1–e160. [Google Scholar]
- Doldi, F.; Geßler, N.; Anwar, O.; Kahle, A.K.; Scherschel, K.; Rath, B.; Köbe, J.; Lange, P.S.; Frommeyer, G.; Metzner, A.; et al. In-hospital mortality and major complications related to radiofrequency catheter ablations of over 10,000 supraventricular arrhythmias from 2005 to 2020: Individualized case analysis of multicentric administrative data. Europace, 2022; Online ahead of print. [Google Scholar] [CrossRef]
- Hoffmann, R.; Parade, U.; Bauerle, H.; Winter, K.-D.; Rauschenbach, U.; Mischke, K.; Schaefer, C.; Gutleben, K.-J.; Rana, O.R.; Willich, T. Safety and acute efficacy of cryoballoon ablation for atrial fibrillation at community hospitals. EP Eur. 2021, 23, 1744–1750. [Google Scholar] [CrossRef]
- Li, F.; Zhang, L.; Wu, L.-D.; Zhang, Z.-Y.; Liu, H.-H.; Zhang, Z.-Y.; Zhang, J.; Qian, L.-L.; Wang, R.-X. Do Elderly Patients with Atrial Fibrillation Have Comparable Ablation Outcomes Compared to Younger Ones? Evidence from Pooled Clinical Studies. J. Clin. Med. 2022, 11, 4468. [Google Scholar] [CrossRef]
- Yamagata, K.; Wichterle, D.; Roubícek, T.; Jarkovský, P.; Sato, Y.; Kogure, T.; Peichl, P.; Konecný, P.; Jansová, H.; Kucera, P.; et al. Ultrasound-guided versus conventional femoral venipuncture for catheter ablation of atrial fibrillation: A multicentre randomized efficacy and safety trial (ULTRA-FAST trial). Europace 2018, 20, 1107–1114. [Google Scholar] [CrossRef]
- Plášek, J.; Wichterle, D.; Peichl, P.; Čihák, R.; Jarkovský, P.; Roubíček, T.; Stojadinović, P.; Hašková, J.; Kautzner, J. Gender differences in major vascular complications of catheter ablation for atrial fibrillation. J. Cardiovasc. Electrophysiol. 2021, 32, 647–656. [Google Scholar] [CrossRef] [PubMed]
- Wynn, G.J.; Haq, I.; Hung, J.; Bonnett, L.J.; Lewis, G.; Webber, M.; Waktare, J.E.; Modi, S.; Snowdon, R.L.; Hall, M.C.; et al. Improving safety in catheter ablation for atrial fibrillation: A prospective study of the use of ultrasound to guide vascular access. J. Cardiovasc. Electrophysiol. 2014, 25, 680–685. [Google Scholar] [CrossRef] [PubMed]
- La Greca, C.; Cirasa, A.; Di Modica, D.; Sorgato, A.; Simoncelli, U.; Pecora, D. Advantages of the integration of ICE and 3D electroanatomical mapping and ultrasound-guided femoral venipuncture in catheter ablation of atrial fibrillation. J. Interv. Card. Electrophysiol. 2021, 61, 559–566. [Google Scholar] [CrossRef] [PubMed]
- Ströker, E.; de Asmundis, C.; Kupics, K.; Takarada, K.; Mugnai, G.; De Cocker, J.; Stockman, D.; Sieira, J.; Schwagten, B.; Brugada, P.; et al. Value of ultrasound for access guidance and detection of subclinical vascular complications in the setting of atrial fibrillation cryoballoon ablation. Europace 2019, 21, 434–439. [Google Scholar] [CrossRef] [PubMed]
- Kottmaier, M.; Popa, M.; Bourier, F.; Reents, T.; Cifuentes, J.; Semmler, V.; Telishevska, M.; Otgonbayar, U.; Koch-Büttner, K.; Lennerz, C.; et al. Safety and outcome of very high-power short-duration ablation using 70 W for pulmonary vein isolation in patients with paroxysmal atrial fibrillation. Europace 2020, 22, 388–393. [Google Scholar] [CrossRef] [PubMed]
- Troianos, C.A.; Hartman, G.S.; Glas, K.E.; Skubas, N.J.; Eberhardt, R.T.; Walker, J.D.; Reeves, S.T. Guidelines for performing ultrasound guided vascular cannulation: Recommendations of the American Society of Echocardiography and the Society of Cardiovascular Anesthesiologists. J. Am. Soc. Echocardiogr. 2011, 24, 1291–1318. [Google Scholar] [CrossRef]
- Baum, P.A.; Matsumoto, A.H.; Teitelbaum, G.P.; Zuurbier, R.A.; Barth, K.H. Anatomic relationship between the common femoral artery and vein: CT evaluation and clinical significance. Radiology 1989, 173, 775–777. [Google Scholar] [CrossRef]
- Errahmouni, A.; Bun, S.S.; Latcu, D.G.; Saoudi, N. Ultrasound-guided venous puncture in electrophysiological procedures: A safe method, rapidly learned. Pacing Clin. Electrophysiol. 2014, 37, 1023–1028. [Google Scholar] [CrossRef]
- Rodríguez Muñoz, D.; Franco Díez, E.; Moreno, J.; Lumia, G.; Carbonell San Román, A.; Segura De La Cal, T.; Matía Francés, R.; Hernández Madrid, A.; Zamorano Gómez, J.L. Wireless Ultrasound Guidance for Femoral Venous Cannulation in Electrophysiology: Impact on Safety, Efficacy, and Procedural Delay. Pacing Clin. Electrophysiol. 2015, 38, 1058–1065. [Google Scholar] [CrossRef]
- Tanaka-Esposito, C.C.; Chung, M.K.; Abraham, J.M.; Cantillon, D.J.; Abi-Saleh, B.; Tchou, P.J. Real-time ultrasound guidance reduces total and major vascular complications in patients undergoing pulmonary vein antral isolation on therapeutic warfarin. J. Interv. Card. Electrophysiol. 2013, 37, 163–168. [Google Scholar] [CrossRef] [Green Version]
- Hussein, A.A.; Martin, D.O.; Saliba, W.; Patel, D.; Karim, S.; Batal, O.; Banna, M.; Williams-Andrews, M.; Sherman, M.; Kanj, M.; et al. Radiofrequency ablation of atrial fibrillation under therapeutic international normalized ratio: A safe and efficacious periprocedural anticoagulation strategy. Heart Rhythm. 2009, 6, 1425–1429. [Google Scholar] [CrossRef] [PubMed]
- Hindricks, G.; Potpara, T.; Dagres, N.; Arbelo, E.; Bax, J.J.; Blomström-Lundqvist, C.; Boriani, G.; Castella, M.; Dan, G.A.; Dilaveris, P.E.; et al. 2020 ESC Guidelines for the diagnosis and management of atrial fibrillation developed in collaboration with the European Association for Cardio-Thoracic Surgery (EACTS): The Task Force for the diagnosis and management of atrial fibrillation of the European Society of Cardiology (ESC) Developed with the special contribution of the European Heart Rhythm Association (EHRA) of the ESC. Eur. Heart J. 2021, 42, 373–498. [Google Scholar] [CrossRef] [PubMed]
- Kim, J.S.; Jongnarangsin, K.; Latchamsetty, R.; Chugh, A.; Ghanbari, H.; Crawford, T.; Yokokawa, M.; Good, E.; Bogun, F.; Pelosi, F., Jr.; et al. The optimal range of international normalized ratio for radiofrequency catheter ablation of atrial fibrillation during therapeutic anticoagulation with warfarin. Circ. Arrhythm. Electrophysiol. 2013, 6, 302–309. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Cronin, E.M.; Bogun, F.M.; Maury, P.; Peichl, P.; Chen, M.; Namboodiri, N.; Aguinaga, L.; Leite, L.R.; Al-Khatib, S.M.; Anter, E.; et al. 2019 HRS/EHRA/APHRS/LAHRS expert consensus statement on catheter ablation of ventricular arrhythmias. Europace 2019, 21, 1143–1144. [Google Scholar] [CrossRef] [PubMed]
- Triantafyllou, K.; Karkos, C.D.; Fragakis, N.; Antoniadis, A.P.; Meletidou, M.; Vassilikos, V. Ultrasound-guided versus anatomic landmark-guided vascular access in cardiac electrophysiology procedures: A systematic review and meta-analysis. Indian Pacing Electrophysiol. J. 2022, 22, 145–153. [Google Scholar] [CrossRef]
- Padala, S.K.; Gunda, S.; Sharma, P.S.; Kang, L.; Koneru, J.N.; Ellenbogen, K.A. Risk model for predicting complications in patients undergoing atrial fibrillation ablation. Heart Rhythm. 2017, 14, 1336–1343. [Google Scholar] [CrossRef]
- Gunda, S.; Padala, S.K.; Saini, A.; Kang, L.; Ellenbogen, K.A.; Koneru, J.N. Risk score model for predicting complications in patients undergoing ventricular tachycardia ablation: Insights from the National Inpatient Sample database. Europace 2019, 21, 475–483. [Google Scholar] [CrossRef]
- D’Souza, S.; Elshazly, M.B.; Dargham, S.R.; Donnellan, E.; Asaad, N.; Hayat, S.; Kanj, M.; Baranowski, B.; Wazni, O.; Saliba, W.; et al. Atrial fibrillation catheter ablation complications in obese and diabetic patients: Insights from the US Nationwide Inpatient Sample 2005-2013. Clin. Cardiol. 2021, 44, 1151–1160. [Google Scholar] [CrossRef]
- Boriani, G.; Iacopino, S.; Arena, G.; Pieragnoli, P.; Verlato, R.; Manfrin, M.; Molon, G.; Rovaris, G.; Curnis, A.; Perego, G.B. Chronic Kidney Disease with Mild and Mild to Moderate Reduction in Renal Function and Long-Term Recurrences of Atrial Fibrillation after Pulmonary Vein Cryoballoon Ablation. J. Cardiovasc. Dev. Dis. 2022, 9, 126. [Google Scholar] [CrossRef]
- Dalsgaard, A.B.; Jakobsen, C.S.; Riahi, S.; Hjortshøj, S. Groin hematoma after electrophysiological procedures-incidence and predisposing factors. Scand. Cardiovasc. J. 2014, 48, 311–316. [Google Scholar] [CrossRef]
- Kottmaier, M.; Bourier, F.; Reents, T.; Reiter, A.; Kornmayer, M.; Semmler, V.; Telishevska, M.; Koch-Büttner, K.; Deiss, M.; Brooks, S.; et al. Safety and Feasibility of Subcutaneous Purse-String Suture of the Femoral Vein After Electrophysiological Procedures on Uninterrupted Oral Anticoagulation. Am. J. Cardiol. 2017, 119, 1781–1784. [Google Scholar] [CrossRef] [PubMed]
- Shoemaker, M.B.; Muhammad, R.; Farrell, M.; Parvez, B.; White, B.W.; Streur, M.; Stubblefield, T.; Rytlewski, J.; Parvathaneni, S.; Nagarakanti, R.; et al. Relation of morbid obesity and female gender to risk of procedural complications in patients undergoing atrial fibrillation ablation. Am. J. Cardiol. 2013, 111, 368–373. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Foerschner, L.; Kriesmair, J.; Telishevska, M.; Kottmaier, M.; Bourier, F.; Reents, T.; Lengauer, S.; Lennerz, C.; Krafft, H.; Maurer, S.; et al. Catheter ablation in adult congenital heart disease on uninterrupted oral anticoagulation: Is it safe? Data from a large single-center study. Heart Rhythm. 2021, 19, 648–655. [Google Scholar] [CrossRef]
- Schenker, N.; von Blumenthal, F.; Hakmi, S.; Lemes, C.; Mathew, S.; Rottner, L.; Wohlmuth, P.; Reißmann, B.; Rillig, A.; Metzner, A.; et al. Impact of obesity on acute complications of catheter ablation for cardiac arrhythmia. J. Cardiovasc. Electrophysiol. 2022, 33, 654–663. [Google Scholar] [CrossRef] [PubMed]
Figure 1.

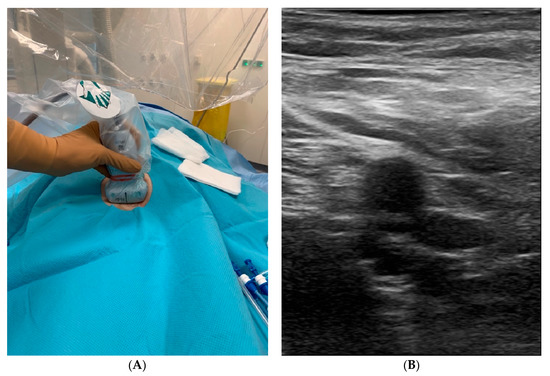

UGVP in the right groin. (A) The operator holds the probe while puncturing with the other hand. (B) The optimal site for puncture with the vein and artery visualized side-by-side (A: artery; V: vein).
Figure 1.
UGVP in the right groin. (A) The operator holds the probe while puncturing with the other hand. (B) The optimal site for puncture with the vein and artery visualized side-by-side (A: artery; V: vein).
Table 1.
Baseline characteristics.
| Total n = 479 | Conventional n = 159 | US n = 320 | p-Value | |
|---|---|---|---|---|
| Age (years) | 68.5 ± 11.3 | 68.2 ± 11.0 | 68.6 ± 11.4 | 0.563 |
| Gender (male) | 281 (58.7%) | 99 (62.3%) | 182 (56.9%) | 0.259 |
| BMI (kg/m2) | 27.6 ± 5.0 | 28.1 ± 5.3 | 27.3 ± 4.8 | 0.139 |
| BMI > 30 kg/m2 | 136 (28.4%) | 52 (32.7%) | 84 (26.3%) | 0.140 |
| Hypertension | 333 (69.5%) | 114 (71.1%) | 219 (68.4%) | 0.465 |
| Diabetes | 69 (14.4%) | 21 (13.2%) | 48 (15%) | 0.599 |
| History of stroke/TIA | 43 (9%) | 14 (8.8%) | 29 (9.1%) | 0.926 |
| CAD, PAD | 145 (30.3%) | 55 (34.6%) | 90 (28.1%) | 0.147 |
| First ablation | 219 (45.7%) | 76 (47.8%) | 143 (44.7%) | 0.520 |
| CHA2DS2-VASc-Score | 2.96 ± 1.62 | 2.94 ± 1.61 | 2.97 ± 1.62 | 0.856 |
| GFR 1 | 73.1 ± 20.6 | 72.7 ± 20.2 | 73.3 ± 20.8 | 0.769 |
| Hb mg/dL | 14.0 ± 1.6 | 14.1 ± 1.3 | 14.0 ± 1.7 | 0.359 |
| Serum Creatinine mg/dL | 1.1 ± 0.3 | 1.1 ± 0.3 | 1.1 ± 0.3 | 0.341 |
| INR 2 | 1.24 ± 0.44 | 1.18 ± 0.0.36 | 1.26 ± 0.48 | 0.009 * |
| EF (%) 3 | 52 ± 10 | 52 ± 10 | 52 ± 10 | 0.561 |
Continuous values are expressed as mean ± standard deviation. Categorial values are expressed as number and percentage. TIA: transient ischemic attack, CAD: coronary artery disease, PAD: peripheral artery disease, Hb: hemoglobin, BMI: Body Mass Index; GFR: Glomerular Filtration Rate, INR: international normalized ratio, EF: ejection fraction. 1: drop out, n = 6; 2: drop out n = 1; 3: drop out n = 30. * Statistically significant results, p < 0.05.
Table 2.
Type of arrhythmia.
| Total n = 479 | Conventional n = 159 | US n = 320 | p-Value | |
|---|---|---|---|---|
| AF (paroxysmal) | 107 (22.3%) | 43 (27%) | 64 (20%) | 0.081 |
| AF (persistent) | 186 (38.8%) | 77 (28.4%) | 109 (34.1%) | 0.002 * |
| Atrial tachycardia (AT; right and left atrial) | 140 (29.2%) | 25 (15.7%) | 115 (35.9%) | <0.001 * |
| Typical atrial flutter | 17 (3.5%) | 3 (1.9%) | 14 (4.4%) | 0.166 |
| Premature ventricular contraction (PVC) | 14 (2.9%) | 6 (3.8%) | 8 (2.5%) | 0.565 |
| Ventricular tachycardia (VT) | 14 (2.9%) | 5 (3.1%) | 9 (2.8%) | 0.782 |
Categorial values are expressed as number and percentage. AF: atrial fibrillation. * Statistically significant results (p < 0.05).
Table 3.
Oral anticoagulation and antiplatelet agents before the procedure.
| Oral Anticoagulation | Total n = 479 | Conventional n = 159 | US n = 320 | p-Value |
|---|---|---|---|---|
| Vitamin K antagonists | 37 (7.7%) | 8 (5%) | 29 (9%) | |
| Phenprocoumon | 35 (7.3%) | 8 (5%) | 27 (8.4%) | 0.177 |
| Warfarine | 2 (0.4%) | 0 (0%) | 2 (0.6%) | 1.000 |
| Direct oral anticoagulants | 442 (92.3%) | 151 (95.0%) | 291 (91%) | |
| Apixaban | 278 (58%) | 106 (66.7%) | 172 (53.8%) | 0.007 * |
| Rivaroxaban | 74 (15.4%) | 17 (10.7%) | 57 (17.8%) | 0.042 * |
| Edoxaban | 72 (15%) | 23 (14.5%) | 49 (15.3%) | 0.807 |
| Dabigatran | 18 (3.8%) | 5 (3.1%) | 13 (4.1%) | 0.619 |
| Additional antiplatelet therapy | 32 (6.7%) | 11 (6.9%) | 21 (6.6%) | 0.883 |
| Acetylsalicylic acid (ASA) | 22 (4.6%) | 5 (3.1%) | 17 (5.3%) | 0.286 |
| Clopidogrel | 10 (2.1%) | 6 (3.8%) | 4 (1.3%) | 0.09 |
Categorial values are expressed as number and percentage. * Statistically significant results (p < 0.05).
Table 4.
Procedural Data.
| Procedural Data | Total n = 479 | Conventional n = 159 | US n = 320 | p-Value |
|---|---|---|---|---|
| First ablation | 219 (45.7%) | 76 (47.8%) | 143 (44.7%) | 0.520 |
| Additional arterial puncture | 69 (14.4%) | 25 (15.7%) | 44 (18.3%) | 0.582 |
| Procedure duration (min) 1 | 129.4 ± 53.5 | 141.7 ± 60.8 | 123.2 ± 48.4 | 0.002 * |
| RF duration (min) 2 | 21.7 ± 14.3 | 24.8 ± 16.7 | 20.1 ± 12.7 | 0.006 * |
| Hb drop after procedure (mg/dL) | 1.08 ± 0.92 | 1.14 ± 1.00 | 1.10 ± 0.90 | 0.374 |
| ACTmin 3 [sec] | 164 ± 37 | 159 ± 32 | 166 ± 38 | 0.014 * |
| ACTmax 3 [sec] | 371 ± 55 | 364 ± 50 | 375 ± 58 | 0.002 * |
| ACTmean 3 [sec] | 302 ± 44 | 299 ± 40 | 304 ± 46 | 0.229 |
| Heparine dose 4 (IU) | 15,726 ± 5386 | 17,287 ± 5764 | 14,382 ± 5233 | <0.001 * |
RF duration: radiofrequency current duration; Hb: hemoglobin; ACT: activated clotting time; 1: drop out, n = 11; 2: drop out, n = 14; 3: n = 9; 4: drop out, n = 1; * statistically significant results (p < 0.05).
Table 5.
Primary endpoint results: Peri-/postprocedural vascular access complications within 48 h post-procedure and risk reduction by US.
Table 5.
Primary endpoint results: Peri-/postprocedural vascular access complications within 48 h post-procedure and risk reduction by US.
| Total n = 479 | Conventional n = 159 | US n = 320 | p-Value | OR | 95%-CI | |
|---|---|---|---|---|---|---|
| Total | 37 (7.7%) | 17 (10.7%) | 20 (6.3%) | 0.086 | ||
| Hematoma >5 cm | 18 (3.8%) | 10 (6.3%) | 8 (2.5%) | 0.040 * | 0.382 | 0.148–0.988 |
| AV fistula | 23 (4.8%) | 11 (6.9%) | 12 (3.8%) | 0.127 | 0.524 | 0.226–1.216 |
| AV fistulas with surgical intervention | 2 (0.4%) | 1 (0.6%) | 1 (0.3%) | |||
| Pseudoaneurysm | 8 (1.7%) | 6 (3.8%) | 2 (0.6%) | 0.018 * | 0.160 | 0.032–0.804 |
| Pseudoaneurysm with intervention | 0 | |||||
| Retroperitoneal hematoma | 2 (0.4%) | 1 (0.6%) | 1 (0.3%) | 0.554 | 2.019 | 0.129–32.491 |
Continuous values are expressed as mean ± standard deviation. Categorial values are expressed as number and percentage. AV fistula: arteriovenous fistula; * statistically significant results (p < 0.05).
Table 6.
Peri-/postprocedural in-hospital thromboembolic and other complications.
| Complications | Total n = 479 | Conventional n = 159 | US n = 320 | p-Value |
|---|---|---|---|---|
| Periprocedural thromboembolic complications | 2 (0.3%) | 1 (0.5%) | 1 (0.3%) | 0.554 |
| TIA | 1 (0.2%) | 1 (0.6%) | 0 | 1.00 |
| Apoplexy | 1 (0.2%) | 0 | 1 (0.3%) | 1.00 |
| Pericardial effusion without tamponade (>5 mm) | 33 (6.0%) | 9 (4%) | 24 (6%) | 0.567 |
| Cardiac tamponade | 1 (0.2%) | 0 | 1 (0.3%) | 1.000 |
| Dysphagia | 1 (0.2%) | 1 (0.5%) | 0 | 0.332 |
| Pulmonary vein stenosis | 0 | 0 | 0 | |
| CPR | 2 (0.2%) | 1 (0.5%) | 1 (0.3%) |
CPR: cardiopulmonary resuscitation.
Table 7.
Subgroup analysis of risk reduction using US in patients with BMI > 30 kg/m2.
| OR | 95% CI | |
|---|---|---|
| Hematoma >5 cm | 0.051 | 0.000–0.466 |
| Pseudoaneurysm | 0.051 | 0.000–0.466 |
| Total vascular access compl. | 0.138 | 0.027–0.659 |
| AV fistulas | 0.229 | 0.043–1.228 |
| Retroperitoneal hematoma | 2.34 | 0.113–15.623 |
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |
© 2022 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
MDPI and ACS Style
Foerschner, L.; Erhard, N.; Dorfmeister, S.; Telishevska, M.; Kottmaier, M.; Bourier, F.; Lengauer, S.; Lennerz, C.; Bahlke, F.; Krafft, H.; et al. Ultrasound-Guided Access Reduces Vascular Complications in Patients Undergoing Catheter Ablation for Cardiac Arrhythmias. J. Clin. Med. 2022, 11, 6766. https://doi.org/10.3390/jcm11226766
AMA Style
Foerschner L, Erhard N, Dorfmeister S, Telishevska M, Kottmaier M, Bourier F, Lengauer S, Lennerz C, Bahlke F, Krafft H, et al. Ultrasound-Guided Access Reduces Vascular Complications in Patients Undergoing Catheter Ablation for Cardiac Arrhythmias. Journal of Clinical Medicine. 2022; 11(22):6766. https://doi.org/10.3390/jcm11226766
Chicago/Turabian StyleFoerschner, Leonie, Nico Erhard, Stephan Dorfmeister, Marta Telishevska, Marc Kottmaier, Felix Bourier, Sarah Lengauer, Carsten Lennerz, Fabian Bahlke, Hannah Krafft, and et al. 2022. "Ultrasound-Guided Access Reduces Vascular Complications in Patients Undergoing Catheter Ablation for Cardiac Arrhythmias" Journal of Clinical Medicine 11, no. 22: 6766. https://doi.org/10.3390/jcm11226766
APA StyleFoerschner, L., Erhard, N., Dorfmeister, S., Telishevska, M., Kottmaier, M., Bourier, F., Lengauer, S., Lennerz, C., Bahlke, F., Krafft, H., Englert, F., Popa, M., Kolb, C., Hessling, G., Deisenhofer, I., & Reents, T. (2022). Ultrasound-Guided Access Reduces Vascular Complications in Patients Undergoing Catheter Ablation for Cardiac Arrhythmias. Journal of Clinical Medicine, 11(22), 6766. https://doi.org/10.3390/jcm11226766
Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.
