Article
A Study of Ralex Membrane Morphology by SEM
1
Department of Analytical Chemistry, Voronezh State University, Universitetskaya pl.1, 394018 Voronezh, Russia
2
Department of Physical Chemistry, Kuban State University, ul. Stavropolskaya 149, 350040 Krasnodar, Russia
3
MEGA a.s., Pod Vinicí 87, 471 27 Stráž podRalskem, Czech Republic
*
Author to whom correspondence should be addressed.
Received: 3 November 2019 / Accepted: 4 December 2019 / Published: 6 December 2019

Abstract

:
A comparative analysis of the effect of the manufacturing technology of heterogeneousion-exchange membranes Ralex CM Pes manufactured by MEGA a.s. (Czech Republic) on the structural properties of their surface and cross section by SEM was carried out. The CM Pes membrane is a composite of a sulfonated ion-exchanger with inert binder of polyethylene and reinforcing polyester fiber. In the manufacture of membranes Ralex the influence of two factors was investigated. First, the time of ion-exchange grain millingvaried at a constant resin/polyethylene ratio. Second, the ratio of the cation-exchanger and the inert binder of polyethylene varied. It has been found that the membrane surface becomes more electrically homogeneous with the growth of the ion-exchanger loading and a decrease in its particle size. With an increase in the milling time of resin grainsfrom 5 to 80 min a more than 1.5-fold decrease in their radius and in the distance between them was revealed.Besides, there is a 1.5-fold decrease in the fraction, as well as in the size of pores and structure defects. The fraction of the ion-exchange phase on the membrane surface decreases by 7%. With an increase in the resin loading from 45 to 70 wt %, the growth of the fraction of conducting regions on the surface is almost twofold, while their sizes remain practically unchanged. More significant changes in the surface structure of the studied membranes are established in comparison with the cross section. An increase in the resin content in the membranes from 45 to 70 wt % corresponds to a 43% increment of its fraction on the cross-section.The increase in the ion-exchanger content of Ralex membranes is accompanied by the growth of the fraction of macropores and structure defects on the membrane surface by 70% and a twofold decrease in the distance between conducting zones.
Keywords:
ralex ion-exchange membrane; microscopic analysis; structural inhomogeneity

1. Introduction

In the electrochemical behavior of heterogeneous ion-exchange membranes, the electrical inhomogeneity of their surface, consisting ofthe presence of the regions with high (ion-exchanger phase) and low (polyethylene phase) conductivity, plays an important role. In [1,2,3,4,5,6,7,8,9,10], the possibility of mass transfer intensification in an electromembrane system by improving the morphology of the surface of ion-exchange membranes was demonstrated. The use of membranes with optimized surface morphology in the process of electrodialysis for desalting and deionization of natural waters and technological solutions creates the prerequisites for a significant increase in the efficiency of these processes in the limiting and overlimiting current modes.
Objective information about membranestructure is provided by visualization methods: high and low vacuum scanning electron microscopy [1,3,11,12,13,14,15,16,17,18], scanning force microscopy [11,15,19] and optical microscopy [20,21]. SEM with energy dispersive X-ray analysis is a very useful tool for qualitative and semiquantitative analysis of the elemental composition of the surface or cross-section of membranes of various types under different operating conditions [14,20,22,23,24,25].
Ion-exchange membranes are operational only in the swollen state. However, the traditionally used methods of atomic force microscopy and a high-vacuum version of scanning electron microscopy make it possible to examine samples only in a dry state. The application of optical microscopy to the study of swollen membranes is complicated by a close light conductivity of ion-exchange regions and polyethylene, which negatively affects the accuracy of determining the size of conducting andinert regions [26]. In [3,27], a method was proposed and tested for determining the fraction of ion-conducting and inert phases on the surface of swollen heterogeneous membranes based on the SEM results obtained by scanning dry samples. The expression for recalculating the fraction of the conducting surface of the dry membrane with respect to the swollen sample was obtained under the assumption that the increase in the linear dimensions of the membranes in the process of swelling occurs mainly due to an increase in the size of the ion exchange material. A low-vacuum SEM allows visualizing of the surface and cross-section structure of ion-exchange membranes of various types in the swollen state [9,16,28,29].
The experimental information about the morphology of the surface of ion-exchange membranes, the dimensions of conducting and inert regions is necessary for understanding the mechanisms of intensification of electromembrane processes, including a theoretical description of the transfer of electrolyte ions through ion-exchange membranes with a heterogeneous surface [3,30]. The idea of surface modifying of homogeneous and heterogeneous ion-exchange membranes has been widely developed in order to enhance the mass transfer in overlimiting modes due to the intensification of heteroelectroconvective instability [31,32]. Another way to obtain membranes with a dominant electroconvective ion transfer mechanism is to modify the surface of famous commercial heterogeneous membranes by changing their manufacturing technology. For example, by varying the resin particle size or changing the resin/inert binder ratio, a compromise between electrochemical and mechanical properties can be achieved to obtain a better heterogeneous membrane [33]. The aim of the work was an experimental estimation by SEM of the effect of the technology of manufacturing heterogeneoussulfonated membranes Ralex on the structural properties of their surface and cross-section.

2. Experimental

2.1. Membranes

Experimental samples of heterogeneous ion-exchange membranes Ralex CM Pes (“MEGA” a.s., Straz pod Ralskem, Czech Republic) of various manufacturing technologies were selected for the study.The membranes of the first series were made from themilled resin (58 wt %) of varying sizes and polyethylene (42 wt %), polyester fiber was used as the reinforcing material [34]. The sizes of the cation-exchanger were varied by using milling time from 5 to 80 min. The experimental samples of the second series of Ralex CM Pes membranes differ in the resin/inert binder ratio. In the manufacture of membranes of this batch, the resin loading varied from 45 to 70 wt %.
Prior to experiments, the membrane samples were treated with NaCl solutions with different concentrations [10].

2.2. Membrane Characterization

The total static exchange capacity of the membranes (Q) was determined by acid-base titration.Thewatercontent (W) represented the ratio of the mass of water in the swollen sample to its mass. The thickness of the samples (b) was measured with a micrometer, and the density of ion-exchange membranes (d) by a pycnometric method [35].

2.3. Scanning Electron Microscopy

The study of the morphology of the membrane surface was performed by scanning electron microscopy (SEM) using a microscope JSM-6380 LV (JEOL, Tokyo, Japan). In the chamber with the sample under study, the pressure was adjustable, which allowed investigating membranes in the low-vacuum mode in the working (swollen) state [16,28]. Electron-microscopic photography of the samples was carried out in the low-vacuum mode using backscattered electrons at an accelerating voltage of 20 kV. Preliminary preparation of membrane samples was not made since the main advantage of low-vacuum devices is the neutralization of the surface charge by positively charged gas atoms, which made the coating with a conducting layer unnecessary [36]. The main factor affecting the number of backscattered electrons is the elemental composition of the detecting region [37]. Therefore, the light areas in the image correspond to the regions of the analyzed surface containing atoms with higher atomic number due to a more intense reflection of electrons. Thus, the areas of light gray color correspond to the sections of the ion-exchanger, whose ionic groups contain sulfur, oxygen and sodium atoms. The dark gray color corresponds to polyethylene, which contains carbon atoms. The dark border between them indicates the presence of a pore or a defect in the structure.
The information about the chemical composition of the membrane surface was obtained by mapping the elemental composition using an energy dispersive spectrometer. The color coding for X-ray spectrum imaging allowed combining data on several elements in one image.In the obtained images (Figure 1), areas painted in red color indicate the presence of sulfur. They correspond to regions of the ion-exchanger containing fixed S O 3 2 -groups. Inert regions of polyethylene, which mainly contain carbon atoms, corresponding to a blue color.

2.4. Software

Quantitative assessment of structural characteristics on the membrane surface and cross-section was carried out using the authors’ software package. The software package is an application developed in the Delphi programming language [38]. The application provides automation of the analysis of the surface morphology and cross-section of ion-exchange membranes by means of digital processing of SEM images. The software package provides a wide range of possibilities for digital image processing: (a) various types of filters (median and averaging) are proposed for noise reduction; (b) brightness jumps are highlighted using the Sobel, Roberts, and Laplacian gradients; (c) image binarization is performed using a global or local threshold. To assess the relative fraction of microphases on the membrane surface, the method of growing regions was used. Besides, in the software package, an additional module for constructing a histogram of the distribution of conducting surface sections along effective radii is included.
For the determination of the proportion and radiusof the microphasessimultaneously, taking into account the “size effect” of the inhomogeneous surface of heterogeneous ion-exchange membranes, the value for relative magnification was chosen. At magnifications of 100–500, both the fraction of the ion-exchanger and the fraction of pores on the membrane surface remain almost unchanged (Figure 2). At magnification 1200 these characteristics increase by about two times. Therefore, to calculate the proportion of microphases, it is preferable to use magnifications from 100 to 500. When determining the radii of microphases, on the contrary, the values are constant with magnification of more than 500. This is due to the fact that, at small magnifications, small ion-exchangers and pores are not visualized. Therefore, to calculate the radii of microphases, it is preferable to use SEM images with magnification of 500–1200. Taking into account the “size effect” to determine the proportion and size of microphases simultaneously the recommended magnification is 500.
The fraction of ion-exchanger was determined by the formula S = (ΣSi/S) · 100%, where ΣSi is the total area of ion-exchange regions, S is the area of the scanned region. To calculate the radius of the ion-exchange region R the program simulated circular sections which are as were equivalent to the real areas of the ion-exchangers of an arbitrary shape (Figure 3). The weighted average radius of microphases was calculated according to [16].
The fraction P and the weighted average pore radius r ¯ on the membrane surface were calculated in the same way. Under the concept of a “pore” the area between the ion-exchange particle and polyethylene was assumed. As pores, were also taken into account the cracks on polyethylenedue to the fact that they can be through.Membrane structure is porous, and thus the ion transport can proceed either by direct contact of ion-exchanger particles or by short channels filled up with the electrolyte [13]. Using a magnification of 500 at microscopic imaging allows us to determine only the macroporous structure of the membranes.
The processing of the measurement results was carried out by the methods of mathematical statistics [39]. When determining thesurface and cross-section characteristics ofmembranes using the SEM method, various parts of each membrane sample were scanned 8–10 times.

3. Results and Discussion

3.1. Surface Morphology of Heterogeneous Membranes with Different Resin Particle Sizes

The surface structure of the investigated heterogeneous ion-exchange membranes Ralex is inhomogeneous (Figure 4). Light areas of ion-exchanger particles and dark areas of inert polyethylene are visualized. At the same time, a significant part of the membrane surface is shielded with polyethylene, and the conducting phase, in which ionic groups are localized, occupies a smaller fraction. It can be seen that the conducting regions on the surface of the heterogeneous CM Pes membranes have different shapes and they are arrangedrandomly.
It has been established that with the growth of the time ofresin milling, the fraction of ion-exchangers on the surface of the swollen membranes decreases by 7% (Figure 5a). Earlier [40,41] it was found that the resin fractionon the surface of commercially manufactured “MEGA” a.s. Ralex membranes in the swollen state is 25–30%.
The analysis of the ion-exchangerradius distribution is shown in Figure 6. The more milling time of resin particles, the greater total amount of them on the surface. However, the maximum on the distribution curve for Ralex CM Pes membrane samples remains constant and is in the region of 1–2 μm. According to the estimates made in [40], the characteristic radius of the conducting regions on the surface of commercially manufactured by MEGA a.s. swollen samples of CM Pes cation-exchange membranes range from 0.5 to 7 μm. Similar data were obtained byhigh vacuum scanning electron microscopyfor driedsamples at magnification of 200 in [42]: SEM picture analysis of the membrane sample Ralex CM has shown that the size of conductive polymer granules varies in range from units to tens of microns.
An increase in the milling time of the ion-exchanger corresponds to a decrease in the weighted average radius R ¯ of resin particles on the surface of swollen membranes by 20%. For the membranes with ion-exchanger after 80 min of milling R ¯ = 1.52 ± 0.03 µm (Figure 5b). It is well-known [40] that the value of the weighted average radius for the commercially manufactured Ralex cation-exchange membrane is R ¯ = 1.88 µm.
With an increase in the milling time, both the effective radius of the resin particles and the distance between them decrease (Figure 5b). Linear correlation l ¯ = 9.608 R ¯ 9.318 (correlation coefficient r = 0.864) between the ion-exchanger particle size R ¯ and the distance between them l ¯ was established.The decrease in the size of ion-conducting sections on the surface of the membranes Ralex is accompanied by a 1.5-fold decrease in the fraction of macropores and structure defects. With an increase in the milling time of ion-exchange particles, a significant increase in the fraction of macropores with a radius of less than 0.5 μm was found (Figure 6b). At the same time, the weighted average radii of macropores are 1.55 ± 0.03 and 1.27 ± 0.04 μm for membranes with ion-exchanger after 5 and 80 min of milling, respectively (Figure 5b).
In Figure 7 the effect of the time of resin particlemilling on the values of relative changes of physicochemical parameters is shown. An analysis of the characteristics indicates that with an increase in the milling time from 5 to 80 min, the ion-exchange capacity per gramof dry membrane decreases by 7%, the water content increases by 9%. For the studied membranes, the difference inthe thickness of the swollen samples is 23%. The decrease in the ion-exchange capacity with the growth ofmilling time is due to the stronger manifestation of the effect of capsulation [43,44] of smaller ion-exchange particles with polyethylene during manufacturing. Confirmation is a decrease in the resin fraction ofthe membrane surface with an increase in milling time(Figure 5a).
An increase in the time of resin milling also causes a decrease in the fraction of macropores filled with an electrically neutral solution on the membrane surface (Figure 4,5). Apparently, this is accompanied by the growth of the fraction of mesopores and nanopores, which determine the main transport characteristics of membranes, in particular, water content [45]. For example, it is known that the swelling of sulfonated ion-exchange membranes is accompanied by an increase in the content of pores with a radius of 5 to 100 nm [46]. In this case, the content of macropores with a radius of more than 100 nm remains almost unchanged.

3.2. Surface Morphology of Heterogeneous Membranes with Different Resin/Inert Binder Ratios

Micrographs of the surfaceand cross-section of membranes with different resin/binder ratios are shown in Figure 8a–f. As can be seen in figures, individual particles are tightly surrounded by the polyethylene.
Analysis of SEM images of membranes with different ratios of resin and inert components indicates more significant changes in the surface structure compared to the bulk.An increase in the resin loading in the membranes from 45 to 70 wt % corresponds to an 80% increase in its fraction on the surface (Figure 9a).At the cross-section of membranes, the increase in the fraction of ion-exchange regions is 43%. The growth of the fraction of the ion-exchange component on the membrane surface is accompanied by an increase in surface porosity by 67% (Figure 9b).
The resin particle size varies from 0.8 to 38 μm (Figure 10), and the diameters of pores and structure defects are 0.8–18 μm. Analysis of the histograms of the ion-exchanger radius distribution (Figure 10) revealed that smaller particles predominate on the surface.The weighted average radius of ion-exchangers and macropores on the membrane surface and cross-section with an increase in the resin content remains almost constant (Figure 9).
With an increase in the fraction of the conducting phase, the weighted average length of the non-conducting regions between the resin particles decreases almost twofold and is 4.9 and 2.5 μm for the samples with the maximum (70 wt %) and minimum (45 wt %) content of the ion-exchanger, respectively.
It was found that with an increase in the ion-exchange resin content from 45 to 70 wt %, the total exchange capacity of Ralex CM membranes changed 1.6 times, and its value in terms of a gram of dry membrane with a maximum ion-exchanger content was 4.23 ± 0.09 (Table 1).

4. Conclusions

The SEM method revealed significant differences in the surface and bulkcharacteristics of Ralex heterogeneoussulfonated ion-exchange membranes when their production technology changes. It has been established that the surface of membrane samples becomes electrically more homogeneous both with an increase in the resin content and with an increase in the milling time of the grains (with a decrease in the particle size).
The increase in the milling time of the resin particles from 5 to 80 min in the production of membranes leads to a decrease in radii of ion-exchange regions and distances between them. Thegreater thetime of the ion-exchangegrainmilling, the smaller thefraction and size of macropores and structure defects. At the same time, the fraction of the conducting ion-exchange phase on the surfacedecreases by 7%.
With an increase in the resin loading from 45 to 70 wt %, the growth in the fraction of ion-exchange regions on the membrane surface from 21 to 38% was established. More significant changes in the surface structure of the studied membranes are established in comparison with the cross-section. An increase in the resin content in the membranes from 45 to 70 wt % corresponds to a 43% increase in its fraction on the cross-section.At the same time, the weighted average radius of resin particles and macropores remains constant. A twofold decrement in the size of inert regions of polyethylene between ion-exchangers was revealed.The growth in the loading of ion-exchange resin in heterogeneous Ralex membranes is accompanied by a significant increase in macroporosity and a fraction of structure defects on the surface.

Author Contributions

Conceptualization, V.I.V., V.I.Z. and L.N.; methodology, V.I.V. and V.I.Z.; formal analysis, E.M.A.; investigation, E.M.A.; resources, L.N. and V.I.Z.; writing—original draft preparation, E.M.A. and V.I.V.; writing—review and editing, E.M.A. and V.I.V.; funding acquisition, E.M.A.

Funding

The work was supported by the grant of the President of the Russian Federation (grant number MK-925.2018.3).

Acknowledgments

Microphotographs of the membrane surface and cross-section were obtained on the equipment of the Collective Use Center of Voronezh State University. URL: http://ckp.vsu.ru.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Balster, J.; Yildirim, M.H.; Stamatialis, D.F.; Ibanez, R.; Lammertink, R.G.H.; Jordan, V.; Wessling, M. Morphology and microtopology of cation-exchange polymers and the origin of the overlimiting current. J. Phys. Chem. B 2007, 111, 2152–2165. [Google Scholar] [CrossRef]
  2. Nikonenko, V.V.; Pismenskaya, N.D.; Belova, E.I.; Sistat, P.; Huguet, P.; Pourcelly, G.; Larchet, C. Intensive current transfer in membrane systems: Modelling, mechanisms and application in electrodialysis. Adv. Colloid Interface Sci. 2010, 160, 101–123. [Google Scholar] [CrossRef]
  3. De Valenca, J.C.; Wagterveld, R.M.; Lammertink, R.G.H.; Tsai, P.A. Dynamics of microvortices induced by ion concentration polarization. Phys. Rev. E 2015, 92, 031003. [Google Scholar] [CrossRef]
  4. Wessling, M.; Morcillo, L.G.; Abdu, S. Nanometer-thick lateral polyelectrolyte micropatterns induce macrosopic electro-osmotic chaotic fluid instabilities. Sci. Rep. 2014, 4, 4294. [Google Scholar] [CrossRef]
  5. Tadimeti, J.G.D.; Kurian, V.; Chandra, A.; Chattopadhyay, S. Corrugated membrane surfaces for effective ion transport in electrodialysis. J. Membr. Sci. 2016, 499, 418–428. [Google Scholar] [CrossRef]
  6. Zabolotsky, V.I.; Nikonenko, V.V.; Urtenov, M.H.; Lebedev, K.A.; Bugakov, V.V. Electroconvection in systems with heterogeneous ion-exchange membranes. Russ. J. Electrochem. 2012, 48, 692–703. [Google Scholar] [CrossRef]
  7. Zabolotsky, V.I.; Novak, L.; Kovalenko, A.V.; Nikonenko, V.V.; Urtenov, M.H.; Lebedev, K.A.; But, A.Y. Electroconvection in systems with heterogeneous ion-exchange membranes. Pet. Chem. 2017, 57, 779–789. [Google Scholar] [CrossRef]
  8. Nikonenko, V.V.; Mareev, S.A.; Pis’menskaya, N.D.; Uzdenova, A.M.; Kovalenko, A.V.; Urtenov, M.K.; Pourcelly, G. Effect of electroconvection and its use in intensifying the mass transfer in electrodialysis (Review). Russ. J. Electrochem. 2017, 53, 1122–1144. [Google Scholar] [CrossRef]
  9. Vasil’eva, V.I.; Akberova, E.M.; Zabolotskii, V.I. Electroconvection in systems with heterogeneous ion-exchange membranes after thermal modification. Russ. J. Electrochem. 2017, 53, 398–410. [Google Scholar] [CrossRef]
  10. Akberova, E.M.; Vasil’eva, V.I.; Zabolotsky, V.I.; Novak, L. Effect of the sulfocation-exchanger dispersity on the surface morphology, microrelief of heterogeneous membranes and development of electroconvection in intense current modes. J. Membr. Sci. 2018, 566, 317–328. [Google Scholar] [CrossRef]
  11. Kamusewitz, H.; Schossig-Tiedemann, M.; Keller, M.; Paul, D. Characterization of polymeric membranes by means of scanning force microscopy (SFM) in comparison to results of scanning electron microscopy (SEM). Surf. Sci. 1997, 377–379, 1076–1081. [Google Scholar] [CrossRef]
  12. Sun, W.; Chen, T.; Chen, C.; Li, J. A study on membrane morphology by digital image processing. J. Membr. Sci. 2007, 305, 93–102. [Google Scholar] [CrossRef]
  13. Bouzek, K.; Moravcova, S.; Schauer, J.; Brozova, L.; Pientka, Z. Heterogeneous ion-selective membranes: The influence of the inert matrix polymer on the membrane properties. J. Appl. Electrochem. 2010, 40, 1005–1018. [Google Scholar] [CrossRef]
  14. Ghalloussi, R.; Garcia-Vasquez, W.; Chaabane, L.; Dammak, L.; Larchet, C.; Deabate, S.V.; Nevakshenova, E.; Nikonenko, V.; Grande, D. Ageing of ion-exchange membranes in electrodialysis: A structural and physicochemical investigation. J. Membr. Sci. 2013, 436, 68–78. [Google Scholar] [CrossRef]
  15. Vasil’eva, V.I.; Kranina, N.A.; Malykhin, M.D.; Akberova, E.M.; Zhiltsova, A.V. The surface inhomogeneity of ion-exchange membranes by SEM and AFM data. J. Surf. Investig. X-ray Synchrotron Neutron Tech. 2013, 7, 144–153. [Google Scholar]
  16. Vasil’eva, V.I.; Akberova, E.M.; Zhiltsova, A.V.; Chernykh, E.I.; Sirota, E.A.; Agapov, B.L. SEM diagnostics of the surface of MK-40 and MA-40 heterogeneous ion-exchange membranes in the swollen state after thermal treatment. J. Surf. Investig. X-ray Synchrotron Neutron Tech. 2013, 7, 833–840. [Google Scholar]
  17. Martí-Calatayud, M.C.; Buzzi, D.C.; García-Gabaldón, M.; Bernardes, A.M.; Tenório, J.A.S.; Pérez-Herranz, V. Ion transport through homogeneous and heterogeneous ion-exchange membranes in single salt and multicomponent electrolyte solutions. J. Membr. Sci. 2014, 466, 45–57. [Google Scholar] [CrossRef]
  18. Asraf-Snir, M.; Gilron, J.; Oren, Y. Gypsum scaling of anion exchange membranes in electrodialysis. J. Membr. Sci. 2016, 520, 176–186. [Google Scholar] [CrossRef]
  19. Lehmani, A.; Durand-Vidal, S.; Turq, P. Surface morphology of Nafion 117 membrane by tapping mode atomic force microscope. J. Appl. Polym. Sci. 1998, 68, 503–508. [Google Scholar] [CrossRef]
  20. Araya-Farias, M.; Bazinet, L. Effect of calcium and carbonate concentrations on anionic membrane fouling during electrodialysis. J. Colloid Interface Sci. 2006, 296, 242–247. [Google Scholar] [CrossRef]
  21. Pismenskaya, N.D.; Pokhidnia, E.V.; Pourcelly, G.; Nikonenko, V.V. Can the electrochemical performance of heterogeneous ion-exchange membranes be better than that of homogeneous membranes? J. Membr. Sci. 2018, 566, 54–68. [Google Scholar] [CrossRef]
  22. Casademont, C.; Pourcelly, G.; Bazinet, L. Effect of magnesium/calcium ratios in solutions treated by electrodialysis: Morphological characterization and identification of anion-exchange membrane fouling. J. Colloid Interface Sci. 2008, 322, 215–223. [Google Scholar] [CrossRef] [PubMed]
  23. Vasil’eva, V.I.; Akberova, E.M.; Goleva, E.A.; Yatsev, A.M.; Tzkhai, A.A. Changes in the microstructure and operational characteristics of the MK-40 sulfocation-exchange membrane during the electrodialysis of natural waters. J. Surf. Investig. X-ray Synchrotron Neutron Tech. 2017, 11, 429–436. [Google Scholar]
  24. Zhao, Z.; Shia, S.; Cao, H.; Shan, B.; Sheng, Y. Property characterization and mechanism analysis on organic fouling of structurally different anion exchange membranes in electrodialysis. Desalination 2018, 428, 199–206. [Google Scholar] [CrossRef]
  25. Belashova, E.; Mikhaylin, S.; Pismenskaya, N.; Nikonenko, V.; Bazinet, L. Impact of cation-exchange membrane scaling nature on the electrochemical characteristics of membrane system. Sep. Purif. Technol. 2017, 189, 441–448. [Google Scholar] [CrossRef]
  26. Butylskii, D.Y.; Mareev, S.A.; Nikonenko, V.V.; Pismenskaya, N.D.; Larchet, C.; Dammak, L.; Grande, D.; Apel, P.Y. In situ investigation of electrical inhomogeneity of ion exchange membrane surface using scanning electrochemical microscopy. Pet. Chem. 2016, 56, 1006–1013. [Google Scholar] [CrossRef]
  27. Volodina, E.; Pismenskaya, N.D.; Nikonenko, V.V.; Larchet, C.; Pourcelly, G. Ion transfer across ion-exchange membranes with homogeneous and heterogeneous surfaces. J. Colloid Interface Sci. 2005, 285, 247–258. [Google Scholar] [CrossRef]
  28. Vasil’eva, V.I.; Pismenskaya, N.D.; Akberova, E.M.; Nebavskaya, K.A. Effect of thermochemical treatment on the surface morphology and hydrophobicity of heterogeneous ion-exchange membranes. Russ. J. Phys. Chem. A 2014, 88, 1293–1299. [Google Scholar] [CrossRef]
  29. Vasil’eva, V.I.; Akberova, E.M.; Shaposhnik, V.A.; Malykhin, M.D. Electrochemical properties and structure of ion-exchange membranes upon thermochemical treatment. Russ. J. Electrochem. 2014, 50, 789–797. [Google Scholar] [CrossRef]
  30. Urtenov, M.K.; Uzdenova, A.M.; Kovalenko, A.V.; Vasil’eva, V.V.; Sistat, P.; Pourcelly, G. Basic mathematical model of overlimiting transfer enhanced by electroconvection in flow-through electrodialysis membrane cells. J. Membr. Sci. 2013, 447, 190–202. [Google Scholar] [CrossRef]
  31. Kovalenko, A.V.; Zabolotsky, V.I.; Nikonenko, V.V.; Urtenov, M.K. Mathematical modeling of the influence of surface morphology of heterogeneous ion-exchange membrane to the electroconvection. Sci. J. KubSAU 2014, 104, 630–643. [Google Scholar]
  32. Zabolotsky, V.I.; Lebedev, K.A.; Vasilenko, P.A.; Kuzyakina, M.V. Mathematical modeling of vortex structures during electroconvection in the channel of an electrodialyzer cell on model membranes with two conducting sections. Ecol. Bull. Res. Cent. Black Sea Econ. Coop. 2019, 1, 73–82. [Google Scholar] [CrossRef]
  33. Tanaka, Y. Ion Exchange Membrane: Fundamentals and Applications, 2nd ed.; Elsevier Science: Amsterdam, The Netherlands, 2015. [Google Scholar]
  34. MEGA, a.s. Products. Available online: https://www.mega.cz/membranes/ (accessed on 31 October 2019).
  35. Berezina, N.; Gnusin, N.; Dyomina, O.; Tymofeyev, S. Water electrotransport in membrane systems. Experiment and model description. J. Membr. Sci. 1994, 86, 207–229. [Google Scholar] [CrossRef]
  36. Reed, S.J.B. Electron Microprobe Analysis and Scanning Electron Microscopy in Geology; Cambridge University Press: Cambridge, UK, 2010. [Google Scholar]
  37. Uglov, V.V.; Koval’, N.N.; Kuleshov, A.K.; Ivanov, Y.F.; Teresov, A.D.; Soldatenko, E.A. Structure-phase transformation in surface layers of hard alloy as a result of action of high-current electron beams. J. Surf. Investig. X-ray Synchrotron Neutron Tech. 2011, 5, 350–357. [Google Scholar] [CrossRef]
  38. Sirota, E.A.; Kranina, N.A.; Vasil’eva, V.I.; Malykhin, M.D.; Selemenev, V.F. Development and experimental approbation of program complex for definition of a share ion-spending surfaces of heterogeneous membranes according to raster electronic microscopy. Proc. Voronezh State Uni. Series: Chem. Biol. Pharm. 2011, 2, 53–59. [Google Scholar]
  39. Taylor, J.R. An Introduction to Error Analysis: The Study of Uncertainties in Physical Measurements; University Science Books: Sausalito, CA, USA, 1982. [Google Scholar]
  40. Vasil’eva, V.I.; Zhil’tsova, A.V.; Akberova, E.M.; Fataeva, A.I. Influence of surface inhomogeneity on current-voltage characteristics of heterogeneous ion exchange membranes. Condens. Matter Interphases 2014, 16, 257–261. [Google Scholar]
  41. Melnikov, S.; Loza, S.; Sharafan, M.; Zabolotskiy, V. Electrodialysis treatment of secondary steam condensate obtained during production of ammonium nitrate. Technical and economic analysis. Sep. Purif. Technol. 2015, 157, 179–191. [Google Scholar] [CrossRef]
  42. Svoboda, M.; Slouka, Z.; Schrott, W.; Šnita, D. Cation exchange membrane integrated into a microfluidic device. Microelectron. Eng. 2009, 86, 1371–1374. [Google Scholar] [CrossRef]
  43. Zabolotskii, V.I.; Loza, S.A.; Sharafan, M.V. Physicochemical properties of profiled heterogeneous ion-exchange membranes. Russ. J. Electrochem. 2005, 41, 1053–1060. [Google Scholar] [CrossRef]
  44. Pismenskaya, N.; Melnik, N.; Nevakshenova, E.; Nebavskaya, K.; Nikonenko, V. Enhancing ion transfer in overlimiting electrodialysis of dilute solutions by modifying the surface of heterogeneous ion-exchange membranes. Int. J. Chem. Eng. 2012, 528290. [Google Scholar] [CrossRef]
  45. Berezina, N.P.; Kononenko, N.A.; Dyomina, O.A.; Gnusin, N.P. Characterization of ion-exchange membrane materials: Properties vs. structure. Adv. Colloid Interface Sci 2008, 139, 3–28. [Google Scholar] [CrossRef]
  46. Berezina, N.P.; Vol’fkovich, Y.M.; Kononenko, N.A.; Blinov, I.A. Investigation by standard porosimetry method of water distribution in heterogeneous ion-exchange membranes. Elektrokhimiya 1987, 23, 912–916. [Google Scholar]

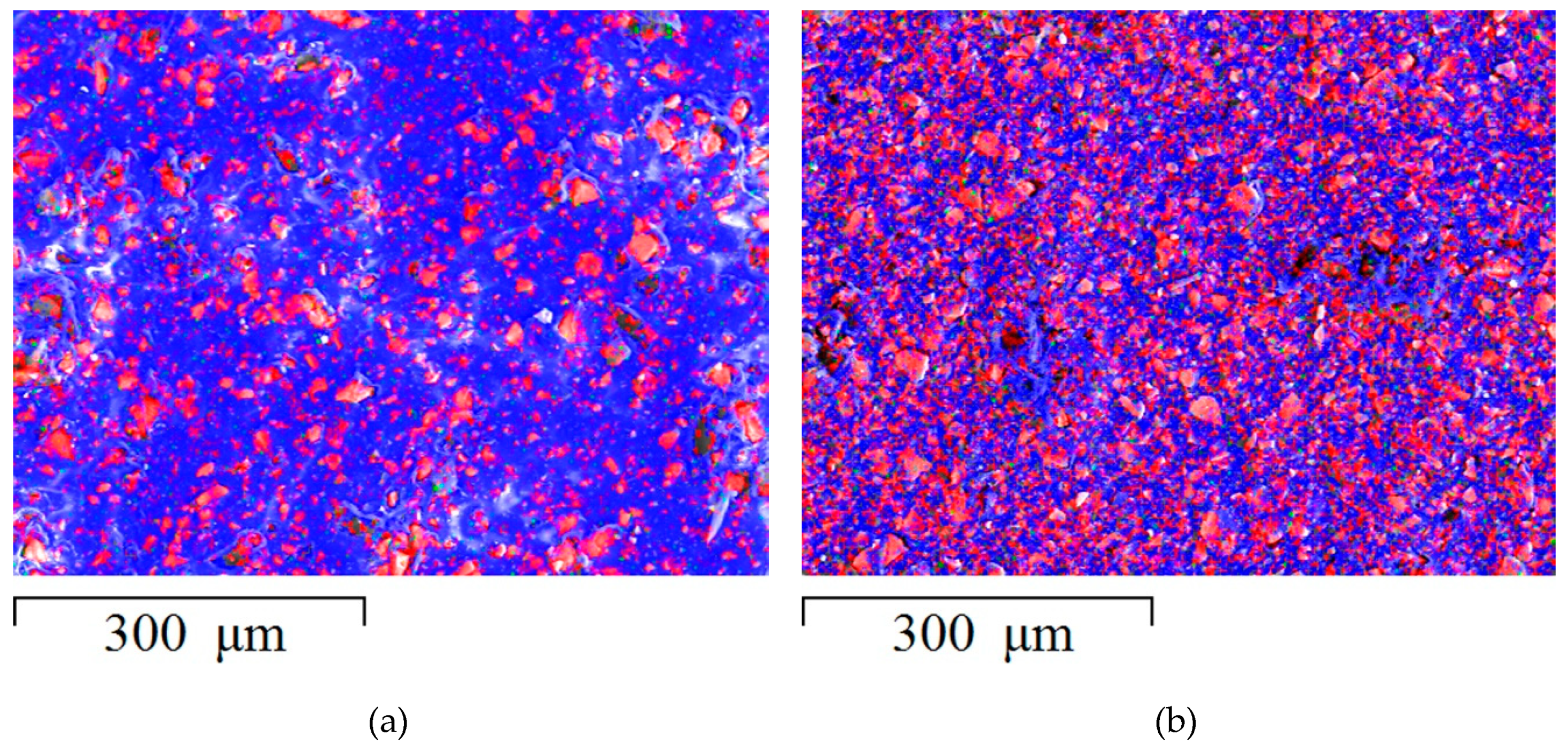

Figure 1. Composite X-ray maps of the S and C elements distribution over the surface of Ralex membranes with resin content (a) 45 and (b) 70 wt % at ×200 magnification. Element S corresponds to the red color. Element C corresponds to the blue color.
Figure 1. Composite X-ray maps of the S and C elements distribution over the surface of Ralex membranes with resin content (a) 45 and (b) 70 wt % at ×200 magnification. Element S corresponds to the red color. Element C corresponds to the blue color.
Membranes 09 00169 g001

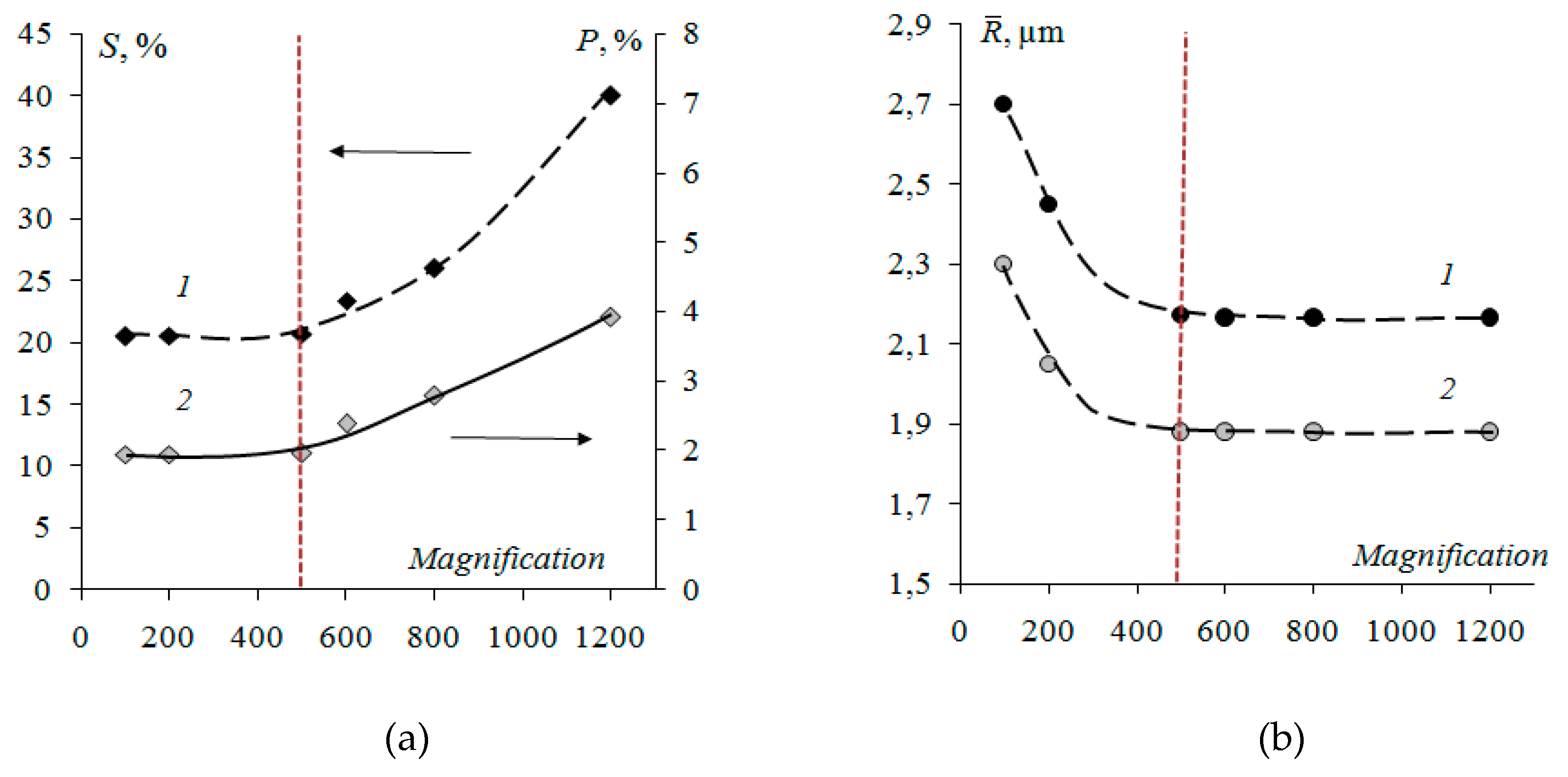

Figure 2. Fraction (a) and weighted average radius (b) of ion-exchange particles (1), macropores and structure defects (2) on the surfaceof Ralex CM Pes membrane with resin loading 45 wt %.
Figure 2. Fraction (a) and weighted average radius (b) of ion-exchange particles (1), macropores and structure defects (2) on the surfaceof Ralex CM Pes membrane with resin loading 45 wt %.
Membranes 09 00169 g002
Figure 3. Figure 3. Scanning electron microscope (SEM) image of the Ralex membrane surface with software-simulated ion-exchange sections of the circular shape.
Figure 3. Figure 3. Scanning electron microscope (SEM) image of the Ralex membrane surface with software-simulated ion-exchange sections of the circular shape.
Membranes 09 00169 g003

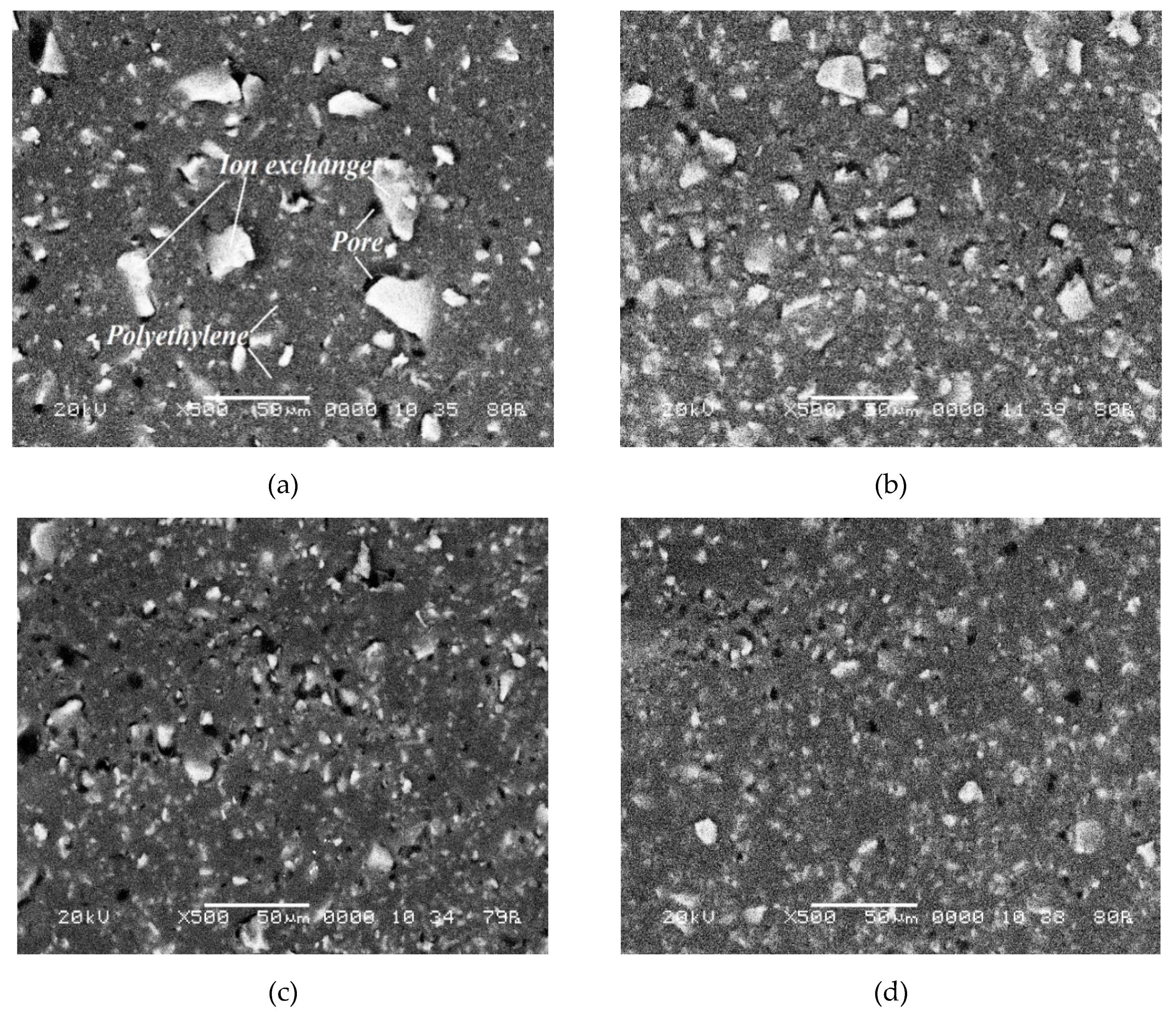

Figure 4. SEM images of the surface of swollen CM Pes membrane samples at a magnification of 500. The time of resin particle milling: 5 (a), 40 (b), 60 (c) and 80 (d) min.
Figure 4. SEM images of the surface of swollen CM Pes membrane samples at a magnification of 500. The time of resin particle milling: 5 (a), 40 (b), 60 (c) and 80 (d) min.
Membranes 09 00169 g004

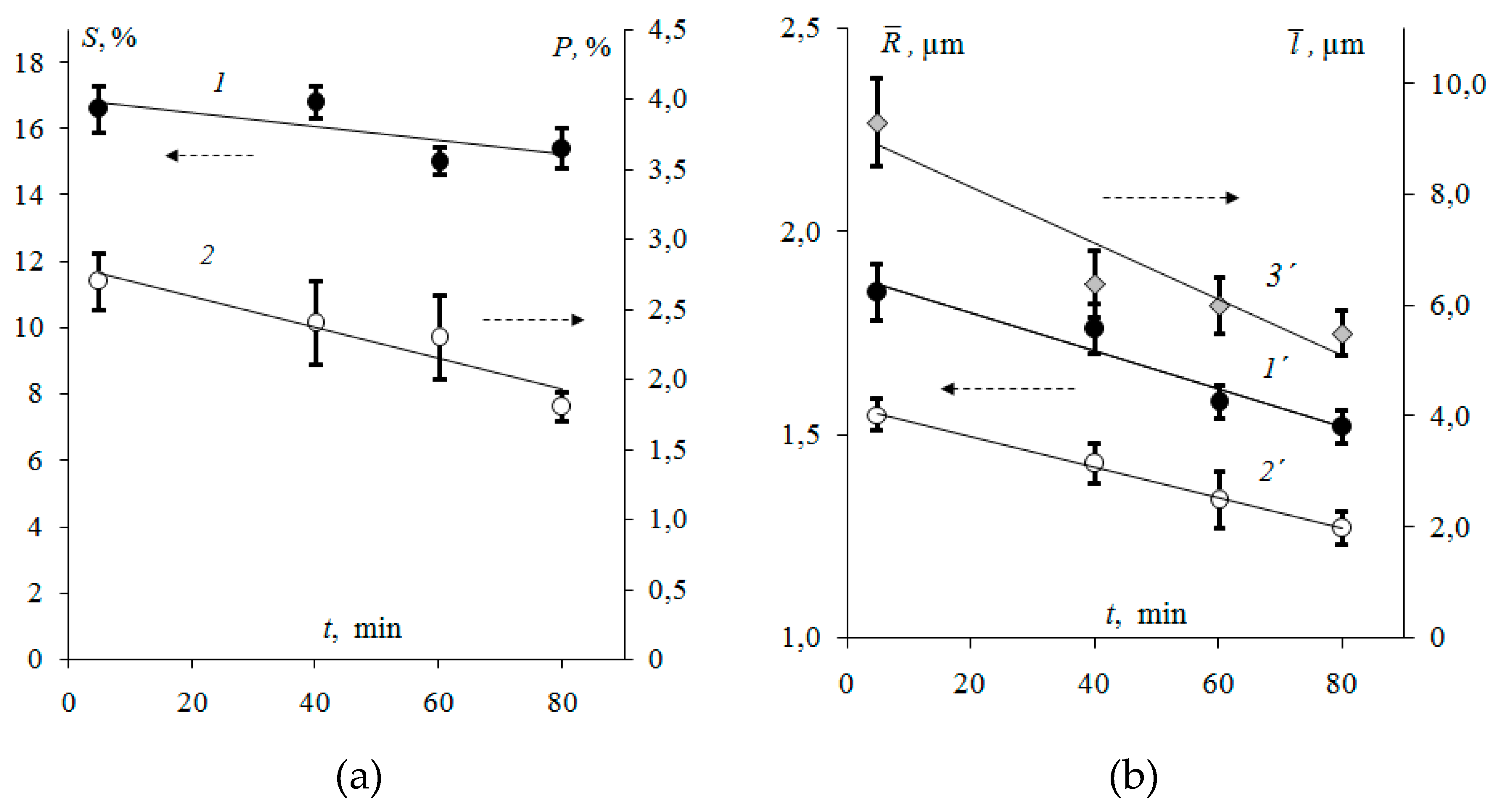

Figure 5. Fraction (a) andweighted average radius (b) of ion-exchange particles (1,1’), macropores and structure defects (2,2´) and the effective distance between ion-exchangers (3´)on the surface of heterogeneous membranes Ralex with different time of resin particlemilling.
Figure 5. Fraction (a) andweighted average radius (b) of ion-exchange particles (1,1’), macropores and structure defects (2,2´) and the effective distance between ion-exchangers (3´)on the surface of heterogeneous membranes Ralex with different time of resin particlemilling.
Membranes 09 00169 g005

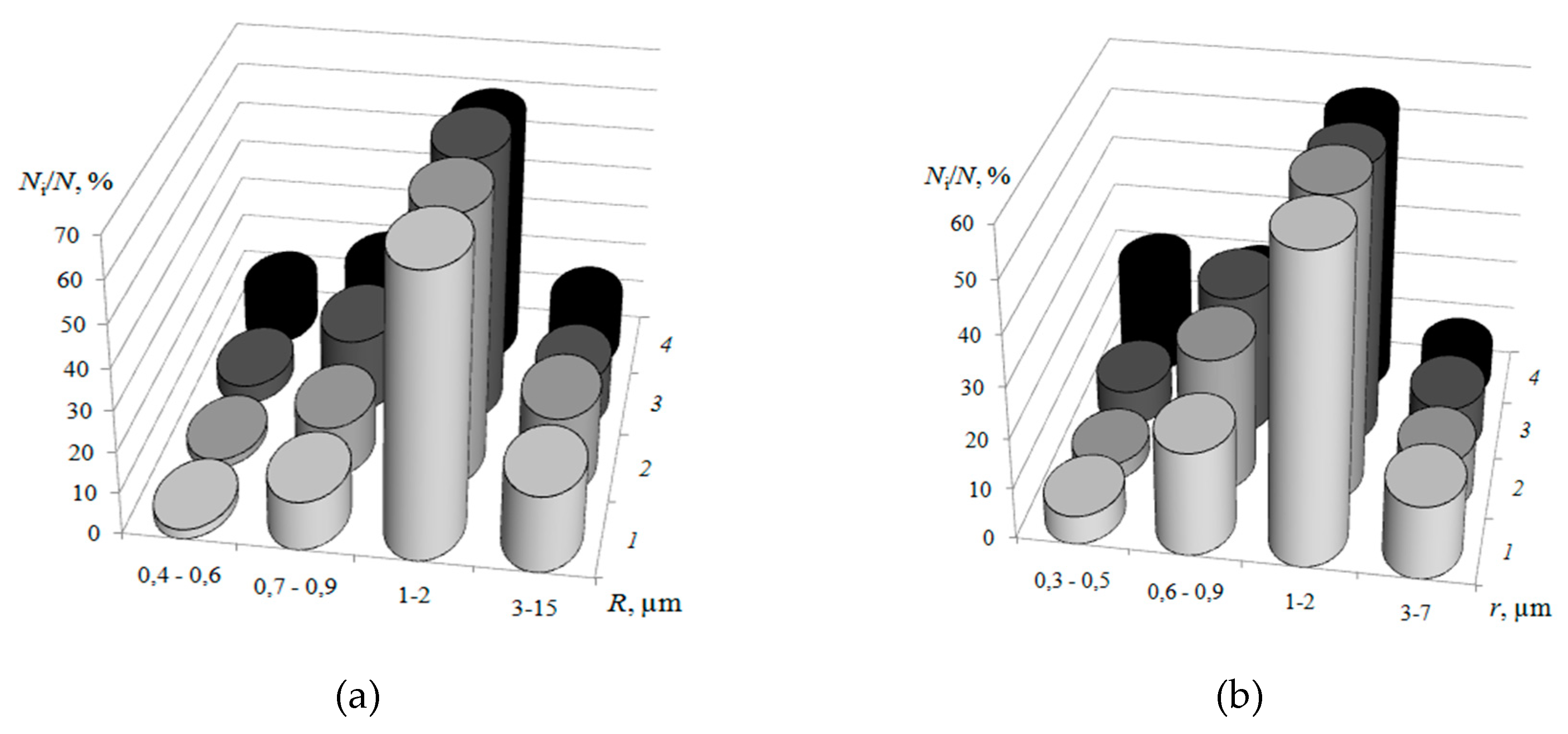

Figure 6. Ion-exchange region (a) and macropore (b)radius distribution on the surface of swollen samples of CM Pes heterogeneous membranes with ion-exchanger milling time of 5 (1), 40 (2), 60 (3) and 80 (4) min.
Figure 6. Ion-exchange region (a) and macropore (b)radius distribution on the surface of swollen samples of CM Pes heterogeneous membranes with ion-exchanger milling time of 5 (1), 40 (2), 60 (3) and 80 (4) min.
Membranes 09 00169 g006

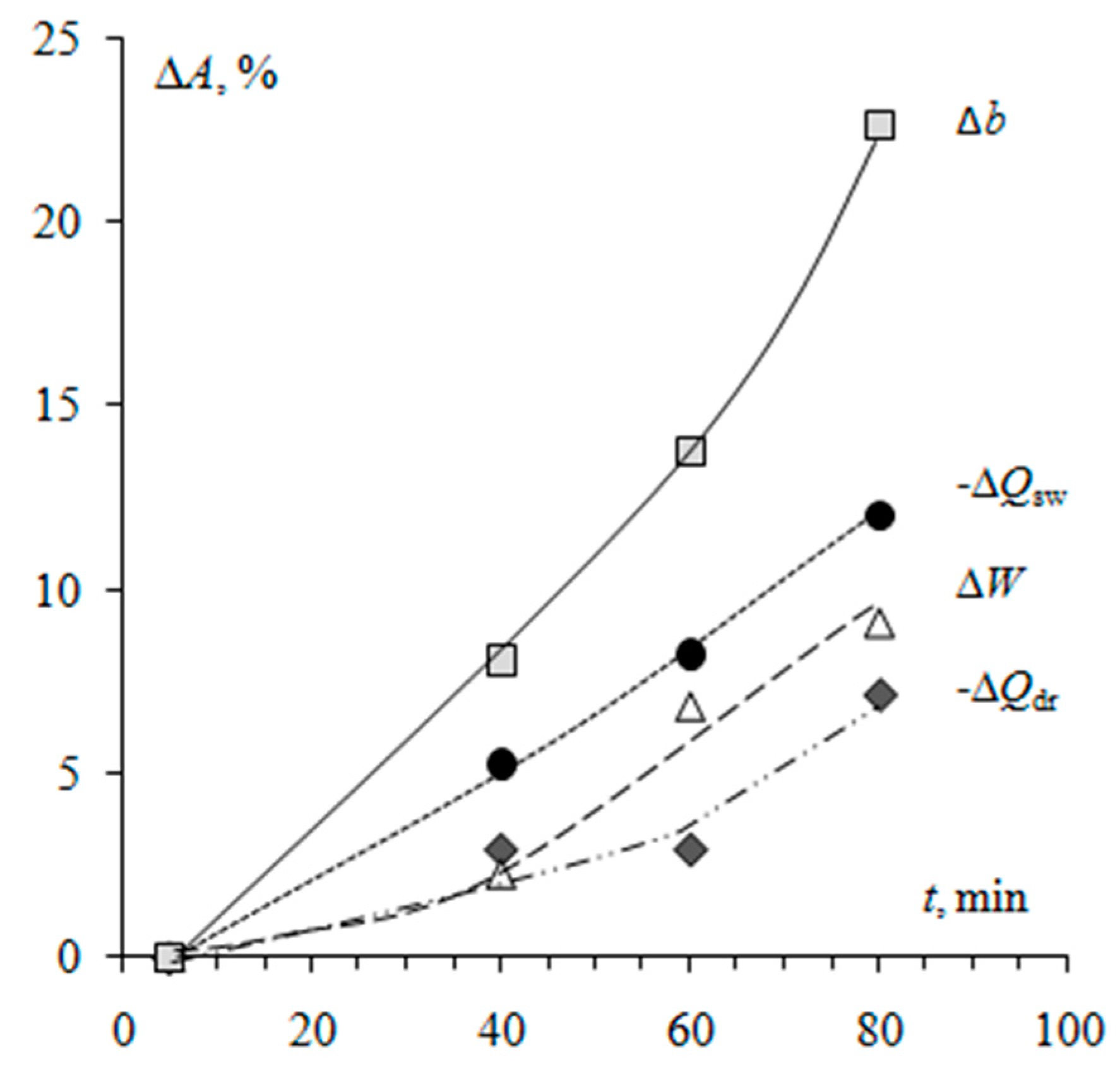

Figure 7. Relative changes in physicochemical characteristics of Ralex membranes with different resin milling time. Relative changes ΔA% in physicochemical parametersАwere calculated according to the equation: ΔA% = 100(Аt-А5min)/А5min, where А5min—value of a physicochemical characteristic of the membrane with ion-exchanger after milling during 5 min. Qsw—total exchange capacity per gram of the swollen membrane, mmol/g; Qdr—total exchange capacity per gram of the dry membrane, mmol/g; W—water content, g H 2 O / g swoll . membr ; b—swollen membrane thickness,μm.
Figure 7. Relative changes in physicochemical characteristics of Ralex membranes with different resin milling time. Relative changes ΔA% in physicochemical parametersАwere calculated according to the equation: ΔA% = 100(Аt-А5min)/А5min, where А5min—value of a physicochemical characteristic of the membrane with ion-exchanger after milling during 5 min. Qsw—total exchange capacity per gram of the swollen membrane, mmol/g; Qdr—total exchange capacity per gram of the dry membrane, mmol/g; W—water content, g H 2 O / g swoll . membr ; b—swollen membrane thickness,μm.
Membranes 09 00169 g007

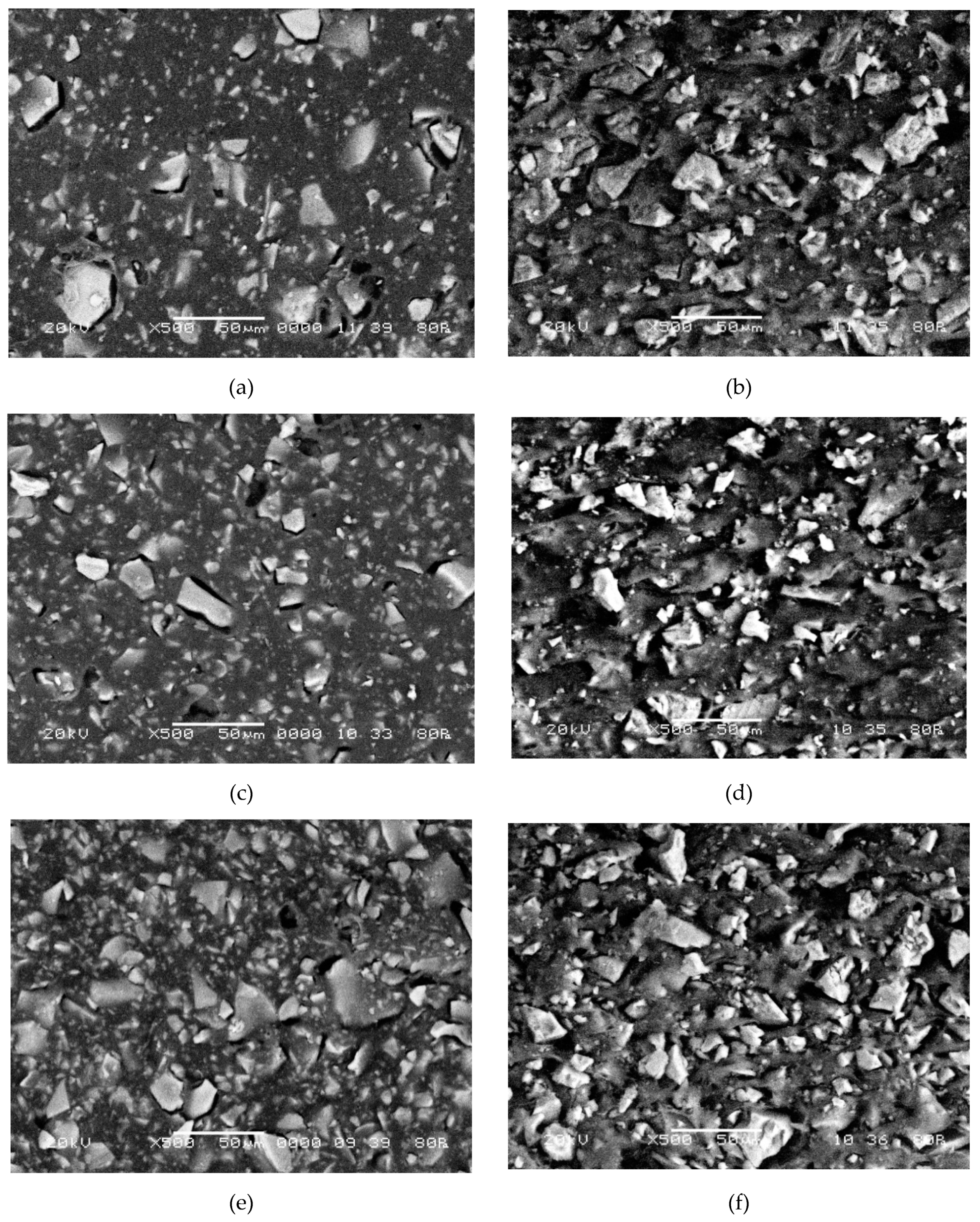

Figure 8. SEM images of the surface (a,c,e) and cross-section (b,d,f) of swollen CM Pesmembrane at magnification of 500. Ion-exchanger content: 45 (a,b), 55 (c,d), and 70 (e,f) wt %.
Figure 8. SEM images of the surface (a,c,e) and cross-section (b,d,f) of swollen CM Pesmembrane at magnification of 500. Ion-exchanger content: 45 (a,b), 55 (c,d), and 70 (e,f) wt %.
Membranes 09 00169 g008

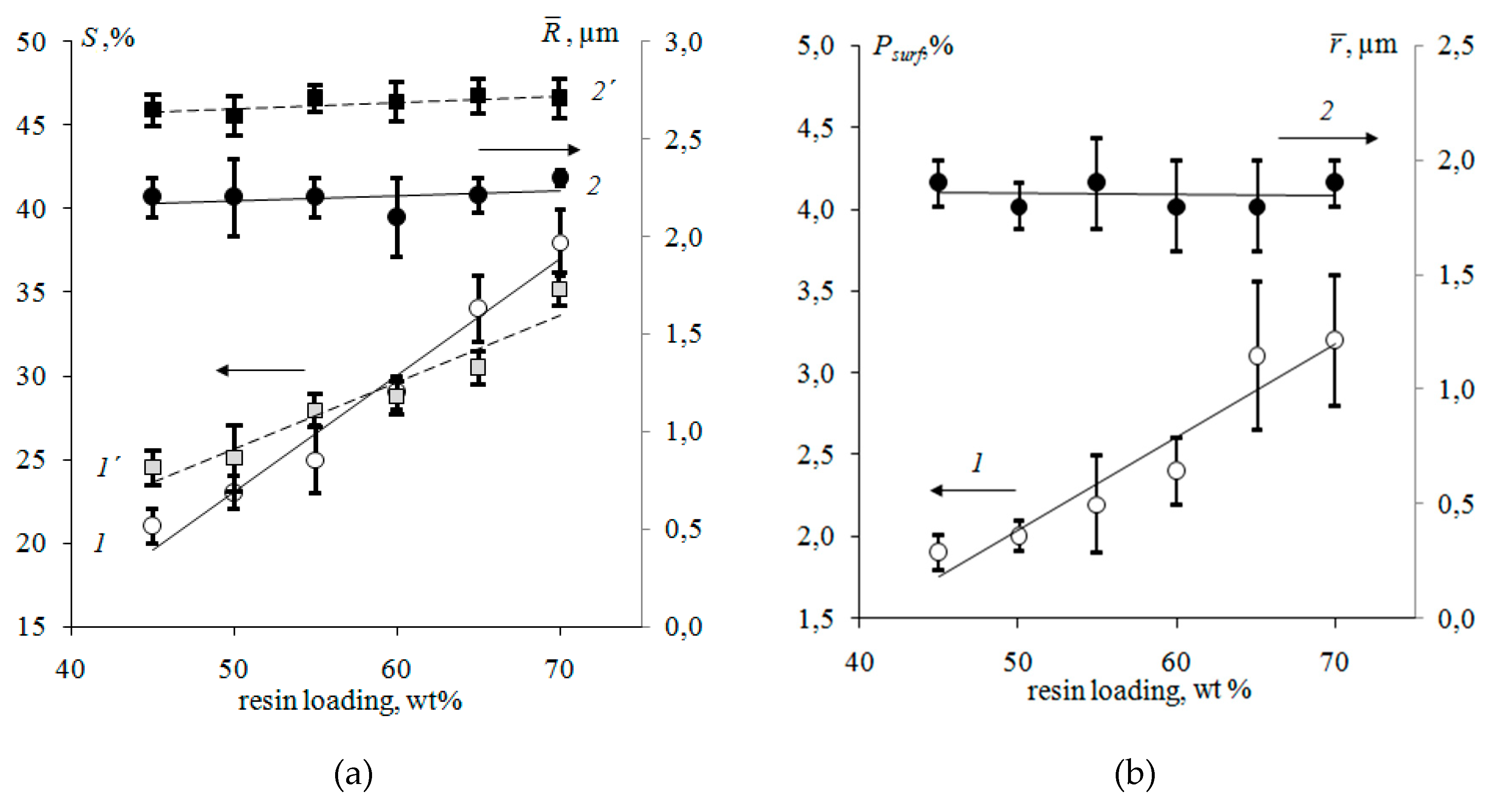

Figure 9. Fraction (1,1´) and weighted average radius (2,2´) of ion-exchange particles (a), macropores and structure defects (b) on the surface (1,2) and cross-section (1´,2´) of Ralex CM Pes heterogeneous membranes with various resin loading.
Figure 9. Fraction (1,1´) and weighted average radius (2,2´) of ion-exchange particles (a), macropores and structure defects (b) on the surface (1,2) and cross-section (1´,2´) of Ralex CM Pes heterogeneous membranes with various resin loading.
Membranes 09 00169 g009

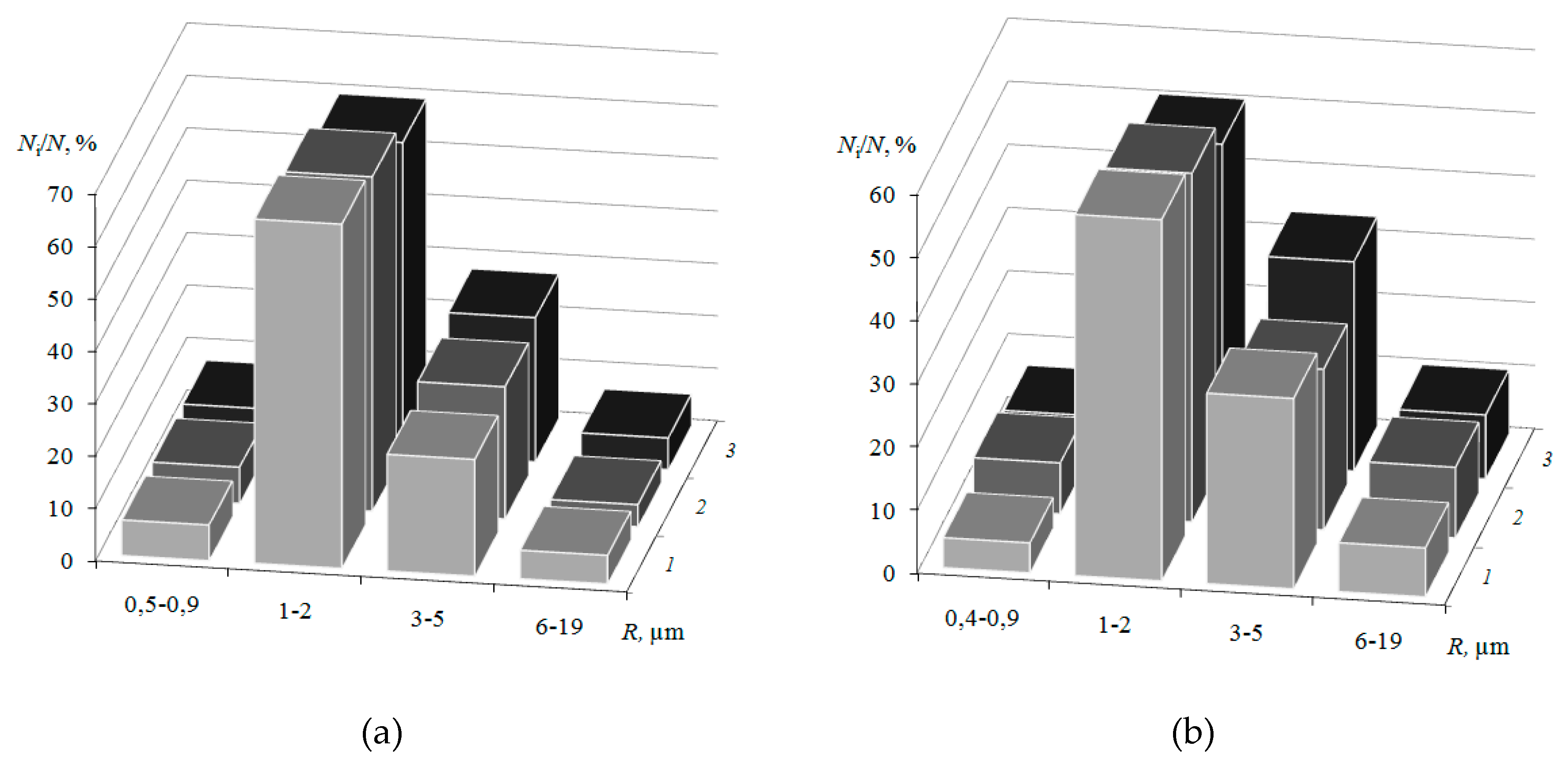

Figure 10. Ion-exchanger radius distribution on the surface (a) and cross-section (b) of the swollen membranes CM Pes with resin content: 45 (1), 55 (2) and 70 (3) wt %.
Figure 10. Ion-exchanger radius distribution on the surface (a) and cross-section (b) of the swollen membranes CM Pes with resin content: 45 (1), 55 (2) and 70 (3) wt %.
Membranes 09 00169 g010
Table 1. The physicochemical characteristics of Ralex membranes with different resin content.
Table 1. The physicochemical characteristics of Ralex membranes with different resin content.
Resin Content, wt %Qsw, mmol/gQdr, mmol/g W ,   g H 2 O / g swoll . membr b, μm
451.88 ± 0.072.66 ± 0.090.29540 ± 20
501.90 ± 0.022.83 ± 0.020.33550 ± 10
551.93 ± 0.053.00 ± 0.070.36585 ± 5
602.07 ± 0.043.38 ± 0.070.39610 ± 5
652.16 ± 0.063.76 ± 0.090.42655 ± 5
702.34 ± 0.054.23 ± 0.090.45715 ± 15
The revealed changes in the structure of the surface and cross-section of ion-exchange membranes are responsible for the increase in water content and membrane thickness by 55 and 32%, respectively.
