Open AccessArticle
Membranes 2019, 9(1), 4; https://doi.org/10.3390/membranes9010004

Preparation of PVA-Based Hollow Fiber Ion-Exchange Membranes and Their Performance for Donnan Dialysis

1
Graduate School of Sciences and Technology for Innovation, Yamaguchi University, 2-16-1 Tokiwadai, Ube, Yamaguchi 755-8611, Japan
2
Blue Energy Center for SGE Technology (BEST), Yamaguchi University, 2-16-1 Tokiwadai, Ube, Yamaguchi 755-8611, Japan
3
Graduate School of Science and Engineering, Yamaguchi University, 2-16-1 Tokiwadai, Ube, Yamaguchi 755-8611, Japan
*
Author to whom correspondence should be addressed.
Received: 28 November 2018 / Revised: 16 December 2018 / Accepted: 18 December 2018 / Published: 2 January 2019
(This article belongs to the Special Issue Mass Transfer in Membranes)
  |
PDF [3292 KB, uploaded 2 January 2019]
  |

Abstract

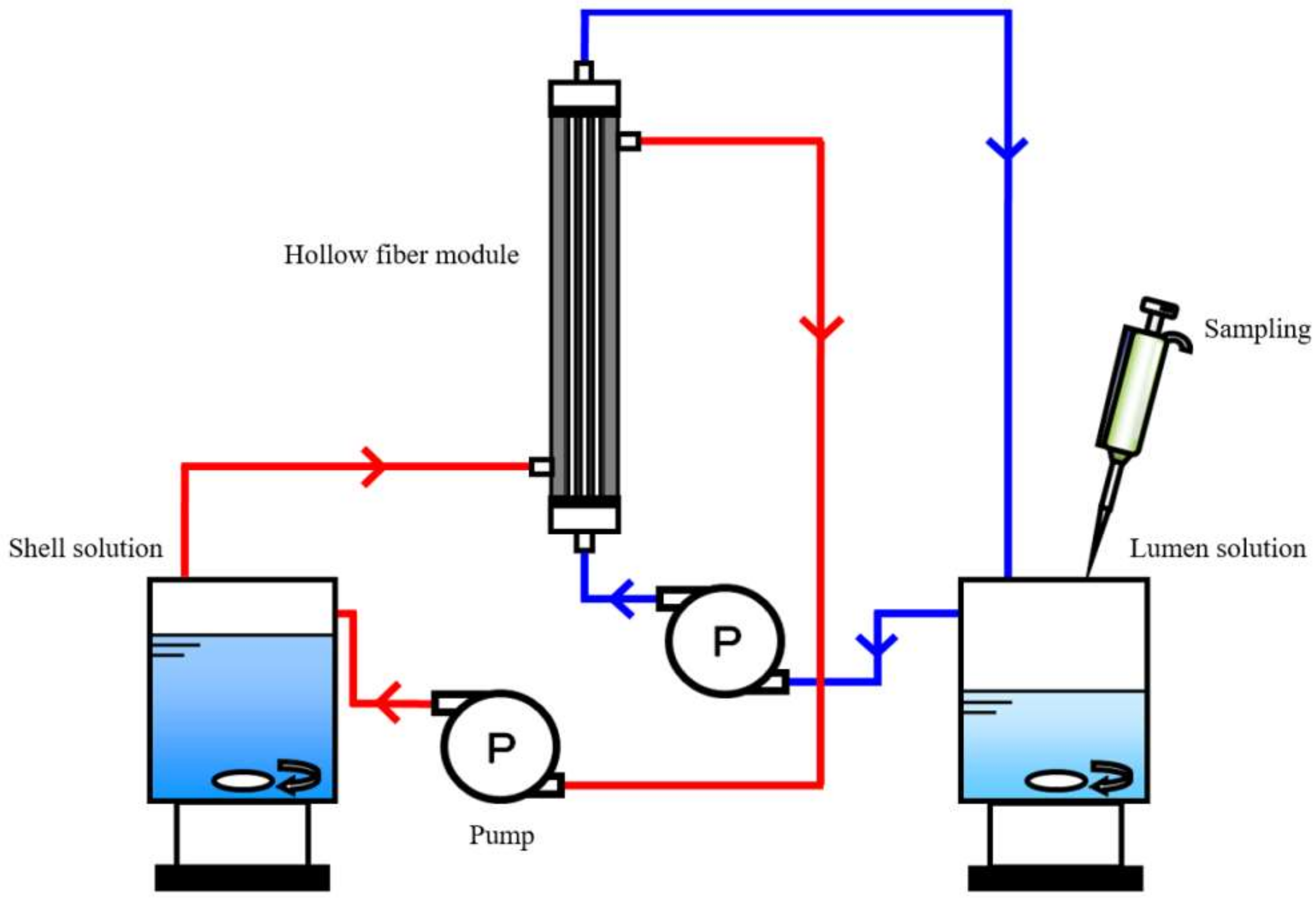

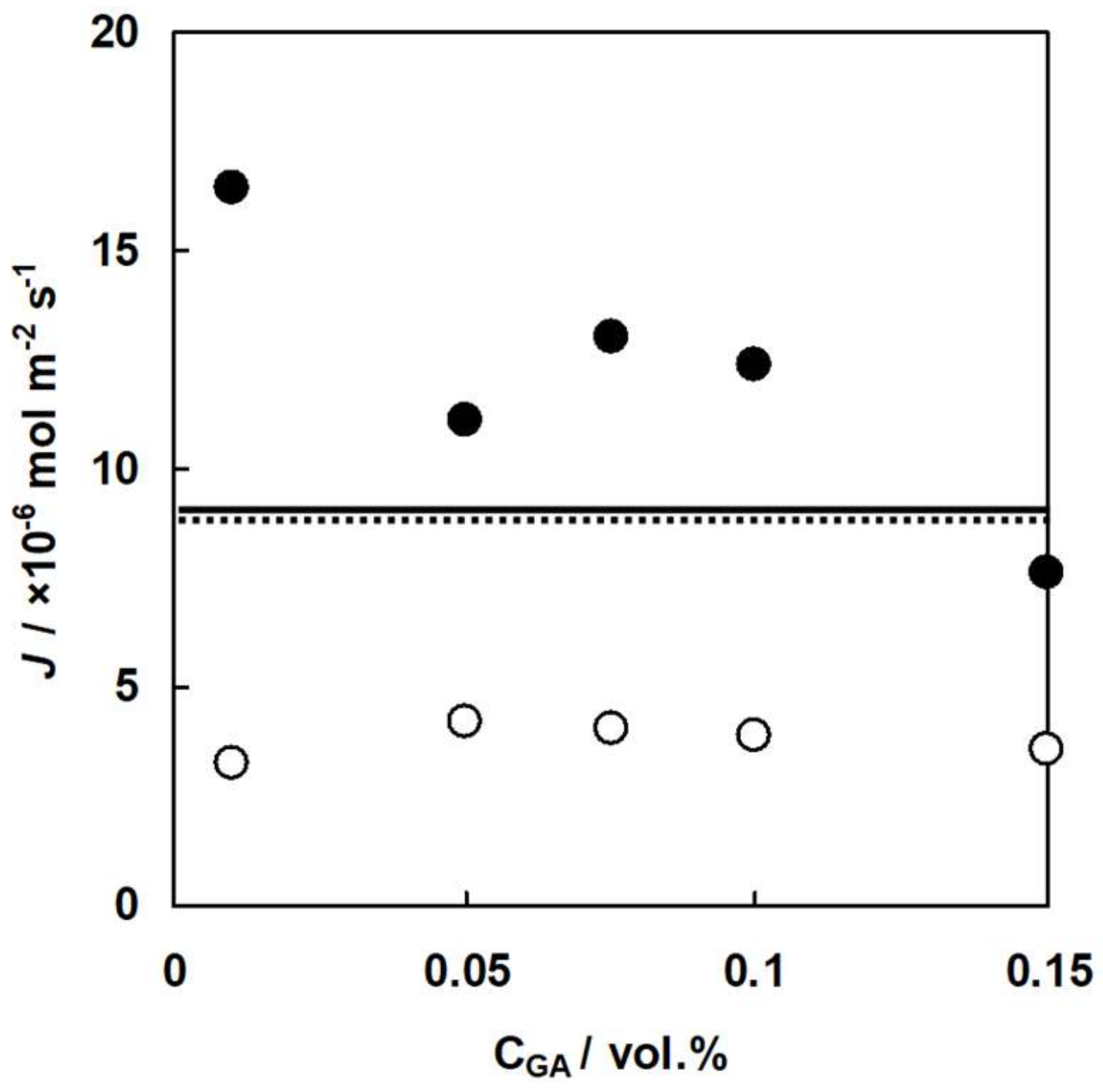

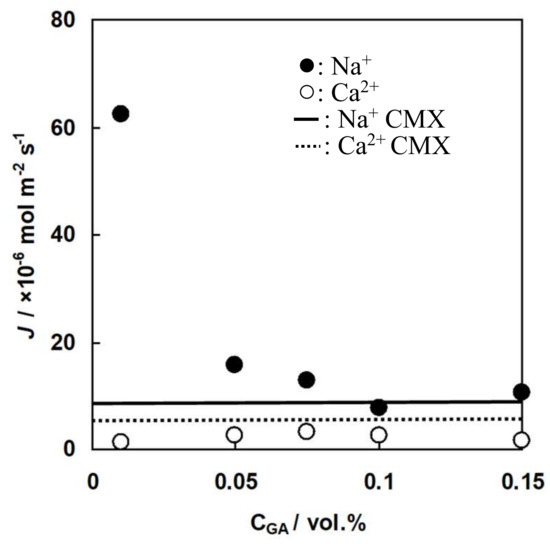

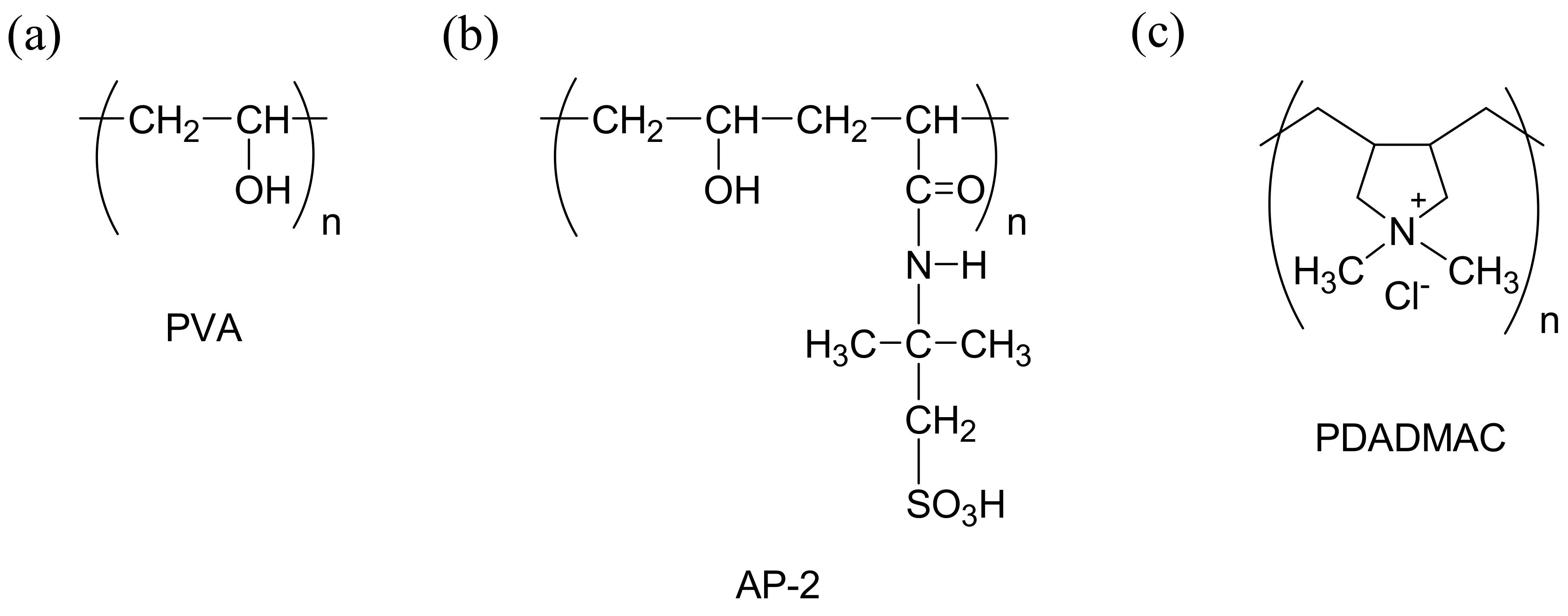

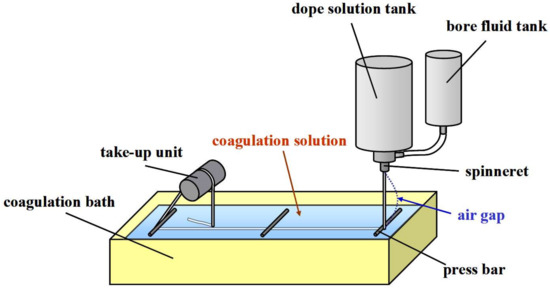

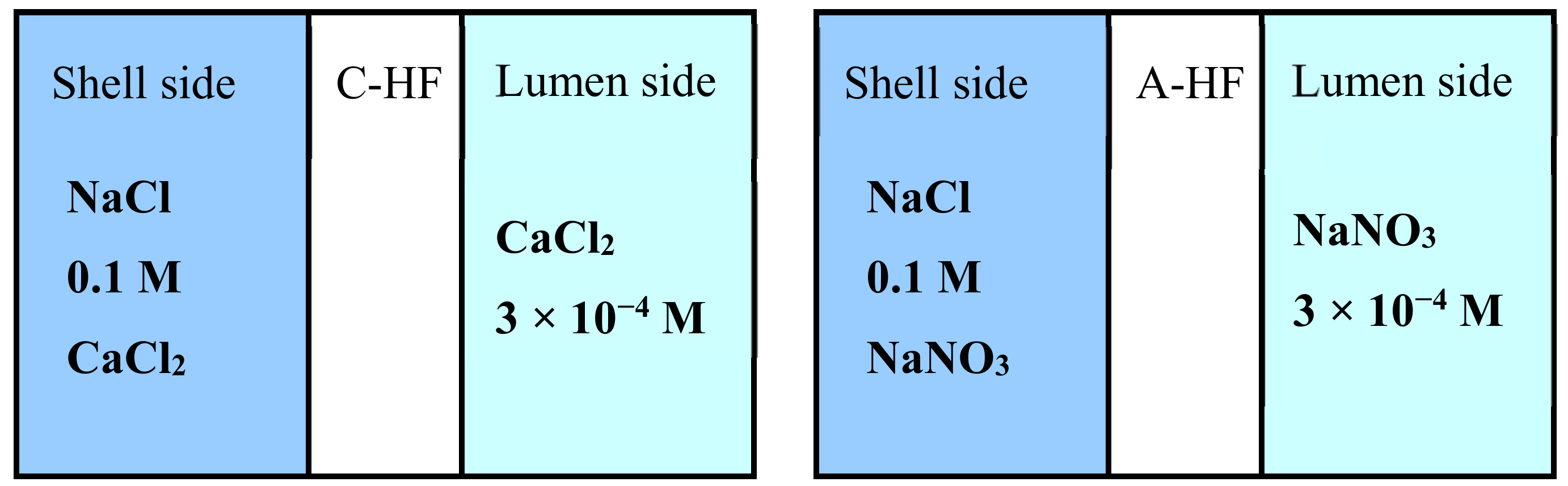

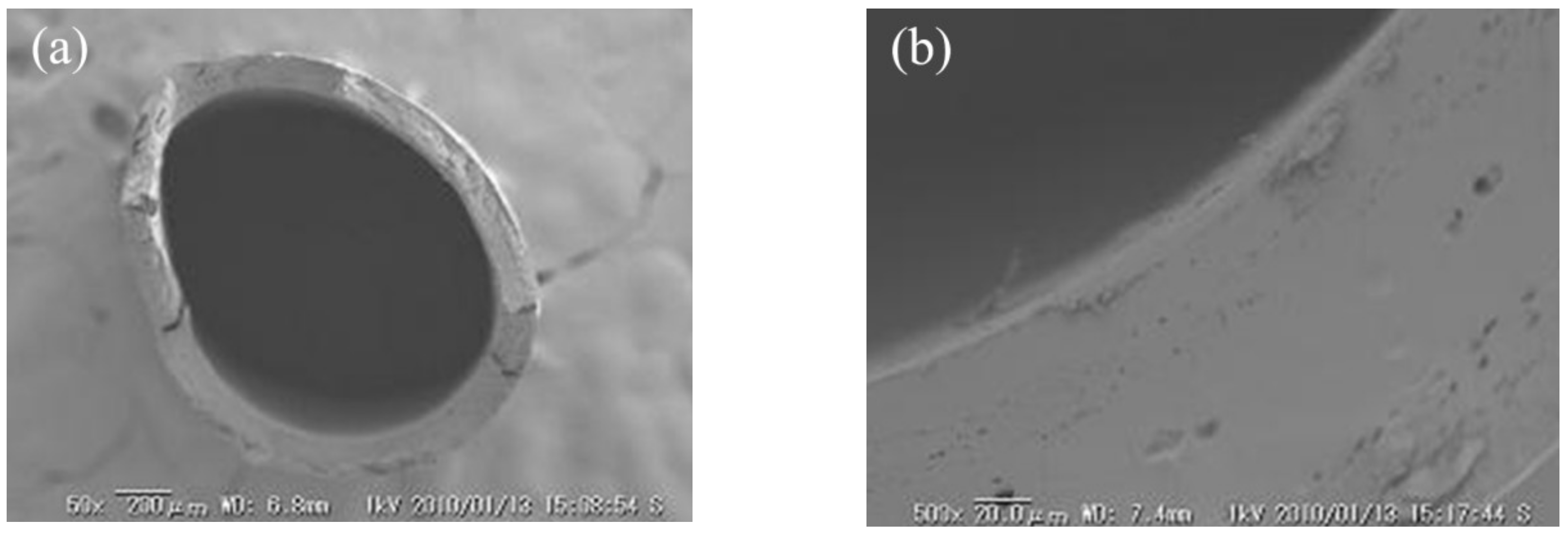

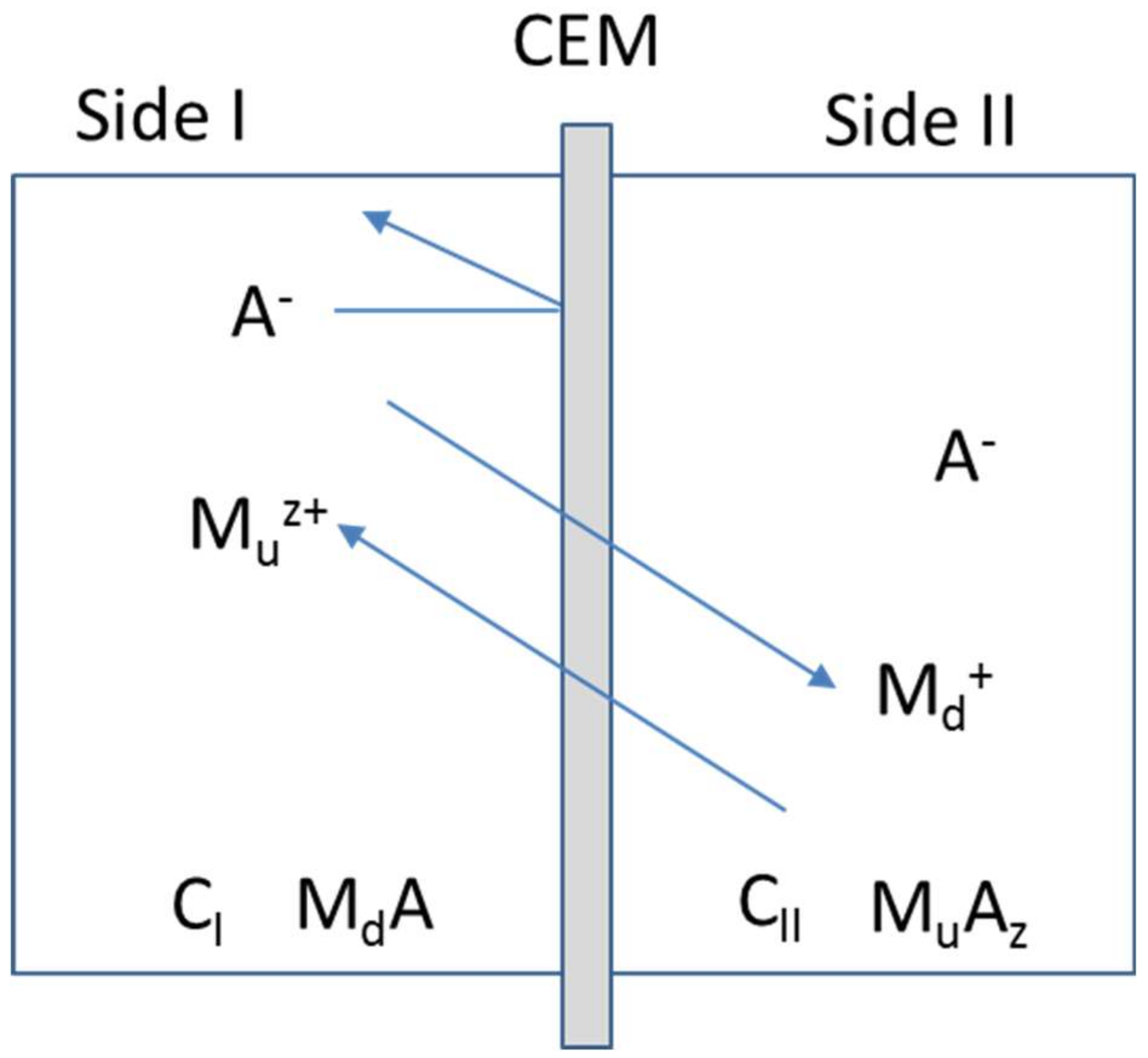

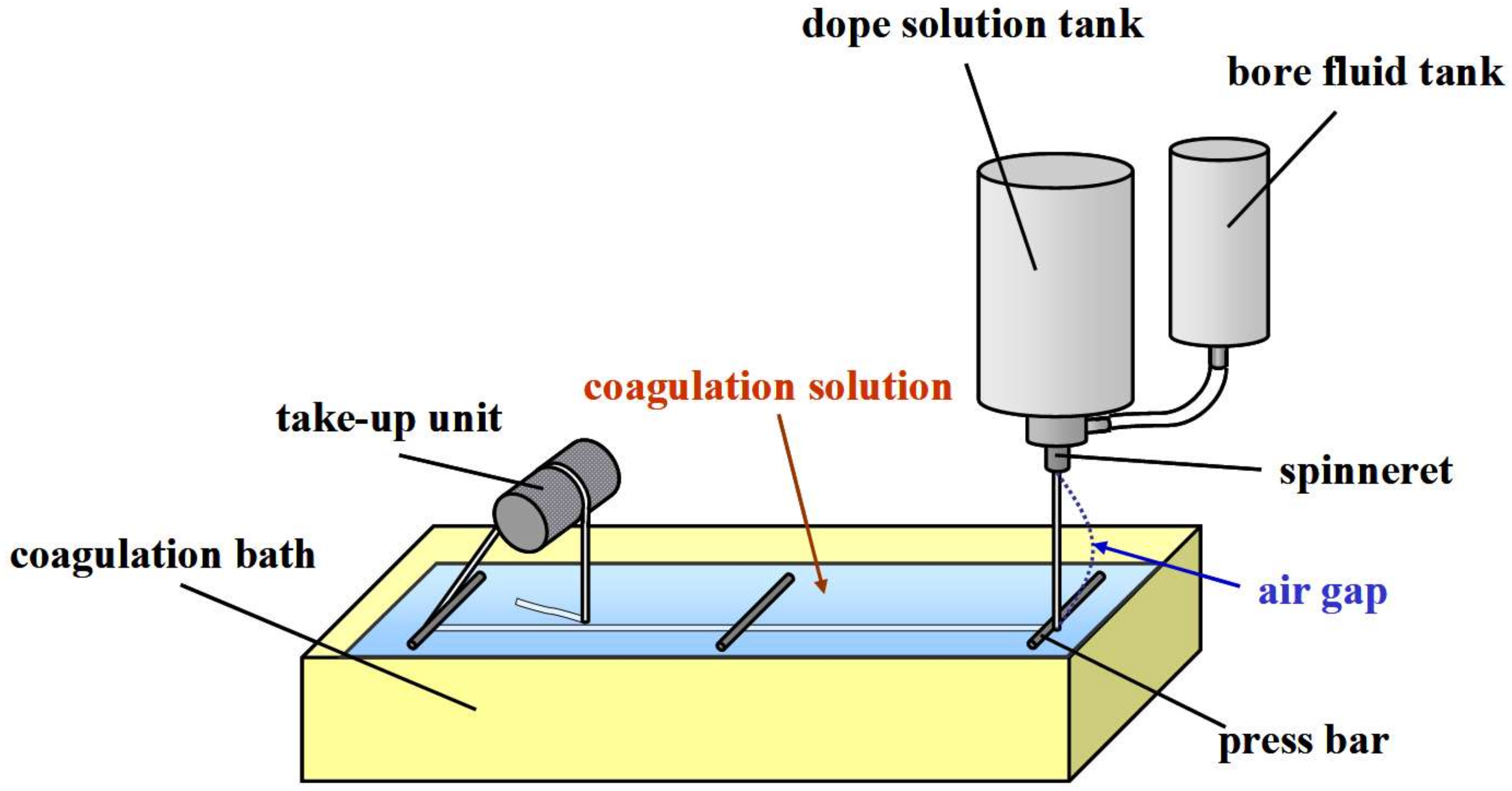

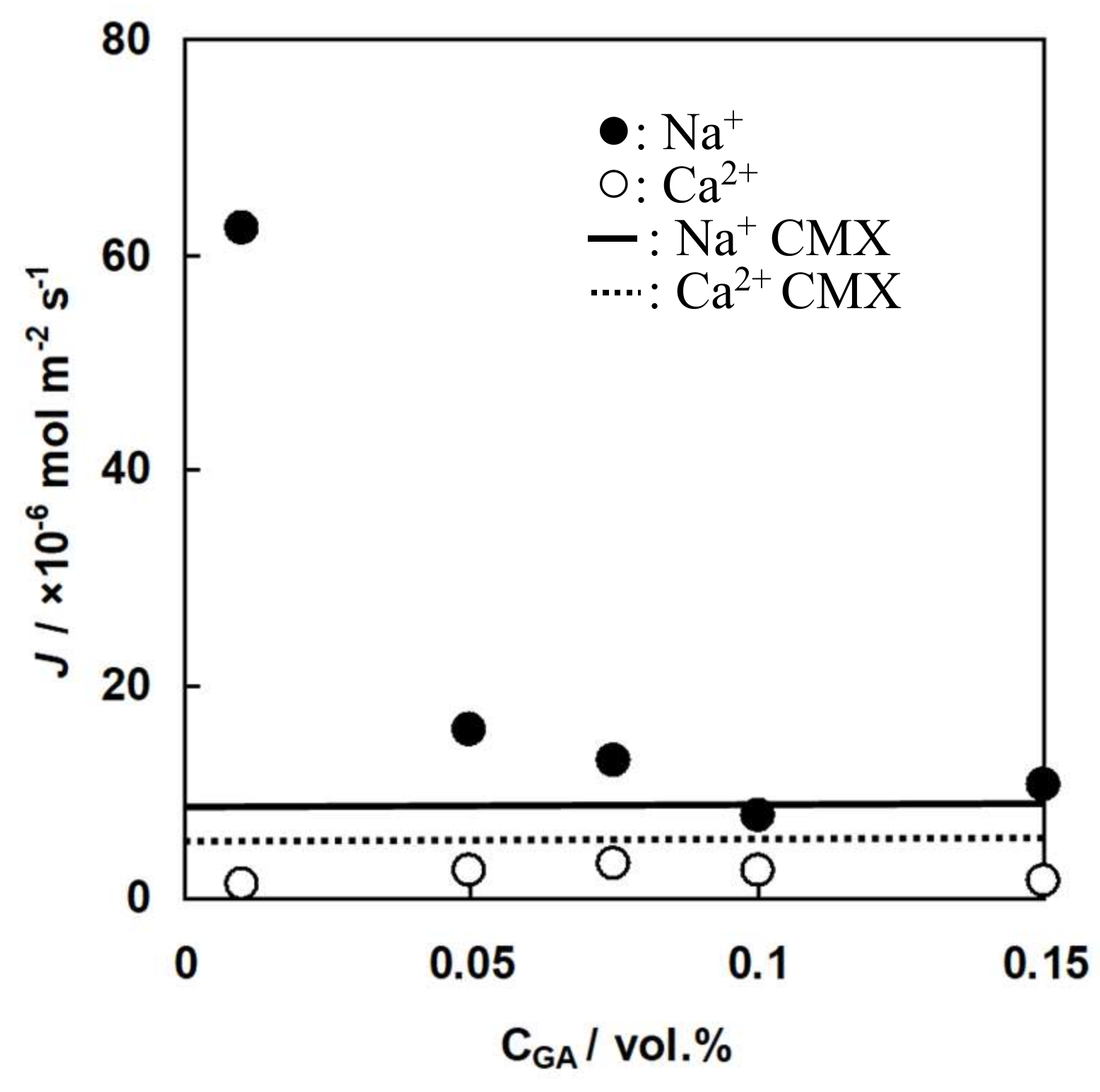

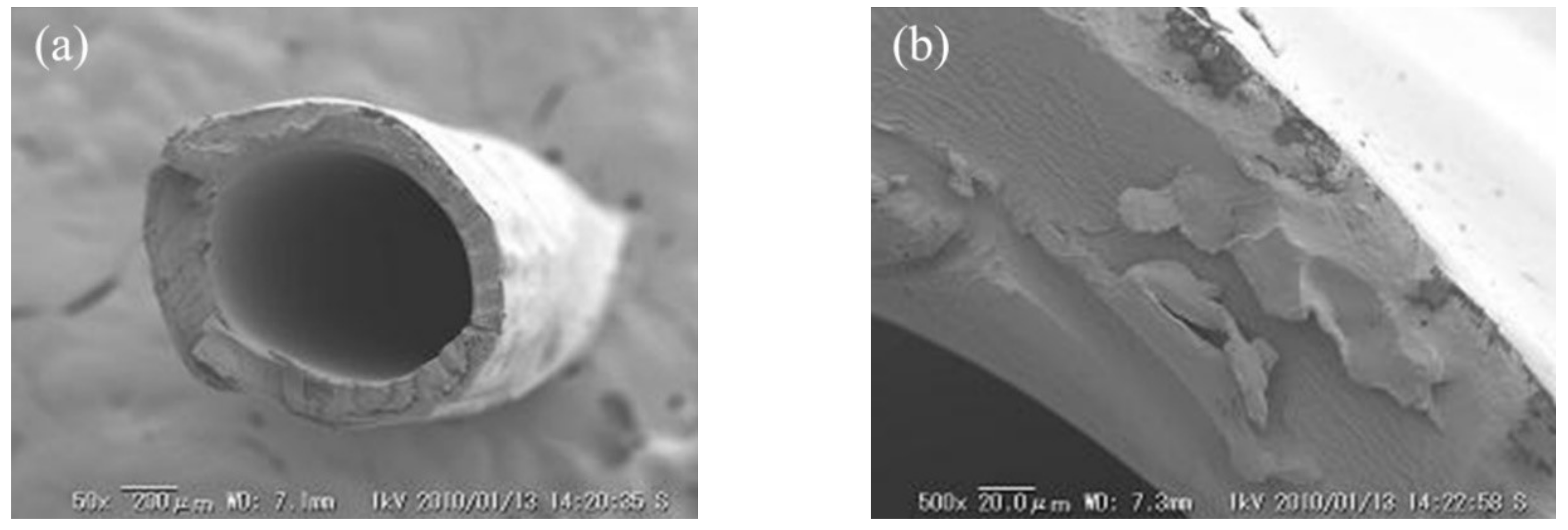

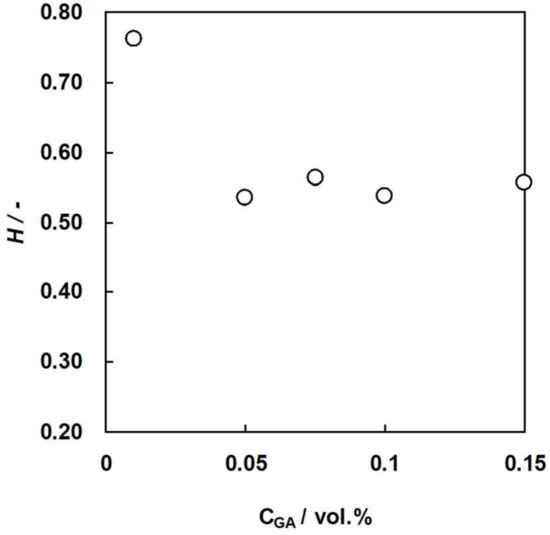

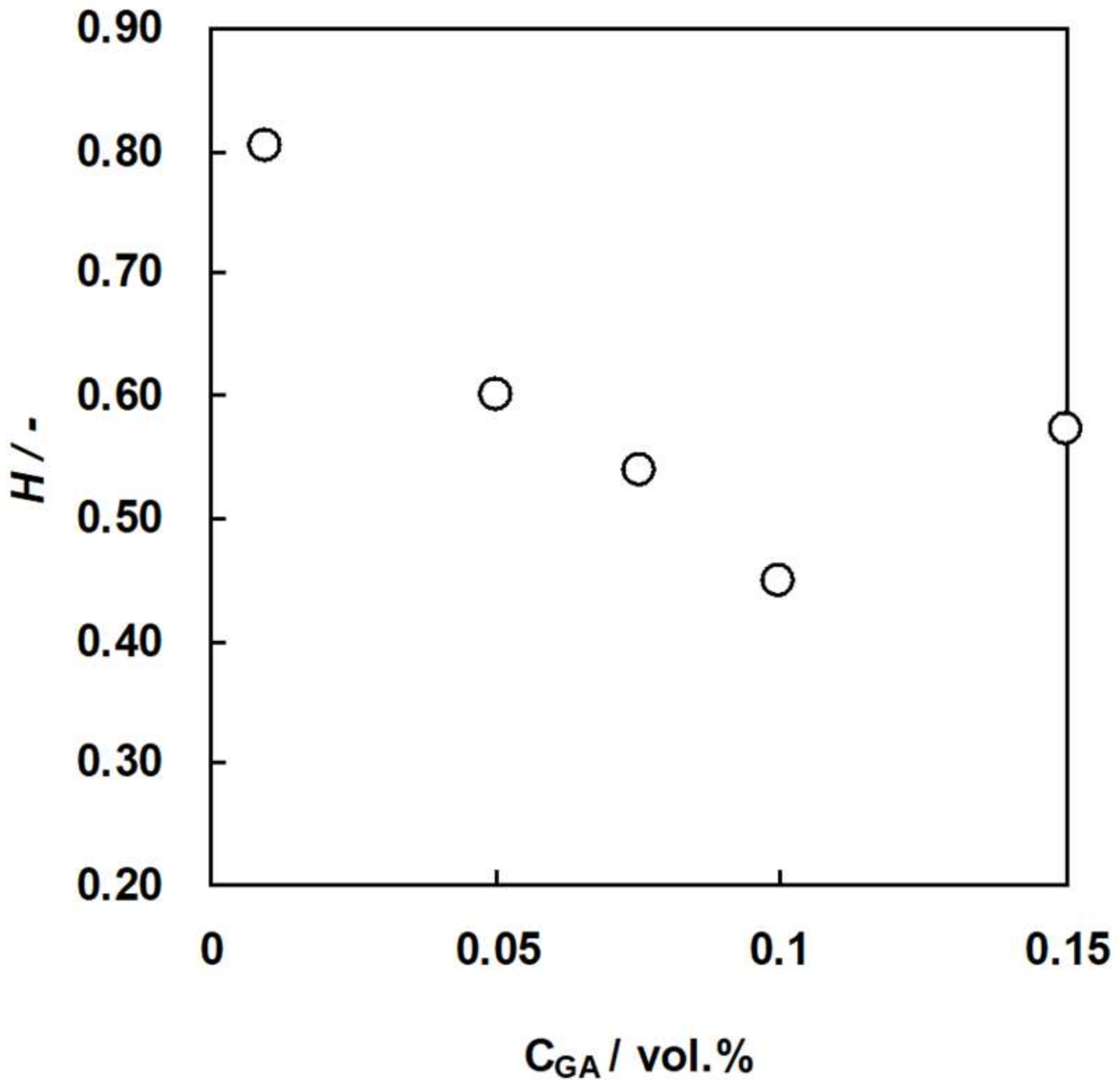

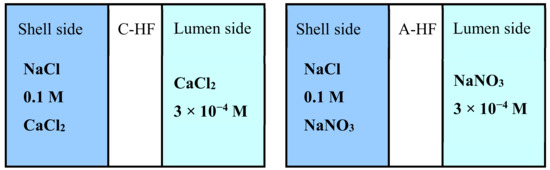

Hollow fiber type cation-exchange (C-HF) membranes and hollow fiber type anion-exchange (A-HF) membranes were prepared from poly (vinyl alcohol) (PVA)-based copolymer with cation-exchange groups and by blending PVA and polycation, respectively, by a gel fiber spinning method. In order to control the water content of the hollow fiber membranes, the membranes were cross-linked physically by annealing, and then cross-linked chemically by using glutaraldehyde (GA) solutions at various GA concentrations. The outer diameter of C-HF and A-HF membranes were ca. 1000 μm and ca. 1500 μm, respectively, and the thickness of the membranes were ca. 170 μm and 290 μm, respectively. Permeation experiments were carried out in two Donnan dialysis systems, which included mixed 0.1 M NaCl and 0.1 M CaCl2/C-HF /3 × 10−4 M CaCl2 and mixed 0.1 M NaCl and 0.1 M NaNO3/A-HF/3 × 10−4 M NaNO3 to examine ionic perm selectivity of the membranes. In the Donnan dialysis experiments using C-HF membranes, uphill transport of the divalent cations occurred, and, in the case of A-HF membranes, uphill transport of NO3 ions occurred. C-HF and A-HF membranes had about half of the flux in the uphill transported ions and also about half of the selectivity between the uphill transport ions and driven ions in comparison with those of the commercial flat sheet cation-exchange membrane (Neosepta® CMX) and anion-exchange membrane (Neosepta® AMX). Yet, IEC of C-HF and A-HF membranes were about one fifth of CMX and less than half of AMX, respectively. Since hollow fiber membrane module will have higher packing density than a flat membrane stack, the hollow fiber type ion-exchange membranes (IEMs) prepared in this study will have a potential application to a Donnan dialysis process. View Full-Text
Keywords: ion exchange membranes; poly (vinyl alcohol); hollow fiber; Donnan dialysis ion exchange membranes; poly (vinyl alcohol); hollow fiber; Donnan dialysis
Figures

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Higa, M.; Kakihana, Y.; Sugimoto, T.; Toyota, K. Preparation of PVA-Based Hollow Fiber Ion-Exchange Membranes and Their Performance for Donnan Dialysis. Membranes 2019, 9, 4.
