1. Introduction

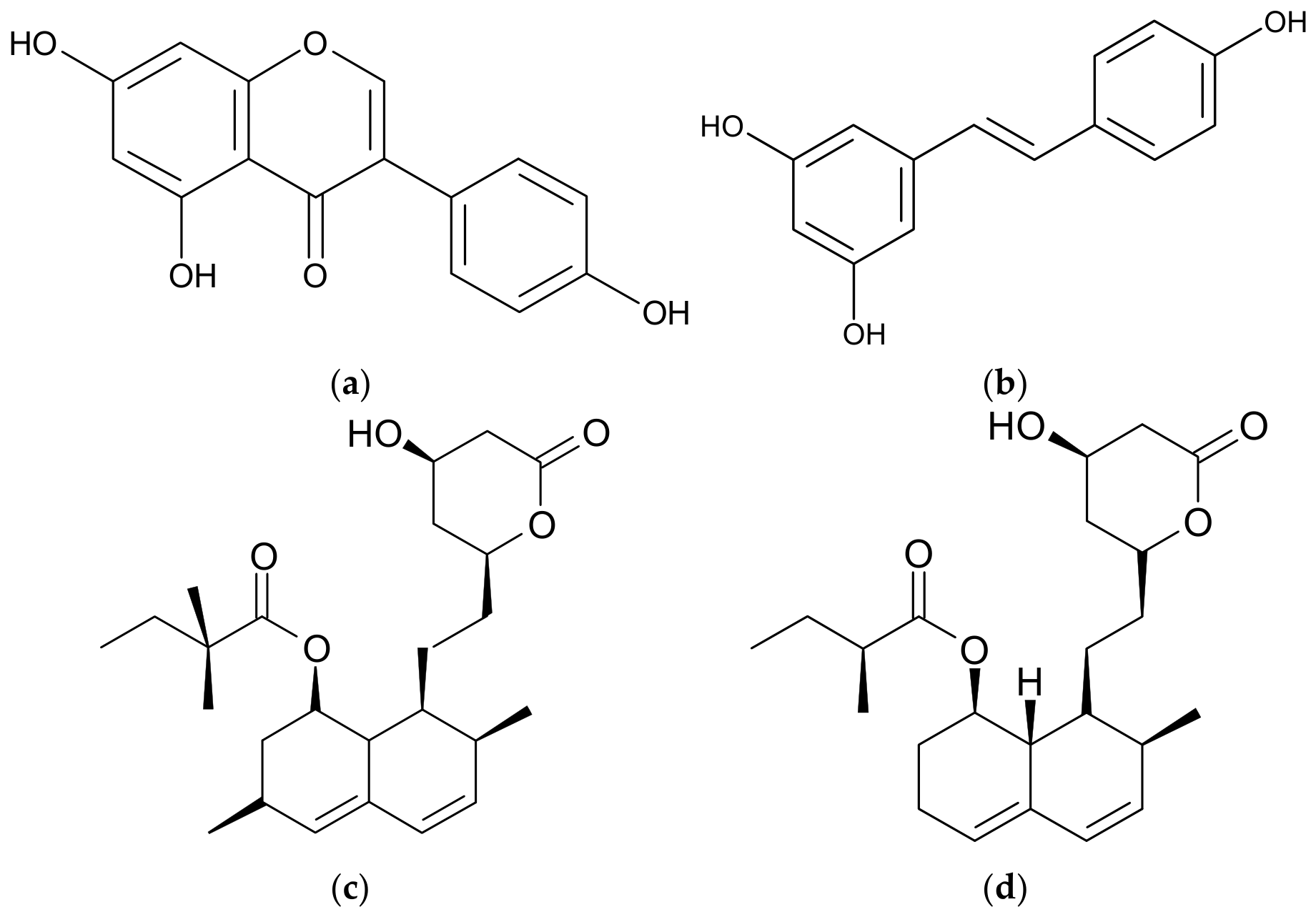

Genistein (
Figure 1a) is a plant-derived isoflavone found in several vegetables, recognized primarily as an effective inhibitor of protein tyrosine kinase (PTK). It has also been identified as a naturally occurring anti-cancer agent [
1]. Additionally, genistein inhibits various ion channels, including several types of potassium channels [
2]. Importantly, its inhibitory action on these channels occurs via a PTK-independent mechanism likely involving direct interactions with channel proteins [
2].
Resveratrol (3,4′,5—trihydroxystilbene—
Figure 1b) is a biologically active polyphenol isolated from plants—most notably present in red grapes and red wine—exerting various biological effects, including anti-cancer activity [
3]. Like genistein, resveratrol modulates different potassium channel activities [
2].
The voltage-gated potassium channel Kv1.3, encoded by the KCNA3 gene, is distributed across diverse tissues [
4] and can be found not only within plasma membranes but also embedded within inner mitochondrial membranes (mito Kv1.3) [
5]. The functionality of these channels plays an essential role in regulating cellular proliferation and apoptosis among cells that express them [
4,
5,
6,
7,
8,
9,
10,
11,
12,
13,
14]. Significant alterations in their expression may occur during certain cancer conditions [
6,
7,
8,
9,
10,
11,
12,
13,
14].
Inhibitors targeting these channels hold promise for clinical applications aimed at treating various disorders—including specific cancers like melanoma, pancreatic ductal adenocarcinoma (PDAC), multiple myeloma and B-type chronic lymphocytic leukemia (B-CLL)—that exhibit an overexpression of Kv1.3 channels [
6,
7,
8,
9,
10,
11,
12,
13,
14,
15,
16,
17,
18,
19,
20,
21].
Research suggests that some lipophilic organic inhibitors of Kv1.3 channels may possess anti-proliferative and pro-apoptotic properties against cancers expressing these channels while sparing normal cells [
6,
7,
8,
9,
10,
11,
12,
15,
16,
17,
18,
19,
20].
Among these inhibitors are certain flavonoids, chalcones and statins [
12,
17,
19], the efficacy of which can be enhanced when combined with statins, such as simvastatin or mevastatin [
17,
19]. The augmented channel inhibition may be correlated to improved pro-apoptotic activity on Kv1.3 channel-expressing cancer cells of Jurkat T [
17,
19].
Previous studies have established that both genistein and resveratrol inhibit Kv1.3 channels in human T cells via concentration-dependent mechanisms accompanied by significant reductions in activation rates without altering the kinetics of inactivation [
12].
It is well-known that the function of membrane proteins, including ion channels, may change in cancer cells when compared to normal cells. Our previous studies have shown that sensitivity of Kv1.3 channels expressed in cancer cells of Jurkat T to inhibition by naturally occurring compounds, including resveratrol, may be lower than in the case of channels in normal human T cells [Gąsiorowska—unpublished observations]. However, the inhibitory effect of resveratrol on Kv1.3 channels in cancer cells was not studied in detail. The influence of genistein on the activity of Kv1.3 channels in cancer cells still remains unknown.
The objective of this study was to investigate the influence of genistein and resveratrol on the activity of Kv1.3 channels in cancer cells. Both compounds were applied alone and in combination with simvastatin and mevastatin (
Figure 1c,d). The study was performed on a relevant model system—Kv1.3 channels expressed in the human leukemic cell line Jurkat T [
22,
23].
Our findings demonstrate that both genistein and resveratrol inhibit Kv1.3 channels in Jurkat T cells; however, their effects are less pronounced than those observed previously in normal human T lymphocytes [
12]. Notably, the combined application of each compound with the statins resulted in significantly augmented inhibitory effects compared to an individual application of each compound alone.
3. Results

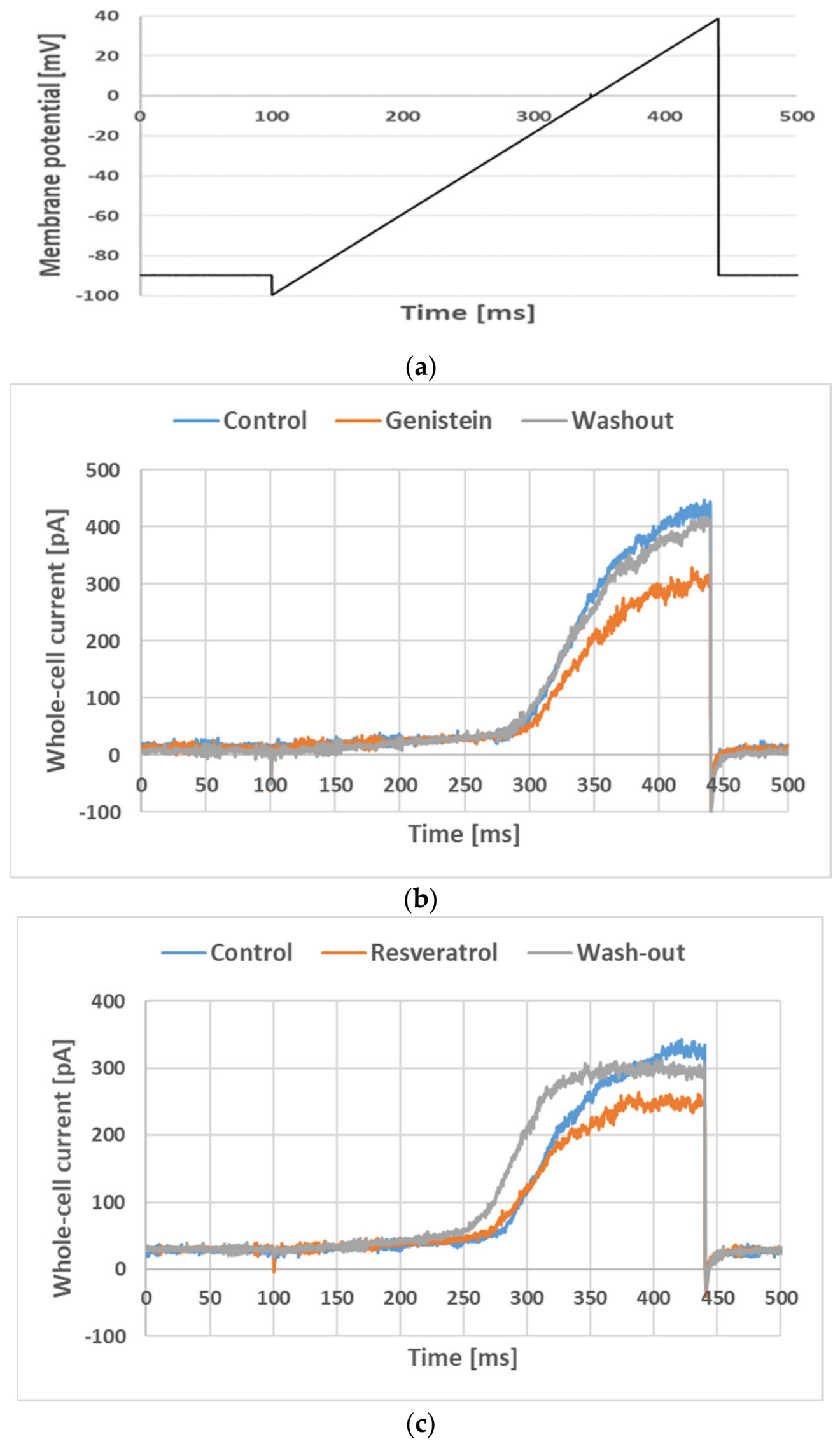

Figure 2 depicts examples of the whole-cell ramp currents recorded in a Jurkat T cell with the voltage ramp applied (as defined in
Section 2,
Figure 2a) under control conditions, upon application of genistein and resveratrol at a concentration of 30 µM and after wash-out of the compound (
Figure 2b and
Figure 2c, respectively).
The figure depicts raw ramp currents (without leak subtraction), which contained two components: small linear and much bigger non-linear ones. The linear component was an unspecific leak current. This current was irrelevant for this study, and it was subtracted from the total current during the offline analysis. On the other hand, the non-linear component was due to an activation of Kv1.3 channels [
27]. Visibly, an application of both genistein and resveratrol significantly diminished the amplitude of the Kv1.3 currents. The current recovered after the wash-out of genistein and resveratrol. This indicates that both compounds exerted an inhibitory effect on the current and this effect was fully reversible.

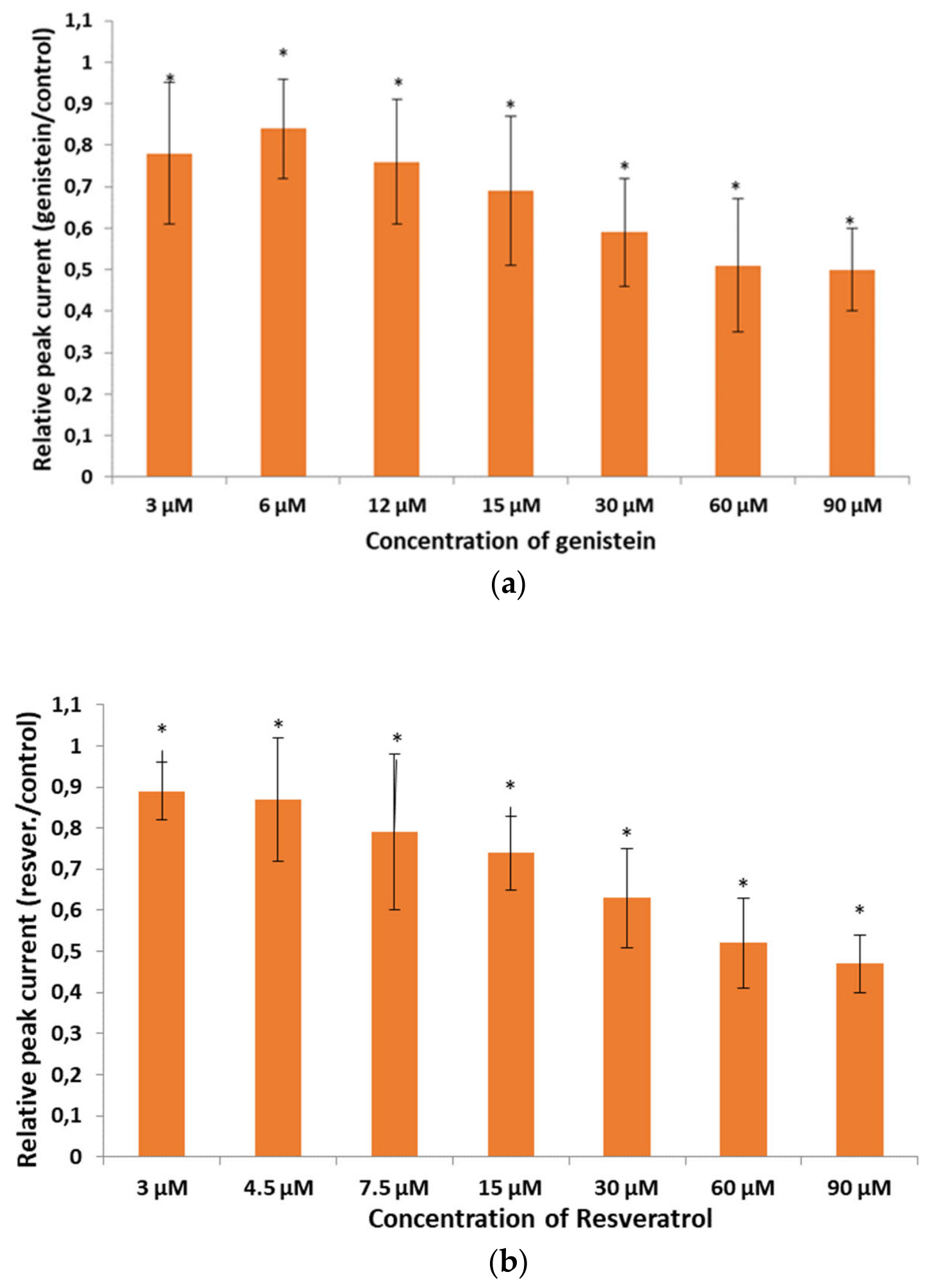

The inhibitory effects of genistein and resveratrol on Kv1.3 currents in Jurkat T cells were studied at different drug concentrations. Relative peak currents upon application of both compounds at various concentrations from 3 µM to 90 µM are shown in
Figure 3. Upon application of genistein at concentrations of 3 µM, 6 µM, 12 µM, 15 µM, 30 µM, 60 µM and 90 µM, the currents were reduced to: 0.78 ± 0.17 (n = 17), 0.84 ± 0.12 (n = 18), 0.76 ± 0.15 (n = 21), 0.69 ± 0.18 (n = 18), 0.59 ± 0.13 (n = 13), 0.51 ± 0.16 (n = 21) and 0.50 ± 0.10 (n = 20) of the control value, respectively (
Figure 3a,
Supplementary Table S1). The inhibitory effect of genistein on the currents was statistically significant (
p < 0.05) at all the concentrations applied and it was also weakly dose-dependent (
Figure 3a). An application of resveratrol at concentrations of 3 µM, 4.5 µM, 7.5 µM, 15 µM, 30 µM, 60 µM and 90 µM reduced the currents to: 0.89 ± 0.07 (n = 19), 0.87 ± 0.15 (n = 19), 0.79 ± 0.19 (n = 21), 0.74 ± 0.09 (n = 24), 0.63 ± 0.12 (n = 11), 0.52 ± 0.11 (n = 11) and 0.47 ± 0.07 (n = 20) of the control value, respectively (
Figure 3b,
Supplementary Table S2). The inhibitory effect of resveratrol on Kv1.3 currents in Jurkat T cells was statistically significant (
p < 0.05) at all the concentrations and weakly dose-dependent (
Figure 3b).
Our previous studies performed on Kv1.3 channels in normal human T lymphocytes demonstrated that the application of genistein and resveratrol significantly slowed down the channel activation rate without significantly changing the inactivation rate [
12]. Therefore, it has been studied whether slowing down also occurs in the case of the channels expressed in cancer cells.

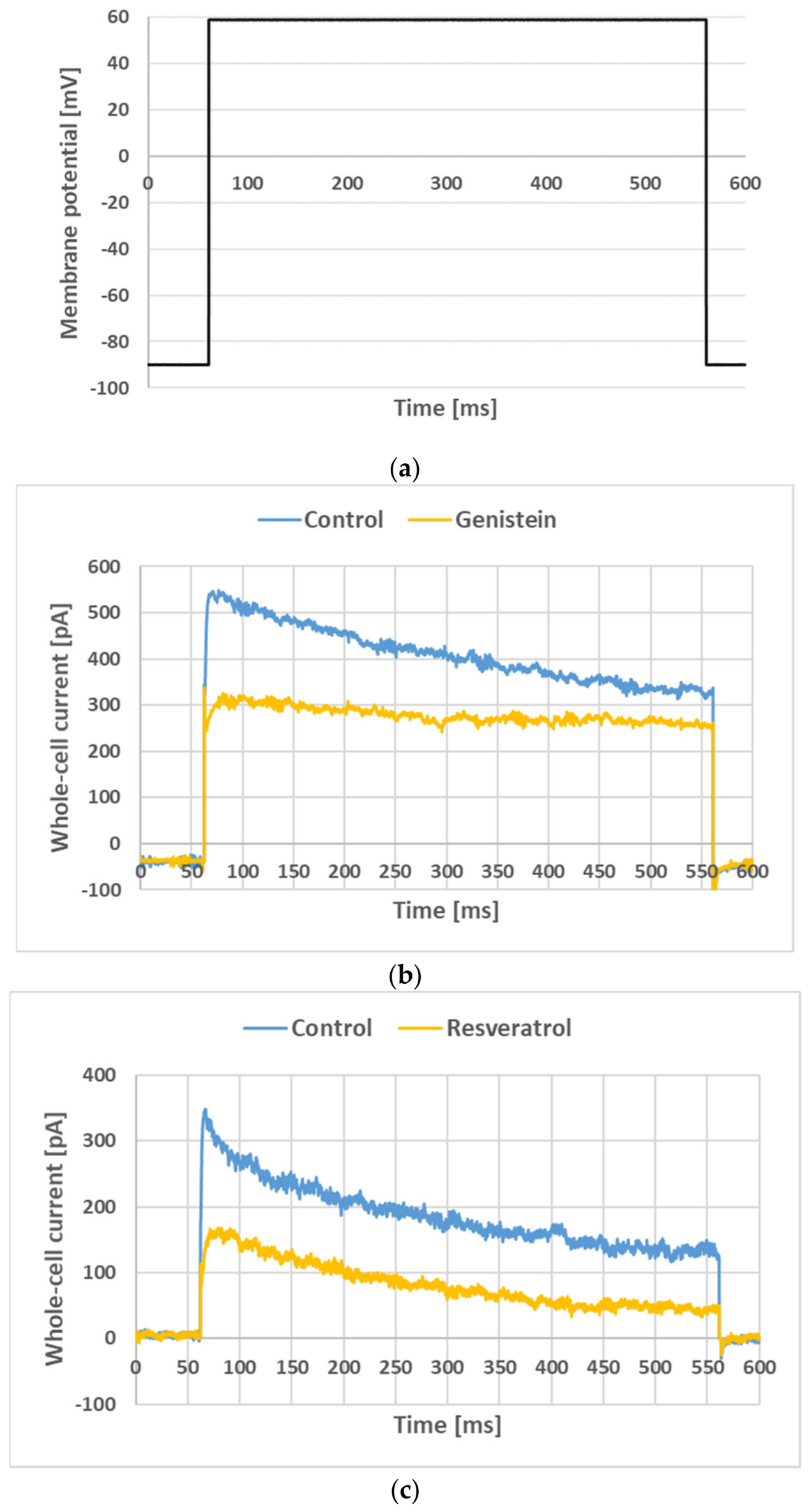

Figure 4 shows the currents recorded when applying the voltage step protocol (see
Section 2,
Figure 4a) under control conditions and upon application of genistein at a concentration of 30 µM (
Figure 4b) and resveratrol at a concentration of 90 µM (
Figure 4c).
Remarkably, the application of both compounds significantly slowed down the activation rate of the currents in Jurkat T cells (
Supplementary Tables S3 and S4). The slowing down of the activation rate was measured in terms of the relative kinetics of slowing (RKS), defined by Formula (1) in
Section 2.

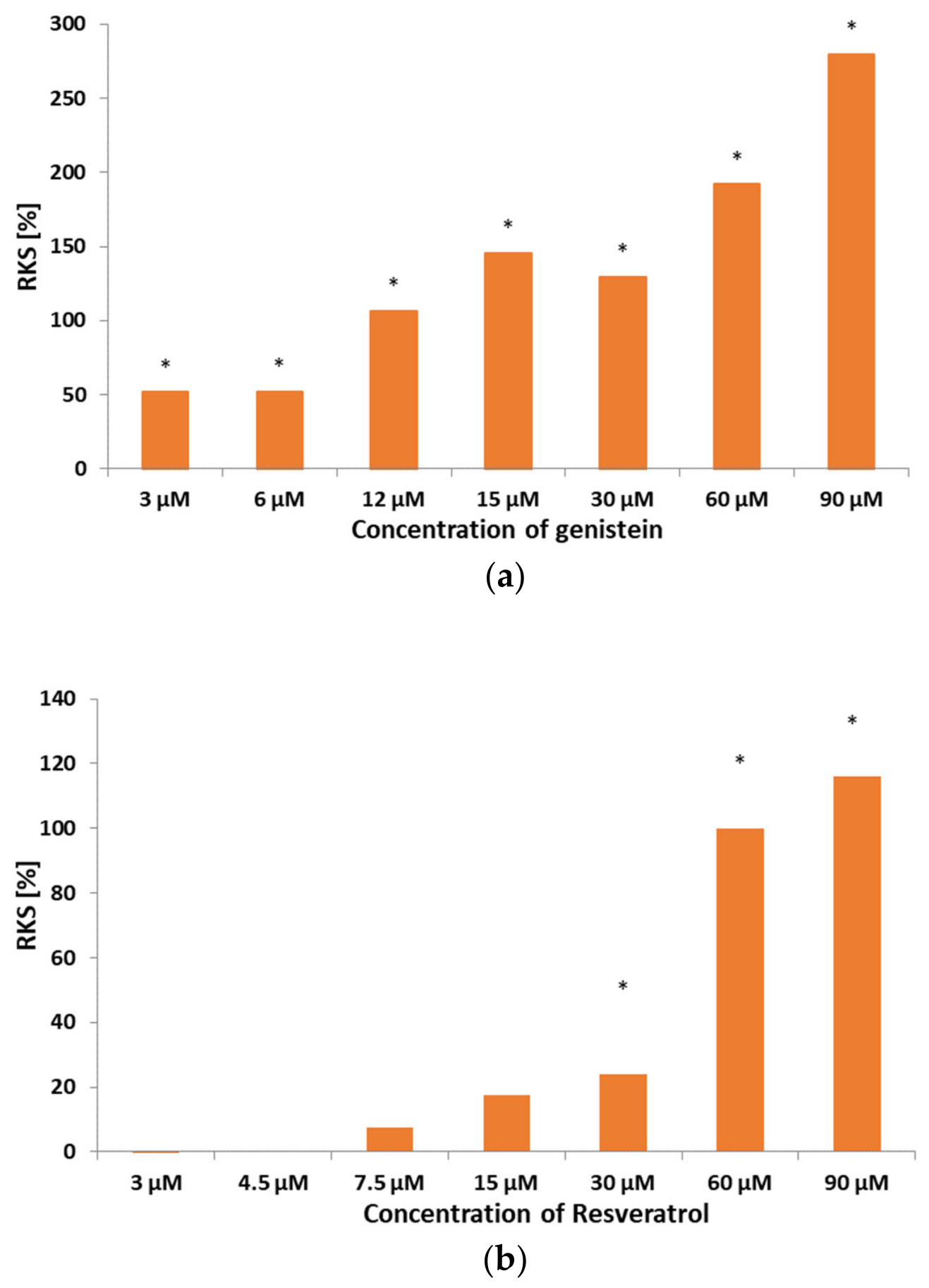

Figure 5 depicts the RKS values calculated for the currents recorded upon the application of genistein and resveratrol at different concentrations (
Figure 5a,b). In the case of genistein application, slowing down of activation kinetics was statistically significant (
p < 0.05) at all applied concentrations (
Figure 5a). Activation kinetics slowing down upon application of resveratrol were statistically significant (
p < 0.05) only at concentrations of 30 µM, 60 µM and 90 µM (
Figure 5b). Apparently, RKS values were higher when genistein was applied rather than when resveratrol was applied.
It was also studied whether an application of genistein and resveratrol changed the inactivation rate, measured in terms of the inactivation time constant τ calculated by applying Equation (2) (see
Section 2 and
Supplementary Table S5). Upon application of genistein at a concentration of 30 µM, the τ value was equal to 205.8 ± 40.62 ms (n = 16). This value was not significantly different (
p > 0.05) from the control value of 201.6 ± 28.07 ms (n = 16). Lack of change in the inactivation rate was also observed at other concentrations of this compound. Upon application of resveratrol at a concentration of 90 µM, the τ value was equal to 175.4 ± 25.97 ms (n = 16). This value was not significantly different (
p > 0.05) from the control value of 178.89 ± 30.69 ms (n = 14). The lack of influence of resveratrol application on the inactivation kinetics was also observed at lower concentrations of this compound.
Our previous study has shown that the inhibitory effects of genistein and resveratrol on Kv1.3 channels in normal human T lymphocytes are additive [
12]. Therefore, it is of interest to prove whether additive inhibition of the channels also occurs in the case of the co-application of genistein and resveratrol in cancer Jurkat T cells.

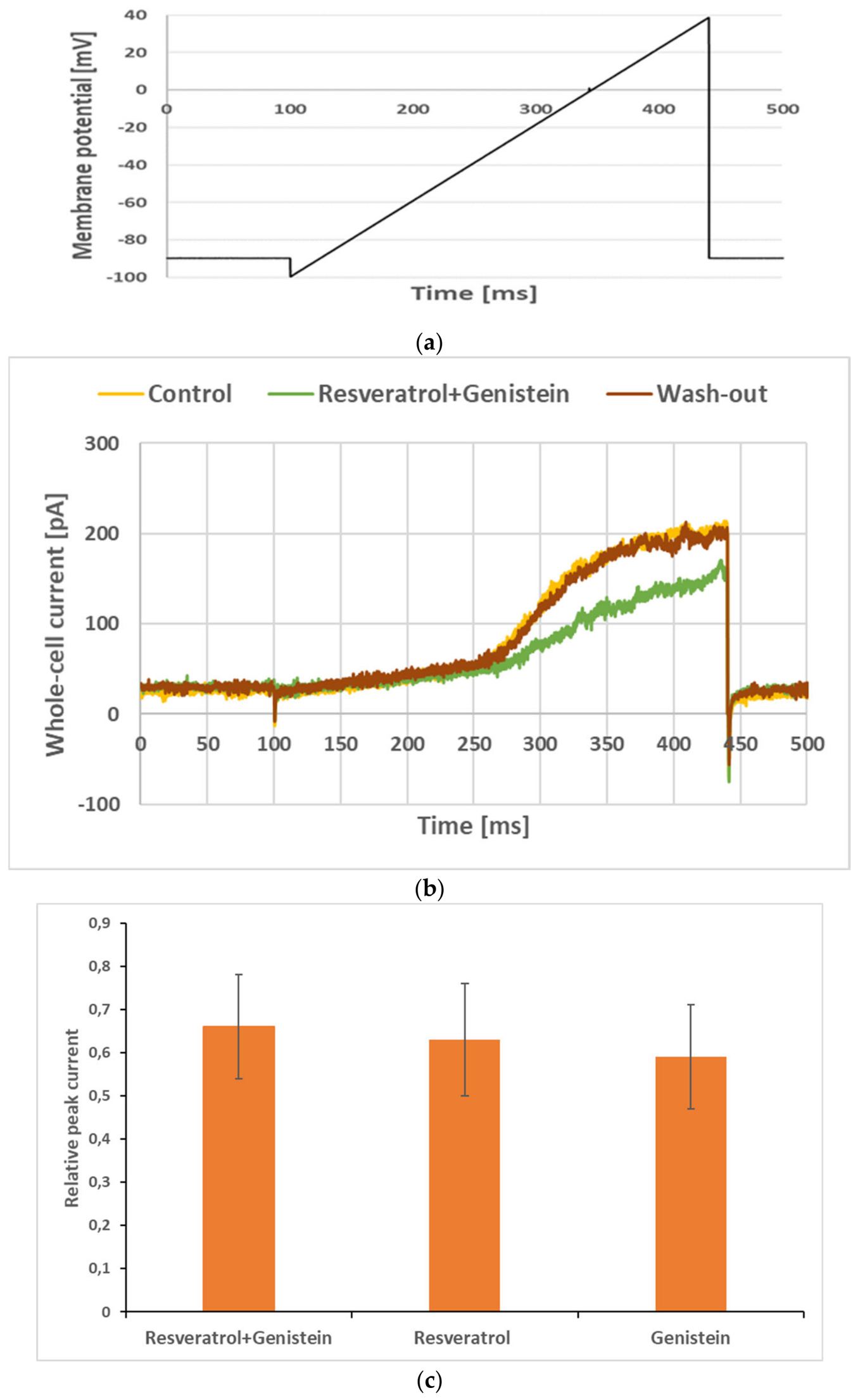

Figure 6b shows whole-cell currents recorded under control conditions, upon co-application of genistein and resveratrol at 30 µM and after wash-out of the mixture.
The inhibitory effects upon the application of a mixture of two examined compounds could be additive, synergistic or non-additive [
15]. In the case of an additive inhibitory effect (1 + 1 = 2), the relative peak current upon the application of a mixture is not significantly different (
p > 0.05) from the product of multiple relative peak currents upon the application of each compound alone. In the case of a synergistic inhibitory effect (1 + 1 > 2), the relative peak current upon the application of a mixture is significantly (
p < 0.05) lower than the product of multiple relative peak currents upon the application of each compound alone [
17]. In the case of a non-additive inhibitory effect (1 + 1 < 2), the relative peak current upon the application of a mixture is significantly (
p < 0.05) higher than the product of multiple relative peak currents upon the application of each compound alone [
17].
The relative peak currents when genistein and resveratrol were applied alone at a 30 µM concentration were equal to 0.59 and 0.63, respectively (see above). The theoretical value of the relative peak current upon the co-application of genistein and resveratrol at this concentration is equal to 0.59 × 0.63 = 0.37. However, the whole-cell current recorded upon co-application of genistein and resveratrol was not significantly lower than the currents recorded upon the application of each compound alone (compare
Figure 2 and
Figure 6). In accordance with this observation, the calculated relative peak current upon co-application of genistein and resveratrol was equal to 0.66 ± 0.11 (n = 21). This value was not significantly different (
p > 0.05) from the values obtained upon the application of each compound alone (
Figure 6c) and was significantly (
p < 0.05) higher than the theoretical value when assuming an additive inhibitory effect (
Table 1). Thus, the inhibitory effects of genistein and resveratrol were not additive (
Table 1).
Because the results of our previous studies showed that a co-application of some flavonoids and chalcones led to additive or synergistic inhibitory effects on the channels [
17], the next goal of our study was to investigate whether a co-application of genistein and resveratrol with simvastatin and mevastatin led to an additive or synergistic inhibitory effect on the channels.

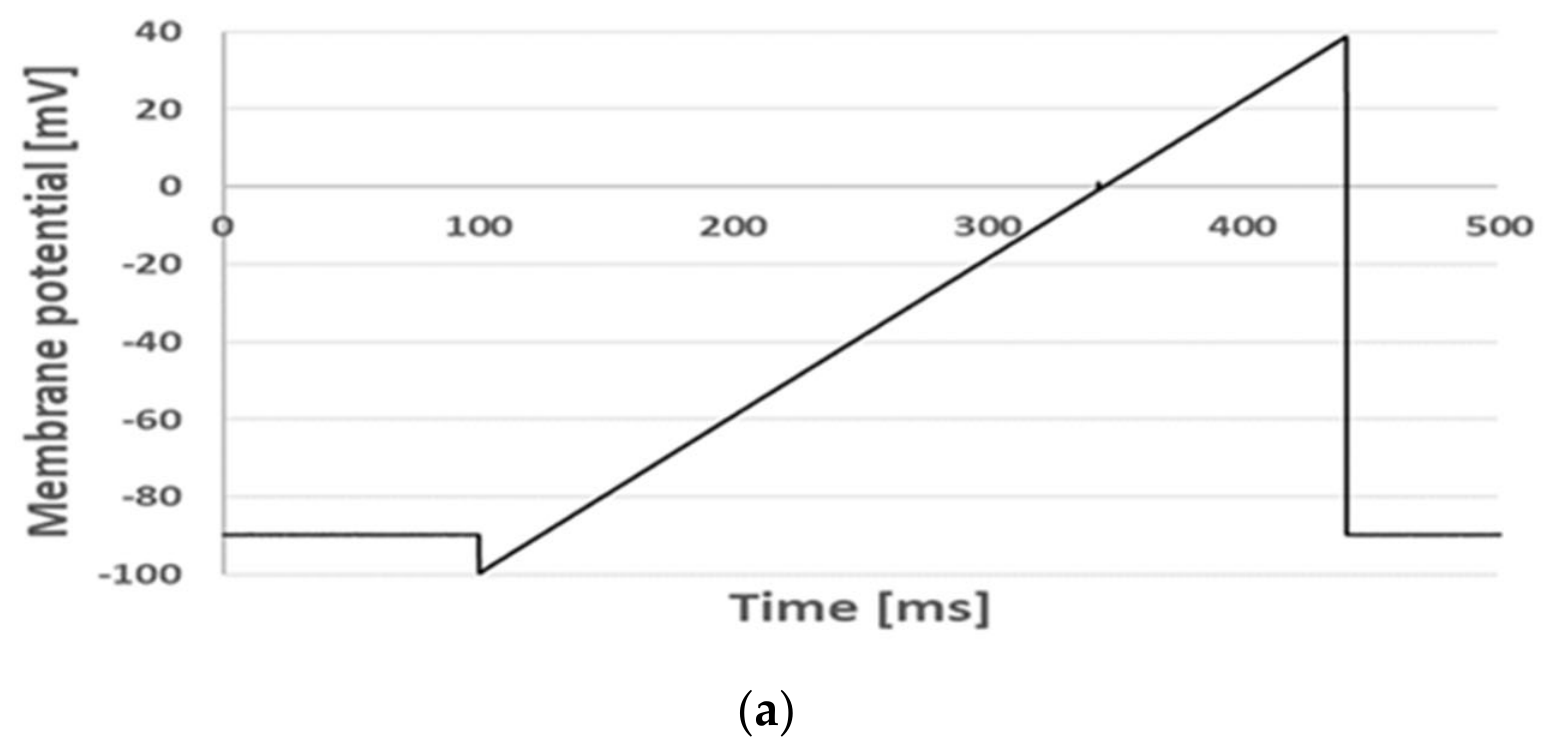

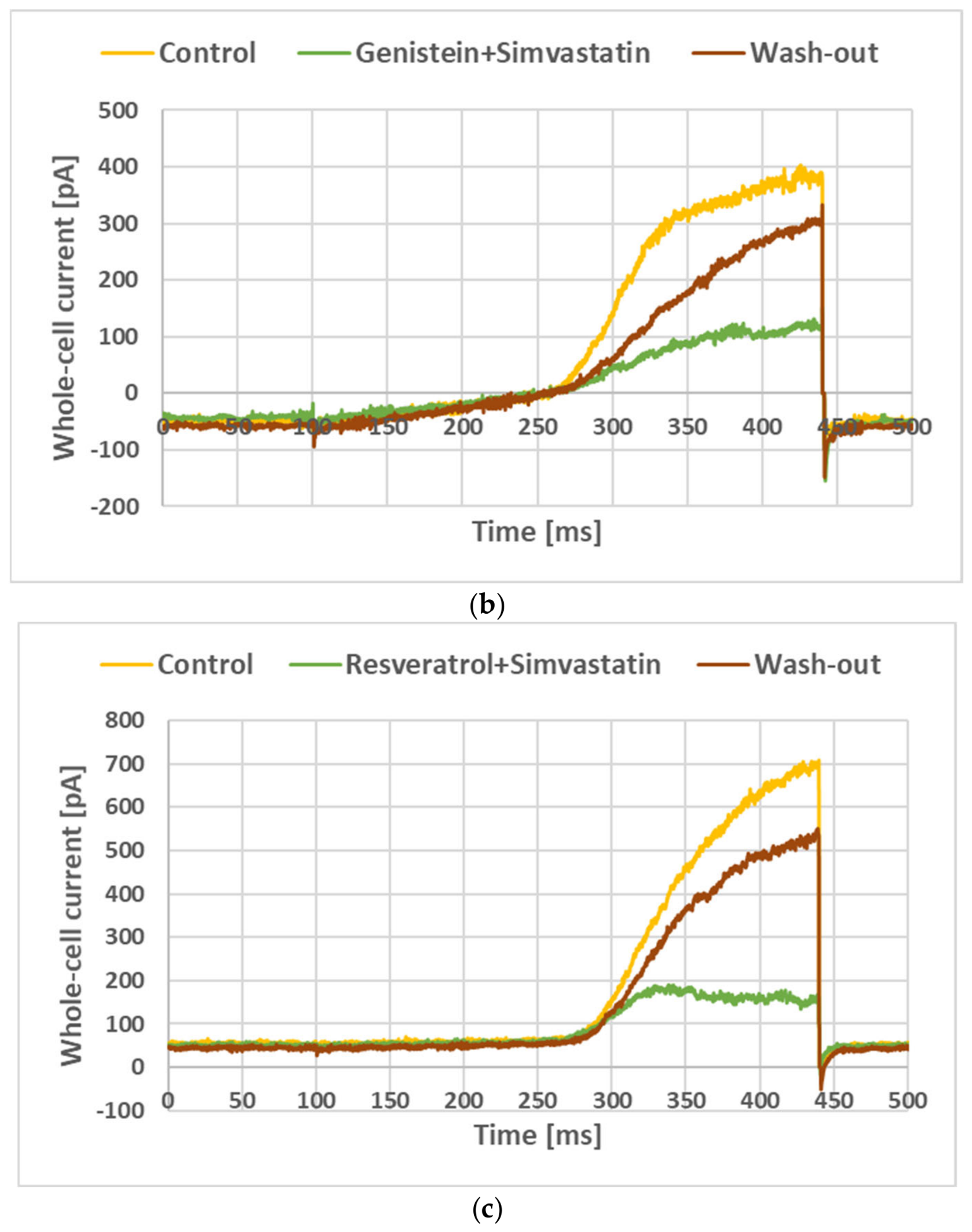

Figure 7b shows whole-cell currents under control conditions upon co-application of genistein at a 30 µM concentration and simvastatin at a 6 µM concentration and after the mixture was washed out.
Figure 7c depicts the currents recorded under control conditions, upon the co-application of resveratrol at a 30 µM concentration and simvastatin at a 6 µM concentration, and after wash-out of the mixture.
Apparently, the whole-cell currents recorded upon co-application of genistein and resveratrol with simvastatin were significantly lower than the currents recorded upon the application of either genistein or resveratrol alone (compare
Figure 2 and
Figure 7). Moreover, the currents incompletely recovered after the mixture was washed out. This may indicate that the inhibitory effect of the mixture on Kv1.3 channels is partially irreversible.

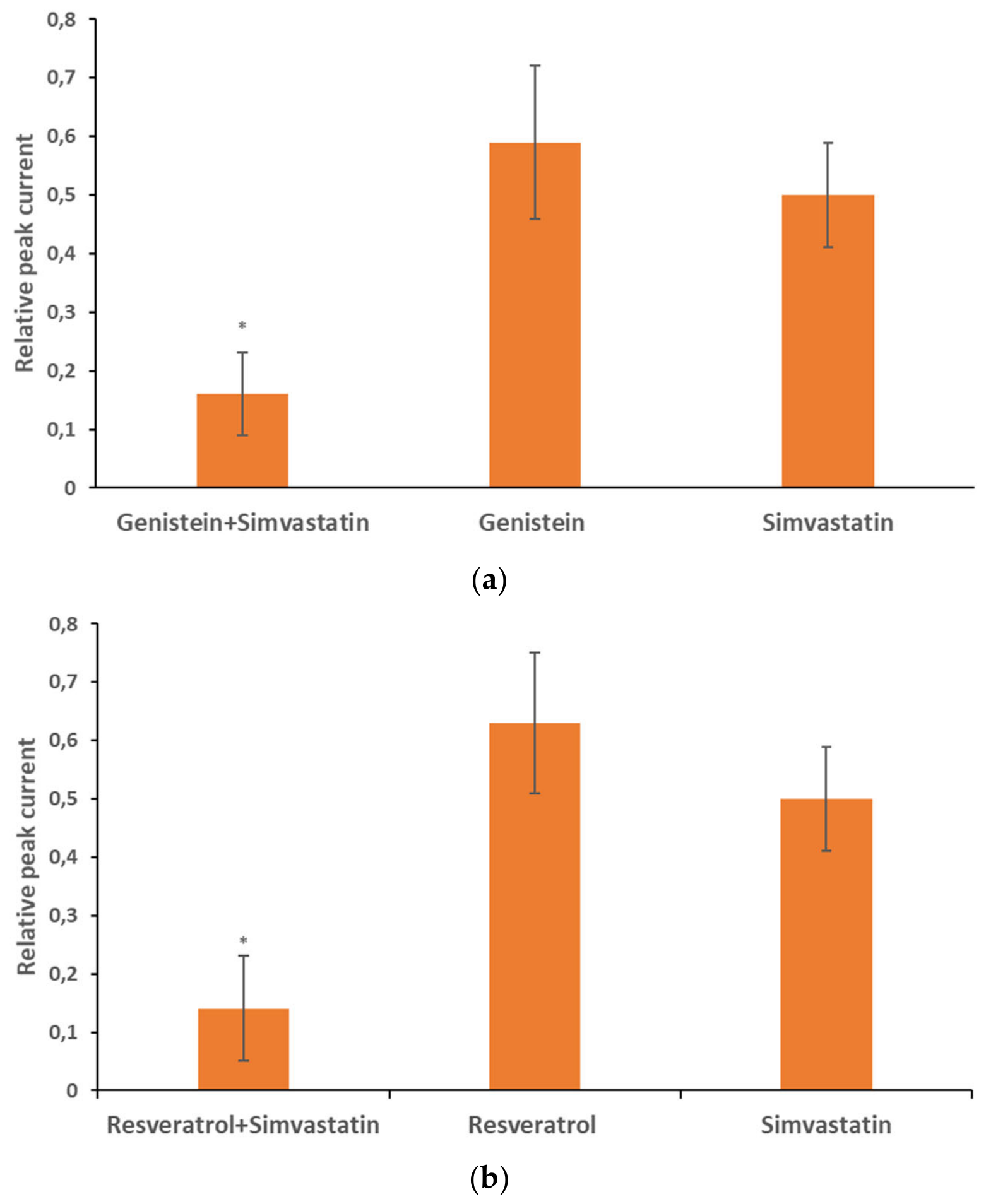

Figure 8 shows relative peak currents calculated upon the co-application of 30 µM of genistein (a) and resveratrol (b) with 6 µM of simvastatin. For comparison, relative peak currents upon the application of each compound alone are also presented.
Upon co-application of genistein with simvastatin, the relative peak current was equal to 0.16 ± 0.07 (n = 32) compared to the control value. This value was significantly (
p < 0.05) lower than the values upon application of genistein (this study) and simvastatin alone (0.50 ± 0.10, n = 16) [
19]. The relative peak current during co-application was significantly (
p < 0.05) lower than the product multiple currents recorded upon the application of each compound alone (
Table 1). Thus, the inhibitory effect of genistein and simvastatin was synergistic (
Table 1).
The relative peak current upon co-application of resveratrol and simvastatin was equal to 0.14 ± 0.09 (n = 17) of the control value. This value was significantly (
p < 0.05) lower than the values upon application of resveratrol alone (this study) and simvastatin alone [
19]. The relative peak current upon co-application was significantly (
p < 0.05) lower than the product of multiplying the currents recorded upon the application of each compound alone (
Table 1). Similarly, compared to the co-application of genistein and simvastatin together, the inhibitory effect of resveratrol and simvastatin was synergistic.

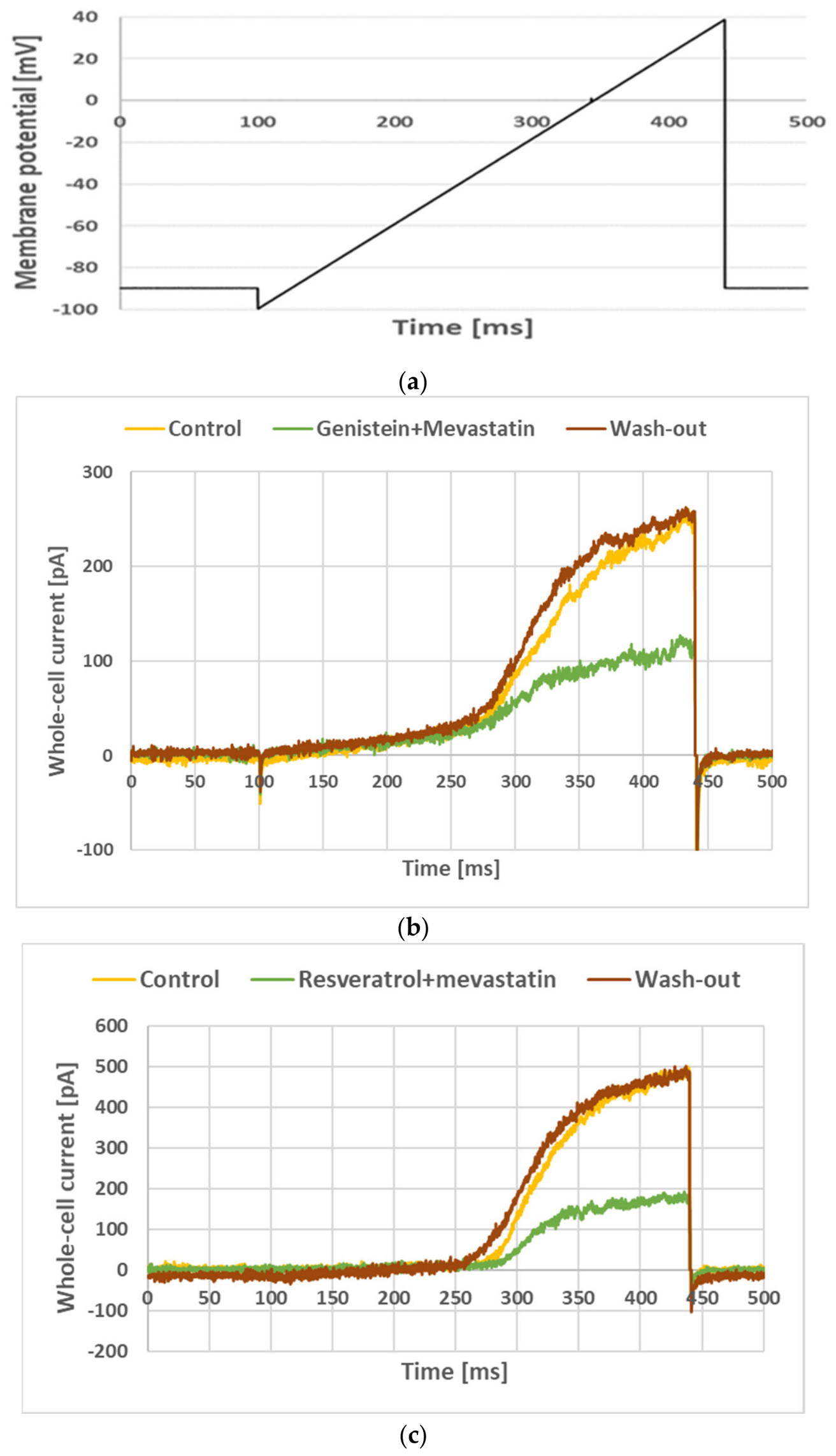

Figure 9b shows whole-cell currents under control conditions, upon the co-application of genistein at 30 µM concentration and mevastatin at 6 µM concentration and after wash-out of the mixture.
Figure 9c depicts the current recorded under control conditions, upon co-application of resveratrol at a 30 µM concentration and mevastatin at a concentration of 6 µM and after wash-out of the mixture.
Apparently, the currents recorded upon a co-application of both compounds with mevastatin were significantly lower than the currents recorded upon an application of both genistein and resveratrol alone (compare
Figure 2 and
Figure 9). The currents recovered completely upon a wash-out of the mixture. This indicates that the inhibitory effect of the mixture on Kv1.3 channels was reversible.

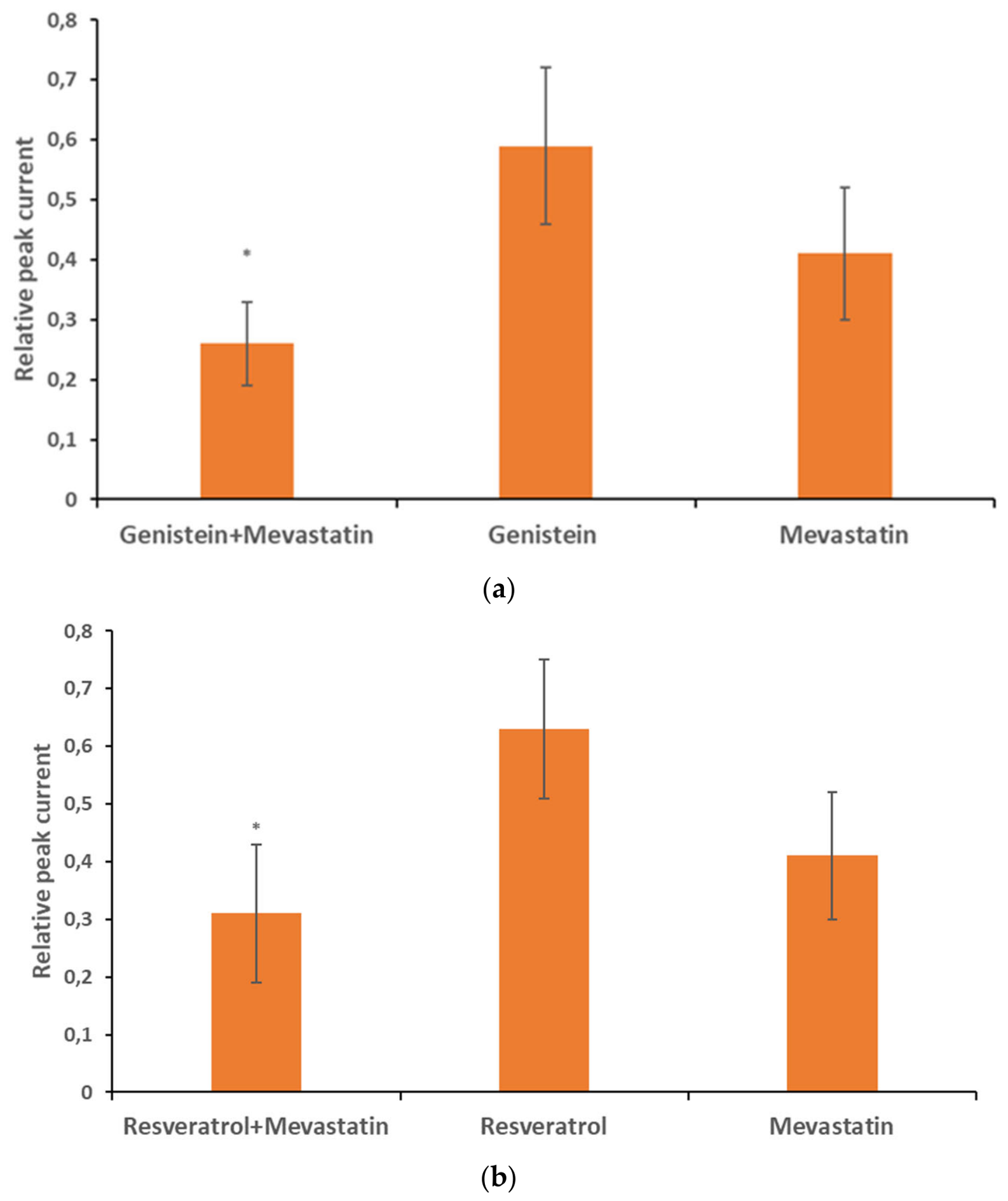

Figure 10 shows relative peak currents calculated upon co-application of 30 µM genistein (a) and resveratrol (b) with mevastatin applied at a concentration of 6 µM. For comparison, relative peak currents upon application of each compound alone were also presented. Upon application of the mixture, the relative peak current was equal to 0.26 ± 0.07 (n = 37) of the control value. This value was significantly (
p < 0.05) lower than the values upon application of genistein alone (this study) and mevastatin alone (0.41 ± 0.10, n = 21) [
19]. The relative peak current upon co-application was not significantly (
p > 0.05) higher than the product of multiplication of the currents recorded upon the application of each compound alone (
Table 1). This indicates that the inhibitory effects of genistein and mevastatin were additive (
Table 1).
Upon co-application of resveratrol and mevastatin, the current was equal to 0.31 ± 0.12 (n = 31) of the control value. This value was significantly (
p < 0.05) lower than the values upon application of resveratrol alone (this study) and mevastatin alone [
19]. The relative peak current upon co-application was not significantly (
p > 0.05) higher than the product of multiplication of the currents recorded upon the application of each compound alone (
Table 1). This indicates that the inhibitory effects of resveratrol and mevastatin were additive (
Table 1).
4. Discussion
The results presented in this paper may indicate that both genistein—a known isoflavone—and resveratrol—a polyphenolic compound—both inhibit Kv1.3 channels in Jurkat T cells dose-dependently but not completely, even at concentrations of 90 µM, where relative peak currents drop to half of the control value. An application of both compounds additionally causes a significant slowing of the current activation rate without significantly changing the inactivation rate. The inhibitory effects were not additive upon co-application of genistein and resveratrol. On the other hand, the inhibitory effects were additive when genistein and resveratrol were co-applied with mevastatin and synergistic when co-applied with simvastatin.
Our previous studies have shown that both genistein and resveratrol dose-dependently inhibit the activity of Kv1.3 channels in normal T lymphocytes [
12]. The half-blocking concentration was about 40 µM for both compounds [
12]. The channel activity was inhibited to about 0.23 of the control value in cases where genistein was applied at a concentration of 80 µM and about 0.25 upon application of resveratrol at a concentration of 100 µM [
12]. These values were considerably lower than those calculated in this study for Kv1.3 channels in cancer cells.
This may indicate that channel inhibition in normal cells is stronger than observed in this study for cancer cells.
Similarly, to the observation in the case of Kv1.3 channels in cancer Jurkat T cells, the inhibition of channels in normal cells was accompanied by a significant slowing of the activation rate [
12]. This may indicate that the putative mechanism of the channel inhibition remains the same in normal and cancer cells. It could be proposed that an application of genistein and resveratrol stabilized the channel proteins in the closed state, leading to a delay in their opening. Once the channel is open, the inhibitor’s molecules probably dissociate from the channel’s protein and rebind to the channel after its closure. Nevertheless, the extent of the channel inhibition is different. This may be due to the fact that the channels are expressed in different model systems. Different sensitivities of Kv1.3 channels expressed in different model systems for inhibition by the same compounds have widely been observed ([
28], Gąsiorowska—unpublished observations).
Two major pathways can be used by inhibitors of Kv1.3 channels to interact with the channels’ proteins. The first, “extracellular” pathway is mainly used by membrane-impermeant peptide inhibitors. These compounds can bind to the extracellular vestibule of the channel and block the channel’s pore like a “cork in the bottle” [
28]. The second, “intracellular” pathway can be used by small-molecule lipophilic compounds that share the ability to penetrate the cell membrane. These compounds may diffuse through the cell membrane and bind to their binding sites on the intracellular mouth of the channel [
28]. It has been shown that the “intracellular” pathway is used by lovastatin and probably also by mevastatin and simvastatin [
19,
29]. It may be possible that the same pathway can also be used by genistein and resveratrol. In order to verify this hypothesis, more research studies need to be done.
According to our previous observations upon the co-application of flavonoids with statins, such as simvastatin and simvastatin, additive or synergistic inhibitory effects occurred [
17,
19]. More effective was the co-application with mevastatin [
17,
19]. In contrast to these observations, the results of this study show that the channel inhibition was more pronounced upon co-application with simvastatin. It was shown that the relative peak currents upon co-application with simvastatin were significantly lower than theoretical values calculated assuming that the inhibitory effects were additive. This indicates that these effects were synergistic. On the other hand, additive inhibitory effects were observed upon the co-application of genistein and resveratrol with mevastatin.
Additivity or synergism is important for the putative application of genistein and resveratrol to support cancer therapy. The co-applications improve on the modest inhibitory effect exerted by genistein and resveratrol when applied alone. This may enable a reduction in the putative required therapeutic dose and minimize the risk of unwanted side effects [
15,
17].
Interestingly, the inhibitory effect upon co-applications with simvastatin was partially irreversible. Our previous study showed that an application of simvastatin caused a partially irreversible inhibition of Kv1.3 channels in Jurkat T cells [
19]. Irreversibility may be due to irreversible perturbations in structure of membrane lipid bilayers. It was shown that an application of simvastatin caused an irreversible decrease in the membrane capacitance [
30]. This decrease was probably a consequence of an irreversible increase in membrane thickness, probably due to accumulation of simvastatin in the plasma membrane [
30]. Accumulated drug molecules may directly or indirectly interact with channel proteins, irreversibly inhibiting the channel [
30]. Results of this study have shown that partial irreversibility of the inhibitory effect occurred upon the co-application of simvastatin at a 6 µM concentration with genistein or resveratrol. On the other hand, our previous study showed that an application of simvastatin alone at the concentrations of 6 µM and 7.5 µM caused a significant, but reversible inhibitory effect on the channels [
19]. This partial irreversibility observed in this study upon co-application could be a consequence of synergistic interactions of simvastatin combined with genistein or resveratrol with membrane lipid bilayers, leading to irreversible perturbations in its structure.
Channel inhibition may be related to anti-cancer activities of genistein and resveratrol [
1,
2]. It is known that lipophilic inhibitors of Kv1.3 channels may simultaneously inhibit uncontrolled proliferation of Kv1.3 channel-expressing cancer cells and induce the mitochondrial pathway of apoptosis for these cells [
5,
6,
7,
8,
9,
10,
11,
12]. The inhibition of proliferation may be related to an inhibition of plasma membrane Kv1.3 channels, whereas apoptosis induction may be a result of the inhibition of Kv1.3 channels in the inner mitochondrial membrane (mito Kv1.3 channels) [
5,
6,
7,
8,
9,
10,
11,
12]. It is known that genistein inhibits proliferation in Kv1.3 channel-expressing breast cancer cell lines of MCF-7 and MDA-MB- 231 [
31], the colon cancer cell line HT-29 [
32] and induces apoptosis in the colon cancer cell line HT-29 [
32]. Genistein is considered a putatively potent anti-breast cancer agent [
33,
34]. Resveratrol inhibits proliferation and induces apoptosis of the Kv1.3 channel-expressing colon cancer cell line Caco-2 [
35]. It also induces apoptosis of Kv1.3 channel-expressing U937 and MOLT-4 leukemia cells, MCF-7 breast cancer cells and A549 lung cancer cells [
36].
Importantly, some lipophilic inhibitors of Kv1.3 channels, in particular “mitochondriotropic” compounds (drugs that preferentially bind to mitoKv1.3 channels), share the ability to selectively induce apoptosis of Kv1.3 channel-expressing cancer cells while sparing normal cells, even if normal cells express a large number of Kv1.3 channels [
7,
8,
9,
10,
11,
12,
15,
16,
17,
18,
19,
20]. This is due both to an up-regulation of Kv1.3 channels in some cancer disorders and increased basal production of reactive oxygen species (ROS) by cancer cell mitochondria. The combination of both factors activates the mitochondrial pathway of cancer cell apoptosis. Normal cells do not undergo apoptosis in such a way because of a low basal level of ROS [
7,
8,
9,
10,
11,
12,
15,
16,
17,
18,
19,
20].
It may be possible that these anti-proliferative and pro-apoptotic effects of both compounds may be, at least partially, due to the inhibition of mito Kv1.3 channels in Kv1.3 channel-expressing cancer cells, leading to the selective apoptosis of Kv1.3 channel-expressing cancer cells. More research is necessary to verify this hypothesis.
Altogether, our results indicate that both genistein and resveratrol may be applied to support chemotherapy of cancer disorders, with an over-expression of Kv1.3 channels [
6,
7,
8,
9,
10,
11,
12,
15,
16,
17,
18,
19,
20], especially when co-applied with simvastatin and mevastatin. For this purpose, more studies are necessary to provide evidence that an application of genistein and resveratrol with and without statins leads to the selective elimination of cancer cells without killing normal ones, which occurs upon the application of “mitochondriotropic” inhibitors of mito Kv1.3 channels [
7,
8,
9,
10,
11,
12,
15,
16,
17,
18,
19,
20].
