Thin Film Nanocomposite Membranes Based on Zeolitic Imidazolate Framework-8/Halloysite Nanotube Composites
Abstract
:1. Introduction
2. Experimental Section
2.1. Materials and Chemicals
2.2. Synthesis of ZIF-8
2.3. Modification of ZIF-8 and HNTs with PSS

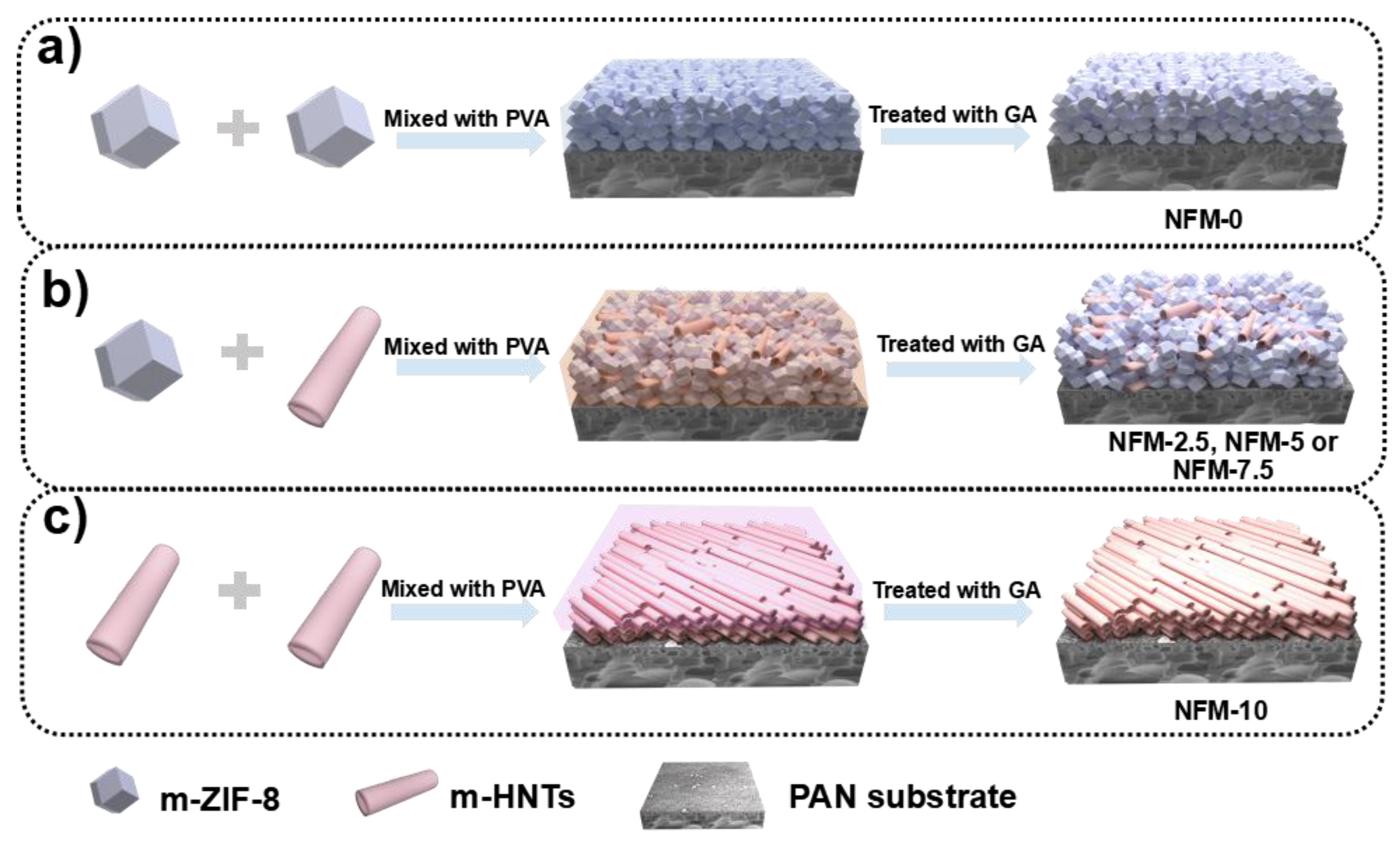

2.4. Preparation of m-ZIF-8/m-HNT/PAN Nanocomposite Membranes
2.5. Characterization of HNTs, m-HNTs, ZIF-8, and m-ZIF-8
2.6. Characterization of the m-ZIF-8/m-HNT/PAN Membranes
2.7. Filtration Tests of the m-ZIF-8/m-HNT/PAN Membranes
3. Results and Discussion

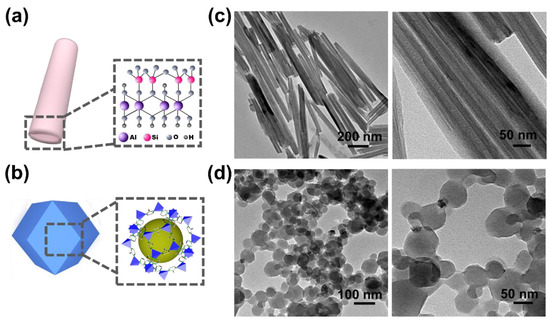

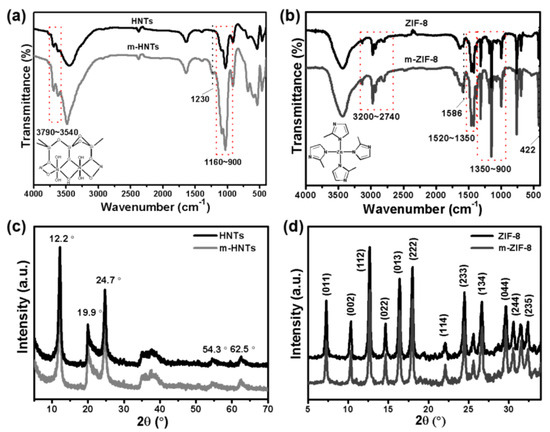

3.1. Characterization of the m-HNTs and m-ZIF-8 Nanomaterials

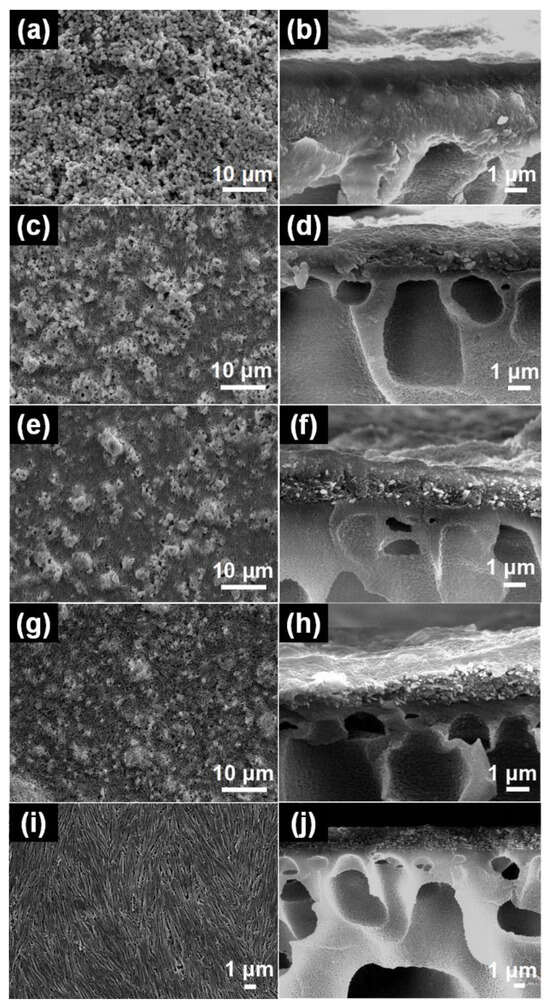

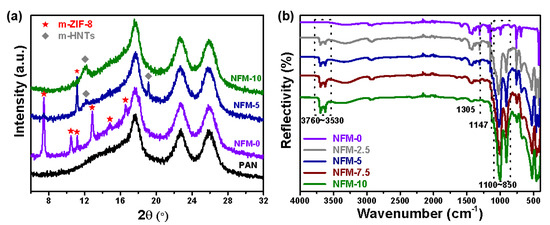

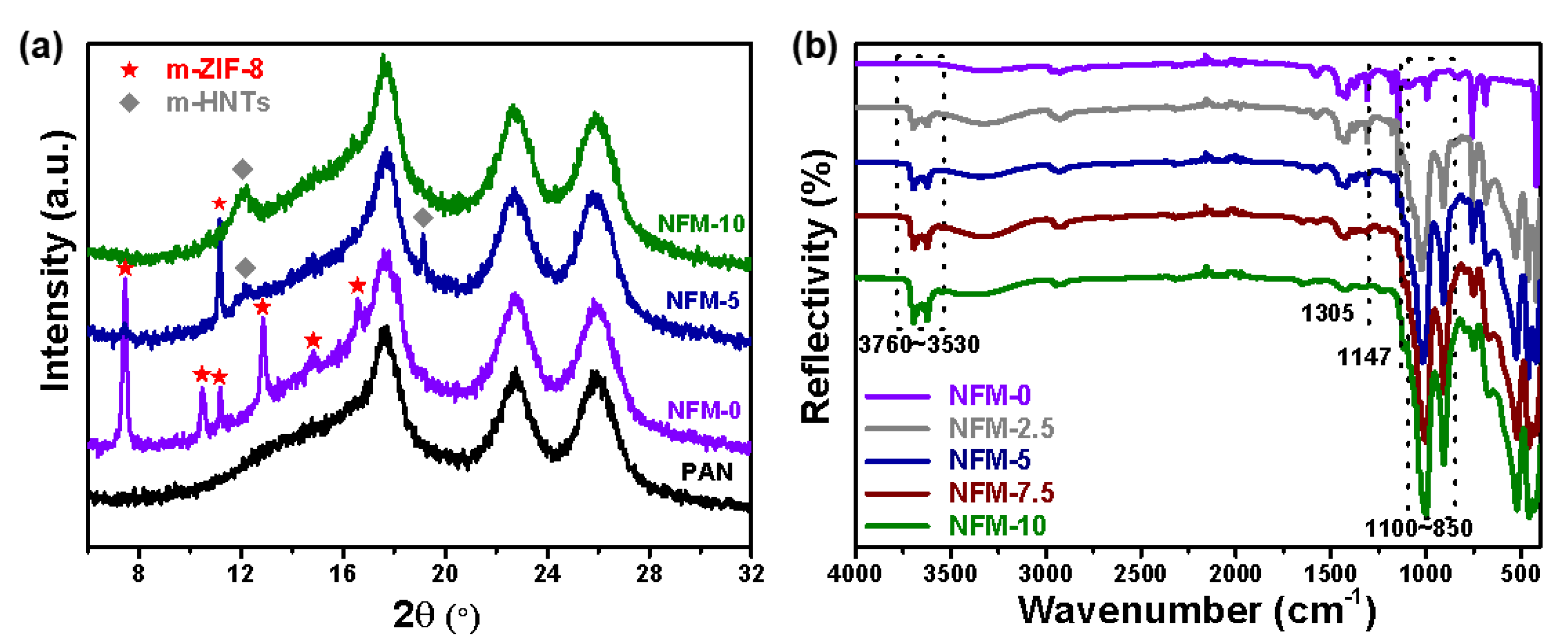

3.2. Characterization of the m-ZIF-8/m-HNT/PAN Membranes

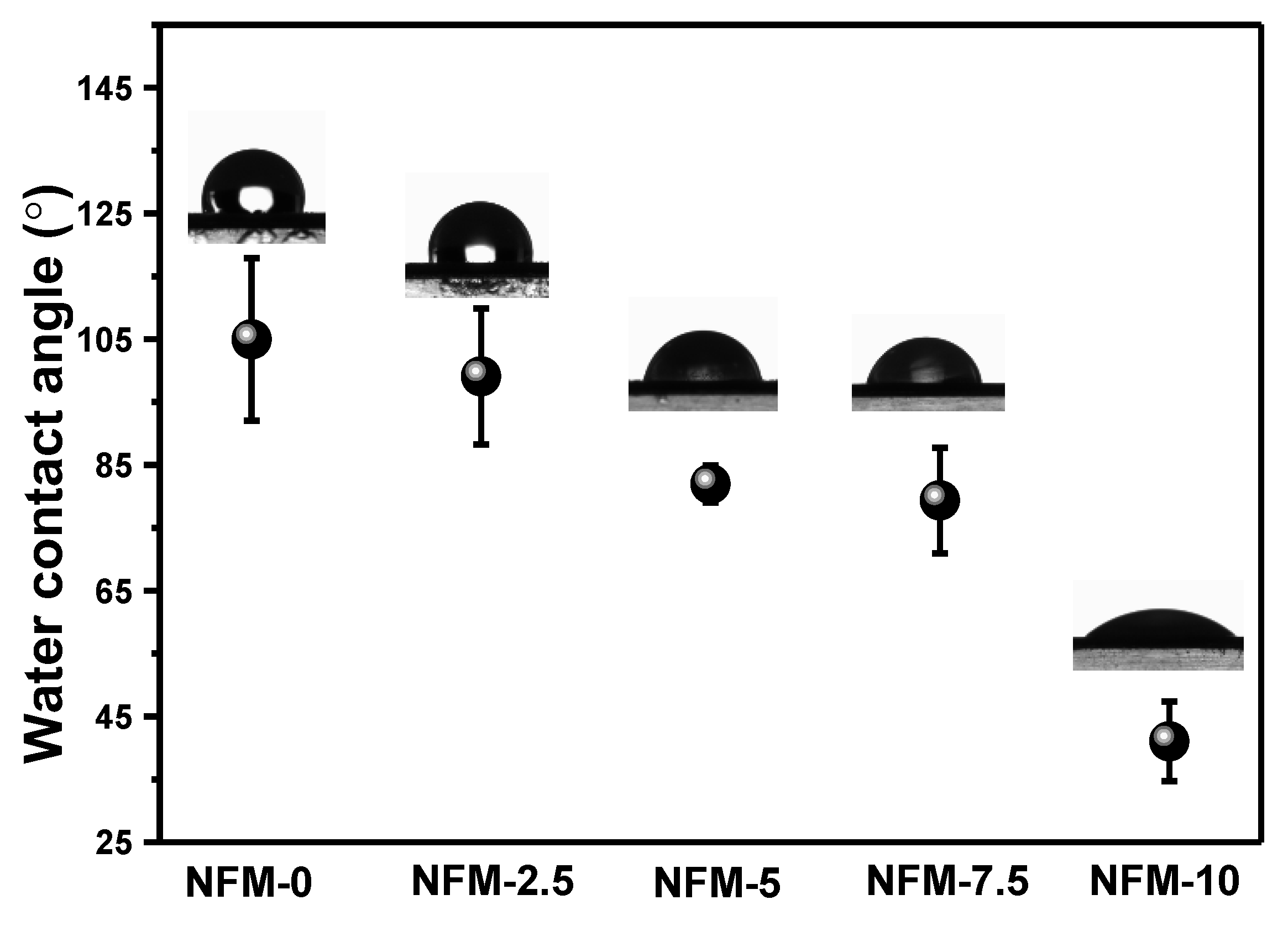

3.3. Hydrophilicity of the m-ZIF-8/m-HNT/PAN Membranes

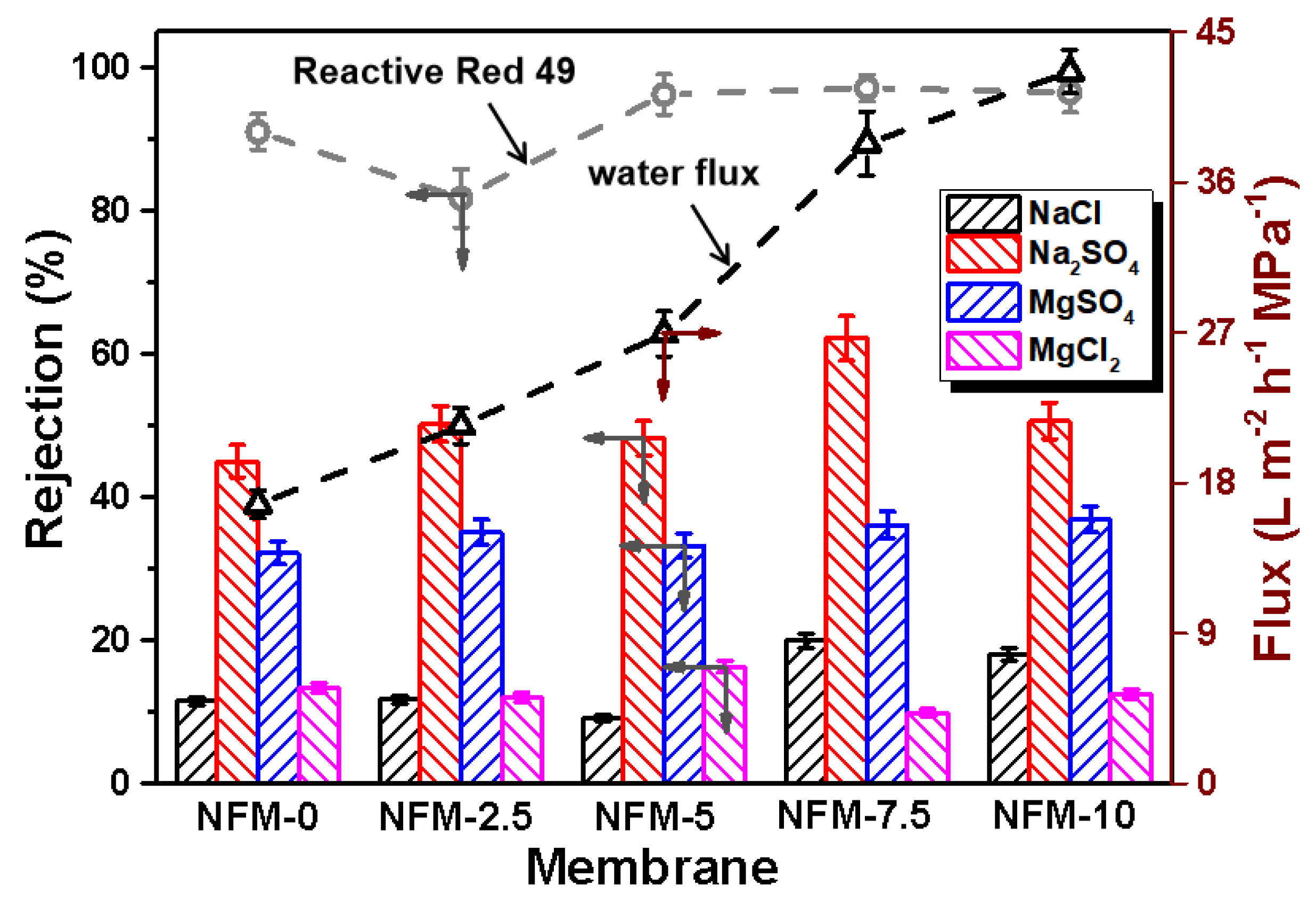

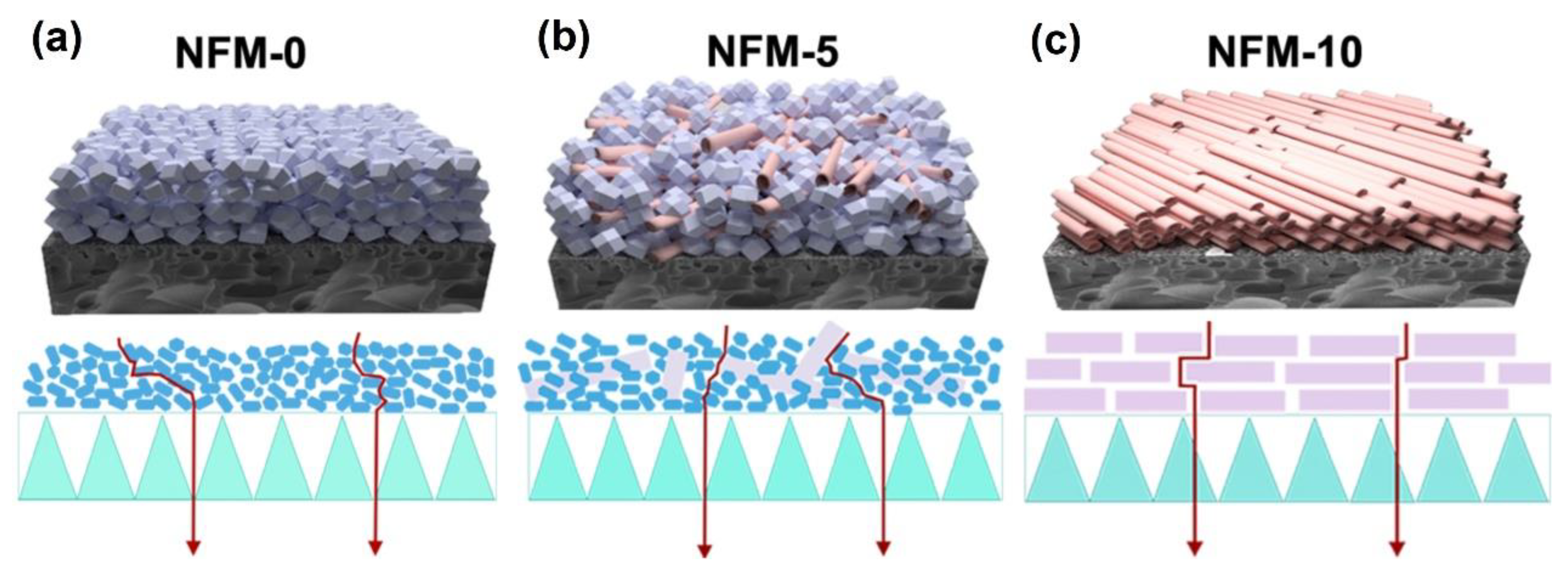

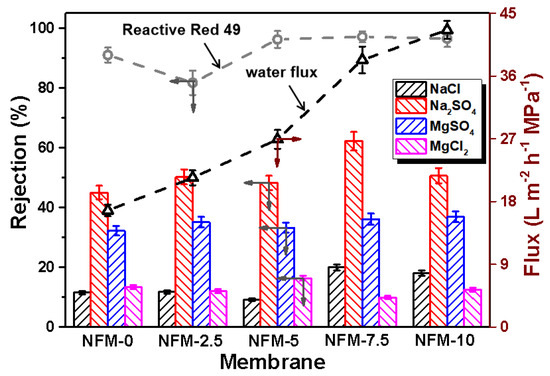

3.4. Separation Performance of the m-ZIF-8/m-HNT/PAN Membranes
4. Conclusions
Author Contributions
Funding
Data Availability Statement
Conflicts of Interest
References
