Experimental and Numerical Study of Pd/Ta and PdCu/Ta Composites for Thermocatalytic Hydrogen Permeation

by
Seungbo Ryu
1,†,
Arash Badakhsh
1,2,†,
Je Gyu Oh
3,
Hyung Chul Ham
3,
Hyuntae Sohn
1,4,
Sung Pil Yoon
1 and
Sun Hee Choi
1,4,*
1
Center for Hydrogen Energy and Fuel Cell Research, Korea Institute of Science and Technology (KIST), Seoul 02792, Republic of Korea
2
PNDC, University of Strathclyde, Glasgow G68 0EF, UK
3
Department of Chemical Engineering, Inha University, Incheon 22212, Republic of Korea
4
Department of Energy and Environmental Engineering, KIST School, University of Science and Technology (UST), Seoul 02792, Republic of Korea
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Membranes 2023, 13(1), 23; https://doi.org/10.3390/membranes13010023
Submission received: 28 November 2022 / Revised: 9 December 2022 / Accepted: 21 December 2022 / Published: 24 December 2022
(This article belongs to the Section Inorganic Membranes)
Browse Figures
Review Reports Versions Notes

Abstract

:
The development of stable and durable hydrogen (H2) separation technology is essential for the effective use of H2 energy. Thus, the use of H2 permeable membranes, made of palladium (Pd), has been extensively studied in the literature. However, Pd has considerable constraints in large-scale applications due to disadvantages such as very high cost and H2 embrittlement. To address these shortcomings, copper (Cu) and Pd were deposited on Ta to fabricate a composite H2 permeable membrane. To this end, first, Pd was deposited on a tantalum (Ta) support disk, yielding 7.4 × 10−8 molH2 m−1 s−1 Pa−0.5 of permeability. Second, a Cu–Pd alloy on a Ta support was synthesized via stepwise electroless plating and plasma sputtering to improve the durability of the membrane. The use of Cu is cost-effective compared with Pd, and the appropriate composition of the PdCu alloy is advantageous for long-term H2 permeation. Despite the lower H2 permeation of the PdCu/Ta membrane (than the Pd/Ta membrane), about two-fold temporal stability is achieved using the PdCu/Ta composite. The degradation process of the Ta support-based H2 permeable membrane is examined by SEM. Moreover, thermocatalytic H2 dissociation mechanisms on Pd and PdCu were investigated and are discussed numerically via a density functional theory study.

Graphical Abstract

1. Introduction

The reliance on fossil fuels since the 1950s has caused a stable increase in greenhouse gas emissions and triggered the greenhouse gas effect, the main driver of global warming [1]. One of the approaches to mitigate global warming is to develop clean and renewable energy sources, such as wind, water, solar, and geothermal energy. However, sustainable and eco-friendly energy sources vary by region and lack the required infrastructure worldwide. Hydrogen (H2) is one of the most promising energy carriers, given its high gravimetric energy density and its clean conversion byproduct, namely, water [2]. The chemical energy stored in H2 can be directly converted into electricity by using fuel cells and/or heat by combustion [3]. To date, ~50% of all H2 is produced by natural gas reforming, whereas a mixture of gases is released as the product [4,5]. Utilization of other H2 carriers and sources such as ammonia [6], a liquid organic hydrogen carrier (LOHC) [7], methanol [8], and biomass [9] also requires exhaust purification before the end-use. Therefore, the separation technique is essential for obtaining pure H2 from a mixture consisting of H2, nitrogen (N2), carbon monoxide (CO), carbon dioxide (CO2), and water vapor (H2O) [10]. However, commercial methods such as pressure swing adsorption (PSA) are expensive and complicated while also suffering from low energy efficiency [11]. To alleviate this gap, H2 separation by using membranes has been developed as an alternative method to reduce the cost and complexity of H2 purification [12].
In the H2 separation membrane, Pd is an essential catalyst for both the dissociation and association of atoms in the H2 molecule, yielding a high purity of >99.99% in the permeate H2 [13]. H2 gas molecule permeation through Pd is arguably governed by the solution diffusion mechanism, in which H2 dissociates into H atoms at the Pd surface. Then, the H atoms diffuse via the membrane and associate into H2 molecules at the surface of the opposite side [12,14]. Thus, the separation via Pd is independent of the molecular size of the gas and the pore size of the membrane. Furthermore, the solubility of hydrogen in the bulk of Pd is high and rather temperature-independent compared with other catalytically active metals for hydrogen atom association/dissociation [15,16]. Given these advantages, a very thin Pd film with a defect-free surface can be used as a suitable H2 separation membrane. As Pd is too expensive as a monolithic membrane, especially in large-scale applications, many studies have tried to reduce the cost of Pd-based membranes. The usual method is to use a support material such as dense or porous metals, ceramics, or polymers [17,18,19,20,21,22] because this approach increases the mechanical strength of the membrane while decreasing the amount of Pd. Furthermore, body-centered cubic (BCC) metals are promising materials because they have a better ability to permeate H2 than face-centered cubic (FCC) metals [23]. Moreover, BCC metal is advantageous because it can permeate high-purity H2 with only a sub-microscopic Pd layer, while porous support (PSS) or porous nickel support (PNS) require a microscopic thickness of Pd [24,25].
In this study, we selected Ta as the support among the BCC metals. The Wolden’s group reported that a Pd/Ta composite membrane has strong chemical durability against oxidation [26]. In their study, oxidized Nb and V were observed after a H2 permeation test, while Ta was not degraded by oxygen. Generally, group 5 (VB) metals, including Ta, have been presented as being suitable for fabricating thin H2 permeation membranes due to their relatively low price, good mechanical stability, and good H2 permeation potential [23,27]. Besides the cost, one of the disadvantages of Pd as an H2 separation membrane is H2 embrittlement at low temperatures. When Pd is exposed to H2 below 300 °C, beta-hydride is formed, thereby increasing the membrane volume and also breaking the membrane surface [28]. This effect can be weakened at temperatures of >300 °C, but other adverse effects such as increased energy usage and the aggregation of Pd would remain. To overcome this, Pd has been commonly alloyed with other FCC metals, such as Ag and Cu [29,30]. The alloyed metal allowed the H2 separation membrane to operate at low temperatures as it prevents Pd from forming beta-hydride even at about 200 °C and metal aggregation. Previous studies have reported that the solubility of H2 is high when PdCu alloys have an FCC structure, and the diffusivity is high when the BCC structure exists [29]. As the permeability of the H2 separation membrane is calculated by multiplying the solubility and diffusivity, it is necessary to fabricate membranes with the corresponding dual-functionality. Therefore, it is also important to find a composition in which two structures (BCC and FCC) exist simultaneously, for which the optimum weight ratio is reported as Pd:Cu = 6:4 [29]. In summary, we have selected the combination of Cu and Pd for the following reasons: (i) to maintain the high sulfur poisoning resistance of the membrane [31,32], (ii) to leverage the cost-effectiveness of Cu (6–6.22 USD/kg [33]) in alleviating the costliness of Pd (48,226 USD/kg [33])-based membrane systems, and iii) to enhance the durability of Pd/Ta composite membranes as delineated as crucial in the literature [34,35].
In this study, the fabrication of a durable and cost-effective H2 separation membrane was attempted. To this end, costly Pd or a less-expensive PdCu alloy was deposited on a Ta support surface to prepare the composite membranes. The synthesis methods and the permeation performance of the as-prepared membranes were studied and compared in detail to determine the suitability of the fabrication technique and alloying in achieving the study’s goal. Moreover, the correlation between the fabrication method and the permeation performance was delineated. Finally, density functional theory (DFT) was also applied to evaluate and explain the experimental trends obtained herein.
The novelty of this study can be summarized as the following:
  • Providing evidence that fabrication of nanometer-thick Pd and PdCu on a dense support is achievable via plasma sputtering.
  • Analysis of temporal stability of Pd/Ta and PdCu/Ta membranes.

2. Methodology

2.1. Materials

Ta sheets with a thickness of 250 μm were purchased from Koralco Corporation (Gwangju, Republic of Korea). They were then wire-cut into disks with a diameter of one inch. Hydrochloric acid (HCl) and phosphoric acid (H3PO4) were supplied by Samchun Chemicals (Seoul, Republic of Korea). Tin chloride (SnCl2), palladium chloride (PdCl2), hydrazine, and ethylenediaminetetraacetic acid (EDTA) were purchased from Sigma-Aldrich (St. Louis, MO, USA). Tetraamminepalladium dichloride monohydrate (Pd(NH3)4Cl2·H2O) was purchased from Sigma-Aldrich (St. Louis, MO, USA). All chemicals were used as-received and without further purification unless stated otherwise.

2.2. Membrane Preparation

The preparation process is shown in Figure S1 (in Supplementary Material). The Pd layer was electroless-plated (ELP) on pre-treated Ta discs and tubes. The surface of the Ta support was polished in the following order. First, Ta supports were polished using 800, 1200, 1500, 4000, and 7000 grit sandpaper. Subsequently, as mentioned in the literature [17], the impurities on the membrane were removed using a basic solution, and organic substances were removed through acid treatment using stepwise immersion in HCl and H3PO4 aqueous solutions. The Pd ELP is based on a well-established metal–metal galvanic exchange technique [36]. To this end, the surface was activated by sequential dipping of the membrane in 1.0 g/L SnCl2 and 1.0 g/L PdCl2 aqueous solutions, each containing 0.01 M HCl as the stabilizing agent. This process was repeated three times, and each step was conducted for 5 min. Finally, the ELP was performed at a temperature of 60 °C in a Pd(NH3)4Cl2 bath following the details mentioned in [17].
For the PdCu/Ta membrane, the sample was prepared using ELP and plasma sputtering (SPT). First, Pd was plated using the method described above. Then, Cu was deposited on the Pd layer by using a magnetron sputtering system (Korea Vacuum Tech, Gimpo-si, Korea). Subsequently, the prepared membrane was treated at 480 °C for 1 h in H2 atmosphere for alloying. The co-sputtered (co-SPT) PdCu/Ta membrane was also prepared by using a plasma sputtering system to avoid the adverse effect of Sn residue from SnCl2 during the activation process. The sputtering conditions were 10 cm (distance between the target and substrate), 25 W (Pd, DC), 18–45 W (Cu, RF) in 20 NmL/min of Ar stream, 2 mTorr of working pressure, and deposition temperatures of the room (~20 °C, R.T.) and 400 °C (Pd). The PdCu/Ta membranes were also prepared with ELP Pd and SPT Cu, successively. After deposition, Pd and Cu were alloyed at 480 °C for 1 h in a H2 atmosphere.

2.3. Permeation Testing

The tests were conducted by using high-purity (99.999%) H2 gas for the permeation test and Ar gas for purging during the heating and cooling processes. The gas flow rate was adjusted using a thermal mass flow controller (MFC, Bronkhorst High-Tech BV, Ruurlo, Netherlands), while the pressure at the membrane terminals was adjusted using an electric pressure controller (EPC). The permeate gas flow rate was measured by a mass flow meter (MFM, Bronkhorst High-Tech BV, Ruurlo, Netherlands) and a bubble flow meter (BFM, Horiba, Kyoto, Japan). The measurement system is described in detail in Figure 1. The supplied gas was either passed through the H2 separation membrane in the reactor (permeate) or separated to escape the furnace (retentate). In the experiment, H2 permeability was measured at 400, 425, 450, 475, and 500 °C (ramp-up rate: 5 °C/min) and the pressure range of 1–5 bar. A temporal stability test for H2 permeation was performed at the 500 °C and 5 bar conditions until the membranes were broken.

2.4. Material Characterizations

The surface and cross-sectional images of the prepared membranes were retrieved through scanning electron microscopy (SEM, Inspect F-50, FEI Company, Hillsboro, OR, USA), and elemental mapping was performed using an energy dispersive spectrometry detector (EDS, AMETEK Inc., Berwyn, PA, USA). An accelerating voltage of 15 kV was used for SEM analysis unless stated otherwise. Before retrieving the cross-sectional images, the samples had been molded and cured in epoxy resin for one day. Besides these characterizations, the prepared membranes were characterized using an X-ray diffractometer (XRD, D’ Max 2500, Rigaku, Tokyo, Japan) to investigate the lattice of alloyed metals and Rutherford backscattering spectroscopy (RBS, National Electrostatics Corporation, Middleton, WI, USA) to determine the composition of the alloyed metal prepared by ELP and SPT, respectively. XRD scanning range was 10–90 deg with a step size of 0.02 (2θ).

2.5. DFT Modeling

Spin-polarized density functional theory (DFT) calculations with the aid of the Vienna Ab-initio Simulation Package (VASP, University of Vienna, Vienna, Austria) [37] were also conducted, and the exchange-correlation function was described using the Perdew Burke–Ernzerhof generalized gradient approximation (GGA) method [38]. The projector augmented wave (PAW) method was applied to substitute complicated ionic potentials caused by the interaction between the ion and electron cores [39]. A plane wave expansion with a cutoff energy of 400 eV was used to express the valence electrons. A 5 × 5 × 1 Monkhorst–Pack mesh k-point was utilized to determine the optimal geometries and total energy with sufficient accuracy [40].
Four different model Pd surfaces were prepared, including face-centered cubic (FCC) Pd (111), body-centered cubic (BCC) Pd (110), FCC PdCu (111), and BCC PdCu (110) with 50 at.% Pd to understand the H2 dissociation on the surface and the diffusion of atomic H into the membrane. Each slab was modeled using 2 × 2 six-layer supercells, with all the layers relaxed. Although Pd exists as the FCC crystal structure in the standard state, BCC Pd is considered for comparison against BCC PdCu. The quantified lattice parameters of FCC Pd, FCC PdCu, BCC Pd, and BCC PdCu were, 3.94 Å, 3.81 Å, 3.23 Å, and 2.99 Å, respectively. These estimates showed good agreement with the empirical estimates [aPd = 3.89 Å, a(FCC Pd52Cu48) = 3.77 Å and a(BCC Pd47Cu53) = 2.97 Å] (see Table 1). Moreover, the climbing image nudged elastic band (CI-NEB) method [41] was applied to quantify the energy barriers for H2 dissociation on the modeled Pd and PdCu surfaces. Six images between the initial and final adsorption geometries were generated for this purpose. Equation (1) was used to calculate the binding energy (Ebind) of H2 (or H):
E bind = E H 2 ( or   H ) / slab − ( E slab + E H 2 ( or   H ) )
where E H 2 ( or   H ) / slab , E H 2 ( or   H ) , and E slab are the total energy of the H2 (or H)-adsorbed slab, gaseous H2 (or H), and pure slab systems, respectively.

3. Results and Discussion

3.1. Pd/Ta Membrane

In the Pd/Ta H2 separation membrane, the permeability was measured at 450–500 °C and 1–5 bar of pressure difference, as shown in Figure 2a. For these metal membranes, H2 permeates in the following order: adsorption, dissociation, volumetric diffusion, association, and desorption. Equation (2) establishes the permeate flux of these membranes based on Sievert’s law:
J = Q f l ( P f e e d n − P p e r m n )
where Qf represents the permeability of the membrane, l is the thickness of the membrane, Pfeed is the pressure of the front part before permeation, and Pperm is the pressure of the latter part after permeation. In the H2 separation membranes, n = 0.5 if the permeation rate is determined by diffusion through the metal layer, while n = 1 if the rate is determined by the H2 dissociation/association reaction on the surface, and 0.5 < n < 1 if both apply [45]. It is generally thought that H2 penetration in a metal layer containing Pd follows the Sievert’s law, which means n = 0.5 [46]. In this case, the atmosphere was close to the ideal gas conditions, and the rate of H2 permeation was mainly conducted through the metal lattice. Figure 2 shows the permeability of the Pd/Ta composite membrane at various temperatures and pressures. The H2 permeability of the Pd/Ta membrane was measured as 16.18 cm3·cm−2·min−1. This illustrates a 7.4 × 10−8 molH2 m−1 s−1 Pa−0.5 permeability which is well within the range reported previously for Pd/Ta membranes [34]. At 500 °C, H2 permeated through the membrane at n = 0.5. However, n was close to one in the 475 °C and 450 °C experiments. This phenomenon could be driven by the degradation of the membrane surface with the increasing experimental time. In this experiment, H2 permeability was measured from high to low temperatures.
Figure 2b illustrates the comparison of the permeability of H2 separation membranes prepared by various methods at 500 °C and a pressure difference of 5 bar. In the H2 separation membrane, fabricated by ELP and SPT at 400 °C, the H2 permeability exhibited nearly similar values. The H2 separation membrane, deposited at room temperature, exhibited a significantly lower estimate than the other two membranes. This phenomenon is attributable to the difference in the density of the Pd surface.
In general, due to the sintering effect, the metal deposited at high temperatures is denser than the one sputtered at room temperature. When Pd is deposited on the substrate at a high temperature, Pd atoms easily move on the substrate, thereby forming a denser layer during sputtering deposition [47]. This was confirmed by the SEM images of the samples before the H2 permeation test, as shown in Figure 3. As seen, the membranes prepared by ELP and SPT at 400 °C have denser structures than the room-temperature SPT surface with many defects. The SPT Pd layer deposited at RT has a relatively larger size (~10 nm, thus, agreeing with the available literature [48,49]) and a larger number of pores than the SPT Pd deposited at 400 °C and ELP Pd. On top of that, almost no pores were identified on the surface.
Moreover, the morphology of the H2 separation membranes was changed after the permeation test for 10 h. The porous structure of the SPT samples was changed to a smoother surface due to sputtering at the operating temperature. Large pore islands were formed by the agglomeration of Pd on the surface. After long exposure to a high temperature, Pd becomes more aggregated, revealing the Ta support layer [34]. This degradation is a critical weakness in the H2 separation membranes during long-term use. To address this, PdCu alloys were also prepared and tested in this study.
Figure 4 shows the SEM images of the cross-sections of the ELP and SPT Pd/Ta membranes after the H2 permeation experiment. In contrast to Figure 1d (for Pd/Ta before the H2 permeation test), the delamination was identified on the cross-section of the membrane after the experiment. This finding confirms that separation occurred precisely at the interface between Ta and Pd. As the experiment was conducted at a high temperature (500 °C), the surface of Ta, directly exposed to H2, increases as Pd aggregates on the surface. Then, delamination occurs, given the difference in the H2 embrittlement between the two metals. Unlike Pd with generally low H2 embrittlement at high temperatures, Ta exhibits the opposite trend [23,50]. In addition, the Sn used in electroless plating can also affect delamination.
Furthermore, the Sn residue in the ELP method reduces the adhesion of Pd to the Ta substrate, thus, promoting the delamination of Pd (see Figure S2). This phenomenon prevents a uniform supply of hydrogen atoms to Ta, subsequently leading to a higher degree of delamination, which can ultimately reduce the stability of the H2 separation membrane in long-term operations. The delamination occurs in the membranes prepared by sputtering without Sn, but this delamination occurs at smaller scales and more sporadically. This indicates that the H2 embrittlement and Sn residue factors both affect the degradation of the metal-support-based H2 separation membrane.

3.2. PdCu/Ta Membrane

Besides the Pd/Ta membrane, a layer of PdCu alloys was deposited on Ta supports to mitigate the disadvantages of Pd, including the weak durability and high cost. PdCu/Ta membranes were prepared using two methods: (i) electroless-plated (ELP) Pd, followed by sputtered Cu (SPT), and (ii) co-sputtered PdCu (co-SPT) on the Ta disk. Figure 5 indicates that the formation of a uniform Pd-based coating is achievable on dense supports, which is a silicon wafer in this case. The thickness of the co-sputtered layer is measured to be 446.8 nm, and it is at least one order of magnitude lower than the Pd coating on the porous supports reported by previous studies [45]. The advantage of thinner Pd-based alloy could also be supported by the work of Ramachandran et al. [51], where they illustrated that H2 permeability is inversely correlated with Pd-based membrane thickness.
Figure 6 shows the characterization of the co-SPT alloy membrane by using XRD and RBS. X-ray diffractograms demonstrate that Pd and Cu exist as alloys and not as separate phases. Note that quantitative analysis of the alloys was possible by using RBS, which confirmed the alloy composition present in the membrane. The PdCu alloy has different metal lattices depending on the component ratio. The highest performance ratio is the 6:4 weight ratio (47:53 mol ratio), where both FCC and BCC structures exist simultaneously [29]. In general, the FCC lattice has high solubility, and the BCC lattice has high diffusivity. Figure 6b shows that the optimum alloying ratio has been achieved for the as-prepared PdCu(co-SPT)/Ta membrane.
Figure 7 shows the H2 permeability of PdCu/Ta membranes at various temperatures (400–500 °C) and pressure gradients (0.41–1.45 bar0.5). As expected, an increase in either temperature or pressure gradient results in higher H2 permeability. The Pd(ELP)Cu(SPT)/Ta membrane exhibited 9.66 cm3·cm−2·min−1 at 500 °C and a pressure difference of 5 bar, which is three times higher than that of the PdCu(co-SPT)/Ta membrane. If Pd and Cu are both deposited by ELP, the plated Pd will detach when Cu is plated. This occurs because Cu replaces the Pd atoms when plated under higher pH conditions than Pd plating. Previous studies have shown that Pd precursors can be used to activate the surface of supports to conduct Cu ELP, with an appropriate pH of 11 [52,53]. Moreover, in the case of co-sputtering Pd and Cu, some practical challenges emerge. Although the alloy composition can be easily controlled by co-sputtering, we identified a low H2 permeation problem. It has been likely driven by less dense structures at room temperature deposition (see Figure 7a). In contrast, the side effects of high-temperature deposition, such as the formation of unwanted alloy phases, could simultaneously emerge. Meanwhile, the method of sputtering Cu on an electroless-plated Pd could solve the problem above, revealing a stable high H2 permeability, as shown in Figure 7b.
Moreover, the maximum permeability obtained for the PdCu/Ta membrane was 4.4 × 10−8 molH2 m−1 s−1 Pa−0.5 which is more than the reports on PdCu membranes with permeabilities ranging from 0 to 2.75 × 10−8 molH2 m−1 s−1 Pa−0.5 [54]. The H2 permeability in the Pd(ELP)Cu(SPT)/Ta membrane was ~60% of that in the Pd/Ta membrane. However, it exhibits excellent durability at high temperatures, where the n value does not change with the experimental time. The constant value of n indicates that the rate of H2 molecule decomposition on the surface remains constant during the experiment. This phenomenon can be interpreted as a lower degree of surface degradation compared with the Pd/Ta membrane. This phenomenon can be confirmed by the SEM images of the Pd(ELP)Cu(SPT)/Ta membrane before and after the temporal stability test, as shown in Figure 8. As a result, the surface of the Pd(ELP)Cu(SPT)/Ta membrane has not degraded after the test, unlike the Pd/Ta membranes (see Figure 3). Only slight agglomeration by heat and no bare Ta surface islands were identified in the Pd(ELP)Cu(SPT)/Ta case. This indicates the absence of degradation due to the high temperature. This result is consistent with the constant n value in the H2 permeation test. As Ta does not directly interact with H2, the deterioration due to H2 embrittlement of Ta is considered to be averted.
Lastly, calculations assuming the cost of Pd at (48,226 $/kg [33]) and Cu at (6.11 $/kg [33]) show that Pd coating with the as-fabricated dimensions (~4 μm in thickness and 25.4 mm in diameter) costs ~1157.4 $/m2, whereas the as-proposed PdCu alloy costs ~57% less, well within the United States Department of Energy’s standard of <5400 $/m2 [55].

3.3. Arrhenius Plot

According to the van’t Hoff–Arrhenius equation, the relationship between H2 permeability and temperature can be expressed by Equation (3):
ln P = P 0 exp ( E a R T )
where P is the permeability (mol/m2 s Pa0.5), P0 is the pre-exponential coefficient, Ea is the apparent activation energy, R is the ideal gas constant (J/mol K), and T is the absolute temperature. The activation energies can be quantified from the slope of the lnP-1000/T graphs, as shown in Figure 9. The estimates are 20.2 kJ/mol for the Pd(ELP)/Ta disk, 26.4 kJ/mol for the Pd(ELP)Cu(SPT)/Ta disk, and 38.4 kJ/mol for the PdCu(co-SPT)/Ta disk.
The H2 decomposition reaction on the membrane surface is endothermic. The reaction on the Pd surface has lower activation energy than that on the PdCu alloy surface. These values are consistent with the experimental permeations, where the Pd disk has the fastest permeation rate and the lowest activation energy. This confirms that the H2 permeation through palladium is faster than that of the PdCu alloy. Moreover, the difference in the activation energy between the PdCu alloy membranes in the H2 permeability results was also identified; compared with Pd/Ta, the difference was 1.45 times and 2.15 times higher for Pd(ELP)Cu(SPT)/Ta and PdCu(Co-SPT)/Ta, respectively. This is in good agreement with the results in Figure 7, where the membrane made by successive ELP and SPT exhibited a significantly higher (up to 5.9 times) H2 permeability value than the membrane fabricated by co-SPT. It is considered that the non-dense alloy structure on the membrane surface, observed through SEM, acts as a constraint with regards to the H2 permeation and increases the activation energy. Godbole et al. used NiO thin films and concluded that the activation energy of the reaction could be increased as the surface roughness is increased [56]. In other words, the activation energies are different even with the same alloy.

3.4. H2 Permeation Modeling

For a deeper understanding of the H2 permeation difference between PdCu/ and Pd membranes, DFT calculations were performed on the reaction energy/barrier for H2 dissociation and the energy for H migration in FCC Pd (111), BCC Pd (110), FCC PdCu (111), and BCC PdCu (110) slabs. Figure 10 and Table 2 display the optimized adsorption configuration and binding energy (indicated by Ebind) for one H2 molecule and two H atoms on the four membrane models. On the surface of each membrane, H2 was adsorbed onto the top site and then dissociated into two hollow sites: two fcc sites (fcc-fcc) for FCC Pd (111) (Figure 10a), one fcc1 site and one hcp1 site (associated with two Pd and one Cu atom) for FCC PdCu (111) (Figure 10b), two hollow sites for BCC Pd (110) (Figure 10c), and two hollow1 sites (associated with two Pd and one Cu atom) for BCC PdCu (110) (Figure 10d). As shown in Table 2, the activation energies for H2 dissociation into two H atoms on the FCC Pd (111) and BCC Pd (110) surfaces were lower than those on the FCC PdCu (111) and BCC PdCu (110) surfaces. This finding indicates that the pure Pd membrane has higher catalytic activity in the initial formation of H atoms on the surface than in the PdCu case.
Figure 11 shows the change in H binding energy as an H atom diffuses through the six-layer slabs of FCC Pd (111), FCC PdCu (111), BCC Pd (110), and BCC PdCu (110). It was found that the maximum decrease in H binding energy was by 0.57 eV [FCC Pd (111)], 0.65 eV [FCC PdCu (111)], 0.45 eV [BCC Pd (110)], and 0.60 eV [BCC PdCu (110)] during the migration process from the top surface layer to the inside layer of slab. This suggests that the Pd membrane is more conductive than the PdCu membrane for H2 permeation from the energy point of view, which is also supported by the work of Huang and Chen [57]. This finding resonates well with the experimental observations.

3.5. Comparative Temporal Stability Tests

A temporal H2 permeation test was performed using the sample with the highest permeability, namely Pd(ELP)/Ta and Pd(ELP)Cu(SPT)/Ta H2 separation membranes. H2 permeability was continuously measured, while maintaining the hardest conditions of the H2 permeation test conditions, namely, 500 °C and a pressure difference of 5 bar. Figure 12 shows the results of the H2 permeation for 14 h. In this graph (red line), H2 permeability decreased rapidly with time for Pd(ELP)/Ta. This trend confirms that Pd deteriorates quickly at high temperatures. Notably, after ~8 h, the H2 permeability converged to 0. In other words, it takes ~8 h to lose the H2 permeation ability as Pd aggregates exposing the Ta substrate to H2, which in turn reduces the catalytic activity of the Pd layer and increases the susceptibility of the exposed Ta to mechanical breakage due to H2 embrittlement. On the other hand, the trend of the temporal permeation test result for the Pd(ELP)Cu(SPT)/Ta (black line) membrane is noticeably different. Even though the overall trend was decreasing, similar to Pd(ELP)/Ta, the decreasing trend was considerably slower. This finding is in line with the surface degradation of the Pd(ELP)Cu(SPT)/Ta, which was delayed in the H2 permeation experiment. As a result, higher permeability of H2 was maintained for twice as long as that of the Pd(ELP)/Ta membrane.

4. Conclusions

In this study, Pd/Ta and PdCu/Ta composite membranes were prepared using different synthesis methods. The morphology (as-prepared and post-mortem), H2 permeability, and durability of the samples were empirically evaluated. The effect of Cu alloying on the catalytic performance and activation energy of the composite membrane were theoretically studied and discussed. Our study reports several important findings summarized as the following:
First, compared with sputtering, electroless plating yields a more uniform and defect-less Pd coating on the Ta substrate. Moreover, a higher temperature is more conducive for a lower degree of porosity in sputtering. Second, Pd/Ta prepared by electroless plating and high-temperature (400 °C) sputtering exhibited a similar trend in the H2 permeation rate. Third, the activation energy, calculated for Pd/Ta, was lower than that for PdCu/Ta, indicating a lower catalytic activity as expected by the lesser amount of Pd in the alloy. PdCu/Ta, prepared by electroless Pd plating and sputtered Cu, revealed lower activation energy than co-sputtered PdCu. The DFT modeling results confirmed the lower catalytic activity of PdCu/Ta compared with that of the Pd/Ta membrane. Moreover, unlike using porous supports, developing a Pd or PdCu film with a sub-micron thickness (~500 nm) on a dense Ta substrate is possible while using the sputtering (former) or co-sputtering (latter) techniques. Ultimately, the Pd layer on the Pd/Ta membrane agglomerated into a honeycomb shape was experimentally demonstrated. As a result, Ta decelerates the decomposition of H2 molecules on the surface thanks to the lower catalytic activity. At the same time, the permeability of PdCu/Ta was maintained twice as long as that of Pd/Ta. Though the temporal stability test shown here is for 14 h due to the compromised mechanical stability of embrittled membranes, one can apply the findings of this study, in terms of the materials and synthesis method, in different membrane geometries and configurations, e.g., a tubular membrane reactor, to achieve a longer service life. Finally, we can conclude that alloying with Cu can open a window to long-term H2 operation compared with the bare Pd membrane. This greatly contributes to the development of cost-effective and durable membranes for thermocatalytic H2 separation and purification.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/membranes13010023/s1, Figure S1. Stepwise preparation process of membranes using Ta support, Figure S2. Sn residue of electroless plated H2 separation membrane; (a) EDS spectrum of Pd(ELP), (b,c) EDS mapping of the sample. Figure S3. SEM iamge of Pd(ELP)Cu(SPT)/Ta surface after operation for 10 h at (a) 5000× magnification, and (b) 20,000× magnification [58].

Author Contributions

Conceptualization, S.R. and S.H.C.; data curation, H.S.; formal analysis, S.R.; funding acquisition, S.H.C.; investigation, S.R., A.B. and J.G.O.; methodology, S.R. and A.B.; project administration, S.P.Y. and S.H.C.; resources, H.S. and S.P.Y.; software, J.G.O. and H.C.H.; supervision, H.C.H.; visualization, A.B. and J.G.O.; writing—original draft, S.R., A.B., H.C.H. and S.H.C. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Korea Institute of Science and Technology institutional program (grant no. 2E30993) and by the National Research Foundation of Korea grants (grant nos. NRF-2019M3E6A1104113, NRF-2021R1A2C2008662, and NRF-2021M3I3A1082755) funded by the Ministry of Science and ICT of the Korean Government.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to have influenced the work reported in this paper.

References

  1. Shukla, P.R.; Skeg, J.; Buendia, E.C.; Masson-Delmotte, V.; Pörtner, H.O.; Roberts, D.C.; Zhai, P.; Slade, R.; Connors, S.; Van Diemen, S.; et al. Climate Change and Land: An IPCC Special Report on Climate Change, Desertification, Land Degradation, Sustainable Land Management, Food Security, and Greenhouse Gas Fluxes in Terrestrial Ecosystems; IPCC: Geneva, Switzerland, 2019; in press. [Google Scholar]
  2. Gielen, D.; Boshell, F.; Saygin, D.; Bazilian, M.D.; Wagner, N.; Gorini, R. The role of renewable energy in the global energy transformation. Energy Strategy Rev. 2019, 24, 38–50. [Google Scholar] [CrossRef]
  3. Badakhsh, A.; Cha, J.; Park, Y.; Lee, Y.-J.; Jeong, H.; Kim, Y.; Sohn, H.; Nam, S.W.; Yoon, C.W.; Park, C.W.; et al. Autothermal recirculating reactor (ARR) with Cu-BN composite as a stable reactor material for sustainable hydrogen release from ammonia. J. Power Sources 2021, 506, 230081. [Google Scholar] [CrossRef]
  4. alkuyeh, Y.K.; Saville, B.A.; MacLean, H.L. Techno-economic analysis and life cycle assessment of hydrogen production from natural gas using current and emerging technologies. Int. J. Hydrogen Energy 2017, 42, 18894–18909. [Google Scholar]
  5. Sanchez, A.; Ayala, O.; Hernandez-Sanchez, P.; Valdez-Vazquez, I.; de León-Rodríguez, A. An environment-economic analysis of hydrogen production using advanced biorefineries and its comparison with conventional technologies. Int. J. Hydrogen Energy 2020, 45, 27994–28006. [Google Scholar] [CrossRef]
  6. Badakhsh, A.; Kwak, Y.; Lee, Y.-J.; Jeong, H.; Kim, Y.; Sohn, H.; Nam, S.W.; Yoon, C.W.; Park, C.W.; Jo, Y.S. A compact catalytic foam reactor for decomposition of ammonia by the Joule-heating mechanism. Chem. Eng. J. 2021, 426, 130802. [Google Scholar] [CrossRef]
  7. Badakhsh, A.; Song, D.; Moon, S.; Jeong, H.; Sohn, H.; Nam, S.W.; Kim, P.S.; Seo, J.H.; Kim, Y.; Lee, J.; et al. COX-free LOHC dehydrogenation in a heatpipe reformer highly integrated with a hydrogen burner. Chem. Eng. J. 2022, 449, 137679. [Google Scholar] [CrossRef]
  8. Wang, Y.; Wu, Q.; Mei, D.; Wang, Y. A methanol fuel processing system with methanol steam reforming and CO selective methanation modules for PEMFC application. Int. J. Energy Res. 2021, 45, 6163–6173. [Google Scholar] [CrossRef]
  9. Makaruk, A.; Miltner, M.; Harasek, M. Membrane gas permeation in the upgrading of renewable hydrogen from biomass steam gasification gases. Appl. Therm. Eng. 2012, 43, 134–140. [Google Scholar] [CrossRef]
  10. Barreiro, M.M.; Maroño, M.; Sánchez, J.M. Hydrogen separation studies in a membrane reactor system: Influence of feed gas flow rate, temperature and concentration of the feed gases on hydrogen permeation. Appl. Therm. Eng. 2015, 74, 186–193. [Google Scholar] [CrossRef]
  11. Yurata, T.; Lei, H.; Tang, L.; Lu, M.; Patel, J.; Lim, S.; Piumsomboon, P.; Chalermsinsuwan, B.; Li, C. Feasibility and sustainability analyses of carbon dioxide—Hydrogen separation via de-sublimation process in comparison with other processes. Int. J. Hydrogen Energy 2019, 44, 23120–23134. [Google Scholar] [CrossRef]
  12. Ockwig, N.W.; Nenoff, T.M. Membranes for Hydrogen Separation. Chem. Rev. 2007, 107, 4078–4110. [Google Scholar] [CrossRef] [PubMed]
  13. Li, H.; Caravella, A.; Xu, H.Y. Recent progress in Pd-based composite membranes. J. Mater. Chem. A 2016, 4, 14069–14094. [Google Scholar] [CrossRef]
  14. Shu, J.; Grandjean, B.P.A.; Kaliaguine, S.; Giroir-Fendler, A.; Dalmon, J.-A. Hysteresis in hydrogen permeation through palladium membranes. J. Chem. Soc. Faraday Trans. 1996, 92, 2745–2751. [Google Scholar] [CrossRef]
  15. Yun, S.; Oyama, S.T. Correlations in palladium membranes for hydrogen separation: A review. J. Membr. Sci. 2011, 375, 28–45. [Google Scholar] [CrossRef]
  16. Lewis, F.A. The Palladium/Hydrogen System; Academic Press: Cambridge, MA, USA, 1967. [Google Scholar]
  17. Jo, Y.S.; Lee, C.H.; Kong, S.Y.; Lee, K.-Y.; Yoon, C.W.; Nam, S.W.; Han, J. Characterization of a Pd/Ta composite membrane and its application to a large scale high-purity hydrogen separation from mixed gas. Sep. Purif. Technol. 2018, 200, 221–229. [Google Scholar] [CrossRef]
  18. Ryi, S.-K.; Ahn, H.-S.; Park, J.-S.; Kim, D.-W. Pd–Cu alloy membrane deposited on CeO2 modified porous nickel support for hydrogen separation. Int. J. Hydrogen Energy 2014, 39, 4698–4703. [Google Scholar] [CrossRef]
  19. Hwang, K.-R.; Oh, D.-K.; Lee, S.-W.; Park, J.-S.; Song, M.-H.; Rhee, W.-H. Porous stainless steel support for hydrogen separation Pd membrane; fabrication by metal injection molding and simple surface modification. Int. J. Hydrogen Energy 2017, 42, 14583–14592. [Google Scholar] [CrossRef]
  20. SKong, S.Y.; Kim, D.H.; Henkensmeier, D.; Kim, H.-J.; Ham, H.C.; Han, J.; Yoon, S.P.; Yoon, C.W.; Choi, S.H. Ultrathin layered Pd/PBI–HFA composite membranes for hydrogen separation. Sep. Purif. Technol. 2017, 179, 486–493. [Google Scholar]
  21. Ma, X.; Yang, C.; Chen, H.; Lv, Q.; Sun, K.; Li, W. Hydrogen permeation and chemical stability of Ni–BaCe0.7In0.2Ta0.1O3−δ cermet membrane. Sep. Purif. Technol. 2020, 236, 116276. [Google Scholar] [CrossRef]
  22. Saini, N.; Awasthi, K. Insights into the progress of polymeric nano-composite membranes for hydrogen separation and purification in the direction of sustainable energy resources. Sep. Purif. Technol. 2021, 282, 120029. [Google Scholar] [CrossRef]
  23. Dolan, M. Non-Pd BCC alloy membranes for industrial hydrogen separation. J. Membr. Sci. 2010, 362, 12–28. [Google Scholar] [CrossRef]
  24. Lee, C.H.; Jo, Y.S.; Park, Y.; Jeong, H.; Kim, Y.; Sohn, H.; Yoon, C.W.; Nam, S.W.; Ham, H.C.; Han, J. Unconventional hydrogen permeation behavior of Pd/BCC composite membranes and significance of surface reaction kinetics. J. Membr. Sci. 2019, 595, 117506. [Google Scholar] [CrossRef]
  25. Pujari, M.; Agarwal, A.; Uppaluri, R.; Verma, A. Role of electroless nickel diffusion barrier on the combinatorial plating characteristics of dense Pd/Ni/PSS composite membranes. Appl. Surf. Sci. 2014, 305, 658–664. [Google Scholar] [CrossRef]
  26. Cooney, D.A.; Way, J.D.; Wolden, C.A. A comparison of the performance and stability of Pd/BCC metal composite membranes for hydrogen purification. Int. J. Hydrogen Energy 2014, 39, 19009–19017. [Google Scholar] [CrossRef] [Green Version]
  27. Kozhakhmetov, S.; Sidorov, N.; Piven, V.; Sipatov, I.; Gabis, I.; Arinov, B. Alloys based on Group 5 metals for hydrogen purification membranes. J. Alloy Compd. 2015, 645, S36–S40. [Google Scholar] [CrossRef]
  28. Adams, B.D.; Chen, A. The role of palladium in a hydrogen economy. Mater. Today 2011, 14, 282–289. [Google Scholar] [CrossRef]
  29. Zhang, K.; Way, J.D. Palladium-copper membranes for hydrogen separation. Sep. Purif. Technol. 2017, 186, 39–44. [Google Scholar] [CrossRef]
  30. Fernandez, E.; Medrano, J.A.; Melendez, J.; Parco, M.; Viviente, J.L.; Annaland, M.V.S.; Gallucci, F.; Tanaka, D.P. Preparation and characterization of metallic supported thin Pd–Ag membranes for hydrogen separation. Chem. Eng. J. 2016, 305, 182–190. [Google Scholar] [CrossRef]
  31. Kamakoti, P.; Morreale, B.D.; Ciocco, M.V.; Howard, B.H.; Killmeyer, R.P.; Cugini, A.V.; Sholl, D.S. Prediction of Hydrogen Flux Through Sulfur-Tolerant Binary Alloy Membranes. Science 2005, 307, 569–573. [Google Scholar] [CrossRef] [Green Version]
  32. Morreale, B.; Ciocco, M.; Howard, B.; Killmeyer, R.; Cugini, A.; Enick, R. Effect of hydrogen-sulfide on the hydrogen permeance of palladium?copper alloys at elevated temperatures. J. Membr. Sci. 2004, 241, 219–224. [Google Scholar] [CrossRef]
  33. United States Geological Survey. Mineral Commodity Summaries: Nitrogen (Fixed)—Ammonia, January 2021. Available online: https://pubs.usgs.gov/periodicals/mcs2021/mcs2021-nitrogen.pdf (accessed on 2 August 2022).
  34. Park, Y.; Kwak, Y.; Yu, S.; Badakhsh, A.; Lee, Y.-J.; Jeong, H.; Kim, Y.; Sohn, H.; Nam, S.W.; Yoon, C.W.; et al. Degradation mechanism of a Pd/Ta composite membrane: Catalytic surface fouling with inter-diffusion. J. Alloy Compd. 2020, 854, 157196. [Google Scholar] [CrossRef]
  35. Ohtsu, N.; Ishikawa, K.; Kobori, Y. Hydrogen permeability degradation of Pd-coated Nb⿿TiNi alloy caused by its interfacial diffusion. Appl. Surf. Sci. 2016, 360, 566–571. [Google Scholar] [CrossRef]
  36. Papaderakis, A.; Mintsouli, I.; Georgieva, J.; Sotiropoulos, S. Electrocatalysts Prepared by Galvanic Replacement. Catalysts 2017, 7, 80. [Google Scholar] [CrossRef]
  37. Kresse, G. VASP the Guide. Available online: http://cms.mpi.univie.ac.at/vasp/ (accessed on 10 October 2021).
  38. Perdew, J.P.; Burke, K.; Ernzerhof, M. Generalized gradient approximation made simple. Phys. Rev. Lett. 1996, 77, 3865. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  39. Blöchl, P.E. Projector augmented-wave method. Phys. Rev. B 1994, 50, 17953–17979. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  40. Blöchl, P.E.; Jepsen, O.; Andersen, O.K. Improved tetrahedron method for Brillouin-zone integrations. Phys. Rev. B 1994, 49, 16223–16233. [Google Scholar] [CrossRef]
  41. Henkelman, G.; Uberuaga, B.P.; Jónsson, H. A climbing image nudged elastic band method for finding saddle points and minimum energy paths. J. Chem. Phys. 2000, 113, 9901–9904. [Google Scholar] [CrossRef] [Green Version]
  42. Pearson, W.B. A Handbook of Lattice Spacings and Structures of Metals and Alloys; Pergamon: Oxford, UK, 1959. [Google Scholar]
  43. Hansen, M.; Anderko, K.; Salzberg, H.W. Constitution of Binary Alloys. J. Electrochem. Soc. 1958, 105, 260C. [Google Scholar] [CrossRef]
  44. Frank, F.C.; Kasper, J.S. Complex alloy structures regarded as sphere packings. II. Analysis and classification of representative structures. Acta Crystallogr. 1959, 12, 483–499. [Google Scholar] [CrossRef]
  45. Chen, W.-H.; Lin, C.-N.; Chi, Y.-H.; Lin, Y.-L. Permeation characteristics of hydrogen through palladium membranes in binary and ternary gas mixtures. Int. J. Energy Res. 2017, 41, 1579–1595. [Google Scholar] [CrossRef]
  46. Livshits, A. The hydrogen transport through the metal alloy membranes with a spatial variation of the alloy composition: Potential diffusion and enhanced permeation. Int. J. Hydrogen Energy 2017, 42, 13111–13119. [Google Scholar] [CrossRef]
  47. Choi, S.H.; Hwang, C.S.; Lee, H.-W.; Kim, J. Fabrication of Gd2O3-Doped CeO2 Thin Films for Single-Chamber-Type Solid Oxide Fuel Cells and Their Characterization. J. Electrochem. Soc. 2009, 156, B185–B381. [Google Scholar] [CrossRef]
  48. Macfie, G.; Cooper, A.; Cardosi, M.F. Room temperature formation, electro-reduction and dissolution of surface oxide layers on sputtered palladium films. Electrochim. Acta 2011, 56, 8394–8402. [Google Scholar] [CrossRef]
  49. Checchetto, R.; Bazzanella, N.; Patton, B.; Miotello, A. Palladium membranes prepared by r.f. magnetron sputtering for hydrogen purification. Surf. Coat. Technol. 2004, 177-178, 73–79. [Google Scholar] [CrossRef]
  50. Al-Mufachi, N.; Rees, N.; Steinberger-Wilkens, R. Hydrogen selective membranes: A review of palladium-based dense metal membranes. Renew. Sustain. Energy Rev. 2015, 47, 540–551. [Google Scholar] [CrossRef]
  51. Ramachandran, A.; Tucho, W.; Mejdell, A.; Stange, M.; Venvik, H.; Walmsley, J.; Holmestad, R.; Bredesen, R.; Borg, A. Surface characterization of Pd/Ag23wt% membranes after different thermal treatments. Appl. Surf. Sci. 2010, 256, 6121–6132. [Google Scholar] [CrossRef]
  52. Nobari, N.; Behboudnia, M.; Maleki, R. Palladium-free electroless deposition of pure copper film on glass substrate using hydrazine as reducing agent. Appl. Surf. Sci. 2016, 385, 9–17. [Google Scholar] [CrossRef]
  53. Hsu, H.-H.; Lin, K.-H.; Lin, S.-J.; Yeh, J.-W. Electroless Copper Deposition for Ultralarge-Scale Integration. J. Electrochem. Soc. 2001, 148, C47–C53. [Google Scholar] [CrossRef]
  54. Howard, B.; Killmeyer, R.; Rothenberger, K.; Cugini, A.; Morreale, B.; Enick, R.; Bustamante, F. Hydrogen permeance of palladium—Copper alloy membranes over a wide range of temperatures and pressures. J. Membr. Sci. 2004, 241, 207–218. [Google Scholar] [CrossRef]
  55. Liguori, S.; Kian, K.; Buggy, N.; Anzelmo, B.H.; Wilcox, J. Opportunities and challenges of low-carbon hydrogen via metallic membranes. Prog. Energy Combust. Sci. 2020, 80, 100851. [Google Scholar] [CrossRef]
  56. Godbole, B.; Badera, N.; Shrivastava, S.B.; Jain, D.; Ganesan, V. Investigation of Fe-Doped and Undoped Nio Nanocrystalline Films. Surf. Rev. Lett. 2007, 14, 1113–1119. [Google Scholar] [CrossRef]
  57. Huang, Y.; Chen, Z.-X. Alloying effect on the C–C coupling reactions in acetylene hydrogenation by palladium-coinage metal alloys, a DFT study and microkinetic modeling. Appl. Surf. Sci. 2022, 575, 1154–1160. [Google Scholar] [CrossRef]
  58. Wei, L.; Yu, J.; Hu, X.; Wang, R.; Huang, Y. Effects of Sn residue on the high temperature stability of the H2-permeable palladium membranes prepared by electroless plating on Al2O3 substrate after SnCl2–PdCl2 process: A case study. Chin. J. Chem. Eng. 2016, 24, 151513. [Google Scholar] [CrossRef]
Membranes 13 00023 g001 550
Figure 1. (a) Schematic diagram and photograph of H2 permeation system, (b) reactor and its parts, (c) SEM image of the surface, and (d) EDS mapping of cross-section of Pd on Ta support: green—Pd, and red—Ta.
Figure 1. (a) Schematic diagram and photograph of H2 permeation system, (b) reactor and its parts, (c) SEM image of the surface, and (d) EDS mapping of cross-section of Pd on Ta support: green—Pd, and red—Ta.
Membranes 13 00023 g001
Membranes 13 00023 g002 550
Figure 2. H2 permeability of (a) electroless-plated (ELP) Pd/Ta membrane and (b) the membranes prepared by different methods at 500 °C and 5 bar.
Figure 2. H2 permeability of (a) electroless-plated (ELP) Pd/Ta membrane and (b) the membranes prepared by different methods at 500 °C and 5 bar.
Membranes 13 00023 g002
Membranes 13 00023 g003 550

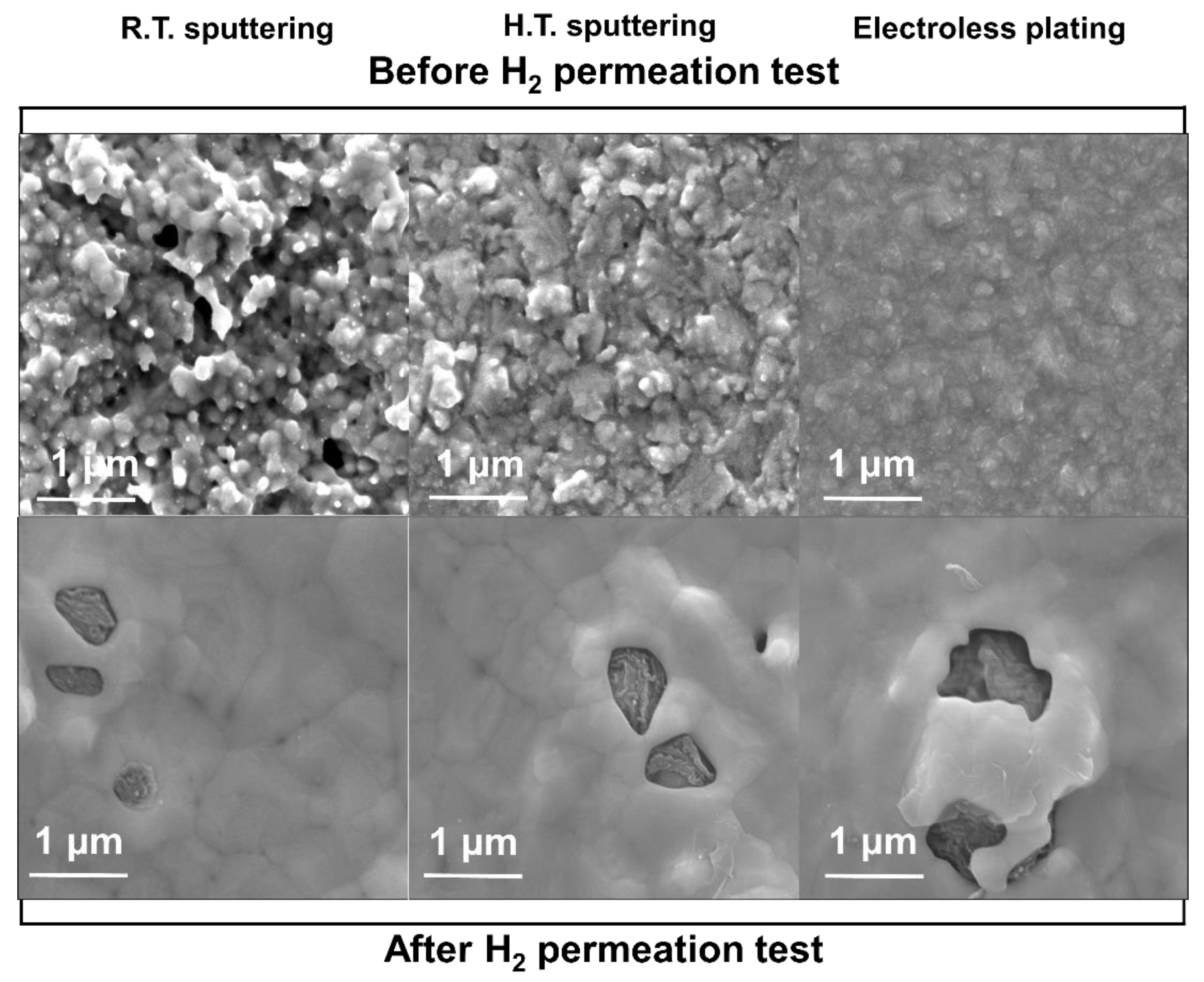

Figure 3. SEM surface micrographs (50,000 magnification) of the Pd/Ta membrane prepared by sputtering (SPT) at room temperature (R.T.) and high temperature (H.T.: 400 °C), and electroless plating (ELP), before and after the H2 permeation test at 500 °C.
Figure 3. SEM surface micrographs (50,000 magnification) of the Pd/Ta membrane prepared by sputtering (SPT) at room temperature (R.T.) and high temperature (H.T.: 400 °C), and electroless plating (ELP), before and after the H2 permeation test at 500 °C.
Membranes 13 00023 g003
Membranes 13 00023 g004 550

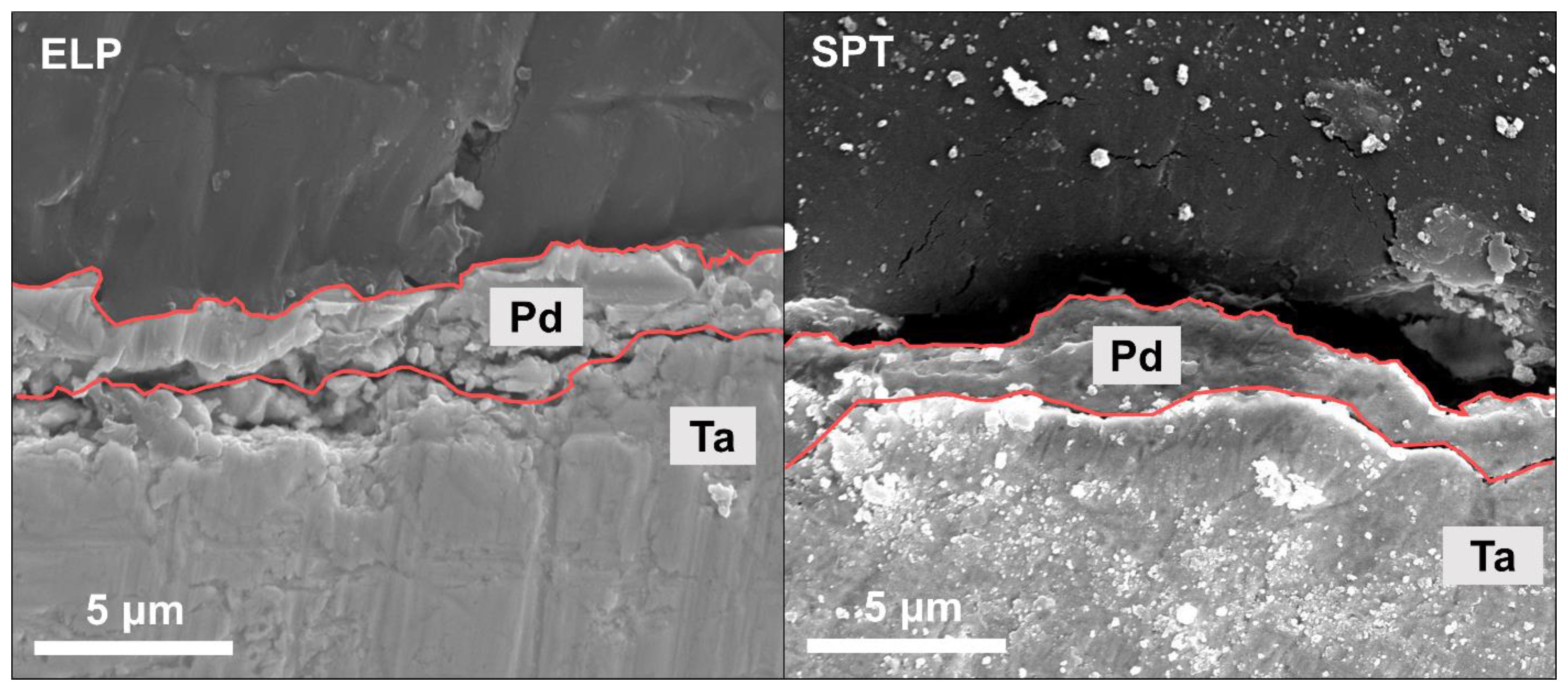

Figure 4. Cross-section SEM image of ELP and SPT Pd/Ta H2 separation membrane after the permeation test at 500 °C; Red lines mark the interfaces of Pd layer with Ta support and resin embedding.
Figure 4. Cross-section SEM image of ELP and SPT Pd/Ta H2 separation membrane after the permeation test at 500 °C; Red lines mark the interfaces of Pd layer with Ta support and resin embedding.
Membranes 13 00023 g004
Membranes 13 00023 g005 550

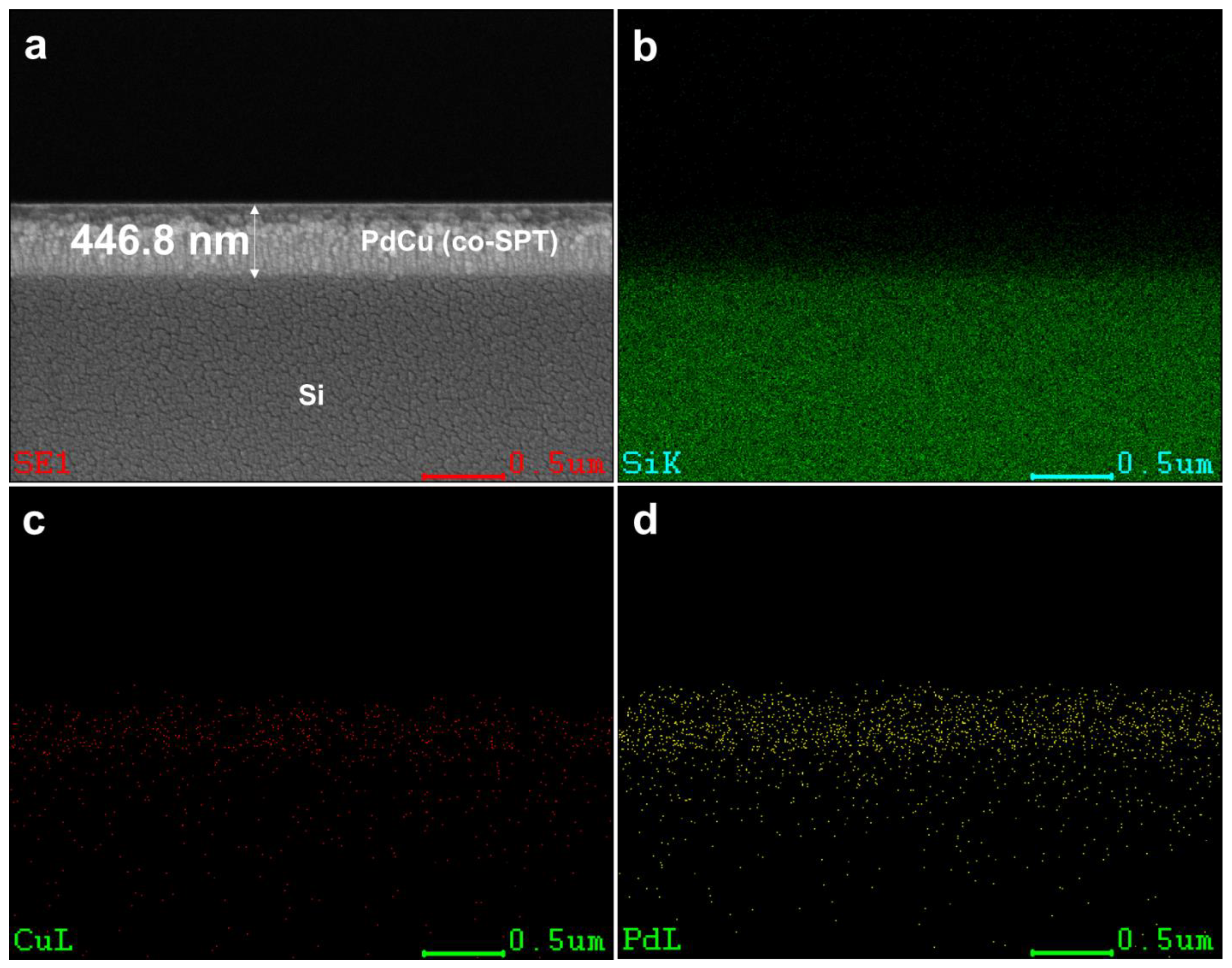

Figure 5. Cross-section (a) SEM image of PdCu(co-SPT)/Si, and EDS mapping of (b) Si, (c) Cu, and (d) Pd.
Figure 5. Cross-section (a) SEM image of PdCu(co-SPT)/Si, and EDS mapping of (b) Si, (c) Cu, and (d) Pd.
Membranes 13 00023 g005
Membranes 13 00023 g006 550
Figure 6. PdCu(co-SPT)/Ta characterization by (a) XRD and (b) RBS.
Figure 6. PdCu(co-SPT)/Ta characterization by (a) XRD and (b) RBS.
Membranes 13 00023 g006
Membranes 13 00023 g007 550

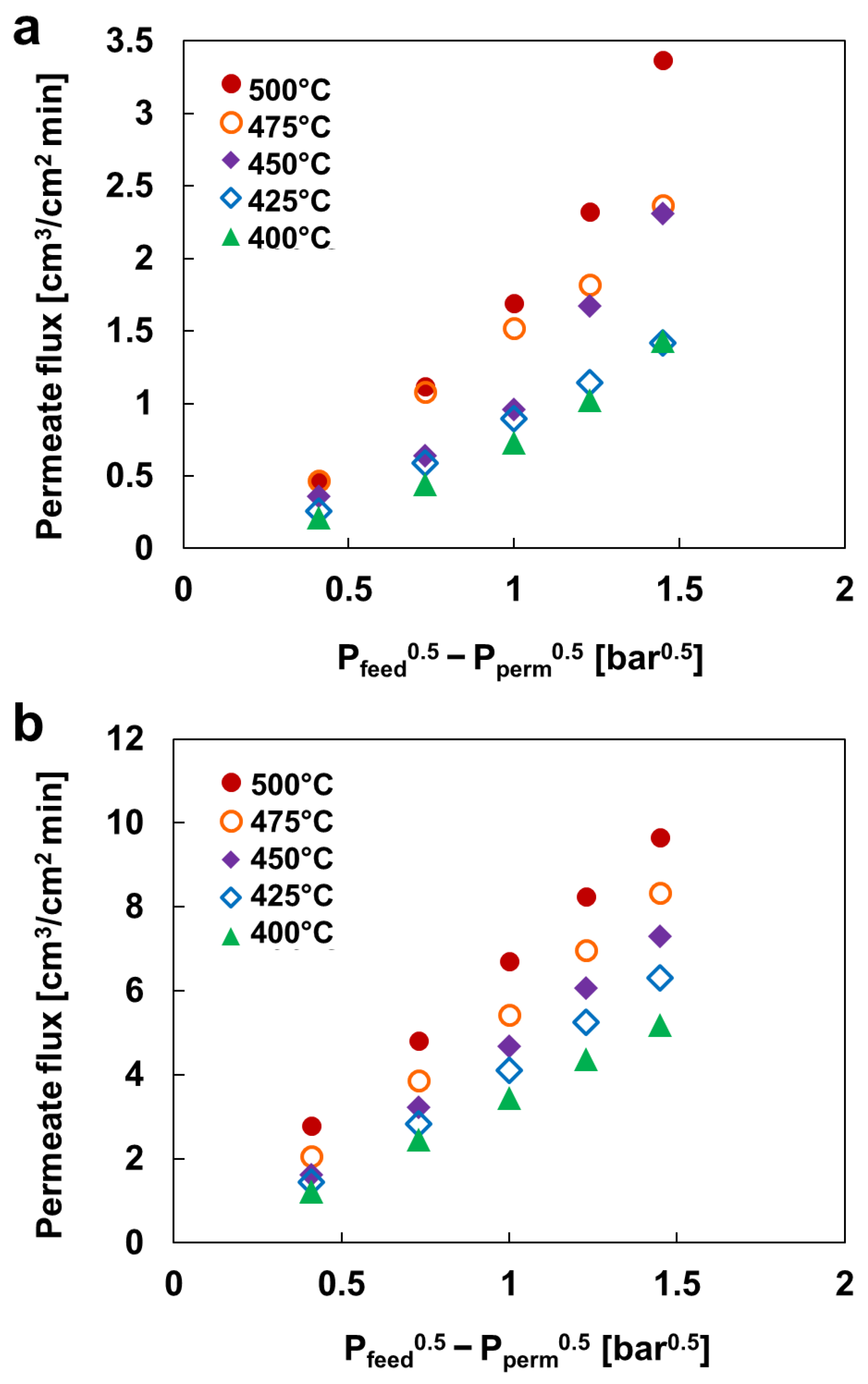

Figure 7. H2 permeability of (a) PdCu(co-SPT)/Ta and (b) Pd(ELP)Cu(SPT)/Ta membranes.
Figure 7. H2 permeability of (a) PdCu(co-SPT)/Ta and (b) Pd(ELP)Cu(SPT)/Ta membranes.
Membranes 13 00023 g007
Membranes 13 00023 g008 550

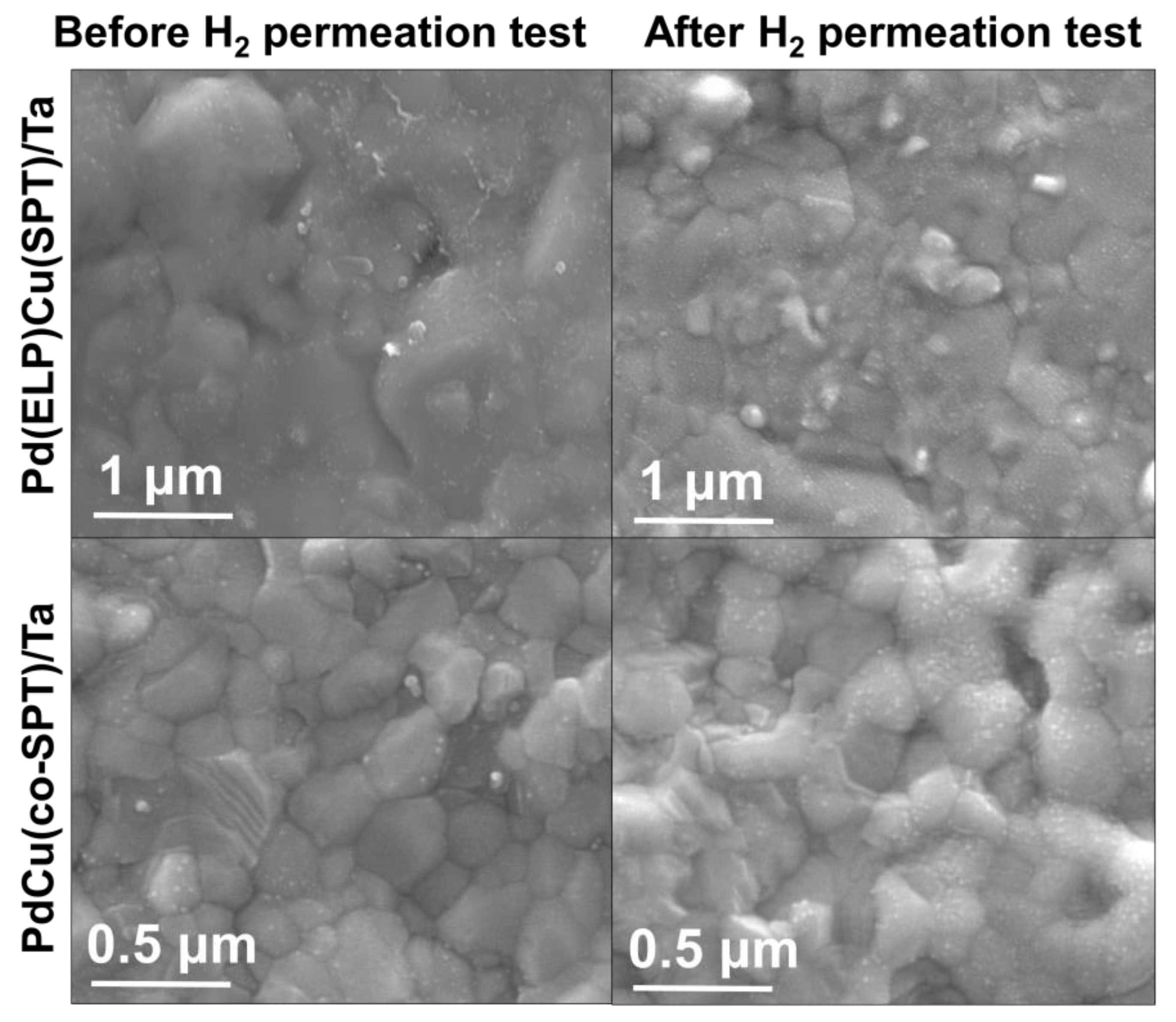

Figure 8. SEM (10 kV) images of surface of Pd(ELP)Cu(SPT)/Ta membranes before and after the H2 permeation test for 10 h.
Figure 8. SEM (10 kV) images of surface of Pd(ELP)Cu(SPT)/Ta membranes before and after the H2 permeation test for 10 h.
Membranes 13 00023 g008
Membranes 13 00023 g009 550
Figure 9. lnP vs. 1000/T of H2 permeation test for (a) the Pd(ELP)/Ta disk, (b) the Pd(ELP)Cu(SPT)/Ta disk, and (c) the PdCu(co-SPT)/Ta membranes.
Figure 9. lnP vs. 1000/T of H2 permeation test for (a) the Pd(ELP)/Ta disk, (b) the Pd(ELP)Cu(SPT)/Ta disk, and (c) the PdCu(co-SPT)/Ta membranes.
Membranes 13 00023 g009
Membranes 13 00023 g010 550

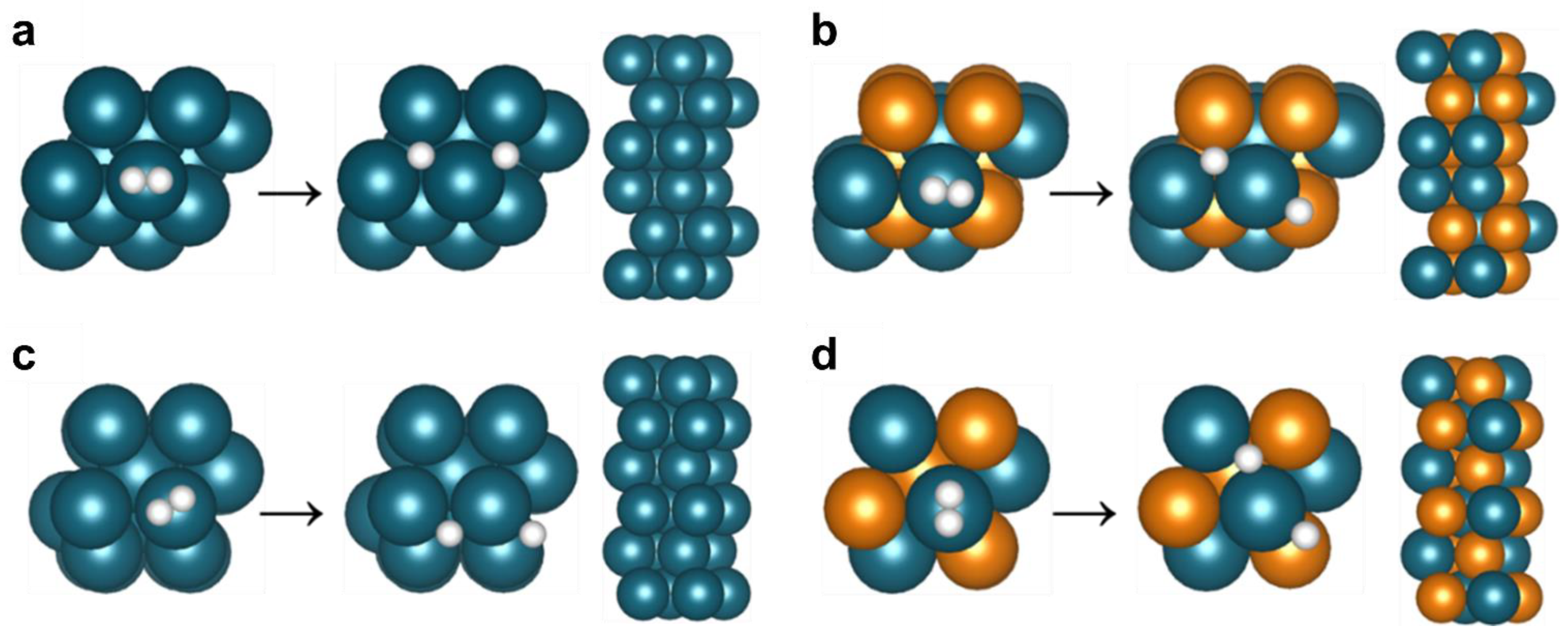

Figure 10. Top view for H2 dissociation and side view of slab models; (a) FCC Pd (111), (b) FCC PdCu (111), (c) BCC Pd (110), and (d) BCC PdCu (110). The teal, orange, and white balls denote the Pd, Cu, and H atoms, respectively.
Figure 10. Top view for H2 dissociation and side view of slab models; (a) FCC Pd (111), (b) FCC PdCu (111), (c) BCC Pd (110), and (d) BCC PdCu (110). The teal, orange, and white balls denote the Pd, Cu, and H atoms, respectively.
Membranes 13 00023 g010
Membranes 13 00023 g011 550
Figure 11. Variations of H binding energy as an H atom migrates through the Pd and PdCu 6-layer slabs. (a) FCC Pd (111); octahedral and tetrahedral sites are denoted as O and T, respectively. (b) FCC PdCu (111); octahedral sites associated with four Pd/two Cu atoms and two Pd/four Cu atoms are referred to as O1 and O2, respectively. Tetrahedral sites surrounded by two Pd/one Cu atoms and one Pd/two Cu atoms are denoted as T1 and T2, respectively. (c) BCC Pd (110); tetrahedral sites are denoted as Tt, Tr, and T along diffusion path. (d) BCC PdCu (110); tetrahedral sites associated with two Pd/two Cu atoms are referred to Tr, T, and Tt along the diffusion path.
Figure 11. Variations of H binding energy as an H atom migrates through the Pd and PdCu 6-layer slabs. (a) FCC Pd (111); octahedral and tetrahedral sites are denoted as O and T, respectively. (b) FCC PdCu (111); octahedral sites associated with four Pd/two Cu atoms and two Pd/four Cu atoms are referred to as O1 and O2, respectively. Tetrahedral sites surrounded by two Pd/one Cu atoms and one Pd/two Cu atoms are denoted as T1 and T2, respectively. (c) BCC Pd (110); tetrahedral sites are denoted as Tt, Tr, and T along diffusion path. (d) BCC PdCu (110); tetrahedral sites associated with two Pd/two Cu atoms are referred to Tr, T, and Tt along the diffusion path.
Membranes 13 00023 g011
Membranes 13 00023 g012 550

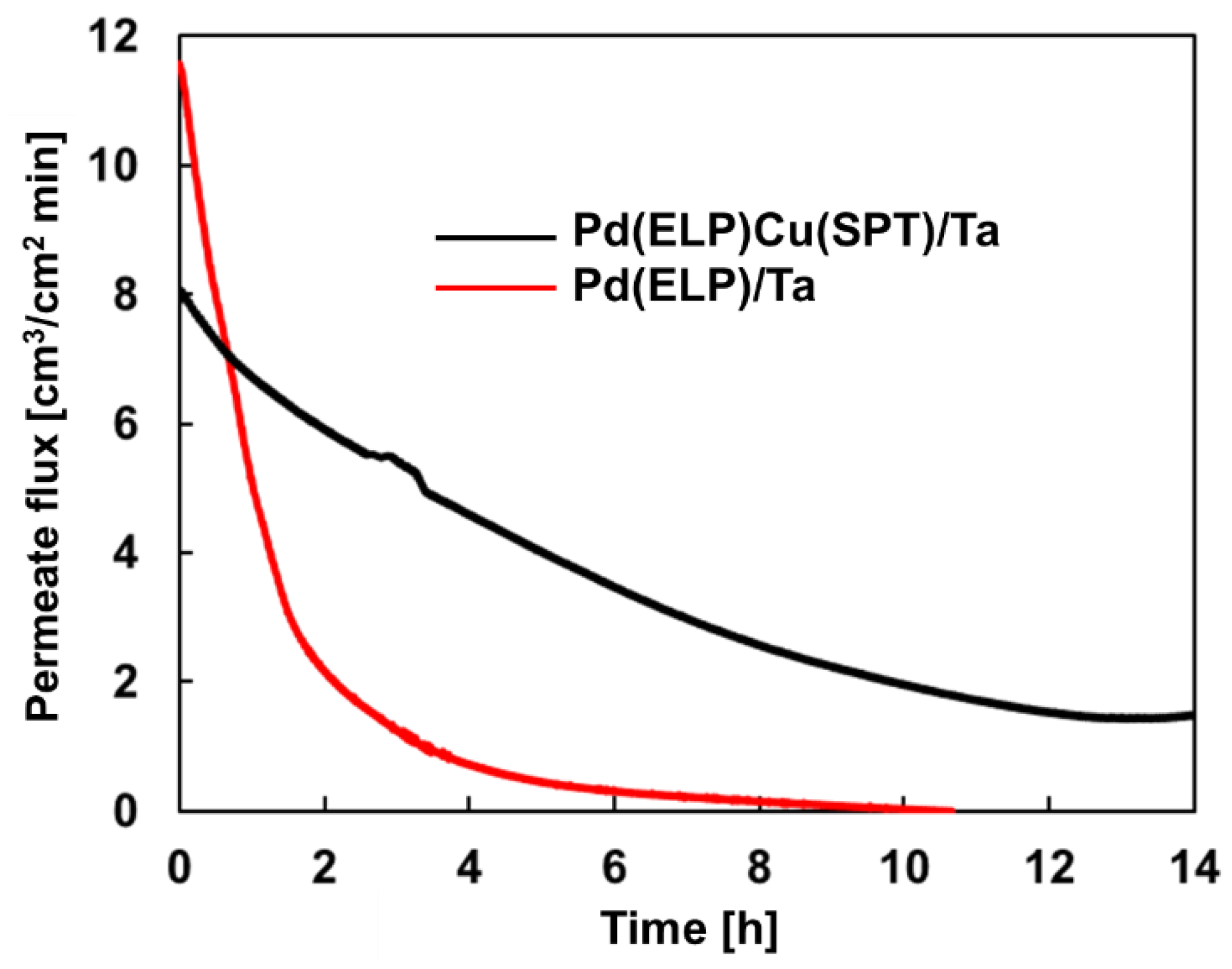

Figure 12. The comparative temporal stability test of Pd(ELP)/Ta and Pd(ELP)Cu(SPT)/Ta membranes.
Figure 12. The comparative temporal stability test of Pd(ELP)/Ta and Pd(ELP)Cu(SPT)/Ta membranes.
Membranes 13 00023 g012
Table
Table 1. Estimates of lattice constants and comparison with experimental values in [42,43,44] for bulk FCC Pd, bulk FCC PdCu, bulk BCC Pd, bulk BCC PdCu, and bulk BCC Ta.
Table 1. Estimates of lattice constants and comparison with experimental values in [42,43,44] for bulk FCC Pd, bulk FCC PdCu, bulk BCC Pd, bulk BCC PdCu, and bulk BCC Ta.
SystemAlloy Composition
[at.% Pd]		Lattice
Constants [Å]		Experimental Lattice
Constants [Å]		Experimental Alloy Composition
[at.% Pd]
FCC pure Pd1003.943.89100
FCC PdCu503.813.7752
BCC pure Pd1003.23N/AN/A
BCC PdCu502.992.9747
BCC pure Ta03.313.310
Table
Table 2. Calculated adsorption energies of H2 and activation energies for H2 dissociation reaction on FCC Pd (111), FCC PdCu (111), BCC Pd (110), and BCC PdCu (110) slabs.
Table 2. Calculated adsorption energies of H2 and activation energies for H2 dissociation reaction on FCC Pd (111), FCC PdCu (111), BCC Pd (110), and BCC PdCu (110) slabs.
SystemH2 Adsorption SiteH2 Adsorption
Energy [eV]		2H Adsorption Site2H Adsorption
Energy [eV]		Activation Energy [eV]
FCC
Pd (111)		top−0.23fcc–fcc−5.650.02
FCC
PdCu (111)		top−0.22fcc1–hcp1−5.350.10
BCC
Pd (110)		top−0.41hollow–hollow−5.830.06
BCC
PdCu (110)		top−0.27hollow1–hollow1−5.430.17
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Ryu, S.; Badakhsh, A.; Oh, J.G.; Ham, H.C.; Sohn, H.; Yoon, S.P.; Choi, S.H. Experimental and Numerical Study of Pd/Ta and PdCu/Ta Composites for Thermocatalytic Hydrogen Permeation. Membranes 2023, 13, 23. https://doi.org/10.3390/membranes13010023

AMA Style

Ryu S, Badakhsh A, Oh JG, Ham HC, Sohn H, Yoon SP, Choi SH. Experimental and Numerical Study of Pd/Ta and PdCu/Ta Composites for Thermocatalytic Hydrogen Permeation. Membranes. 2023; 13(1):23. https://doi.org/10.3390/membranes13010023

Chicago/Turabian Style

Ryu, Seungbo, Arash Badakhsh, Je Gyu Oh, Hyung Chul Ham, Hyuntae Sohn, Sung Pil Yoon, and Sun Hee Choi. 2023. "Experimental and Numerical Study of Pd/Ta and PdCu/Ta Composites for Thermocatalytic Hydrogen Permeation" Membranes 13, no. 1: 23. https://doi.org/10.3390/membranes13010023

APA Style

Ryu, S., Badakhsh, A., Oh, J. G., Ham, H. C., Sohn, H., Yoon, S. P., & Choi, S. H. (2023). Experimental and Numerical Study of Pd/Ta and PdCu/Ta Composites for Thermocatalytic Hydrogen Permeation. Membranes, 13(1), 23. https://doi.org/10.3390/membranes13010023

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
