Liquid Low-Level Radioactive Waste Treatment Using an Electrodialysis Process

Institute of Nuclear Chemistry and Technology, Dorodna 16, 03-195 Warsaw, Poland
Author to whom correspondence should be addressed.
Membranes 2021, 11(5), 324;
Received: 4 April 2021 / Revised: 22 April 2021 / Accepted: 26 April 2021 / Published: 28 April 2021
(This article belongs to the Special Issue Advances in Electromembrane Processes for Resource Recovery)


In this work, the possibility of using electrodialysis for the treatment of liquid low-level radioactive waste was investigated. The first aim of the research was to evaluate the influence of the process parameters on the treatment of model solutions with different compositions. Subsequent experimental tests were conducted using solutions containing selected radionuclides (60Co and 137Cs), which are potential contaminants of effluents from nuclear power plants, as well as components often found in waste generated from industrial and medical radioisotope applications. The results of the experiments performed on real radioactive waste confirmed that electrodialysis was a suitable method for the treatment of such effluents because it ensured high levels of desalination and rates of decontamination. The most important parameters impacting the process were the applied voltage and electrical current. Moreover, this research shows that the application of the ED process enables the separation of non-ionic organic contaminants of LLW, which are unfavorable in further stages of waste predisposal.

1. Introduction

Many activities related to nuclear energy production generate radioactive waste, although such waste may also be produced following the medical or industrial use of radioisotopes. In general, radioactive waste differs in terms of form, radioactivity concentration, and type of contamination, depending on its origin. It can exist in a solid, liquid, or gaseous state, and the concentration levels of radioactivity can range from very high (e.g., in spent fuel and waste from its reprocessing) to very low (e.g., from the use of radioisotopes in laboratories, hospitals, and other industries) [1].
Low-level radioactive liquid wastes (LLWs) from industrial and medical applications typically contain short-lived radionuclides (i.e., half-life < 30 years) and very rarely contain trace concentrations of long-lived radionuclides. Such wastes may also include small amounts of spent acids and bases, analytical solutions, scintillation cocktails, decontamination and cleaning solutions, or waste oils. Overall, LLWs are very complex solutions, and without appropriate treatment they are a hazard to human health and the surrounding environment. Therefore, because of their potential detriments, such wastes cannot be directly discharged into the environment; they must be processed to reduce their volume and allow for further stabilization that makes them more suitable for long-term disposal. Various methods have been employed for the treatment of radioactive waste, including chemical precipitation, ion exchange, thermal evaporation, and solvent extraction [2]. Despite their demonstrated performance, these methods have several drawbacks, such as their high energy consumption and the formation of secondary waste (e.g., spent ion-exchange resins, various types of adsorbents, regeneration solutions, or sludge from sediment tanks). The range of methods that can be used for LLW treatment are constantly expanding, and new approaches, including electrochemical and biotechnological methods and membrane processes, have been adopted for this purpose. In particular, membrane processes have been successfully employed for liquid radioactive waste treatment owing to a number of advantages, including their high decontamination factors, large volume reduction, and low energy consumption [3,4]. Moreover, membrane systems are flexible and it is not difficult to combine them with other treatment methods. It has also been demonstrated that membrane processes offer improved treatment capabilities when applied in combination with other methods, especially in cases where conventional methods alone are not efficient or effective enough [3]. There are many examples of membrane implementation in radioactive waste processing technology [5,6,7]. Many additional strategies for implementing membrane processes in radioactive liquid waste processing plants have been investigated [8,9,10,11].
To our knowledge, there are a limited number of reports describing electrical processes such as electrodialysis (ED) for the treatment of radioactive liquid waste. Electrodialysis is based on ion-exchange membranes that use electrochemical potential as the driving force [12]. The main advantages of ED used for liquid waste treatment include its low-pressure operation, low lifecycle costs, and easy maintenance. Although the electrodialysis process is high in capital cost, it provides a product with a higher quality and is more environmentally friendly than other mass separation techniques [13]. Electrodialysis has been utilized primarily for the production of potable water from brackish water sources [14]. However, there are some reports that describe the application of ED in the nuclear field—namely, the separation of molybdenum, carbonate, and bicarbonate ions from liquid waste containing uranium in the uranium ore leaching process [15]. The results of these studies confirmed the high retention of carbonate ions and selective separation of molybdenum from uranium. Electrodialysis combined with diffusion dialysis was tested for the separation of 137Cs and 90Sr from concentrated nitric acid solutions [16]. Diffusion dialysis was conducted in a two-chamber system wherein the anion-exchange membrane and the reduction in solution acidity were involved in the first step of the proposed radioactive waste treatment scheme. Electrodialysis using novel anion-exchange membranes was also applied for the separation of 125I and 36Cl ions [17]. Prepared paper membranes containing trimethylhydroxylpropylammonium groups exhibited a high selectivity for iodide ions over chloride ions, thereby supporting their use for iodide removal from radioactive waste.
The aim of the present work was to evaluate the possibility of using a batch electrodialysis process to treat low-level radioactive liquid waste from the use of radioisotopes in research, medicine, and industry. The waste was collected by the Radioactive Waste Management Plant (RWMP) in Swierk, Poland, and processed using conventional methods, such as evaporation or chemical precipitation. In addition to high concentrations of inorganic salts, this type of waste commonly contains organic compounds derived, for example, from decontamination of laboratory or equipment. The presence of organic substances affects later stages of radioactive waste processing and the general safety of its final disposal. Therefore, it is advisable to separate such compounds before the next treatment stages. Herein, we demonstrate that the ED process represents a promising technique to achieve this goal.

2. Materials and Methods

2.1. Chemicals

All chemicals used in the work were of analytical grade purity. Salts and citric acid used in experiments were obtained from CHEMPUR, Poland. Triton X-102 (polyethylene glycol octylphenyl ether, MW = 757 g/mol) was purchased from Sigma Aldrich (St. Louis, MO, USA). Deionized water was used in all experiments. The carrier-free radionuclides of cesium-137 (radioactive half-life, t1/2 = 30.07 y; energy of emitted radiation, Eγ = 661.7 keV) and cobalt-60 (t1/2 = 5.3 y; Eγ = 1.17 and 1.33 MeV) were supplied by POLATOM (Otwock-Swierk, Poland) as certificated standard solutions.

2.2. Membrane Installation

The experiments were conducted with the ED installation, BED 1-2 Compact (PCCell GmbH, Heusweiler, Germany) equipped with an electrodialysis cell (type 64002), as illustrated in Figure 1.
The ED installation contained an electrodialysis stack of ten anion-exchange membranes (PC-SA) and nine cation-exchange membranes (PC-SK), whose parameters are presented in Table 1. A scheme of the membrane configuration in a processing cell is illustrated in Figure 2. Overall, the ED installation consisted of an electrode solution tank (volume = 2 dm3), external cylinders for the diluate and concentrate (volume = 2 dm3 each), and a power supply (HCS-3202, Manson, Kwai Chung, N.T, Hong Kong). The concentrate, diluate, and electrode solutions circulated in three independent circuits, each of which was equipped with a separate pump and rotameter. The mean velocities of the diluate and concentrate were maintained at 0.16 cm/s.

2.3. Methods

At the beginning of the ED experiments, the solution to be purified was placed in the diluate and concentrate cylinders. A solution of 0.1 M Na2SO4 was used as the electrolyte and the concentrate and diluate solutions were circulated through the ED installation.
In order to determine the limiting current density below which the ED process had to be carried out, a U/I = f(1/I) curve was drawn (Figure 3). The limiting current (Ilim) determined from the intersection of two curves was 0.24 A, and the limiting current density (ilim) could be easily calculated from the formula:
i l i m = I l i m s
where s is the membrane effective area, m2.
The obtained value of limiting current density was 37.47 A/m2.
During the ED experiments, samples of both circulated solutions were obtained at the same time intervals and the conductivity of each sample was measured using a benchtop conductivity meter (Oakton pH/Con 510 Series, EUTECH Instruments, Vernon Hills, IL, USA). The ion concentrations in the diluate and concentrate were determined via ion chromatography (Dionex 2000i/SP, Thermo Fisher Scientific, Waltham, MA, USA) with an anion-exchange column (Dionex Ion Pac AS9HC) with a pre-column (Ion Pac AG9HC) and a cation-exchange column (Ion Pac CS12) protected by a pre-column (CG12A). The total organic carbon (TOC) analysis of non-radioactive solutions was performed using the multi-N/C 3100 apparatus (Analytik Jena AG, Jena, Germany). The TOC content was determined using a carbon analyzer equipped with a nondispersive infrared (NDIR) detector. For samples containing radioactive species, the TOC was measured via a spectroscopic method using NANOCOLOR® OWO 25 and NANOCOLOR® OWO 600 tests.
The total concentrations of radionuclides in the diluate and concentrate samples were determined using a gamma counter (LG-1b type, INCT, Warsaw, Poland), while the concentrations of specific radionuclides were measured using an automatic gamma counter (PerkinElmer 2480 Wizard2©, Waltham, MA, USA). For each experiment, the reported results were calculated as the mean of at least three independent samples (i.e., all radiometric measurements of each sample were repeated a minimum of three times).

3. Results

3.1. Experiments Using Model Solutions

The first experiments were conducted using non-radioactive model solutions that were prepared based on the chemical composition of radioactive liquid waste collected at the RWMP. The types of organic compounds present in this waste were not specified; only their content was known (measured as the TOC). The TOC in different waste samples collected from the RWMP ranged from 15 to 75 mg/dm3. Therefore, when preparing the model solutions, it was assumed that both ionic and non-ionic organic compounds were present. In this work, citric acid and octylphenyl ethoxylate (Triton X-102) were added as the model organic substances, which may be present in waste containing decontamination agents from cleaning procedures. Detergents of Triton X-type (e.g., Triton X-100) are also used as a scintillation cocktail in beta scintillation counters, so they may be present in liquid waste originating from radioisotope applications. Four series of solutions, differing in salinity and type of organic substance admixture, were prepared according to Table 2 and employed as model liquid waste in ED experiments.
The preliminary study focused on evaluating the effects of the initial salt concentration of the feed solution and the applied current on the process’s performance. Two current density values were used for each solution: specifically, 18.8 and 35.9 A/m2, which were 50% and 96% of the limiting current (for 70% desalination), respectively. The results of these tests are presented in Table 3 and Table 4.
Electrodialysis conducted at a high current was more efficient than the process at a lower amperage (Table 3). Moreover, the results indicated that the total salinity of the solution affected the efficiency of the electrolysis. At lower salt concentrations (solution No. II), a higher desalination of the model solutions was achieved compared with the process applied to solutions with a higher salt concentration. In general, the higher the amperage, the more efficient the removal of citric acid, which is expressed as a decreasing TOC. When a current density of 35.9 A/m2 was applied, the TOC decreased by almost 90% in the case of solutions No. I and II. In contrast, in the presence of a lower current density (18.8 A/m2), the TOC diminished by 71% and 80% for solutions No. I and II, respectively. The model organic compound (citric acid) added to solutions No. I and II also passed through the membranes, so during the process it was removed from the diluate reservoir and collected in the concentrate container. However, the citrate anions were probably transported from the diluate to the concentrate stream more slowly compared to the other ions, as indicated by lower degree of TOC removal (approximately 85–90%), while the other ions were removed with an efficiency of close to 100%. The transport of ionic organic compounds through the membranes during ED can be influenced by various parameters, such as current density, size, and type of ion charge, as well as the functional groups on these ions [18]. It has been reported that mono-selective anion-exchange membranes can be used to improve the separation of anionic organic substances from salts [19]. However, the separation of ionic organic substances from inorganic compounds present in the model solutions was not observed with the membranes and process conditions applied in this work.
A different situation emerged when Triton X-102 was used as the model non-ionic substance added to the solution (solutions No. III and IV). In this case, the organic substance was retained by the membranes and only a small amount of Triton X-102 passed to the concentrate stream (Table 4).
This experiment demonstrated the suitability of ED for the separation of ionic substances from non-ionic components in solution. These results demonstrated the possibility of selectively separating non-ionic organic contaminants of radioactive liquid waste (which interfere with numerous processes) to treat such waste in the subsequent stages of predisposal. This valuable feature of ED has been used in many fields [20,21,22].

3.2. Treatment of Radioactive Solutions Using Electrodialysis

One of the main objectives of this work was to assess the possibility of (i) using ED to remove radionuclides from liquid waste, (ii) concentrating them in a small volume, and (iii) simultaneously obtaining a stream of purified water that can be safely discharged into the environment. For this purpose, two model solutions containing inorganic salts and one of two radionuclides commonly present in real waste collected from Polish laboratories (137Cs and 60Co) were prepared and subjected to the ED process. The compositions of the model radioactive solutions are presented in Table 5.
The electrodialysis was performed using the process parameters selected during the preliminary tests, which provided the best salt removal effects: the voltage (U) was 20 V, the mean velocities (u) of the diluate and concentrate were the same at 0.16 cm/s, and the current density (i) was 31.3 A/m2. The results of these experiments are presented in Figure 4 and Figure 5.
These experimental results confirmed that the tested solutions containing radioactive substances were purified with very high efficiency using the applied ED process. Both radionuclides (i.e., 137Cs in solution No. V, and 60Co in solution No. VI) were completely removed in 40 min (Figure 4). In the same amount of time, a corresponding concentration of these species was detected in the concentrate stream. The efficiency of a radioactive waste purification process is typically described by the decontamination factor (DF), which is calculated using Equation (2),
DF = A 0 A i
where A0 and Ai represent the radioactivity of the solution at the end of the experiment and at a given time, respectively (in counts per minute, cpm).
A comparison of the changes in the decontamination factor of both model solutions is shown in Figure 6. High DF values (19 and 27 for solutions No. V and VI, respectively) were achieved as a result of the electrodialysis process used to decontaminate both model solutions.
The remaining components in the model solutions (i.e., inorganic salt ions) accumulated in the concentrate, leaving the diluate free of impurities (Figure 5). The decline in conductivity observed for the diluate stream was slightly faster than the decline in this stream’s radioactivity; the diluate attained a conductivity close to that of pure water in just 30 min. Similar behavior was observed for both model radioactive solutions.
Finally, a sample of real waste received from the RWMP was subjected to the electrodialysis treatment process. Its characteristics are summarized in Table 6.
The sample contained 137Cs, 60Co, 85Sr, and 241Am radionuclides. The parameters of the applied electrodialysis process were the same as those applied for the treatment of model radioactive solutions. The results of these experiments are presented in Figure 7a,b.
As shown in Figure 7a, the specific radioactivity of all radionuclides in the waste sample rapidly decreased over time; this was confirmed by the reduction in total activity shown in Figure 7b. Additionally, it was observed that the radioactivities of all radioisotopes and the concentrations of ions present in the solution (represented as conductivity) dropped to the levels of pure water within the first 60 min of the ED process.
In summary, treating the real waste sample using the developed ED process led to efficient salt and radionuclide removal (nearly 100%) after 1 h of treatment, as shown in Table 7.
The content of organic compounds in the final solution (diluate) also diminished. However, at the same time it was observed that organic matter did not accumulate in the concentrate stream—the concentration of organic substances in the concentrate stream slightly decreased as well. This can be explained by membrane fouling caused by organic substances such as ionic surfactants. There are many reports in the literature on the occurrence of membrane fouling during the electrodilysis process of solutions containing surfactants, peptides, or humates [23,24]. They can accumulate on the membrane surface and damage the membrane. This phenomenon occurs mainly when solutions of high concentration are treated or at the end of experiments when a high concentration of electrolyte appears near the membrane surface. It also seems possible to pass the components of the diluate and concentrate into the electrode rinsing solution. However, further research is required to explain the behavior of the organic compounds present in the sample of radioactive wastewater under examination.
The fouling of the ion exchange membranes is one of the main limiting factors for wide ED implementation, as for other membrane processes used for industrial wastewater treatment. Before implementing the process for the treatment of liquid radioactive waste on an industrial scale, the risk of membrane fouling will certainly require consideration, and the phenomenon itself will necessitate further experiments.
However, we already know many ways to deal with such problems—e.g., by adjusting the hydrodynamic conditions in the apparatus, adding appropriate substances to minimize membrane fouling [25,26], or periodic membrane cleaning. In the described case, fouling can be prevented by adding a small amount of acid (e.g., nitric acid) to the concentrate or by subjecting the wastewater to a preliminary treatment that consists of removing non-ionizable substances (silica, bacteria, soluble organic compounds, etc.).
Overall, the results obtained in this study regarding the treatment of model radioactive solutions and real radioactive waste indicated that the developed ED process (Table 8) could be applied to effectively remove radionuclides as well as inorganic salts present in solutions. Very high levels of salt removal (>99.5%) and high DF values were obtained as a result of this process.
During the experiments, no significant decrease in the efficiency of the process was observed. However, membrane fouling and scaling can occur during the treatment of real radioactive wastewater by the ED, especially in the case of a long-term process. The membrane supplier predicts the lifetime of the membranes to be 1–3 years. If fouling occurs, cleaning with 5–10% HCl or 4% NaOH can be applied for membrane regeneration. Moreover, the mechanical cleaning of the membrane surfaces should also be carried out periodically.
Certainly, in the further stages of the development of the ED process for the treatment of specific real radioactive wastewater, it will be necessary to carry out longer test cycles to draw final conclusions about the feasibility of the process and to design an industrial system with an electrodialysis chamber.

4. Conclusions

Herein, the possibility of using electrodialysis to treat low-level radioactive liquid waste was explored. Such wastewater may contain various types of organic compounds, so the ED process was performed on model solutions containing organic substances (ionic and non-ionic). The results of this study confirmed that ED can be applied for the separation of both organic and inorganic contaminants. Further research indicated that the decontamination of model solutions containing radioactive substances using the ED process was very effective, and all other components of the solutions (i.e., inorganic ions) accumulated in the concentrate, leaving the diluate free from impurities.
Tests conducted on a real radioactive waste sample showed that the developed ED process was also highly effective for the purification of this waste. Very high levels of salt removal and high decontamination factors were observed.
Based on the results presented in this research, it can be concluded that electrodialysis represents a suitable method for radioactive liquid waste treatment because it ensures high desalination rates and a sufficiently high removal of radioactive substances. If the radioactive liquid waste contains non-ionic organic compounds, their processing via ED using standard cation- and anion-exchange membranes is not limited to the concentration of all substances in the concentrate stream and it is possible to obtain clean water, which can then be used as process water or discharged into the environment. Additionally, the separation of organic compounds from inorganic substances is possible. Overall, this process enables the removal of troublesome components that hinder waste solidification and disposal and allows for the recovery of valuable organic components, if any, from the diluate circuit.

Author Contributions

Conceptualization, A.M. and G.Z.-K.; Formal analysis, A.M.; Funding acquisition, G.Z.-K.; Investigation, A.N., J.P., A.M.; Methodology, A.M.; Project administration, G.Z.-K.; Resources, A.M.; Software, A.M.; Supervision, G.Z.-K.; Validation, G.Z.-K.; Visualization, A.M.; Writing—original draft, A.M.; Writing—review and editing, A.M. and G.Z.-K. All authors have read and agreed to the published version of the manuscript.


This research was funded by the International Atomic Energy Agency for Coordinated Research Project on the Management of Wastes Containing Long lived Alpha Emitters (T13017).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analysis, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.


  1. International Atomic Energy Agency (IAEA). Classification of Radioactive Waste, General Safety Guide No. GSG-1; International Atomic Energy Agency: Vienna, Austria, 2009. [Google Scholar]
  2. International Atomic Energy Agency (IAEA). Advances in Technologies for Treatment of Low and Intermediate Level Radioactive Liquid Wastes. Technical Reports Series No. 370; International Atomic Energy Agency: Vienna, Austria, 1994. [Google Scholar]
  3. Buckley, L.; Bushart, S.; Efremenkov, V.; Karlin, Y.; Kohout, R.; Pabby, A.; Tapsell, G. Application of Membrane Technologies for Liquid Radioactive Waste Processing. Technical Report Series No. 431; International Atomic Energy Agency: Vienna, Austria, 2004. [Google Scholar]
  4. Zakrzewska-Trznadel, G. Advances in membrane technologies for the treatment of liquid radioactive waste. Desalination 2013, 321, 119–130. [Google Scholar] [CrossRef]
  5. Harries, J.; Dimitrovski, L.; Hart, K.; Levins, D. Radioactive waste management at ANSTO-managing current and historic wastes. In Proceedings of the International Conference on Management of Radioactive Waste from Non-Power Applications—Sharing the Experience, St. Paul’s Bay, Malta, 5–9 November 2001; International Atomic Energy Agency: Vienna, Austria, 2001; Volume 187, pp. 5–6. [Google Scholar]
  6. Chmielewski, A.G.; Harasimowicz, M.; Tyminski, B.; Zakrzewska-Trznadel, G. Concentration of low- and medium-level radioactive wastes with 3-stage reverse osmosis pilot plant. Sep. Sci. Technol. 2001, 36, 1117–1129. [Google Scholar] [CrossRef]
  7. International Atomic Energy Agency. Processing of Nuclear Power Plant Waste Streams Containing Boric Acid, IAEA-TECDOC-911; IAEA: Vienna, Austria, 1996. [Google Scholar]
  8. Oji, L.N.; Martin, K.B.; Hobbs, D.T. Development of prototype titanate ion-exchange loaded-membranes for strontium, cesium and actinide decontamination from aqueous media. J. Radioanal. Nucl. Chem. 2009, 279, 847–854. [Google Scholar] [CrossRef][Green Version]
  9. Haiyang, L.; Jianlong, W. Treatment of radioactive wastewater using direct contact membrane distillation. J. Haz. Mat. 2013, 261, 307–315. [Google Scholar] [CrossRef]
  10. Jagasia, P.; Dhami, P.S.; Mohapatra, P.K.; Ansari, S.A.; Jadhav, S.Y.; Kalyankar, G.K.; Gandhi, P.M.; Kharul, U.K. Recovery of radio-cesium from actual high level liquid waste using solvents containing calix[4]arene-crown-6 ligands. J. Environ. Chem. Eng. 2017, 5, 4134–4140. [Google Scholar] [CrossRef]
  11. Bártová, Š.; Kůs, P.; Skala, M.; Vonková, K. Reverse osmosis for the recovery of boric acid from the primary coolant at nuclear power plants. Nucl. Eng. Des. 2016, 300, 107–116. [Google Scholar] [CrossRef]
  12. Strathmann, H. Fundamentals in Electromembrane Separation Processes, In Membrane Operations. Innovative Separations and Transformations; Drioli, E., Giorno, L., Eds.; WILEY-VCH Verlag GmbH & Co. KGaA: Weinheim, Germany, 2009; pp. 83–119. [Google Scholar]
  13. Strathmann, H. Electrodialysis, a mature technology with a multitpude of new applications. Desalination 2010, 264, 268–288. [Google Scholar] [CrossRef]
  14. Chehayeb, K.M.; Farhat, D.M.; Nayar, K.G.; Lienhard, J.H. Optimal design and operation of electrodialysis for brackish-water desalination and for high-salinity brine concentration. Desalination 2017, 420, 167–182. [Google Scholar] [CrossRef]
  15. Lounis, A.; Gavach, C. Treatment of uranium leach solutions by electrodialysis for anion impurities removal. Hydrometallurgy 1997, 44, 83–96. [Google Scholar] [CrossRef]
  16. Mathur, J.N.; Murali, M.S.; Balarama Krishna, M.V.; Ramahandhran, V.; Hanra, M.S.; Misra, B.M. Diffusion dialysis aided electrodialysis process for concentration of radionuclides in acid medium. J. Radioanal. Nucl. Chem. 1998, 232, 237–240. [Google Scholar] [CrossRef]
  17. Inoue, H.; Kagoshima, M.; Yamasaki, M.; Honda, Y. Radioactive iodine waste treatment using electrodialysis with an anion exchange paper membrane. Appl. Radiat. Isot. 2004, 61, 1189–1193. [Google Scholar] [CrossRef] [PubMed]
  18. Zhang, Y.; Van der Bruggen, B.; Pinoy, L.; Meesschaert, B. Separation of nutrient ions and organic compounds from salts in RO concentrates by standard and monovalent selective ion-exchange membranes used in electrodialysis. J. Membr. Sci. 2009, 332, 104–112. [Google Scholar] [CrossRef]
  19. Zhang, Y.; Pinoy, L.; Meesschaert, B.; Van Der Bruggen, B. Separation of small organic ions from salts by ion-exchange membrane in electrodialysis. Am. Inst. Chem. Eng. J. 2010, 57, 2070–2078. [Google Scholar] [CrossRef]
  20. Novalic, S.; Kongbangkerd, T.; Kulbe, K.D. Recovery of organic acids with high molecular weight using a combined electrodialytic process. J. Membr. Sci. 2000, 166, 99–104. [Google Scholar] [CrossRef]
  21. Majewska-Nowak, K.; Grzegorzek, M.; Kabsch-Korbutowicz, M. Removal of fluoride ions by batch electrodialysis. Environ. Prot. Eng. 2015, 41, 67–81. [Google Scholar] [CrossRef]
  22. Melnikov, S.; Sheldeshov, N.; Zabolotsky, V.; Loza, S.; Achoh, A. Pilot scale complex electrodialysis technology for processing a solution of lithium chloride containing organic solvents. Sep. Purif. Technol. 2017, 189, 74–81. [Google Scholar] [CrossRef]
  23. Lee, H.-J.; Hong, M.-K.; Han, S.-D.; Shim, J.; Moon, S.-H. Analysis of fouling potential in the electrodialysis process in the presence of an anionic surfactant foulant. J. Membr. Sci. 2008, 325, 719–726. [Google Scholar] [CrossRef]
  24. Persico, M.; Mikhaylin, S.; Doyen, A.; Firdaous, L.; Hammami, R.; Bazinet, L. How peptide physicochemical and structural characteristics affect anion-exchange membranes fouling by a tryptic whey protein hydrolysate. J. Membr. Sci. 2016, 520, 914–923. [Google Scholar] [CrossRef]
  25. Zakrzewska-Trznadel, G.; Harasimowicz, M.; Miśkiewicz, A.; Jaworska, A.; Dłuska, E.; Wroński, S. Reducing fouling and boundary-layer by application of helical flow in ultrafiltration module employed for radioactive wastes processing. Desalination 2009, 240, 108–116. [Google Scholar] [CrossRef]
  26. Miśkiewicz, A.; Zakrzewska-Trznadel, G.; Dobrowolski, A.; Jaworska-Sobczak, A. Using tracer methods and experimental design approach for examination of hydrodynamic conditions in membrane separation modules. Appl. Radiat. Isot. 2012, 70, 837–847. [Google Scholar] [CrossRef] [PubMed]

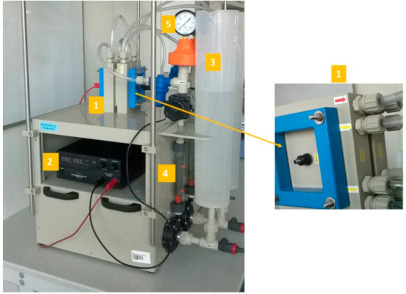

Figure 1. Photo of the installation for the electrodialysis process: 1—ED cell; 2—power supply; 3—solution tanks; 4—rotameters; 5—manometer.
Figure 1. Photo of the installation for the electrodialysis process: 1—ED cell; 2—power supply; 3—solution tanks; 4—rotameters; 5—manometer.
Membranes 11 00324 g001

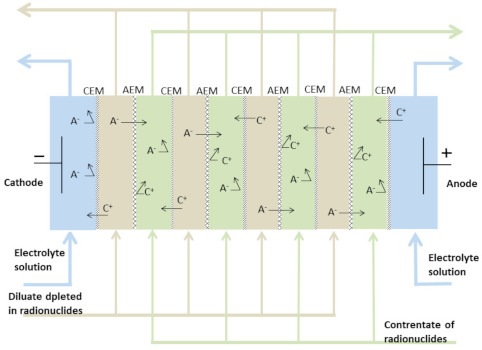

Figure 2. Scheme of membranes configuration in the ED cell.
Figure 2. Scheme of membranes configuration in the ED cell.
Membranes 11 00324 g002

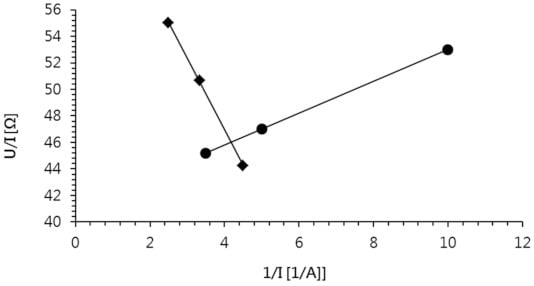

Figure 3. Determination of the limit current.
Figure 3. Determination of the limit current.
Membranes 11 00324 g003

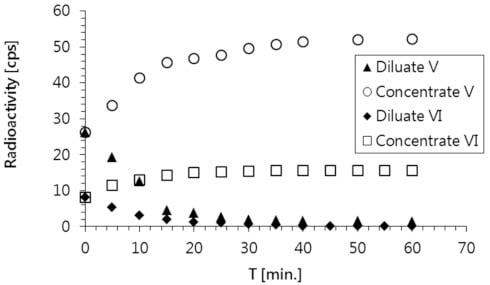

Figure 4. Changes in the radioactivity of the diluate and concentrate streams during the electrodialysis treatment of solutions No. V and VI.
Figure 4. Changes in the radioactivity of the diluate and concentrate streams during the electrodialysis treatment of solutions No. V and VI.
Membranes 11 00324 g004

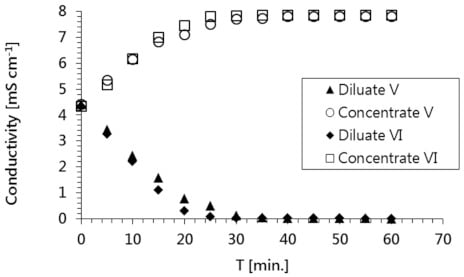

Figure 5. Change in the conductivity of the diluate and concentrate streams during the electrodialysis treatment of solutions No. V and VI.
Figure 5. Change in the conductivity of the diluate and concentrate streams during the electrodialysis treatment of solutions No. V and VI.
Membranes 11 00324 g005
Figure 6. Changes in the decontamination factor during the electrodialysis treatment of solutions No. V and VI.
Figure 6. Changes in the decontamination factor during the electrodialysis treatment of solutions No. V and VI.
Membranes 11 00324 g006

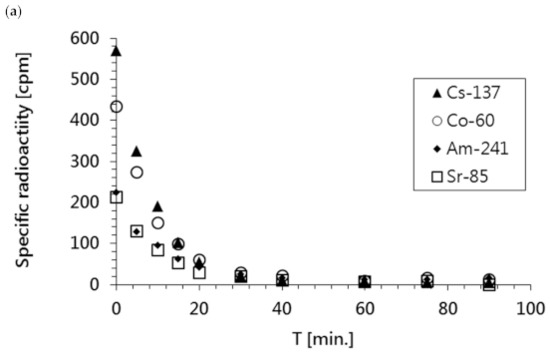

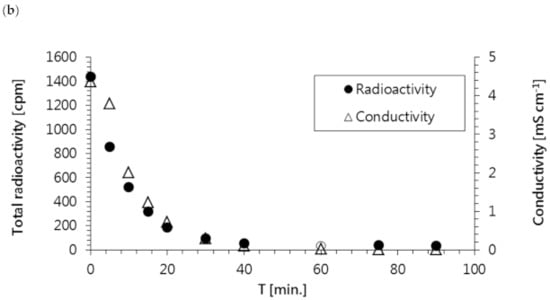

Figure 7. Changes in the radioactivity of the diluate stream during the electrodialysis of the real waste sample. (a) Radioactivities of main radioisotopes; (b) total radioactivity.
Figure 7. Changes in the radioactivity of the diluate stream during the electrodialysis of the real waste sample. (a) Radioactivities of main radioisotopes; (b) total radioactivity.
Membranes 11 00324 g007aMembranes 11 00324 g007b
Table 1. Parameters of the experimental membranes.
Table 1. Parameters of the experimental membranes.
Membrane typeCation-exchangeAnion-exchange
Size, mm110 × 110
Active area, cm264
Thickness, μm160–200180–220
Functional group–SO3–NR3+
Resistance, Ω cm2~2.5~1.8
Water content, wt%~9~14
Table 2. Schematic composition of model solutions.
Table 2. Schematic composition of model solutions.
κ, mS cm−
Organic substanceCitric acidCitric acidTriton X-102Triton X-102
Table 3. The treatment of model solutions containing citric acid using ED.
Table 3. The treatment of model solutions containing citric acid using ED.
CompoundSolution No ISolution No II
18.8 A/m235.9 A/m218.8 A/m235.9 A/m2
Na+, mg dm−3435.05130.641.69330.750.611.09
K+, mg dm−3386.654.180.5592.50.160.15
Cs+, mg dm−310.852.370.
Mg2+, mg dm−396.554.200.1753.10.070.17
Ca2+, mg dm−387.61.590.15---
Cl, mg dm−3451.75131.701.2496.150.240.27
NO3, mg dm−32035.90341.754.499281.622.50
SO42−, mg dm−3---183.350.290.56
Citric acid, mg dm−354.45n.a.n.a.75.60n.a.n.a.
TOC, mg dm−329.24.203.0214.72.072.19
Table 4. The treatment of model solutions containing Triton X-102 using ED.
Table 4. The treatment of model solutions containing Triton X-102 using ED.
CompoundSolution No IIISolution No IV
Na+, mg dm−3160.122.92121.521.37
K+, mg dm−3379.565.8394.910.00
Cs+, mg dm−384.900.0050.750.00
Mg2+, mg dm−3120.3312.5064.493.26
Ca2+, mg dm−3374.8532.56--
Cl, mg dm−3339.412.6865.660.00
NO3, mg dm−31784.3778.21925.4176.97
SO42−, mg dm−3--141.420.00
Triton X-102, mg dm−349.0n.a.33.0n.a.
TOC, mg dm−330.9127.8318.0217.84
Table 5. Characteristics of the radioactive model solutions.
Table 5. Characteristics of the radioactive model solutions.
ComponentSolution No VSolution No VI
137Cs, cps *26.3-
60Co, cps *-8.1
MgCl2, mg dm−3402.3
CaCl2, mg dm−3477.4
Na2SO4, mg dm−3667.5
KNO3, mg dm−3854.6
NaNO3, mg dm−31700
κ, mS cm−14.414.33
* cps—counts per second.
Table 6. Composition of the radioactive liquid waste sample.
Table 6. Composition of the radioactive liquid waste sample.
137Cs, cpm *569.3
60Co, cpm *433.0
85Sr, cpm *213.4
241Am, cpm *224.1
Cl, mg dm−326.6
NO3, g dm−31.8
SO42−, mg dm−3451.3
Na+, mg dm−3635.5
K+, mg dm−333.0
Mg2+, mg dm−3102.7
Ca2+, mg dm−3172.2
TOC, mg dm−318.4
κ, mS cm−14.3
* cpm—counts per minutes.
Table 7. The treatment of liquid waste sample using ED.
Table 7. The treatment of liquid waste sample using ED.
ParameterInitialAfter ED
Total radioactivity, cpm including:1448.932.4
137Cs, cpm569.33.9
60Co, cpm433.012.9
85Sr, cpm213.40
241Am, cpm224.115.6
κ, mS cm−14.30.016
TOC, mg dm318.412.2
Table 8. Summary of the results from treating model solutions and real waste using the developed ED process.
Table 8. Summary of the results from treating model solutions and real waste using the developed ED process.
Decontamination Factor (DF)Salt Removal (SR)
Solution No V18.8999.86%
Solution No VI27.0099.86%
Sample of real waste44.4299.63%
