Preparation and Chemical Protective Clothing Application of PVDF Based Sodium Sulfonate Membrane

1
State Key Laboratory of NBC Protection for Civilian, Institute of Chemical Defense, Beijing 100191, China
2
College of Chemistry and Materials, University of Science and Technology of China, Hefei 230026, China
*
Authors to whom correspondence should be addressed.
Membranes 2020, 10(8), 190; https://doi.org/10.3390/membranes10080190
Received: 2 July 2020 / Revised: 31 July 2020 / Accepted: 8 August 2020 / Published: 17 August 2020

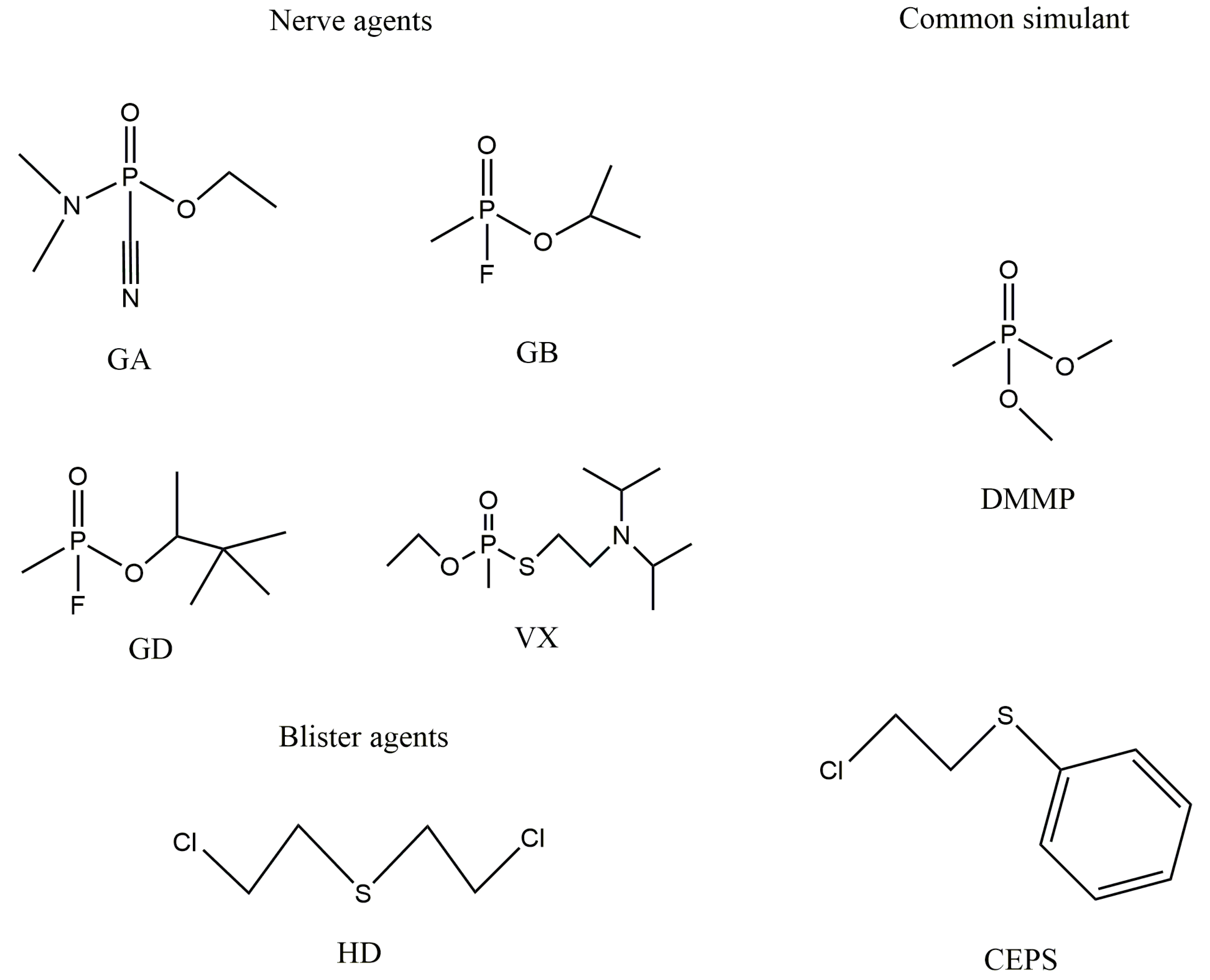

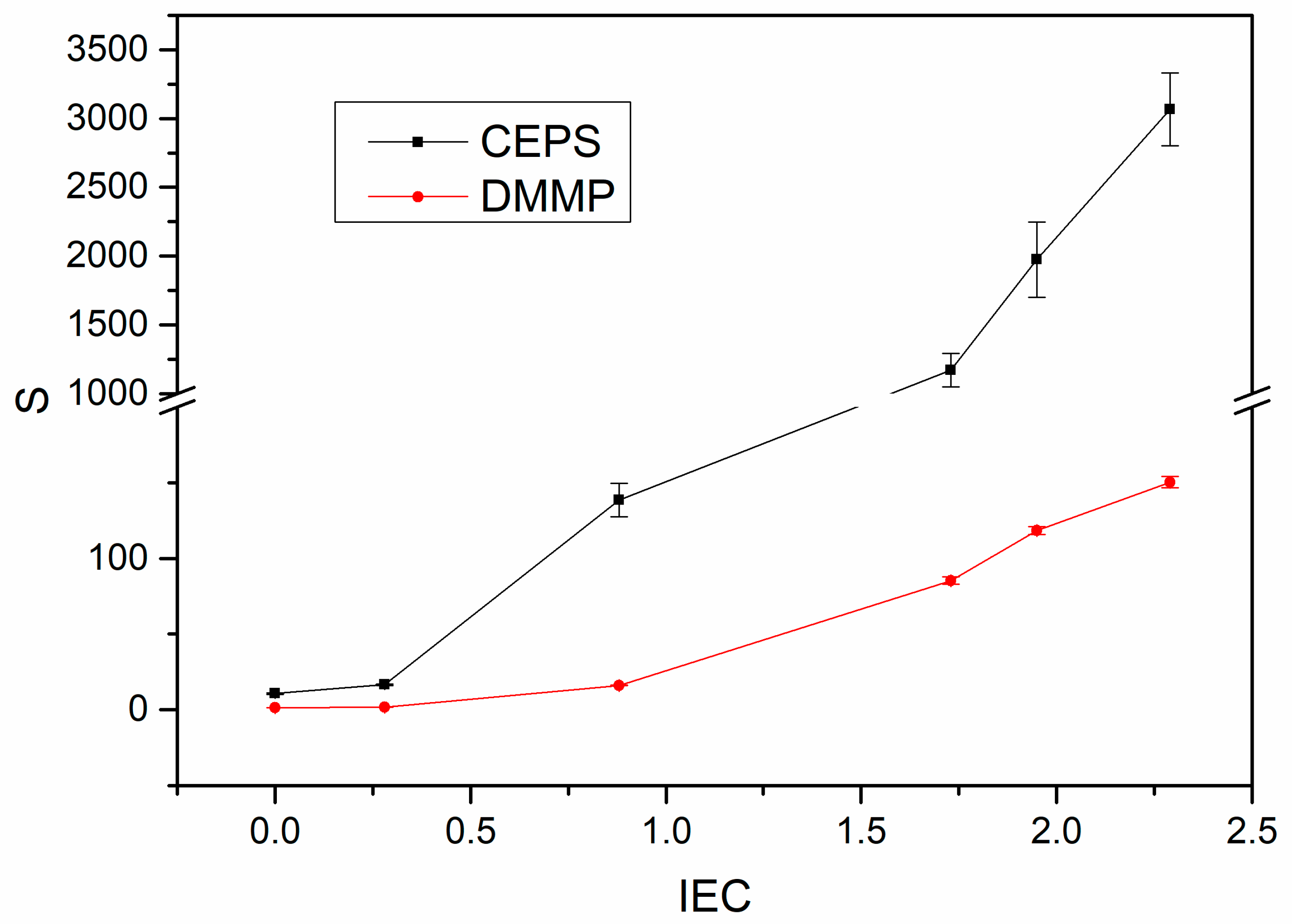

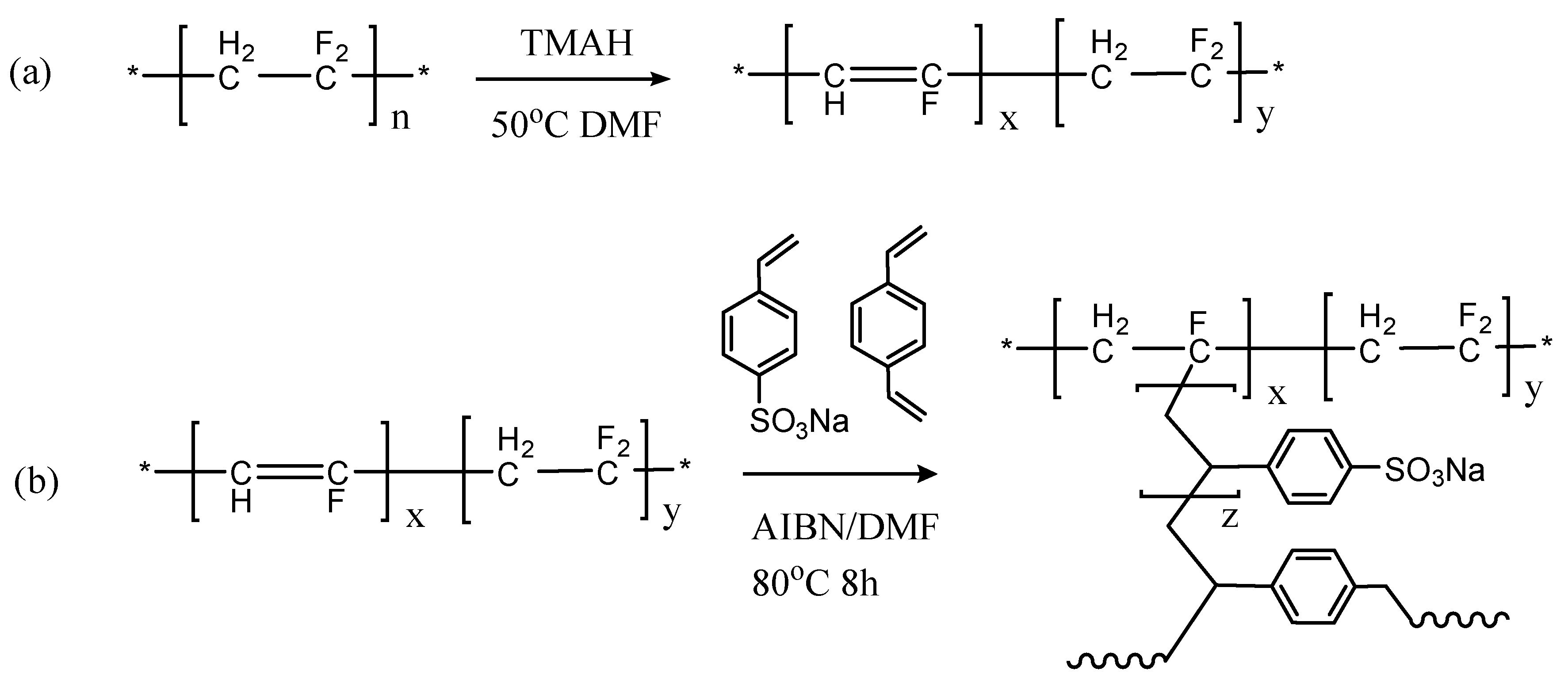

Chemical protective clothing (CPC) is major equipment to protect human skin from hazardous chemical warfare agents (CWAs), especially nerve agents and blister agents. CPC performance is mainly dominated by the chemical protective material, which needs to meet various requirements, such as mechanical robustness, protective properties, physiological comfort, cost-effectiveness, and dimensional stability. In this study, polyvinylidene fluoride (PVDF) based sodium sulfonate membranes with different ion exchange capacities (IECs) are prepared simply from low-cost materials. Their mechanical properties, contact angles, permeations, and selectivities have been tested and compared with each other. Results show that membranes with IEC in the range of 1.5–2 mmol g−1 have high selectivities of water vapor permeation over CWA simulant vapor permeation and good mechanical properties. Therefore, PVDF-based sodium sulfonate membranes are potential materials for CPC applications. View Full-Text
Keywords: chemical protection; sodium sulfonate membrane; nerve agents; water vapor permeation; membrane separation chemical protection; sodium sulfonate membrane; nerve agents; water vapor permeation; membrane separation
Show Figures

Graphical abstract

MDPI and ACS Style

Zhao, Y.; Wang, X.; Wang, D.; Li, H.; Li, L.; Zhang, S.; Zhou, C.; Zheng, X.; Men, Q.; Zhong, J.; Wu, L. Preparation and Chemical Protective Clothing Application of PVDF Based Sodium Sulfonate Membrane. Membranes 2020, 10, 190. https://doi.org/10.3390/membranes10080190

AMA Style

Zhao Y, Wang X, Wang D, Li H, Li L, Zhang S, Zhou C, Zheng X, Men Q, Zhong J, Wu L. Preparation and Chemical Protective Clothing Application of PVDF Based Sodium Sulfonate Membrane. Membranes. 2020; 10(8):190. https://doi.org/10.3390/membranes10080190

Chicago/Turabian Style

Zhao, Yue; Wang, Xinbo; Wang, Deyin; Li, Heguo; Li, Lei; Zhang, Shouxin; Zhou, Chuan; Zheng, Xiaohui; Men, Quanfu; Zhong, Jinyi; Wu, Liang. 2020. "Preparation and Chemical Protective Clothing Application of PVDF Based Sodium Sulfonate Membrane" Membranes 10, no. 8: 190. https://doi.org/10.3390/membranes10080190
