Magnetically Aligned and Enriched Pathways of Zeolitic Imidazolate Framework 8 in Matrimid Mixed Matrix Membranes for Enhanced CO₂ Permeability

Abstract

Metal-organic frameworks (MOFs) as additives in mixed matrix membranes (MMMs) for gas separation have gained significant attention over the past decades. Many design parameters have been investigated for MOF based MMMs, but the spatial distribution of the MOF throughout MMMs lacks investigation. Therefore, magnetically aligned and enriched pathways of zeolitic imidazolate framework 8 (ZIF−8) in Matrimid MMMs were synthesized and investigated by means of their N₂ and CO₂ permeability. Magnetic ZIF−8 (m–ZIF−8) was synthesized by incorporating Fe₃O₄ in the ZIF−8 structure. The presence of Fe₃O₄ in m–ZIF−8 showed a decrease in surface area and N₂ and CO₂ uptake, with respect to pure ZIF−8. Alignment of m–ZIF−8 in Matrimid showed the presence of enriched pathways of m–ZIF−8 through the MMMs. At 10 wt.% m–ZIF−8 incorporation, no effect of alignment was observed for the N₂ and CO₂ permeability, which was ascribed anon-ideal tortuous alignment. However, alignment of 20 wt.% m–ZIF−8 in Matrimid showed to increase the CO₂ diffusivity and permeability (19%) at 7 bar, while no loss in ideal selectivity was observed, with respect to homogeneously dispersed m–ZIF−8 membranes. Thus, the alignment of MOF particles throughout the matrix was shown to enhance the CO₂ permeability at a certain weight content of MOF.

1. Introduction

Polymeric membranes for gas separation are used for purification, generation and separation of gaseous streams, besides other methods, such as (cryogenic) distillation, pressure swing adsorption and amine scrubbing [1]. In comparison with these other technologies, gas separation membranes may simplify the operational process, provide a relatively easy possibility for upscaling and require no phase change [1]. Despite these advantages, polymeric membranes exhibit a negative correlation between selectivity and permeability, which is known as Robeson’s upper bound [2,3]. The incorporation of additives in polymeric membranes, i.e., a mixed matrix membrane (MMM), can result in shifting the membrane performance towards this upper bound or even surpassing it [4,5,6,7]. Additives that are used to enhance the MMM separation performance and have gained significant attention over the past decades are metal-organic frameworks (MOFs) [8]. MOFs are microporous crystalline networks where metal ions, i.e., the nodes, are coordinated by organic linkers. Like other microporous materials, such as zeolites, MOFs have large surface areas. The chemical affinity, surface area and pore size of MOFs are highly tunable by varying the linker between the metal nodes. These exceptional properties make MOFs promising candidates for the application in the field of gas separation and storage [9].

Zeolitic imidazolate frameworks (ZIFs) are a subclass of MOFs with a crystal structure that exists out of zinc or cobalt cations and imidalozate linkers [10]. ZIFs owe their name to the metal-imidazolate-metal bond angle, which is the same as the Si-O-Si bond angle in zeolites. As the chemical and thermal stability can be an issue in the application of MOFs, ZIFs are a promising subclass of MOFs due to their outstanding chemical and thermal stability [11,12]. One particular type of ZIF that has gained significant attention in the field of gas separation MMMs is ZIF−8, which exists out of zinc ions and 2-methylimidazolate (mIm) linkers [10]. Due to the pore dimensions (pore aperture = 3.4 Å, pore diameter = 11.6 Å), ZIF−8 exhibits high gas uptake and sieving properties towards gases with a small kinetic diameter, e.g., CO₂ and H₂ [10,13]. The size and shape of ZIF−8, which has an isotropic sodalite topology, can be tuned by a variety of parameters, such as solvent type, zinc salt type, precursor ratio, concentrations of the precursor and synthesis method [10,14,15,16,17,18]. Besides the size and shape of ZIF−8, catalytic and magnetic properties can be introduced to the MOF by adding nanoparticles to the synthesis mixture, which extends the field of application of ZIF−8 [17,19,20,21]. Pure ZIF−8 membranes on porous supports and ZIF−8 based MMMs have demonstrated the potential of ZIF−8 for gas separation applications, by means of relatively high selectivity and permeability [8,13,22,23,24]. Even membranes of single crystal ZIF−8 structures have been reported [25]. Generally, the addition of ZIF−8 in a polymer matrix, to form MMMs, results in an increased gas permeability. Moreover, depending on the gas pair and MOF load, the selectivity can improve as well [8].

MMMs consisting of a polymeric matrix with MOF additives provide a wide field of research, where the MMM can be optimized in various manners, since there are many parameters to tune. Firstly, by introducing CO₂-philic linkers in MOFs, the separation of CO₂/CH₄ by MMMs can be significantly improved [5]. Interfacial compatibility between the matrix and the MOF can be optimized by matrix modification or the addition of a dispersant, where the improved MOF embedding results in increased CO₂/CH₄ selectivity [26,27]. The MOF size is an important factor as well for the MMM performance. For example, increasing the MOF size from 50 to 150 nm results in improved H₂/CO₂ selectivity and permeability. This observation is ascribed to the decreased particle agglomeration in the matrix due to the decreased external surface area of the MOF particles [28]. Lastly, annealing temperature of MMMs affects their performance as well. Both the mechanical properties (e.g., toughness, hardness, yield and fracture strength), as well as the permeability of MMMs, show optimal performance when annealed at elevated temperatures [29,30].

One type of optimization of MOF based MMMs that is only marginally explored in the field of gas separation membranes is the spatial distribution of MOFs in MMMs, i.e., aligning three-dimensional isotropic MOFs parallel to the direction of permeation through the membrane. This MOF alignment should form “molecular highways” through the membrane due to the highly permeable nature of MOFs, with respect to the polymer matrix. Alignment of one-dimensional and two-dimensional additives has been performed in MMMs. Techniques for achieving these aligned MMMs were based on external magnetic and electric fields or substrate directed, i.e., a template determines the orientation [31,32,33,34]. For both one-dimensional (i.e., carbon nanotubes) and two-dimensional (i.e., montmorillonite) additives, an improved gas separation performance was observed [32,33,34]. Both one and two-dimensional alignment depends on the orientation of the additive, e.g., carbon nanotubes (a one-dimensional additive), which are permeable through their interior, are oriented parallel to the permeation path. However, three-dimensional additives, e.g., ZIF−8, are permeable in the x, y and z direction, due to their isotropy. Therefore, alignment of three-dimensional additives does not rely on spatial orientation, but on spatial rearrangement.

Hypothetically, the permeability of MMMs with isotropic MOFs should be enhanced by alignment of the MOF, if the permeability of the MOF is significantly higher than the matrix. Alignment will form pathways of the three-dimensional MOF and as a consequence will the permeation behavior be shifted towards the MOF permeability. Thus, the distance between MOFs will be reduced due to the alignment. The permeation through the matrix, i.e., the rate determining component, is minimized through these permeation paths. This improved use of the MOFs could hypothetically reduce the amount of MOFs required in MMMs to obtain a desired permeability.

Therefore, this research aims to align a three-dimensional isotropic additive in an MMM in such a manner that the MOF will form local clusters which will lie parallel to the gas permeation path. Since it has been shown that magnetic properties can be introduced in ZIF−8 and that ZIF−8 as an additive in MMMs increases permeability, this MOF is selected as additive for the MMM. The polyimide Matrimid^® 5218 is selected as polymer matrix. Nanoscale sized magnetite (Fe₃O₄), an iron oxide with a significant higher magnetic susceptibility than other iron oxides, will be used as ferrimagnetic material to magnetize ZIF−8. Additive alignment will be done in a magnetic field, since other magnetic isotropic particles have already been successfully aligned in the direction of the magnetic field lines by magnetic fields in composite materials [35,36]. Lastly, the MMMs will be evaluated for their single gas permeability of CO₂ and N₂. This gas pair is selected since it may resemble partially a flue gas composition [37]. Moreover, N₂ behaves similar to CO by means of thermal diffusion [38]. Furthermore, the kinetic diameters and critical temperatures both gases are in the same range (d_N2 = 3.64 Å, d_CO = 3.76 Å, T_c,N2 = −147 °C, T_c,CO = −140 °C). Therefore, CO₂/N₂ gas mixtures resemble partially the output stream of CO₂ plasma conversion into CO as well [39].

2. Materials and Methods

2.1. Chemicals

Magnetite (Fe₃O₄, d_average = 8 nm, 99.9% purity, US Research Nanomaterials, Houston, TX, USA), 2-methylimidazole (mIm, 99% purity, Sigma-Aldrich, Zwijndrecht, The Netherlands), poly(ethylene glycol) (PEG, 1 kDa, Sigma-Aldrich, Zwijndrecht, The Netherlands), N,N-dimethylformamide (DMF, ≥99.9% purity, Sigma-Aldrich, Zwijndrecht, The Netherlands), zinc nitrate hexahydrate (Zn(NO₃)₂ · 6 H₂O, 98% purity, Thermofischer Acros Organic, Geel, Belgium), Matrimid^® 5218 (Matrimid, kindly provided by Huntsman, Basel, Switzerland), ultrapure water (PURELAB Option demineralizer, Veolia Water Solutions and Technologies, Ede, The Netherlands), helium (5.0 grade, Linde gas, Schiedam, The Netherlands), nitrogen (4.5 grade, Linde gas, Schiedam, The Netherlands) and carbon dioxide (4.5 grade, Linde gas, Schiedam, The Netherlands) were used as received without further purification.

2.2. Magnetic ZIF−8 Synthesis

Magnetic ZIF−8 (m–ZIF−8) and ZIF−8 were prepared by an aqueous room temperature method. First, 10 mL ultrapure water was added to 20 mg Fe₃O₄. The suspension was sonicated with a Sonics Vibra-Cell ultrasonication probe (Sonics and Materials Inc., Newtown, Connecticut, USA) at 35% probe intensity for 10 min. Meanwhile, 500 mg PEG, which is used as surfactant, was dissolved in 10 mL ultrapure water. The sonicated Fe₃O₄ suspension and PEG solution were added together and the mixture was stabilized for 15 min. Again, the mixture was sonicated with a sonication probe for 10 min and stabilized for 15 min. The PEG stabilized Fe₃O₄ was washed three times with ultrapure water to remove the excess PEG by simply containing the Fe₃O₄ with a magnet. 10 mL of ultrapure water was added to the magnetic particles. 150 mg Zn(NO₃)₂ · 6 H₂O (0.50 mmol) was added to the stabilized Fe₃O₄ suspension. A solution of 1.64 g mIm (20 mmol) in 15 mL ultrapure water was added to the mixture. The mixture was stirred for 30 min while ZIF−8 formation occurred. The product was washed three times by containing the product with a magnet. M-ZIF−8 was dried in a vacuum oven overnight at 75 °C and 350 mbar. Lastly, the product was further dried for 24 hr at 100 °C and 0 mbar. Traditional ZIF−8 was synthesized as a reference by the same method as the m–ZIF−8 synthesis, but without the presence of PEG stabilized Fe₃O₄. Since ZIF−8 is not magnetic by nature, washing was performed by centrifuging the ZIF−8 suspension with a CompactStar CS 4 (VWR, Amsterdam, The Netherlands) for 20 min at 6500 rpm three times.

2.3. Membrane Formation

2.3.1. Native Matrimid Membranes

A total of 5 g Matrimid was dissolved in 20 g DMF overnight, resulting in a 20 wt.% total solids polymer solution. This solution was cast on a glass plate with a 0.5 mm casting knife. Evaporation of the DMF in a nitrogen box for two days solidifies the polymer membrane. To completely dry the cast flat sheet membrane, the membrane was put in a nitrogen oven at 80 °C for two days and subsequently in a vacuum oven at 125 °C and 0 mbar for two days.

2.3.2. Homogeneous m–ZIF−8/Matrimid MMMs

The required m–ZIF−8 amount was added to 20.5 g DMF (0.45 g for 10 wt.%, 0.90 g for 20 wt.%). The suspension was sonicated in a Branson 3510 sonication bath for 30 min. Matrimid was added to the MOF suspension in three stages (4.05 g in total for 10 wt.% and 3.6 g in total for 20 wt.%), which results in casting solutions with 18 wt.% total solids. The MMM solutions were stirred overnight. MMMs were cast from these solutions on a glass plate with a 0.5 mm casting knife. The obtained homogeneous MMMs were dried in the same manner as the pure Matrimid membranes. The obtained 10 and 20 wt.% homogeneous (H) m–ZIF−8/Matrimid MMMs are abbreviated to 10 wt.% H and 20 wt.% H, respectively.

2.3.3. Magnetically Aligned m–ZIF−8/Matrimid MMMs

Magnetically aligned m–ZIF−8/Matrimid MMMs were made similarly to their homogeneous counterpart, where the only difference is the first day of the solvent evaporation. For the homogenous MMM preparation, solvent evaporation in a nitrogen box from the cast polymer solution forms the membrane, whereas for the preparation of the aligned MMMs the nitrogen box was placed in the middle of a permanent magnetic field for one day (Figure 1A). To prevent excessive m–ZIF−8 migration, an aluminum ring (d = 25 mm) was placed in the center of the alignment setup. After one day of solidification in the magnetic field, the membrane was placed in a normal nitrogen box and the previously mentioned drying procedure was followed. This approach of the MOF alignment in MMMs should also be suitable for extension to other types of MOFs and matrices. However, if the MOF contains a one-dimensional pore system, other strategies, such as exterior decoration with Fe₃O₄, should be considered, as the incorporation of Fe₃O₄ in a one-dimensional system might result in pore blocking. The obtained 10 and 20 wt.% aligned m–ZIF−8/Matrimid MMMs are abbreviated to 10 wt.% Al and 20 wt.% Al, respectively. Higher weight percentages of m–ZIF−8/Matrimid were also attempted to be aligned, but because of the high M–ZIF−8 volume fraction this did not result in defect free membranes.

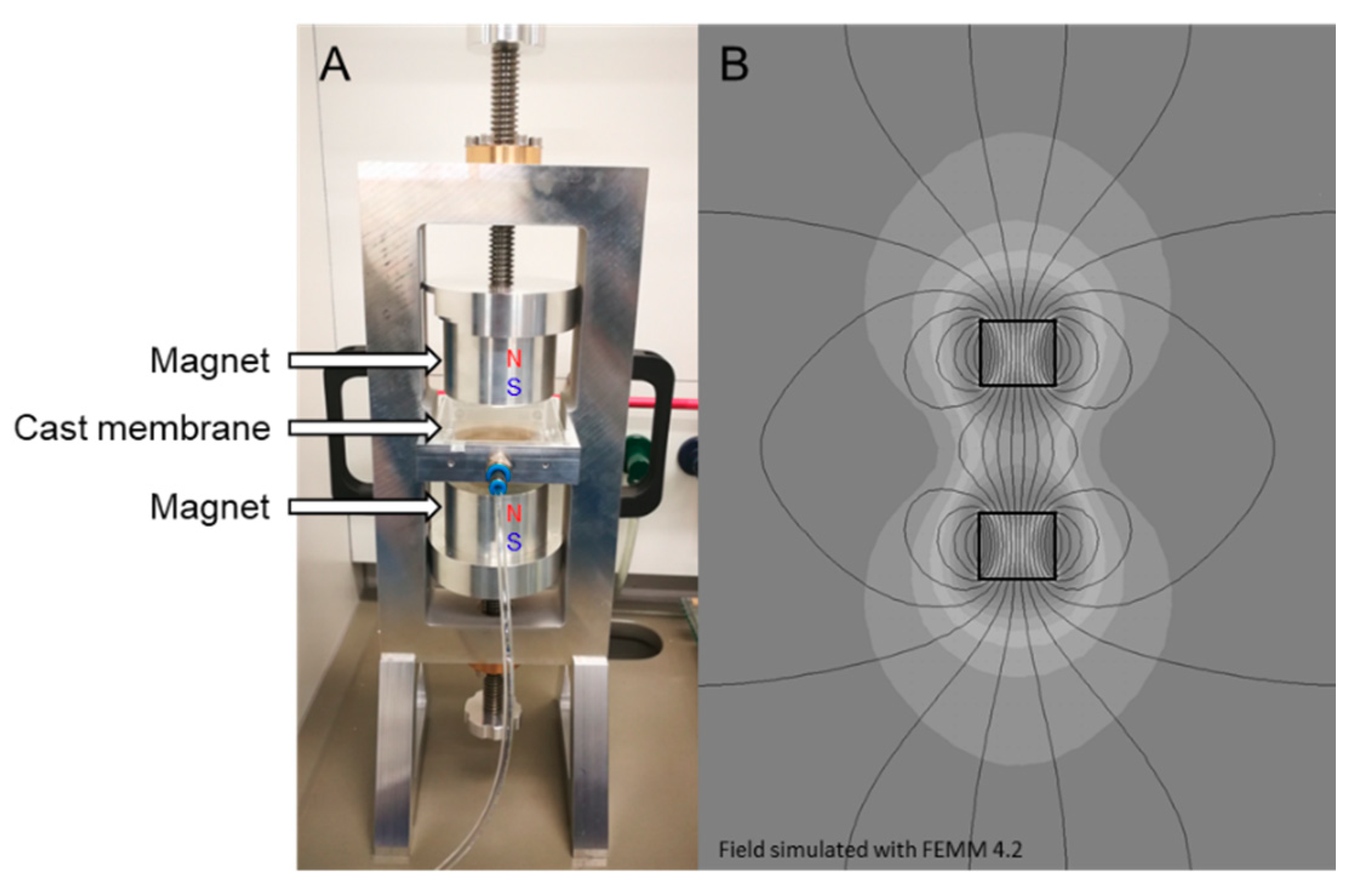

The magnetic field was created by two N45 grade permanent magnets (d = 70 mm, h = 60 mm, Nb-Fe-B axially magnetized). The magnetic field strength in the middle of the magnets was 0.22 T when the gap between the magnets was set to 80 mm. The authors are aware that the obtained magnetic field is non-homogeneous, i.e., the field strength decreases from the middle point towards the outer parts of the setup (Figure 1B). However, experiments were also performed in homogeneous magnetic fields created by an electromagnet, but the heat generated by the coils of the electromagnet interfered with the solidification process.

2.4. Characterization

The crystal structure of Fe₃O₄, ZIF−8 and m–ZIF−8 was analyzed by X-ray diffraction (XRD) using a Rigaku Miniflex 600 (Wilmington, MA, USA) (15 mA, 40 kV, Cu Kα radiation (λ = 1.5406 Å)) in the 2 θ range from 2° to 80° with a scanning rate of 0.5°/min.

The Brunauer–Emmett–Teller (BET) surface area of Fe₃O₄, ZIF−8 and m–ZIF−8 was determined by N₂ physisorption with a Micromeretics Tristar II (Norcross, GA, USA) at −196 °C (liquid N₂). Prior to the measurement, the samples were dried in a vacuum oven at 100 °C and 0 mbar overnight.

The thermal stability of Fe₃O₄, ZIF−8, m–ZIF−8, Matrimid and the MMMs was investigated with a PerkinElmer (Waltham, MA, USA) TGA 4000 under N₂ atmosphere (flow 20 mL/min) from 50 to 800 °C with a heating rate of 20 °C/min.

The external morphology of ZIF−8, m–ZIF−8 and the cross-sections of the MMMs were analyzed by a scanning electron microscope (SEM, JEOL JSM-IT100, Tokyo, Japan). Cross-sections of MMMs were obtained by immersing the membranes in a 50:50 water/isopropanol mixture and subsequently fracturing them after immersion in liquid N₂. Prior to the analysis, all samples were sputter coated with a JEOL JFC−2300 HR (Tokyo, Japan) with platinum source.

The elemental composition and dispersion of ZIF−8, m–ZIF−8 and the MMMs were analyzed with energy dispersive X-ray spectroscopy (EDS, JEOL JSM-IT100, Tokyo, Japan). Samples were prepared in the same manner as the SEM analysis.

High pressure gas sorption of N₂ and CO₂ was performed at 35 °C for ZIF−8, m–ZIF−8, Matrimid and the MMMs (Rubotherm series IsoSORP^® sorption instrument, Bochum, Germany). The equipment measures the sorbed weight of the gas with a magnetically suspended balance. Prior to each sorption measurement, the weight and volume of the sample is determined with a helium reference measurement. With the obtained sample weight and volume, the measured sorbed weight is corrected for the buoyancy of the measurement gases according to Equation (1), where m_corrected is the corrected weight (g), m_measured the measured weight (g), ρ_gas the density of the measuring gas (g/cm³) and V_sample the sample volume (cm³).

$${\mathrm{m}}_{\mathrm{corrected}}{=\mathrm{m}}_{\mathrm{measured}}{+\mathsf{\rho }}_{\mathrm{gas}}·{\mathrm{V}}_{\mathrm{sample}}$$

(1)

The single gas permeability of Matrimid and the MMMs for N₂ and CO₂ was determined at 35 °C in triplo by measuring permeate pressure increase over time in a calibrated volume at pressures ranging from 7 to 27 bar according to Equation (2). In Equation (2), P_i is the permeability of gas species i (Barrer), Δp_permeate the increase in permeate pressure (Pa) per time interval Δt (s), V_c the calibrated permeate volume (m³), R the gas constant (J/(K∙mol)), T the permeate temperature (K), V_m the molar volume at STP (cm³/mol), L the membrane thickness (cm), A the membrane area (cm²) and Δp the transmembrane pressure (cmHg).

$${\mathrm{P}}_{\mathrm{i}}=\frac{{\Delta \mathrm{p}}_{\mathrm{permeate}}·{\mathrm{V}}_{\mathrm{c}}·{\mathrm{V}}_{\mathrm{m}}·\mathrm{L}·{10}^{10}}{\Delta \mathrm{t}·\mathrm{R}·\mathrm{T}·\mathrm{A}·\Delta \mathrm{p}}$$

(2)

Prior to each single gas permeation measurement, the membranes were first conditioned for 8 hr at 35 °C and 2 bar N₂. Hereafter, first, the N₂ single gas permeation measurements were performed. Then, the CO₂ single gas permeation measurements were performed, since the CO₂ measurements plasticize the membranes. The ideal CO₂/N₂ selectivity, α_CO2/N2 (−), was calculated according to Equation (3).

$${\mathsf{\alpha }}_{{\mathrm{CO}}_2{/\mathrm{N}}_2}{=\mathrm{P}}_{{\mathrm{CO}}_2}{/\mathrm{P}}_{{\mathrm{N}}_2}$$

(3)

The CO₂ diffusion coefficient of Matrimid and the MMMs was determined according to Equation (4), where D is the CO₂ diffusion coefficient (cm²/s), P the CO₂ permeability (Barrer) and S the CO₂ solubility coefficient (cm³ STP/(cm³·cmHg)). The permeability was experimentally determined by permeation experiments whereas the CO₂ solubility coefficient was experimentally obtained by the high pressure sorption measurements using a magnetic suspension balance.

$$\mathrm{D}=\mathrm{P}/\mathrm{S}$$

(4)

3. Results and Discussion

3.1. ZIF−8, m–ZIF−8 and Fe₃O₄ Analysis

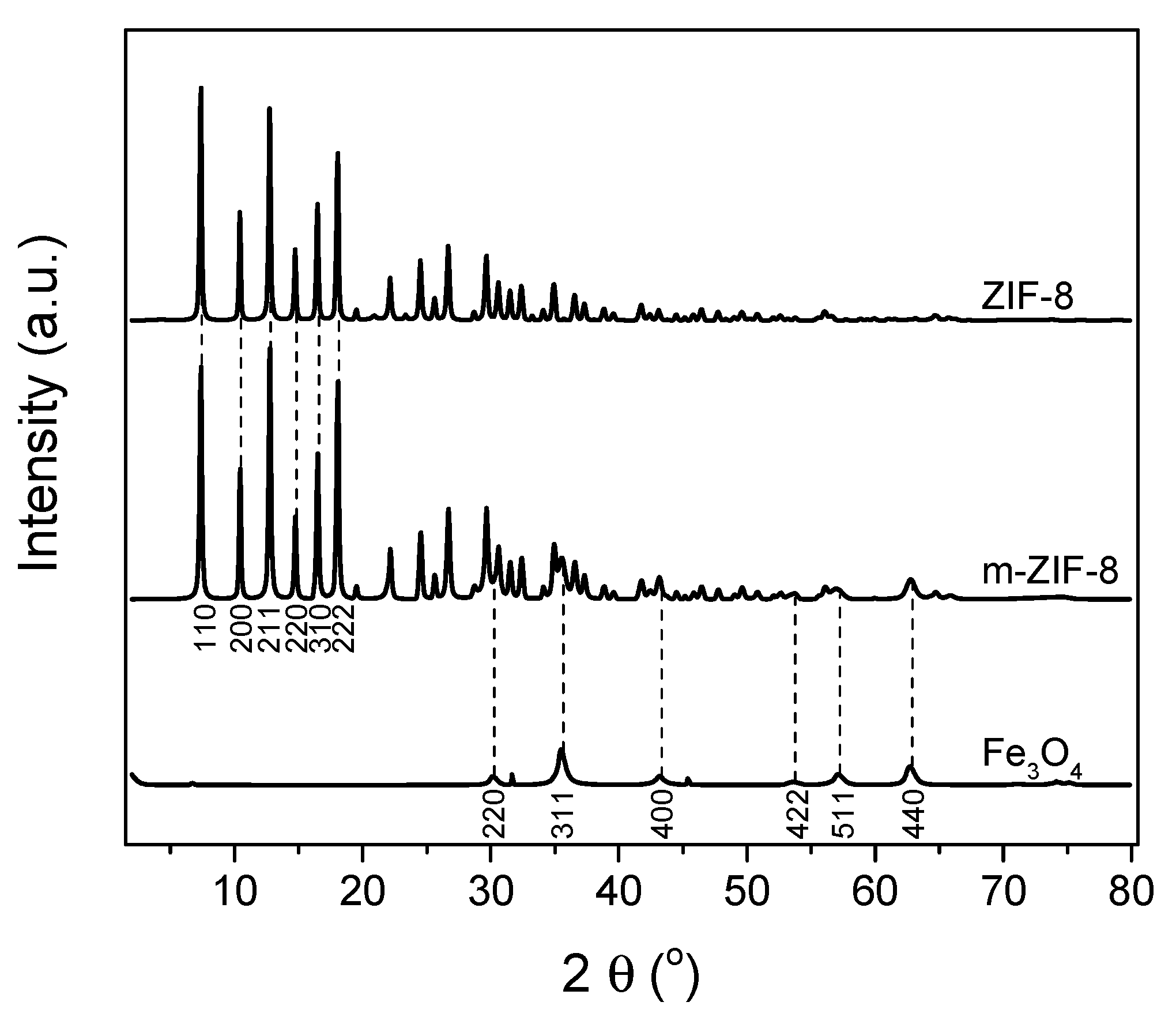

The XRD patterns (Figure 2) show the typical diffraction peaks for both Fe₃O₄ and ZIF−8. The typical diffraction peaks of both materials are in agreement with the crystal structures found in literature [16,40]. It is clear that the diffraction pattern of m–ZIF−8 shows both the diffraction peaks of ZIF−8 and Fe₃O₄, which means that the crystal structures of both particles are present in the composite m–ZIF−8 crystal. The ratio of the (211) ZIF−8 peak and the (440) Fe₃O₄ peak in m–ZIF−8 is higher than the ratio found in literature for ZIF−8/Fe₃O₄ composites where a significant lower relative amount of Fe₃O₄ is used in the synthesis mixture [19,21]. On the other hand, the peak ratio of m–ZIF−8 is lower than the ratio found in literature for ZIF/Fe₃O₄ composites, where the Fe₃O₄ particle size was significantly bigger [20]. This observation indicates that a considerable amount of Fe₃O₄ nanoparticles is present in the m–ZIF−8 crystals.

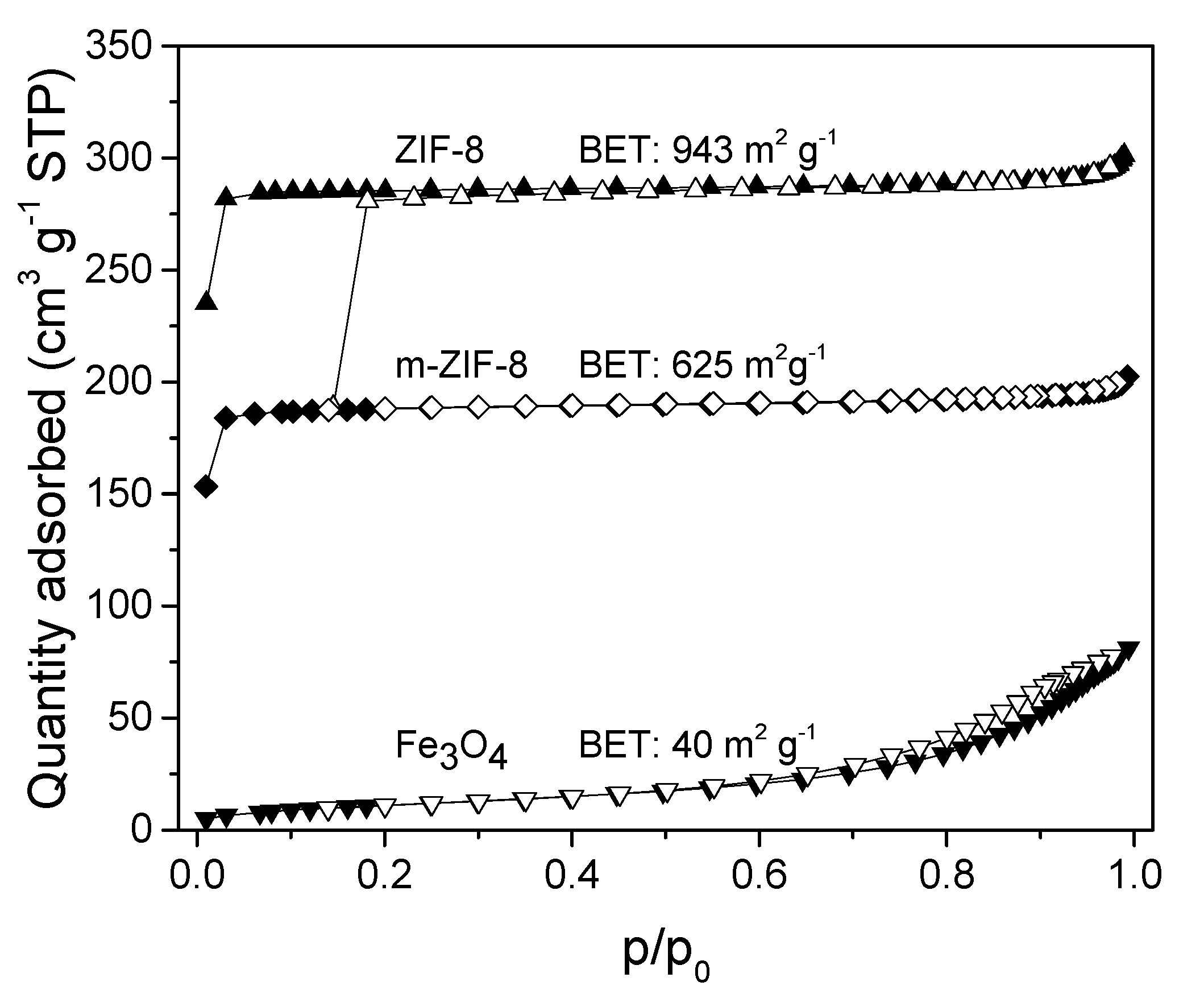

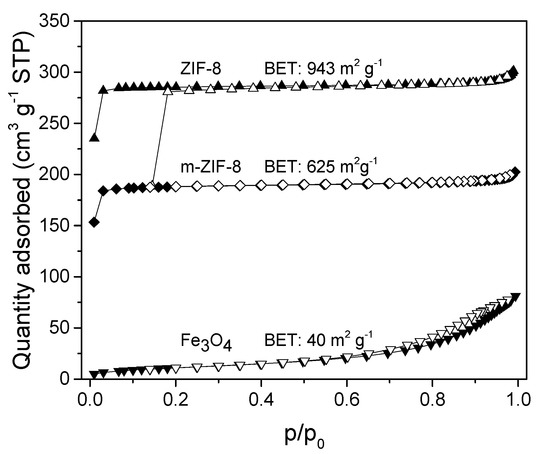

The influence of Fe₃O₄ incorporation in ZIF−8 on the N₂ adsorption is visible in Figure 3. The BET surface area of 943 m²/g of ZIF−8 is comparable to BET surfaces areas reported in literature for ZIF−8 aqueous syntheses at room temperature and confirms the presence of permanent microporous system [14,41]. The BET surface area of m–ZIF−8 (625 m²/g) is clearly lowered by the presence of non-microporous Fe₃O₄ (40 m²/g) in comparison with pure ZIF−8, i.e., a decrease of 33.7%. ZIF−8/Fe₃O₄ composites with relatively lower amounts of Fe₃O₄ in the synthesis mixture show less decrease in surface area [21].

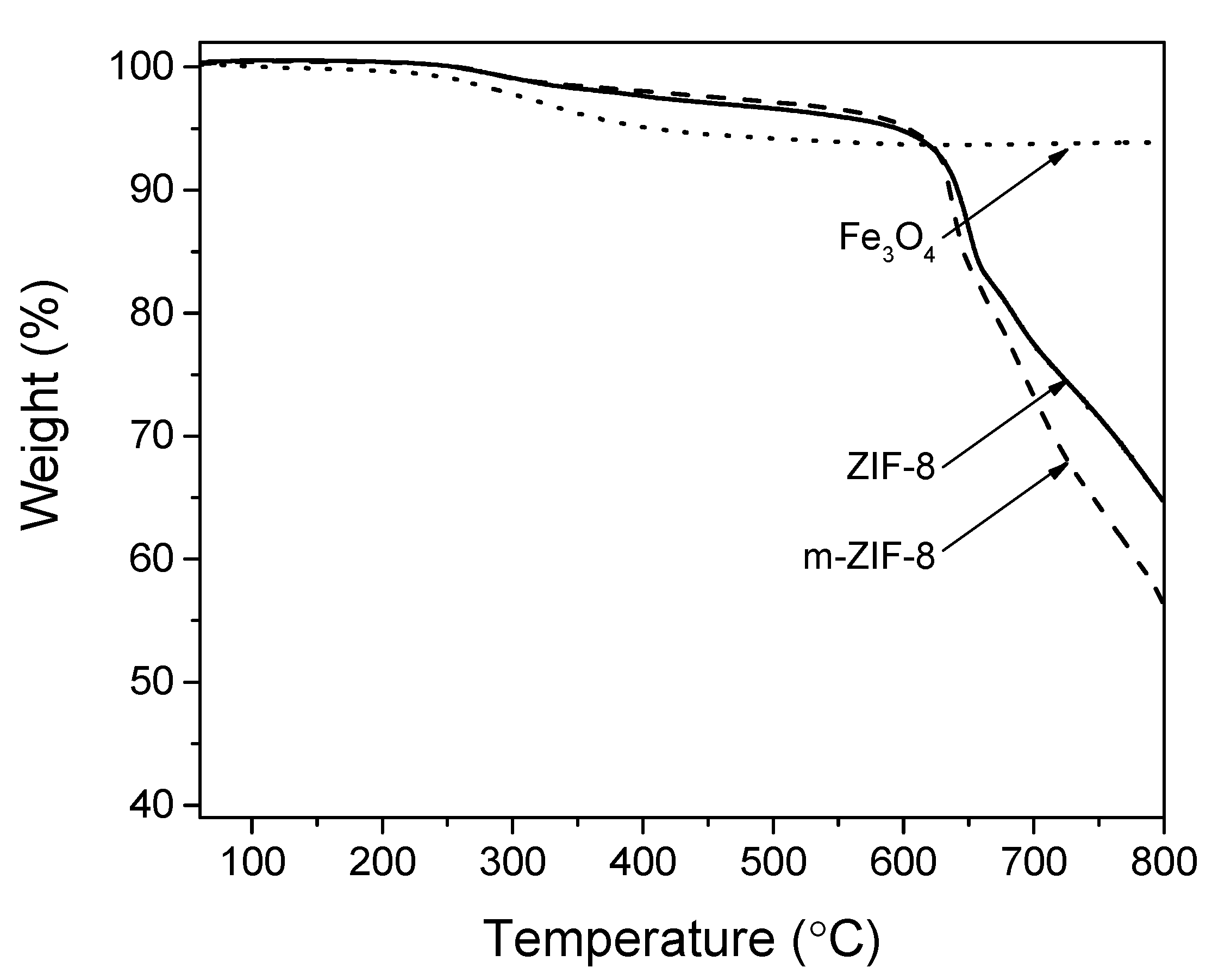

ZIF−8, m–ZIF−8 and Fe₃O₄ show excellent thermal stability (Figure 4). Incorporation of highly stable Fe₃O₄ does not affect the degradation temperature of m–ZIF−8 in comparison with ZIF−8. Both ZIF−8 and m–ZIF−8 show a degradation temperature of approximately 600 °C. The small weight loss of ZIF−8 and m–ZIF−8 from 250 to 600 °C is attributed to partial carbonization of entrapped guest molecules, e.g., residual 2-methylimidazole [10].

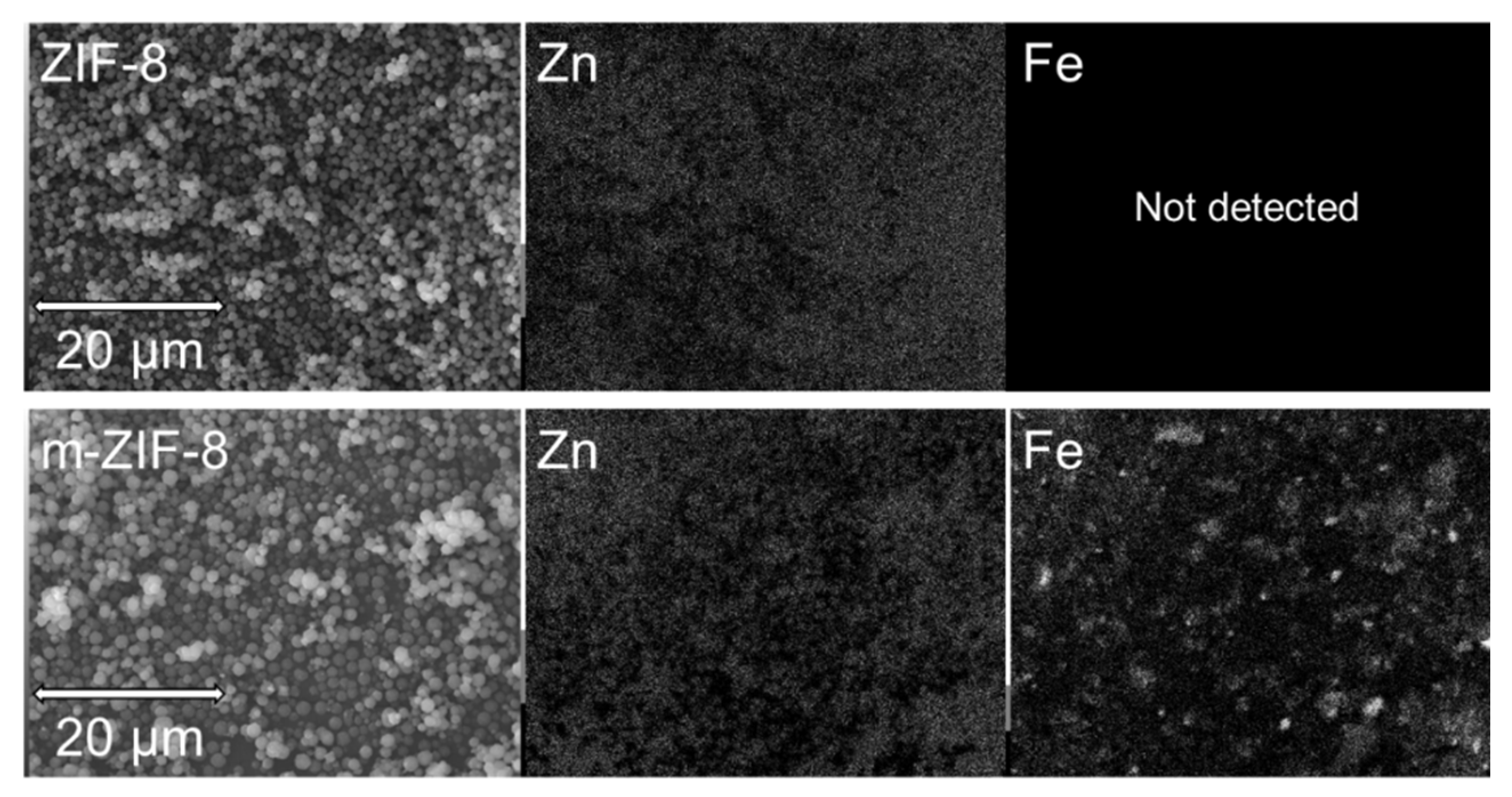

SEM/EDS analysis of the morphology and elemental composition of ZIF−8 and m–ZIF−8 shows two clear differences between the reference and the magnetized ZIF−8 samples (Figure 5). First, the particle size and range of particle size is increased when Fe₃O₄ is added to the synthesis mixture of ZIF−8. The ZIF−8 particle size from ranges 0.6 to 1 µm and the m–ZIF−8 particle size ranges from 1 to 1.6 µm. Apparently, the presence Fe₃O₄ in the m–ZIF−8 synthesis acts as nucleation point, which causes a slightly increased particle size. Secondly, and obviously, no Fe is detected by EDS for ZIF−8 and Fe is detected for the m–ZIF−8.

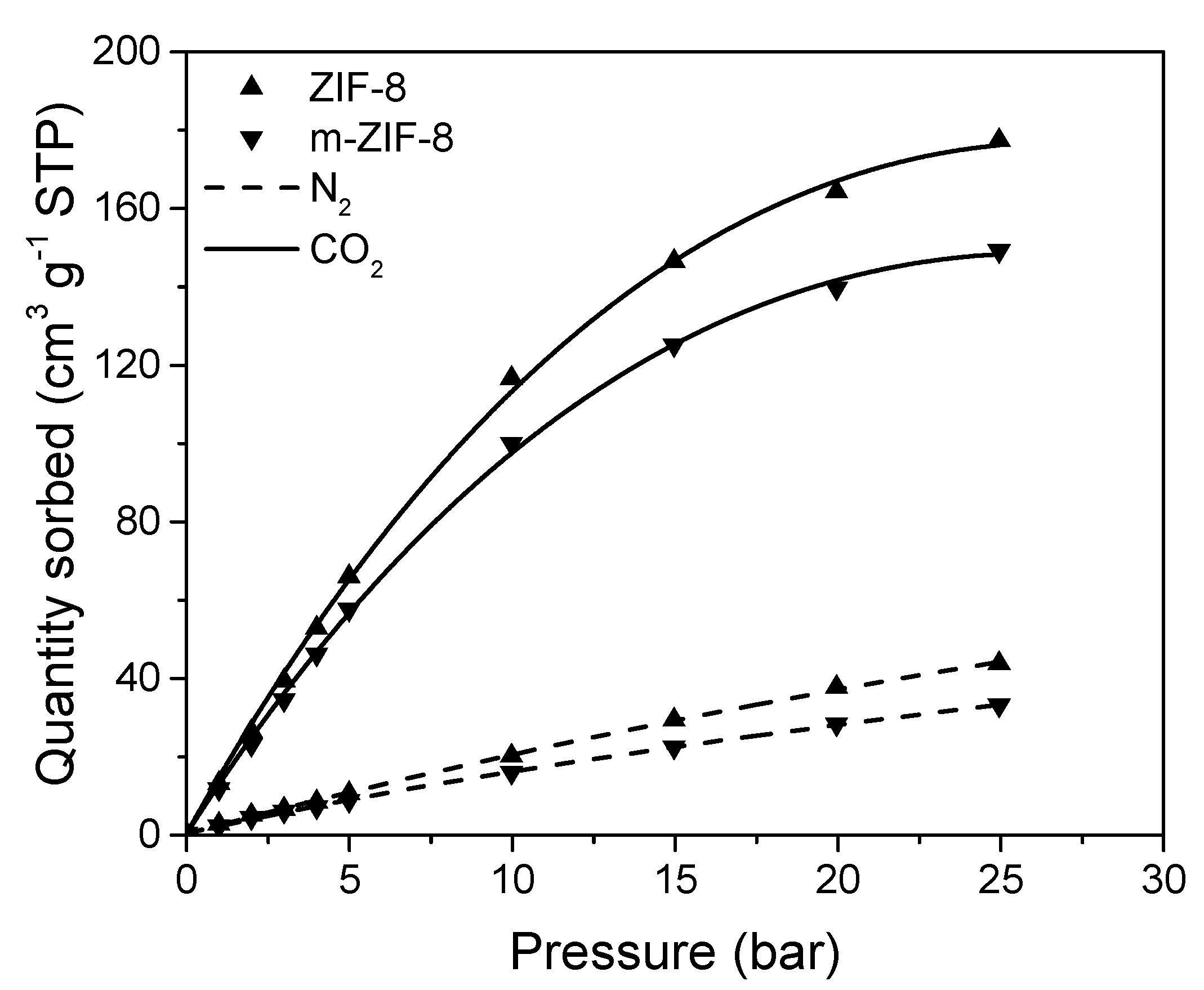

The effect of the incorporation of Fe₃O₄ on the N₂ and CO₂ sorption in m–ZIF−8 is shown in Figure 6 and confirms the observation made for the decrease in BET surface area of m–ZIF−8. Since Fe₃O₄ has no microporosity, a decrease in both N₂ and CO₂ sorption is observed when Fe₃O₄ is incorporated in ZIF−8. The sorption of N₂ in ZIF−8 and m–ZIF−8 shows Henry sorption behavior, since almost linear sorption behavior is observed. On the other hand, Langmuir sorption behavior is observed for CO₂ in both ZIF types, since the slope of sorption decreases over the whole pressure range. Clearly, higher quantities of CO₂ are sorbed in both ZIF structures than N₂. This indicates that the sorption of CO₂ is thermodynamically favored over N₂ sorption, which was also observed for another ZIF type [42]. Moreover, the observed sorption ratio of the two gases corresponds with simulated ratios of sorption of ZIF−8 at 25 °C [43].

3.2. Membrane Analysis

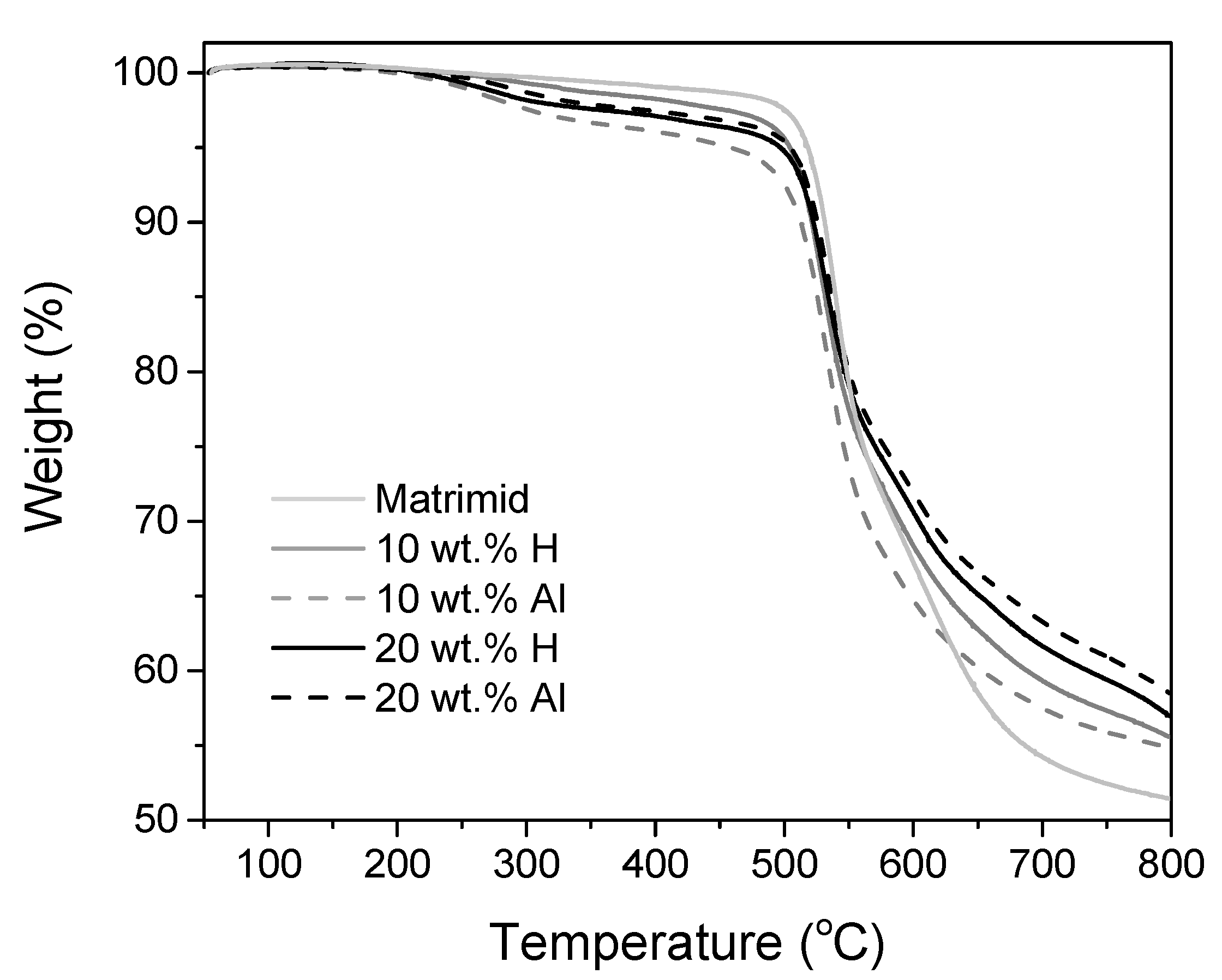

TGA confirms that the drying method was sufficient for Matrimid and the MMMs (Figure 7). The membranes contained no solvent, since no weight loss observed in the trajectory from approximately 150 to 200 °C (boiling point DMF = 153 °C). All membranes have a degradation temperature of approximately 500 °C. The degradation temperature of m–ZIF−8 (600 °C, Figure 4) is 100 °C higher in comparison with Matrimid that has a degradation temperature of 500 °C (Figure 7). Since the MMMs contain at least 80 wt.% Matrimid, the difference between pure Matrimid and the MMMs is marginally visible.

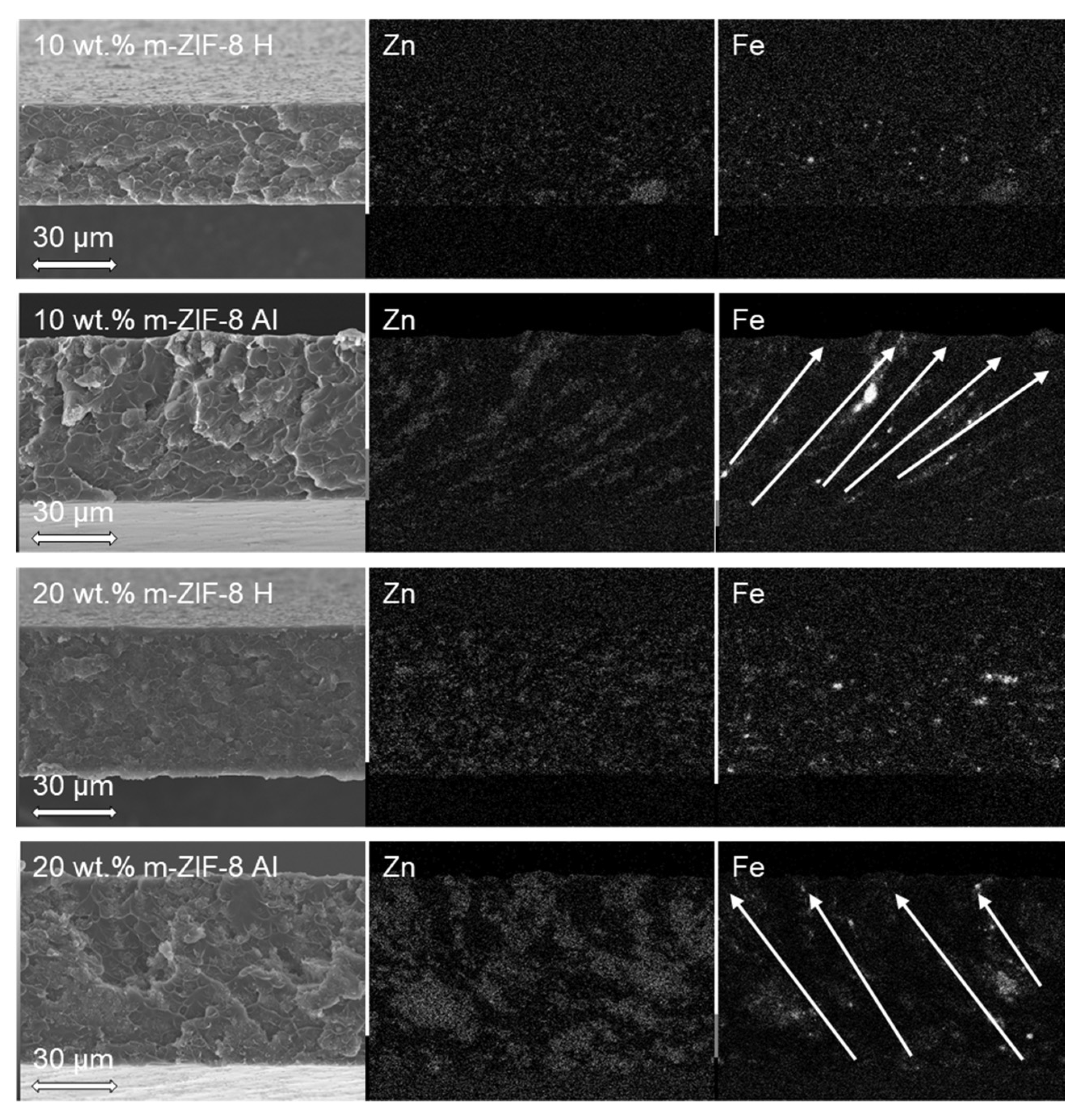

The morphology and elemental distribution of cross-sections of the homogeneous and aligned MMMs are shown in Figure 8.

Both the 10 wt.% H and 20 wt.% H MMMs show that m–ZIF−8 is evenly distributed throughout the matrix, i.e., the characteristic elements Zn and Fe are evenly distributed throughout both the membranes. On the other hand, both the 10 wt.% Al and 20 wt.% Al MMMs show that lines and enriched regions of Zn and Fe are present through the matrix. This confirms that m–ZIF−8 is effectively clustered and aligned in the magnetic field lines (indicated by the arrows in Figure 8). Compact lines of Zn and Fe are present in the 10 wt.% Al MMM, which partially reach from the bottom to the top of the membrane. The 20 wt.% Al MMM shows that increasing the amount of incorporated m–ZIF−8 results in broader aligned pathways in comparison with the 10 wt.% Al MMM. Thus, increasing the additive content during alignment results in a further increased interconnectivity between m–ZIF−8 particles. Similar morphologies and Fe mappings are reported for other composites with magnetically aligned particles [35,36]. Alignment of m–ZIF−8 increases thickness of the MMMs, since the m–ZIF−8 particles are attracted towards the magnetic field lines. The thickness increases with 24 µm for the 10 wt.% MMMs (L_{10 wt.% H} = 36 µm, L_{10 wt.% Al} = 60 µm) and with 16 µm for the 20 wt.% MMMs (L_{20 wt.% H} = 54 µm, L_{20 wt.% Al} = 70 µm). It is visible for the aligned MMMs that the used magnetic field is inhomogeneous, since alignment of the MMMs is not perpendicular to the membrane surface, which increases the MOF path length through the matrix.

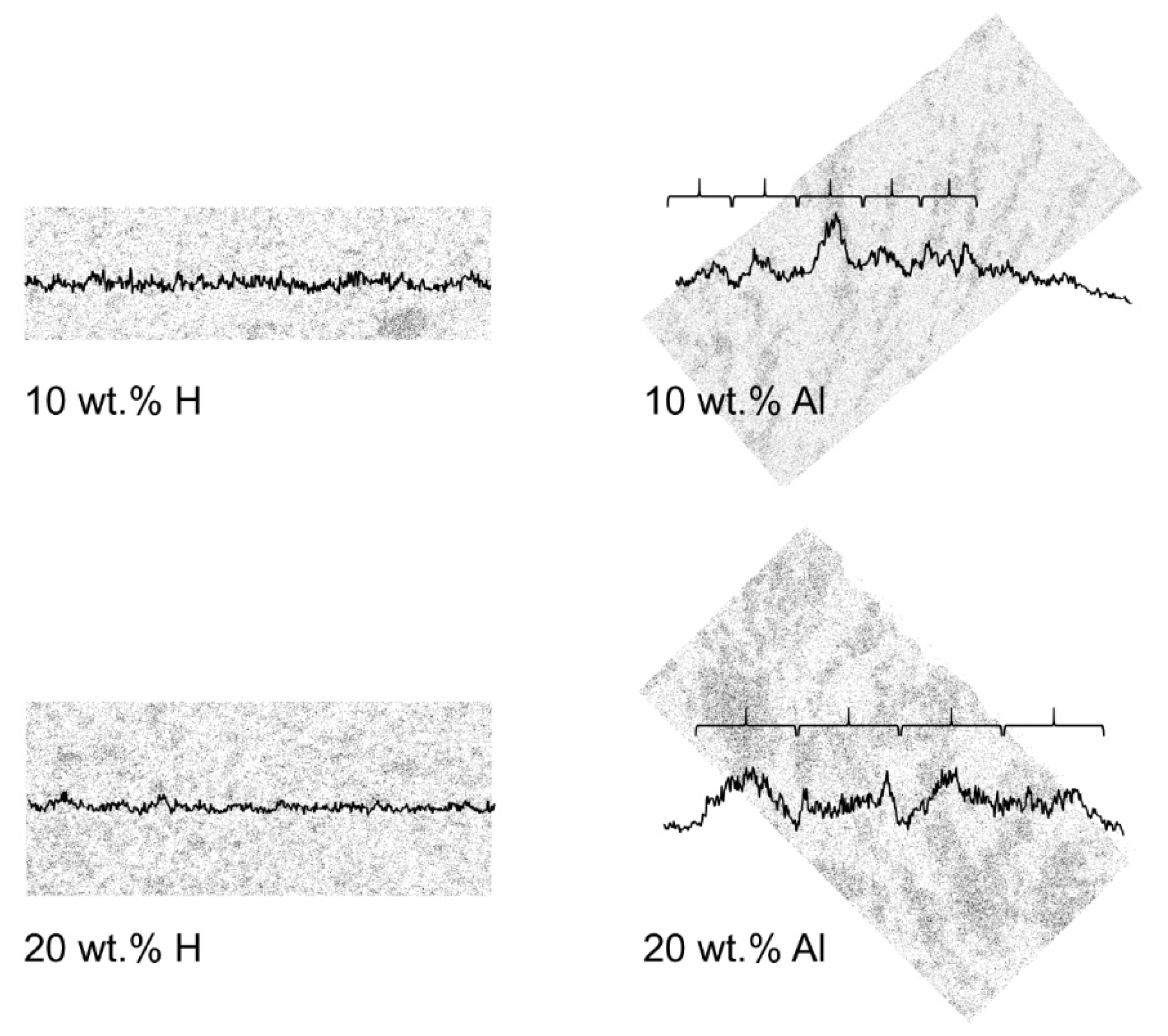

Alignment and clustering of m–ZIF−8 in the MMMs is further substantiated by analyzing the particle count of Zn (Figure 9).

In Figure 9, the vertical particle count of the respective MMM is visualized by the graph which overlays the Zn EDS map. Moreover, the aligned MMMs are rotated such that the direction of alignment, as indicated by the arrows in Figure 8, is positioned vertically. Both the 10 and 20 wt.% H MMMs show that the particle count throughout the membranes is evenly distributed, since the particle count graphs are approximately horizontal. On the other hand, clear peaks are present in the particle graphs of the 10 and 20 wt.% Al MMMs that occur periodically (indicated by the curly brackets in Figure 9). As stated previously, the aligned pathways and enriched regions in the 10 wt.% Al MMM are narrower and smaller than the 20 wt.% Al MMM, which is visualized by the smaller periodicity of the 10 wt.% MMM (i.e., the smaller curly brackets). Lastly, the peaks of the particle count graphs are more delicately pronounced in the 10 wt.% Al MMM than in the 20 wt.% Al MMM, which is attributed to the increased brittleness of the locally m–ZIF−8 aligned pathway. As an increasing MOF content in MMMs results in an increased brittleness, it is more difficult to keep an aligned m–ZIF−8 path intact when the sample is cryogenically fractured for the SEM/EDS analysis [30,44].

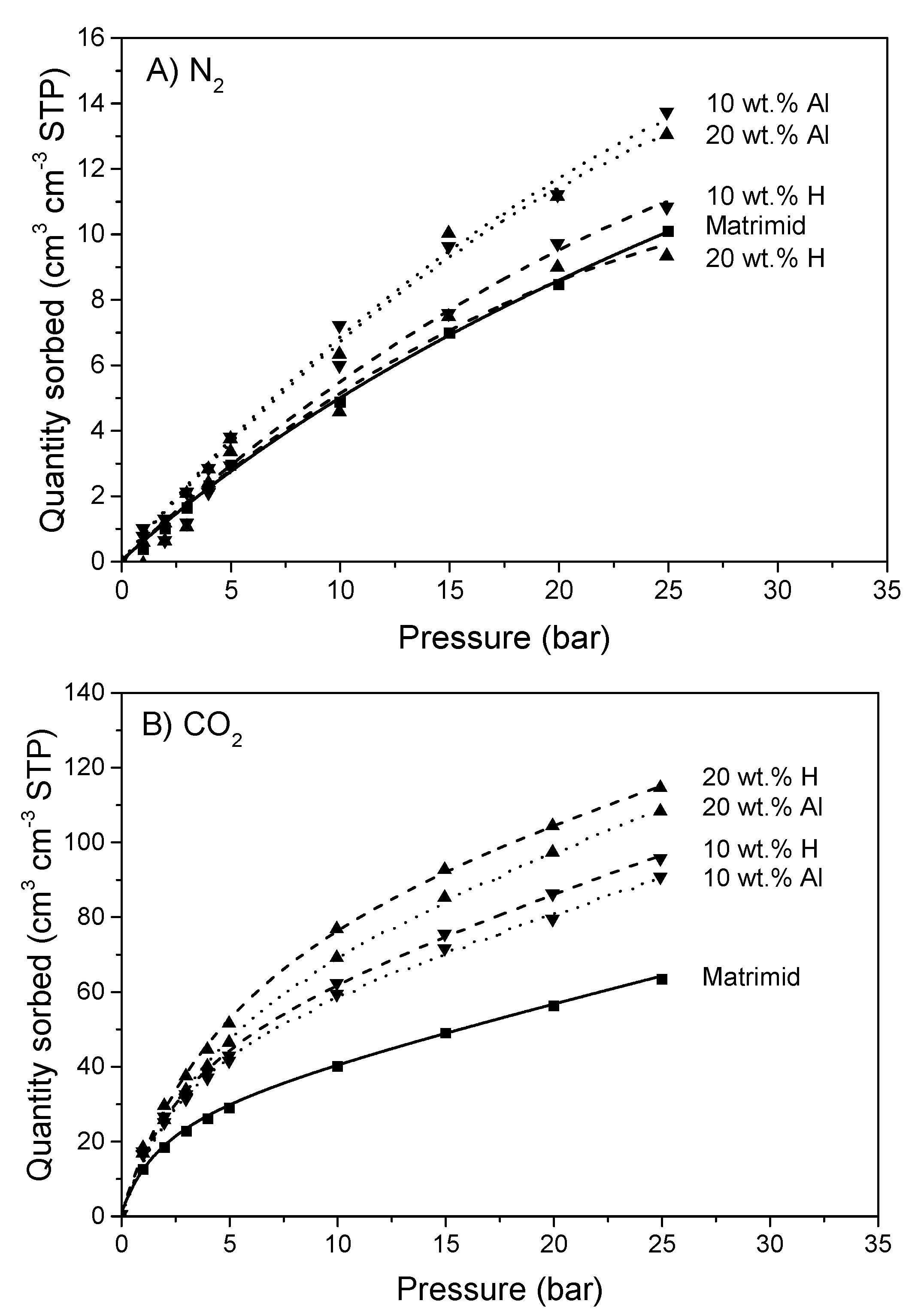

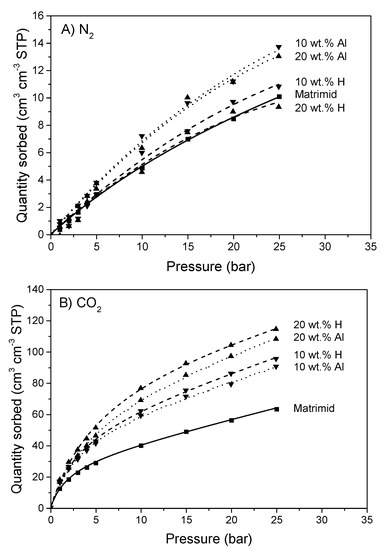

N₂ and CO₂ sorption isotherms of Matrimid and the MMMs are shown in Figure 10.

The sorption of N₂ in Matrimid and the MMMs exhibits predominantly Henry sorption behavior. It is notable that the aligned MMMs have an increased sorption of N₂, with respect to both Matrimid and the homogeneous MMMs. Since m–ZIF−8 (Figure 6) has a higher N₂ uptake than Matrimid (Figure 10), it is expected that all MMMs should have an increased N₂ uptake. However, this is only observed for the aligned MMMs, which means that the N₂ sorption sites of m–ZIF−8 in the aligned MMMs are more readily accessible than in the homogeneous MMMs. Therefore, it is concluded that ZIF−8 alignment and local enrichment effectively decrease the polymer content between the MOF particles. The uptake of CO₂ in Matrimid and the MMMs occurs according to the dual-mode sorption model (i.e., Henry and Langmuir sorption. The aligned MMMs show a lower CO₂ sorption than the homogeneous MMMs at elevated pressures. This decrease in solubility is ascribed to increased CO₂ uptake at the ZIF/matrix interface, since it was demonstrated that at elevated CO₂ pressure (starting at 10 bar) matrix derigidification at the interface causes an increased CO₂ uptake [45]. The aligned and enriched MMMs have a decreased polymer content between the MOF particles, causing a decreased CO₂ induced rigidification at elevated pressures. This results in a slightly lowered CO₂ sorption relative to the homogeneous MMM. Increasing the m–ZIF−8 content in the MMMs results in a higher CO₂ sorption, due to the high CO₂ sorption capacity of m–ZIF−8 (Figure 6) in comparison with Matrimid (Figure 10).

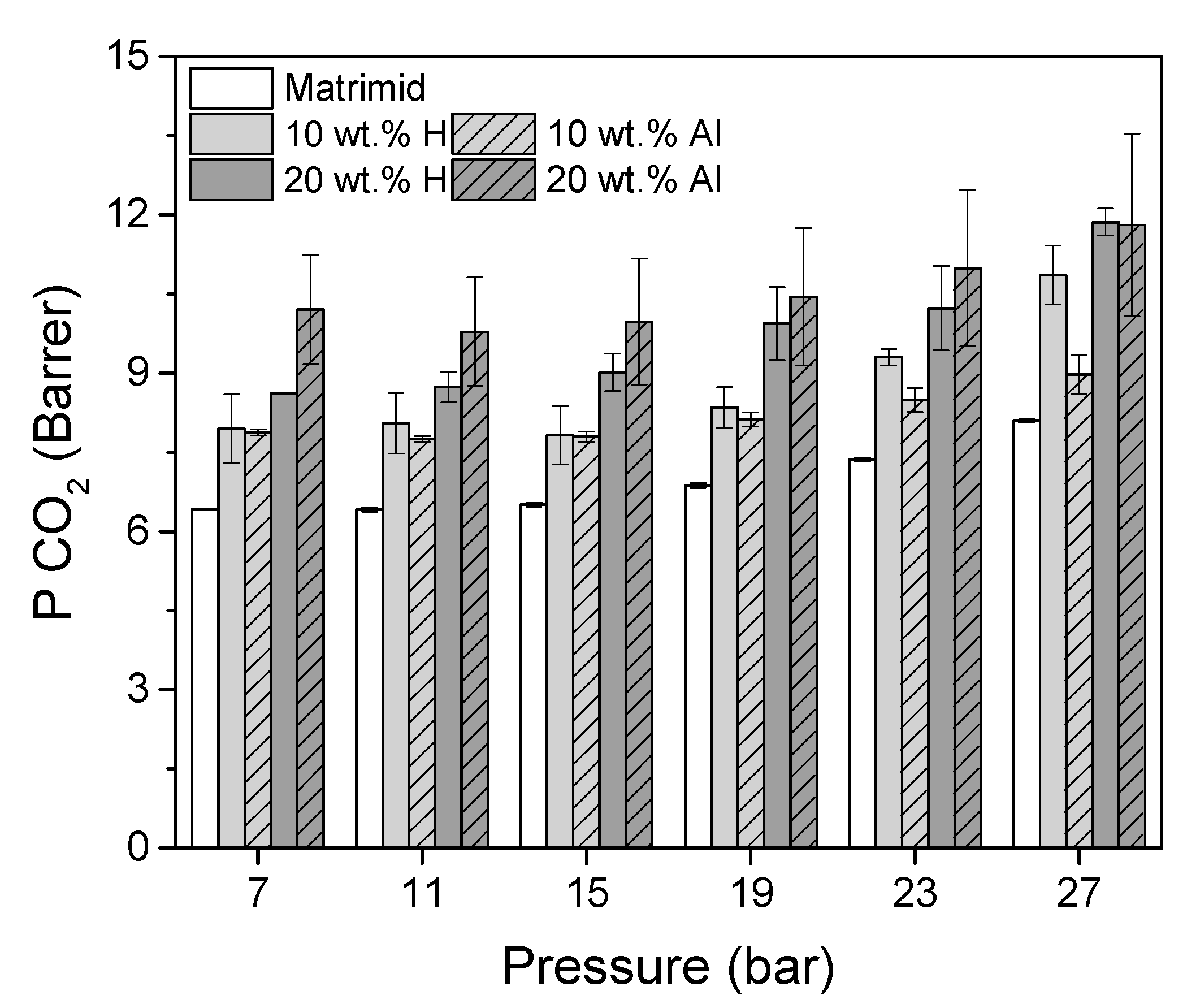

The influence of m–ZIF−8 content in the MMMs and effect of alignment on the CO₂ single gas permeability is shown in Figure 11.

The CO₂ permeability of Matrimid increases from 6.4 Barrer at 11 bar to 8.1 Barrer at 27 bar once its plasticization pressure is reached, which lies between 10 and 12 bar CO₂ pressure [46]. The Matrimid CO₂ permeability is slightly lower than values reported elsewhere in literature [29,44,46]. This observation is attributed to the difference in annealing protocol, which strongly influences the permeability [29]. The incorporation of 10 wt.% m–ZIF−8 results in an increased CO₂ permeability of the homogeneous and aligned MMMs relative to pure Matrimid. Counterintuitively, since pure ZIF−8 has a high CO₂ permeability, this increased CO₂ permeability is caused by an increased CO₂ solubility, while the CO₂ diffusivity decreases (

Table 1. CO₂ Permeability (P), solubility coefficient (S) and diffusion coefficient (D) of Matrimid, 10 wt.% H, 10 wt.% Al, 20 wt.% H and 20 wt.% Al MMMs at 11 bar.

Membrane	P [Barrer]	S [cm3 STP/(cm3 · cmHg)]	D [10−8 cm2/s]
Matrimid	6.4	0.051	1.3
10 wt.% H	8.1	0.078	1.0
10 wt.% Al	7.8	0.074	1.0
20 wt.% H	8.7	0.096	0.9
20 wt.% Al	9.8	0.087	1.1

) [25]. This decrease in diffusivity is ascribed to matrix rigidification around the MOF particles [46,47]. Alignment at 10 wt.% m–ZIF−8 content does not influence the CO₂ permeability, with respect to the homogeneous MMM. The CO₂ permeability of both 10 wt.% MMMs starts to increase from 15 bar CO₂ feed pressure, i.e., plasticization occurs. This increased plasticization pressure in MOF/Matrimid MMMs is in agreement with literature [46].

Further increasing the m–ZIF−8 content resulted in an increased CO₂ permeability. For both the 20 wt.% H and Al MMMs, a further increase in CO₂ solubility is observed (Table 1). However, in contrast with the 10 wt.% MMMs, a clear difference in diffusivity is visible for the 20 wt.% MMMs. The diffusivity of the 20 wt.% H MMM is decreased with respect to the 10 wt.% H MMM, which can be attributed to further matrix rigidification. On the other hand, the diffusivity of the 20 wt.% Al MMM increased, with respect to the 10 wt.% Al MMM. Even though the alignment direction in the 20 wt.% Al MMM was not perfectly parallel to the permeation path, it can be concluded that alignment and local MOF enrichment successfully increased the CO₂ diffusivity and subsequently the permeability of the 20 wt.% MMM, with respect to the 20 wt.% H MMM. A maximum increase of 19% in CO₂ permeability was observed at 7 bar, which indicates that alignment is predominantly beneficial below the plasticization temperature. Thus, the performance of MMMs can be improved by controlling the spatial distribution of the MOF additive.

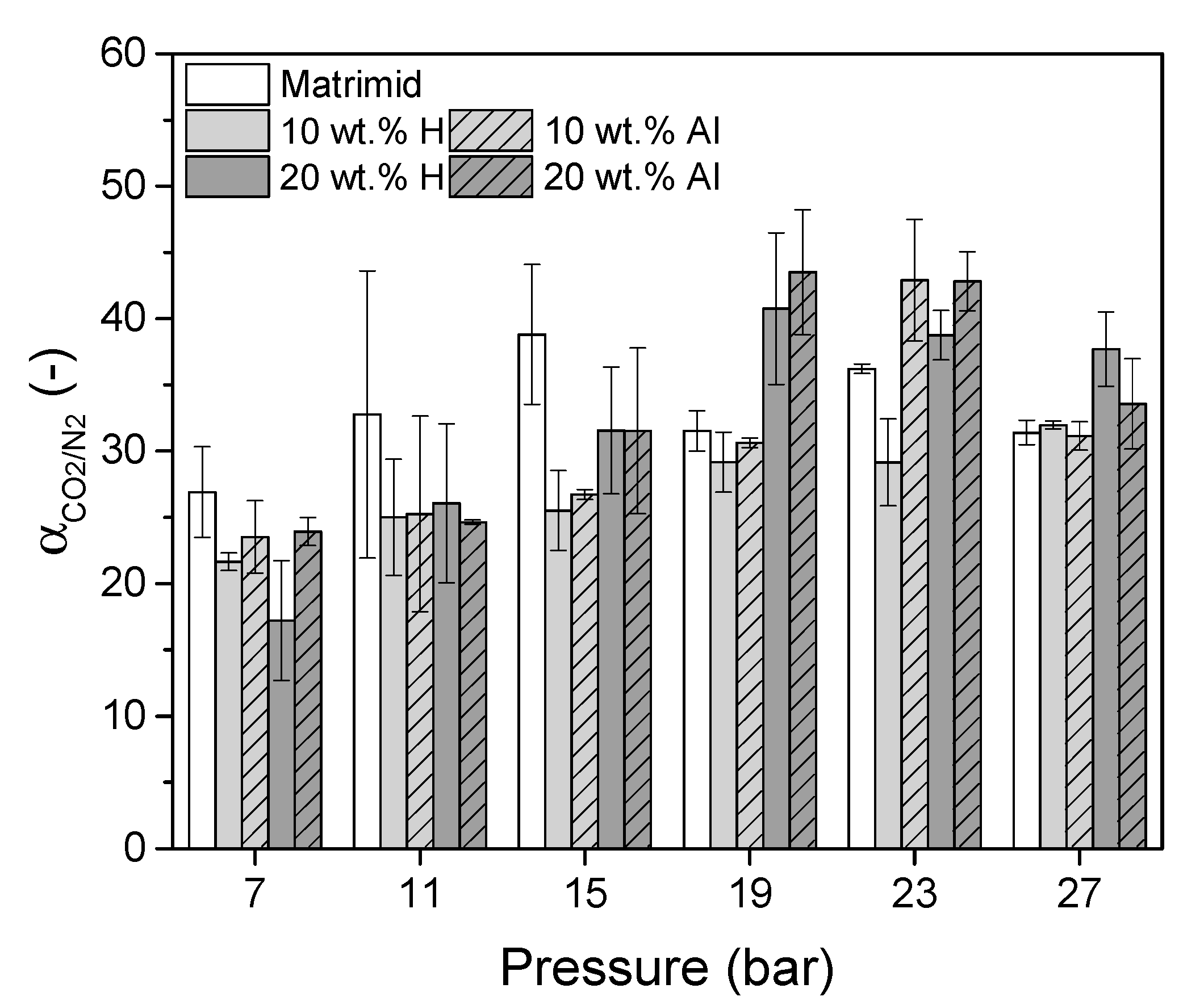

The ideal CO₂/N₂ selectivity of Matrimid, 10 wt.% H, 10 wt.% Al, 20 wt.% H and 20 wt.% Al MMMs as function of pressure are shown in Figure 12.

At low feed pressure, pure Matrimid has a higher ideal selectivity than the MMMs. This means that m–ZIF−8 enhances next to the CO₂ permeability (Figure 11) also the N₂ permeability, but the relative increase in N₂ permeability is higher than the relative increase in CO₂ permeability. Since single crystal ZIF−8 has a selectivity which is at maximum equal to the selectivity of Matrimid, it can be concluded that non idealities between the matrix-MOF interface are present [25]. Nonetheless, aligning m–ZIF−8 has a positive response on the permeability without compromising the ideal selectivity up to 15 bar, with respect to the homogeneous MMMs. The facts that overall, no significant differences are present between the ideal selectivity of the homogeneous and aligned MMMs (Figure 12) and that the solubility of N₂ is higher in the aligned MMMs than in the homogeneous MMMs (Figure 10) prove that the aligned MMMs enhance the CO₂ diffusivity more than the N₂ diffusivity, relative to the homogeneous MMMs. It is argued that this enhanced CO₂ diffusivity is caused by the different kinetic diameters of CO₂ (3.30 Å) and N₂ (3.64 Å) and the effect of the aligned and enriched ZIF−8 pathways. Since the pore aperture of ZIF−8 is 3.4 Å, CO₂ (with a kinetic diameter smaller than the ZIF−8 pore aperture) will diffuse more easily through the MOF than N₂ (with a kinetic diameter bigger than the ZIF−8 pore aperture). Moreover, the increased ZIF−8 interconnectivity in the aligned MMMs causes preferential permeation through the MOF relative to the matrix, since the permeability of pure ZIF−8 is significantly higher than the permeability of Matrimid. As a result, the CO₂ diffusivity will thus relatively be promoted more than the N₂ diffusivity in the aligned MMMs than in the homogeneous MMMs. With increasing CO₂ pressure, the effect of plasticization on the selectivity is observed. Due to the plasticization induced increased CO₂ permeability, the ideal selectivity of all membranes increase (an opposite trend is expected for mixed gas permeation experiments above the plasticization pressure). Clearly, Matrimid plasticizes most pronounced at 11 to 15 bar feed pressure, while the MMM start to plasticize at 15 bar feed pressure.

4. Conclusions

ZIF−8 was successfully magnetized by the incorporation of Fe₃O₄. The presence of Fe₃O₄ in m–ZIF−8 showed a decrease in BET surface area and CO₂ and N₂ solubility, with respect to pure ZIF−8. Alignment of m–ZIF−8 in Matrimid was visually present by SEM-EDS analysis and showed clear m–ZIF−8 enriched pathways and regions in the aligned and clustered MMMs both at 10 and 20 wt.%. Due to the limitation of a permanent magnetic field lines, it was observed that the alignment was not fully perpendicular to the membrane surface, which increased the effective length of the m–ZIF−8 pathway through the MMM. At 20 wt.% m–ZIF−8 incorporation in Matrimid, alignment was proven to increase the CO₂ permeability at maximum with 19% at 7 bar, while no CO₂/N₂ selectivity loss of was observed, with respect to the homogeneous 20 wt.% MMM. Therefore, it was concluded that at 20 wt.% m–ZIF−8 content, the alignment results in sufficiently m–ZIF−8 enriched aligned clusters throughout the MMM matrix that established an increase in diffusivity and subsequently permeability. The use of a homogeneous magnetic field will straighten the percolation path and will result in a further improved membrane performance at even lower weight percentages of magnetic MOFs. Nonetheless, this paper shows that alignment of MOF particles throughout the matrix creating permeation highways is beneficial to enhance the CO₂ permeability without adversely affecting the selectivity.
